Errors Incurred in Local Convective Heat Transfer Coefficients Obtained through Transient One-Dimensional Semi-Infinite Conduction Modeling: A Computational Heat Transfer Study

Abstract

In typical turbulent flow problems, detailed heat transfer coefficient (h) maps obtained through short-duration experiments are based on inverse heat transfer methods that take the wall temperatures measured via liquid crystals or infrared thermography as input, and an error minimization routine is adopted to determine the best value of h that satisfies the wall temperature temporal evolution under a certain change in fluid temperature. A common practice involves modeling the solid as a one-dimensional semi-infinite medium by selecting the solid material that has low thermal conductivity and low thermal diffusivity. However, in certain flow scenarios, the neglection of the lateral heat diffusion may lead to significant errors in the deduced h values. It is imperative to understand the reasons behind large errors that may be incurred by using the 1D heat conduction assumption in order to accurately determine high-resolution h maps for better heat exchanger designs in a wide range of thermal management applications. This paper presents a computational heat transfer study on different jet impingement scenarios to demonstrate the errors incurred in the determination of h when calculated under the assumption of one-dimensional (1-d) heat conduction into a solid. To this end, three different cases are studied: (a) single jet, (b) array jet (theoretical distribution), (c) array jet (experimental distribution), along with three different mainstream temperature evolution profiles representing step change, moderately fast transient and slow transient nature of flow driving the heat transfer in the solid. A known distribution of heat transfer coefficient (“true h”) for each of the three cases is considered, and three-dimensional transient heat diffusion equations were solved to populate temperatures of each node in the solid at every time step. It is found that stagnation zones’ h_1d calculations were lower than the “true h” while the low heat transfer zones exhibited significantly higher h_1d compared to the “true h”. For the array jet (experimental distribution) case, it was observed that errors can be as high as 10% in certain low heat transfer zones. Different data reduction procedures, configurations, and conditions explored in this study indicate that a suitable balance can be achieved if shorter time durations in transient experiments are used as a reference for tracking in h_1d calculations to keep the deviations from the “true h” low.

1. Introduction

Accurate determination of heat transfer coefficient is imperative in order to design efficient heat exchangers. Gas turbine blade is a classic example of an advanced heat exchanger that is subjected to hot gases (~1700 °C) exiting the combustor section, and where coolant bled off from the compressor section (~700 °C) is routed through the complex internal cooling passages inside the hollow blades [1]. A comprehensive information on state-of-the-art gas turbine airfoil cooling can be found in [2]. Impingement cooling is typically employed in the leading-edge region of the gas turbine blade, which is subjected to high heat loads due to stagnation of incoming hot gases from the combustor. Typically, a single row of jets spanning the blade height is used to allow coolant to impinge from the internal side [3]. Impinging jets are also arranged in an array form for potential application in the mid-chord region in turbine airfoils. Benchmark correlations on single jet impingement and array jet impingement are provided in [4,5,6], where experiments were carried out under steady-state conditions. In [4,5,6], metal stripes were subjected to constant heat flux, and with the knowledge of metal temperature (measured by thermocouple) and reference fluid temperature, the convective heat transfer coefficient was determined. This method provides regionally averaged heat transfer data that do not necessarily capture the local effects of the impinging jets. With the evolution of advanced thermal diagnostic techniques, researchers have developed heat transfer measurement techniques based on liquid crystal thermography (LCT) and infrared thermography (IRT) which provides surface temperatures in high spatio-temporal resolution.

Some of the earlier investigations on LCT to determine local h using 1-D semi-infinite assumption were carried out by [7,8,9,10]. Comprehensive details about liquid crystal basics [11], operating principles [11], LC-based measurement techniques [12] can be found in the above references. Treatment of target surface as a 1-D semi-infinite medium has been a central assumption in the above techniques [12]. In such short-duration experiments, a sudden change in fluid temperature is achieved, which essentially drives the solid temperature such that all the pixels in the region of interest cross the liquid crystal color change band. With the knowledge of at least one time-temperature pair, an inverse heat transfer technique is adopted to calculate the convective heat transfer coefficient. With the treatment of solid as a 1D semi-infinite medium, the analytical solution of surface temperature evolution with time, is used under the assumption of time-invariant fluid temperature, and an iterative method is adopted to find the value of h for each pixel based on its respective time taken to reach a certain temperature. Since, in actual experiments, obtaining a perfect step change in fluid temperature is not possible, a Duhamel’s superposition principle is applied on the analytical solution of wall temperature evolution for a 1D semi-infinite solid, to account for the temporal variation of the fluid temperature.

Although there have been numerous investigations on the employment of 1-D semi-infinite model using either LCT or IRT, very few studies have been carried out on the critical assessment of this assumption and the extent to which it can yield in reasonably accurate h values, under different flow scenarios. Lin and Wang [13] presented a technique for determining h by modeling 3-D heat diffusion through an inverse heat transfer technique. The authors [13] used liquid crystal thermography for the determination of time taken to reach a particular wall temperature and then used a guess heat transfer distribution to build a revised time matrix and upon the comparison of the built and actual time matrix, subsequent corrections in local h were applied. Above process was repeated until the specified convergence criteria on time matrix (through 3-D heat diffusion based on h-guess and actual time matrix) was met. This technique, however, was different from the typical transient LCT experiment as in [10] where a step change in fluid temperature is required at the start of the experiment and this results in rise or fall in the solid surface temperature. In [13], the test surface was heated suddenly and air was supplied at laboratory ambient conditions. The authors in [13] found that significant differences between the 3-D and 1-D model can be observed particularly at the stagnation regions and the low heat transfer regions between the adjacent jets, in a typical array jet impingement configuration. Heat transfer coefficient obtained through 1-D model was found to be higher by ~20% higher than that obtained from 3-D model in the first row of array jet impingement under maximum crossflow condition. Nirmalan et al. [14] carried out jet impingement experiments on metallic target and compared the lumped capacitance- (0-D) based h with that of the 3-D heat diffusion model. The authors found that h found with 3-D model was ~25% higher than the lumped capacitance model.

More recently, Brack et al. [15] evaluated transient infrared and liquid crystal thermography techniques under 1-D and 3-D heat diffusion modeling for flow over a flat surface and flow over a vortex generator. The benefits of using infrared thermography were demonstrated through the presentation of a time-accurate heat transfer coefficient, whereas the LCT yields one value of h for a given pixel of interest. In both techniques, it was observed that the h obtained through 1-D heat diffusion was higher than that obtained from 3-D heat diffusion and that h_1d continued to change with time while h_3d settled to a constant value. The configuration with larger gradients in h had larger discrepancies between h obtained through 1-D and 3-D methods. Further, fast transient experiments had low differences between h through 1-D and 3-D calculations. Brack et al. [16] presented a comprehensive study on the differences between local h obtained through 1-D and 3-D heat conduction models where a sample impingement configuration (along with five other Bi distributions) was analyzed for different mainstream temperature transient evolution. The authors presented a local distribution of the discrepancy in the form of ${\epsilon }_{1D} \left(=\left(B{i}_{1d}-B{i}^{\ast }\right)/B{i}^{\ast }\right)$, where $B{i}^{\ast }$ is the true Biot number (Bi) distribution. To the best of our knowledge, this was the first time, a local map of ${\epsilon }_{1D}$ was presented. It was shown that in the regions between adjacent jet footprints (low heat transfer zones), 1-D method can overpredict the heat transfer coefficient by ~8% and that the ${\epsilon }_{1D}$ at the stagnation region was below zero (indicating $B{i}_{1d}<B{i}^{\ast }$). Ahmed et al. [17] carried out similar analysis following the approach in [13] for h determination through 3-D calculations for jet impingement case. The h-guess method was adopted, and the initial guess was improved after each iteration by comparing the time matrices obtained experimentally and computationally. The authors considered a single row of impinging jets typical of maximum crossflow condition and carried out 1-D and 3-D computations for h determination and observed that h obtained through 3-D computations following the approach mentioned in [13] was consistently higher than that obtained through 1-D calculations. Literature review on h_1d and h_3d deviations suggests that they are dependent on flow configuration and that most studies have been carried out theoretically except [15,17]. However, the methodologies adopted to determine the h_1d and h_3d deviations in [15] and [17] were different while both studies indicate that large deviations can be observed in cases where gradients in “true h” is large.

To this end, we recognize that the topic of the 1-D versus 3-D heat diffusion computational approach is important since the differences in h between these two approaches can be significant at times, and these differences are often ignored. In this paper, we present a simple exercise to showcase the discrepancy $\epsilon =100\left(h_{3d}-h_{1d}\right)/h_{3d} (\equiv -{\epsilon }_{1d}$ as in [16]) for the case of jet impingement. Three case studies are considered, (a) single jet, (b) array jet (theoretical distribution), and (c) array jet (experimental distribution). The reason behind these choices is to cover different aspects such as monotonically decreasing h distribution (single jet) with steady gradient, sinusoidal variations in h with sharp gradients with analysis on local h variation along the line joining jet centers (high heat transfer zones, similar to [17]) and line bisecting the line joining two adjacent jet centers (low heat transfer zones). Further, an array of experimentally obtained h distribution [18] is used to demonstrate the practicality of the 1-D and 3-D computational approaches and how the $\epsilon$ local variation compares between theoretical and experimental h distributions. Above case studies are evaluated for three different fluid temperature time evolution profiles that are representative of high-performance mesh heaters (similar to ideal step change), moderately fast step change (similar to most transient experiments) and a slow transient (also observed in a few studies). The relative error $\epsilon$ infact depends on several variables partaking in the transient experiments that none of the prior studies reviewed above have explored. The conclusions on the nature of $\epsilon$ is subjective and warrants a comprehensive investigation. This paper attempts to cover the above issue and also provide recommendations for best practices in the design of transient experiments intended toward the determination of local h.

2. Case Study

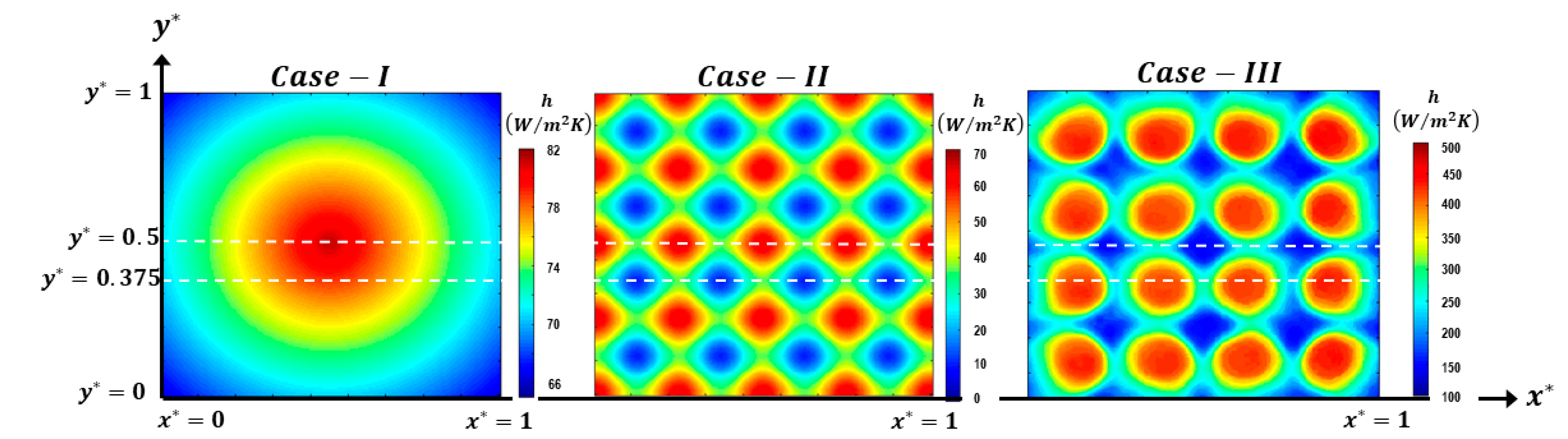

In this paper, three different cases of jet impingement have been studied as mentioned above. In each of the case, a true h ($h_{3d})$ distribution is considered as a first step and is used subsequently for further computational heat transfer calculations. Figure 1 shows the true h distributions of each case.

The single jet case heat transfer coefficient distribution was obtained from the correlation prescribed by Goldstein and Behbahani [4], where the convective heat transfer coefficient was given as,

$$h=\frac{R{e}^{0.6}\left(k_f/d_j\right)}{A+B{\left(x/d\right)}^n}$$

(1)

where A = 4.577, B = 0.4357, n = 1.14. Above correlation was prescribed for nozzle aspect ratio of 12. We have studied h obtained from Equation (1) for Re = 20,000 and 35,200. The target area had a dimension of 76.2 mm × 76.2 mm and a thickness of 12.7 mm. The jet diameter was 25.4 mm. The solid target was discretized into 181 × 181 × 41 nodes and this choice is based on a grid convergence study. The Case II heat transfer coefficient distribution was obtained from Equation (2) and was based on one of the Bi-distribution simulated in [16].

$$h\left(x,y\right)=a+bcos\left(d\pi x\right)+ccos\left(d\pi y\right)$$

(2)

In Equation (2), a = 36.84, b = 13.16, c = 13.16, d = 8.1, values were used to generate the “true h” or simply h_3d (from hereafter) distribution for Case II. The Case III data were extracted from Singh and Ekkad [18] for the moderate crossflow scheme at z/d = 1. Note that the Case III distribution is being used here as h_3d distribution to facilitate discussion on a typical experimental 2D heat transfer distribution that may not be as smooth and well-defined as the theoretical ones (case I and II). In [18], the authors have reported the detailed heat transfer coefficients based on 1-D semi-infinite conduction modeling but in this paper, the extracted h is serving a different purpose.

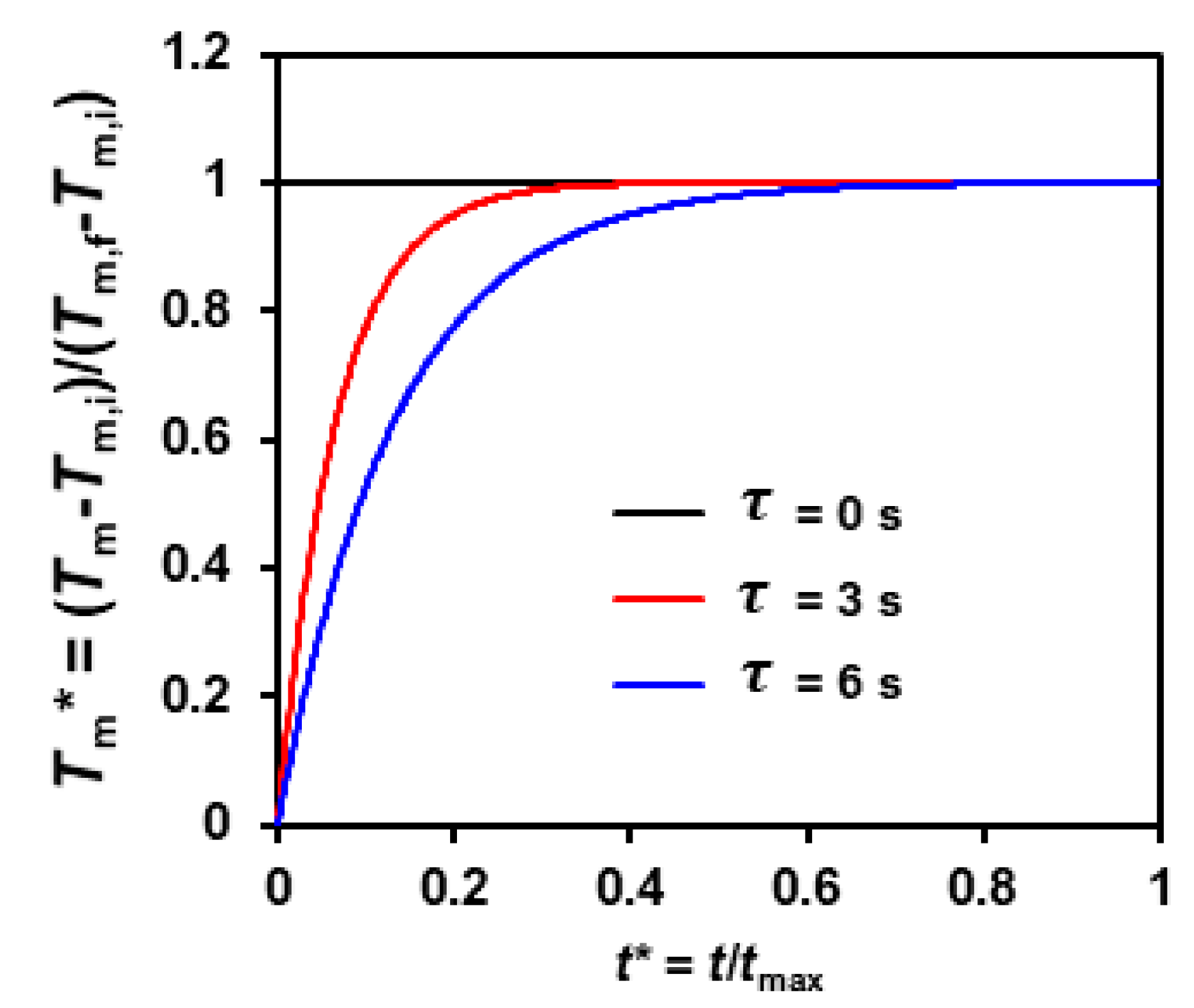

Further, three different mainstream temperature evolutions (typical of heated runs) were studied. Figure 2 shows the three different evolution cases, where the temporal evolution is given by,

$$T_m=T_{m,i}+\left(T_{m,f}-T_{m,i}\right)\left(1-e^{-t/\tau }\right)$$

(3)

The initial temperature for $\tau =0$ (step change) case was 60 ° C, whereas the initial temperature for the $\tau =3\mathrm{s}$ (moderately fast transient) and $\tau =6\mathrm{s}$ (slow transient) was 20 ° C.

Data Reduction Methods

The analysis on the differences between h_3d and that obtained by modeling heat diffusion as strictly one-dimensional (h_1d) has been carried out for different data reduction possibilities.

Table 1. Details of data reduction procedures.

Method #	Method Details	τ	${\mathit{\theta }}_{\mathit{w},\mathit{r}\mathit{e}\mathit{f}}$	${\mathit{t}}_{\mathit{r}\mathit{e}\mathit{f}}$
A	Global wall temperature tracking	0, 3, 6	${\left({\theta }_{w,ref}\right)}_{global}=\frac{T_{w,track}-T_i}{{\left(T_{w,min}\right)}_{global}-T_i}$ ${\left({\theta }_{w,ref}\right)}_{global}={\tilde{\theta }}_{w,ref}=1$	$t_{ref}\left(x,y\right)\to determined from {\tilde{\theta }}_{w,ref}$
B	Global wall temperature tracking	0	${\left({\theta }_{w,ref}\right)}_{global}=\frac{T_{w,track}-T_i}{{\left(T_{w,min}\right)}_{global}-T_i}$ ${\left({\theta }_{w,ref}\right)}_{global}={\tilde{\theta }}_{w,ref}=0.5, 0.75,1$	$t_{ref}\left(x,y\right)\to determined from {\tilde{\theta }}_{w,ref}$
C	Individual pixel tracked to different wall temperatures	0	${\theta }_{w,ref}\left(x,y\right)=\frac{T_{w,track}\left(x,y\right)-T_i}{T_{w@t=t_{max}}\left(x,y\right)-T_i}$ ${\theta }_{w,ref}\left(x,y\right)=0.5, 0.75, 1$	$t_{ref}\left(x,y\right)\to determined from {\theta }_{w,ref}\left(x,y\right)$
D	Individual pixels tracked to same time matrix (each pixel with different wall temperature tracked)	0	${\theta }_{w,ref}\left(x,y\right)\to determined from {\tilde{t}}_{ref}$	${\tilde{t}}_{ref}=t_{track}/t_{max}$ ${\tilde{t}}_{ref}=0.25, 0.5, 0.75, 1$

shows the details of different methods studied in this paper. This paper essentially covers different possible data reduction procedures typically employed in transient heat transfer experiments based on LCT or IRT.

3. Computational Procedure

This paper is aimed toward quantifying the local differences between the h_3d and h_1d, presented as $\epsilon =100\left(h_{3d}-h_{1d}\right)/h_{3d})$. Initially, starting with a known h distribution ($h_{3d})$, the three-dimensional heat diffusion equation (Equation (4)) is used to calculate the temporal evolution of each elements’ temperature in the 181 × 181 × 41 grid. Note that Equation (4) is true when there is no volumetric (internal) heat generation.

$$\frac{\partial T}{\partial t}=\alpha \left[\frac{{\partial }^{2}T}{\partial x^2}+\frac{{\partial }^{2}T}{\partial y^2}+\frac{{\partial }^{2}T}{\partial z^2}\right]$$

(4)

The top surface of the solid was subjected to convective-type boundary condition whereas the backside of the solid was maintained at a fixed temperature ($T_i)$. The remaining four side edges were set as adiabatic. This boundary condition is typical of the short-duration transient LC or IR experiments carried out on clear acrylic where the experimental duration is kept well below the time taken to penetrate the entire solid thickness resulting in the violation of the backside boundary condition of time-invariant wall temperature during the transient experiment.

The analytical solution for surface temperature evolution with time for convection-type boundary condition in 1-D semi-infinite model is given by Equation (5) and is obtained under the above assumption that backside temperature stays fixed at $T_i$ and mainstream temperature is constant. However, our computational methodology is not based on Equation (5) and is entirely based on the finite difference method.

$$\frac{\partial T}{\partial t}=\alpha \frac{{\partial }^{2}T}{\partial z^2}\to T_s=T_i+\left(T_m-T_i\right)\left(1-e^{{\beta }^2}erfc\left\{\beta \right\}\right)$$

(5)

where $\beta =h\sqrt{t}/\sqrt{\rho c_p{k}_s}$.

A computationally inexpensive explicit formulation was adopted to solve the surface and internal element temperatures of the solid where the 3-D heat diffusion given by Equation (4) was solved for each known h distribution at the surface [19]. This 4-D temperature matrix was considered to be equivalent to actual transient experiments carried out on clear acrylic with heat diffusion into the thickness of the solid as well as in lateral directions. The 4-D temperature matrix was built for a time duration of 45 s ($t_{max}$). The in-house explicit formulation was also compared against ANSYS FLUENT solver by modeling the exact same solid with the same spatial and temporal discretization, and a comparison for all three cases is shown in Figure 3, where surface temperature evaluated at $t_{max}$ is plotted at the centerline of the surface. The agreement between in-house code and FLUENT was ~100%, and

Table 2. Comparison of surface temperature calculations at selected locations, as predicted by in-house code and FLUENT code.

$\mathit{x}/{\mathit{x}}_{\mathit{m}\mathit{a}\mathit{x}}$$@{\mathit{y}}^{\ast }=0.5$	Case	${\mathit{T}}_{\mathit{w}} \left[\mathit{K}\right]: \mathbf{in}-\mathbf{House}\mathbf{Code}$	${\mathit{T}}_{\mathit{w}} \left[\mathit{K}\right]: \mathbf{FLUENT}\mathbf{Code}$	% Deviation
0.2	Single jet	314.6332	314.6302	0.000954
	Array jet	310.5477	310.6233	0.024338
	Expt. array	323.1814	323.1100	0.022098
0.4	Single jet	315.2537	315.2469	0.002157
	Array jet	307.6712	307.7099	0.012577
	Expt. array	326.1157	326.0808	0.010703
0.6	Single jet	315.2219	315.2210	0.000286
	Array jet	307.3895	307.4945	0.034147
	Expt. array	326.0993	326.0123	0.026686
0.8	Single jet	314.5972	314.5943	0.000922
	Array jet	310.1424	310.2261	0.02698
	Expt. array	322.5790	322.5407	0.011874
1.0	Single jet	313.9992	313.9777	0.006848
	Array jet	312.1178	312.1614	0.013967
	Expt. array	323.4811	323.3005	0.055861

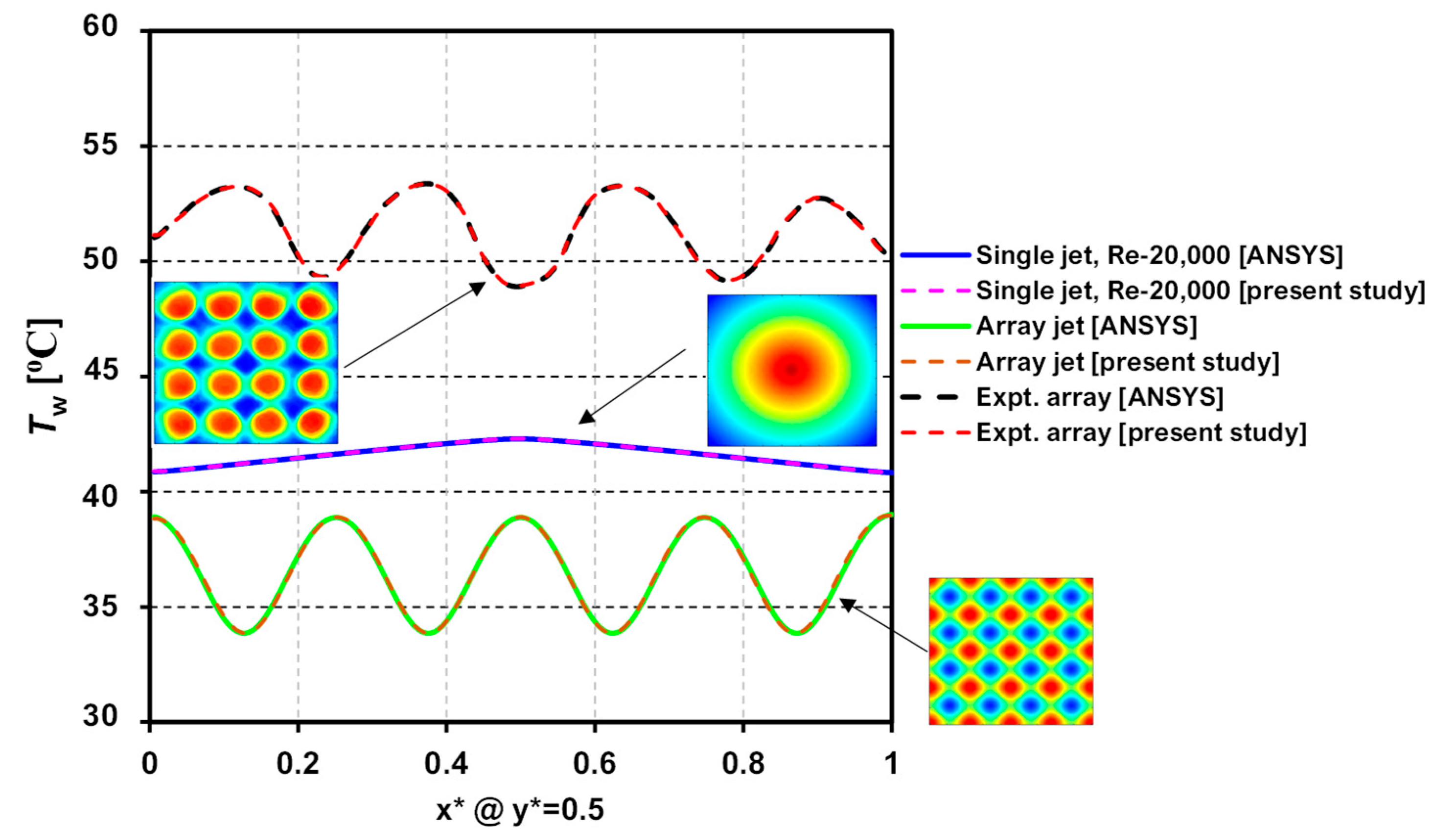

shows the percentage deviations at selected locations, between the in-house code and the FLUENT code. In this paper, we have used our in-house code for both 3-d and 1-d computations, as it can be potentially applied to more complex initial and boundary conditions.

Once the 4-D temperature matrix is built, the surface temperature information is then extracted. This surface temperature is considered to be representative of a typical TLC or IRT test. Now, in the transient LC approach, a certain reference wall temperature is tracked for each pixel and the time taken for that pixel to reach the reference temperature is stored in a time matrix. This time matrix is then used in Equation (5) to iteratively determine the only unknown h (=h_1d). If the mainstream temperature varies with time, Equation (5) is further modified by using Duhamel’s superposition principle, for details see [12]. In our 3-D heat conduction solver, the time variation of mainstream temperature feature is included.

In this paper, to calculate $h_{1d}$, firstly a time matrix is built for Methods A–C (Table 1) corresponding to method-specific wall temperature to be tracked. In method D, a certain time matrix was taken, and the corresponding reference wall temperature was determined/tracked. In all methods and configurations, $h_{1d}$ was then found using the method detailed in [20] and is not repeated here in the interest of brevity. With the knowledge of $h_{1d}$, the local difference $\epsilon =100\left(h_{3d}-h_{1d}\right)/h_{3d}$ was calculated and reported both in local and line variation formats.

4. Results and Discussion

In this section, we present our analysis on $h_{1d}$ and $h_{3d}$ obtained for the four methods (A–D) outlined in Table 1.

4.1. Method A: $h_{1d}$ and $h_{3d}$ Deviations at a Fixed ${\tilde{\theta }}_{w,ref}=1$, $\tau =0,3,6$

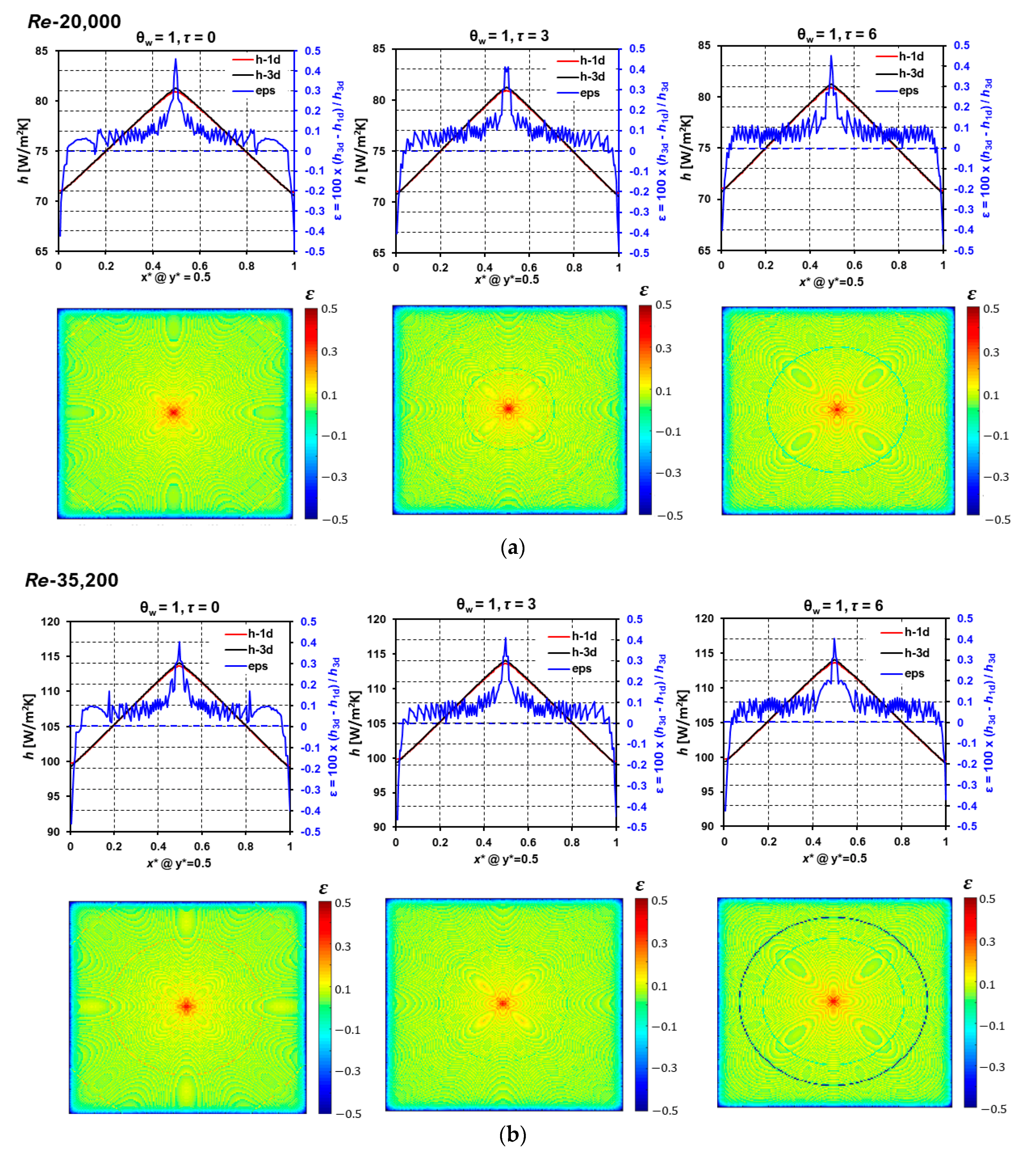

This section presents the results obtained from the above procedure for the three cases. Firstly, for the single jet case, Figure 4 shows the comparison of $h_{1d}$ and $h_{3d}$ along with the $\epsilon$ variation at the surface centerline. For Re = 20,000 cases and the step change in the mainstream temperature, the $h_{3d}$ was found to be higher than $h_{1d}$ at the jet stagnation, whereas the 1-D and 3-D h differences in radially outward direction were minimal.

Toward the edge of the solid (treated as adiabatic), the trends, however, flip. Similar trends were observed for the moderate and slow transients, with increasing differences $h_{1d}$ and $h_{3d}$, where the jet stagnation region uncertainties continue to drop and $\epsilon$ going below zero. It can be concluded that $h_{1d}$ and $h_{3d}$ differences depend upon the local gradient in h as well as the mainstream temperature evolution. The scatter in $\epsilon$ is attributed to the grid resolution. To further explore the h gradient effect, we also investigated higher Re = 35,200 and found that the trends were similar to Re = 20,000.

In contrast to above finer points about the differences between $h_{1d}$ and $h_{3d}$, it should be noted that the % differences were between −0.2% to 0.3% or ~$\pm 0.25\%$ around the zero error. To a heat exchanger designer, these differences are negligible in comparison with the measurement uncertainties itself (typically ~10% for TLC experiments). Above conclusions are true only for the straightforward case of single jet with monotonically decreasing h from the jet footprint center.

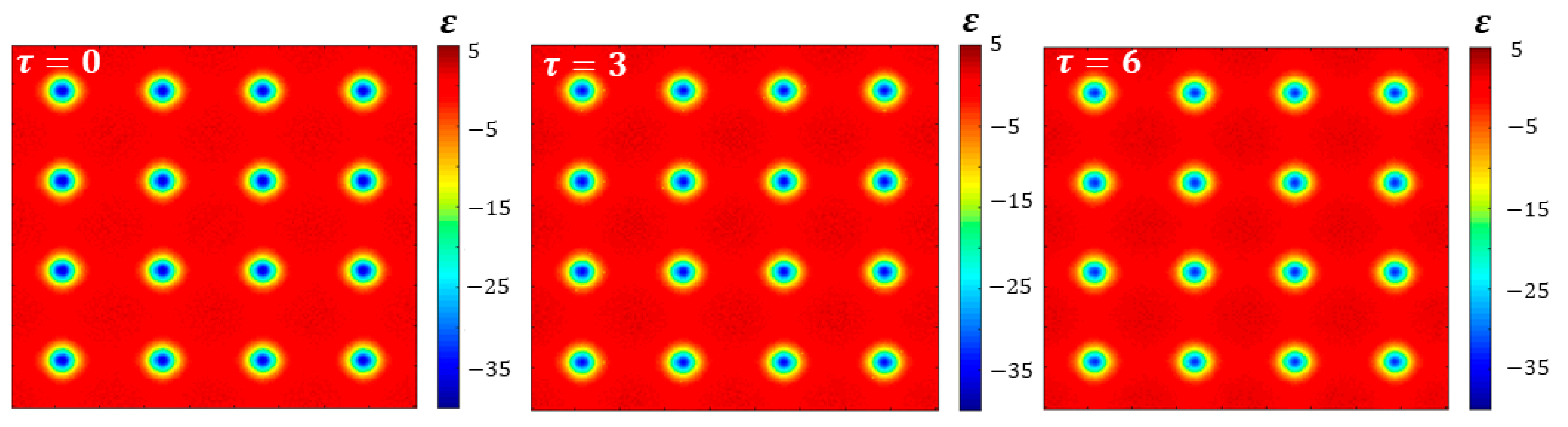

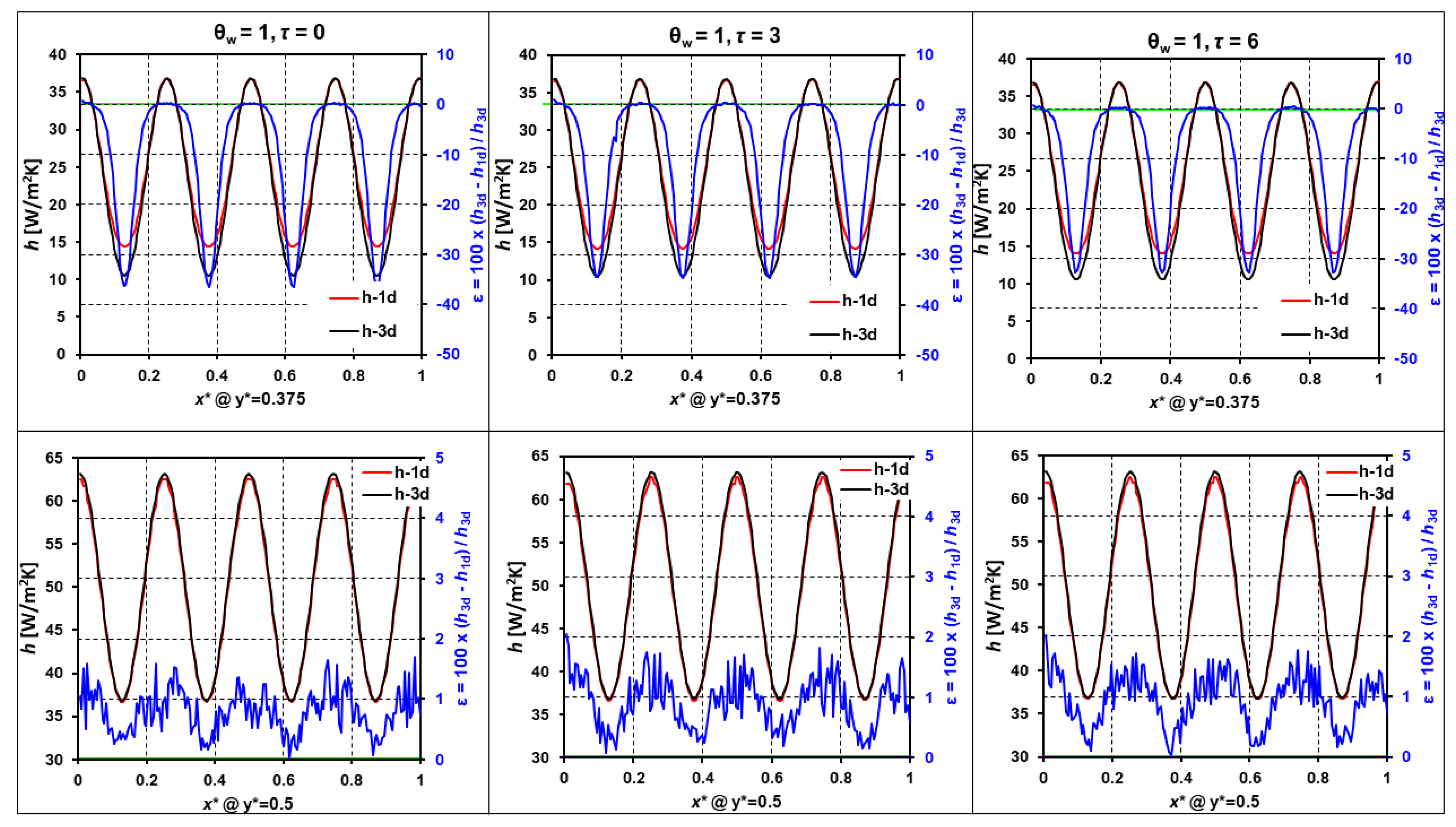

For the array jet impingement (theoretical distribution) case, local h has been plotted with x* at two different y* locations of 0.375 and 0.5, where y* = 0.375 line passes through the low heat transfer regions, which typically occur in the gaps between adjacent jets while y* = 0.5 passes through the stagnation regions (Figure 5). The low heat transfer line (y* = 0.375) had a significant difference between $h_{1d}$ and $h_{3d}$ particularly in the regions with the lowest heat transfer, where the 1-D model over-calculated the local h by as much as 35% in reference to the h_3d. However, at the relatively high heat transfer regions (still on the low heat transfer line, y* = 0.375), $h_{1d}$ and $h_{3d}$ yield in nearly similar local h, with $h_{3d}$ slightly greater than $h_{1d}$.

This difference, however, was negligible in reference to the low heat transfer region discrepancies. This trend is a major takeaway from this study that 1-D conduction models should be applied carefully as they can sometimes lead to significantly overpredicted cooling rates in local heat transfer zones. Discrepancies between $h_{1d}$ and $h_{3d}$ for high heat transfer line (y* = 0.5), on the other hand, were very different when compared to y* = 0.375. 1-D modeling yields near accurate h values for line intersecting stagnation points, where $h_{3d}$ was consistently higher (~1%) than $h_{1d}$. A similar trend was observed in [17].

Figure 6 shows the local deviation between $h_{1d}$ and $h_{3d}$ and it can be observed that the low heat transfer regions exhibited large discrepancies as compared to the jet stagnation regions (high heat transfer zones). In other words, a 2-D h distribution obtained from 1-D semi-infinite heat conduction model may give the wrong message that if such a cooling system is adopted, the resultant thermal stresses will be lower since the gradient in h obtained would be smaller as compared to the h obtained via modeling three-dimensional heat diffusion. Note that the mainstream temperature evolution did not have a very prominent effect on the $h_{1d}$ and $h_{3d}$ deviations.

The last case (III) is based on h distribution extracted from Singh and Ekkad [18], where the authors investigated target wall heat transfer for an impingement-effusion system for low jet-to-target spacing. The jet-to-jet spacing was six times the jet diameter, hence providing significant room for low heat transfer regions, which is the ideal case for this study since we learned from the theoretical array jet impingement distribution that low heat transfer zones exhibit significant discrepancies between $h_{1d}$ and $h_{3d}$. Note that h presented in [18] was determined through modified Equation (5), where heat diffusion was considered as 1-D. Here we are using the h presented in [18] as a realistic 2D distribution to perform $h_{1d}$ and $h_{3d}$ deviation analysis.

The experimentally obtained h distribution facilitates much-needed discussion on the discrepancy between $h_{1d}$ and $h_{3d}$ since the 2D distribution, in this case, has local fluctuations in h as well, due to the several factors involved in experiments such as inherent surface roughness on “smooth” targets, liquid crystal paint spray-induced roughness, camera resolution, etc. These local fluctuations in h may have a profound effect when lateral conduction is considered, and hence, Case III has been considered in this demonstration study. To the best of the author’s knowledge, such a local discrepancy between $h_{1d}$ and $h_{3d}$ for an experimental h distribution has not been presented before.

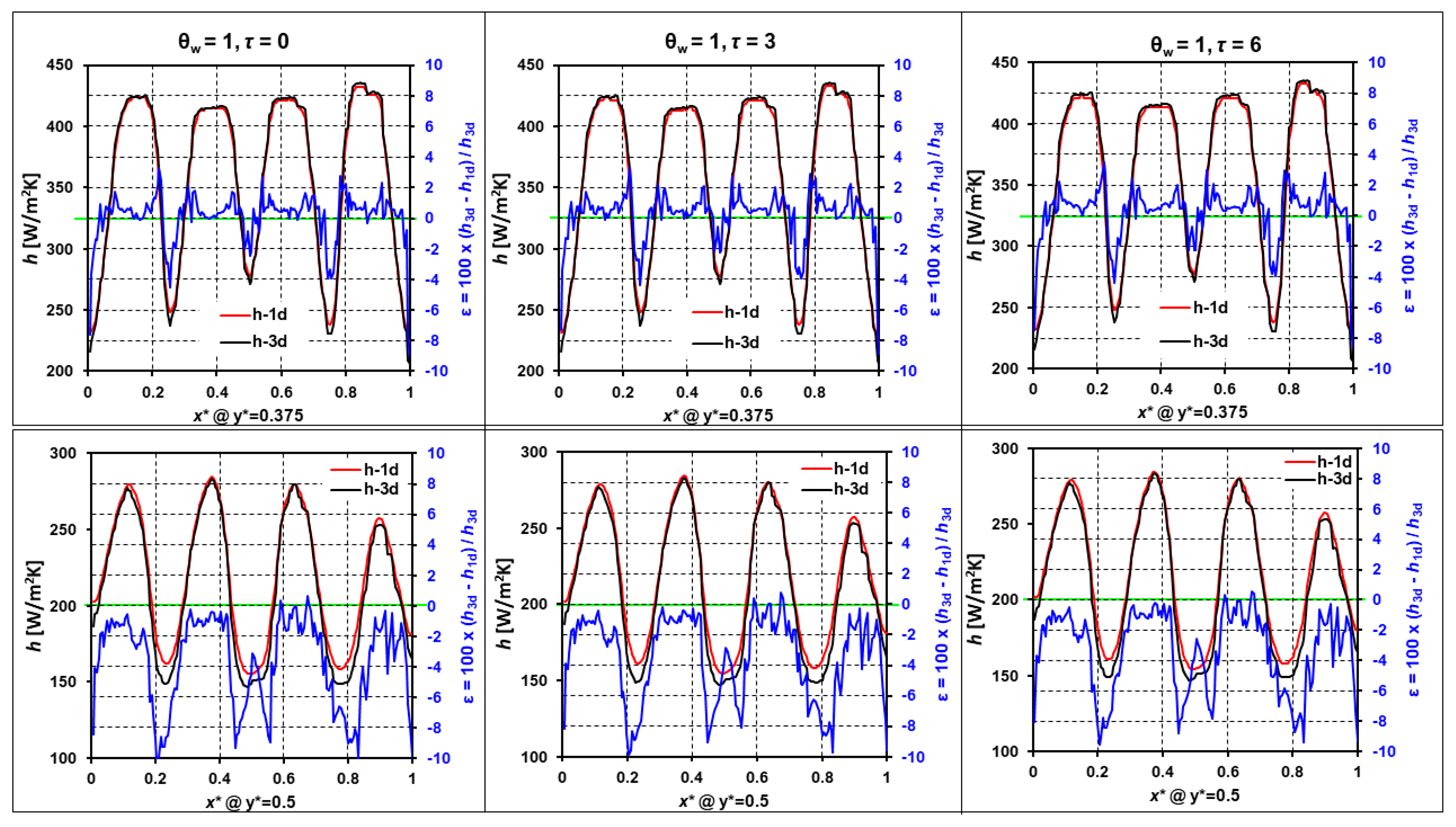

Figure 7 shows the $h_{1d}$ and $h_{3d}$ deviations for Case III, where the line y* = 0.375 now corresponds to the high heat transfer zones and y* = 0.5 to the low heat transfer zones (Figure 1). Similar to Case II, the low heat transfer line had significant differences between $h_{1d}$ and $h_{3d}$, where $h_{1d}$ yielded in ~10% higher values of h in the low heat transfer zones falling on the low heat transfer line y* = 0.5. The discrepancy in Case III is lower than in Case II; however, the values depend upon several factors involved in the transient experiments.

It is pointed out that local fluctuations in real h values may have a noteworthy impact on the $h_{1d}$ and $h_{3d}$ deviations. On the high heat transfer line y* = 0.375, the $h_{1d}$ and $h_{3d}$ deviations were almost non-existent, with $h_{3d}$ slightly higher than $h_{1d}$ at the stagnation regions. From the contour of $h_{1d}$ and $h_{3d}$ deviations (Figure 8), it is observed that regions with smaller gradients in local true h values, whether it corresponds to low or high heat transfer zone, the $h_{1d}$ and $h_{3d}$ deviations are nearly zero and can be safely ignored from the cooling design point of view. Note that the mainstream temperature time constant did not have a prominent effect on the $h_{1d}$ and $h_{3d}$ deviations in this case as well. We now explore other methodologies (B–D) that could be adopted for h determination for the step change in mainstream temperature case only (i.e., τ = 0).

4.2. Method B: $h_{1d}$ and $h_{3d}$ Deviations at a Fixed $\tau =0$, ${\tilde{\theta }}_{w,ref}=0.5,0.75,1$

In Section 4.1, we presented cases with ${\theta }_{w,ref}=1$, which is tracking the same wall temperature for each pixel, and the wall temperature, in that case, was the global minimum wall temperature at the end of the transient experiment/simulation (t_max = 45 s). In this section, we present the effect of the choice of wall temperature to be tracked on the differences between $h_{1d}$ and $h_{3d}$. To this end, three different cases have been considered, which correspond to all pixels tracked to ${\theta }_{w,ref}=0.5, 0.75, 1$. Note that ${\theta }_{w,ref}=1$ for $\tau =0$ has already been presented in Section 4.1, but here we have presented it again to facilitate comparisons for different ${\theta }_{w,ref}$ values.

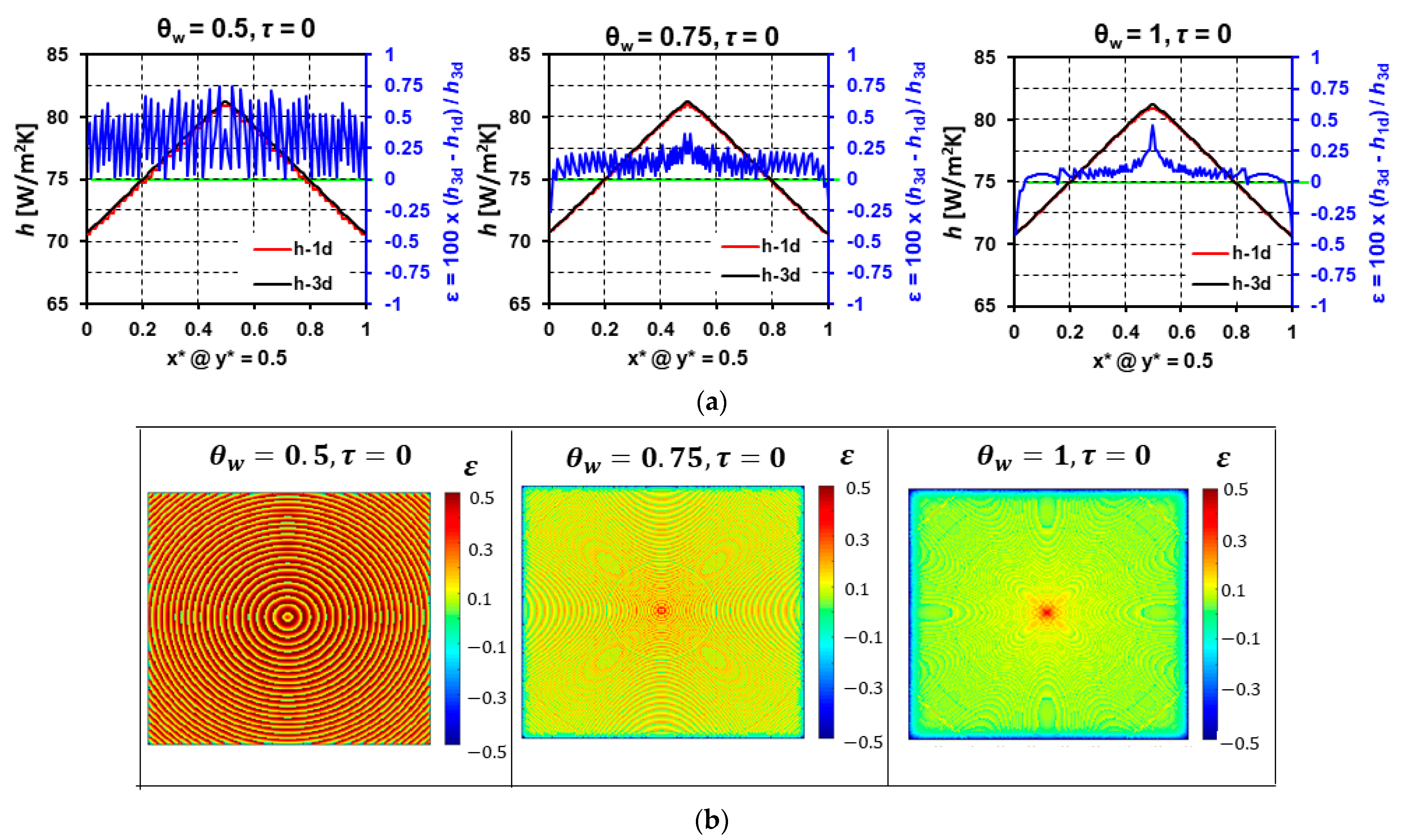

Consider Case I of a single jet for Re = 20,000 at $\tau =0$. Figure 9a presents the $h_{1d}$ and $h_{3d}$ deviations for the three wall temperature tracking methods. For the shortest time duration tracking, i.e., ${\theta }_{w,ref}=0.5$, we observed noise in $h_{1d}$ and $h_{3d}$ difference data, which is attributed to spatio-temporal resolution. For higher ${\theta }_{w,ref}$ cases, the $h_{1d}$ and $h_{3d}$ deviations show a fixed trend where maximum deviation was observed at the jet stagnation and that $h_{3d}$ was consistently higher than $h_{1d}$, except for the edges of the solid. This is again expected for a stagnation zone. The effect of ${\theta }_{w,ref}$ choice did not make much difference in the $h_{1d}$ and $h_{3d}$ deviations in Case I. Figure 10b shows the local $h_{1d}$ and $h_{3d}$ deviations where the edge effects can be seen clearly, along with the stagnation region’s deviation, where $\epsilon >0$.

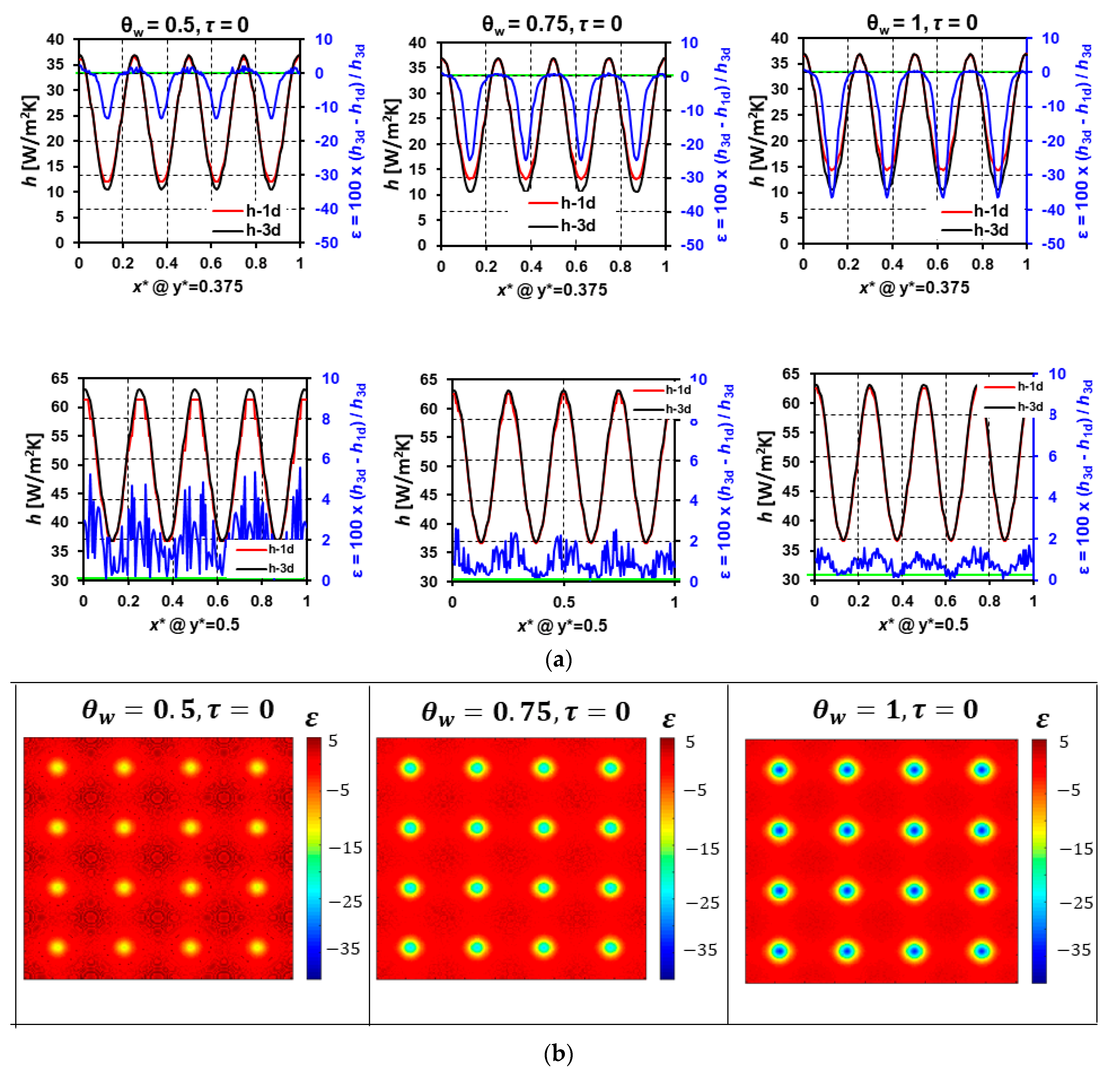

Figure 10 shows the $h_{1d}$ and $h_{3d}$ deviations along two lines y* = 0.375 and 0.5, as well as local deviations for Case II. The y* = 0.375 line showed maximum deviations at the low heat transfer regions where $h_{1d}$ was significantly higher than $h_{3d}$, as observed for the ${\theta }_{w,ref}=1$ case presented earlier. The effect of ${\theta }_{w,ref}$ on resultant deviations in $h_{1d}$ and $h_{3d}$ can be seen where higher wall temperature tracking led to increasing deviations between $h_{1d}$ and $h_{3d}.$ Hence, it is recommended that transient experiments be designed in a way that the wall temperature to be tracked is smaller, e.g., ${\theta }_{w,ref}=0.5$. The high heat transfer line, on the other hand, had $h_{3d}>h_{1d}$ for all three ${\theta }_{w,ref}$ with ${\theta }_{w,ref}=0.5$ showing stronger fluctuations in deviation, which is attributed to grid resolution and time steps. It can be concluded that for high heat transfer zones, ${\theta }_{w,ref}$ does not have a significant effect on the deviations and that overall $h_{3d}>h_{1d}$ by ~1%. The above trend for the high heat transfer line was also observed by [16,17]. The local deviations in $h_{1d}$ and $h_{3d}$ as shown in Figure 10b demonstrate the above effect of ${\theta }_{w,ref}$ on the errors. Such a contour was also shown by Brack et al. [16] for a theoretical distribution of h representative of typical array jet impingement, where one jet at the center corresponding to the stagnation and the surrounding four were essentially the low heat transfer zones.

For Case III, the $h_{1d}$ and $h_{3d}$ deviations were smaller in general, and the effect of ${\theta }_{w,ref}$ was also reduced when compared to Case II. It can be deduced from the six sub-plots in Figure 11a that there exists a trade-off between the low heat transfer and high heat transfer zones. It still appears to be a suitable strategy to track ${\theta }_{w,ref}=0.5$ in order to keep the low heat transfer zones with lower deviations since those zones exhibit significant deviations, as observed in other cases, and the high heat transfer zones have lower deviations (~1%). From the contour (Figure 11b), it becomes increasingly clear that the ${\theta }_{w,ref}$ effect gets flipped for high and low heat transfer zones as we move from lower to higher values of ${\theta }_{w,ref}.$

From an overall globally averaged deviations perspective, ${\theta }_{w,ref}=0.5$ is a better choice of reference temperature tracking where $h_{3d}$ is consistently higher than $h_{3d}$ with deviations within 4%. We did not track, ${\theta }_{w,ref}<0.5$ because of degrading spatial resolution in the context of local h and time step marching (dt). From the liquid crystal thermography uncertainty point of view, ${\theta }_{w,ref}=0.5$ is recommended since it corresponds to lower uncertainties and that either direction of wall temperature (${\theta }_{w,ref}〈0.5 or {\theta }_{w,ref}〉0.5$) tracking would lead to higher uncertainties [21].

However, from a theoretical perspective, one can always go for ${\theta }_{w,ref}<0.5$ to analyze the further effects of this parameter on $h_{1d}$ and $h_{3d}$ deviations.

4.3. Method C: $h_{1d}$ and $h_{3d}$ Deviations at a Fixed $\tau =0$, ${\theta }_{w,ref}\left(x,y\right)=0.5,0.75,1$

Note that so far, we have been analyzing a “global” wall temperature tracking method, where all pixels were tracked to the same wall temperature. This case is representative of typical transient liquid crystal thermography experiments where liquid crystals change color at a certain temperature band, and usually, a certain wall temperature corresponding to a particular color content and/or Hue value is considered as a reference temperature. Note that in such methods, the time taken to reach a particular fixed reference wall temperature may vary significantly depending upon the “true” h distributions. This may lead to significant uncertainty in h, as well as three-dimensional heat diffusion effects becoming prominent at longer time instances, particularly in the low heat transfer zones.

In Method C, the maximum temperature attained by each pixel ($T_{w@t=t_{max}}\left(x,y\right)$) is determined, and the reference wall temperature that was tracked for each pixel was a function of $T_{w@t=t_{max}}\left(x,y\right)$, according to ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)=0.5,0.75,1$. In this method, each pixel is tracked to its own unique temperature, and such a method can be adopted in transient infrared thermography experiments where the time history of each pixel’s temperature is measured.

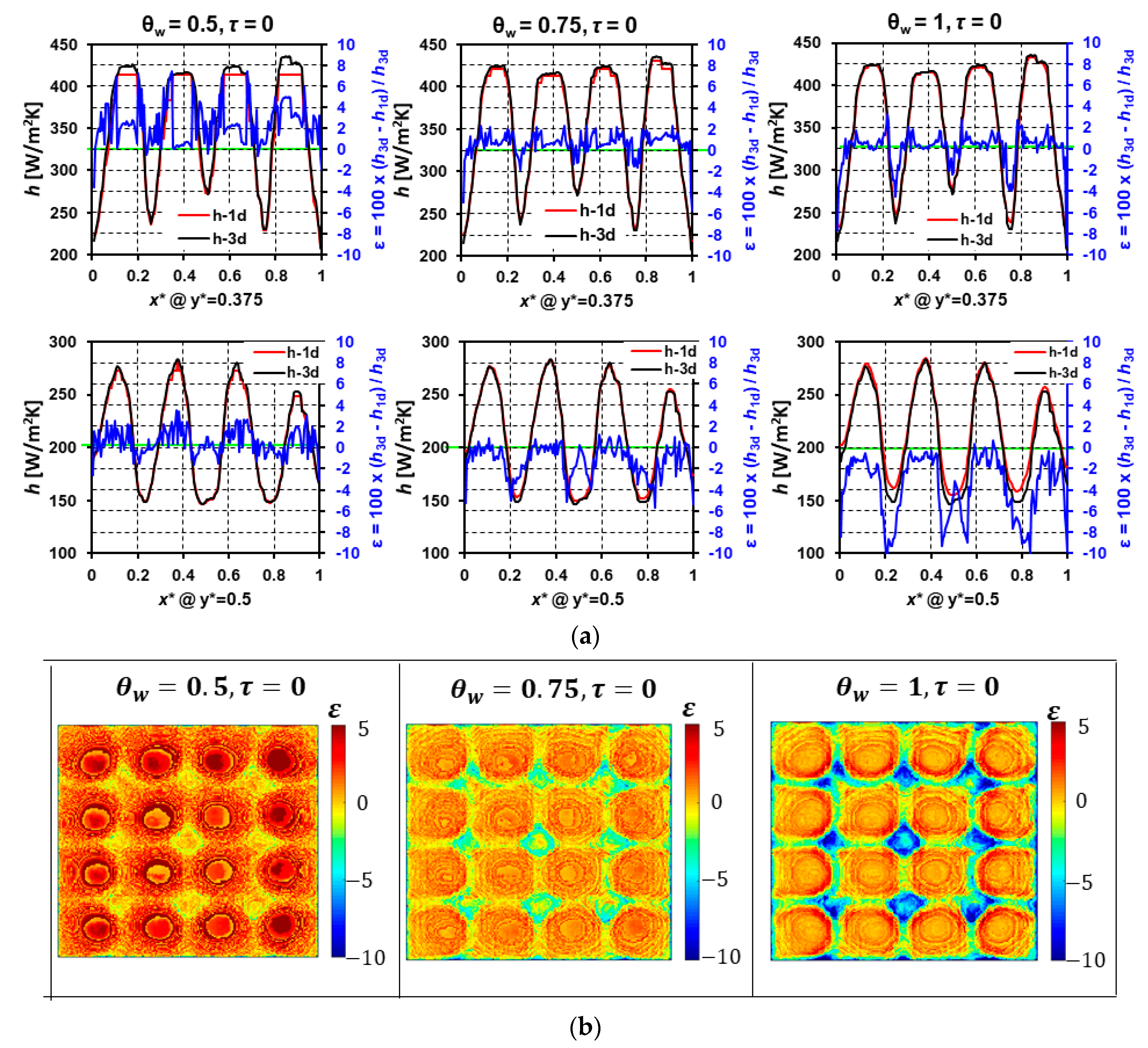

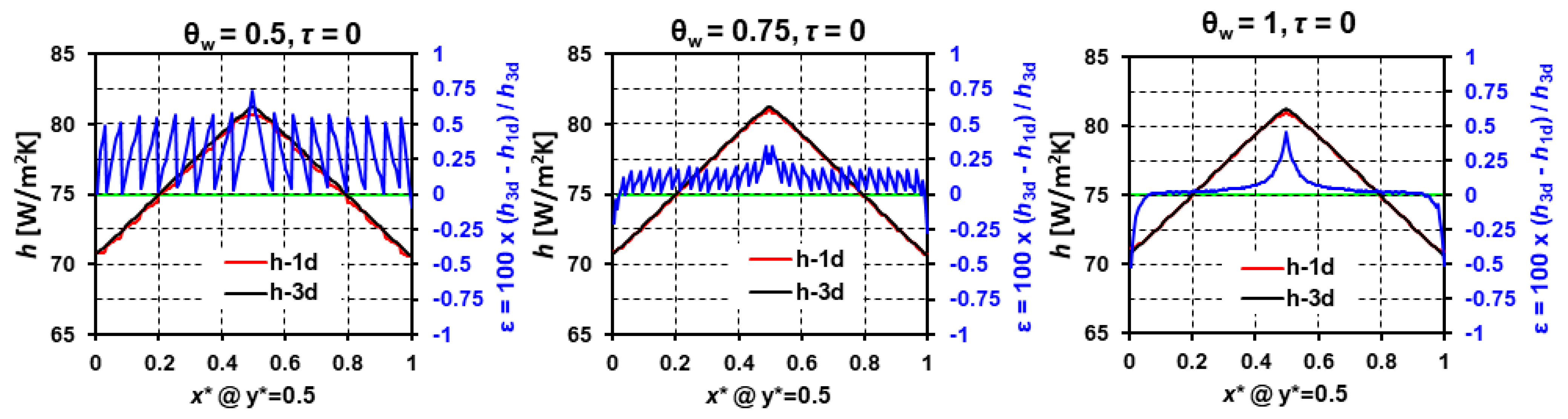

Figure 12 shows the $h_{1d}$ and $h_{3d}$ deviations for single jet configuration (Case I) for Re = 20,000 and τ = 0 for three values of ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right).$ The first case (${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)=0.5)$ exhibited effects of spatio-temporal resolution issues, with $h_{3d}>h_{1d}$. The $h_{1d}$ and $h_{3d}$ deviations tend to reduce in the wall jet region with increasing ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)$ while stagnation region deviations increased and converged to a sharp peak for ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)=1$ case. Note that these deviations are still very small and can be safely neglected. However, such a practice cannot be generalized for other singe jet studies, and each case should be evaluated exclusively since $h_{1d}$ and $h_{3d}$ deviations also depend upon the true h(x,y).

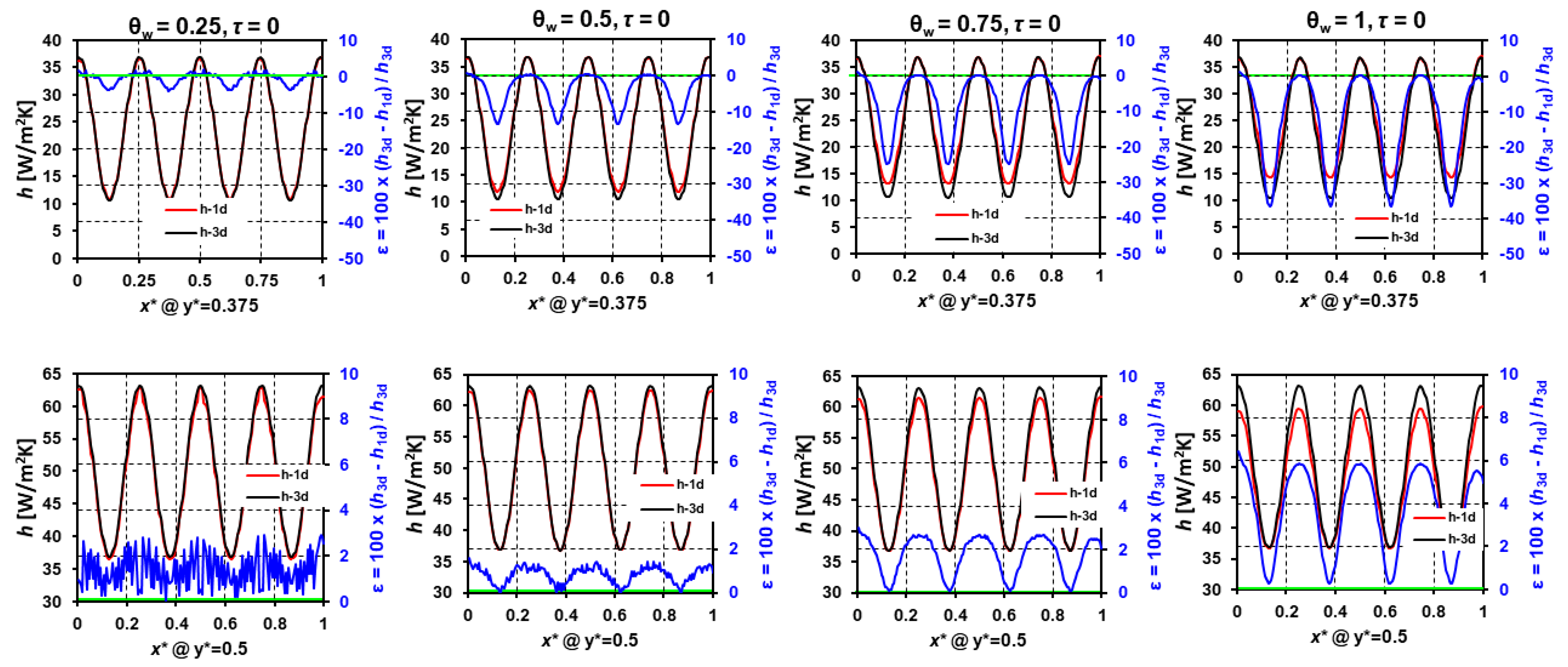

Figure 13 shows the ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)$ effect where the true h distribution and spatio-temporal resolution allowed coverage of ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right) \to \left(0.25,1\right)$. For the low heat transfer line, clearly, the smaller value of ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)$ had significantly lower $h_{1d}$ and $h_{3d}$ deviations compared to ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)=1$. Note that on the low heat transfer line, mostly $h_{1d}$ was higher than $h_{3d}$, except for the relatively higher heat transfer zones (still on low heat transfer line y* = 0.375); however, those deviations can be ignored compared to that of the former. A reverse trend could be observed on the high heat transfer line (y* = 0.5), where $h_{3d}>h_{1d}$ with larger deviations around the stagnation region. On high heat transfer line as well, a choice of smaller ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)$ would yield low values of deviations between $h_{3d}$ and $h_{1d}$. Hence a best-case scenario for case study # 2 is a choice of ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)=0.25$ where deviations between $h_{3d}$ and $h_{1d}$ would be $\pm 2\%.$ However, a separate study on uncertainty analysis is recommended for such choices of short-duration transient experiments.

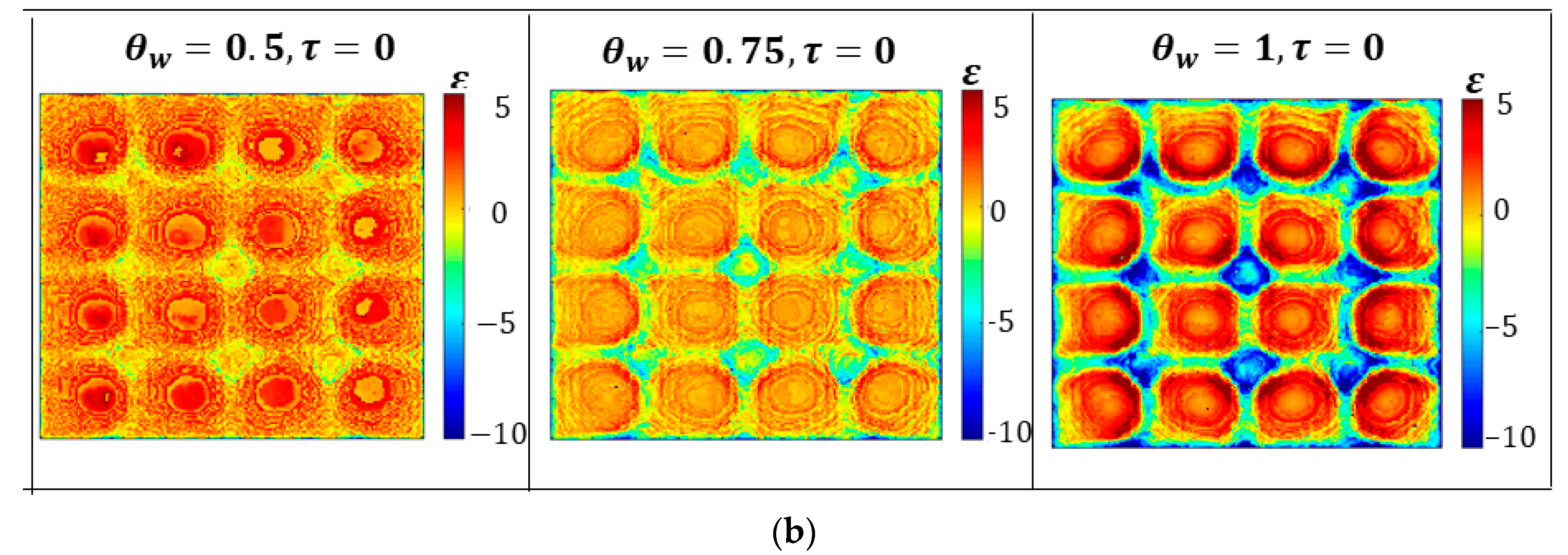

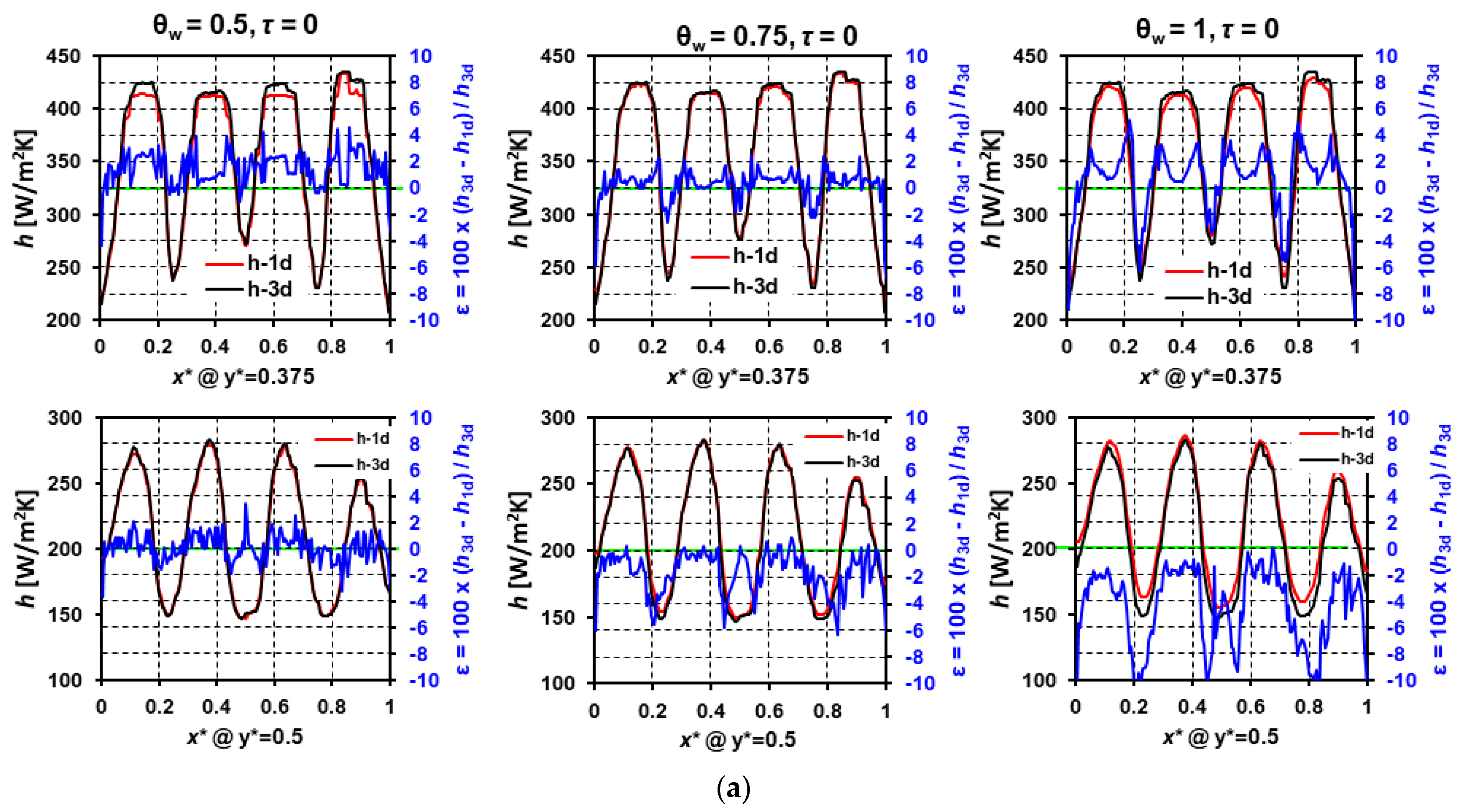

Figure 14 shows the $h_{1d}$ and $h_{3d}$ deviations for Case III with effects of ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right).$ It can be observed that the deviations are random in nature, with major trends similar to those observed in Cases I and II. The contour of $h_{1d}$ and $h_{3d}$ deviations provide valuable information at both local and global levels. Overall, ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)=0.5$ and $0.75$ appears to be balanced choices to keep the deviations at both stagnation and low heat transfer zones at low levels, in this case, $\pm 5\%.$ It is recommended that experimental studies involving transient infrared thermography perform the sensitivity analysis of ${\theta }_{w,ref}\left(\mathrm{x},\mathrm{y}\right)$ on ε, since this is a case-dependent result.

4.4. Method D: $h_{1d}$ and $h_{3d}$ Deviations at a Fixed $\tau =0$, ${\tilde{t}}_{ref}=0.5,0.75,1$

Methods C and D are similar in the way that each pixel’s wall temperature tracking is different. In Method D, each pixel is tracked up to a certain time instance in a transient experiment, which leads to different wall temperatures being tracked. Again, this method as well can only be employed in transient infrared thermography experiments or transient experiments employing wide band liquid crystals.

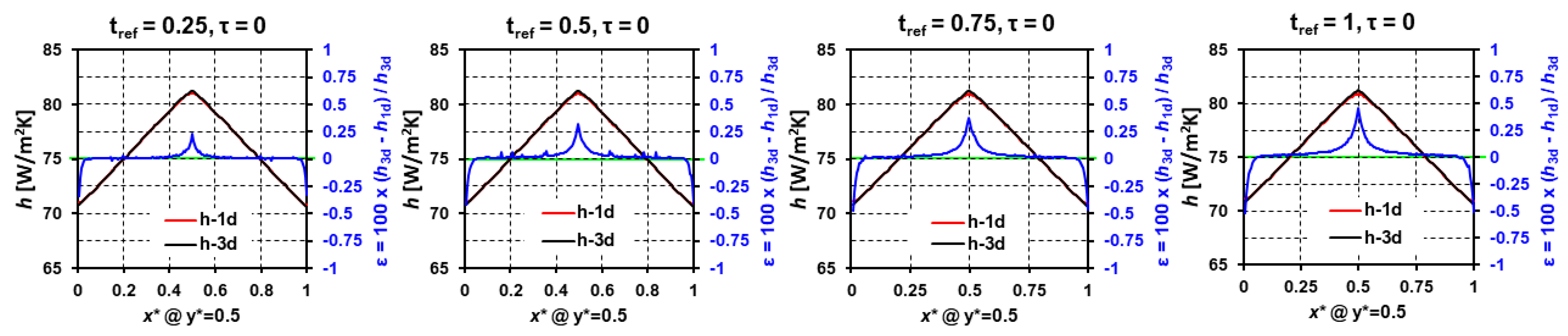

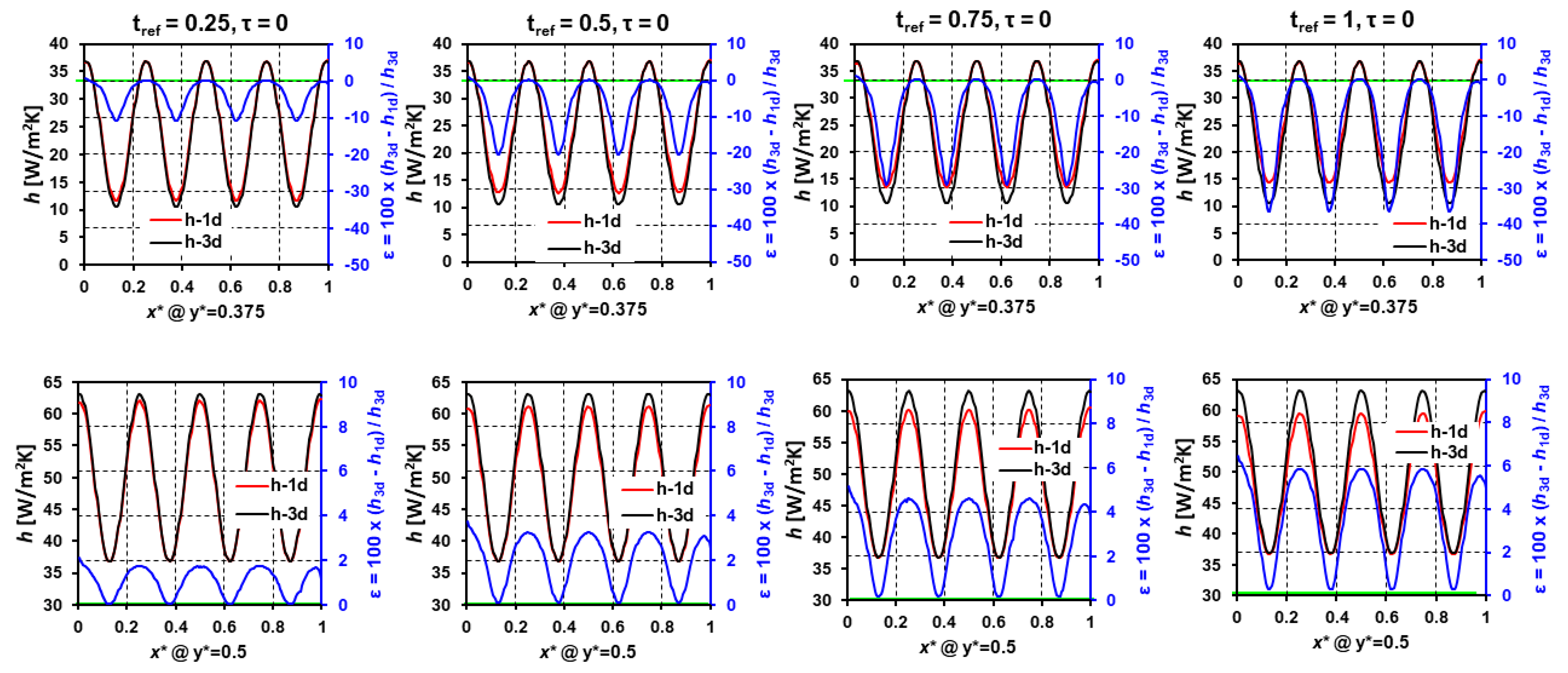

Figure 15 shows the $h_{1d}$ and $h_{3d}$ deviations for Case I where the effect of ${\tilde{t}}_{ref}$ is presented. The underlying trends observed in Methods A-C still hold true in this method as well, where shorter time duration-based wall temperature tracking yields lower deviations in $h_{1d}$ and $h_{3d}.$ Overall, the wall jet region deviations were nearly zero, with stagnation point deviation increasing monotonically with increasing ${\tilde{t}}_{ref}$; however, the maximum percentage deviation was still below 0.25%, which can be safely neglected in this particular case. Figure 16 shows the deviations on low and high heat transfer lines for the Case II theoretical array jet impingement distribution. The trends of $h_{1d}$ and $h_{3d}$ deviations flip for the low and high heat transfer lines. At the stagnation zones, $h_{1d}<$ $h_{3d}$ while for the line passing through the low heat transfer zones, the $h_{1d}>h_{3d}$, where the low heat transfer line deviations were significantly larger than that of the high heat transfer line. Further, with increasing time matrix values, the deviations tend to increase for both the high and low heat transfer lines. The worst-case scenario for the deviations was the highest ${\tilde{t}}_{ref}=1$ where the deviations were between −30% to +5%. Hence, on a direct comparison between Cases I and II, one can clearly see the effect of large gradients in the true heat transfer coefficient on the $h_{1d}$ and $h_{3d}$ deviations.

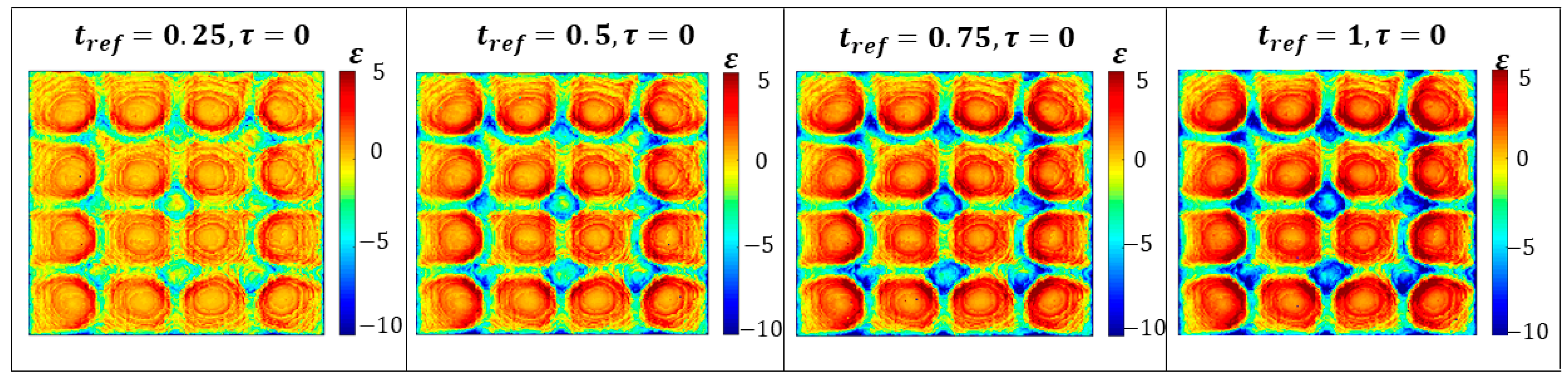

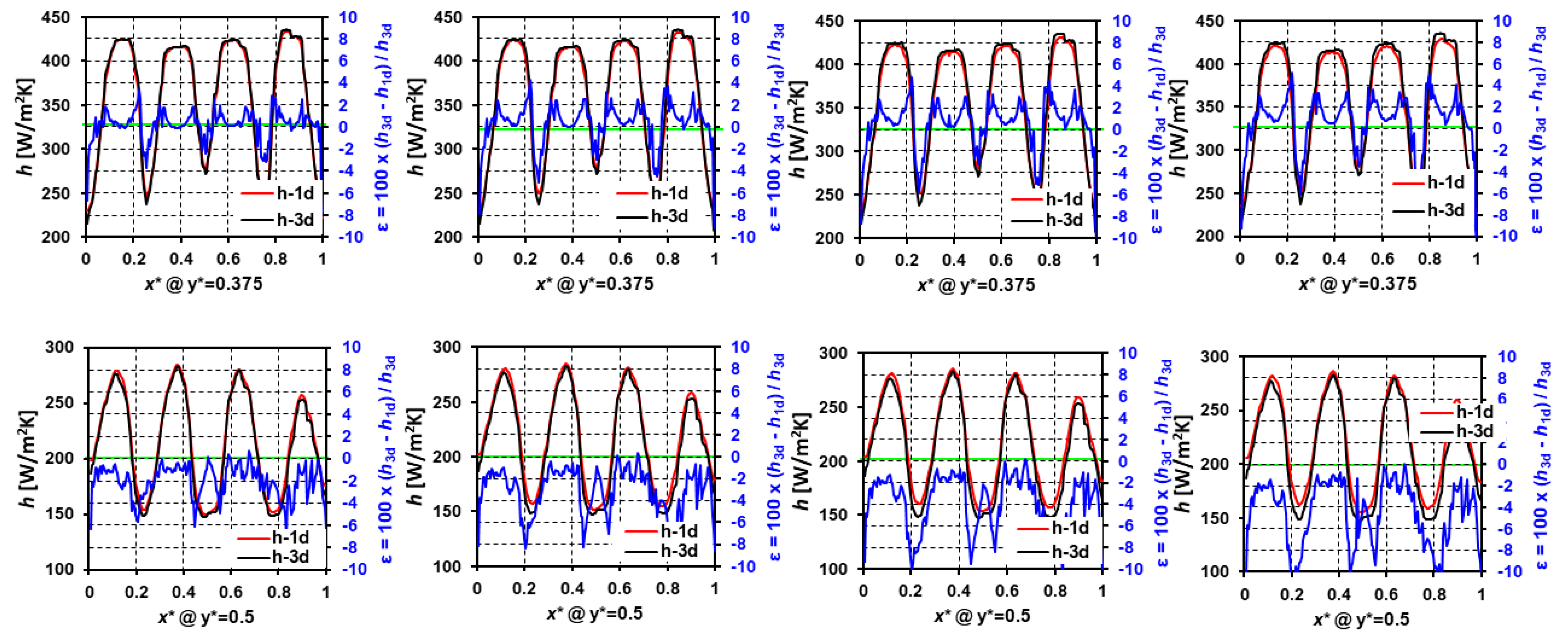

Figure 17 shows the $h_{1d}$ and $h_{3d}$ deviations for Case III of typical experimentally obtained distribution of h. The overall trends observed for the high and low heat transfer lines for Case II hold true here as well, with deviations increasing with increasing time instances to be tracked. Further, the deviations at the jet stagnation point and in its close vicinity were found to be low only because of the nature of the experimentally obtained h distribution as the local gradients in h right underneath a jet was low. It appears that the $h_{1d}$ and $h_{3d}$ deviations correlate with the local gradients in the h distribution as well. The above point is elucidated by the following contour of $h_{1d}$ and $h_{3d}$ deviations for Case III (Figure 18).

The local of $h_{1d}$ and $h_{3d}$ deviations at the stagnation and at the low heat transfer zones between adjacent jets increased with increased ${\tilde{t}}_{ref}$. Further, the local deviations depend upon the local gradient in true heat transfer coefficient distribution. In this particular case of experimentally obtained h, the gradient in h at the jet stagnation was low, which resulted in overall lower deviations, which is different from what we observed for Case II. It is recommended that experimentally obtained h from 1-D semi-infinite conduction modeling should be re-evaluated for their discrepancies in obtained h in reference to the actual one. Such an evaluation would provide valuable information to the cooling designers as well as experimentalists to make better decisions on cooling designs and the design of experiments (DOE), respectively.

5. Conclusions

A computational heat transfer study is presented to demonstrate the local deviations (from true h) in convective heat transfer coefficient values obtained when heat diffusion into the target surface is modeled as one-dimensional. Jet impingement-based case studies have been undertaken as they exhibit large gradients in true h, which is ideal for this demonstration study. Three pre-defined h distributions have been considered, and three-dimensional transient heat diffusion equations were solved for each node to determine the spatio-temporal evolution. This information was used as a reference for comparison with h through one-dimensional heat diffusion modeling. Major takeaways from this study are as follows:

• For the single jet impingement case, the deviations between $h_{1d}$ and $h_{3d}$ were low since it mostly comprised of stagnation heat transfer zone;
• Mainstream temperature evolution had minimal effect on the $h_{1d}$ and $h_{3d}$ deviations;
• In all the cases, the locally high h zones exhibited $h_{1d}$ < $h_{3d}$, while the zones with low heat transfer exhibited $h_{1d}$ >$h_{3d}$. For the array jet (experimental distribution) case, it was observed that errors can be as high as 10% in certain low heat transfer zones;
• The low heat transfer deviations in cases II and III were significantly larger as compared to the high heat transfer deviations.
• Time or wall temperature tracking, which corresponds to shorter transient experiment durations for a certain pixel yield in low levels of $h_{1d}$ and $h_{3d}$ deviations;
• For LC-based studies, it is recommended that multiple bands be used in order to keep the test duration short while still balanced for both stagnation and low heat transfer zones;
• IRT-based methodologies have clear benefits over LC, as they offer more control over the choice of wall temperature or time instance to be tracked for h computations.

Note that this study was carried out for a particular case of impinging jets where the solid surface was flat. Some other applications where transient liquid crystal or infrared-thermography-based methods are adopted and where 1D semi-infinite conduction modeling is employed are rib turbulators, pin-fins, and dimples. In such applications, the sharp edges in the solid domain will have additional effects on the local errors incurred in h determination, apart from the neglection of lateral heat diffusion.
