Extended Natural Gas Characterization Method for Improved Predictions of Freeze-Out in LNG Production

Hassan A. Attalla; Nour A. El-Emam; Tarek M. Aboul-Fotouh; Eric F. May

doi:10.3390/en16010254

Abstract

The formation and the blockage of plant equipment such as heat exchangers by heavy hydrocarbon (HHC) solids is an inherent risk in cryogenic natural gas processing. The accuracy of the gas mixture’s compositional characterization significantly impacts the reliability of solid formaiton temperature predictions. Recently, we showed that complete characterization of the mixture is necessary to obtain accurate predictions of the melting temperature, as current methods based on pseudocomponent characterizations of HHCs are inadequate. Here, we present an improved method of characterizing HHCs that represents each pseudocomponent up to C₁₄₊ by a paraffinic, isoparaffinic, naphthenic and aromatic (PINA) composition and allocates an associated defined component to represent these sub-fractions. This new, extended PINA-based characterization of HHC pseudocomponents is derived from 46 different pipeline natural gas samples, and the method is validated against three representative gas samples that were fully characterized. The melting temperatures of the three gas samples based on their full characterizations are 263.2 K (14.1 °F), 260.1 K (8.5 °F) and 248.3 K (−12.8 °F), respectively. Predictions made with the new method match these within (1 to 2) K, while previous correlation methods under-predict them by (10 to 20) K. The improved performance arises from (1) the selection of suitable discrete components to represent each PINA fraction within a pseudocomponent, (2) the more representative distribution of PINA fractions as a function of carbon number, and (3) the use of discrete components to represent the pseudocomponent’s thermodynamic properties in both the fluid and solid phases. These results show how the new characterization method can reliably predict HHC freeze-out conditions, particularly when a full compositional analysis is unavailable. Future research should aim to test the new method on natural gas samples from regions other than the US Gulf Coast.

Keywords:

LNG—freeze-out—heavy hydrocarbons; pseudocomponent—compositional characterization; cryogenic

1. Introduction

Conditioning and processing of natural gas in cryogenic gas processing plants usually require cooling of the feed gas in refrigeration systems to separate the heavy hydrocarbons (HHC). This is required to meet the delivery hydrocarbon dew-point pipeline specifications of the sales gas and/or to separate the natural gas liquids (NGL), C₂₊, for further fractionation to make NGL products. Production of Liquefied Natural Gas (LNG) requires deep cooling of the gas to condense it to a liquid state.

The feed to gas processing and liquefaction plants may contain trace amounts of heavy hydrocarbons such as BTEX compounds (benzene, toluene, ethylbenzene, and xylenes) and heavier hydrocarbon components, which have high melting points [1]. These components may freeze out during the cooling process of the gas and precipitate in the small flow channels of the heat exchangers, control valves, and process strainers. The precipitation of these solids may cause partial blockage of the process equipment leading to unplanned shutdowns, production loss and costly downtime required to defrost the clogged process systems [2]. To reduce the level of contaminants, such as acid gases, moisture, and heavy hydrocarbons to acceptable levels before liquefaction, feed natural gas is subjected to a variety of treatment operations, as shown in Figure 1.

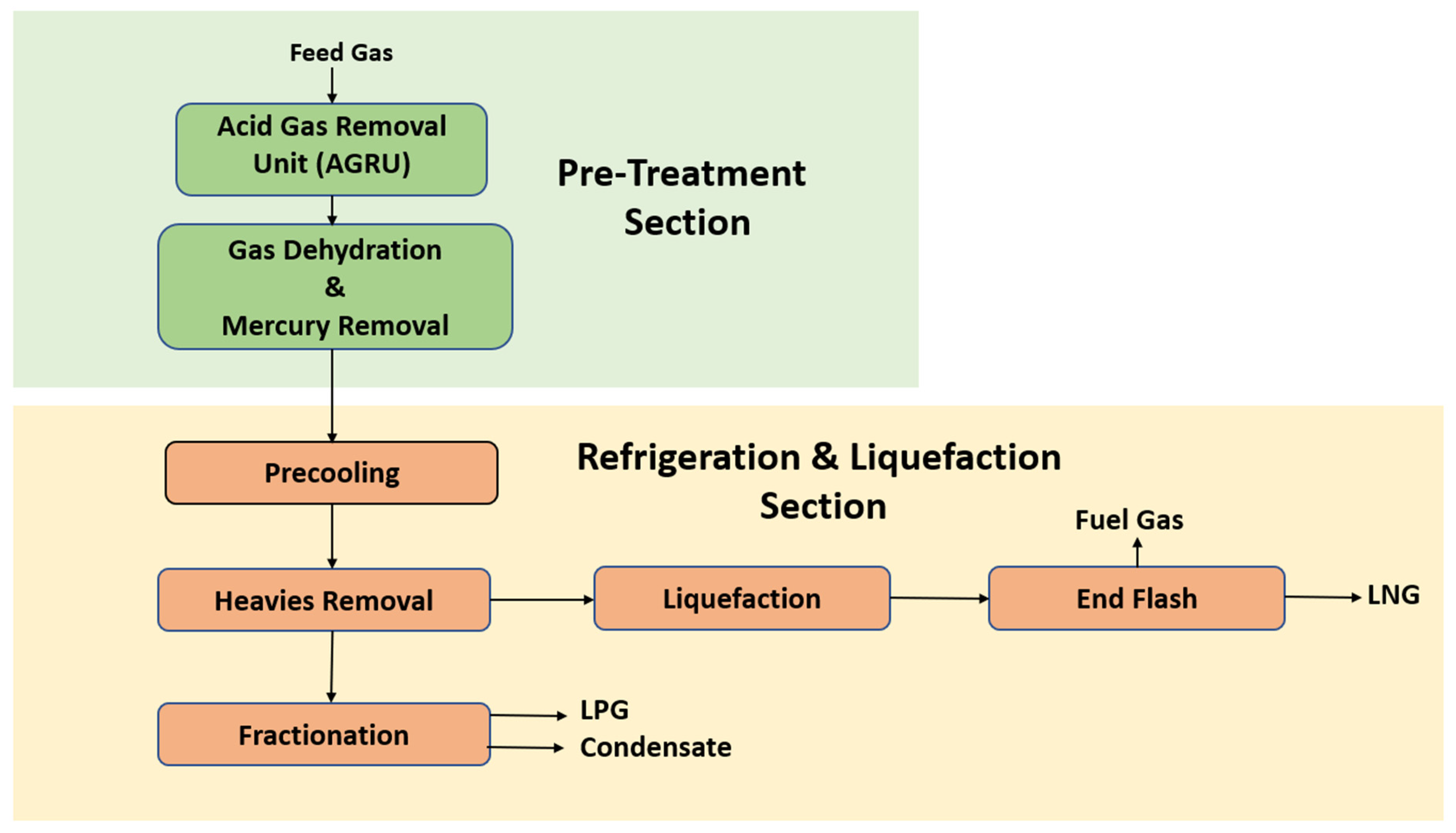

Figure 1. Block Diagram of a Typical LNG Plant.

BTEX and HHC compounds can precipitate at the very low temperatures in the cold section of the LNG production process when excessive concentrations of these undesired heavy components slip into the liquefaction exchangers during process upsets. Table 1 shows the relatively high triple point temperatures of BTEX and HHC. These components are typically removed in the Heavies Removal Unit, which consists mainly of a refluxed cryogenic distillation column (called Scrub Column or NGL Absorber) where BTEX and HHC are removed to acceptable and safe limits along with the NGL.

Table 1. Molecular weights and melting points of BTEX and heavy hydrocarbon compounds [3].

The gas analysis for designing new gas processing and liquefaction plants is usually detailed for the light hydrocarbons from methane to pentanes and also typically shows the BTEX composition. However, the heavier hydrocarbons, including those with high melting points, are typically lumped in pseudo components (usually C₆₊) according to their normal boiling points (NBP). For the operating gas processing and LNG plants, the routine gas analysis used to monitor the process usually has a similar limited resolution. This resolution needs to provide the required information about the compositions and the molecular type; paraffinic, iso-paraffinic, naphthenic, and aromatic (PINA) distribution of the heavy hydrocarbons lumped in the pseudo components. This information is required to provide a robust process design for the new gas processing and LNG plants. It is also required to effectively troubleshoot the freeze-out problems that may occur in the operating plants.

Chen and Ott [4] reported that lean feed gases are becoming increasingly common as more LNG is based on unconventional gas resources, such as shale gas, tight sands gas, coal-bed methane, and domestic pipelines. Both also reported that the feed gas to some plants operating LNG plants had been gradually replaced by newer sources, such as gas produced from wells in deep water. These new feed gas sources often contain more methane and considerably fewer natural gas liquid (NGL) components than conventional feed gas sources while also having heavy paraffinic and aromatic hydrocarbon content comparable to conventional feed gas sources. This trend has brought a new challenge to the design and operation of these liquefaction units. Additionally, Chen and Ott [4] reported that many lean feed gas sources contain disproportionately large amounts of HHCs. These heavy components can exceed the maximum amount allowed to avoid freezing in the liquefaction process. Another characteristic of some unconventional gas sources is the significant variation in feed composition over a relatively short period, which can occur when the feed gas is supplied from multiple sources.

The presence of the long-chain HHC in the feed gas to LNG plants, even in trace amounts, increases the risk of freeze-out of these complex components at the Precooling Section of the LNG plant shown in Figure 2, which has a typical lower-limit temperature of 238.7 K (−30 °F) [1,5]. The higher risk is caused by their higher melting points, as shown in Table 2 and Table 3. These tables show that the characterization of HHC should not be assumed to be 100% n-paraffins due to the increased risk of heavy aromatic isomers freeze-out in the Precooling Section. Rather an accurate estimate of the molecule class (PINA distribution) of these HHC components is crucial for the robust design of new LNG plants and the effective troubleshooting of HHC freeze-out in actively operating LNG plants.

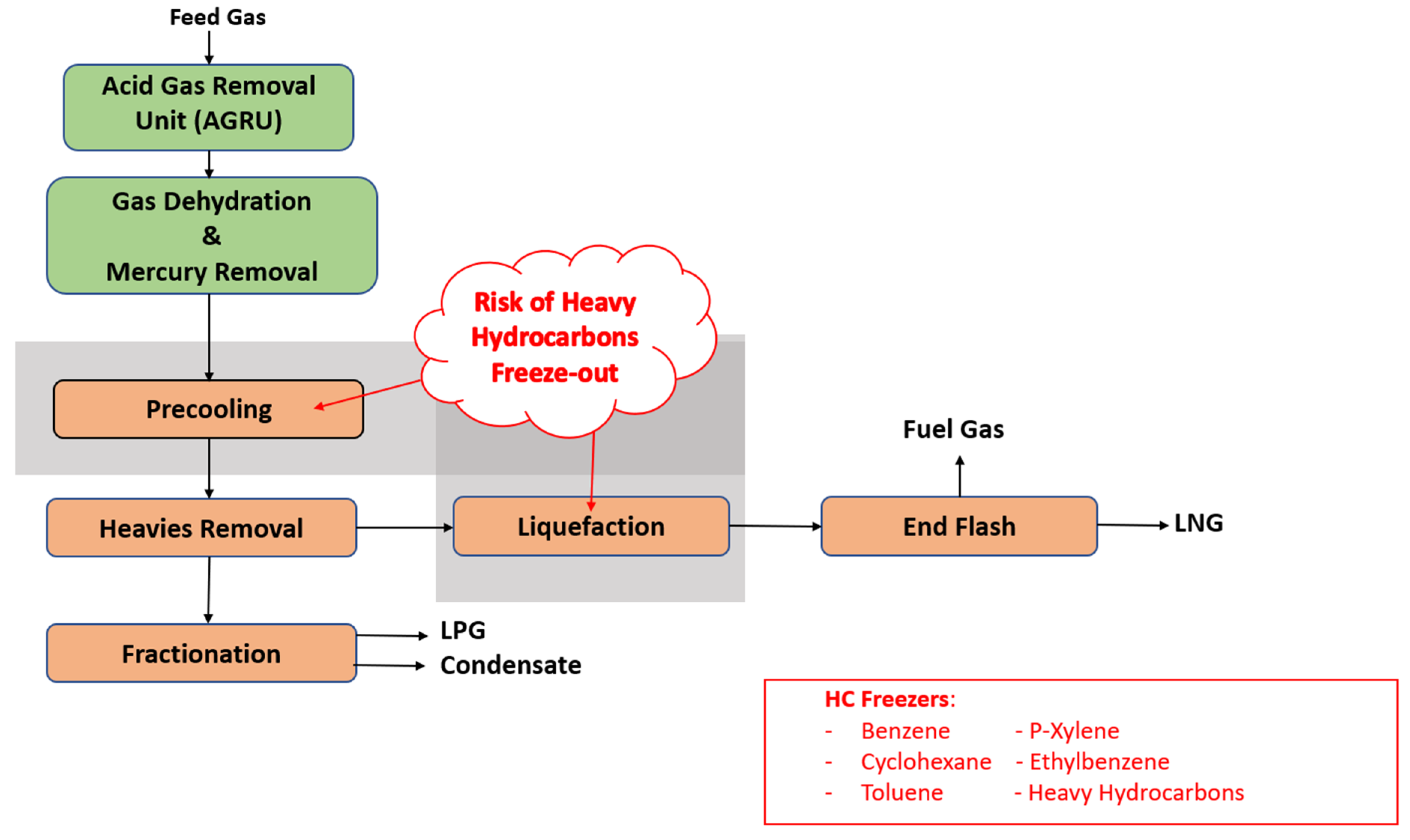

Figure 2. Potential locations of HHC freeze-out in an LNG plant.

Table 2. Molecular weights and melting points of heavy hydrocarbons n-C₁₁ through n-C₁₄ [3].

Table 3. Molecular weights and melting points of heavy aromatic hydrocarbons [3].

Miethe et al. [6] reported that the light hydrocarbons up to n-pentane are generally detailed in the design basis of LNG, NGL or ethane separation plants. However, the HHCs that might foul the pipes at lower temperatures are often lumped into pseudocomponents according to their boiling point. They also proposed a new method developed to improve the calculation of solids precipitation in natural gases using correlations endorsed by the American Petroleum Institute (API), as described in Riazi and Daubert [7]. Their method consists of two steps:

Splitting the pseudo-components into four sub-fractions each: n-paraffin (P), branched paraffins (I), naphthenes (N), and aromatics (A).
Representing the fusion properties of each sub-fraction with a discrete component, where no additional physical properties need to be generated for the pseudo component (PC).

To validate their approach, henceforth referred to as PINA_API, they compare the melting points and precipitation curves of a fully characterized mixture up to C₁₀₊, where the fusion properties are estimated with multiple approaches, as described in Table 4. These approaches are accompanied by a characterization of the gas mixture into a Lump component list containing discrete single carbon number (SCN) groups of HHCs heavier than isopentane up to C₁₀₊. In their comparison of the Full methods with various Lump + Freeze-out approaches, they showcased that the Lump + PINA_API predicted the melting point of the mixture within 1 °C of the Full method with a very similar precipitation curve when aromatics were considered explicitly. However, there has been no application of the Lump + PINA_API approach to defined mixtures that are known to have heavy HHCs up to C_14.. Additionally, Miethe et al. [6] make an unvalidated assumption that the ratio of paraffinic (

x_{p})

to isoparaffinic (

x_{i})

content is

x_{p} = 0.9 x_{i}

. Therefore, it is unlikely that the estimated PINA splits will reflect the actual PINA split of HHCs of LNG feed gas sources with high methane content and fewer NGL components.

Table 4. Summary and comparison of the available methods of pseudocomponent melting point calculations in natural gas systems [6]. Here, T_f is the melting point temperature while H_f is the enthalpy of fusion.

Recently, Attalla et al. [8] demonstrated that the approach developed by Miethe et al. [6] was inadequate for multiple reasons. First, their Lump characterization does not extend to C₁₄ compounds and second, the methods for estimating the PINA splits were developed for petroleum fractions and are not necessarily applicable to high-methane content gas condensates. Attalla et al. [8] demonstrated that for natural gas mixtures known to freeze out in LNG production, Lump + Freeze-out methods underpredict melting temperatures by more than 85 K relative to the melting temperatures determined from a full compositional characterization of the gas mixture. Their work demonstrated the necessity for either a complete characterization of natural gas mixtures up to C₁₄₊ compounds to accurately predict freeze-out conditions in LNG plants and/or the development of an improved approach to predicting freeze-out when only limited compositional information is available.

This work builds upon the approach of Miethe et al. [6] by incorporating more robust methods suited for estimating the PINA splits for natural gas mixtures based on experimental measurements of natural gas samples. This work also extends the use of representative compounds in the Lump + PINA_API method to consider up to C₁₄₊ compounds. Representative compounds are enhanced to include properties relevant to both the fluid and solid phases in contrast to previous Lump approaches where only properties relevant to solid formation by the representative compounds were used. The efficacy of this new approach, labelled PINA_Attalla, is evaluated using predictions of the melting temperature against the PINA_API method from Miethe et al. [6], and the full characterization of three different gas samples.

2. Heavy Hydrocarbon Characterization for Freeze-Out Predictions

The available published methods for predicting heavy hydrocarbon characterization are summarized in Table 4. Attalla et al. [8] present a detailed description of each method and its implementation within the software package ThermoFAST [9].

2.1. Full Method: Detailed Characterizations of Three Samples

The full method refers to the representation of the fluid by all the compounds resolved in a compositional characterization. This section briefly describes the compositional characterizations up to C₁₄ for three different samples of natural gas that were used with the full method to provide robust calculations of each sample’s HHC melting temperature. The three natural gas feed gas mixtures constitute Sample 1, which corresponds to a lean Gas case; Sample 2, which corresponds to a rich gas case; and Sample 3, which corresponds to an average gas case. The complete compositions for each these samples are shown below in Table 5, Table 6 and Table 7, respectively. The C₁₄₊ heavy fraction in each table was by represented with tetradecane but includes C₁₅ and iso-C₁₆ compounds in reality.

Table 5. Fully characterized composition of Sample 1 (Lean Gas).

Table 6. Fully characterized composition of Sample 2 (Rich Gas).

Table 7. Fully characterized composition of Sample 3 (Average Gas).

2.2. The PINA_Attalla Method

This work introduces a new method of modelling the PINA distribution of HHCs for pseudocomponents with (pseudo-) carbon numbers between 6 and 14. The correlations used in the PINA_Attalla method were developed from compositional analyses of 46 different natural gas samples collected from the US Gulf Coast of Mexico. Each of these samples was classified according to the molecular weight (MW) of their C₆₊ fractions (determined by GPA Method 2286 [10] and GPA Method 2186 [11]) to define the three categories of gas as shown in Table 8. The fully characterized gas sample compositions in Table 5, Table 6 and Table 7 reflect exemplar samples from each of these categories. Within a given type of gas mixture the HHCs are classified into single carbon number (SCN) pseudocomponents based on the normal boiling point (NBP) ranges shown below in Table 9.

Table 8. Classification of the 46 gas samples evaluated by this work to develop the PINA_Attalla method in accordance with their C₆₊ MW.

Table 9. Normal boiling point ranges used to classify single carbon number (SCN) pseudocomponents, as obtained from gas chromatography elution.

A central feature of PINA methods is estimating the ratio of paraffinic, isoparaffinic, naphthenic and aromatic compounds within a given pseudocomponent. The PINA_Equal method assumes an equal distribution of compounds across the four classes, while the PINA_API methods uses API correlations to calculate the ratios of the combined paraffin + isoparaffin class to the naphthenic and aromatic classes. Additionally, for the PINA_API method, Miethe et al. [6] assumed that the fraction of paraffins, x_p, was related to the fraction of isoparaffins, x_i via x_p = 0.9 x_i. However, as shown Figure 3, across the 46 samples analyzed the average ratio of paraffin to isoparaffin content in each SCN pseudocomponent and gas mixture type varied significantly, and was generally quite different from 0.9.

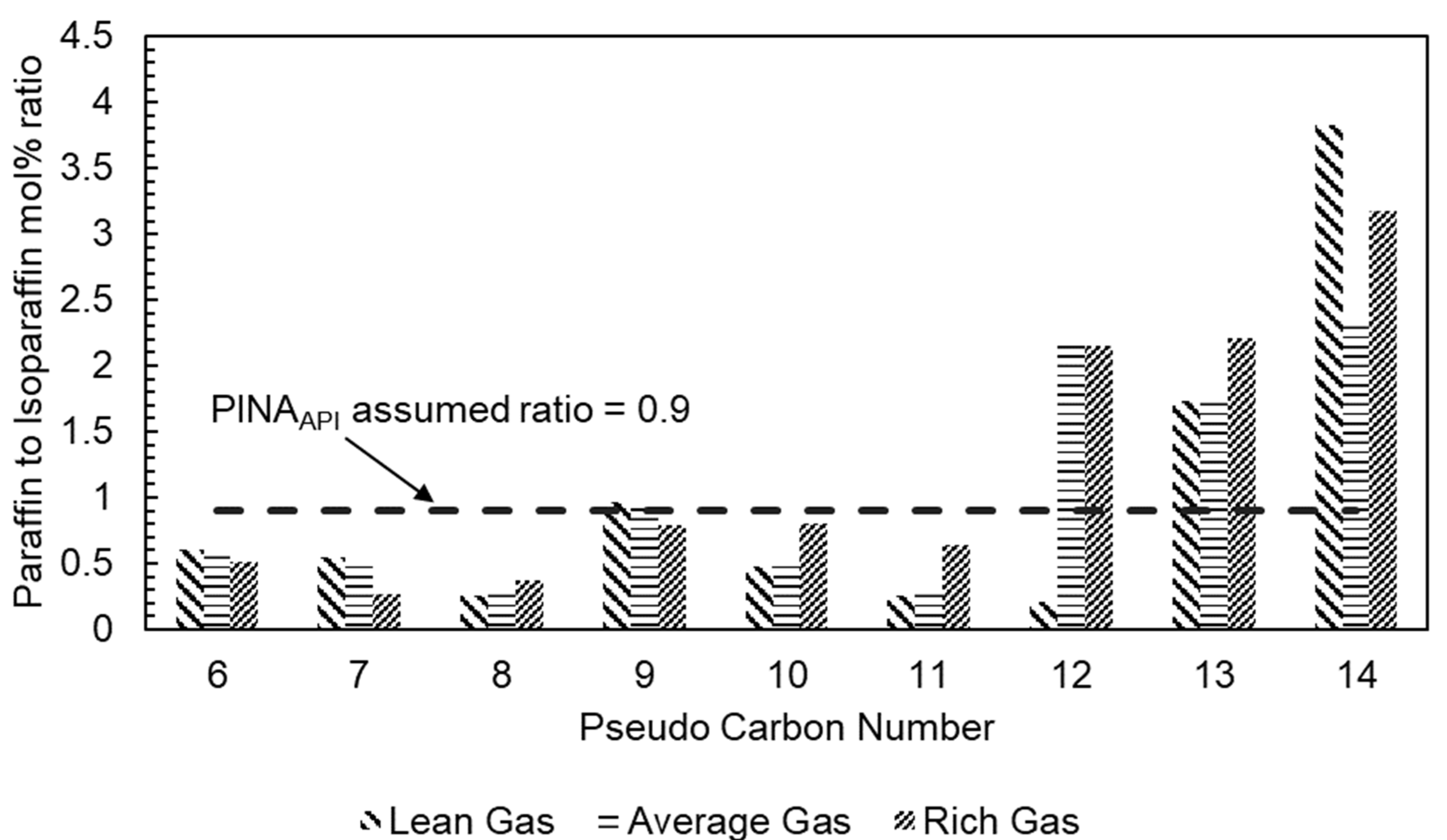

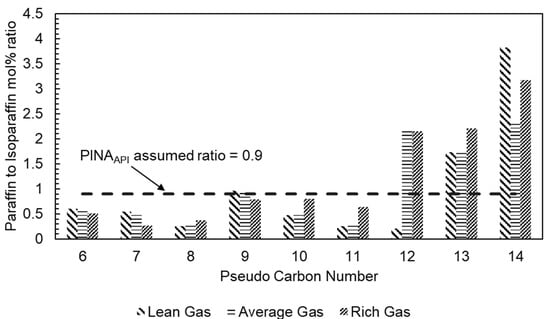

Figure 3. Average ratios of paraffin to isoparaffin mole fraction in each single carbon number pseudocomponent for each gas mixture type across the 46 gas samples analyzed in this work. The dotted line represents the fixed ratio assumed in the PINA_API approach detailed by Miethe et al. [6].

To improve the accuracy of freeze-out predictions new average PINA distributions were calculated from the 46 samples for each SCN pseudocomponent and each type of gas mixture. These average PINA distributions are shown for the lean gas, average gas, and rich gas types, as shown in Table 10, Table 11 and Table 12, respectively. Common to all gas mixture types is the absence of naphthenes and aromatics in either the C₆ pseudocomponent or the C₁₃ pseudocomponent. The former absence simply reflects the fact that the normal boiling points of cyclohexane and benzene lie within the range of the C₇ pseudocomponent, while the latter appears to be a characteristic of the 46 natural gas samples from the US Gulf Coast.

Table 10. Average PINA distribution for each pseudocomponent in the Lean gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

Table 11. Average PINA distribution for each pseudocomponent for the average gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

Table 12. Average PINA distribution for each SCN for the rich gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

To accompany the improved description of PINA distributions up to C₁₄ for natural gases, the PINA_Attalla method also extends the discrete compounds used to represent pseudocomponents up to C₁₄, from the C₉ limit considered by the PINA_API method [6]. The criteria used to select the representative discrete compounds were:

Either the representative compound has a carbon number equal to the SCN;
The representative compound has an NBP that falls within range covered by the SCN pseudocomponent;
The representative compound has the highest melting point among the other components within the NBP range of the SCN pseudocomponent.

Table 13 presents the discrete compounds used in the PINA_Attalla method to represent each PINA sub-fractions of the SCN pseudocomponents to C₁₄. The implementation of the PINA_Attalla method into the ThermoFAST software package [9] involved ensuring each of the discrete compounds used to represent pseudocomponent PINA fractions were defined together with all necessary thermodynamic parameters, as detailed by Attalla et al. [8]. Specifically, two additional discrete compounds were added for this work, as shown Table A1 in the Appendix A. When implementing the PINA_Attalla method to a natural gas sample, the mole fraction of each representative compound is determined by multiplying the mole fraction of the corresponding pseudocomponent by the mole fraction of the PINA class (x_p, x_i, x_n, or x_a) listed in either Table 10, Table 11 and Table 12, depending on the type of gas mixture the sample falls into according to Table 8.

Table 13. Discrete compounds used by the PINA_Attalla method to represent the paraffin, isoparafin, naphthenic aromatic (PINA) classes of single carbon number (SCN) pseudocomponents to C₁₄, together with their normal boiling point (NBP), molecular weight (MW) and melting temperature

T_{f}

.

Other methods for predicting HHC freeze-out typically use different correlations to describe the thermodynamic properties of the pseudocomponents in the fluid phase from those used to describe the solid phase properties [6,8]. This is particularly pertinent to the normal implementations of the PINA_Equal and PINA_API methods developed by Miethe et al. [6], where discrete compounds are used to represent the solid properties of each pseudocomponent’s PINA fractions while a single ‘lumped’ pseudocomponent is considered when evaluating its fluid phase properties. In contrast, the PINA_Attalla method as implemented in ThermoFAST simply considers the representative discrete compounds; however, they partition across all phases present at equilibrium. To ensure that the comparisons of the different HHC freeze-out methods considered in this work were focussed on the relative accuracy of the PINA distributions, the same approach was applied here to the PINA_Equal and PINA_API methods. The Lump-PINA_Equal and Lump-PINA_API methods used by Miethe et al. [6] and Attalla et al. [8] were replaced, and only the representative compounds were used together with the PINA distributions of these methods were used for melting temperature calculations. The ThermoFAST software package contains implementations of both the Lump + PINA and the PINA-only versions of all these methods. To elucidate the novelty of the PINA_Attalla approach, Table 14 presents the differences between the Lump-PINA_API and the PINA_Attalla methods.

Table 14. Summary of the differences between the PINA_API and the PINA_Attalla methods.

3. Results and Discussion

The melting temperatures based on the complete characterizations for Sample 1 (lean gas), Sample 2 (rich gas), and Sample 3 (average gas) indicate that the freeze-out can occur at temperatures around 263.2 K (14.1 °F), 260.1 K (8.5 °F), and 248.3 K (−12.8 °F), respectively. These temperatures are well within the cooling curve of a typical LNG production plant’s Precooling Section and are consistent with the freeze-out observed in some of operating LNG facilities.

Figure 4, Figure 5 and Figure 6 compare the melting temperatures predicted using the various PINA methods with those determined from the Full method for the lean gas, average gas and rich gas samples, respectively. Across all three samples, the new PINA_Attalla method predicts melting temperatures within 1 K of those determined from the full compositional characterization. Full compositional characterizations with the resolution presented here for Samples 1–3 are uncommon and often unavailable during the design or normal operation of an LNG plant. While actual natural gas compositions are inevitably more complex, the correlations in the PINA_Attalla method deliver a significant improvement in the ability to predict heavy hydrocarbon freeze out in LNG production, which is currently a significant operational problem for plants on the US Gulf Coast, from more standard, lower resolution compositional analyses. This improved performance reflects the fact that representative compounds and the PINA distributions used by the correlations are based on those measured for 46 actual pipeline gas samples collected from the US Gulf Coast.

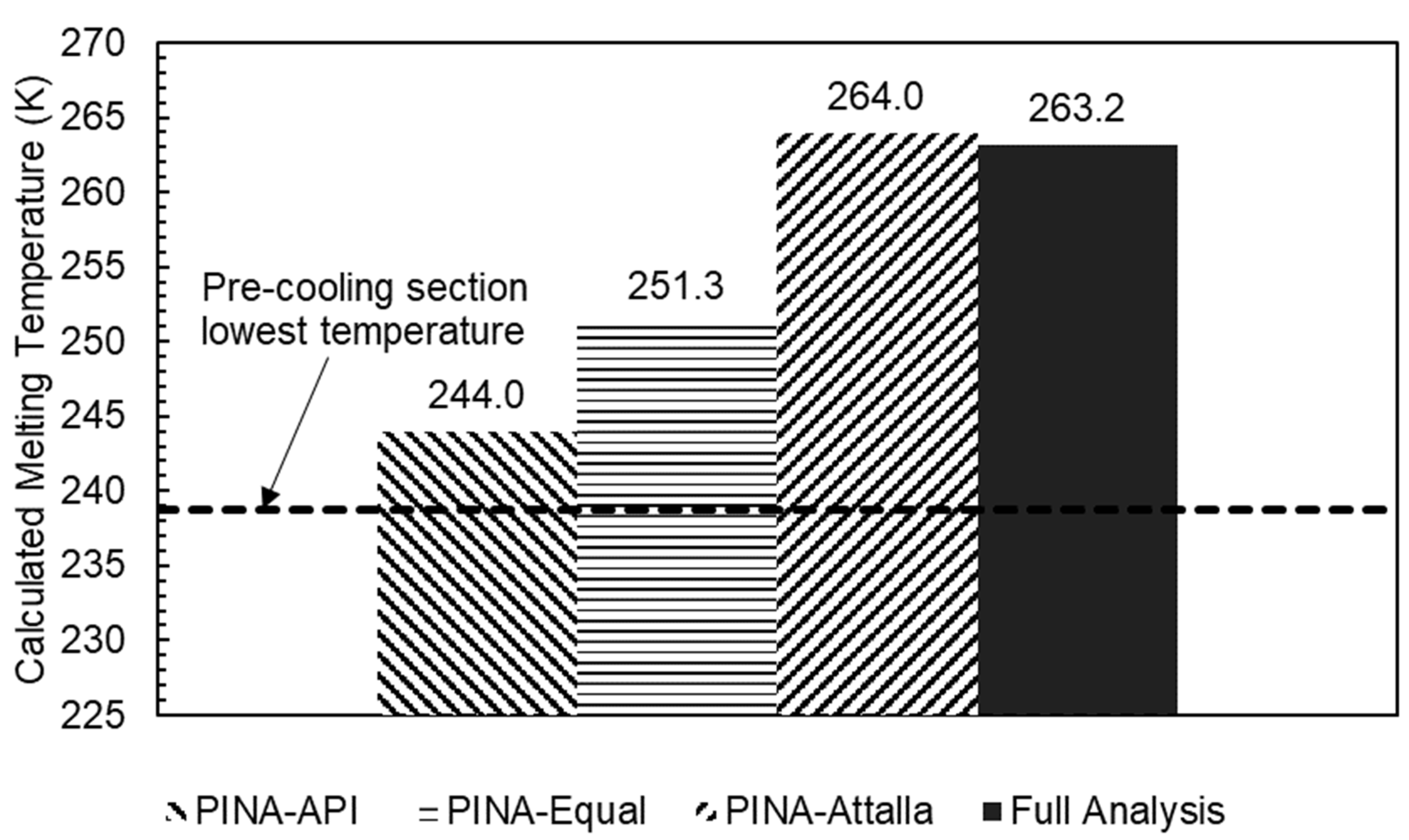

Figure 4. Comparison of the melting temperatures calculated using various PINA freeze-out prediction methods at a pressure of 6.307 MPa (900 psig) with that based on the full compositional characterization of the lean gas sample.

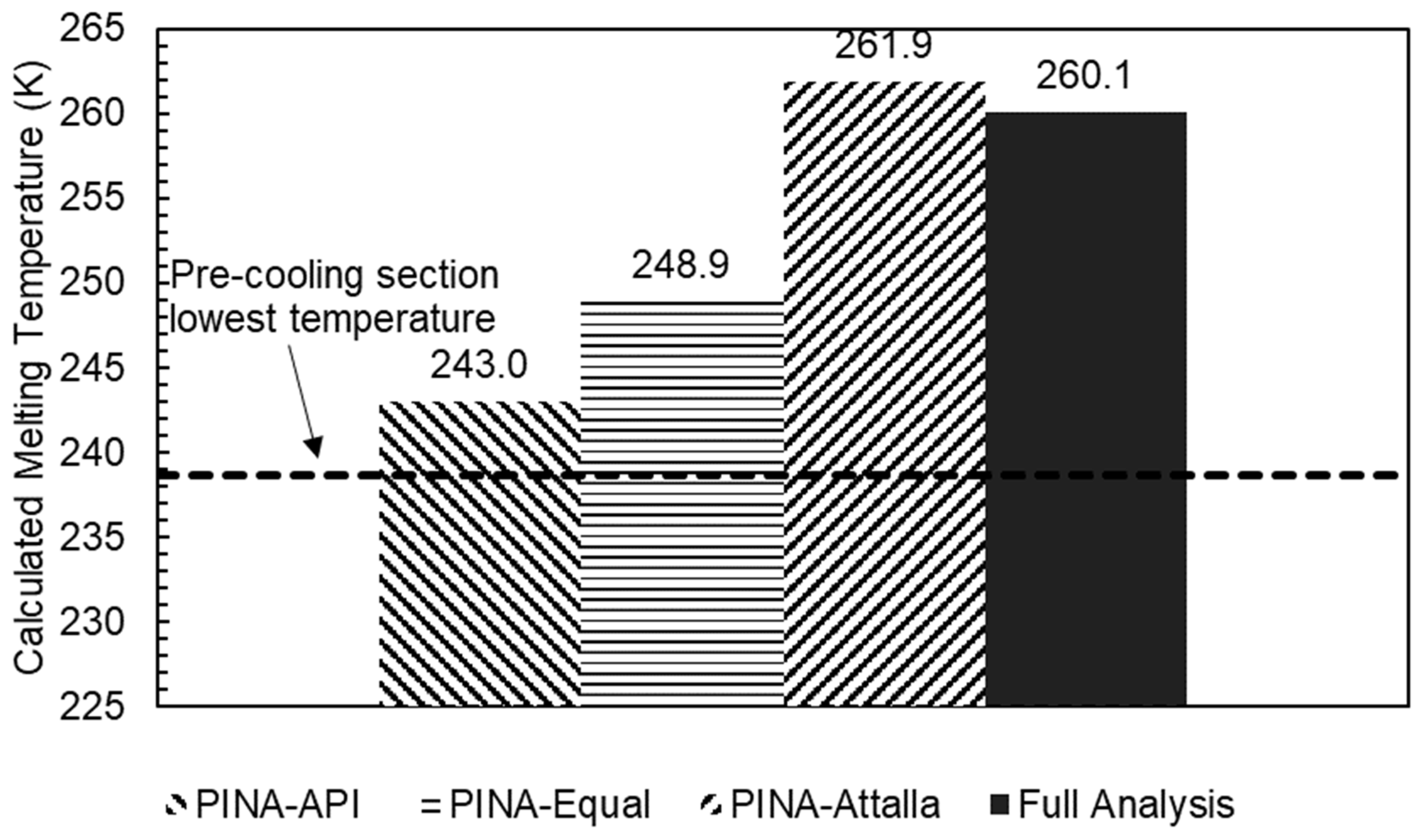

Figure 5. Comparison of the melting temperatures calculated using various PINA freeze-out prediction methods at a pressure of 6.307 MPa (900 psig) with that based on the full compositional characterization for the rich gas sample.

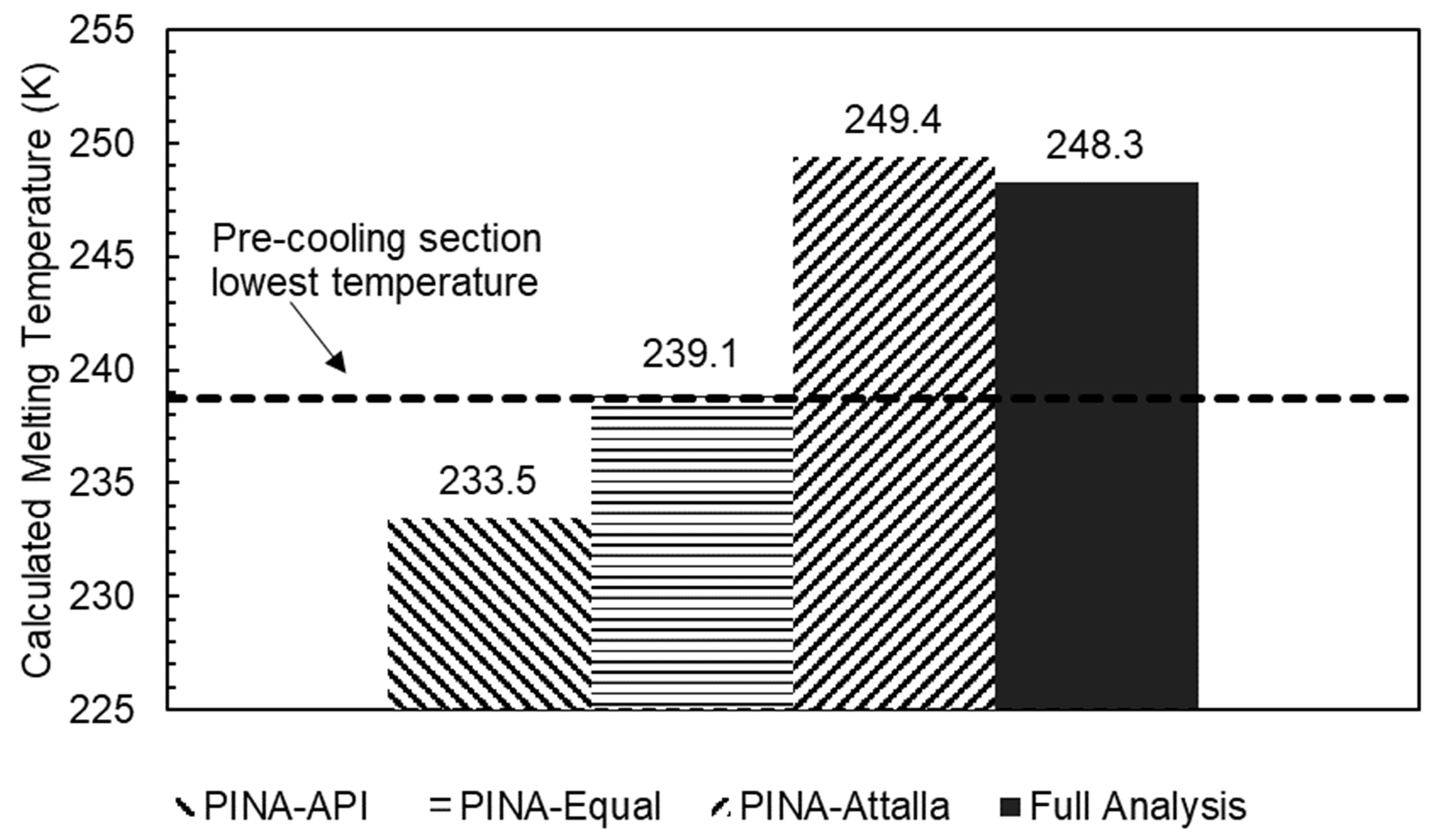

Figure 6. Comparison of the melting temperature calculated using various PINA freeze-out prediction methods at a pressure of 6.307 MPa (900 psig) with that based on the Full compositional characterization for the average gas sample.

The lower estimations of the PINA_Equal and PINA_API methods highlight the importance of accurately characterizing the PINA distribution of each SCN fraction for predicting the melting point accurately for natural gas mixtures. In particular, as the melting point is influenced by the composition of the heaviest components considered, achieving an accurate estimate of the PINA-split in the C₁₄₊ pseudocomponent for the paraffin component is vital for accurate results. Despite the poorer performance of the PINA_API and PINA_Equal methods relative to the new PINA_Attalla approach, the melting points predicted are only about 20 K below the temperature determined using the Full method. This is a significant improvement relative to the predictions made using the Lump + PINA_Equal and Lump + PINA_API methods for the lean gas and rich gas samples detailed by Attalla et al. [8], which were low by around 100 K. By describing the properties of all phases using the representative compounds from the PINA-only methods (i.e., without using any lumped pseudocomponents to describe fluid-phase properties), the predicted melting temperature is at least above the lowest temperature of an LNG plant’s precooling section. These comparisons underscore the improvement brought by characterizing gas mixtures with pseudocomponents up to at least C₁₄₊ and robust PINA distributions coupled to representative discrete compounds.

4. Conclusions

This paper showcases the new PINA_Attalla method for estimating the PINA distribution of pseudocomponents within natural gas mixtures classed according to the molecular weight of their C₆₊ fractions. New correlations were established based on 46 samples of natural gas from the US Gulf Coast, grouped into three classes of mixture: lean gas (C₆₊ MW < 92 g/mol), rich gas (C₆₊ MW > 100 g/mol) and average gas. Each class is accompanied by a distinct characterization of PINA distributions for each pseudocomponent up to C₁₄₊ together with discrete compounds that should be used to represent each SCN sub fraction. Representative samples of each gas type were fully compositionally characterized to enable determination of the HHC melting temperatures: 263.2 K (14.1 °F), 260.1 K (8.5 °F) and 248.3 K (−12.8 °F) for the lean, rich and average gas samples, respectively. The results of the melting point predictions made using the PINA_Attalla method are within 1–2 K of the melting temperature obtained from the full method, while the PINA_API and PINA_Equal methods lead to under estimates of 10 to 20 K. Importantly, this work also shows that PINA-only methods provide superior HHC melting temperature predictions relative to Lump-PINA methods where correlations are used to estimate the thermodynamic properties of the pseudocomponent in the fluid phase.

Thus, this work demonstrates the use of the PINA_Attalla method as a robust alternative to the complete characterization of natural gas mixtures to predict freeze-out conditions in cryogenic natural gas processing. This method can be directly applied to the design of new cryogenic gas plants, including LNG plants. Additionally, in operating cryogenic plants the PINA_Attalla method could help with the design of process system modifications needed to ensure the safe removal of HHCs at a point upstream of where they would otherwise freeze-out.

The new PINA_Attalla method was developed from the detailed compositional analysis of 46 natural gas samples from the US Gulf Coast, and accordingly is likely to be most accurate when applied to LNG plants operating in this region. Future work should explore the efficacy of the PINA_Attalla method for natural gas feeding LNG plants in other regions, such as Qatar or Australia, where the PINA distribution within a SCN fraction might be different. However, other features of the PINA_Attalla method—namely using representative discrete compounds for SCNs up to C₁₄ in both the solid and fluid phases—suggest that it is likely to still be more accurate than other correlation-based approaches derived from basin-specific data. Exploring the viability of using representative compounds for SCN fractions beyond C₁₄₊ to predict freeze-out of HHCs in different hydrocarbon mixture types, such as waxes from crude oils and petroleum fractions might also be worthy of further investigation.

Author Contributions

Conceptualization, H.A.A.; Methodology, H.A.A.; Software, E.F.M.; Investigation, H.A.A.; Writing—original draft, H.A.A., and E.F.M.; Writing—review & editing, N.A.E.-E., T.M.A.-F. and E.F.M.; Supervision, N.A.E.-E., T.M.A.-F. and E.F.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within this article.

Acknowledgments

The authors thank David J. Zhu, Peter E. Falloon, and Xiong Xiao for upgrading ThermoFAST Software to enable the freeze-out calculation methods tested in this study. Special thanks to David J. Zhu for his assistance in editing this paper. We thank the Future Energy Exports Cooperative Research Centre for providing access to the free ThermoFAST software package developed by the Fluid Science Research group at the University of Western Australia. This is FEnEx CRC Document 2022/RP1.CM1.3.2-FNX-002.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. Two Discrete Components Added to ThermoFAST to Facilitate the PINA_Attalla Method

Table A1. Parameters for two discrete compounds added to ThermoFAST to enable PINA_Attalla method of representative compounds, in addition to the 43 discrete compounds previously added in Attalla et al. [8]. Parameter symbols and their primary sources:

Δ H_{f}

—enthalpy of fusion [3];

T_{f}

—melting point [3];

Δ c_{p}

—specific heat difference between liquid and solid phase [3];

Δ V

—volume change between liquid and solid phase (set to zero, or from MultiFlash 7.0) [12]; critical properties

T_{c}

(critical temperature),

P_{c}

(critical pressure),

ρ_{c}

(critical density), and

ω

(acentric factor) [13,14,15].

Table A1. Parameters for two discrete compounds added to ThermoFAST to enable PINA_Attalla method of representative compounds, in addition to the 43 discrete compounds previously added in Attalla et al. [8]. Parameter symbols and their primary sources:

Δ H_{f}

—enthalpy of fusion [3];

T_{f}

—melting point [3];

Δ c_{p}

—specific heat difference between liquid and solid phase [3];

Δ V

—volume change between liquid and solid phase (set to zero, or from MultiFlash 7.0) [12]; critical properties

T_{c}

(critical temperature),

P_{c}

(critical pressure),

ρ_{c}

(critical density), and

ω

(acentric factor) [13,14,15].

Component	Formula	∆H_f (kJ/mol)	T_f [K]	∆c_p (J/mol/K)	∆V (m³/mol)	CAS	T_c [K]	P_c [MPa]	ρ_c [mol/m³]	ω	Molar Mass [g/mol]
3-methyloctane	C₉H₂₀	17.00	165.55	85.6	2.30E-5	002216-33-3	590.15	2.34	1890.36	0.412346	128.255
heptylcyclopentane	C₁₂H₂₄	20.77	219.98	55.1	0	5617-42-5	685.819	2.08503	1542.02	0.49388	168.32

References

Kidnay, A.J.; Parrish, W.R. Fundamentals of Natural Gas Processing; CRC Press: Boca Raton, FL, USA, 2006. [Google Scholar]
Baker, C.; Siahvashi, A.; Oakley, J.; Hughes, T.; Rowland, D.; Huang, S.; May, E.F. Advanced predictions of solidification in cryogenic natural gas and LNG processing. J. Chem. Thermodyn. 2019, 137, 22–33. [Google Scholar] [CrossRef]
Yaws, C.L.; Gabbula, C. “Yaws” Handbook of Thermodynamic and Physical Properties of Chemical Compounds; Knovel: New York, NY, USA, 2003. [Google Scholar]
Chen, F.; Ott, C.M. Lean gas. LNG Industry Magazine, Spring: Surrey, UK, January/February 2013. [Google Scholar]
Ransbarger, W. A fresh look at LNG process efficiency. LNG Industry Magazine, Spring: Surrey, UK, 2007. [Google Scholar]
Miethe, I.; Lauermann, G.; Jungfer, B. Improve the calculation of solids precipitation in gas compositions. Hydrocarbon Processing Magazine, Houston, TX, USA, May 2015; 45. [Google Scholar]
Riazi, M.R.; Daubert, T.E. Prediction of molecular-type analysis of petroleum fractions and coal liquids. Ind. Eng. Chem. Process Des. Dev. 1986, 25, 1009–1015. [Google Scholar] [CrossRef]
Attalla, H.A.; El-Emam, N.A.; Abdul-Fotouh, T.M.; May, E.F. Performance Tests of Gas Characterization Methods for Predicting Freeze-out in LNG Production. Int. J. Thermophys. 2022, 44, 25. [Google Scholar] [CrossRef]
ThermoFAST 2.0. Fluid Science and Resources; The University of Western Australia, 35 Stirling Hwy, Crawley, Perth 6009, Australia 2022. Available online: https://www.fsr.ecm.uwa.edu.au/software/thermofast/ (accessed on 14 October 2022).
Gas Processors Association. GPA-2286: Method for the Extended Analysis of Natural Gas and Similar Gaseous Mixtures by Temperature Programmed Gas Chromatography; Gas Processors Association: Tulsa, OK, USA, 2014. [Google Scholar]
Gas Processors Association. GPA-2186: Method for the Extended Analysis of Hydrocarbon Liquid Mixtures Containing Nitrogen and Carbon Dioxide by Temperature Programmed Gas Chromatography; Gas Processors Association: Tulsa, OK, USA, 2014. [Google Scholar]
KBC Advanced Technologies. Infochem Multiflash 7.0; Walton-on-Thames: England. 2018. Available online: https://www.kbc.global/software/advanced-thermodynamics/ (accessed on 14 October 2022).
Aspen Properties V12; AspenTechnolgy Inc.: Bedford, MA, USA, 2021.
PURE38 Databank, Aspen Properties; AspenTechnolgy Inc.: Bedford, MA, USA, 2021.
AIChE DIPPR^® Data Compilation Project; Aspen Properties: New York, NY, USA, 2022.

Figure 1. Block Diagram of a Typical LNG Plant.

Figure 2. Potential locations of HHC freeze-out in an LNG plant.

Figure 3. Average ratios of paraffin to isoparaffin mole fraction in each single carbon number pseudocomponent for each gas mixture type across the 46 gas samples analyzed in this work. The dotted line represents the fixed ratio assumed in the PINA_API approach detailed by Miethe et al. [6].

Figure 4. Comparison of the melting temperatures calculated using various PINA freeze-out prediction methods at a pressure of 6.307 MPa (900 psig) with that based on the full compositional characterization of the lean gas sample.

Figure 5. Comparison of the melting temperatures calculated using various PINA freeze-out prediction methods at a pressure of 6.307 MPa (900 psig) with that based on the full compositional characterization for the rich gas sample.

Figure 6. Comparison of the melting temperature calculated using various PINA freeze-out prediction methods at a pressure of 6.307 MPa (900 psig) with that based on the Full compositional characterization for the average gas sample.

Table 1. Molecular weights and melting points of BTEX and heavy hydrocarbon compounds [3].

Component	Molecular Weight (g/mol)	Melting Point (°F)	Melting Point (°C)
Benzene	78.1	+42	+5.6
Toluene	92.1	−138.9	−94.9
Ethylbenzene	106.2	−138.9	−94.9
o-Xylene	108.2	+55.9	+13.3
m-Xylene	106.2	−54.1	−47.8
n-Hexane	86.2	−139.6	−95.3
n-Heptane	100.2	−131	−90.6
n-Octane	114.2	−56.8	−49.3
n-Nonane	128.3	−53.5	−47.5
n-Decane	142.3	−29.7	−34.3

Table 2. Molecular weights and melting points of heavy hydrocarbons n-C₁₁ through n-C₁₄ [3].

Component	Molecular Weight (g/mol)	Melting Point (°F)	Melting Point (°C)
n-Undecane (n-C11)	156.3	−14.0	−25.6
n-Dodecane (n-C12)	170.3	+14.8	−9.6
n-Tridecane (n-C13)	184.4	+22.3	−5.4
n-Tetradecane (n-C14)	198.4	+42.5	+5.9

Table 3. Molecular weights and melting points of heavy aromatic hydrocarbons [3].

Component	Molecular Weight (g/mol)	Melting Point (°F)	Melting Point (°C)
1-Ethyl-2-propylbenzene (A11)	148.25	−5.8	−21.0
Cyclohexylbenzene (A12)	160.259	45.2	7.4
Heptylbenzene (A13)	176.302	−54.4	−48.0
Octylbenzene (A14)	190.32	−32.8	−36.0

Table 4. Summary and comparison of the available methods of pseudocomponent melting point calculations in natural gas systems [6]. Here, T_f is the melting point temperature while H_f is the enthalpy of fusion.

Method	Description	Pros	Cons
Full	$T_{f}$ $and H_{f}$ are estimated for each component in the gas analysis.	Accurate estimation of the melting temperature	Expensive Difficult to obtain
Alkanes	$T_{f}$ $and H_{f}$ of the respective n-paraffin are used for the entire PC.	$Rough estimate of the T_{f}$ is obtained.	Calculated T_f is too conservative. Calculated T_f is based on solubility date of binary systems and/or thermodynamic prediction models that are not totally validated against experimental or data. PINA fractions are not distinguished.
Won	$T_{f}$ $and H_{f}$ of the PC are used based on the average MW of the PC.	Calculated properties are specific to each PC.	Optimistic calculated T_f PINA fractions are not distinguished.
PINA_Equal	PCs are split into PINA fractions equally and represented by individual components.	1.Fast T_f calculation. 2.Improved in precision compared to previous methods.	Calculated T_f is based on solubility date of binary systems and/or thermodynamic prediction models that are not totally validated using experiments or data. Actual PINA fractions are not estimated.
PINA_API	PCs are split into PINA fractions according to API correlations and represented by individual components.	Increased precision regarding solids precipitation behavior (with exception of full method)	The used API correlations are based on and developed for petroleum fractions. The used API correlations estimate the PNA split not PINA. The PINA split is obtained for the unvalidated assumption that P = 90% I. Not examined for PC higher than C9.

Table 5. Fully characterized composition of Sample 1 (Lean Gas).

Component	$x_{i}$ mol %	Component	$x_{i}$ mol %
Carbon Dioxide	0.0030	n-Nonane	0.0001
Nitrogen	0.6454	m-Xylene	0.0001
Methane	97.0391	p-Xylene	0.0001
Ethane	2.0520	sec-Butylbenzene	0.0002
Propane	0.1049	n-Decane	0.0001
n-Butane	0.1220	1-Ethyl-2-propylbenzene	0.0001
isoButane	0.0151	Undecane	0.0001
n-Pentane	0.0020	Dodecane	0.0002
isoPentane	0.0040	Pentamethylbenzene	0.0001
n-Hexane	0.0016	Tridecane	0.0005
Benzene	0.0008	2,3-Dimethyldodecane	0.0005
Cyclohexane	0.0005	1-Ethylnapthalene	0.0001
n-Heptane	0.0004	2-Ethylnapthalene	0.0001
Toluene	0.0004	C₁₄₊	0.0064
n-Octane	0.0001
		Total	100.0000

Table 6. Fully characterized composition of Sample 2 (Rich Gas).

Component	$x_{i}$ mol %	Component	$x_{i}$ mol %
Carbon Dioxide	0.00301	n-Nonane	0.0026
Nitrogen	0.87838	Ethylbenzene	0.0021
Methane	96.24016	m-Xylene	0.0000
Ethane	2.21501	p-Xylene	0.0001
Propane	0.08523	o-Xylene	0.00112
n-Butane	0.21057	1,2,4-Trimethylbenzene	0.00112
isoButane	0.01103	n-Decane	0.00034
n-Pentane	0.00201	Undecane	0.00018
isoPentane	0.00301	p-Diisopropylbenzene	0.00001
n-Hexane	0.00166	Dodecane	0.01982
Benzene	0.00021	2-Methyldodecane	0.0002
Cyclohexane	0.00020	Tridecane	0.1675
n-Heptane	0.00099	2,3-Dimethyldodecane	0.01623
Toluene	0.00015	Cyclohexylbenzene	0.0014
cis-1,3-dimethylcyclohexane	0.00024	1-Ethylnapthalene	0.0024
n-Octane	0.00133	2-Ethylnapthalene	0.0051
		C₁₄₊	0.1266
		Total	100.0000

Table 7. Fully characterized composition of Sample 3 (Average Gas).

Component	$x_{i}$ mol %	Component	$x_{i}$ mol %
Carbon Dioxide	0.00300	n-Octane	0.00010
Nitrogen	1.63088	n-Nonane	0.05397
Methane	94.17644	Ethylbenzene	0.00083
Ethane	3.94729	m-Xylene	0.00074
Propane	0.09593	p-Xylene	0.00074
n-Butane	0.00600	o-Xylene	0.00092
isoButane	0.00200	1,2,4-Trimethylbenzene	0.00036
n-Pentane	0.00000	n-Decane	0.00125
isoPentane	0.00000	Undecane	0.00056
n-Hexane	0.00054	Dodecane	0.00637
Benzene	0.00004	2-Methyldodecane	0.00011
		Pentamethylbenzene	0.00001
Cyclohexane	0.00012	Tridecane	0.03504
n-Heptane	0.00020	2,3-Dimethyldodecane	0.00835
Toluene	0.00004	Cyclohexylbenzene	0.00142
cis-1,3-dimethylcyclohexane	0	1-Ethylnapthalene	0.00168
		2-Ethylnapthalene	0.00305
		C₁₄₊	0.02202
		Total	100.0000

Table 8. Classification of the 46 gas samples evaluated by this work to develop the PINA_Attalla method in accordance with their C₆₊ MW.

Gas Type	C₆₊ MW (g/mol)
Lean Gas	87–92
Average Gas	92–100
Rich Gas	100–117

Table 9. Normal boiling point ranges used to classify single carbon number (SCN) pseudocomponents, as obtained from gas chromatography elution.

SCN	NBP Range (K)	NBP Range (°F)
C₆	322.04–347.04	120–165
C₇	349.82–377.59	170–220
C₈	380.37–408.15	225–275
C₉	410.93–433.15	280–320
C₁₀	435.93–447.04	325–345
C₁₁	449.82–477.59	350–400
C₁₂	480.37–505.37	405–450
C₁₃	508.15–519.26	455–475
C₁₄₊	522.04–538.71	480–510

Table 10. Average PINA distribution for each pseudocomponent in the Lean gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

Table 10. Average PINA distribution for each pseudocomponent in the Lean gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

Pseudocomponent	$x_{p}$	$x_{i}$	$x_{n}$	$x_{a}$
C₆	0.379	0.621	0	0
C₇	0.128	0.233	0.186	0.453
C₈	0.0936	0.364	0.188	0.354
C₉	0.198	0.205	0.252	0.346
C₁₀	0.147	0.312	0.132	0.409
C₁₁	0.142	0.562	0.0729	0.223
C₁₂	0.394	0.185	0.00419	0.418
C₁₃	0.633	0.367	0	0
C₁₄₊	0.674	0.176	0.00176	0.148

Table 11. Average PINA distribution for each pseudocomponent for the average gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

Table 11. Average PINA distribution for each pseudocomponent for the average gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

Pseudocomponent	$x_{p}$	$x_{i}$	$x_{n}$	$x_{a}$
C₆	0.374	0.626	0	0
C₇	0.126	0.261	0.178	0.435
C₈	0.109	0.372	0.178	0.341
C₉	0.221	0.216	0.233	0.330
C₁₀	0.149	0.299	0.122	0.430
C₁₁	0.146	0.527	0.0680	0.259
C₁₂	0.402	0.185	0.00383	0.409
C₁₃	0.639	0.361	0	0
C₁₄₊	0.598	0.258	0.00155	0.142

Table 12. Average PINA distribution for each SCN for the rich gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

Table 12. Average PINA distribution for each SCN for the rich gas type. The mole fractions of paraffins, isoparaffins, naphthenics and aromatics are denoted

x_{p}

,

x_{i}

,

x_{n}

and

x_{a},

respectively.

Pseudocomponent	$x_{p}$	$x_{i}$	$x_{n}$	$x_{a}$
C₆	0.339	0.661	0	0
C₇	0.118	0.448	0.144	0.290
C₈	0.186	0.493	0.0939	0.227
C₉	0.281	0.357	0.108	0.253
C₁₀	0.160	0.199	0.0511	0.590
C₁₁	0.170	0.268	0.0353	0.526
C₁₂	0.443	0.205	0.00215	0.350
C₁₃	0.688	0.312	0	0
C₁₄₊	0.689	0.217	0	0.0939

Table 13. Discrete compounds used by the PINA_Attalla method to represent the paraffin, isoparafin, naphthenic aromatic (PINA) classes of single carbon number (SCN) pseudocomponents to C₁₄, together with their normal boiling point (NBP), molecular weight (MW) and melting temperature

T_{f}

.

Table 13. Discrete compounds used by the PINA_Attalla method to represent the paraffin, isoparafin, naphthenic aromatic (PINA) classes of single carbon number (SCN) pseudocomponents to C₁₄, together with their normal boiling point (NBP), molecular weight (MW) and melting temperature

T_{f}

.

SCN	PINA	Component Name	Formula	MW	NBP (°F)	NBP (K)	T_f (°F)	T_f (K)
C6	C6-P	n-hexane	C₆H₁₄	86.18	155.7	341.87	−139.6	177.82
	C6-I	2-methylpentane	C₆H₁₄	86.18	140.5	333.43	−244.9	119.32
	C6-N	Cyclopentane	C₅H₁₀	70.14	120.6	322.37	−136.9	179.32
C7	C7-P	n-heptane	C₇H₁₄	100.2	209.2	371.59	−131	182.59
	C7-I	2-methylhexane	C₇H₁₄	100.2	194.1	363.21	−180.9	154.87
	C7-N	Cyclohexane	C₆H₁₂	84.16	177.3	353.87	43.8	279.71
	C7-A	Benzene	C₆H₆	78.11	176.2	353.26	42	278.71
C8	C8-P	n-octane	C₈H₁₈	114.2	258.2	398.82	−70.2	216.37
	C8-I	2-methylheptane	C₈H₁₈	114.2	243.8	390.82	−164.2	164.15
	C8-N	cis-1,3-dimethylcyclohexane	C₈H₁₆	112.2	248.2	393.26	−104	197.59
	C8-A	Toluene	C₇H₈	90.14	231.2	383.82	−138.9	178.21
C9	C9-P	n-nonane	C₉H₂₀	128.3	303.5	423.98	−64.3	219.65
	C9-I	3-methyloctane	C₉H₂₀	128.3	291.6	417.37	−161.7	165.54
	C9-N	1,1,2-trimethylcyclohexane	C₉H₁₈	126.2	293.4	418.37	−20.2	244.15
	C9-A	p-Xylene	C₈H₁₀	106.2	281	411.48	55.9	286.43
C10	C10-P	n-decane	C₁₀H₂₂	142.3	345.5	447.32	−21.4	243.48
	C10-I	2,3-dimethyloctane	C₁₀H₂₂	142.3	327.8	437.48	−65.2	219.15
	C10-N	isobutylcyclohexane	C₁₀H₂₀	140.27	340.34	444.45	−102.5	198.43
	C10-A	1,2,3,5-tetramethylbenzene	C₁₀H₁₄	134.2	388.4	471.15	−10.6	249.48
C11	C11-P	Undecane	C₁₁H₂₄	156.3	384.6	469.04	−14	247.59
	C11-I	3-ethylnonane	C₁₁H₂₄	156.3	351.48	450.64	−102.9	198.21
	C11-N	Pentylcyclohexane	C₁₁H₂₂	154.3	398.7	476.87	−71.5	215.65
	C11-A	1-ethyl-2-propylbenzene	C₁₁H₁₆	148.25	393.71	474.1	−5.8	252.15
C12	C12-P	Dodecane	C₁₂H₂₆	170.3	421.4	489.48	14.8	263.59
	C12-I	2,2,3,3-tetramethyloctane	C₁₂H₂₆	170.3	381.83	467.5	−46.9	229.32
	C12-N	Heptylcyclopentane	C₁₂H₂₄	168.3	435.5	497.32	−63.7	219.98
	C12-A	Cyclohexylbenzene	C₁₂H₁₆	160.26	464.22	513.27	45.2	280.48
C13	C13-P	Tridecane	C₁₃H₂₈	184.4	455	508.15	22.3	267.76
	C13-I	2-methyldodecane	C₁₃H₂₈	184.36	433.85	496.4	−14.8	247.15
	C13-N	Heptylcyclohexane	C₁₃H₂₆	182.35	459.05	510.4	−22.9	242.65
	C13-A	Heptylbenzene	C₁₃H₂₀	176.3	474.98	519.25	−54.4	225.15
C14	C14-P	Tetradecane	C₁₄H₃₀	198.4	488.3	526.65	42.5	278.98
	C14-I	2,3-dimethyldodecane	C₁₄H₃₀	198.4	474.24	518.84	−69	217.04
	C14-N	Octylcyclohexane	C₁₄H₂₈	196.4	490.73	528	−3.4	253.48
	C14-A	Octylbenzene	C₁₄H₂₂	190.32	508.73	538	−32.8	237.15

Table 14. Summary of the differences between the PINA_API and the PINA_Attalla methods.

Aspect	PINA_API	PINA_Attalla
Reference Correlations	Pseudocomponents are split into PINA fractions according to API correlations.	Pseudocomponents are split into PINA fractions according to new correlations developed by Attalla. based on 46 actual gas samples.
Representative Components	The pseudocomponents are represented by individual components those are not necessarily have the highest freezing point for each PINA category.	The pseudocomponents are represented by individual components those are either identified by the detailed gas chromatograph analysis, or conservatively assumed based on the highest freezing point that could be found as HHC over the NBP range defined for each pseudocomponent.
Basis of Reference Correlations	The used API correlations are based on and developed for petroleum fractions.	The new correlations developed by Attalla are based on 46 actual pipeline gas samples collected from US Gulf Coast of Mexico.
Paraffins to Iso-paraffins Ratio	The used API correlations estimate the PNA split not PINA. The PINA split is obtained for the unvalidated assumption that $x_{i} = 0.9 x_{p}$	The new correlations developed by Attalla estimate the PINA split including the P to I ratio for each pseudocomponent based on 46 actual gas samples.
Range of PCs	Not examined for pseudocomponents greater than C₉.	Examined up to C₁₄₊ which includes some of i-C₁₅ and i-C₁₆.
Gas Classification	The used API correlations are the same regardless of the richness of the gas.	The new correlations developed by Attalla are categorized based on the richness level of the gas to Lean, Average, and Rich based on the molecular weight of the C₆₊ obtained from the GC analysis of the gas.
