Quantifying the Shading Effects of a Small-Scale Rooftop-Installed Linear Fresnel Reflector in Cyprus

Abstract

Linear Fresnel reflectors are a versatile solar concentration technology, suitable for a wide range of industrial processes and thermal conditioning applications. Such collectors entail a certain footprint, generating shading on the surface where they are installed. This effect is rarely quantified but may play an indirect role on the surface below. When installed on a roof, the solar radiation heats the building less. In places where the annual heating demand is higher than the cooling demand, this constitutes an asset. However, this becomes a disadvantage when the cooling demand is higher annually than the heating demand. Essentially, the reduced solar radiation allows for the growth of plants that would not grow without the shade provided by the collector. The present paper is a quantitative analysis of such shading based on the linear Fresnel reflector of the Cyprus Institute. The work was conducted using the Tonatiuh++ ray-tracing software to determine the annual radiation blocking. A total of four years of actual meteorological measurements were applied directly to the ray-tracing model.

1. Introduction

Four main types of collectors constitute the solar concentration technologies: central receiver systems (CRS), parabolic trough collectors (PTC), linear Fresnel reflectors (LFR), and parabolic dish–Stirling [1,2]. The solar concentration technologies (CST) use mirrors to concentrate the light on the receivers. The LFRs reflect the solar light onto a linear receiver or absorber tubes [3,4] in which a heat transfer fluid or steam flows. One of their assets resides in the fact that they can be compact and integrated into limited areas such as roofs [5,6], whether they are residential at the district level [7,8], commercial, or industrial at the building level or intended for industrial processes [9,10]. CST manufacturers can determine the optical efficiency of their collectors at the design phase with the use of specialized software called ray-tracers based on Monte Carlo principles [11]. They help to support designers in extracting the best optical efficiency of the collectors. Jakica [12] reviewed the state of the art of modeling tools for solar collector designs in depth, including PV technologies. Such tools usually throw rays from a solar plane onto a set of optics and track the rays up to the receiver via reflection. This allows for the calculation of optical efficiency, based on pure geometry, before considering the thermal losses. Regarding the LFRs, it is possible, among other things, to discriminate the different contributors (cosine losses, blocking, shading, tracking errors, etc.), as described in [13]. Extensive work on the optical efficiency of LFRs has been documented in the academic literature for decades, with the objective of increasing performance by harvesting the highest number of rays coming from the solar plane into the absorber [14,15,16,17,18]. The current publication also concerns the U-LEAF (urban linear Fresnel) collector in Cyprus, which has also been included in the scope of the ray-tracing studies involving Tonatiuh [19] and Tonatiuh++ [20]. Thus, the common denominator of these studies is their aim to increase the efficiency of the linear collector. However, little attention is paid to the side effects of the collectors on the place where they are installed. The structure of a collector itself is a radiation blocker that has an indirect effect on the ground or on the roof where it is installed. When on top of a roof, for instance, less heat will be conducted, which is relevant in hot countries. However, this offsets the direct radiation that would heat a building in winter. Therefore, it is paramount to check the balance between the radiation blocked in summer and that lost in winter. Usually, these aspects are not taken into account in ray-tracing studies, while they have a clear impact on the consumer or the beneficiary underneath, such as the building occupants. As highlighted in [21], building shading in hot countries is important in order to reduce the cooling needs of spaces. The work in the latter reference summarizes all the different methods of increasing shading to avoid heating by radiation. Shading tools can also be active and produce energy, such as PV [22]. Building-integrated photovoltaics (BIPV) is actually the most common strategy, as they can be easily integrated onto roofs and facades [23]. Bot et al. [24] listed the different strategies for artificial shading with solar collectors. While BIPV solutions prevail, building-integrated solar thermal (BIST) systems are listed but they do not involve concentration. Concentration is mentioned but for PV (also called concentrated PV). Shading effects for the linear Fresnel reflector have been used by [25], but they have never been quantified as in the present paper. In this regard, the approach is novel and relies on actual measurements from an in situ pyrheliometer with an accurate ray-tracing modeling. The present paper aims to identify the losses of direct radiation of the plant in Nicosia at different heights: the current one at 0.63 m, 1.5 m, 2 m, 2.5 m, 3 m, 3.5 m, and 4 m. According to the height, different kinds of use can be envisaged: at low heights, it can be used on a roof; at higher heights, it can be used for solar parking or for agricultural purposes. This work is undertaken in a ray-tracing environment with Tonatiuh++ [26]. The next section deals with the definition of the ray-tracing model. The Results section quantifies the amount of energy that is blocked at different heights based on local meteorological data. This is followed by the Discussion section and the Conclusions.

2. Materials and Methods

2.1. Ray-Tracing Modeling

2.1.1. Ground Mesh

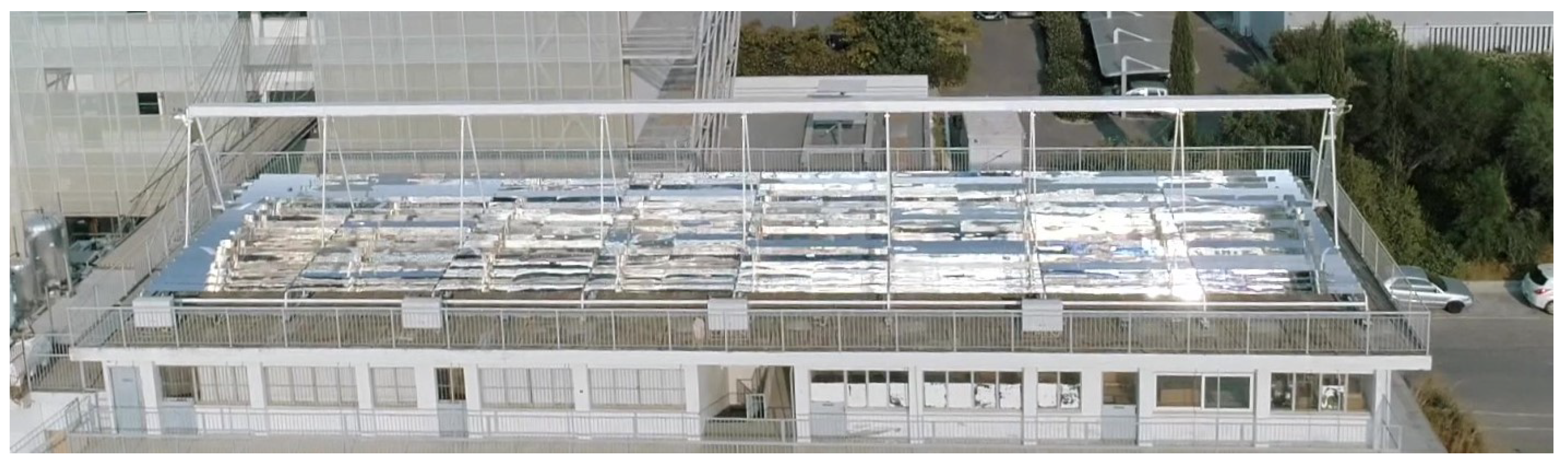

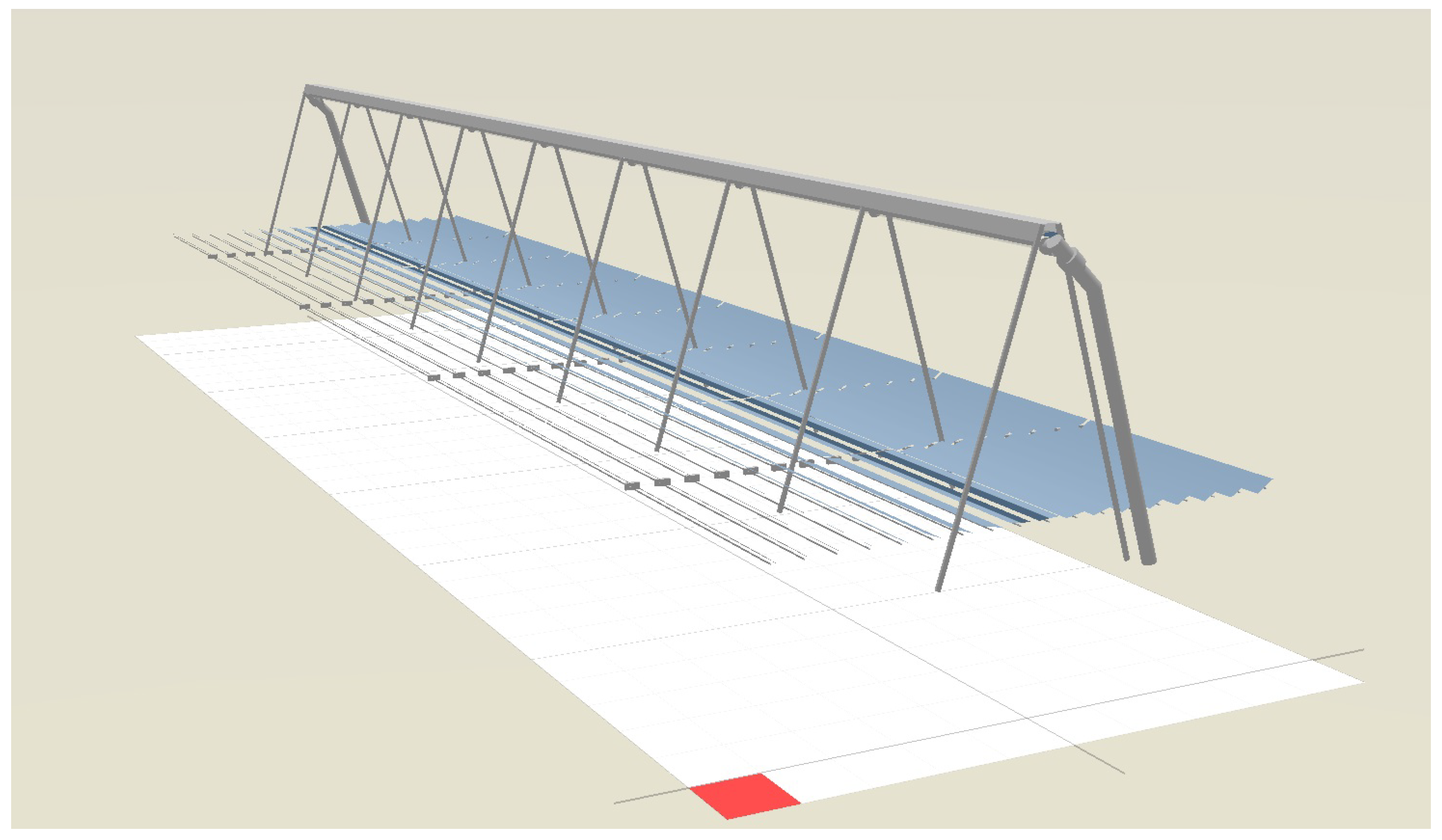

The linear Fresnel collector (U-LEAF) of the Cyprus Institute is made of 288 tracking mirrors, covering a net area of 184 m² and a 32 m long receiver (see Figure 1). Two extensive ray-tracing studies have already been conducted to assess its performance, first in Tonatiuh [27] and second in Tonatiuh++ [20]. These two latter works were thus concerned with the direct use for heat production: photons issued from the sun which impinge on the absorber after reflection(s). In the present study, the focus is on the energy performance of the collector in indirect use. LFRs are not intended for their capacity as shading systems. Nonetheless, the shading shield that they represent has an effect on the energy to be absorbed beneath, which is relevant for a roof, for instance. This may lead to the attenuation of heating by solar radiation in the summer, but also the loss of the heating benefit granted by solar rays in the winter. Tonatiuh++ (v0.1.8.17) has been used as a continuation of [20]. The collector has been modelled with a meshed ground in unit squares of 1 m² underneath. In Figure 2, a unit square is represented in red. The whole ground is distributed in a mesh of 34 by 10 squares for a global meshing of 34 m by 10 m (approximately the area of the roof underneath hosting the collector). The ray-tracing methodology will consist of quantifying the number of rays, leading to the calculation of the solar flux reaching the ground for seven different heights above the ground: (i) the actual height of 0.63 m; (ii) the height of 1.5 m; (iii) the height of 2.0 m; (iv) the height of 2.5 m; (v) the height of 3 m; (vi) the height of 3.5 m; and (vii) the height of 4 m above the ground. The shift to higher positions is intended for the use of the LFR on a parking space, greenhouse cover, or for other agricultural uses such as agrivoltaics in the case of PV in association with crops [28]. The 2 m and 3 m height configurations with rays are displayed in Figure 3, with the meshed ground in green. The work presented in the next section focuses on the confidence level of the results from the ray tracing.

2.1.2. Convergence Threshold

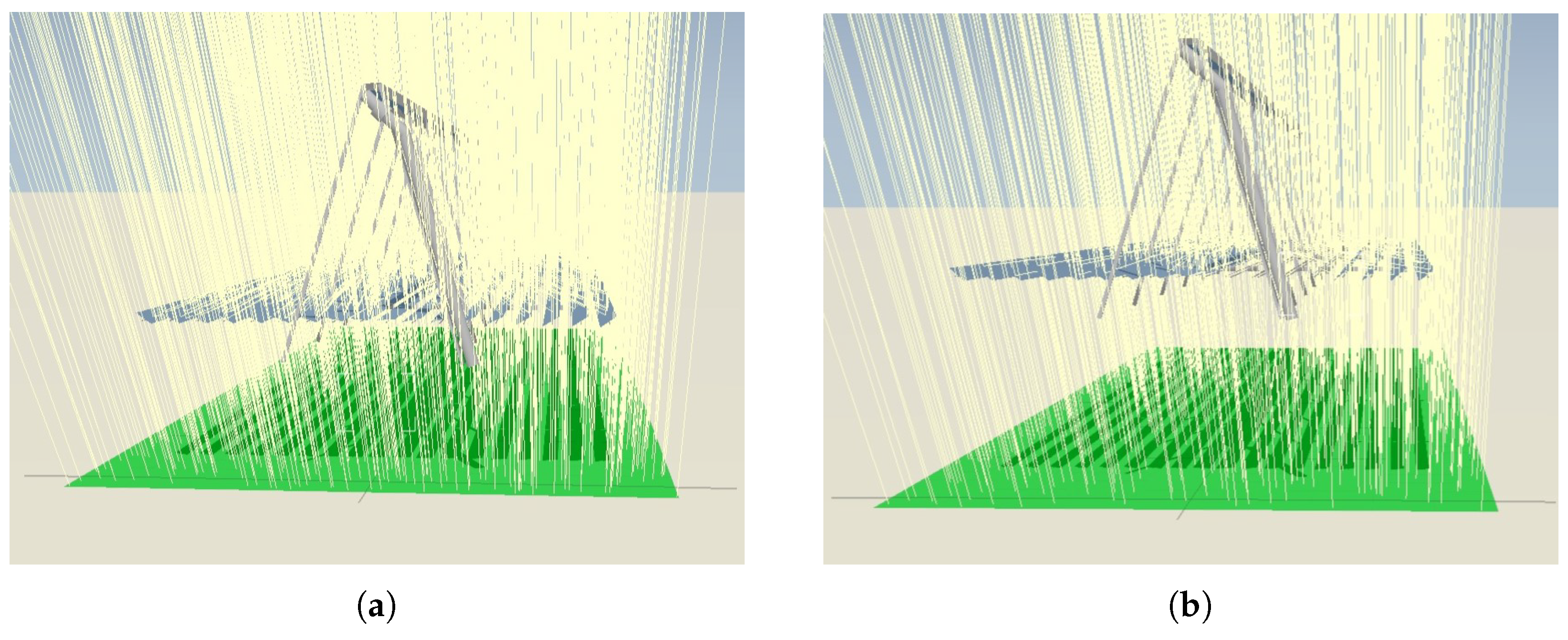

Before starting the analysis, the confidence level of the results is determined. To perform this, the following steps have been pursued:

• Create the mesh as described previously by unit square of 1 m by 1 m;
• Set the sun at an elevation of 90°;
• Launch rays from the solar pane on each of the squares repeatedly with increasing number of rays.

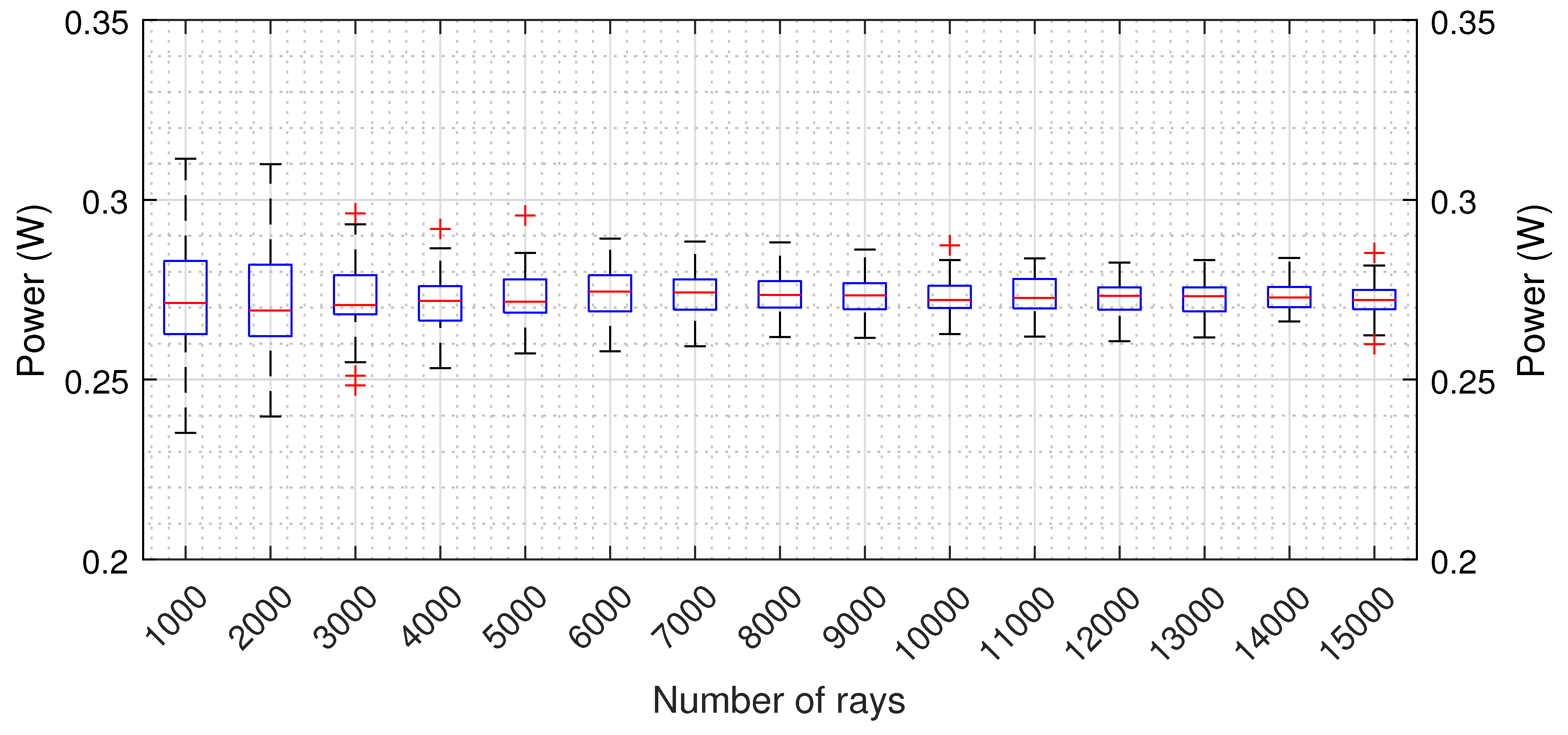

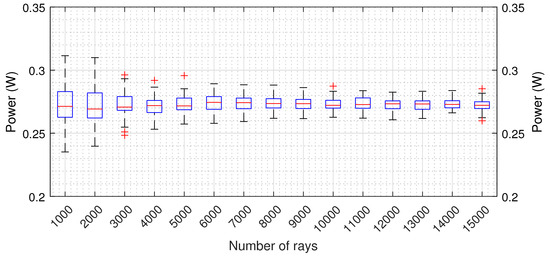

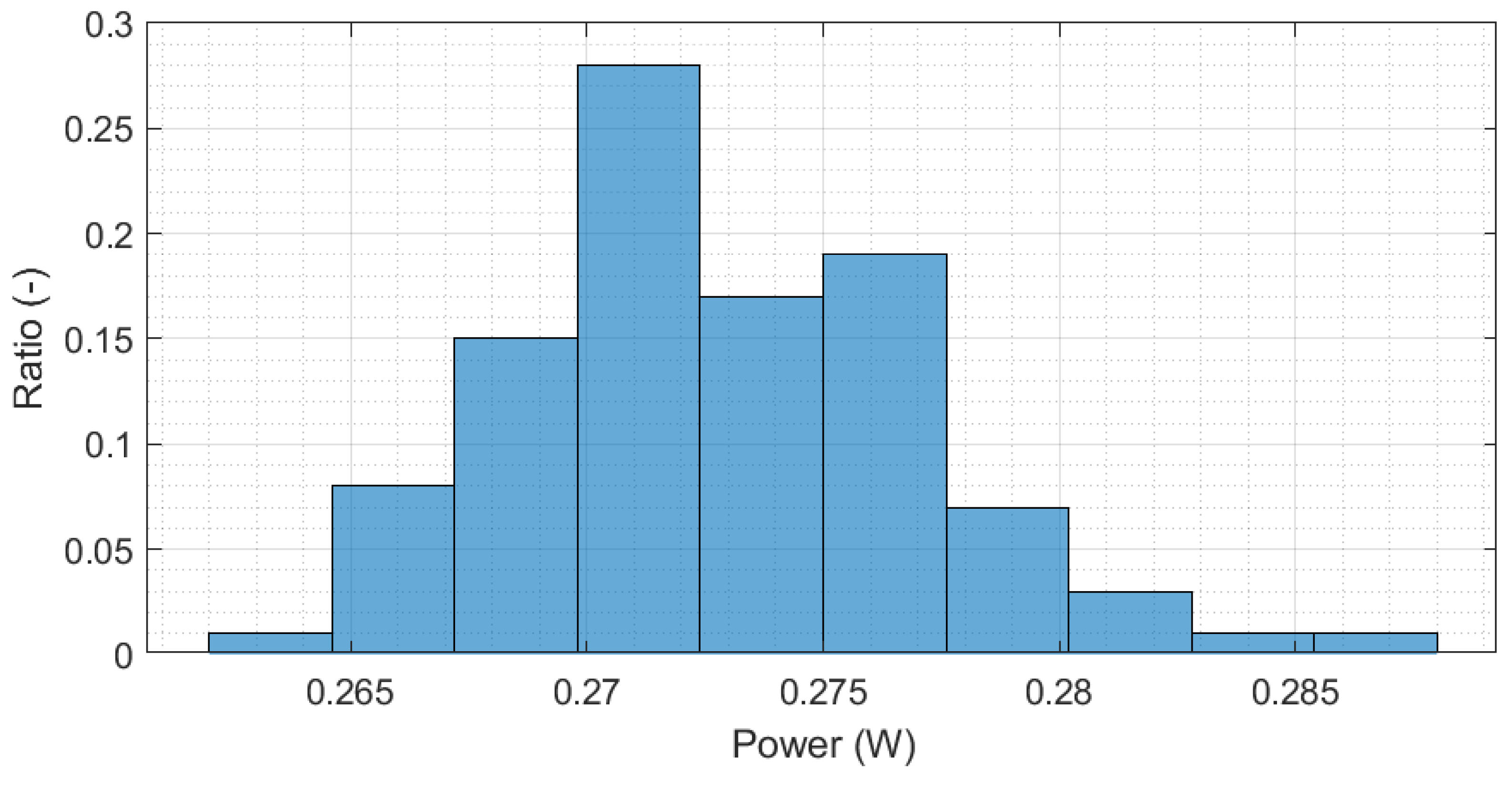

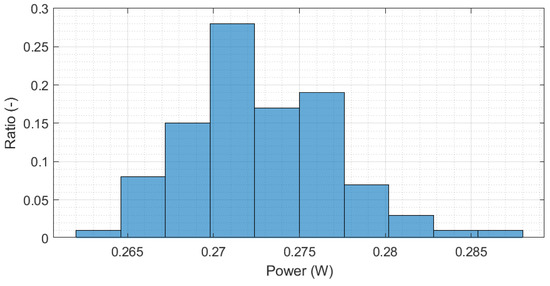

The simulations have been performed with ray numbers increasing from 1000 until 15,000 rays per square meter with an incremental step of 1000 rays, and this—100 times per step—is for the whole ground embedding 34 squares. For each of the squares, 100 flux values have been calculated and statistical analysis has been performed. Figure 4 represents the distribution of the amount of energy reaching the ground of the square (5, 10) for varying numbers of rays emitted by the sun between 1000 and 15,000. Each number of rays has been repeated 100 times, representing 1000 simulations to produce Figure 4. As can be observed, the median value, represented in red, does not vary significantly for the different numbers of rays; however, the spread narrows towards an increasing number of rays per square meter. The blue box represents the ±25% boundaries. Due to the numerous and lengthy simulations to be performed, it was considered that 10,000 rays per square meter would be used for the tolerance boundaries. For the specifically selected square (5, 10), the median power reached is 0.2721 W. The specific square is located in the center of the collector, slightly towards the north. The (5, 10) square is quite representative of the squares underneath the collector, avoiding edge effects. The maximum and furthest value from the median was found to be 0.28737 W. Since an outlier value has been found, this means that 99% of the values fall within a distance to the median of 5.6%. More emphasis is given in the histogram in Figure 5, where the distribution spread is represented in 10 bars. As can be seen, 97% of the simulations fall within 4% of the distance to the median value. This gives a reasonable account of the precision of the simulations at 10,000 rays per square meter. The relative root mean square error (RRMSE) (in %) has been calculated at 10,000 rays for the 340 squares of the meshing following the equation:

$$\mathrm{RRMSE}=\sqrt{\frac{1}{N}{\displaystyle \sum _{i=1}^N}{\left(\frac{y_i-{\widehat{y}}_i}{y_i}\right)}^2}\times 100,$$

(1)

where $y_i$ represents the power for simulation $i\in ⟦1,30⟧$, ${\widehat{y}}_i$ represents the median value, and $N=100$ is the number of simulations.

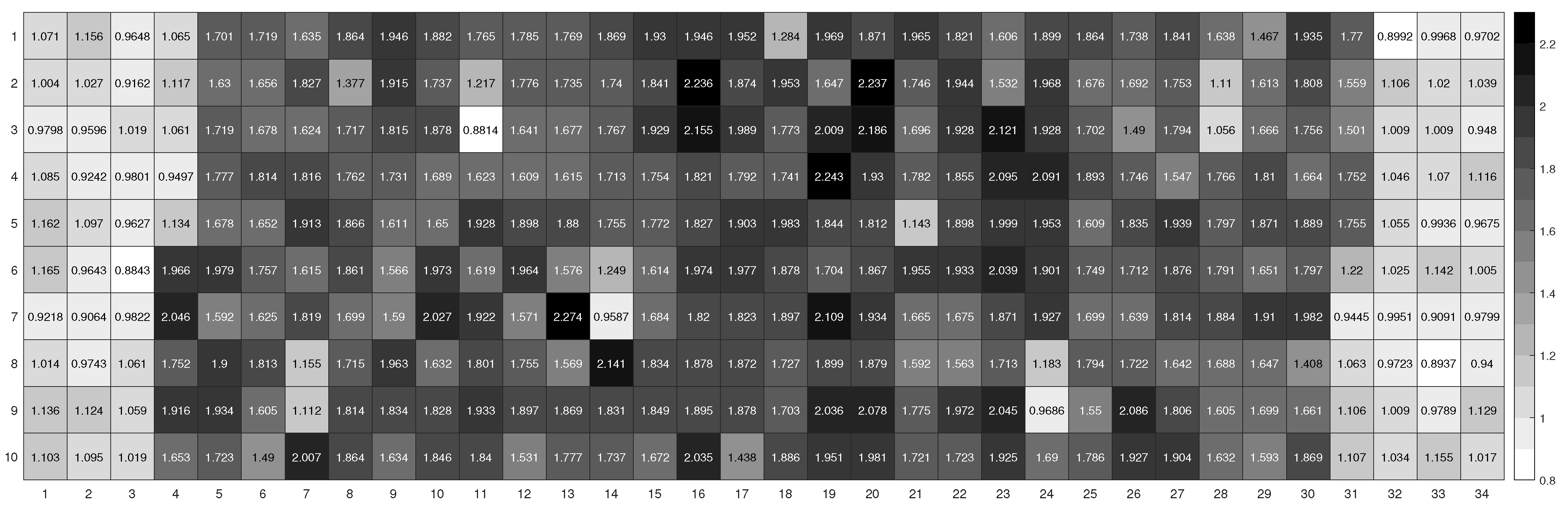

The results are illustrated in Figure 6. The errors fluctuate between 0.8% and 2.2%. This also indicates that the selection of 10,000 rays is robust enough given such values after 100 simulations. This gives an understanding of the tolerance values of the results to be presented further in the present paper. The next part will describe the sky vault meshing rationale.

2.1.3. Meshing of the Sky Vault

Once the number of rays to launch in a sky-scanning operation on all possible positions of the sun in the celestial vault is determined, the sky hemisphere itself needs to be meshed. The sky has been meshed in 31 elevation positions, from 0° to 90°, equally distributed with a step $\Delta$ of 3°. The number of azimuth positions has been distributed linearly as a decreasing function of the elevation: 360 azimuths for 0° of elevation and 4 positions for an elevation of 87°. The elevation of 90° has been treated with only one position; as when the solar elevation is at its peak, the solar position remains unchanged regardless of the azimuth elevation. The points for ray-tracing are $P_{k,n}$, defined by their respective elevation $E{l}_{k,n}$ and azimuth $A{z}_{k,n}$, as follows:

$$\left\{\begin{array}{c}{P}_{k,n}(E{l}_{k,n},A{z}_{k,n}),E{l}_{k,n}=90-n·\Delta ,A{z}_{k,n}=\frac{360·(k-1)}{4n}\hfill \\ n\in ⟦1,30⟧,k\in ⟦1,4n⟧\hfill \\ E{l}_{0,0}=90,A{z}_{0,0}=0.\hfill \end{array}\right.$$

(2)

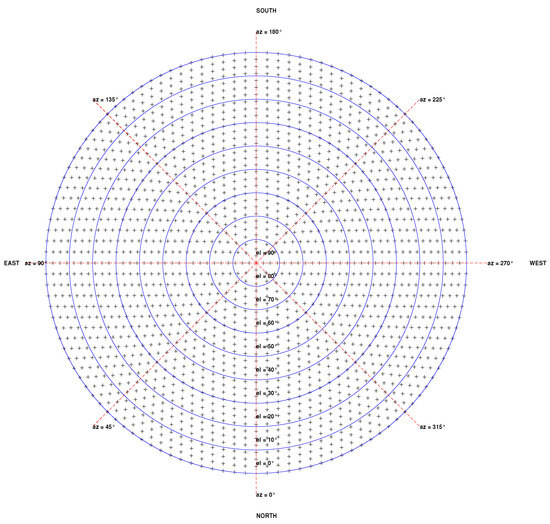

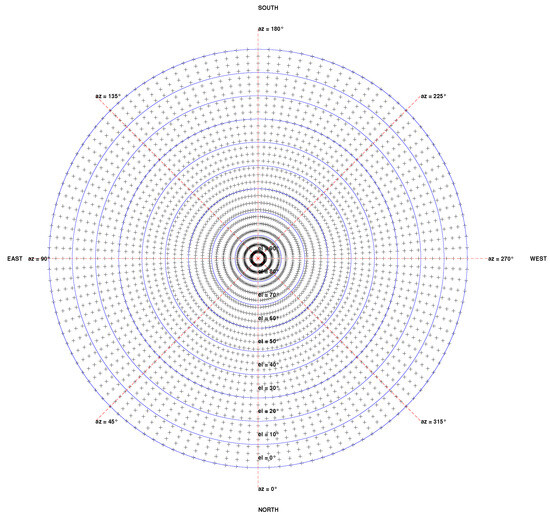

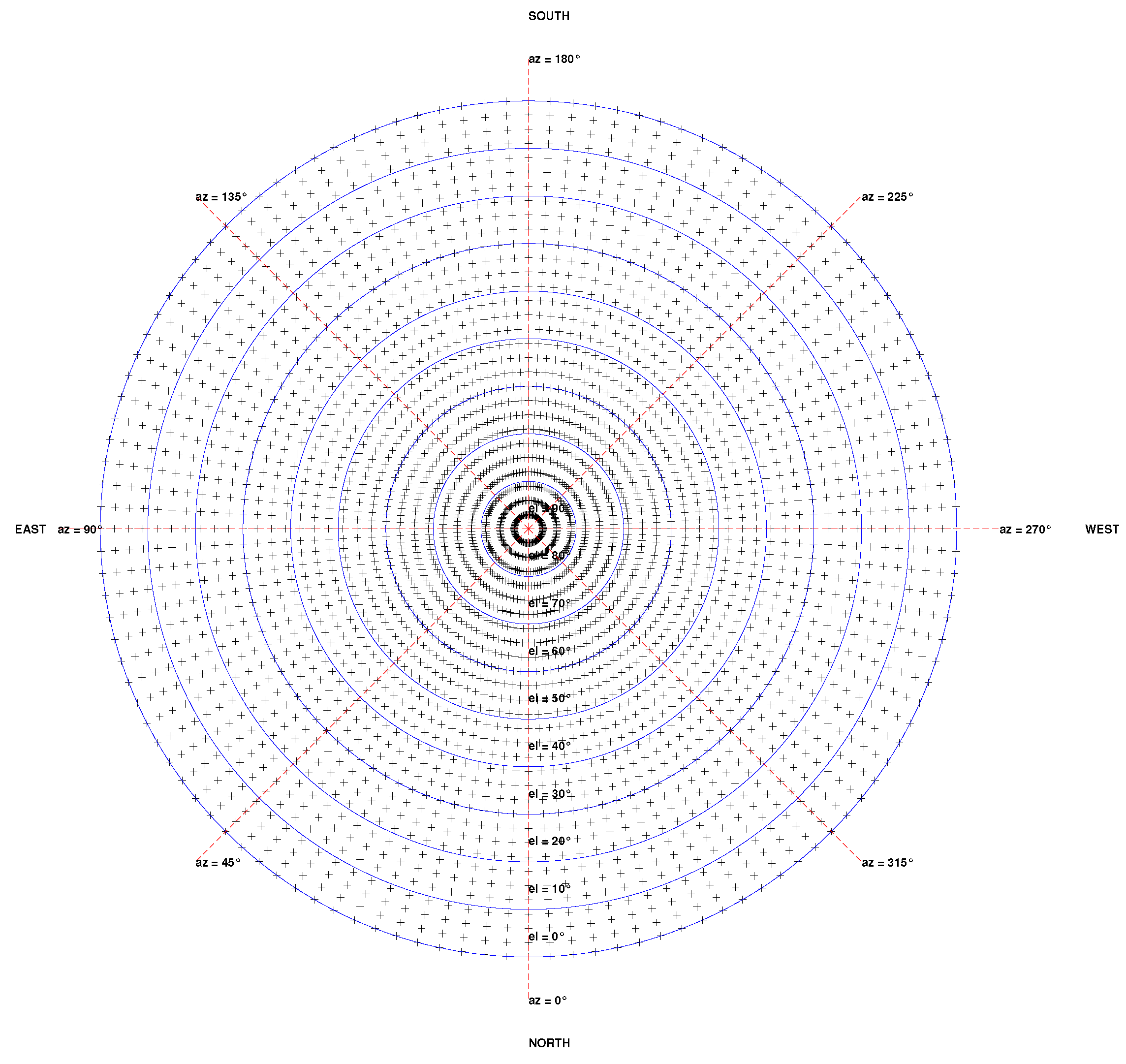

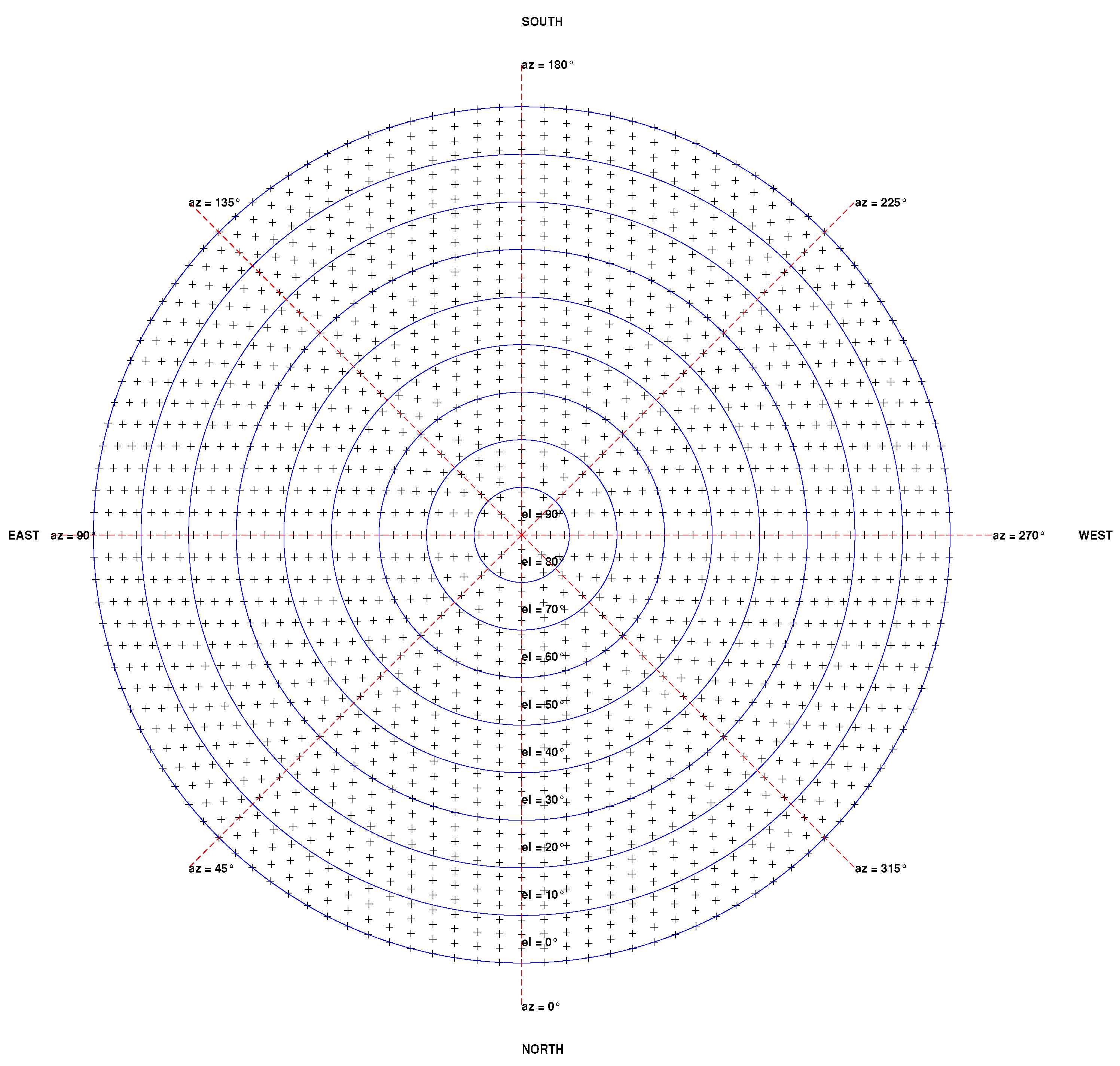

As seen in Figure 7, this is a more homogeneous distribution than the one consisting of scanning the sky with a constant step in elevation and in azimuth, which leads to a higher concentration of points closer to the zenith (Appendix A). This is an improvement compared to [27].

3. Results

The present section details the yield for every square presented in Figure 2 of the solar energy harvested.

3.1. Shade at Different Heights

The sun path in the sky at the exact coordinates of the LFR has been computed, as well as the cosine factor of the impinging solar rays. Additionally, the DNI (direct normal irradiation) has been registered with a time-step of 1 s for 4 full calendar years between 2017 and 2020 [30]. This led to the construction of Figure 8, where the north–south orientation is displayed from left to right.

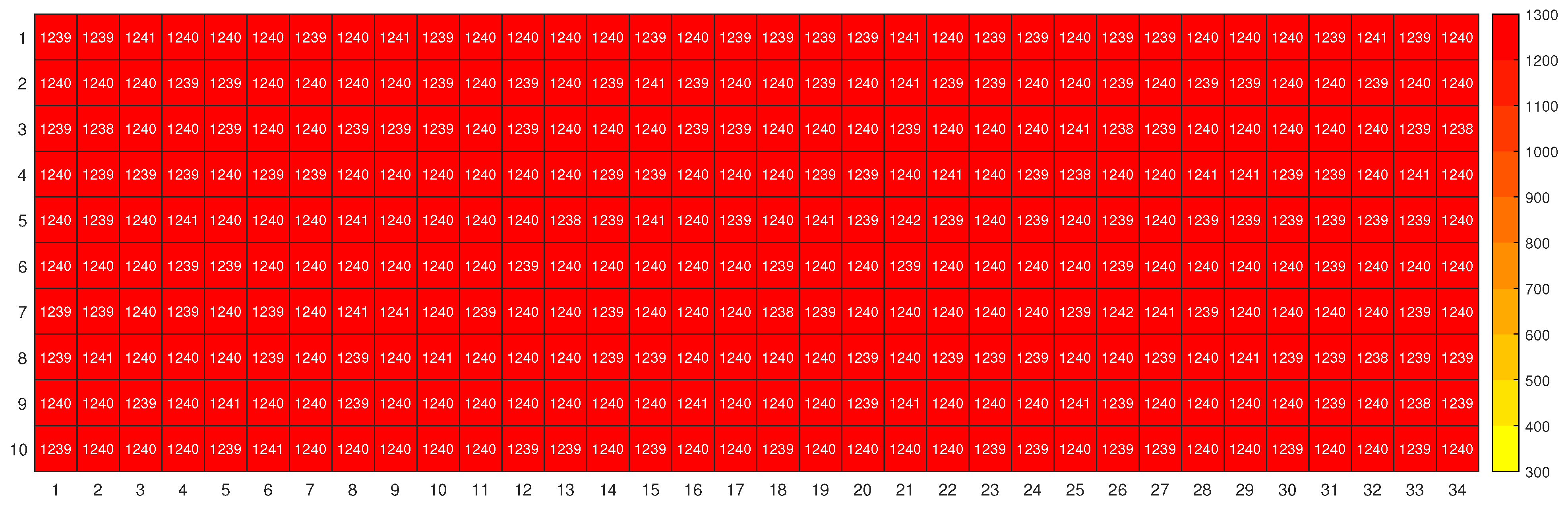

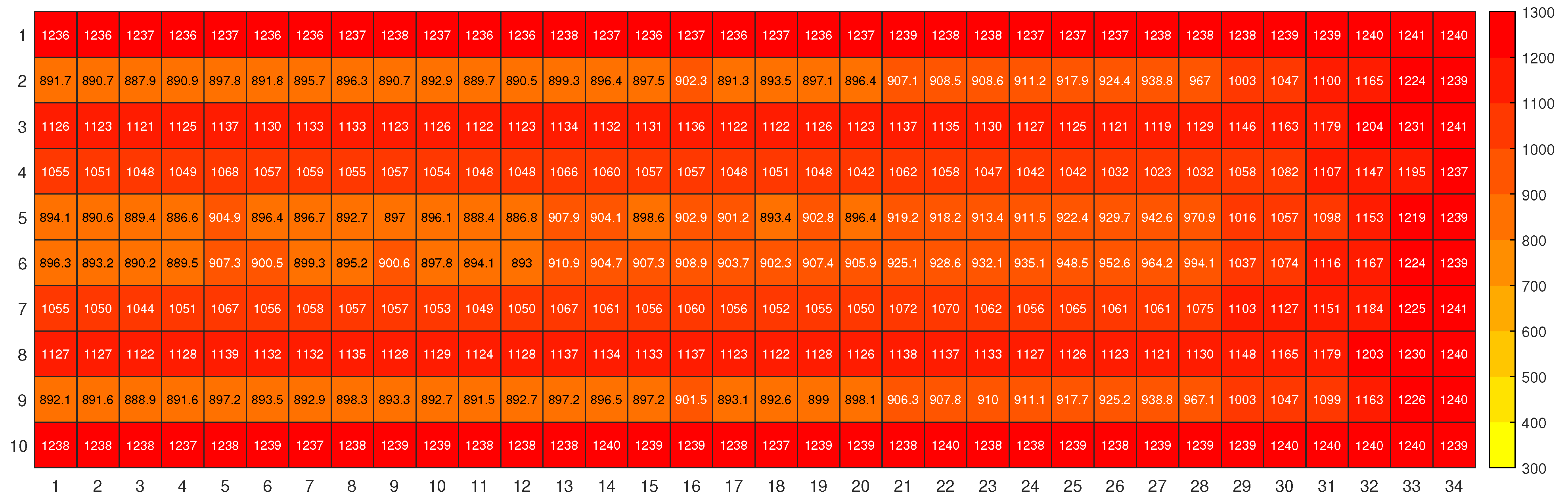

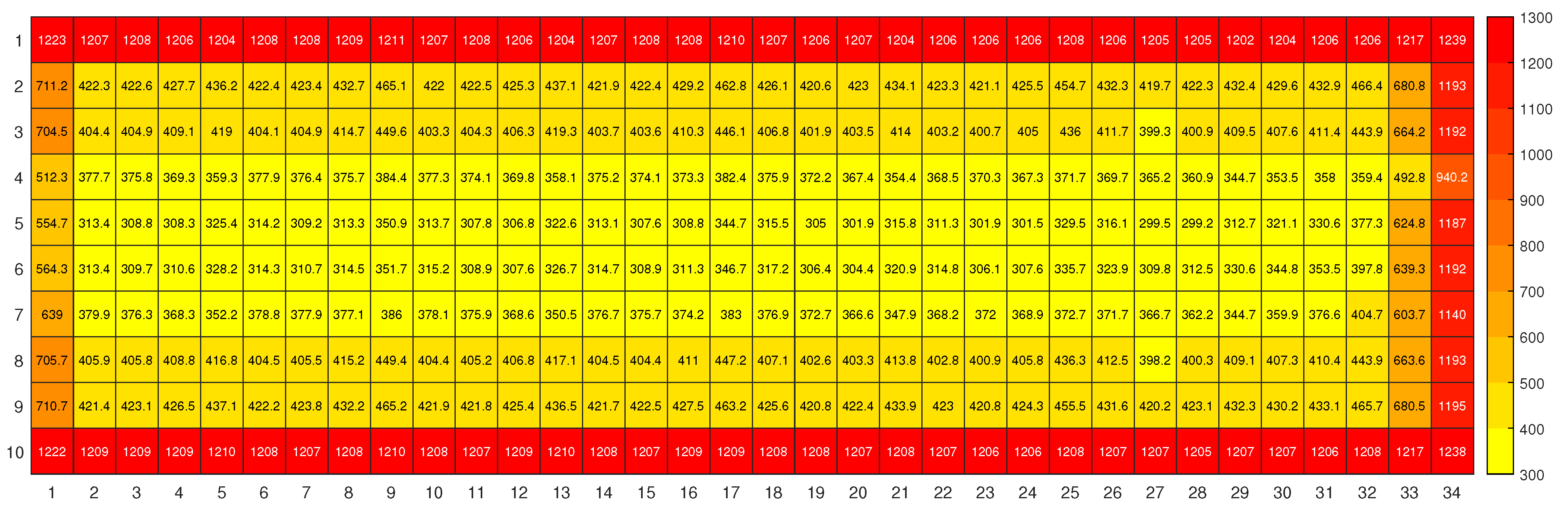

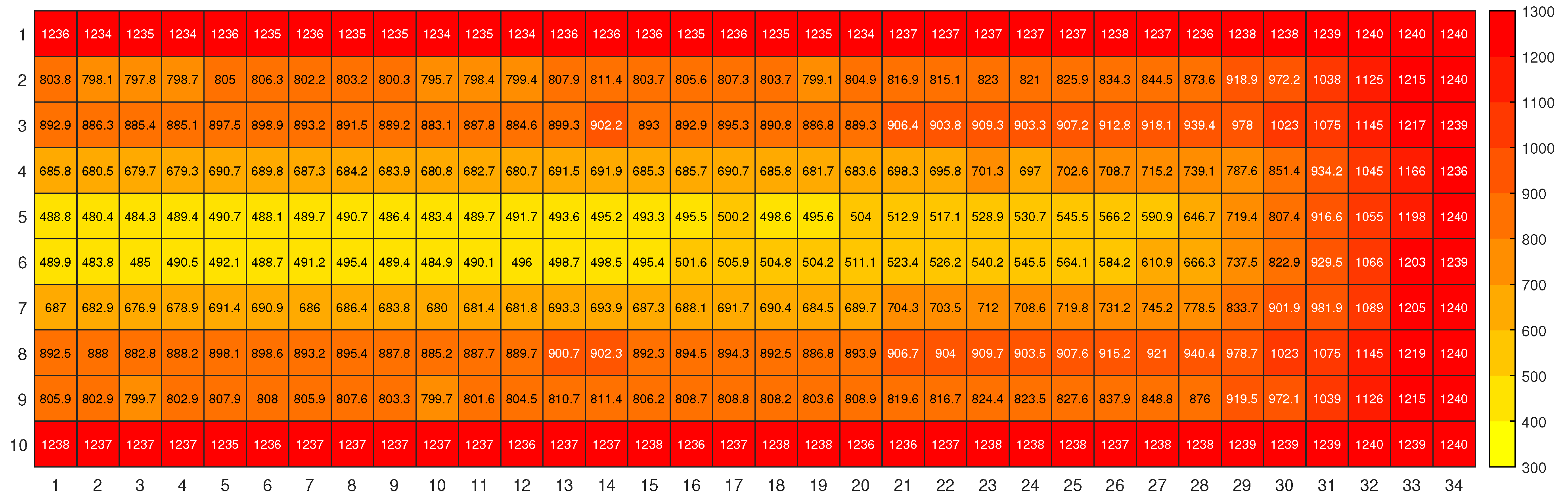

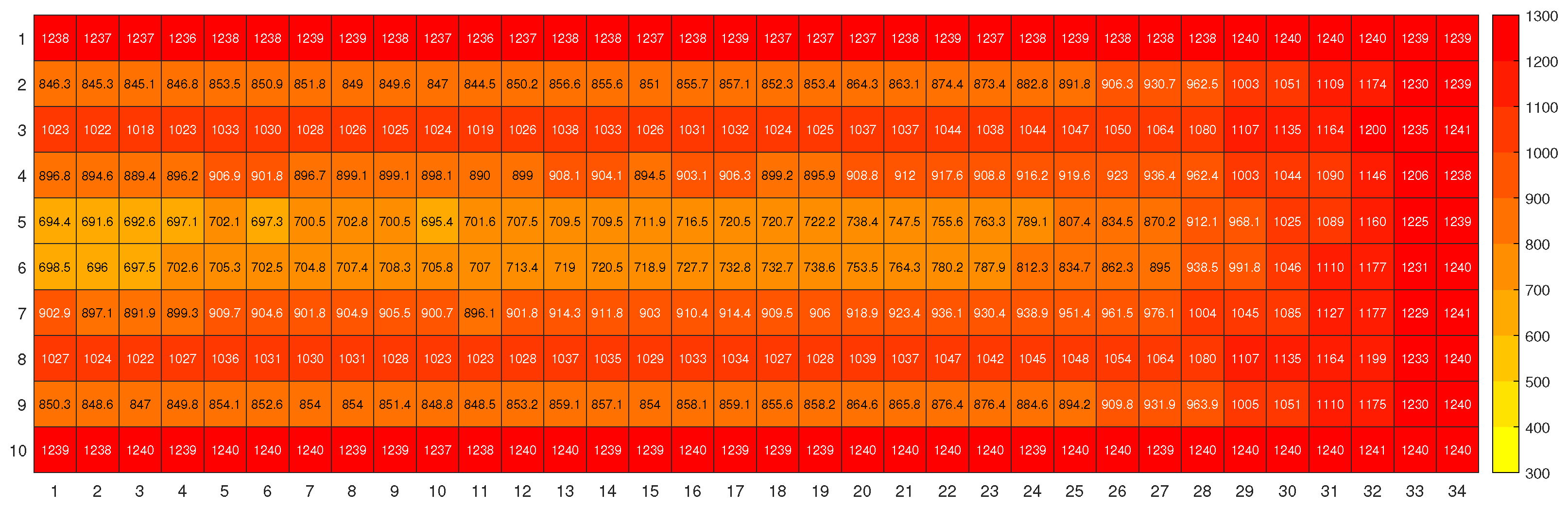

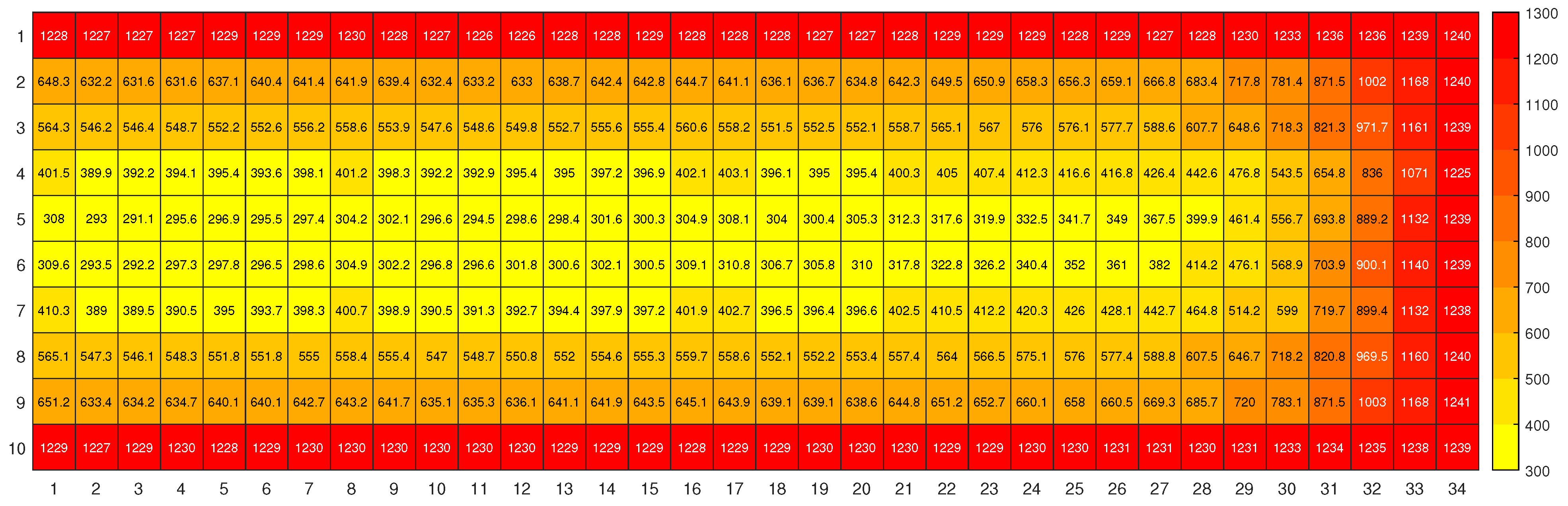

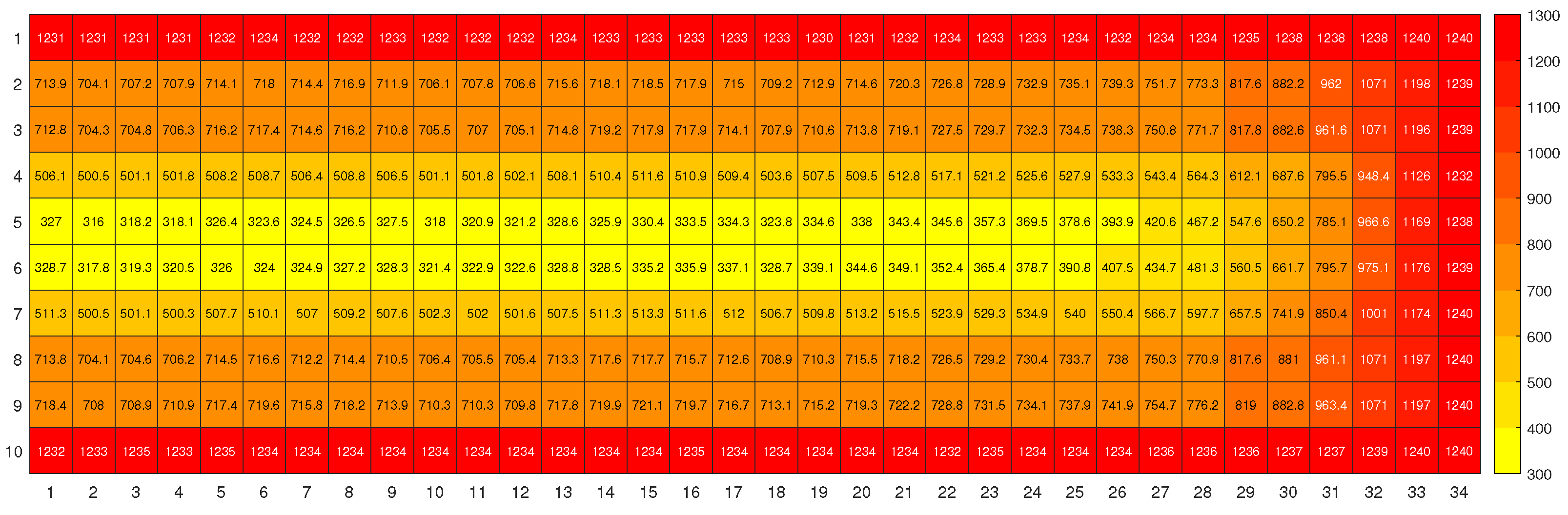

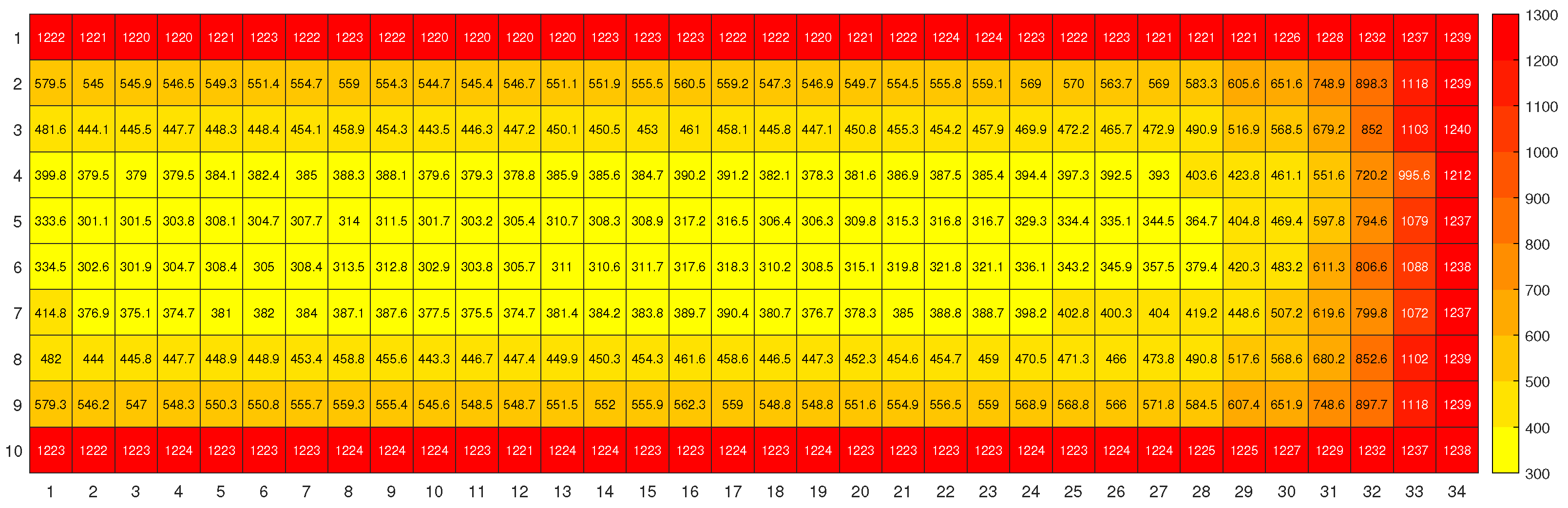

The annual DNI harvested at ground level is presented and reaches 1240 $\mathrm{kWh}·{\mathrm{m}}^{-2}$, meaning without any solar collector on top of it. The same exercise has been conducted with the inclusion of the collector as it currently stands and illustrated in Figure 9. As one may expect, the level of radiation reaching the ground annually is much lower, especially in the inner rows. The lateral rows are mildly affected, with accumulated radiation averaging 1210 $\mathrm{kWh}·{\mathrm{m}}^{-2}$, which can be explained by the fact that on these specific rows, no mirror is installed on their top. The path of the sun in Cyprus is mainly distributed in the southern direction. Thus, the southern squares are less impacted (column 34). The average energy is 1190 $\mathrm{kWh}·{\mathrm{m}}^{-2}$. The inlet pipe shadows the underneath square, where solar radiation reaches 940 $\mathrm{kWh}·{\mathrm{m}}^{-2}$ (Row 5, column 34). Towards the central rows, the energy density decreases to values close to 300 $\mathrm{kWh}·{\mathrm{m}}^{-2}$. A similar pattern is followed for 2 m of height, as illustrated in Figure 10, but with less intensity. While the lowest value in the center with the current configuration is 301.5 $\mathrm{kWh}·{\mathrm{m}}^{-2}$ at the current height, if the collector were at 2 m, the minimum value reached would be 480.4 $\mathrm{kWh}·{\mathrm{m}}^{-2}$. Figure 11 and Figure 12 correspond, respectively, to heights of 3 m and 4 m. As can be seen, as the height increases, the shading has less and less effect. The collector at the three different heights defines a red U-shape or horseshoe in Figure 9, Figure 10 and Figure 11, with the thickness increasing with the height of the collector. The minimal value at higher heights in the central rows is increasing. For all configurations, the first row (Row 1) has slightly higher radiation than Row 2 as the sun is on the northern side at the end of the day and rays penetrate directly on the northern edge. In order not to overload the main body of the present paper, height configurations of 1.5 m, 2.5 m, and 3.5 m are presented in Appendix B. The work of the present section is further analyzed in the next part per row and per month.

3.2. Shading for the Different Rows

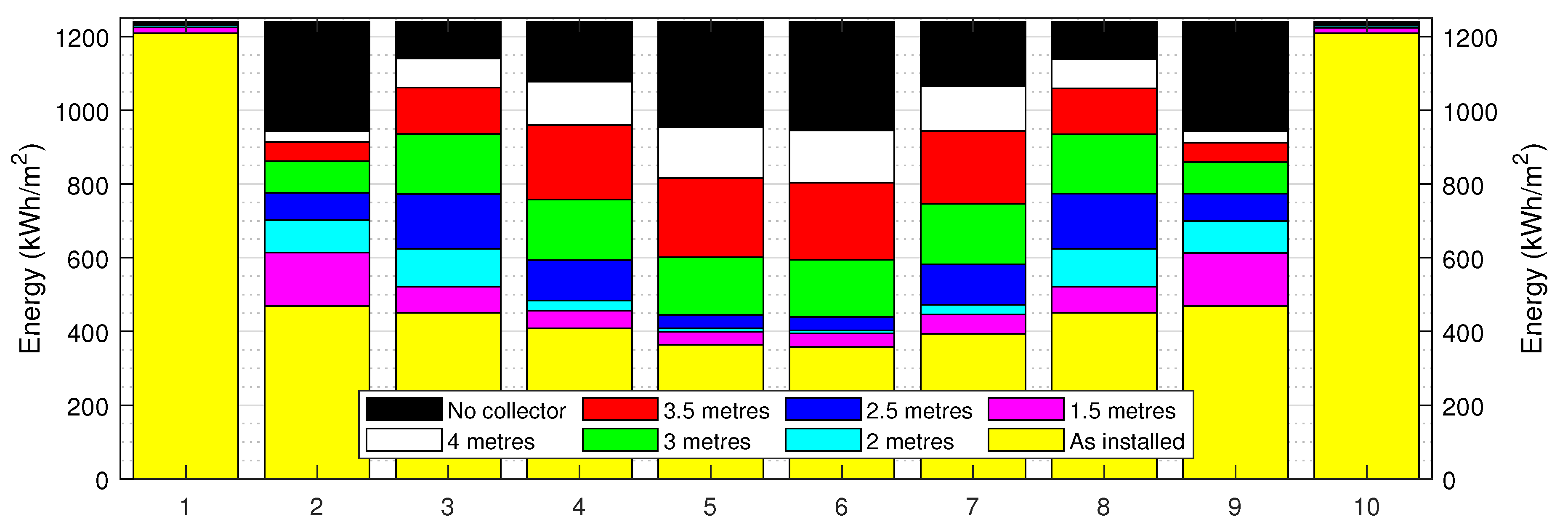

Figure 13 displays the average per row. On the external rows (1, east; 10, west), the impact compared to bare ground is almost null, whatever the height of the collector. Differences start with rows 2 and 9. For all the inner rows, the ‘as installed’ configuration blocks the rays by two-thirds, around 400 $\mathrm{kWh}·{\mathrm{m}}^{-2}$. The shading ratio decreases smoothly on all the inner rows. For heights from 1.5 m up to 2.5 m, the transparency ratio decreases smoothly as the rows are closer to the center. However, for higher installations, the radiation increases again at rows 3 and 8. This is due to the fact that at the end of the day, when the sun is on the northern side at low heights, the direct radiation still penetrates under the primary optics. Generally, the acceptance angle for the direct solar rays is higher with heigher roof height. A solar parking or agrivoltaics setup would better suit heights of 2.5 m and higher, but with less blocking effect. For a simpler cleaning process, i.e., primary reflector, a height of 2 m and lower are more convenient, with better shielding efficiency.

3.3. Monthly Radiation Assessment

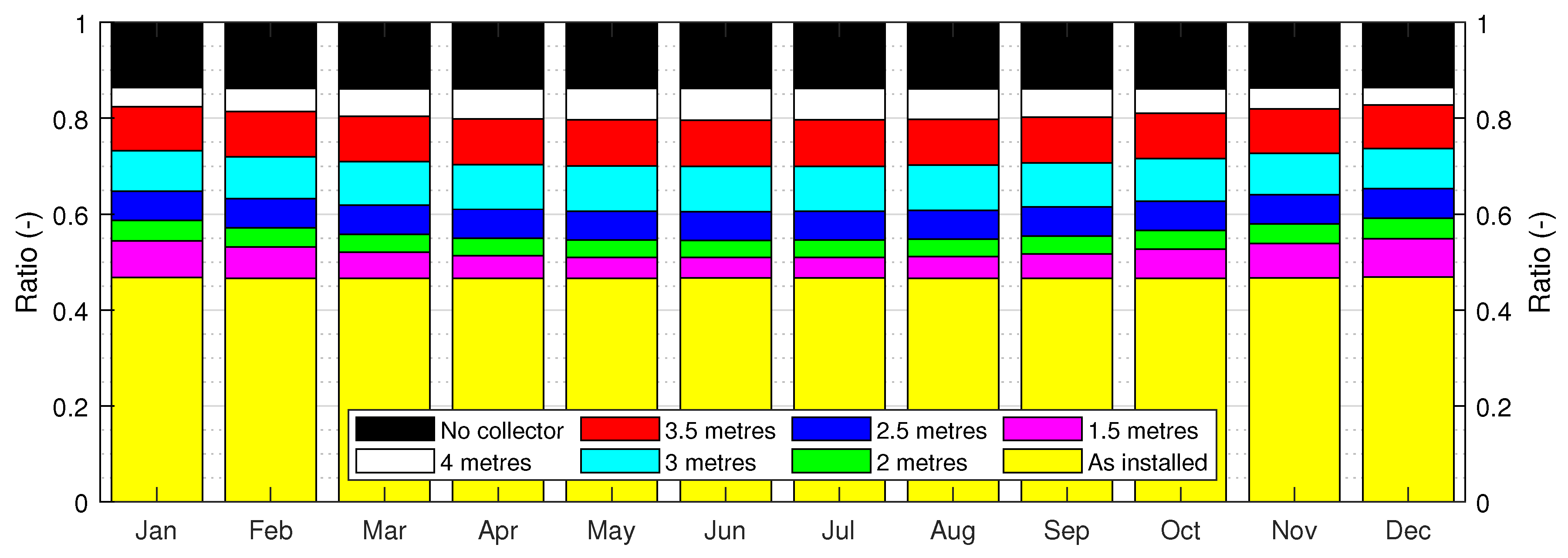

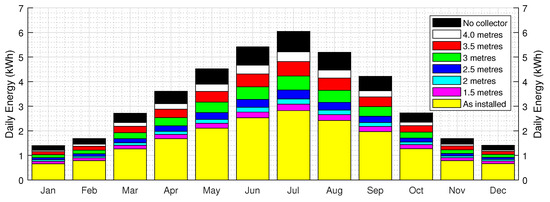

The shade array is organized into 10 rows and 34 columns. The direct radiation resource is depicted as the average daily value per month in Figure 14. A significant observation is the substantial difference in radiation income between summer and winter. Without any collector on the roof, the highest daily average in July reaches 6.04 kWh · m⁻²; while in January, it remains at 1.40 kWh · m⁻², the lowest value. Therefore, even without a collector, the radiation in July is more than four times that in January. Figure 14 also illustrates the radiation income for various collector heights. Generally, as the height increases, the harvested radiation on the roof also increases. Figure 14 is further explained by Figure 15, in which transparency ratios are referred to. The ‘as installed’ configuration has a transparency ratio of around 47% whatever the month of the year. The 1.5 m configuration has a transparency ratio varying between 51% in July and slightly higher at 54% in winter. The 2.0 m configuration has a transparency ratio varying between 55% in July and slightly higher (at 59%) in winter. The 2.5 m configuration has a transparency ratio varying between 61% in July and slightly higher at 65% in winter. The 3.0 m configuration has a transparency ratio varying between 70% in July and slightly higher at 73% in winter. The 3.5 m configuration has a transparency ratio varying between 80% in July and slightly higher at 82% in winter. The 4.0 m configuration has a transparency ratio of 86% whatever the month of the year. For all seven configurations, the transparency ratio remains unchanged, so the effect is proportional to the DNI values in Figure 14. In conclusion, the effect of the collector on the shade is minor for heights beyond 3 m. Half of the radiation is blocked in the ‘as installed’ setup.

4. Discussion

In summer, the solar radiation is blocked by the structure of the collector. Thus, the radiation that would reach a bare roof would heat it up and, through conduction, heat the space underneath, potentially requiring cooling to be supplied by an electric appliance. An electric appliance consumes electricity and, depending on the electricity grid that supplies it, may be responsible for emissions, contributing to global warming. This is the case in Cyprus, where the collector is installed and where 85% of the electricity is produced with petrol [31]. However, in winter, the radiation that would impinge on the roof but is instead blocked does not contribute to heating the building through its roof, thus requiring artificial heating. Figure 16 displays, for the seven installation heights, the radiation blocked by the collector per year per square meter in bright colors with positive values. The basic assumptions are as follows:

• Activation of cooling mode whenever the average temperature in the previous hour is higher than 27 °C;
• Activation of heating mode whenever the average temperature in the previous hour is lower than 18 °C.

Trends in Figure 16 are shown in

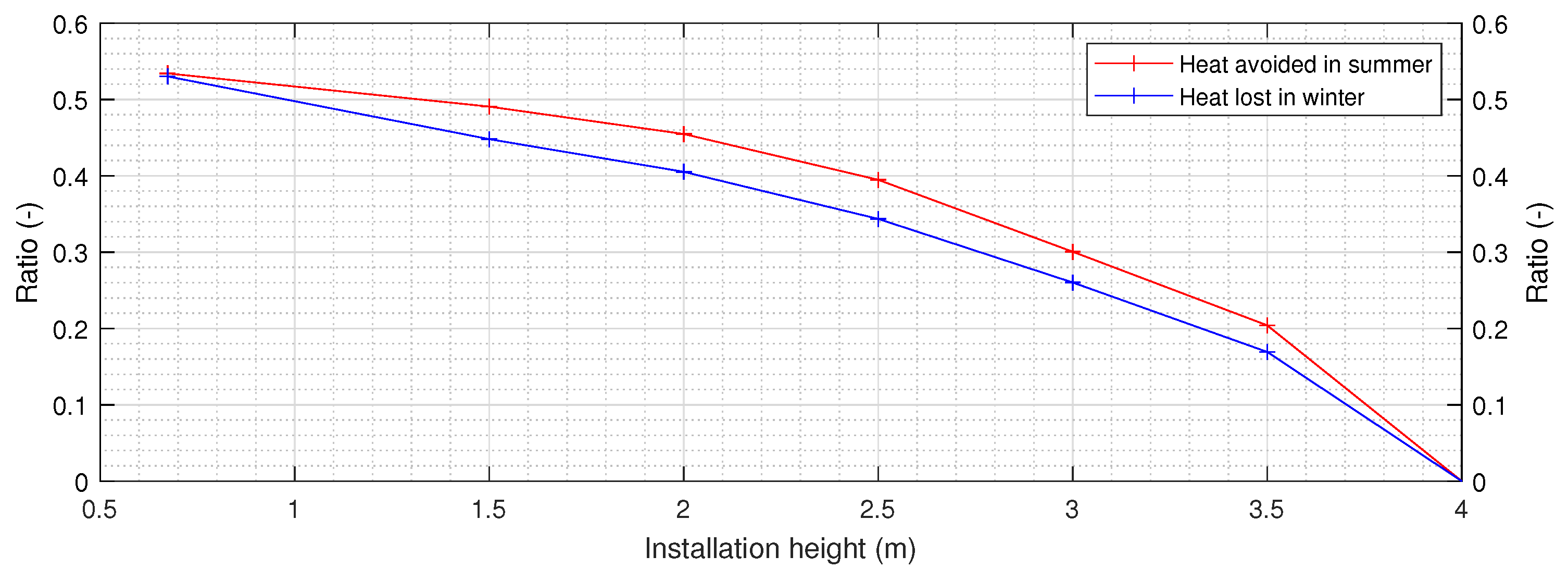

Table 1. Radiation blocking balance by the collector per square meter in summer and winter for an activation of cooling at 27 °C and heating at 18 °C.

Installation Height	As Installed	1.5 m	2.0 m	2.5 m	3.0 m	3.5 m	4.0 m
Summer Radiation Blocked (kWh · m−2)	456	419	388	337	257	174	119
Ratio Radiation Blocked	0.53	0.49	0.45	0.39	0.30	0.20	0
Winter Radiation Blocked (kWh · m−2)	62	52	47	40	30	20	16
Ratio Radiation Blocked	0.53	0.45	0.41	0.34	0.26	0.1	0
Difference Summer vs. Winter (kWh · m−2)	394	367	341	297	227	154	103

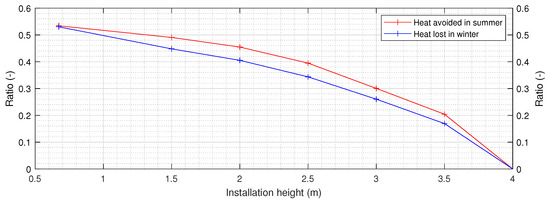

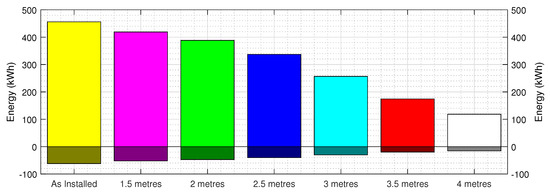

. In summer, the radiation blocked increases as the installation height decreases, i.e., from 456 kWh · m⁻² ‘as installed’ to 119 kWh · m⁻² at 4 m. Thus, the blocking benefit is around four times lower. In winter, the same trend occurs but at a lower amount, from 62 kWh · m⁻² ‘as installed’ to 16 kWh · m⁻² at 4 m. In this case, the blocking has a negative effect, but as seen in Table 1, the balance always highlights the benefit of the collector shade. Eventually, ‘as installed’, the gain, meaning summer benefit minus the winter deficit, is 394 $\mathrm{kWh}·{\mathrm{m}}^{-2}$ in the ‘as installed’ configuration and 103 $\mathrm{kWh}·{\mathrm{m}}^{-2}$ at 4 m. So, conservatively, from Table 1, the natural heating avoided is between seven and nine times the heating benefit in winter. The impact of higher heights is minimal. Lifting the collector to a higher plane would reduce the actual benefits. This is justified in Figure 17 and in Table 1, where the ratio of radiation blocked for cooling and heating seasons is displayed. In the current configuration, ‘as installed’, more than half of the radiation (53%) is beneficially blocked in summer, while the same ratio is blocked in winter. However, as seen in Figure 14, the amount of DNI reaching the roof underneath is up to four times higher in summer than in winter. Thus, this also explains the beneficial balance annually for this set-up, but also for the others, i.e., decreasingly at higher heights. Hence, the ratios decrease for the higher heights of installation and become null at 4 m with a similar trend; however, as seen in the red curve, the ratio is slightly higher for the summer radiation blocking effect (winter is represented in blue). The collector has no effect on shading in either season, meaning it no longer acts as a solar shield because radiation now passes directly underneath it without intersecting with the collector’s structure. As the height increases, the benefit in terms of ratio improves, which is exacerbated with the higher DNI in summer. The findings of the presented optical study will form the basis for the continuation of this work. In the next stage, a transient thermal model of the roof will be employed in order to simulate the heat flux taking place between the indoor air and the ambient. This heat flux will more accurately reflect the required contribution of the heating and cooling systems in order to maintain the temperature at the desired level. According to the employed heating and cooling technologies, their thermal contribution will be translated to primary energy consumption, carbon emissions, and monetary cost. The model will take into account all heat transfer mechanisms occurring on the roof. This will allow for the quantification of the influence of the LFR on the roof during the night since it will block the thermal radiation exchange with the nocturnal sky. The latter effect tends to cool down the roof; thus, it is positive during the summer and negative in the winter. Still, this can be mitigated by establishing a horizontal stow position of the rows in order to block the radiation in the winter and a vertical position in the summer to increase the view factor towards the sky vault. In the summer, it has been optically demonstrated that the radiation is blocked throughout the analysis of the paper. Therefore, the need for nocturnal cooling would be less demanding. Moreover, the impact of the thickness of the roof insulation will be studied.

5. Conclusions

The present paper dealt with the energy balance of radiation due to the presence of a tracking linear Fresnel reflector on a roof. The case study is the U-LEAF in Cyprus. First, due to cosine effects, the average energy received on the roof without a collector would be 1240 kWh · m⁻². This amount decreased to almost a quarter in the inner rows of the ‘as installed’ configuration (300 kWh · m⁻²). The effect is unbalanced depending on the 10 rows on which the meshing has been designed. The external rows are hardly impacted as there is no mirror on top of them. The southern column facing south remains close to the values of the bare roof. The square under the inlet pipe presents lower annual radiation. The studied collector is used for both heating and cooling purposes. Considering activation of cooling at 27 °C and heating at 18 °C, the blocking effect decreases with increasing height of installation, while after 4 m of height, the effect is almost null. Heights in between present a blocking benefit in summer, offsetting the valuable radiation lost in winter by a factor of 7 to 9. Generally, the lower heights do not allow for another use, such as parking below 2.5 m, due to access constraints. In places like Cyprus, where the annual DNI is high and water resources are low, an additional study could investigate the relevance of LFRs for agricultural use the consideration of the radiation underneath. The present study shall be completed with a transient thermal analysis in order to validate the work conducted in this paper in a purely optical environment, as discussed in the previous section.
