1. Introduction
Due to its good driving comfort, fast construction speed, convenient maintenance, and easy recycling, asphalt pavement prevails in highway engineering [
1,
2]. The Chinese government has been committed to developing fully the transportation industry in the past few decades. By the end of 2016, the mileage of expressways in China exceeded 130,000 km, of which more than 90% is asphalt pavement [
3].
But during service periods, major damage inevitably occurs in the asphalt pavement, including rutting, cracking, and permanent deformation [
4]. It is caused by the degradation of asphalt, including bonding strength breaking, high-temperature softening, low-temperature embrittlement, and heat aging [
5].
In order to mitigate pavement damage, it is essential to improve the full temperature range performance of asphalt during the service period [
6]. In recent years, a variety of modifiers, including organic and inorganic materials have been introduced. Researchers have conducted various studies to investigate their effects on the improvement of road performance. Amir [
7] investigated the effect of temperature on the toughness index and fatigue properties of styrene–butadiene–styrene (SBS), a styrene-butadiene block copolymer-modified asphalt mixture created by a Universal Test Machine (UTM) apparatus. The results suggest that the SBS can increase the indirect tensile strength of an asphalt mixture at high temperatures. Taher [
8] evaluated the permanent deformation characteristics of polyethylene terephthalate (PET)-modified asphalt mixtures. The results indicate that mixtures with PET modification have better resistance against permanent deformation. However, its price is too high to promote. Mahyar [
4] investigated the effects of rice husk ash (RHA) as an asphalt modifier on binders and mixtures. The results suggest that the properties of the binders and mixtures were enhanced remarkably with the addition of RHA; although, the preparation process of RHA-modified asphalt is quite complex. Paravita [
9] investigated the effect of crumb rubber on the properties of asphalt mixtures. The crumb rubber-modified asphalt mixture exhibited better mechanical properties. But, the modified mixture showed uncontrolled volume properties, which may affect durability. Erol [
10] evaluated the effect of nano-clay materials on the enhancement of the mechanical properties of an asphalt mixture. The mixtures with nano-clay modification exhibit acceptable water damage resistance and rutting resistance except for its fatigue performance.
Nowadays, the SBS-modified bitumen is widely used. But, as for the other modifiers, they are either too expensive or show fewer improving effects according to the literature. New modifiers with low prices, easy modification procedures, and good modification effects are still in urgent demand.
As a non-metallic mineral, diatomite is an inorganic natural resource in large reserve [
11,
12]. Researchers have tried to introduce it into asphalt mixtures for its rough surface, high hardness, acid and alkali resistance, wear resistance, anti-skidding, porous structure, unique component activity, stable properties, etc. [
13,
14]. Alejandra’s [
15] research indicates that the fatigue resistance of a binder with 4% diatomite content is improved. Cong [
12] investigated the physical properties, dynamic rheological behaviors, storage stability, and aging properties of different contents of modified asphalt binders. The results suggest that both viscosity and complex modulus of binders increase rapidly at high temperatures with the addition of diatomite. Compared with base asphalt binders, the resistance of modified asphalt binders to high-temperature deformation and low-temperature cracking has been greatly improved.
Meanwhile, the pavement performances of diatomite-modified asphalt mixtures have been studied. Zhang [
16] and Tan [
17] evaluated the effect of diatomite on the low-temperature performance of asphalt mixtures. The results indicate that the bending strain energy density of a mixture increases with the addition of diatomite. Chen’s [
18] research shows that the dynamic stability of an SBS-modified asphalt mixture is the greatest, followed by the diatomite-modified asphalt mixture and the controlled asphalt mixture. Wei [
19] stated that the anti-icing performance of diatomite-modified asphalt mixtures was improved. Chen [
20] suggested that the fatigue life of modified asphalt mixtures with diatomite was certainly improved under the same stress levels. Bao [
21] indicates that diatomite can improve the stability and splitting strength of an asphalt mixture.
Based on the findings mentioned above, it can be found that diatomite can improve the performance of asphalt mixtures with respect to rutting resistance at high temperatures and splitting or crack resistance at low temperatures. Nevertheless, the improving mechanism necessitates further systematical research.
In this paper, X-ray Diffraction (XRD), X-ray Fluorescence (XRF), particle-size and pore-size analyzer, Scanning Electron Microscope (SEM), and Fourier-Transform Infrared Spectrometer (FTIR) tests were employed to evaluate the characteristics of diatomite. The effects of diatomite on the pavement performance of a modified asphalt mixture were also investigated. In particular, low-temperature properties were given much importance, because inorganic fillers seldom have significant effects on the low-temperature aspects. Based on the tests, we evaluated how diatomite affects the performance of asphalt mixtures.
3. Experimental Methods
3.1. Characteristic Methods for Diatomite and Asphalt Binder

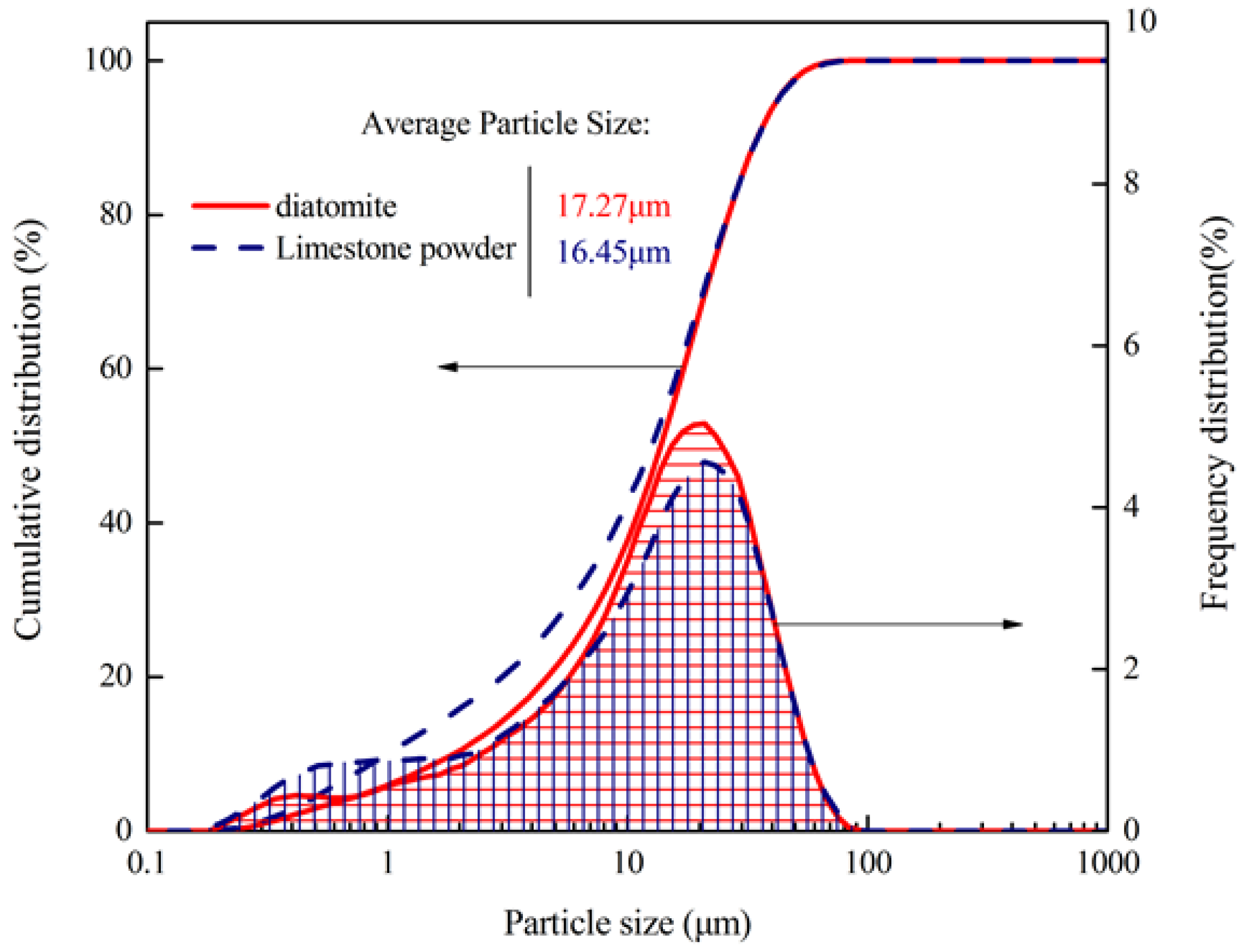

The mineralogy, chemical composition and microscopic surface characteristic of diatomite were tested by D8 Advance X-ray Diffraction (XRD, Brooke AXS, Berlin, Germany), Axios X-ray Fluorescence (XRF, PANalytical B.V., Amsterdam, The Netherlands), and JSM-IT300 Scanning Electron Microscope (SEM, NEC Electronics Corporation, Tokyo, Japan), respectively. A Mastersizer 3000 laser particle analyzer (Malvern Instruments, Malvern, UK) was used to determine the particle size distributions of fillers.

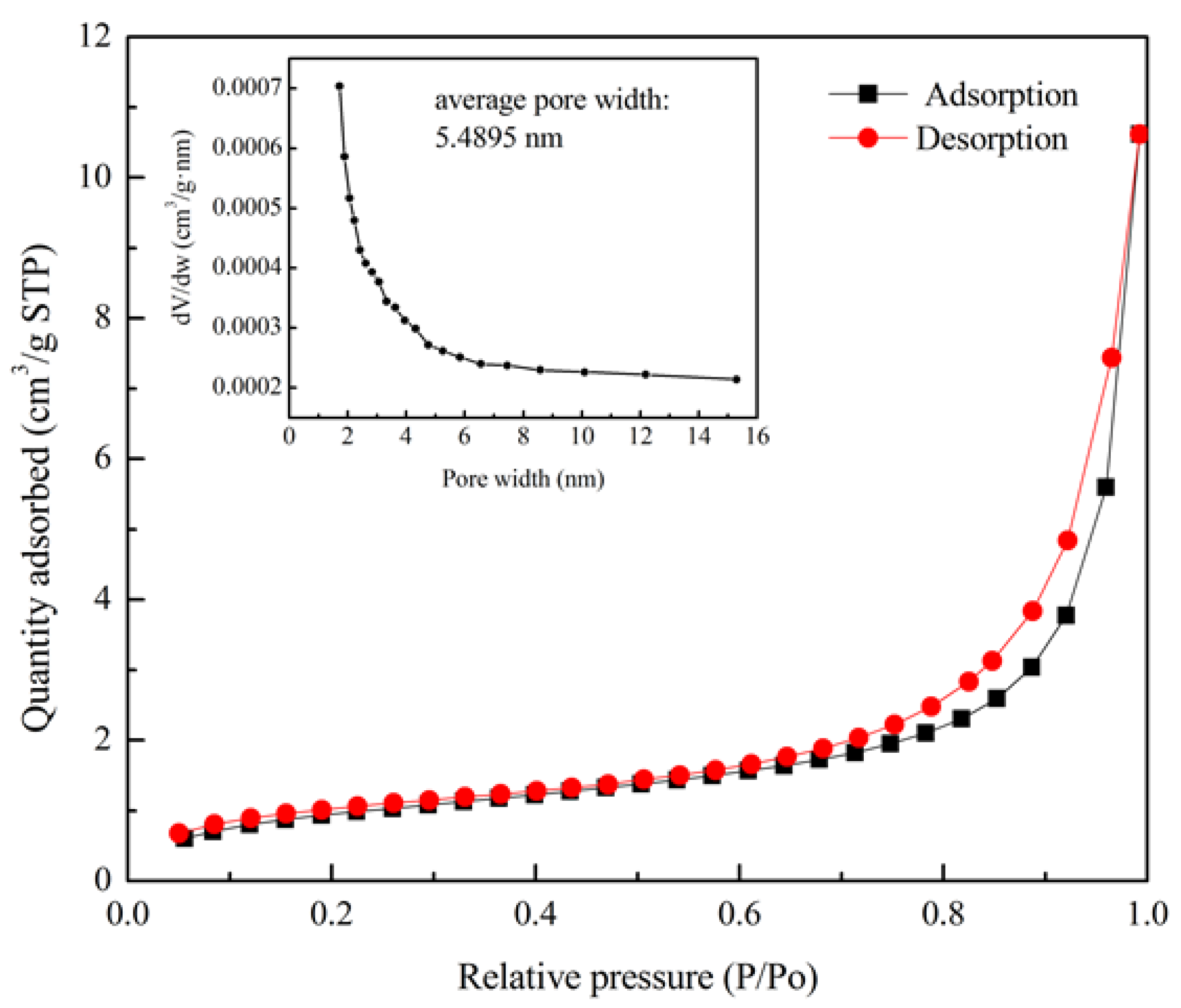

A TriStarII3020 multi-channel ratio surface area and aperture analyzer (Micromeritics, Atlanta, GA, USA) was applied to investigate surface area and mesoporous distribution. The specific surface area was determined by the Brunauer–Emmett–Teller (BET) test method. Nitrogen was used as adsorbent, and helium or hydrogen was used as a carrier gas. The two gases were mixed at a certain proportion. When it achieved the specified relative pressure, the gas flowed through solid material. The sample was adsorbed physically by nitrogen. When the liquid nitrogen was taken away, the adsorbed nitrogen was desorbed, and a desorption peak appeared. Finally, calibration peaks were obtained by injecting pure nitrogen of known volume into the mixture. According to the peak area of the calibration peaks and desorption peaks, the adsorption amount under the relative pressure was calculated. By changing the mixing ratio of the nitrogen and carrier gas, the adsorption capacity of several nitrogen relative pressures could be determined. The specific surface area could be calculated according to the following formula:
where
p = partial pressure of nitrogen;
p0 = saturated vapor pressure of liquid nitrogen;
Vm = amount of gas required to form a monolayer;
V = total volume of adsorbed gas;
C = constant;
Sg = specific surface area;
NA = Avogadro constant;
Am = cross-sectional area of adsorbed gas; and
W = sample quality.

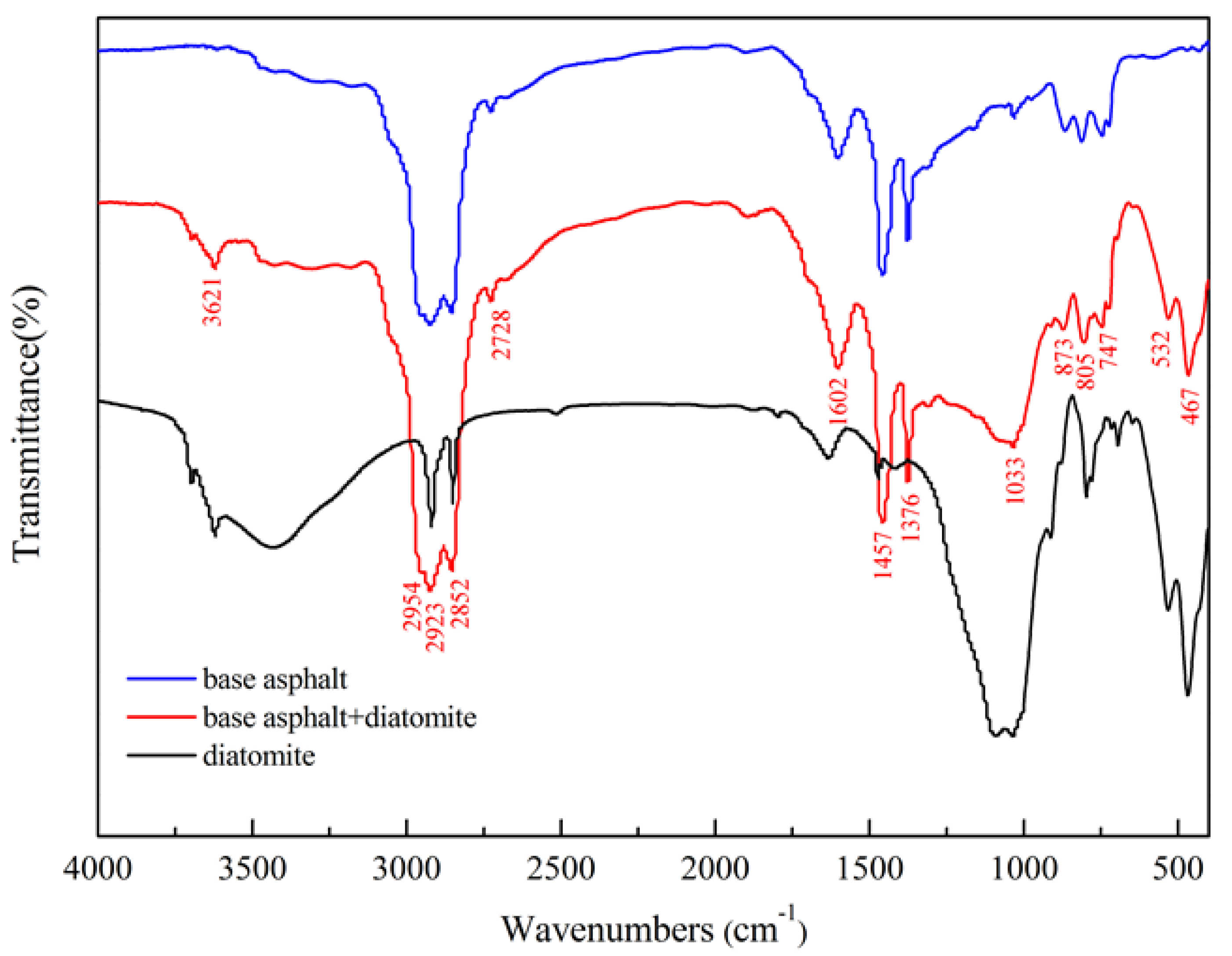

The Nicolet6700 Fourier-Transform Infrared Spectrometer (FTIR, Thermo Electron Scientific Instruments, Columbia, IN, USA) was used to obtain the IR spectra of the base asphalt, diatomite-modified asphalt binder, and diatomite. Binder specimens were made with base asphalt and 12% weight-based diatomite after constant stirring at 120 °C for 0.5 h. The test procedure was as follows: The infrared light of a certain wavelength was irradiated to the measured substance. If the radiant energy was equal to the energy level difference between the ground state and the excited state of the molecular vibration, the molecule could absorb the infrared light energy. The vibration transitioned from the ground state to the excited state. The instrument recorded the degree of infrared light absorption with the wavelength of the change function to form the infrared spectrum. When detecting the asphalt, it was dissolved in CS2 in a solution, and then, the KBr tablet method was used to prepare the sample. Because of the high volatility of CS2, the solution should be equipped with the current test. The scanning wave number range was 500~4000 cm−1, and the scanning frequency was 64 times.
3.2. Performance Evaluation of Mixtures
3.2.1. Preparation of Asphalt Mixture
Four mixtures—EZ-SBS-modified, IM-SBS-modified, diatomite-modified, and base asphalt—mixtures were studied. All of them were prepared with the same gradation at optimum asphalt content. The gradation was designed with 13.2-mm nominal maximum size.

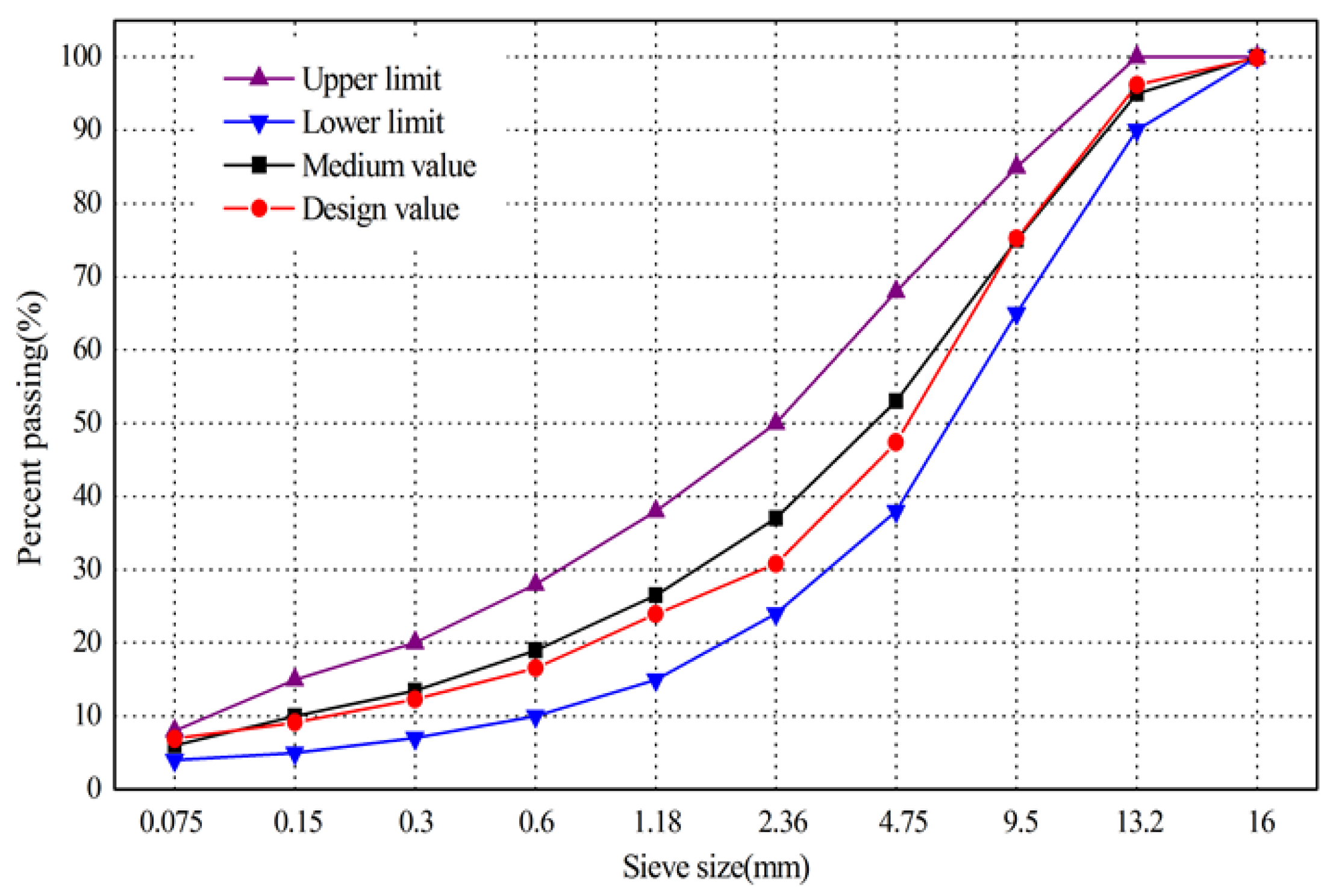

Figure 1 shows the gradation. Two blending methods, namely direct and indirect blending methods, were used in the preparation of the diatomite-modified asphalt mixture. When the direct blending method was used, the diatomite was added to the mixture of asphalt and aggregate with mineral powder. When the indirect mixing method was used, the diatomite-modified asphalt binder was prepared before the preparation of the mixture [
22]. Yin’s [
23] research showed that the two blending methods led to approximately the same mix effect. Chen [
20] determined that the optimum amount of compound diatomite modifier was 10%, while at this content, the Marshall specimens showed the best performances. Zhang [
16] concluded that the optimum dosage of diatomite was 13% through the analysis of the low-temperature performance of binders and mixtures. Hence, 10–13% was a reasonable range of dosage. According to the literature review, the direct blending method was chosen, with 12% (mass ratio of diatomite and asphalt) diatomite content for the specimens’ preparation.
3.2.2. Low-Temperature Performance

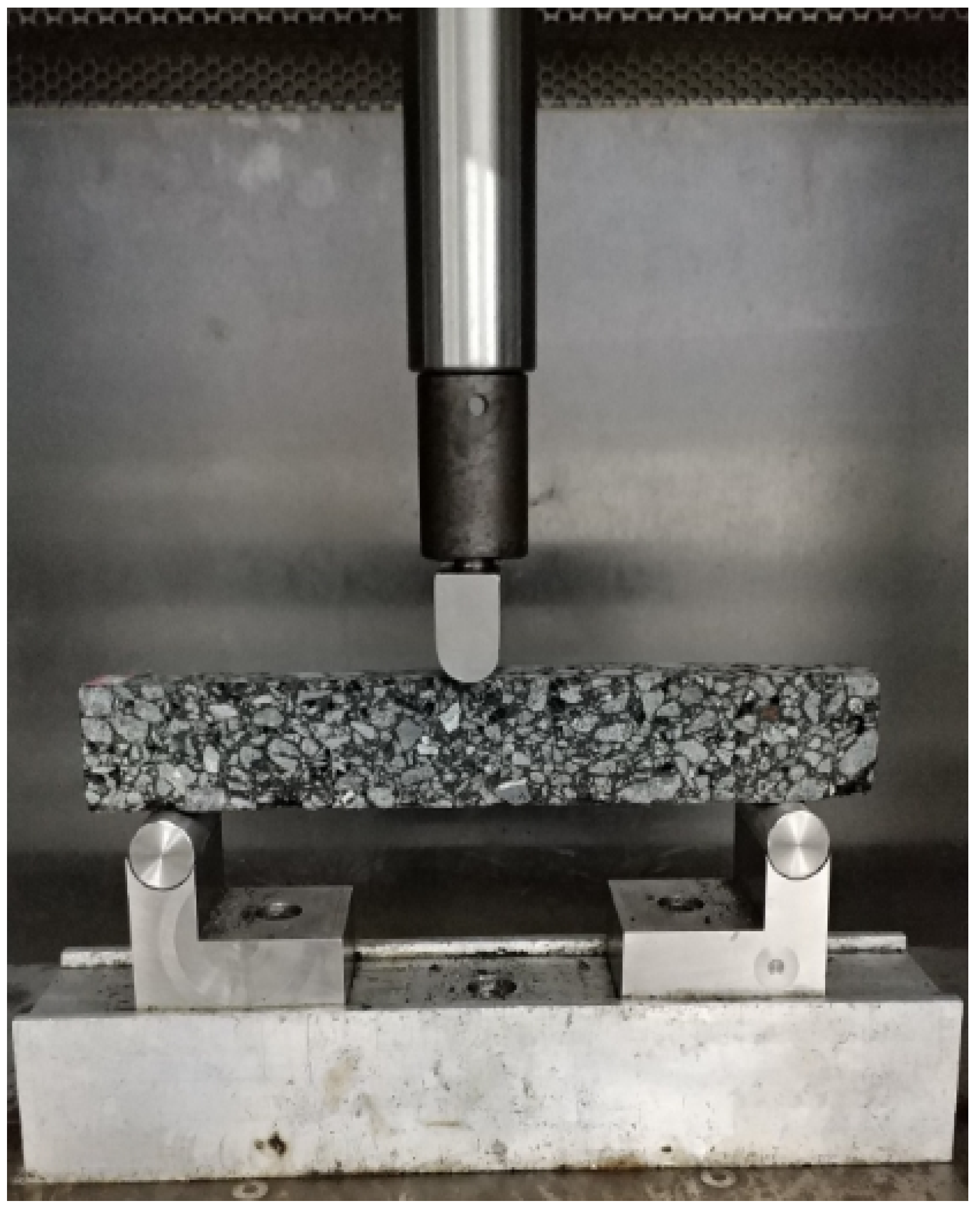

A three-points bending test is the common approach for evaluating low-temperature cracking performance of asphalt mixtures. The test device is shown in
Figure 2. Beam specimens with 250 ± 2.0 mm length, 30 ± 2.0 mm width, and 35 ± 2.0 mm height were used [

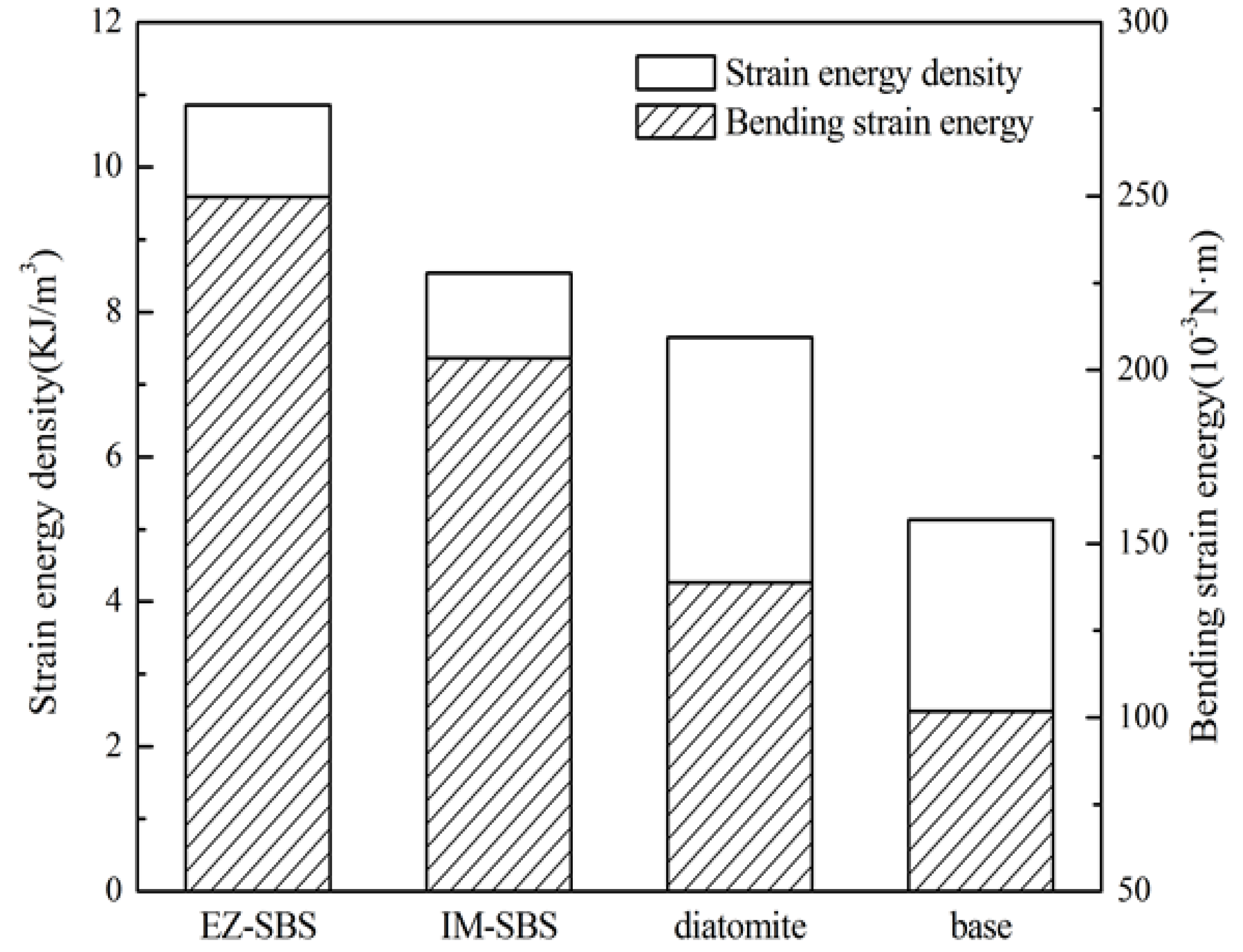

24]. There were five parallel specimens in each type of mixture. The test was carried out on a Universal Testing Machine (UTM)-25 from Melbourne, Australia, and the experimental parameters were −10 °C of temperature and a loading rate of 50 mm/min. The bending strain energy and bending strain energy density in this study were used to evaluate the four mixtures [
25], and formulas for the calculations were as follows:
where
W = bending strain energy;
F = force;
s = displacement; and
s0 = critical displacement.
where
dw/
dv = bending strain energy density;
σij = stress component,
εij = strain component, and
ε0 = critical strain.
3.2.3. High-Temperature Performance
A rutting test is currently used to evaluate high-temperature stability. The size of the slab specimens was 300 × 300 × 50 mm. The rolling speed of the wheel was 42 times/min, and the load was 0.7 MPa. The test time was 1 h, and the test temperature was 60 °C for a standard wheel tracking test.
3.2.4. Fatigue Performance

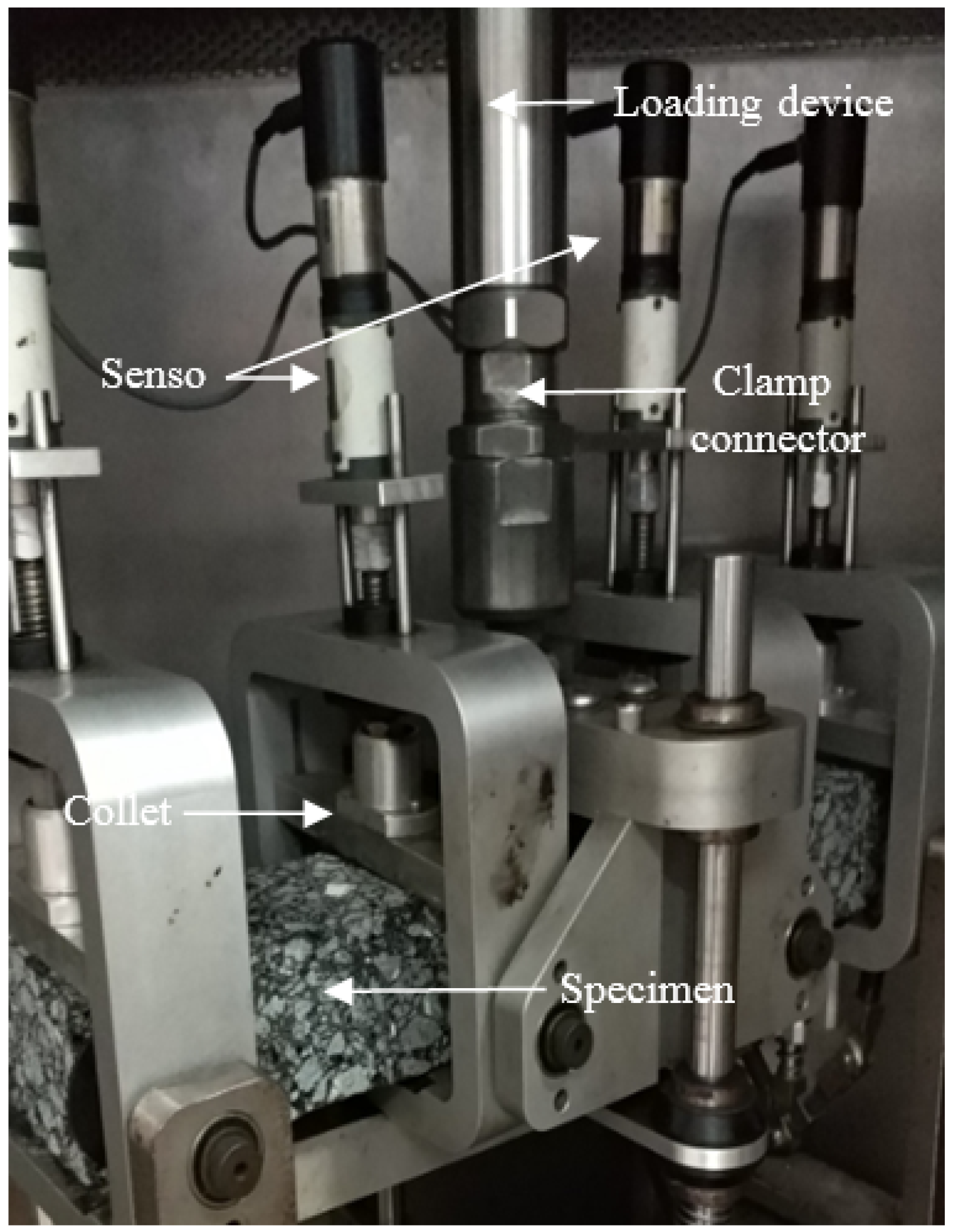

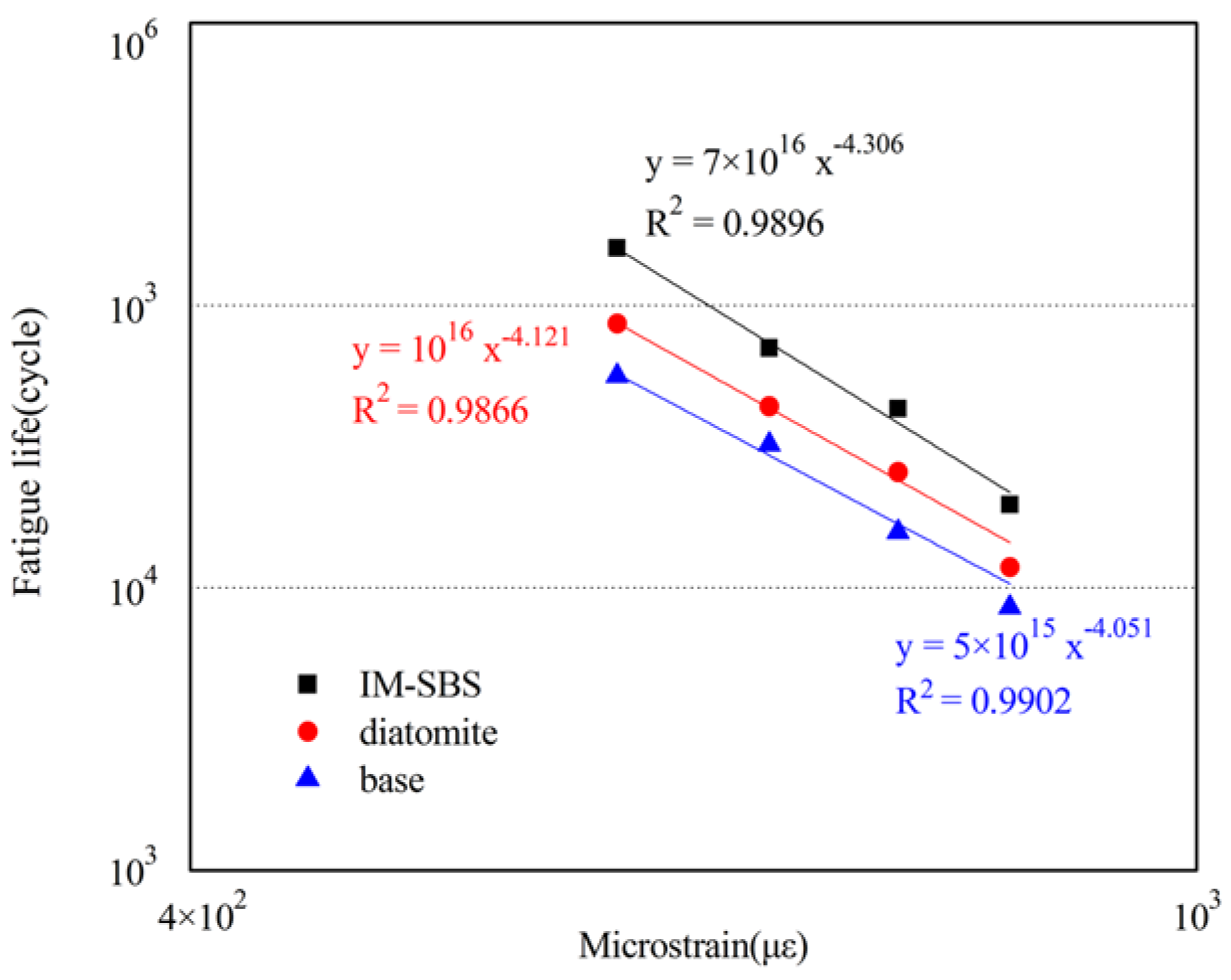

A four-points bending fatigue test was conducted by UTM-25 (IPC Global, Melbourne, Australia) as shown in
Figure 3. The length, width, and height of the beam specimens were 380 ± 2.0 mm, 63.5 ± 2.0 mm, and 50 ± 2.0 mm, respectively. The test temperature was 15 °C. A haversine load pulse at 10 Hz was used. In the fatigue test, strain control loading mode was adopted to study the fatigue life of the asphalt mixture under a microstrain, such as 500 με, 600 με, 700 με, and 800 με.
3.2.5. Water Stability

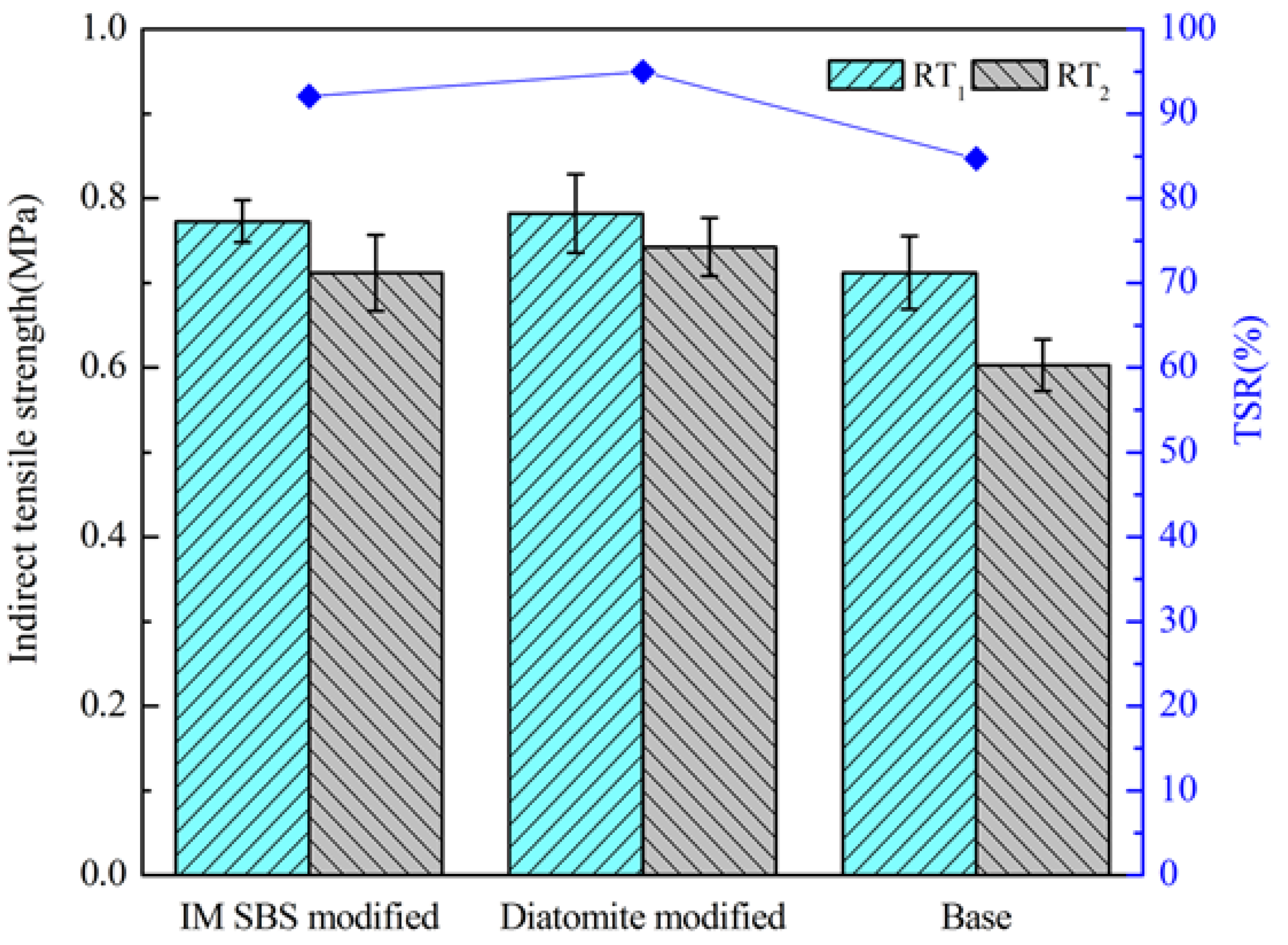

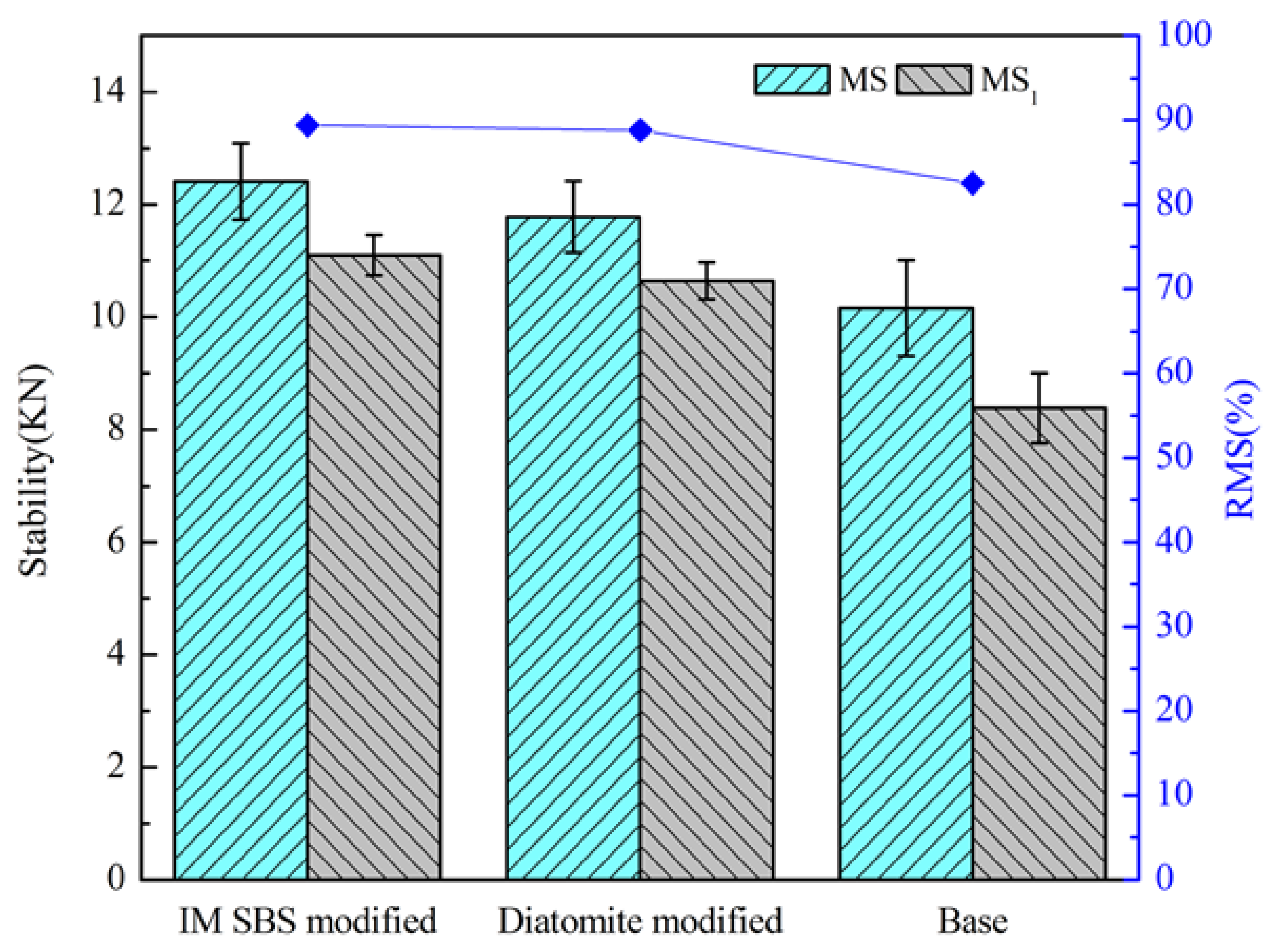

Water stability was used to evaluate the ability of asphalt to stripe from the aggregate surface when the asphalt mixture was subjected to water erosion. In this paper, the Marshall stability test and indirect tensile strength test were used to assess water stability.
