Optimization of Low-Cost Ti-35421 Titanium Alloy: Phase Transformation, Bimodal Microstructure, and Combinatorial Mechanical Properties
Abstract
:1. Introduction
2. Materials and Methods
2.1. Material
2.2. Dilatometric Test
2.3. Heat Treatment
2.4. Microstructure Observation
2.5. Mechanical Properties
3. Results and Discussions

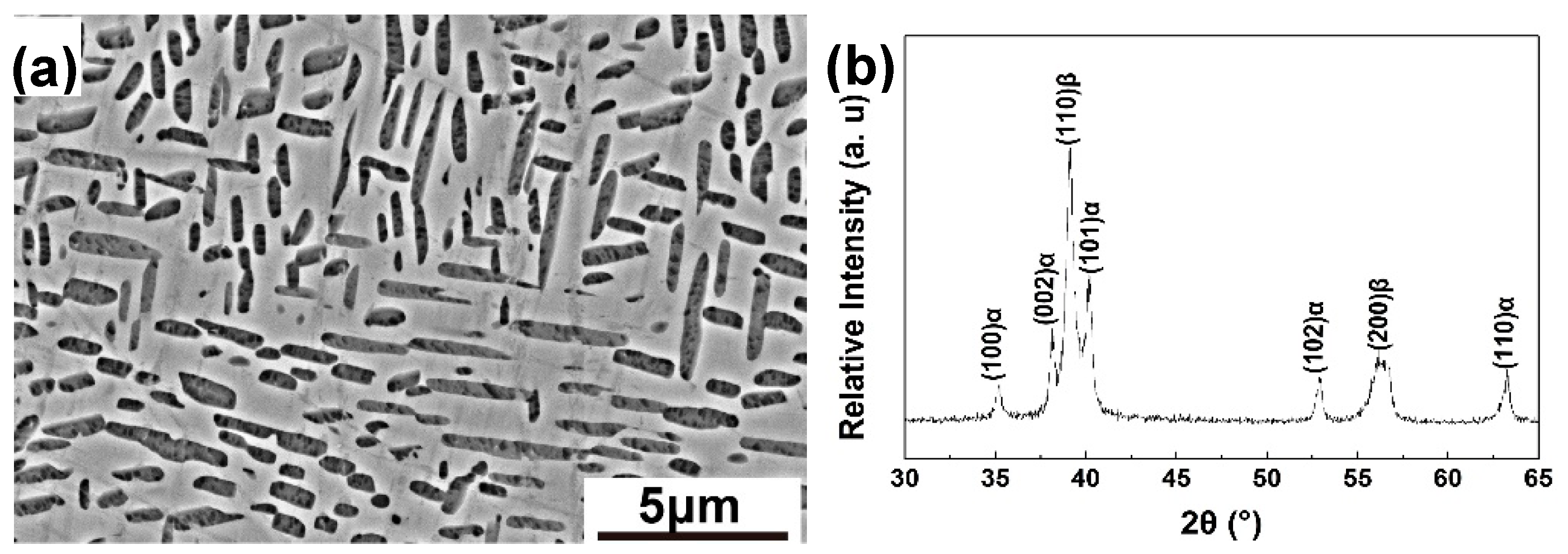

3.1. Initial Microstructure of Solid Solution Treated Alloy

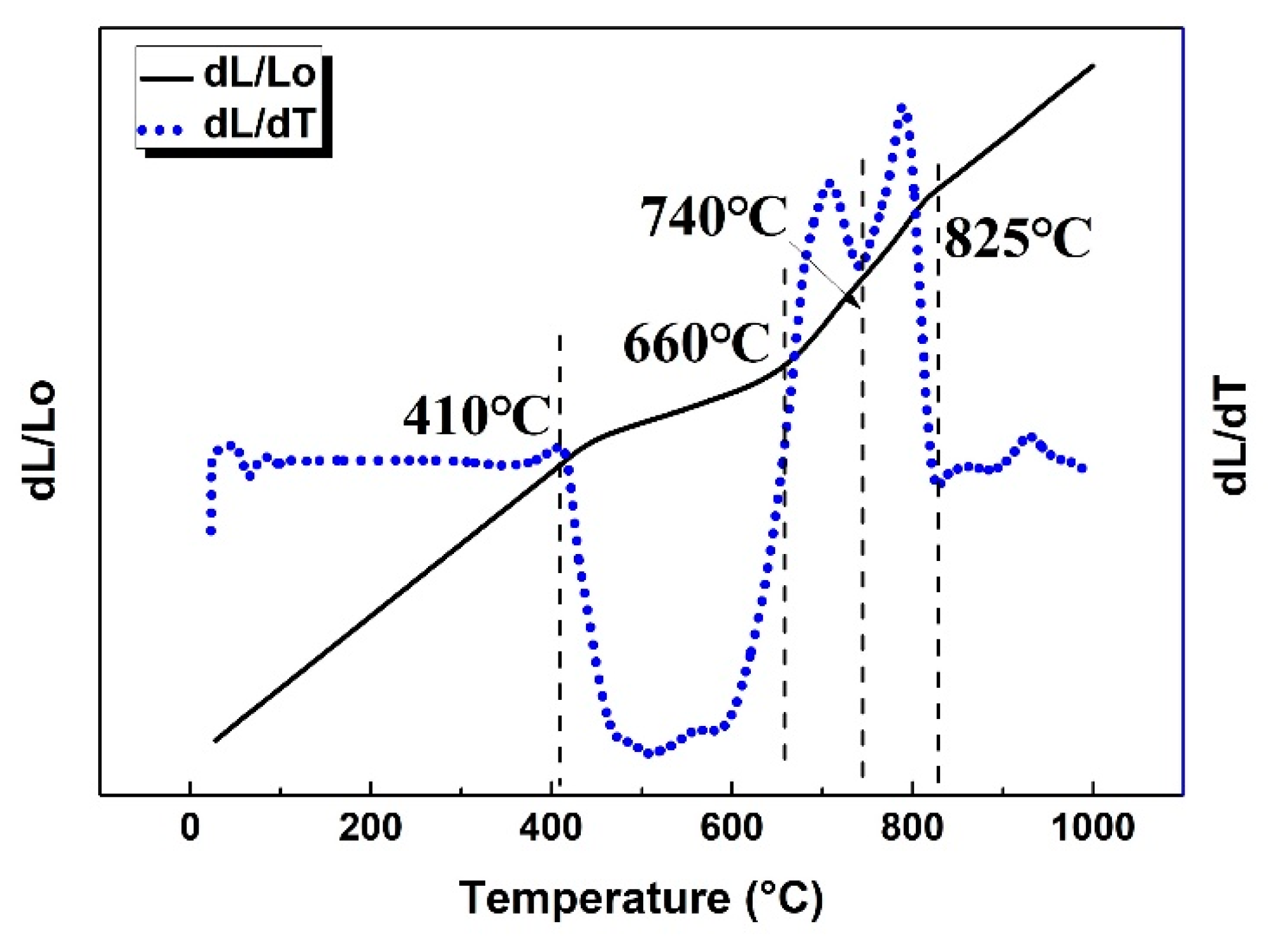

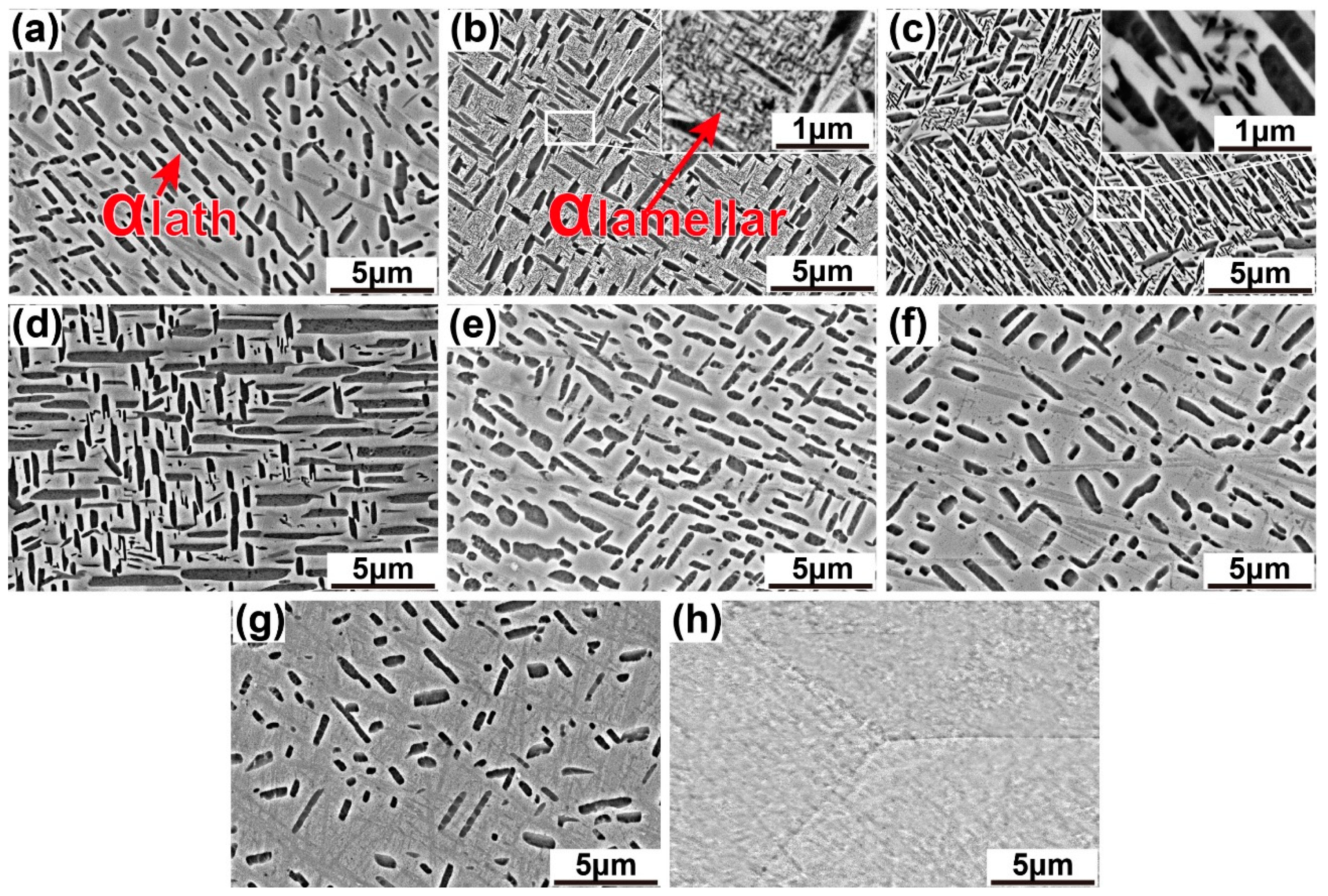

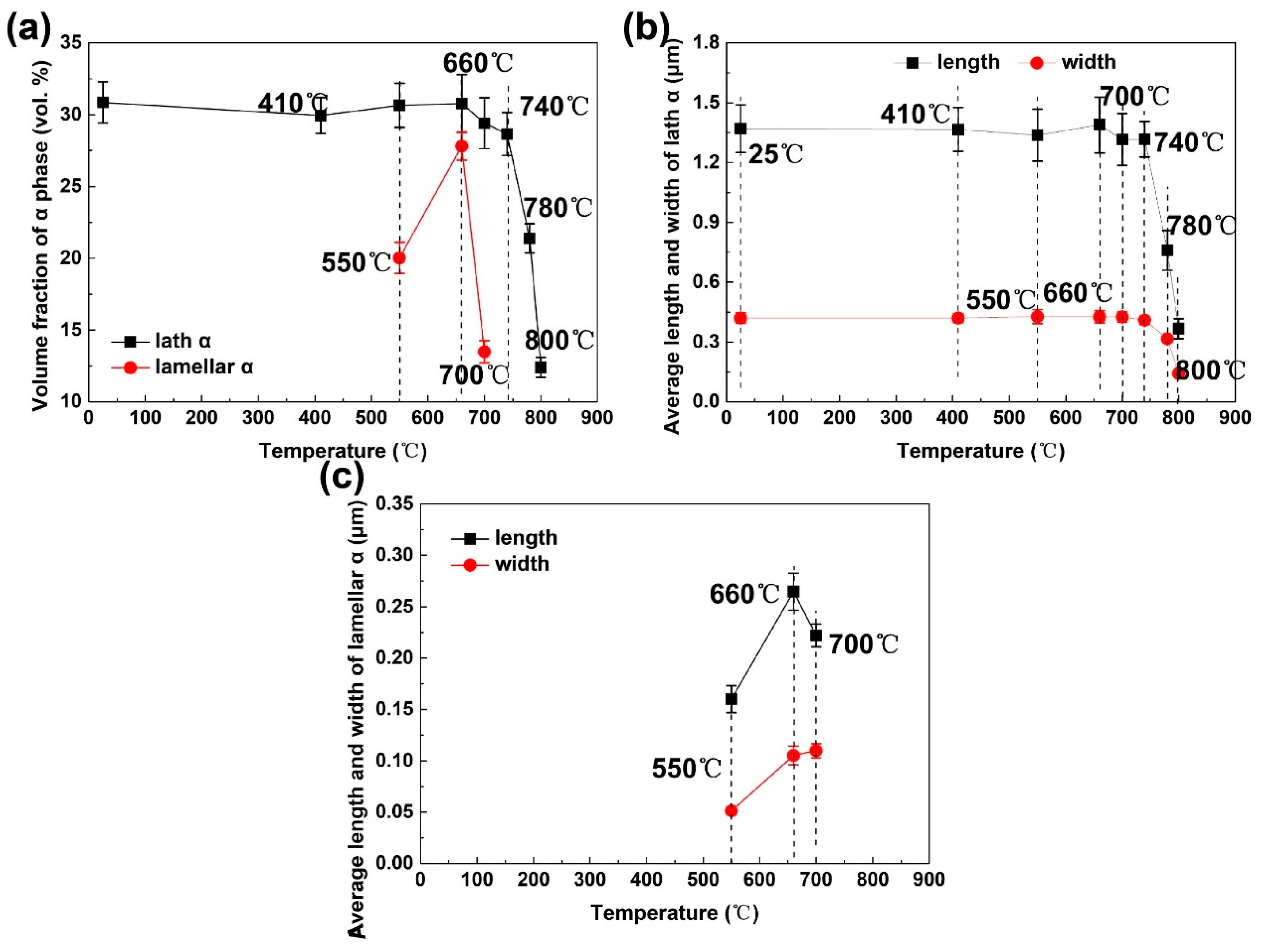

3.2. Phase Transformation Reactions and Temperature Ranges

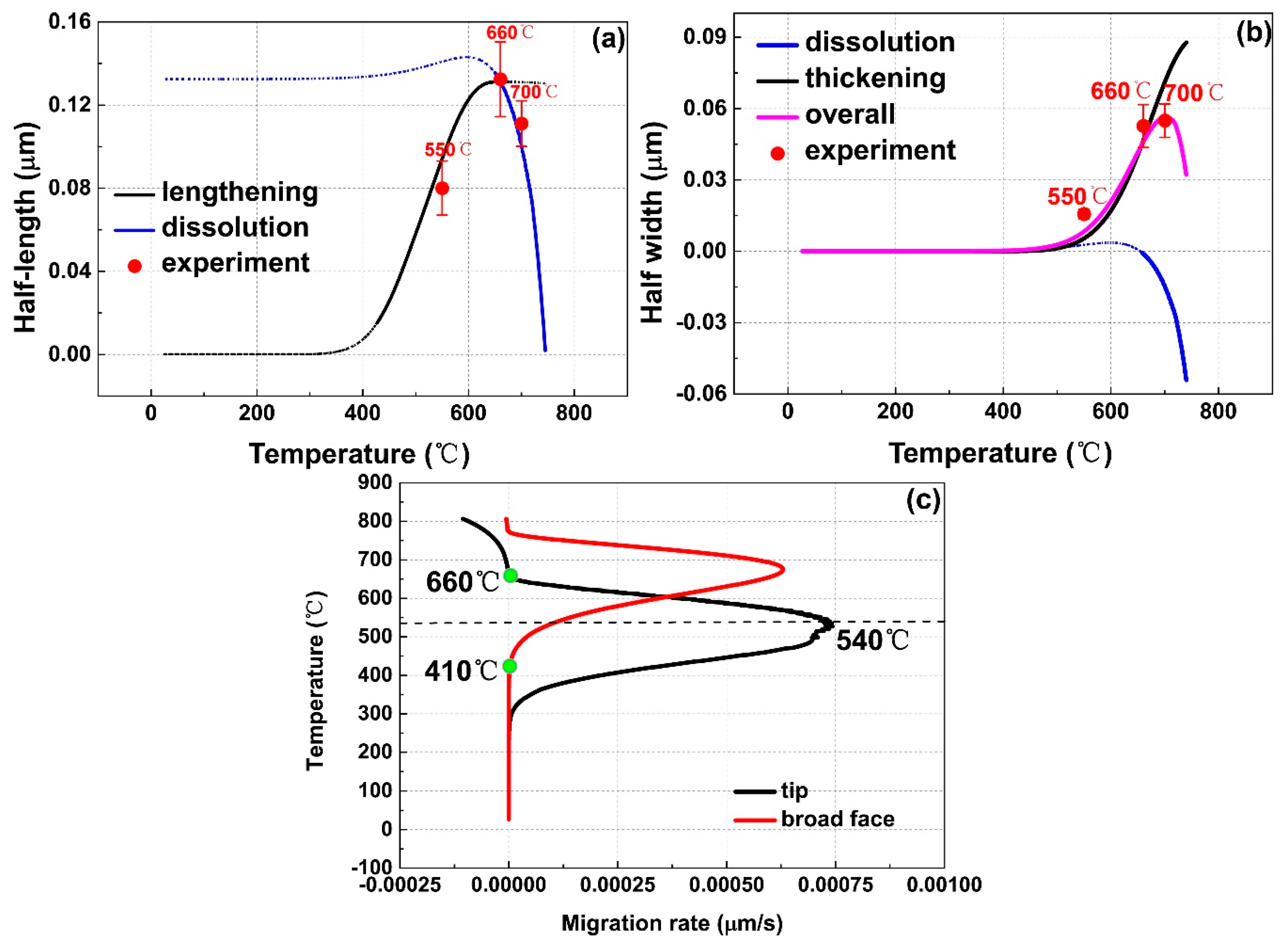

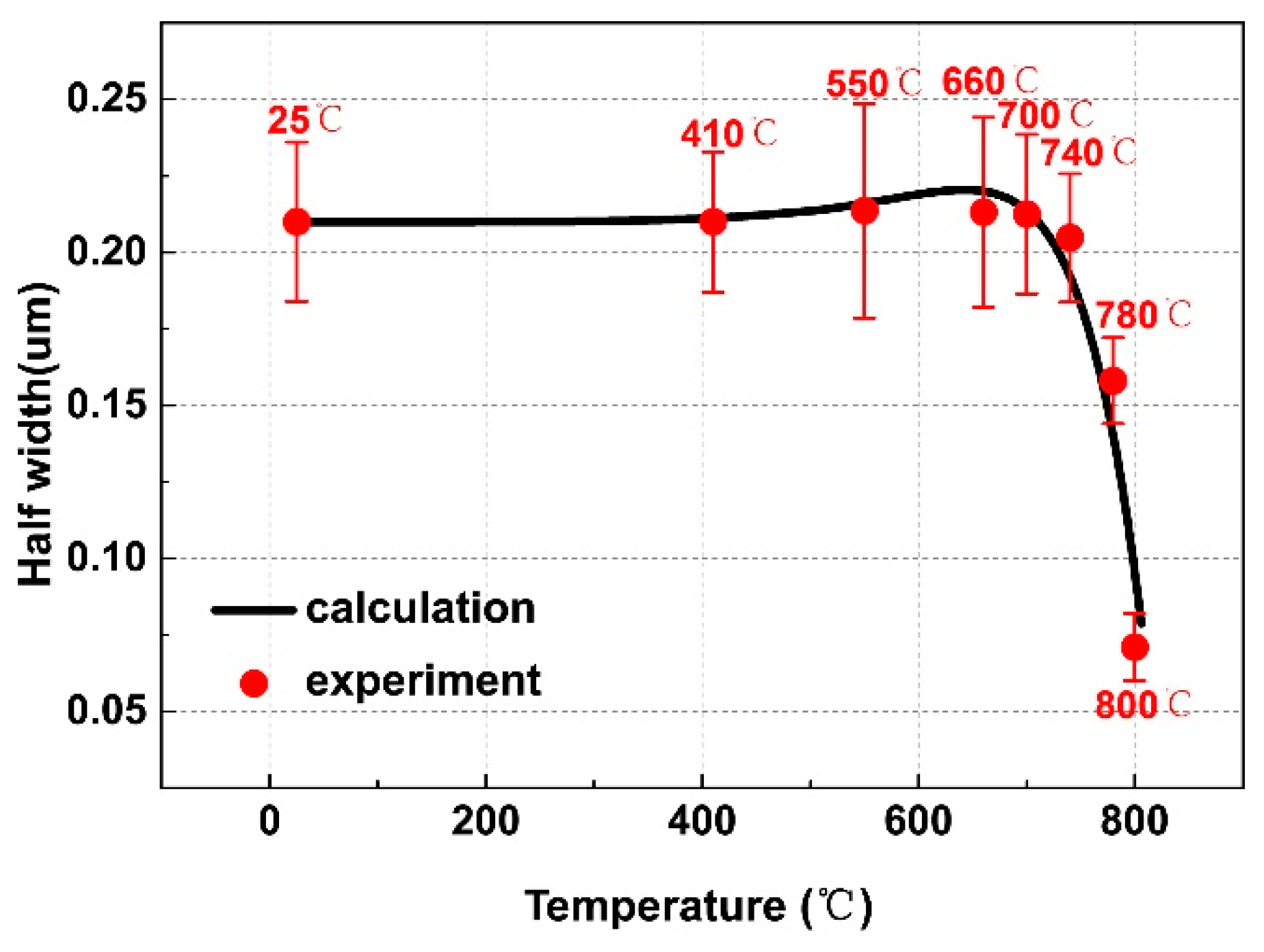

3.3. Thermo-Kinetic Modeling of Growth and Dissolution

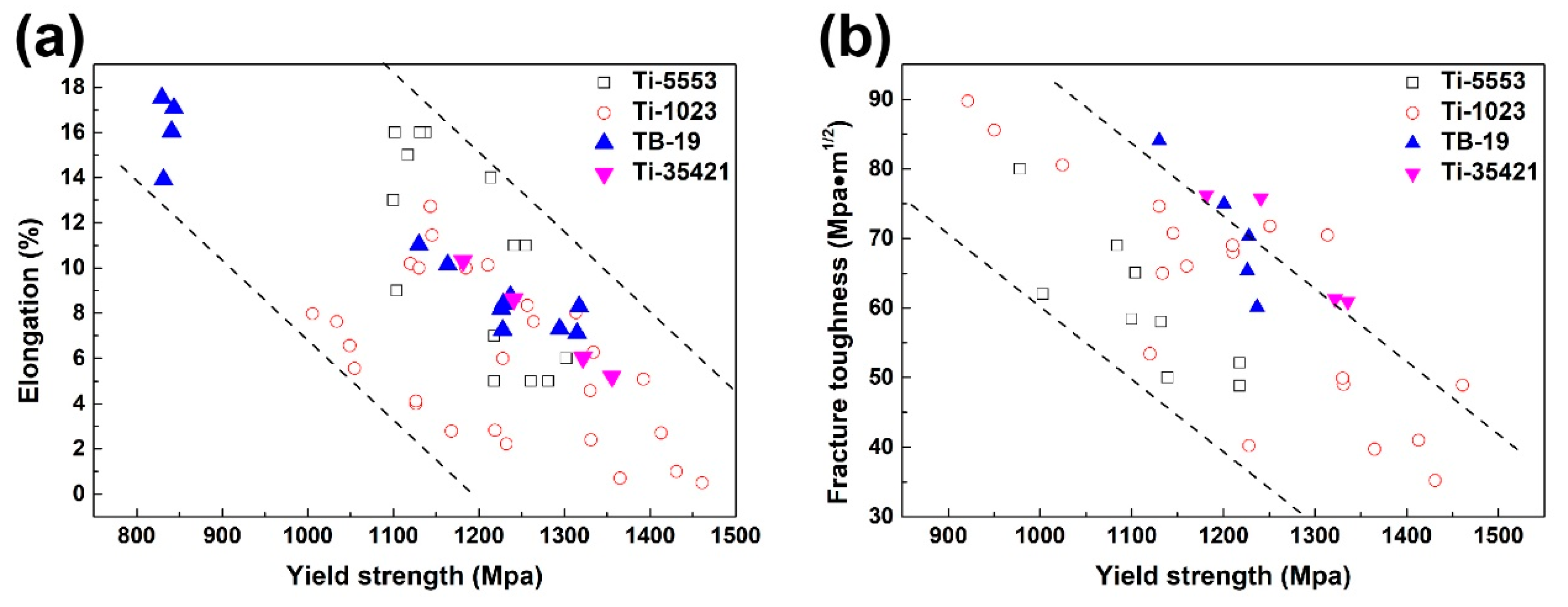

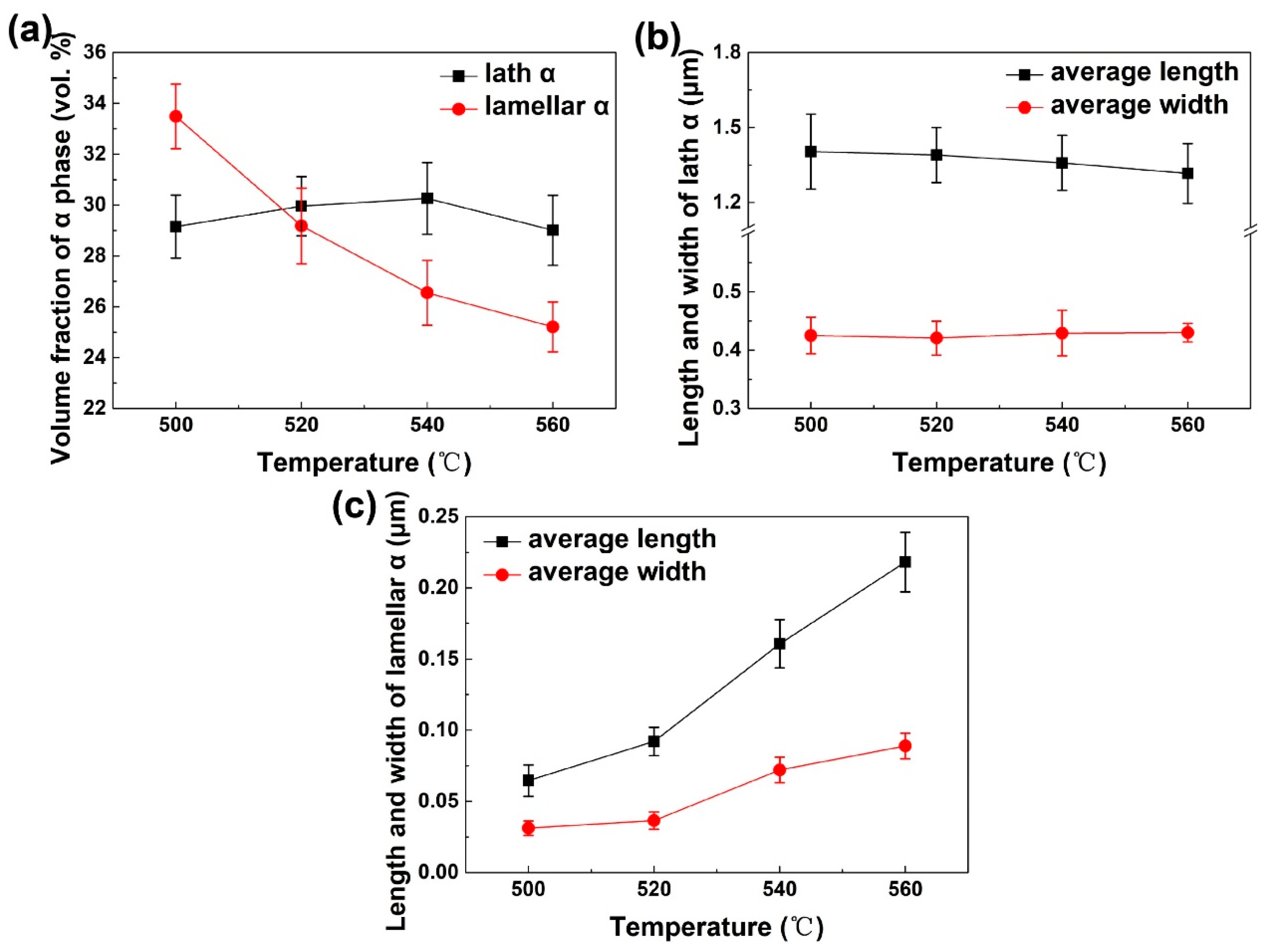

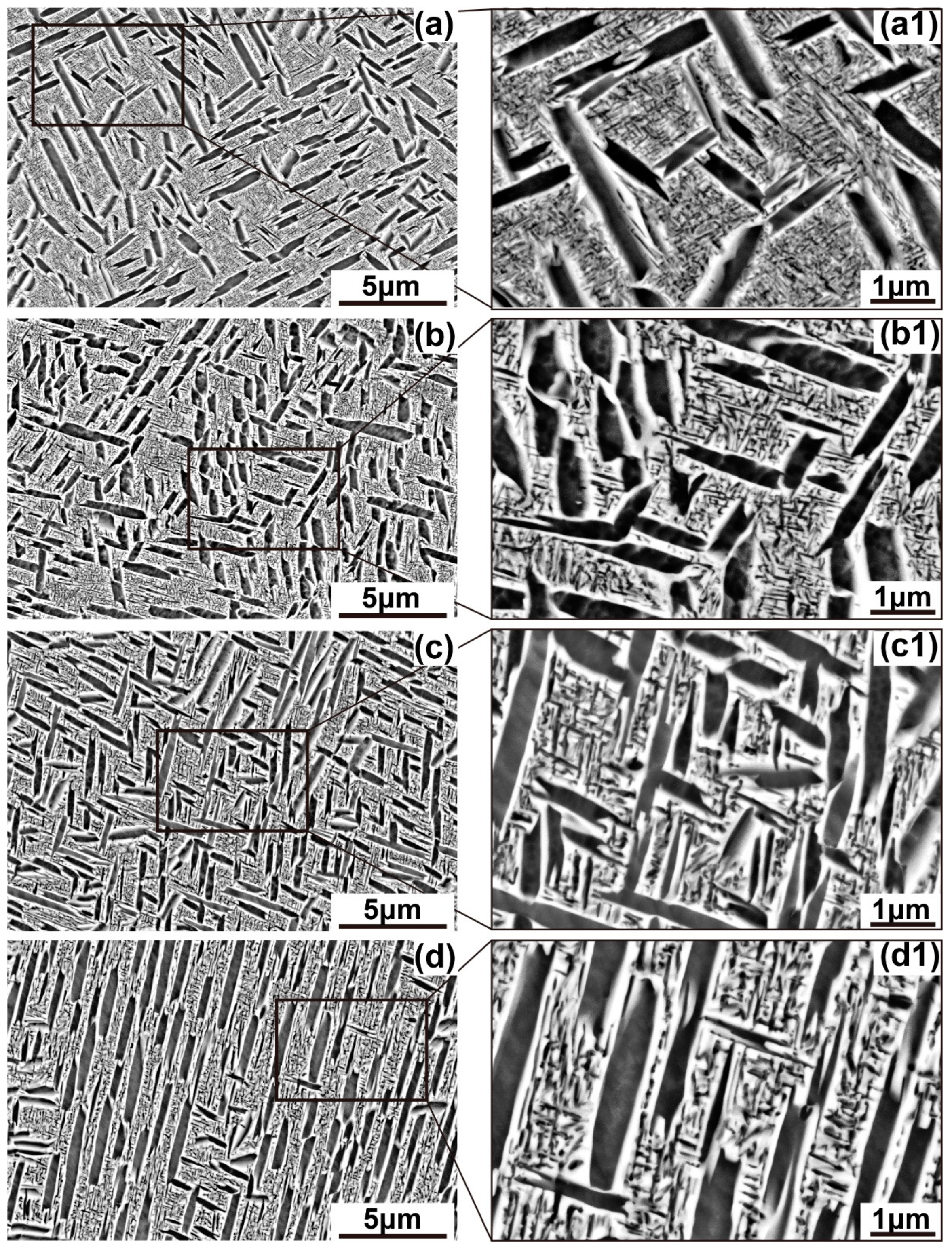

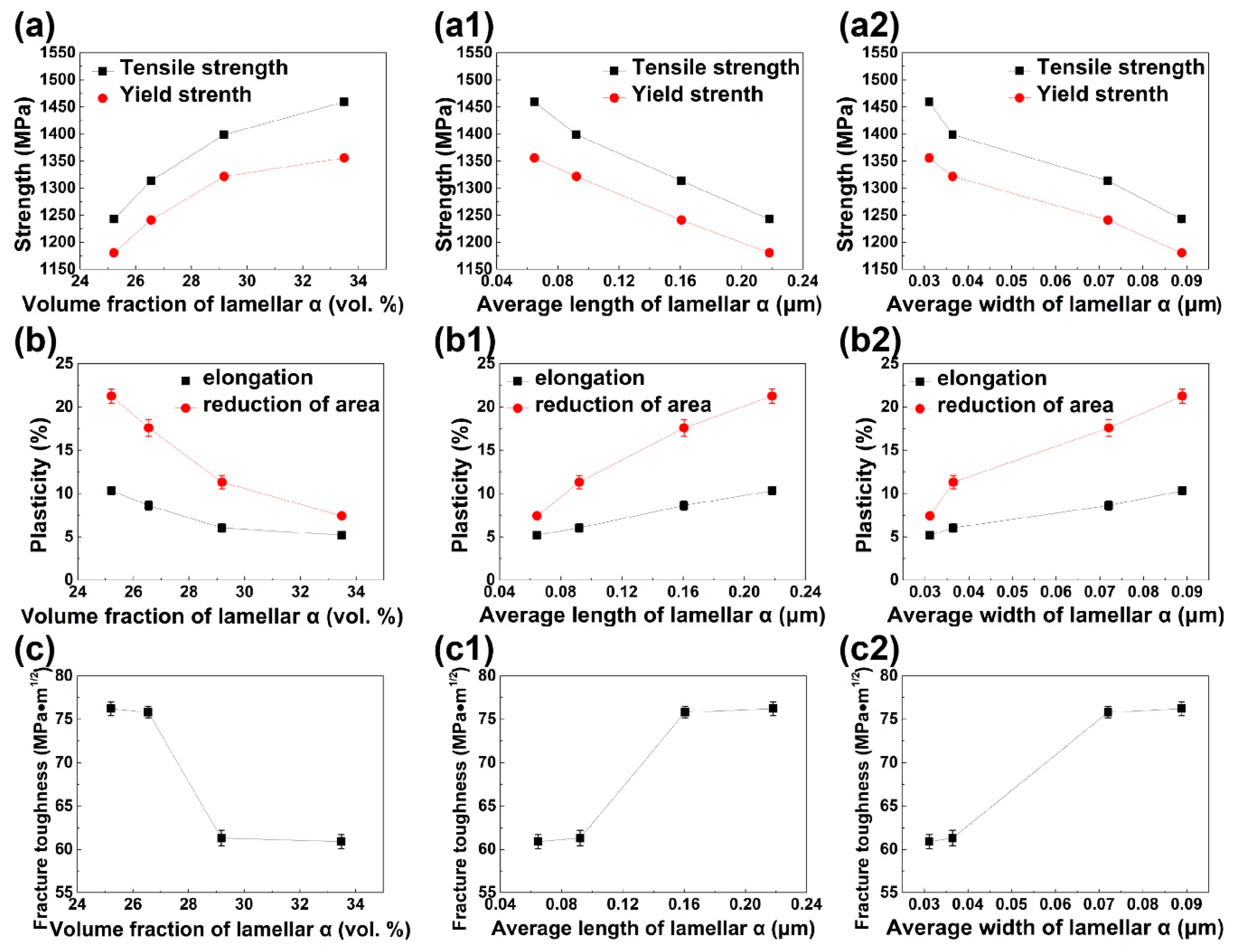

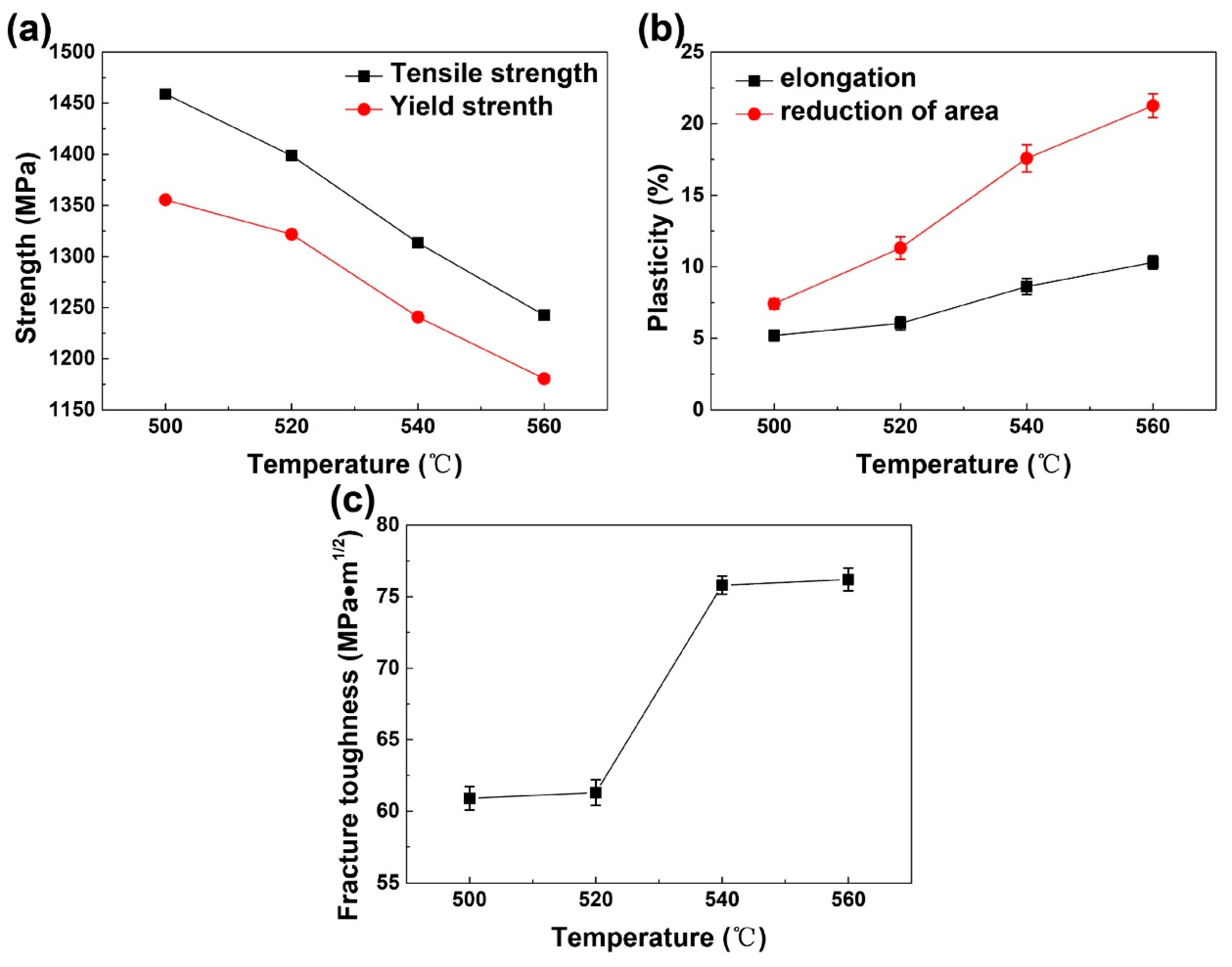

3.4. Mechanical Properties Dependent on Aging Temperature and Microstructure Features
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
Appendix A
A.1. Lengthening Model of αlamellar Tip
A.2. Dissolution Model of αlamellar Tip
A.3. Thickening Model of αlamellar Broad Face
A.4. Dissolution Model of αlamellar Broad Face below Teq
A.5. Dissolution model of αlamellar Broad Face above Teq and αlath Broad Face
