Corrosion Performance of Nano-TiO2-Modified Concrete under a Dry–Wet Sulfate Environment
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Specimen Preparation

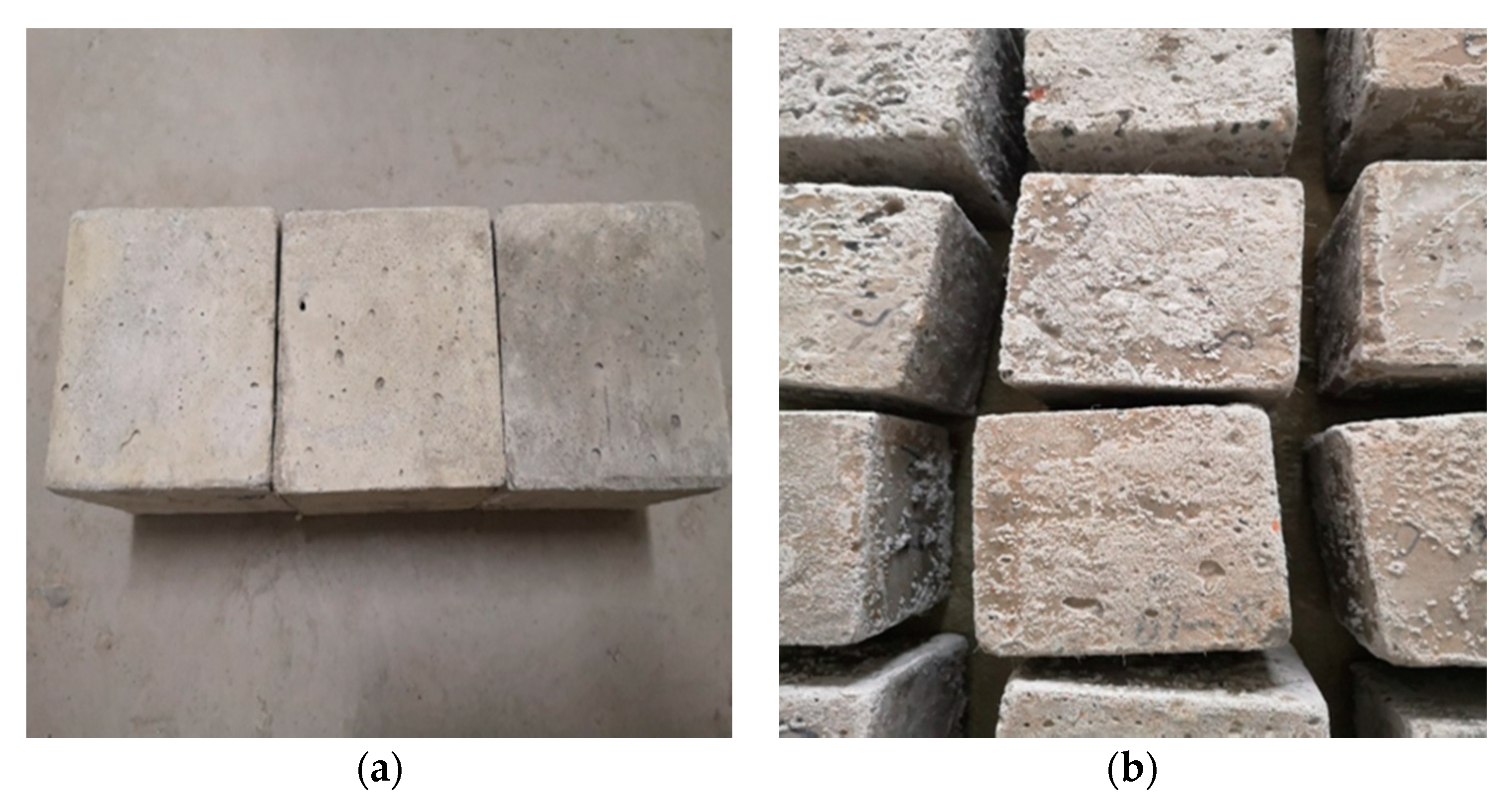

2.3. Dry–Wet Cycle Steps
3. Results and Discussion
3.1. Mass Loss Rate

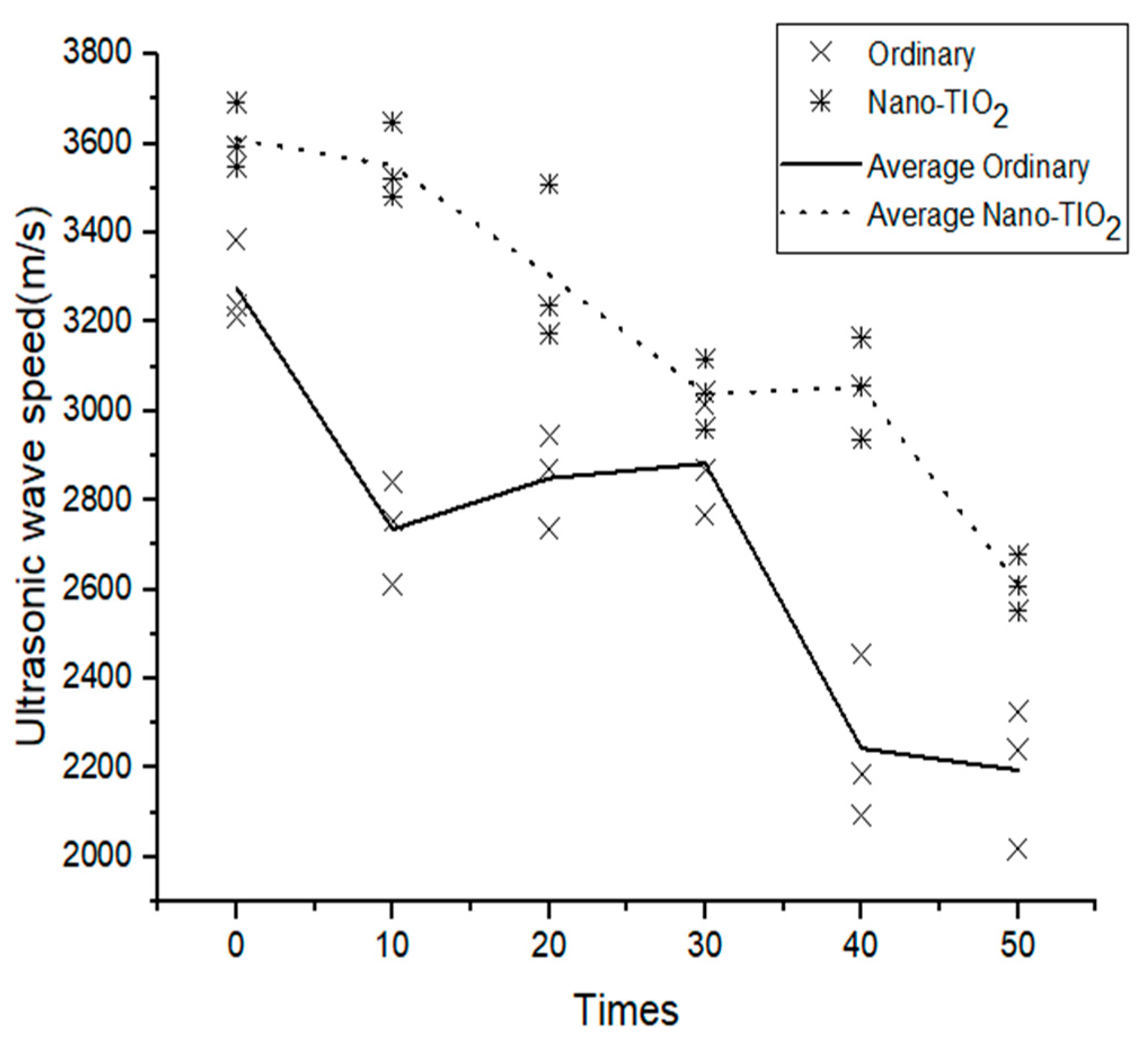

3.2. Ultrasonic Wave Velocity

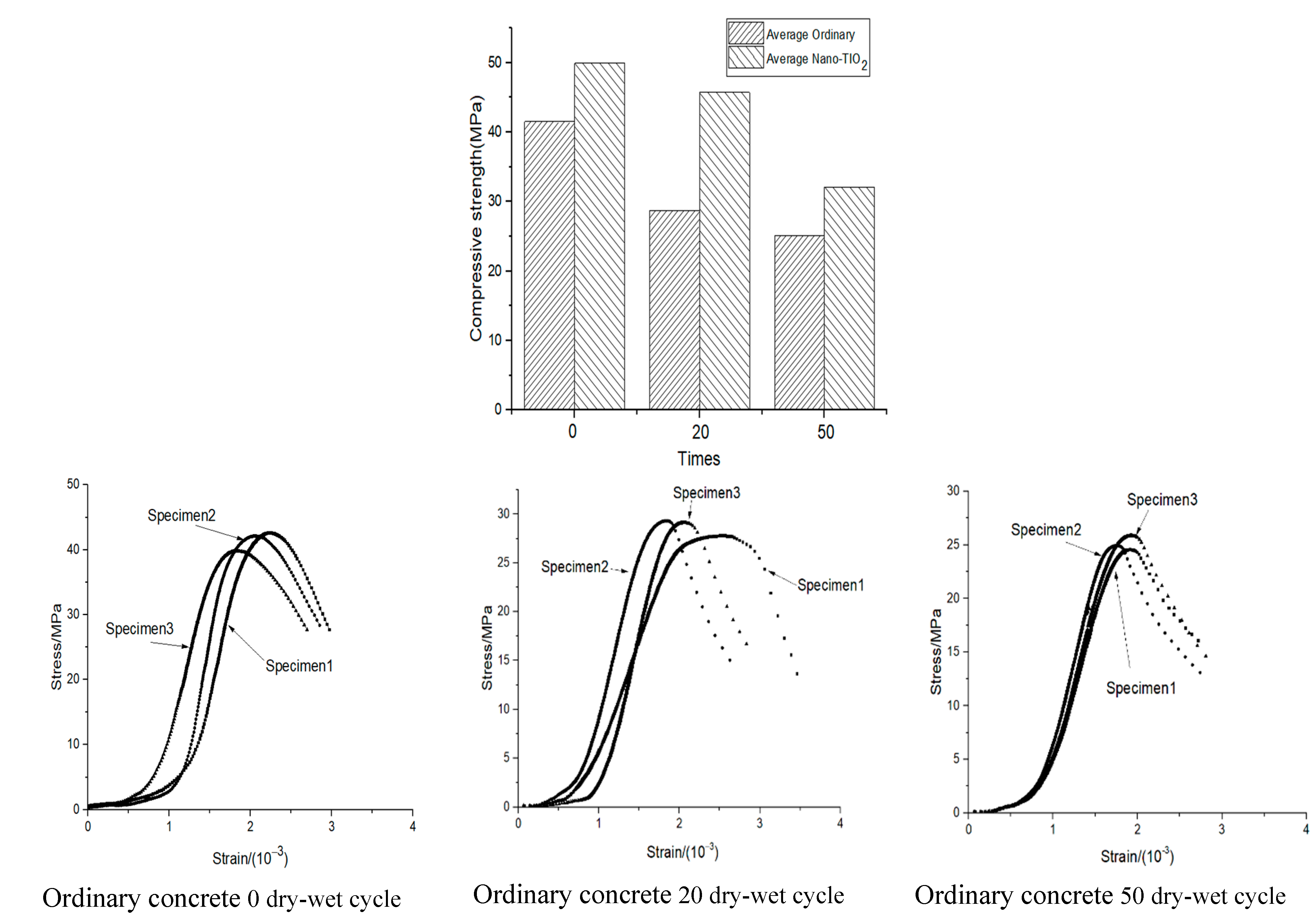

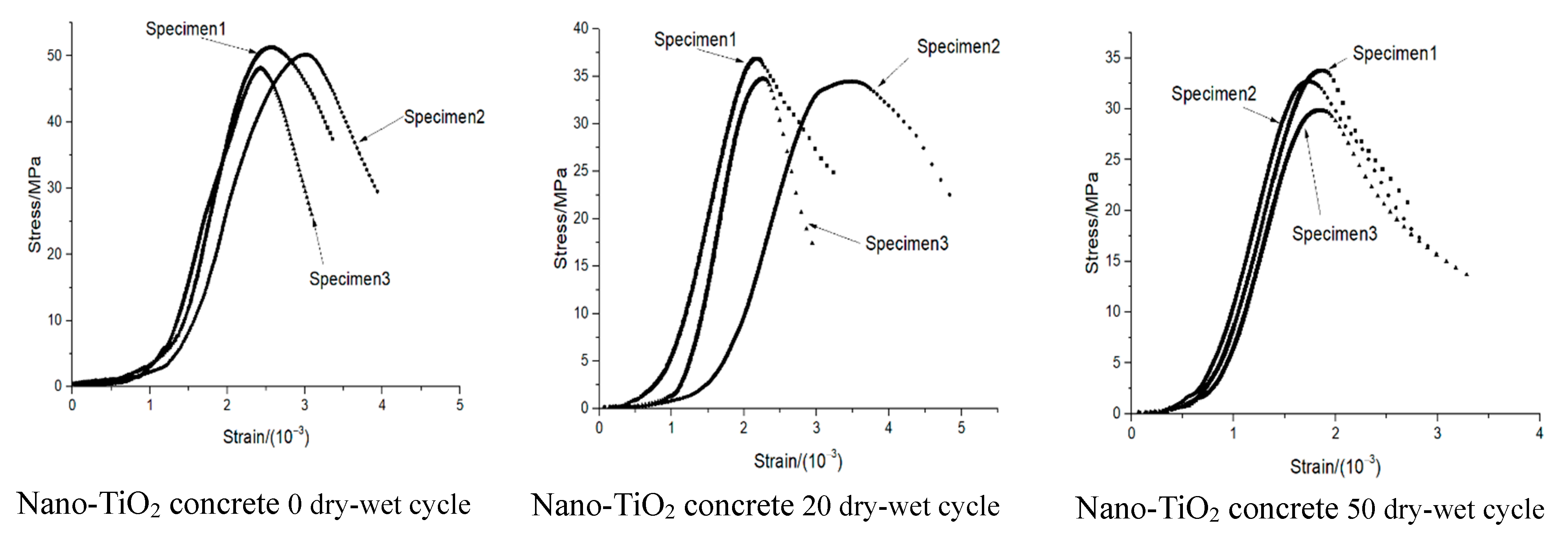

3.3. Compressive Strength

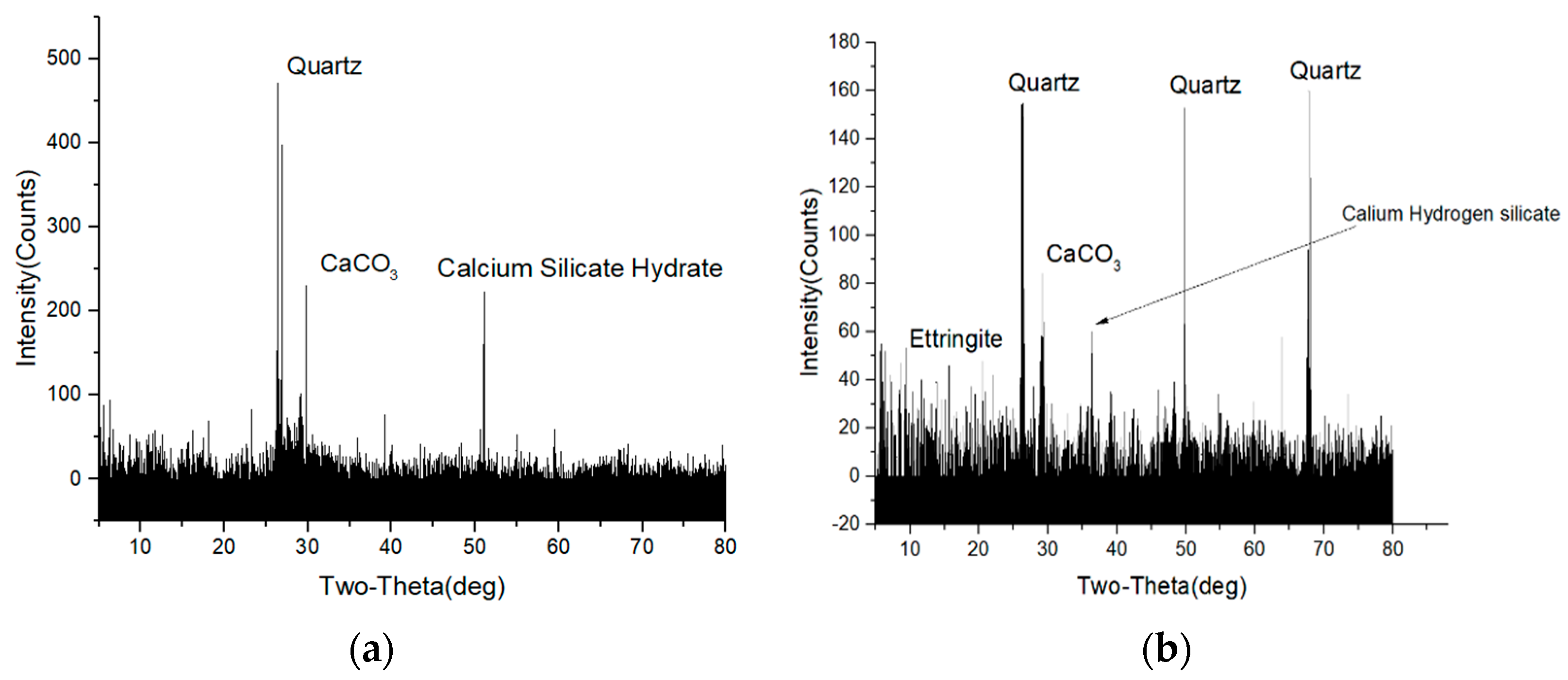

3.4. XRD
4. Compression Simulation

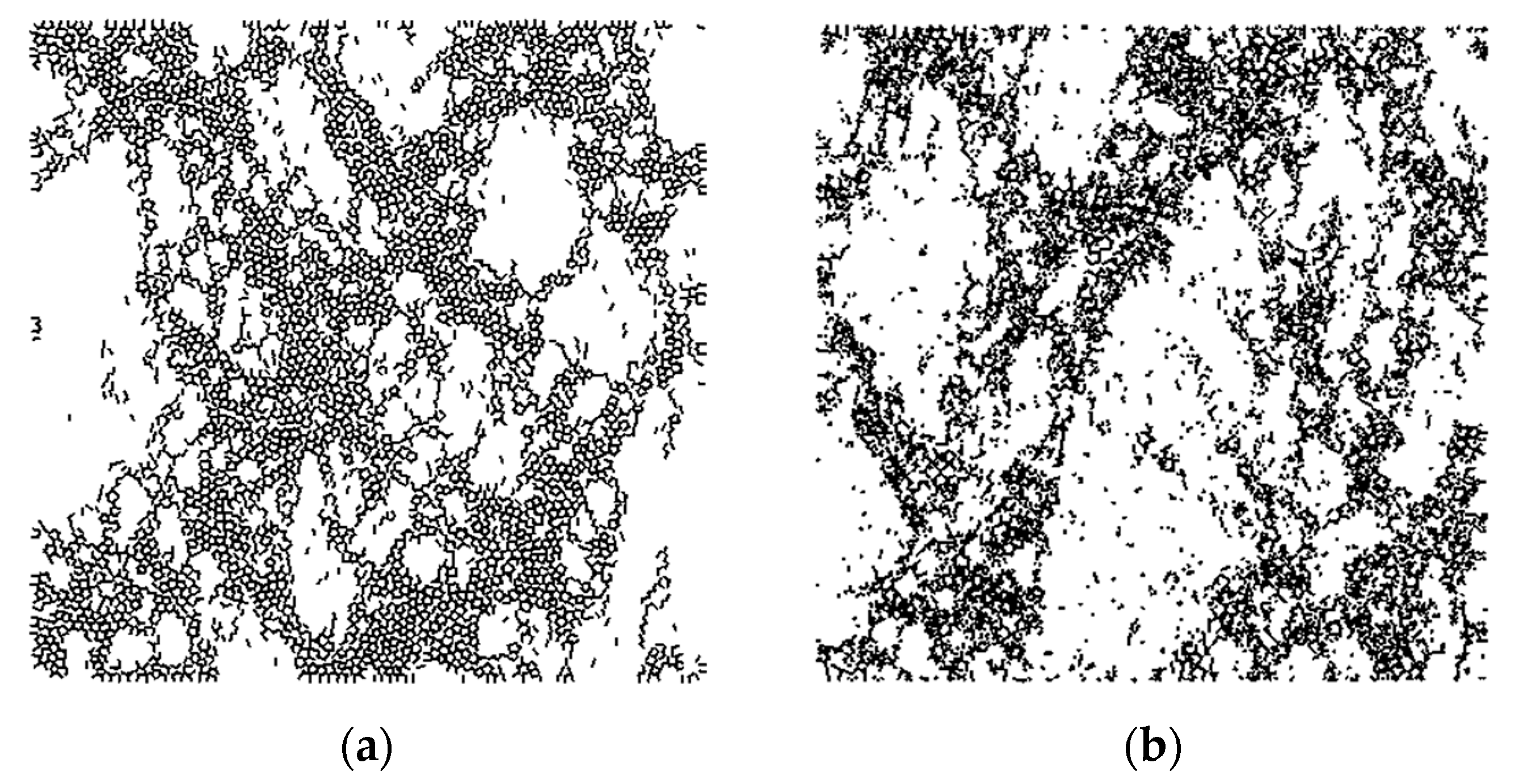

4.1. Generation and Servo of Compression Specimens
4.2. Microscopic Parameters of the Specimens

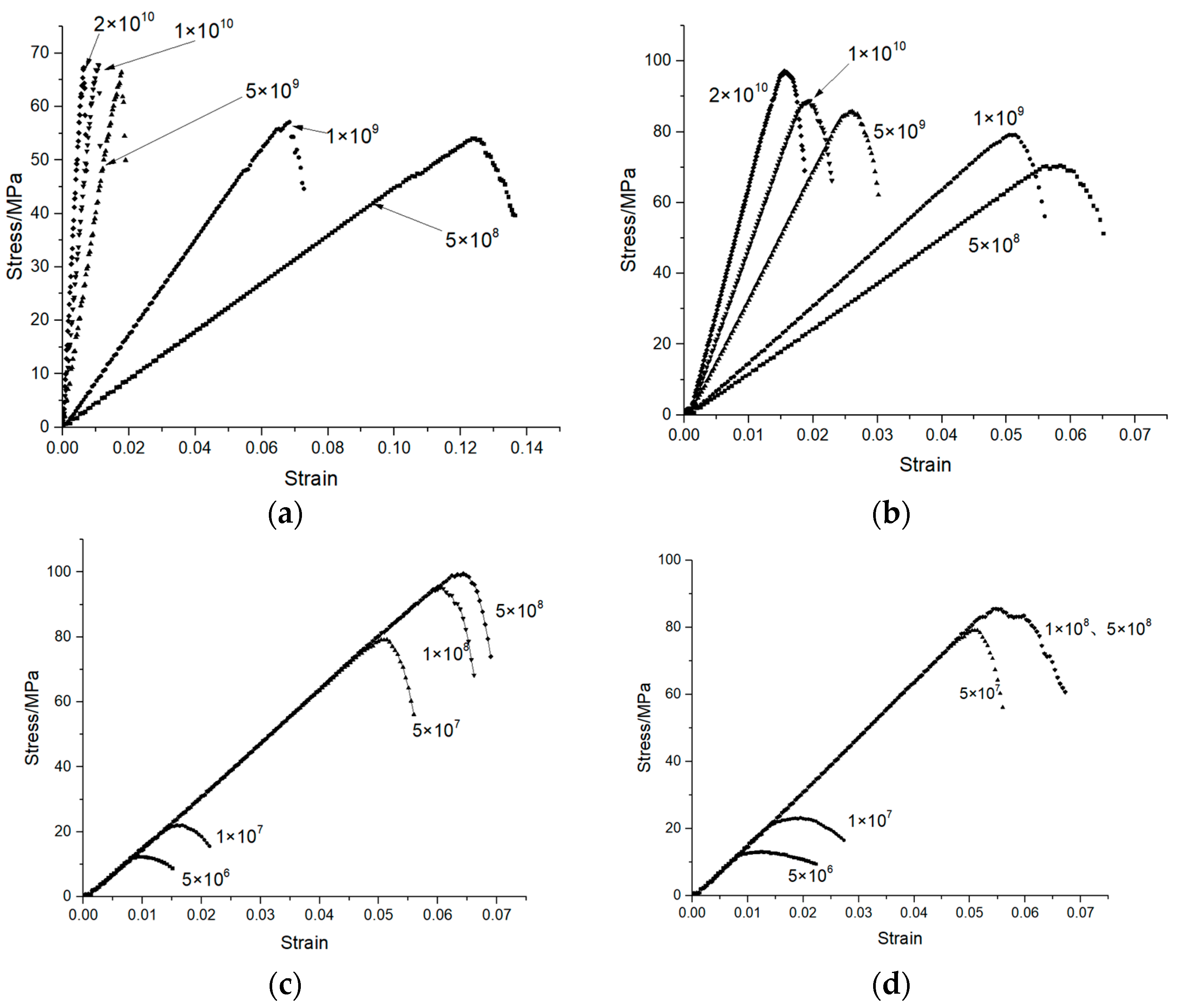

4.3. Analysis of the Simulation Results
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Andrés, E.I.; Carlos, M.L.; Carol, I. Chemo-mechanical analysis of concrete cracking and degradation due to external sulfate attack: A meso-scale model. Cem. Concr. Compos. 2011, 33, 411–423. [Google Scholar]
- Lorente, S.; Yssorche-Cubaynes, M.-P.; Auger, J. Sulfate transfer through concrete: Migration and diffusion results. Cem. Concr. Compos. 2011, 33, 735–741. [Google Scholar] [CrossRef]
- Condor, J.; Asghari, K.; Unatrakarn, D. Experimental results of diffusion coefficient of sulfate ions in cement type 10 and class G. Energy Procedia 2011, 4, 5267–5274. [Google Scholar] [CrossRef] [Green Version]
- Sun, C.; Chen, J.; Zhu, J.; Zhang, M.; Ye, J. A new diffusion model of sulfate ions in concrete. Constr. Build. Mater. 2013, 39, 39–45. [Google Scholar] [CrossRef]
- Liu, Z.; Li, X.; Deng, D.; De Schutter, G.; Hou, L. The role of Ca(OH)2 in sulfate salt weathering of ordinary concrete. Constr. Build. Mater. 2016, 123, 127–134. [Google Scholar] [CrossRef] [Green Version]
- Hobbs, D. Thaumasite sulfate attack in field and laboratory concretes: Implications for specifications. Cem. Concr. Compos. 2003, 25, 1195–1202. [Google Scholar] [CrossRef]
- Yoshida, N. 1506 Case Study of Sulfate Attack on Concrete of House Foundation Exposed to Sulfate-Bearing Ground in Tokyo and Kanagawa; Summaries of Technical Papers of Meeting Architectural Institute of Japan A; Architectural Institute of Japan: Tokyo, Japan, 2008; pp. 1011–1012. [Google Scholar]
- Pantawee, S.; Sinsiri, T.; Jaturapitakkul, C.; Chindaprasirt, P. Utilization of hemp concrete using hemp shiv as coarse aggregate with aluminum sulfate [Al2(SO4)3] and hydrated lime [Ca(OH)2] treatment. Constr. Build. Mater. 2017, 156, 435–442. [Google Scholar] [CrossRef]
- Garcés, P.; Saura, P.; Zornoza, E.; Andrade, C. Influence of pH on the nitrite corrosion inhibition of reinforcing steel in simulated concrete pore solution. Corros. Sci. 2011, 53, 3991–4000. [Google Scholar] [CrossRef]
- Balonis, M.; Glasser, F.P. Calcium Nitrite Corrosion Inhibitor in Portland Cement: Influence of Nitrite on Chloride Binding and Mineralogy. J. Am. Ceram. Soc. 2011, 94, 2230–2241. [Google Scholar] [CrossRef]
- Rakanta, E.; Zafeiropoulou, T.; Batis, G. Corrosion protection of steel with DMEA-based organic inhibitor. Constr. Build. Mater. 2013, 44, 507–513. [Google Scholar] [CrossRef]
- Jiang, S.; Jiang, L.; Wang, Z.; Jin, M.; Bai, S.; Song, S.; Yan, X. Deoxyribonucleic acid as an inhibitor for chloride-induced corrosion of reinforcing steel in simulated concrete pore solutions. Constr. Build. Mater. 2017, 150, 238–247. [Google Scholar] [CrossRef]
- Vishwakarma, V.; Uthaman, S.; Dasnamoorthy, R.; Kanagasabai, V. Investigation on surface sulfate attack of nanoparticle-modified fly ash concrete. Environ. Sci. Pollut. Res. 2020, 27, 41372–41380. [Google Scholar] [CrossRef] [PubMed]
- Arel, H.Ş; Thomas, B.S. The effects of nano- and micro-particle additives on the durability and mechanical properties of mortars exposed to internal and external sulfate attacks. Results Phys. 2017, 7, 843–851. [Google Scholar] [CrossRef]
- Ghafari, E.; Costa, H.; Júlio, E. Critical review on eco-efficient ultra high performance concrete enhanced with nano-materials. Constr. Build. Mater. 2015, 101, 201–208. [Google Scholar] [CrossRef]
- Ghafari, E.; Costa, H.; Julio, E.; Portugal, A.; Durães, L. The effect of nanosilica addition on flowability, strength and transport properties of ultra high performance concrete. Mater. Des. 2014, 59, 1–9. [Google Scholar] [CrossRef] [Green Version]
- Nasution, A.; Imran, I.; Abdullah, M. Improvement of concrete durability by nanomaterials. Procedia Eng. 2015, 125, 608–612. [Google Scholar]
- Zienkiewicz, O.; Taylor, R.; Zhu, J. The Finite Element Method: Its Basis and Fundamentals; Elsevier: Amsterdam, The Netherlands, 2013. [Google Scholar]
- Chetouane, B.; Dubois, F.; Vinches, M.; Bohatier, C. NSCD discrete element method for modelling masonry structures. Int. J. Numer. Methods Eng. 2005, 64, 65–94. [Google Scholar] [CrossRef] [Green Version]
- Haeri, H.; Sarfarazi, V. Numerical simulation of tensile failure of concrete using Particle Flow Code (PFC). Comput. Concr. 2016, 18, 39–51. [Google Scholar] [CrossRef]
- Gouder, C.; Saravanan, U. Modeling diffusion of sulfate through concrete using mixture theory. Acta Mech. 2016, 227, 3123–3146. [Google Scholar] [CrossRef]
Component | SiO2 | Al2O3 | CaO | Fe2O3 | MgO | SO3 |
---|---|---|---|---|---|---|
Cement | 22.02 | 5.2 | 64.42 | 5.23 | 1.02 | 2.1 |
Properties | Density | Melting Point/°C | Boiling Point/°C | Particle Size/nm |
---|---|---|---|---|
Nano-TiO2 | 4.260 | 1855 | 2900 | 25 |
Group | Cement | Sand | Gravel | Water | Water Reducer | Nano-TiO2 |
---|---|---|---|---|---|---|
Ordinary concrete | 415 | 583 | 1224 | 177 | 4.1 | 0 |
Nano-TiO2-modified concrete | 402.55 | 583 | 1224 | 177 | 4.1 | 12.45 |
Ordinary Concrete | Nano-TiO2 Modified Concrete | |
---|---|---|
Minimum radius/mm | 0.045 | 0.01 |
Maximum radius/mm | 0.075 | 0.075 |
Normal stiffness/N·m−1 | 1 × 109 | 1 × 109 |
Shear stiffness/N·m−1 | 1 × 109 | 1 × 109 |
Friction factor | 0.577 | 0.577 |
Parallel effective modulus/GPa | 28.05 | 28.05 |
Tensile strength/MPa | 25 | 31 |
Cohesion/MPa | 100 | 100 |
Linear effective modulus/GPa | 99.33 | 99.33 |
Parallel effective modulus after dry–wet/GPa | 25 | 10 |
Tensile strength after dry–wet/MPa | 11 | 17 |
Cohesion after dry–wet/MPa | 90 | 80 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Xu, C.; Liao, H.-H.; Chen, Y.-L.; Du, X.; Peng, B.; Fernandez-Steeger, T.M. Corrosion Performance of Nano-TiO2-Modified Concrete under a Dry–Wet Sulfate Environment. Materials 2021, 14, 5900. https://doi.org/10.3390/ma14195900
Xu C, Liao H-H, Chen Y-L, Du X, Peng B, Fernandez-Steeger TM. Corrosion Performance of Nano-TiO2-Modified Concrete under a Dry–Wet Sulfate Environment. Materials. 2021; 14(19):5900. https://doi.org/10.3390/ma14195900
Chicago/Turabian StyleXu, Chao, Hao-Hao Liao, You-Liang Chen, Xi Du, Bin Peng, and Tomas Manuel Fernandez-Steeger. 2021. "Corrosion Performance of Nano-TiO2-Modified Concrete under a Dry–Wet Sulfate Environment" Materials 14, no. 19: 5900. https://doi.org/10.3390/ma14195900
