Scattering of Magnetoacoustic Waves and Dynamic Stress Concentration around Double Openings in Piezomagnetic Composites
Abstract
:1. Introduction

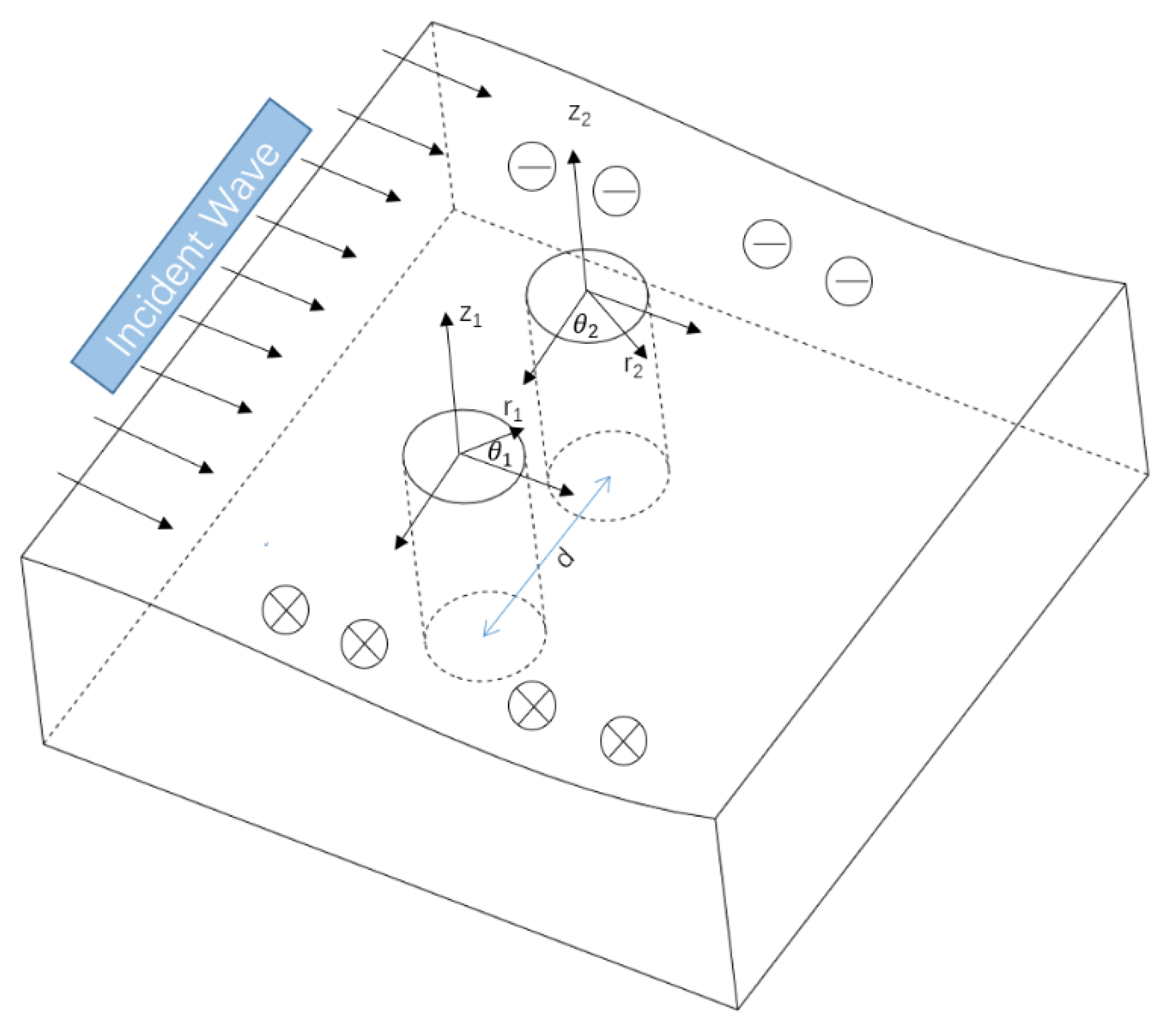

2. The Incidence of Magnetoacoustic Wave and the Total Magnetic Wave Field
3. Boundary Conditions and Mode Coefficients for Double Openings
4. Dynamic Stress Concentration Factor
5. Numerical Examples and Discussion
6. Conclusions
- (1)

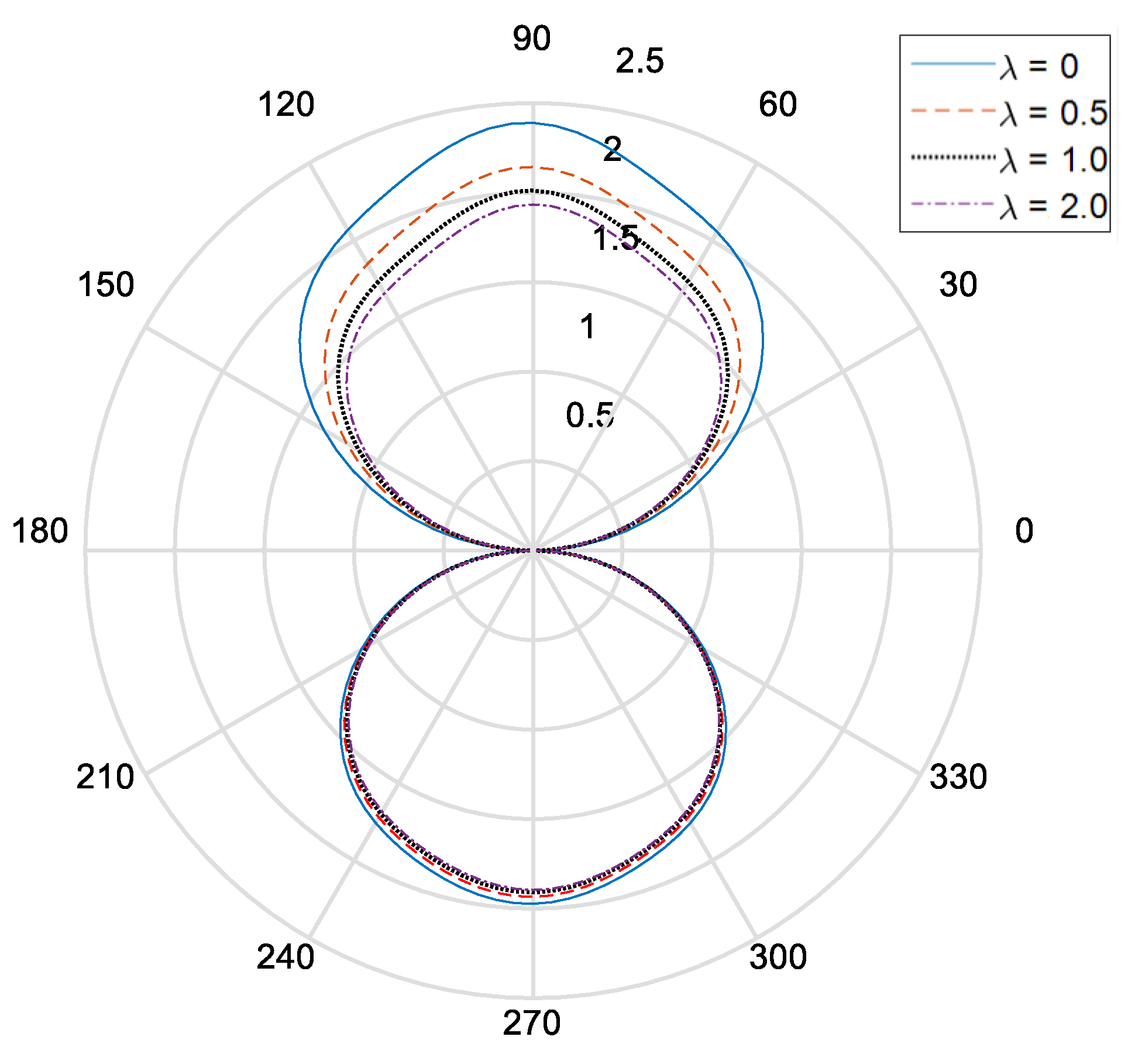

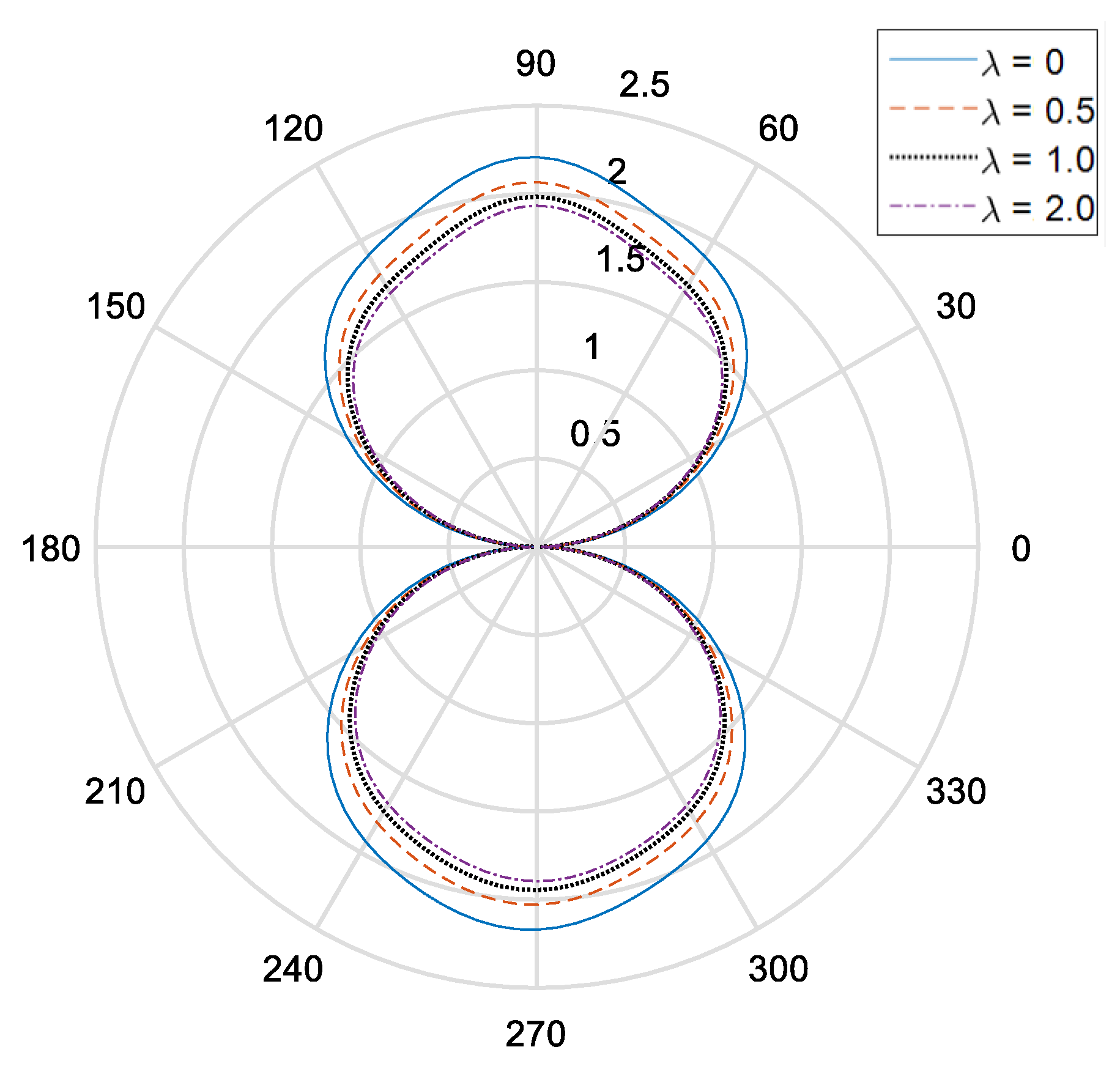

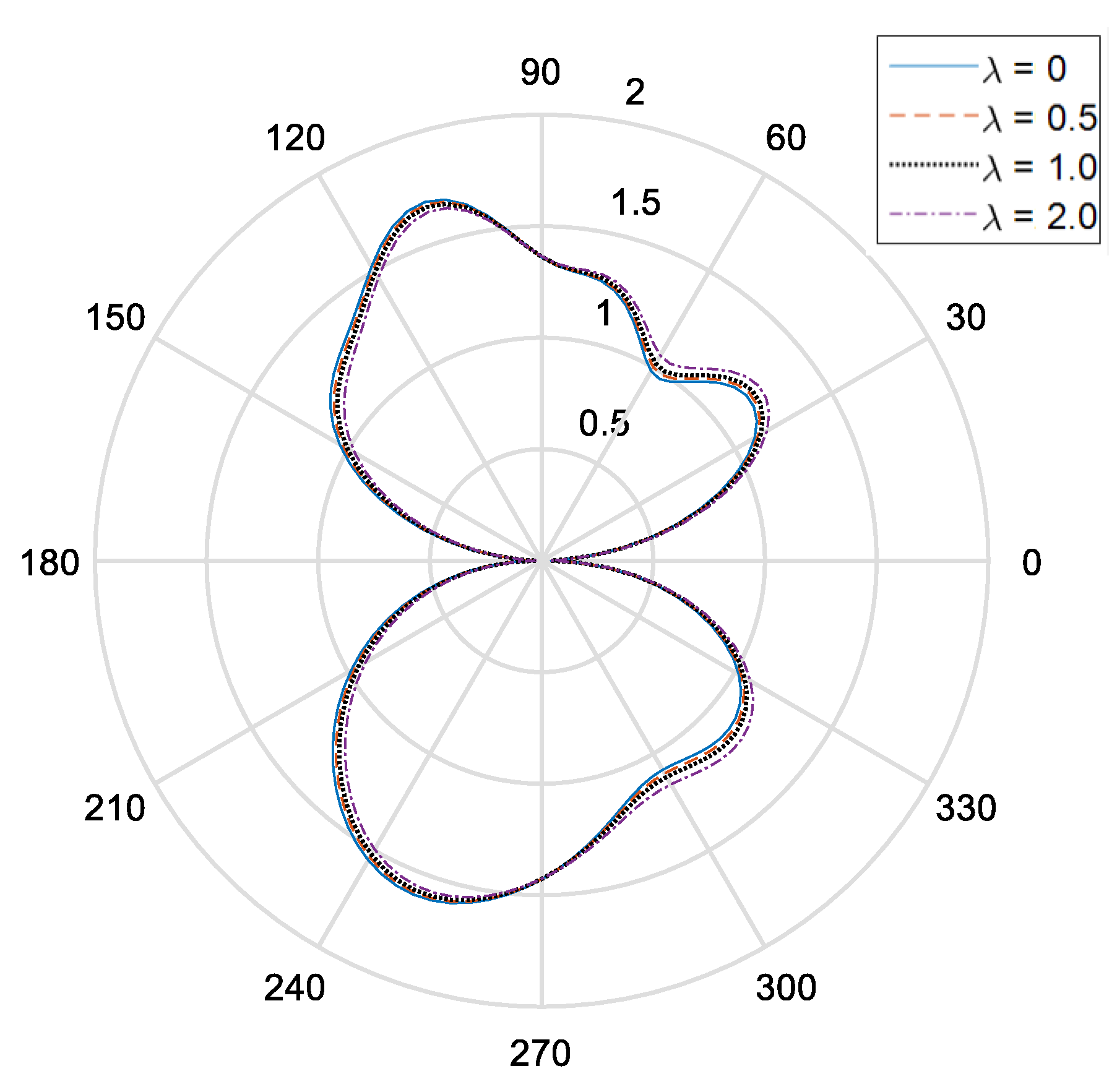

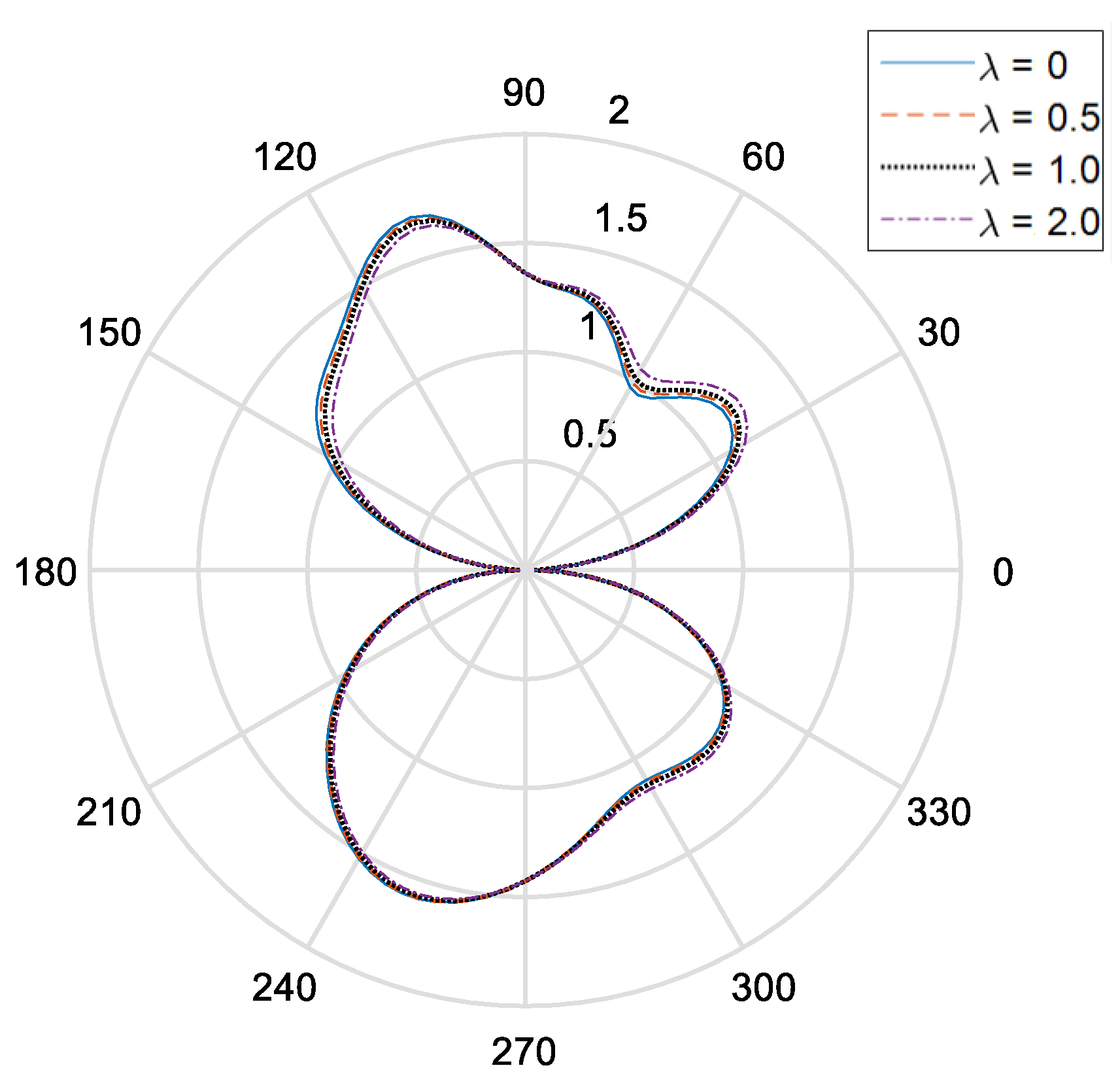

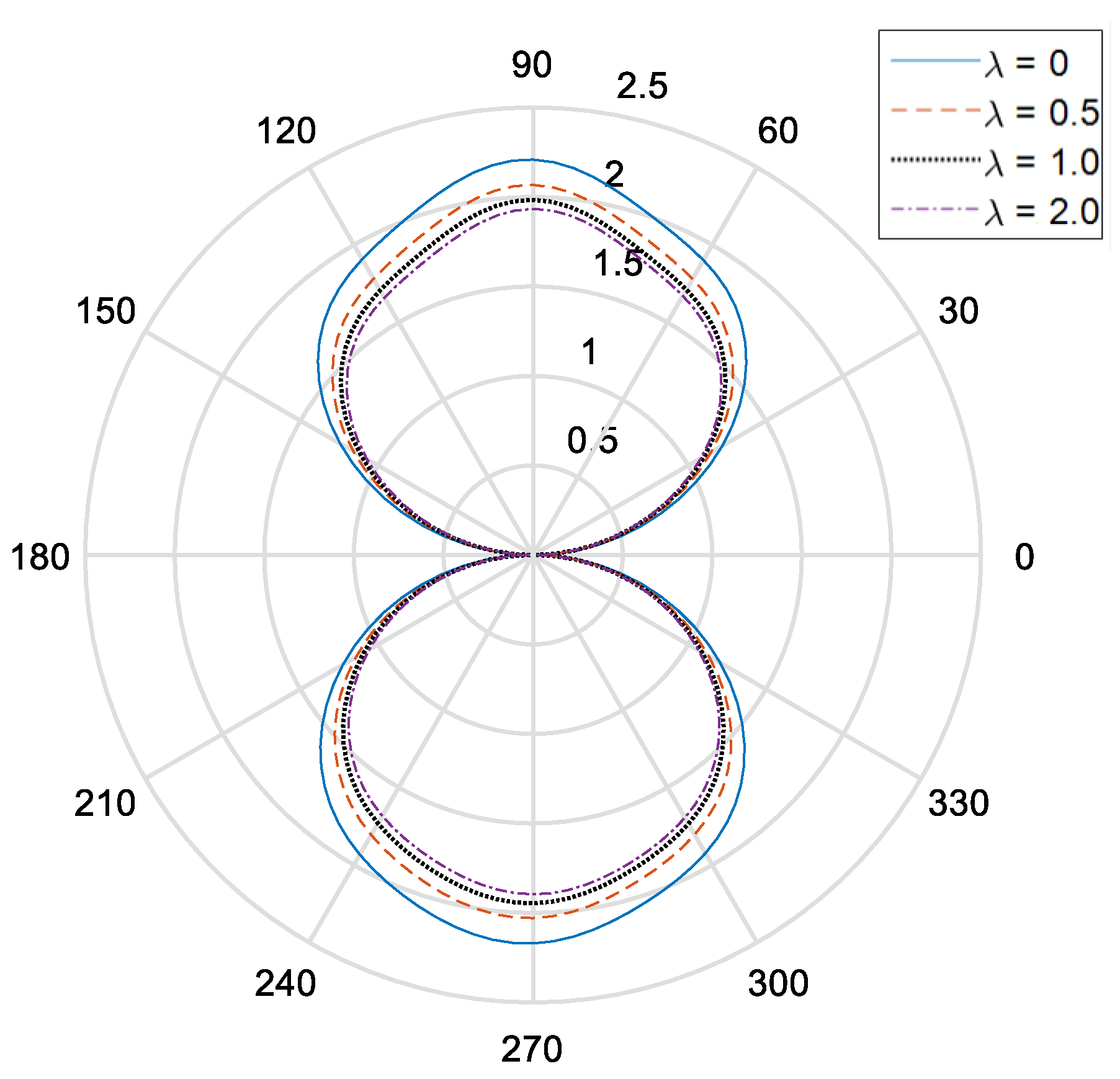

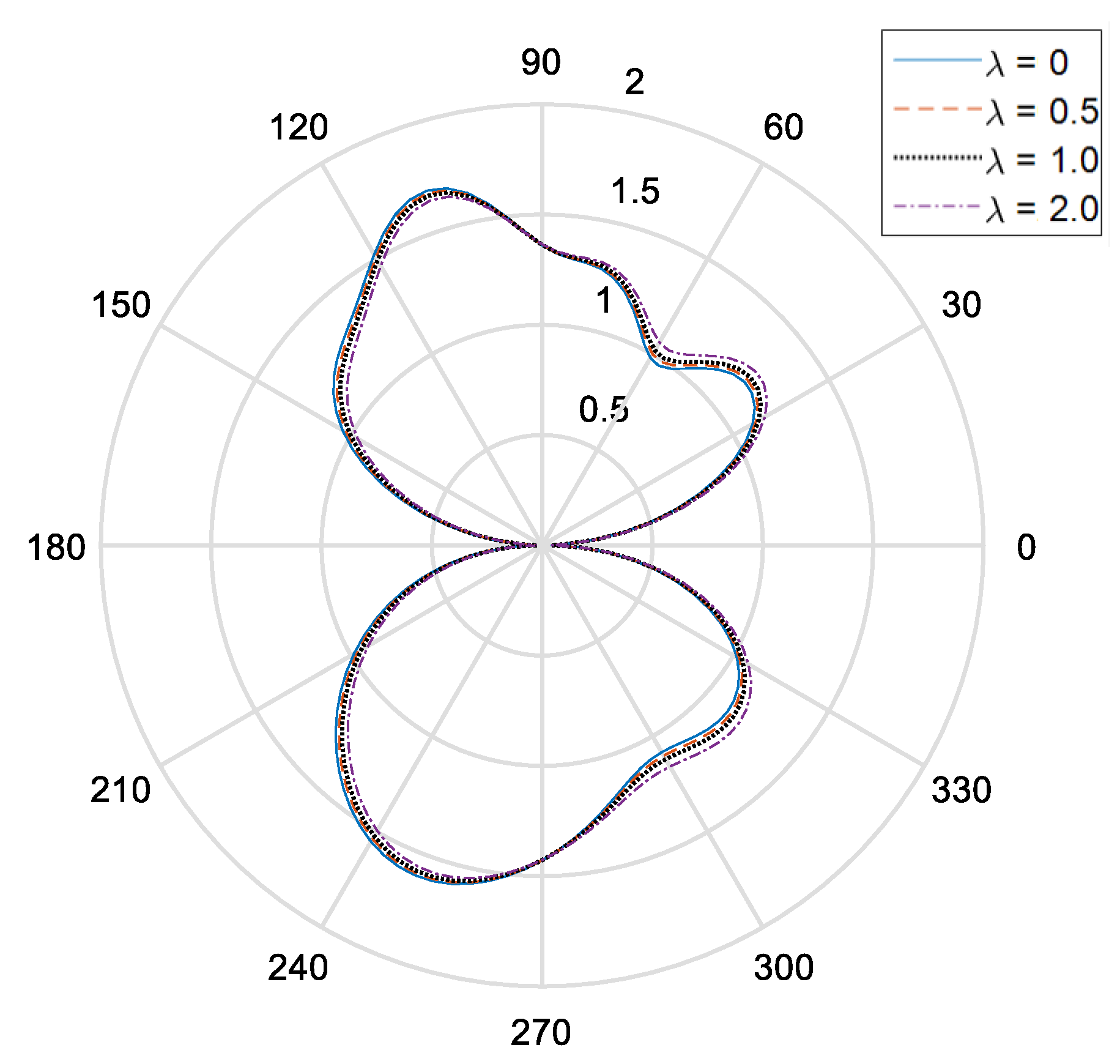

- The opening spacing and the physical parameter of the e-type piezomagnetic composites have great influence on the dynamic stress concentrations. A great physical parameter, , will cause a reduction of the dynamic stress concentrations. It indicates that piezomagnetic parameters increase the hardness of the materials. The opening spacing influences the density of the stress diagram under different physical parameters, . When the incident wave number is large, different physical parameters cause the curve spacing greater.
- (2)
- When the wave number is constant, the maximum value of the dynamic stress concentration factor changes with the opening spacing. When the opening spacing is small, the effect of the opening spacing on the dynamic stress concentration factor is very large. When the spacing between the two openings is large, the influence of the spacing on the dynamic stress concentration factor is weakened. When the distance between the two openings is infinite, the dynamic stress concentration factor of the two openings is almost the same as that of the single opening, and the dynamic stress concentration factor is no longer affected by the adjacent opening.
- (3)
- When the opening spacing is constant, with the increasing number of waves, the distance between the two openings on the dynamic stress concentration factor is increasing. The wave incident wave numbers greatly influence the value and distribution of the dynamic stress concentration factors around the openings. In contrast to the solution in the static case, analyses show that the piezomagnetic properties have great effect on the dynamic stress in the region of intermediate frequency. A larger incident wave frequency can enhance the piezomagnetic effects on the dynamic stress concentration.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Martin, P.A. Scattering by defects in an exponentially graded layer and misuse of the method of images. Int. J. Solids Struct. 2011, 48, 2164–2166. [Google Scholar] [CrossRef] [Green Version]
- Yang, Q.; Gao, C.F.; Chen, W.T. Stress analysis of a functional graded material plate with a circular hole. Arch. Appl. Mech. 2010, 80, 895–907. [Google Scholar] [CrossRef]
- Zhou, C.P.; Hu, C.; Ma, F.; Liu, D.K. Elastic wave scattering and dynamic stress concentration in exponential graded materials with two elliptic cavities. Wave Motion 2013, 51, 466–475. [Google Scholar] [CrossRef]
- Jiao, F.Y.; Wei, P.J.; Li, L. Wave propagation through an inhomogeneous slab sandwiched by the piezoelectric and the piezomagnetic half spaces. Ultrasonics 2017, 73, 22–33. [Google Scholar] [CrossRef] [PubMed]
- Liang, W.; Fang, D.N.; Shen, Y.; Soh, A.K. Nonlinear magneto-elastic coupling effects in a soft ferromagnetic material with a crack. Int. J. Solids Struct. 2002, 39, 3997–4011. [Google Scholar] [CrossRef]
- Lin, C.B.; Lin, H.M. The magneto-elastic problem of cracks in bonded dissimilar materials. Int. J. Solids Struct. 2002, 39, 2807–2826. [Google Scholar] [CrossRef]
- Wang, B.L.; Mai, Y.W. Crack tip field in piezoelectric/piezomagnetic media. Eur. J. Mech. A-Solids 2003, 22, 591–602. [Google Scholar] [CrossRef]
- Cao, X.; Shi, J.; Jin, F. Lamb wave propagation in the functionally graded piezoelectric-piezomagnetic material plate. Acta Mech. 2012, 223, 1081–1091. [Google Scholar] [CrossRef]
- Singh, B.M.; Rokne, J. Propagation of SH waves in layered functionally graded piezoelectric-piezomagnetic structures. Philos. Mag. 2013, 93, 1690–1700. [Google Scholar] [CrossRef]
- Tian, R.M.; Kong, Y.P.; Liu, J.X. SH waves in functionally graded piezoelectric-piezomagnetic material structures. In Proceedings of the Symposium on Piezoelectricity, Acoustic Waves and Device Applications, Shanghai, China, 23–25 November 2012; pp. 237–240. [Google Scholar]
- Wang, X.L.; Yang, X.J.; Zhang, R. Dynamic stress concentration in a piezoelectric material with a non-circular hole subjected to an SH-wave. J. Appl. Mech. Tech. Phys. 2020, 61, 661–668. [Google Scholar] [CrossRef]
- Zhao, X.; Liu, X.L.; Liu, S.; Liu, J.X. SH interfacial wave in a functionally graded piezoelectric/piezomagnetic bi-material with an imperfect interface. J. Vib. Shock 2014, 33, 183–187. [Google Scholar]
- Pang, Y.; Wang, Y.S.; Liu, J.X.; Fang, D.N. A study of the band structures of elastic wave propagating in piezoelectric/piezomagnetic layered periodic structures. Smart Mater. Struct. 2010, 19, 055012. [Google Scholar] [CrossRef]
- Zhang, B.; Yu, J.; Shah, A.A. Wave propagation in functionally graded piezoelectric- piezomagnetic rectangular bars. Sci. Eng. Compos. Mater. 2017, 24, 317–326. [Google Scholar] [CrossRef] [Green Version]
- Kong, Y.P.; Liu, J.X.; Nie, G.Q. Propagation characteristics of SH waves in a functionally graded piezomagnetic layer on PMN-0.29PT single crystal substrate. Mech. Res. Commun. 2016, 73, 107–112. [Google Scholar] [CrossRef]
- Sahu, S.A.; Mondal, S.; Dewangan, N. Polarized shear waves in functionally graded piezoelectric material layer sandwiched between corrugated piezomagnetic layer and elastic substrate. J. Sandw. Struct. Mater. 2017, 21, 2921–2948. [Google Scholar] [CrossRef]
