Influence of Cold Deformation on Carbide Precipitation Kinetics in a Fe-22Mn-0.45C TWIP Steel

Escobar, Javier; Jiménez, José Luis; Artigas, Alfredo; Perez-Ipiña, Juan; Monsalve, Alberto

doi:10.3390/ma15113748

Open AccessArticle

Influence of Cold Deformation on Carbide Precipitation Kinetics in a Fe-22Mn-0.45C TWIP Steel

by

Javier Escobar

¹,

José Luis Jiménez

¹,

Alfredo Artigas

¹,

Juan Perez-Ipiña

²

and

Alberto Monsalve

^1,3,*

¹

Department of Metallurgical Engineering, Universidad de Santiago de Chile, Av. Ecuador 3735, Estación Central, Santiago 9170124, Chile

²

Conicet, Neuquén 8300, Argentina

³

Structural Integrity Program, Engineering Faculty, Universidad de Santiago de Chile, Santiago 9170124, Chile

^*

Author to whom correspondence should be addressed.

Materials 2022, 15(11), 3748; https://doi.org/10.3390/ma15113748

Submission received: 17 April 2022 / Revised: 19 May 2022 / Accepted: 20 May 2022 / Published: 24 May 2022

(This article belongs to the Special Issue Microstructure and Mechanical Properties of Alloys)

Download

Browse Figures

Review Reports Versions Notes

Abstract

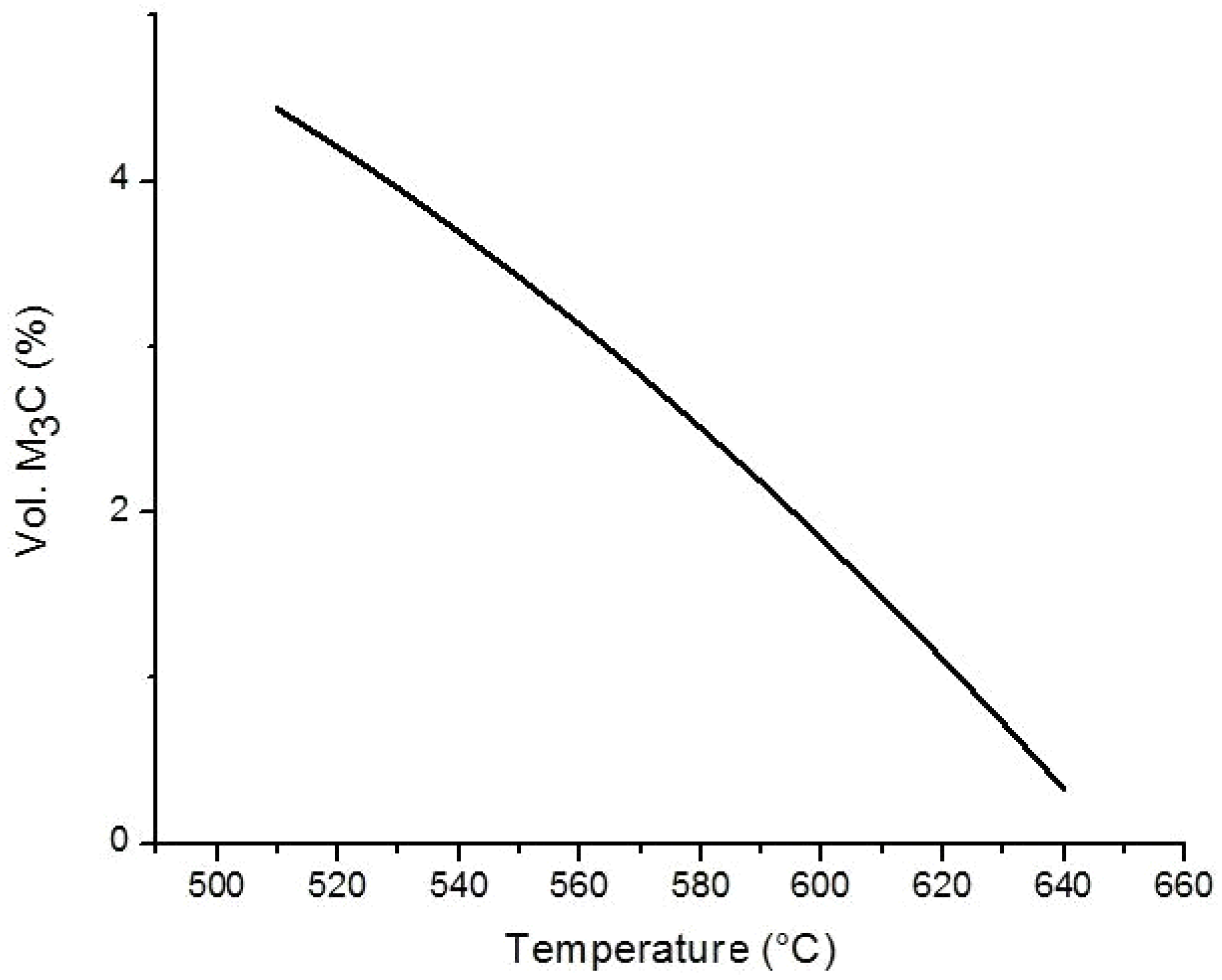

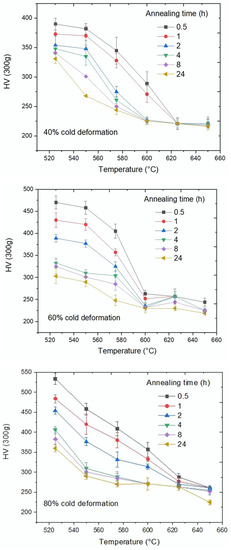

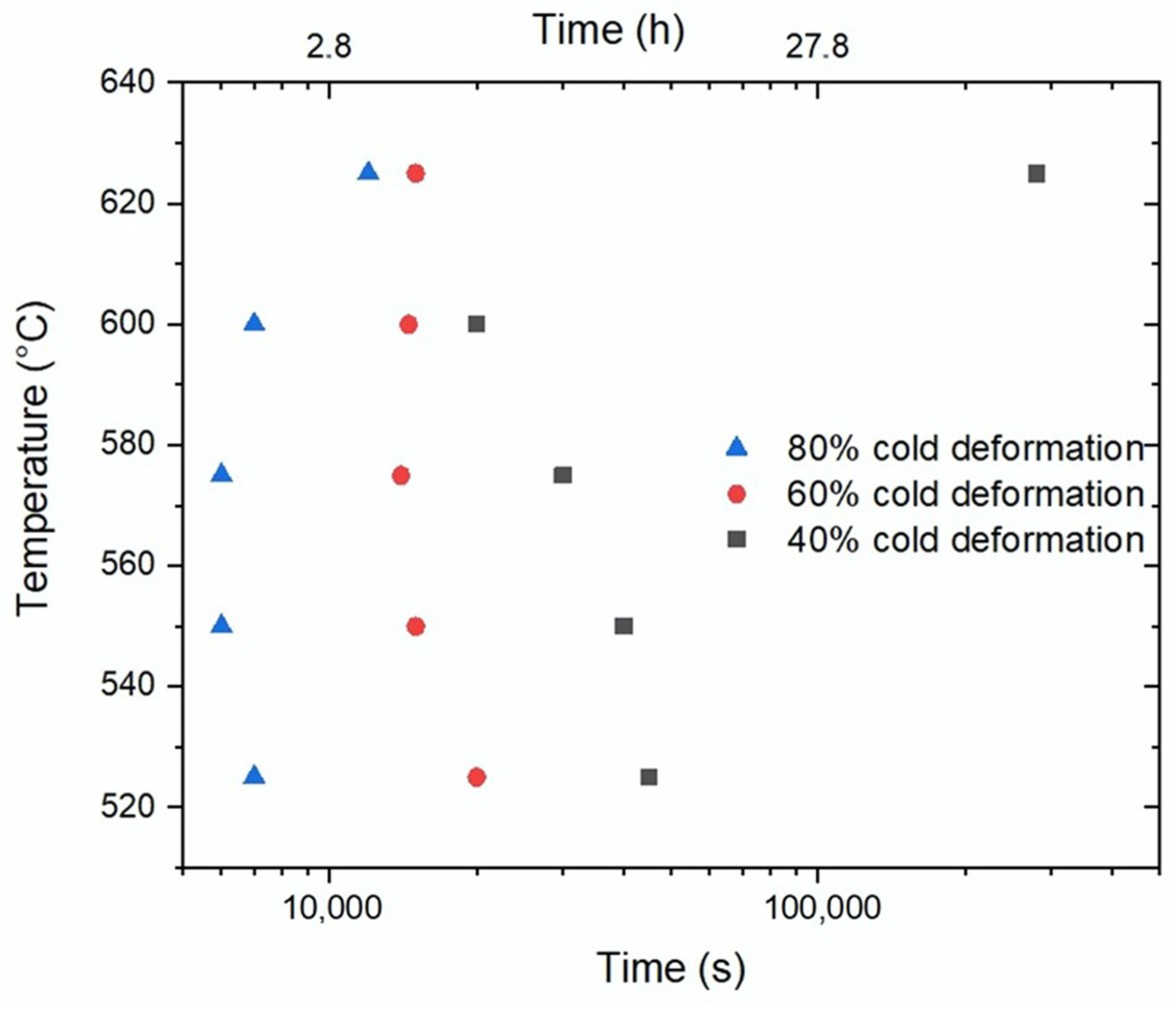

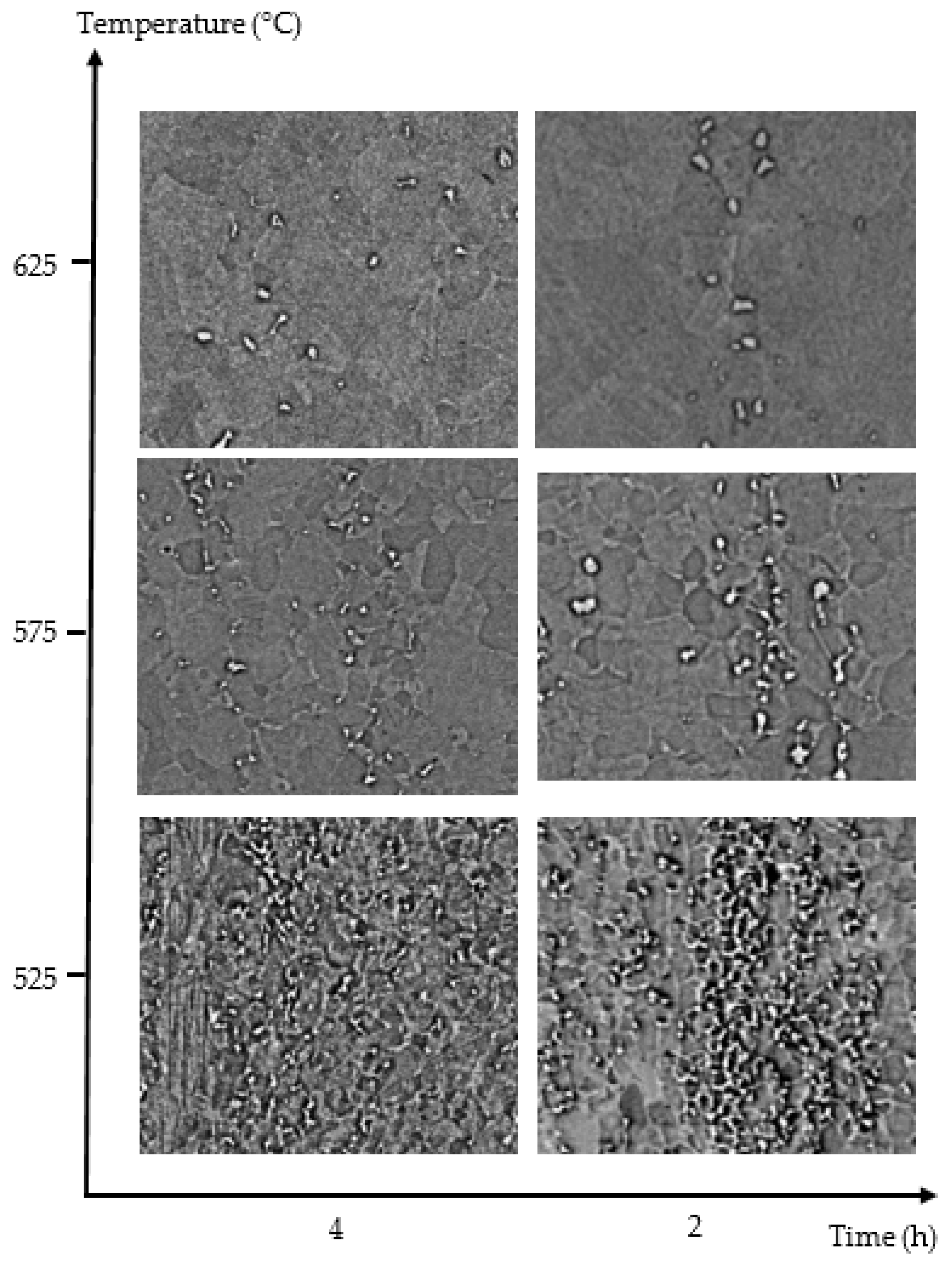

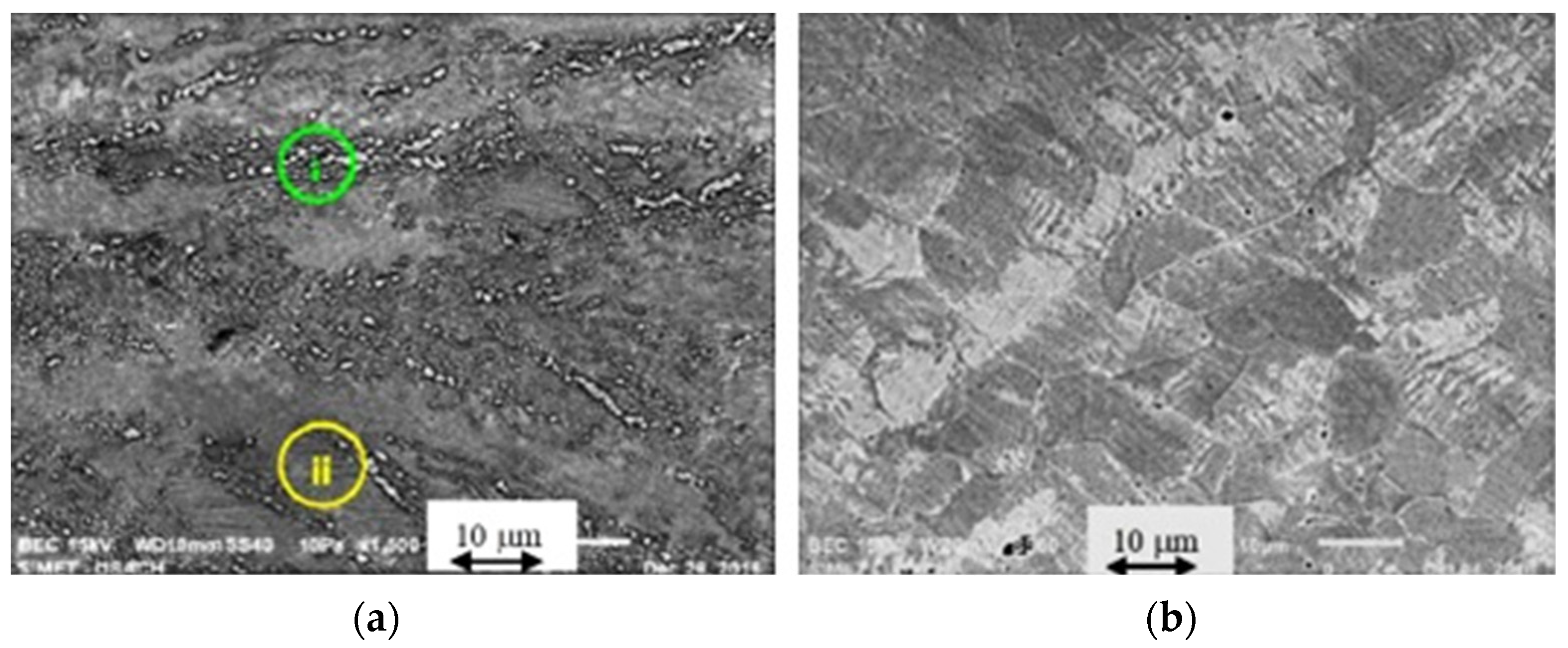

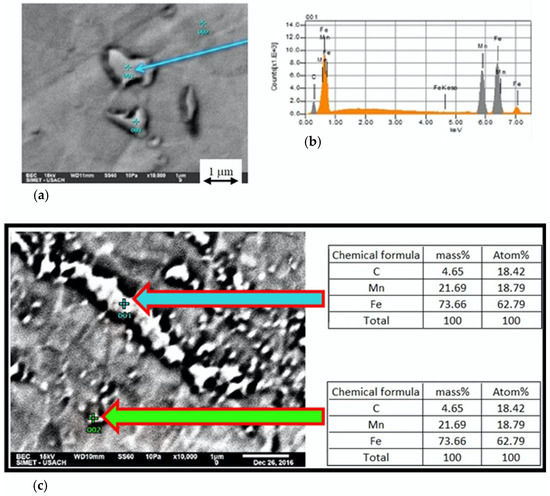

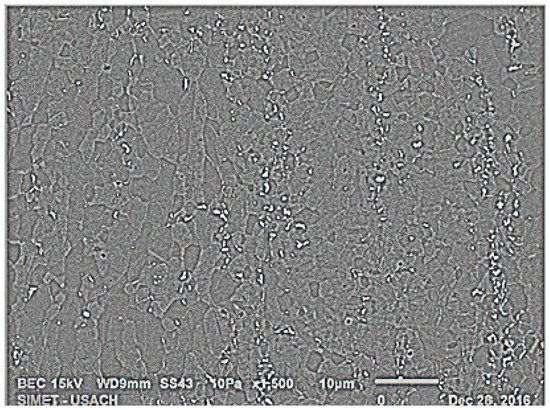

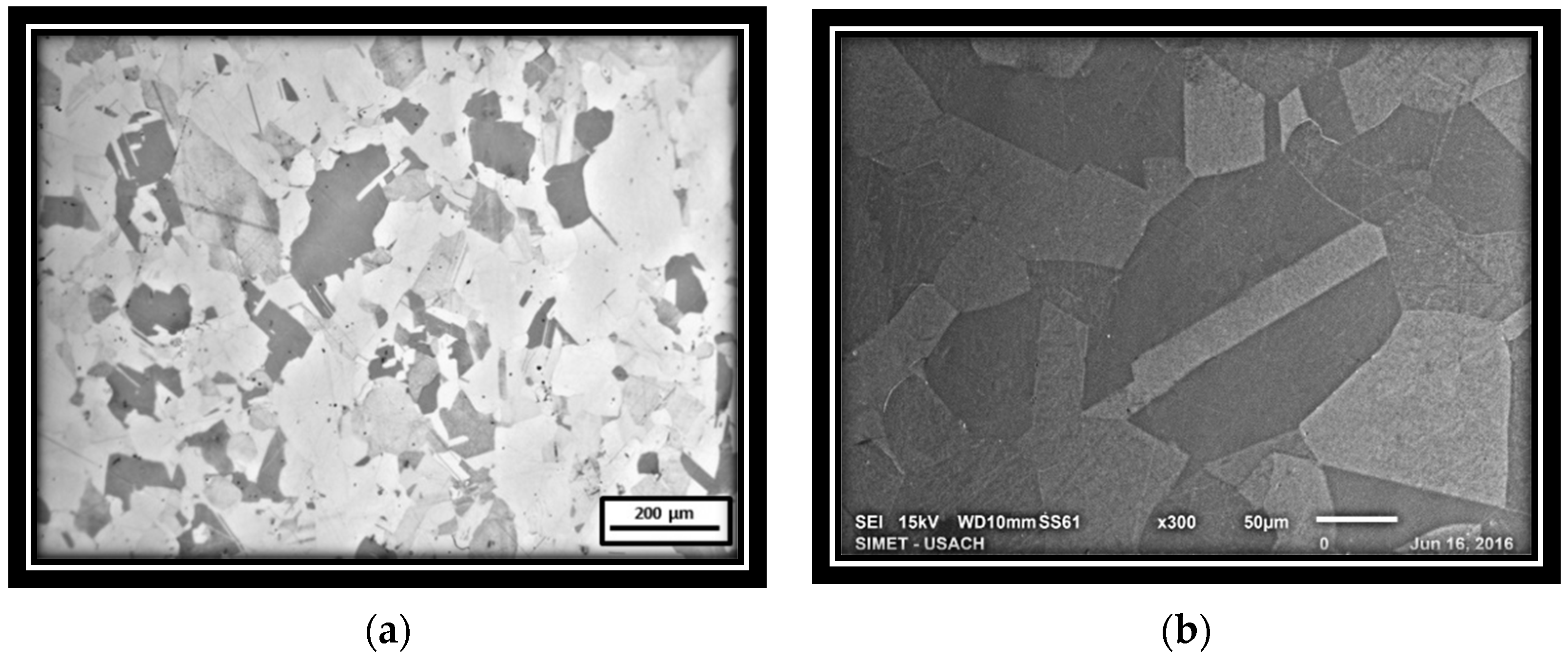

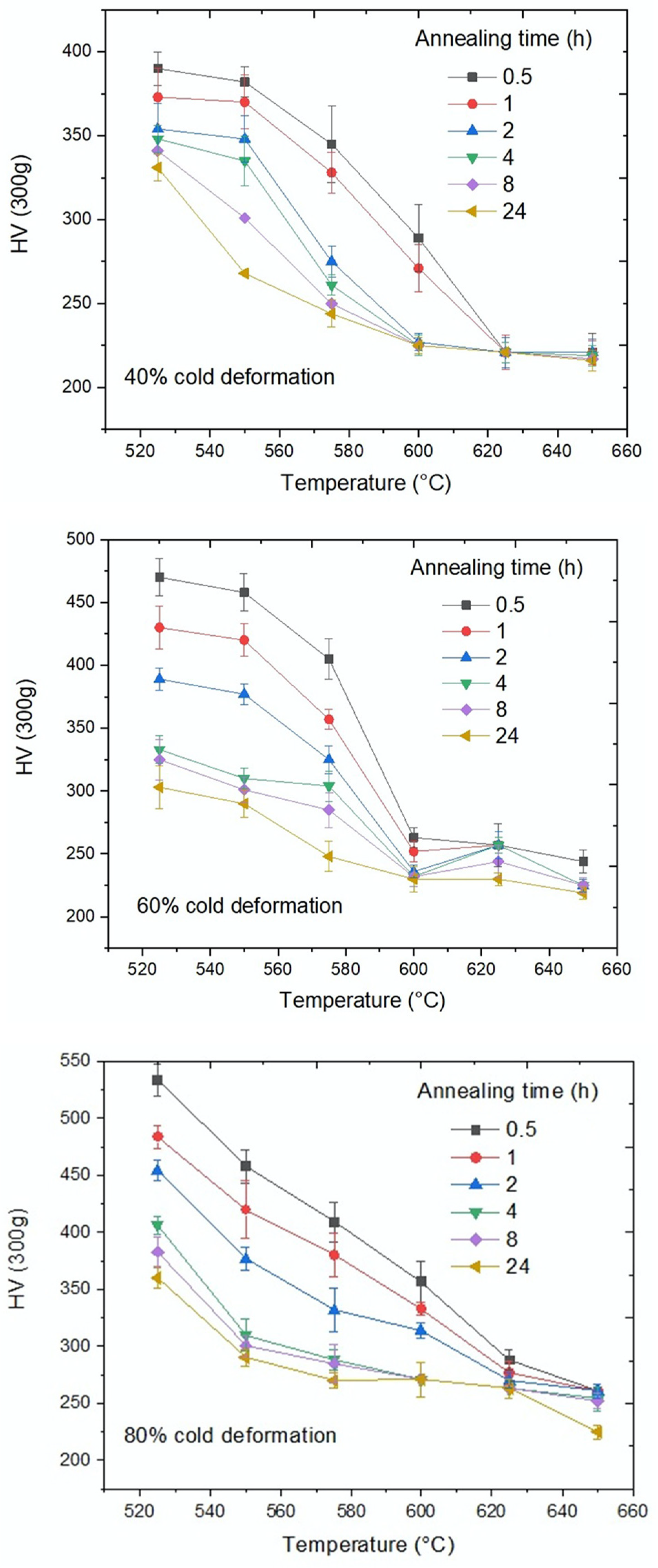

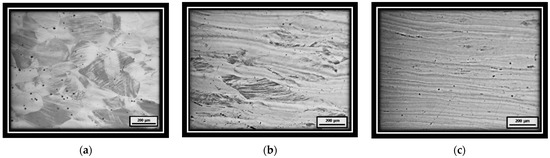

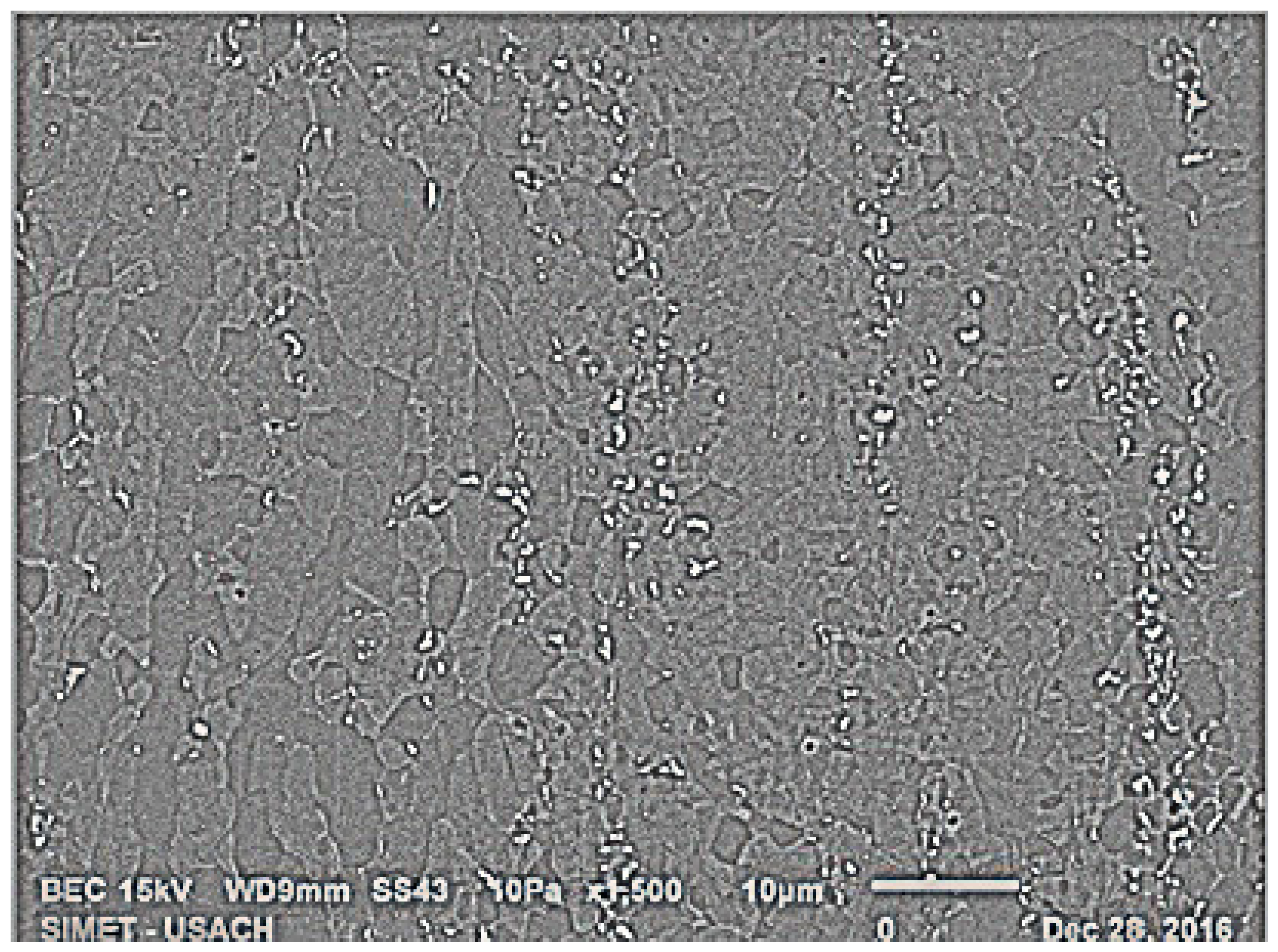

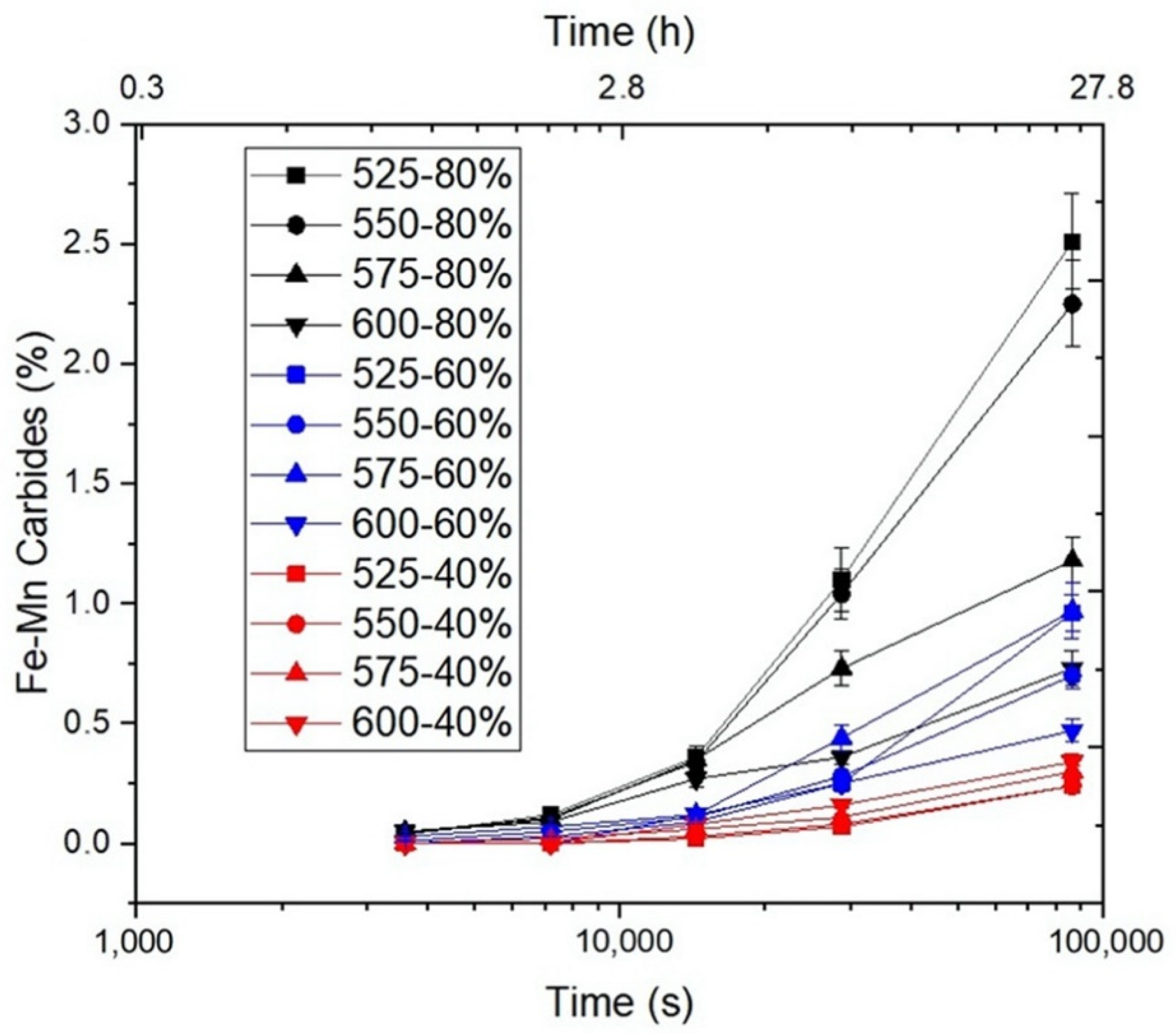

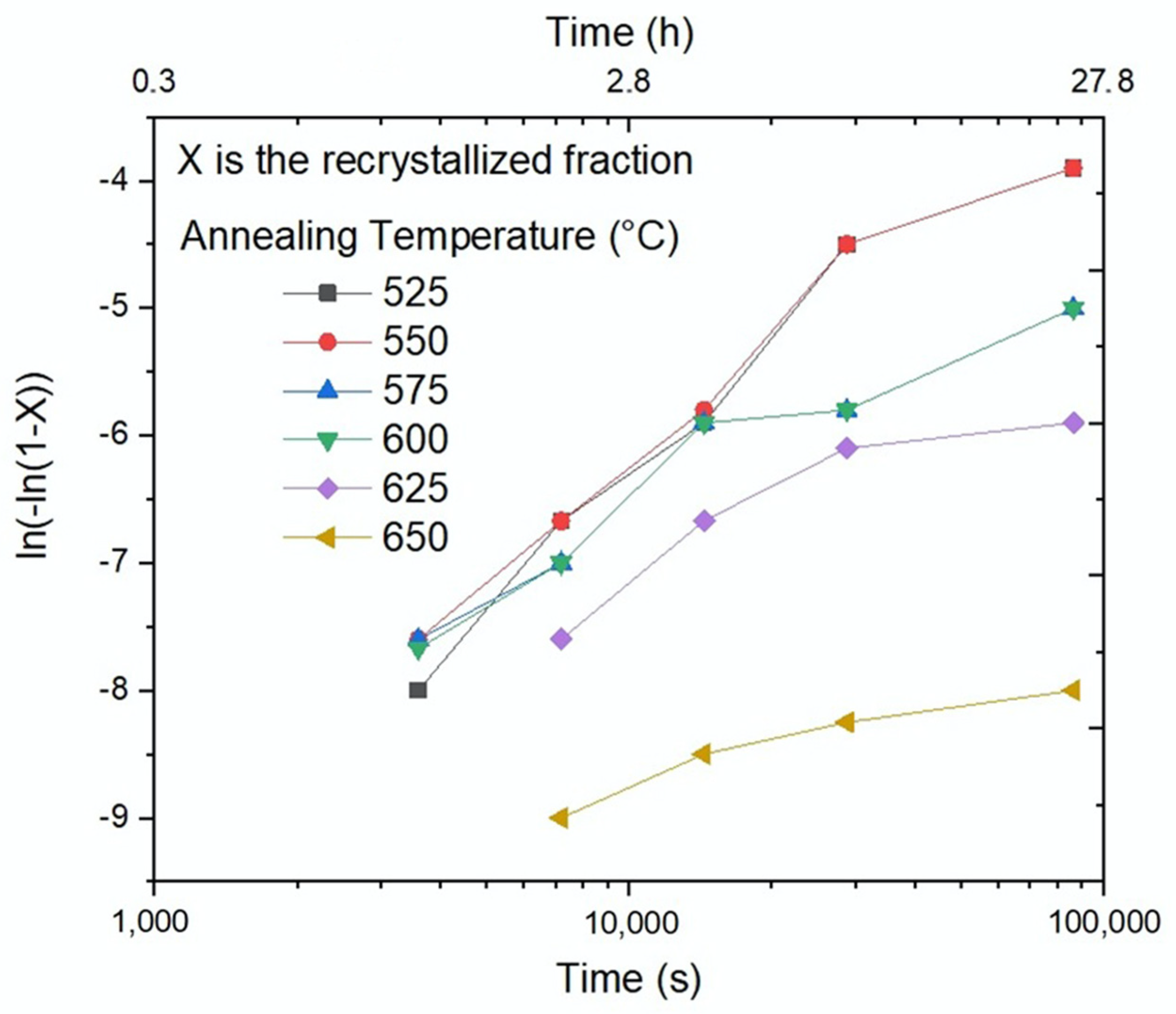

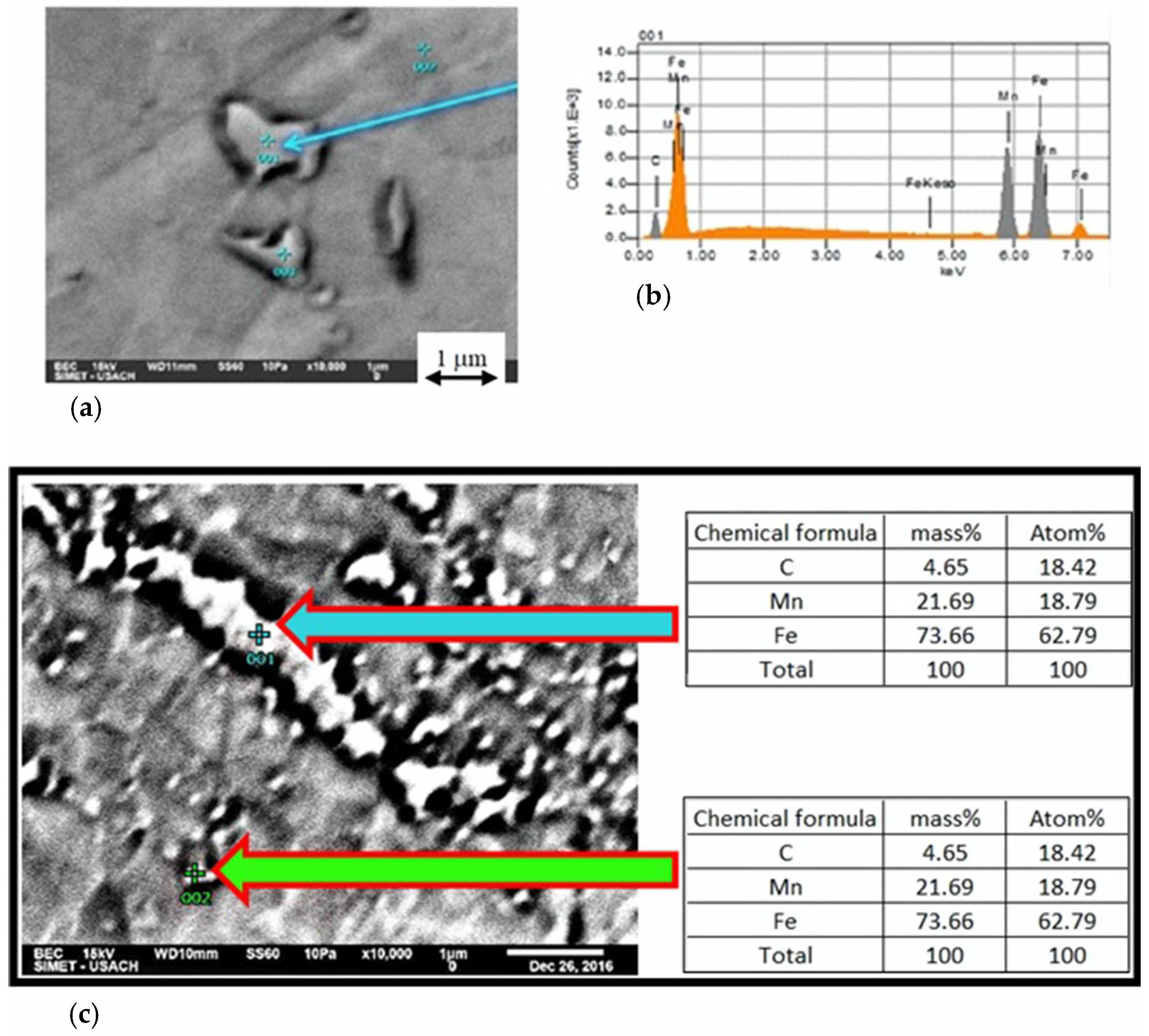

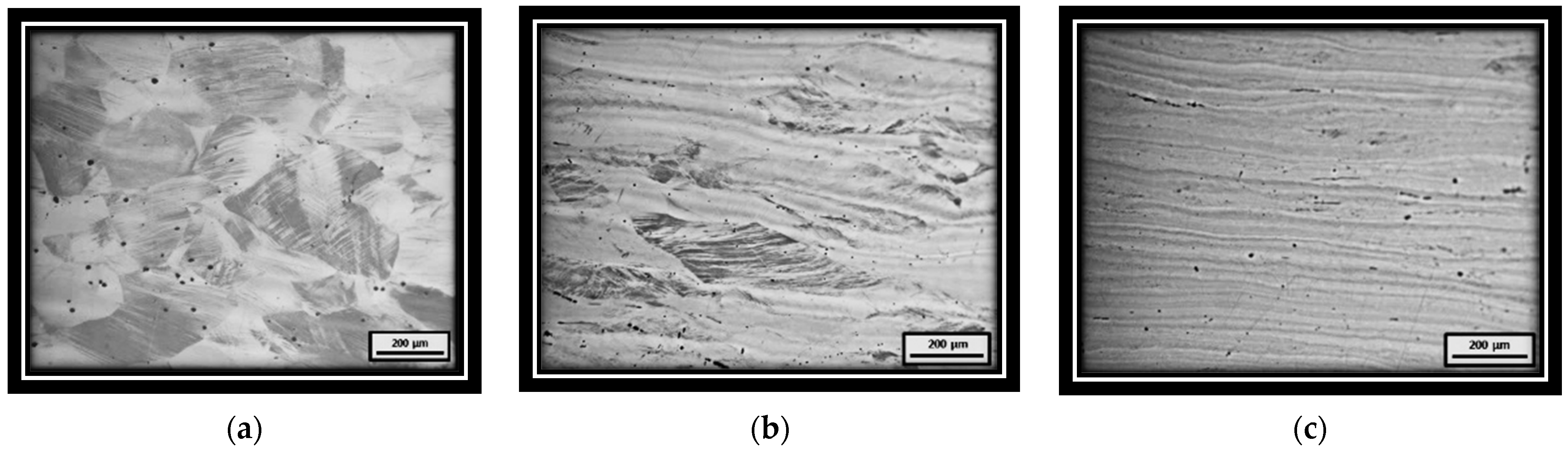

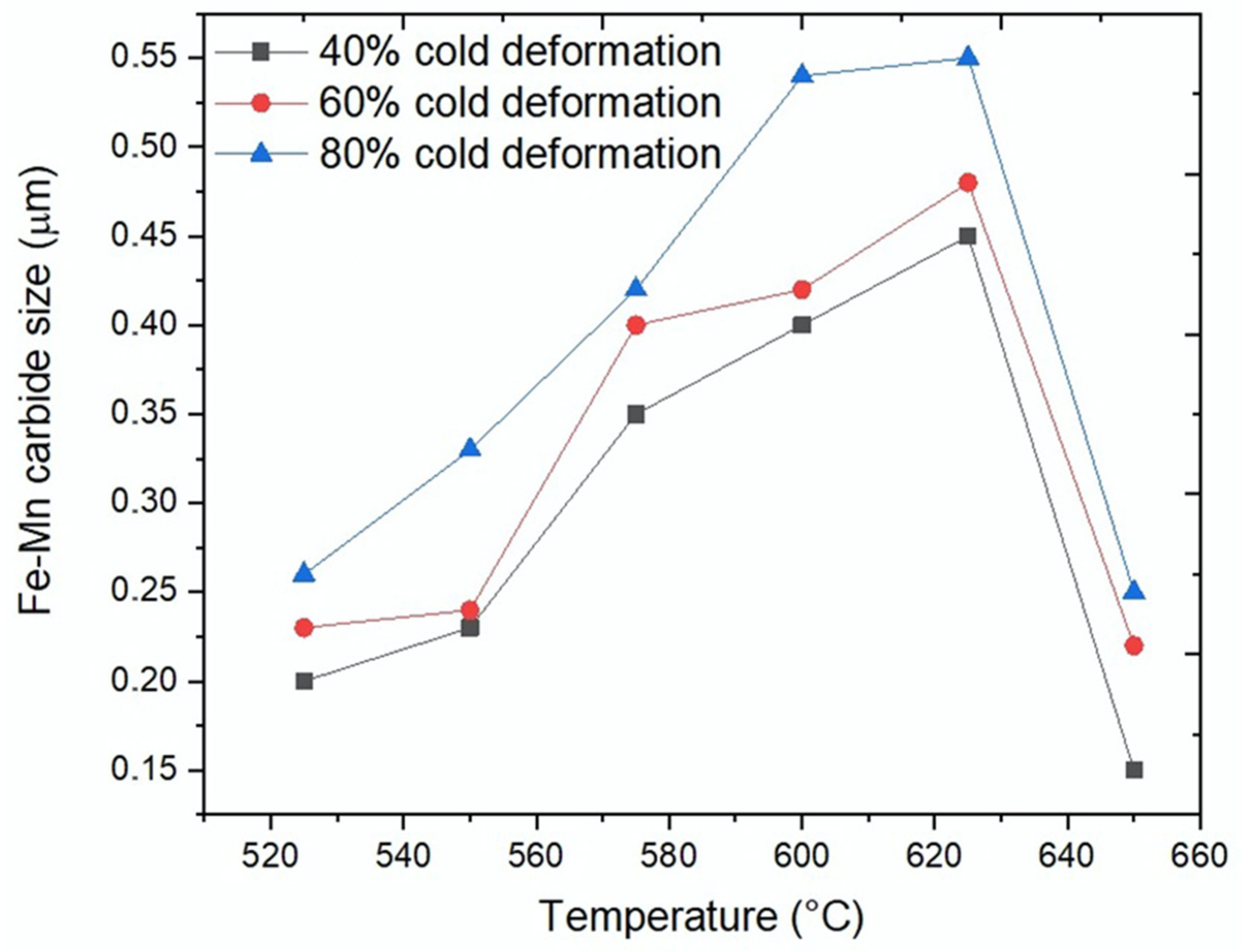

The carbide precipitation kinetics in a Fe-22Mn-0.45C TWIP steel subjected to three different cold-deformation levels, annealed at various temperatures, were studied. The studied carbides included chemical compositions, morphology, precipitation sites, volume fraction, and size. Manganese carbides were precipitated in a temperature range between 525 and 650 °C. Volume fraction increased with cold-deformation and decreased with annealing temperature. Carbide size increased with cold-deformation and annealing temperatures up to 625 °C, suffering a notable reduction at 650 °C. Precipitation kinetics were described by means of precipitation curves for 0.1% (vol.) of Fe-Mn-carbides. A kinetic model was used, and two stages were found. Complementarily, austenite grain size and microhardness were also measured. With increases in annealing time, microhardness decreased until it reached a nearly constant value, indicating that recrystallization was complete, while, with increases in annealing temperature, grain size increased.

Keywords: TWIP steels; plastic deformation; Fe-Mn-carbides; precipitation kinetics

Graphical Abstract

Share and Cite

MDPI and ACS Style

Escobar, J.; Jiménez, J.L.; Artigas, A.; Perez-Ipiña, J.; Monsalve, A. Influence of Cold Deformation on Carbide Precipitation Kinetics in a Fe-22Mn-0.45C TWIP Steel. Materials 2022, 15, 3748. https://doi.org/10.3390/ma15113748

AMA Style

Escobar J, Jiménez JL, Artigas A, Perez-Ipiña J, Monsalve A. Influence of Cold Deformation on Carbide Precipitation Kinetics in a Fe-22Mn-0.45C TWIP Steel. Materials. 2022; 15(11):3748. https://doi.org/10.3390/ma15113748

Chicago/Turabian Style

Escobar, Javier, José Luis Jiménez, Alfredo Artigas, Juan Perez-Ipiña, and Alberto Monsalve. 2022. "Influence of Cold Deformation on Carbide Precipitation Kinetics in a Fe-22Mn-0.45C TWIP Steel" Materials 15, no. 11: 3748. https://doi.org/10.3390/ma15113748

APA Style

Escobar, J., Jiménez, J. L., Artigas, A., Perez-Ipiña, J., & Monsalve, A. (2022). Influence of Cold Deformation on Carbide Precipitation Kinetics in a Fe-22Mn-0.45C TWIP Steel. Materials, 15(11), 3748. https://doi.org/10.3390/ma15113748

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Menu

Influence of Cold Deformation on Carbide Precipitation Kinetics in a Fe-22Mn-0.45C TWIP Steel

Abstract

Share and Cite

Article Metrics

Article Access Statistics

Further Information

Guidelines

MDPI Initiatives

Follow MDPI
