Novel Pathway for the Combustion Synthesis and Consolidation of Boron Carbide
Abstract
:1. Introduction
2. Materials and Methods
3. Results and Discussion
3.1. Thermodynamic Modeling
3.2. Combustion Synthesis of B4C
3.3. Spark Plasma Sintering of B4C
4. Conclusions

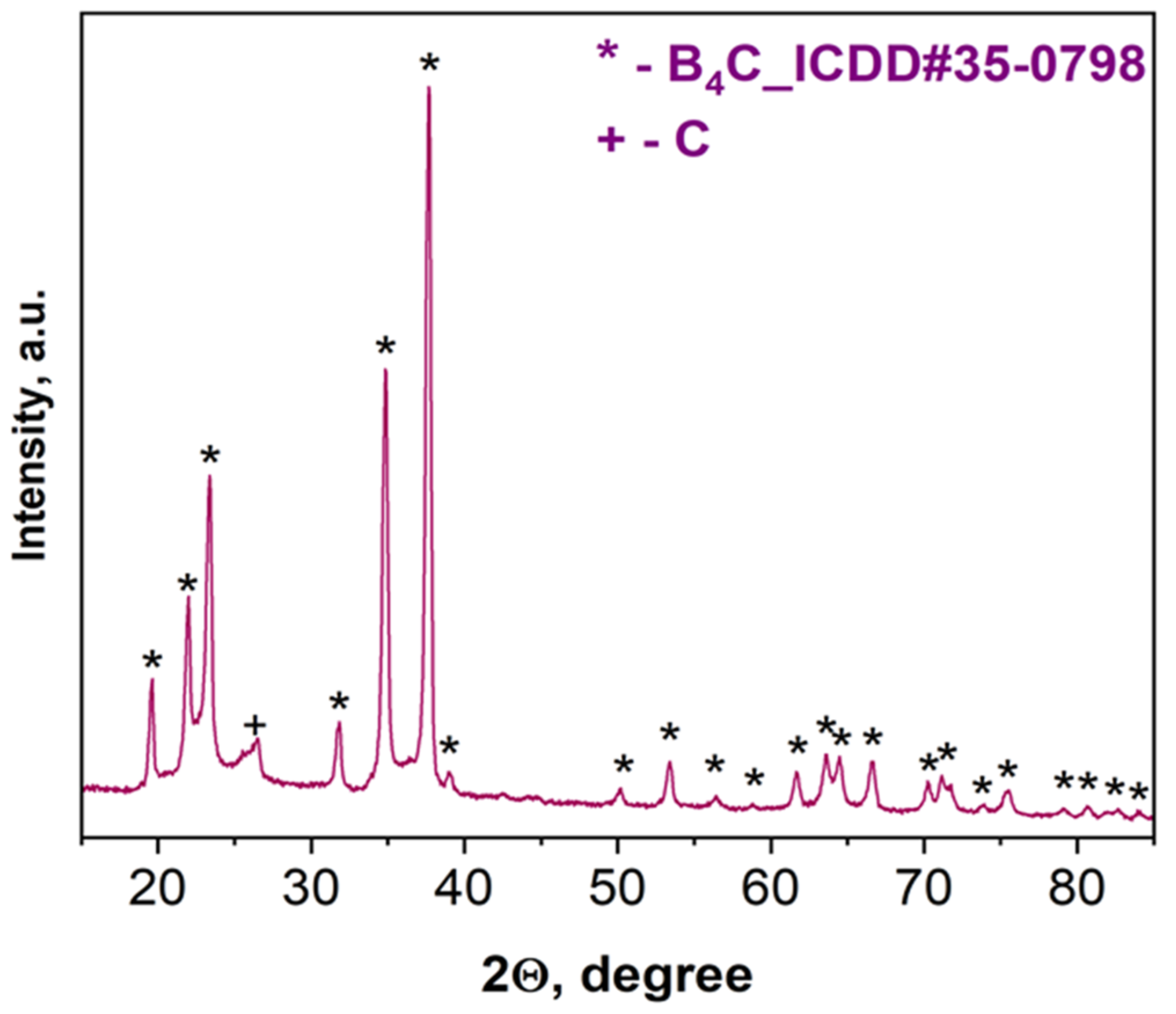

- B4C powder was produced by the novel pathway of magnesiothermic reduction of (B2O3 + MgB12) mixture in the presence of carbon.
- The utilization of magnesium dodecaboride as an alternative source of B and Mg demonstrated several advantages in terms of controlled self-sustained combustion reaction, desired microstructure formation, less laborious acid-leaching process and absence of impurities, such as other borides.

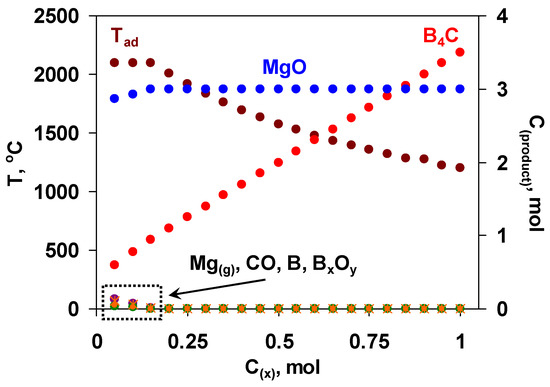

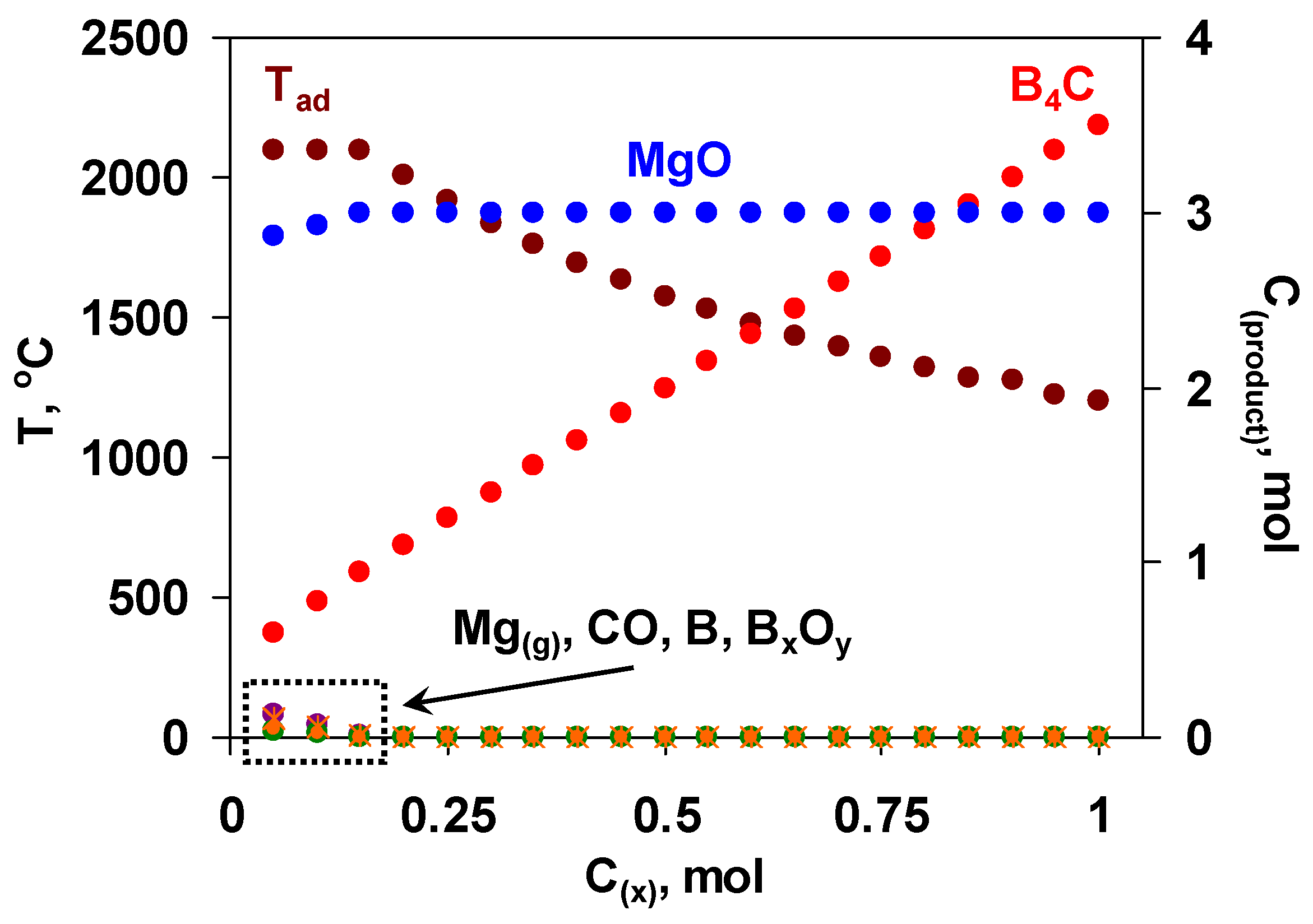

- Multivariate thermodynamic calculations allowed revealing the optimum composition of the initial mixture (B2O3 + 0.2MgB12 + 2.8Mg + 1.1C) beneficial for the self-propagating combustion reaction and target material preparation.
- The critical influence of sample diameter, inert gas pressure and preheating temperature was demonstrated.

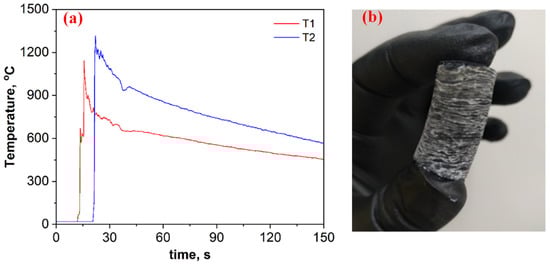

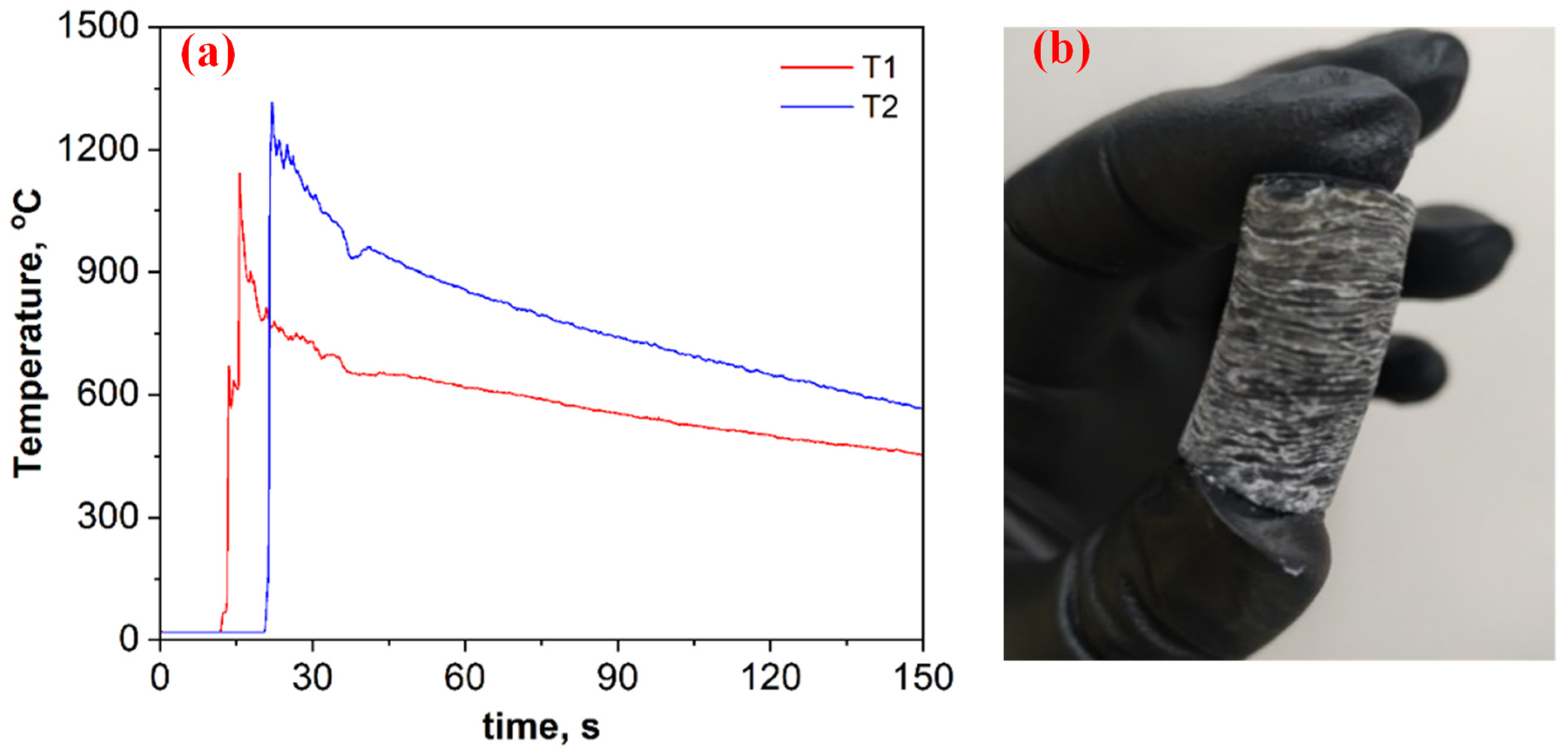

- Self-oscillatory mode of the combustion was registered, leading to the formation of a product with a layered structure comprising agglomerates of particles of different origin (small (≈50 nm) and relatively large (<0.5 μm) particles).
- The obtained powder was successfully consolidated by the SPS method. A compact sample with a density of 99.2% was obtained at 1950 °C, for which the measured Vickers microhardness value (2641 ± 39 HV5) and wear erosion behavior are commensurate to the data reported in the literature.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Liu, Y.; Ge, S.; Huang, Y.; Huang, Z.; Zhang, D. Influence of Sintering Process Conditions on Microstructural and Mechanical Properties of Boron Carbide Ceramics Synthesized by Spark Plasma Sintering. Materials 2021, 14, 1100. [Google Scholar] [CrossRef] [PubMed]
- Wu, Q.; Sun, C.; Zhu, Z.-Z.; Wang, Y.-D.; Zhang, C.-Y. Effects of Boron Carbide on Coking Behavior and Chemical Structure of High Volatile Coking Coal during Carbonization. Materials 2021, 14, 302. [Google Scholar] [CrossRef] [PubMed]
- Zhang, L.; Gu, Y.; Wang, W.; Wang, J.; Zhao, G.; Qian, Q.; Zhang, Z.; Zhang, F. A Fast-Pyrolysis Self-Propagating High Temperature Synthesis, Route to Single Phase of Boron Carbide Ultrafine Powders. J. Ceram. Soc. Jpn. 2011, 119, 631–634. [Google Scholar] [CrossRef] [Green Version]
- Silveira, P.H.P.M.D.; Silva, T.T.D.; Ribeiro, M.P.; Rodrigues de Jesus, P.R.; Credmann, P.C.R.D.S.; Gomes, A.V. A Brief Review of Alumina, Silicon Carbide and Boron Carbide Ceramic Materials for Ballistic Applications. Acad. Lett. 2021, 3742. [Google Scholar] [CrossRef]
- Zhawi, H.E.; Kaizer, M.R.; Chughtai, A.; Moraes, R.R.; Zhang, Y. Polymer Infiltrated Ceramic Network Structures for Resistance to Fatigue Fracture and Wear. Dent. Mater. 2016, 32, 1352–1361. [Google Scholar] [CrossRef] [Green Version]
- Chen, Y.; Chung, Y.W.; Li, S.Y. Boron Carbide and Boron Carbonitride Thin Films as Protective Coatings in Ultra-High Density Hard Disk Drives. Surf. Coat. Technol. 2006, 200, 4072–4077. [Google Scholar] [CrossRef]
- Jianxin, D. Erosion Wear of Boron Carbide Ceramic Nozzles by Abrasive Air Jets. Mater. Sci. Eng. A 2005, 408, 227–233. [Google Scholar] [CrossRef]
- Su, X.; Fu, F.; Yan, Y.; Zheng, G.; Liang, T.; Zhang, Q.; Cheng, X.; Yang, D.; Chi, H.; Tang, X.; et al. Self-propagating High-Temperature Synthesis for Compound Thermoelectrics and New Criterion for Combustion Processing. Nat. Commun. 2014, 5, 4908. [Google Scholar] [CrossRef]
- Borisov, A.A.; De Luca, L.T.; Merzhanov, A.G. Self-Propagating High-Temperature Synthesis of Materials; CRS Press: New York, NY, USA, 2002; pp. 270–291. [Google Scholar]
- Mishra, S.K.; Pathak, L.C. Self-propagating High-temperature Synthesis (SHS) of Advanced High-Temperature Ceramics. Key Eng. Mater. 2009, 395, 15–38. [Google Scholar] [CrossRef]
- Kuliiev, R.; Orlovskaya, N.; Hyer, H.; Sohn, Y.; Lugovy, M.; Ha, D.; Radovic, M.; Castle, E.G.; Reece, M.J.; Sasikumar, P.V.W.; et al. Spark Plasma Sintered B4C—Structural, Thermal, Electrical and Mechanical Properties. Materials 2020, 13, 1612. [Google Scholar] [CrossRef] [Green Version]
- Kozień, D.; Jeleń, P.; Stępień, J.; Olejniczak, Z.; Sitarz, M.; Pędzich, Z. Surface Properties and Morphology of Boron Carbide Nanopowders Obtained by Lyophilization of Saccharide Precursors. Materials 2021, 14, 3419. [Google Scholar] [CrossRef] [PubMed]
- Li, J.; Liu, L.; Xu, S.; Zhang, J.; Wu, Y. The Effects of Carbon Content on the Anisotropic Deformation Mechanism of Boron Carbide. Materials 2018, 11, 1861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wang, J.; Lin, W.; Jiang, Z.; Duan, L.; Yang, G. The Preparation and Properties of SiCw/B4C Composites Infiltrated with Molten Silicon. Ceram. Int. 2014, 40, 6793–6798. [Google Scholar] [CrossRef]
- Çalışkan, F.; Kocaman, E.; Tehçi, T. Synthesis of B4C-SiC in-Situ Composite Powders through Carbothermic Reactions. Acta Phys. Pol. A 2018, 134, 113–115. [Google Scholar] [CrossRef]
- Minasyan, T.; Kirakosyan, H.; Aydinyan, S.; Liu, L.; Kharatyan, S.; Hussainova, I. Mo–Cu Pseudoalloys by Combustion Synthesis and Spark Plasma Sintering. J. Mat. Sci. 2018, 53, 16598–16608. [Google Scholar] [CrossRef]
- Zakaryan, M.; Kirakosyan, H.; Aydinyan, S.; Kharatyan, S. Combustion Synthesis of W-Cu Composite Powders from Oxide Precursors with Various Proportions of Metals. Int. J. Refract. Met. Hard Mater. 2017, 64, 176–183. [Google Scholar] [CrossRef]
- Zakaryan, M.K.; Aydinyan, S.V.; Kharatyan, S.L. Preparation of Fine-grained Silicon from Serpentine Mineral by Magnesiothermic Reduction of Silica in the Presence of Reaction Products as Diluents. Silicon 2017, 9, 841–846. [Google Scholar] [CrossRef]
- Zakaryan, M.K.; Kharatyan, S.L.; Aprahamian, A.; Manukyan, K.V. Combustion in the ZrF4-Mg-Si and ZrF4-Al-Si Systems for Preparation of Zirconium Silicides. Combust. Flame 2021, 232, 111514. [Google Scholar] [CrossRef]
- Merzhanov, A.G. The Chemistry of Self-Propagating High-Temperature Synthesis. J. Mater. Chem. 2004, 14, 1779–1786. [Google Scholar] [CrossRef]
- Mossino, P. Some Aspects in Self-Propagating High-Temperature Synthesis. Ceram. Int. 2004, 30, 311–332. [Google Scholar] [CrossRef]
- Shuck, C.E.; Manukyan, K.V.; Rouvimov, S.; Rogachev, A.S.; Mukasyan, A.S. Solid Flame: Experimental Validation. Combust. Flame 2016, 163, 487–493. [Google Scholar] [CrossRef] [Green Version]
- Levashov, E.A.; Mukasyan, A.S.; Rogachev, A.S.; Shtansky, D.V. Self-Propagating High-Temperature Synthesis of Advanced Materials and Coatings. Int. Mater. Rev. 2016, 62, 203–239. [Google Scholar] [CrossRef]
- Mukasyan, A.S.; Rogachev, A.S.; Aruna, S.T. Combustion Synthesis in Nanostructured Reactive Systems. Adv. Powder Technol. 2015, 26, 954–976. [Google Scholar] [CrossRef] [Green Version]
- Aruna, S.T.; Mukasyan, A.S. Combustion Synthesis and Nanomaterials. Curr. Opin. Solid State Mater. Sci. 2008, 12, 44–50. [Google Scholar] [CrossRef]
- Liu, G.; Li, J.; Chen, K. Combustion Synthesis of Refractory and Hard Materials: A Review. Int. J. Refract. Met. Hard Mater. 2013, 39, 90–102. [Google Scholar] [CrossRef]
- Zakaryan, M.; Aydinyan, S.; Kharatyan, S. Combustion Synthesis and Consolidation of Ni–W Nanocomposite Material. Ceram. Mod. Tech. 2019, 1, 67–74. [Google Scholar] [CrossRef]
- Khanra, A.K.; Godkhindi, M.M. Synthesis of Boron Carbide by Self-Propagating High Temperature Synthesis. J. Aust. Ceram. Soc. 2005, 41, 30–35. [Google Scholar]
- Kharatyan, S.L.; Merzhanov, A.G. Coupled SHS Reactions as a Useful Tool for Synthesis of Materials: An Overview. Int. J. SHS 2012, 21, 59–73. [Google Scholar] [CrossRef]
- Aydinyan, S.V.; Kharatyan, S.L. Thermally and Kinetically Coupled Reactions at Combustion Synthesis of Materials. In Technological Combustion; Aldoshin, C.V., Alymov, M.I., Eds.; RAS: Moscow, Russia, 2018; pp. 429–451. [Google Scholar]
- Aydinyan, S.; Kharatyan, S.; Hussainova, I. The Influence of Thermal Dilution on the Microstructure Evolution of Some Combustion-Synthesized Refractory Ceramic Composites. Crystals 2022, 12, 59. [Google Scholar] [CrossRef]
- Alkan, M.; Sonmez, M.S.; Derin, B.; Yücel, O. Effect of Initial Composition օn Boron Carbide Production by SHS Process Followed բy Acid Leaching. Solid State Sci. 2012, 14, 1688–1691. [Google Scholar] [CrossRef]
- Aghili, S.; Panjepour, M.; Meratian, M.; Hadadzadeh, H. Effects of Boron Oxide Composition, Structure, and Morphology on B4C Formation via the SHS Process in the B2O3-Mg-C Ternary System. Ceram. Int. 2020, 46, 7223–7234. [Google Scholar] [CrossRef]
- Nikzad, L.; Ebadzadeh, T.; Vaezi, M.R.; Tayebifard, A. Effect of Milling on the Combustion Synthesis of Ternary System B2O3, Mg and C. Micro Nano Lett. 2012, 7, 366–369. [Google Scholar] [CrossRef]
- Farzaneh, F.; Golestanifard, F.; Sheikhaleslami, M.S.; Nourbakhsh, A.A. New Route for Preparing Nanosized Boron Carbide Powder via Magnesiothermic Reduction Using Mesoporous Carbon. Ceram. Int. 2015, 41, 13658–13662. [Google Scholar] [CrossRef]
- Suri, A.K.; Subramanian, C.; Sonber, J.K.; Murthy, T.S.R.C. Synthesis and Consolidation of Boron Carbide: A Review. Int. Mat. Rev. 2010, 55, 4–40. [Google Scholar] [CrossRef]
- Asgarian, P.; Nourbakhsh, A.; Amin, P.; Ebrahimi-Kahrizsangi, R.; MacKenzie, K.J.D. The effect of different sources of porous carbon on the synthesis of nanostructured boron carbide by magnesiothermic reduction. Ceram. Int. 2014, 40, 16399–16408. [Google Scholar] [CrossRef]
- Capra, M.; Bovone, G.; Loria, F.; Bernini, C.; Hopkins, S.C.; Ballarino, A.; Tropeano, M.; Tumino, A.; Grasso, G.; Ferdeghini, C.; et al. Weak acid leaching of MgB2 to purify magnesiothermic boron powder. Mater. Today Commun. 2021, 26, 101731. [Google Scholar] [CrossRef]
- Shiryaev, A. Thermodynamic of SHS Processes: An Advanced Approach. Int. J. SHS 1995, 4, 351–362. [Google Scholar]
- Antonov, M.; Pirso, J.; Vallikivi, A.; Goljandin, D.; Hussainova, I. The Effect of Fine Erodent Retained on The Surface During Erosion of Metals, Ceramics, Plastic, Rubber and Hardmetal. Wear 2016, 354–355, 53–68. [Google Scholar] [CrossRef]
- Lee, J.; Won, C.; Joo, S.; Maeng, D.; Kim, H. Preparation of B4C Powder from B2O3 Oxide by SHS Process. J. Mat. Sci. Lett. 2000, 19, 951–954. [Google Scholar] [CrossRef]
- Ponomarev, V.; Kovalev, I.; Vershinnikov, V.; Kovalev, D.Y.; Konovalikhin, S. Magnesiothermic SHS of Boron Carbide in Conditions of Temperature Gradients. Int. J. SHS 2015, 24, 216–219. [Google Scholar] [CrossRef]
- Yaghoubi, M.; Torabi, O. Effect of the Magnesium Content on the Mechanochemical Behavior in Ternary System Mg-B2O3-C. Int. J. Refract. Met. Hard Mater. 2014, 43, 132–140. [Google Scholar] [CrossRef]
- Kovalev, I.D.; Ponomarev, V.I.; Konovalikhin, S.V.; Kovalev, D.Y.; Vershinnikov, V.I. SHS of Boron Carbide: Influence օf Combustion Temperature. Int. J. SHS 2015, 24, 33–37. [Google Scholar] [CrossRef]
- Ding, D.; Bai, B.; Xiao, G.; Luo, J.; Chong, X. Molten-salt-assisted combustion synthesis of B4C powders: Synthesis mechanism and dielectric and electromagnetic wave absorbing properties. Ceram. Int. 2021, 47, 18708–18719. [Google Scholar] [CrossRef]
- Jiang, G.; Xu, J.; Zhuang, H.; Li, W. Fabrication of B4C from Na2B4O7+Mg+C by SHS Method. Ceram. Int. 2011, 37, 1689–1691. [Google Scholar] [CrossRef]
- Zakaryan, M.; Nazaretyan, K.; Aydinyan, S.; Kharatyan, S. Joint Reduction of NiO/WO3 Pair and NiWO4 by Mg+C Combined Reducer at High Heating Rates. Metals 2021, 11, 1351. [Google Scholar] [CrossRef]
- Zakaryan, M.K.; Nazaretyan, K.T.; Aydinyan, S.V.; Kharatyan, S.L. NiO Reduction by Mg + C Combined Reducer at High Heating Rates. J. Therm. Anal. Calorim. 2021, 146, 1811–1817. [Google Scholar] [CrossRef]
- Davtyan, D.; Mnatsakanyan, R.; Liu, L.; Aydinyan, S.; Hussainova, I. Microwave Synthesis of B4C Nanopowder for Subsequent Spark Plasma Sintering. J. Mater. Res. Technol. 2019, 8, 5823–5832. [Google Scholar] [CrossRef]
- Chen, S.; Wang, D.Z.; Huang, J.Y.; Ren, Z.F. Synthesis and characterization of boron carbide nanoparticles. Appl. Phys. A 2004, 79A, 1757–1759. [Google Scholar] [CrossRef]
- Wang, L.L.; Munir, Z.A.; Holt, J.B. Formation of MgO-B4C Composite via aThermite-Based Combustion Reaction. J. Am. Ceram. Soc. 1995, 78, 756–764. [Google Scholar] [CrossRef]
- Scherrer, P. Bestimmung der Größe und der inneren Struktur von Kolloidteilchen mittels Röntgenstrahlen. Nachr. Ges. Wiss. Gottingen 1918, 98–100. [Google Scholar]
- Beauvy, M. Stoichiometric Limits of Carbon-Rich Boron Carbide Phases. J. Less Common Met. 1981, 82, 359–360. [Google Scholar] [CrossRef]
- Ponomarev, V.I.; Kovalev, I.D.; Konovalikhin, S.V.; Vershinnikov, V.I. Ordering of Carbon Atoms in Boron Carbide Structure. Crystallogr. Rep. 2013, 58, 422–426. [Google Scholar] [CrossRef]
- Zhang, S.; Yang, R.; Shen, Q.; Wang, C.B.; Zhang, L.M. Synthesis and Densification of B4C Ceramics by Spark Plasma Sintering. J. Synth. Cryst. 2007, 36, 672–674. [Google Scholar]
- Wang, C.B.; Zhang, S.; Shen, Q.; Zhang, L.M. Investigation on reactive sintering process of boron carbide ceramics by XRD. Mater. Sci. Eng. 2009, 25, 809–812. [Google Scholar] [CrossRef]
- Hayun, S.; Kalabukhov, S.; Ezersky, V.; Dariel, M.P.; Frage, N. Microstructural characterization of spark plasma sintered boron carbide ceramics. Ceram. Int. 2010, 36, 451–457. [Google Scholar] [CrossRef]
- Anselmi-Tamburini, U.; Munir, Z.A.; Kodera, Y.; Imai, T.; Ohyanagi, M. Influence of Synthesis Temperature on the Defect Structure of Boron Carbide: Experimental and Modeling Studies. J. Am. Ceram. Soc. 2005, 88, 1382–1387. [Google Scholar] [CrossRef] [Green Version]
- Ghosh, D.; Subhash, G.; Sudarshan, T.S.; Radhakrishnan, R.; Gao, X.-L. Dynamic Indentation Response of Fine-Grained Boron Carbide. J. Am. Ceram. Soc. 2007, 90, 1850–1857. [Google Scholar] [CrossRef]
- Çelik, Y.; Göller, G.; Onüralp, Y.; Şahin, F.Ç. Spark Plasma Sintering of Boron Carbide and Effects of Various Additives on Sintering and Material Properties. J. Adv. Sci. Tecnol. Res. 2010, 63, 79–84. [Google Scholar] [CrossRef]
- Zhang, M.; Yuan, T.; Li, R.; Xie, S.; Wang, M.; Weng, Q. Densification Mechanisms and Microstructural Evolution During Spark Plasma Sintering of Boron Carbide Powders. Ceram. Int. 2018, 44, 3571–3579. [Google Scholar] [CrossRef]
- Réjasse, F.; Georges, M.; Pradeilles, N.; Antou, G.; Maître, A. Influence of Chemical Composition on Mechanical Properties of Spark Plasma Sintered Boron Carbide Monoliths. J. Am. Ceram. Soc. 2018, 101, 3767–3772. [Google Scholar] [CrossRef]
N° | T, °C | t, min | P, MPa | Relative Density, % | HV5 |
---|---|---|---|---|---|
1 | 1800 | 10 | 50 | 82.9 | - |
2 | 1900 | 5 | 30 | 95.6 | - |
3 | 1900 | 10 | 50 | 96.8 | 2416 ± 36 |
4 | 1900 | 5 | 50 | 98.8 | 2152 ± 32 |
5 | 1950 | 10 | 50 | 99.2 | 2641 ± 39 |
N° | T, °C | t, min | P, MPa | Relative density, % |
---|---|---|---|---|
6 | 1800 | 10 | 50 | 98.1 |
7 | 1900 | 10 | 50 | 99.1 |

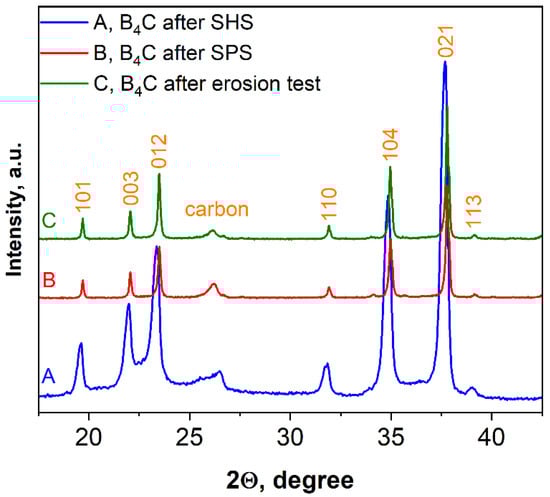

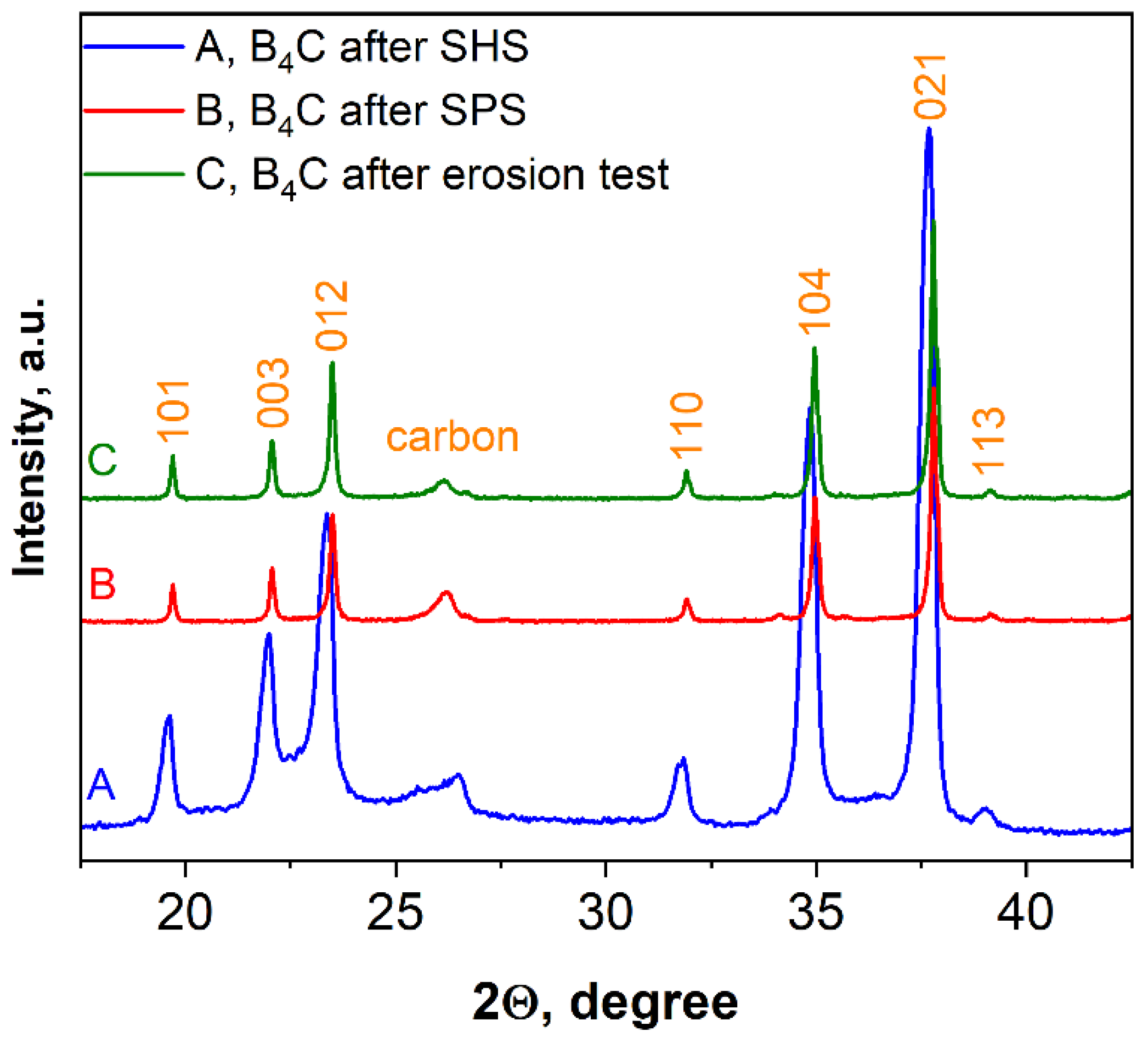

Sample | a | b | c |
---|---|---|---|
B4C-ICDD#35-0798 standard | 5.60 | 5.60 | 12.08 |
B4C powder after SHS | 5.62 | 5.62 | 12.14 |
B4C after SPS consolidation | 5.61 | 5.61 | 12.11 |
B4C consolidated sample after erosion test | 5.56 | 5.56 | 12.11 |
