Surface Properties of Medium-Entropy Alloy Coatings Prepared through a Combined Process of Laser Cladding and Ultrasonic Burnishing
Abstract
:1. Introduction
2. Materials and Methods

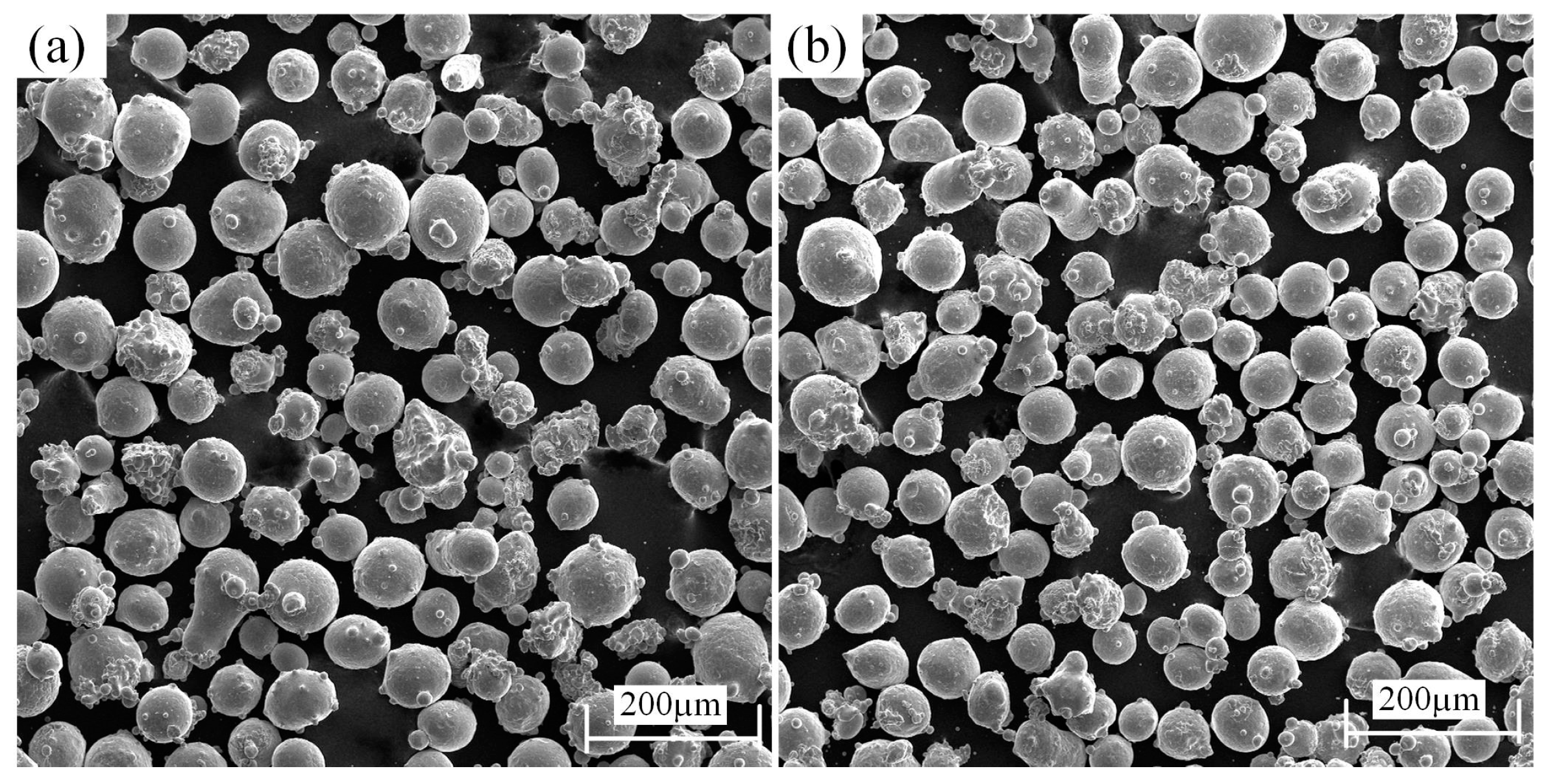

2.1. Experiment Materials

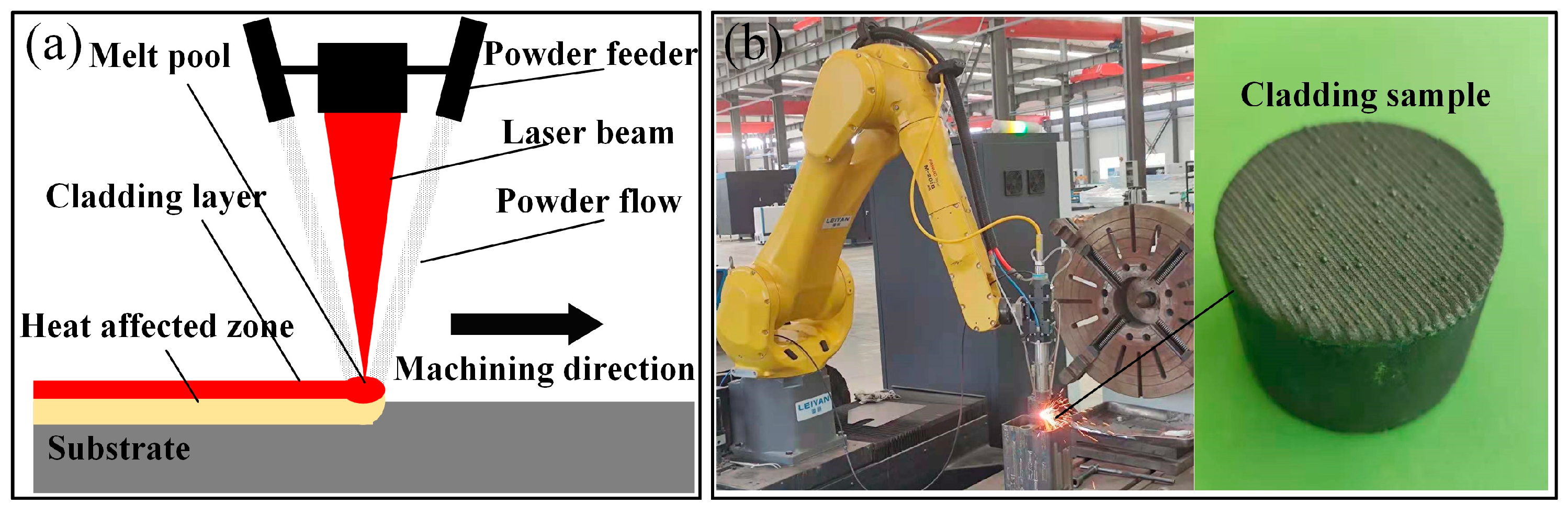

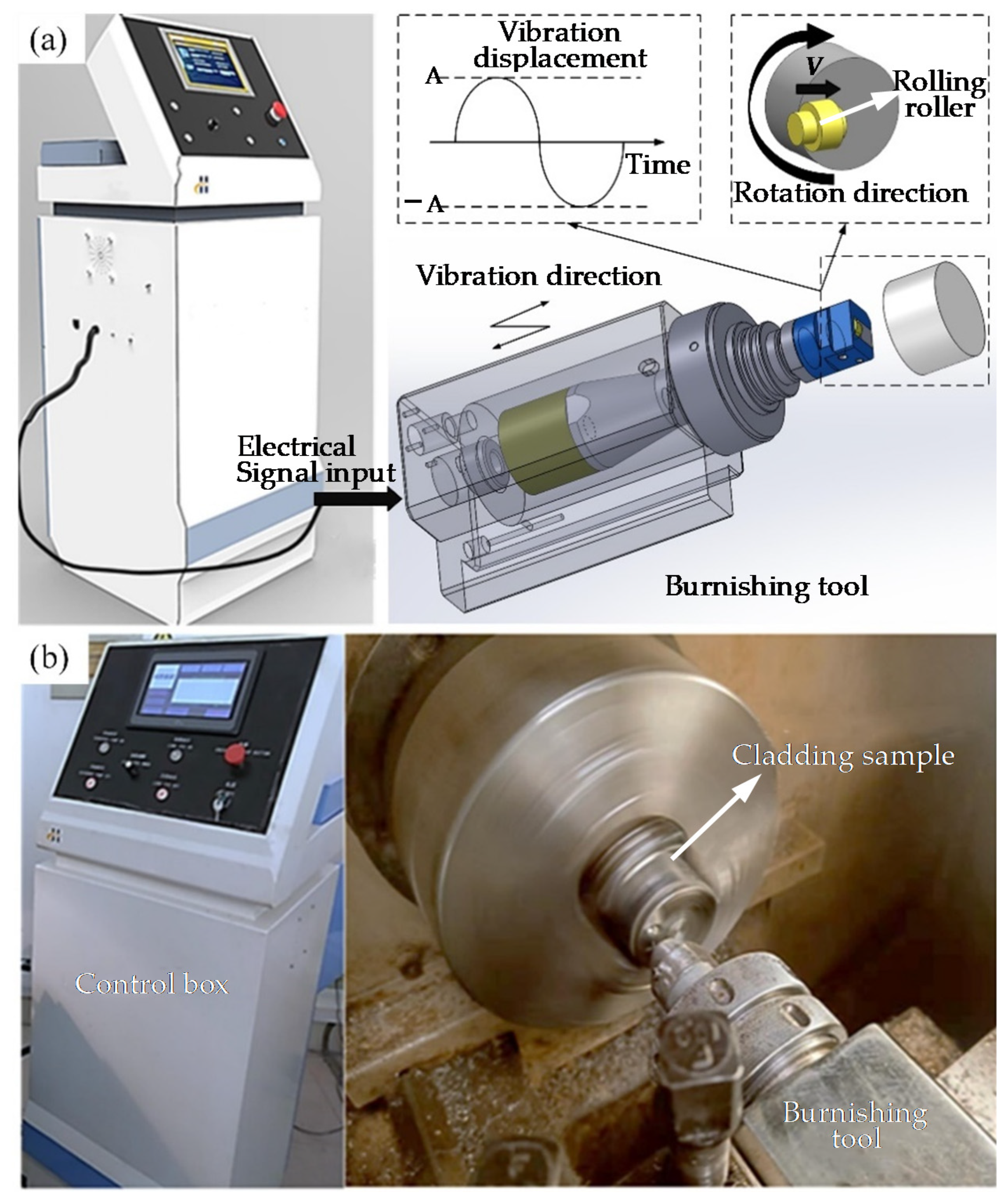

2.2. Sample Preparation
2.3. Surface Morphology and Microstructure Characterization
2.4. Micro-Hardness and Nano-Indentation Test
2.5. Friction and Wear Test
3. Results and Discussion

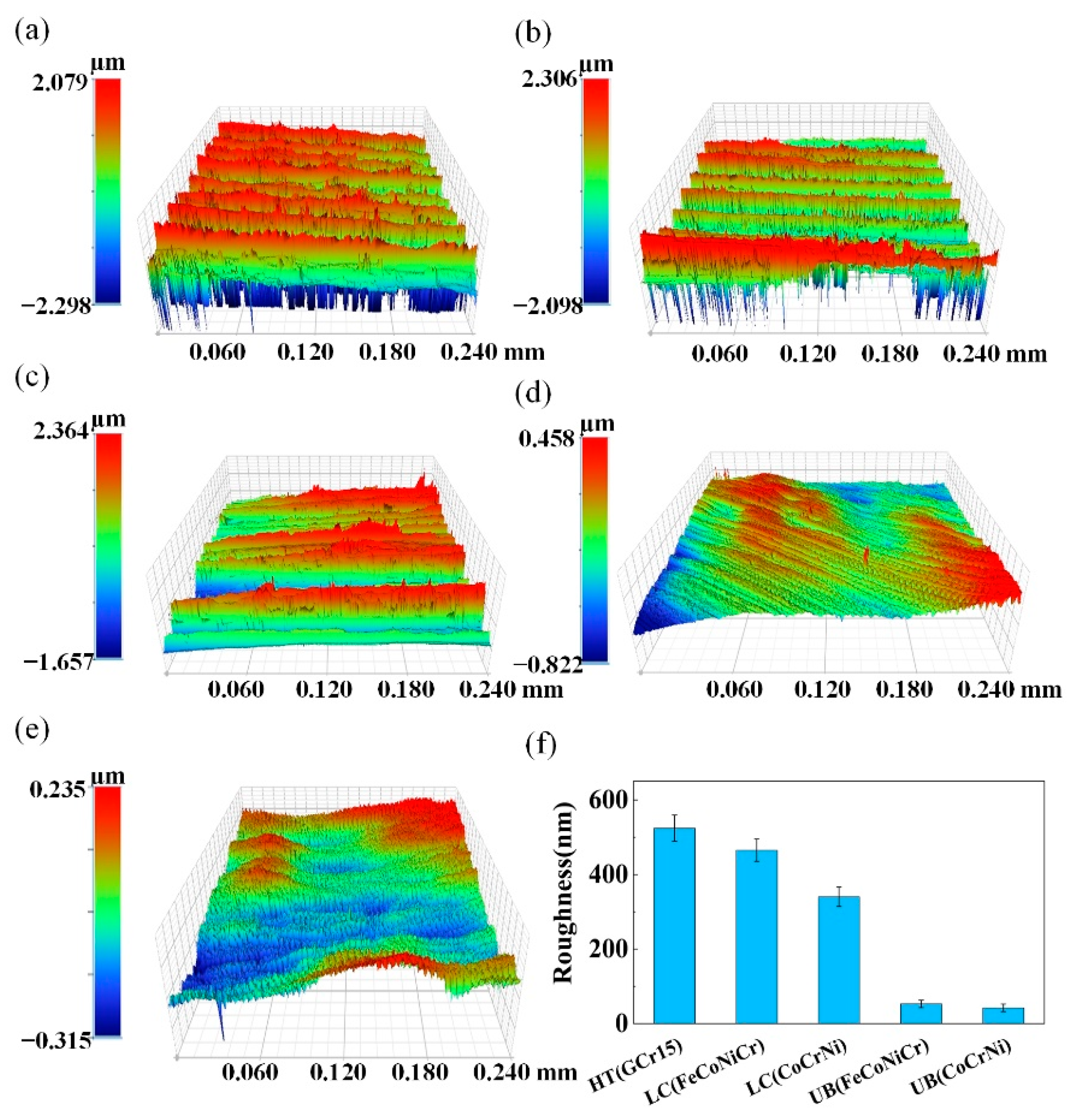

3.1. Surface Roughness

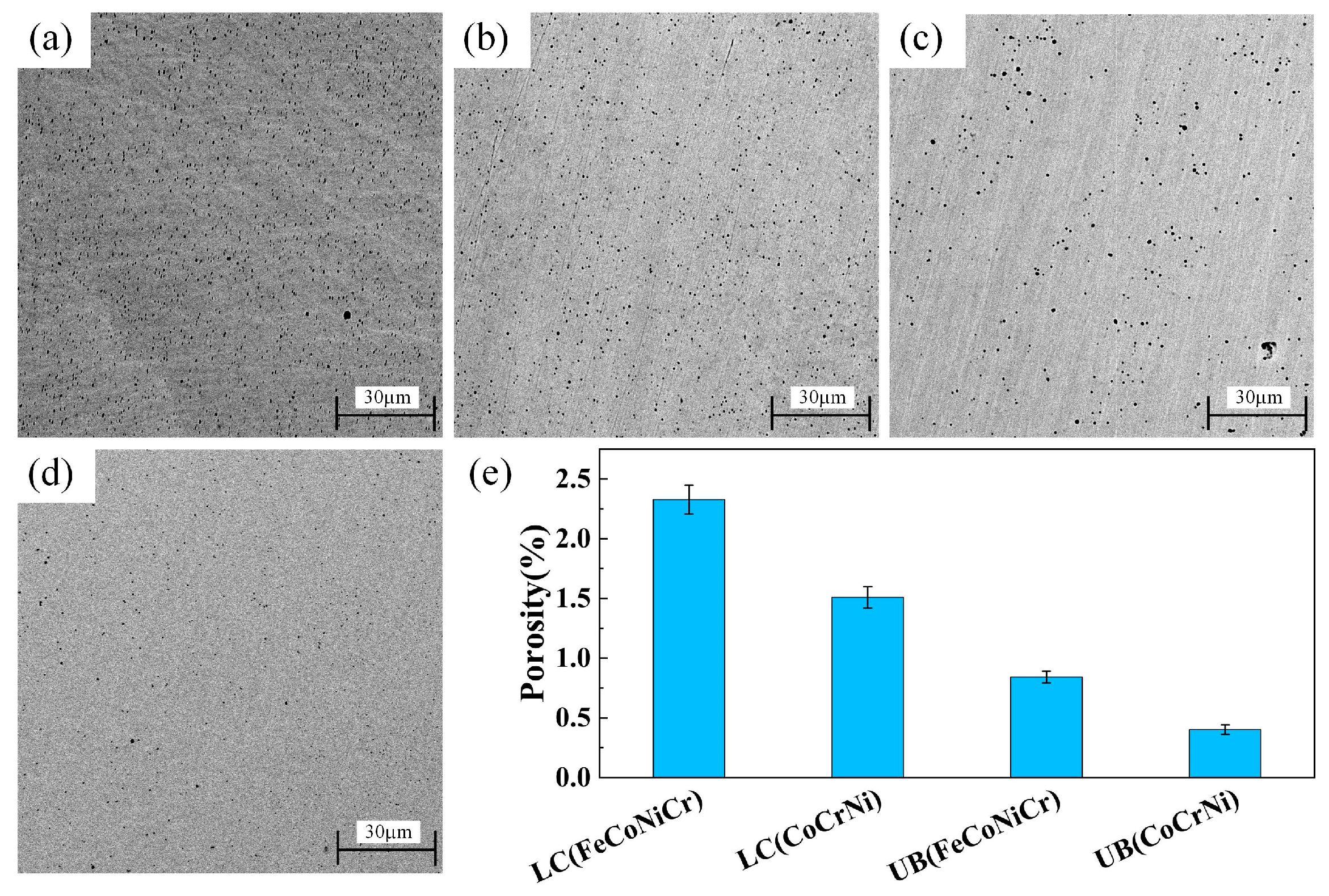

3.2. Porosity

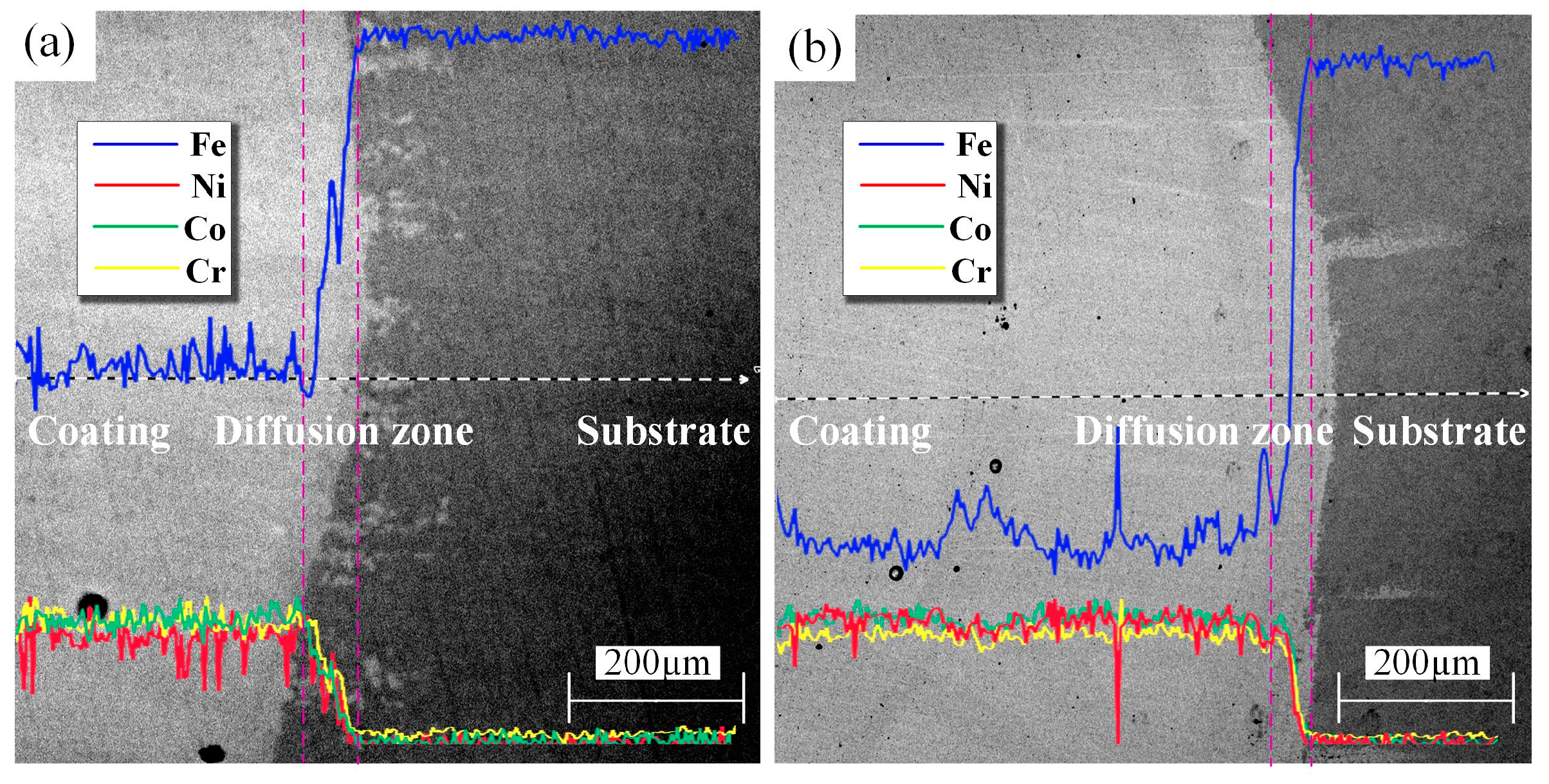

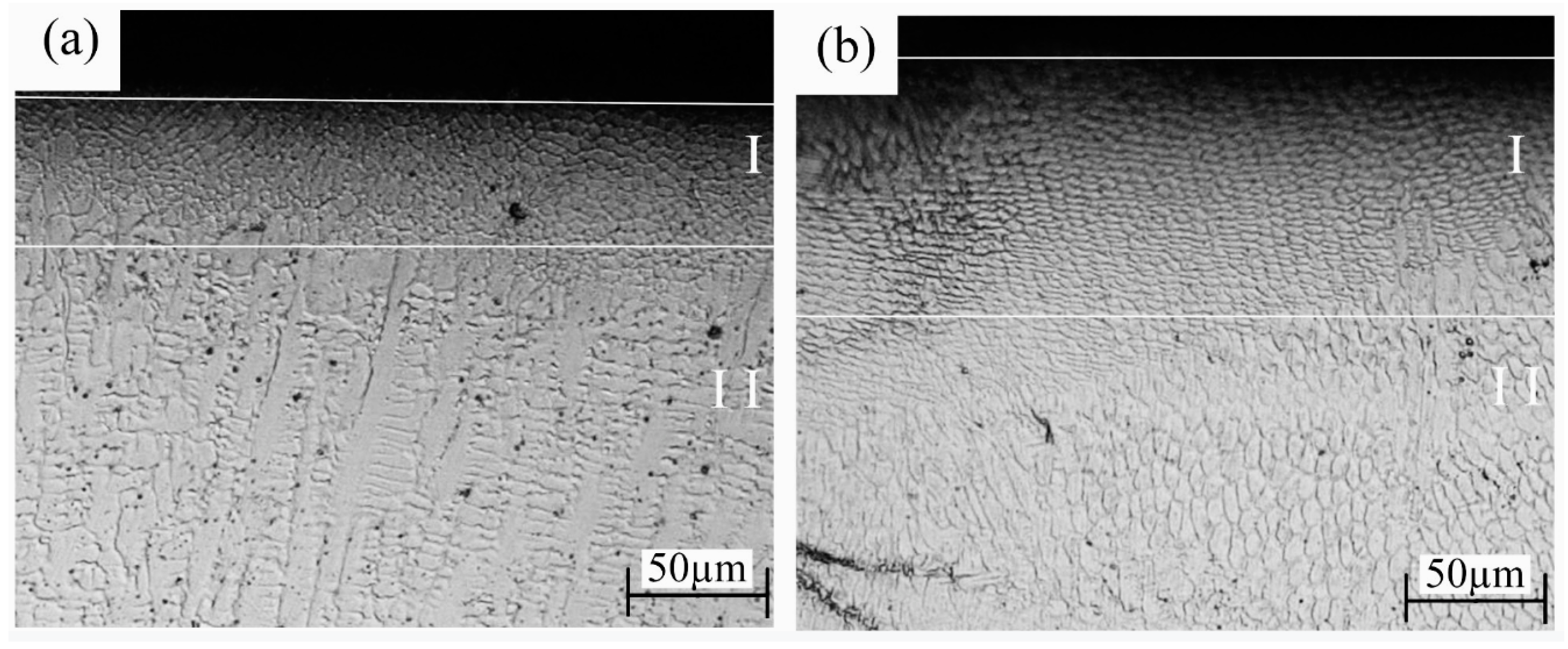

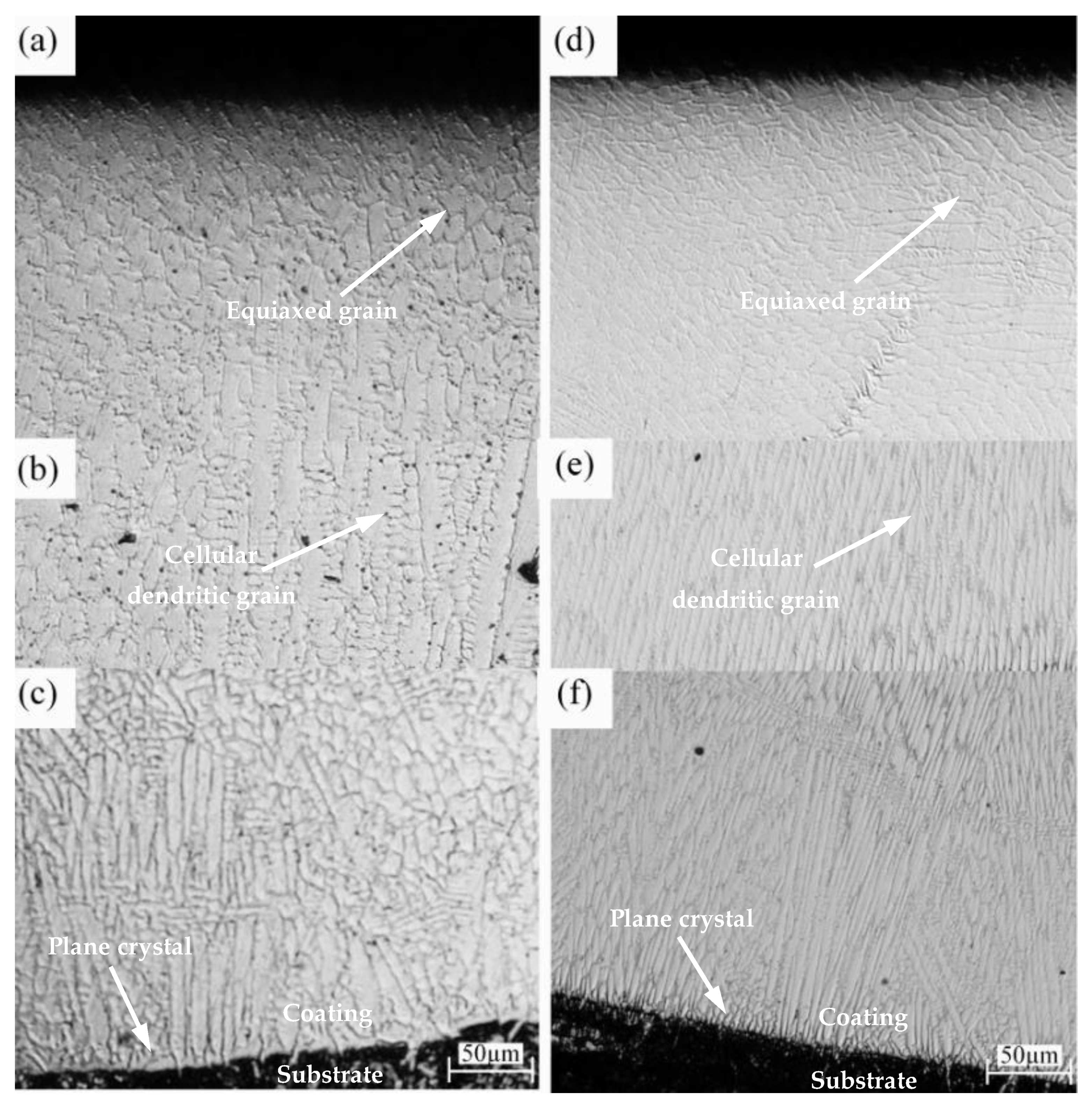

3.3. Microstructure Characterization

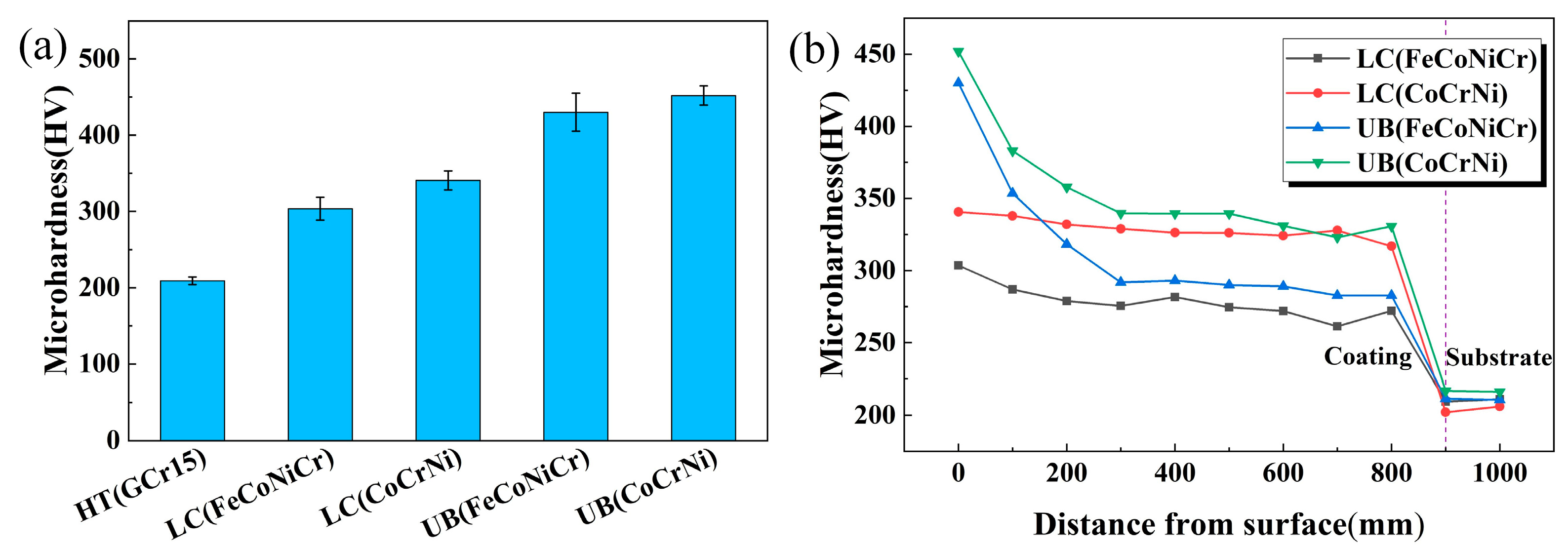

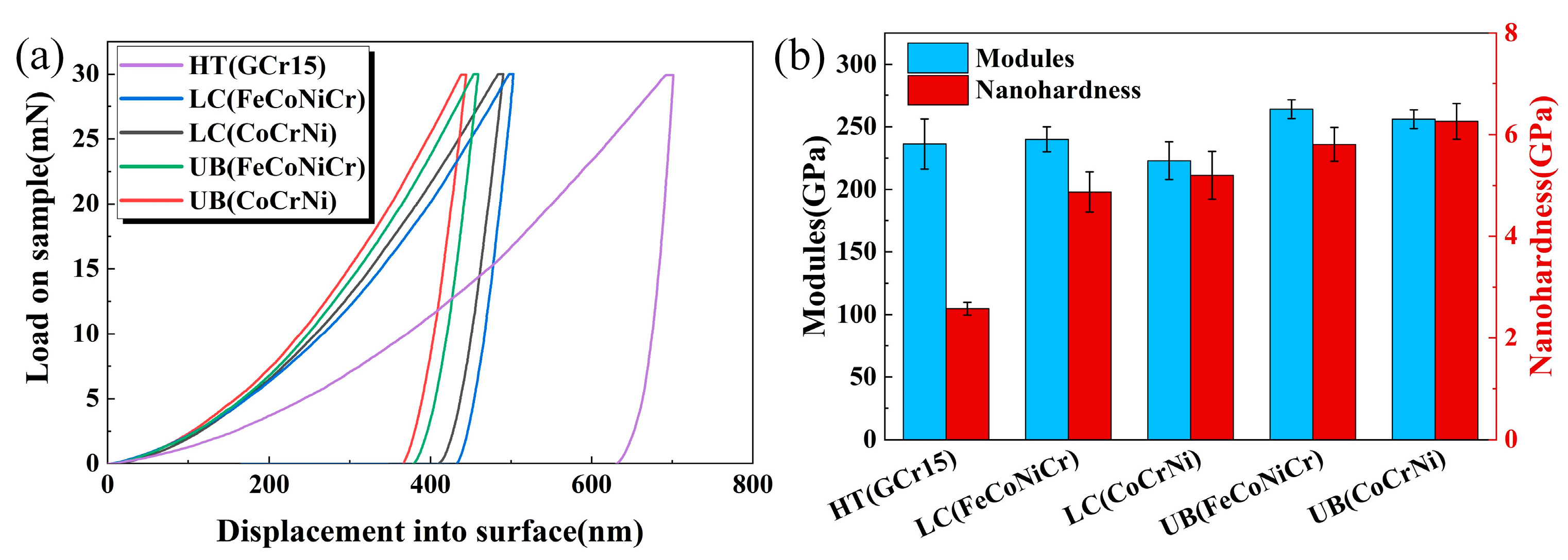

3.4. Micro-Hardness and Elastic Modulus

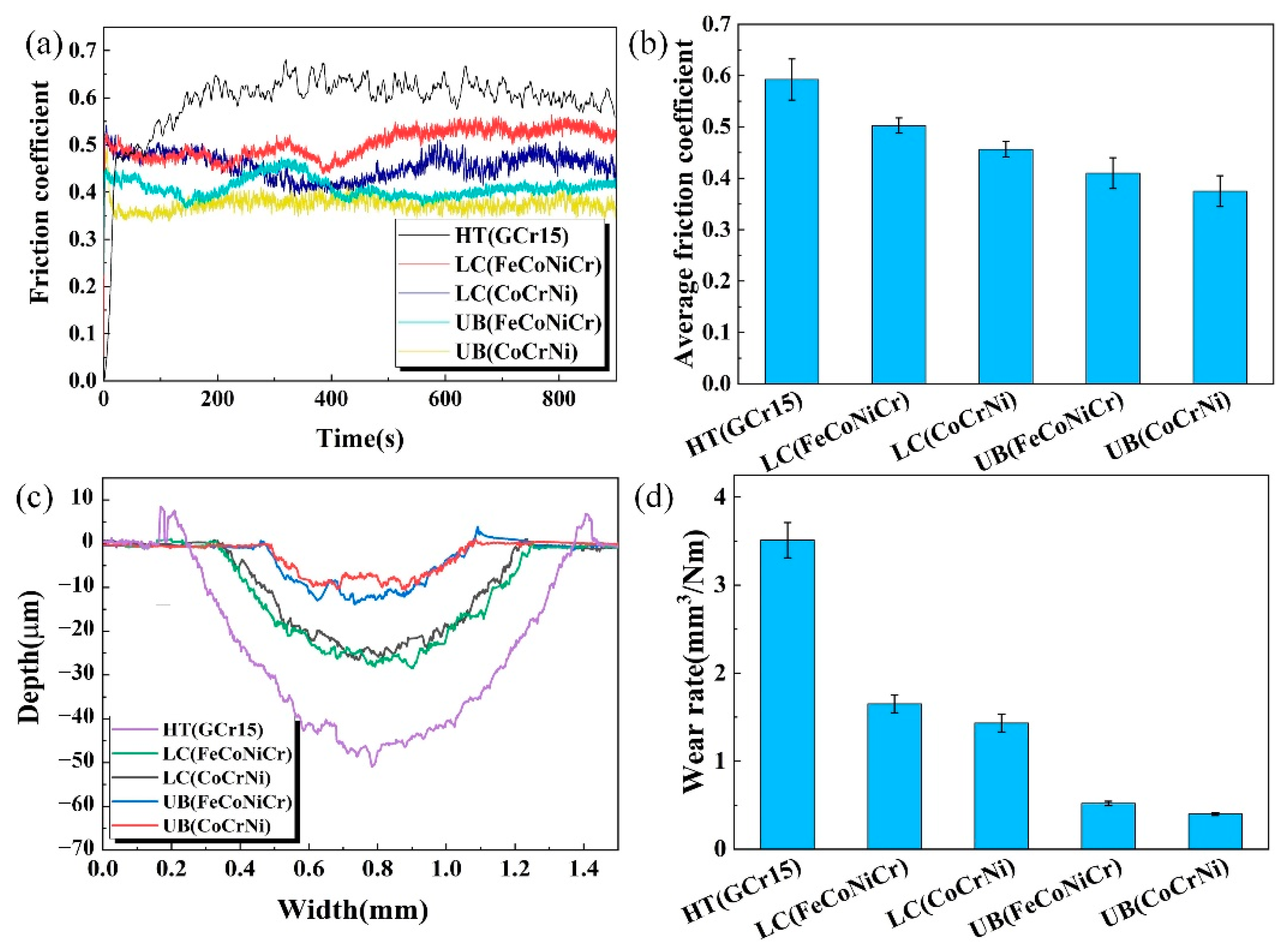

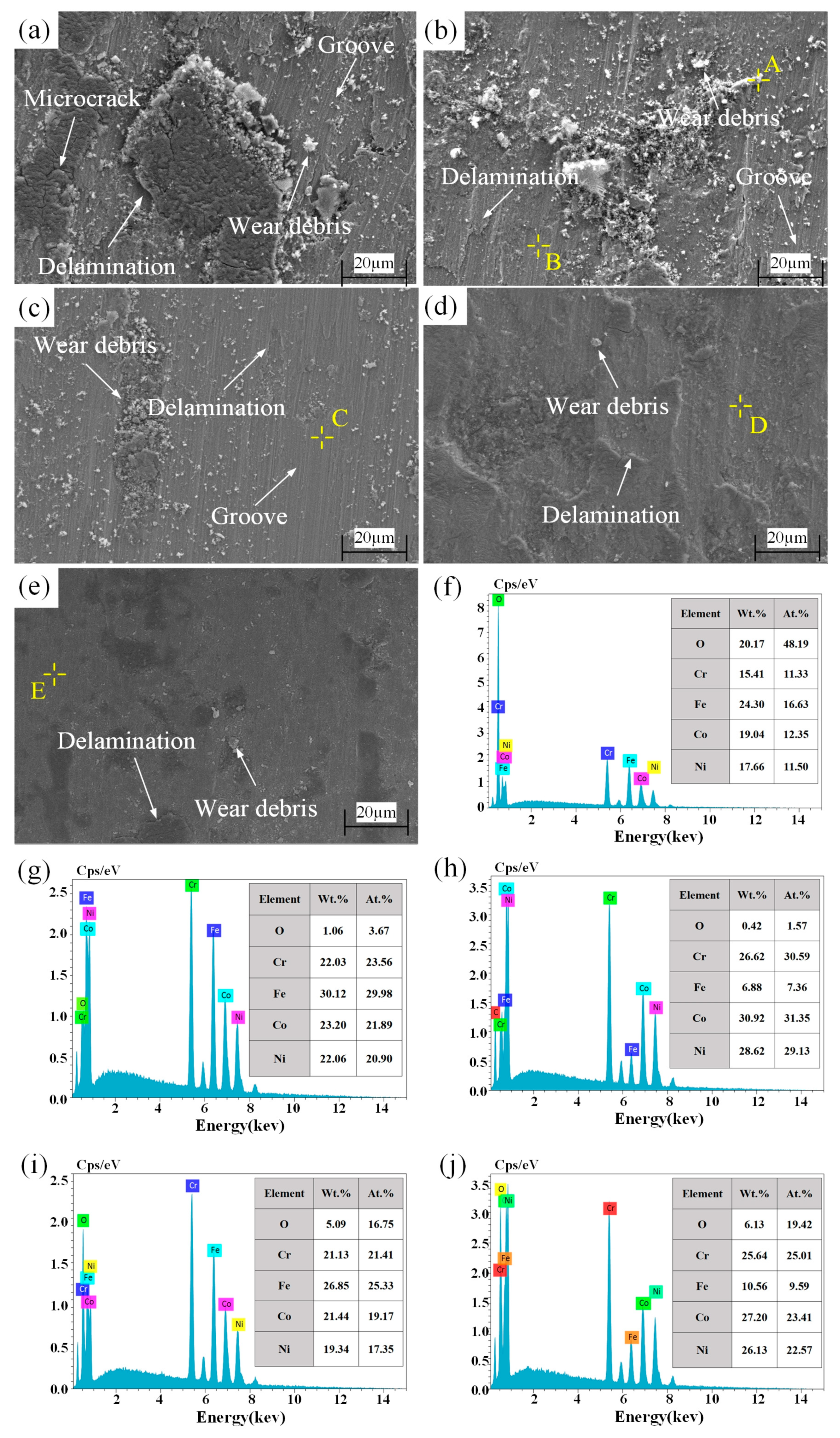

3.5. Friction Wear
4. Conclusions
- (1)
- In comparison with the LC(FeCoNiCr) and LC(CoCrNi) coating samples, the surface roughness and porosity of the two corresponding UB-treated samples decreased significantly, illustrating that UB treatment could greatly smoothen the coating surface, decrease the porosity of coatings, and reduce surface defects. During UB treatment, under the applied external dynamic load, the materials in the coating surface and near-surface were forced to flow from surface peaks to valleys, and thereby the coating surface was flattened and the pores and defects in the coating surface were filled/cured.
- (2)
- The Fe content in two kinds of coatings obviously increased due to the dilution effect of substrate on the MEAs during laser cladding. The microstructure of the two kinds of MEA coatings showed a plane crystal at the bottom, a columnar crystal (cellular dendritic crystal for CoCrNi coating) at the middle, and an equiaxed-grain crystal at the top. For the two kinds of coating, after UB treatment, there was obvious grain refinement within 100 μm beneath the top surfaces of the coatings, which resulted from dislocation accumulation from the severe plastic deformation of the materials.
- (3)
- Compared with the LC(FeCoNiCr) and LC(CoCrNi) samples, the surface hardness and yield strength of the two corresponding UB-treated coating samples were improved. In both cases, after UB treatment, a gradient hardness structure was formed along the in-depth direction of the coating. Meanwhile, the two kinds of UB-treated coating samples exhibited better friction and wear properties than their corresponding untreated samples with wear rates decreasing by 68.5% and 72.0%, respectively.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Yeh, J.-W.; Chen, S.K.; Lin, S.-J.; Gan, J.-Y.; Chin, T.-S.; Shun, T.-T.; Tsau, C.-H.; Chang, S.-Y. Nanostructured High-Entropy Alloys with Multiple Principal Elements: Novel Alloy Design Concepts and Outcomes. Adv. Eng. Mater. 2004, 6, 299–303. [Google Scholar] [CrossRef]
- Motallebi, R.; Savaedi, Z.; Mirzadeh, H. Superplasticity of high-entropy alloys: A review. Arch. Civ. Mech. Eng. 2021, 22, 20. [Google Scholar] [CrossRef]
- Pandian, V.; Kannan, S. Effect of high entropy particle on aerospace-grade aluminium composite developed through combined mechanical supersonic vibration and squeeze infiltration technique. J. Manuf. Process. 2022, 74, 383–399. [Google Scholar] [CrossRef]
- Pang, J.; Zhang, H.; Zhang, L.; Zhu, Z.; Fu, H.; Li, H.; Wang, A.; Li, Z.; Zhang, H. A ductile Nb40Ti25Al15V10Ta5Hf3W2 refractory high entropy alloy with high specific strength for high-temperature applications. Mater. Sci. Eng. A 2022, 831, 142290. [Google Scholar] [CrossRef]
- Guo, Y.; Liu, L.; Zhang, W.; Yao, K.; Chen, W.; Ren, J.; Qi, J.; Wang, B.; Zhao, Z.; Shang, J.; et al. A new method for preparing high entropy alloys: Electromagnetic pulse treatment and its effects on mechanical and corrosion properties. Mater. Sci. Eng. A 2020, 774, 138916. [Google Scholar] [CrossRef]
- Yeh, J.-W. Recent progress in high-entropy alloys. Eur. J. Control 2006, 31, 633–648. [Google Scholar] [CrossRef]
- Cantor, B.; Chang, I.T.H.; Knight, P.; Vincent, A.J.B. Microstructural development in equiatomic multicomponent alloys. Mater. Sci. Eng. A 2004, 375–377, 213–218. [Google Scholar] [CrossRef]
- Tong, Z.; Pan, X.; Zhou, W.; Yang, Y.; Ye, Y.; Qian, D.; Ren, X. Achieving excellent wear and corrosion properties in laser additive manufactured CrMnFeCoNi high-entropy alloy by laser shock peening. Surf. Coat. Technol. 2021, 422, 127504. [Google Scholar] [CrossRef]
- Ye, H.; Zhu, J.; Liu, Y.; Liu, W.; Wang, D. Microstructure and mechanical properties of laser cladded Cr Ni alloy by hard turning (HT) and ultrasonic surface rolling (USR). Surf. Coat. Technol. 2020, 393, 125806. [Google Scholar] [CrossRef]
- Long, Y.; Yang, J.; Peng, H.; Vogel, F.; Chen, W.; Su, K. Combination of enhanced strength and sufficient tensile ductility in a sintered ultrafine-grained CoFeMnNi medium-entropy alloy. Mater. Sci. Eng. A 2022, 831, 142175. [Google Scholar] [CrossRef]
- Gludovatz, B.; Hohenwarter, A.; Thurston, K.V.S.; Bei, H.; Wu, Z.; George, E.P.; Ritchie, R.O. Exceptional damage-tolerance of a medium-entropy alloy CrCoNi at cryogenic temperatures. Nat. Commun. 2016, 7, 10602. [Google Scholar] [CrossRef] [PubMed]
- Sun, D.; Cai, Y.; Zhu, L.; Gao, F.; Shan, M.; Manladan, S.M.; Geng, K.; Han, J.; Jiang, Z. High-temperature oxidation and wear properties of TiC-reinforced CrMnFeCoNi high entropy alloy composite coatings produced by laser cladding. Surf. Coatings Technol. 2022, 438, 128407. [Google Scholar] [CrossRef]
- Wang, J.; Zhang, C.; Shen, X.; He, J. A study on surface integrity of laser cladding coatings post-treated by ultrasonic burnishing coupled with heat treatment. Mater. Lett. 2022, 308, 131136. [Google Scholar] [CrossRef]
- Zhang, M.; Zhou, X.; Yu, X.; Li, J. Synthesis and characterization of refractory TiZrNbWMo high-entropy alloy coating by laser cladding. Surf. Coat. Technol. 2017, 311, 321–329. [Google Scholar] [CrossRef]
- Liang, H.; Yao, H.; Qiao, D.; Nie, S.; Lu, Y.; Deng, D.; Cao, Z.; Wang, T. Microstructures and Wear Resistance of AlCrFeNi2V0.5Tix High-Entropy Alloy Coatings Prepared by Laser Cladding. J. Therm. Spray Technol. 2019, 28, 1318–1319. [Google Scholar] [CrossRef]
- Lu, K. Making strong nanomaterials ductile with gradients. Science 2014, 345, 1455–1456. [Google Scholar] [CrossRef]
- Shen, X.; Su, H.; Wang, J.; Zhang, C.; Xu, C.; Bai, X. New approach towards the machining process after laser cladding. Arch. Civ. Mech. Eng. 2021, 21, 8. [Google Scholar] [CrossRef]
- Shi, Y.-L.; Shen, X.-H.; Xu, G.-F.; Xu, C.-H.; Wang, B.-L.; Su, G.-S. Surface integrity enhancement of austenitic stainless steel treated by ultrasonic burnishing with two burnishing tips. Arch. Civ. Mech. Eng. 2020, 20, 79. [Google Scholar] [CrossRef]
- Liu, Z.; Yang, M.; Deng, J.; Zhang, M.; Dai, Q. A predictive approach to investigating effects of ultrasonic-assisted burnishing process on surface performances of shaft targets. Int. J. Adv. Manuf. Technol. 2020, 106, 4203–4219. [Google Scholar] [CrossRef]
- Meng, Y.; Deng, J.; Wu, J.; Wang, R.; Lu, Y. Improved interfacial adhesion of AlTiN coating by micro-grooves using ultrasonic surface rolling processing. J. Mater. Process. Technol. 2022, 304, 117570. [Google Scholar] [CrossRef]
- Luo, X.; Ren, X.; Jin, Q.; Qu, H.; Hou, H. Microstructural evolution and surface integrity of ultrasonic surface rolling in Ti6Al4V alloy. J. Mater. Res. Technol. 2021, 13, 1586–1598. [Google Scholar] [CrossRef]
- Dong, P.; Liu, Z.; Zhai, X.; Yan, Z.; Wang, W.; Liaw, P.K. Incredible improvement in fatigue resistance of friction stir welded 7075-T651 aluminum alloy via surface mechanical rolling treatment. Int. J. Fatigue 2019, 124, 15–25. [Google Scholar] [CrossRef]
- Xia, T.; Zeng, L.; Zhang, X.; Liu, J.; Zhang, W.; Liang, T.; Yang, B. Enhanced corrosion resistance of a Cu 10Ni alloy in a 3.5 wt.% NaCl solution by means of ultrasonic surface rolling treatment. Surf. Coat. Technol. 2019, 363, 390–399. [Google Scholar] [CrossRef]
- Giusca, C.L.; Leach, R.K.; Helary, F.; Gutauskas, T.; Nimishakavi, L. Calibration of the scales of areal surface topography-measuring instruments: Part 1. Measurement noise and residual flatness. Meas. Sci. Technol. 2012, 23, 035008. [Google Scholar] [CrossRef]
- Podulka, P. Suppression of the High-Frequency Errors in Surface Topography Measurements Based on Comparison of Various Spline Filtering Methods. Materials 2021, 14, 5096. [Google Scholar] [CrossRef]
- Haitjema, H. Uncertainty in measurement of surface topography. Surf. Topogr. Metrol. Prop. 2015, 3, 035004. [Google Scholar] [CrossRef]
- Podulka, P. The Effect of Surface Topography Feature Size Density and Distribution on the Results of a Data Processing and Parameters Calculation with a Comparison of Regular Methods. Materials 2021, 14, 4077. [Google Scholar] [CrossRef]
- Boryczko, A. Effect of waviness and roughness components on transverse profiles of turned surfaces. Measurement 2013, 46, 688–696. [Google Scholar] [CrossRef]
- Raja, J.; Muralikrishnan, B.; Fu, S. Recent advances in separation of roughness, waviness and form. Precis. Eng. 2002, 26, 222–235. [Google Scholar] [CrossRef]
- Ye, H.; Sun, X.; Liu, Y.; Rao, X.-X.; Gu, Q. Effect of ultrasonic surface rolling process on mechanical properties and corrosion resistance of AZ31B Mg alloy. Surf. Coat. Technol. 2019, 372, 288–298. [Google Scholar] [CrossRef]
- Shen, X.; Gong, X.; Wang, B.; He, J.; Xu, C.; Su, G. Surface properties enhancement of Inconel 718 alloy by ultrasonic roller burnishing coupled with heat treatment. Arch. Civ. Mech. Eng. 2021, 21, 122. [Google Scholar] [CrossRef]
- Liu, K.; Gu, D.; Guo, M.; Sun, J. Effects of processing parameters on densification behavior, microstructure evolution and mechanical properties of W–Ti alloy fabricated by laser powder bed fusion. Mater. Sci. Eng. A 2022, 829, 142177. [Google Scholar] [CrossRef]
- Zhang, C.; Shen, X.; Wang, J.; Xu, C.; He, J.; Bai, X. Improving surface properties of Fe-based laser cladding coating deposited on a carbon steel by heat assisted ultrasonic burnishing. J. Mater. Res. Technol. 2021, 12, 100–116. [Google Scholar] [CrossRef]
- Yang, J.; Bai, B.; Ke, H.; Cui, Z.; Liu, Z.; Zhou, Z.; Xu, H.; Xiao, J.; Liu, Q.; Li, H. Effect of metallurgical behavior on microstructure and properties of FeCrMoMn coatings prepared by high-speed laser cladding. Opt. Laser Technol. 2021, 144, 107431. [Google Scholar] [CrossRef]
- Zhang, F.; Wu, Y.; Lou, H.; Zeng, Z.; Prakapenka, V.B.; Greenberg, E.; Ren, Y.; Yan, J.; Okasinski, J.S.; Liu, X.; et al. Polymorphism in a high-entropy alloy. Nat. Commun. 2017, 8, 15687. [Google Scholar] [CrossRef]
- Otto, F.; Dlouhý, A.; Somsen, C.; Bei, H.; Eggeler, G.; George, E.P. The influences of temperature and microstructure on the tensile properties of a CoCrFeMnNi high-entropy alloy. Acta Mater. 2013, 61, 5743–5755. [Google Scholar] [CrossRef]
- Wang, H.; Song, G.; Tang, G. Effect of electropulsing on surface mechanical properties and microstructure of AISI 304 stainless steel during ultrasonic surface rolling process. Mater. Sci. Eng. A 2016, 662, 456–467. [Google Scholar] [CrossRef]
- Wang, K.Y.; Shen, T.D.; Quan, M.X.; Wei, W.D. Hall-Petch relationship in nanocrystalline titanium produced by ball-milling. J. Mater. Sci. Lett. 1993, 12, 1818–1820. [Google Scholar] [CrossRef]
- Qin, L.; Li, H.; Shi, X.; Beake, B.D.; Xiao, L.; Smith, J.F.; Sun, Z.; Chen, J. Investigation on dynamic hardness and high strain rate indentation size effects in aluminium (110) using nano-impact. Mech. Mater. 2019, 133, 55–62. [Google Scholar] [CrossRef]
- Dao, M.; Lu, L.; Asaro, R.; De Hosson, J.; Ma, E. Toward a quantitative understanding of mechanical behavior of nanocrystalline metals. Acta Mater. 2007, 55, 4041–4065. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, Q.; Xie, J.; Yang, X.; Peng, P.; Wang, Y.; Li, M.; Ryu, C.H.; Joo, Y.H.; Jeong, I.W.; et al. Enhanced surface composite coating on Ti811 alloy by laser cladding towards improved nano-hardness. Ceram. Int. 2022, 48, 18773–18783. [Google Scholar] [CrossRef]
- Wang, H.-T.; Yao, H.-L.; Zhang, M.-X.; Bai, X.-B.; Yi, Z.-H.; Chen, Q.-Y.; Ji, G.-C. Surface nanocrystallization treatment of AZ91D magnesium alloy by cold spraying shot peening process. Surf. Coat. Technol. 2019, 374, 485–492. [Google Scholar] [CrossRef]
- Hou, G.; Li, A. Effect of Surface Micro-Hardness Change in Multistep Machining on Friction and Wear Characteristics of Titanium Alloy. Appl. Sci. 2021, 11, 7471. [Google Scholar] [CrossRef]
- Lakshminarayanan, R.; Chao, L.-Y.; Iyer, N.; Shetty, D. Wear of steel in rolling contact with silicon nitride. Wear 1997, 210, 278–286. [Google Scholar] [CrossRef]
- Yingxia, Y.; Bolin, H.; Zongmin, L.; Siyong, L.; Songsong, X. Experimental Research on Microhardness and Wear Resistance of MB8 Magnesium Alloy Treated by Ultrasonic Impact. Rare Met. Mater. Eng. 2017, 46, 1798–1802. [Google Scholar] [CrossRef]
- Su, Y.; Wang, Z.; Lu, H.; Luo, K.; Lu, J. Improved wear resistance of directed energy deposited Fe-Ni-Cr alloy via closed-loop controlling laser power. J. Manuf. Process. 2022, 75, 802–813. [Google Scholar] [CrossRef]
- Avcu, E. The influences of ECAP on the dry sliding wear behaviour of AA7075 aluminium alloy. Tribol. Int. 2017, 110, 173–184. [Google Scholar] [CrossRef]
- Jiang, J.; Ma, A.; Song, D.; Yang, D.; Shi, J.; Wang, K.; Zhang, L.; Chen, J. Anticorrosion behavior of ultrafine-grained Al-26 wt% Si alloy fabricated by ECAP. J. Mater. Sci. 2012, 47, 7744–7750. [Google Scholar] [CrossRef]
- Archard, J. The temperature of rubbing surfaces. Wear 1959, 2, 438–455. [Google Scholar] [CrossRef]
- Xia, S.; Liu, Y.; Fu, D.; Jin, B.; Lu, J. Effect of Surface Mechanical Attrition Treatment on Tribological Behavior of the AZ31 Alloy. J. Mater. Sci. Technol. 2016, 32, 1245–1252. [Google Scholar] [CrossRef]
Sample | C | Co | Cr | Mo | Ni | Si | Mn | P | S | Cu | Fe |
---|---|---|---|---|---|---|---|---|---|---|---|
FeCoNiCr powder | / | Bal. | 22.58 | / | 25.66 | / | / | / | / | / | 24.60 |
CoCrNi powder | / | 33.95 | 32.42 | / | Bal. | / | / | / | / | / | / |
Substrate | 0.98 | / | 1.42 | 0.05 | 0.08 | 0.22 | 0.25 | 0.006 | 0.011 | 0.03 | Bal. |
Laser Power (W) | Laser Beam Diameter (mm) | Scanning Speed (mm/s) | Powder Feed Rate (mm/s) | Overlapping Ratio (%) |
---|---|---|---|---|
2000 | 4 | 1500 | 38.4 | 25 |
Frequency (kHz) | Feed Rate (mm/min) | Amplitude (mm) | Spindle Speed (rpm) | Pressure Deep (mm) |
---|---|---|---|---|
28 | 10 | 10 | 160 | 0.3 |
