First-Principles Study on the Effect of Lithiation in Spinel Li_xMn₂O₄ (0 ≤ x ≤ 1) Structure: Calibration of CASTEP and ONETEP Simulation Codes

Abstract

Lithium–manganese–oxide (Li-Mn-O) spinel is among the promising and economically viable, high-energy density cathode materials for enhancing the performance of lithium-ion batteries. However, its commercialization is hindered by its poor cyclic performance. In computational modelling, pivotal in-depth understanding of material behaviour and properties is sizably propelled by advancements in computational methods. Hence, the current work compares traditional DFT (CASTEP) and linear-scaling DFT (ONETEP) in a LiMn₂O₄ electronic property study to pave way for large-scale DFT calculations in a quest to improve its electrochemical properties. The metallic behaviour of Li_xMn₂O₄ (0.25 ≤ x ≤ 1) and Li₂Mn₂O₄ was correctly determined by both CASTEP and ONETEP code in line with experiments. Furthermore, OCV during the discharge cycle deduced by both codes is in good accordance and is between 5 V and 2.5 V in the composition range of 0 ≤ x ≤ 1. Moreover, the scaling of the ONETEP code was performed at South Africa’s CHPC to provide guidelines on more productive large-scale ONETEP runs. Substantial total computing time can be saved by systematically adding the number of processors with the growing structure size. The study also substantiates that true linear scaling of the ONETEP code is achieved by a systematic truncation of the density kernel.

1. Introduction

Deepening the understanding of multiscale physical modelling techniques, spanning from the electronic to atomistic modelling level, can explicate key fundamentals about the materials’ behaviour, aging and subsequently give insights on how optimal specifications affect the design and how such designs govern the operation of devices [1]. A detailed understanding of lithium-ion battery’s operational mechanisms is essential for accelerating the improvement in and development of highly efficient energy storage systems for large-scale applications, particularly automotive and smart grids [2]. The physical theory and computational electrochemistry provide an in-depth understanding of mechanisms occurring at multiple spatio-temporal scales in a single material or component or combinations thereof [1]. The development of new sophisticated computational methods and an increase in computational power plays an important role in the success of computational modelling of materials.

Quantum chemical models (first principles or ab initio) techniques based on electronic theories, that do not rely on any parameters, play a significant role by suggesting guidelines to improve well-known active materials and subsequent discovery of new ones, with specific functionality by exploiting the fundamental laws governing their behaviour [1,3,4,5]. Aydinol M. K, Kohan A. F and Ceder G used first-principles studies to determine lithium intercalation voltages of metal oxides which are prospective electrodes for the emerging high-energy lithium-ion batteries. The intercalation voltage is one of the factors that affect the total energy density of a battery; hence, this was one of the monumental findings of first-principles computational studies [6].

Moreover, density functional theory was also employed to study structural and electronic properties of binary and ternary spinel oxides by Walsh A and co-workers, wherein, bandgap analysis with respect to Al substitution into the spinel systems was carried out to tune electronic properties of materials [7]. For more accurate results, many co-existing methods are being tuned in order to attain more sophisticated computational methods for a far greater impact in science. This shows some of the work done with several quantum mechanics methods evincing the impact and success of DFT. However, most traditional DFT codes that are based on delocalized pseudopotential wave functions are computationally expensive, they scale cubically with system size. This constrains the number of atoms that can be handled by the current computer systems to a few hundred. The exciting properties of nanostructured materials constituting thousands of atoms that affect lithium-ion battery performance calls for a description at a quantum mechanics level. This will accelerate the improvement of lithium-ion battery performance, and linear scaling DFT methods can play a pivotal role in this regard.

Substantial research efforts have been delegated in fine-tuning some of the current methods implemented in various traditional DFT codes to achieve linear scaling [8,9,10]. Considerable computational time can be saved by making use of localized electronic basis sets on systems characterized by a fixed bandgap. The Order-N Electronic Total Energy Package (ONETEP) is one of the linear-scaling DFT packages that are taking full advantage of high-performance parallel computers. This is achieved by truncating the density matrix to a highly localized density matrix expressed by nonorthogonal, highly localized basis functions.

The spinel LiMn₂O₄ is presently the centre of much interest as a cathode material for high-power lithium batteries due to the direct impact that the cathode material has on the safety and capacity of LIBs [11,12]. The low manufacturing cost, low toxicity, and high charge/discharge rate capability of spinel LiMn₂O₄ (LMO) have rendered it advantageous amongst other oxide electrodes [13,14]. However, their commercialization has been long delayed mainly due to disproportionation reaction and phase transformations resulting in capacity fading [15,16,17]. The disproportionation reaction results in Mn²⁺ and Mn⁴⁺ according to the reaction: 2Mn³⁺ → Mn²⁺ + Mn⁴⁺. Mn²⁺ is soluble in acidic electrolytes leading to capacity fading during cycling. A cubic to tetragonal phase transition has been noted in the literature, associated with more than 50% concentration of Mn³⁺ (t_2g³_g¹) in LiMn₂O₄ which exacerbate manganese dissolution. Xu Li et al. employed first-principles studies to explore defects in LiMn₂O₄ spinel by monitoring their charge compensation mechanism. The study revealed the presence of Li, O, and Mn vacancy defects, and Li and Mn interstitial point defects [18]. The essential contribution of first-principles studies to the research of energy storage systems has also been demonstrated in a study by Ma Y and co-workers in investigating the effects of doping LiMn₂O₄ spinel with Ti. The Ti dopant in LiMn₂O₄ is reported to be in a 4+ valence state, and thus stabilizes the spinel structure [19]. Such quantum mechanics-based explorations are pivotal to energy storage systems and can extend their pivotal role in enhancing the performance of spinel LiMn₂O₄. However, these studies were only carried out for a limited number of atoms (about a few hundred atoms) due to inherent cubic scaling in traditional DFT codes. Studies of molecular dynamics simulated Li-Mn-O spinel nanostructures consisting of thousands of atoms with exciting myriads structural features are not possible with traditional DFT. Moreover, elucidation of the effect of intrinsic defects contained in these Li-Mn-O nanoarchitectures such as grain boundaries, vacancy, and interstitial structural defects is essential for enhancing their performance in lithium-ion batteries [20,21,22]. The ONETEP linear-scaling DFT code is one of the codes that are capable of describing the interaction of thousands of atoms at the quantum mechanics level. However, the accuracy of a true linear scaling calculation relies on many parameters which require tedious fine-tuning.

Hence, in this work, we perform DFT calculations using the CASTEP (traditional DFT) and the ONETEP (linear-scaling DFT) codes elucidating the effect of lithiation on the electronic structure of spinel LiMn₂O₄ and the scaling of the ONETEP code on the supercomputers of the Centre for High Performance Computing (CHPC) to determine optimal parameters required to study the Li-Mn-O nanoarchitectures comprising of thousands of atoms with the ONETEP code. The study will serve as a guide in moving from traditional DFT into linear-scaling DFT and on how to adequately allocate computing resources when using the ONETEP code.

2. Materials and Methods

First-Principles Electronic Structure Calculations: The density functional theory (DFT) calculations have been performed using the CASTEP [23] and the ONETEP [24] simulation codes with a plane-wave energy cutoff of 800 eV. The generalized gradient approximation (GGA) of Perdew−Burke−Ernzerhof (PBE) [25] was selected as the exchange-correlation functional. The ultrasoft pseudopotentials [26] were employed for the CASTEP code and the projector augmented wave pseudopotentials [27] were used for the ONETEP code_. The cell, atomic positions and the lattice parameters of all the Li-Mn-O spinel conventional unit cells were fully optimized with the CASTEP code. The geometry optimization convergence energy tolerance was set to 2.0 × 10⁻⁵ eV/atom and the Self-consistent field (SCF) for controlling the electronic minimization algorithm was set to 1.0 × 10⁻⁶. Moreover, the Broyden-Fletcher-Goldfarb-Shanno (BFGS) algorithm with a force and stress convergence tolerance of 0.05 eV/Å and 0.1 GPa was used to ensure successful optimization. Furthermore, a 4 × 4 × 4 Monkhorst pack k-mesh sampling was used to sample the Brillouin zone with a width of 0.05 eV. For the comparative calculations of CASTEP and ONETEP, the Li-Mn-O spinel structures is initially optimized using the CASTEP code before undergoing the discharge process. The NGWF radii of 7.5 Å was used for all the ONETEP calculations. The same convergence tolerance of 2.0 × 10⁻⁵ eV/atom and electronic energy minimization tolerance of 1.0 × 10⁻⁶ eV/atom used on the CASTEP code were also adopted for the ONETEP calculations.

ONETEP Scaling Tests: The propitious LiMn₂O₄ lithium-ion battery cathode material was used to perform the ONETEP scaling tests. Different system configurations of the spinel LiMn₂O₄ structure were chosen in accordance with the type of scaling. The system size was varied from 112–1512 atoms. The calculations are performed on the Lengau cluster of the Centre for High Performance Computing (CHPC) based in Cape Town. The cluster consists of 1368 nodes connected to shared storage of 4 Petabytes through FDR InfiniBand Network interconnect. Each compute node houses 24 processors of a 2.6 GHz CPU clock. Moreover, the Lengau cluster is scored a LINPACK Benchmark Rpeak value of 1.307 and Rmax value of 1.029 PFlops.

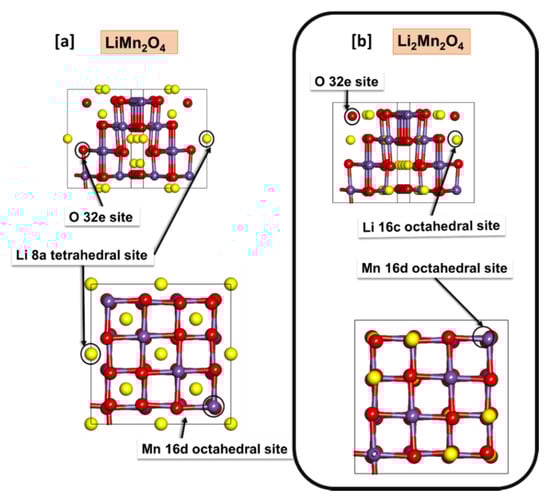

Structural Properties: The conventional unit cell of spinel LiMn₂O₄ comprise of 8 lithium (Li) atoms, 16 manganese (Mn) atoms and 32 oxygen (O) atoms wherein the Li atoms occupy the 8a tetrahedral sites, Mn atoms situated at the 16d octahedral sites and O atoms are situated at the 32e sites. Upon full lithiation of Li_xMn₂O₄, lithium ions start occupying 16c octahedral sites as illustrated in Figure 1. The MnO₆ framework of spinel forms a close-pack cubic array [28,29], resulting in three-dimensional lithium diffusion channels. The LiMn₂O₄ spinel structure crystallizes into a cubic structure with a space group of Fd-3m at room temperature.

3. Results

3.1. Structural Properties and Electronic Properties

Table 1. Lattice parameters of cubic spinel LiMn₂O₄.

Crystal Structure	Lattice Parameters (Å)
LiMn2O4 (This work—GGA)	8.297
LiMn2O4 ([30]—GGA)	8.160
LiMn2O4 ([31]—Experimental)	8.248
Li2Mn2O4 (This work—GGA)	8.231
Li2Mn2O4 ([32]—GGA)	8.380

depicts the lattice constants for spinel structures after geometry optimization in the current work. The lattice values are compared to theoretical values from Quantum Expresso [30] and experimental values [31]. The lattice values depict good comparison from experimental work, i.e., 8.297 Å with a difference of 0.59% from the experimental value and a difference of 1.66% from GGA was obtained for LiMn₂O₄. Similarly, the Li₂Mn₂O₄ shows reasonable agreement of lattice values of 8.231 Å compared to the lattice parameters from literature calculated using VASP code [32], with a difference of 1.79% from GGA for Li₂Mn₂O₄. Figure 2 shows the MnO₆ octahedron of the optimized LiMn₂O₄ spinel structure and the Mn–O bond length and the O–Mn–O angles of the Mn⁴⁺ and Mn³⁺ states are shown. The Mn⁴⁺–O₆ set of bond distances do not veer much from the Mn³⁺–O₆ set of bond distances (~1.8665 Å) indicating the absence of the Jahn–Teller distortion in the 0 ≤ x ≤ 1 lithium concentration region. Moreover, the electronic configuration of Mn³⁺ is t_2g³e_g¹ and of Mn⁴⁺ is t_2g³e_g⁰ are shown in the figure. The O–Mn⁴⁺–O angle is less than the O–Mn³⁺–O angle owing to the presence of the O–Li bond around the Mn³⁺O₆ octahedron.

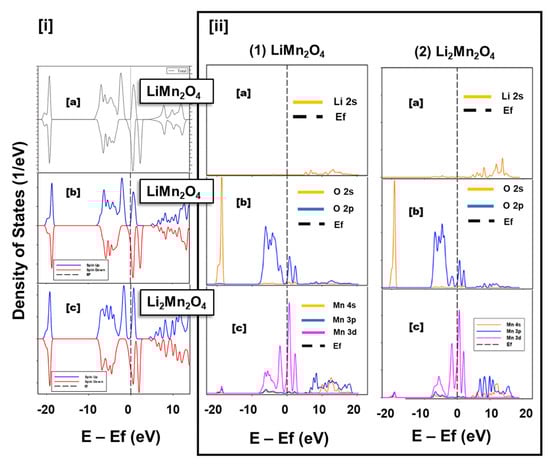

Density of States (DoS): Figure 3i shows the total DOS with contribution from spin-up and spin-down states of Figure 3(a) LiMn₂O₄ from literature, Figure 3(b) LiMn₂O₄ (this work), and Figure 3(c) Li₂Mn₂O₄ (this work). The density of states in Figure 3(b) are in good agreement with the density of states depicted in Figure 3(a) which were calculated by S. Baǧcı and co-workers [30]. The Fermi level of all the presented structures in Figure 3i lies on the sharply increasing peak of the e_g spin-up states illustrating metallic behaviour, which is in great accordance with the findings of Xu et al. [33]. The Fermi level is dominated by the spin-down states in both LiMn₂O₄ and Li₂Mn₂O₄. The number of occupied states increases with an increase in lithium content, evidenced by the broadening of t_2g orbitals with spin-down states below the Fermi level. Moreover, the Fermi level which cuts the peak denoting the t_2g orbitals with spin-down states at ~−18.18 for LiMn₂O₄ and ~−27.79 for Li₂Mn₂O₄ indicates an increase in lithium content. The e_g states comprising of spin-down electronic states are empty, indicating that for this material in this orbital, electrons are in high spin-up states.

The partial density of states depicted in Figure 3i represents contributions of the Figure 3(a) Lithium, Figure 3(b) Oxygen, Figure 3(c) Manganese atoms in Figure 3(1) LiMn₂O₄ and Figure 3(2) Li₂Mn₂O_4, respectively. The total density of states for both systems, depict the metallic behaviour of LiMn₂O₄ and Li₂Mn₂O₄, which emanates from the Mn 3d orbitals with minimal contribution from the O 2p orbitals. An intense non-bonding peak located approximately between −18 eV and 15 eV originating from the O 2s orbitals is noted on the density of states of both LiMn₂O₄ and Li₂Mn₂O₄. The Mn 3d density of states of Li₂Mn₂O₄ on the pseudogap formed between the t_2g and e_g orbitals just below the Fermi level are higher than that of LiMn₂O₄ indicating an increase in the number of allowed states in the pseudogap with lithiation. The energy range between −8 eV to 2.8 eV is dominated by the O 2p and Mn 3d orbitals indicating a strong hybridization between manganese and oxygen atoms in both LiMn₂O₄ and Li₂Mn₂O₄.

3.2. Discharging the Li_xMn₂O₄ (0 ≤ x ≤ 1) Spinel

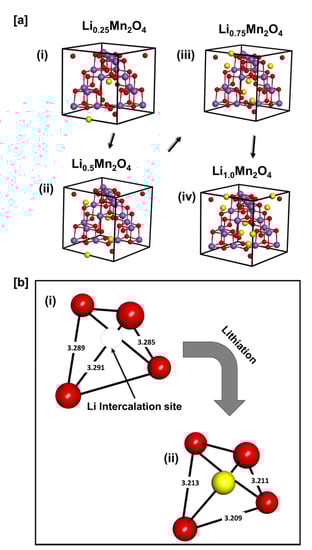

The structure of spinel Li_xMn₂O₄ at different lithium concentrations indicating the discharging process of this electrode material is shown in Figure 4a. Figure 4(ai) Li_0.25Mn₂O₄, Figure 4(aii) Li_0.5Mn₂O₄, Figure 4(aiii) Li_0.75Mn₂O₄, and Figure 4(aiv) Li_1.0Mn₂O₄ structures were captured to represent the lithium concentrations between 0 and 1 in the Li-Mn-O spinel structures, in which the concentration of the Jahn–Teller active Mn³⁺ ions is minimal. The intercalation of lithium atoms into the 8a tetrahedral sites reduces the number of Mn⁴⁺ in the system as a lithium atom donates an electron to an oxygen atom. The number of Mn⁴⁺ ions in the Li_1.0Mn₂O₄ structure is equal to the number of Mn³⁺ ions; as such, the further addition of lithium atoms from this point will facilitate the dominance of the Jahn–Teller active Mn³⁺ ions. Figure 4b shows the oxygen tetrahedron Figure 4(bi) before and Figure 4(bii) after the addition of a lithium atom. This illustrates the mechanism of the discharge process at a tetrahedral site in the lithium–manganese–oxide spinel structure. Before lithiation, the distance between oxygen atoms in the oxygen tetrahedron is approximately 3.3 Å and after lithiation, the distance is approximately 3.2 Å indicating the overlap of the lithium S and oxygen P orbitals evincing the existence of Li-O bond and hence a successful lithiation.

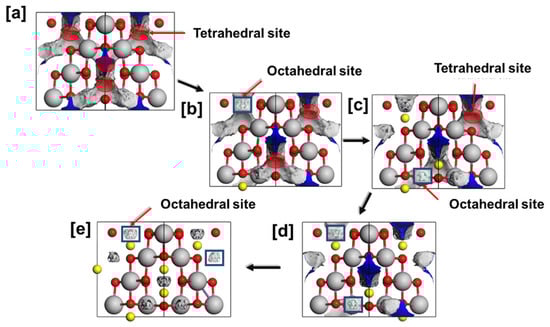

In Figure 5, we illustrate the electrostatic potential in spinel Li_xMn₂O₄ (0 ≤ x ≤ 1) structure given by the Kohn-sham potential essential for indicating probably sites for lithium intercalation in the lithium composition range between 0 and 1. The electrostatic potential field in the figure shows the potential energy of a positive charge in the vacant sites of the Li_xMn₂O₄ (0 ≤ x ≤ 1) structure. The isosurface shows the electrostatic potential at 8a tetrahedral sites and 16d octahedral sites in this spinel structure. The potential field is more pronounced in the 8a tetrahedral sites than in the 16d octahedral sites substantiating the observed 16d position of lithium atoms in spinel Li_xMn₂O₄ (0 ≤ x ≤ 1) [34,35]. The lithiation into the 8a tetrahedral sites is shown in Figure 5a–e. Figure 6 shows the potential field of the topotactical delithiated lithium–manganese–oxide spinel, which is at the highest in the lithium composition range (0 ≤ x ≤ 1), this is indicated by the strong electrostatic potential fields illustrated in the structure. Moreover, Figure 5a shows the Li composition of this spinel structure in which all the 8a tetrahedral sites are occupied and the potential field is only observed at the 16c octahedral sites.

3.3. CASTEP and ONETEP Open Cell Voltage (OCV) of the Li_xMn₂O₄ (0 ≤ x ≤ 1) Spinel

Figure 6 illustrates the Open Cell Voltage (OCV) computed using CASTEP and ONETEP simulation codes of the spinel Li–Mn–O structure in the lithium concentration range between 0.25 and 1. The OCV is calculated using the following equation:

$$Voltage=-\frac{{\mu }_{Li}^{cathode}-{\mu }_{Li}^{anode}}{ze}$$

(1)

In which ${\mu }_{Li}^{cathode}$ is the chemical potential of lithium atoms in the cathode, ${\mu }_{Li}^{anode}$ is the chemical potential of lithium atoms in the anode, $e$ is the charge of an electron and $z$ represent the valence of the ion. For a system under constant pressure and temperature, the Li chemical potential in the cathode can be given by the change in Gibbs free energy, therefore:

$$Voltage=-\frac{{\mu }_{Li}^{cathode}-{\mu }_{Li}^{anode}}{ze}=-\frac{\frac{dG}{d{N}_{Li}}-{\mu }_{Li}^{anode}}{e}$$

(2)

where $G$ is the Gibbs free energy.

The CASTEP and ONETEP calculated voltages in the lithium composition range between 0.25 and 1 are ~5.1 V and ~4.4 V, respectively. The intercalation voltages are averaged by Li_0.25Mn₂O₄, Li_0.5Mn₂O₄, Li_0.75Mn₂O₄ and Li_1.0Mn₂O₄; hence, only one plateau is observed in this region, which is between 0.5 and 0.75 lithium composition range. Moreover, Li_xMn₂O₄ (0 ≤ x ≤ 1) maintained its cubic structure as such the latter mentioned plateau is due to the reported topotactical phase change [36,37]. For 0.75 < x < 1 in Li_xMn₂O₄, the ONETEP calculated voltage then drops significantly to ~2.6 V whilst the CASTEP calculated voltage drops to ~3.2 V. Lithium–lithium repulsion increases with the filling of the tetrahedral sites causing lithium ordering. This step in this region (0.75–1.00) is attributed to Li ordering [17,38]. The ONETEP calculated OCVs are more comparable to OCVs calculated by F.F Bazito and R.M Torresi [39].

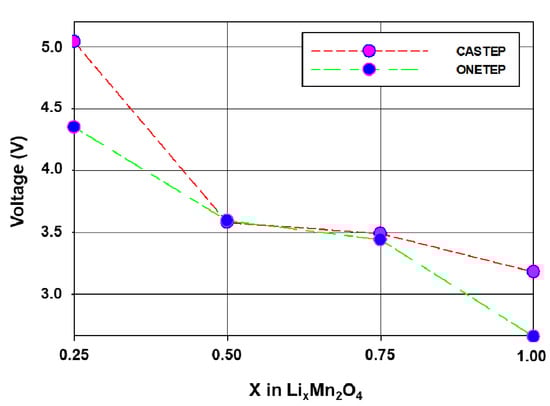

Figure 6. Comparison of ONETEP and CASTEP Open Cell Voltage (OCV) Li_xMn₂O₄ (0.25 ≤ x ≤ 1).

Figure 6. Comparison of ONETEP and CASTEP Open Cell Voltage (OCV) Li_xMn₂O₄ (0.25 ≤ x ≤ 1).

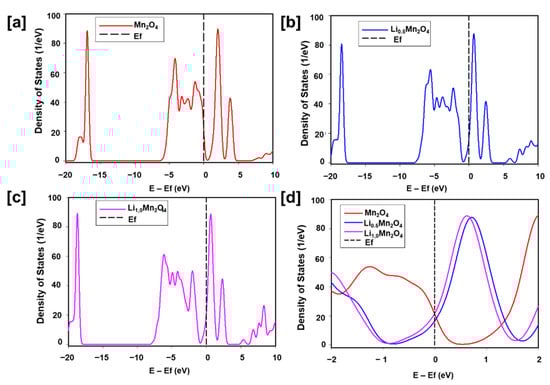

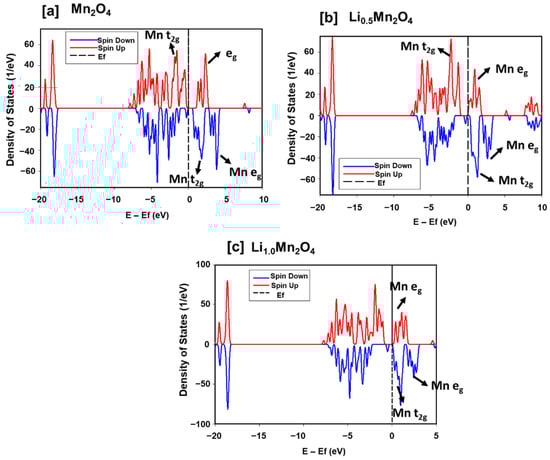

DoS of Li_xMn₂O₄ (0 ≤ x ≤ 1) calculated with CASTEP and ONETEP: The electronic structure of spinel Li_xMn₂O₄ with a lithium concentration range of 0 to 1 is illustrated by the DoS in Figure 7 and Figure 8. Figure 7 shows the DoS of Mn₂O₄, Li_0.5Mn₂O₄, and Li_1.0Mn₂O₄ calculated using the CASTEP code. The DoS of the topotactically delithiated spinel Mn₂O₄ in Figure 7a display a bandgap of ~0.65 eV. Li_0.5Mn₂O₄ and Li_1.0Mn₂O₄ exhibit metallic behaviour indicated by the overlapping valence and the conduction band in the DoS shown in Figure 7b,c. Figure 7d shows the effect of lithiation on the electronic structure of the Li-Mn-O spinel. Most of the Li_1.0Mn₂O₄ states are below zero energy than most of the Li_0.5Mn₂O₄ and Mn₂O₄ states.

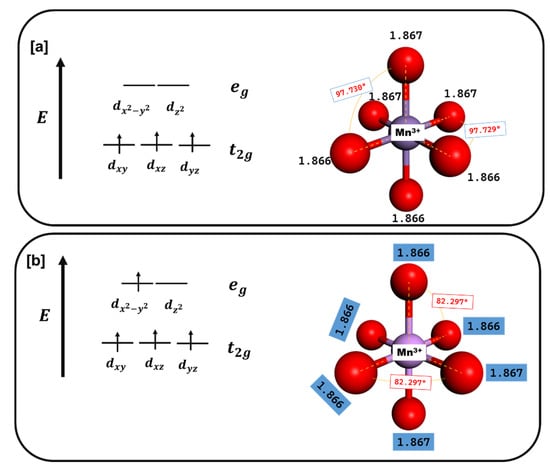

The linear scaling ONETEP code was also used to scrutinize the electronic structure of the Li-Mn-O spinel during lithium intercalation as captured by DoS in Figure 8. Particularly, the significant change in the charge state of manganese in the structure during lithiation. The electronic configuration of Mn³⁺ ions is t_2g³e_g¹ which increases with lithium intercalation and for Mn⁴⁺ is t_2g³e_g⁰ which decreases with lithium intercalation. For Figure 8a Mn₂O₄, all the t_2g spin-up states are occupied, followed by a bandgap of ~0.58 eV. However, with the addition of lithium atoms, the e_g spin-up states and the t_2g spin-down states are occupied as shown by the DoS of Figure 8b Li_0.5Mn₂O₄, and Figure 8c Li_1.0Mn₂O₄. As such, the valence band and the conduction band overlap increases with increasing lithium content.

3.4. Scaling of the ONETEP Code South Africa’s CHPC

Computational work that can be efficiently divided among several processors facilitated by sophisticated message-passing standards can be performed swiftly in high-performance computing systems. In such a case, increasing the number of processors results in increased computational power and a considerable computing time can be saved. The scalability of a computational code depends significantly on the parallel algorithms implemented in the code. Hence, in poorly parallel computational codes increasing the number of processors does not reduce the computational time. In this section, we evaluate the performance of the ONETEP code by performing scaling tests to gain insights into the allocation of the precious computational resources at South Africa’s CHPC. Strong and weak scaling tests will be performed, in a strong scaling test, the problem size is fixed and the number of processors is increased. For a weak scaling test, the problem size and the number of processors are both systematically increased. The speedup is simply calculated as the ratio of the time it takes to run on a single processor and the time it takes to run on $N$ processors as indicated by Equation (3) below.

$$\mathrm{Speedup}=\frac{T\left(1\right)}{T\left(N\right)}$$

(3)

where $T\left(1\right)$ is the runtime on a single processor and $T\left(N\right)$ is the runtime on $N$ processors.

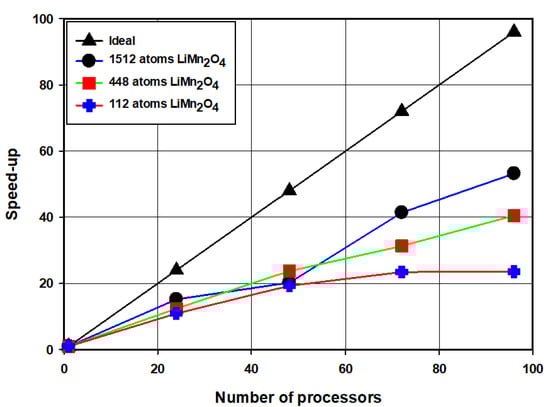

Figure 9 illustrates the strong scaling of the ONETEP code on the Centre for high performance computing (CHPC) cluster performed with the spinel LiMn₂O₄ (112, 448, 1512) as the input structures. The number of processors is varied by 24 because each compute node consists of 24 processors on the cluster. In the figure, the three speed-up curves of LiMn₂O₄ are compared to an ideal speed-up curve. The calculated speed-up values for LiMn₂O₄ (112, 448, and 1512 atoms) in the figure are comparable for the number of processors that are between 1 and 48. The curves in the 1 to 48 number of processors range are close to the ideal speed-up curve, and they start to veer from this curve at 48 number of processors. A significant difference in the speed-up values of the three LiMn₂O₄ curves is noted from 48 processors. The 112 atoms structure has the lowest speed-up values which are increasing infinitesimally with computing resources between 48 and 96 processors. This shows that the structure is small for the number of processors that are greater than 48. A constant significant increase in the speed-up of the 448 atoms structure is observed in the latter mentioned number of processor range. The 1512 atoms structure has high speed-up values in the range between 72 and 96 processors indicating that the structure was effectively shared amongst the processor than the 112 and 448 structures in this range of processors. In Figure 10, the problem size and the number of processors were both varied to give insights on the allocation of computing resources concerning system size. The kinetic energy of the psinc basis sets was set to 800 eV, and the NGWF radii to 7.5 Å. The total time is increasing linearly as a function of the number of atoms and processors as evinced by the straight-line graph depicted in the figure. This suggests that practical computing time can be achieved by systematically increasing the number of processors as the problem size grows.

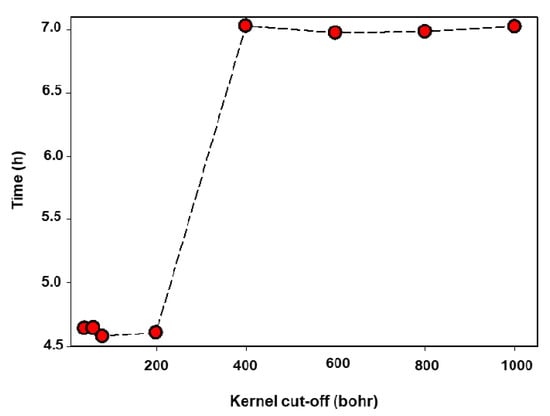

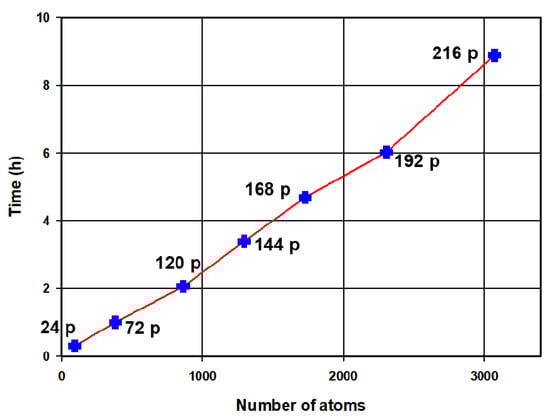

A substantial amount of computational time can be saved by carefully reducing the value of the kernel cut-off, which offers a way to truncate the density matrix. Figure 11 shows a graph of time as a function of kernel cut-off for a 1296 atoms Mn₂O₄ spinel structure. Single point energy calculations were performed using a 7.5 Å NGWF radius and 800 eV cut-off energy. The kernel cut-offs were set to 40, 60, 80, 200, 400, 600, 800, and 1000 Bohr. The calculations with kernel cut-off between 40 and 200 Bohr took approximately 4.6 h and calculations with kernel cut-off between 400 and 1000 Bohr took approximately 7 h. The accuracy of the results was preserved as shown on the total energy vs. kernel cut-off and NGWF RMS gradient vs. kernel cut-off plots in Figure 12. In which, the total energy and the NGWF RMS gradient are the same for all the kernel cut-offs (40–1000 Bohr). This provides an opportunity to save computational time whilst preserving the accuracy of the results. The difference between the computational time plateaus is 2.5 h, which is what can be saved in this setup by using a kernel cut-off between 40 and 200 Bohr.

4. Discussion

In the current study, we have captured the electronic structure of Li_xMn₂O₄ spinel through Density of States (DoS). The spinel Li_xMn₂O₄ structure was relaxed with the CASTEP code and it yielded lattice constants with reasonably comparable values with experiments within a range of 2% for both systems. The DoS in Figure 3(a) depicted metallic behaviour for both LiMn₂O₄ and Li₂Mn₂O₄. This behaviour is validated by findings from previous work by S. Baǧcı and co-workers [30]. Moreover, the filling of the t_2g orbitals with spin-down states increases with lithiation, and the spin-up states of the t_2g orbitals are filled. Moreover, the Fermi energy cuts the spin-up DoS curve on the sharply increasing curve depicting the e_g spin-up orbitals. This indicates the presence of the Mn³⁺ with an electronic configuration of (t_2g [↑↑↓]-e_g [↑]). Figure 3(b) indicates that the metallic behaviour of Li_xMn₂O₄ (1 ≤ x ≤ 2) spinel is a consequence of manganese and oxygen atoms. Studies of the intercalation of lithium atoms into spinel Li_xMn₂O₄ (0 ≤ x ≤ 1), which is reported to contain between 0 and 50% of the Mn³⁺ ions associated with the Jahn–Teller distortion and disproportionation reaction. In this range (0 ≤ x ≤ 1), lithium atoms occupy the 8a tetrahedral sites this is in line with the electrostatic potential shown in Figure 5. Figure 5a depicts some of the crucial stages of the discharge process in the range between 0 and 1 and Figure 5b indicates the Li-O bond evinced by a shorter distance between oxygen atoms in oxygen tetrahedron with a lithium atom in the tetrahedral position than the distance between oxygen atoms in such tetrahedron with a vacant tetrahedral site. This demonstrates successful lithium intercalation in the spinel structure and hence the discharge process.

In a quest for a swift adaptation of linear-scaling DFT techniques, particularly ONETEP for more practical and accurate results, in this section we discuss the electronic properties of Li_xMn₂O₄ (0 ≤ x ≤ 1) calculated with both CASTEP and ONETEP. In Figure 6, CASTEP and ONETEP calculated discharge OCVs of Li_xMn₂O₄ in the composition range 0 and 1 have been compared. The Li_xMn₂O₄ curve was averaged by the four points, 0.25, 0.5, 0.75, and 1.0, representing lithium composition in the Li-Mn-O spinel structure. The two curves indicate a plateau at 0.5 and 0.75 which corresponds to the reported 4 V plateau in Li_xMn₂O₄ compounds. The general shape of CASTEP and ONETEP OCV discharge curves in this work compares well with calculated Li_xMn₂O₄ discharge curves in the literature [39,40]. Moreover, the electronic structure of Li_xMn₂O₄ in this composition region (0 ≤ x ≤ 1) was also calculated with both codes (CASTEP and ONETEP). In Figure 7, the effect of adding lithium atoms in the Li_xMn₂O₄ (0 ≤ x ≤ 1) structure is successfully captured by the CASTEP code. The ~0.58 eV bandgap of Mn₂O₄ which is in line with experiments was deduced and the metallic nature of LiMn₂O₄ is also in line with literature. The same results were reproduced by the ONETEP code as depicted by the DoS in Figure 8. Moreover, the filling of the t_2g spin-down states with lithium intercalation correspond to the electronic configuration of (↑↑↓) for the t_2g orbitals from (↑↑↑), evincing a decrease in the magnetic moment of the material.

The scaling of the ONETEP code at CHPC’s Lengau cluster was carried out successfully with a number of processors ranging from 1 to 96 for the 112, 448, and 1512 atoms spinel LiMn₂O₄ supercells. The increase in speed-up with the number of processors for the 112 atoms LiMn₂O₄ supercell drops from 48 processors, indicating that from this point adding more resources will not result in less computing time. A significant amount of computational time is spent on communications between processors. However, for the 1512 atoms LiMn₂O₄ supercell, the speed-up values increase almost linearly with the number of processors. Total energy calculations for spinel Mn₂O₄ superstructures ranging from 96 to 3072 atoms with processors varying from 24 to 216 cores have been performed and the corresponding time and number of atoms plot is given in Figure 10. The number of processors was systematically varied from 24 to 216 with system size (96 to 3072), the total time increased linearly with the increasing number of atoms and number of processors. This suggests that practical computational time can be achieved by systematically increasing computing resources as the problem size grows. A substantial amount of computational time can be saved by using a cut-off of less than 400 Bohr for the Mn₂O₄ structures whilst preserving the accuracy of the results, as indicated in Figure 11 and Figure 12.

5. Conclusions

In the current study, a detailed theoretical analysis of structural and electronic properties of spinel LiMn₂O₄ utilizing CASTEP and ONETEP codes is presented. Electronic structure changes were captured by DoS, in which the metallic nature of LiMn₂O₄ was deduced with both simulation codes. The filling of the valence band with lithium intercalation into the spinel Li_xMn₂O₄ (0 ≤ x ≤ 1) structure was observed. Moreover, discharging open-circuit voltages (OCVs) were also calculated, and found to compare well with experiments. The ONETEP and CASTEP calculated results are in a great accord. Our results show the absence of the Jahn–Teller distortion in the 0 ≤ x ≤ 1 lithium concentration region and as such, LiMn₂O₄ can offer durable performance when cycled in this region. The ONETEP scaling tests performed in this study indicate that a considerable amount of computing time could be saved by carefully assigning computing resources, and DFT studies of large-scale systems are possible with the ONETEP code. Our current findings form a basis for moving from traditional DFT to linear-scaling DFT which will enable future studies of the effect of intrinsic structural defects generated by the amorphization and recrystallization technique on the operating voltage and the electronic structure of different Li-Mn-O nanospherical spinel structures consisting of thousands of atoms. These nanostructures contain essential structural features which are comparable to structural features observed in real materials (materials synthesized in traditional experiments); hence, their results are of great importance.
