Article

Hydrodesulfurization of Dibenzothiophene over Ni-Mo-W Sulfide Catalysts Supported on Sol-Gel Al2O3-CeO2

by
Rufino M. Navarro Yerga
1,
Barbara Pawelec
1,*,
Noelia Mota
1 and
Rafael Huirache-Acuña
2,*
1
Grupo de Energía y Química Sostenibles, Instituto de Catálisis y Petroleoquímica (ICP), Spanish National Research Council (CSIC), Marie Curie 2, 28049 Madrid, Spain
2
Facultad de Ingeniería Química, Universidad Michoacana de San Nicolás de Hidalgo, Ciudad Universitaria, Morelia 58060, Mexico
*
Authors to whom correspondence should be addressed.
Materials 2022, 15(19), 6780; https://doi.org/10.3390/ma15196780
Submission received: 31 August 2022 / Revised: 20 September 2022 / Accepted: 23 September 2022 / Published: 30 September 2022
(This article belongs to the Special Issue Design and Applications of Functional Materials)
Browse Figures
Versions Notes

Abstract

:
To achieve sulfur content in gas oil at a near-zero level, new catalysts with improved hydrogenation functions are needed. In this work, new Ni-Mo-Mo hydrodesulfurization (HDS) catalysts supported by Al2O3-CeO2 materials were synthesized to evaluate their efficiency in the reaction of HDS with dibenzothiophene (DBT). Al2O3-CeO2 supports different CeO2 loadings (0, 5, 10 and 15 wt.%) and supported NiMoW catalysts were synthesized by sol-gel and impregnation methods, respectively. The physicochemical properties of the supports and catalysts were determined by a variety of techniques (chemical analysis, XRD, N2 physisorption, DRS UV-Vis, XPS, and HRTEM). In the DBT HDS reaction carried out in a batch reactor at 320 °C and a H2 pressure of 5.5 MPa, the sulfide catalysts showed a dramatic increase in activity with increasing CeO2 content in the support. Nearly complete DBT conversion (97%) and enhanced hydrogenation function (HYD) were achieved on the catalyst with the highest CeO2 loading. The improved DBT conversion and selectivity towards the hydrogenation products (HYD/DDS ratio = 1.6) of this catalyst were attributed to the combination of the following causes: (i) the positive effect of CeO2 in forcing the formation of the onion-shaped Mo(W)S2 layers with a large number of active phases, (ii) the inhibition of the formation of the undesired NiAlO4 spinel phase, (iii) the appropriate textural properties, (iv) the additional ability for heterolytic dissociation of H2 on the CeO2 surfaces, and (v) the increase in Brønsted acidity.

1. Introduction

Traditionally, catalytic hydrodesulfurization of gas oil is performed using bimetallic Ni(Co)-Mo catalytic systems supported by γ-alumina [1,2]. However, these catalysts are not effective for the hydrodesulfurization of crude oils containing refractory compounds, such as 4,6-dimethyldibenzothiophene (4,6-DMDBT). Due to the steric hindrance of alkyl groups, deep hydrodesulfurization of these compounds requires catalysts with enhanced hydrogenation functions [1,2,3,4,5]. In this regard, recent research focuses on the use of the ternary formulation of the Ni-Mo-W catalyst supported by different materials [6,7,8,9,10,11,12,13,14]. This is due to the well-known hydrogenation properties of Ni and the higher hydrogenation capacity of W with respect to Mo [4], as demonstrated by Ni-Mo-W catalysts supported on alumina and tested in the hydrotreating of vacuum residues [7].
Among the various catalyst supports, the most classical one is γ-alumina. However, there are many other forms of alumina (α, χ, η, δ, κ, θ, and ρ), whose formation depends on the heat treatment of aluminum hydroxide or aluminum oxyhydroxide. Some of them are crystalline compounds, while others are ill-defined amorphous compounds [15]. Among these, the most thermodynamically stable form is the polymorphic α-alumina (corundum) phase, while the η, γ, χ, δ, κ, and θ phases are metastable/transitional phases [16]. Metastable γ-alumina is generally used as a support for industrial HDS catalysts due to its low cost, high specific surface area, defective crystal structure, high surface-to-volume ratio, high pore volume, excellent thermal and chemical stability, low density, high hardness and strength, and easy recovery [15,16,17,18,19,20,21]. To improve the mass transfer capacity of alumina, recent research focuses on hierarchical alumina with one-dimensional (1D) and two-dimensional (2D) nanostructure arrays [19].
The main disadvantage of alumina support is that it can produce a large amount of coke due to the presence of a large number of weak Lewis-type acid sites on its surfaces [22,23]. However, there is some literature evidence that alumina prepared by the sol-gel method has a more stable support structure. For example, it was found that Ni catalysts supported on alumina and prepared by sol-gel exhibited higher dispersion than when nickel catalysts are prepared by impregnation on γ-Al2O3, resulting in higher activity and resistance to carbon deposition [24,25,26]. In addition, alumina itself is not an inactive support, as it can react with the active phases. For example, the formation of strong W-O-Al bonds may occur, preventing the complete sulfidation of WO3. Moreover, the high affinity of Ni2+ ions to coordinate in the Al3+ surface vacancies of the alumina support could lead to the formation of spinel-like NiAl2O4 structures. As a consequence of the limited availability of Ni ions, their deposition at the edges of MoS2 crystallites and the formation of NiMo active phases are also limited [4]. To improve the catalytic activity and decrease the drawbacks of the alumina support, its modification with CeO2 has been widely studied for dry/steam reforming of methane, automotive exhaust gas conversion, water shift reactions or hydrogenation of CO2 to methanol, dimethyl ether (DME), or methane [27,28,29,30,31,32,33,34,35,36].
In addition, ceria has potential catalytic application in hydrogenation reactions, as demonstrated in the liquid-phase hydrogenation of benzoic acid to benzaldehyde [37], in the partial hydrogenation of alkynes to olefins [38,39,40], and in the hydrogenation of naphthalene [41]. In these reactions, modification of alumina with CeO2 changes the structural and electronic properties of the active sites, the metal-support interactions, and the catalyst acidity [41], and modifies the dispersion of the active sites [3,27,29,30] without greatly affecting the specific surface area of the support and pore size distribution [26,27].
Despite the successful use of CeO2 to catalyze hydrogenation reactions [37,38,39,40,41], the use of Al2O3-CeO2 oxides to support HDS catalysts has received very little attention [6,7,42,43,44]. For example, the impregnation of alumina with ceria precursors has been reported to improve the HDS activity of supported MoS2 [42] and metallic Pd catalysts [44]. Similarly, NiMo sulfide catalysts supported on Al2O3-CeO2 mixed oxides prepared by mechano-physical mixing demonstrated higher HDS activity than that of a reference NiMo/Al2O3 catalyst [43]. Although the sol-gel method has been shown to be the best method to obtain mixed oxides with respect to materials prepared with impregnation [4,5,45,46], there are no reports on the use of one-pot synthesis for the preparation of HDS catalysts supported on Al2O3-CeO2. However, using the sol-gel support preparation method, an increase in catalyst acidity could be expected that could contribute to the increase in HDS activity, as demonstrated by the PtPd/Al2O3-CeO2 catalysts tested in the hydrogenation of naphthalene [41]. In this sense, the effects of various preparation methods were investigated by Fan et al. [34]. It was found that the solid solution structure of the coprecipitated sample enhanced the interfacial interaction of Al2O3/CeO2.
Within this scenario, the objective of this work was to synthesize Al2O3-CeO2 materials with the sol-gel method for their use as support for ternary Ni-Mo-W HDS catalysts. The novelty of this work lies in the use of CeO2 for the design of the hydrodesulfurization catalyst, since it is widely known that, in contrast to hardly reducible Al2O3, CeO2 has oxidative properties and a good oxygen storage capacity [43], which are the main reasons for its low attention received for the design of HDS catalysts [6,7,42,43,44]. Therefore, the presented activity results in opening a new perspective for the use of easily reducible oxides, such as CeO2, for the design of new catalysts for hydrotreating reactions. The Al2O3-CeO2 supports have been prepared with different CeO2 loadings (5, 10, and 15 wt.%) to investigate the effect of the nature and structure of the surface ceria species on the final catalytic behavior of the NiMoW/Al2O3-CeO2 sulfide catalysts. It has been shown that the use of the Al2O3-CeO2 support with the highest amount of CeO2 (15 wt.%) not only substantially improved the activity of the catalyst with respect to the Ce-free counterpart, but also enhanced its hydrogenation function, which is necessary for deep HDS. In-depth characterization of the NiMoW/Al2O3-CeO2 catalysts using various techniques clarified the origin of these improvements.

2. Materials and Methods

All the reagents used for the support and catalyst synthesis were of analytical grade and were used as received without further purification.

2.1. Support Preparation

The γ-Al2O3 was synthesized by the sol-gel method following the method by Zhou et al. [47]. In a standard Al2O3 support synthesis, 0.4 g of cetyltrimethylammonium bromide (CTAB, Sigma-Aldrich ≥ 98%, St. Louis, MO, USA) was dissolved in 35 mL of deionized water under stirring. The pH value of 12 was obtained by adding NH4OH (28–30%, A.C.S. Reagent, J.T. Baker, Santa María Ecatepec, Oaxaca, Mexico). Subsequently, the second solution was prepared by adding, under stirring, 2 g of aluminum tri-sec-butoxide (Al(OC4H9)3; Sigma-Aldrich, 97%, St. Louis, MO, USA) to 15 mL of ethanol. This solution was added dropwise into the surfactant solution under continuous stirring at room temperature for 1 h. After that, the solid was separated by centrifugation (5000 rps) and Soxhlet extraction for 30 h. Next, the as-obtained solid was dried in air at room temperature for 12 h and then treated with He at 800 °C for 5 h to remove the organic template. Synthesis of Al2O3-CeO2 (briefly denoted as Al-Ce(x)) with different ceria loadings (5, 10, and 15 wt.%) was in the same manner as it has been mentioned before for the alumina calcined at 800 °C but adding the solution of an appropriate amount of cerium nitrate (Ce(NO3)3·6H2O, 99%, Sigma-Aldrich, St. Louis, MO, USA) dissolved in cetyltrimethylammonium bromide and deionized water. Once the gelation of supports was completed, the solids were dried in air at room temperature overnight and calcined in static air at 800 °C for 5 h. Figure 1 shows a schematic representation of the preparation of the Al2O3-CeO2 materials.

2.2. Catalyst Preparation

Ni-Mo-W catalysts supported on Al2O3 and Al2O3-Ce(x) materials were prepared by incipient wetness co-impregnation using the method described by Mendoza-Nieto et al. [48] using an aqueous solution of heptamolybdate ((NH4)6Mo7O24·4H2O; A.C.S. Reagent; J.T. Baker; 81.4% MoO3; Santa María Ecatepec, Oaxaca, Mexico), ammonium metatungstate ((NH4)6H2W12O40.xH2O; Sigma-Aldrich, ≥66.5% W, St. Louis, MO, USA), and nickel nitrate (Ni(NO3)2·H2O; Sigma-Aldrich, 97%, St. Louis, MO, USA) of precursor salts of Mo, W, and Ni, respectively. The volume of the impregnation solution was adjusted to the pore volume of the support. All supported NiMoW catalysts were prepared with a Ni(Ni+Mo+W) atomic ratio of 0.23. Taking into account the easier Ni-Mo(W) interaction at high pH, the pH of the impregnation solution was first adjusted to pH 12 by adding NH4OH (28–30%, A.C.S. Reagent, J.T. Baker; Santa María Ecatepec, Oaxaca, Mexico). Then, citric acid (C6H8O7·H2O; Sigma-Aldrich, St. Louis, MO, USA) was added to the impregnation solution in order to stabilize the precursors and avoid precipitation of Ni(OH)2 [48]. The impregnated solids were firstly dried in air at 85 °C for 16 h and then calcined in static air at 500 °C for 4 h. The calcined catalysts were stored in a vacuum for further characterization. The catalysts will be denoted hereafter as NiMoW/Al-Ce(x) where x is the CeO2 nominal content (0, 5, 10 and 15 wt.%).

2.3. Catalyst Characterization

The metal loading of the calcined catalysts was determined by inductively coupled plasma optical emission spectroscopy (ICP-OES) performed with a Perkin Elmer Optima 3300DV (ICP-OES, Perkin Elmer, Waltham, MA, USA). For the analysis, the solids were digested in a mixture of HF, HCl, and HNO3 in a microwave oven for 2 h. Aliquots of the solution were then diluted to 50 mL with deionized water (18.2 m quality). The textural properties of the calcined catalysts were determined by N2 physisorption at −196 °C with a Micromeritics TriStar 3000 (Micromeritics, Norcross, GA, USA) apparatus. XRD analysis was performed according to the step scanning procedure (step size 0.02° and 0.5 s) with a computerized Seifert XRD 3000P diffractometer (Seifert & Co, Radevormwald, Germany, ), using Ni-filtered Cu Ka radiation (λ = 0.15406 nm) and PW 2200 Bragg-Brentano θ/2θ goniometer. An X-ray photoelectron spectrometer (XPS, VG Escalab 200R, Vacuum Generators, Crowborough, UK) equipped with a hemispherical electron analyzer was used to determine the surface exposure of the Ce4+/Ce3+ species in Al2O3-CeO2 composites following the method presented by Bêche et al. [49]. The UV-Vis DRS spectra of the samples were recorded on the Varian Cary 5000 UV-Vis (Varian, Santa Clara, CA, USA) spectrometer equipped with an integrating sphere. The bandgap energy (Eg) was estimated from the relationship between the absorption coefficient and photon energy using Equation (1):
αhυ = (hυ − Eg)n
where α, h, υ, and Eg are the absorbance, Planck constant, photon frequency, photonic bandgap, respectively. The parameter n was assumed to be 2 (indirect electronic transition).
HRTEM images of used catalysts were recorded on a JEOL JEM-3010 (JEOL USA, Peabody, MA, USA) microscope operated at 300 kV with 1.7°A point resolution. The mean particle size and the number of stacked layers of M(W)S2 phases were determined by statistical analysis of approximately 250 particles. More details of the analysis techniques employed in this work can be found in [3,4,5].
Diffuse reflectance infrared Fourier transform spectroscopy of adsorbed NH3 was employed to investigate the effects of alumina modification with CeO2. Spectra were collected on the JASCO FT/IR-6300 (JASCO, Easton, WA, USA) spectrophotometer working at a resolution of 4 cm−1 (500 scans), utilizing a Harrick HVC-DRP cell (HVC-DRP cell, Harrick Scientific Products, Pleasentville, NY, USA) that allows in situ treatments with different gases. After sample reduction with pure H2 at 450 °C for 306 min, the temperature of the He was cooled down to 120 °C. Prior to spectrum recording, the sample was subjected to the 5 mol.% NH3/He analysis gas (Air Liquide) for 45 min. The temperature 120 °C was chosen for NH3 adsorption in order to avoid physical adsorption of this molecule.

2.4. Activity Tests

The activities of the calcined catalysts were evaluated in the DBT HDS reaction. Sterically unhindered DBT was selected as a model compound due to its abundance in crude oils. Before reaction, the calcined catalysts were activated by ex-situ sulfiding with a 15% H2S/H2 gas mixture at 400 °C for 4 h. The reaction mixture consisted of 5% vol. of DBT dissolved in decalcification and 0.25 g of DBT dissolved in decaline and 0.25 g of freshly sulfided catalyst. The HDS reaction was carried out in a batch reactor (Parr Instrument Co., Moline, IL, USA) at 320 °C and 5.5 MPa total H2 pressure. To exclude external diffusion limitation, the stirring rate was intense (900 rpm). The reaction products were analyzed with an HP 4890 gas chromatograph equipped with a 10-ft packed column with 3% OV-17 as the separation phase in Chromosorb WAW 80/100. Catalytic activity was expressed as total DBT conversion and initial reaction rate (mole of DBT transformed per g of catalyst per second) using the equation described previously [4].

3. Results

3.1. Characterization of Supports

As stated in the introduction part, among the different types of alumina, γ-Al2O3 is the most widely used support for HDS catalysts. Although the γ-alumina phase could be progressively degraded into α-alumina by heating it at a high temperature, the temperature used for the HDS reaction is much lower than that of its transformation into the α-alumina form (approximately 1000 °C) [15]. Considering that the crystallographic properties of alumina support strongly depend on the temperature of their calcination, pristine alumina was calcined at 500, 700, and 800 °C to select the best calcination temperature for the formation of the γ-Al2O3 phase (Figure 2A). As expected, the XRD pattern of alumina precursors treated at 500 °C and 700 °C showed peaks at 2θ = 19.7° (very small), 32.4°, 37.7°, 39.6°, 46.0°, 60.8°, and 66.2° (very intense) corresponding to γ-Al2O3 (JCPDS 86-1410). An increase in temperature from 700 °C to 800 °C led to the splitting of the very broad peak of 32.4° into two peaks (31.5° and 33.0°) and a new peak appeared at 2θ of 50.0°. All these peaks belong to the γ-Al2O3 phase (JCPDS 00-001-1304). At 800 °C, the transformation of γ-Al2O3 to α-Al2O3 did not occur because such a transformation takes place at a temperature much higher than 1100 °C [50]. Therefore, the temperature of 800 °C was selected for the Al2O3-CeO2 support calcination. Figure 2B shows the HRTEM image of the γ-alumina calcined at 800 °C. The fast Fourier transform (FFT) image corresponds to the marked area confirming the formation of γ-alumina.
The effect of CeO2 incorporation on the crystallographic properties of the substrate of the alumina supports was investigated by XRD (Figure 3). All the Al2O3-Cex supports show a diffraction line at 2θ = 28.4° assigned to the (111) crystalline plane of the CeO2 phase with a cubic structure (JCPDS 00-002-1306). In addition, Al-Ce15 shows a very broad diffraction line at 2θ = 56.0° corresponding to the (311) crystalline plane of this phase. For all the Al2O3-Ce(x) samples, the peaks are very broad, indicating the formation of small CeO2 nanoparticles, and their preferential growth along the (111) direction occurs. Analysis of the 2θ = 28.4° line broadening at half the maximum intensity (FWHM) suggests a decrease in the CeO2 crystallite size with an increase in the ceria content, which is in good agreement with that reported for the Al2O3-CeO2 samples prepared by the sol-gel method [41].

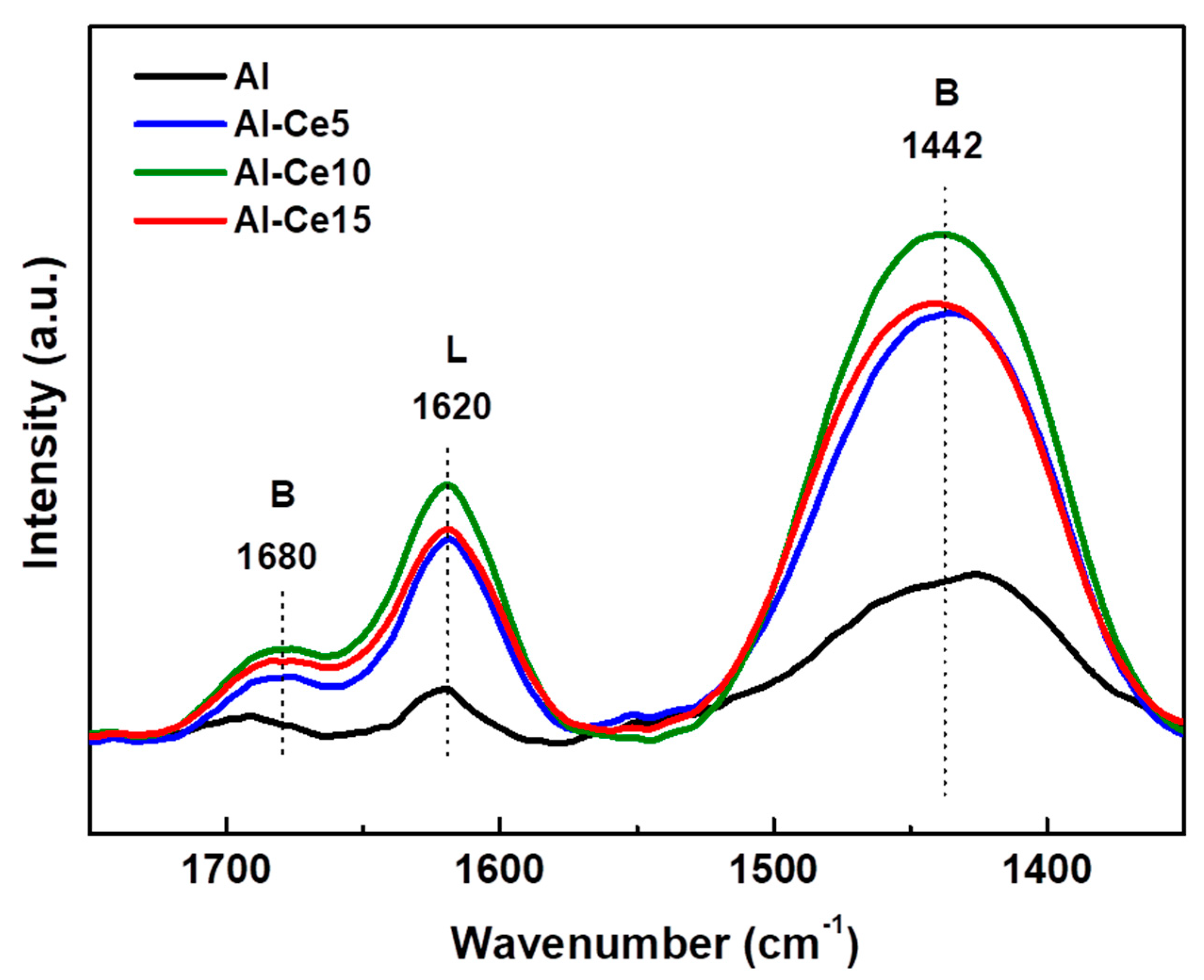

The changes in the alumina acidity after modification with varying amounts of CeO2 were investigated by the DRIFT spectra of NH3 adsorption at 120 °C [23]. Figure 4 shows the DRIFTS-NH3 spectra of all supports synthetized with the sol-gel method. The bands at 1680 and 1442 cm−1 are due to the δsym(H---N---H) and δasym(H---N---H) vibrations of NH4+ ions of Brønsted acid sites of the surface, respectively, while the band at 1620 cm−1 is commonly attributed to Lewis acid sites [51]. In addition, the observed shadow of approximately 1500 cm−1 can be attributed to the bending mode of the surface of the NH2 species [52]. Considering the integrated areas of the Brønsted and Lewis bands (data not shown here), both acidities increased after the modification of alumina with CeO2. As a consequence, all Ce-containing supports showed a higher Brønsted/Lewis acidity ratio than pure γ-Al2O3.
The oxidation state of ceria and their surface exposure on Al2O3-Ce(x) supports were investigated with the XPS technique. The core electron levels of Al 2p and Ce 3d are listed in Table 1. The Al 2p and Ce 3d5/2 electron levels with binding energies (BE) at 74.5 eV and 881.4 ± 0.1 eV are typical for Al2O3 and CeO2, respectively [30]. The relative Ce3+ concentration for the Al-Ce(x) mixed oxides was calculated as the peak area of the Ce3+ component peak divided by the total peak area of the Ce 3d line. As expected, the amount of total ceria (Ce4+ + Ce3+) and Ce3+ species increases with increasing CeO2 content in the mixed oxides (Table 1).

3.2. Characterization of the Calcined Catalysts

The Ni, Mo, and W loadings of the synthesized calcined NiMoW/Al-Ce(x) catalysts, determined by chemical analysis (ICP-OES technique), are given in Table 2. As can be seen from this table, all the catalysts present a very similar total metal content, ranging from 26.3 wt.% to 27.4 wt.%. It should be noted that the Ce-free catalyst has a little lower Ni promoter content than the Ce-containing catalysts.

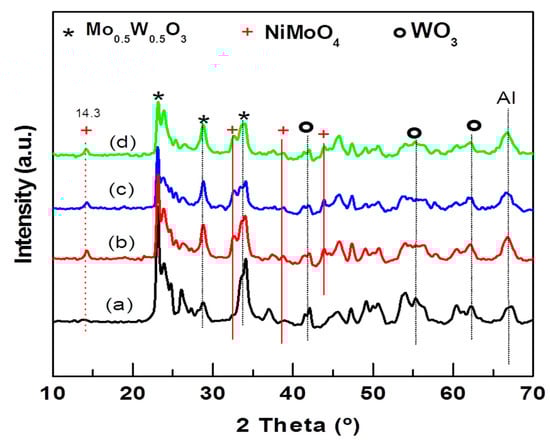

The crystallographic properties of the NiMoW/Al-Ce(x) calcined catalysts were investigated with the powder XRD technique. The XRD patterns of the calcined catalysts are shown in Figure 5. As expected, all NiMoW/Al-Ce(x) calcined catalysts exhibit similar diffraction characteristics to those of the γ-Al2O3 phase (JCPDS 00-001-1304). In addition, the Ce-containing samples show peaks at 28.3°, 56.4°, and 79.3° that correspond to the CeO2 phase (JCPDS 00-002-1306).
XRD patterns of all NiMoW/Al-Ce(x) calcined catalysts also exhibit peaks at 2θ = 14.29°, 32.58°, 38.7°, and 43.87° corresponding to the (110), (022), (−132), and (330) planes of crystalline nickel molybdenum oxide (NiMoO4; JCDPS 000-033-0948). The diffraction peaks at 23.6°, 33.64°, 41.46°, 54.57°, and 60.25° in 2θ correspond to the (200), (220), (222), (420), and (422) planes, respectively, of the crystalline WoO3 phase (JCDPS 00-046-1096). In addition, all calcined catalysts show the peaks characteristic of the Mo0.5W0.5O0.3 phase (JCPDS 00-028-0667). For the Al-Ce(x) supported catalysts, the intensity of the NiMoO4 peaks increased while those of the WO3 and Mo0.5W0.5O0.3 phases decreased with respect to the same peaks observed in the Ce-free sample pattern. The decrease in the peaks corresponds to the WO3 and Mo0.5W0.5O0.3 phases, with increasing CeO2 content, suggesting that the modification of the alumina with CeO2 improves the dispersion of these phases.
Reflections due to the MoO3 crystalline phase were not observed in any of the calcined samples, indicating that, if this phase was formed, it either had an amorphous character or its size was below the detection limits of the XRD technique. In this sense, the study by Abello et al. showed that the formation of a 3D phase of MoO3 and aluminum molybdate occurs only at high Mo loadings [16]. In the XRD pattern of the NiMoW/Al-Ce(x) samples, a shoulder appears at approximately 43°, suggesting the presence of NiO (JCPDS 78-0643). Although crystalline nickel aluminate species were not detected by XRD, their presence cannot be excluded because precise identification of these species is complicated by their proximity to the lines at 2θ = 45.8° and 66.4° typical for γ-Al2O3 and NiO. However, it could be assumed that the decrease in the peak intensity of approximately 37.1° with increasing CeO2 content should be related to the presence of highly dispersed NiO species with some interaction with the Al-Ce(x) supports.

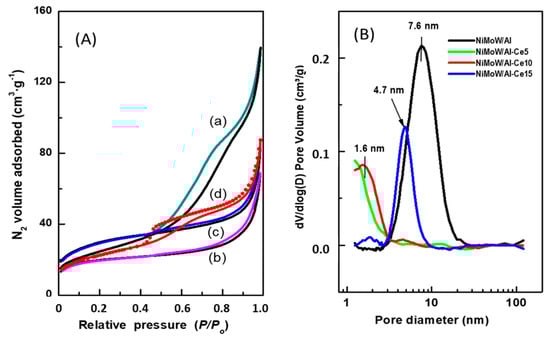

The effect of CeO2 loading on the textural properties of the synthesized catalysts was evaluated from the N2 adsorption-desorption isotherms (Figure 6A). Considering the IUPAC classification, the adsorption branch of the NiMoW/Al sample is of type IV, which is typical of mesoporous materials. Its hysteresis loop is a combination of H1 and H3 types: the H1-type is typical of mesoporous materials that have nearly cylindrical uniform channels, while the H3-type is characteristic of macroporous materials that have not completely filled pores with pore condensate [53]. On the other hand, the NiMoW/Al-Ce15 catalyst presents an adsorption isotherm with a type IV shape. Its hysteresis loop belongs to the H3 type. It has already been shown [53] that hysteresis appears when an adsorbent has slit-shaped pores. It is noteworthy that the decay of its desorption branch is in a narrow P/P0 range and its hysteresis loop starts at a lower relative pressure than that of the sample without Ce, indicating the presence of smaller mesopores. The increase in N2 volume observed at a relative pressure above 0.8 is due to a capillary condensation phenomenon. Finally, in contrast to NiMoW/Al and NiMoW/Al-Ce15 catalysts, NiMoW/Al-Ce5 and NiMoW/Al-10 samples show a type II Langmuir isotherm associated with nonporous or macroporous adsorbents [53]. It should be noted that, unlike Ce-free catalysts and NiMoW/Al-Ce15, these catalysts do not possess any hysteresis loop.
Figure 6B shows the pore size distribution of the calcined catalysts, determined from the adsorption branch of the N2 isotherms. As can be seen, the Ce-free sample (NiMoW/Al) has the largest mean pore diameter (7.6 nm) among the catalysts studied, followed by NiMoW/Al-Ce15 (4.7 nm). Notably, the pore size distribution of both samples with a lower Ce content shows a false peak at approximately 1.6 nm due to the tensile strength effect.
The main textural characteristics of the calcined catalysts are listed in Table 3. As expected, the Ce-containing calcined catalysts exhibit smaller total pore volume and pore diameter than the catalysts without Ce, suggesting blockage of the pores by the metal oxides. The incorporation of metal oxides into all supports decreases the specific BET surface area (SBET). For example, for the NiMoW/Al catalyst (SBET = 87 m2·g−1), this decrease was approximately 29% with respect to pristine γ-Al2O3 calcined at 800 °C (SBET = 122 m2·g−1). Despite the high decrease in SBET, all the calcined catalysts showed high specific BET surface area values in the range of 64–100 m2·g−1. For both NiMoW/Al-Ce5 and NiMoW/Al-Ce10, the decrease in total pore volume (Vtotal) with respect to the NiMoW/Al catalyst cannot reasonably be attributed to the presence of meso- and macropores, as no hysteresis loop is observed for both oxide precursors.

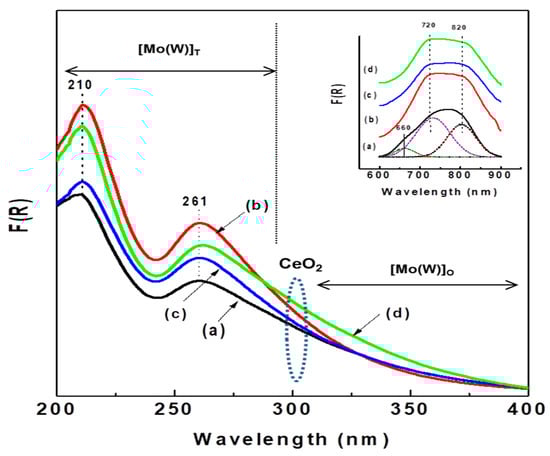

Information on the coordination environment of Ni2+ and Mo6+(W6+) ions in the calcined catalysts was obtained from UV-vis diffuse reflectance spectroscopy. Figure 7 shows the electronic spectra in the 200–400 nm region of all calcined catalysts plotted as a Kubelka–Munk–Schuster function, while the entry in this figure shows their 600–900 nm region. In the 200–400 nm region, all catalysts show two strong bands at approximately 210 and 261 nm, indicating the presence of ligand-metal charge transfer (LMCT); the band at 210 nm is due to the octahedral and/or tetrahedral coordinated Mo(W)6+ ions, while the band at approximately 261 nm is assigned to tetrahedral Mo(W)6+ species (Td) [13]. Considering the intensity of the latter band, the number of tetrahedral Mo(W)6+ species follows the trend Al-Ce5 > Al-Ce15 > Al-Ce10 > Al. As expected, all Ce-containing oxide precursors exhibit a shadow at approximately 300 nm due to O2− → Ce4+ charge transfer [41,54]. Considering the intensity of this shadow, the amount of CeO2 species follows the trend Al-Ce15 > Al-Ce5 > Al-Ce10. Moreover, all catalysts show a large tail between 300 and 400 nm, indicating the presence of octahedrally coordinated Mo(W)6+. It is noteworthy that the NiMoW/Al-Ce15 catalyst shows the highest intensity of the absorption band at approximately 325 nm, suggesting that this catalyst might have the highest number of octahedral species among the catalysts studied.
It is well known that CeO2 has only octahedral coordination, whereas alumina has both tetrahedral and octahedral coordination. The entry in this figure shows two broad absorption bands at approximately 720 nm and 820 nm (d-d transition) arising from octahedral Ni2+ species [55,56]. After Gaussian deconvolution, the sample without Ce shows an additional band at 660 nm, evidencing the presence of a low amount of tetrahedral nickel species, such as the spinel phase NiAl2O4, which are known to be more difficult to sulfide than octahedral ones. The low amount of those spinel species in the NiMoW/Al-Ce catalysts is probably due to the surface ceria species that induced a decrease in the Ni-alumina interactions. In fact, it should be noted that all NiMoW/Al-Ce catalysts possess mainly octahedral Ni species, which are more reducible than tetrahedral Ni species.

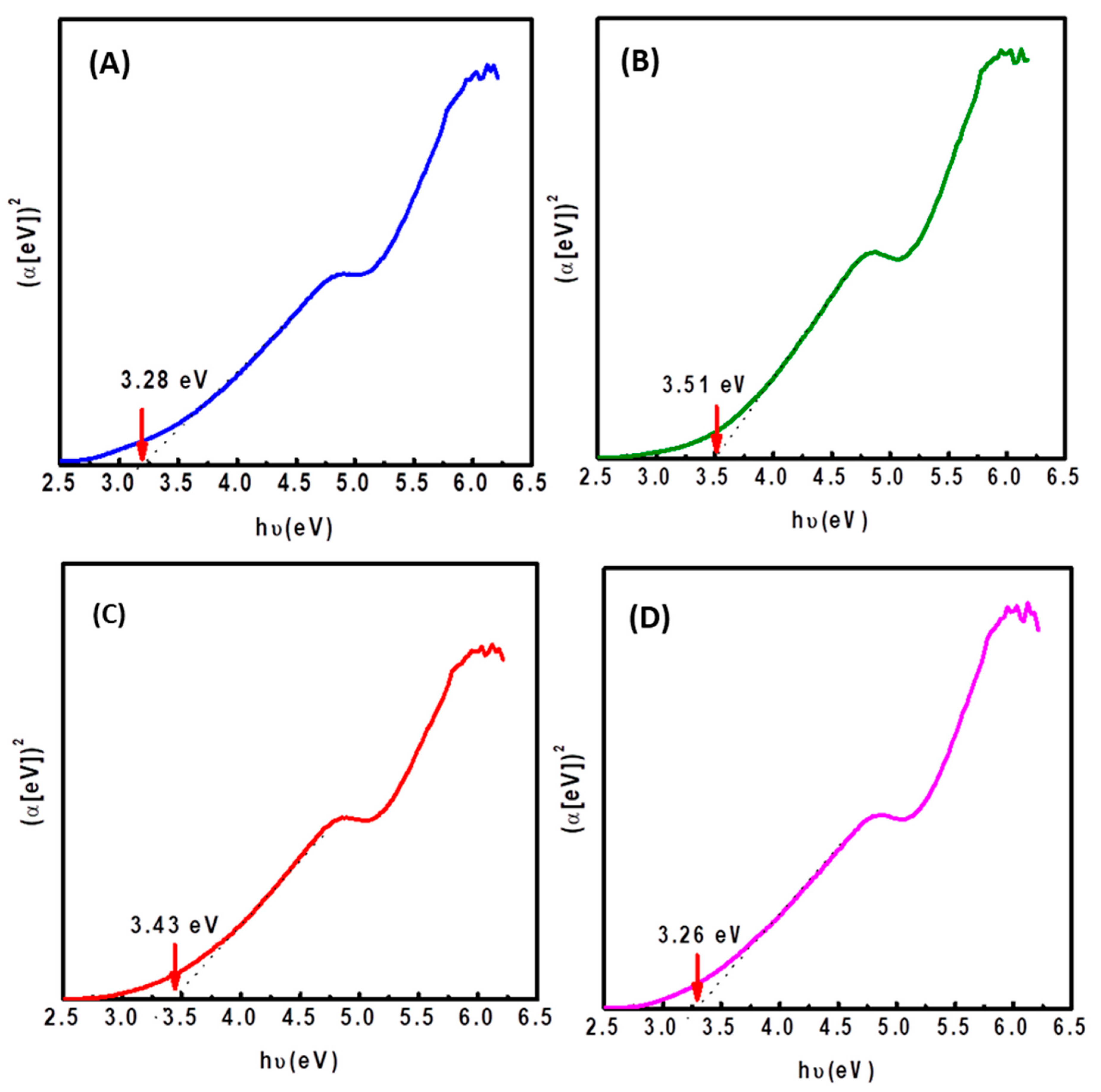

Diffuse reflectance measurements were used to estimate the bandgap energy (Eg) of calcined NiMoW/Al-Ce(x) catalysts with different CeO2 loadings. Figure 8 shows Tauc plots of (αhυ)2 vs. photon energy (hυ) [57]. The bandgap energy (Eg) was estimated from the ratio of the absorption coefficient to the photon energy (Equation (1)) by extrapolating the linear portion of the curve to zero absorbance. The corresponding Eg values were found to be 3.51, 3.43, 3.28, and 3.26 eV for Al-Ce5, Al-Ce10, Al, and Al-Ce15 supported catalysts, respectively. These values indicated that there was a small increase in the estimated bandgap energy for NiMoW/Al-Ce5 and NiMoW/Al-Ce10 compared to NiMoW/Al. In contrast to these catalysts, NiMoW/Al-Ce15 exhibits similar Eg to the sample without Ce. Since the structural transformation of WO3 from amorphous to crystalline phase causes a decrease in Eg, while the opposite trend occurs for the MoO3 phase [58], the low Eg of NiMoW/Al is clearly due to its higher WoO3 loading among the studied catalysts. In the case of NiMoW/Al-Ce15, the explanation for its low Eg is more difficult due to its lower W loading and similar Mo loading of both samples (Table 2). It is more likely that the low Eg of NiMoW Al-Ce15 is related to the presence of isolated CeO2 nanoparticles on the surface of the Al-Ce15 support.

3.3. Catalyst Activity

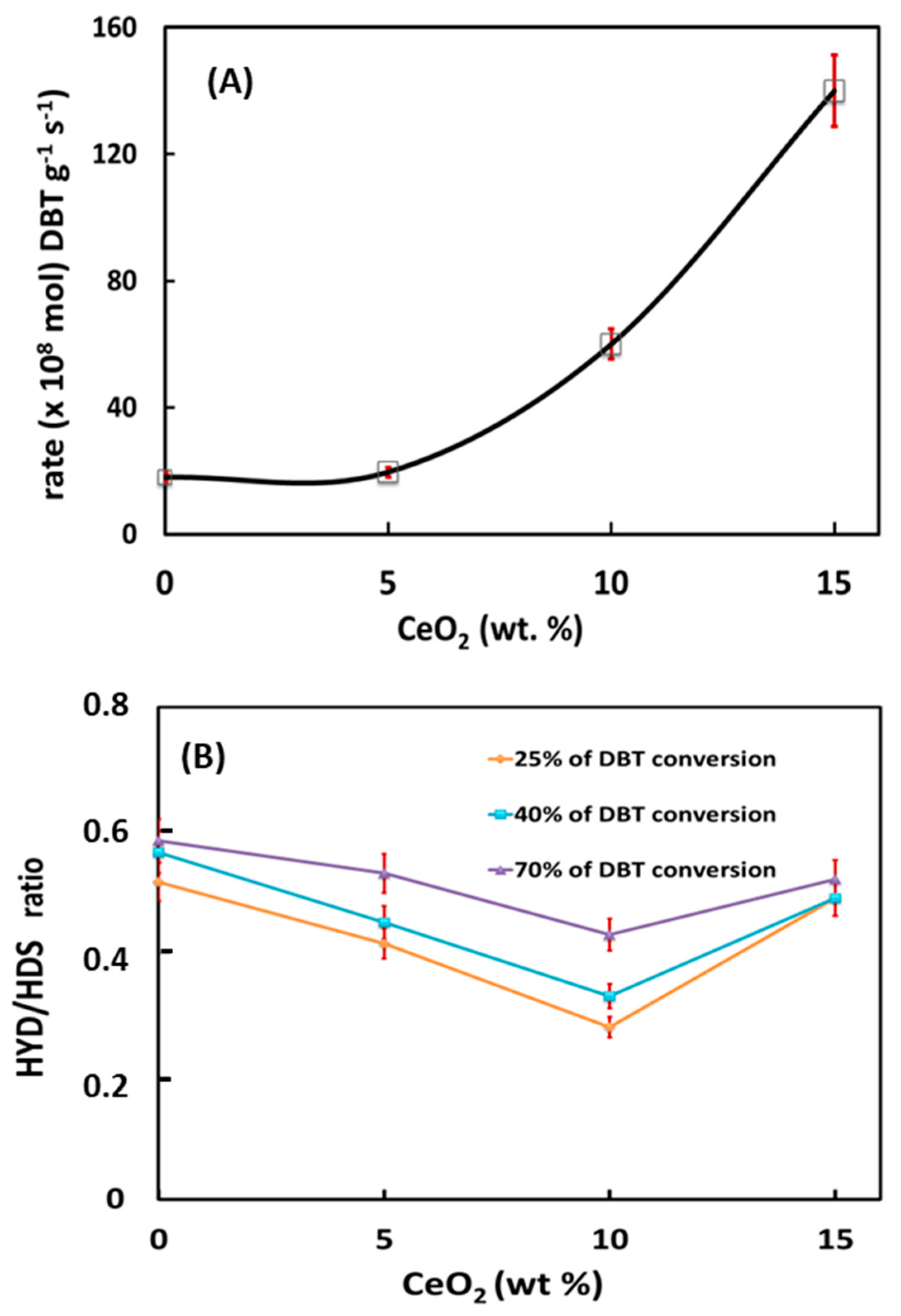

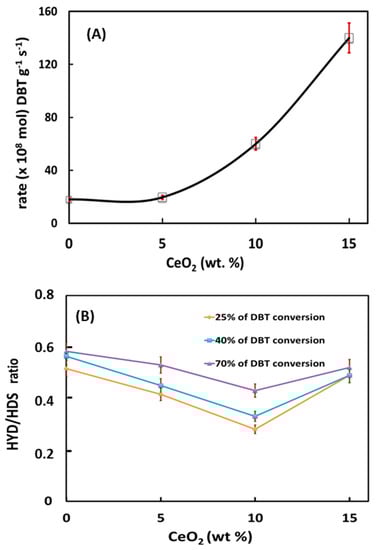

Figure 9A presents the initial reaction rates of DBT HDS over sulfided NiMoW/Al and NiMoW/Al-Ce(x) catalysts. As can be seen in this figure, the catalyst activity increases gradually as a function of Ce loading in the catalysts, reaching a maximum activity for the catalyst with the highest amount of CeO2 (15 wt.%).
Considering the similar metal content of all catalysts, the great improvement of activity with increasing CeO2 content clearly indicates the positive effect of CeO2 on the HDS activity of sulfided NiMoW/Al-Ce(x) catalysts. Our activity results are in line with the study by Kim et al. [59], indicating the higher hydrodesulfurization activity of CoMo/CeO2 with respect to CoMo/Al2O3.
Table 4 compares the DBT conversion at a reaction time of 5 h of all the synthesized catalysts with two laboratory-fabricated NiMo/γ-Al2O3 and NiW/γ-Al2O3 as references. The data presented in this table are of the catalysts that were stabilized for 5 h of reaction. Interestingly, the catalyst modified with 15 wt.% CeO2 was stabilized earlier, during the 5-h reaction time, than that supported on alumina (data not shown here), which is in agreement with what has been observed in the literature [35,36]. As can be seen from Table 4, both reference catalysts show lower activity than our NiMoW supported on alumina. Therefore, it could be concluded that the use of our sol-gel alumina as a support together with the use of the ternary NiMoW formulation and higher metal content greatly improved the catalyst performance compared to the bimetallic NiMo and NiW catalysts tested under the same reaction conditions.
As expected, the products obtained in the hydrodesulfurization of DBT were biphenyl (BP), terahydrodibenzothiophene (THDBT), and cyclohexylbenzene (CHB). BP is formed by the DDS reaction route, while THDBT (intermediate product) and CHB are formed by the HYD reaction route. Since these are parallel routes, the selectivity of the catalysts was calculated as the selectivity ratio HYD/DDS: (CHB+THDBT)/BP. As seen in Figure 9B, at the same DBT conversion of 25, 40, and 70%, all catalysts showed preferential DBT transformation through the direct desulfurization reaction route, with the HYD route being strongly inhibited. However, this situation changes drastically when comparing the HYD/DDS ratio at a reaction time of 5 h. Table 4 compares the HYD/DDS selectivity ratios of the stabilized catalysts with those of the bimetallic reference catalysts tested under the same reaction conditions. As can be observed, the HYD/DDS selectivity ratios at a reaction time of 5 h follow the trend: NiMoW/Al-Ce15 >> NiMoW/Al-Ce10 ≈ NiMoW/Al-Ce5 >> NiMoW/Al. Suddenly, when going from 70 to 98% of the DBT conversion, the most active NiMoW/Al-Ce15 catalyst twists its selectivity and the HYD/DDS ratio changes from 0.6 to 1.7. Notably, this catalyst showed a much higher HYD/DDS selectivity ratio than the reference NiW/ γ-Al2O3 catalyst (1.7 vs. 1.24). Therefore, the most important finding is related to the improvement of the DBT conversion through the HYD reaction route by modifying the support with a large amount of CeO2.

3.4. Characterization of Used Catalysts

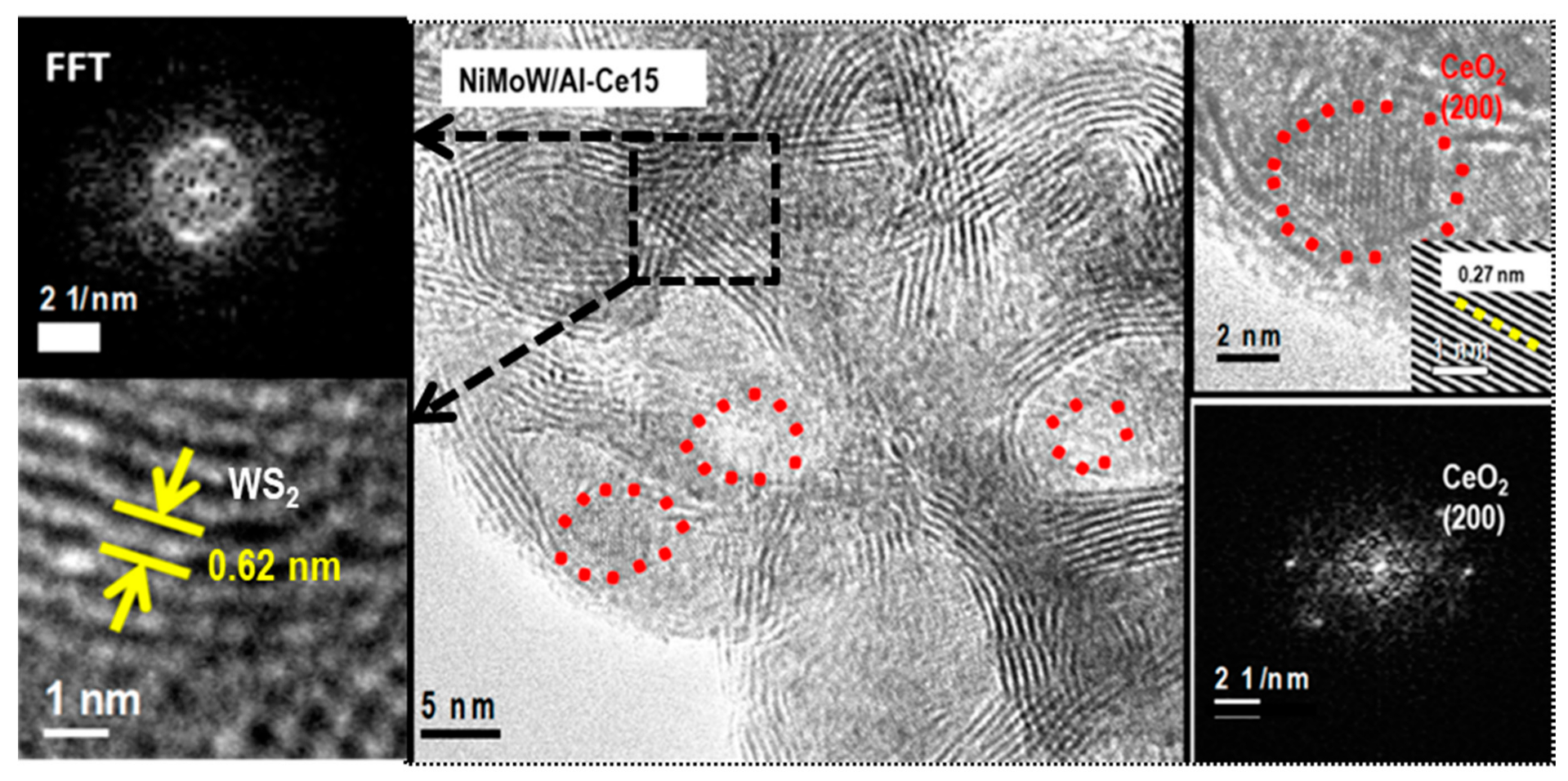

The morphology of the catalysts was used in the DBT HDS reaction and the microstructure of the Mo(W)S2 and NiS phases were studied by HRTEM. Representative TEM images of NiMoW/Al, NiMoW/Al-Ce10, and NiMoW/Al-Ce15 are shown in Figure 10, Figure 11 and Figure 12.
With regard to the active phases, it is well known that Mo(W)S2 clusters exhibit a layered structure of Mo(W) atoms located in trigonal prismatic coordination, whereas Ni(Co)-promoted Mo(W)S2 layers can be viewed as hexagonally truncated triangles [60]. As can be seen in Figure 10, Figure 11 and Figure 12, all catalysts show the basal plane of the Mo(W)S2 layers located parallel to the support surface. As expected, all catalysts show typical fringes corresponding to the (002) plane of the MoS2 (0.616 nm) and WS2 (0.618 nm) phases. For NiMoW/Al-Ce15, the appearance of the (200) planes of CeO2 (dspacing = 0.27 nm, JCPDS 01-075-0390) confirmed the presence of small CeO2 crystallites on the surface of the alumina support (Figure 12). The presence of the Ce element on the surface of this catalyst was also confirmed by EDS measurements (Figure 11B).

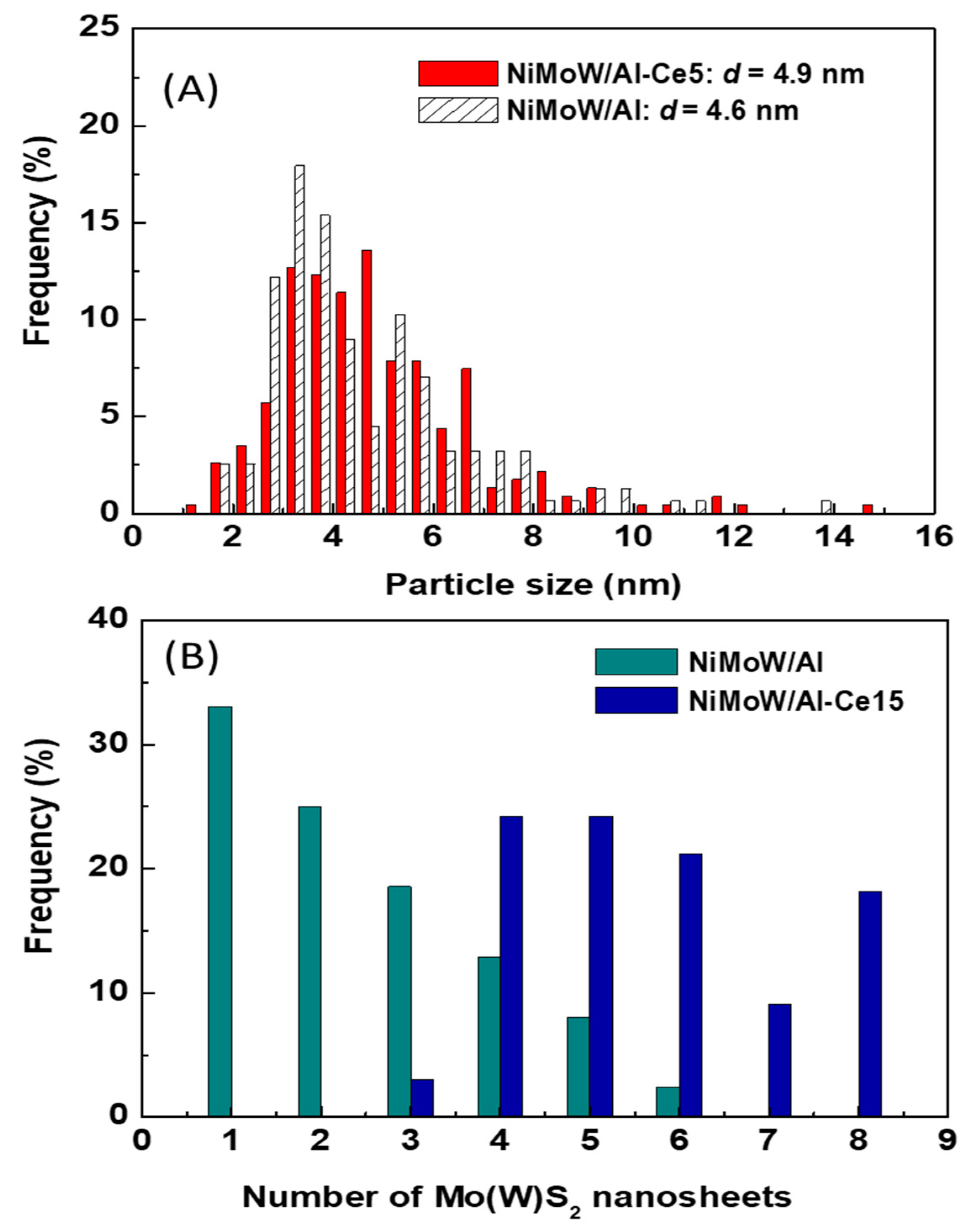

For the Ce-free and NiMoW/Al-Ce10 catalysts, statistical evaluation of the Mo(W)S2 particle length from various HRTEM images suggests a similar average size of Mo(W)S2 nanoparticles (approximately 5 nm) (Figure 13A). Compared to these catalysts, NiMoW/Al-Ce15 shows much larger curved Mo(W)S2 sheets with radii of curvature ranging from 1 to 6 nm (Figure 12). To avoid underestimation, no attempt was made to obtain the average particle size of this catalyst. In the case of NiMoW/Al-Ce15, the formation of the onion-shaped Mo(W)S2 layers might be induced by the CeO2 location along the (002) direction of the Mo(W)S2 crystallites. The dislocation of the coplanarity of MoS2 planes as a result of the intercalation of Ni atoms in the MoS2 interlayer space was reported for unsupported NiMoW catalysts [61]. However, in the case of NiMoW/Al-Ce15, the Ni promoter is probably located at the edge sites of the Mo(W)S2 layers, forming “NiMo(W)S” phases. Similar onion-shaped structures were previously observed for NiMo catalysts supported on Ti-modified HMS [8]. The presence of CeO2 NPs on the NiMoW/Al-Ce15 surface favors the high stacking of Mo(W)S2 layers, as deduced from the comparison of TEM images of the used catalysts in Figure 10.
Unlike NiMoW/Al-Ce15, NiMoW/Al presents mainly Mo(W)S2 phases with 1 and 2 layers (Figure 13B). A similar situation occurs with the NiMoW/Al-Ce10 catalyst (Figure 11A). In the case of the Ce-free catalyst, the growth of large Mo(W)S2 particles was avoided, probably because a rougher alumina surface would provide a larger number of nucleation sites, thus, the Mo(W)S2 domains would have a lower probability of growing into large clusters [62].

4. Discussion

As indicated in the introduction section, new catalysts designed for the hydroprocessing of crude oil should have an improved hydrogenation function. In this regard, this work shows the beneficial effect of alumina modification with a large amount of ceria (15 wt.%) on catalyst morphology and active phase formation.
The disadvantages of alumina-supported reference catalysts with respect to Al2O3-CeO2-supported ones are mainly related to the higher number of active sites and higher Brønsted acidity of the CeO2-containing catalysts, as confirmed by HRTEM and DRIFTS-NH3, respectively. The latter catalyst characteristic is very important because bifunctional catalysts with both metal and acidic functions are required for the HDS reaction [3,4,5,6,7,8,9,10,11,12,13,14]. However, the linear correlation between catalyst acidity and activity was not observed, indicating that acidity could be a minor factor contributing to the higher activity of Al2O3-CeO2-supported NiMoW catalysts in the HDS reaction.
To explain the observed multiple effects of CeO2, we first briefly describe the type of active phases required for DBT transformation via the HYD and DDS reaction routes. In this regard, there is general agreement that the active sites of the metal sulfide catalysts are located at the metal and sulfur edges, as well as at the corners and edge sites of the Mo(W)S2 [63]. In Ni-promoted catalysts, the metal atoms at the edge sites of Mo(W)S2 layers are replaced by nickel atoms, which under industrial processing conditions have been decorated by hydrogen and sulfur atoms [63]. It is well established that the HDS reaction occurs at the sulfur vacancies of Mo(W)S2 crystallites, which are created at the edge sites of these crystallites during the exposure of the catalyst to hydrogen [63,64,65,66]. In this regard, HRTEM characterization is one of the most active NiMoW/Al-Ce15 catalysts, which indicates the formation of onion-shaped Mo(W)S2 particles, with larger sizes and stacking layers than its counterpart without Ce. As can be seen in Figure 12, onion-shaped Mo(W)S2 layers are formed around the CeO2 crystallites located on their supporting surface. These fullerene-like Mo(W)S2 clusters exhibit curvature with flat regions separated by strongly localized distorted zones. In these cases, the formation of defective sites in the basal planes is highly possible because the curved layers exhibit weak Mo-S binding strength of the MoS2 phase [63]. In the case of the ternary NiMoW catalysts, it can be expected that the Mo(W) atoms at the edges of the Mo(W)S2 particles can be partially substituted with Ni atoms. In addition, along the periphery of NiMo(W)S2 particles, coordinately unsaturated sites (CUS) can be easily formed at their sulfur and metal edges, corners, and brim sites [63,64,65,66]. The removal of sulfur atoms from the edges of the catalyst particles by molecular hydrogen led to the formation of coordinative unsaturated sites (CUS) that behave as Lewis acid sites, allowing strong binding to the electron-donating DBT molecule [63]. Considering that the most active catalyst was the only one with onion-shaped Mo(W)S2 clusters, its improved catalytic behavior suggests the formation of a large number of active sites in the onion-shaped Mo(W)S2 phases. The high HDS activity of the NiMoW/Al-Ce15 catalyst is in good agreement with the study by Dayte et al., which related the enhancement of the HDS activity of MoS2/TiO2 catalysts to the radius of curvature of MoS2 layers formed on a rougher surface texture of the TiO2 support [62]. Similarly, Berhault and coworkers [67] observed modification of the HDS properties of sulfided CoMo/Al2O3 catalysts by creating active sites in the curved layers of the MoS2 phase. In this regard, for the NiMo/CeO2 supported catalyst, Phan et al. observed some Ce-Mo interactions leading to an enhancement of its hydrodeoxygenation activity [68].
According to XRD analysis of its oxide precursor, the support surface of this catalyst is decorated by small crystallites of CeO2. In this case, the improvement of the hydrogenation function of the NiMoW/Al-Ce15 catalyst can be explained by taking into account the additional ability of the CeO2 nanoparticles located on the alumina surface to dissociate H2 molecules. In this regard, two mechanisms of H2 dissociation on metal oxide surfaces can be taken into account: homolytic dissociation, which produces two hydrogen atoms on two oxygen sites, and heterolytic dissociation, which involves two different adsorption sites: a proton on the oxygen site (H+/O=) and a hydride (H−) on the surface [69]. In this sense, both experimental and density functional theory (DFT) simulations indicated that heterolytic cleavage occurs on difficult-to-reduce Al2O3 [70], as well as on easily reducible CeO2 defective sites [70,71,72,73]. The presence of defective sites on ceria leads to the reduction in ceria and the formation of Ce3+ species [70,71,72,73]. Therefore, the sudden change from the direct desulfurization reaction pathway to the hydrogenation pathway can be explained by considering that the high reaction temperature could favor the heterolytic dissociation of hydrogen on the surface of the CeO2. A schematic representation of the DBT HDS reaction mechanism on the surface of the best NiMoW/Al-Ce15 catalyst is shown in Figure 14.
Finally, an inhibition of direct desulfurization in the reaction over NiMoW/Al-Ce15 could also be explained considering that the high DBT conversion (97%) leads to the formation of a large amount of H2S, which is accumulated in a batch reactor. In such cases, H2S adsorbed on the edge of the Mo(W)S2 phases inhibits DBT transformation via the direct desulfurization route, favoring its transformation via the hydrogenation route [74]. In fact, there are many literature reports demonstrating that high H2S partial pressure severely inhibits the DDS pathway [75,76].
In summary, this work demonstrated the positive effect of the formation of onion-shaped Mo(W)S2 layers on the catalyst activity. The heterolytic dissociation of H2 on CeO2 surfaces was proposed as an additional factor that could contribute to an increase in catalyst activity. The enhancement of DBT transformation by the HYD route was linked to the adsorption of H2S on the edge sites of the onion-like Mo(W)S2 phases.

5. Conclusions

In this work, the effectiveness of γ-alumina modification with CeO2 on the catalytic behavior of sulfided NiMoW catalysts was evaluated in the liquid-phase DBT HDS reaction. The results show an increase in catalytic activity with increasing CeO2 loading, indicating the positive effect of CeO2 on the HDS activity of NiMoW/Al-Ce(x) catalysts. The high S removal (DBT conversion of 97 wt.%) and the remarkable increase in selectivity towards the hydrogenation route (HYD/DDS ratio = 1.7) were achieved with the best NiMoW/Al-Ce15 catalyst modified with the highest CeO2 content (15 wt.%). This catalyst was stabilized more rapidly than that supported on γ-alumina, suggesting the stabilizing effect of the small CeO2 nanoparticles decorating the surface of the support. From the catalyst activity-structure correlation, the improved activity of the catalysts supported on Al2O3-CeO2 over those supported only on γ-Al2O3 was attributed to the formation of the new active phases in the onion-shaped Mo(W)S2 layers, to the higher Brønsted acidity, inhibition of NiAlO4 spinel phase formation, suitable textural properties, and additional heterolytic dissociation of H2 on the surface of CeO2 nanoparticles. However, the linear correlation between catalyst acidity and activity was not observed, indicating that acidity could be a minor factor contributing to the higher activity of Al2O3-CeO2-supported NiMoW catalysts in the HDS reaction. The presented results open a new perspective for the use of easily reducible oxides, such as CeO2 for the design of new catalysts for hydrotreating reactions.

Author Contributions

Conceptualization, R.H.-A. and B.P.; methodology, R.H.-A.; software, N.M.; validation, R.M.N.Y. and B.P.; formal analysis and investigation, N.M.; resources, R.M.N.Y.; data curation, N.M.; writing—original draft preparation, B.P. and R.H.-A.; writing—review and editing, R.M.N.Y.; project administration, R.H.-A.; funding acquisition, R.M.N.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CIC UMSNH 2021–2022 (Mexico); the Autonomous Community of Madrid (BIOTRES-CM; P2018/EMT-4344 project); and Spanish Ministry of Science and Innovation (PID2019-111219RB-100 project).

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

Not Applicable.

Acknowledgments

The authors thank A. Abrego and T.A. Zepeda (CNyN-UNAM, Ensenada, Mexico) for their technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Topsøe, H.; Clausen, B.S.; Massoth, F.E. Hydrotreating Catalysts; Springer Verlag: Berlin/Heidelberg, Germany, 1996; p. 458. [Google Scholar]
  2. Raybaud, P.; Toulhoat, H. Catalysis by Transition Metal Sulphides: From Theory to Industrial Application; Editions Technip: Paris, France, 2013; p. 832. [Google Scholar]
  3. Navarro, R.; Pawelec, B.; Fierro, J.L.G.; Vasudevan, P.T. Dibenzothiophene hydrodesulfurization on silica-alumina-supported transition metal sulfide catalysts. Appl. Catal. A Gen. 1996, 148, 23–40. [Google Scholar] [CrossRef]
  4. Tavizón-Pozos, J.A.; Suárez-Torello, V.A.; de los Reyes, J.A.; Guevara-Lara, A.; Pawelec, B.; Fierro, J.L.G.; Vrinat, M.; Geantet, C. Deep hydrodesulfurization of dibenzothiophene over NiW sulfide catalysts supported on sol-gel titania-alumina. Top. Catal. 2016, 59, 241–251. [Google Scholar] [CrossRef]
  5. Huirache-Acuña, R.; Navarro Yerga, R.M.; Pawelec, B. Hydrodesulfurization on supported CoMoS2 catalysts ex ammonium tetrathiomolybdate: Effects of support morphology and al modification method. Top. Catal. 2022, 1–14. [Google Scholar] [CrossRef]
  6. Singh, R.; Kunzru, D.; Sivakumar, S. Enhanced catalytic activity of ultrasmall NiMoW trimetallic nanocatalyst for hydrodesulfurization of fuels. Fuel 2021, 288, 119603. [Google Scholar] [CrossRef]
  7. Absi-Halabi, M.; Stanislaus, A.; Al-Dolama, K. Performance comparison of alumina-supported Ni–Mo, Ni–W and Ni–Mo–W catalysts in hydrotreating vacuum residue. Fuel 1998, 7, 787–790. [Google Scholar] [CrossRef]
  8. Huirache-Acuña, R.; Zepeda, T.A.; Vázquez, P.J.; Rivera-Muñoz, E.M.; Maya-Yescas, R.; Pawelec, B.; Alonso-Núñez, G. The use of inorganic Al-HMS as a support for NiMoW sulfide HDS catalysts. Inorg. Chim. Acta 2021, 524, 120450. [Google Scholar] [CrossRef]
  9. Gallegos-Hernández, A.Y.; Martínez-Rosales, M.; Rico, J.L.; Avalos-Borja, M. Improvement in the hydrodesulfurization of dibenzothiophene over supported NiMoW catalysts. Reac. Kinet. Mech. Cat. 2021, 132, 317–330. [Google Scholar] [CrossRef]
  10. Mendoza-Nieto, J.A.; Vizueth-Montes de Oca, A.; Calzada, L.A.; Klimova, T.E. Trimetallic NiMoW and CoMoW catalysts supported on SBA-15 modified with titania or zirconia for deep hydrodesulfurization. Catal. Today 2021, 360, 78–89. [Google Scholar] [CrossRef]
  11. Guzmán, M.A.; Huirache-Acuña, R.; Loricera, C.V.; Hernández, J.R.; Díaz de León, J.N.; de los Reyes, J.A.; Pawelec, B. Removal of refractory S-containing compounds from liquid fuels over P-loaded NiMoW/SBA-16 sulfide catalysts. Fuel 2013, 103, 321–333. [Google Scholar] [CrossRef]
  12. Gómez-Orozco, S.Y.; Huirache-Acuña, R.; Pawelec, B.; Fierro, J.L.G.; Rivera-Muñoz, E.M.; Lara-Romero, J.; Alonso-Nuñez, G. Characterizations and HDS performances of sulfided NiMoW catalysts supported on mesoporous titania-modified SBA-15. Catal. Today 2018, 305, 152–161. [Google Scholar] [CrossRef]
  13. Vázquez-Salas, P.J.; Huirache-Acuña, R.; Zepeda, T.A.; Alonso-Núñez, G.; Maya-Yescas, R. Enhancement of dibnzothiophene hydrodesulfurization via hydrogenation route on NiMoW catalyst supported on HMS modified with Ti. Catal. Today 2018, 305, 65–74. [Google Scholar] [CrossRef]
  14. Huirache-Acuña, R.; Rivera-Muñoz, E.M.; Pawelec, B.; Ostrooumov, M.; Maya-Yescas, R.; Rico, J.L. The use of a natural Mexican zeolite as support of NiMoW sulphide hydrotreating catalysts. Catal. Today 2014, 220–222, 301–309. [Google Scholar] [CrossRef]
  15. Stuart, N.M.; Sohlberg, K. The Microstructure of γ-Alumina. Energies 2021, 14, 6472. [Google Scholar] [CrossRef]
  16. Levin, I.; Brandon, D. Metastable Alumina Polymorphs: Crystal Structures and Transition Sequences. J. Am. Ceram. Soc. 1998, 81, 1995–2012. [Google Scholar] [CrossRef]
  17. Trueba, M.; Trasatti, S.P. γ-Alumina as a support for catalysts: A review of fundamental aspects. Eur. J. Inorg. Chem. 2005, 2005, 3393–3403. [Google Scholar] [CrossRef]
  18. Prins, R. On the structure of γ-Al2O3. J. Catal. 2020, 392, 336–346. [Google Scholar] [CrossRef]
  19. Feng, K.; An, J.; Ren, W.; Lei, X.; Li, G.; Rong, D.; Wen, X. The synthesis of urchin-like γ-Al2O3 hierarchical microspheres from Al foils and its rapid adsorption ability towards Congo red. Mater. Res. Express 2020, 7, 035011. [Google Scholar] [CrossRef]
  20. Abello, M.C.; Velasco, A.P.; Ferretti, O.A.; Fierro, J.L.G. A Monte Carlo approach to describe the reduction behavior of bideimensional MoOx structures grown on an alumina substrate. Lat. Am. Appl. Res. 2007, 37, 307–313. [Google Scholar]
  21. Ozawa, M.; Kimura, M. Effect of cerium addition on the thermal stability of gamma alumina support. J. Mater. Sci. Lett. 1990, 9, 291–293. [Google Scholar] [CrossRef]
  22. Elliott, D.C.; Hart, T.R. Catalytic Hydroprocessing of Chemical Models for Bio-oil. Energy Fuels 2009, 23, 631–637. [Google Scholar] [CrossRef]
  23. Kordouli, E.; Pawelec, B.; Kordulis, C.; Lycourghiotis, A.; Fierro, J.L.G. Hydrodeoxygenation of phenol on bifunctional Ni-based catalysts: Effects of Mo promotion and support. Appl. Catal. B Environ. 2018, 238, 147–160. [Google Scholar] [CrossRef]
  24. Tang, S.; Ji, L.; Lin, J.; Zeng, H.C.; Tan, K.L.; Li, K. CO2 Reforming of Methane to Synthesis Gas over Sol–Gel-made Ni/γ-Al2O3 Catalysts from Organometallic Precursors. J. Catal. 2000, 194, 424–430. [Google Scholar] [CrossRef]
  25. Zhang, Y.; Xiong, G.; Sheng, S.; Yang, W. Deactivation studies over NiO/γ-Al2O3 catalysts for partial oxidation of methane to syngas. Catal. Today 2000, 63, 517–522. [Google Scholar] [CrossRef]
  26. Kim, J.-H.; Suh, D.J.; Park, T.-J.; Kim, K.-L. Effect of metal particle size on coking during CO2 reforming of CH4 over Ni–alumina aerogel catalysts. Appl. Catal. A 2000, 197, 191–200. [Google Scholar] [CrossRef]
  27. Osorio-Vargas, P.; Campos, C.H.; Navarro, R.M.; Fierro, J.L.G.; Reyes, P. Improved ethanol steam reforming on Rh/Al2O3 catalysts doped with CeO2 or/and La2O3: Influence in reaction pathways including coke formation. Appl. Catal. A Gen. 2015, 505, 159–172. [Google Scholar] [CrossRef]
  28. Wang, S.; Lu, G.Q. Role of CeO2 in NiMoW/CeO2-Al2O3 catalysts for carbon dioxide reforming of methane. Appl. Catal. B Environ. 1998, 19, 267–277. [Google Scholar] [CrossRef]
  29. Damyanova, S.; Perez, C.A.; Schmal, M.; Bueno, J.M.C. Characterization of ceria-coated alumina carrier. Appl. Catal. A Gen. 2002, 234, 271–282. [Google Scholar] [CrossRef]
  30. Damyanova, S.; Pawelec, B.; Palcheva, R.; Karakirova, Y.; Capel-Sanchez, M.C.; Tyuliev, G.; Gaigneaux, E.; Fierro, J.L.G. Structure and surface properties of ceria-modified Ni-based catalysts for hydrogen production. Appl. Catal. B Environ. 2018, 225, 340–353. [Google Scholar] [CrossRef]
  31. Pawelec, B.; Guil-López, R.; Mota, N.; Fierro, J.L.G.; Navarro Yerga, R.M. Catalysts for the conversion of CO2 to low molecular weight olefins–A review. Materials 2021, 14, 6952. [Google Scholar] [CrossRef]
  32. Mota, N.; Ordoñez, E.M.; Pawelec, B.; Fierro, J.L.G.; Navarro, R.M. Direct synthesis of dimethyl ether from CO2: Recent advances in bifunctional/hybrid catalytic systems. Catalysts 2021, 11, 411. [Google Scholar] [CrossRef]
  33. Ciesielski, R.; Shtyka, O.; Zakrzewski, M.; Kubicki, J.; Maniukiewicz, W.; Kedziora, A.; Maniecki, T.P. Mechanistic studies of methanol synthesis reaction over Cu and Pd–Cu catalysts. Kinet. Catal. 2020, 61, 623–630. [Google Scholar] [CrossRef]
  34. Fan, X.; Yao, M.; Liu, F.; Wang, X.; Cao, J. Effect of preparation methods on physicochemical properties of Al2O3-CeO2 and its catalytic performance of CO2 hydrogenation to methanol. J. Synth. Cryst. 2021, 50, 1745–1755 and 1795. [Google Scholar]
  35. Wu, Y.; Lin, J.; Ma, G.; Xu, Y.; Zhang, J.; Samart, C.; Ding, M. Ni nanocatalysts supported on mesoporous Al2O3-CeO2 for CO2 methanation at low temperature. RSC Adv. 2020, 10, 2067–2072. [Google Scholar] [CrossRef] [PubMed]
  36. Qin, S.; Li, J.; Long, J.; Yang, X.; Miao, P. Promotion effect of cerium on Mo/Al2O3 catalyst for methanation. Appl. Catal. A Gen. 2020, 598, 117559. [Google Scholar] [CrossRef]
  37. Cheng, D.G.; Chong, M.; Chen, F.; Zhan, X. XPS Characterization of CeO2 Catalyst for Hydrogenation of Benzoic Acid to Benzaldehyde. Catal. Lett. 2008, 120, 82–85. [Google Scholar] [CrossRef]
  38. Vilé, G.; Bridier, B.; Wichert, J.; Pérez-Ramírez, J. Ceria in hydrogenation catalysis: High selectivity in the conversion of alkynes to olefins. Angew. Chem. Int. Ed. 2012, 124, 8748–8751. [Google Scholar] [CrossRef]
  39. García-Melchor, M.; Bellarosa, L.; López, N. Unique reaction path in heterogeneous catalysis: The concerted semi-hydrogenation of propyne to propene on CeO2. ACS Catal. 2014, 4, 4015–4020. [Google Scholar] [CrossRef]
  40. Carrasco, J.; Vilé, G.; Fernández-Torre, D.; Pérez, R.; Pérez-Ramírez, J.; Ganduglia-Pirovano, M.V. Molecular-level understanding of CeO2 as a catalyst for partial alkyne hydrogenation. J. Phys. Chem. C 2014, 118, 5352–5360. [Google Scholar] [CrossRef]
  41. Manríquez, M.E.; Hernández-Pichardo, M.L.; Barrera, M.C.; Ramírez-López, R.; Castro, L.V. Enhanced catalytic activity on the naphthalene hydrogenation reaction over Pt-Pd/Al2O3-CeO2 catalysts. Rev. Mex. Ing. Quim. 2018, 17, 913–925. [Google Scholar] [CrossRef]
  42. Miciukiewicz, J.; Laniecki, M.; Domka, F. Thiophene hydrodesulfurization over modified alumina-supported molybdenum sulfide catalysts. Catal. Lett. 1998, 51, 65–68. [Google Scholar] [CrossRef]
  43. Jirátová, K.; Spojakina, A.; Kaluža, L.; Palcheva, R.; Balabánová, J.; Tyuliev, G. Hydrodesulfurization activities of NiMo catalysts supported on mechanochemically prepared Al-Ce mixed oxides. Cuihua Xuebao/Chinese J. Catal. 2016, 37, 258–267. [Google Scholar] [CrossRef]
  44. Lu, X.; Luo, L.; Cheng, X. Effect of ceria on noble metal catalysts for hydrodesulfurization. Spec. Petrochem. 2008, 25, 34–38. [Google Scholar]
  45. Alonso-Pérez, M.O.; Pawelec, B.; Zepeda, T.A.; Alonso-Núñez, G.; Nava, R.; Navarro, R.M.; Huirache-Acuña, R. Effect of the titanium incorporation method on the morphology and HDS activity of supported ternary Ni-Mo-W/SBA-16 catalysts. Micropor. Mesopor. Mater. 2021, 312, 110779. [Google Scholar] [CrossRef]
  46. Kokka, A.; Petala, A.; Panagiotopoulou, P. Support Effects on the Activity of Ni Catalysts for the Propane Steam Reforming Reaction. Nanomaterials 2021, 11, 1948. [Google Scholar] [CrossRef] [PubMed]
  47. Zhou, Z.; Zeng, T.; Cheng, Z.; Yuan, W. Preparation of a catalyst for selective hydrogenation of pyrolysis gasoline. Ind. Eng. Chem. Res. 2010, 49, 11112–11118. [Google Scholar] [CrossRef]
  48. Mendoza-Nieto, J.A.; Vera-Vallejo, O.; Escobar-Alarcón, L.; Solis-Casados, D.; Klimova, T. Development of new trimetallic NiMoW catalysts supported on SBA-15 for deep hydrodesulfurization. Fuel 2013, 110, 268–277. [Google Scholar] [CrossRef]
  49. Bêche, E.; Charvin, P.; Perarnau, D.; Abanades, S.; Flamant, G. Ce 3d XPS investigation of cerium oxides and mixed cerium oxide (CexTiyOz). Surf. Interface Anal. 2008, 40, 264–267. [Google Scholar] [CrossRef]
  50. Ghule, A.V.; Ghule, K.; Punde, T.; Liu, J.-Y.; Tzing, S.-H.; Chang, J.-Y.; Chang, H.; Ling, Y.-C. In situ monitoring of NiO-Al2O3 nanoparticles synthesis by thermo-Raman spectroscopy. Mater. Chem. Phys. 2010, 119, 86–92. [Google Scholar] [CrossRef]
  51. NIST Standard Reference Database Number 69. Available online: https://webbook.nist.gov/chemistry/ (accessed on 30 June 2022).
  52. Wallin, M.; Grönbeck, H.; Lloyd Spetz, A.; Skoglundh, M. Vibrational study of ammonia adsorption on Pt/SiO2. Appl. Surf. Sci. 2004, 235, 487–500. [Google Scholar] [CrossRef]
  53. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  54. Li, R.; Yabe, S.; Yamashita, M.; Momose, S.; Yoshida, S.; Yin, S.; Sato, T. UV-shielding properties of zinc oxide-doped ceria fine powders derived via soft solution chemical routes. Mater. Chem. Phys. 2002, 75, 39–44. [Google Scholar] [CrossRef]
  55. Li, X.; Zhou, F.; Wang, A.; Wang, L.; Hu, Y. Influence of templates on the overgrowth of MCM-41 over HY and hydrodesulfurization performance of the supported Ni-Mo catalysts. Ind. Eng. Chem. Res. 2009, 48, 2870–2877. [Google Scholar] [CrossRef]
  56. Raikwar, D.; Munagala, M.; Majumdar, S.; Shee, D. Hydrodeoxygenation of guaiacol over Mo, W and Ta modified supported nickel catalysts. Catal. Today 2019, 325, 117–130. [Google Scholar] [CrossRef]
  57. Tauc, J.; Abeles, F. (Eds.) The Optical Properties of Solids; North-Holland Publishing Company: Amsterdam, The Netherlands, 1972. [Google Scholar]
  58. Wang, Y.; Herron, N. Nanometer-sized semiconductor clusters: Materials synthesis, quantum size effects, and photophysical properties. J. Phys. Chem. 1991, 95, 525–532. [Google Scholar] [CrossRef]
  59. Kim, H.K.; Lee, C.W.; Kim, M.; Oh, J.H.; Song, S.A.; Jang, S.C.; Yoon, C.W.; Han, J.; Yoon, S.P.; Nam, S.W. Preparation of CoMo/Al2O3, CoMo/CeO2 and CoMo/TiO2 catalysts using ultrasonic spray pyrolysis for the hydrodesulfurization of 4,6-dimethyldibenzothiophene for fuell cell applications. Int. J. Hydrogen Energy 2016, 41, 18846–18857. [Google Scholar] [CrossRef]
  60. Lauritsen, J.V.; Kibsgaard, J.; Olesen, G.H.; Moses, P.G.; Hinneman, B.; Helveg, S.; Nørskov, J.K.; Clausen, B.S.; Topsøe, H.; Lægsgaard, E.; et al. Location and coordination of promoter atoms in Co- and Ni-promoted MoS2-based hydrotreating catalysts. J. Catal. 2007, 249, 220–233. [Google Scholar] [CrossRef]
  61. Zhang, B.S.; Yi, Y.J.; Zhang, W.; Liang, C.H.; Su, D.S. Electron microscopy investigation of the microstructure of unsupported Ni-Mo-W sulfide. Mater. Charact. 2011, 62, 684690. [Google Scholar] [CrossRef]
  62. Datye, A.K.; Srinivasan, S.; Allard, L.F.; Peden, C.H.F.; Brenner, J.R.; Thompson, L.T. Oxide supported MoS2 catalysts of unusual morphology. J. Catal. 1996, 158, 205–216. [Google Scholar] [CrossRef]
  63. Rangarajan, S.; Mavrikakis, M. On the prefered active sites of promoted MoS2 for hydrodesulfurization with minimal organonitrogen inhibition. ACS Catal. 2017, 7, 501–509. [Google Scholar] [CrossRef]
  64. Nyberg, N.; Nørskov, J.K.; Clausen, B.S.; Topsøe, H.; Lægsgaard, E.; Besenbacher, F. Hydrodesulfurization reaction pathways on MoS2 nanoclusters revealed by scanning tunneling microscopy. J. Catal. 2004, 224, 94–106. [Google Scholar]
  65. Topsøe, H.; Hinnemann, B.; Nørskov, J.K.; Lauritsen, J.V.; Besenbacher, F.; Hansen, P.L.; Hytoft, G.; Egeberg, R.G.; Knudsen, K.G. The role of reaction pathways and support interactions in the development of high activity hydrotreating catalysts. Catal. Today 2005, 107–108, 12–22. [Google Scholar] [CrossRef]
  66. Lauritsen, J.V.; Nyberg, M.; Vang, R.T.; Bollinger, M.V.; Clausen, B.S.; Topsøe, H.; Jacobsen, K.W.; Lægsgaard, E.; Nørskov, J.K.; Besenbacher, F. Chemistry of one-dimensional metallic edge states in MoS2 nanoclusters. Nanotechnology 2003, 14, 385–389. [Google Scholar] [CrossRef]
  67. Nogueira, A.; Znaiguia, R.; Uzio, D.; Afanasiev, P.; Berhault, G. Curved nanostructures of unsupported and Al2O3-supported MoS2 catalysts - Synthesis and HDS catalytic properties. Appl. Catal. A Gen. 2012, 429–430, 92–105. [Google Scholar] [CrossRef]
  68. Phan, B.; Ha, Q.L.M.; Le, N.P.; Ngo, P.T.; Nguyen, T.H.; Dang, T.T.; Nguyen, L.H.; Nguyen, D.A.; Luu, L.C. Infuence of various supports, gamma-Al2O3, CeO2, and SBA-15 on HDO performance of NiMo catalyst. Catal. Lett. 2015, 145, 662–667. [Google Scholar] [CrossRef]
  69. Fierro, J.L.G. Hydrogenation of carbon oxide on metal oxides. In Metal Oxides: Chemistry and Applications, 1st ed.; Fierro, J.L.G., Ed.; CRC Press Taylor & Francis: Boca Raton, FL, USA, 2006; pp. 569–594. [Google Scholar]
  70. Li, Z.; Werner, K.; Qian, K.; You, R.; Płucienik, A.; Jia, A.; Wu, L.; Zhang, L.; Pan, H.; Kuhlenbeck, H.; et al. Oxidation of reduced ceria by incorporation of hydrogen. Angew. Chem. Int. Ed. 2019, 58, 14686–14693. [Google Scholar] [CrossRef]
  71. Binet, C.; Daturi, M.; Lavalley, J.-C. IR study of polycrystalline ceria properties in oxidized and reduced states. Catal. Today 1999, 50, 207–225. [Google Scholar] [CrossRef]
  72. Chen, H.-T.; Choi, Y.M.; Liu, M.; Lin, M.C. A theoretical study of surface reduction mechanisms of CeO2(111) and (110) by H2. ChemPhysChem 2007, 8, 849–855. [Google Scholar] [CrossRef]
  73. Fernández-Torre, D.; Carrasco, J.; Ganduglia-Pirovano, M.V.; Pérez, R. Hydrogen activation, diffusion, and clustering on CeO2(111): A DFT+U study. J. Chem. Phys. 2014, 141, 014703. [Google Scholar] [CrossRef]
  74. Farag, H.; El-Hendawy, A.; Kishida, M. Kinetic modeling of the influence of H2S on dibenzothiophene hydrodesulfurization in a batch system over nano-MoS2. Adv. Chem. Eng. Sci. 2020, 10, 135–148. [Google Scholar] [CrossRef]
  75. Sun, Y.; Prins, R. Mechanistic studies and kinetics of the hydrodesulfurization of dibenzothiophene on Co–MoS2 /γ-Al2O3. J. Catal. 2009, 267, 193–201. [Google Scholar] [CrossRef]
  76. Olguin Orozco, E.; Vrinat, M. Kinetics of dibenzothiophene hydrodesulfurization over MoS2 supported catalysts: Modelization of the H2S partial pressure effect. Appl. Catal. A Gen. 1998, 170, 195–206. [Google Scholar] [CrossRef]
Materials 15 06780 g001 550

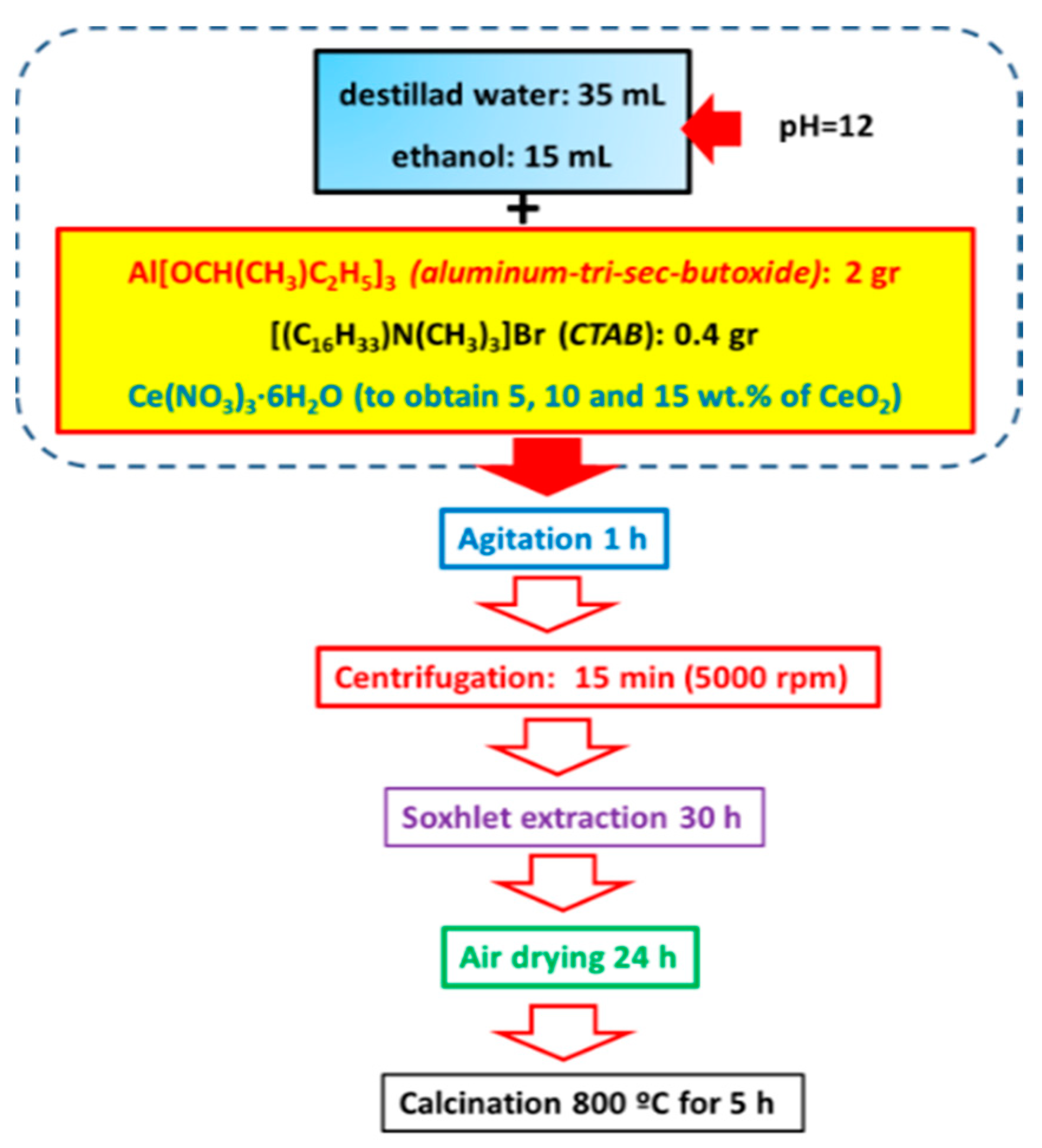

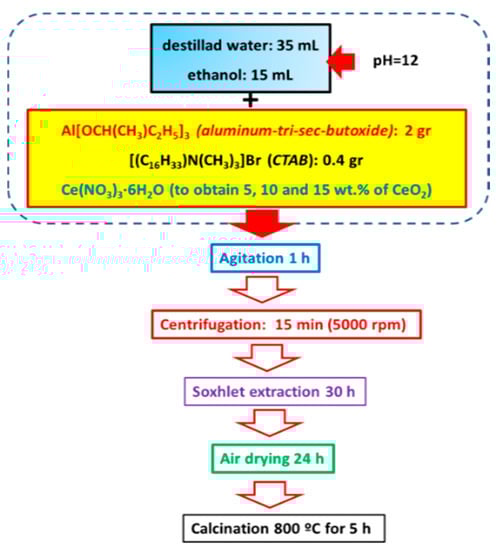

Figure 1. Schematic representation of the γ-Al2O3-CeO2 support synthesis by sol-gel method.
Figure 1. Schematic representation of the γ-Al2O3-CeO2 support synthesis by sol-gel method.
Materials 15 06780 g001
Materials 15 06780 g002 550

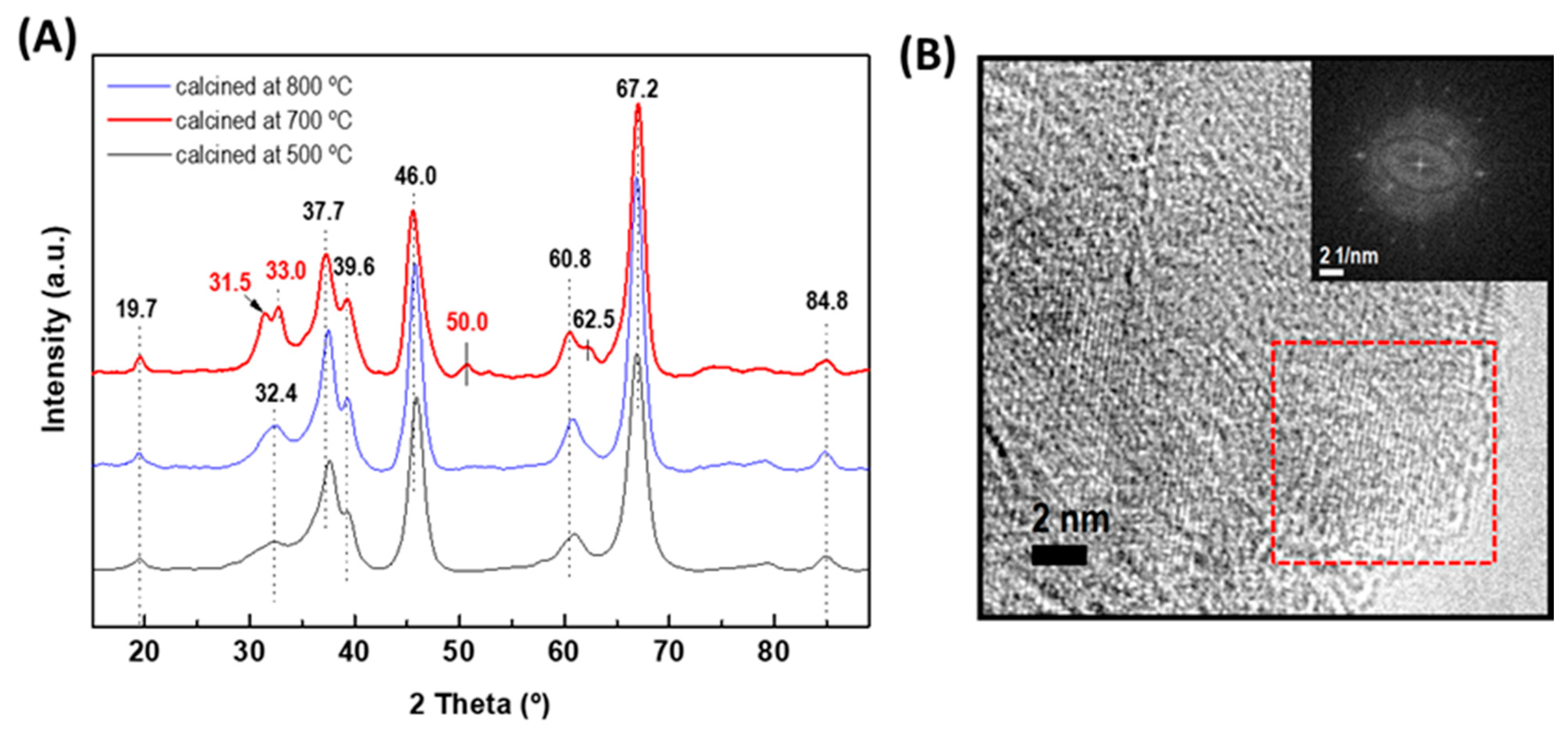

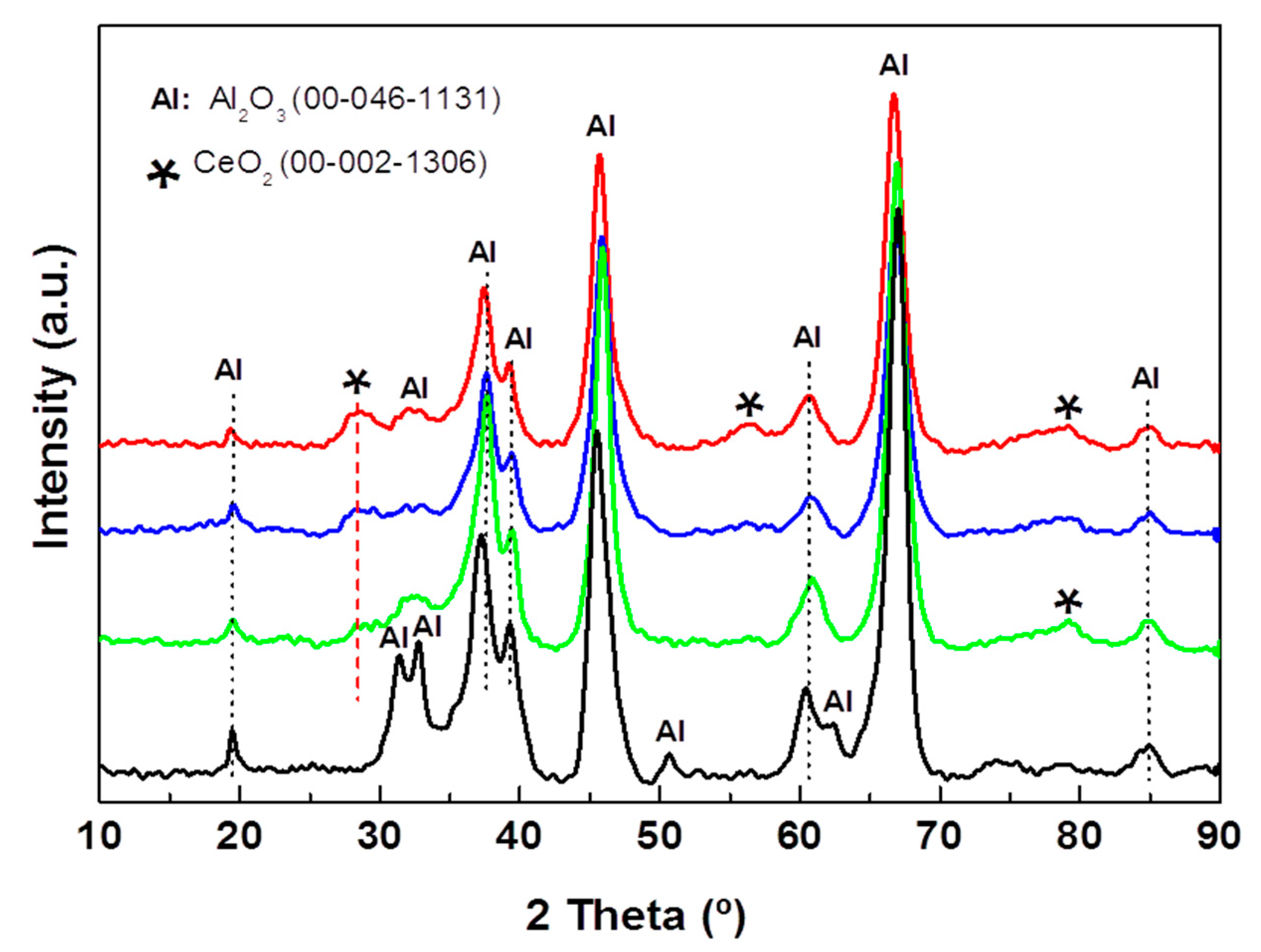

Figure 2. (A) XRD patterns of the γ-alumina support calcined at different temperatures (500, 700, and 800 °C). (B) HRTEM image of the γ-alumina calcined at 800 °C. The inset shows the fast Fourier transform (FFT) image corresponding to the area marked with a red square in the HRTEM image.
Figure 2. (A) XRD patterns of the γ-alumina support calcined at different temperatures (500, 700, and 800 °C). (B) HRTEM image of the γ-alumina calcined at 800 °C. The inset shows the fast Fourier transform (FFT) image corresponding to the area marked with a red square in the HRTEM image.
Materials 15 06780 g002
Materials 15 06780 g003 550
Figure 3. X-ray diffraction patterns of pristine Al-Ce(x) supports with different CeO2 loadings (x = 0, 5, 10, and 15 wt.%).
Figure 3. X-ray diffraction patterns of pristine Al-Ce(x) supports with different CeO2 loadings (x = 0, 5, 10, and 15 wt.%).
Materials 15 06780 g003
Materials 15 06780 g004 550
Figure 4. DRIFTS-NH3 spectra for pure supports.
Figure 4. DRIFTS-NH3 spectra for pure supports.
Materials 15 06780 g004
Materials 15 06780 g005 550

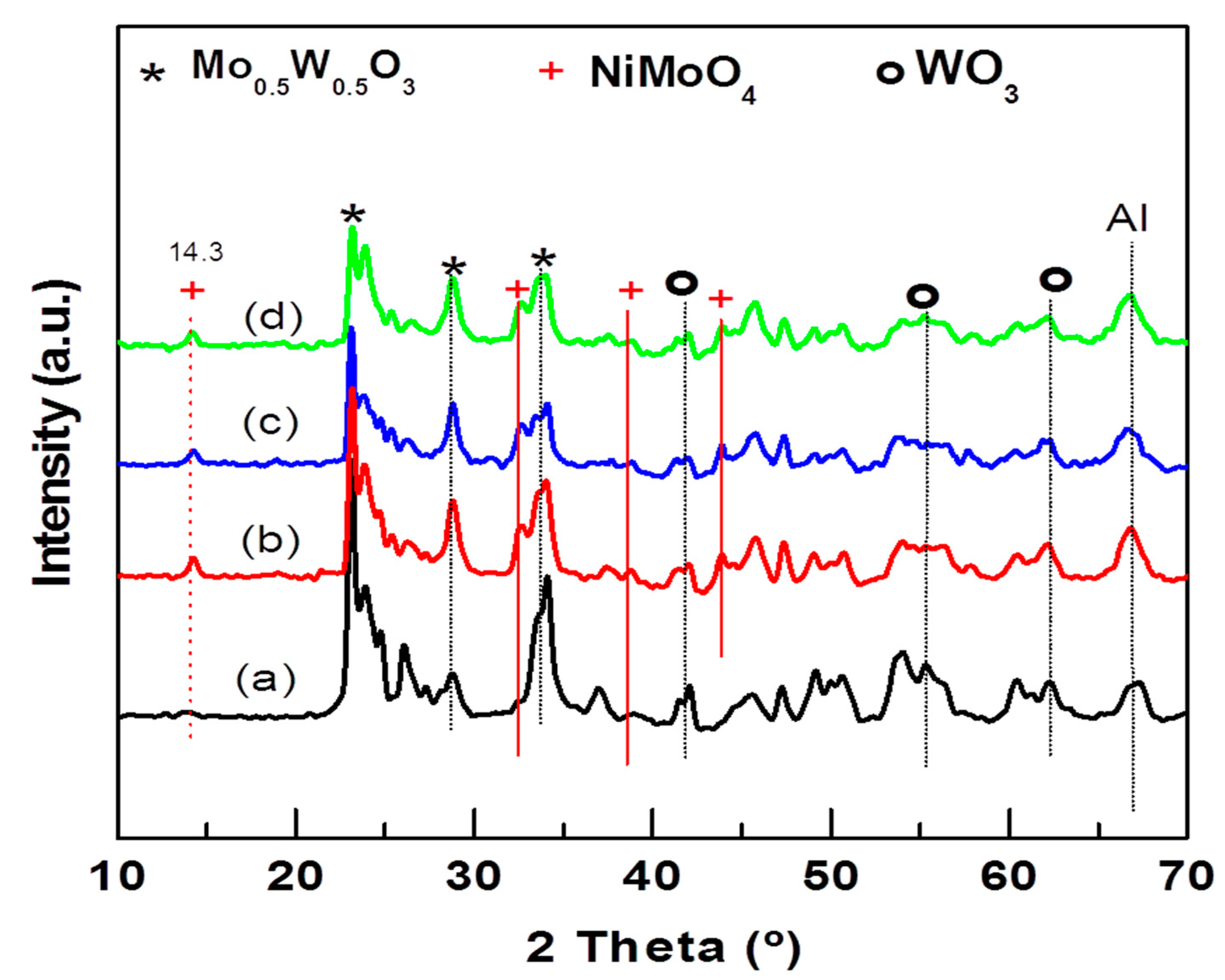

Figure 5. X-ray diffraction patterns of calcined NiMoW/Al and NiMoW/Al-Ce(x) catalysts: (a) NiMoW/Al; (b) NiMoW/Al-Ce5; (c) NiMoW/Al-Ce10, and (d), NiMoW/Al-Ce15.
Figure 5. X-ray diffraction patterns of calcined NiMoW/Al and NiMoW/Al-Ce(x) catalysts: (a) NiMoW/Al; (b) NiMoW/Al-Ce5; (c) NiMoW/Al-Ce10, and (d), NiMoW/Al-Ce15.
Materials 15 06780 g005
Materials 15 06780 g006 550

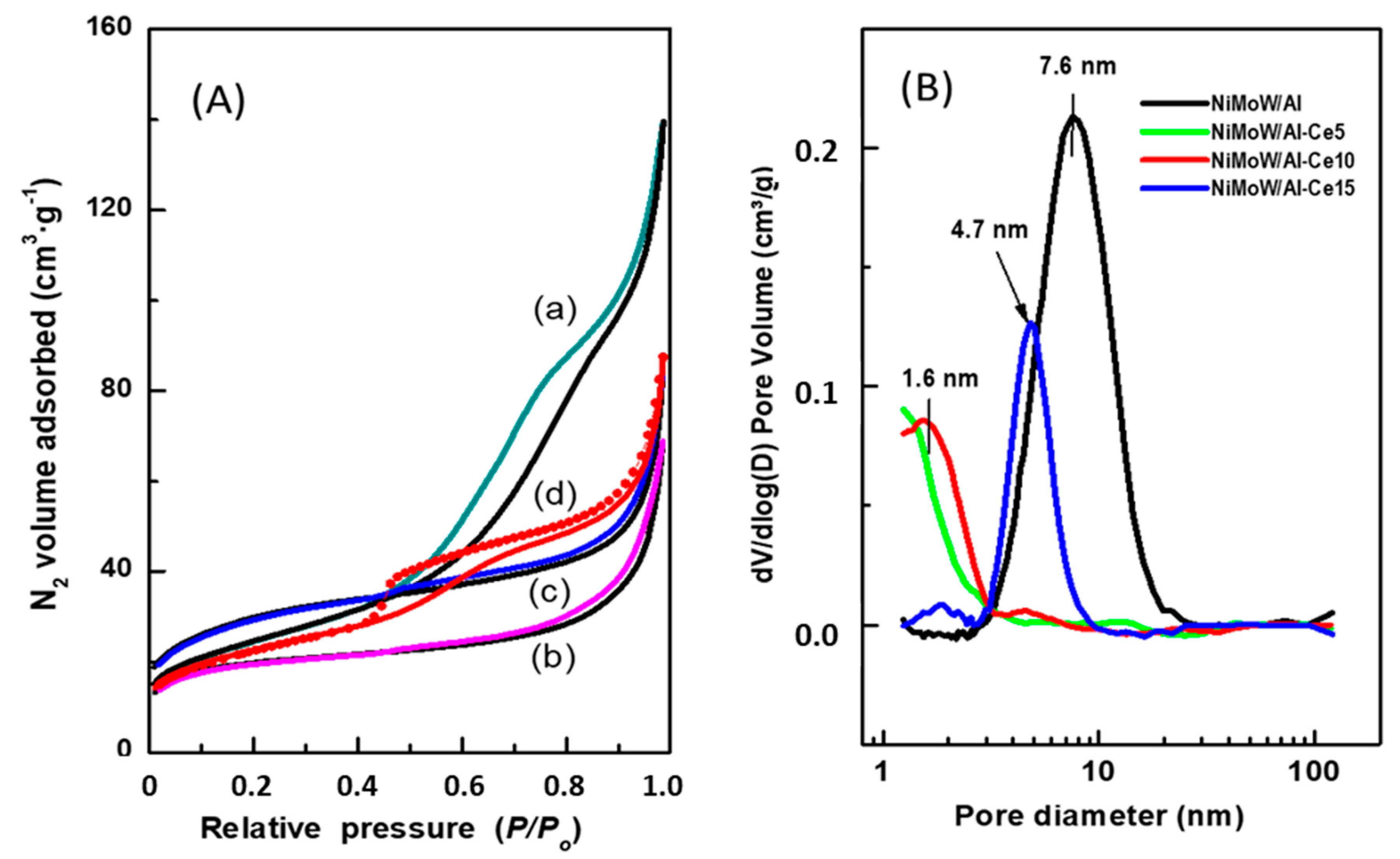

Figure 6. (A) N2 adsorption-desorption isotherms of the calcined catalysts: (a) NiMoW/Al; (b) NiMoW/Al-Ce5; (c) NiMoW/Al-Ce-10, and (d) NiMoW/Al-Ce-15. (B) Pore size distribution of the calcined catalysts as determined from the adsorption branch of N2 isotherms.
Figure 6. (A) N2 adsorption-desorption isotherms of the calcined catalysts: (a) NiMoW/Al; (b) NiMoW/Al-Ce5; (c) NiMoW/Al-Ce-10, and (d) NiMoW/Al-Ce-15. (B) Pore size distribution of the calcined catalysts as determined from the adsorption branch of N2 isotherms.
Materials 15 06780 g006
Materials 15 06780 g007 550

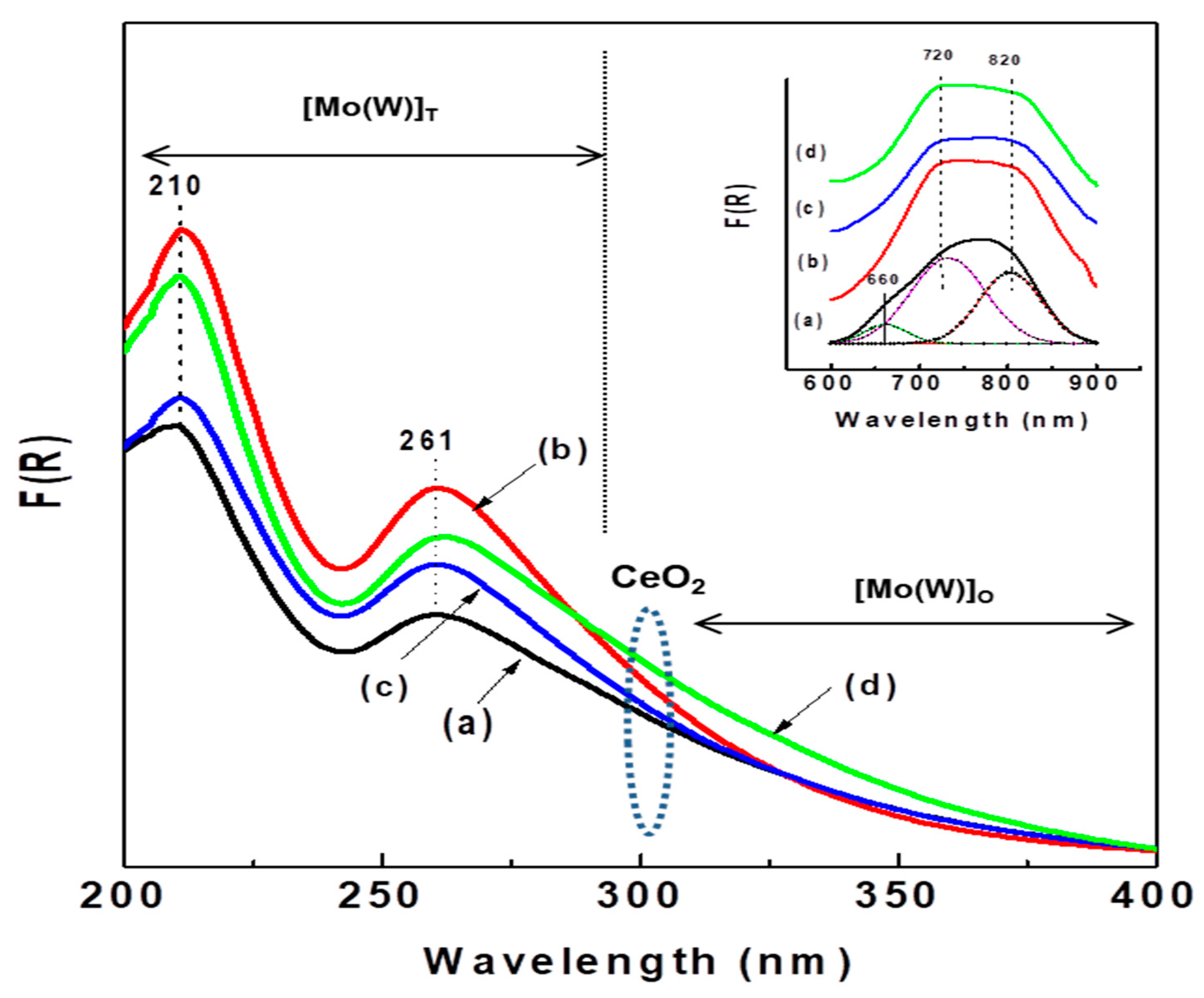

Figure 7. UV-diffuse reflectance spectra of calcined catalysts: (a) NiMoW/Al; (b) NiMoW/Al-Ce5; (c) NiMoW/Al-Ce10, and (d) NiMoW/Al-Ce15.
Figure 7. UV-diffuse reflectance spectra of calcined catalysts: (a) NiMoW/Al; (b) NiMoW/Al-Ce5; (c) NiMoW/Al-Ce10, and (d) NiMoW/Al-Ce15.
Materials 15 06780 g007
Materials 15 06780 g008 550

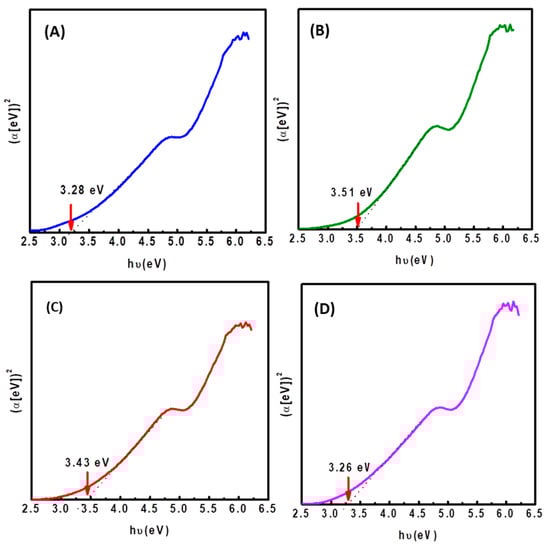

Figure 8. Plot of (αhυ)2 vs. photon energy (hυ) for calcined NiMoW/Al-Ce(x) catalysts: (A), NiMoW/Al; (B), NiMoW/Al-Ce5; (C), NiMoW/Al-Ce10, and (D), NiMoW/Al-Ce15.
Figure 8. Plot of (αhυ)2 vs. photon energy (hυ) for calcined NiMoW/Al-Ce(x) catalysts: (A), NiMoW/Al; (B), NiMoW/Al-Ce5; (C), NiMoW/Al-Ce10, and (D), NiMoW/Al-Ce15.
Materials 15 06780 g008
Materials 15 06780 g009 550
Figure 9. HDS of the DBT reaction (a batch reactor, 350 °C, and 3.1 MPa H2 pressure) over NiMoW/Al and NiMoW/Al-Ce(x) sulfided catalysts (x = 5, 10 and 15 CeO2 wt.%): (A) initial reaction rates vs. CeO2 loading in Al2O3-CeO2 support and (B) comparison of the HYD/DDS ratio at the same DBT conversion (ca. 25, 40, and 70%).
Figure 9. HDS of the DBT reaction (a batch reactor, 350 °C, and 3.1 MPa H2 pressure) over NiMoW/Al and NiMoW/Al-Ce(x) sulfided catalysts (x = 5, 10 and 15 CeO2 wt.%): (A) initial reaction rates vs. CeO2 loading in Al2O3-CeO2 support and (B) comparison of the HYD/DDS ratio at the same DBT conversion (ca. 25, 40, and 70%).
Materials 15 06780 g009
Materials 15 06780 g010 550
Figure 10. TEM images of used catalysts taken at different scales: NiMoW/Al (a,d), NiMoW/Al-Ce10 (b,e), and NiMoW/Al-Ce15 (c,f).
Figure 10. TEM images of used catalysts taken at different scales: NiMoW/Al (a,d), NiMoW/Al-Ce10 (b,e), and NiMoW/Al-Ce15 (c,f).
Materials 15 06780 g010
Materials 15 06780 g011 550

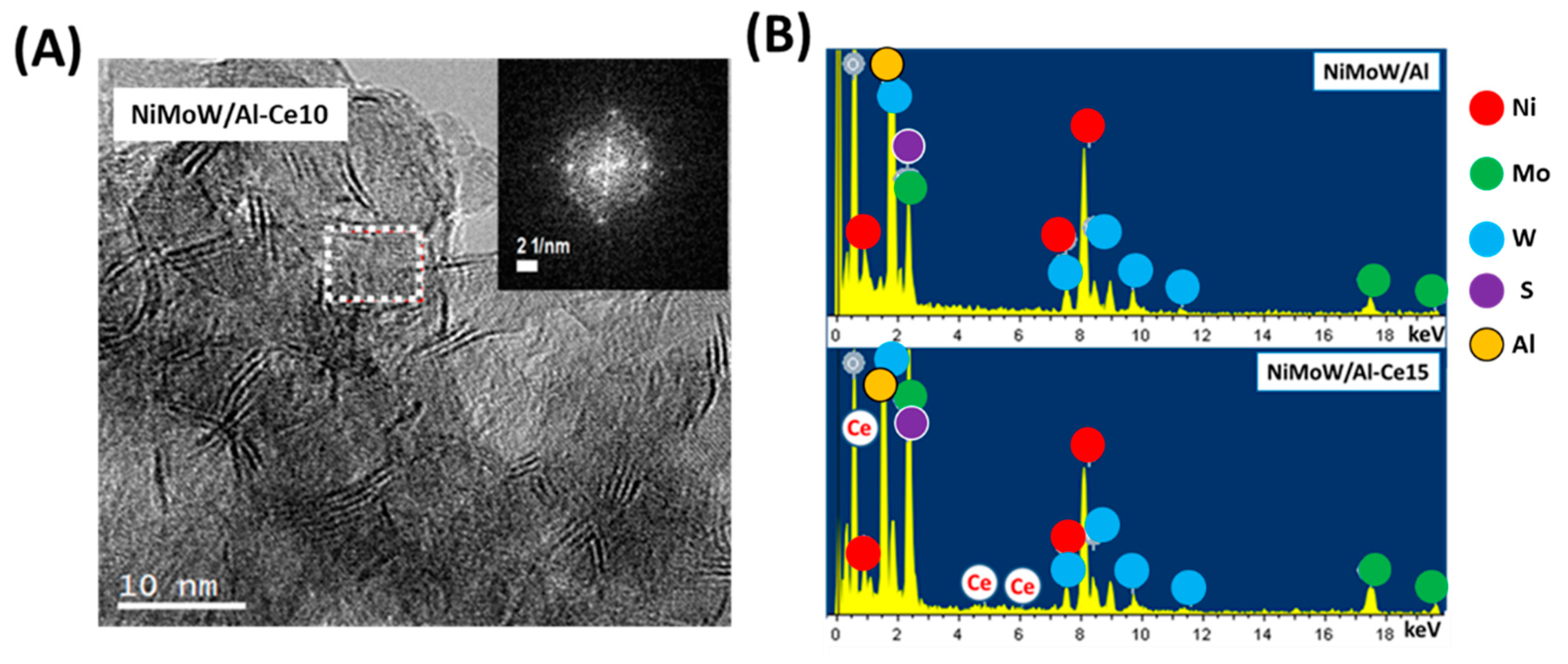

Figure 11. (A) HRTEM image of the used NiMoW/Al-Ce10 catalyst. The inset shows the fast Fourier transform (FFT) image corresponding to its selected area showing the cubic symmetry of the CeO2 structure. (B) EDS spectra of used NiMoW/Al and NiMoW/Al-Ce15 catalysts.
Figure 11. (A) HRTEM image of the used NiMoW/Al-Ce10 catalyst. The inset shows the fast Fourier transform (FFT) image corresponding to its selected area showing the cubic symmetry of the CeO2 structure. (B) EDS spectra of used NiMoW/Al and NiMoW/Al-Ce15 catalysts.
Materials 15 06780 g011
Materials 15 06780 g012 550
Figure 12. HRTEM image of the used NiMoW/Al-Ce15 catalyst showing the CeO2 (red circle) and Mo(W)2 (black square) phases. The insets show FFT and IFFT images of the corresponding areas marked in the HRTEM image.
Figure 12. HRTEM image of the used NiMoW/Al-Ce15 catalyst showing the CeO2 (red circle) and Mo(W)2 (black square) phases. The insets show FFT and IFFT images of the corresponding areas marked in the HRTEM image.
Materials 15 06780 g012
Materials 15 06780 g013 550
Figure 13. Statistical TEM analysis of the particle size (A) and number of Mo(W)S2 nanosheets (B) of the used catalysts.
Figure 13. Statistical TEM analysis of the particle size (A) and number of Mo(W)S2 nanosheets (B) of the used catalysts.
Materials 15 06780 g013
Materials 15 06780 g014 550

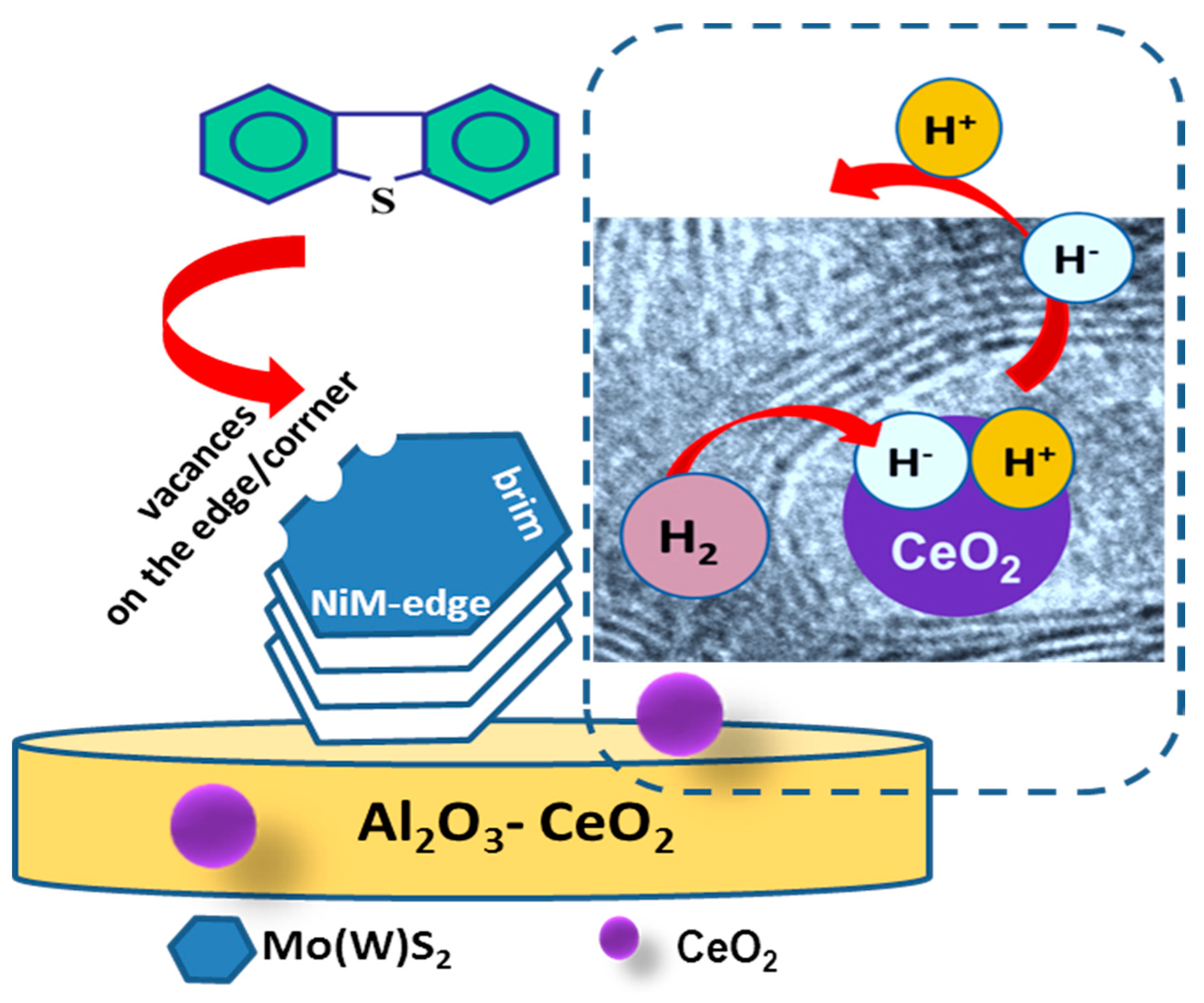

Figure 14. Schematic representation of the DBT HDS reaction mechanism on the surface of the best NiMoW/Al-Ce15 catalyst showing the adsorption of DBT on the CUS sites of the NiMo(W)S phase and the mechanism of the heterolytic dissociation of H2 on CeO2 nanoparticles.
Figure 14. Schematic representation of the DBT HDS reaction mechanism on the surface of the best NiMoW/Al-Ce15 catalyst showing the adsorption of DBT on the CUS sites of the NiMo(W)S phase and the mechanism of the heterolytic dissociation of H2 on CeO2 nanoparticles.
Materials 15 06780 g014
Table
Table 1. Nominal CeO2 content and binding energies (eV) of core levels and atomic surface ratios of pristine supports (from XPS).
Table 1. Nominal CeO2 content and binding energies (eV) of core levels and atomic surface ratios of pristine supports (from XPS).
SupportCeO2 (wt.%)Ce 3dAl2pCetotal/Al atCe3+/Al at
Al--74.5--
Al-Ce55881.574.50.0120.0038
Al-Ce1010881.474.50.0150.0046
Al-Ce1515881.374.50.0180.0072
Table
Table 2. Metal content of calcined NiMoW/Al-Ce(x) catalysts (from ICP-OES).
Table 2. Metal content of calcined NiMoW/Al-Ce(x) catalysts (from ICP-OES).
CatalystNi (wt.%)Mo (wt.%)W (wt.%)Total
NiMoW/Al3.28.116.127.4
NiMoW/Al-Ce54.15.517.026.6
NiMoW/Al-Ce104.15.616.926.4
NiMoW/Al-Ce154.15.416.826.3
Table
Table 3. Textural data of calcined catalysts calculated from the N2 adsorption-desorption isotherms.
Table 3. Textural data of calcined catalysts calculated from the N2 adsorption-desorption isotherms.
CatalystSBET (m2·g−1)Vtotal (m3·g−1)Vmicropores (m3·g−1)dmean (nm)
NiMoW/Al870.200.037.6
NiMoW/Al-Ce5640.110.02n.d.
NiMoW/Al-Ce101000.120.01n.d
NiMoW/Al-Ce15790.130.014.7
Table
Table 4. DBT conversions and HYD/DDS ratios of the catalysts stabilized during 5 h of reaction time a.
Table 4. DBT conversions and HYD/DDS ratios of the catalysts stabilized during 5 h of reaction time a.
CatalystDBT Conversion (%)HYD/DDS Ratio
NiMoW/Al420.60
NiMoW/Al-Ce5560.55
NiMoW/Al-Ce10950.65
NiMoW/Al-Ce15971.70
NiW/γ-Al2O3 b691.24
NiMo/γ-Al2O3 b590.22
a Reaction conditions were: a batch reactor, T = 320 °C, P= 5.5 MPa, reaction time of 5 h. b Synthetized reference catalysts.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Navarro Yerga, R.M.; Pawelec, B.; Mota, N.; Huirache-Acuña, R. Hydrodesulfurization of Dibenzothiophene over Ni-Mo-W Sulfide Catalysts Supported on Sol-Gel Al2O3-CeO2. Materials 2022, 15, 6780. https://doi.org/10.3390/ma15196780

AMA Style

Navarro Yerga RM, Pawelec B, Mota N, Huirache-Acuña R. Hydrodesulfurization of Dibenzothiophene over Ni-Mo-W Sulfide Catalysts Supported on Sol-Gel Al2O3-CeO2. Materials. 2022; 15(19):6780. https://doi.org/10.3390/ma15196780

Chicago/Turabian Style

Navarro Yerga, Rufino M., Barbara Pawelec, Noelia Mota, and Rafael Huirache-Acuña. 2022. "Hydrodesulfurization of Dibenzothiophene over Ni-Mo-W Sulfide Catalysts Supported on Sol-Gel Al2O3-CeO2" Materials 15, no. 19: 6780. https://doi.org/10.3390/ma15196780

APA Style

Navarro Yerga, R. M., Pawelec, B., Mota, N., & Huirache-Acuña, R. (2022). Hydrodesulfurization of Dibenzothiophene over Ni-Mo-W Sulfide Catalysts Supported on Sol-Gel Al2O3-CeO2. Materials, 15(19), 6780. https://doi.org/10.3390/ma15196780

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
