Research Progress of Wide Tunable Bragg Grating External Cavity Semiconductor Lasers

Key Laboratory of Laser Technology and Optoelectronic Functional Materials of Hainan Province, Academician Team Innovation Center of Hainan Province, College of Physics and Electronic Engineering, Hainan Normal University, Haikou 571158, China
*
Author to whom correspondence should be addressed.
Materials 2022, 15(22), 8256; https://doi.org/10.3390/ma15228256
Submission received: 12 October 2022 / Revised: 11 November 2022 / Accepted: 17 November 2022 / Published: 21 November 2022
(This article belongs to the Special Issue Semiconductor Optoelectronic Materials and Devices)

Abstract

:
In this paper, we review the progress of wide tunable Bragg grating external cavity semiconductor lasers (BG-ECSLs). We concentrate on BG-ECSLs based on the wide tunable range for multicomponent detection. Wide tunable BG-ECSLs have many important applications, such as wavelength-division multiplexing (WDM) systems, coherent optical communications, gas detection and atom cooling. Wide tunability, narrow linewidth and a high side-mode suppression ratio BG-ECSLs have attracted much attention for their merits. In this paper, three main structures for achieving widely tunable, narrow linewidth, high side-mode suppression ratio BG-ECSLs are reviewed and compared in detail, such as the volume Bragg grating (VBG) structure, fiber Bragg grating (FBG) structure and waveguide Bragg grating (WBG) structure of ECSLs. The advantages and disadvantages of different structures of BG-ECSLs are analyzed. The results show that WBG-ECSLs are a potential way to realize the integration, small size, wide tuning range, stable spectral output and high side-mode suppression ratio laser output. Therefore, the use of WBG as optical feedback elements is still the mainstream direction of BG-ECSLs, and BG-ECSLs offer a further new option for multicomponent detection and multi-atoms cooling.

1. Introduction

ECSLs usually refer to the gain chip based on the introduction of external optical components (such as waveguides, gratings, prisms, etc.) to provide optical feedback. By designing the type, position and structure of external optical components, the optical properties of SLs (such as center wavelength, linewidth, tuning range, side-mode suppression ratio (SMSR), etc.) can be changed [1,2,3]. BG-ECSL [4] is a device with a specific optical element (Bragg grating) in the external cavity. BG-ECSLs have excellent performances, such as narrow linewidth, tunability and high SMSR. They are widely used in WDM systems [5,6,7], coherent optical communication [8], gas detection [9], Lidar [10], atomic physics [11] and other fields. In this paper, three main structures for achieving widely tunable, narrow linewidth, high side-mode suppression ratio BG-ECSLs are reviewed and compared in detail, such as volume Bragg grating (VBG) structure, fiber Bragg grating (FBG) structure and waveguide Bragg grating (WBG) structure of ECSLs. The advantages and disadvantages of different structures of BG-ECSLs are analyzed. Through comparative analysis properties of BG-ECSLs, WBG-ECSLs have significant advantages over other BG-ECSLs in terms of structure design, functional types and application fields. BG-ECSLs will offer a further new option for multicomponent detection and multi-atoms cooling in the future. In recent years, with the continuous development of WDM system, gas detection and other fields, BG-ECSL will be applied in more fields and gradually become a research hotspot in the field of SLs.

2. Principle of BG-ECSLs

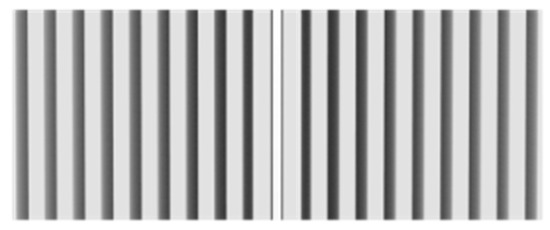

Grating, also known as diffraction grating, is an optical element composed of a large number (tens of thousands) of equally wide and equally spaced slits, which can make the amplitude or phase of the incident light, or both, produce periodic spatial modulation.

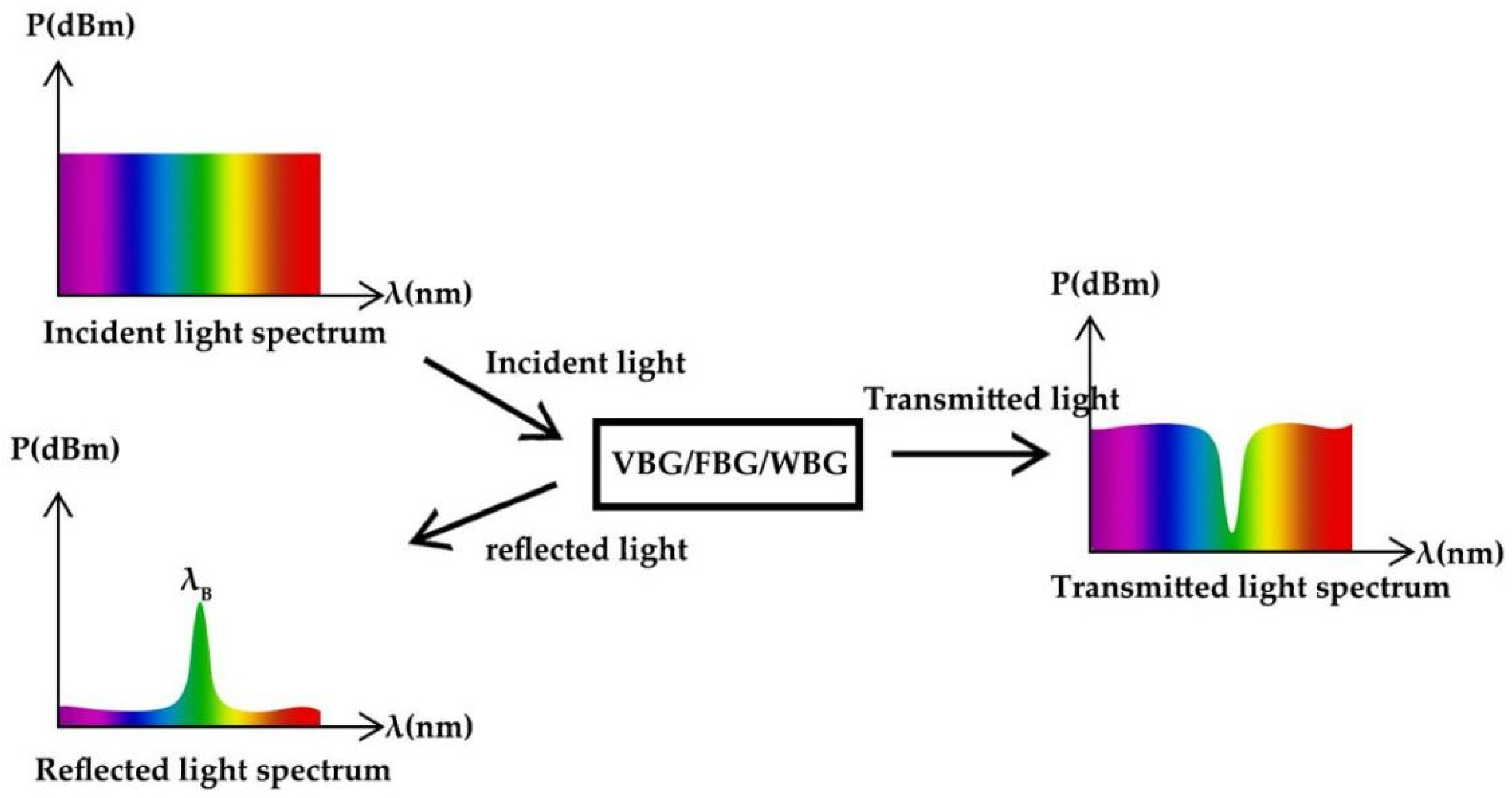

Bragg gratings (period less than 1 μm, also known as reflection gratings) are transparent devices with a periodically varying refractive index. Their structure is shown in Figure 1. The reflectance is large in the wavelength region (bandwidth) near a particular wavelength, which satisfies the Bragg condition:
B = 2neffΛcosθ
In Formula (1), m is the diffraction order, λB is the Bragg wavelength, neff is the effective refractive index of the medium, Λ is the grating period and θ is the propagation angle in the medium relative to normal incidence.
If the above conditions are met, the difference between the wave number of the grating and the wave number of the incident and reflected waves is matched. Other wavelengths of light are hardly affected by the Bragg grating but still produce some sidelobes in the reflection spectrum. Similarly, there is almost no reflection of the beam at other angles of incidence. When the grating is long enough, even a very weak refractive index modulation can achieve almost total reflection of the beam near Bragg wavelength. The principle is shown in Figure 2.
The linewidth (∆ν) of BG-ECSLs (linewidth is usually used to quantitatively characterize the spectral purity of its temporal coherence) can be expressed as follows:
Δ v = ( 1 + α 2 ) υ g 2 h ν g n s p α m 8 π P 0
In Equation (2), α is the specific linewidth increase factor of the semiconductor laser, υg is the group velocity, h is the Planck constant, ν is the frequency, g is the gain factor, nsp is the spontaneous emission factor (reflecting incomplete particle number inversion), αm is the output loss of the cavity and P0 is the output power.
Where α can be expressed as:
α = d n / dN dg / dN
vector n and g represent the real and imaginary parts of the complex refractive index of the active medium, respectively, and dg/dN is the differential gain. Due to the different materials, it is generally between 2 and 5, and from Equation (2), it can be seen that the output power of the laser is inversely proportional to the linewidth.
The SMSR of BG-ECSLs (SMSR is usually a replay index used to characterize its single-longitudinal modeling) can be expressed as:
S M S R = 10 lg P 1 P 2
where P1 is the optical power of longitudinal mode, and P2 is the maximum optical power of edge mode. The larger the SMSR of the laser, the better its single-mode characteristics, and the more stable the single-mode output of the laser. When the edge mode rejection ratio is greater than 20 dB—that is, the optical power of the main longitudinal mode is more than 100 times of the maximum optical power of the edge mode—the laser in this working state can be considered as a single longitudinal mode laser.

3. Research Progress of BG-ECSLs

The structures of BG-ECSLs can be mainly divided into the VBG structure, FBG structure and WBG structure. This paper mainly discusses the research progress of VBG structure, FBG structure and WBG structure of BG-ECSLs. BG-ECSLs have a long history. Since the 1970s, in order to make Bragg grating in fiber and other materials, people have carried out a lot of research on the effect of UV radiation damage in silica, germanium-doped silicon glass and other materials. Nowadays, there are many kinds of Bragg grating, and the application fields are also very wide. Due to the unique characteristics and potential application prospects of Bragg grating, since the first batch of BG-ECSLs came out, a large number of companies have studied and continuously optimized the performance of BG-ECSLs. At present, Coherent, OptiGrate, DILAS and so on are well-known in the world. Among them, the United States, Germany, France, Sweden, Canada, Japan and other countries have certain technical advantages in the development of BG-ECSLs. In China, there are also a large number of companies and research institutions developing relevant cutting-edge technologies, such as Wuhan National Laboratory of Optoelectronics, Shanghai Institute of Optics and Precision Instruments, Chinese Academy of Sciences, Beijing Institute of Semiconductors, Chinese Academy of Sciences, Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, etc. BG-ECSLs can be widely used in optical communication, biotechnology, environmental detection, material processing and other fields and has potential application prospects in high-precision detection, quantum communication system and other fields.

3.1. VBG-ECSLs

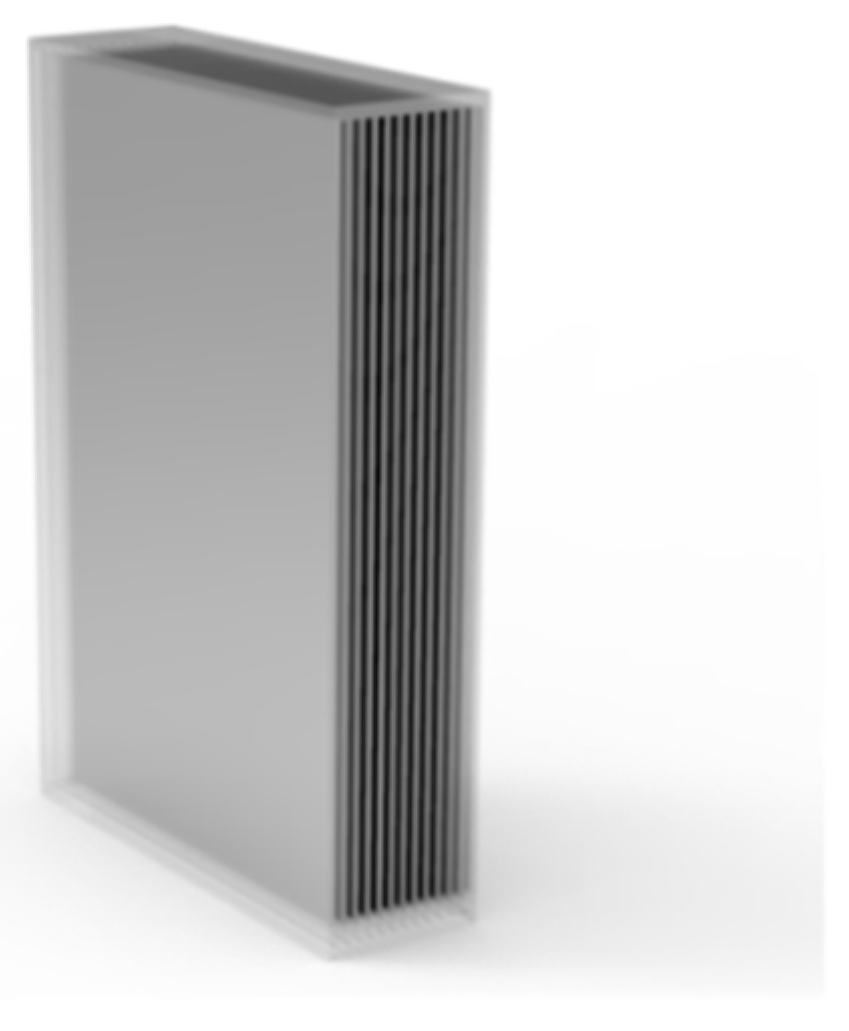

VBG is a holographic optical element recorded in photothermal refraction glass, which is an effective spectral and angular filter capable of withstanding high-power laser radiation. Its structure is shown in Figure 3. VBG can be divided into reflector volume Bragg grating (RVBG), transmission volume Bragg grating (TVBG) and chirped volume Bragg grating (CVBG). A VBG operating in reflective geometry is called an RVBG when the diffracted beam passes through the grating surface directly toward the incident beam. When the diffracted beam passes through the rear surface of the grating, the VBG operating in the form of transmission geometry is called TVBG. When the period of VBG changes gradually along the direction of beam propagation, it is called CVBG. The RVBG is similar to a narrowband spectrum filter, while the TVBG is similar to a narrowband angle filter.
VBG can not only be used to lock the wavelength but also enhances the oscillation of the main lobe and suppresses the side lobe, so as to reduce the beam divergence and improve the beam quality. The biggest advantage of VBG compared to FBG and WBG is that it can change the angle of incidence of light and, thus, its optical properties.

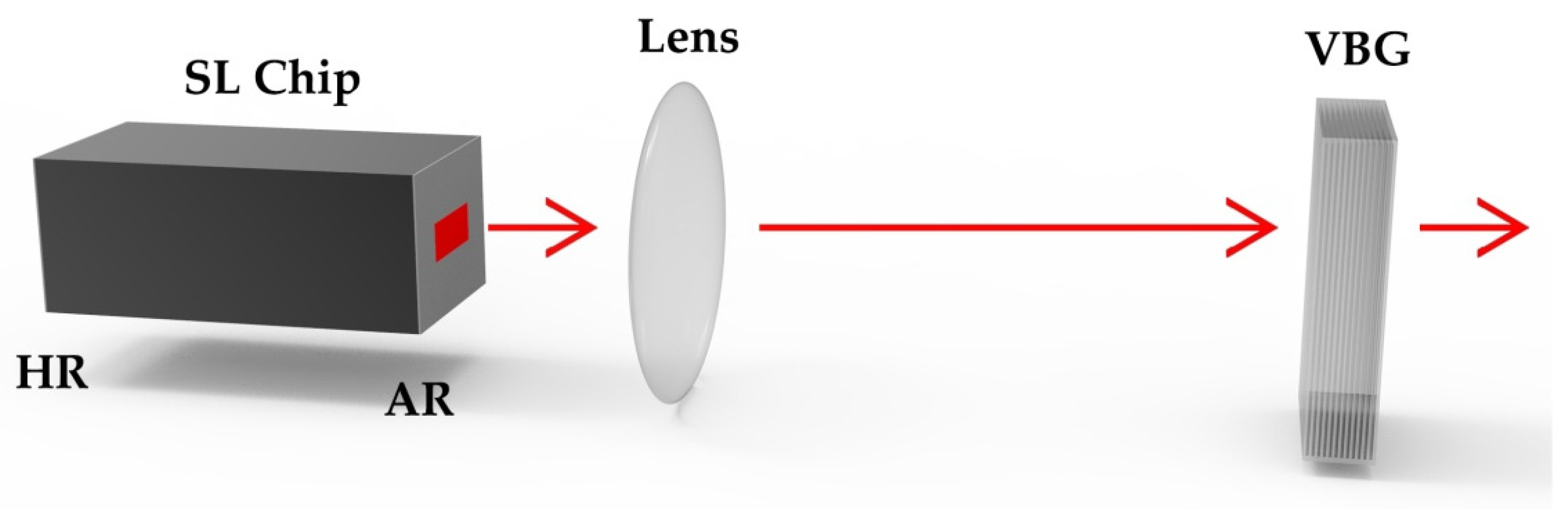

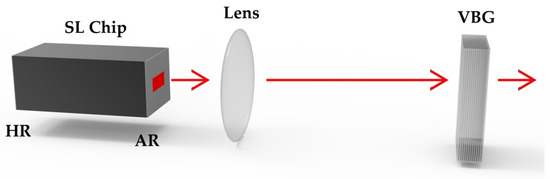

The structure of VBG-ECSL is shown in Figure 4, which mainly includes SL chip, VBG and other optical components. By adjusting the incidence angle, VBG diffraction rate, injection current and other operations, the reflection wavelength can be changed to reduce the loss, so as to optimize the performances of VBG-ECSL. Compared with other ECSL, VBG-ECSL can achieve higher resonant feedback, so as to narrow the spectrum of the SL emission without significantly reducing the power and efficiency.
In 2010, Daghestani et al. [12] reported stable dual-wavelength operation by combining a single VBG with a quantum dot-based gain medium in a compact external cavity structure. The dual-wavelength outputs were concentrated at 1179.9 nm and 1182.8 nm, with a spectral bandwidth of 0.2 nm for each mode. At the operating current of 1 A, the maximum output power reached 186 mW, and the SMSR of both modes was greater than 34 dB. The slope efficiency was 0.26 W/A, and the linewidth was 0.35 nm.
In 2011, Li Shen et al. [13,14] reported a novel electro-optic tuning VBG-ECSL with VBG. A high electro-optical coefficient lead lanthanum zirconate titanate (PLZT) transparent ceramic was inserted into the external cavity as a refractive index adjustable element to change the cavity length. A single-mode tuning range of 2.5 GHz was achieved by adjusting the voltage applied to the PLZT. The center wavelength was about 810.0 nm, the linewidth was 19 MHz and the SMSR was 37 dB. The combination of VBG and PLZT transparent electro-optic ceramics allowed the fine and rapid tuning of laser frequencies over a range of longitudinal mode spacing. In addition, the electrode form of PLZT ceramic was designed to change the angle of the incident beam, so as to achieve 32.9 GHz (810.03~810.102 nm) tuning.
In 2012, B. Sempf et al. [15] reported a tunable miniaturized 633 nm VBG-ECSL. The structure contained no moving parts and only changed the injected current to tune the ECSL wavelength. The slope efficiency was 0.3 W/A, the linewidth was less than 10 MHz, the SMSR was more than 25 dB and the maximum output power reached 10 mW. Tunable continuous range was 34 pm.
In the same year, Yufeng Li et al. [16] reported the wavelength locking of high-power VBG-ECSL. It was found that using VBG with high reflectance was easier to achieve wavelength locking, but the output power and service life of the device would be reduced.
In 2013, E Luvsandamdin et al. [17] reported a microintegrated VBG-ECSL module to implement a microintegrated, narrow linewidth VBG-ECSL for an accurate spectral analysis of ultra-cold rubidium atoms on line D2 (780.24 nm). The microintegrated VBG-ECSL consisted of a laser chip, a volume holographic Bragg grating (VHBG) and a pair of aspheric lenses. Separate temperature control of the VHBG was achieved by a miniature thermoelectric cooler for coarse wavelength tuning. The laser achieved a power output of 123 mW at a single-mode operation of 780.24 nm at the injection current of 250 mA. The slope efficiency is 0.88 W/A, the linewidth was about 2 kHz and the SMSR was more than 57 dB. The coarse tuning range was 44 GHz and continuous tuning range was 31 GHz.
In 2014, Luvsandamdin et al. [18] reported a microintegrated VBG-ECSL module. The module consisted of a laser chip, a collimating lens, a low-light level isolator, a miniature temperature sensor and a miniature thermoelectric cooler with VHBG. It emitted at a wavelength of 766.7 nm and could be continuously tuned at 27.5 GHz. At an injection current of 240 mA, and a output power of 33.4 mW was provided. The linewidth was 3 kHz, the SMSR was greater than 45 dB and the slope efficiency was 0.40 W/A.
In 2015, Rauch et al. [19] reported an easy-to-use, compact package VBG-ECSL. The VBG-ECSL had a power output of up to 380 mW at an operating wavelength of 780 nm and mainly included a thermoelectric cooler, laser chip, collimating lens and bulk holographic grating (VHG). The linewidth was 36 kHz, the SMSR was greater than 50 dB and the tunable range was 10.5 pm (5.2 GHz) continuously.
In the same year, Zheng et al. [20] reported an VBG-ECSL. VBG was used as the output coupler to further stabilize the wavelength and narrow the linewidth. The laser had a center wavelength of 1064 nm and a continuous tuning range of 110 pm. At the injection current of 3 A, the linewidth was reduced from 80 pm to 33 pm, and the output power reached 1.3 W.
In 2016, Ruhnke et al. [21] proposed a compact VBG-ECSL module with a narrow linewidth emission of 1.4 W at 445 nm. The module used a GaN-based SL as the gain medium and integrated a VBG for wavelength stabilization. The linewidth was about 1 nm, and the SMSR was greater than 50 dB. When the injection current was 1.2 A, the output power was 1.4 W, and the slope efficiency was 1.3 W/A. In the same year, Ivanov et al. [22] used the VHBG to select the longitudinal mode of VBG-ECSL. The emission spectrum width of the laser was reduced from 6 nm to 0.5 nm. Kohfeldt et al. [23] reported a VBG-ECSL based on VHBG. The center wavelength of the laser was 767 nm, and the linewidth was 55 kHz. The continuously tunable range was 50 GHz. At an injection current of 200 mA, the output power exceeded 30 mW.
In 2017, Heike Christopher et al. [24] reported a high-power VBG-ECSL module with a narrow linewidth. The output wavelength of the module was 1064.49 nm, which was composed of a SL chip, VHBG, optical isolator and other devices. At an injection current of 100 mA, the output power was 4 mW. The SMSR was larger than 45 dB, and the linewidth was 30 kHz.
In 2018, Zheng et al. [25] reported continuous wave dual wavelength VBG-ECSL, which was used a distributed feedback laser with a single external cavity by using VBG. At an injection current of 2.5 A and operating temperature of 29.8 °C, the output power reached 415 mW, and the tunable spectral difference between the two wavelengths reached 1.92 nm (0.88 THz). The linewidth was 0.27 nm, and the SMSR was 26 dB. In the same year, Ruhnke et al. [26] reported a compact 222.5 nm VBG-ECSL. A microintegrated GaN-based ECSL module with wavelength stable VBG was used as the pump source to generate narrow linewidth deep ultraviolet radiation in β-Bab2O4 (BBO) crystal. The output power was 160 μW at 1.4 W pump power.
In 2019, Chung et al. [27] reported two second-order PQ:PMMA (phenquinone:polymethyl methacrylate) reflection VBGs with Bragg wavelengths of 488.8 nm and 525.6 nm, respectively, using 532 nm as the recording wavelength. The 525.6 nm VBG was successfully used as the ECSL cavity mirror for the 522 nm SL, and the output spectrum was narrowed by more than 10,000 times. In the same year, Fei Wu et al. [28] reported a 780 nm narrow linewidth VBG-ECSL. The linewidth of the laser was 100 kHz, and the output power is 50 mW.
In 2020, Sin Hyuk Yim et al. [29] reported a 780.25 nm VBG-ECSL. The design allowed the external cavity configuration to be adjusted by adjusting the VHG, with a continuous tuning of 8 GHz and a linewidth of 19 kHz. The output power was 30 mW at an injection current of 150 mA.
In the same year, Mingjun Chi et al. [30] reported 808 nm microintegrated high-power VBG-ECSL. A peak output power of 4.3 W was obtained at an injection current of 6 A.M. Rådmark et al. [31] reported a novel 785 nm VBG-ECSL. A high-reflection VBG element was used to obtain a narrow general linewidth and a very high SMSR.
In 2021, Bin Liu et al. [32] reported a high SMSR and high-stability VBG-ECSL array, which was used VBG as the optical feedback. The central wavelength was 976 nm, the diffraction efficiency was 15% and the linewidth was 0.5 nm. At an injection current of 50 A, the output power was 33.9 W, and the SMSR was greater than 30 dB.
In 2022, Liu et al. [33] reported a wavelength 405.1 nm VBG-ECSL. The spectral linewidth of the VBG-ECSL was 0.08 nm, and the output power was 292 mW. Yuhuan Lu et al. [34] reported a high-power tunable dual-wavelength composite external cavity structure using VHG and VBG. The adjustable frequency difference of the dual wavelength output was between 0.41 THz and 3.89 THz. When the frequency difference was 1.86 THz, the output power was 2.1 W. The SMSR was greater than 29 dB over the entire tunable dual-wavelength output range.
In the same year, Chi et al. [35] designed a microintegrated VBG-ECSL. The VBG-ECSL had a linewidth of 4 pm, the SMSR was about 16 dB and continuous tuning range was 12 pm. Qi et al. [36] reported a miniature integrated narrow linewidth VBG-ECSL based on a VHBG around 780 nm. VBG-ECSL consisted of a gain chip, micro-optics lens, VHBG, optical isolator and thermistor. The ECSL had a linewidth of 70 kHz, the output power was 30 mW and continuously tunable range was 9 GHz. Wang et al. [37] reported an VBG-ECSL. More than 100 W of continuous power output was generated for metastable argon atomic pumping with a slope efficiency of 12.23 W/A. The laser had a linewidth of 0.15 nm, a tunable range of more than 200 pm and a SMSR of up to 40 dB.
In addition to universities and research institutions, VBG-ECSLs has been commercialized by a number of Photonics companies, including Thorlabs of the United States, Coherent’s Ondax and DILAS of the United States, RPMC of the United States and Photontec of Germany.
Coherent, Inc., founded in May 1966, is one of the world’s photonics manufacturers and innovators. The company designs and produces many of its own components and subcomponents, including fiber optics, crystals and wafer growth. Coherent has a wide range of products, including gas, fiber, solid-state and semiconductor lasers, and is a major photonics company in the United States. Among other things, it has acquired DILAS, Ondax and others.
DILAS is a global leader in high-power semiconductor laser technology and the world’s largest high-power semiconductor laser company. Its products are widely used in industrial processing, laser medicine, information display, national defense and scientific research and other fields, and the product wavelength range is 635~1940 nm. The company’s VBG laser designs include central wavelengths of 790 nm, 808 nm, 976 nm and 981 nm, with primary power outputs ranging from 20 W to 120 W and up to 240 W. Take the 808 nm VBG semiconductor laser with the output power of 40 W as an example, the laser can be continuously tuned to 1.2 nm, the output power can reach 40 W, the linewidth is less than 0.5 nm and the wavelength drift coefficient is 0.01 nm/°C. It can be seen that the output of this kind of product is stable, and the power is extremely high.
Ondax is a professional supplier of wavelength stabilized semiconductor lasers for volumetric holographic gratings and related applications, including: 405 nm, 638 nm, 780.25 nm and 808 nm wavelength stabilized semiconductor lasers; collimating wavelength stabilized semiconductor lasers; wavelength stabilized Semiconductor Butterfly lasers and fiber coupled laser modules. Ondax offers a variety of products, such as the SureLock family of products, all of which are stabilized using VBG to ensure accurate, ultra-stable output wavelengths. The main center wavelengths of the series are 785 nm, 808 nm, 830 nm, 976 nm and 1064 nm; the linewidth is 0.1 nm; the SMSR is 40 dB and the output power is over 800 mW. The advantages of this product are high output power and small linewidth. Moreover, the wavelength flowing with the temperature is very small, only 0.01 nm/°C, which can be applied to the fields of measurement and sensing.
RPMC (USA) is a comprehensive semiconductor laser and semiconductor pumped solid-state laser company. It not only designs and produces semiconductor lasers but also distributes more than ten brands of foreign lasers in North America. The linewidth of the 1064 nm VBG laser designed by the company is less than 100 kHz, and the wavelength varies with the temperature only at 0.007 nm/°C, which is suitable for gas sensing, metering and other fields.
Photontec (Germany) was founded in 2010 and is located in Berlin, Germany. It is engaged in the development and manufacturing of Diode-pumped solid-state lasers and fiber-coupled diode laser modules. The company’s designed 976 nm VBG laser has a power output of up to 100 W and a linewidth of less than 1 nm.
Thorlabs (USA) is a rapidly growing photonics manufacturer and distributor of optical–mechanical, optical and optoelectronic devices and equipment. The company’s 785 nm VBG laser has a stable wavelength output suitable for Raman spectroscopy, microscopy and other fields.
The research performances of VBG-ECSLs in recent years are shown in Table 1. In the early stage, VBG is mainly used to lock the output wavelength of high-power lasers, and in the later stage, VBG is mainly used to narrow the general linewidth of low-power lasers and improve the SMSR. Moreover, VBG can achieve a stable dual wavelength output. When using VBG, the tuning mechanism can be simplified to some extent. Compared with other Bragg gratings, one of the advantages of VBG is that the incident angle is not limited, and the output wavelength can be changed by adjusting the incident angle. Moreover, it can be changed by changing the size of the injection current. The thermal stability of VBG is good, and the wavelength deviation with the temperature is small. The temperature coefficient of the peak wavelength of a typical VBG is 0.01 nm/°C, which plays a significant role in the frequency selectivity and stability. As can be seen from Table 1, the linewidths of most VBG-ECSLs developed in the laboratory are in the range of kHz~GHz, the SMSR is greater than 25 dB and the tuning range is in the order of GHz (most of them are tens of pm). The narrowest linewidth can be as low as 2 kHz, while the SMSR is as high as 57 dB, but the continuously tunable range is very small, only 0.063 nm. The maximum tuning range is 1.9 nm, SMSR is 26 dB, but the linewidth is 124 GHz. The linewidths of commercial VBG-ECSLs developed by the company are generally in the order of GHz, from tens of GHz to hundreds of GHz, SMSR is greater than 35 dB and the tuning range is in the order of GHz (most of them are 1~2 nm). The narrowest linewidth is less than 100 kHz but has only 1 nm tuning capability. The maximum tuning range is 2 nm, but the linewidth is 314.9 GHz. Compared with the laboratory research results, the commercial VBG-ECSLs have a larger tuning range and output power but a wider linewidth. VBG-ECSLs generally consist of a SL chip, micro-optical lens, VBG, optical isolator and thermistor. The advantages of the VBG-ECSLs are those where the external cavity is simple and there are no movable parts, thus providing the maximum mechanical stability and reliability, and the center wavelength of the outer cavity structure can be adjusted by tilting the angle of the VBG or changing the cavity length. During the operation of the device, the direction and position of the output beam of VBG-ECSLs remain on the original path, providing good long-term stability. In the case of a constant operating temperature, SMSR is mainly related to the matching between the divergence angle of a laser beam along the fast axis and the receiving angle of VBG. Using higher reflectance and a larger acceptance angle can produce a narrower general linewidth and higher SMSR, but the output power and reliability of the device will be reduced to some extent. Therefore, it is necessary to set the appropriate reflectance and acceptance angle when designing the structure. In general, the wavelength locking of ECSL can be achieved by introducing VBG into the outer cavity. It can not only achieve wavelength locking but also effectively reduce the linewidth of ECSL. The performance of VBG-ECSLs can be improved by changing the incident angle of light, coupling coefficient and VBG tilt angle. At present, the preparation technology of VBG-ECSLs is relatively mature, and it plays an important role in biomedicine, optical data storage, synthetic aperture Lidar, quantum optical sensors and other fields.

3.2. FBG-ECSLs

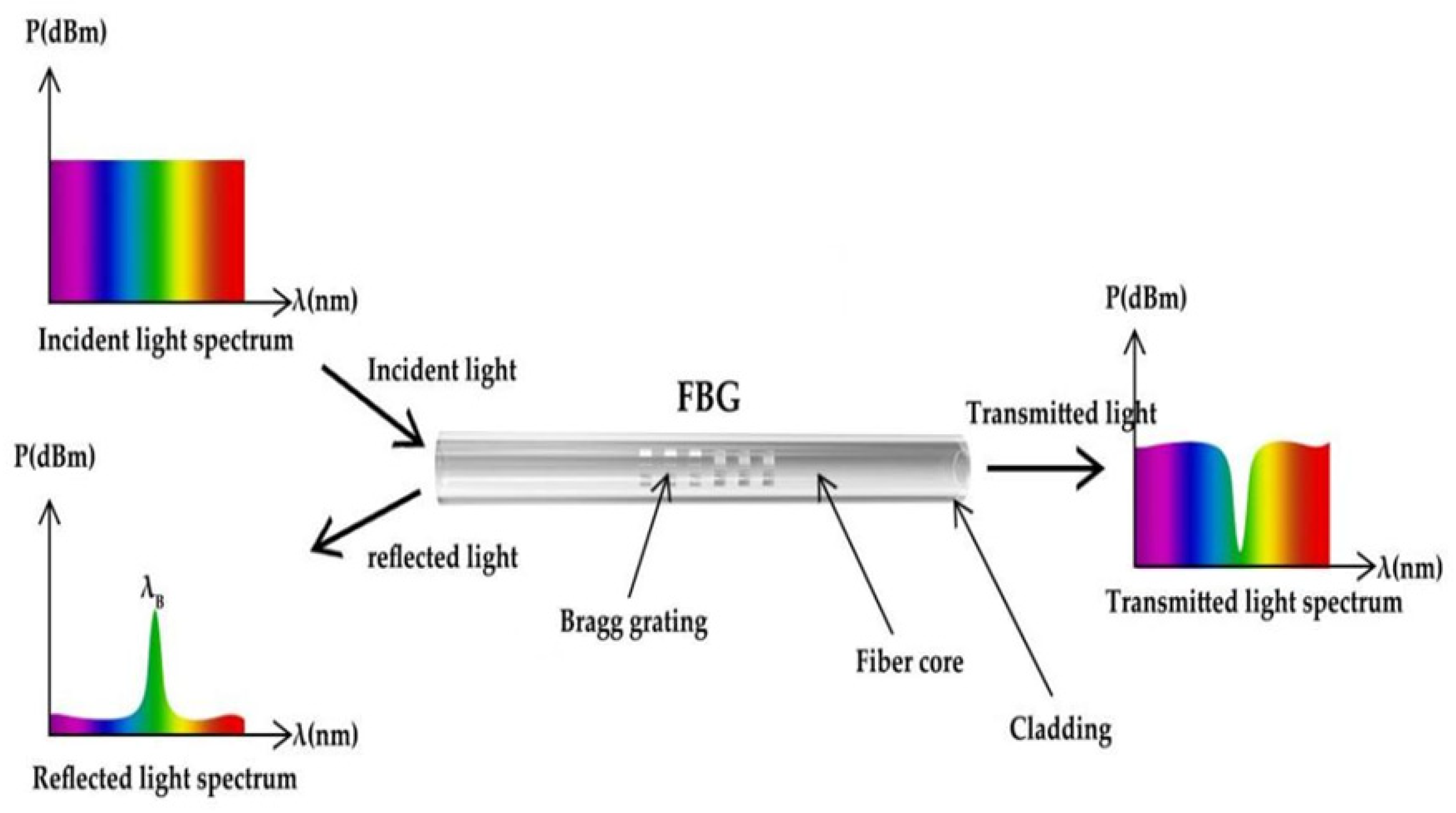

FBG is a section of grating where the refractive index changes along the axial direction. It has the characteristic of frequency selection, and the light conforming to the Bragg condition is reflected. The reflectance and linewidth of FBG are determined by the period, length, refractive index change and modulation intensity of the grating. The FBG equation is:
λB = 2neffΛ
where λB is the Bragg wavelength of the reflection center, neff is the effective refractive index of the fiber and Λ is the FBG period. When the light of the wide spectral range is an incident on the grating, part of the light continues to propagate forward, and part of the light is reflected. The reflected light has a narrow linewidth, so a narrow linewidth reflection spectrum is generated, as shown in Figure 5.

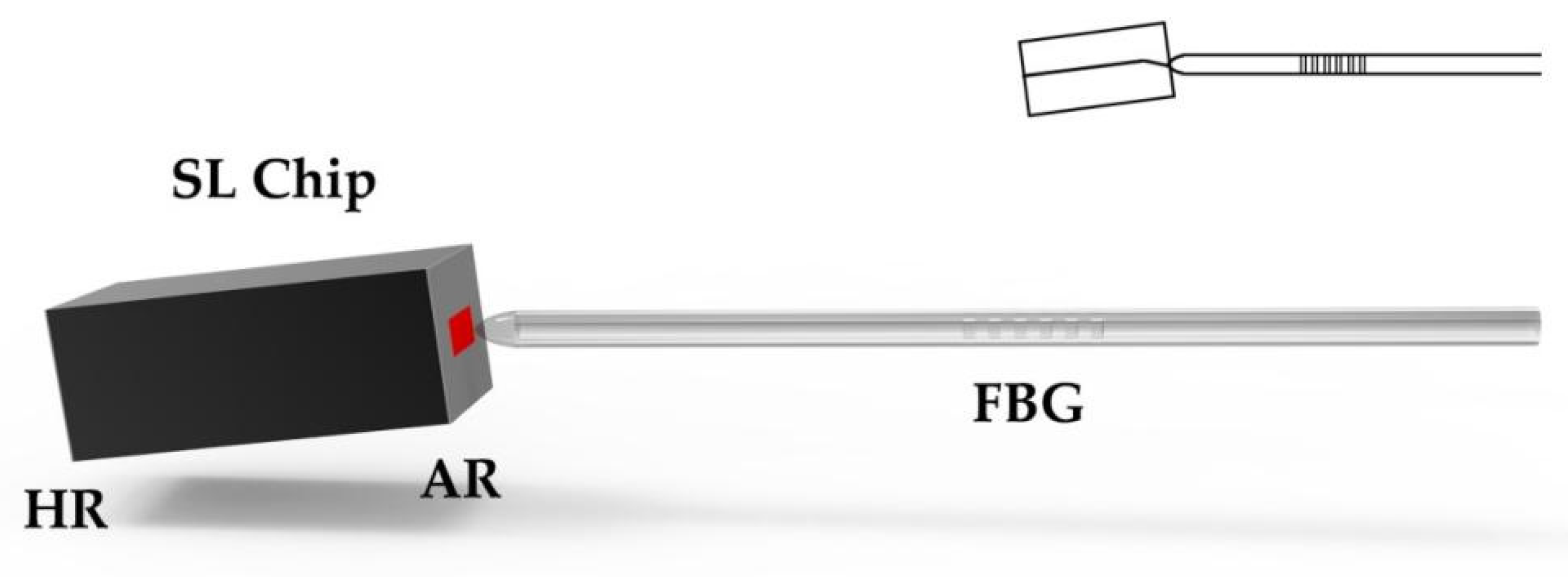

FBG-ECSL is a device that couples FBG with a SL chip, and its structure is shown in Figure 6. Since the temperature coefficient of SiO2 is much lower than that of the semiconductor, the thermal stability of the device will be improved to a certain extent. By adjusting the temperature of the FBG or external stress, the Bragg wavelength of FBG grating can be changed, so as to realize the tuning function of FBG-ECSL wavelength. Moreover, due to the large group delay characteristic of the bevel edge of the FBG, the linewidth of the ECSL can be effectively narrowed. Moreover, the FBG structure and SL chip can be designed separately, and the coupling angle can be adjusted to reduce the coupling loss, so as to optimize the laser performance. FBG-ECSL is also easy to make a FBG where the linewidth is less than the longitudinal mode spacing of a SL chip, which is beneficial to obtaining a high SMSR.
In 2010, Bretislav et al. [43] reported an FBG-ECSL for interferometry, which was used FBG to improve the wavelength stability and tunability. The central wavelength of the laser was 760 nm, the linewidth was less than 0.4 nm and the laser can be tuned continuously for 1 nm.
In 2011, Huang et al. [44] reported an optimized dual FBG for 980 nm FBG-ECSL, thereby limiting the wavelength shifts due to temperature. A mathematical model of he wavelength shift caused by the temperature was established by using the feedback rate equation of the external cavity, and the parameters of the external cavity were optimized to achieve a stable mode-locked laser output. In the range of 0~70 °C, the SMSR was higher than 45 dB, and the linewidth was less than 1nm. At the current of 400 mA, the output power was greater than 200 mW.
In the same year, Loh et al. [45] reported a 1550 nm high-power, low-noise package InGaAlAs/InP quantum well FBG-ECSL. The laser included a double-pass curved channel plate-coupled optical waveguide amplifier that used lens fibers coupled to a passive cavity of a narrowband (2.5 GHz) FBG. At a current of 4 A, the FBG-ECSL produced 370 mW of fiber-coupled output power with a linewidth of 1kHz and a relative intensity noise of 160 dB/Hz from 200 kHz to 10 GHz.
In 2012, Chen et al. [46] used the structure of an InP SL gain chip and FBG external cavity, where the emission wavelength was consistent with the methane absorption line, which was used for spectral gas sensing. FBG was used as a wavelength selector and feedback element that potentially provided the laser with wavelength tuning capabilities. The laser achieved a narrow linewidth of less than 5 MHz and was the first FBG-ECSL in the 1.65 µm region.
In 2014, Guo et al. [47] analyzed the effect of high SMSR on the ECSL of FBG using coupled cavity theory. A high SMSR and high stable frequency of FBG-ECSL were obtained by experiments. The central wavelength of the laser was 974 nm, the SMSR was 45 dB and the rate of change of the central wavelength reached 3.08 pm/°C in the temperature range of 20~80 °C. The output power was 7.1 mW at a 100 mA current.
In the same year, Teh et al. [48] reported transform-limited laser pulses of about 18 ps from FBG-ECSL. The SMSR of the laser was 50 dB, and the maximum wavelength offset was 0.1 nm. Lynch et al. [49] reported an FBG-ECSL, which used SL gain chips and FBG, where the thermal expansion or mechanical strain provided the wavelength tuning mechanism. The laser had a center wavelength of 1647 nm, a peak reflectivity of 50%, a 3 dB bandwidth of 0.5 nm and a tuning range of 1 nm.
In 2016, Lynch et al. [50] reported an ECSL using a novel integrated fiber platform Bragg grating as the external cavity. The cavity connected the photosensitive fiber to the silica on the silicon wafer and wrote the grating using the direct UV writing method. The laser operated in single mode at the acetylene P13 line (1532.83 nm) with a SMSR greater than 60 dB and linewidth less than 14 kHz. The output power was 9 mW at the injection current of 500 mA.
In the same year, Wei et al. [51] reported a simple and low-cost 1549.7 nm SL with an intrinsic linewidth of sub-kHz. The laser had an output power of 3 mW at an injection current of 131 mA with a continuous tuning range over 0.8 nm and a linewidth of 125 Hz. Wei et al. [52] designed a butterfly package narrow linewidth hybrid integrated ECSL based on polarization preserving FBG. The ECSL emitted at a wavelength of 1550 nm, had a linewidth of less than 3 kHz and had a continuous tuning capability of 21 GHz. The output power was 20 mW at an injection current of 270 mA.
In 2017, Zhang et al. [53] reported a 1550 nm mode-free jump ECSL design that included a SL gain chip and an FBG with enhanced thermal sensitivity. The features of ECSL were a narrow linewidth of 35 kHz and high linear thermal tuning speed of 65 pm/°C (8.125 GHz/°C), which was six times higher than the normal FBG-ECSL. The SMSR was larger than 50 dB, and the continuous mode no-hop tuning range was 0.5 nm, which was five times larger than the cavity mode spacing.
In 2018, Yan et al. [54] reported a theoretical model of FBG using the transfer matrix method. The effects of the FBG length and modulation depth on reflectance, grating spectral width and wavelength were studied. Some 976 nm laser modules with different grating reflectance (4%, 6%, 8% and 10%) were fabricated. By increasing the reflectance of the FBG, the SMSR was optimized to more than 40 dB, and the threshold current was reduced.
In 2019, Yang et al. [55] reported a 1550 nm continuously tunable laser using chirped FBG and a semiconductor optical amplifier (SOA). The linewidth of the laser was less than 0.03 nm, and the SMSR was more than 25 dB. It can be continuously tuned to about 48 nm (1526.02~1573.91 nm), and the power change in the tuning range was only 1.46 dB.
In 2020, Lindberg et al. [56] reported a new tunable laser. The laser used a SOA as the gain medium and modulator and a chirped FBG as the end mirror at both ends of the cavity. It was continuously tuned at 35 nm (1535~1570 nm) with a linewidth less than 0.04 nm. Wang et al. [57] reported a tunable laser based on chirped FBG. The laser was tuned continuously for 30 nm (1535~1565 nm), with a SMSR greater than 50 dB and linewidth less than 8.5 kHz.
In the same year, Gao et al. [58] reported a tunable dual-wavelength fiber ring cavity laser based on FBG and externally injected distributed feedback (DFB) lasers. The wavelength spacing was adjusted by adjusting the operating temperature of the DFB laser. The laser used SOA as the gain material. When the FBG was operated at 40 °C, the DFB laser was operated at 10 °C, and the input current of the SOA was 120 mA. It was observed that the stable dual-wavelength simultaneous oscillation was achieved at 1550.32 nm and 1552.40 nm, and the wavelength spacing was 2.08 nm. The threshold current of 1550.32 nm and 1552.40 nm laser was about 98 mA and 25 mA. When the operating temperature difference between the FBG and the injected DFB laser varies between 30 °C and 0 °C, the wavelength spacing was adjusted from 2.08 nm to 5.34 nm.
In 2021, Congar et al. [59] reported an InGaN SL based on FBG with an emission wavelength of 400.5 nm and demonstrated its high coherence. The SMSR was 44 dB, the linewidth was 16 kHz and the output power was 1 mW. In the same year, the team demonstrated a compact and robust design based on a low-cost blue SL, beam-shaping optical system and FBG as a wavelength selective reflector. The design allowed for mW-level power output around 400.8 nm, when the SMSR approached 50 dB [60]. Monga et al. [61] reported a laser composed of FBG to improve the stability of the output power and narrow linewidth. The central wavelength of the laser was 1550 nm, the SMSR was 82 dB and the linewidth was 16 kHz.
In 2022, Su et al. [62] reported a frequency-stable narrow linewidth FBG-ECSL for carbon dioxide detection Lidar. The FBG-ECSL module was integrated in a compact butterfly package with an emission wavelength of 1572.02 nm, continuous tuning at 22 GHz (about 0.173 nm) and SMSR greater than 50 dB. The output power was 30 mW at an injection current of 340 mA. A polarization-preserving all-fiber ring resonator was used as the transmission cavity, and the linewidth of the ECSL was 15 kHz by combining the narrow linewidth technology with the frequency stable transfer technology.
Similar to VBG-ECSLs, in addition to universities and research institutes, there are also many photoelectric companies conducting commercial research on FBG-ECSLs, including Denselight in Singapore, WL Photonics in Canada, iXblue in France and others.
Denselight Singapore, founded in 1998, is an international optoelectronic chip optoelectronic device manufacturer. Its products cover 800~1700 nm and power up to 50 mW. Denselight also produces a number of ultra-narrow linewidth lasers for use in BOTDR or OTDR systems.
Ixblue (French) is a professional manufacturer of optical communication equipment, which owns a number of high-tech R&D and production companies, such as Photline and iXfiber. Photline was founded in 2000 and originated from the Optical Laboratory of the University of Besancon in France. The laboratory is a specialized integrated optics and optoelectronics research center in France. The product line includes strength modulator, phase modulator, 800~2000 nm modulator products, a variety of supporting RF drivers, bias voltage controllers and so on. IXfiber is the world’s leading active and passive specialty optical fiber manufacturer, providing various industries with components and modules based on raster technology for applications in the fields of sensors, telecommunications, military and aerospace. Its main products include: single-mode fiber, multi-mode fiber, special fiber, Bragg grating and so on. Take the 15XX series FBG lasers produced by iXfiber as an example, which can be divided into low-noise and high-power FBG lasers. The output wavelength of the low-noise FBG laser is 1530~1565 nm, the linewidth is 1 kHz and the output power is only 0.05 mW. The output wavelength of the high-power FBG laser is 1535~1565 nm, the output power is 10 mW, but the linewidth is 30 kHz.
Germany Innolume GmbH mainly produces quantum well semiconductor lasers and laser modules. First engaged in GAAS-based LD research, the wavelength can cover 780~1340 nm and can now provide almost any kind of laser diode chip between 780 and 1340 nm. The company’s 1064 nm FBG laser has an output power of 670 mW, SMSR > 15 dB and linewidth < 0.5 nm.
WL Photonics (Canada) designs, develops, manufactures and markets innovative photonics products for optical fiber wavelength tuning and tuning solutions for the optical communications, spectral instrumentation and fiber sensing industries. The company’s main products include: fiber phase compensators, tunable fiber lasers, FBG lasers, wavelength scanning lasers and portable spectral analyzers. In the case of the WLTL series, tunable fiber Bragg grating lasers are manufactured on the basis of a patented design. Each component can be configured according to the specific requirements to achieve a specific tuning range and output power, involving X, O, S, C and L bands in the field of optical communication. The central wavelengths of the series include 1060 nm, 1310 nm and 1550 nm; the tuning range is greater than 85 nm; the maximum tuning range is 100 nm; the output power is greater than 5 mW and the linewidth is less than 0.05 nm. It has a wider tuning range, narrower linewidth, wider involving frequency band range and lower noise, suitable for dense wavelength division multiplexing (the DWDM system uses multiple wavelengths for communication, greatly improving the transmission capacity of the system).
Nolatech was founded in 1992, and the main products include: a laser diode, FBG laser, DFB laser, tunable laser and so on. The 790 nm FBG laser designed by the company has a linewidth of less than 100 kHz and can be continuously tuned to 0.3 nm, which is suitable for optical measurement, optical communication and other fields.
The research progress of FBG-ECSLs in recent years is shown in Table 2. FBG is similar to VBG in that the linewidth of narrow lasers can be compressed more effectively, even to the sub-kHz order, by introducing FBG into the outer cavity. In addition to reducing the linewidth, FBG can also stabilize the center wavelength of the FBG-ECSLs, which can be used for continuous or quasicontinuous output. As can be seen from Table 2, the linewidths of the FBG-ECSLs studied in most laboratories are within the range of kHz~GHz, the SMSR is greater than 40 dB and the tuning range is in the order of GHz or THz (from tens of PI meters to tens of nanometers; in contrast, the tuning range is better than that of VBG-ECSLs). The narrowest linewidth can be as low as 125 Hz while having a continuous tunable range of 0.8 nm. The maximum SMSR is 82 dB with a narrow linewidth of 16 kHz. The maximum continuous tuning range is 48 nm. The linewidth of commercial FBG-ECSLs developed by the company is generally in the range of kHz~GHz, and the tuning range is in the order of GHz~THz. The narrowest linewidth is 1 kHz and can be continuously tuned to 35 nm, but the output power is only 0.05 mW. The widest tuning range is 85 nm, but the linewidth is on the order of GHz and the power is only 5 mW. Compared with laboratory results, most commercial FBG-ECSLs also have a larger tuning range and output power, but a smaller SMSR and a relatively wider linewidth. FBG-ECSLs are generally composed of a SL chip, FBG and piezoelectric transducer, which has the advantages of a simple and compact structure, narrow linewidth, good stability and certain tuning ability, and the production cost is low, the manufacturing is more mature and the uniformity of grating structure can be precisely controlled. The wavelength selectivity of FBG has also been used to develop other devices, such as mode-locked ECSL, filters and optical switches. At the same time, FBG also has a high SMSR. FBG is usually attached to a piezoelectric transducer or other elastic element (such as a bendable cantilever) to adjust the output wavelength (with a small tunable range) by applying strain to the FBG. Due to the small refractive index and large size of FBG material and its own material absorption loss, it is not conducive to improving the output power of ECSL. In general, FBG-ECSLs are suitable for a narrow linewidth, but the tuning range and power requirements are not high. Therefore, FBG-ECSLs can be widely used in optical fiber sensing, spectral gas sensing, optical coherence tomography and other fields and has potential applications in underwater optical communication, microwave photonics, spaceborne carbon dioxide detection Lidar, ground–starlight doppler ranging and so on.

3.3. WBG-ECSLs

WBG has many advantages over FBG. It can make use of the functions of dielectric materials, such as electro-optic effect, acousto-optic effect and birefringence of dielectric materials. The polarization of WBG-ECSL is generally more stable than that of FBG-ECSL. In addition, the coupling is more stable than that between SL and fiber. Similar to FBG, WBG is a periodic structure added into a straight waveguide. Figure 7 shows the WBG structure.

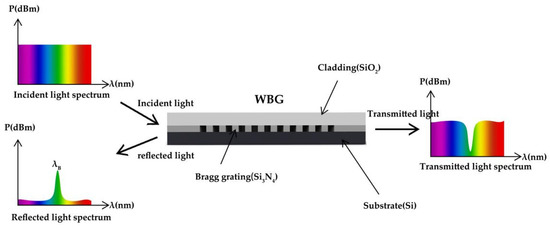

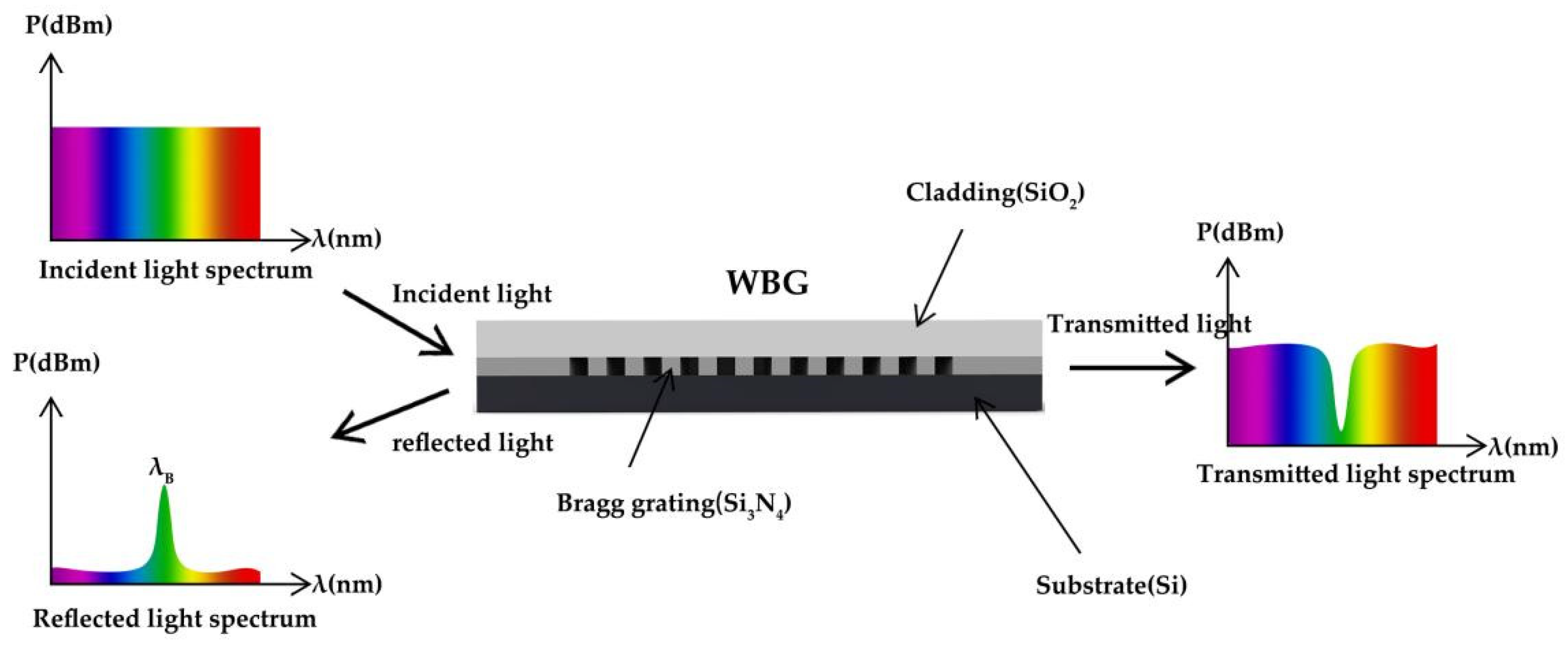

WBG is a structure in which the refractive index of the optical waveguide changes periodically, and the effective refractive index of the waveguide changes periodically through the thickness of the waveguide layer. At the periodic change, light reflection will be triggered, and light interference will be generated between the reflected light waves. By adding periodic modulation to the incident light field, light reflection of a specific wavelength is realized. Figure 8 is the reflection principle of WBG.

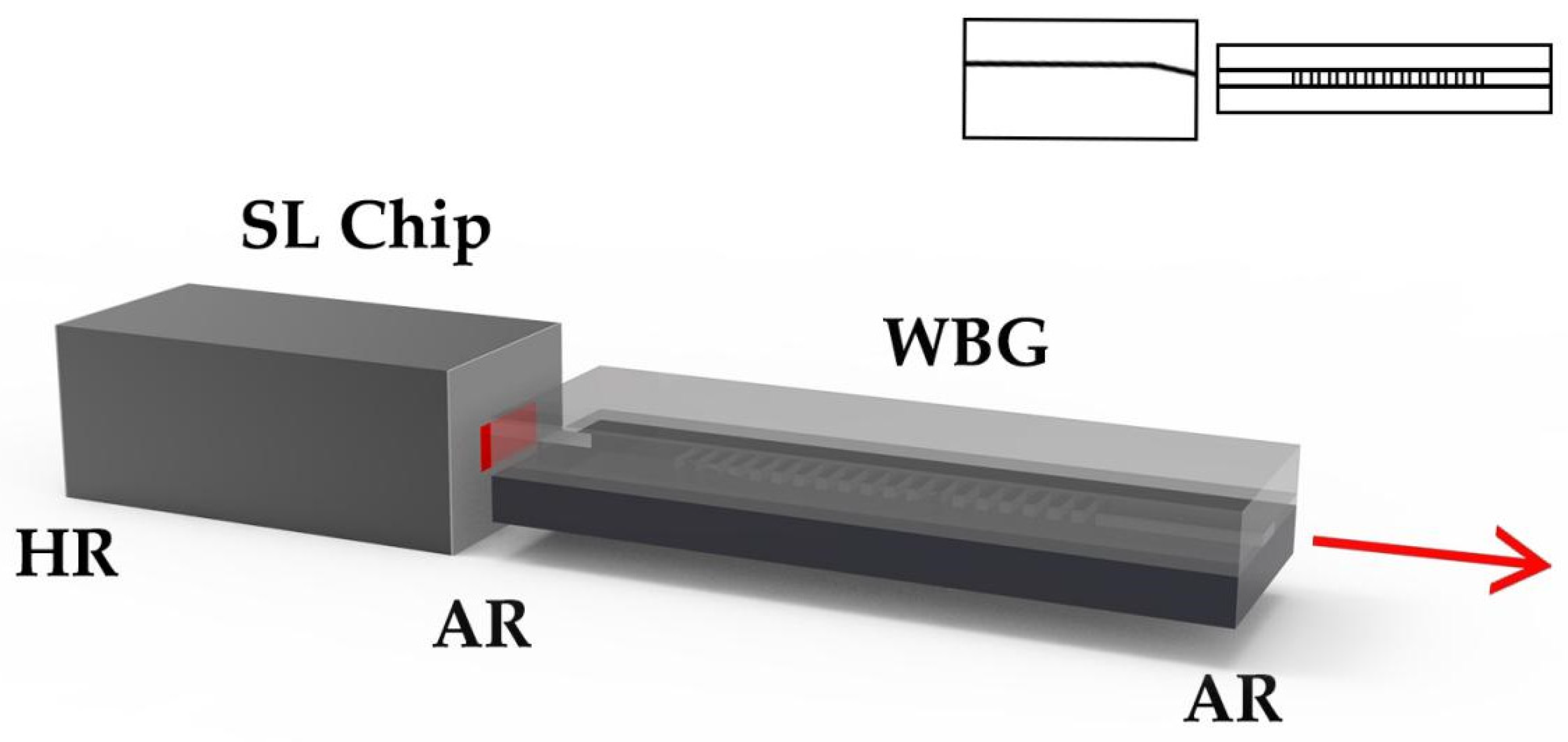

WBG-ECSL is a device that couples WBG with a SL chip, and its structure is shown in Figure 9, where the gain chip is a SL chip or SOA chip and where one cavity surface is highly reflectively (HR) coated, and the other surface is antireflective (AR) coated. The output of the waveguide is collimated through a lens, or coupled to a tail fiber. The basic materials of SL are III–V compounds, such as AlGaAs, InGaAs, InGaAsP, etc., while waveguides can choose various materials different from the chip, including semiconductors and dielectric materials.
In 2010, Numata et al. [68] reported a WBG-ECSL. The laser had a wavelength of 1542.383 nm and continuously tuned range was 47 GHz (about 0.37 nm). The maximum output power was 15 mW at an injection current of 180mA. In the same year, Yan et al. [69] combined waveguides with internal distributed Bragg gratings to reduce the linewidth (GHz to sub-GHz narrow linewidth was achieved).
In 2011, Oh et al. [70] reported a tunable WBG-ECSL, which consisted of a superlight-emitting diode and a WBG. The maximum output power was 12.2 mW, and the slope efficiency was about 0.15 W/A. The continuous tuning range was 20 nm (1527~1547 nm), linewidth was less than 0.3 nm and SMSR was greater than 35 dB. In the same year, Kyung-jo et al. [71] reported a WBG-ECSL operating at near-infrared wavelengths. The output wavelength of the laser was 850 nm, and the SMSR was 40 dB.
In 2012, Son et al. [72,73] implemented and optimized a near-infrared wavelength WBG-ECSL. The laser was tuned continuously at 20.8 nm (827.9~848.7 nm), the linewidth was 0.2 nm and the SMSR was greater than 40 dB. In the same year, Kotelnikov et al. [74] reported a 1550 nm WBG-ECSL. The output power of the laser reached 200 mW at an injection current of 1 A. The linewidth was 0.15 nm, and the SMSR was greater than 15 dB.
In 2013, Kim et al. [75] used WBG to study near-infrared wavelength tunable lasers with a central wavelength of 830 nm. The laser was tuned continuously to 31.7 nm (830.7~862.4 nm), and the SMSR was greater than 35 dB. In the same year, Kim et al. [76] designed an external cavity laser with a wide tuning range by combining a flexible polymer waveguide with a Bragg reflection grating. The laser had a tuning range of 81.8 nm (1500.1~1581.9 nm), the linewidth was less than 0.1 nm and the SMSR was 43 dB.
In 2014, Numata et al. [77] reported a 1064 nm WBG-ECSL. The WBG-ECSL was composed of a gain chip, a WBG and a prism and was tuned in the continuous range of 77 GHz (1064.36~1064.65 nm). The output power was 15 mW at a 95 mA injection current. In the same year, Lynch et al. [44] reported a 1649 nm WBG-ECSL using SL chips, WBG and other devices. The Bragg grating and waveguide were simultaneously written into the photosensitive core layer of the device by UV writing technology. The device had a linewidth of less than 1.1 GHz, SMSR was greater than 55 dB, the slope efficiency was 0.008 W/A, the threshold was 130 mA and a continuous tunable range was 690 pm. The output power was 0.5 mW at an injection current of 200 mA.
In 2015, Yun et al. [78] reported a WBG-ECSL. WBG was used as the wavelength selection element to adjust the wavelength by controlling the electric power on the microheater. The SMSR was 55 dB, the linewidth was 2 MHz, and continuously tunable range was 8.4 nm. In the same year, Mueller et al. [79] reported a WBG-ECSL. The tunable continuously range was 20 nm (1541~1561 nm), SMSR was greater than 35 dB. Lench et al. [80] report a WBG-ECSL. The central wavelength of the laser was 1650 nm and the linewidth was 200 kHz.
In 2016, Girschikofsky et al. [81] reported Bragg grating in waveguide of hybrid polymers using interferometric phase masks combined with deep ultraviolet laser radiation. The WBG with reflectivity up to 98% and linewidth was less than 120pm. In the same year, Park et al. [82] reported a C-band tunable WBG-ECSL. The center wavelength was 1542 nm, the SMSR was 23.5 dB, and tunable continuous range was 10 nm.
In 2017, Liu et al. [83] reported a new planar WBG structure. The structure consisted of two adjacent transverse gratings with slightly different grating periods. In addition, manufacturing costs are further reduced. The results showed that this structure was beneficial to improve the performances of grating based optical integrated devices.
In 2018, Iadanza et al. [84,85] reported a heat-stabilized silicon nitride ECSL. The laser was a combination of SOA and WBG with a power output of more than 3 mW at injection current of 100 mA. The linewidth was less than 3 MHz, and the SMSR was greater than 40 dB.
In 2019, Primiani et al. [86] reported a WBG-ECSL with a central wavelength of 1543 nm based on the Bragg gratings and SOA produced by the silicon nitride process. By changing the bias current of the SOA, 0.16 nm was tuned continuously. The linewidth was less than 17 kHz, and the SMSR was more than 60 dB. In the same year, Xiang et al. [87] reported an ultra-narrow linewidth laser consisting of an SL chip and a silicon nitride Bragg grating. The central wavelength of the laser was 1544 nm, and the linewidth was 320 Hz.
In 2020, Luo et al. [88] reported a C-band birefringent WBG using displacement tachyon lithography. By adjusting the waveguide width and grating etching depth, the birefringence of WBG can be controlled. Compared with WBG of other platforms, the mode splitting between TE mode and TM mode of the device reached 1.7635 nm. It had excellent function of wavelength selection and polarization mode selection.
In 2021, Janjua et al. [89] reported for the first time a narrow linewidth edge emitting semiconductor Bragg reflection waveguide laser. The SMSR of the laser was 49 dB and the linewidth was 207 kHz. The output power was 2.5 mW at injection current of 100 mA.
In the same year, Ibrahimi et al. [90] reported a WBG-ECSL. The output power was 7.5 mW at injection current of 300 mA. Wang et al. [91] reported a monolithic integrated narrow linewidth WBG-ECSL. It was composed of an active part and a passive narrow-band reflector based on WBG, which can obtain a narrow linewidth of about 16 kHz. XI-Luo et al. [92] reported a narrow linewidth hybrid laser based on a SL gain chip and a high birefringence WBG composition. The laser operated in the C-band with a central wavelength of about 1552 nm. The linewidth was 4.15 kHz and the SMSR was up to 52 dB.
In 2022, Zheng et al. [93] reported the influence of various factors on the performances of WBG. The results showed that the minimum linewidth of the WBG was 0.1 nm, the maximum SMSR was 13.2 dB, and the maximum reflectance was 99%. In the same year, Luo et al. [94] reported a narrow linewidth hybrid laser based on a SL gain chip and birefringent silicon WBG. The optimal linewidth was 4.36 kHz and the output power was 6.53 mW.
In addition to universities and research institutes, there are many companies developing commercial products of WBG-ECSLs, including Toptica in Germany, QD Laser in Japan, Finisar in the United States, etc.
Toptica (Germany) develops and manufactures high-end laser systems for scientific and industrial applications. The portfolio includes diode lasers, ultrafast fiber lasers, terahertz systems and frequency combs. Not only that, the company’s diode lasers have excellent coherence, wide tuning ranges and ideal beam profiles. The company has designed a 760 nm laser with a power output of up to 80 mW and can be continuously tuned to 33 nm. The 980 nm laser has an output power of 50 mW and can be continuously tuned to 100 nm.
Finisar is the world’s largest and most advanced supplier of optical components, modules and subsystems for telecommunications equipment and service providers, optical displays, security systems, medical devices, environmental protection equipment, aviation and defense systems. The company’s laser tuning range covers the entire C-band, suitable for DWMD systems, optical switches and other fields.
QDLaser is a leading manufacturer of semiconductor lasers for the telecommunications industry and displays. The company can use nanoscale semiconductor particles of quantum dots to achieve properties not normally available in standard lasers. Not only that, QDLaser provides laser diodes in the 1 μm to 1.3 μm range for CW or pulse mode. The company produces 1064 nm semiconductor laser, the output power of more than 100 mW.
GLSUN (China), founded in 2001, is a high-tech enterprise specializing in the development, production and sales of high-end semiconductor laser chips and components, active and passive optical devices. The 1310 nm laser produced by the company can be tuned to 20 nm and the output power is 40 mW, which is suitable for data communication, optical transmission and other fields.
Germany Photonics produces tunable lasers with output power exceeding 16 dBm, linewidth < 25 kHz, and continuous tuning of 41 nm in the C and L bands.
RIO is the leading global supplier of single frequency narrow linewidth lasers, modules, and subsystems to the clean energy, security, oil and gas, and test and measurement markets. It’s lasers have ultra-low noise, very narrow linewidth, unparalleled wavelength stability, small size, low power dissipation, Telecom grade lifetime reliability, at affordable prices. The company’s 1550 nm laser has a linewidth of less than 1 kHz, an output power of 20 mW and can be continuously tuned to 35 nm.
The research progress of WBG-ECSLs in recent years is shown in Table 3. As can be seen from Table 3, the linewidth of WBG-ECSLs studied in most laboratories is within the range of kHz~GHz, and the SMSR is greater than 35 dB (but some SMSRs are very small, only more than ten dB). The tuning range is in the order of GHz, THz (from hundreds of pimmeters to tens of nanometers can not, in contrast, the tuning range is better than FBG-ECSLs). The narrowest linewidth can be as low as 320 Hz, and the SMSR can be greater than 55 dB. The maximum SMSR is greater than 60 dB, and the linewidth is less than 17 kHz, which can be continuously tuned to 20.2 GHz. The maximum tuning range is 81.8 nm. The linewidth of commercial WBG-ECSLs developed by the company is generally in the order of kHz~MHz, from tens of kHz to several MHz, SMSR is greater than 35 dB, and the tuning range is in the order of THz (tens of nm to hundreds of nm). The narrowest linewidth is 1 kHz and can be continuously tuned to 35 nm, but the output power is only 0.05 mW. The maximum tuning range is 100 nm and the linewidth is <6.2 GHz. In contrast, the laboratory product linewidth characteristics are better, but the tuning capability and output power are relatively low, while the commercial WBG-ECSLs have good tuning range, linewidth characteristics and output power. It can be seen that compared with VBG-ECSLs and FBG-ECSLs, WBG-ECSLs has excellent comprehensive performance, including narrow linewidth characteristics, larger tuning range and SMSR. Moreover, due to the particularity of waveguide materials (Si, SiO2, Si3N4) (good thermal stability), The center wavelength of WBG-ECSLS has a smaller shift with temperature, and its performance is more stable. Moreover, waveguide has the advantages of simple structure, small size, low noise and low production cost, which can be combined with CMOS technology for large-scale production. WBG-ECSLs is generally composed of SL chip, WBG, piezoelectric actuator and microheater. Through the selection of gain medium, material and integrated device, as well as the new external cavity structure design, the epitaxial design of SOA is improved, the structure of Bragg waveguide is optimized, the coupling efficiency is improved, the waveguide loss is reduced, and the reflectivity is adjusted. Thus, WBG-ECSLS with narrower linewidth (sub kHz magnitude), wider tuning range, higher SMSR, lower noise, low cost, small volume and high performance can be realized. In general, with the continuous maturation of silicon chip design and process platform, the types of external cavity feedback components based on SiO2, Si3N4, and other materials have become more diverse. By introducing WBG structure, the linewidth of WBG-ECSLs can be compressed and the coherence of output can be improved. In addition, the wavelength tuning range of WBG-ECSLs can be significantly increased. At the same time, WBG-ECSLs has higher integration and lower loss, which can take into account narrow linewidth and tunability. WBG-ECSLs can be widely used in gas detection, coherent optical communication, wavelength division multiplexing system and other fields, and has potential application prospects in high-precision spectral detection, biomedical imaging system, high-speed long-distance quantum communication system and so on.

4. Conclusions

BG-ECSLs can be widely used in optical communication, gas detection, coherent light detection, synthetic aperture Lidar, spectral gas sensing and other fields and has potential application prospects in underwater optical communication, spaceborne carbon dioxide detection Lidar, biomedical imaging system, high-speed long-distance quantum communication system, etc. [103,104,105]. In this paper, the principle of BG-ECSLs is described, and the research achievements and latest progress in this field in the past ten years are reviewed. As shown in Table 4, the linewidth of VBG-ECSLs is in the range of kHz-THz (generally in the order of kHz-GHz), the SMSR is in the range of 16~57 dB and the tuning range is in the order of GHz (most of them are tens of picometers). The narrowest linewidth can be as low as 2 kHz while having SMSR up to 57 dB, but the continuous tunable range is small, only 0.063 nm. The maximum tuning range is 1.9 nm. The linewidth of FBG-ECSLs is in the range of kHz~GHz and that of SMSR is in the range of 25~82 dB. The tuning range is in the order of GHz and THz (from tens of picometers to tens of nanometers, and the tuning range is better than that of VBG-ECSLs). The narrowest linewidth can be as low as 125 Hz while having a continuous tunable range of 0.8nm. The maximum SMSR is 82 dB with a narrow linewidth of 16 kHz. The maximum continuous tuning range is 48 nm. The linewidth of WBG-ECSLs is in the range of KHz~GHz, and that of SMSR is in the range of 15~82 dB. The tuning range is in the order of GHz and THz (from hundreds of picometers to tens of nanometers, the tuning range is better than FBG-ECSLs). The narrowest linewidth can be as low as 320 Hz, and the SMSR can be greater than 55 dB. The maximum SMSR is greater than 60 dB, and the linewidth is less than 17 kHz, which can be continuously tuned to 20.2 GHz. The maximum tuning range is 81.8 nm. From the characteristics of commercial BG-ECSLs products, it is not difficult to find that VBG-ECSLs can obtain relatively large output power, while FBG-ECSLs and WBG-ECSLs can obtain a relatively wide tuning range, and the tuning range of WBG-ECSLs is larger, because commercial products are highly targeted (most of them are aimed at a certain module in a certain application or even a certain band). In order to meet the parameter requirements of their application field, most companies do not pursue performances with a low parameter impact on the field. For the application of DWDM, the company pursues parameters such as tuning range, linewidth, output power, SMSR, etc. when conducting research on commercial products, but some parameters cannot obtain the optimal values at the same time. For example, according to Formula (2), if the linewidth is narrower, the output power will be lower. Therefore, in the design of products, it is necessary to meet the requirements of the primary parameters (tuning range), combined with the existing technology, comprehensive consideration of production costs, product stability and other factors to adopt the optimal choice.
The advantages of VBG-ECSLs are the simple structure of the outer cavity and the lack of moving parts, thus providing maximum mechanical stability and reliability. and the center wavelength of the outer cavity structure can be adjusted by tilting the angle of the VBG or changing the cavity length. It plays an important role in biomedicine, optical data storage, synthetic aperture Lidar, quantum optical sensors and other fields. FBG-ECSLs can compress the linewidth of narrow lasers more efficiently, even to the sub-kHz magnitude. It has the advantages of simple and compact structures, narrow linewidths, good stability and a certain tuning ability, and the production cost is low, so the manufacturing process is more mature. However, due to the small refractive index, the large size and large material absorption loss of FBG material itself, it is not conducive to improving the output power of ECSL. Therefore, FBG-ECSLS is suitable for a narrow linewidth, but the tuning range and power requirements are not high. It can be widely used in optical fiber sensing, spectral gas sensing, optical coherence tomography and other fields and has potential application prospects in underwater optical communication, microwave photonics, spaceborne carbon dioxide detection Lidar, ground–starlight Doppler ranging and so on. WBG-ECSLs can not only narrow the linewidth but also maintain good SMSR and tuning capability. Compared with VBG-ECSLs and FBG-ECSLs, WBG-ECSLs have excellent comprehensive performances, which not only have narrow linewidth characteristics but can also maintain a relatively large tuning range and SMSR. Moreover, due to the particularity (good thermal stability) of waveguide materials (Si, SiO2 and Si3N4), WBG-ECSLs has a smaller central wavelength offset with the temperature. The work performance is more stable. Moreover, waveguide has the advantages of a simple structure, small size, low noise and low manufacturing cost, which can be combined with CMOS technology for large-scale production. Through the selection of gain media, materials, integrated devices, new external cavity structure design and optimization of Bragg waveguide structure, so as to improve the coupling efficiency and reduce the waveguide loss, so as to achieve a narrower linewidth, wider tuning range, higher SMSR, lower noise, low-cost and small-volume performance WBG-ECSLs. In general, with the continuous maturation of silicon chip designs and process platforms, the types of external cavity feedback components based on SiO2, Si3N4 and other materials have become more diverse. By introducing the WBG structure, the linewidth of WBG-ECSLs can be compressed, and the coherence of the output can be improved. In addition, the wavelength tuning range of WBG-ECSLs can also be significantly increased. WBG-ECSLs can be widely used in gas detection, coherent optical communication, wavelength division multiplexing system and other fields and have potential applications in multicomponent detection, multi-atom cooling, high-precision spectral detection, biomedical imaging system, high-speed long-distance quantum communication system and so on.
At present, due to the late start and technical blockade, the research on BG-ECSLs still has a certain gap with the international top level. Therefore, the key technologies (epitaxial growth, etching, etc. [106]) should be continuously broken through in the future research, and the device structure should be optimized [107]. The internal cavity (gain chip) optimizes the chip structure. The external cavity (Bragg grating and other optical feedback components [93,108,109]) adjust the structure of the existing optical components and design the optical feedback components with a better performance. In general, WBG-ECSLs are a potential approach for laser output with integration, small size, narrow linewidth, wide tuning range, stable spectral output and high side-mode rejection ratio. Using WBG as an optical feedback element is still the mainstream direction of BG-ECSLs.

Author Contributions

Conceptualization, X.L., J.S. and Z.L.; methodology, K.D., Y.M. and K.S.; writing—original draft preparation, X.L., D.X. and Z.L.; writing—review and editing, L.W., L.L. and L.Z.; visualization, Z.Q., G.L. and Y.Q.; supervision, Z.Q. and D.X. and funding acquisition, G.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by specific research fund for Innovation Platform for Academicians of Hainan Province under Grant YSPTZX202034 and Grant YSPTZX202127; in part by the Major Science and Technology Program of Hainan Province of China under Grant ZDKJ 2019005; in part by Scientific Research Projects of Higher Education Institutions in Hainan Province under Grant hnky2020-24, Grant Hnjg2021ZD-22 and Grant hnky2020ZD-12; in part by the Hainan Provincial Natural Science Foundation of China under Grant 622RC671, Grant 120MS031, Grant 2019RC190 and Grant 2019RC192; in part by the National Natural Science Foundation of China under Grant 61774024, Grant 61864002, Grant 11764012, Grant 62174046, Grant 62064004 and Grant 61964007 and in part by the Key Research and Development Projects in Hainan Province under Grant ZDYF2020020, Grant ZDYF2020036 and Grant ZDYF2020217.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Yanbo Liang, Xing Mu and Mengda Shi for helping with this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lang, X.; Jia, P.; Chen, Y.; Qin, L.; Liang, L.; Chen, C.; Wang, Y.; Shan, X.; Ning, Y.; Wang, L. Advances in narrow linewidth diode lasers. Sci. China Inf. Sci. 2019, 62, 61401. [Google Scholar] [CrossRef] [Green Version]
  2. Tran, M.A.; Huang, D.; Bowers, J.E. Tutorial on narrow linewidth tunable semiconductor lasers using Si/III-V heterogeneous integration. APL Photonics 2019, 4, 111101. [Google Scholar] [CrossRef] [Green Version]
  3. Komljenovic, T.; Srinivasan, S.; Norberg, E.; Davenport, M.; Fish, G.; Bowers, J.E. Widely tunable narrow-linewidth monolithically integrated external-cavity semiconductor lasers. IEEE J. Sel. Top. Quantum Electron. 2015, 21, 214–222. [Google Scholar] [CrossRef]
  4. Zhang, Z.; Pan, H.; Tan, S.; Yu, H.; Liu, W.; Xiao, Y.; Wang, B.; Zhou, J.; Sun, S.; Zhao, W.; et al. Spectrum-locked high-power volume Bragg grating external-cavity diode laser. Laser Phys. Lett. 2022, 19, 065001. [Google Scholar] [CrossRef]
  5. Sayed, A.F.; Mustafa, F.M.; Khalaf, A.A.M.; Aly, M.H. Spectral width reduction using apodized cascaded fiber Bragg grating for post-dispersion compensation in WDM optical networks. Photonic Netw. Commun. 2021, 41, 231–241. [Google Scholar] [CrossRef]
  6. Hengesbach, S.; Krauch, N.; Holly, C.; Traub, M.; Witte, U.; Hoffmann, D. High-power dense wavelength division multiplexing of multimode diode laser radiation based on volume Bragg gratings. Opt. Lett. 2013, 38, 3154–3157. [Google Scholar] [CrossRef]
  7. Ou, Y.; Zhou, C.; Qian, L.; Fan, D.; Cheng, C.; Guo, H.; Xiong, Z. Large WDM FBG sensor network based on frequency-shifted interferometry. IEEE Photonics Technol. Lett. 2017, 29, 535–538. [Google Scholar] [CrossRef]
  8. Kaushal, S.; Cheng, R.; Ma, M.; Mistry, A.; Burla, M.; Chrostowski, L.; Azaña, J. Optical signal processing based on silicon photonics waveguide Bragg gratings. Front. Optoelectron. 2018, 11, 163–188. [Google Scholar] [CrossRef]
  9. Mihailov, S.J.; Grobnic, D.; Hnatovsky, C.; Walker, R.B.; Lu, P.; Coulas, D.; Ding, H. Extreme environment sensing using femtosecond laser-inscribed fiber Bragg gratings. Sensors 2017, 17, 2909. [Google Scholar] [CrossRef] [Green Version]
  10. Poulton, C.V.; Yaacobi, A.; Cole, D.B.; Byrd, M.J.; Raval, M.; Vermeulen, D.; Watts, M.R. Coherent solid-state LIDAR with silicon photonic optical phased arrays. Opt. Lett. 2017, 42, 4091–4094. [Google Scholar] [CrossRef]
  11. Newman, Z.L.; Maurice, V.; Drake, T.; Stone, J.R.; Briles, T.C.; Spencer, D.T.; Fredrick, C.; Li, Q.; Westly, D.; Ilic, B.R.; et al. Architecture for the photonic integration of an optical atomic clock. Optica 2019, 6, 680–685. [Google Scholar] [CrossRef] [Green Version]
  12. Daghestani, N.S.; Cataluna, M.A.; Ross, G.; Rose, M.J. Compact dual-wavelength InAs/GaAs quantum-dot external-cavity laser stabilized by a single volume Bragg grating. IEEE Photonics Technol. Lett. 2010, 23, 176–178. [Google Scholar] [CrossRef]
  13. Shen, L.; Ye, Q.; Xin, G.; Cai, H.; Fang, Z.; Qu, R. Mode-hop-free electro-optically tuned external-cavity diode laser with a volume Bragg grating. In Conference on Lasers and Electro-Optics/Pacific Rim; Optica Publishing Group: Hong Kong, China, 2011; p. C153. [Google Scholar]
  14. Shen, L.; Ye, Q.; Cai, H.; Qu, R. Mode-hop-free electro-optically tuned external-cavity diode laser using volume Bragg grating and PLZT ceramic. Opt. Express 2011, 19, 17244–17249. [Google Scholar] [CrossRef] [Green Version]
  15. Sumpf, B.; Bawamia, A.; Blume, G.; Eppich, B.; Ginolas, A.; Spießberger, S.; Thomas, M.; Erbert, G. Continuously current-tunable, narrow line-width miniaturized external cavity diode laser at 633 nm. In Novel In-Plane Semiconductor Lasers XI; SPIE: Bellingham, WA, USA, 2012; Volume 8277, pp. 170–177. [Google Scholar]
  16. Li, Y.; Negoita, V.; Barnowski, T.; Strohmaier, S.; Treusch, G. Wavelength locking of high-power diode laser bars by volume Bragg gratings. In Proceedings of the 2012 IEEE Photonics Society Summer Topical Meeting Series, Seattle, WA, USA, 9–11 July 2012; IEEE: Piscataway, NJ, USA, 2012; pp. 29–30. [Google Scholar]
  17. Luvsandamdin, E.; Spießberger, S.; Schiemangk, M.; Sahm, A.; Mura, G.; Wicht, A.; Peters, A.; Erbert, G.; Tränkle, G. Development of narrow linewidth, micro-integrated extended cavity diode lasers for quantum optics experiments in space. Appl. Phys. B 2013, 111, 255–260. [Google Scholar] [CrossRef]
  18. Luvsandamdin, E.; Kürbis, C.; Schiemangk, M.; Sahm, A.; Wicht, A.; Peters, A.; Erbert, G.; Tränkle, G. Micro-integrated extended cavity diode lasers for precision potassium spectroscopy in space. Opt. Express 2014, 22, 7790–7798. [Google Scholar] [CrossRef] [PubMed]
  19. Rauch, S.; Sacher, J. Volume holographic grating stabilized 780 nm ridge waveguide laser with an output power of 380 mW. In CLEO: Applications and Technology; Optical Society of America: Washington, DC, USA, 2015; p. JTh2A.10. [Google Scholar]
  20. Zheng, Y.; Kawashima, T.; Satoh, N.; Kan, H. Stable-spectrum and narrow-linewidth operation of broad-area distributed feedback diode laser with volume Bragg grating. Appl. Phys. Express 2015, 8, 112101. [Google Scholar] [CrossRef]
  21. Ruhnke, N.; Müller, A.; Eppich, B.; Maiwald, M.; Sumpf, B.; Erbert, G.; Traenkle, G. Micro-integrated external cavity diode laser with 1.4-W narrowband emission at 445 nm. IEEE Photonics Technol. Lett. 2016, 28, 2791–2794. [Google Scholar] [CrossRef]
  22. Ivanov, S.A.; Nikonorov, N.V.; Ignat’ev, A.I.; Zolotarev, V.V.; Lubyanskiy, Y.V.; Pikhtin, N.A.; Tarasov, I.S. Narrowing of the emission spectra of high-power laser diodes with a volume Bragg grating recorded in photo-thermo-refractive glass. Semiconductors 2016, 50, 819–823. [Google Scholar] [CrossRef]
  23. Kohfeldt, A.; Kürbis, C.; Luvsandamdin, E.; Schiemangk, M.; Wicht, A.; Peters, A.; Erbert, G.; Tränkle, G. Compact narrow linewidth diode laser modules for precision quantum optics experiments on board of sounding rockets. In Quantum Optics; SPIE: Bellingham, WA, USA, 2016; Volume 9900, pp. 203–212. [Google Scholar]
  24. Christopher, H.; Arar, B.; Bawamia, A.; Kürbis, C.; Lewoczko-Adamczyk, W.; Schiemangk, M.; Smol, R.; Wicht, A.; Peters, A.; Tränkle, G. Narrow linewidth micro-integrated high power diode laser module for deployment in space. In Proceedings of the 2017 IEEE International Conference on Space Optical Systems and Applications (ICSOS), Naha, Japan, 14–16 November 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 150–153. [Google Scholar]
  25. Zheng, Y.; Sekine, T.; Kurita, T.; Kato, Y.; Kawashima, T. Continuous-wave dual-wavelength operation of a distributed feedback laser diode with an external cavity using a volume Bragg grating. Jpn. J. Appl. Phys. 2018, 57, 030307. [Google Scholar] [CrossRef]
  26. Ruhnke, N.; Müller, A.; Eppich, B.; Maiwald, M.; Sumpf, B.; Erbert, G.; Trankle, G. Compact deep UV system at 222.5 nm based on frequency doubling of GaN laser diode emission. IEEE Photonics Technol. Lett. 2018, 30, 289–292. [Google Scholar] [CrossRef]
  27. Chung, T.; Hsu, W.T.; Hsieh, Y.H.; Shih, B.J. Recording 2nd order PQ: PMMA reflective VBG for diode laser output spectrum narrowing. Opt. Express 2019, 27, 8258–8266. [Google Scholar] [CrossRef] [PubMed]
  28. Wu, F.; Sun, H.; Wang, C.; Qi, Z. Development of a 780nm narrow line width semiconductor laser device. In Semiconductor Lasers and Applications IX; SPIE: Bellingham, WA, USA, 2019; Volume 11182, pp. 58–63. [Google Scholar]
  29. Yim, S.H.; Kim, T.H.; Choi, J.M. A simple extended-cavity diode laser using a precision mirror mount. Rev. Sci. Instrum. 2020, 91, 046102. [Google Scholar] [CrossRef] [PubMed]
  30. Chi, M.; Müller, A.; Hansen, A.K.; Jensen, O.B.; Petersen, P.M.; Sumpf, B. Microsecond pulse-mode operation of a micro-integrated high-power external-cavity tapered diode laser at 808 nm. Appl. Opt. 2020, 59, 7836–7840. [Google Scholar] [CrossRef]
  31. Rådmark, M.; Elgcrona, G.; Karlsson, H. Novel narrow linewidth 785 nm diode laser with enhanced spectral purity facilitates low-frequency Raman spectroscopy. In Advanced Chemical Microscopy for Life Science and Translational Medicine; SPIE: Bellingham, WA, USA, 2020; Volume 11252, pp. 62–68. [Google Scholar]
  32. Liu, B.; Liu, H.; Zhu, P.; Liu, X. High-side mode suppression ratio with a high-stability external-cavity diode laser array at 976 nm in a wide temperature and current range. Opt. Commun. 2021, 486, 126792. [Google Scholar] [CrossRef]
  33. Liu, Y.; Liu, Y.; Li, H.; Xiao, H.; Xia, Y.; Gao, R.; Li, X.; Zheng, Q. Wavelength stabilization and spectra narrowing of a 405 nm external-cavity semiconductor laser based on a volume Bragg grating. Appl. Opt. 2022, 61, 4132–4139. [Google Scholar] [CrossRef]
  34. Lu, Y.; Zhang, W.Q.; Fan, J.; Zhou, X.; Wang, Y.; Qu, H.; Zheng, W. High-power tunable dual-wavelength diode laser with a composite external cavity. Opt. Lett. 2022, 47, 2486–2489. [Google Scholar] [CrossRef]
  35. Chi, M.; Müller, A.; Hansen, A.K.; Jensen, O.B.; Petersen, P.M.; Sumpf, B. Micro-integrated high-power narrow-linewidth external-cavity tapered diode laser at 762 nm for daylight imaging. Opt. Commun. 2022, 514, 128120. [Google Scholar] [CrossRef]
  36. Qi, Z.; Hu, W.; Wang, C. Compact and robust Bragg grating stabilized diode laser at 780 nm. In Proceedings of the Seventh Asia Pacific Conference on Optics Manufacture and 2021 International Forum of Young Scientists on Advanced Optical Manufacturing (APCOM and YSAOM 2021), Shanghai, China, 28–31 October 2021; SPIE: Bellingham, WA, USA, 2022; Volume 12166, pp. 411–414. [Google Scholar]
  37. Wang, R.; Yang, Z.; Tang, H.; Li, L.; Zhao, H.; Wang, H.; Xu, X. A linewidth narrowed diode laser for metastable Argon atom pumping. Opt. Commun. 2022, 502, 127398. [Google Scholar] [CrossRef]
  38. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/product-742/808nm_40W_fiber_coupled_module_narrow_linewidth_DILAS-1416223024.pdf (accessed on 3 November 2022).
  39. Available online: https://www.optoprim.de/PDF/Ondax/FS-Butterfly_785-1064.pdf (accessed on 3 November 2022).
  40. Available online: https://www.rpmclasers.com/wp-content/uploads/2021/03/R1Z5-Datasheet-SM-Fiber-coupled-BF.pdf (accessed on 3 November 2022).
  41. Available online: https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=14427 (accessed on 3 November 2022).
  42. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/9342/976nm_100W_FC_Module_VBG_105um_PhotonTEC-1623621998.pdf (accessed on 3 November 2022).
  43. Mikel, B.; Buchta, Z.; Lazar, J.; Cip, O. High frequency stability semiconductor laser sources at 760 nm wavelength. Resonance 2010, 1, 9. [Google Scholar]
  44. Huang, Y.; Li, Y.; Wang, H.; Yu, X.; Zhang, H.; Zhang, W.; Zhu, H.; Zhou, S.; Sun, R.; Zhang, Y. Wavelength stabilization of a 980-nm semiconductor laser module stabilized with high-power uncooled dual FBG. Chin. Opt. Lett. 2011, 9, 031403. [Google Scholar] [CrossRef]
  45. Loh, W.; O’Donnell, F.J.; Plant, J.J.; Brattain, M.A.; Missaggia, L.J.; Juodawlkis, P.W. Packaged, high-power, narrow-linewidth slab-coupled optical waveguide external cavity laser (SCOWECL). IEEE Photonics Technol. Lett. 2011, 23, 974–976. [Google Scholar] [CrossRef]
  46. Chen, F.; Hodgkinson, J.; Staines, S.; James, S.; Tatam, R. A 1.65 µm region external cavity laser diode using an InP gain chip and a fibre Bragg grating. In Proceedings of the OFS2012 22nd International Conference on Optical Fiber Sensors, Beijing, China, 14–19 October 2012; SPIE: Bellingham, WA, USA, 2012; Volume 8421, pp. 876–879. [Google Scholar]
  47. Guo, W.; Tan, M.; Jiao, J.; Guo, X.; Sun, N. 980 nm fiber grating external cavity semiconductor lasers with high side mode suppression ratio and high stable frequency. J. Semicond. 2014, 35, 084007. [Google Scholar] [CrossRef]
  48. Teh, P.S.; Alam, S.; Shepherd, D.P.; Richardson, D.J. Generation of mode-locked optical pulses at 1035 nm from a fiber Bragg grating stabilized semiconductor laser diode. Opt. Express 2014, 22, 13366–13373. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Lynch, S.G.; Chen, F.; Gates, J.C.; Holmes, C.; Staines, S.E.; James, S.W.; Hodgkinson, J.; Smith, P.G.R.; Tatam, R.P. Bragg-grating-stabilized external cavity lasers for gas sensing using tunable diode laser spectroscopy. In Novel In-Plane Semiconductor Lasers XIII; SPIE: Bellingham, WA, USA, 2014; Volume 9002, pp. 15–21. [Google Scholar]
  50. Lynch, S.G.; Holmes, C.; Berry, S.A.; Gates, J.C.; Jantzen, A.; Ferreiro, T.I.; Smith, P.G.R. External cavity diode laser based upon an FBG in an integrated optical fiber platform. Opt. Express 2016, 24, 8391–8398. [Google Scholar] [CrossRef]
  51. Wei, F.; Yang, F.; Zhang, X.; Xu, D.; Ding, M.; Zhang, L.; Chen, D.; Cai, H.; Fang, Z.; Xijia, G. Subkilohertz linewidth reduction of a DFB diode laser using self-injection locking with a fiber Bragg grating Fabry-Perot cavity. Opt. Express 2016, 24, 17406–17415. [Google Scholar] [CrossRef]
  52. Wei, F.; Sun, G.; Zhang, L.; Chen, G.; Xin, G.; Chen, D.; Cai, H. Narrow linewidth hybrid integrated external cavity diode laser for precision applications. In Semiconductor Lasers and Applications VII; SPIE: Bellingham, WA, USA, 2016; Volume 10017, pp. 88–91. [Google Scholar]
  53. Zhang, L.; Wei, F.; Sun, G.; Chen, D.J.; Cai, H.W.; Qu, R.H. Thermal tunable narrow linewidth external cavity laser with thermal enhanced FBG. IEEE Photonics Technol. Lett. 2017, 29, 385–388. [Google Scholar] [CrossRef]
  54. Yan, Z.H.; Zhou, S. Study of the characteristics of 976 nm Bragg grating external cavity semiconductor lasers. Mod. Phys. Lett. B 2018, 32, 1850214. [Google Scholar] [CrossRef]
  55. Yang, X.; Lindberg, R.; Margulis, W.; Fröjdh, K.; Laurell, F. Continuously tunable, narrow-linewidth laser based on a semiconductor optical amplifier and a linearly chirped fiber Bragg grating. Opt. Express 2019, 27, 14213–14220. [Google Scholar] [CrossRef]
  56. Lindberg, R.; Laurell, F.; Fröjdh, K.; Margulis, W. C-cavity fiber laser employing a chirped fiber Bragg grating for electrically gated wavelength tuning. Opt. Express 2020, 28, 9208–9215. [Google Scholar] [CrossRef]
  57. Wang, L.; Shen, Z.; Feng, X.; Li, F.; Cao, Y.; Wang, X.; Guan, B.O. Tunable single-longitudinal-mode fiber laser based on a chirped fiber Bragg grating. Opt. Laser Technol. 2020, 121, 105775. [Google Scholar] [CrossRef]
  58. Gao, S.; Luo, M.; Jing, Z.; Chen, H. A tunable dual-wavelength fiber ring-cavity laser based on a FBG and DFB laser injection. Optik 2020, 203, 163961. [Google Scholar] [CrossRef]
  59. Congar, A.; Gay, M.; Perin, G.; Mammez, D.; Simon, J.C.; Besnard, P.; Rouvillain, J.; Georges, T.; Lablonde, L.; Robin, T.; et al. Narrow linewidth near-UV InGaN laser diode based on external cavity fiber Bragg grating. Opt. Lett. 2021, 46, 1077–1080. [Google Scholar] [CrossRef] [PubMed]
  60. Lablonde, L.; Le Rouzic, C.; Robin, T.; Congar, A.; Trebaol, S.; Gay, M.; Perin, G.; Mammez, D.; Simon, J.C.; Besnard, P.; et al. Assessment of a sub-MHz linewidth fiber Bragg grating external-cavity InGaN laser diode. In Gallium Nitride Materials and Devices XVI; SPIE: Bellingham, WA, USA, 2021; Volume 11686, pp. 34–41. [Google Scholar]
  61. Monga, K.J.J.; Martínez-Manuel, R.; Meyer, J.; Diaz, S.; Sompo, J.M. Stable and narrow linewidth linear cavity CW-active Q-switched erbium-doped fiber laser. Opt. Laser Technol. 2021, 140, 107013. [Google Scholar] [CrossRef]
  62. Su, Q.; Wei, F.; Sun, G.; Li, S.; Wu, R.; Pi, H.; Chen, D.; Yang, F.; Ying, K.; Qu, R.; et al. Frequency-Stabilized External Cavity Diode Laser at 1572 nm Based on Frequency Stability Transfer. IEEE Photonics Technol. Lett. 2022, 34, 203–206. [Google Scholar] [CrossRef]
  63. Available online: https://www.laserdiodesource.com/shop/1550nm-10mW-narrow-linewidth-Denselight (accessed on 3 November 2022).
  64. Available online: http://aikelabs.com/company/345.htm (accessed on 3 November 2022).
  65. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/4355/SM_10XX_YY_400_600_670-1619705929.pdf (accessed on 3 November 2022).
  66. Available online: http://www.wlphotonics.com/product/Manual_Tunable_Fiber_Laser.pdf (accessed on 3 November 2022).
  67. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/product-2122/790nm_20mW_butterfly_grating_stabilized_NOLATECH-1420571090.pdf (accessed on 3 November 2022).
  68. Numata, K.; Camp, J.; Krainak, M.A.; Stolpner, L. Performance of planar-waveguide external cavity laser for precision measurements. Opt. Express 2010, 18, 22781–22788. [Google Scholar] [CrossRef]
  69. Yan, L.; Ma, L.; Tang, X. Narrow-band photon pairs generated from spontaneous parametric down conversion in a Bragg-grating enhanced waveguide. In Quantum Communications and Quantum Imaging VIII; SPIE: Bellingham, WA, USA, 2010; Volume 7815, pp. 172–178. [Google Scholar]
  70. Oh, S.H.; Yoon, K.H.; Kim, K.S.; Kim, J.; Kwon, O.K.; Oh, D.K.; Noh, Y.O.; Seo, J.K.; Lee, H.J. Tunable external cavity laser by hybrid integration of a superluminescent diode and a polymer Bragg reflector. IEEE J. Sel. Top. Quantum Electron. 2011, 17, 1534–1541. [Google Scholar]
  71. Kim, K.J.; Son, N.S.; Kim, J.W.; Oh, M.C. Near Infrared Laser Based on Polymer Waveguide Bragg Grating. Korean J. Opt. Photonics 2011, 22, 179–183. [Google Scholar] [CrossRef] [Green Version]
  72. Cheon, B.J.; Son, N.S.; Kim, J.W.; Oh, M.C. Near Infrared external cavity tunable laser based on polymer waveguide Bragg gratings. In Proceedings of the 2012 17th Opto-Electronics and Communications Conference, Busan, Korea, 2–6 July 2012; IEEE: Piscataway, NJ, USA, 2012; pp. 605–606. [Google Scholar]
  73. Son, N.S.; Kim, K.J.; Kim, J.W.; Oh, M.C. Near-infrared tunable lasers with polymer waveguide Bragg gratings. Opt. Express 2012, 20, 827–834. [Google Scholar] [CrossRef]
  74. Kotelnikov, E.; Katsnelson, A.; Patel, K.; Kudryashov, L. High-power single-mode ingaasp/inp laser diodes for pulsed operation. In Novel In-Plane Semiconductor Lasers XI; SPIE: Bellingham, WA, USA, 2012; Volume 8277, pp. 178–183. [Google Scholar]
  75. Kim, J.W.; Kim, K.J.; Son, N.S.; Oh, M.C. Strain-imposed external cavity tunable lasers operating for NIR wavelength. J. Opt. Soc. Korea 2013, 17, 172–176. [Google Scholar] [CrossRef] [Green Version]
  76. Kim, K.J.; Oh, M.C.; Moon, S.R.; Lee, C.H. Flexible polymeric tunable lasers for WDM passive optical networks. J. Light. Technol. 2013, 31, 982–987. [Google Scholar] [CrossRef]
  77. Numata, K.; Alalusi, M.; Stolpner, L.; Margaritis, G.; Camp, J.; Krainak, M. Characteristics of the single-longitudinal-mode planar-waveguide external cavity diode laser at 1064 nm. Opt. Lett. 2014, 39, 2101–2104. [Google Scholar] [CrossRef] [PubMed]
  78. Yun, B.; Hu, G.; Zhang, R.; Cui, Y. Tunable erbium-doped fiber ring laser based on thermo-optic polymer waveguide Bragg grating. Opt. Commun. 2015, 336, 30–33. [Google Scholar] [CrossRef]
  79. Mueller, T.; Maese-Novo, A.; Zhang, Z.; Polatynski, A.; Felipe, D.; Kleinert, M.; Brinker, W.; Zawadzki, C.; Keil, N. Switchable dual-polarization external cavity tunable laser. Opt. Lett. 2015, 40, 447–450. [Google Scholar] [CrossRef]
  80. Lynch, S.G.; Gates, J.C.; Berry, S.A.; Holmes, C.; Smith, P.G.R. Thermally tunable integrated planar Bragg-grating stabilized diode laser. In Novel In-Plane Semiconductor Lasers XIV; SPIE: Bellingham, WA, USA, 2015; Volume 9382, pp. 102–107. [Google Scholar]
  81. Girschikofsky, M.; Förthner, M.; Rommel, M.; Frey, L.; Hellmann, R. Waveguide Bragg gratings in Ormocer hybrid polymers. Opt. Express 2016, 24, 14725–14736. [Google Scholar] [CrossRef] [PubMed]
  82. Park, T.H.; Shin, J.S.; Huang, G.; Chu, W.S.; Oh, M.C. Tunable channel drop filters consisting of a tilted Bragg grating and a mode sorting polymer waveguide. Opt. Express 2016, 24, 5709–5714. [Google Scholar] [CrossRef]
  83. Liu, S.; Shi, Y.; Zhou, Y.; Zhao, Y.; Zheng, J.; Lu, J.; Chen, X. Planar waveguide moiré grating. Opt. Express 2017, 25, 24960–24973. [Google Scholar] [CrossRef]
  84. Iadanza, S.; Bakoz, A.; Panettieri, D.; Tedesco, A.; Giannino, G.; Grande, M.; O’Faolain, L. Thermally Stable External Cavity Laser Based on Silicon Nitride Periodic Nanostructures. In Proceedings of the 2018 20th International Conference on Transparent Optical Networks (ICTON), Bucharest, Romania, 1–5 July 2018; IEEE: Piscataway, NJ, USA, 2018; pp. 1–4. [Google Scholar]
  85. Iadanza, S.; Bakoz, A.P.; Singaravelu, P.K.J.; Panettieri, D.; Schulz, S.A.; Devarapu, G.C.R.; Guerber, S.; Baudot, C.; Boeuf, F.; Hegarty, S.; et al. Thermally stable hybrid cavity laser based on silicon nitride gratings. Appl. Opt. 2018, 57, E218–E223. [Google Scholar] [CrossRef] [Green Version]
  86. Primiani, P.; Boust, S.; Fedeli, J.M.; Duport, F.; Gomez, C.; Paret, J.F.; Garreau, A.; Mekhazni, K.; Fortin, C.; Dijk, F.V. Silicon nitride Bragg grating with joule thermal tuning for external cavity lasers. IEEE Photonics Technol. Lett. 2019, 31, 983–986. [Google Scholar] [CrossRef]
  87. Xiang, C.; Morton, P.A.; Bowers, J.E. Ultra-narrow linewidth laser based on a semiconductor gain chip and extended Si3N4 Bragg grating. Opt. Lett. 2019, 44, 3825–3828. [Google Scholar] [CrossRef]
  88. Luo, X.; Chen, C.; Qin, L.; Zhang, X.; Chen, Y.; Wang, B.; Liang, L.; Jia, P.; Ning, Y.; Wang, L. High-birefringence waveguide Bragg gratings fabricated in a silica-on-silicon platform with displacement Talbot lithography. Opt. Mater. Express 2020, 10, 2406–2414. [Google Scholar] [CrossRef]
  89. Janjua, B.; Iu, M.L.; Yan, Z.; Charles, P.; Chen, E.; Helmy, A.S. Distributed feedback lasers using surface gratings in Bragg waveguides. Opt. Lett. 2021, 46, 3689–3692. [Google Scholar] [CrossRef] [PubMed]
  90. Ibrahimi, Y.; Boust, S.; Wilmart, Q.; Paret, J.F.; Garreau, A.; Mekhazni, K.; Fortin, C.; Duport, F.; Fedeli, J.M.; Sciancalepore, C.; et al. Low FSR Mode-Locked Laser Based on InP-Si3N4 Hybrid Integration. J. Light. Technol. 2021, 39, 7573–7580. [Google Scholar] [CrossRef]
  91. Wang, H.; Shi, Y.; Wu, Y.; Ma, Y.; Hong, Z.; Wu, H.; Chen, X. Monolithically Integrated Narrow Linewidth Semiconductor Laser with a Narrow Band Reflector. In Proceedings of the 2021 19th International Conference on Optical Communications and Networks (ICOCN), Qufu, China, 23–27 August 2021; IEEE: Piscataway, NJ, USA, 2021; pp. 1–3. [Google Scholar]
  92. Luo, X.; Chen, C.; Ning, Y.; Zhang, X.; Qiu, C.; Chen, J.; Yin, X.; Qin, L.; Wang, L. High linear polarization, narrow linewidth hybrid semiconductor laser with an external birefringence waveguide Bragg grating. Opt. Express 2021, 29, 33109–33120. [Google Scholar] [CrossRef]
  93. Zheng, Y.; Yue, J.; Zhang, P. Analysis of parameter influence law of waveguide Bragg grating. Opt. Laser Technol. 2022, 146, 107576. [Google Scholar] [CrossRef]
  94. Luo, X.; Chen, C.; Ning, Y.; Zhang, J.; Chen, J.; Zhang, X.; Li, L.; Wu, H.; Zhou, Y.; Qin, L.; et al. Single polarization, narrow linewidth hybrid laser based on selective polarization mode feedback. Opt. Laser Technol. 2022, 154, 108340. [Google Scholar] [CrossRef]
  95. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/9179/980nm_50mW_laser_diode_TO_Can_Toptica_eagleyard-1618792092.pdf (accessed on 3 November 2022).
  96. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/product-1665/1528nm_1563nm_20mW_butterfly_tunable_Finisar-1417229311.pdf (accessed on 3 November 2022).
  97. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/5789/1064nm_100mW_DFB_Butterfly-1600791896.pdf (accessed on 3 November 2022).
  98. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/5171/1060nm_80mW_COC_Gain_Chip-1600791852.pdf (accessed on 3 November 2022).
  99. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/9173/760nm_80mW_widely_tunable_TO_Can_Toptica_eagleyard-1618784650.pdf (accessed on 3 November 2022).
  100. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/9312/1310nm_20mW_2gbps_TO_Can_GLsun-1622752947.pdf (accessed on 3 November 2022).
  101. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/9001/DATA_SHEET___Continuously_Tunable_C_Band_Laser_Source_Compact_Turn_Key_Module_Adjustable_Output_Power___Model_CBDX1_1_GC_FA_-1661971031.pdf (accessed on 3 November 2022).
  102. Available online: https://www.laserdiodesource.com/files/pdfs/laserdiodesource_com/product-2177/1530nm_1565nm_20mW_OEM_MODULE_narrow_linewidth_RIO-1423970578.pdf (accessed on 3 November 2022).
  103. Saktioto, T.; Fadilla, F.D.; Soerbakti, Y.; Irawan, D.; Okfalisa. Application of Fiber Bragg Grating Sensor System for Simulation Detection of the Heart Rate. J. Phys. Conf. Ser. 2021, 2049, 012002. [Google Scholar] [CrossRef]
  104. Butt, M.A.; Kazanskiy, N.L.; Khonina, S.N. Advances in Waveguide Bragg Grating Structures, Platforms, and Applications: An Up-to-Date Appraisal. Biosensors 2022, 12, 497. [Google Scholar] [CrossRef]
  105. Jinachandran, S.; Rajan, G. Fibre Bragg grating based acoustic emission measurement system for structural health monitoring applications. Materials 2021, 14, 897. [Google Scholar] [CrossRef]
  106. Park, T.H.; Kim, S.M.; Oh, M.C. Polymer-waveguide Bragg-grating devices fabricated using phase-mask lithography. Curr. Opt. Photonics 2019, 3, 401–407. [Google Scholar]
  107. Nishijima, Y.; Ueno, K.; Juodkazis, S.; Mizeikis, V.; Fujiwara, H.; Sasaki, K.; Misawa, H. Lasing with well-defined cavity modes in dye-infiltrated silica inverse opals. Opt. Express 2009, 17, 2976–2983. [Google Scholar] [CrossRef]
  108. Mikutis, M.; Kudrius, T.; Šlekys, G.; Paipulas, D.; Juodkazis, S. High 90% efficiency Bragg gratings formed in fused silica by femtosecond Gauss-Bessel laser beams. Opt. Mater. Express 2013, 3, 1862–1871. [Google Scholar] [CrossRef]
  109. Roth, G.L.; Kefer, S.; Hessler, S.; Esen, C.; Hellmann, R. Polymer photonic crystal waveguides generated by femtosecond laser. Laser Photonics Rev. 2021, 15, 2100215. [Google Scholar] [CrossRef]
Figure 1. Structure of Bragg grating.
Figure 1. Structure of Bragg grating.
Materials 15 08256 g001
Figure 2. Bragg grating reflection principle.
Figure 2. Bragg grating reflection principle.
Materials 15 08256 g002
Figure 3. Structure of VBG.
Figure 3. Structure of VBG.
Materials 15 08256 g003
Figure 4. Structure of VBG-ECSL.
Figure 4. Structure of VBG-ECSL.
Materials 15 08256 g004
Figure 5. FBG reflection principle.
Figure 5. FBG reflection principle.
Materials 15 08256 g005
Figure 6. Structure of FBG-ECSL.
Figure 6. Structure of FBG-ECSL.
Materials 15 08256 g006

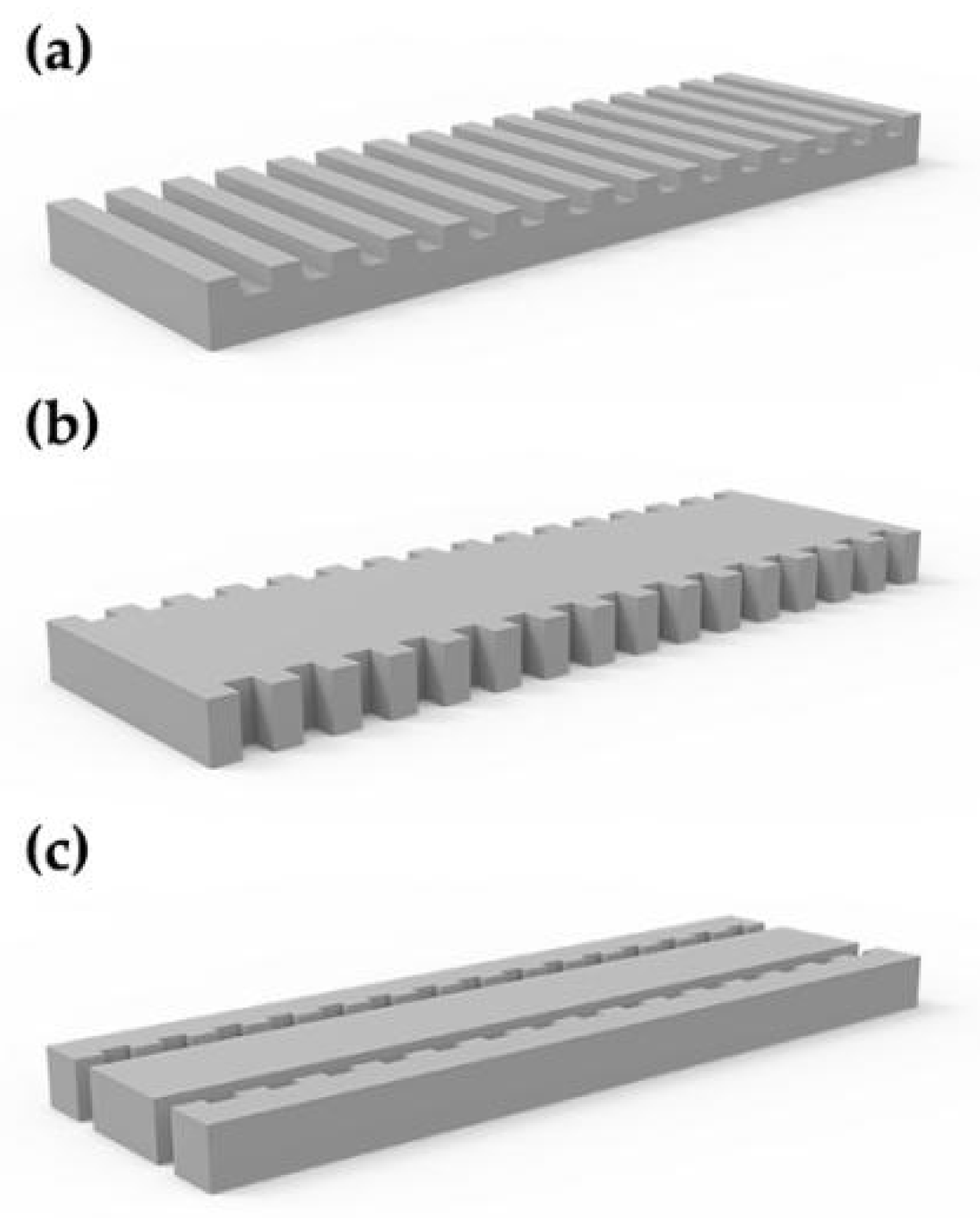

Figure 7. Structures of WBG: (a) surface WBG, (b) side wall WBG and (c) cladding WBG.
Figure 7. Structures of WBG: (a) surface WBG, (b) side wall WBG and (c) cladding WBG.
Materials 15 08256 g007
Figure 8. WBG reflection principle.
Figure 8. WBG reflection principle.
Materials 15 08256 g008
Figure 9. Structure of WBG-ECSL.
Figure 9. Structure of WBG-ECSL.
Materials 15 08256 g009
Table 1. The performances parameters of VBG-ECSLs.
Table 1. The performances parameters of VBG-ECSLs.
TypeλBLinewidthSMSRTuning RangeCurrentPowerYear
VBG1179.9 nm
1182.8 nm
84 GHz *>34 dB--1 A0.186 W2010 [12]
VBG810 nm19 MHz37 dB0.072 nm32.9 GHz *-10 mW2011 [13]
VBG633 nm<10 MHz>25 dB0.034 nm25 GHz *46 mA5.3 mW2012 [15]
VBG780.24 nm2 kHz>57 dB0.063 nm *31 GHz250 mA123 mW2013 [17]
VBG766.7 nm3 kHz>45 dB0.054 nm*27.5 GHz240 mA33.4 mW2014 [18]
VBG780 nm36 kHz>50 dB0.011 nm *5.2 GHz535 mA380 mW2015 [19]
VBG1064 nm8.7 GHz *-0.11 nm29 GHz *3 A1.3 W2015 [20]
VBG445 nm1.5 THz *50 dB--1.2 A1.4 W2016 [21]
VBG767 nm55 kHz-0.098 nm *50 GHz200 mA30 mW2016 [23]
VBG1064.49 nm30 kHz>45 dB--100 mA4 mW2017 [24]
VBG808.07 nm124 GHz *26 dB1.9 nm *0.88 THz2.5 A0.415 W2018 [25]
VBG708.24 nm100 kHz54 dB---50 mW2019 [28]
VBG780.25 nm19 kHz-0.016 nm *8 GHz150 mA30 mW2020 [29]
VBG808 nm2.8 GHz *---6 A4.3 W2020 [30]
VBG976 nm157 GHz *>30 dB--50 A33.9 W2021 [32]
VBG405.1 nm146 GHz *-0.06 nm109.7 GHz *300 mA292 mW2022 [33]
VBG762 nm2.1 GHz *16 dB0.012 nm6.2 GHz *3 A1.31 W2022 [35]
VBG780 nm70 kHz-0.018 nm *9 GHz250 mA30 mW2022 [36]
VBG811.53 nm68.3 GHz *40 dB0.2 nm91.1 GHz *10 A106.4 W2022 [37]
VBG808 nm229.8 GHz *-1.2 nm551.4 GHz *<70 A40 W2022 [38]
VBG830 nm43.5 GHz *40 dB1 nm435.5 GHz *1.5 A0.8 W2022 [39]
VBG1064 nm<100 kHz>35 dB1 nm265 GHz *350 mA50 mW2022 [40]
VBG785 nm29.2 GHz *>40 dB>0.125 nm>60.9 GHz *1.5 A0.6 W2022 [41]
VBG976 nm314.9 GHz *>40 dB2 nm629.9 GHz *9.5 A100 W2022 [42]
Note: “*” denotes that the data is calculated, and “-” denotes that the data is not available.
Table 2. The performances parameters of FBG-ECSLs.
Table 2. The performances parameters of FBG-ECSLs.
TypeλBLinewidthSMSRTuning RangeCurrentPowerYear
FBG760 nm<208 GHz *>50 dB1 nm519.4 GHz *--2010 [43]
FBG980 nm<312 GHz *>45 dB0.1 nm31.2 GHz *400 mA200 mW2011 [44]
FBG1550 nm1 kHz-1.1 nm146.7 GHz *4 A0.37 W2011 [45]
FBG1648.2 nm<5 MHz---500 mA3.5 mW2012 [46]
FBG974 nm<31.6 GHz *>45 dB--100 mA7.1 mW2014 [47]
FBG1035 nm67.2 GHz *50 dB0.1 nm28 GHz *-400 mW2014 [48]
FBG1647 nm55.3 GHz *-1 nm110.6 GHz *--2014 [49]
FBG1532.83 nm<14 kHz>60 dB--350 mA9 mW2016 [50]
FBG1549.7 nm125 Hz-0.8 nm99.9 GHz *131 mA3 mW2016 [51]
FBG1550 nm<3 kHz-0.173 nm *21.6 GHz270 mA20 mW2016 [52]
FBG1550 nm35 kHz>50 dB0.5 nm62.4 GHz *187 mA-2017 [53]
FBG976 nm<50.4 GHz *>40 dB1.0925 nm344.1 GHz *100 mA26.5 mW2018 [54]
FBG1550 nm<3.7 GHz *>25 dB48 nm6 THz *195 mA400 mW2019 [55]
FBG1550 nm5 GHz *>35 dB35 nm4.7 THz *480 mA-2020 [56]
FBG1550 nm8.5 kHz>50 dB30 nm3.7 THz *39 mA13 mW2020 [57]
FBG1550.32 nm 1552.40 nm--3.26 nm407.1 GHz *150 mA0.48 mW2020 [58]
FBG400.5 nm16 kHz44 dB0.5 nm935.2 GHz *95 mA1.3 mW2021 [59]
FBG400.8 nm56.3 GHz *46 dB0.5 nm933.8 GHz *110 mA5.3 mW2021 [60]
FBG1550 nm16 kHz82 dB---12 mW2021 [61]
FBG1572.02 nm15 kHz>50 dB0.181 nm *22 GHz340 mA30 mW2022 [62]
FBG1550 nm<200 kHz>45 dB4 nm499.5 GHz *100 mA10 mW2022 [63]
FBG1550 nm1 kHz
30 kHz
-35 nm
30 nm
4.4 THz *
3.7 THz *
-0.05 mW
10 mW
2022 [64]
FBG1064 nm<132.5 GHz *>15 dB5 nm1.3 THz *1 A0.67 W2022 [65]
FBG1060 nm<13.3 GHz *-85 nm22.7 THz *-5 mW2022 [66]
FBG790 nm<100 kHz>40 dB0.3 nm144.2 GHz *200 mA20 mW2022 [67]
Note: “*” denotes that the data is calculated, and “-” denotes that the data is not available.
Table 3. The performances parameters of WBG-ECSLs.
Table 3. The performances parameters of WBG-ECSLs.
TypeλBLinewidthSMSRTuning RangeCurrentPowerYear
WBG1542.383 nm--0.37 nm *47 GHz180 mA15 mW2010 [68]
WBG1537 nm<38.1 GHz *>35 dB20 nm2.5 THz *60 mA9 mW2011 [70]
WBG838.8 nm85.3 GHz *>40 dB20.8 nm8.9 THz *55 mA1.5 mW2012 [72]
WBG1550 nm18.7 GHz *>15 dB--1 A0.2 W2012 [74]
WBG830 nm87.1 GHz *35 dB31.7 nm13.8 THz *--2013 [75]
WBG1535 nm12.7 GHz *43 dB81.8 nm10.4 THz *--2013 [76]
WBG1064 nm--0.29 nm77 GHz *95 mA15 mW2014 [77]
WBG1649 nm<1.1 GHz>55 dB0.69 nm76.1 GHz *200 mA0.5 mW2014 [49]
WBG1546 nm2 MHz55 dB8.1 nm1 THz *--2015 [78]
WBG1551 nm->35 dB20 nm2.5 THz *75 mA20 mW2015 [79]
WBG1650 nm200 kHz---400 mA3.9 mW2015 [80]
WBG1542 nm-23.5 dB10 nm1.3 THz *-312 mW2016 [82]
WBG1556 nm<3 MHz>40 dB0.744 nm92.2 GHz *100 mA3 mW2018 [84]
WBG1543 nm<17 kHz>60 dB0.16 nm20.2 GHz *200 mA15 mW2019 [86]
WBG1544 nm320 Hz>55 dB--92 mA24 mW2019 [87]
WBG795 nm207 kHz49 dB9 nm4.3 THz *100 mA2.5 mW2021 [89]
WBG1550 nm31.2 GHz *10 dB--300 mA7.5 mW2021 [90]
WBG1552 nm4.15 kHz52 dB1.62 nm201.8 GHz *400 mA8.07 mW2021 [92]
WBG1550 nm4.36 kHz>49 dB0.6 nm80 GHz *208 mA6.53 mW2022 [94]
WBG980 nm--100 nm31.2 THz *100 mA50 mW2022 [95]
WBG1528.8 nm5 MHz>40 dB40.8 nm5.2 THz *240 mA20 mW *2022 [96]
WBG1064 nm-40 dB10 nm2.6 THz *200 mA120 mW2022 [97]
WBG1060 nm--40 nm10.7 THz *250 mA80 mW2022 [98]
WBG760 nm--33 nm17.1 THz *180 mA80 mW2022 [99]
WBG1310 nm->35 dB20 nm3.5 THz *150 mA40 mW2022 [100]
WBG1550 nm<25 kHz>40 dB41 nm5.1 THz *500 mA60 mW *2022 [101]
WBG1550 nm<1 kHz40 dB35 nm4.4 THz *-20 mW2022 [102]
Note: “*” denotes that the data is calculated, and “-” denotes that the data is not available.
Table 4. Comparison of different kinds of BG-ECSLs.
Table 4. Comparison of different kinds of BG-ECSLs.
TypeVBGFBGWBG
Main MaterialsPhoto-Thermo-Refractive, PolymerGlass, Crystal, PlastomerSi, SiO2, Si3N4, LiNbO3, Polymer
Linewidth Range2 kHz~1.5 THz125 Hz~312 GHz320 Hz~85.3 GHz
Min linewidth2 kHz125 Hz320 Hz
SMSR Range16 dB~57 dB15 dB~82 dB15 dB~60 dB
Max SMSR57 dB82 dB60 dB
Tuning Range0.011 nm~2 nm0.1 nm~85 nm0.16 nm~100 nm
Max Tuning Range2 nm85 nm100 nm
Output Power10 mW~106.4 W0.05 mW~670 mW0.5 mW~312 mW
Maximum Output Power106.4 W670 mW312 mW
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, X.; Shi, J.; Wei, L.; Ding, K.; Ma, Y.; Sun, K.; Li, Z.; Qu, Y.; Li, L.; Qiao, Z.; et al. Research Progress of Wide Tunable Bragg Grating External Cavity Semiconductor Lasers. Materials 2022, 15, 8256. https://doi.org/10.3390/ma15228256

AMA Style

Li X, Shi J, Wei L, Ding K, Ma Y, Sun K, Li Z, Qu Y, Li L, Qiao Z, et al. Research Progress of Wide Tunable Bragg Grating External Cavity Semiconductor Lasers. Materials. 2022; 15(22):8256. https://doi.org/10.3390/ma15228256

Chicago/Turabian Style

Li, Xuan, Junce Shi, Long Wei, Keke Ding, Yuhang Ma, Kangxun Sun, Zaijin Li, Yi Qu, Lin Li, Zhongliang Qiao, and et al. 2022. "Research Progress of Wide Tunable Bragg Grating External Cavity Semiconductor Lasers" Materials 15, no. 22: 8256. https://doi.org/10.3390/ma15228256

APA Style

Li, X., Shi, J., Wei, L., Ding, K., Ma, Y., Sun, K., Li, Z., Qu, Y., Li, L., Qiao, Z., Liu, G., Zeng, L., & Xu, D. (2022). Research Progress of Wide Tunable Bragg Grating External Cavity Semiconductor Lasers. Materials, 15(22), 8256. https://doi.org/10.3390/ma15228256

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
