Influence of Dy and Ho on the Phase Composition of the Ti-Al System Obtained by ‘Hydride Technology’
Abstract
:1. Introduction
2. Materials and Methods
2.1. Obtaining Alloy
2.2. Research Methods
3. Results and Discussion
4. Conclusions

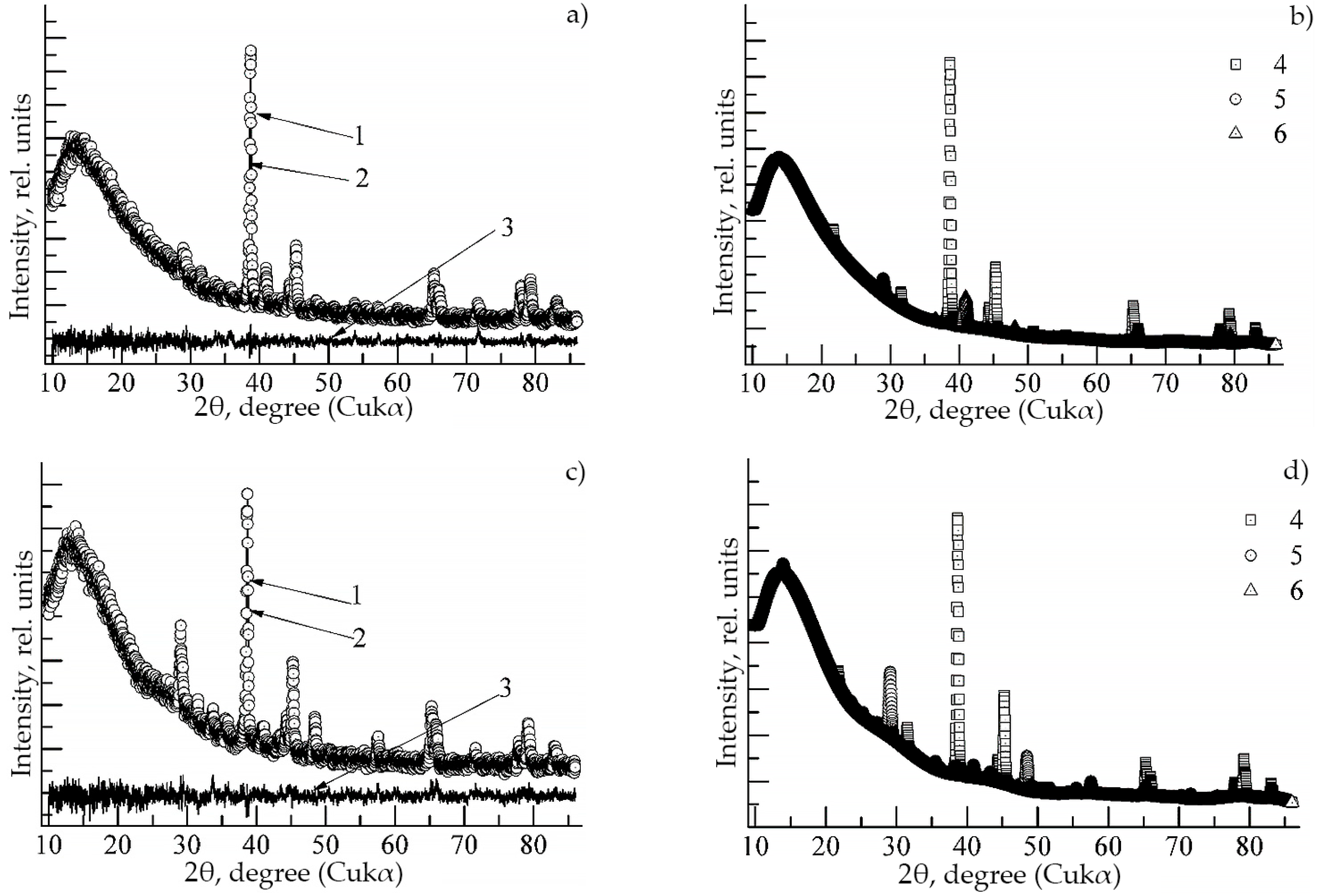

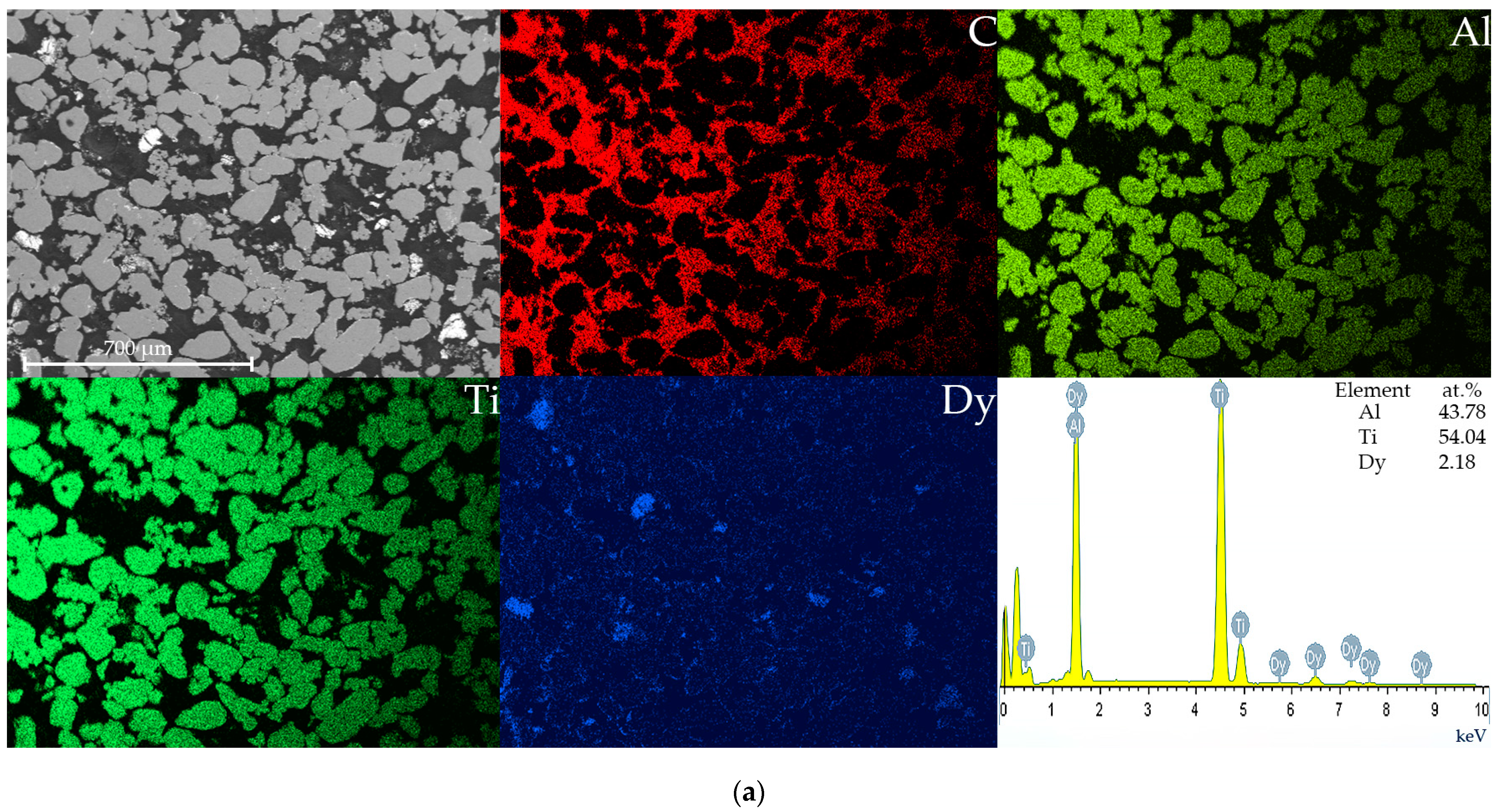

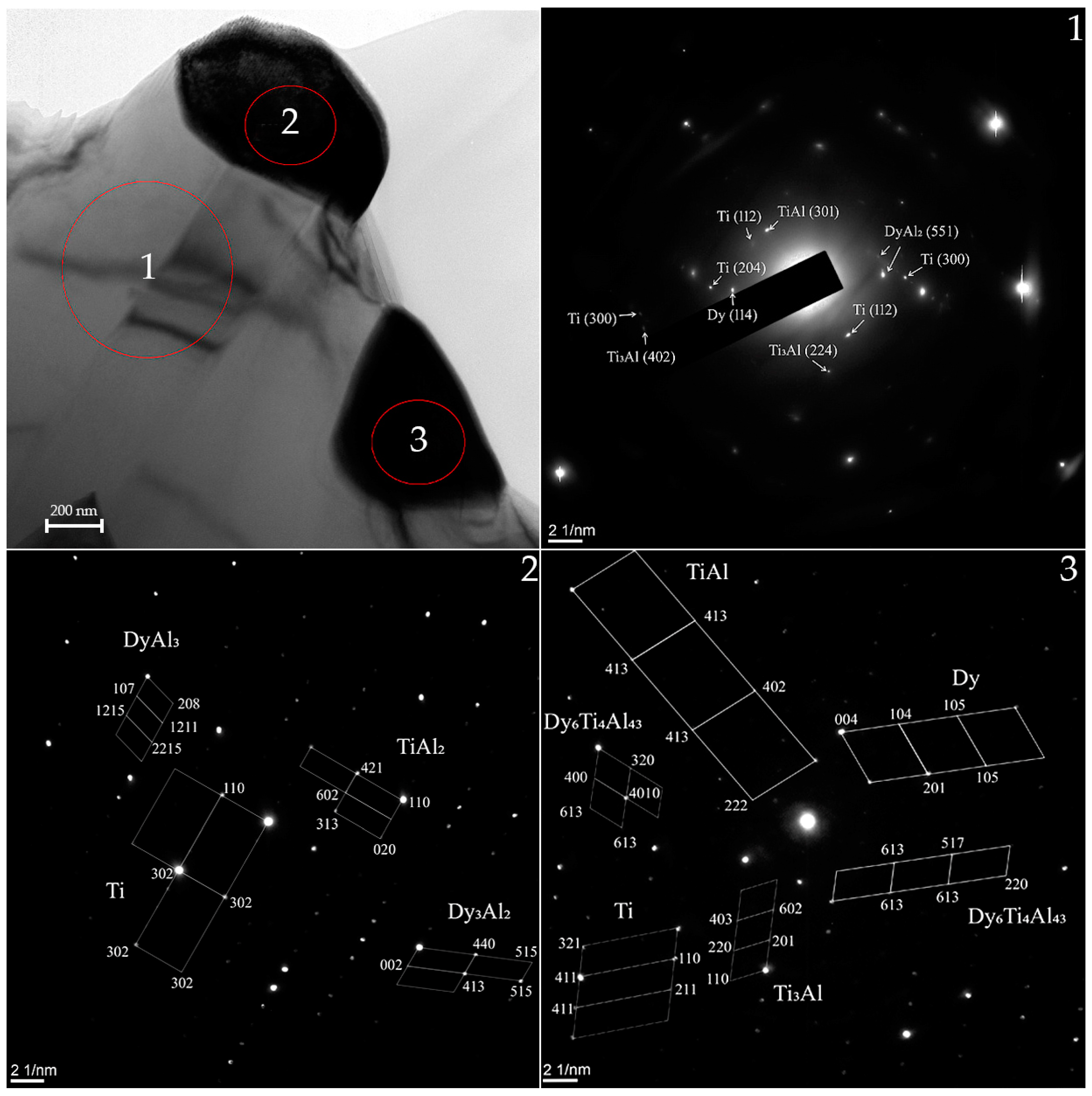

- The addition of 2 at.% Dy to Ti-Al system leads to the formation of the following phases: Ti (300), Ti (112), Ti3Al (402), Ti3Al (224), TiAl (301), DyAl2 (551), Dy (114), TiAl2 (Cmmm, orthorhombic), Dy3Al2 (P42nm, tetragonal), Dy3Al2 (3m, rhombohedral), Ti-Al (P4/mmm, tetragonal), Ti3Al (P63/mmc, hexagonal), Ti (Im-3m, cubic), Dy (P63/mmc, hexagonal), as well as Dy6Ti4Al43 (P63/mmc, hexagonal).

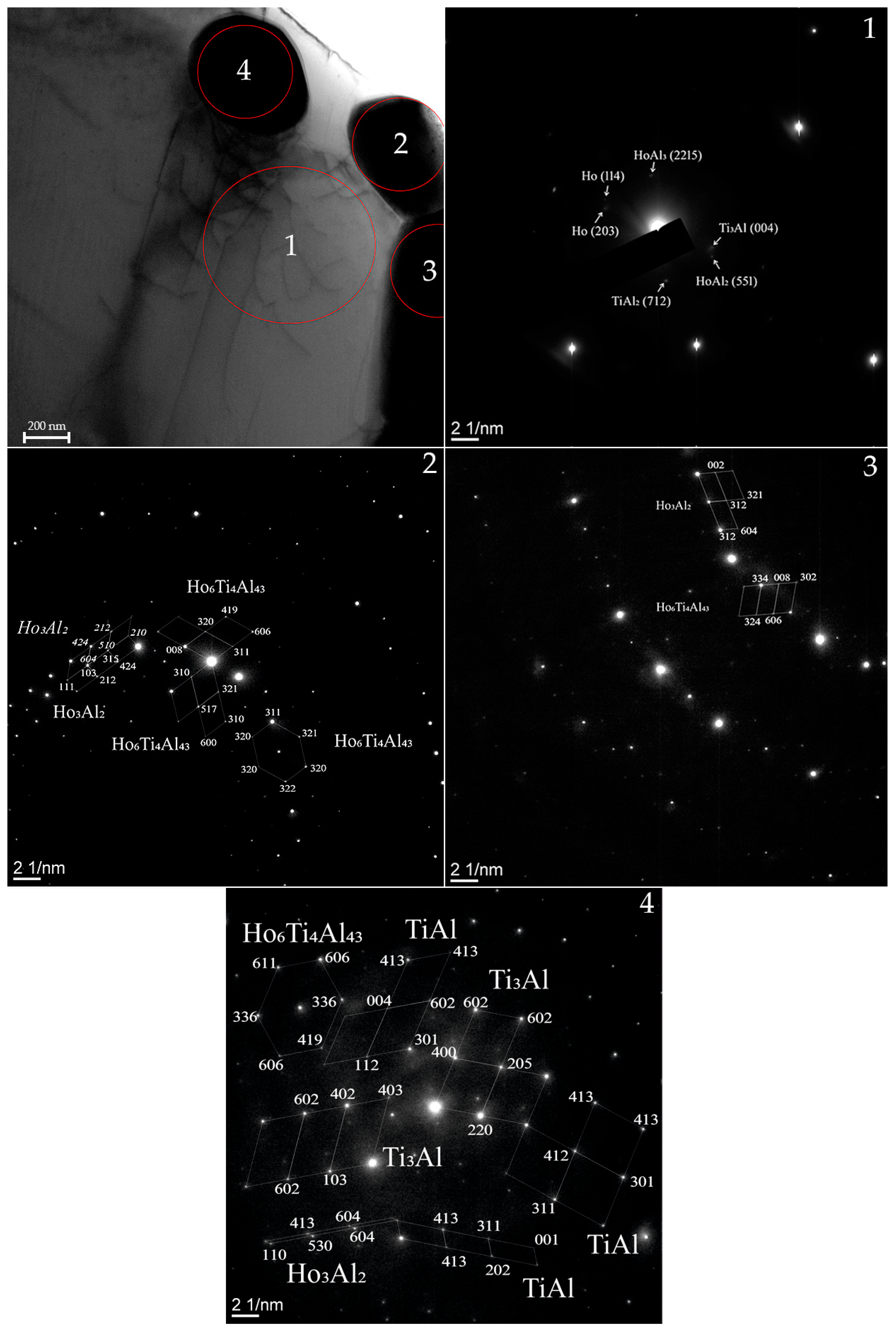

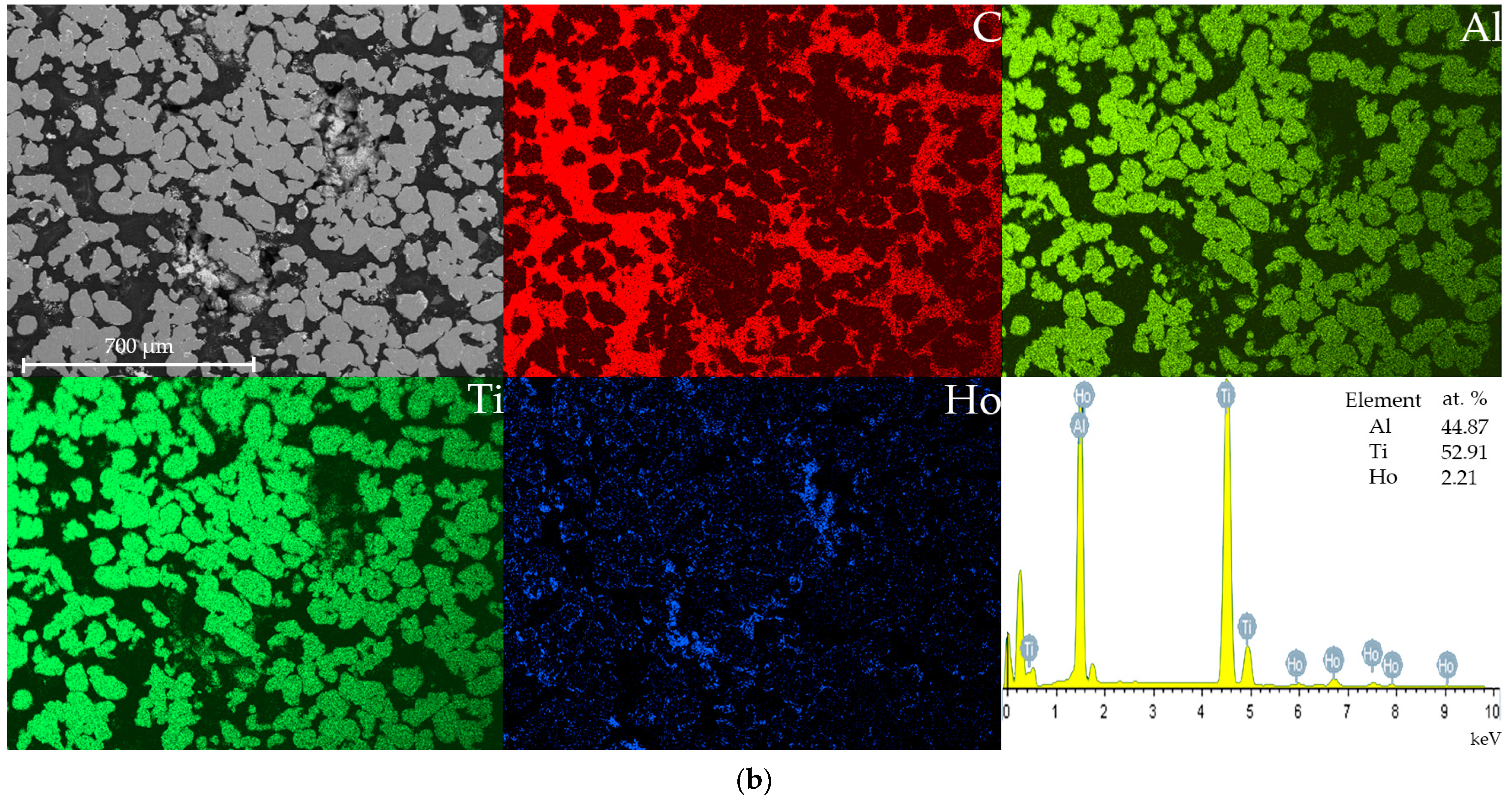

- The addition of 2 at % Ho to Ti-Al system leads to the formation of the following phases: TiAl2 (712), Ti3Al (004), Ho (114) Ho (203), HoAl3 (2215), HoAl2 (551), Ho3Al2 (P42nm, tetragonal), Ho6Ti4Al43 (P63/mmc, hexagonal), TiAl (P4/mmm, tetragonal) and Ti3Al (P63/mmc, hexagonal).

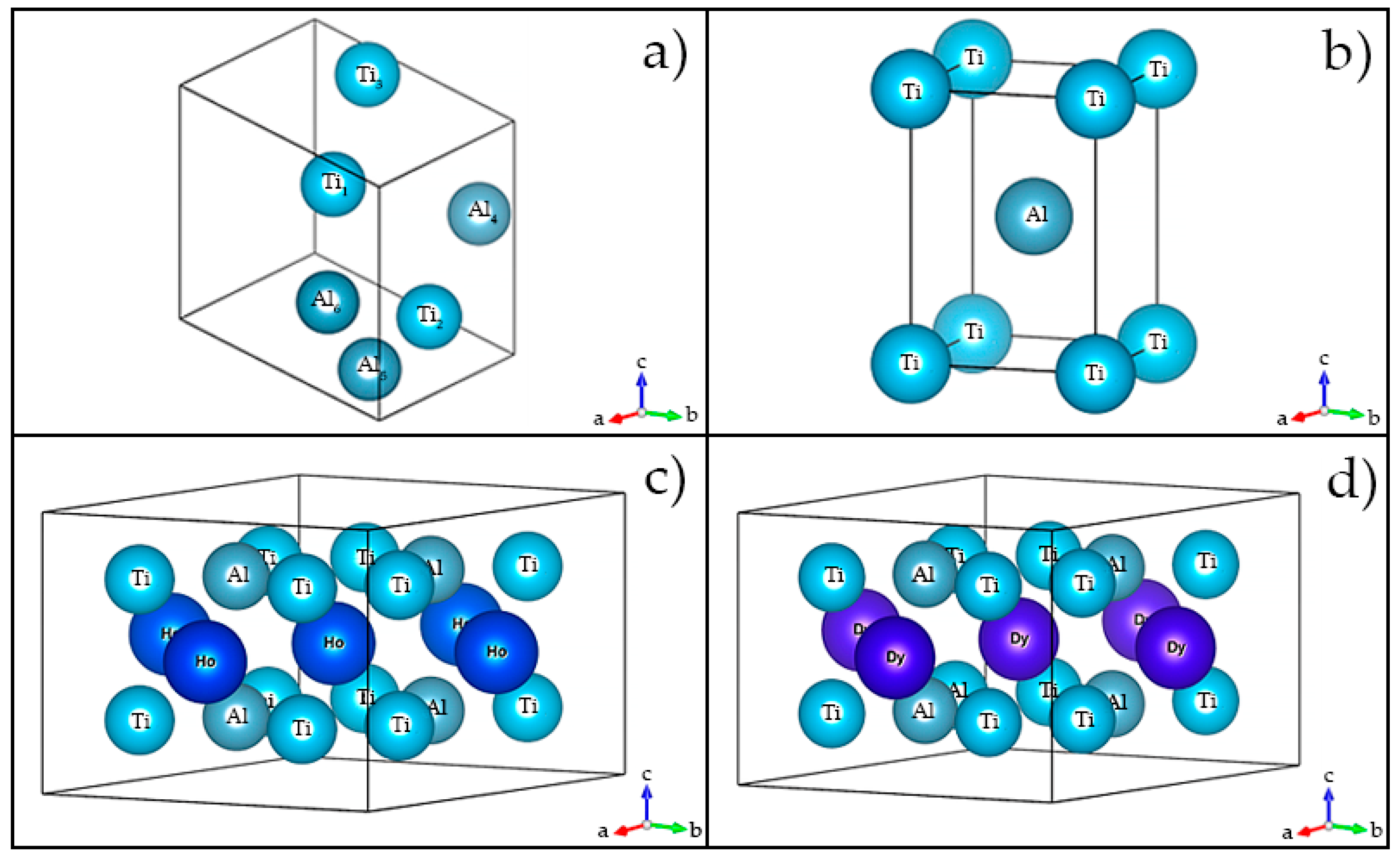

- A crystallographic database of stable and quasistable structures of the known elemental composition was created in the USPEX-SIESTA software by means of an evolutionary code. The calculations show that adding REM leads to a significant stabilizing effect in each Ti-Al-REM system without exception. It has been established that the lattice energies are equal to: EAl4Ti12Dy3 = −32,877.825 eV and EAl4Ti12Dy3 = −31,227.561 eV.

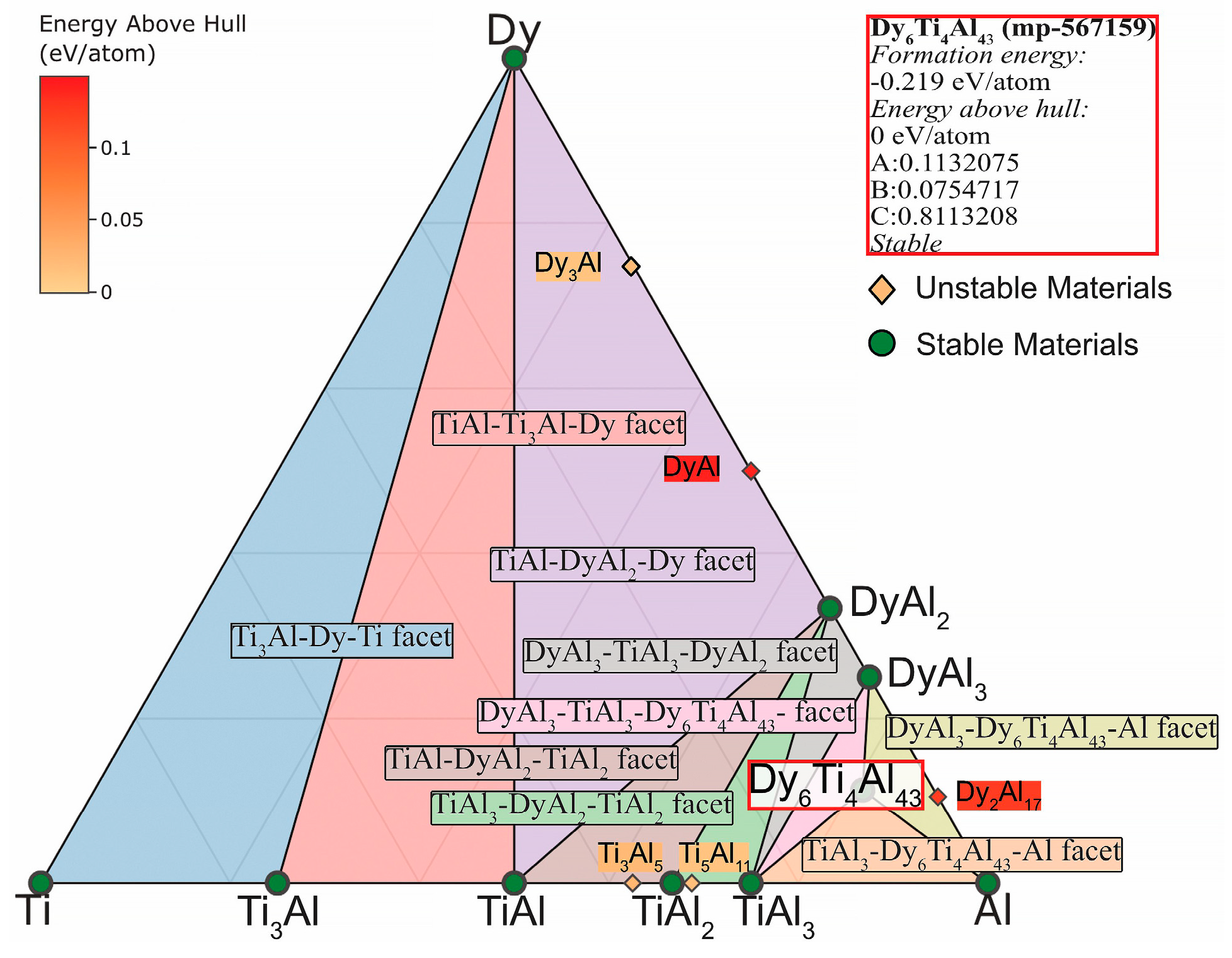

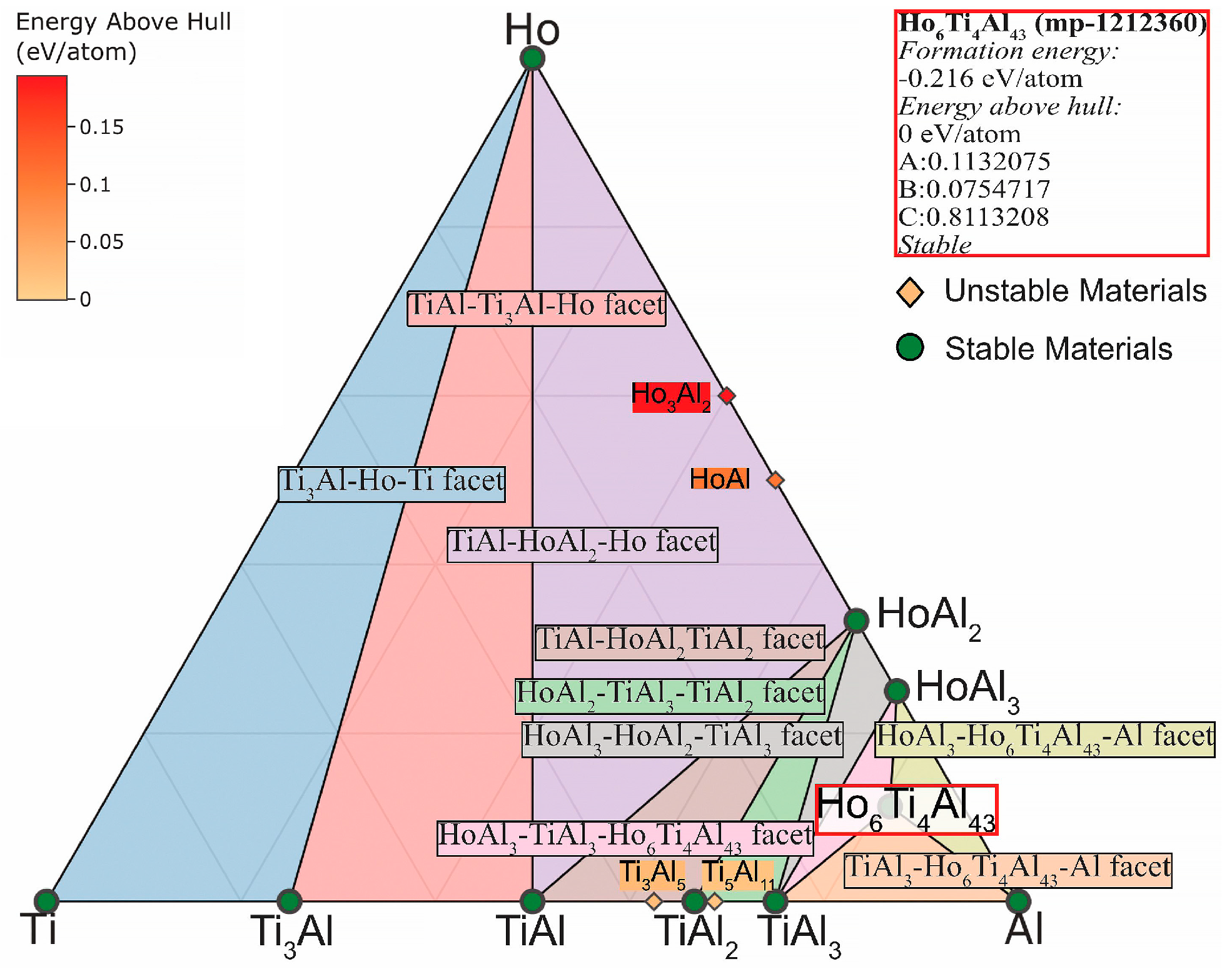

- The differences and commonality in the three-component TAD and TAH phase diagrams calculated using the Materials Project open database at a temperature of 1150 °C have been considered. The presence of ternary phases Dy₆Ti₄Al₄₃ and Ho₆Ti₄Al₄₃ with common faces MeAl3-Me₆Ti₄Al₄₃-Al, TiAl3-Me₆Ti₄Al₄₃-Al and MeAl3-TiAl3-Dy₆Ti₄Al₄₃ (Me = Dy, Ho) has been shown.
- The properties for ternary Dy₆Ti₄Al₄₃ and Ho₆Ti₄Al₄₃ phases have been theoretically calculated. The Ho₆Ti₄Al₄₃ phase has large values of predicted formation energy, Total magnetization, volume, bond length. However, the density of such phase is less.
- The addition of 2 at.% Dy increases the value of microhardness (1.61 ± 0.08 GPa) as compared with the case of adding 2 at.% Ho (1.47 ± 0.07 GPa).
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Li, G.; Lu, H.; Hu, X.; Lin, F.; Li, X.; Zhu, Q. Current progress in rheoforming of wrought aluminum alloys: A review. Metals 2020, 10, 238. [Google Scholar] [CrossRef] [Green Version]
- Bhatta, L.; Pesin, A.; Zhilyaev, A.P.; Tandon, P.; Kong, C.; Yu, H. Recent Development of Superplasticity in Aluminum Alloys: A Review. Metals 2020, 10, 77. [Google Scholar] [CrossRef] [Green Version]
- Berlanga-Labari, C.; Biezma-Moraleda, M.V.; Rivero, P.J. Corrosion of Cast Aluminum Alloys: A Review. Metals 2020, 10, 1384. [Google Scholar] [CrossRef]
- Wang, Q.D.; Lu, Y.Z.; Zeng, X.Q.; Ding, W.J.; Zhu, Y.P. Effects of RE microstructure and properties of AZ91 magnesium alloy. Trans. Nonferrous Met. Soc. China 2000, 10, 235–239. [Google Scholar]
- Jensen, J.; Mackintosh, A. Rare Earth Magnetism. In Structures and Excitations; Clarendon Press: Oxford, UK, 1991. [Google Scholar]
- Cheetham, A.K.; Fender, B.E.F. Neutron diffraction study of nonstoichiometric cerium hydride. J. Phys. Chem. 1972, 5, L35. [Google Scholar] [CrossRef]
- Lacaze, A.F.; Beranger, R.; Mardion, G.B.; Claudet, G.; Lacaze, A.A. Double acting reciprocating magnetic refrigerator: Recent improvements. In Advances in Cryogenic Engineering; Springer: Boston, MA, USA, 1984; pp. 573–579. [Google Scholar]
- Provenzano, V.; Shapiro, A.J.; Shull, R.D. Reduction of hysteresis losses in the magnetic refrigerant Gd5Ge2Si2 by the addition of iron. Nature 2004, 429, 853–857. [Google Scholar] [CrossRef]
- Takayama, S.; Tsutsui, N. Al-Sm and Al-Dy alloy thin films with low resistivity and high thermal stability for microelectronic conductor lines. Thin Solid Films 1996, 289, 289–294. [Google Scholar] [CrossRef]
- Ye, Y.; Li, P.; Novikov, L.S.; Avilkina, V.S.; He, L. Comparison of residual microstructures associated with impact craters in Al–Sc and Al–Ti alloys. Acta Mater. 2010, 58, 2520–2526. [Google Scholar] [CrossRef]
- Rovere, F.; Mayrhofer, P.H.; Reinholdt, A.; Mayer, J.; Schneider, J.M. The effect of yttrium incorporation on the oxidation resistance of Cr–Al–N coatings. Surf. Coat. Technol. 2008, 202, 5870–5875. [Google Scholar] [CrossRef]
- Mula, S.; Ghosh, S.; Pabi, S.K. Synthesis of an Al-based Al–Cr–Co–Ce alloy by mechanical alloying and its thermal stability. Mater. Sci. Eng. A 2008, 472, 208–213. [Google Scholar] [CrossRef]
- Pang, M.; Zhan, Y.; Du, Y. Solid state phase equilibria and intermetallic compounds of the Al–Cr–Ho system. J. Solid State Chem. 2013, 198, 344–356. [Google Scholar] [CrossRef]
- Gschneidner, K.A., Jr.; Pecharsky, V.K. Magnetocaloric materials. Annu. Rev. Mater. Res. 2000, 30, 387. [Google Scholar] [CrossRef] [Green Version]
- Zimm, C.; Jastrab, A.; Sternberg, A.; Pecharsky, V.; Gschneidner, K.; Osborne, M.; Anderson, I. Description and performance of a near-room temperature magnetic refrigerator. In Advances in Cryogenic Engineering; Springer: Boston, MA, USA, 1998; pp. 1759–1766. [Google Scholar] [CrossRef]
- Pecharsky, V.K.; Gschneidner, K.A., Jr. Effect of alloying on the giant magnetocaloric effect of Gd5 (Si2Ge2). J. Magn. Magn. Mater. 1997, 167, L179–L184. [Google Scholar] [CrossRef]
- Tan, Y.; Fang, H.; Chen, R.; Liu, Y.; Su, Y.; Guo, J.; Fu, H. Microalloying effects of Ho on microstructure evolution and high temperature properties of Ti46Al4Nb1Mo alloy. Intermetallics 2020, 126, 106883. [Google Scholar] [CrossRef]
- Su, Y.; Sui, Y.; Wang, X.; Cheng, J.; Wang, Y.; Liu, W.; Liu, X. Large magnetocaloric properties in single-crystal dysprosium titanate. Mater. Lett. 2012, 72, 15–17. [Google Scholar] [CrossRef]
- Sakakibara, T.; Tayama, T.; Matsuhira, K.; Takagi, S.; Hiroi, Z. Liquid–gas transition in the spin-ice dysprosium titanate. J. Magn. Magn. Mater. 2004, 272, 1312–1313. [Google Scholar] [CrossRef]
- Scharffe, S.; Kolland, G.; Valldor, M.; Cho, V.; Welter, J.F.; Lorenz, T. Heat transport of the spin-ice materials Ho2Ti2O7 and Dy2Ti2O7. J. Magn. Magn. Mater. 2015, 383, 83–87. [Google Scholar] [CrossRef] [Green Version]
- Lau, G.C.; Muegge, B.D.; McQueen, T.M.; Duncan, E.L.; Cava, R.J. Stuffed rare earth pyrochlore solid solutions. J. Solid State Chem. 2006, 179, 3126–3135. [Google Scholar] [CrossRef] [Green Version]
- Pan, T.; Lin, C. Structural and Sensing Characteristics of Dy2O3 and Dy2TiO5 Electrolyte—Insulator—semiconductor pH Sensors. J. Phys. Chem. 2010, 114, 17914–17919. [Google Scholar] [CrossRef]
- Lin, Y.H.; Wang, S.H.; Wu, M.H.; Pan, T.M.; Lai, C.S.; Luo, J.D.; Chiou, C.C. Integrating solid-state sensor and microfluidic devices for glucose, urea and creatinine detection based on enzyme-carrying alginate microbeads. Biosens. Bioelectron. 2013, 43, 328–335. [Google Scholar] [CrossRef]
- Chen, F.; Pan, T. Physical and Electrical Properties of Dy2O3 and Dy2TiO5 Metal Oxide—High- k Oxide—Silicon-Type Nonvolatile Memory Devices. J. Electron. Mater. 2012, 41, 2197–2203. [Google Scholar] [CrossRef]
- Mrázek, J.; Potel, M.; Buršík, J.; Mráček, A.; Kallistová, A.; Jonášová, Š.; Kašík, I. Sol-gel synthesis and crystallization kinetics of dysprosium-titanate Dy2Ti2O7 for photonic applications. Mater. Chem. Phys. 2015, 168, 159–167. [Google Scholar] [CrossRef]
- Renuka, N.K.; Akhila, A.K. Preparation and photocatalytic activity of anatase titania modified with dysprosium oxide. J. Chem. Pharm. Sci. 2016, 1, 79–84. [Google Scholar]
- Gschneidner, K.A.; Pecharsky, V.K.; Tsokol, A.O. Recent developments in magnetocaloric materials. Rep. Prog. Phys. 2005, 68, 1479. [Google Scholar] [CrossRef]
- Trung, N.T.; Biharie, V.; Zhang, L.; Caron, L.; Buschow, K.H.J.; Brück, E. From single-to double-first-order magnetic phase transition in magnetocaloric Mn 1− x Cr x CoGe compounds. Appl. Phys. Lett. 2010, 96, 162507. [Google Scholar] [CrossRef] [Green Version]
- Lee, W.S.; Chen, T.H.; Lin, C.F.; Chen, M.S. Impact deformation behaviour and dislocation substructure of Al–Sc alloy. J. Alloy. Comp. 2010, 493, 580–589. [Google Scholar] [CrossRef]
- Karnesky, R.A.; Dunand, D.C.; Seidman, D.N. Seidman, Evolution of nanoscale precipitates in Al microalloyed with Sc and Er. Acta Mater. 2009, 57, 4022–4031. [Google Scholar] [CrossRef]
- Abzaev, Y.A.; Lider, A.M.; Klimenov, V.A.; Laptev, R.S.; Bordulev, Y.S.; Sadritdinova, G.D.; Mikhailov, A.A. Refinement of the structure of hydrogen–vacancy complexes in titanium by the Rietveld method. Phys. Solid State. 2016, 58, 1939–1944. [Google Scholar] [CrossRef]
- Crystallography Open Database. Available online: http://www.crystallography.net/ (accessed on 22 October 2022).
- Lyakhov, A.O.; Oganov, A.R.; Stokes, H.T.; Zhu, Q. New developments in evolutionary structure prediction algorithm USPEX. Comput. Phys. Commun. 2013, 184, 1172–1182. [Google Scholar] [CrossRef]
- Aarons, J. A New CASTEP and ONETEP Geometry Optimiser. Available online: http://www.hector.ac.uk/cse/distributedcse/reports/castep-geom/castep-geom/HTML/dCSE_project.html (accessed on 20 October 2022).
- Karakchieva, N.; Lepakova, O.; Abzaev, Y.; Sachkov, V.; Kurzina, I. The Influence of Scandium on the Composition and Structure of the Ti-Al Alloy Obtained by “Hydride Technology”. Nanomaterials 2021, 11, 918. [Google Scholar] [CrossRef]
- Karakchieva, N.; Artemenko, A.; Lepakova, O.; Sachkov, V.; Kurzina, I. Influence of Yttrium on the Phase Composition of the Ti-Al System Obtained by the ‘Hydride Technology’. Metals 2022, 12, 1481. [Google Scholar] [CrossRef]
- Zhou, H.; Liu, W.; Yuan, S.; Yan, J. The 500 °C isothermal section of the Al–Dy–Ti ternary system. J. Alloys Compd. 2002, 336, 218–221. [Google Scholar] [CrossRef]
- Raghavan, V. Al-Ho-Ti (Aluminum-Holmium-Titanium). J. Phase Equilibria Diffus. 2005, 26, 184. [Google Scholar] [CrossRef]
- Raghavan, V. Al-Dy-Ti (Aluminum-Dysprosium-Titanium). J. Phase Equilibria Diffus. 2005, 26, 178. [Google Scholar] [CrossRef]
- Bulanova, M.V.; Fartushna, Y.V.; Meleshevich, K.A.; Samelyuk, A.V. Phase equilibria during solidification in the Ti–TiAl–DyAl2–Dy region of the Ti–Dy–Al system. Powder Metall. Met. Ceram. 2014, 52, 686–708. [Google Scholar] [CrossRef]
- Nazarova, T.; Nazarov, K.; Sergeev, S.; Imayev, V.; Imayev, R. Microstructure and mechanical properties of intermetallic γ-TiAl alloy alloyed with dysprosium. Mater. Lett. 2017, 7, 307–311. [Google Scholar] [CrossRef] [Green Version]
- The Materials Project. Materials Data on Ho6Ti4Al43 by Materials Project. 2020. Available online: https://materialsproject.org/materials/mp-1212360 (accessed on 20 October 2022).
- The Materials Project. Materials Data on Dy6Ti4Al43 by Materials Project. 2020. Available online: https://materialsproject.org/materials/mp-567159 (accessed on 20 October 2022).
- Wolff, M.W.; Niemann, S.; Ebel, T.; Jeitschko, W. Magnetic properties of rare-earth transition metal aluminides R6T4Al43 with Ho6Mo4Al43-type structure. J. Magn. Magn. Mater. 2001, 223, 1–15. [Google Scholar] [CrossRef]
- Niemann, S.; Jeitschko, W. Ternary Aluminides A6T4Al43 (A= Y, Nd, Sm, Gd-Lu, and U.; T= Ti, V, Nb, and Ta) with Ho6Mo4Al43 Type Structure. J. Solid State Chem. 1995, 116, 131–135. [Google Scholar] [CrossRef]

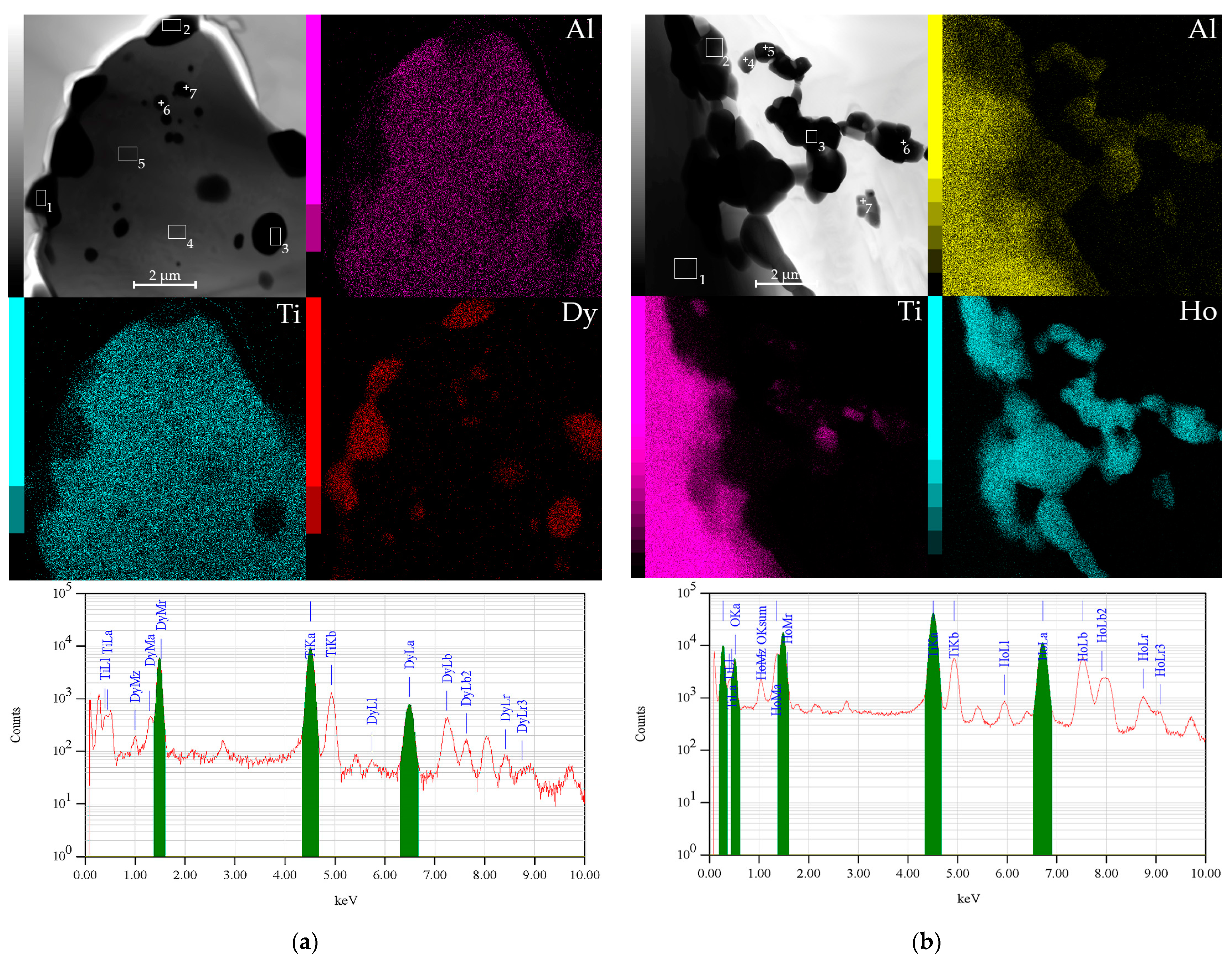

Phase | State | a, Å | b, Å | c, Å | α | β | γ | V, Å3 | E, eV | Space Group | Fraction, % | Rwp, % |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Al-Ti | Reference | 2.837 | 2.837 | 4.059 | 90.00 | 90.00 | 90.00 | 32.677 | −1660.341 | P4/mmm, Tetragonal | 44.83 | 6.302 |
Refined | 2.826 | 2.826 | 4.072 | 90.00 | 90.00 | 90.00 | 32.525 | |||||
Al3Ti3 | Reference | 6.294 | 4.109 | 4.292 | 113.31 | 92.71 | 92.50 | 101.596 | −4954.206 | P1, Triclinic | 44.34 | |
Refined | 6.267 | 4.093 | 4.288 | 113.70 | 91.93 | 92.44 | 100.44 | |||||
Al4Ti12Ho3 | Reference | 5.764 | 5.764 | 4.664 | 90.00 | 90.00 | 120.00 | 134.20 | −32,877.825 | P6/mmm, Hexagonal | 5.55 | |
Refined | 5.731 | 5.731 | 4.773 | 90.00 | 90.00 | 120.00 | 135.77 |
Phase | State | a, Å | b, Å | c, Å | α | β | γ | V, Å3 | E, eV | Space Group | Fraction, % | Rwp, % |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Al-Ti | Reference | 2.837 | 2.837 | 4.059 | 90.00 | 90.00 | 90.00 | 32.677 | −1660.341 | P4/mmm, Tetragonal | 65.04 | 6.504 |
Refined | 2.826 | 2.826 | 4.074 | 90.00 | 90.00 | 90.00 | 32.537 | |||||
Al3Ti3 | Reference | 6.339 | 4.150 | 4.234 | 113.36 | 93.36 | 92.52 | 101.79 | −4978.606 | P1, Triclinic | 16.88 | |
Al4Ti12Dy3 | Reference | 5.764 | 5.764 | 4.664 | 90.00 | 90.00 | 120.00 | 132.56 | −31,227.561 | P6/mmm, Hexagonal | 11.20 | |
Refined | 5.771 | 5.771 | 4.657 | 90.00 | 90.00 | 120.00 | 134.34 |
TAD | TAH | |||||||
---|---|---|---|---|---|---|---|---|
Spectrum | Element, at % | Spectrum | Element, at % | |||||
Ti | Al | Dy | Ti | Al | Ho | O | ||
1 | 13.11 | 1.87 | 85.02 | 1 | 72.63 | 26.63 | 0.2 | 0.53 |
2 | 12.66 | 3.3 | 84.04 | 2 | 10.39 | 4.56 | 47.85 | 37.20 |
3 | 13.28 | 4.02 | 82.71 | 3 | 12.77 | 4.45 | 60.45 | 22.33 |
4 | 59.12 | 40.82 | 0.06 | 4 | 2.38 | 5.37 | 31.52 | 60.73 |
5 | 62.22 | 37.69 | 0.09 | 5 | 7.59 | 3.39 | 48.11 | 40.92 |
6 | 56.87 | 37.05 | 6.08 | 6 | 20.41 | 5.36 | 47.99 | 26.24 |
7 | 51.9 | 28.81 | 19.28 | 7 | 8.15 | 2.81 | 35.21 | 53.82 |
Properties | Ho₆Ti₄Al₄₃ [42] | Dy₆Ti₄Al₄₃ [43] | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
Space Group | P63/mcm (No. 193) | P63/mcm (No. 193) | ||||||||
Predicted Formation Energy | −0.338 eV/atom | −0.340 eV/atom | ||||||||
Magnetic Ordering | Non-magnetic | Non-magnetic | ||||||||
Total Magnetization | 0.33 µB/f.u. | 0.41 µB/f.u | ||||||||
Thermodynamic Stability | Yes | Yes | ||||||||
Density | 4.12 g·cm⁻3 | 4.08 g·cm⁻3 | ||||||||
Volume | 1887.56 Å3 | 1895.57 Å3 | ||||||||
Bond length | Ho–Ho—3.49 Å | Dy–Dy—3.51 Å | ||||||||
Ho–Ti—3.50 Å | Dy–Ti—3.52 Å | |||||||||
Ho–Al—from 3.08 to 3.47 Å | Dy–Al—from 3.08 to 3.49 Å | |||||||||
Atomic Positions | Wyckoff | Element | X | Y | Z | Wyckoff | Element | X | Y | Z |
2b | Ti | 0 | 0 | 0 | 2b | Ti | 0 | 0 | 1/2 | |
6g | Ti | 0 | 0.27 | 1/4 | 6g | Ti | 0.73 | 0.73 | 3/4 | |
6g | Al | 0 | 0.85 | 1/4 | 6g | Al | 0 | 0.15 | 1/4 | |
8h | Al | 2/3 | 1/3 | 0.13 | 8h | Al | 1/3 | 2/3 | 0.63 | |
12i | Al | 0.49 | 0.25 | 0 | 12i | Al | 0.75 | 0.5 | 0 | |
12j | Al | 0.6 | 0.45 | 1/4 | 12j | Al | 0.4 | 0.85 | 3/4 | |
12k | Ho | 0 | 0.47 | 0.1 | 12k | Dy | 0.53 | 0 | 0.1 | |
12k | Al | 0 | 0.84 | 0.62 | 12k | Al | 0 | 0.75 | 0.97 | |
12k | Al | 0 | 0.75 | 0.03 | 12k | Al | 0.16 | 0 | 0.62 | |
24l | Al | 0.39 | 0.24 | 0.16 | 24l | Al | 0.84 | 0.61 | 0.84 | |

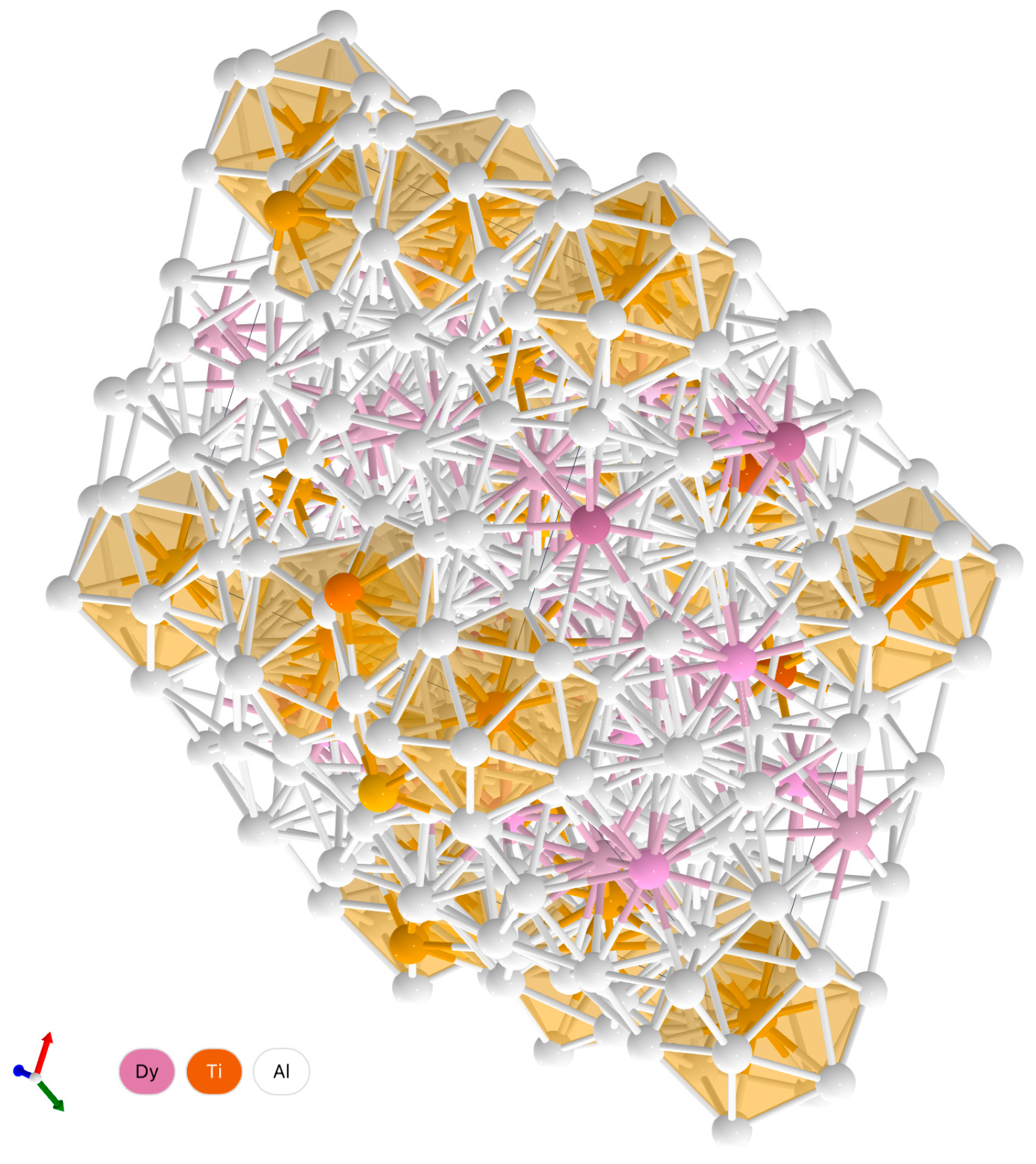

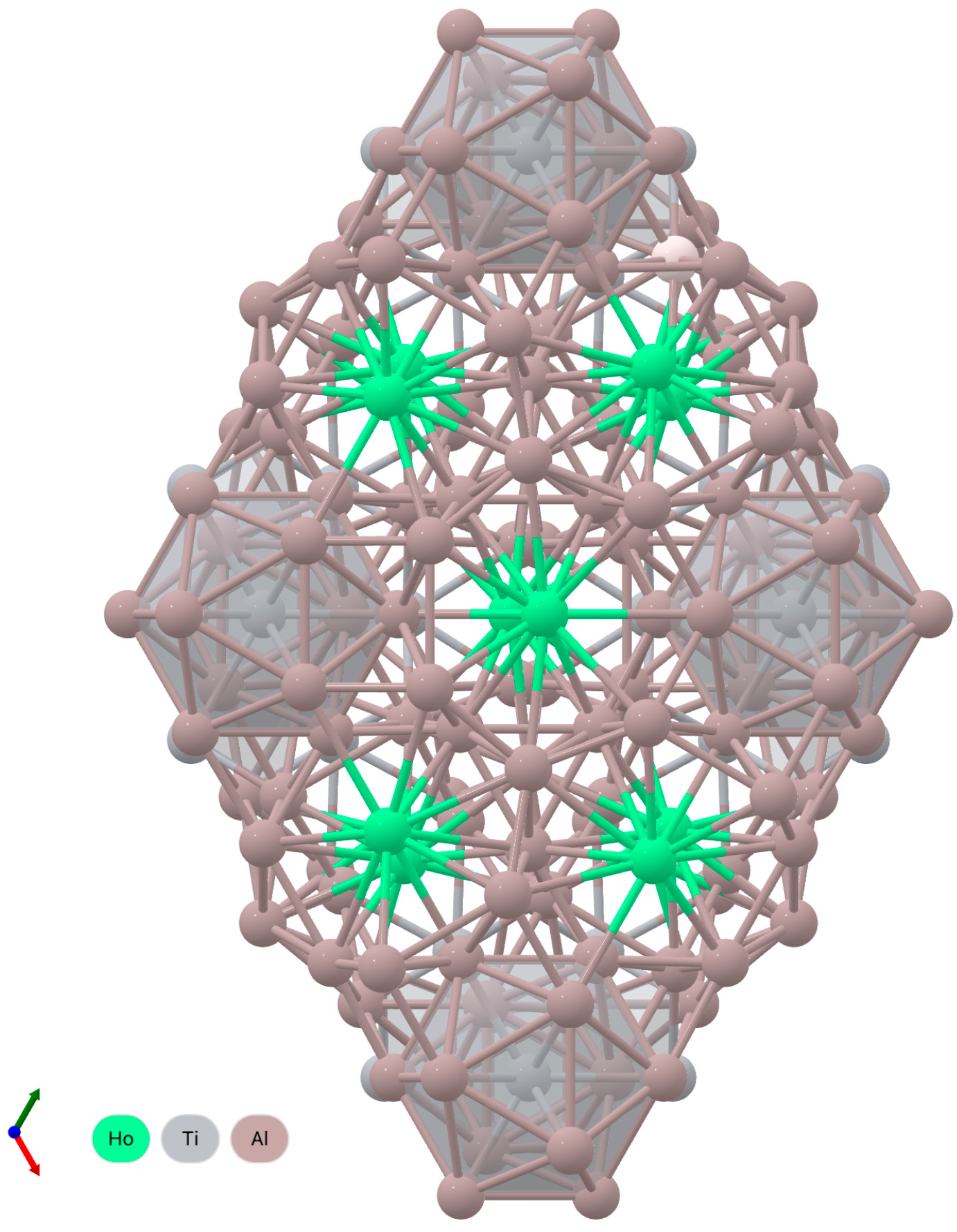

Vizualization |
