Article

High-Index Epitaxial Fe Films Grown on MgO(113)

by
Wenzhi Peng
1,
Yulong Chen
1,
Xuhao Yu
1 and
Dazhi Hou
1,2,*
1
Hefei National Research Center for Physical Sciences at the Microscale, University of Science and Technology of China, Hefei 230026, China
2
Department of Physics, University of Science and Technology of China, Hefei 230026, China
*
Author to whom correspondence should be addressed.
Materials 2023, 16(12), 4352; https://doi.org/10.3390/ma16124352
Submission received: 23 April 2023 / Revised: 26 May 2023 / Accepted: 8 June 2023 / Published: 13 June 2023
Browse Figures
Review Reports Versions Notes

Abstract

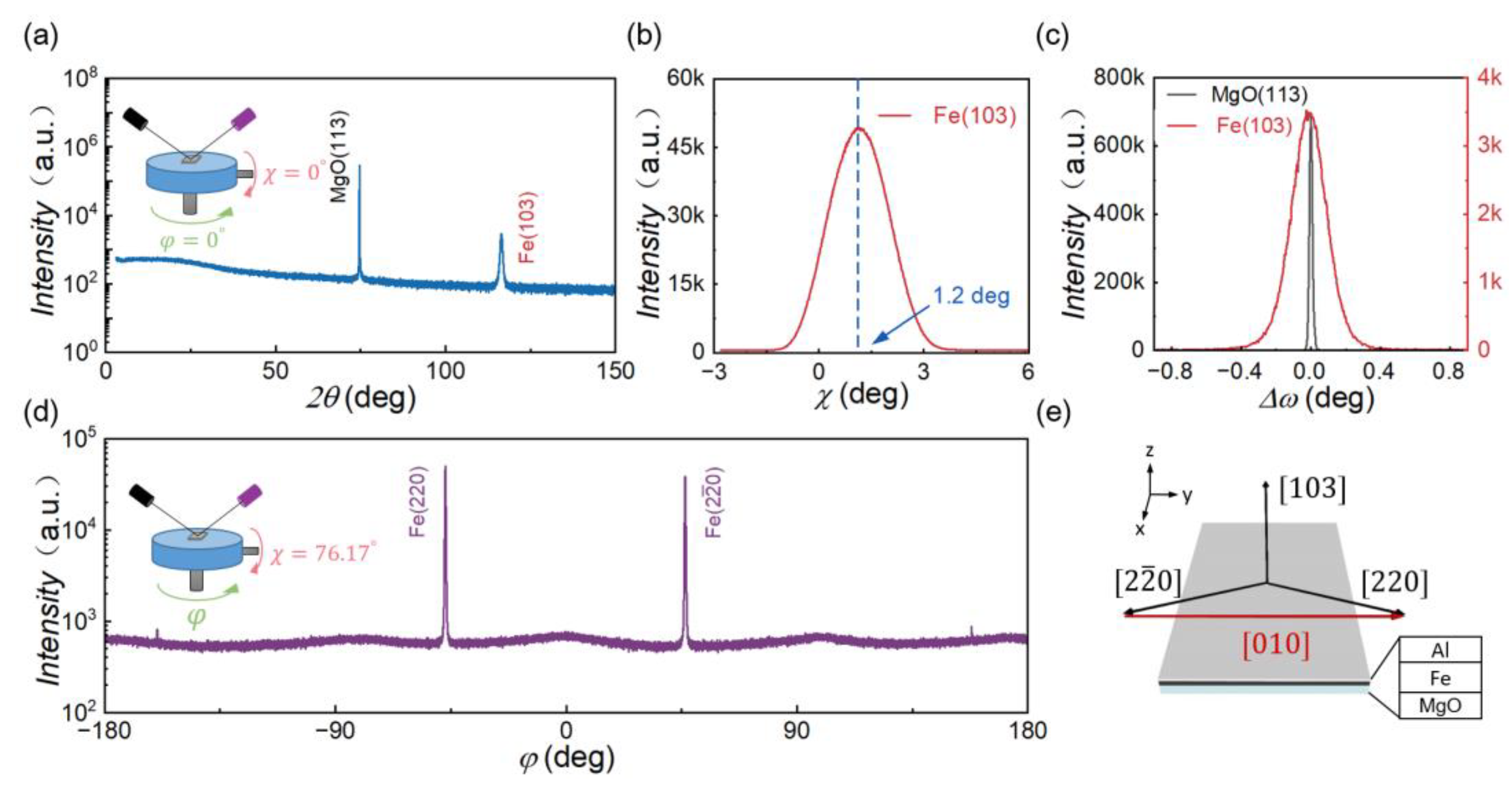

The epitaxial growth of high-index Fe films on MgO(113) substrates is successfully achieved using direct current (DC) magnetron sputtering, despite the significant lattice constant mismatch between Fe and MgO. X-ray diffraction (XRD) analysis is employed to characterize the crystal structure of Fe films, revealing an Fe(103) out-of-plane orientation. Furthermore, our investigation reveals that the Fe[010] direction is parallel to the MgO[11¯0] direction within the films plane. These findings provide valuable insights into the growth of high-index epitaxial films on substrates with large lattice constant mismatch, thereby contributing to the advancement of research in this field.
Keywords: crystal orientation; high-index; Fe(103); MgO(113) crystal orientation; high-index; Fe(103); MgO(113)

Share and Cite

MDPI and ACS Style

Peng, W.; Chen, Y.; Yu, X.; Hou, D. High-Index Epitaxial Fe Films Grown on MgO(113). Materials 2023, 16, 4352. https://doi.org/10.3390/ma16124352

AMA Style

Peng W, Chen Y, Yu X, Hou D. High-Index Epitaxial Fe Films Grown on MgO(113). Materials. 2023; 16(12):4352. https://doi.org/10.3390/ma16124352

Chicago/Turabian Style

Peng, Wenzhi, Yulong Chen, Xuhao Yu, and Dazhi Hou. 2023. "High-Index Epitaxial Fe Films Grown on MgO(113)" Materials 16, no. 12: 4352. https://doi.org/10.3390/ma16124352

APA Style

Peng, W., Chen, Y., Yu, X., & Hou, D. (2023). High-Index Epitaxial Fe Films Grown on MgO(113). Materials, 16(12), 4352. https://doi.org/10.3390/ma16124352
