Comparative Analysis of Engineering Carbonation Model Extensions to Account for Pre-Existing Cracks
Abstract
:1. Introduction
2. Carbonation Models for Concrete
2.1. Model for Uncracked Concrete

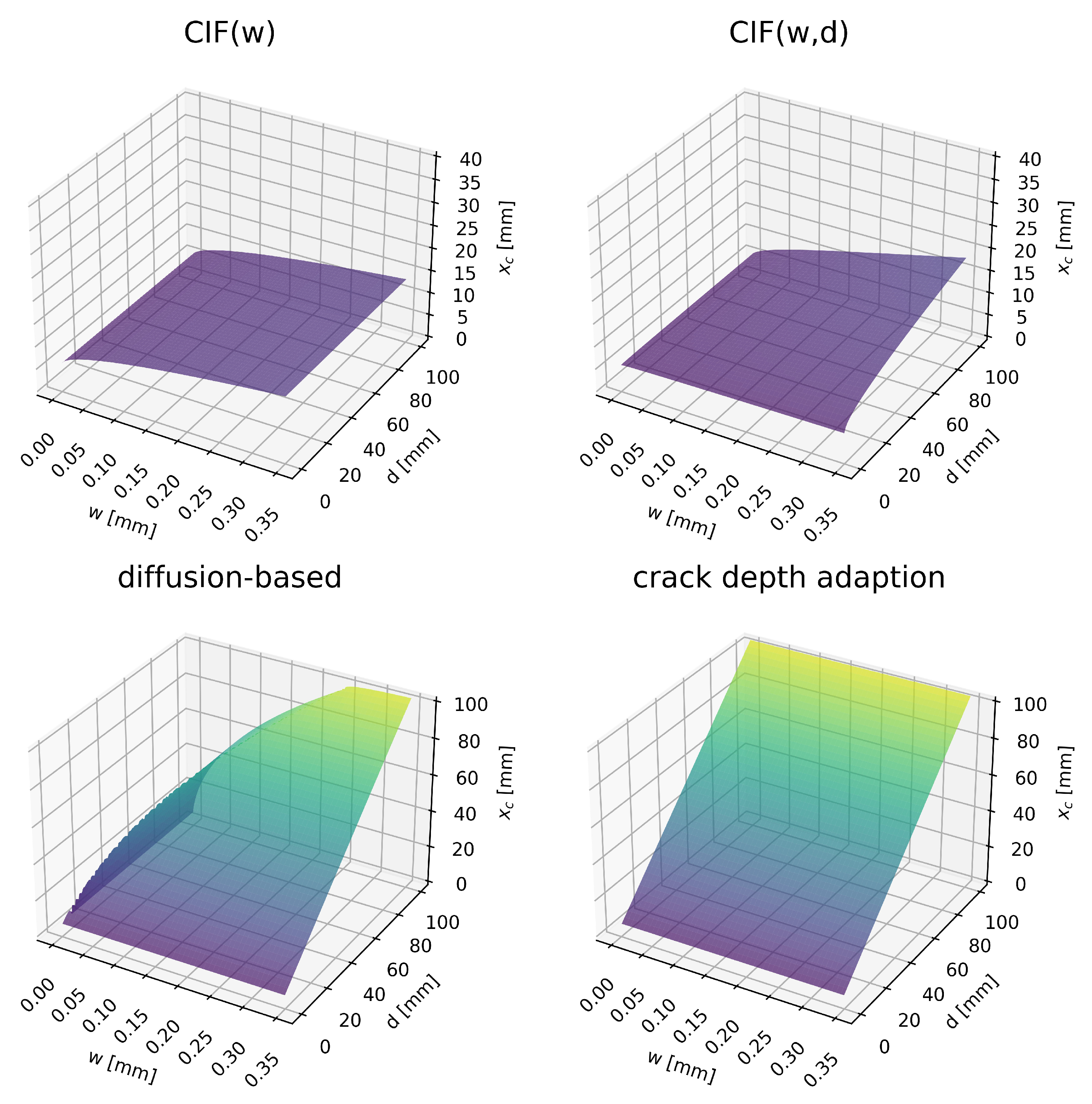

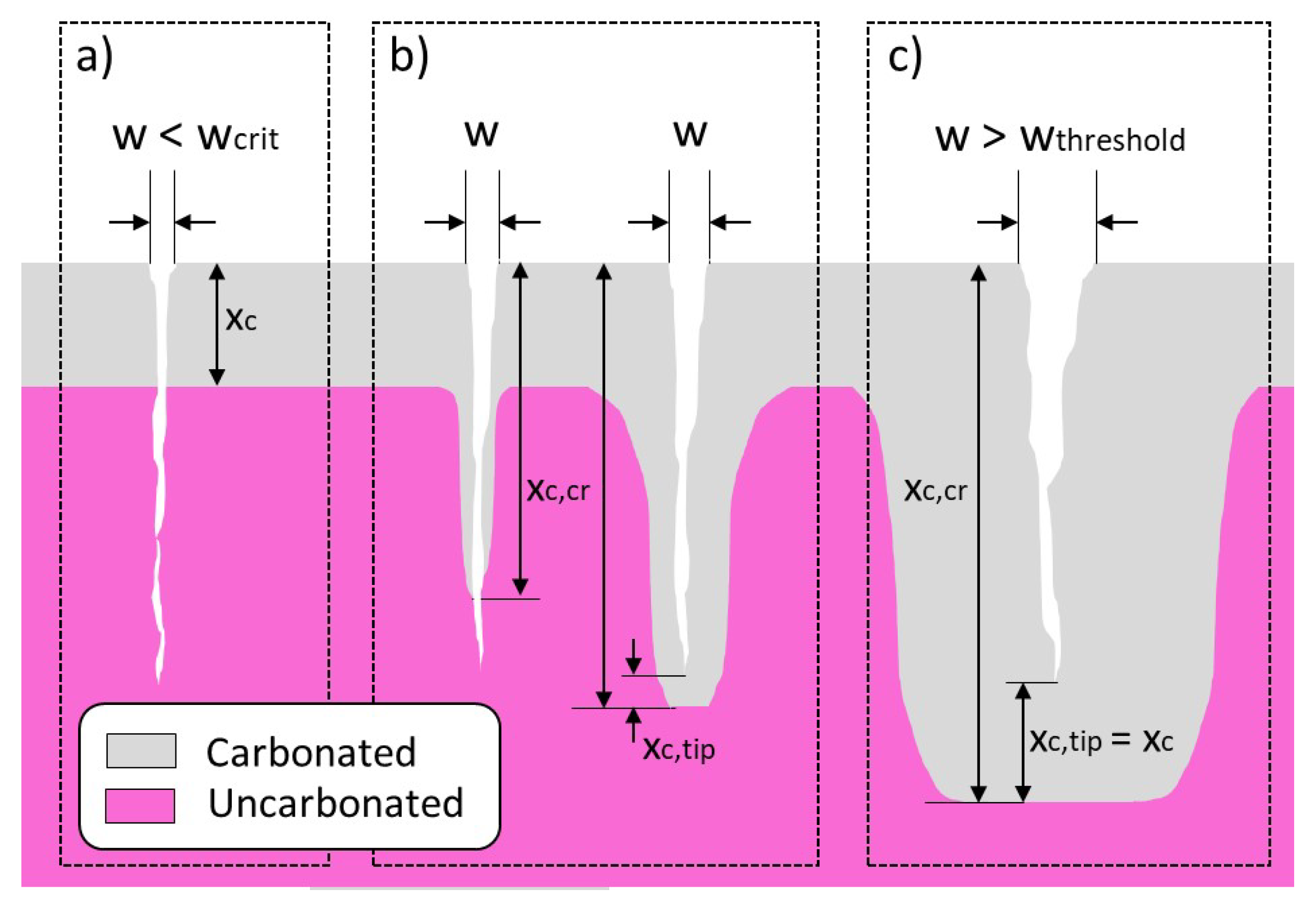

2.2. Models for Cracked Concrete
2.2.1. CIF Approach
2.2.2. Diffusion-Based Model
2.2.3. Crack Depth Adaption

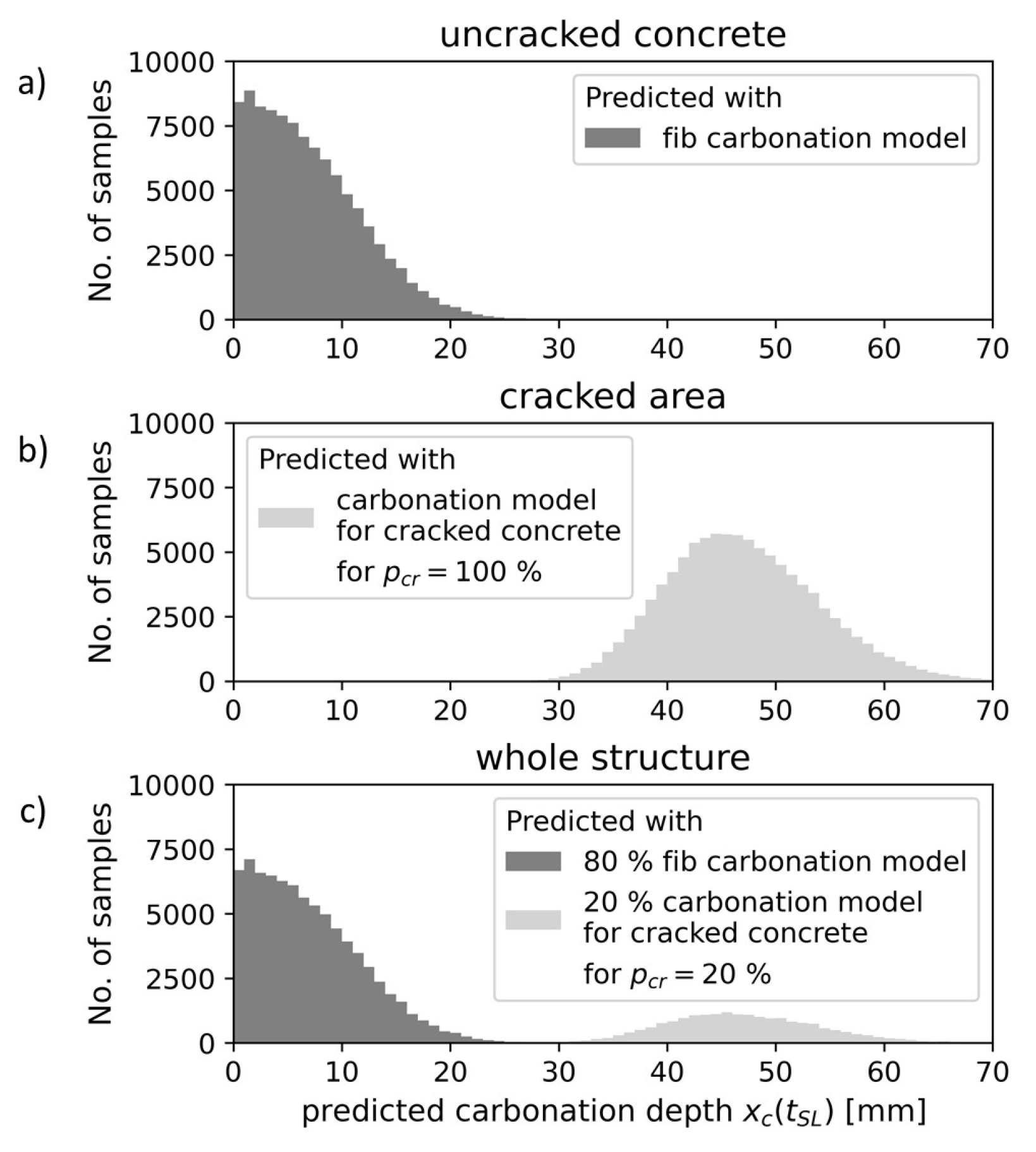

2.3. Probabilistic Analyses for Concrete with Pre-Existing Cracks
3. Experimental Studies
3.1. Validation Data from Literature

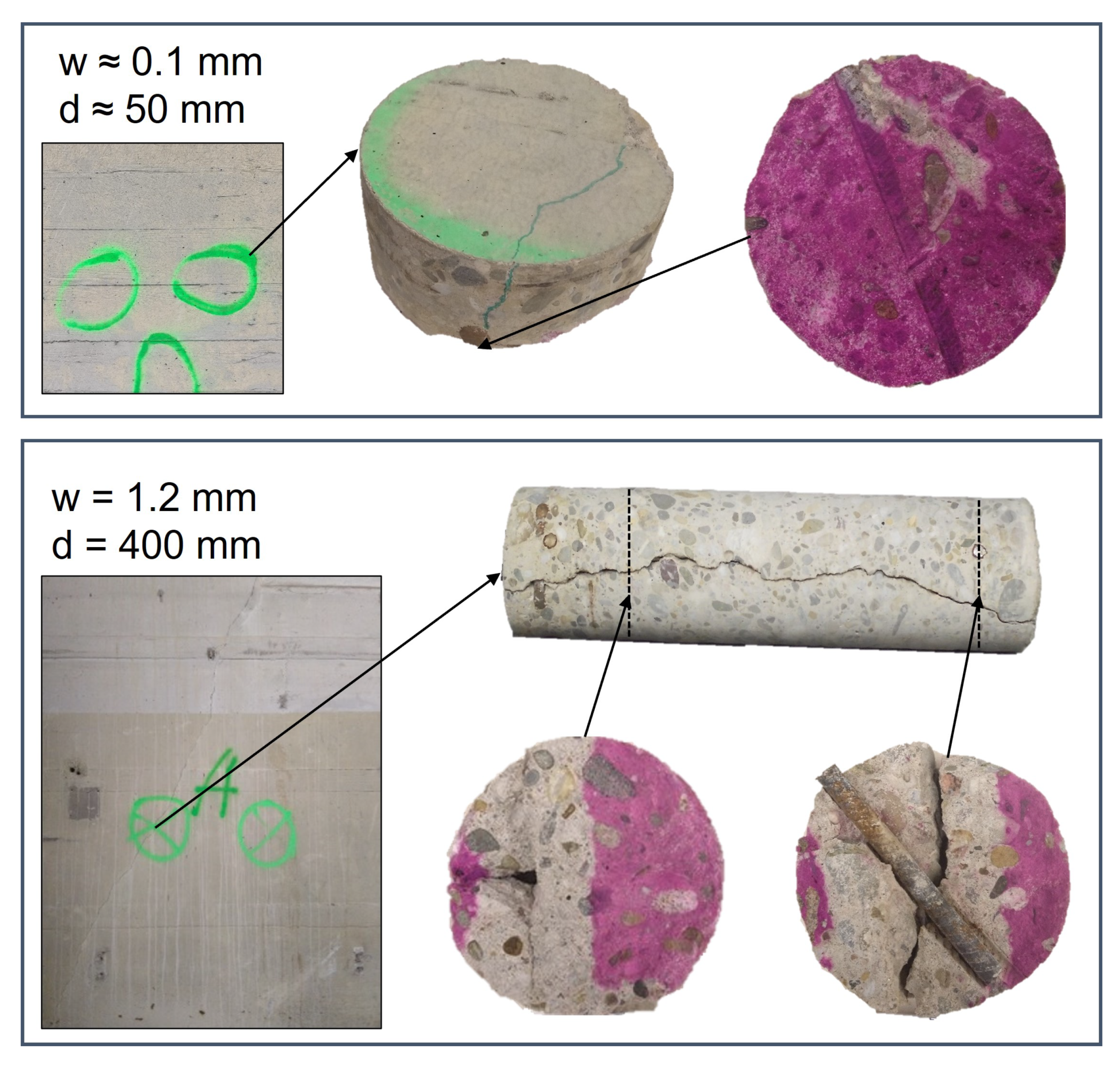

3.2. Experimental Study
4. Deterministic Evaluation of Models against Experimental Datasets

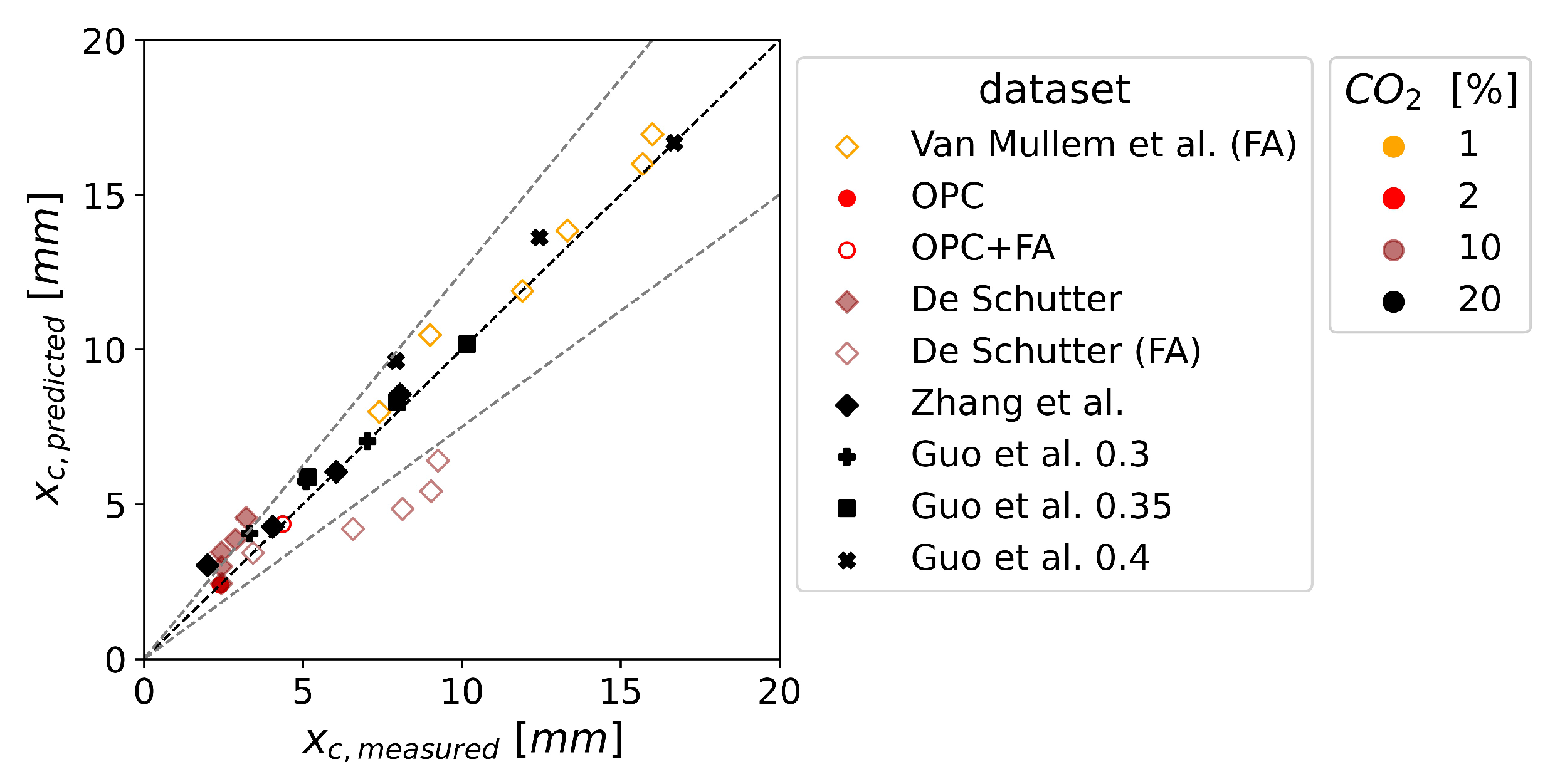

4.1. Uncracked Concrete

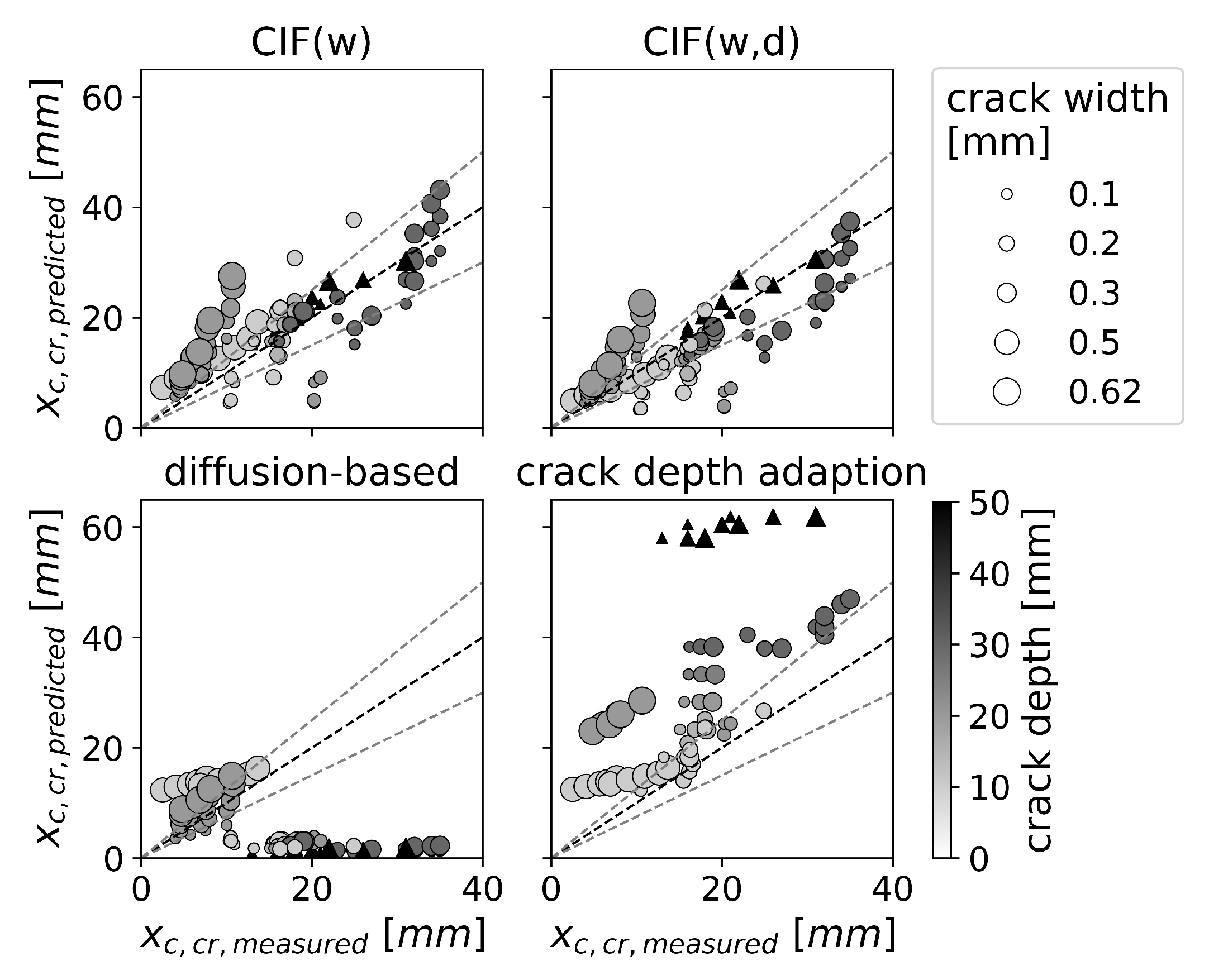

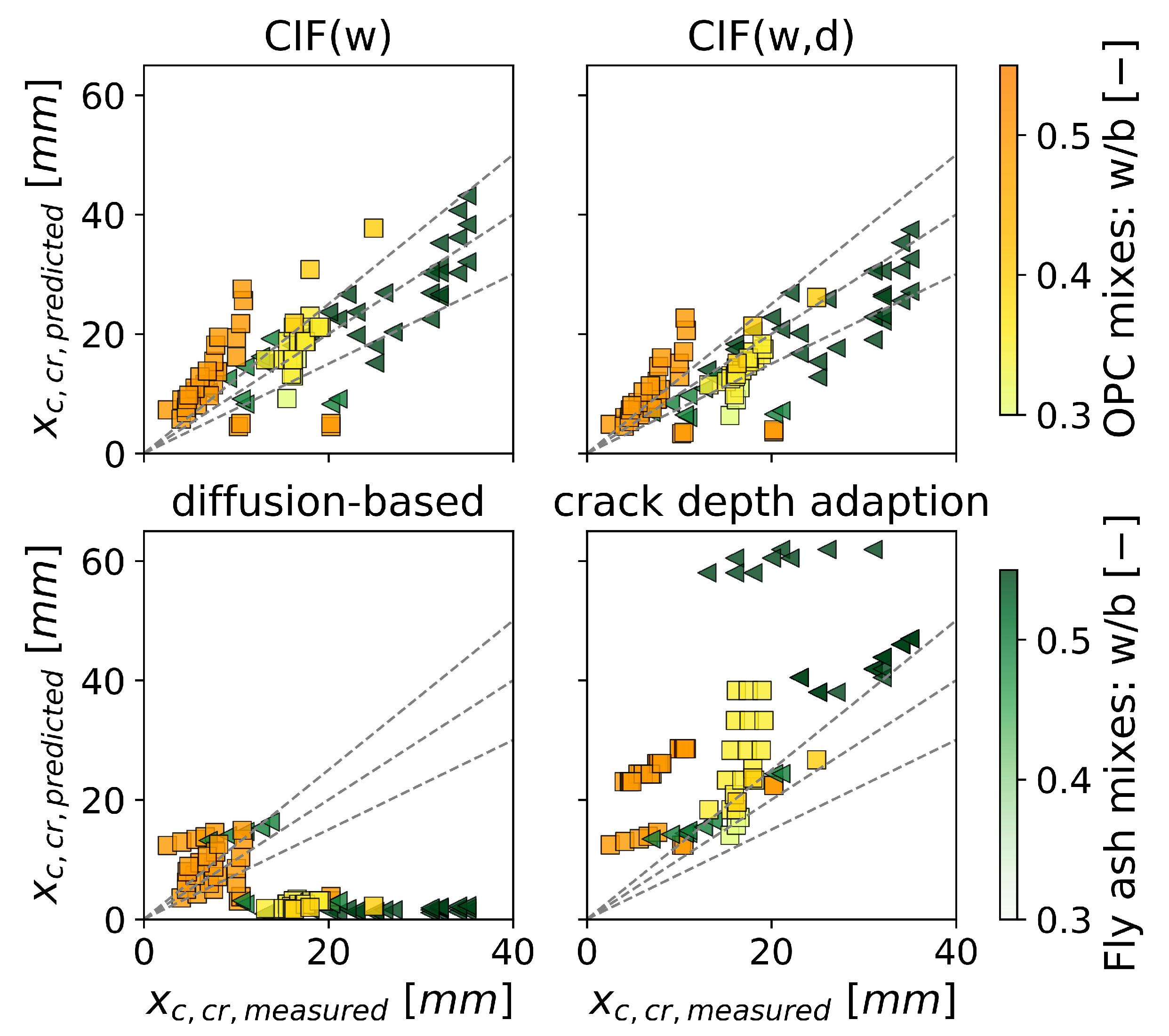

4.2. Cracked Concrete
5. Case Study for Service Life Predictions
5.1. Deterministic Results
5.2. Probabilistic Results
6. Limitations of the Extensions for Carbonation-Induced Depassivation of Cracked Concrete
7. Conclusions
- Both CIF approaches had a similar good prediction accuracy. The carbonation depth for concrete with natural cracks was predicted well. However, the models tend to underestimate the carbonation depth with increasing exposure time.
- The diffusion-based model significantly underestimated carbonation depths for experiments with low concentrations.

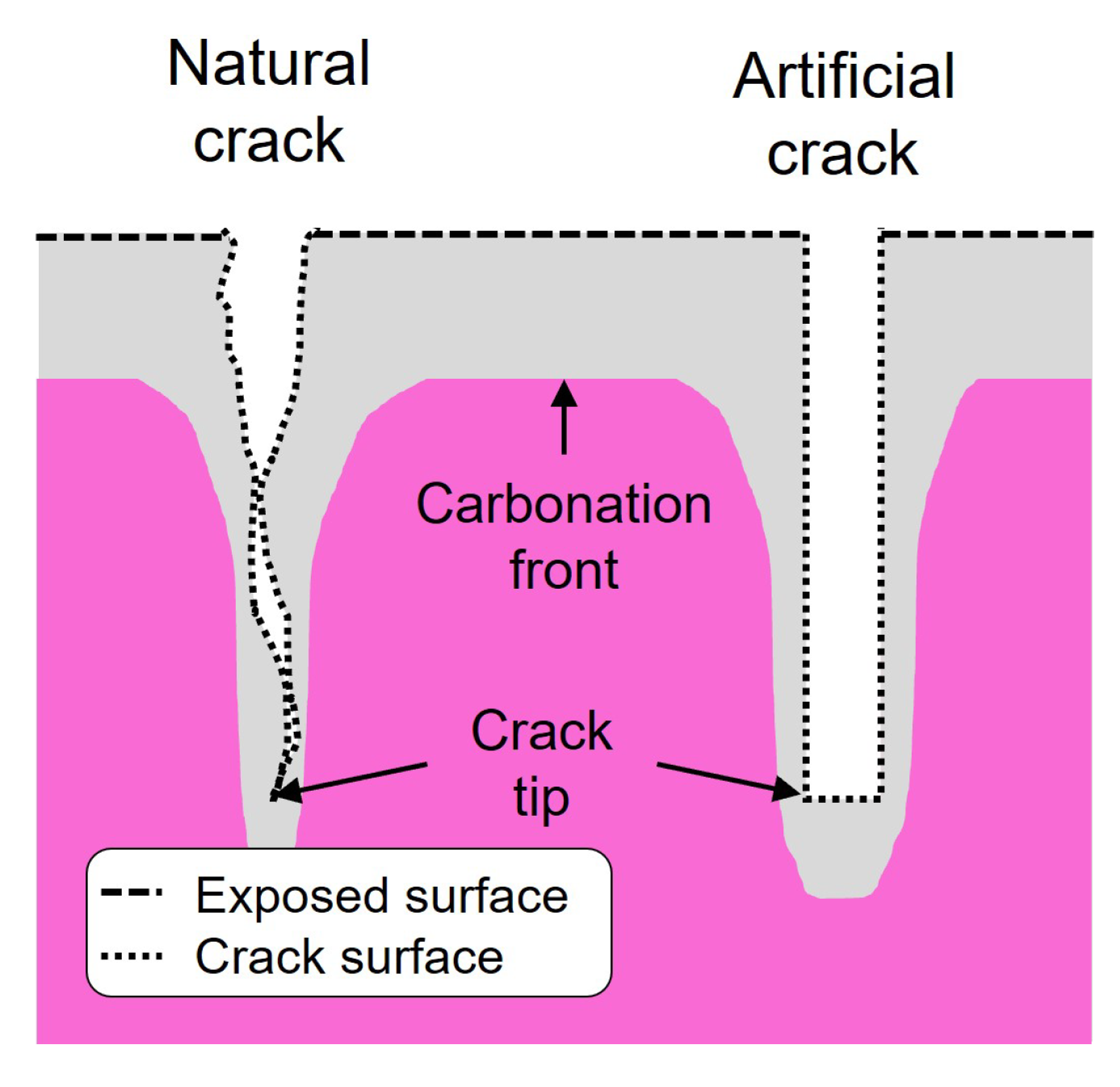

- The crack depth adaption overestimated the carbonation depth in (nearly) all cases. For natural cracks, the carbonation depth was even overestimated by up to a factor 3.5. However, the prediction accuracy increased with increasing exposure time.
- 0% for the uncracked concrete structure.

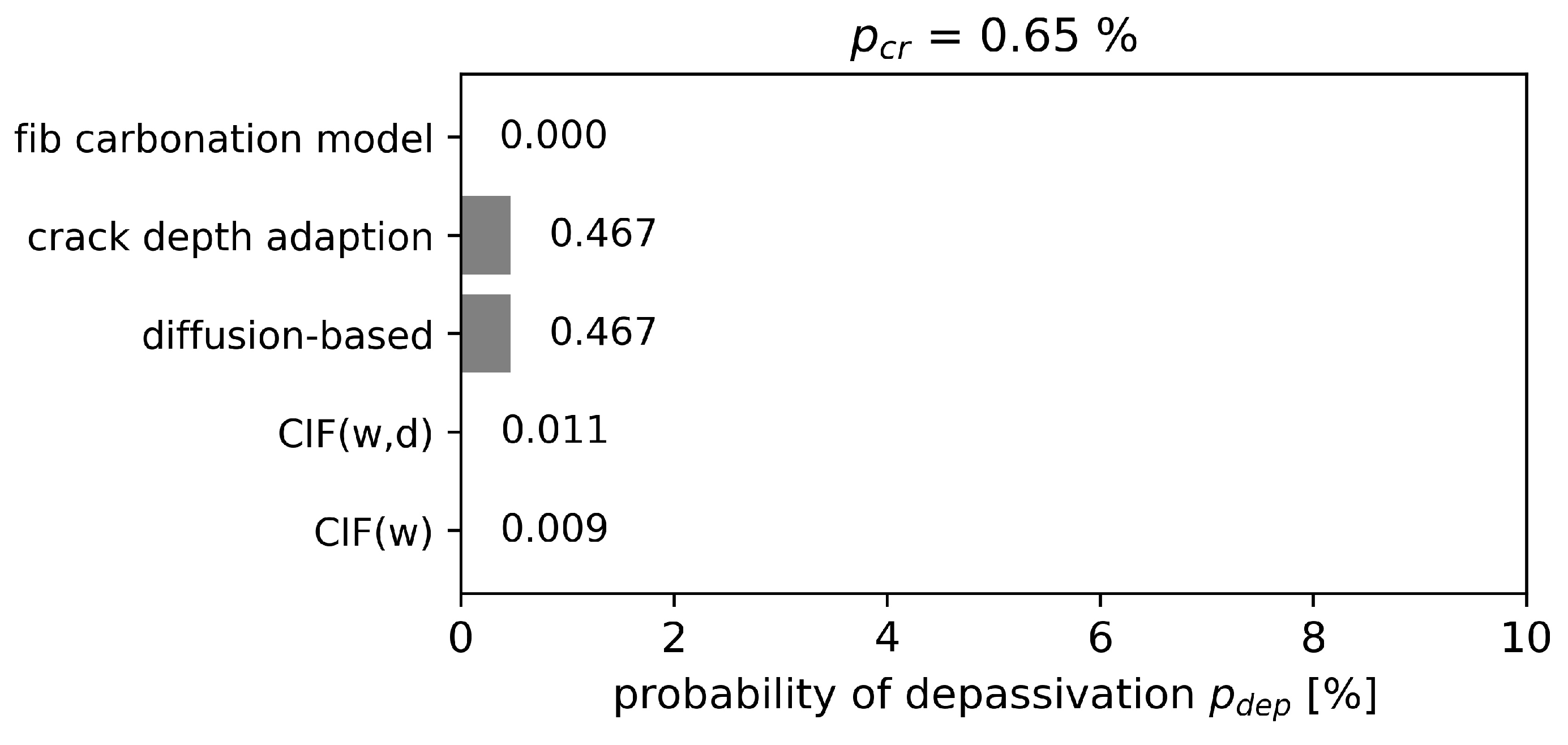

- Significantly below 1% for the whole structure, which includes the 0.65% cracked surface. However, the probability of depassivation could be underestimated because the carbonation from the crack surface and from the crack along the steel–concrete interface is not accounted for. Additionally, while such reliability assessments predict low depassivation probabilities, cracks can speed up local corrosion with potential consequences for the entire structure.

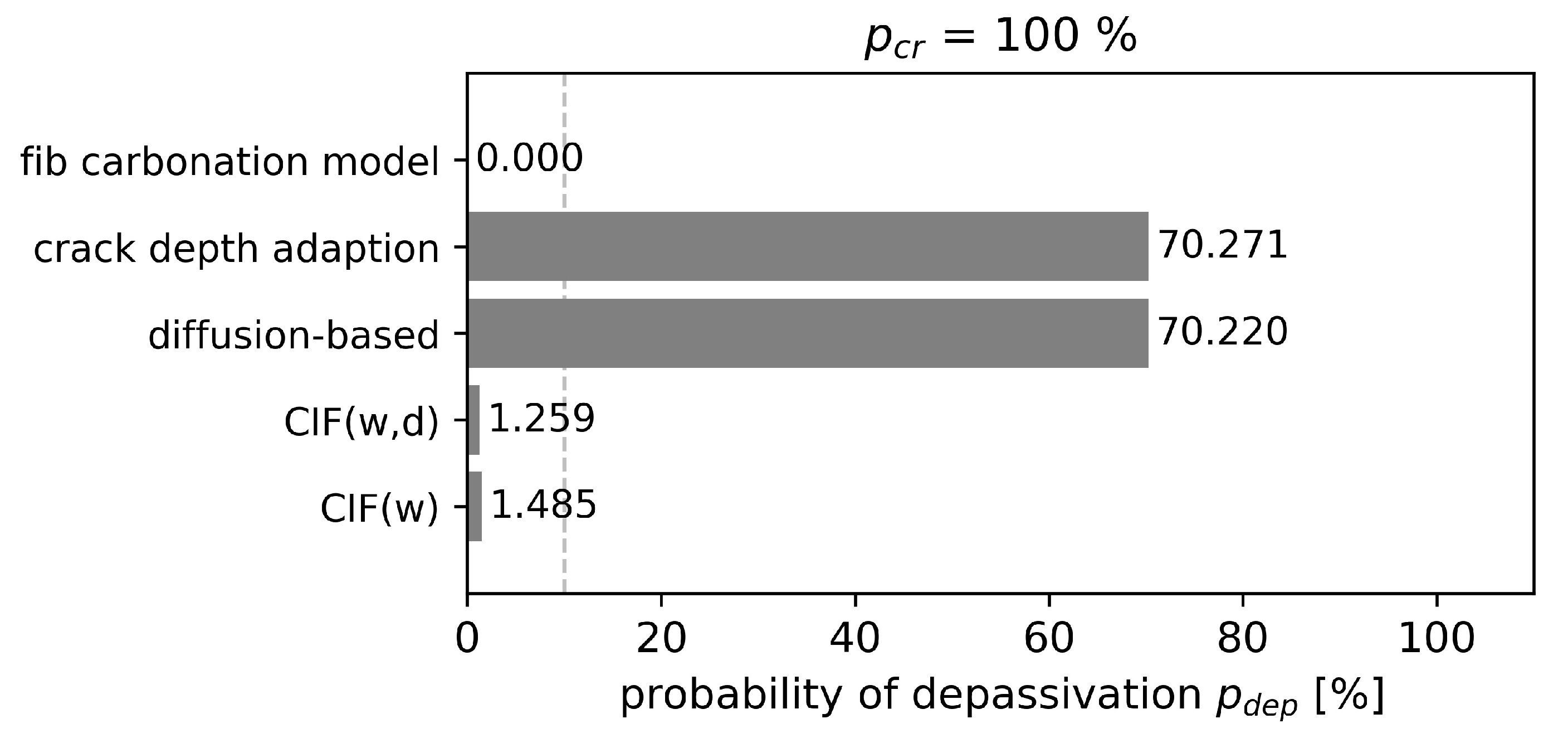

- Between 1% and 70% in the cracked area depending on the modeling approach. Structural investigations indicate that the depassivation probability of about 1% predicted by the CIF approaches is unrealistically low. In contrast, the 70% probability of depassivation of the other approaches highlights the risk of potential damage at the location of a crack. However, preventing this higher probability of depassivation could make reinforced concrete structures cost-inefficient. An alternative approach is to change the limit state for the reliability assessment from the very conservative depassivation limit (initiation period) to the corrosion propagation state.
Author Contributions
Funding
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- International Federation for Structural Concrete. Model Code for Service Life Design; International Federation for Structural Concrete: Lausanne, Switzerland, 2006. [Google Scholar]
- International Federation for Structural Concrete. Model Code 2010: Final draft. In Bulletin/International Federation for Structural Concrete Draft Model Code; International Federation for Structural Concrete: Lausanne, Switzerland, 2012; Volume 65. [Google Scholar]
- ACI Committee 224. 224.2R-92 Cracking of Concrete Members in Direct Tension, 92nd ed.; American: Detroit, MI, USA, 1997. [Google Scholar]
- Setareh, M.; Darvas, R. Concrete Structures; Springer International Publishing: Cham, Switzerland, 2017. [Google Scholar] [CrossRef]
- Deutsche Fassung EN 1992-1-1:2004 + AC:2010; Eurocode 2: Bemessung und Konstruktion von Stahlbeton-und Spannbetontragwerken—Teil 1-1: Allgemeine Bemessungsregeln und Regeln für den Hochbau. DIN Deutsches Institut für Normung e. V.: Berlin, Germany, 2010.
- Mehta, P.K.; Monteiro, P.J.M. Concrete: Microstructure, Properties, and Materials; [CD-ROM with 1000+ Powerpoint Slides, Videos, Bonus Material, and More, 3rd ed.; McGraw-Hill: New York, NY, USA, 2006. [Google Scholar]
- Wu, L.; Farzadnia, N.; Shi, C.; Zhang, Z.; Wang, H. Autogenous shrinkage of high performance concrete: A review. Constr. Build. Mater. 2017, 149, 62–75. [Google Scholar] [CrossRef]
- Safiuddin, M.; Kaish, A.; Woon, C.O.; Raman, S. Early-Age Cracking in Concrete: Causes, Consequences, Remedial Measures, and Recommendations. Appl. Sci. 2018, 8, 1730. [Google Scholar] [CrossRef]
- Al-Ahmad, S.; Toumi, A.; Verdier, J.; François, R. Effect of crack opening on carbon dioxide penetration in cracked mortar samples. Mater. Struct. 2009, 42, 559–566. [Google Scholar] [CrossRef]
- Zhang, S.P.; Zong, L.; Dong, L.F.; Zhang, W. Influence of Cracking on Carbonation of Cement-Based Materials. Adv. Mater. Res. 2011, 261–263, 84–88. [Google Scholar] [CrossRef]
- Han, J.; Liu, W.; Wang, S.; Du, D.; Xu, F.; Li, W.; de Schutter, G. Effects of crack and ITZ and aggregate on carbonation penetration based on 3D micro X-ray CT microstructure evolution. Constr. Build. Mater. 2016, 128, 256–271. [Google Scholar] [CrossRef]
- Bogas, J.A.; Carriço, A.; Pontes, J. Influence of cracking on the capillary absorption and carbonation of structural lightweight aggregate concrete. Cem. Concr. Compos. 2019, 104, 103382. [Google Scholar] [CrossRef]
- van Mullem, T.; de Meyst, L.; Handoyo, J.P.; Caspeele, R.; de Belie, N.; van den Heede, P. Influence of Crack Geometry and Crack Width on Carbonation of High-Volume Fly Ash (HVFA) Mortar. In Proceedings of the 3rd RILEM Spring Convention and Conference (RSCC 2020), Guimarães, Portugal, 9–14 March 2020; Springer: Cham, Switzerland, 2020; Volume 33, pp. 59–67. [Google Scholar] [CrossRef]
- De Schutter, G. Quantification of the influence of cracks in concrete structures on carbonation and chloride penetration. Mag. Concr. Res. 1999, 51, 427–435. [Google Scholar] [CrossRef]
- AL-Ameeri, A.; Rafiq, M.I.; Tsioulou, O. Influence of cracks on the carbonation resistance of concrete structures. In Proceedings of the Sixth International Conference on the Durability of Concrete Structures-ICDCS 2018, Leeds, UK, 18–20 July 2018. [Google Scholar]
- Bogas, J.A.; Ahmed, H.H.; Diniz, T. Influence of Cracking on the Durability of Reinforced Concrete with Carbon Nanotubes. Appl. Sci. 2021, 11, 1672. [Google Scholar] [CrossRef]
- Varzina, A.; Phung, Q.T.; Perko, J.; Jacques, D.; Maes, N.; Cizer, Ö. Synergistic Effects between Carbonation and Cracks in the Hardened Cement Paste. Sustainability 2022, 14, 8572. [Google Scholar] [CrossRef]
- Schiessl, P. Zur Frage der zulässigen Rißbreite und der erforderlichen Betondeckung im Stahlbetonbau unter besonderer Berücksichtigung der Karbonatisierung des Betons. In Schriftenreihe des Deutschen Ausschusses für Stahlbeton; Ernst: Berlin, Germany, 1976; Volume 255. (In German) [Google Scholar]
- Sullivan-Green, L.; Hime, W.; Dowding, C. Accelerated protocol for measurement of carbonation through a crack surface. Cem. Concr. Res. 2007, 37, 916–923. [Google Scholar] [CrossRef]
- Kwon, S.J.; Na, U.J. Prediction of Durability for RC Columns with Crack and Joint under Carbonation Based on Probabilistic Approach. Int. J. Concr. Struct. Mater. 2011, 5, 11–18. [Google Scholar] [CrossRef]
- Häkkinen, T. Influence of High Slag Content on the Basic Mechanical Properties and Carbonation of Concrete. Ph.D. Thesis, University of Technology, Helsinki, Finland, 1993. [Google Scholar]
- CECS 220-2007; China Engineering Construction Standardization Association Professional Committee of identification and reinforcement of buildings, Standard for durability assessment of concrete structures. China Architecture and Building Press: Beijing, China, 2007.
- Guiglia, M.; Taliano, M. Comparison of carbonation depths measured on in-field exposed existing r.c. structures with predictions made using fib-Model Code 2010. Cem. Concr. Compos. 2013, 38, 92–108. [Google Scholar] [CrossRef]
- Yang, K.H.; Seo, E.A.; Tae, S.H. Carbonation and CO2 uptake of concrete. Environ. Impact Assess. Rev. 2014, 46, 43–52. [Google Scholar] [CrossRef]
- Silva, A.; Neves, R.; de Brito, J. Statistical modelling of carbonation in reinforced concrete. Cem. Concr. Compos. 2014, 50, 73–81. [Google Scholar] [CrossRef]
- Hills, T.P.; Gordon, F.; Florin, N.H.; Fennell, P.S. Statistical analysis of the carbonation rate of concrete. Cem. Concr. Res. 2015, 72, 98–107. [Google Scholar] [CrossRef]
- von Greve-Dierfeld, S.; Gehlen, C. Performance based durability design, carbonation part 1—Benchmarking of European present design rules. Struct. Concr. 2016, 17, 309–328. [Google Scholar] [CrossRef]
- Ekolu, S.O. Model for practical prediction of natural carbonation in reinforced concrete: Part 1—formulation. Cem. Concr. Compos. 2018, 86, 40–56. [Google Scholar] [CrossRef]
- ossan, E.; Andrade, J.J.O.; Dal Molin, D.C.C.; Ribeiro, J.L.D. Model to Estimate Concrete Carbonation Depth and Service Life Prediction. In Hygrothermal Behaviour and Building Pathologies; Delgado, J., Ed.; Building Pathology and Rehabilitation; Springer International Publishing: Cham, Switzerland, 2021; pp. 67–97. [Google Scholar] [CrossRef]
- Bentz, D.P.; Garboczi, E.J.; Lu, Y.; Martys, N.; Sakulich, A.R.; Weiss, W.J. Modeling of the influence of transverse cracking on chloride penetration into concrete. Cem. Concr. Compos. 2013, 38, 65–74. [Google Scholar] [CrossRef]
- Peng, J.; Hu, S.; Zhang, J.; Cai, C.S.; Li, L.y. Influence of cracks on chloride diffusivity in concrete: A five-phase mesoscale model approach. Constr. Build. Mater. 2019, 197, 587–596. [Google Scholar] [CrossRef]
- Liang, M.T.; Qu, W.J.; Liao, Y.S. A study on carbonation in concrete structures at existing cracks. J. Chin. Inst. Eng. 2000, 23, 143–153. [Google Scholar] [CrossRef]
- Schiessl, P.; Comité euro-international du béton. New approach to durability design: An example for carbonation induced corrosion. In Bulletin d’information/Comité Euro-International du Béton; Comité Euro-International du Béton CEB: Lausanne, Switerland, 1997; Volume 238. [Google Scholar]
- Schultheiß, A.; Patel, R.A.; Vogel, M.; Dehn, F. Comparative study of probabilistic modelling approaches for chloride ingress in concrete structures with macro-cracks. Struct. Concr. 2022, 24, 345–358. [Google Scholar] [CrossRef]
- Song, H.W.; Kwon, S.J.; Byun, K.J.; Park, C.K. Predicting carbonation in early-aged cracked concrete. Cem. Concr. Res. 2006, 36, 979–989. [Google Scholar] [CrossRef]
- Carević, V.; Ignjatović, I. Influence of loading cracks on the carbonation resistance of RC elements. Cem. Concr. Res. 2019, 227, 116583. [Google Scholar] [CrossRef]
- Guo, Q.; Jiang, L.; Wang, J.; Liu, J. Analysis of Carbonation Behavior of Cracked Concrete. Materials 2022, 15, 4518. [Google Scholar] [CrossRef]
- Bejaoui, S.; Bary, B. Modeling of the link between microstructure and effective diffusivity of cement pastes using a simplified composite model. Cem. Concr. Res. 2007, 37, 469–480. [Google Scholar] [CrossRef]
- Deutsche Fassung EN_196-1:2016; Prüfverfahren für Zement_- Teil_1: Bestimmung der Festigkeit. DIN Deutsches Institut für Normung e. V.: Berlin, Germany, 2009. [CrossRef]
- Deutscher Wetter Dienst. Climate Data Center (CDC). Available online: https://opendata.dwd.de/climate_environment/CDC/observations_germany/climate/ (accessed on 19 December 2022).
- Francois, R.; Maso, J.C. Effect of damage in reinforced concrete on carbonation or chloride penetration. Cem. Concr. Res. 1988, 18, 961–970. [Google Scholar] [CrossRef]
- Dang, V.H.; François, R.; L’Hostis, V. Effects of pre-cracks on both initiation and propagation of re-bar corrosion in pure carbon dioxide. EPJ Web Conf. 2013, 56, 06006. [Google Scholar] [CrossRef]
- Ghantous, R.M.; Poyet, S.; L’Hostis, V.; Tran, N.C.; François, R. Effect of crack openings on carbonation-induced corrosion. Cem. Concr. Res. 2017, 95, 257–269. [Google Scholar] [CrossRef]
- L’Hostis, V. Long-term corrosion of rebars submitted to concrete carbonation. Mater. Corros. 2020, 71, 777–785. [Google Scholar] [CrossRef]
Parameter | Unit | Van Mullem et al. [13] | De Schutter [14] | Zhang et al. [10] | Guo et al. [37] | ||
---|---|---|---|---|---|---|---|
mix | mortar | mortar | mortar | mortar | concrete | paste | |
binder | 50 w.% CEM I 52.2 N, 50 w.% fly ash | 50 w.% CEM I 52.2 N, 50 w.% fly ash | CEM I 42.5 R | 85 w.% CEM I, 15 w.% fly ash | OPC | OPC 42.5 | |
crack type | notch | natural | notch | notch | notch | notch | |
uncracked concrete tested | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
w | [mm] | 0.1, 0.2, 0.3 | 0.1, 0.2, 0.3 | 0.5 | 0.5 | 0.1, 0.2, 0.3, 0.5, 0.62 | 0.1, 0.2,0.3 |
d | [mm] | 30 | 50 | 10 | 10 | 20 | 10, 15, 20, 25, 30 |
[Vol.%] | 1 | 1 | 10 | 10 | 20 | 20 | |
[days] | 14–63 | 14–31 | 56–196 | 56–196 | 7–56 | 7–21 | |
[−] | 1.11 | 1.11 | 1 | 1 | 0.86 | 0.86 | |
[−] | 0.32 | 0.32 | 0.45 | 0.45 | 0.46 | 0.46 |
Binder | CaO | SiO2 | Al2O3 | Fe2O3 | MgO | K2O | Na2O | TiO2 | P2O5 | MnO | LIO | Na2Oeq | Others |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CEM I 42.5 R | 57.90 | 18.85 | 5.43 | 3.33 | 2.30 | 1.64 | 0.06 | 0.24 | 0.12 | 0.08 | 3.44 | 1.14 | |
Fly ash | 3.14 | 48.09 | 29.66 | 9.16 | 0.07 | 1.27 | 0.43 | 3.4 | 0.31 | 1.27 | 1.75 | 1.45 |
Parameter | Unit | Van Mullem et al. [13] | De Schutter [14] | Zhang et al. [10] | Guo et al. [37] | |||
---|---|---|---|---|---|---|---|---|
[] | 127,166 | 234 | 451 | 1676 | 3015 | 6308 | 16,994 | |
[%] | 60 | 65 | 65 | 70 | 70 | 70 | 70 | |
[days] | 51 | 28 | 28 | 28 | 28 | 28 | 28 | |
[−] | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
[−] | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
[] | 0.018 | 0.182 | 0.182 | 0.367 | 0.367 | 0.367 | 0.367 | |
C | [] | 486 1 | 499 1 | 499 1 | 400 | 1590 1 | 1742 1 | 1371 1 |
[−] | 30.52 2 | 57.90 2 | 49.69 2 | 66.60 | 62.24 | 62.24 | 62.24 | |
[−] | 0.55 | 0.5 | 0.5 | 0.5 | 0.3 | 0.35 | 0.4 | |
[−] | 0.93 3 | 0.91 3 | 0.91 3 | 0.80 3 | 0.71 3 | 0.78 3 | 0.83 3 |
Parameter | Unit | OPC | OPC + FA |
---|---|---|---|
[] | 1024 | 3407 | |
[%] | 65 | 65 | |
[days] | 7 | 7 | |
[−] | 0 | 0 | |
[−] | 0 | 0 | |
[] | 0.036 | 0.036 | |
C | [] | 499 1 | 499 1 |
[−] | 57.90 | 46.95 | |
[−] | 0.5 | 0.5 | |
[−] | 0.91 2 | 0.91 2 |
Parameter | Unit | Distribution | Mean | Std | Boundaries |
---|---|---|---|---|---|
[] | Normal distribution | 2144 1 | 273.6 1 | ||
[%] | Beta distribution | 71.96 | 20.92 | [0, 100] | |
[days] | 7 | ||||
[−] | 77/365 | ||||
[−] | Beta distribution | 0.3 | 0.1 | [0, 1] | |
[] | Normal distribution | 0.00082 1 | 0.0001 1 | ||
C | [] | 280 | |||
[−] | 0.579 | ||||
[−] | 0.91 | ||||
[mm] | Beta distribution | 35 | 6 1 | [0, 175] 1 | |
w | [mm] | Normal distribution | 0.25 | 0.015 | |
d | [mm] | Beta distribution | 35 | 5 | [0, 175] |
