Investigation of the Combined Influence of Temperature and Humidity on Fatigue Crack Growth Rate in Al6082 Alloy in a Coastal Environment
Abstract
:1. Introduction
2. Methods
2.1. Material
2.2. Specimen Preparation
2.3. Simulation of Coastal Environment

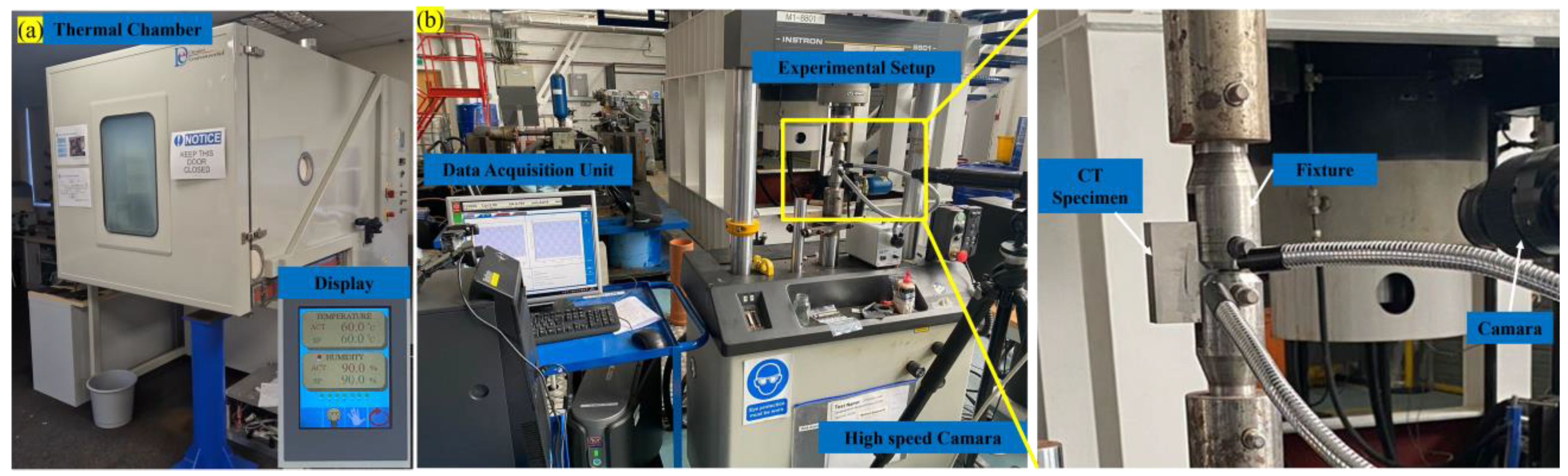

2.4. FCGR Experimentation
3. Results and Discussion

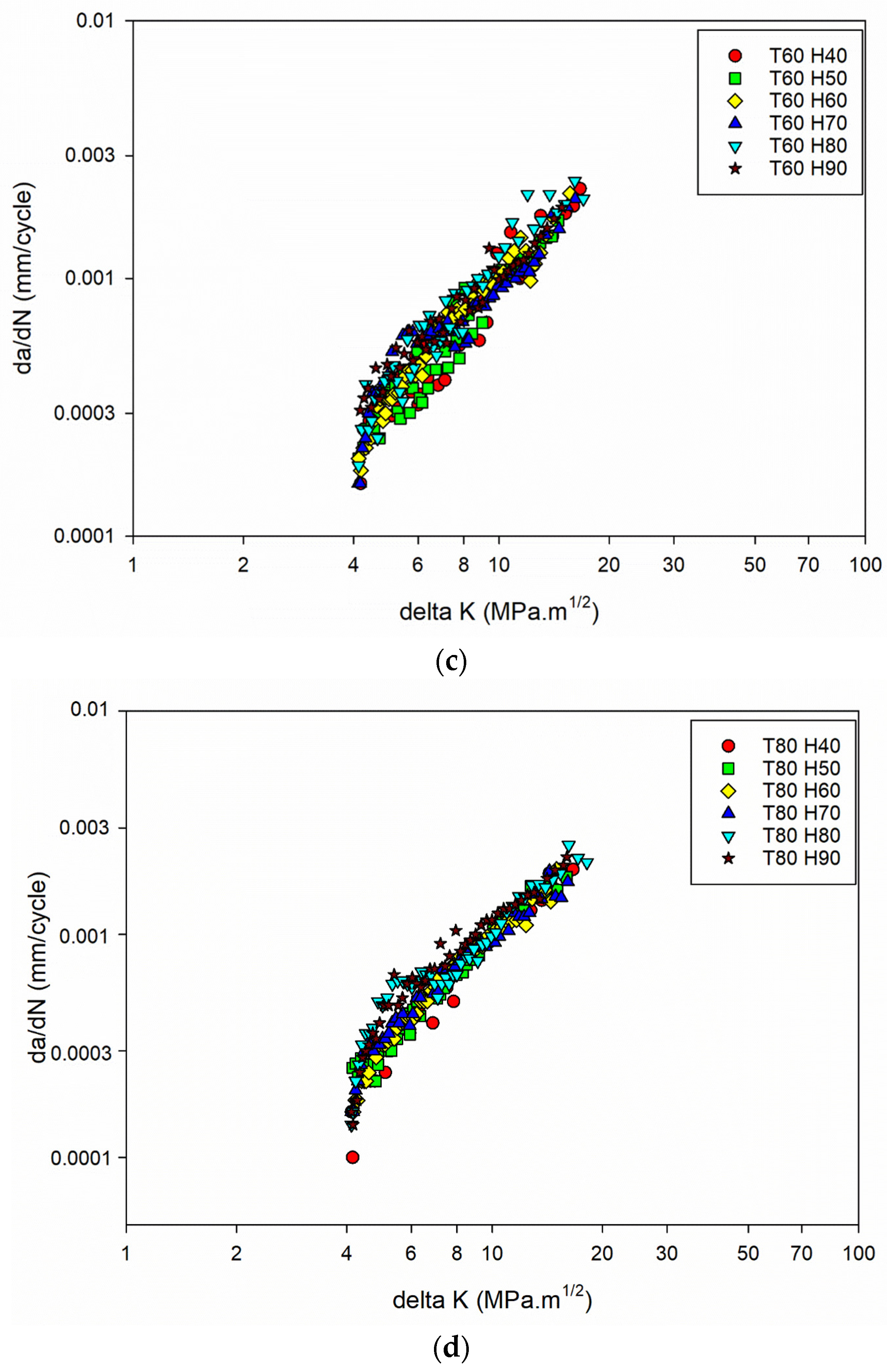

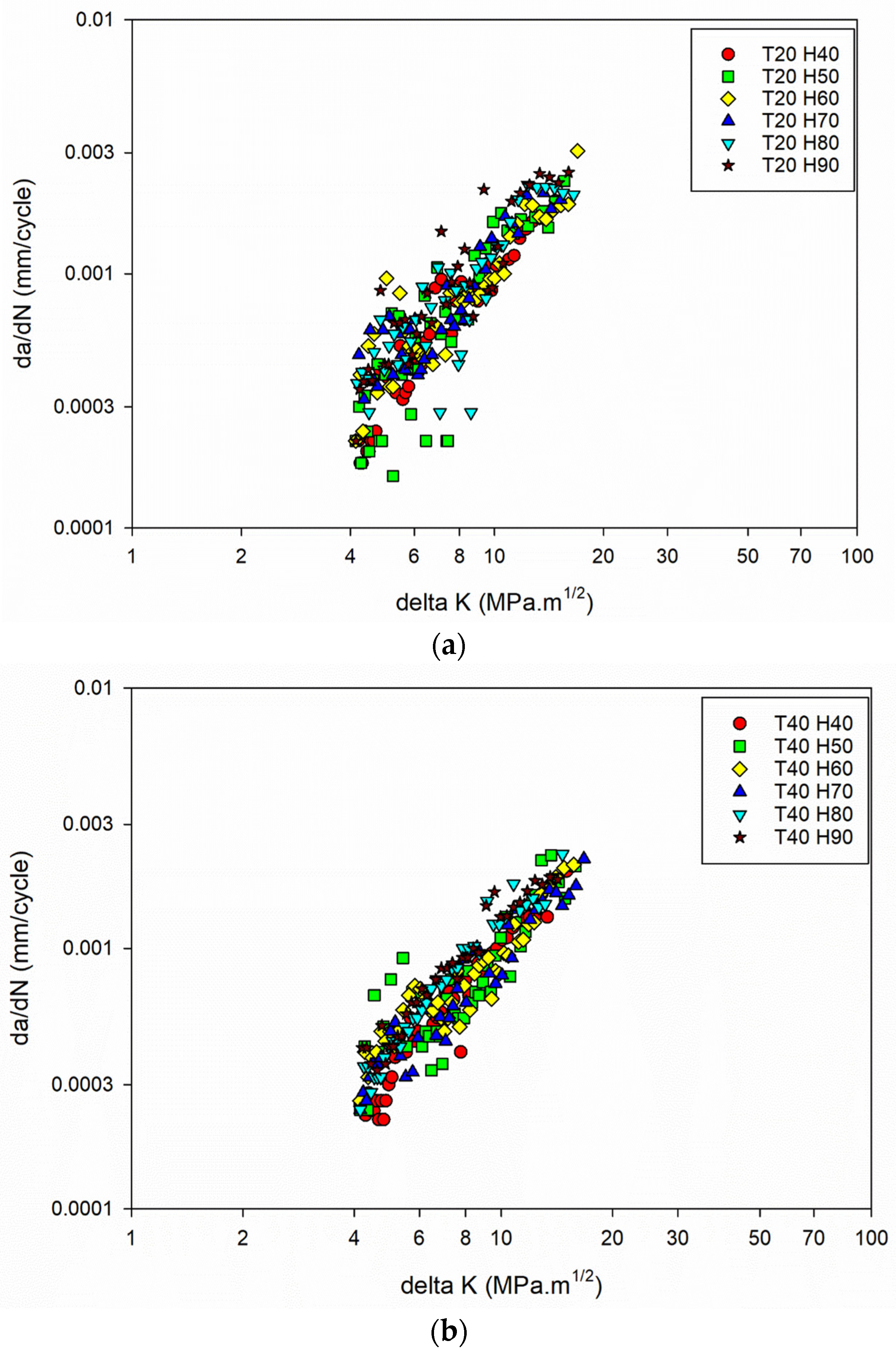

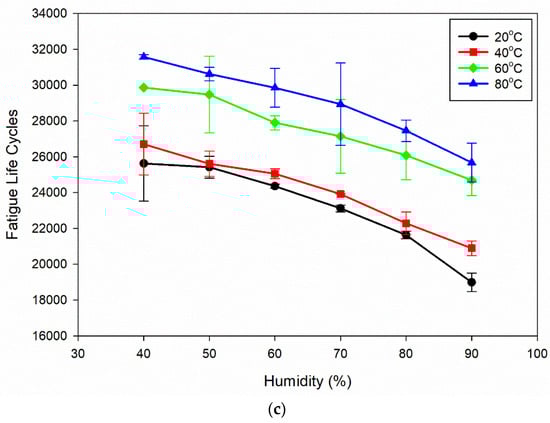

3.1. Fatigue Crack Growth Rate (FCGR)
3.2. Threshold Stress Intensity Factor Range
3.3. Effect of Temperature and Humidity
3.3.1. Effect of Temperature
- (a)
- Reduced Corrosion:
- (b)
- Crack Closure:
- (c)

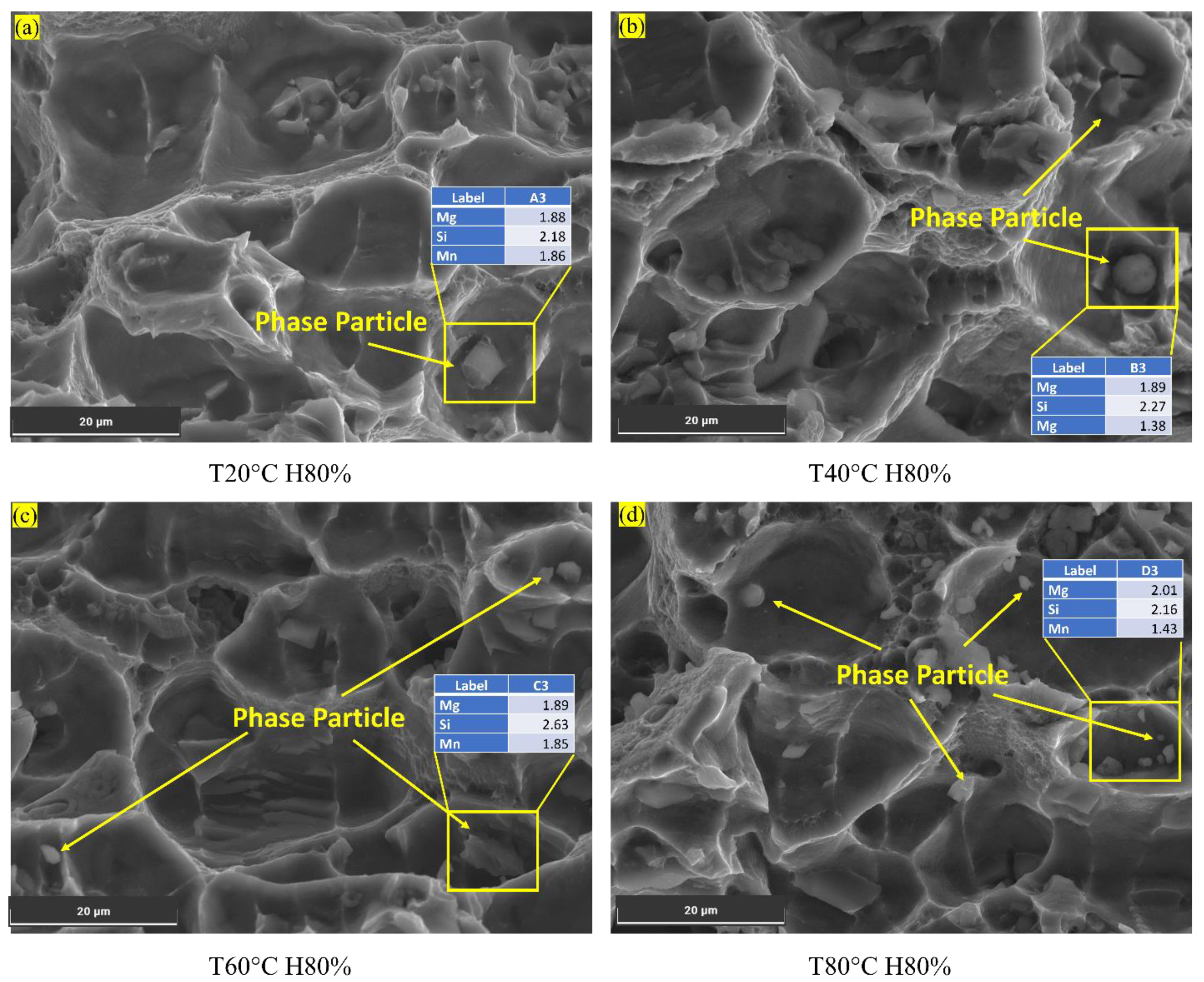

- Presence of Phase Particles:

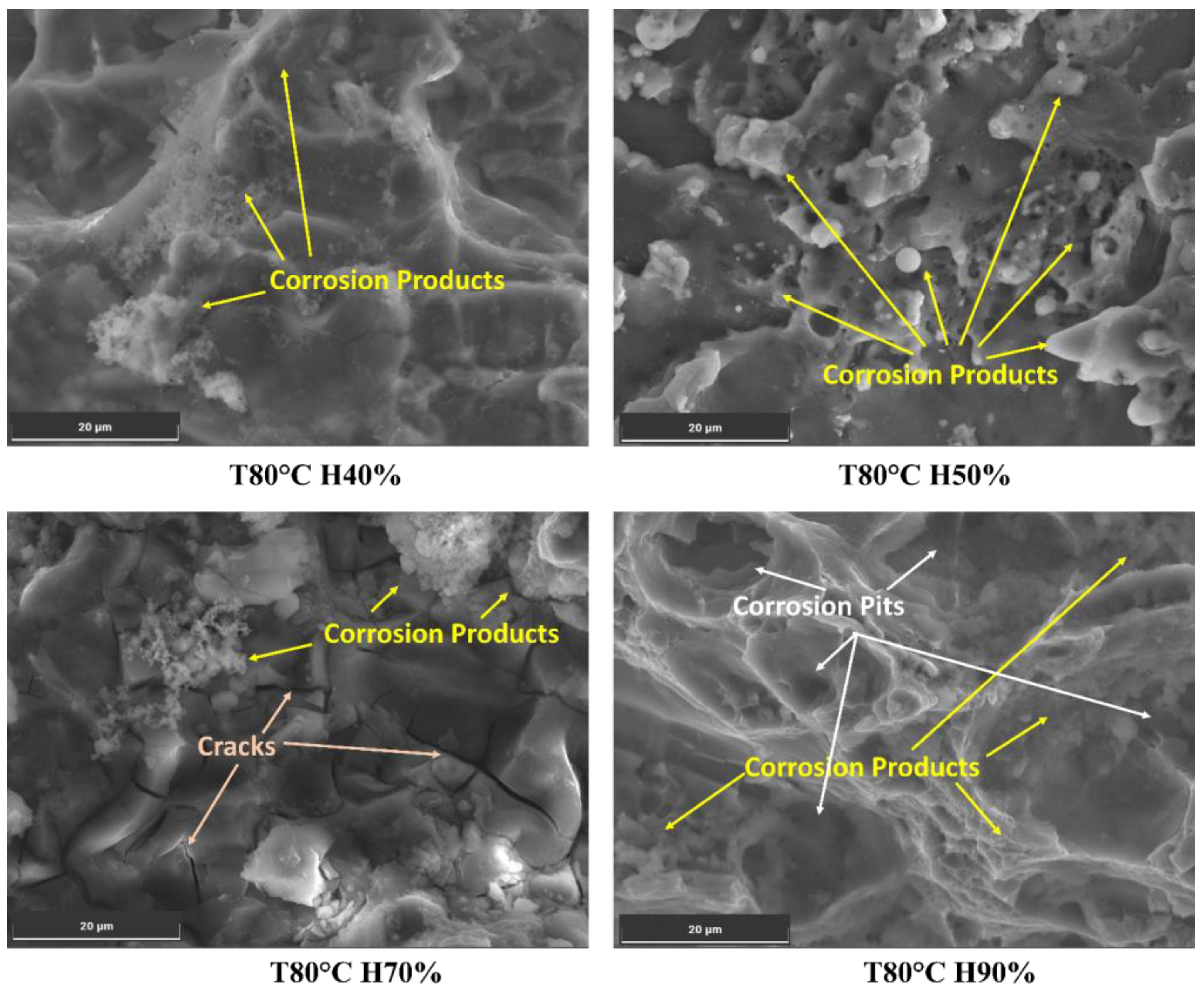

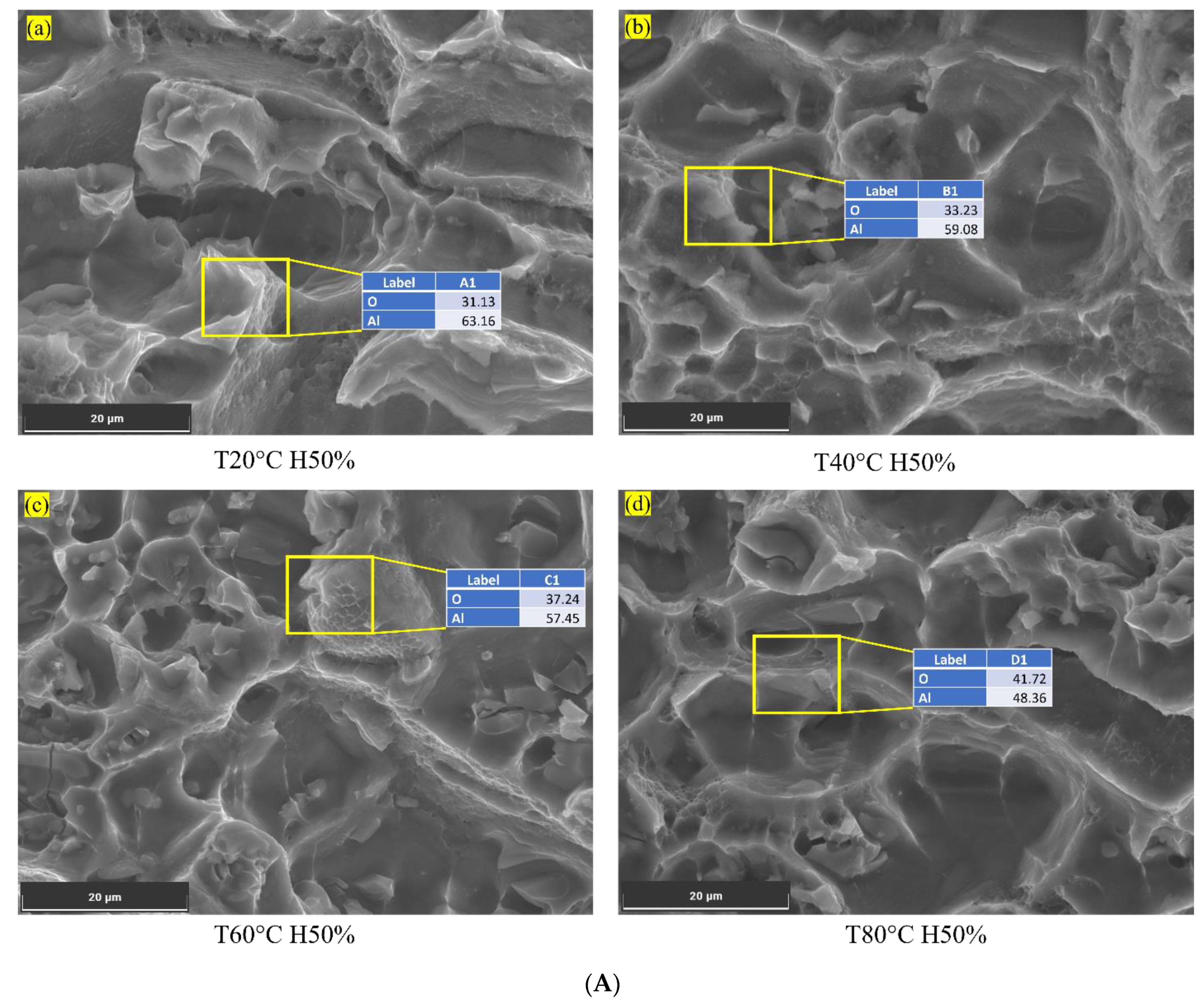

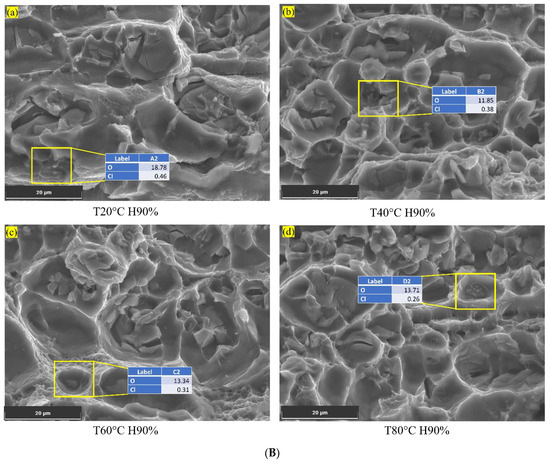

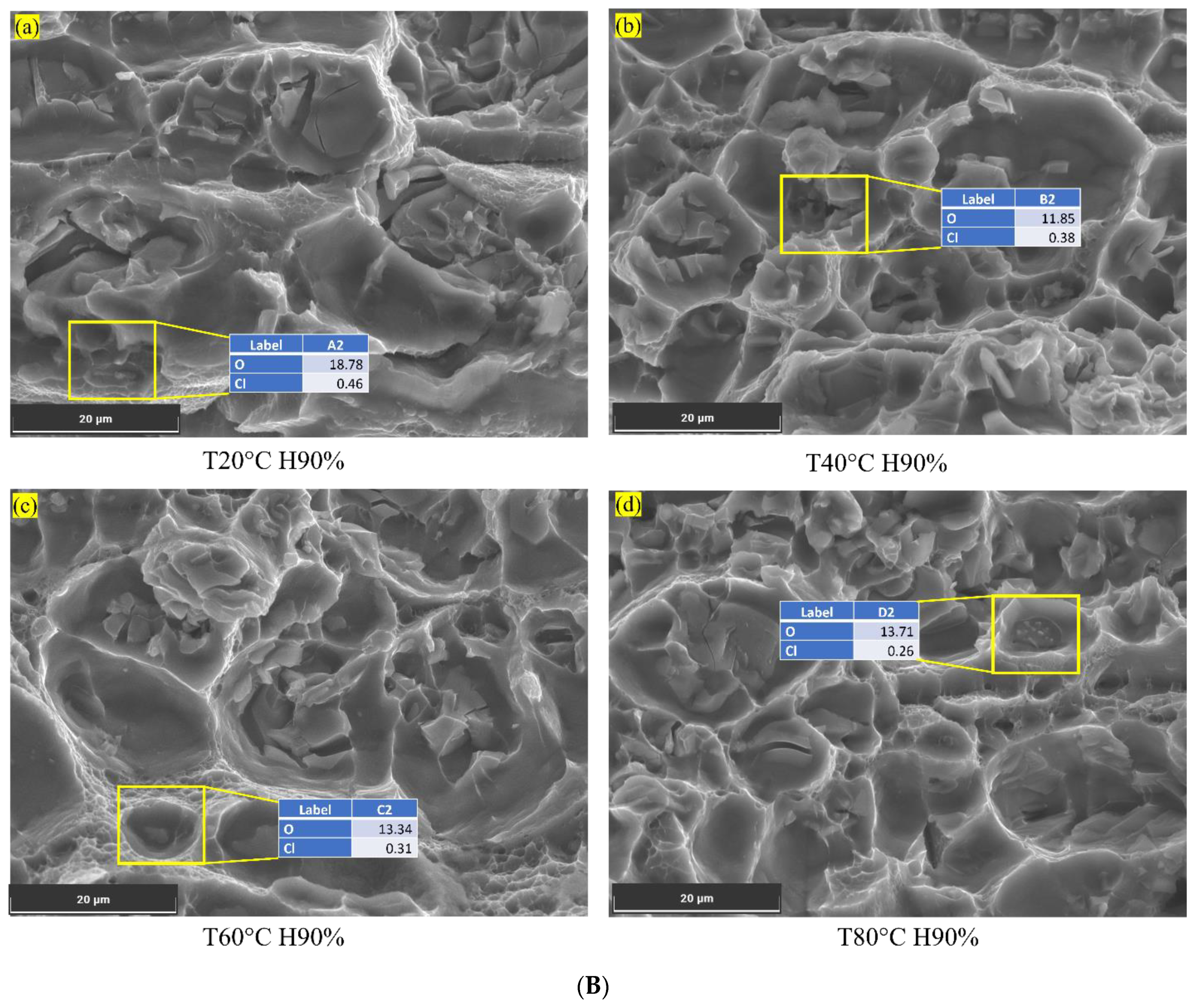

3.3.2. Effect of Humidity
- (a)
- Corrosion/Corrosion Fatigue:
- (b)
- Moisture-Assisted Crack Propagation:
- (c)

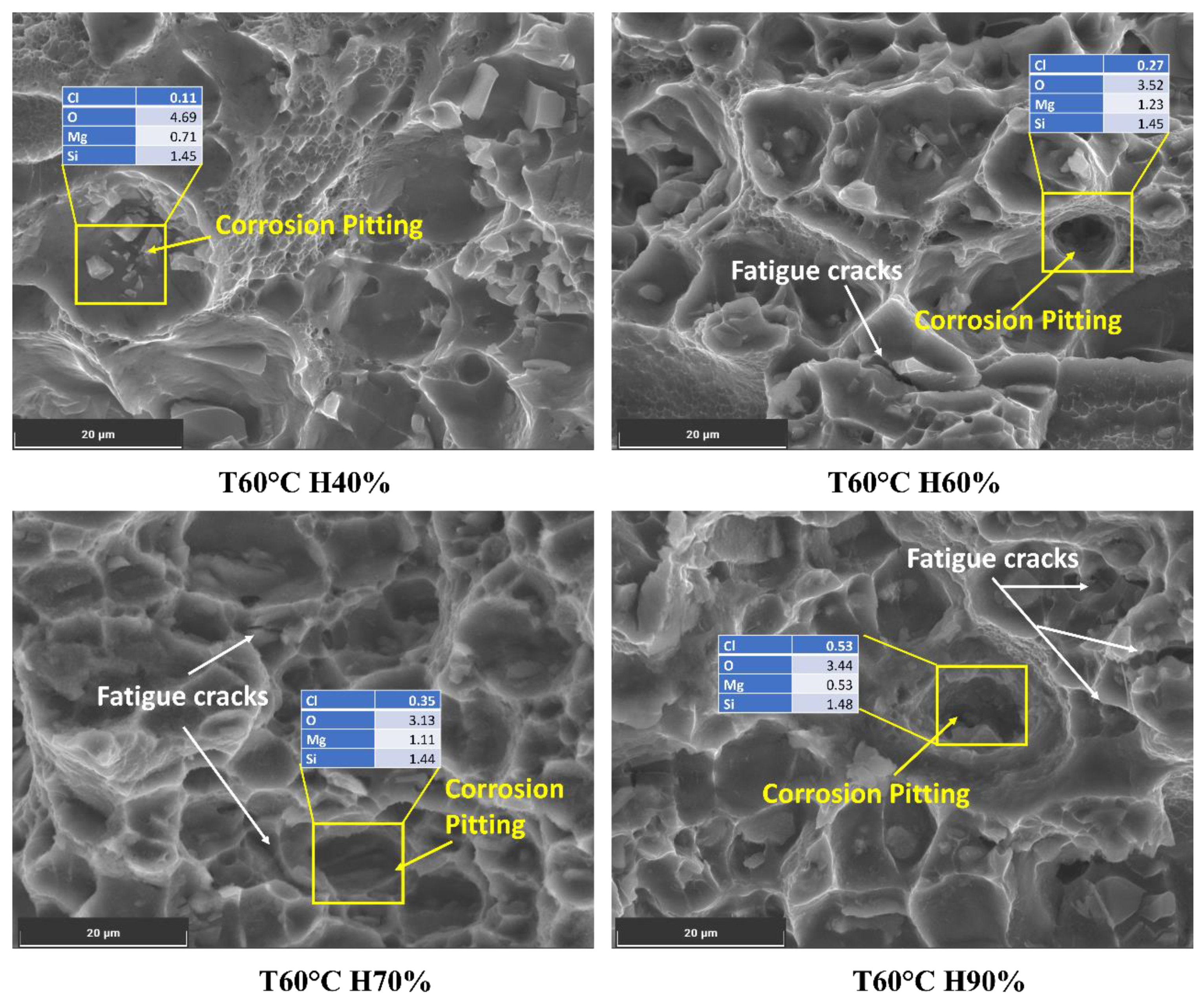

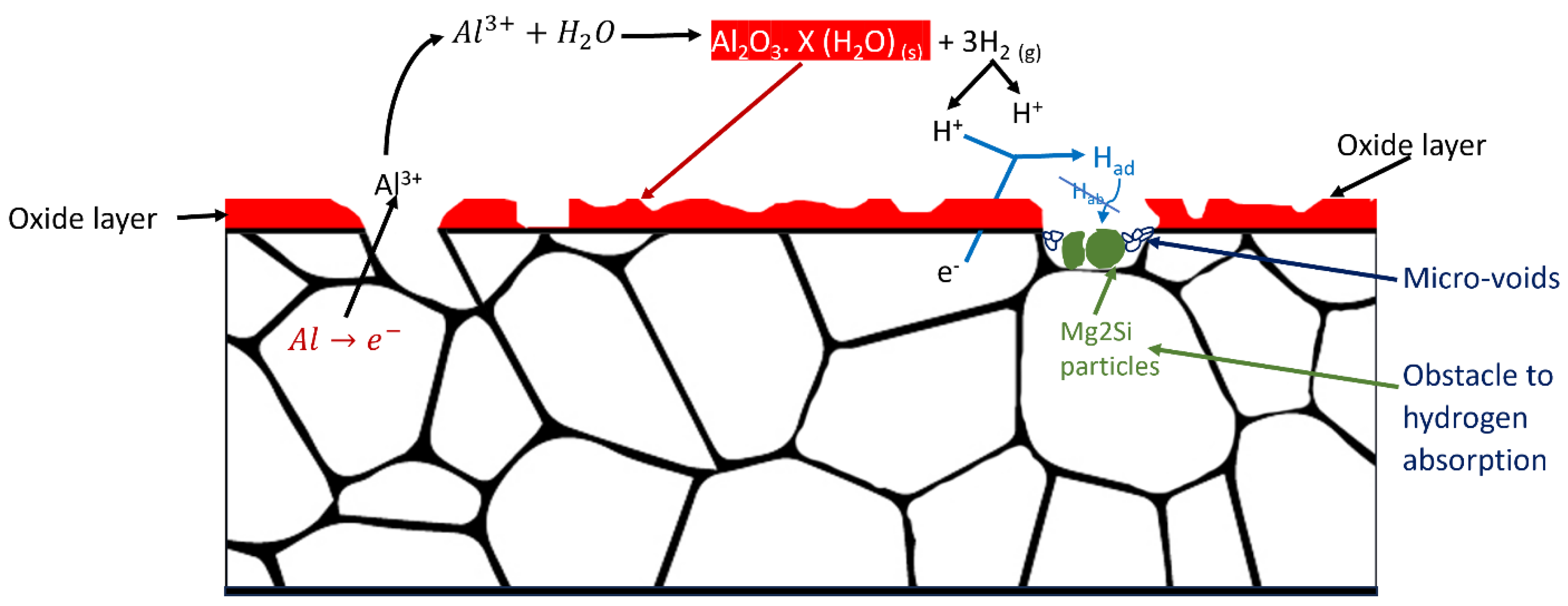

- Hydrogen Embrittlement:

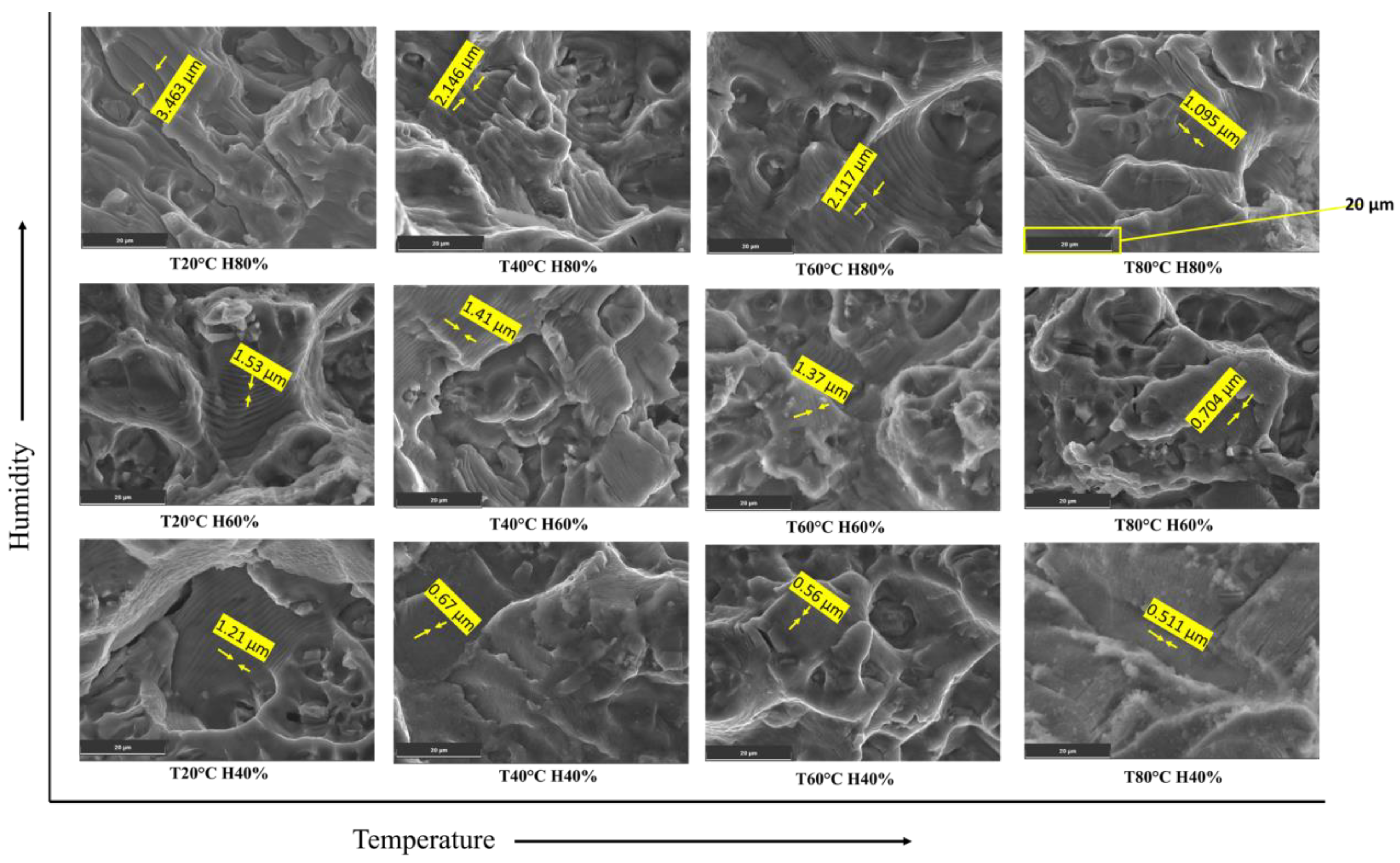

3.4. Striation Spaces

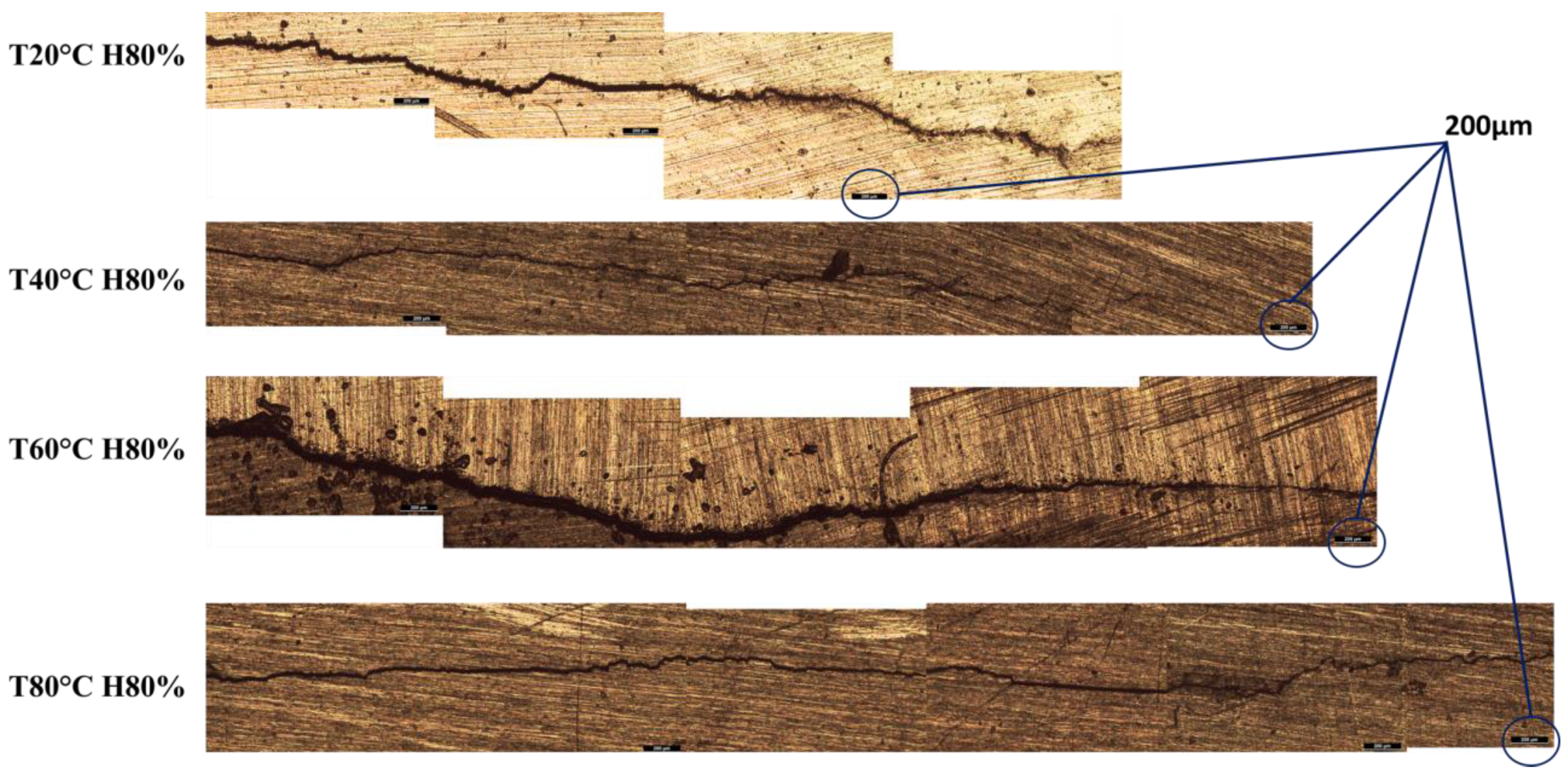

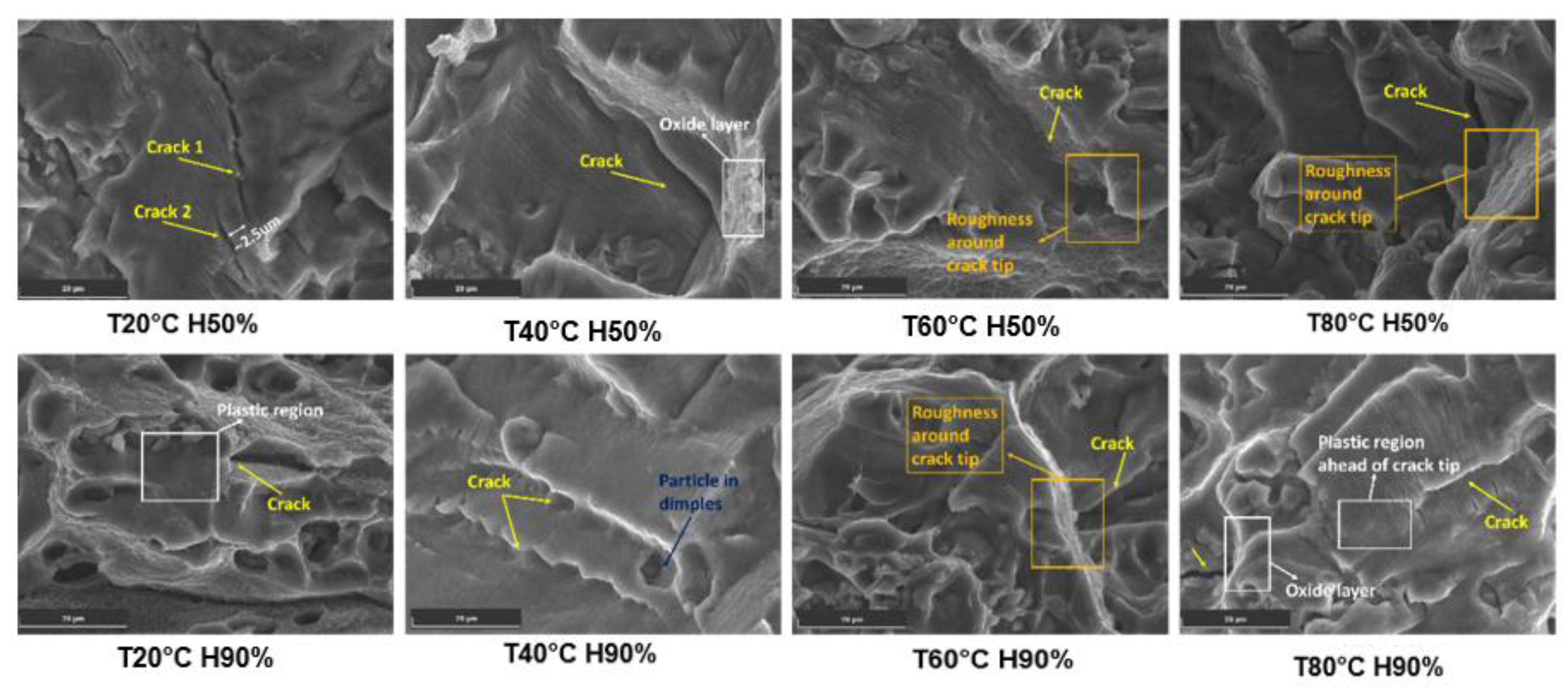

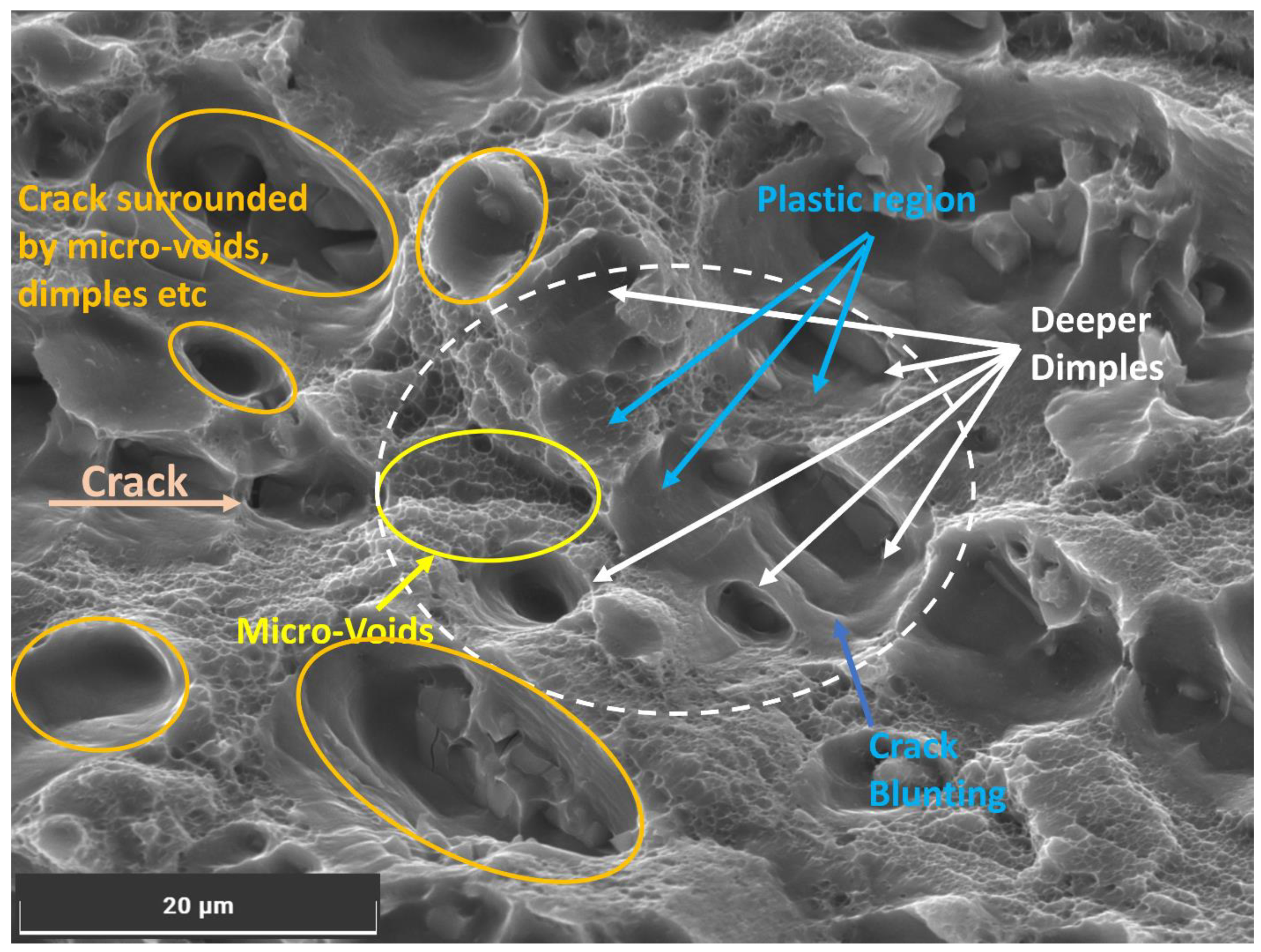

3.5. Crack Propagation Path

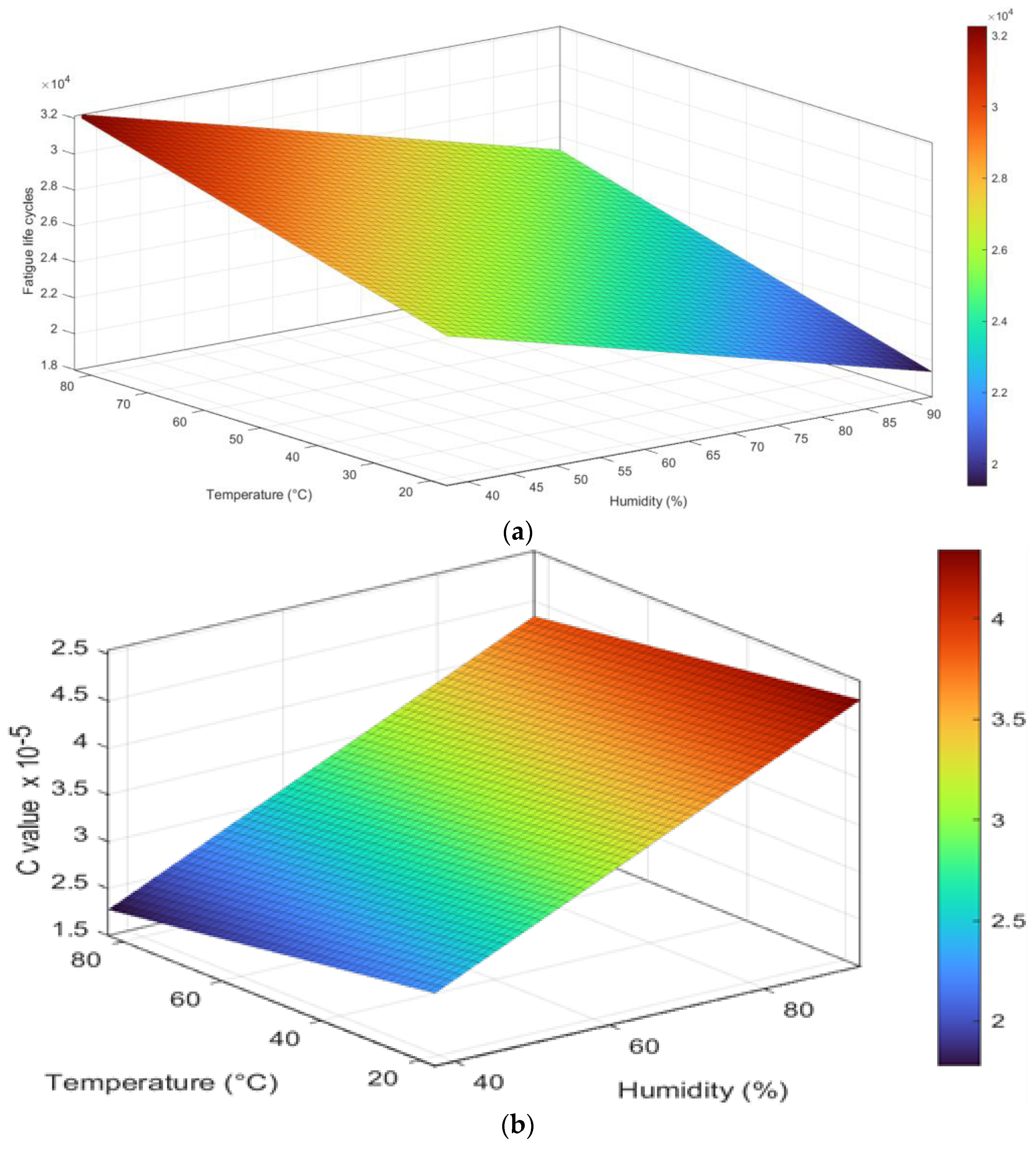

3.6. FCGR Models for Fatigue Life Cycles and C Value
4. Correlation and Validation

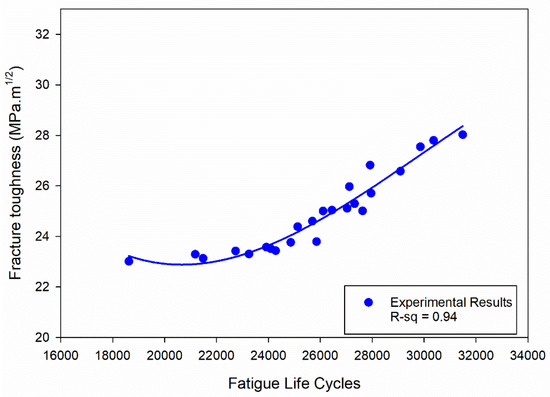

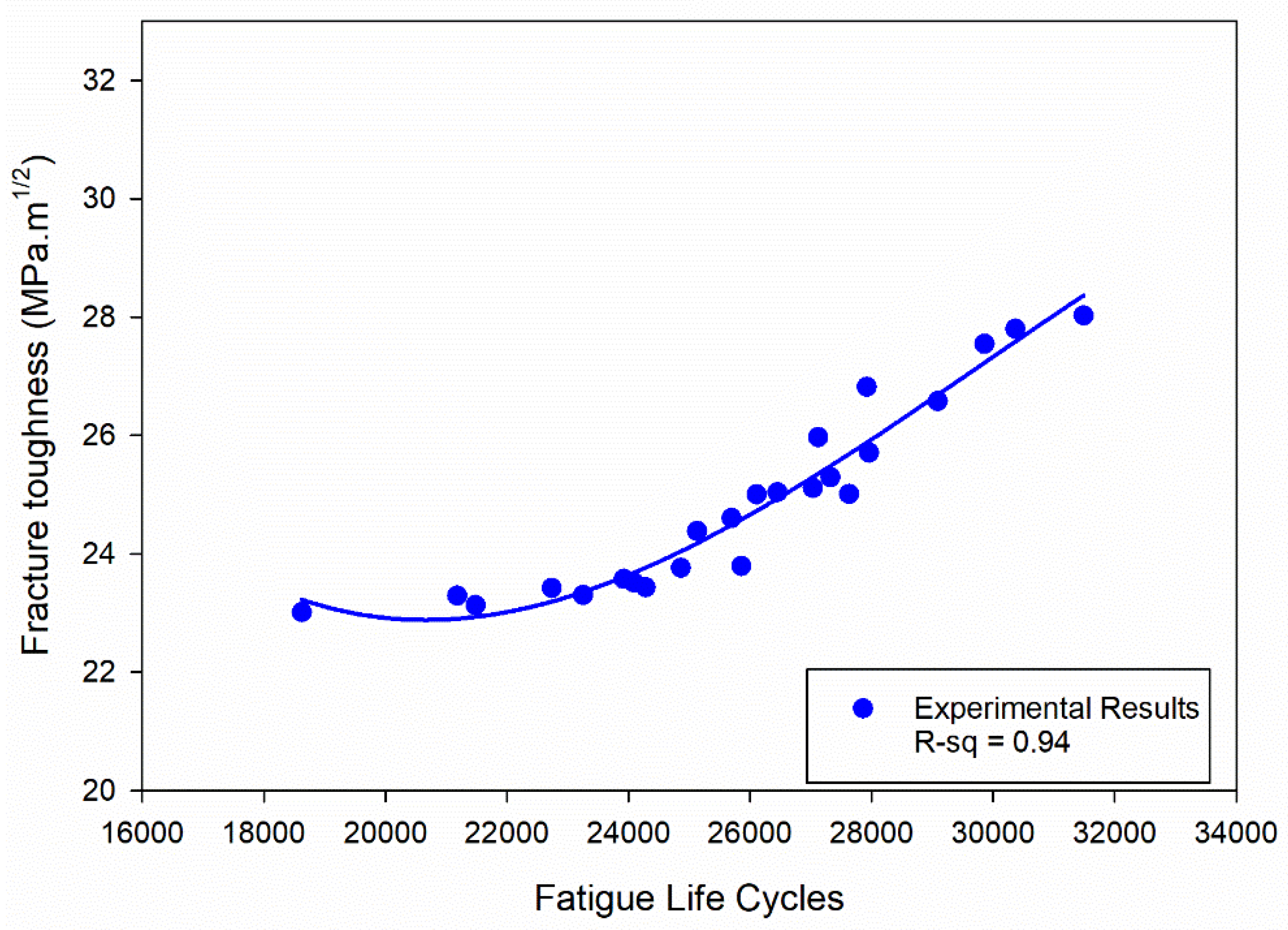

4.1. Correlation of Fracture Toughness and Fatigue Life Cycles
4.2. Validation
5. Conclusions
- The combined influence of an increase in temperature and humidity levels, in line with coastal environmental conditions, decreases the FCGR resistance of the Al6082 alloy. The corrosion under higher humidity levels reduces the threshold fracture toughness, facilitating crack initiation and propagation at relatively low stress levels. This is evident from the notable decrease in threshold fracture toughness by 27% and the increase in the fatigue crack growth constant C by 34% as temperature and humidity increase.
- Higher temperature conditions enhance the alloy’s resistance to FCGR by introducing precipitated phase particles, facilitating the formation of an oxide layer, and inducing crack closure. In contrast, heightened humidity conditions diminish the resistance of the Al6082 alloy to FCGR due to escalated corrosion, moisture-assisted crack propagation, and hydrogen embrittlement.
- The precision of the developed empirical models is remarkable, showcasing an error of less than 10% in predicting Paris constant C, fatigue life cycles, and the relationship between fracture toughness and FCGR. This robust correspondence underscores the models’ reliability for both researchers and engineers. The alignment between experimental and developed models, confirmed through validation experiments, establishes a solid foundation for predicting FCGR in diverse environmental conditions.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Liang, M.; Melchers, R.; Chaves, I. Corrosion and Pitting of 6060 Series Aluminium after 2 Years Exposure in Seawater Splash, Tidal and Immersion Zones. Corros. Sci. 2018, 140, 286–296. [Google Scholar] [CrossRef]
- Yang, X.; Zhang, X.; Liu, Y.; Li, X.; Chen, J.; Zhang, X.; Gao, L. Environmental Failure Behavior Analysis of 7085 High Strength Aluminum Alloy under High Temperature and High Humidity. Metals 2022, 12, 968. [Google Scholar] [CrossRef]
- Peng, C.; Cao, G.; Gu, T.; Wang, C.; Wang, Z.; Sun, C. The Corrosion Behavior of the 6061 Al Alloy in Simulated Nansha Marine Atmosphere. J. Mater. Res. Technol. 2022, 19, 709–721. [Google Scholar] [CrossRef]
- Yang, X.K.; Zhang, L.W.; Zhang, S.Y.; Liu, M.; Zhou, K.; Mu, X.L. Properties Degradation and Atmospheric Corrosion Mechanism of 6061 Aluminum Alloy in Industrial and Marine Atmosphere Environments. Mater. Corros. 2017, 68, 529–535. [Google Scholar] [CrossRef]
- Alqahtani, I.; Starr, A.; Khan, M. Coupled Effects of Temperature and Humidity on Fracture Toughness of Al–Mg–Si–Mn Alloy. Materials 2023, 16, 4066. [Google Scholar] [CrossRef] [PubMed]
- Igwemezie, V.; Mehmanparast, A. Waveform and Frequency Effects on Corrosion-Fatigue Crack Growth Behaviour in Modern Marine Steels. Int. J. Fatigue 2020, 134, 105484. [Google Scholar] [CrossRef]
- Mohammed, Y. Abdellah Ductile Fracture and S–N Curve Simulation of a 7075-T6 Aluminum Alloy under Static and Constant Low-Cycle Fatigue. J. Fail. Anal. Preven. 2021, 21, 1476–1488. [Google Scholar] [CrossRef]
- Menan, F.; Henaff, G. Influence of Frequency and Exposure to a Saline Solution on the Corrosion Fatigue Crack Growth Behavior of the Aluminum Alloy 2024. Int. J. Fatigue 2009, 31, 1684–1695. [Google Scholar] [CrossRef]
- Abdellah, M.Y.; Alharthi, H. Fracture Toughness and Fatigue Crack Growth Analyses on a Biomedical Ti-27Nb Alloy under Constant Amplitude Loading Using Extended Finite Element Modelling. Materials 2023, 16, 4467. [Google Scholar] [CrossRef] [PubMed]
- Kamal, A.H.; Ghazaly, N.; Abdellah, M.Y.; Seleem, A.-E.H.A.; Abdel-Jaber, G.T. Influence Parameters on the Essential Work of Fracture of 5754-H111 Aluminum Alloy Plate: Comparative Study. SVU-Int. J. Eng. Sci. Appl. 2023, 4, 243–259. [Google Scholar] [CrossRef]
- Abdellah, M.Y.; Ghazaly, N.M.; Kamal, A.S.H.; Seleem, A.E.H.A.; Abdel-Jaber, G.T. Ductile Fracture Toughness of Al 5754-H111 Alloy Using Essential Work of Fracture Method. AIMS Mater. Sci. 2023, 10, 370–389. [Google Scholar] [CrossRef]
- Abdellah, M.Y. Essential Work of Fracture Assessment for Thin Aluminium Strips Using Finite Element Analysis. Eng. Fract. Mech. 2017, 179, 190–202. [Google Scholar] [CrossRef]
- Correia, J.A.F.O.; De Jesus, A.M.P.; Alves, A.S.F.; Lesiuk, G.; Tavares, P.J.S.; Moreira, P.M.G.P. Fatigue Crack Growth Behaviour of the 6082-T6 Aluminium Using CT Specimens with Distinct Notches. Procedia Struct. Integr. 2016, 2, 3272–3279. [Google Scholar] [CrossRef]
- Wang, C.Q.; Xiong, J.J.; Shenoi, R.A.; Liu, M.D.; Liu, J.Z. A Modified Model to Depict Corrosion Fatigue Crack Growth Behavior for Evaluating Residual Lives of Aluminum Alloys. Int. J. Fatigue 2016, 83, 280–287. [Google Scholar] [CrossRef]
- Bonakdar, A.; Wang, F.; Williams, J.J.; Chawla, N. Environmental Effects on Fatigue Crack Growth in 7075 Aluminum Alloy. Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 2012, 43, 2799–2809. [Google Scholar] [CrossRef]
- Free, B.; Marino, G.; Schindelholz, E.; Galyon Dorman, S.; Locke, J.S. Measurement of Atmospheric Corrosion Fatigue Crack Growth Rates on AA7085-T7451. Int. J. Fatigue 2023, 167, 107368. [Google Scholar] [CrossRef]
- Otieno, M.; Thomas, M. Marine Exposure Environments and Marine Exposure Sites. In Marine Concrete Structures; Alexander, M.G., Ed.; Woodhead Publishing: Sawston, UK, 2016; pp. 171–196. [Google Scholar]
- Zheng, Y.Y.; Luo, B.H.; He, C.; Gao, Y.; Bai, Z.H. Corrosion Evolution and Behaviour of Al–2.1Mg–1.6Si Alloy in Chloride Media. Rare Met. 2021, 40, 908–919. [Google Scholar] [CrossRef]
- Carpinteri, A.; Paggi, M. Are the Paris’ Law Parameters Dependent on Each Other? Frat. Integrità Strutt. 2008, 1, 10–16. [Google Scholar] [CrossRef]
- Younis, H.B.; Kamal, K.; Sheikh, M.F.; Hamza, A. Prediction of Fatigue Crack Growth Rate in Aircraft Aluminum Alloys Using Optimized Neural Networks. Theor. Appl. Fract. Mech. 2022, 117, 103196. [Google Scholar] [CrossRef]
- Kovalov, D.; Fekete, B.; Engelhardt, G.R.; Macdonald, D.D. Prediction of Corrosion Fatigue Crack Growth Rate in Alloys. Part II: Effect of Electrochemical Potential, NaCl Concentration, and Temperature on Crack Propagation in AA2024-T351. Corros. Sci. 2019, 152, 130–139. [Google Scholar] [CrossRef]
- Zhang, T.; He, Y.; Li, C.; Zhang, T.; Zhang, S. Effect of Alternate Corrosion and Fatigue on Fatigue Crack Growth Characterization of 2024-T4 Aluminum Alloy. Math. Probl. Eng. 2020, 2020, 7314241. [Google Scholar] [CrossRef]
- Zai, B.A.; Khan, M.A.; Khan, S.Z.; Asif, M.; Khan, K.A.; Saquib, A.N.; Mansoor, A.; Shahzad, M.; Mujtaba, A. Prediction of Crack Depth and Fatigue Life of an Acrylonitrile Butadiene Styrene Cantilever Beam Using Dynamic Response. J. Test. Eval. 2020, 48, 1520–1536. [Google Scholar] [CrossRef]
- Bayoumi, M. Fatigue Behaviour of a Commercial Aluminium Ahoy in Sea Water at Different Temperatures. Eng. Fract. Mech. 1993, 45, 297–307. [Google Scholar] [CrossRef]
- Alqahtani, I.M.; Starr, A.; Khan, M. Experimental and Theoretical Aspects of Crack Assisted Failures of Metallic Alloys in Corrosive Environments—A Review. Mater. Today Proc. 2022, 66, 2530–2535. [Google Scholar] [CrossRef]
- Khan, M.A.; Khan, S.Z.; Sohail, W.; Khan, H.; Sohaib, M.; Nisar, S. Mechanical Fatigue in Aluminum at Elevated Temperature and Remaining Life Prediction Based on Natural Frequency Evolution. Fatigue Fract. Eng. Mater. Struct. 2015, 38, 897–903. [Google Scholar] [CrossRef]
- Omar, I.; Khan, M.; Starr, A. Comparative Analysis of Machine Learning Models for Predicting Crack Propagation under Coupled Load and Temperature. Appl. Sci. 2023, 13, 7212. [Google Scholar] [CrossRef]
- Safyari, M.; Hojo, T.; Moshtaghi, M. Effect of Environmental Relative Humidity on Hydrogen-Induced Mechanical Degradation in an Al–Zn–Mg–Cu Alloy. Vacuum 2021, 192, 110489. [Google Scholar] [CrossRef]
- Guo, M.; Li, D.; Rao, S.X.; Guo, B.L. Effect of Environmental Factors on the Corrosion of 2024T3 Aluminium Alloy. In Proceedings of the 9th International Conference on Aluminium Alloys, Brisbane, Australia, 2–5 August 2004; Nie, J.F., Morton, A.J., Muddle, B.C., Eds.; Institute of Materials Engineering Australasia Ltd.: North Melbourne, VIC, Australia, 2004; pp. 433–438. [Google Scholar]
- Ichitani, K. Effect of Experimental Humidity on Fatigue Fracture of 6XXX-Series Aluminum Alloys. In Furukawa-Sky Review; Furukawa Sky Co., Ltd.: Tokyo, Japan, 2012; pp. 15–21. [Google Scholar]
- He, F.; Khan, M. Effects of Printing Parameters on the Fatigue Behaviour of 3D-Printed Abs under Dynamic Thermo-Mechanical Loads. Polymers 2021, 13, 2362. [Google Scholar] [CrossRef]
- Kamei, K.; Khan, M.A. Current Challenges in Modelling Vibrational Fatigue and Fracture of Structures: A Review. J. Braz. Soc. Mech. Sci. Eng. 2020, 43, 77. [Google Scholar] [CrossRef]
- Agala, A.; Khan, M.; Starr, A. Degradation Mechanisms Associated with Metal Pipes and the Effective Impact of LDMs and LLMs in Water Transport and Distribution. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2023, 237, 1855–1876. [Google Scholar] [CrossRef]
- Khan, S.Z.; Khan, T.M.; Joya, Y.F.; Khan, M.A.; Ahmed, S.; Shah, A. Assessment of Material Properties of AISI 316L Stainless Steel Using Non-Destructive Testing. Nondestruct. Test. Eval. 2016, 31, 360–370. [Google Scholar] [CrossRef]
- Zai, B.A.; Khan, M.A.; Khan, K.A.; Mansoor, A.; Shah, A.; Shahzad, M. The Role of Dynamic Response Parameters in Damage Prediction. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2019, 233, 4620–4636. [Google Scholar] [CrossRef]
- Abdellah, M.Y.; Fadhl, B.M.; Abu El-Ainin, H.M.; Hassan, M.K.; Backar, A.H.; Mohamed, A.F. Experimental Evaluation of Mechanical and Tribological Properties of Segregated Al-Mg-Si Alloy Filled with Alumina and Silicon Carbide through Different Types of Casting Molds. Metals 2023, 13, 316. [Google Scholar] [CrossRef]
- ASTM E647−13; Standard Test Method for Measurement of Fatigue Crack Growth Rates. American Society for Testing and Materials: West Conshohocken, PA, USA, 2014.
- Gilioli, A.; Manes, A.; Giglio, M. Numerical Simulation of a Fracture Toughness Test of an Al6061-T6 Aluminium Alloy Using a Ductile Criterion. Mech. Res. Commun. 2014, 58, 2–9. [Google Scholar] [CrossRef]
- ASTME399-22; Standard Test Method for Linear-Elastic Plane Strain Fracture Toughness KIc of Metallic Materials. American Society for Testing and Materials: West Conshohocken, PA, USA, 2022.
- Dietzel, W.; Srinivasan, P.B.; Atrens, A. 3—Testing and Evaluation Methods for Stress Corrosion Cracking (SCC) in Metals. In Metals and Surface Engineering, Stress Corrosion Cracking; Raja, V.S., Shoji, T., Eds.; Woodhead Publishing: Sawston, UK, 2011; pp. 133–166. [Google Scholar]
- Xiang, Y.; Liu, Y. EIFS-Based Crack Growth Fatigue Life Prediction of Pitting-Corroded Test Specimens. Eng. Fract. Mech. 2010, 77, 1314–1324. [Google Scholar] [CrossRef]
- Tudose, L.M.; Popa, C.O. Stress Intensity Factors Analysis Cracks in the Hertzian Stresses Field of Teeth Gears. In Proceedings of the 10th International Conference on Tribology “ROTRIB’07”, Bucharest, Romania, 8–10 November 2016; pp. 1–8. [Google Scholar]
- Robertson, S.W.; Ritchie, R.O. A Fracture-Mechanics-Based Approach to Fracture Control in Biomedical Devices Manufactured from Superelastic Nitinol Tube. J. Biomed. Mater. Res.-Part B Appl. Biomater. 2008, 84, 26–33. [Google Scholar] [CrossRef] [PubMed]
- Perez, N. Fracture Mechanics, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 2016; ISBN 978-3-319-24997-1. [Google Scholar]
- Sadananda, K.; Nani Babu, M.; Vasudevan, A.K. A Review of Fatigue Crack Growth Resistance in the Short Crack Growth Regime. Mater. Sci. Eng. A 2019, 754, 674–701. [Google Scholar] [CrossRef]
- Ye, H.; Le, F.; Wei, C.; Ye, K.; Liu, S.; Wang, G. Fatigue Crack Growth Behavior of Ti-6Al-4V Alloy Fabricated via Laser Metal Deposition: Effects of Building Orientation and Heat Treatment. J. Alloys Compd. 2021, 868, 159023. [Google Scholar] [CrossRef]
- Pribe, J.D.; Addison, D.A.; Siegmund, T.; Kruzic, J.J. High-Temperature Fatigue Crack Growth under Transient Overloading: Application to Alloy 617. Int. J. Fract. 2021, 232, 23–42. [Google Scholar] [CrossRef]
- Ramesh, R.S.; Kumar, S.; Begum, Y.; Doddamani, S. Fracture Toughness Investigations of AA6061-SiC Composites: Effect of Corrosion Parameters. Mater. Chem. Phys. 2023, 308, 128224. [Google Scholar] [CrossRef]
- Pokorný, P.; Vojtek, T.; Jambor, M.; Náhlík, L.; Hutař, P. Effect of Underload Cycles on Oxide-Induced Crack Closure Development in Cr-Mo Low-Alloy Steel. Materials 2021, 14, 2530. [Google Scholar] [CrossRef]
- Yamada, Y.; Newman, J.C. Crack-Closure Behavior of 2324-T39 Aluminum Alloy Near-Threshold Conditions for High Load Ratio and Constant Kmax Tests. Int. J. Fatigue 2009, 31, 1780–1787. [Google Scholar] [CrossRef]
- Cavalcante, T.R.F.; Pereira, G.S.; Koga, G.Y.; Bolfarini, C.; Bose Filho, W.W.; Avila, J.A. Fatigue Crack Propagation of Aeronautic AA7050-T7451 and AA2050-T84 Aluminum Alloys in Air and Saline Environments. Int. J. Fatigue 2022, 154, 106519. [Google Scholar] [CrossRef]
- Burns, J.T.; Jones, J.J.; Thompson, A.D.; Locke, J.S. Fatigue Crack Propagation of Aerospace Aluminum Alloy 7075-T651 in High Altitude Environments. Int. J. Fatigue 2018, 106, 196–207. [Google Scholar] [CrossRef]
- Ge, F.; Fan, L.; Liang, J.; Pang, K.; Li, H.; Wang, X.; Cui, Z. Corrosion Evolution of High-Strength Aluminum Alloys in the Simulated Service Environment of Amphibious Aircraft in the Presence of Chloride and Bisulfite. Acta Metall. Sin. 2021, 34, 1679–1694. [Google Scholar] [CrossRef]
- Wang, L.; Liang, J.; Li, H.; Cheng, L.; Cui, Z. Quantitative Study of the Corrosion Evolution and Stress Corrosion Cracking of High Strength Aluminum Alloys in Solution and Thin Electrolyte Layer Containing Cl-. Corros. Sci. 2021, 178, 109076. [Google Scholar] [CrossRef]
- Mahmood, S.; Gallagher, C.; Engelberg, D.L. Atmospheric Corrosion of Aluminum Alloy 6063 Beneath Ferric Chloride Corrosion Product Droplets. Corrosion 2020, 76, 985–994. [Google Scholar] [CrossRef]
- Yamabe, J.; Awane, T.; Murakami, Y. Hydrogen Trapped at Intermetallic Particles in Aluminum Alloy 6061-T6 Exposed to High-Pressure Hydrogen Gas and the Reason for High Resistance against Hydrogen Embrittlement. Int. J. Hydrogen Energy 2017, 42, 24560–24568. [Google Scholar] [CrossRef]
- Shyam, A.; Lara-Curzio, E. A Model for the Formation of Fatigue Striations and Its Relationship with Small Fatigue Crack Growth in an Aluminum Alloy. Int. J. Fatigue 2010, 32, 1843–1852. [Google Scholar] [CrossRef]
- Anis, S.F.; Koyama, M.; Hamada, S.; Noguchi, H. Mode I Fatigue Crack Growth Induced by Strain-Aging in Precipitation-Hardened Aluminum Alloys. Theor. Appl. Fract. Mech. 2019, 104, 102340. [Google Scholar] [CrossRef]
- Williams, J.J.; Yazzie, K.E.; Connor Phillips, N.; Chawla, N.; Xiao, X.; De Carlo, F.; Iyyer, N.; Kittur, M. On the Correlation between Fatigue Striation Spacing and Crack Growth Rate: A Three-Dimensional (3-D) X-ray Synchrotron Tomography Study. Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 2011, 42, 3845–3848. [Google Scholar] [CrossRef]
- Zhu, M.; Yang, S.; Bai, Y.; Fan, C. Microstructure and Fatigue Damage Mechanism of 6082-T6 Aluminium Alloy Welded Joint. Mater. Res. Express 2021, 8, 56505. [Google Scholar] [CrossRef]
- Liu, Y.; Pan, Q.; Liu, B.; Yu, Q.; Li, G.; Pan, D. Effect of Aging Treatments on Fatigue Properties of 6005A Aluminum Alloy Containing Sc. Int. J. Fatigue 2022, 163, 107103. [Google Scholar] [CrossRef]
- Bergner, F.; Zouhar, G. New Approach to the Correlation between the Coefficient and the Exponent in the Power Law Equation of Fatigue Crack Growth. Int. J. Fatigue 2000, 22, 229–239. [Google Scholar] [CrossRef]
Element | Mg | Si | Mn | Fe | Zn | Ti | Cu | Cr | Al |
---|---|---|---|---|---|---|---|---|---|
wt.% | 1.2 | 1.1 | 0.9 | 0.5 | 0.2 | 0.2 | 0.1 | 0.08 | Balance |
Temperature (°C)/Humidity (%) | 20 | 40 | 60 | 80 |
---|---|---|---|---|
Threshold SIF (MPa√m) | ||||
40 | 0.58 | 0.60 | 0.61 | 0.61 |
50 | 0.54 | 0.56 | 0.60 | 0.60 |
60 | 0.50 | 0.52 | 0.53 | 0.58 |
70 | 0.45 | 0.44 | 0.45 | 0.46 |
80 | 0.44 | 0.42 | 0.44 | 0.44 |
90 | 0.37 | 0.37 | 0.37 | 0.42 |
Temperature (°C) | Humidity (%) | Fatigue Life Cycles | Fracture Toughness (MPa√m) | Percentage Error | |
---|---|---|---|---|---|
Experimental [5] | Regression Equation (6) | ||||

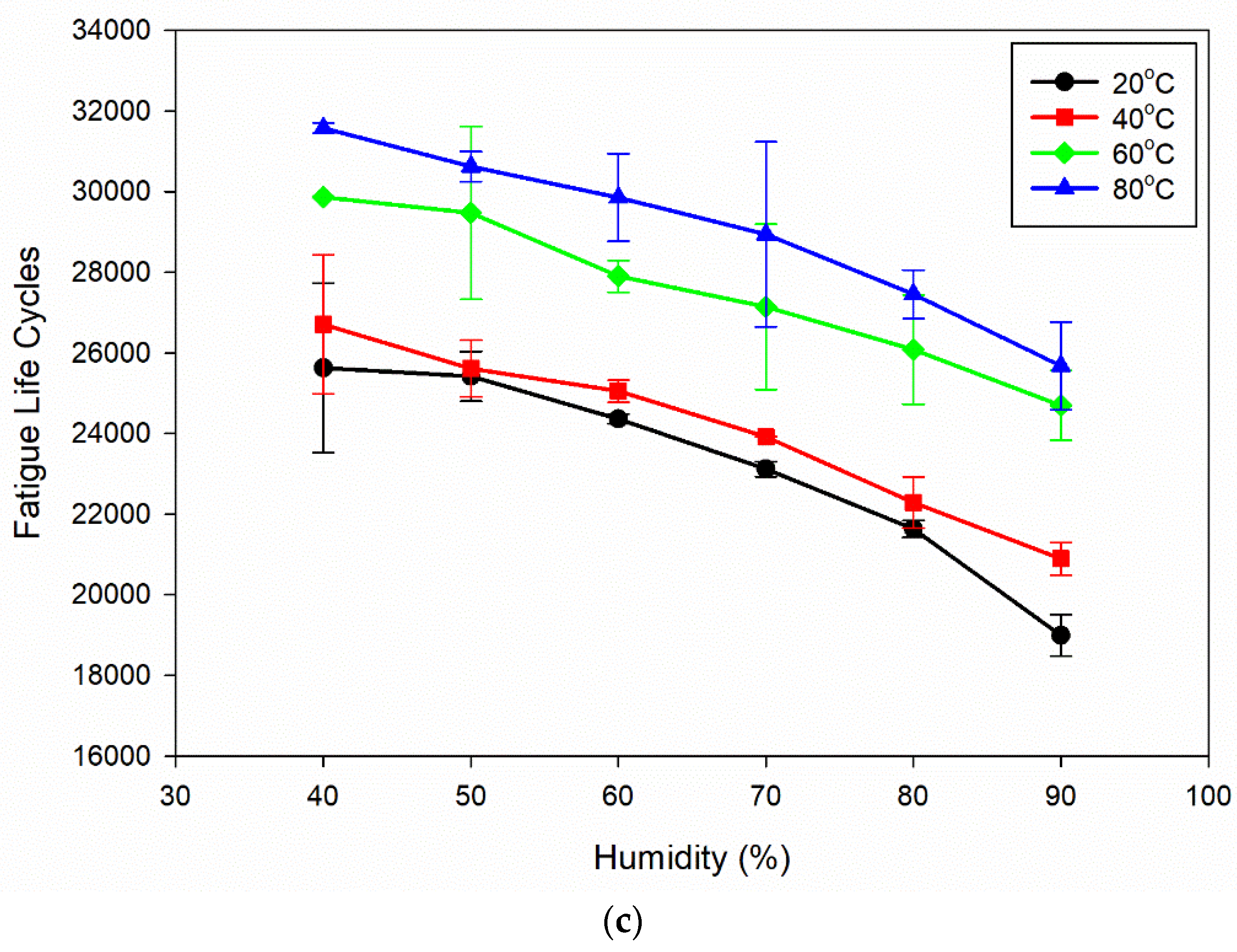

20 | 40 | 27,122 | 25.97 | 23.88 | 8.0 |
20 | 50 | 25,857 | 23.79 | 23.26 | 2.2 |
20 | 60 | 24,283 | 23.43 | 22.64 | 3.4 |
20 | 70 | 23,251 | 23.30 | 22.34 | 4.1 |
20 | 80 | 21,483 | 23.13 | 22.11 | 4.4 |
20 | 90 | 18,628 | 23.01 | 22.66 | 1.5 |
40 | 40 | 27,923 | 26.82 | 24.30 | 9.4 |
40 | 50 | 26,111 | 25.00 | 23.38 | 6.5 |
40 | 60 | 24,863 | 23.76 | 22.85 | 3.8 |
40 | 70 | 23,921 | 23.57 | 22.52 | 4.4 |
40 | 80 | 22,737 | 23.42 | 22.24 | 5.1 |
40 | 90 | 21,182 | 23.40 | 22.11 | 5.5 |
60 | 40 | 29,857 | 27.55 | 25.38 | 7.9 |
60 | 50 | 27,958 | 25.71 | 24.32 | 5.4 |
60 | 60 | 27,628 | 25.00 | 24.15 | 3.4 |
60 | 70 | 25,698 | 24.60 | 23.19 | 5.7 |
60 | 80 | 25,133 | 24.38 | 22.95 | 5.8 |
60 | 90 | 24,088 | 24.01 | 22.58 | 6.0 |
80 | 40 | 31,488 | 28.03 | 26.27 | 6.3 |
80 | 50 | 30,364 | 27.80 | 25.66 | 7.7 |
80 | 60 | 29,089 | 26.58 | 24.95 | 6.1 |
80 | 70 | 27,325 | 25.29 | 23.99 | 5.2 |
80 | 80 | 27,037 | 25.11 | 23.84 | 5.1 |
80 | 90 | 26,451 | 25.04 | 23.54 | 6.0 |
(a) | |||||||

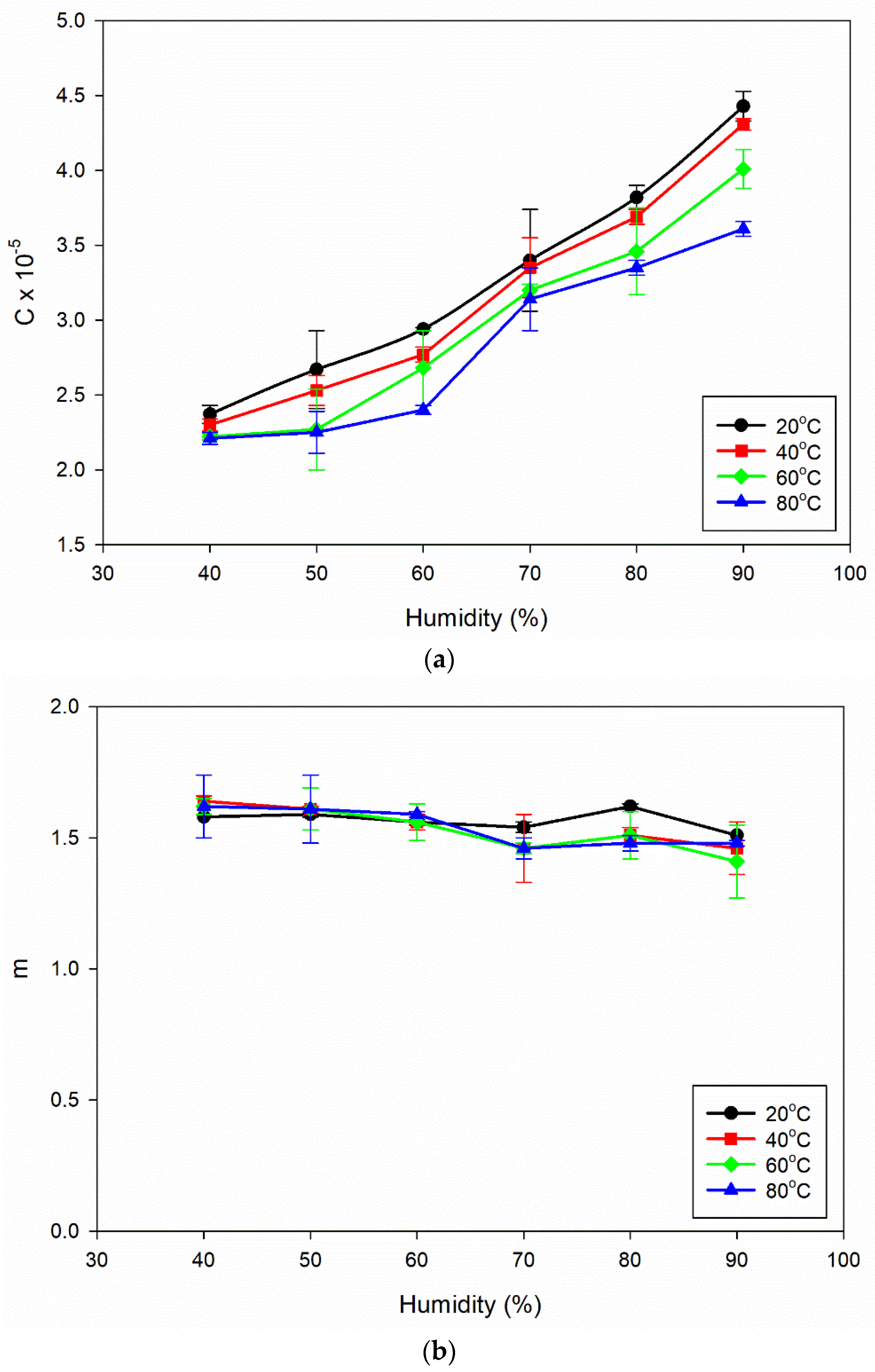

Sl. No. | Temperature (°C) | Humidity (%) | Paris Constant C × 10−5 | Paris Constant m | |||
Experimental | Empirical Equation (5) | % Error | |||||

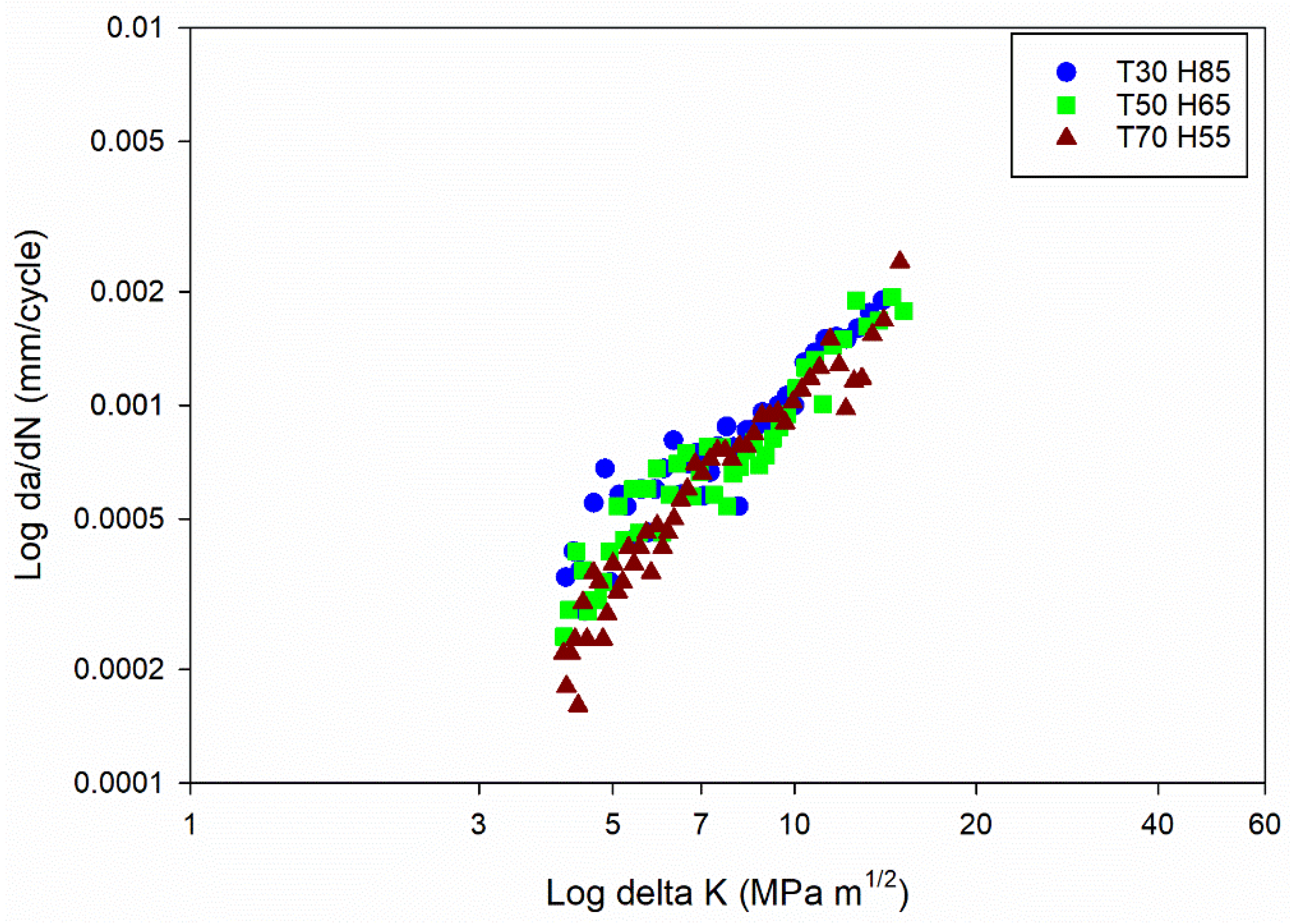

1 | 30 | 85 | 4.07 | 3.95 | 2.95 | 1.45 | |
2 | 50 | 65 | 3.23 | 3.05 | 5.57 | 1.51 | |
3 | 70 | 55 | 2.33 | 2.52 | 7.54 | 1.63 | |
(b) | |||||||
Sl. No. | Temperature (°C) | Humidity (%) | Fatigue Life Cycles | ||||
Experimental | Empirical Equation (4) | % Error | |||||
1 | 30 | 85 | 21,122 | 21,492 | 1.72 | ||
2 | 50 | 65 | 25,369 | 25,810 | 1.71 | ||
3 | 70 | 55 | 27,863 | 28,860 | 3.45 | ||
(c) | |||||||
Sl. No. | Temperature (°C) | Humidity (%) | Fracture Toughness (MPa√m) | ||||
Empirical Equation (1) | Empirical Equation (6) | % Error | |||||
1 | 30 | 85 | 23.29 | 22.11 | 5.1 | ||
2 | 50 | 65 | 24.09 | 23.05 | 4.3 | ||
3 | 70 | 55 | 26.04 | 24.27 | 6.8 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Alqahtani, I.; Starr, A.; Khan, M. Investigation of the Combined Influence of Temperature and Humidity on Fatigue Crack Growth Rate in Al6082 Alloy in a Coastal Environment. Materials 2023, 16, 6833. https://doi.org/10.3390/ma16216833
Alqahtani I, Starr A, Khan M. Investigation of the Combined Influence of Temperature and Humidity on Fatigue Crack Growth Rate in Al6082 Alloy in a Coastal Environment. Materials. 2023; 16(21):6833. https://doi.org/10.3390/ma16216833
Chicago/Turabian StyleAlqahtani, Ibrahim, Andrew Starr, and Muhammad Khan. 2023. "Investigation of the Combined Influence of Temperature and Humidity on Fatigue Crack Growth Rate in Al6082 Alloy in a Coastal Environment" Materials 16, no. 21: 6833. https://doi.org/10.3390/ma16216833
