Sandwich Plate Structure Periodically Attached by S-Shaped Oscillators for Low Frequency Ship Vibration Isolation
Abstract
:1. Introduction

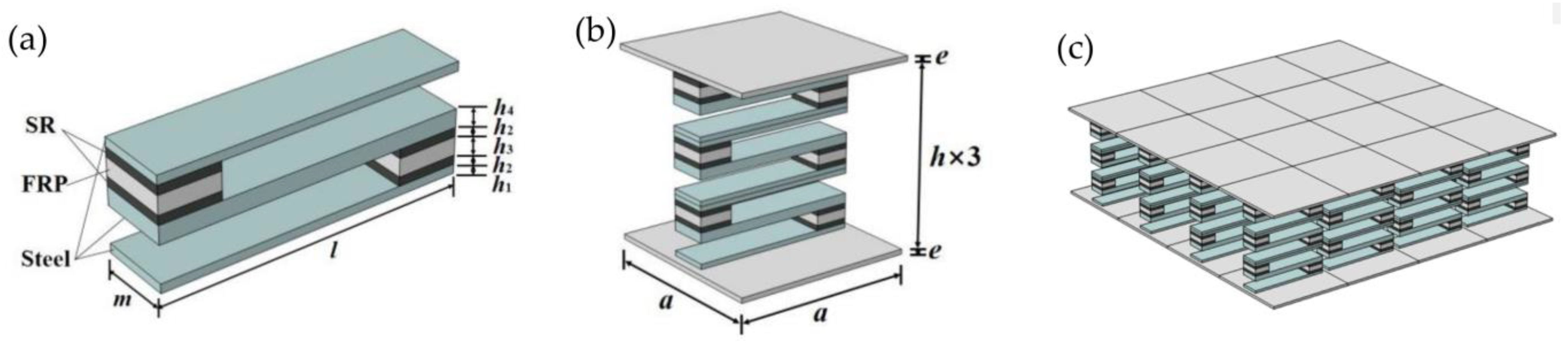

2. Model and Method
3. Results and Analyses

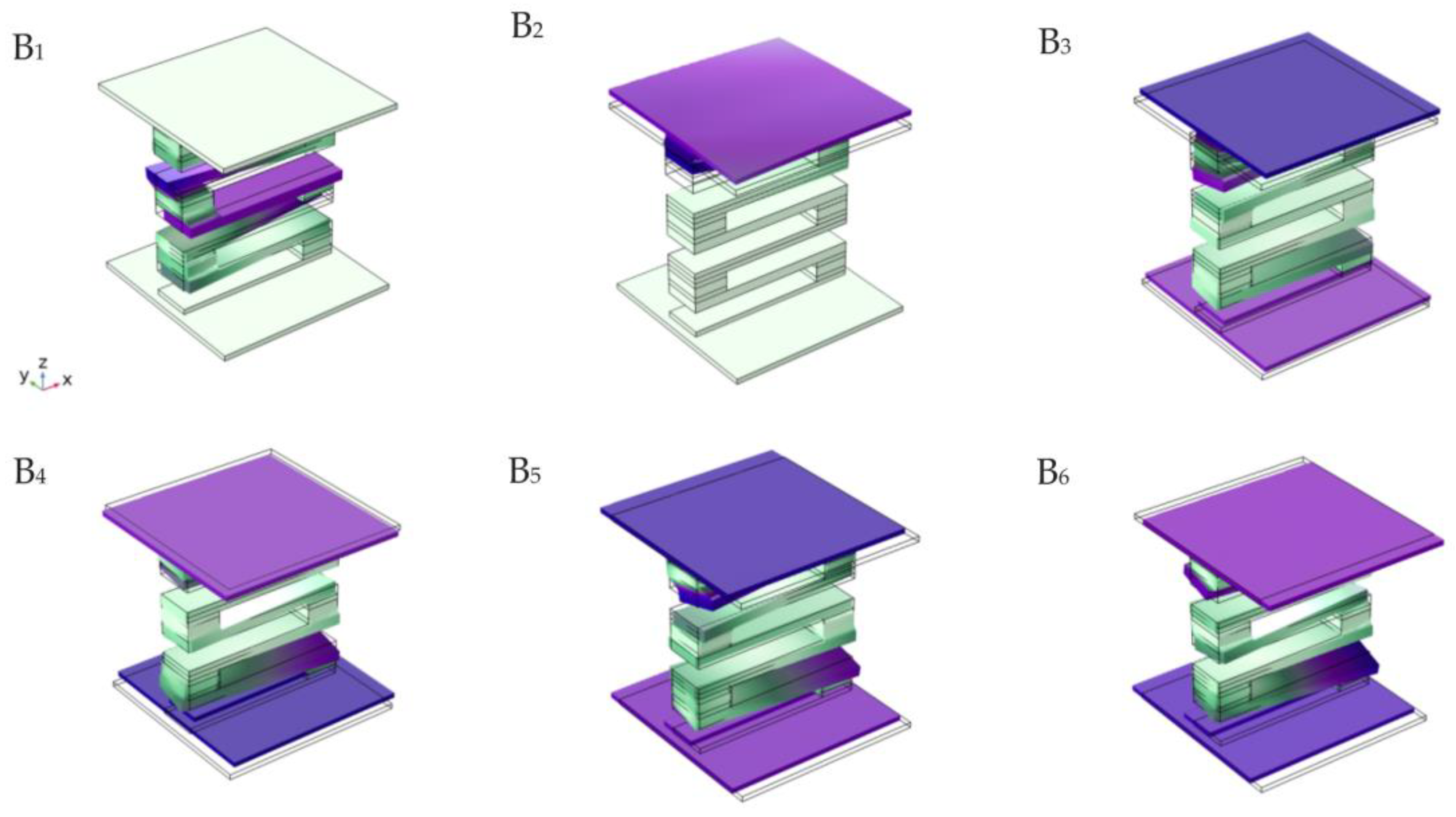

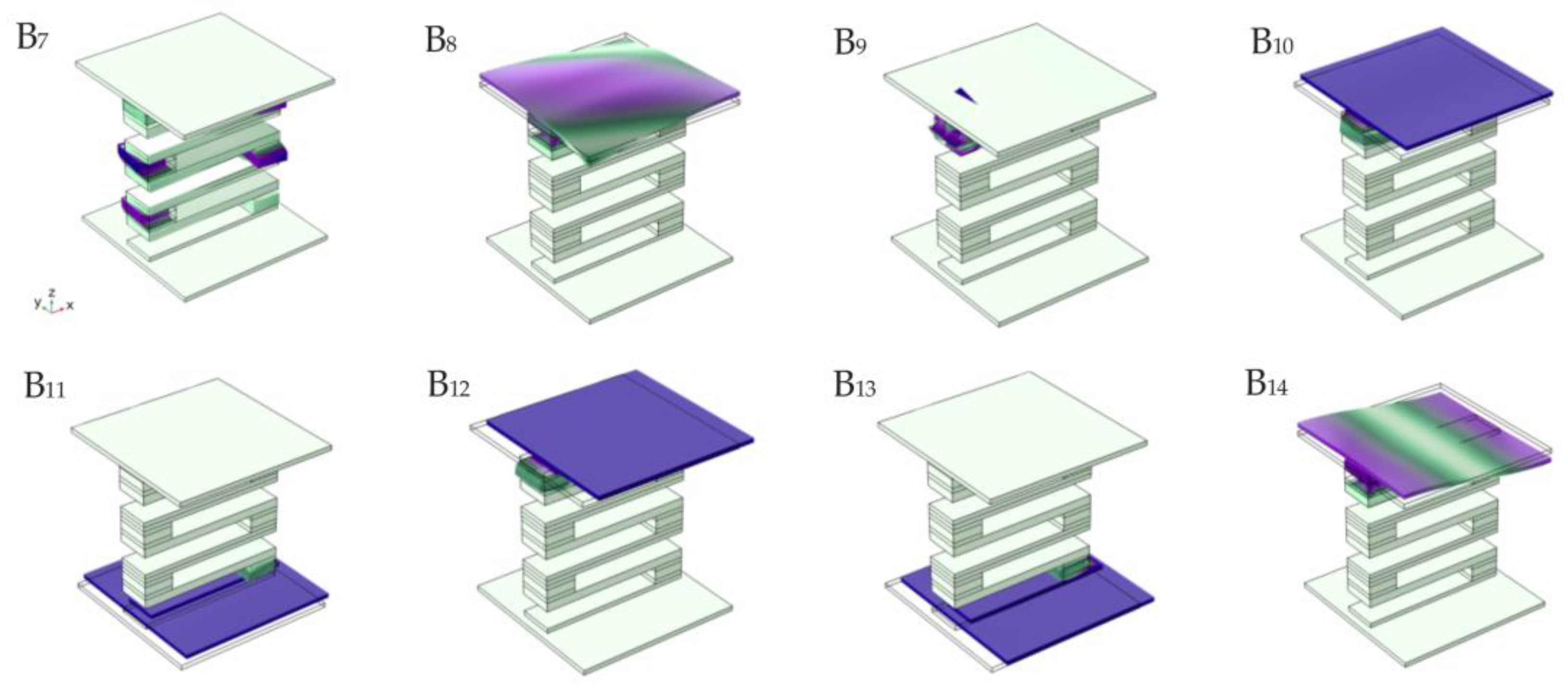

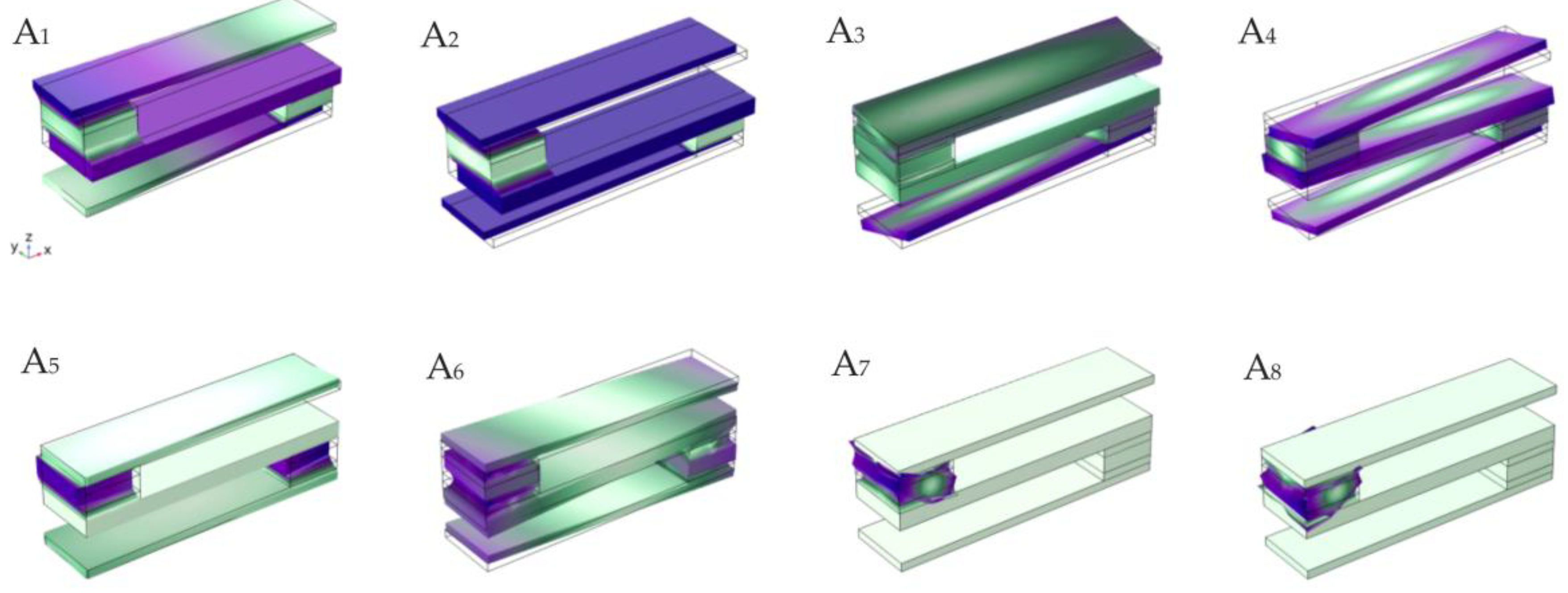

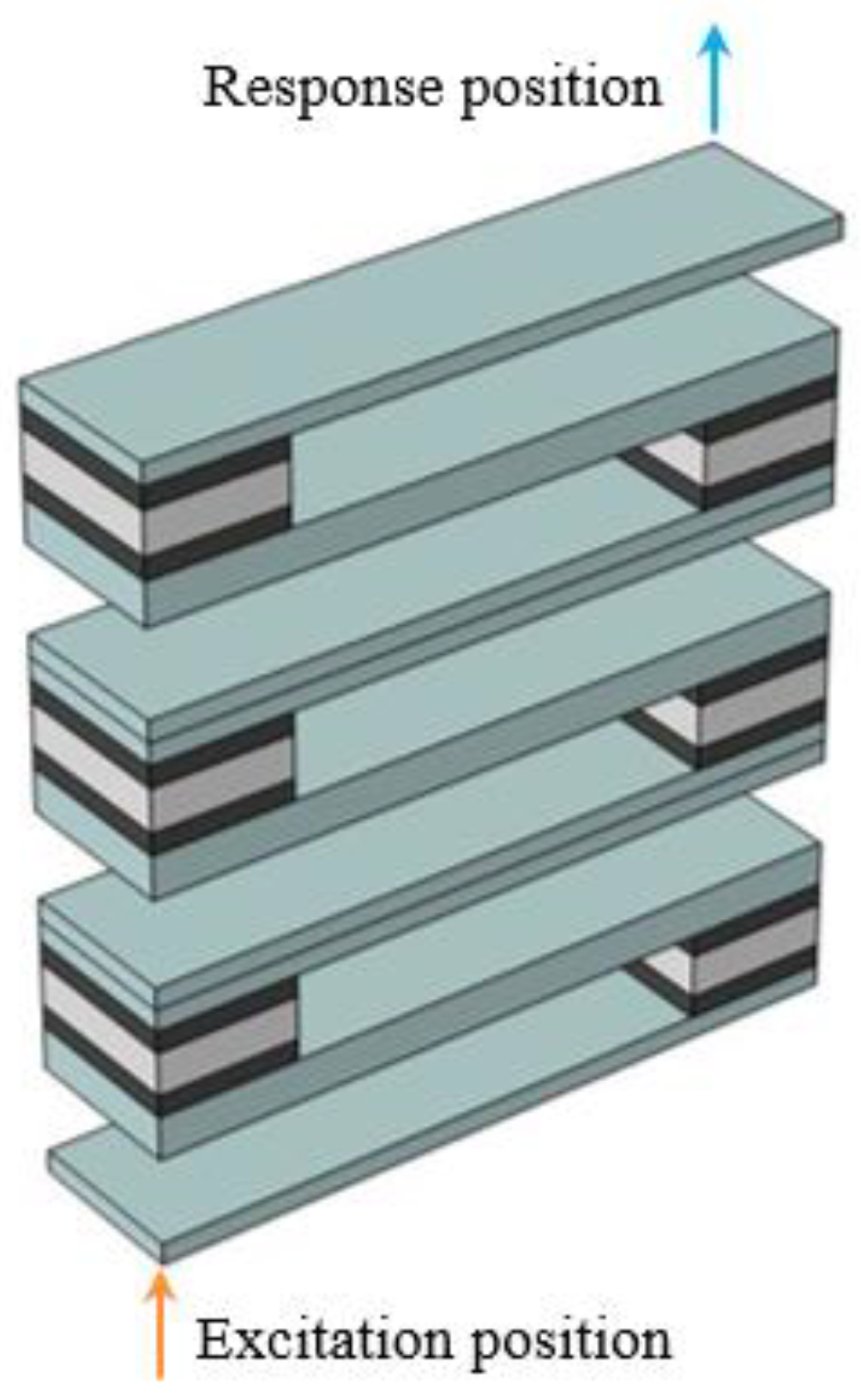

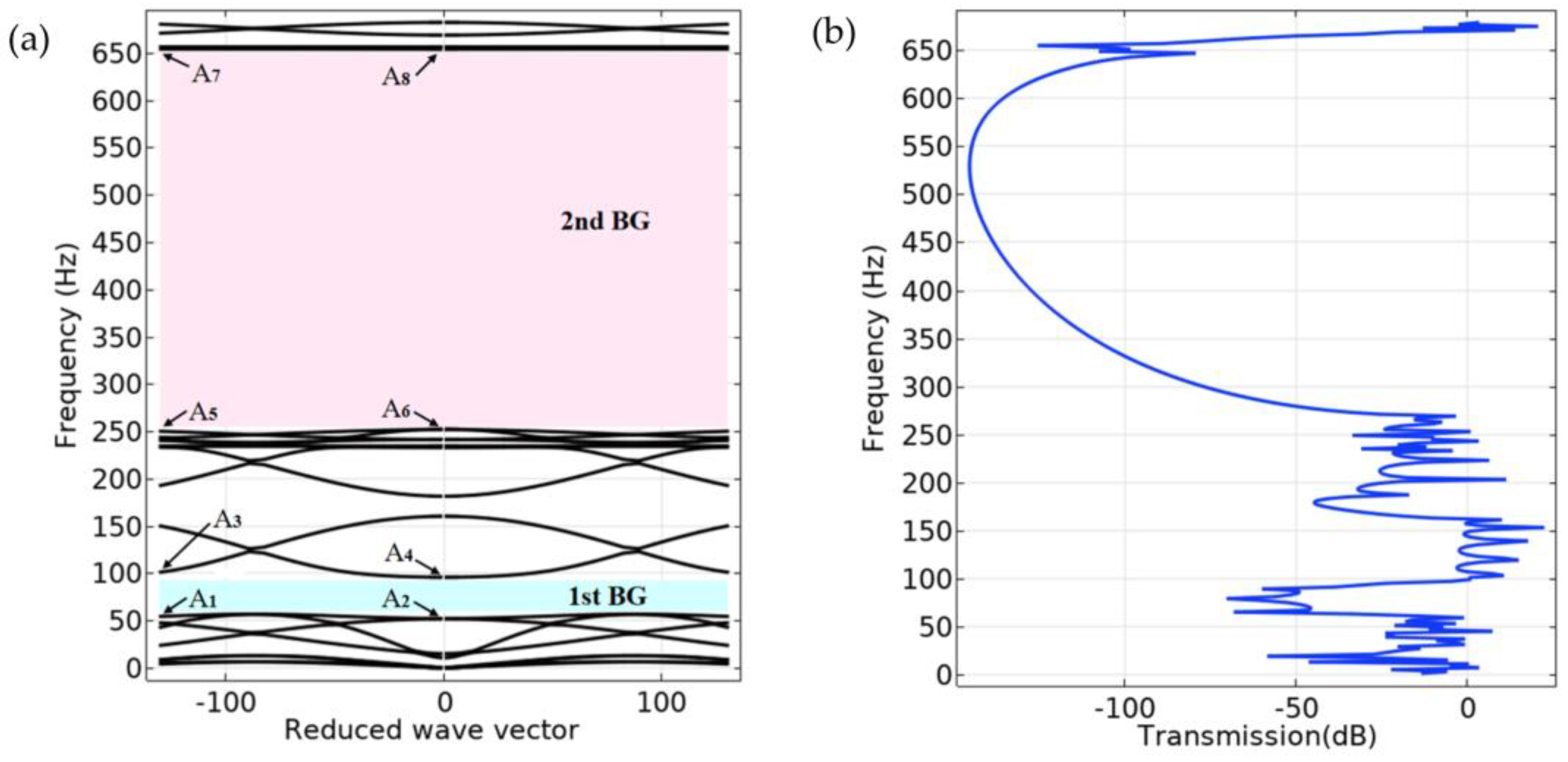

3.1. Band Structure, Eigenmode, and Transmission Power Spectrum of the S-Type Oscillator

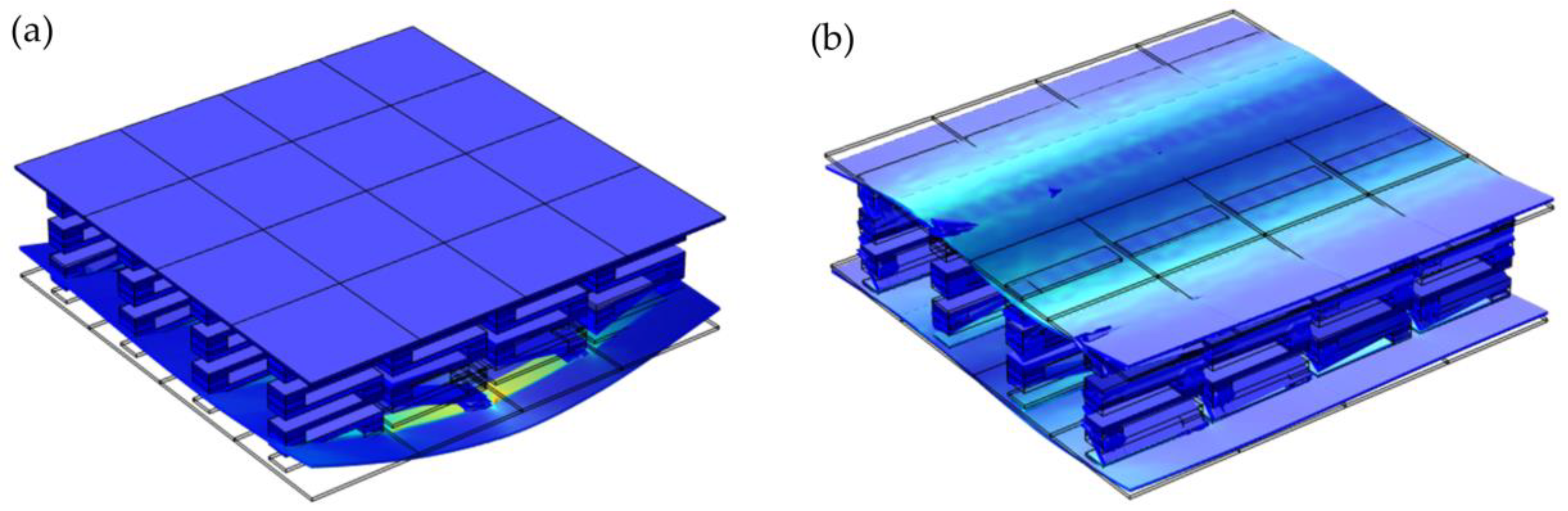

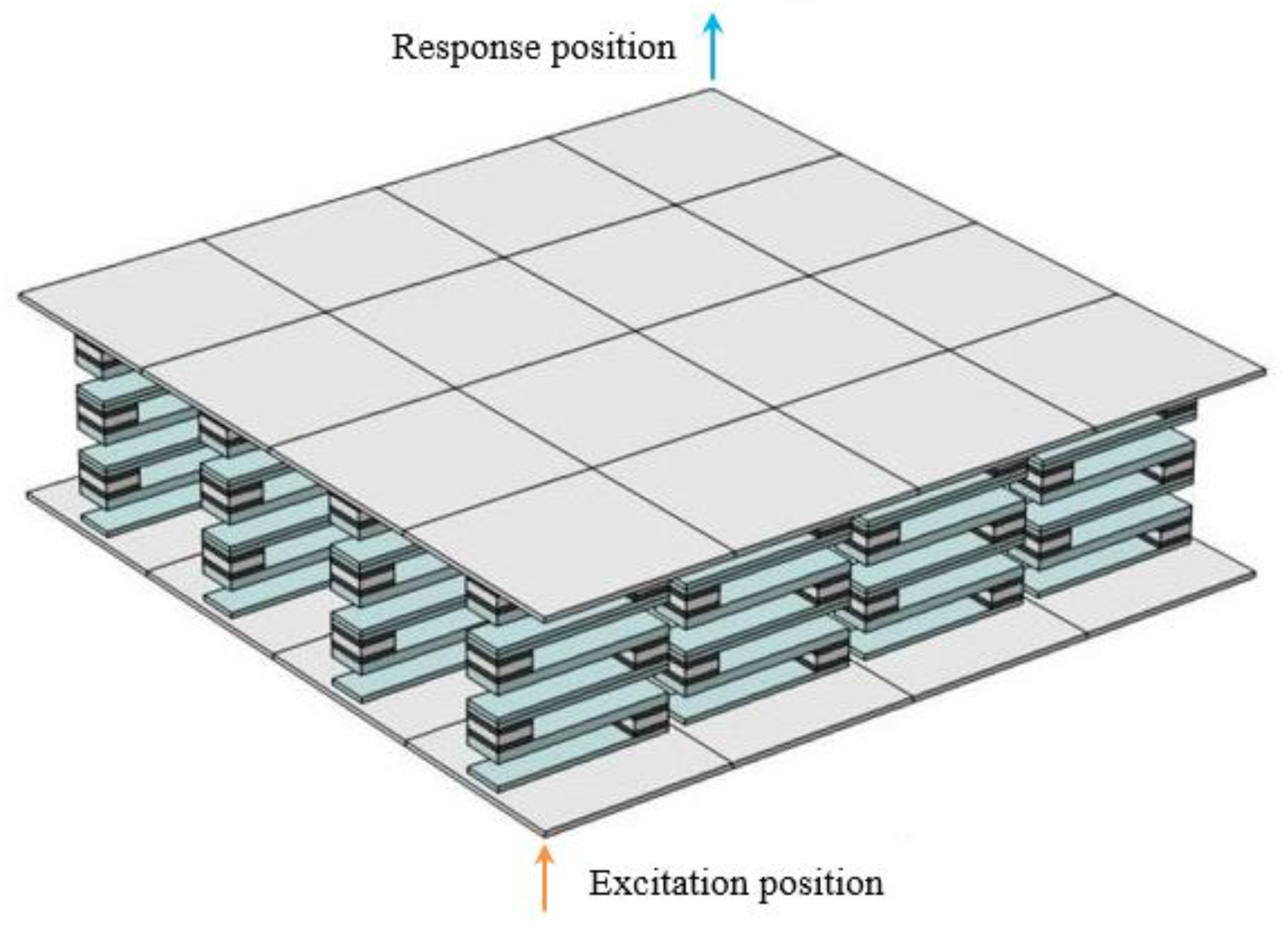

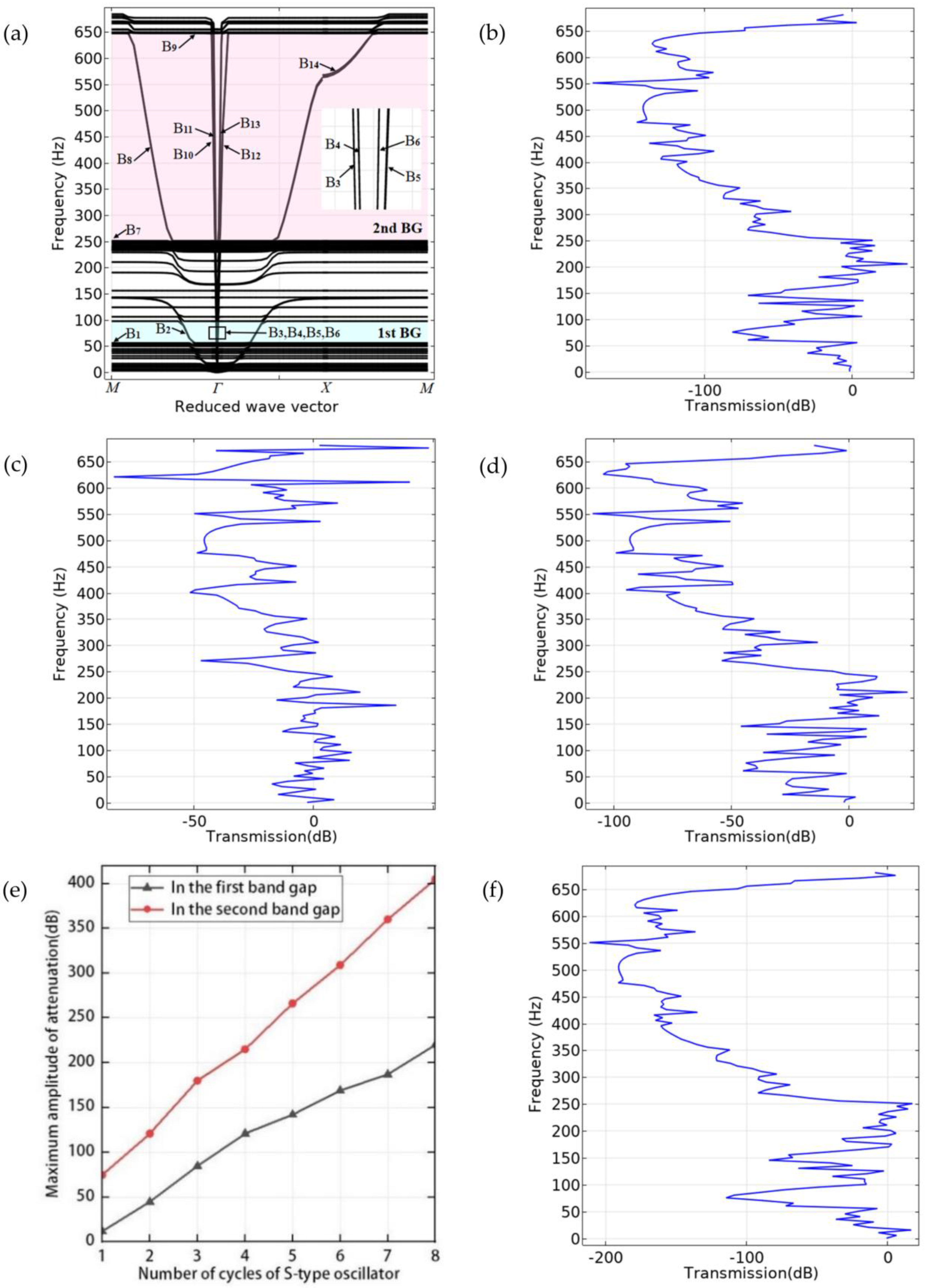

3.2. Band Structure, Eigenmode, and Transmission Power Spectrum of Phononic Crystal Sandwich Plates

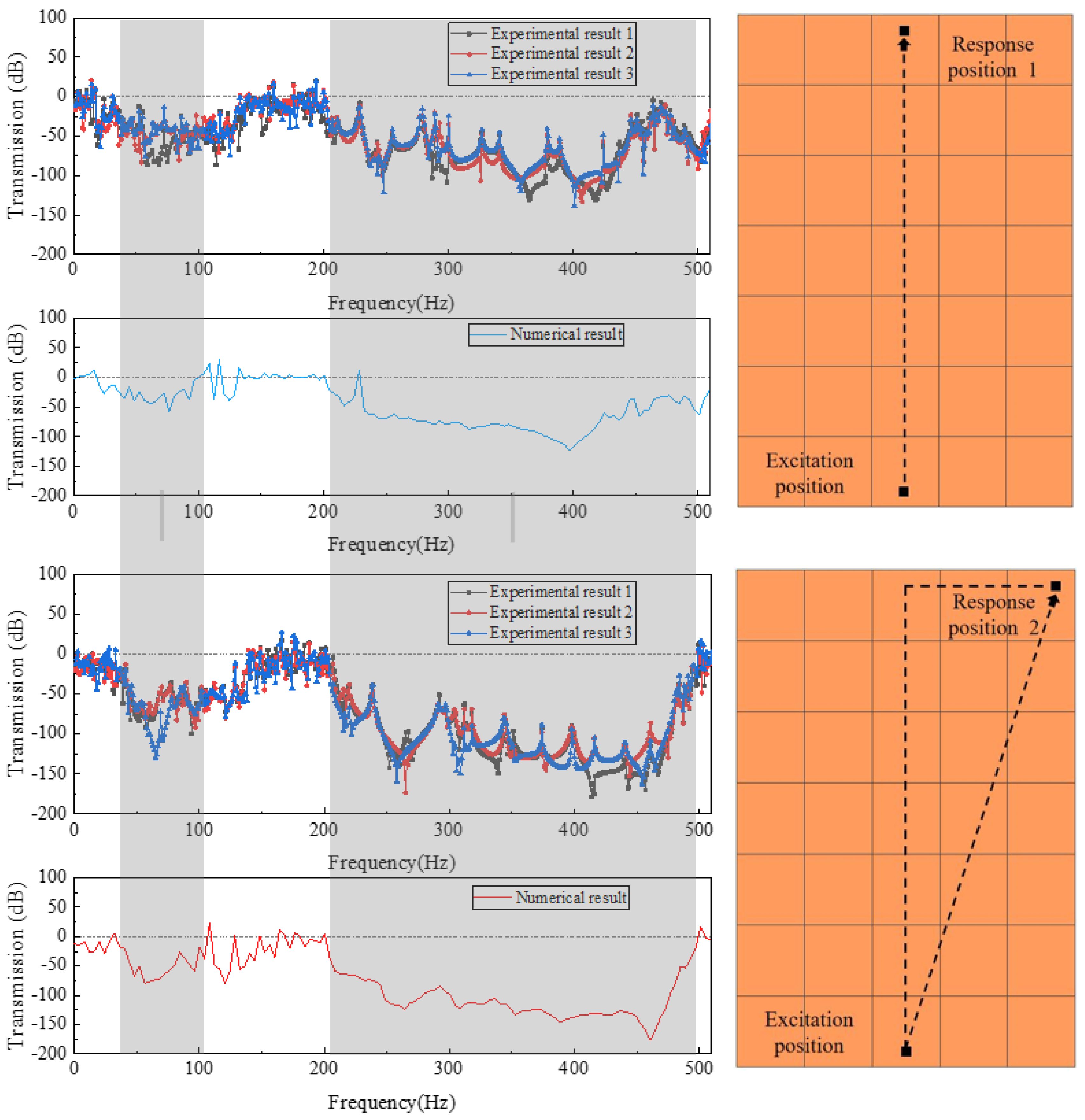

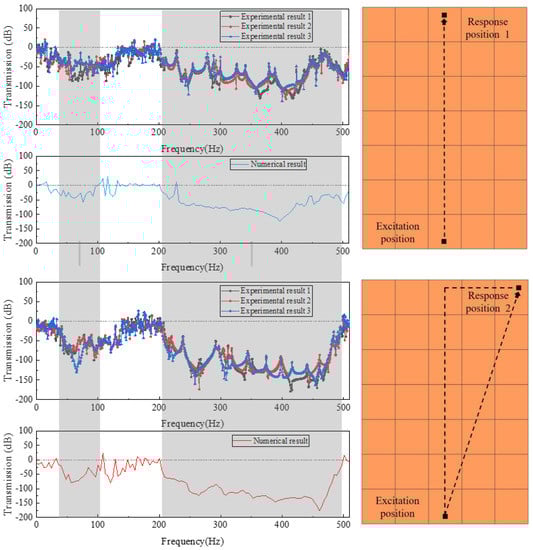

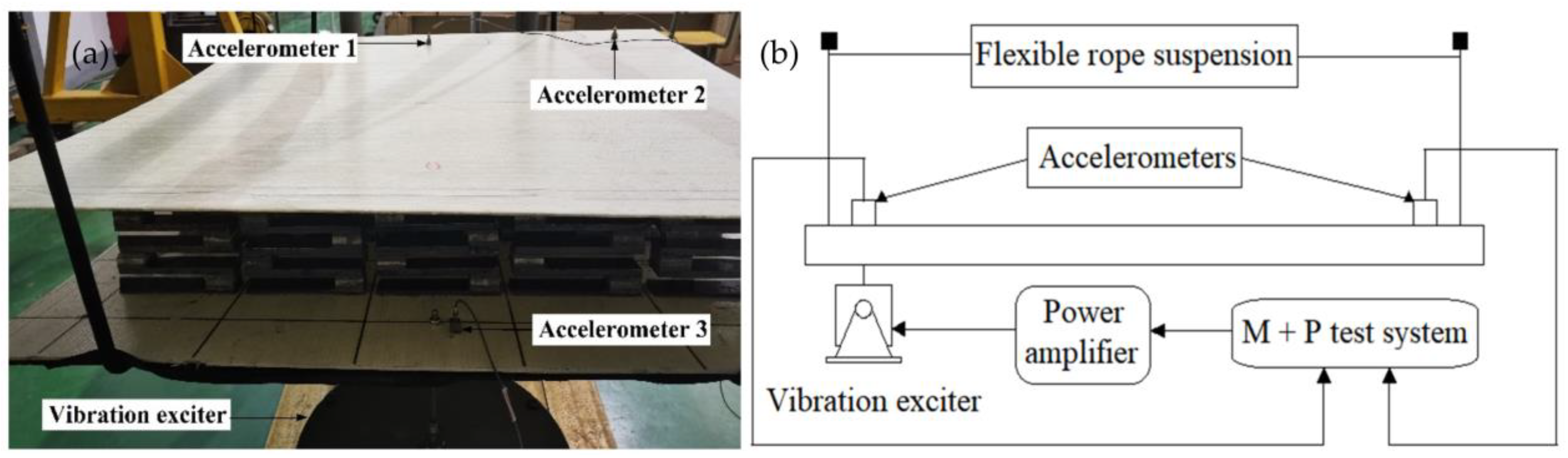

3.3. Experimental Validation
4. Application of Phononic Crystal Sandwich Plate in Ship Vibration Reduction

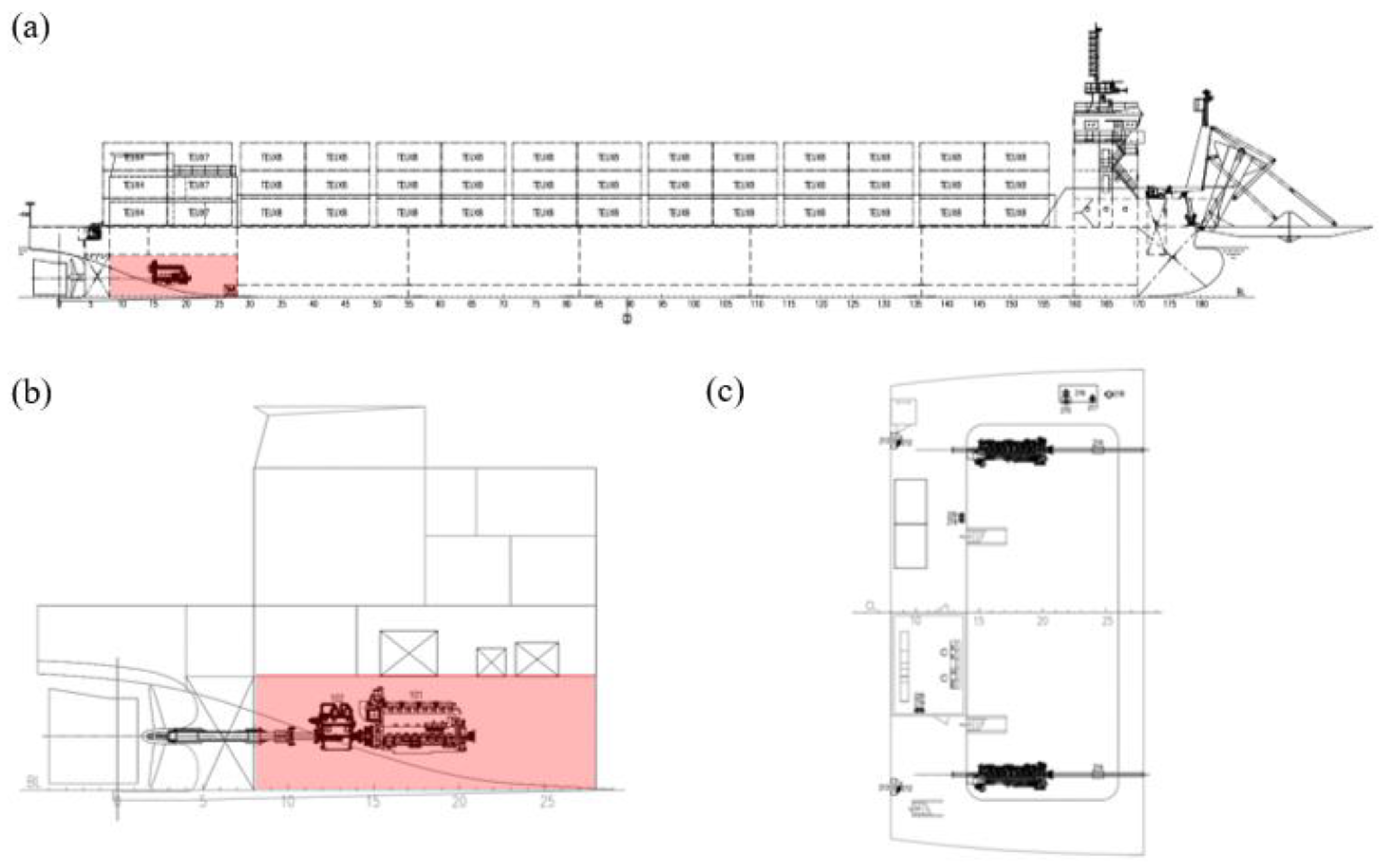

4.1. Vibration Characteristics of the Ship Power System Steerage Bulkhead
4.2. Vibration Isolation Characteristics of a Vibration Isolation Platform
5. Conclusions
- By analyzing the band structure and transmission power spectrum, the proposed phononic crystal sandwich structure has significant low-frequency flexural band gap and vibration isolation characteristics. The results of band structure and transmission curve are consistent, and the experimental results are consistent with the numerical results, which proves the accuracy and reliability of the numerical method.
- The period number of the S-type oscillator also has an important influence on the band gap; the higher the period number, the better the vibration reduction effect. The maximum attenuation amplitudes of the first band gap and the second band gap increase with the increase in the period number of the S-type oscillator.
- For the formation mechanism of the band gap, from the perspective of mode, the opening of the band gap in the phononic plate structure is the result of modal coupling and the weakening of an elastic wave. From the point of view of the structure, the phononic crystal plate structure uses the band gap of the S-type oscillator to open the band gap of the flexural wave consistent with its band gap.
- The sandwich plate structure of a real ship has a medium- and low-frequency flexural band gap and vibration suppression region in the frequency range of 45–78 Hz and 145–355 Hz, indicating that the proposed ship vibration isolation method has a good application prospect in medium- and low-frequency vibration control of the marine power system.

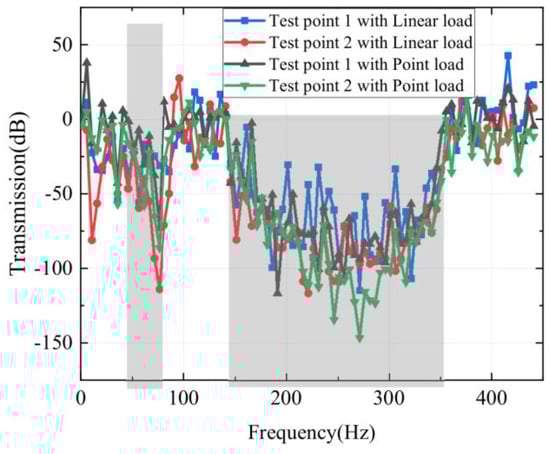

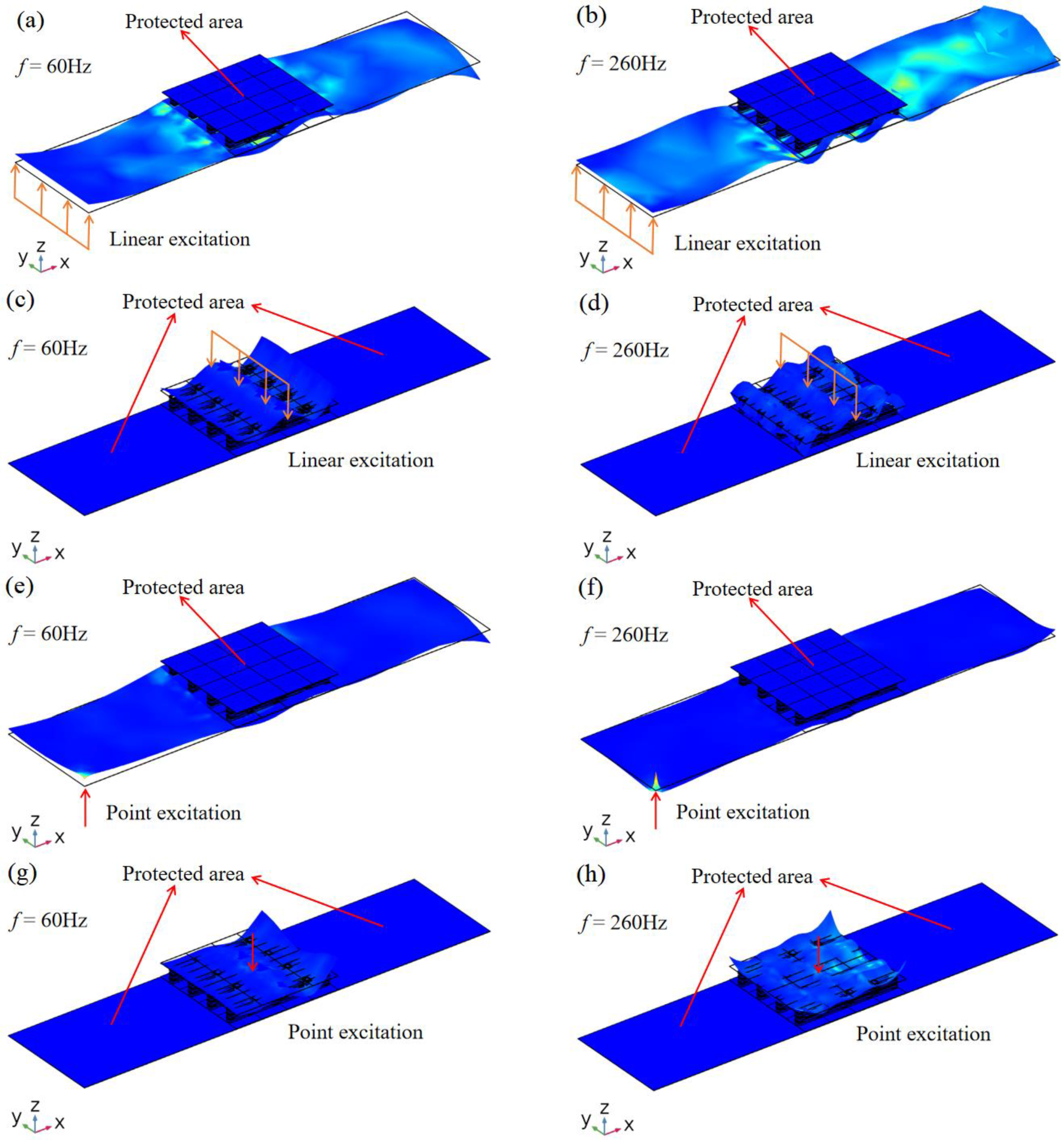

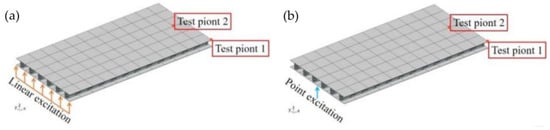

- The vibration isolation platform mounted on a steel plate is studied by numerical simulation. The phononic crystal plate structure has good adaptability and flexibility to various loads, regardless of the linear excitation or point excitation, and it can isolate low-frequency vibration to protect electronic equipment and precision instruments.
Author Contributions
Funding
Institutional Review Board Statement
Conflicts of Interest
References
- Muhammad; Lim, C.W. From Photonic Crystals to Seismic Metamaterials: A Review via Phononic Crystals and Acoustic Metamaterials. Arch. Comput. Methods Eng. 2021, 29, 1137–1198. [Google Scholar] [CrossRef]
- Wang, H.Y.; Lee, H.P.; Xu, W. Bandgap Properties of Two-Layered Locally Resonant Phononic Crystals. Int. J. Appl. Mech. 2020, 12, 2050075. [Google Scholar] [CrossRef]
- Qian, D.H.; Shi, Z.Y. Bandgap properties in simplified model of composite locally resonant phononic crystal plate. Phys. Lett. A 2017, 381, 3505–3513. [Google Scholar] [CrossRef]
- He, F.Y.; Shi, Z.Y.; Qian, D.H.; Tu, J.; Chen, M. Flexural wave bandgap properties in metamaterial dual-beam structure. Phys. Lett. A 2022, 429, 127950. [Google Scholar] [CrossRef]
- Wang, Q.; Li, J.Q.; Zhang, Y.; Xue, Y.; Li, F. Bandgap properties in metamaterial sandwich plate with periodically embedded plate-type resonators. Mech. Syst. Signal Process. 2021, 151, 107375. [Google Scholar] [CrossRef]
- Song, Y.B.; Wen, J.H.; Yu, D.L.; Wen, X. Suppression of vibration and noise radiation in a flexible floating raft system using periodic structures. J. Vib. Control. 2015, 21, 217–228. [Google Scholar] [CrossRef]
- Langfeldt, F.; Gleine, W. Membrane- and plate-type acoustic metamaterials with elastic unit cell edges. J. Sound Vib. 2019, 453, 65–86. [Google Scholar] [CrossRef]
- Tian, W.; Zhao, T.; Yang, Z.C. Theoretical modelling and design of metamaterial stiffened plate for vibration suppression and supersonic flutter. Compos. Struct. 2022, 282, 115010. [Google Scholar] [CrossRef]
- Ghachi, R.F.; Alnahhal, W.I.; Haque, A.B.M.T.; Shim, J.M.; Aref, A. Flexural Vibration Attenuation Properties of Phononic Crystals[J]. Key Eng. Mater. 2019, 4830, 414–418. [Google Scholar] [CrossRef]
- Ravanbod, M.; Ebrahimi-Nejad, S. Innovative lightweight re-entrant cross-like beam phononic crystal with perforated host for broadband vibration attenuation. Appl. Phys. A 2023, 129, 102. [Google Scholar] [CrossRef]
- Saffari, P.R.; Sirimontree, S.; Thongchom, C.; Jearsiripongkul, T.; Saffari, P.R.; Keawsawasvong, S. Effect of uniform and nonuniform temperature distributions on sound transmission loss of double-walled porous functionally graded magneto-electro-elastic sandwich plates with subsonic external flow. Int. J. 2023, 17, 100311. [Google Scholar] [CrossRef]
- Perras, E.; Mellmann, M.; Zhang, C.Z. Analysis of the sound insulation performance of periodic wall structures by a virtual acoustic laboratory. Build. Acoust. 2023, 30, 25–52. [Google Scholar] [CrossRef]
- He, W.T.; Li, L.X.; Tong, Z.X.; Liu, H.; Yang, Q.; Gao, T. H-Shaped Radial Phononic Crystal for High-Quality Factor on Lamb Wave Resonators. Sensors 2023, 23, 2357. [Google Scholar] [CrossRef]
- Majid, K.; Salman, E.N. Locally resonant stop band acoustic metamaterial muffler with tuned resonance frequency range. Mater. Res. Express 2019, 6, 025802. [Google Scholar]
- Sigalas, M.M.; Economou, E.N. Elastic and Acoustic Wave Band Structure. J. Sound Vib. 1992, 158, 377–382. [Google Scholar] [CrossRef]
- Liu, Z.Y.; Zhang, X.X.; Mao, Y.W.; Chan, C.T. Locally Resonant Sonic Materials. Science 2000, 289, 201–205. [Google Scholar] [CrossRef]
- Qian, D.H.; Shi, Z.Y. Bandgap properties in locally resonant phononic crystal double panel structures with periodically attached pillars. J. Theor. Appl. Mech. 2017, 55, 1167–1179. [Google Scholar] [CrossRef] [Green Version]
- Jung, J.; Goo, S.; Wang, S. Investigation of flexural wave band gaps in a locally resonant metamaterial with plate-like resonators. Wave Motion 2020, 93, 102492. [Google Scholar] [CrossRef]
- Li, Y.G.; Zhu, L.; Chen, T.N. Plate-type elastic metamaterials for low-frequency broadband elastic wave attenuation. Ultrasonics 2017, 73, 34–42. [Google Scholar] [CrossRef]
- Miranda, E.J.P., Jr.; Nobrega, E.D.; Rodrigues, S.F.; Aranas, C., Jr.; Dos Santos, J.M.C. Wave attenuation in elastic metamaterial thick plates: Analytical, numerical and experimental investigations. Int. J. Solids Struct. 2020, 204–205, 138–152. [Google Scholar] [CrossRef]
- Song, Y.B.; Feng, L.P.; Liu, Z.B.; Wen, J.; Yu, D. Suppression of the vibration and sound radiation of a sandwich plate via periodic design. Int. J. Mech. Sci. 2019, 150, 744–754. [Google Scholar] [CrossRef]
- Li, Y.G.; Zhou, Q.W.; Zhou, L.; Guo, K. Flexural wave band gaps and vibration attenuation characteristics in periodic bi-directionally orthogonal stiffened plates. Ocean. Eng. 2019, 178, 95–103. [Google Scholar] [CrossRef]
- Ruan, Y.D.; Liang, X.; Hua, X.Y.; Zhang, C.; Xia, H.; Li, C. Isolating low-frequency vibration from power systems on a ship using spiral phononic crystals. Ocean. Eng. 2021, 225, 108804. [Google Scholar] [CrossRef]
- Chen, D.K.; Zi, H.; Li, Y.G.; Li, X. Low frequency ship vibration isolation using the band gap concept of sandwich plate-type elastic metastructures. Ocean. Eng. 2021, 235, 109460. [Google Scholar] [CrossRef]
- Lei, L.J.; Miao, L.C.; Zheng, H.Z.; Wu, P.; Lu, M. Band gap extending of locally resonant phononic crystal with outward hierarchical structure. Appl. Phys. A 2022, 128, 492. [Google Scholar] [CrossRef]
Material | Density (kg/m3) | Young’s Modulus (GPa) | Poisson’s Ratio |
---|---|---|---|
Steel | 7780 | 210.6 | 0.300 |
SR | 1300 | 11.75 × 10−5 | 0.469 |
Parameters | a | e | h1 | h2 | h3 | h4 | h | l | m |
---|---|---|---|---|---|---|---|---|---|
Dimension (mm) | 110 | 3 | 3 | 3 | 6 | 6 | 36 | 100 | 24 |
Material | Density (kg/m3) | Young’s Modulus (GPa) | Poisson’s Ratio |
---|---|---|---|
Steel | 7812 | 212.4 | 0.270 |
SR | 1303 | 17.75 × 10−5 | 0.471 |
Parameters | a | e | h1 | h2 | h3 | h4 | h | l | m |
---|---|---|---|---|---|---|---|---|---|
Dimension (mm) | 150 | 4 | 4 | 4 | 8 | 8 | 48 | 135 | 32 |
Parameters | a | e | h1 | h2 | h3 | h4 | h | l | m |
---|---|---|---|---|---|---|---|---|---|
Dimension (mm) | 440 | 6 | 6 | 6 | 12 | 12 | 72 | 400 | 96 |
