Communication

Estimation of Thermal Stability of Si-SiO2-W Nanolayered Structures with Infrared Spectrometry

1
Institute of Chemical Physics, University of Latvia, Jelgavas Str. 1, LV-1004 Riga, Latvia
2
Joint-Stock Company “ALFA RPAR”, Ropazu Str. 140, LV-1006 Riga, Latvia
3
Institute of Biomedical Engineering and Nanotechnologies, Riga Technical University, Kipsalas Str. 6B, LV-1048 Riga, Latvia
4
Institute of Solid State Physics, University of Latvia, Kengaraga Str. 8, LV-1063 Riga, Latvia
*
Author to whom correspondence should be addressed.
Materials 2024, 17(1), 7; https://doi.org/10.3390/ma17010007
Submission received: 17 November 2023 / Revised: 8 December 2023 / Accepted: 12 December 2023 / Published: 19 December 2023
(This article belongs to the Section Thin Films and Interfaces)

Abstract

:
Nanolayered coatings are proposed for use in microelectronic devices where the size/performance ratio is becoming increasingly important, with the aim to achieve existing quality requirements while reducing the size of the devices and improving their ability to perform stably over multiple cycles. Si-SiO2-W structures have been proposed as a potential material for the fabrication of microelectronic devices. However, before such materials can be implemented in devices, their properties need to be carefully studied. In this study, Si-SiO2-W nanolayered structures were fabricated and subjected to numerous thermal treatment cycles at 150 °C. A total of 33 heating cycles were applied, resulting in a cumulative exposure of 264 h. The changes in chemical bonds and microstructure were monitored using Fourier Transform Infrared spectrometry (FTIR) and scanning electron microscopy (SEM). The FTIR signal at 960 cm−1, indicating the presence of W deposited on SiO2, was selected to characterize the thermal stability during the heating cycles. The estimated signal intensity variation closely resembled the normal inhomogeneity of the nanolayers. The increase in slope intensity was estimated to be 1.7 × 10−5.

1. Introduction

Nowadays, the quality requirements for electronic devices are increasing with decreasing size and energy consumption, including multipliers [1] and field emission devices [2,3,4], as well as microelectronic devices and nanolayered structures for employment under electron and ion irradiation [5,6,7,8,9]. Tungsten is among the most widely used materials for application in electronic devices, plasma-facing components in fusion devices [10,11], electron-emitting components, and nanolayered structures [12,13,14], and tungsten-containing materials are proposed for application in supercapacitors [15]. In the fabrication of nanolayered structures, the impacts of the substrate surface [16] and the applied method [17] are important. The effects of high temperatures on variously fabricated tungsten nanostructures have been previously analyzed [18,19]. It is worth noting that, in the presence of air, chemical changes in the W structures are expected to take place at temperatures above 650 °C [20]. While it is well known that Si-SiO2 interfacial systems are unstable at high temperatures [21,22], it is also important to monitor low-temperature processes in the context of nanostructured systems. To monitor these temperature-induced changes, Fourier transform infrared spectrometry (FTIR) has been applied as a monitoring method to determine changes in the polar bonds within SiO2 [23] and SiO2-W structures [24]. FTIR spectrometry is commonly applied for qualitative analysis of the presence of chemical bonds in Si-O-containing materials [25,26,27], as well as for qualitative determination of chemical bonds in W-containing structures [28,29] and nanoparticles [30,31].
In this research, we attempt to develop a semi-quantitative approach for FTIR application in the characterization of Si-SiO2-W layered structures. A W nanolayered coating on Si-SiO2 substrate was produced. The surface morphology and chemical composition were characterized for Si, Si-SiO2, and Si-SiO2-W compositions. Then, the samples were thermally treated at 150 °C in the presence of air. The FTIR method was used to determine the indicative parameters and perform a semi-quantitative determination of the stability of the synthesized nanolayered structures.

2. Materials and Methods

The Si-SiO2 substrate was obtained from a single-crystal Si wafer by oxidation at a temperature of 1130 °C. The oxidation process consisted of 10 min (min) in dry O2, followed by 3 h and 2 min in wet O2, another 10 min in dry O2, and, finally, 10 min in N2. The resulting oxide thickness was in the range of d = 1.07–1.10 μm.
The Si-SiO2-W samples were prepared by depositing a 200 nm thick W layer on the Si-SiO substrate by DC magnetron sputtering. The parameters of the deposition process were as follows: argon (Ar) was used as the gas, the pressure was 5 × 10−3 mBar, the current was 150 mA, the deposition temperature was 250 °C, and the deposition time was 3 min. The resulting W layer had a resistivity of Rs = 3.8 Ohm/square. The sample dimensions were 1 × 1 cm.
The surface roughness of the W layer was analyzed using atomic force microscopy (AFM). A Solver P-47 PRO microscope (distributed by NT-MDT Spectrum Instruments, Limerick, Ireland) and NSG10/Pt AFM probes (TipsNano, Tallinn, Estonia) with a tip radius of 35 nm were used. AFM images were acquired with a 10 × 10 µm scan size and processed using Gwyddion software (version 2.63). Before analyzing the surface roughness, the images were levelled using the mean plane subtraction method. Then, the polynomial background was removed, and the minimum data value was set to zero.
A Si wafer, a Si-SiO2 structure, and Si-SiO2-W structures were selected for long-term testing. The samples were placed in a furnace at room temperature, then heated to 150 °C at a rate of 10 °C/min, held at 150 °C for 8 h, and then allowed to cool down to room temperature (one heating cycle). A total of 33 heating cycles were performed. After each heating cycle, the FTIR spectra were measured, up to 3 FTIR measurements for each sample. The measurements were performed with a Vertex 70v (Bruker Optic GmbH, Ettlingen, Germany) spectrometer equipped with an attenuated total reflection (ATR) module with a 2 × 2 mm diamond crystal, single-reflection system. An integrated sample holder was applied to fix the sample in contact with the crystal. FTIR spectra were recorded at a resolution of ±2 cm−1, in a vacuum with a pressure of 2.95 hPa and a spectral range of 400–4000 cm−1, obtaining 20 spectra (scans) per measurement. The peak resolution of the Bruker Vertex 70v is 0.4 cm−1; however, in order to collect multiple spectra, the resolution value was lowered to obtain an optimal measurement time. The spectra for non-heated samples were measured in at least 10 positions on each sample to estimate the scattering within each type of sample. During measurement, the sample was placed on the ATR crystal and the FTIR spectrum was measured; after that, sample was moved to measure another part of the surface. Afterwards, the sample was moved again, so that the spectra of different surface areas were recorded.
After 96, 184, and 264 h of thermal exposure, the microstructure of the samples was analyzed. The samples were adhered to aluminum stubs using conductive carbon adhesive tape. The morphology and elemental content of the deposited films were evaluated using a Thermo Scientific™ Helios™ 5 UX (Thermo Fischer Scientific, Waltham, MA, USA) high-resolution field emission SEM apparatus (University of Latvia, Institute of Solid State Physics). The working distance was set to 4 mm. The SEM images were captured at 2 kV electron acceleration voltage with a 25 pA current by detecting secondary electrons using a through-the-lens detector (TLD), as well as an ion conversion and electron (ICE) detector. The elemental content was monitored prior to and after the thermal exposure using energy-dispersive X-ray spectroscopy (EDX).

3. Results and Discussion

Prior to thermal treatment of the manufactured structures, EDX analysis and surface characterization with atomic force microscopy (AFM) were performed on non-treated samples. The surface morphology analysis via AFM shows a homogeneous surface. Figure 1 shows the average surface roughness (Ra) results for the Si wafer, SiO2 layer, and W layer.
The Si substrate had an Ra value of 2.1 ± 0.9 nm, the SiO2 layer had an Ra value of 2.3 ± 0.9 nm, and the W layer had an Ra value of 3.8 ± 0.5 nm.
An example of FTIR spectra of Si-SiO2 is presented in Figure 2. The FTIR measurement procedure involved 20 scans per spectrum, resulting in a spectrum that was the average of 20 spectra. Similarly, the “average spectrum of the sample” was obtained by recording the spectra at several locations and then calculating the average spectrum mathematically (inset in Figure 2). The differences in the resulting spectra are due to several factors, including the bond concentrations in the particular measurement area and the bond types (Si-O, O-Si-O, Si-O-Si). Therefore, it is important in FTIR spectrometry to measure the sample in at least several locations, to obtain information about the whole area of interest.
The dispersion of FTIR intensities was calculated separately for each type of coating because each of them contains different types of chemical bonds, resulting in variations in signal positions and intensities.
A comparison of the FTIR spectra of three types of layered structures is shown in Figure 3.
In the Si spectrum, Si-Si polar bonds were observed, along with weak Si-O bonds. The distortion region from 1900 to 2300 cm−1 is due to similarities in refractive indices between the ATR module diamond crystal and the Si sample. In the FTIR spectra of the samples where Si is coated with SiO2, various characteristic bonds such as Si-O, Si=O, Si-O-Si, O-Si-O, symmetric and asymmetric stretching, bending, rocking, and wagging can be identified. Figure 3 shows the averaged FTIR spectra for each sample type, along with corresponding schematics of the produced structures. The signal intensities in the Si-SiO2 layers are significantly higher compared to those of the Si and Si-SiO2-W samples, which can be explained by the polarity of the Si-O and Si=O bonds. In the Si wafer samples, signals arise from Si-Si asymmetric stretching and naturally occurring Si-O bonds on the wafer surface. Meanwhile, in the samples where the Si-SiO2 is covered with the W layer, the resulting FTIR spectrum intensity is almost a straight line, which is explained by the metallic properties of W and an absence of polar bonds in the metallic W coating. This observation allows us to estimate the coverage efficiency of the Si-SiO2 with W and can be used as an indicator for analyzing the stability of the layers under various exposure conditions, such as oxidation at high temperatures [32].
The FTIR spectra were measured in a vacuum of 2.95 hPa. However, a negligible amount of water and CO2 remained in the measurement chamber. The presence of water molecules gives signals at around 1400–1900 and 3200–3600 cm−1. Trans-reflectance causes spectral distortions within the range 1900–2300 cm−1 to occur for solid samples with similar refractive indices as diamond crystal [33,34]. Therefore, for further analysis, only the spectral region containing the signals of interest, namely, 400–1400 cm−1, is presented and analyzed. To estimate the signals of interest for each type of the analyzed structures, the FTIR spectra in the selected region were normalized and are presented in Figure 4.
The signals in the FTIR spectra include peaks at about 435 cm−1, corresponding to Si-O bending; 515 cm−1, for Si-O-Si bonds; 565 cm−1, for Si-O-Si bending; 600–630 cm−1, for Si-Si asymmetric vibrations [32]; 700, 740, and 780 cm−1, for Si-O-Si symmetric stretching; 825 and 910 cm−1, for Si-O asymmetric vibrations; 960 cm−1, for Si-O-Si bonds [35]; and 1010 and 1110 cm−1, attributed to Si-O-Si bonds [36,37,38].
The surface morphology of non-treated and thermally treated Si-SiO2-W structures was investigated by means of scanning electron microscopy. The corresponding surface morphologies are shown in Figure 5, while the element distributions of the non-treated and thermally treated samples are shown in Figure 6.
It is noteworthy that the surface morphology of the Si substrate, as well as the Si-SiO2 and Si-SiO2-W layers, remained stable even after multiple heating cycles. This is confirmed by the SEM and EDX images, where the overall surface morphology and the average element distribution remain stable. The EDX spectra of the Si-SiO2-W structures confirm that the synthesized W nanolayer is thin and homogeneous, allowing the X-ray beam to penetrate through the W nanolayer and receive signals from the SiO2 layer and Si wafer.
After each cycle of thermal treatment, the FTIR spectra were measured and the average spectrum for each set was calculated. Unlike X-rays, in the case of infrared photons, the spectra depend strongly on the polarity of the near-surface bonds. It can be observed that the signal intensities and positions change slightly with each cycle, but the overall shape of the spectra remains consistent. To semi-quantitively assess the changes that occur during thermal exposure, the spectra of each exposure time are plotted in Figure 7. It should be noted that the measuring area of the FTIR spectra was 2 × 2 mm, which is comparably larger than the areas monitored by means of SEM and EDX. Also, as mentioned in the experimental part, the FTIR spectra were measured at several different positions of the sample; the average spectrum was calculated and is presented in Figure 7.
From the shapes of the spectra, it can be estimated that for the Si wafer, changes in signal intensities occur around 620 cm−1. In the case of the SiO2 coating on the Si wafer, the formation of new signals becomes apparent. Already, after 100 h of exposure, the intensity of the Si-O bending signal decreases, and a signal appears at around 490 cm−1. Conversely, for the W layers on Si-SiO2, the spectra remain comparably stable, with the only differences appearing in the Si-O-Si-related bond signal around 960 cm−1.
Infrared spectrometry involves beam–matter interactions, and it needs to be taken into account that the beam penetration depth may differ depending on the wavelength [39]; error analysis was therefore performed as a standard deviation calculation for individual signals at particular wavelengths. Considering that the largest number of spectra was measured for non-heated samples, the standard deviation and error bars were calculated for non-heated samples and are shown as error bar lines in Figure 8 (right side). The calculated error bars of the signal are related to the whole set of heating cycles. However, it was not excluded that the error bars for heated samples may differ. A zoomed view of the selected 960 cm−1 signal and a plot of signal intensity depending on thermal treatment time are shown in Figure 8.
The slope of the signal intensity depending on thermal treatment time was estimated to be around 1.7 × 10−5. It is also evident that the intensities vary mainly within the range of the error bars. The error bars (dotted lines) of the non-treated sample were added to Figure 8 for visualization. It can be seen that at around 150 h of treatment, the intensity values tend to increase, while at 200 h, the intensities are again within the ranges of the initial error bars. The variation in the FTIR signal can be applied as an indicative, quantitative mean of the measurement. It was also observed that the pattern of results is not monotonic, and, in addition, it can be seen from the shape of the spectra that the shape and width of the 960 cm−1 signal varies depending on the treatment time. Since the spectra are already the average spectra of several points of the sample, this could be due to statistical fluctuations. Therefore, the use of intensity values alone to evaluate chemical stability can be considered as one of the possible parameters. The integrated intensity values, intensity ratios of several selected signals, and other mathematical parameters can be applied for characterization of a particular material. In this particular case, it is proved that Si-SiO2-W layers can be considered stable for long heat treatment times under the given parameters. However, a more detailed mathematical analysis is still possible.
After a treatment time of more than 200 h, the data scattering seems to increase. Meanwhile, the bond intensity after 264 h of treatment is almost the same as that of the non-treated sample. Thus, the overall stability of the structures can be described as unaffected after the selected treatment time. The observed changes in the intensities may be attributed to bond recombination due to the presence of O2, CO2, and H2O. Therefore, for such structures of W on Si-SiO2, the influence of substrate properties should be considered, especially if these nanostructures are expected to perform in air at elevated temperatures.

4. Conclusions

The thermally treated Si, Si-SiO2, and Si-SiO2-W structures, monitored using the infrared spectrometry method, exhibited variations in their composition and ratios of Si-O and Si-O-Si bonds. While the chemical bonds in the W layers on Si-SiO2 showed stability over cyclic heating, there was a slight increase in the scattering of the Si-O-Si bond intensities. This should be taken into account when selecting a SiO2 substrate for nanoelectronic devices. Furthermore, the application of FTIR for semi-quantitative analysis of the stability of tungsten nanofilms was demonstrated. Furthermore, FTIR can be implemented in other analytical systems as one method for material quality characterization.

Author Contributions

Investigation (thermal treatment and measuring the infrared spectra) and writing, L.A. and A.E.G.; investigation (measuring the SEM and EDX), E.V.; writing—review and editing, M.R.; investigations (AFM measurements, surface analysis), H.S.; resources and manufacturing of the samples, A.Z.; supervision and project administration, Y.D. and G.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the ERDF project No. 1.1.1.1/20/A/109 “Planar field emission microtriode structure”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The author Aleksandrs Zaslavskis was employed by the Joint-Stock Company “ALFA RPAR”. All authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Koshevaya, S.V.; Kanevsky, V.I.; Tecpoyotl-Torres, M.; Burlak, G.N.; Escobedo-Alatorre, J.; Chayka, V.E. Modelling of vacuum-silicon solid microwave diodes and triodes based on P++−N and on tungsten cathodes. Microelectron. J. 2001, 32, 133–136. [Google Scholar] [CrossRef]
  2. Chen, B.X.; Liu, G.Y.; Xia, S.H.; Su, J.; Lu, Y.J.; Huang, L.S.; Wang, J.Y. Approximate calculating methods concerning the electron transit time for a vacuum microelectronics triode. J. Phys. D Appl. Phys. 2000, 33, L39–L43. [Google Scholar] [CrossRef]
  3. Zeng, B.; Liu, N.; Yang, Z. Simulation of Vacuum Microelectronic Triode Made of Single Carbon Nanotube. Int. J. Infrared Millim. Waves 2004, 25, 1621–1631. [Google Scholar] [CrossRef]
  4. Sadwick, L.; Hwu, J.; Chern, J.H.; Hofeling, K.; Ren, J.; Wu, D.; Chen, B.H.Y. Microfabrication manufacturable vacuum triodes. In Proceedings of the 4th IEEE International Conference on Vacuum Electronics, Seoul, Republic of Korea, 28–30 May 2003; pp. 366–367. [Google Scholar] [CrossRef]
  5. Zhao, G.-Y.; Deng, H.; Tyree, N.; Guy, M.; Lisfi, A.; Peng, Q.; Yan, J.-A.; Wang, C.; Lan, Y. Recent Progress on Irradiation-Induced Defect Engineering of Two-Dimensional 2H-MoS2 Few Layers. Appl. Sci. 2019, 9, 678. [Google Scholar] [CrossRef]
  6. Schmid, M.; Wan, X.; Asyuda, A.; Zharnikov, M. Modification of Self-Assembled Monolayers by Electron Irradiation: The Effect of Primary Energy (10–500 eV). J. Phys. Chem. C 2019, 123, 28301–28309. [Google Scholar] [CrossRef]
  7. Porter, D.L.; Pascucci, M.R.; Olbert, B.H. Neutron irradiation effects on SiO2 and SiO2-based glass ceramics. J. Nucl. Mater. 1981, 103, 767–771. [Google Scholar] [CrossRef]
  8. Kim, Y.; Baek, J.; Kim, S.; Kim, S.; Ryu, S.; Jeon, S.; Han, S.M. Radiation Resistant Vanadium-Graphene Nanolayered Composite. Sci. Rep. 2016, 6, 24785. [Google Scholar] [CrossRef]
  9. Li, N.; Fu, E.G.; Wang, H.; Carter, J.J.; Shao, L.; Maloy, S.A.; Misra, A.; Zhang, X. He ion irradiation damage in Fe/W nanolayer films. J. Nucl. Mater. 2009, 389, 233–238. [Google Scholar] [CrossRef]
  10. Huber, H.; Brezinsek, S.; Kirschner, A.; Ström, P.; Sergienko, G.; Huber, V.; Borodkina, I.; Douai, D.; Jachmich, S.; Linsmeier, C.H.; et al. Determination of tungsten sources in the JET-ILW divertor by spectroscopic imaging in the presence of a strong plasma continuum. Nucl. Mater. Energy 2019, 18, 118–124. [Google Scholar] [CrossRef]
  11. Missirlian, M.; Firdaouss, M.; Richou, M.; Hernandez, C.; Gargiulo, L.; Bucalossi, J.; Brun, C.; Corre, Y.; Delmas, E.; Greuner, H.; et al. Manufacturing, testing and installation of the full tungsten actively cooled ITER-like divertor in the WEST tokamak. Fusion Eng. Des. 2023, 193, 113683. [Google Scholar] [CrossRef]
  12. Alabth, M.; Shatnawi, M.T.M.; Allaham, M.M.; Burda, D.; Mousa, M.S. Field electron emission from tungsten micro-tips coated with various thicknesses of polystyrene nanolayers: Characteristics & analysis. Ultramicroscopy 2023, 244, 113643. [Google Scholar] [CrossRef] [PubMed]
  13. Tan, Z.; Li, Z.; Fan, G.; Guo, Q.; Kai, X.; Ji, G.; Zhang, L.; Zhang, D. Enhanced thermal conductivity in diamond/aluminum composites with a tungsten interface nanolayer. Mater. Des. 2013, 47, 160–166. [Google Scholar] [CrossRef]
  14. Son, B.D.; Lee, J.K.; Yoon, W.Y. Effect of Tungsten Nanolayer Coating on Si Electrode in Lithium-ion Battery. Nanoscale Res. Lett. 2018, 13, 58. [Google Scholar] [CrossRef] [PubMed]
  15. Liu, X.; Chen, S.; Xiong, Z.; Li, K.; Zhang, Y. Tungsten oxide-based nanomaterials for supercapacitors: Mechanism, fabrication, characterization, multifunctionality, and electrochemical performance. Prog. Mater. Sci. 2022, 130, 100978. [Google Scholar] [CrossRef]
  16. Lee, J.-S.; Cho, J.; You, C.-Y. Growth and characterization of α and β-phase tungsten films on various substrates. J. Vac. Sci. Technol. A Vac. Surf. Film. 2016, 34, 021502. [Google Scholar] [CrossRef]
  17. Vüllers, F.T.N.; Spolenak, R. Alpha- vs. beta-W nanocrystalline thin films: A comprehensive study of sputter parameters and resulting materials’ properties. Thin Solid Film. 2015, 577, 26–34. [Google Scholar] [CrossRef]
  18. Chirumamilla, M.; Krishnamurthy, G.V.; Rout, S.S.; Ritter, M.; Störmer, M.; Petrov, A.Y.; Eich, M. Thermal stability of tungsten based metamaterial emitter under medium vacuum and inert gas conditions. Sci. Rep. 2020, 10, 3605. [Google Scholar] [CrossRef]
  19. Karabacak, T.; Wang, P.-I.; Wang, G.-C.; Lu, T.-M. Phase transformation of single crystal β-tungsten nanorods at elevated temperatures. Thin Solid Film. 2005, 493, 293–296. [Google Scholar] [CrossRef]
  20. Shen, Y.G.; Mai, Y.W. Structure and properties of stacking faulted A15 tungsten thin films. J. Mater. Sci. 2001, 36, 93–98. [Google Scholar] [CrossRef]
  21. Sudoh, K.; Naito, M. Interfacial reaction of Si islands on SiO2 during high-temperature annealing. J. Appl. Phys. 2010, 108, 083520. [Google Scholar] [CrossRef]
  22. Li, F.; Dong Wang, D.; Klingenhof, M.; Flock, D.; Wang, H.; Strasser, P.; Schaaf, P. Controllable Si oxidation mediated by annealing temperature and atmosphere. J. Mater. Sci. 2022, 57, 10943–10952. [Google Scholar] [CrossRef]
  23. Zhou, M.; Zhang, L.; Lu, H.; Shao, L.; Chen, M. Reaction of silicon dioxide with water: A matrix isolation infrared and density functional theoretical study. J. Mol. Struct. 2002, 605, 249–254. [Google Scholar] [CrossRef]
  24. Avotina, L.; Bumbure, L.; Goldmane, A.E.; Vanags, E.; Romanova, M.; Sorokins, H.; Zaslavskis, A.; Kizane, G.; Dekhtyar, Y. Thermal behaviour of magnetron sputtered tungsten and tungsten-boride thin films. In Proceedings of the International Conference on Applied Electronics, Pilsen, Czech Republic, 6–7 September 2022. [Google Scholar] [CrossRef]
  25. Saravanan, S.; Dubey, R.S. Synthesis of SiO2 Nanoparticles by Sol-Gel Method and Their Optical and Structural Properties. Rom. J. Inf. Sci. Technol. 2020, 23, 105–112. [Google Scholar]
  26. Made, I.J.; Lukman, N.; Vanitha, M.; Panatarani, C. Characteristics of crystalline silica (SiO2) particles prepared by simple solution method using sodium silicate (Na2SiO3) precursor. J. Phys. Conf. Ser. 2018, 1080, 012006. [Google Scholar] [CrossRef]
  27. Nagai, N.; Hashimoto, H. FT-IR-ATR study of depth profile of SiO2 ultra-thin films. Appl. Surf. Sci. 2001, 172, 307–311. [Google Scholar] [CrossRef]
  28. Jenson Joseph, E.; Akshayraj, V.R.; Panneerselvam, K. Surface modification of tungsten fillers for application in polymer matrix composites. Mater. Today Proc. 2021, 45, 7930–7933. [Google Scholar] [CrossRef]
  29. Nayak, B.B.; Dash, T.; Pradhan, S. Spectroscopic evaluation of tungsten carbide-titanium carbide composite prepared by arc plasma melting. J. Electron Spectrosc. Relat. Phenom. 2020, 245, 146993. [Google Scholar] [CrossRef]
  30. Sahoo, K.R.; Kalyan Kamal, S.S.; Premkumar, M.; Jagadeesh Kumar, T.; Sreedhar, B.; Singh, A.K.; Srivastava, S.K.; Chandra Sekhar, K. Synthesis of tungsten nanoparticles by solvothermal decomposition of tungsten hexacarbonyl. Int. J. Refract. Met. Hard Mater. 2009, 27, 784–791. [Google Scholar] [CrossRef]
  31. Lavanya, N.; Anithaa, A.C.; Sekar, C.; Asokan, K.; Bonavita, A.; Donato, N.; Leonardi, S.G.; Neri, G. Effect of gamma irradiation on structural, electrical and gas sensing properties of tungsten oxide nanoparticles. J. Alloys Compd. 2017, 693, 366–372. [Google Scholar] [CrossRef]
  32. Goldmane, A.E.; Avotina, L.; Vanags, E.; Trimdale-Deksne, A.; Zaslavskis, A.; Kizane, G.; Dekhtyar, Y. Thermal Oxidation of Tungsten Coatings for Detection by Infrared Spectrometry Method. J. Phys. Conf. Ser. 2023, 2423, 012022. [Google Scholar] [CrossRef]
  33. Lee, J. Analysis of the effects of interface reflections on FTIR transmission spectra of thin layer samples. Vib. Spectrosc. 2022, 123, 103456. [Google Scholar] [CrossRef]
  34. Mastalerz, M.; Bustin, R.M. Application of reflectance micro-Fourier transform infrared spectrometry in studying coal macerals: Comparison with other Fourier transform infrared techniques. Fuel 1995, 74, 536–542. [Google Scholar] [CrossRef]
  35. Oh, T. Comparison Between SiOC Thin Film by Plasma Enhance Chemical Vapor Deposition and SiO2 Thin Film by Fourier Transform Infrared Spectroscopy. J. Korean Phys. Soc. 2010, 56, 1150–1155. [Google Scholar] [CrossRef]
  36. Dzhurkov, V.; Nesheva, D.; Scepanovic, M.; Nedev, N.; Kaschieva, S.; Dmitriev, S.N.; Popovic, Z. Spectroscopic studies of SiOx films irradiated with high energy electrons. J. Phys. Conf. Ser. 2014, 558, 012045. [Google Scholar] [CrossRef]
  37. Issa, A.; Kheder, K. FTIR analysis of SiO2 nanofilm. NeuroQuantology 2022, 20, 1963–1969. [Google Scholar]
  38. Munir, T.; Mahmood, A.; Peter, N.; Rafaqat, N.; Imran, M.; Elhosiny Ali, H. Structural, morphological and optical properties at various concentration of Ag doped SiO2-NPs via sol gel method for antibacterial and anticancer activities. Surf. Interfaces 2023, 38, 102759. [Google Scholar] [CrossRef]
  39. Marcu, A.; Avotina, L.; Porosnicu, C.; Marin, A.; Grigorescu, C.E.A.; Ursescu, D.; Lungu, M.; Demitri, N.; Lungu, C.P. Spatially resolved nanostructural transformation in graphite under femtosecond laser irradiation. Appl. Surf. Sci. 2015, 355, 477–483. [Google Scholar] [CrossRef]

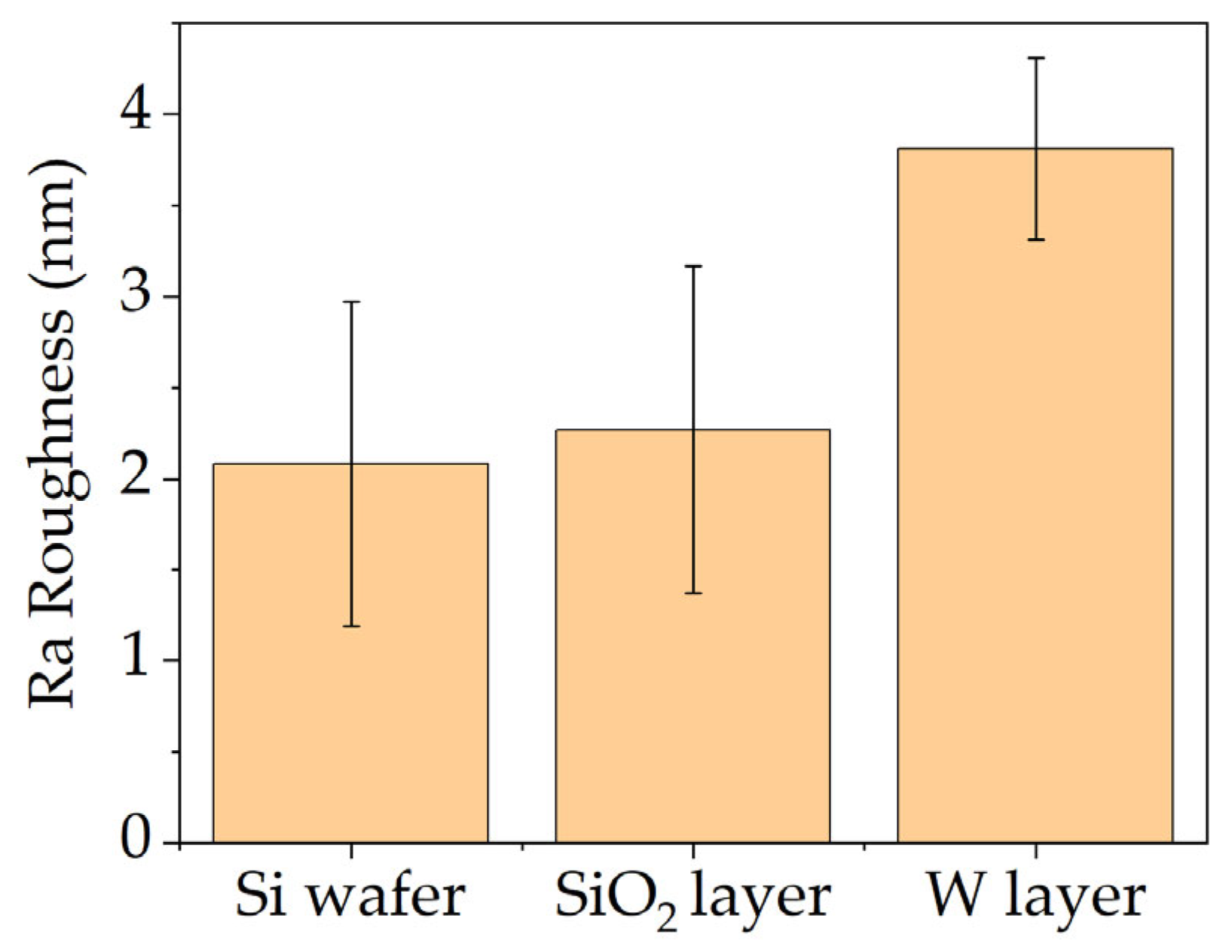

Figure 1. Average surface roughness (Ra) of the Si wafer, SiO2 layer, and W layer obtained from AFM images of 10 × 10 µm size.
Figure 1. Average surface roughness (Ra) of the Si wafer, SiO2 layer, and W layer obtained from AFM images of 10 × 10 µm size.
Materials 17 00007 g001

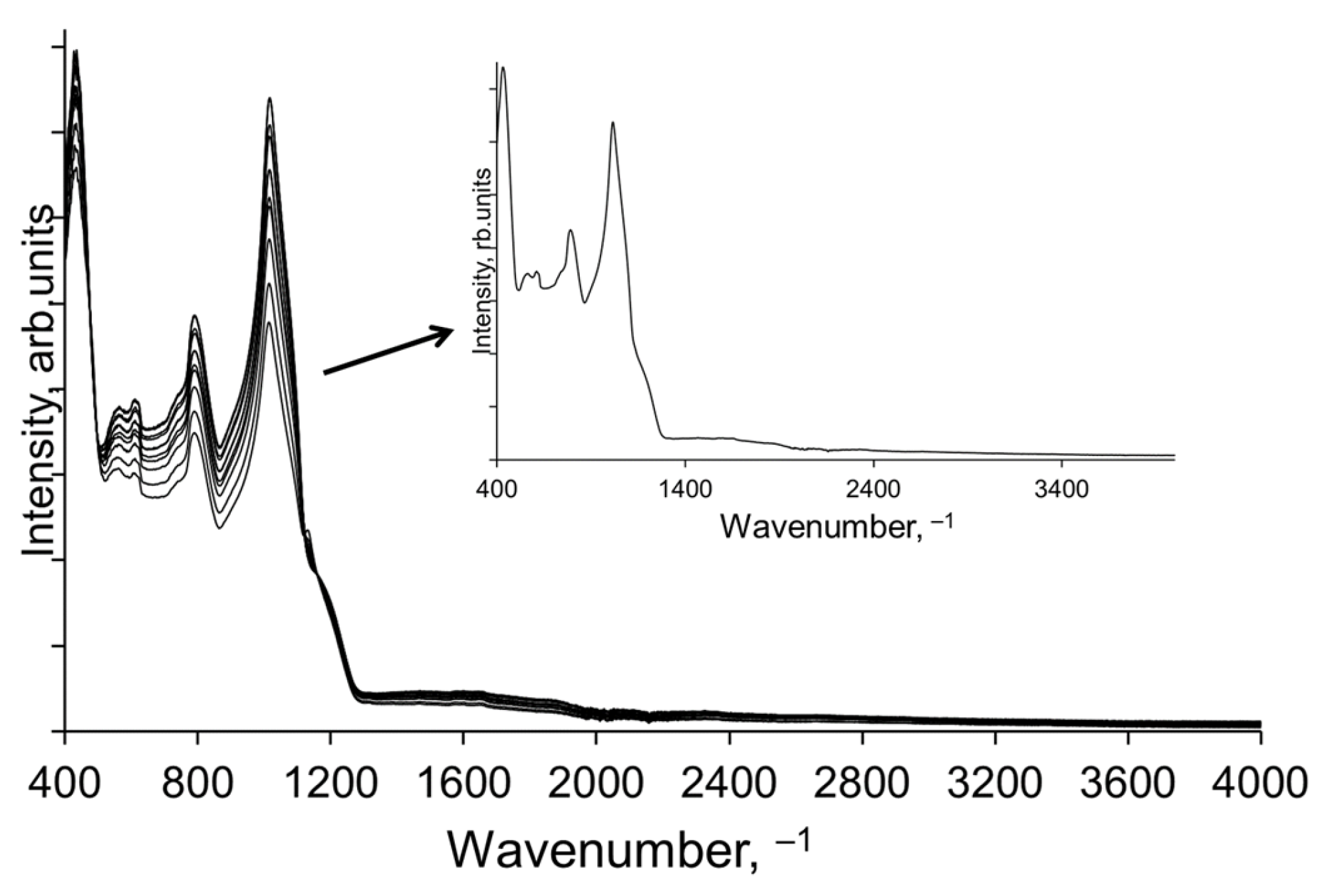

Figure 2. An example of FTIR spectra of Si-SiO2.
Figure 2. An example of FTIR spectra of Si-SiO2.
Materials 17 00007 g002

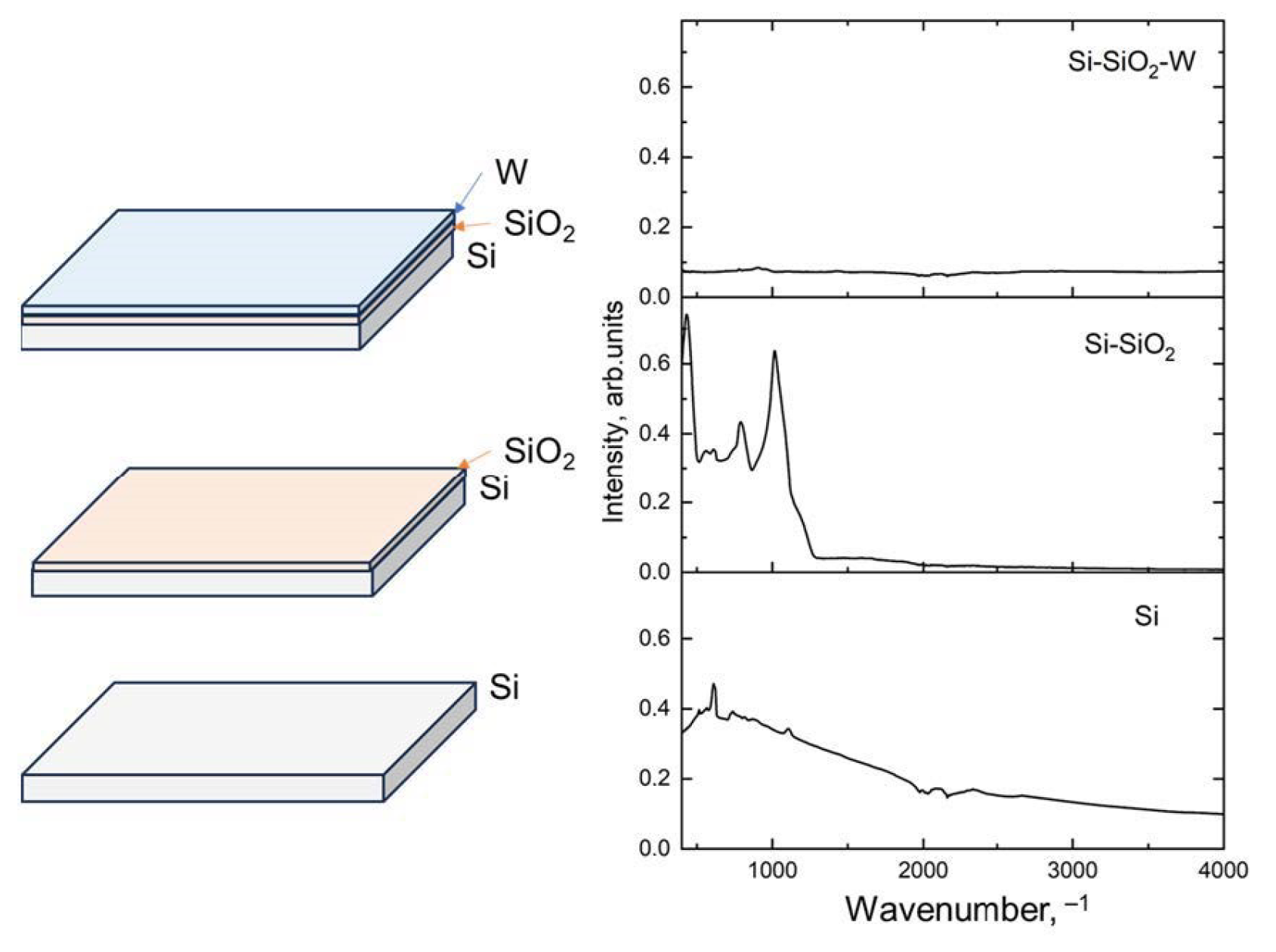

Figure 3. Schematic composition and corresponding FTIR spectra of the Si, Si-SiO2, and Si-SiO2-W structures.
Figure 3. Schematic composition and corresponding FTIR spectra of the Si, Si-SiO2, and Si-SiO2-W structures.
Materials 17 00007 g003

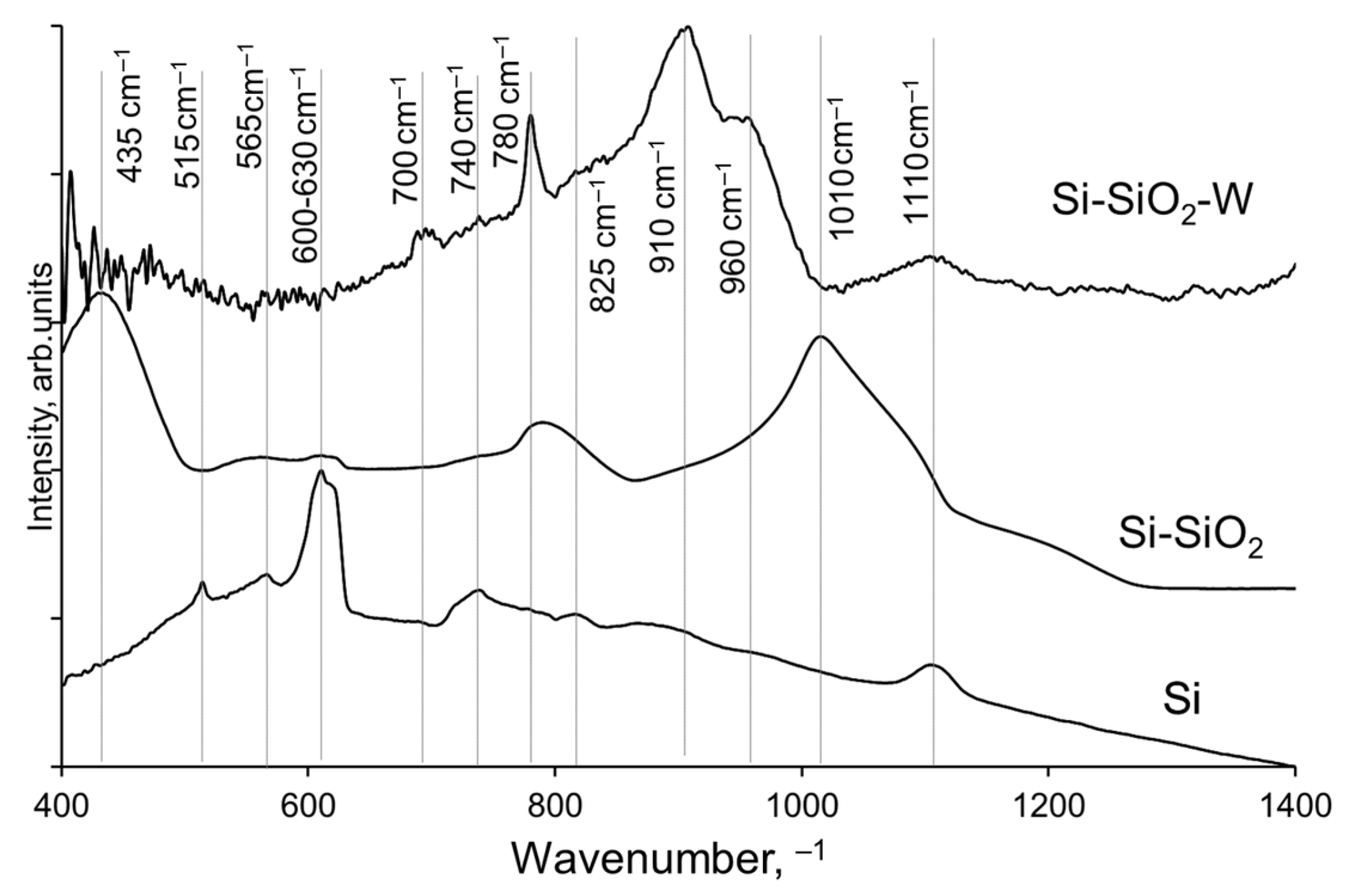

Figure 4. FTIR spectra of non-treated Si, Si-SiO2, and Si-SiO2-W structures.
Figure 4. FTIR spectra of non-treated Si, Si-SiO2, and Si-SiO2-W structures.
Materials 17 00007 g004

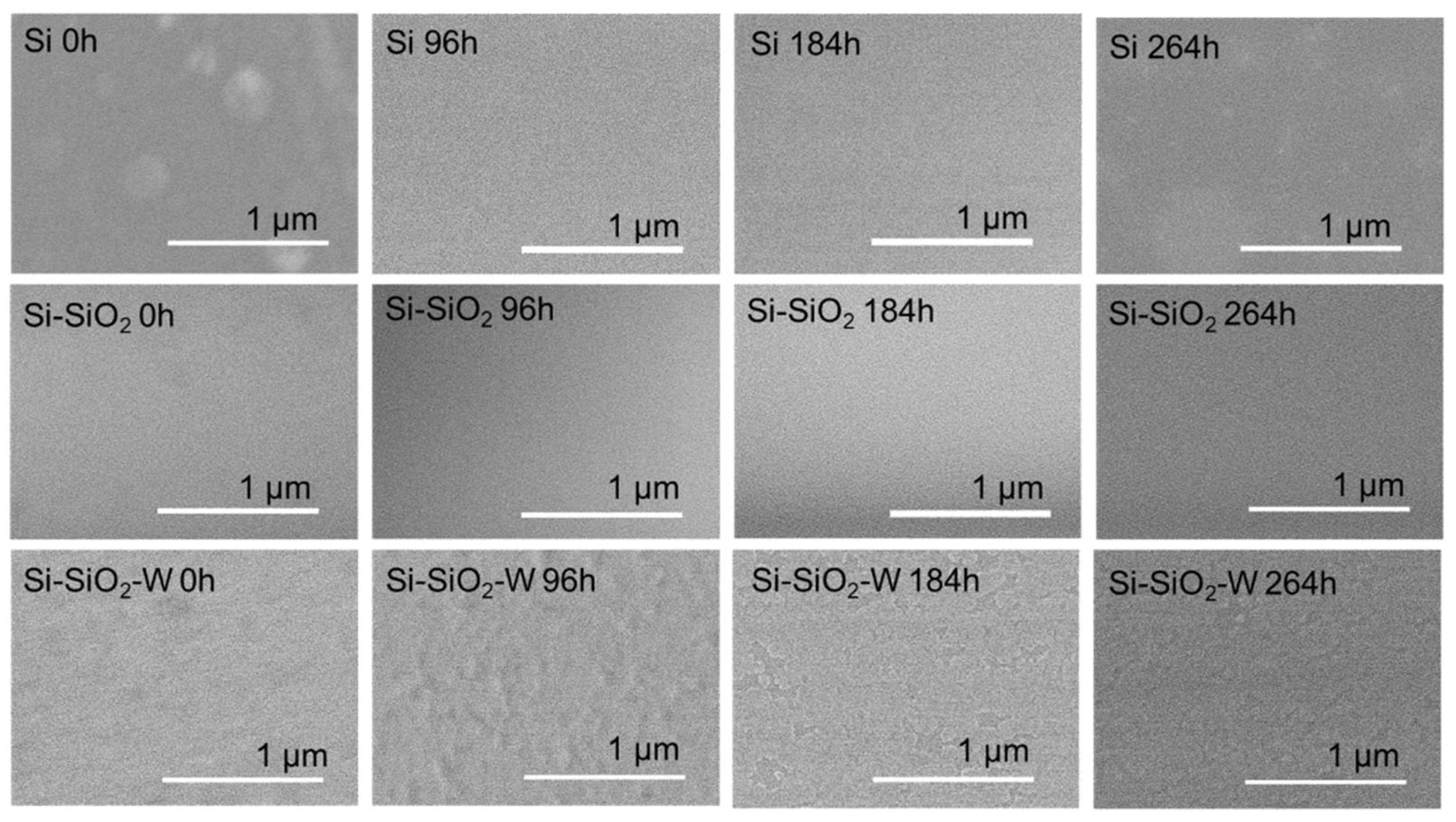

Figure 5. Surface morphology of non-treated and thermally treated Si, SiO2, and Si-SiO2-W structures.
Figure 5. Surface morphology of non-treated and thermally treated Si, SiO2, and Si-SiO2-W structures.
Materials 17 00007 g005

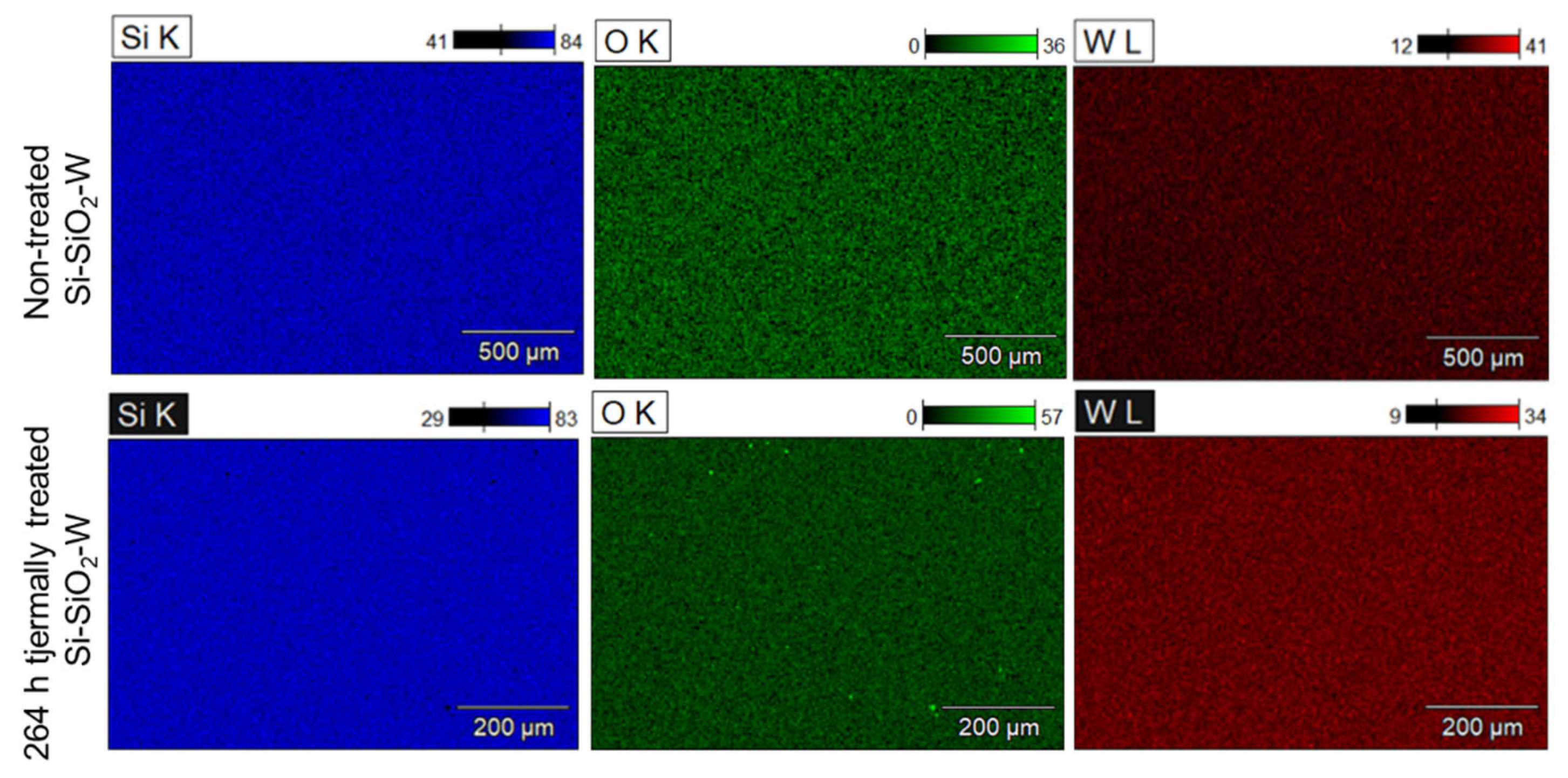

Figure 6. Element distribution in non-treated and thermally treated (264 h, at 150 °C) Si-SiO2-W structures.
Figure 6. Element distribution in non-treated and thermally treated (264 h, at 150 °C) Si-SiO2-W structures.
Materials 17 00007 g006
Figure 7. FTIR spectra of non-treated and thermally treated Si, Si-SiO2, and Si-SiO2-W structures.
Figure 7. FTIR spectra of non-treated and thermally treated Si, Si-SiO2, and Si-SiO2-W structures.
Materials 17 00007 g007

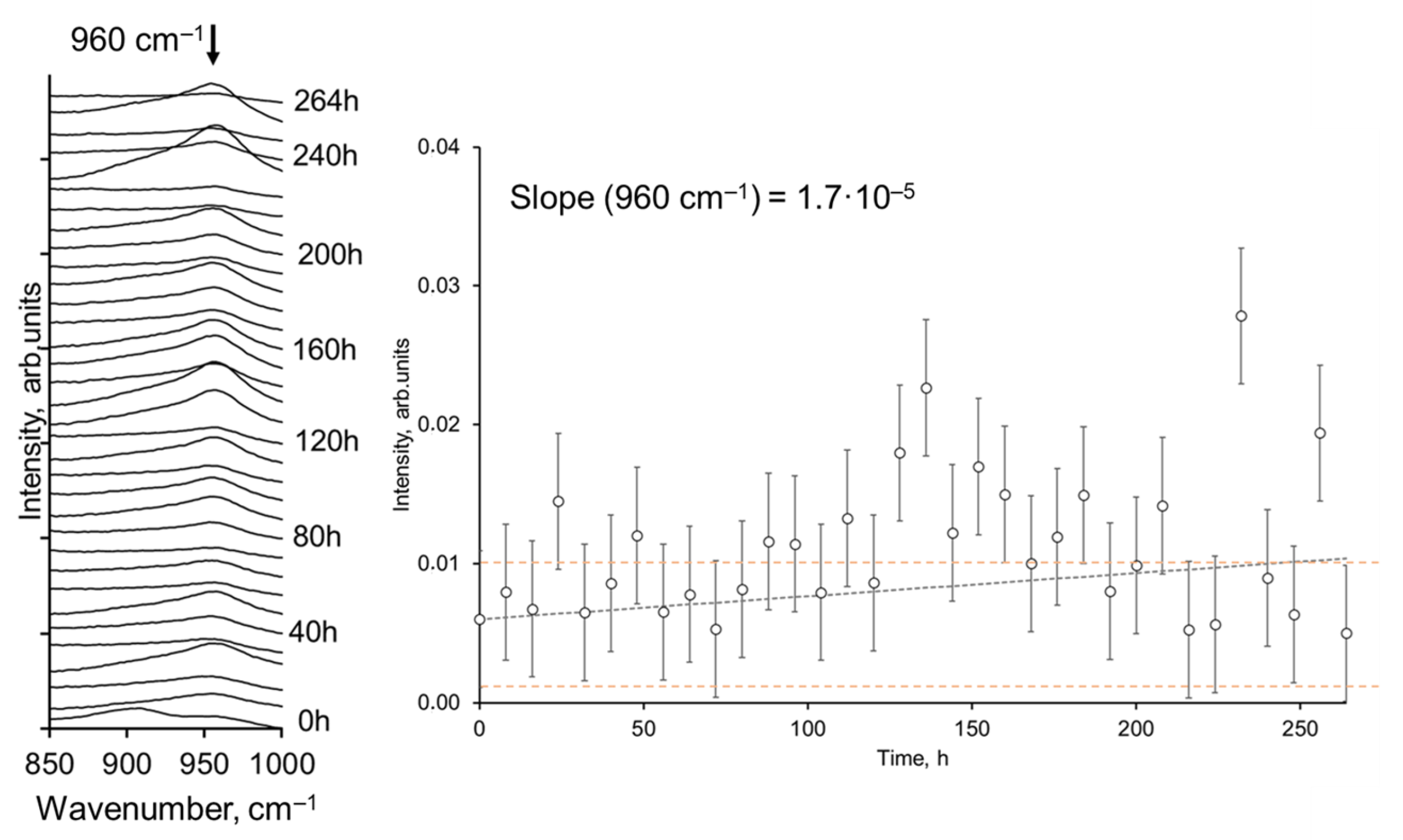

Figure 8. FTIR spectra of Si-SiO2-W within 850–1000 cm−1 and the intensities of the 960 cm−1 signal.
