Effects of an LPSO Phase Induced by Zn Addition on the High-Temperature Properties of Mg-9Gd-2Nd-(1.5Zn)-0.5Zr Alloy

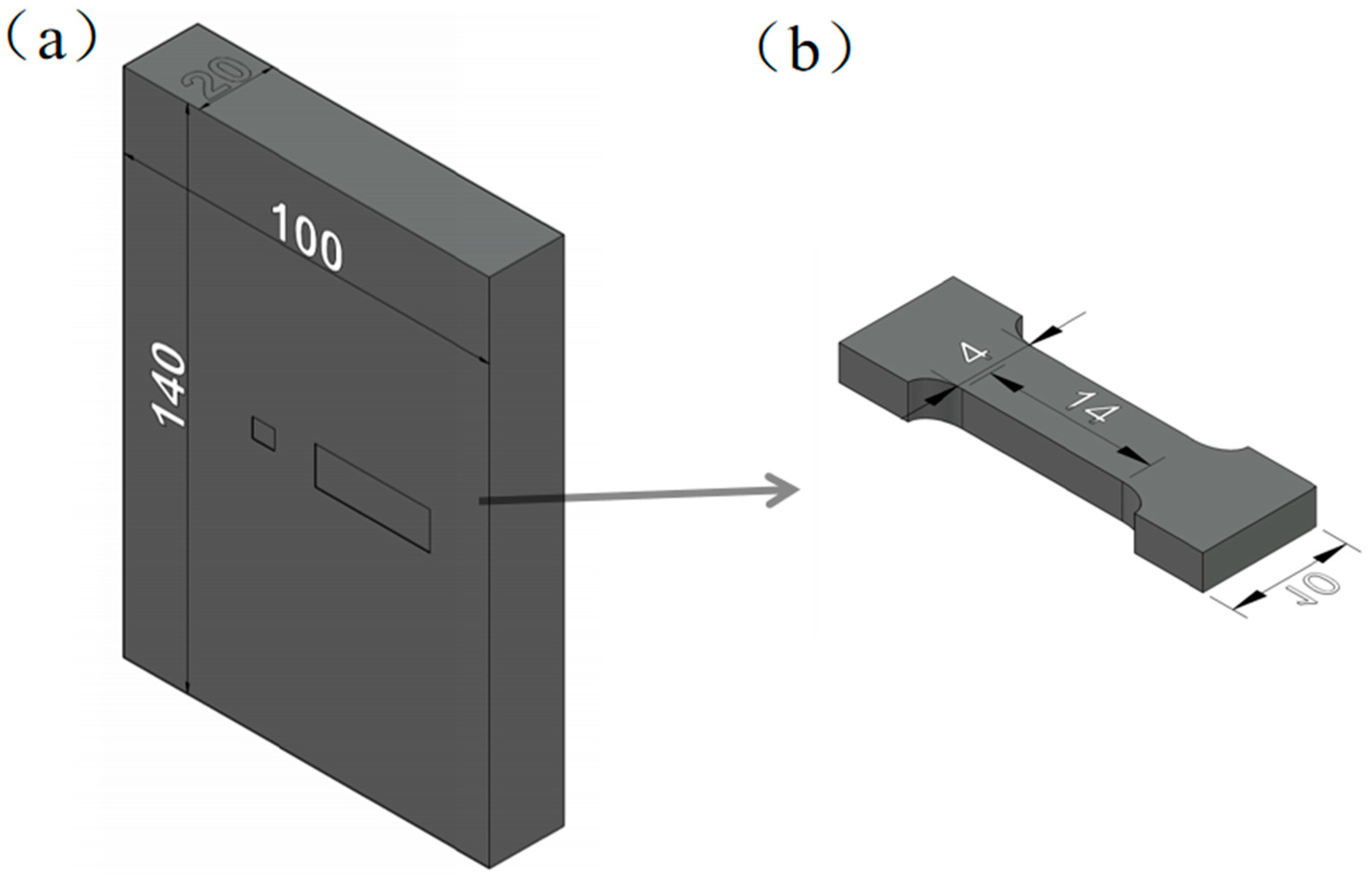

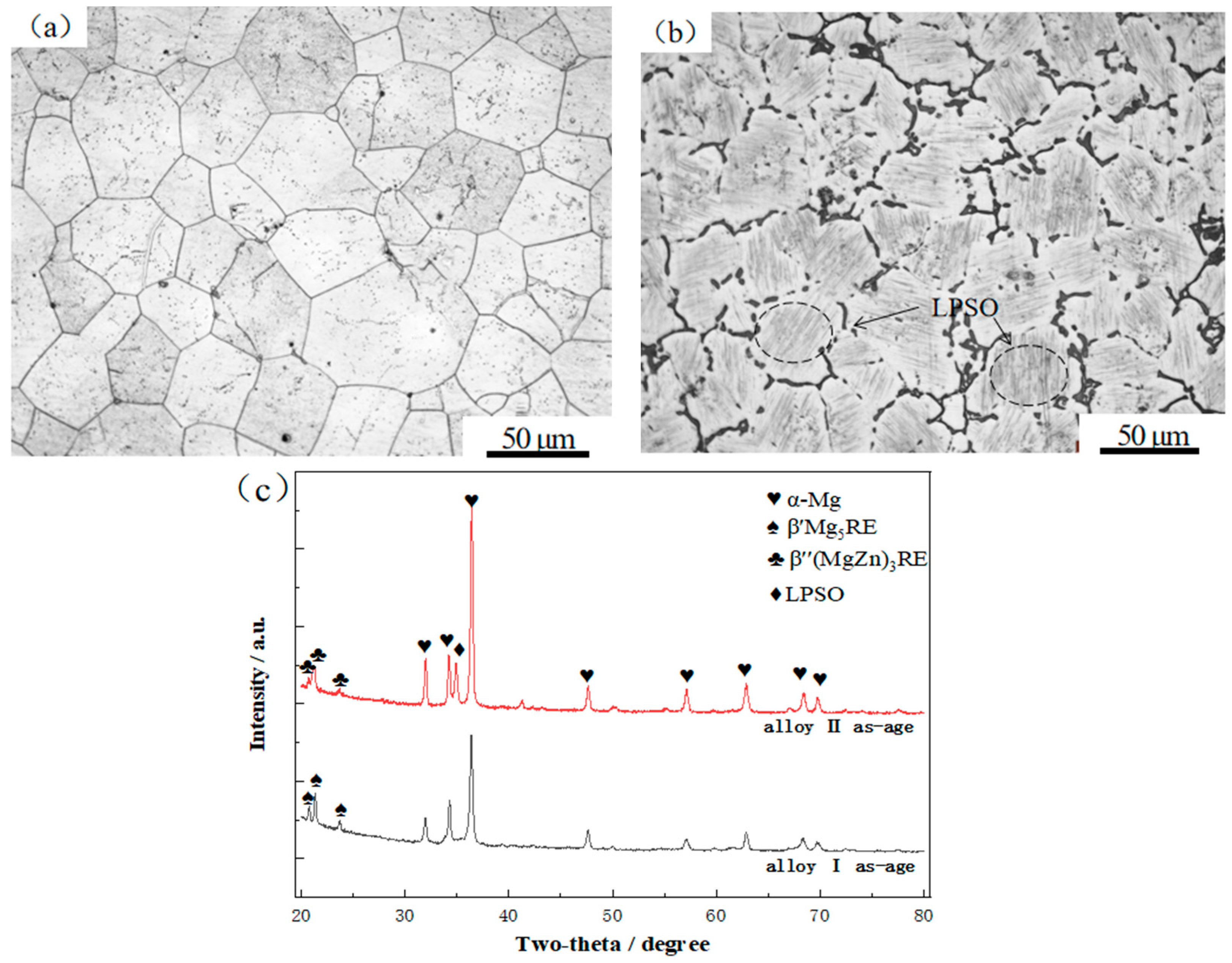

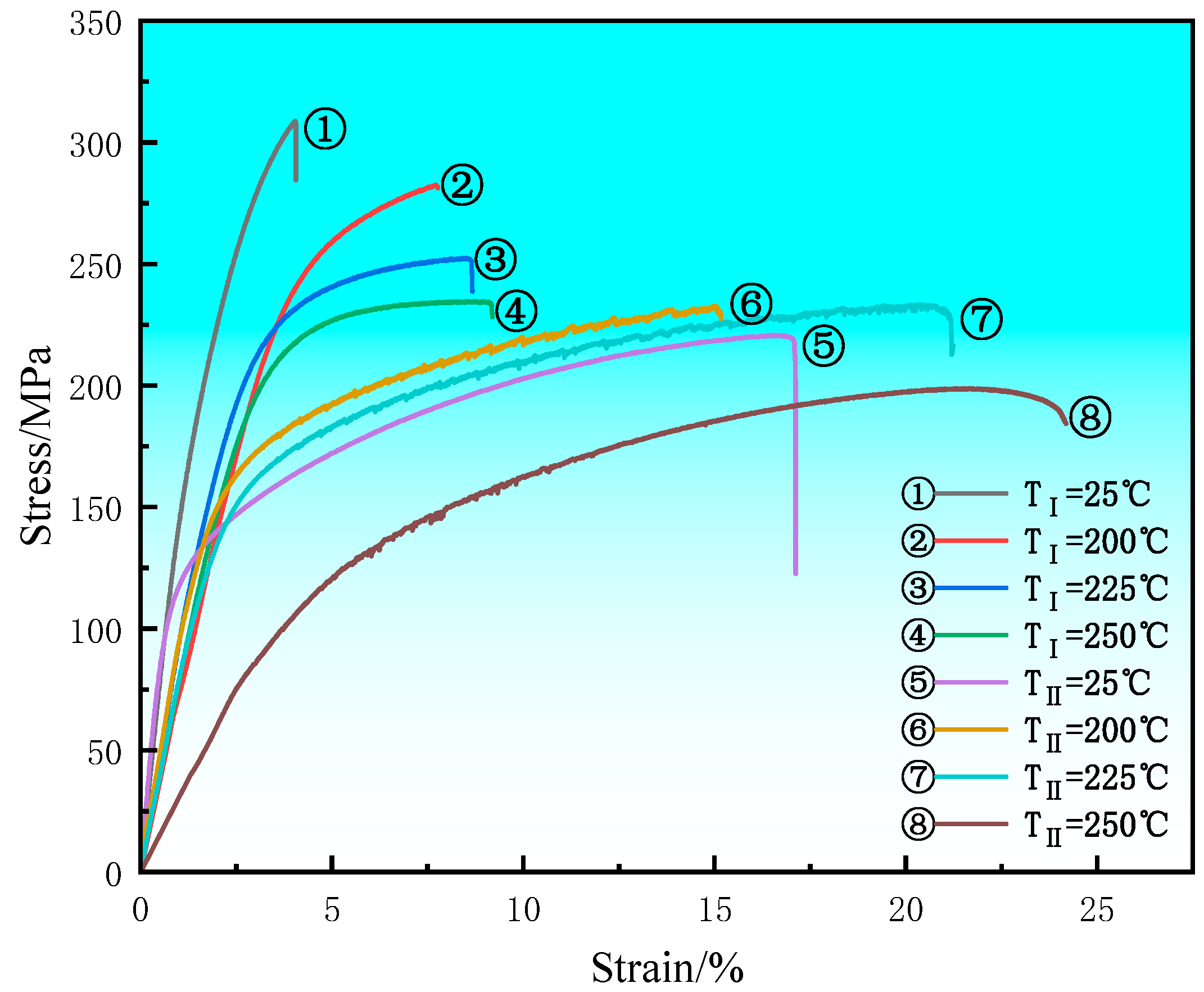

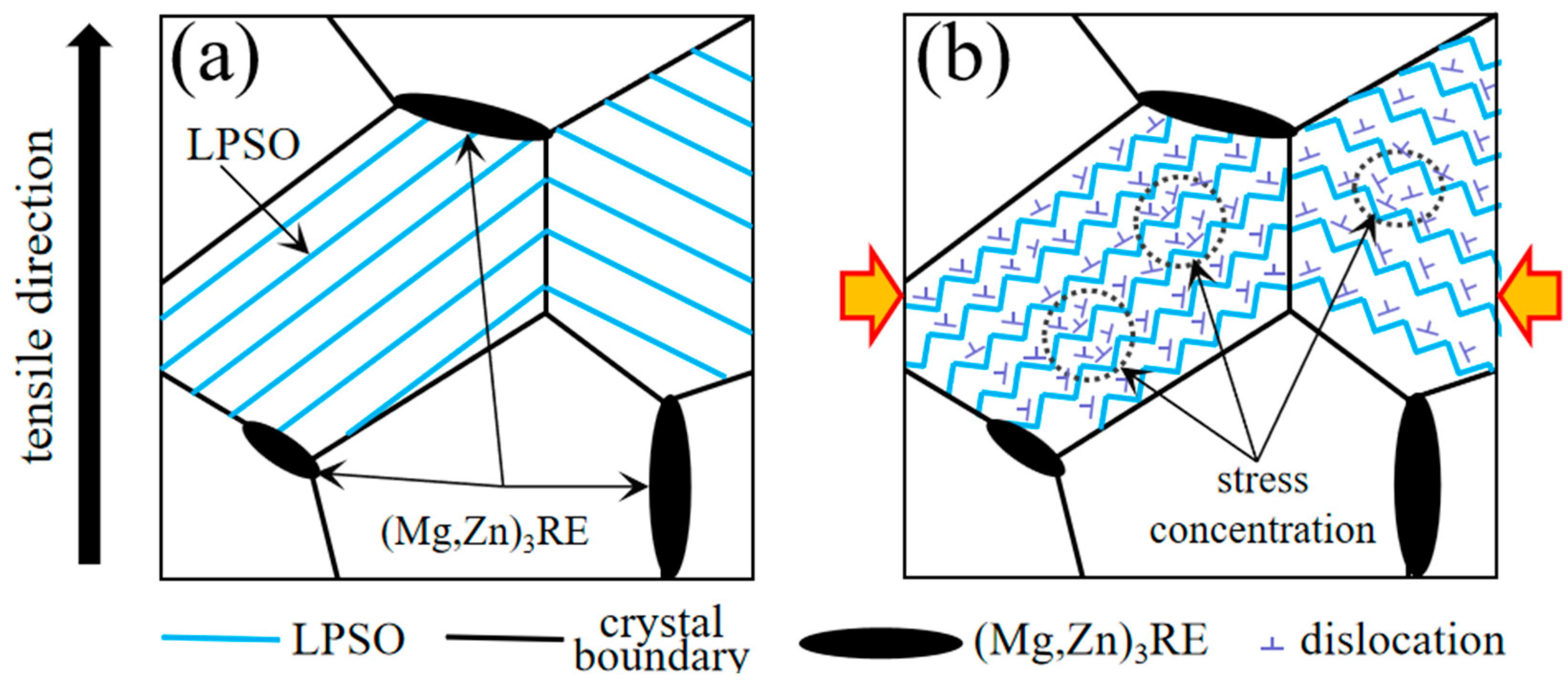

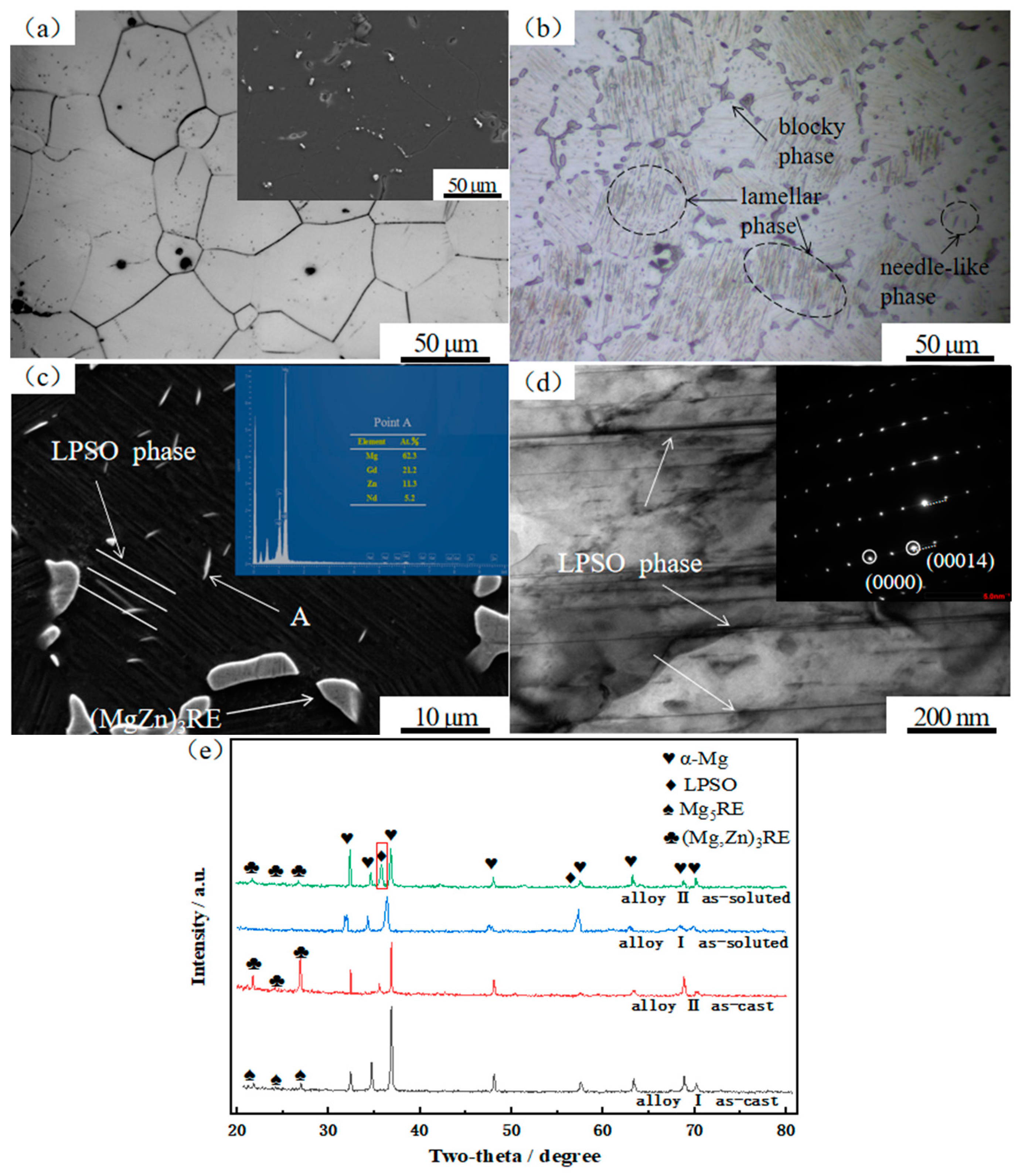

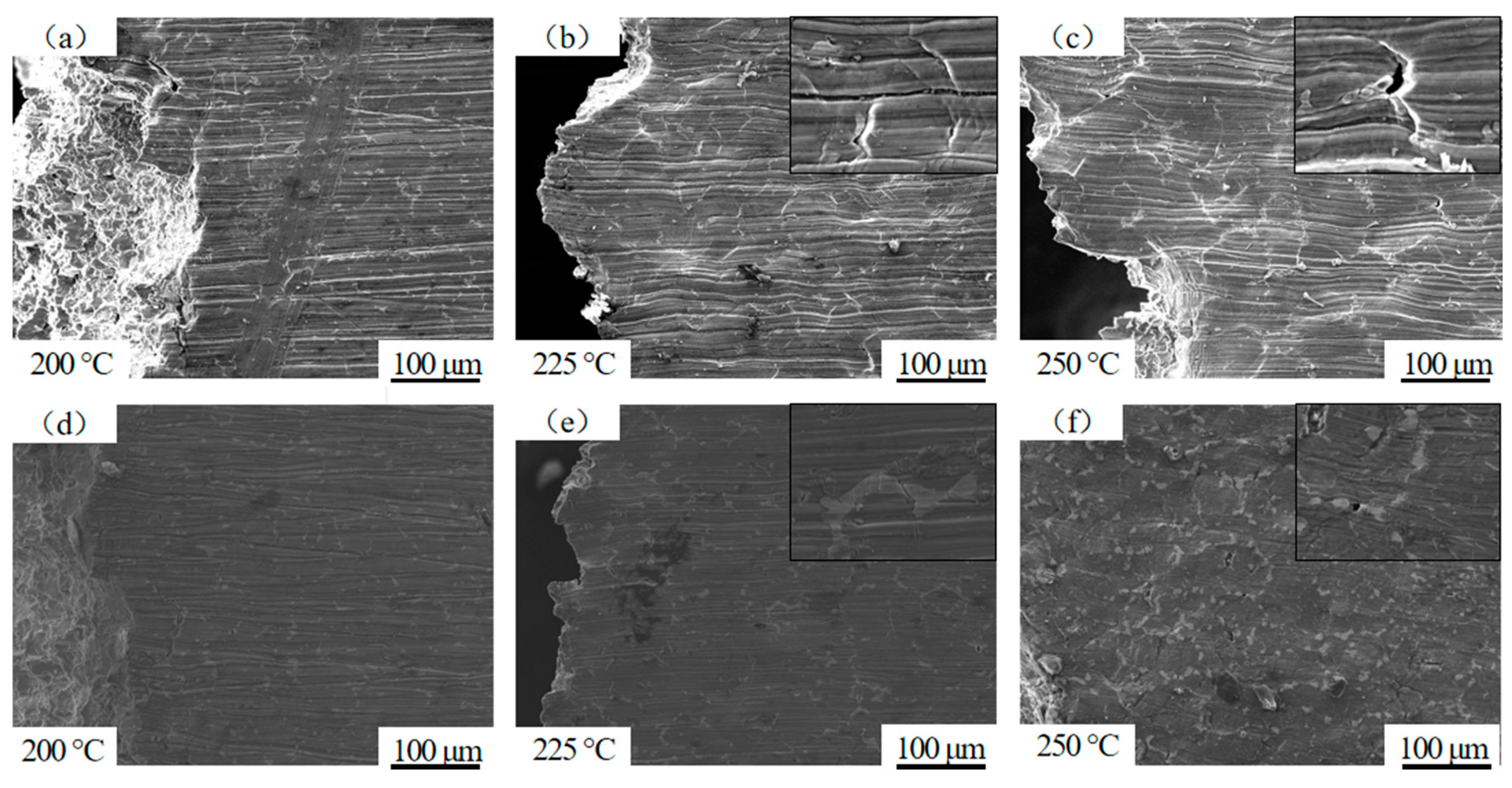

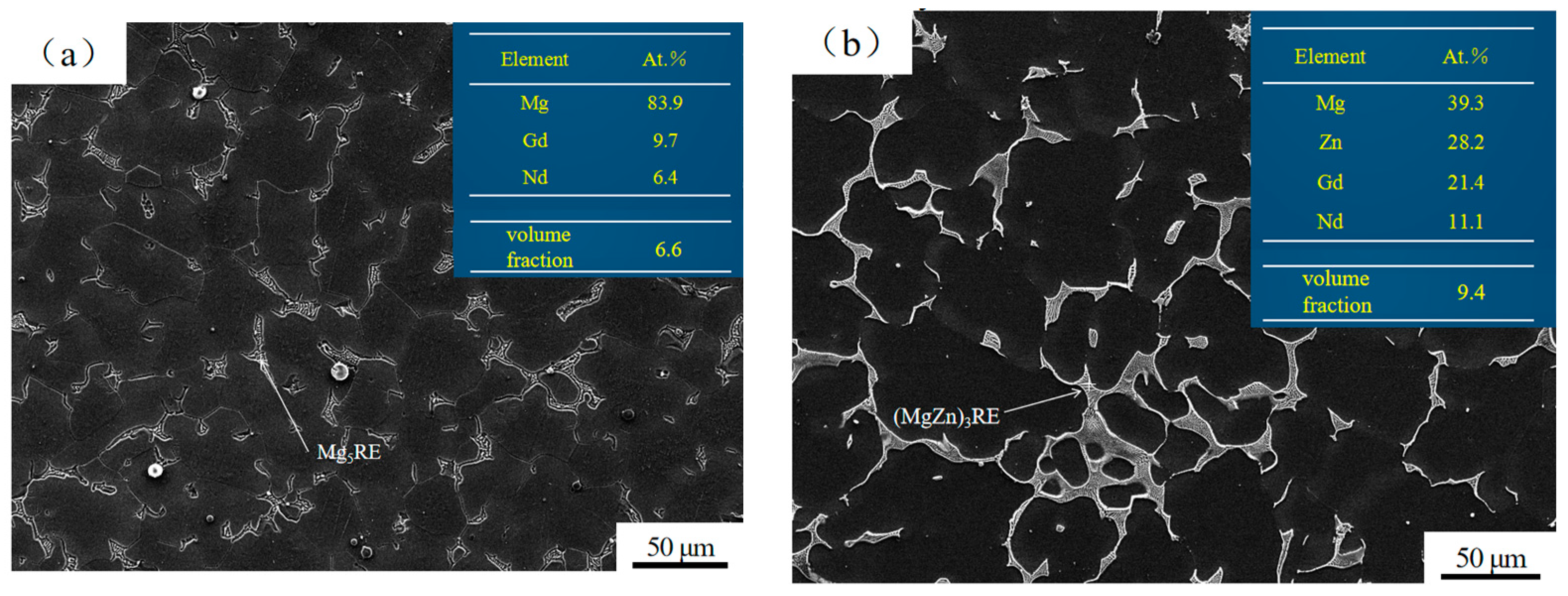

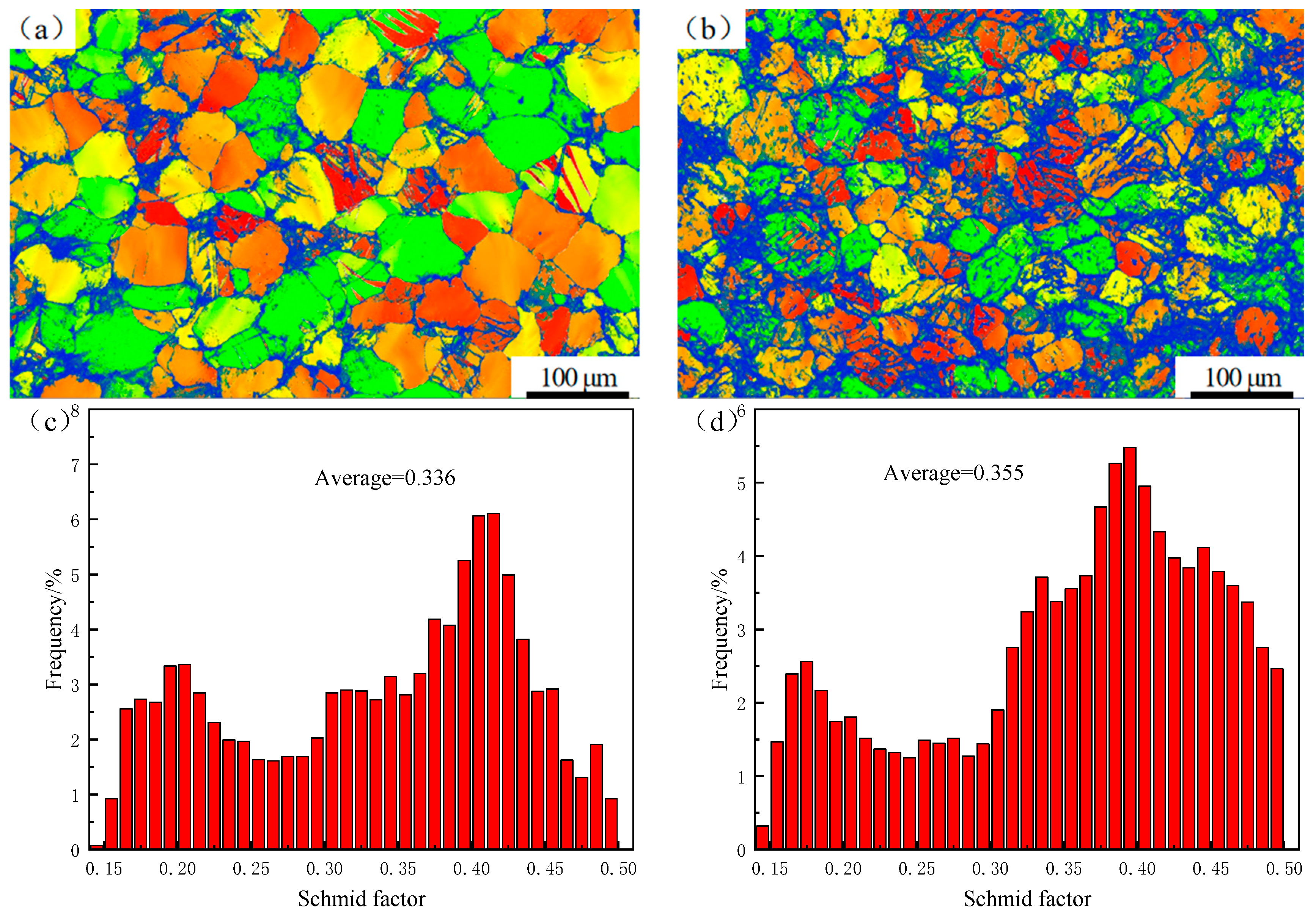

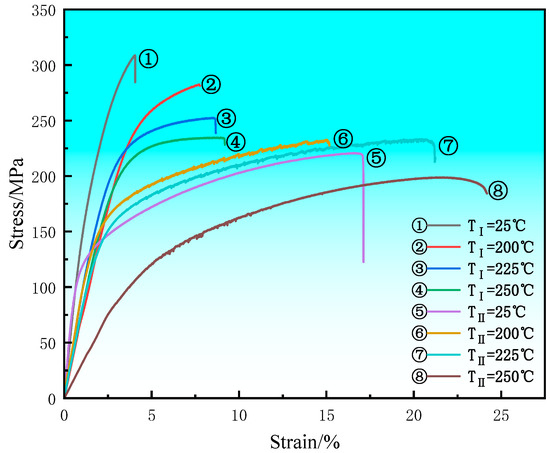

In this study, we prepared Mg-9Gd-2Nd-0.5Zr, referred to as alloy I, and Mg-9Gd-2Nd-1.5Zn–0.5Zr, referred to as alloy II. The effects of a long-period stacking ordered (LPSO) phase induced by Zn addition on the high-temperature mechanical properties and fracture morphology of alloy I and alloy II at different temperatures (25 °C, 200°C, 225 °C, and 250 °C) were studied using optical microscopy (OM), scanning electron microscopy (SEM), energy-dispersive spectroscopy (EDS), electron backscatter diffraction (EBSD), and transmission electron microscopy (TEM). The results indicate that Mg₅RE at the crystal boundary of the as-cast alloy I transformed into (MgZn)₃RE (as-cast alloy II) by the addition of Zn. After solid solution treatment, the secondary phase in alloy I completely disappeared, and there were still residual secondary phases in block-like and needle-like structures in alloy II, while layered LPSO phases precipitated in the matrix. During the high-temperature tensile test, the yield and tensile strength of alloy I decreased significantly with the increase in temperature, while the elongation increased. Compared to alloy I, the yield strength of alloy II with an LPSO phase showed an increasing trend at 25 °C~200 °C and then decreased when the temperature reached around 250 °C. The thermal stability was significantly enhanced, and the elongation was also higher than that of alloy I. As the temperature increased, the fracture surface of alloy I showed increased folding, bending of scratches, and crack enlargement. However, the fracture surface of alloy II remained largely unchanged, with only minor wrinkles and cracks appearing at temperatures reaching 250 °C.
