Heritable Epigenetic Modification of BpIAA9 Causes the Reversion Mutation of Leaf Shapes in Betula pendula ‘Dalecarlica’

by
Xingxing Zhang
†,
Chenrui Gu
†,
Jing Jiang
,
Guifeng Liu
and
Huiyu Li
*
State Key Laboratory of Tree Genetics and Breeding, Northeast Forestry University, No. 51, Hexing Road, Harbin 150040, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Forests 2024, 15(1), 95; https://doi.org/10.3390/f15010095
Submission received: 11 November 2023 / Revised: 27 December 2023 / Accepted: 28 December 2023 / Published: 3 January 2024
(This article belongs to the Section Genetics and Molecular Biology)
Browse Figures
Versions Notes

Abstract

:
The European white birch, scientifically known as Betula pendula, and its variant, B. pendula ‘Dalecarlica’, are characterized by a lobed leaf margin that enhances their aesthetic appeal. However, the lobed leaf trait can undergo random and spontaneous reversion to the typical ovoid or cordate shape during asexual reproduction. Investigating and elucidating the molecular mechanisms underlying this unpredictable reversion mutation is essential for comprehending the birch leaf development process. In this research, we employed an ovate−leaf mutant derived from a lobed–leaf birch clone during plant tissue culture. We adopted a multi-omics approach, including whole-genome resequencing, transcriptome sequencing, and methylation profiling, to analyze and compare genomic variations and gene expression modifications. The study revealed that the 24 variant genes affected by 1464 SNP/InDel sites in the genome of the ovate−leaf mutant are not associated with leaf development. While the overall methylation level in the mutant’s genome closely resembles that of the lobed–leaf birch, ten genes exhibit differential methylation accompanied by differential expression. Transcriptome sequencing demonstrated that the differentially downregulated genes in the mutant are significantly enriched in the GO:0009733 (response to auxin) and GO:0009734 (auxin-activated signaling) pathways. Validation through McrBC−PCR and qRT−PCR confirmed differential methylation and expression of BpIAA9 in the reversion mutant. The elevated methylation level in the BpIAA9 promoter leads to reduced expression, resulting in changes in the expression of auxin-responsive genes. This, in turn, leads to a transcriptional downregulation enrichment effect in auxin-related pathways in the reversion mutant, ultimately inhibiting the regulation of leaf veins by auxin during their development.

1. Introduction

Leaves are the primary organs responsible for photosynthesis and transpiration in plants [1,2]. Photosynthesis in leaves has a profound impact on a plant’s growth, development, ecological benefits, and timber production [3,4,5]. Unlike smooth-edged leaves, serrated or lobed leaves provide a larger surface area and greater spatial expansiveness, making them advantageous for light absorption. This offers a competitive edge in light acquisition [6,7]. Additionally, these leaves possess enhanced aesthetic value.
The European birch, scientifically known as Betula pendula, is one of the most widely distributed tree species within the Birch genus, with extensive growth across the northern frigid regions of Eurasia. It holds significant practical value and developmental potential. This species exhibits strong cold resistance, has a deep-rooted system, thrives in poor soil conditions, and features an elegant stem structure, pristine bark, and gently cascading branches. As a result, it finds extensive utility in urban landscaping. The lobed–leaf birch, also known as B. pendula ‘Dalecarlica’, represents a variant of the European birch. Its leaves exhibit shallow serrations with elongated tips, prominent veins on the leaf undersides, significantly enlarged cross-sectional areas of internal mechanical transport tissues, and a more pronounced presence of epidermal trichomes on the leaf undersides [8,9].
Birch is a monoecious species, but in the case of lobed–leaf birch, the male flowers are sterile. Consequently, it can only serve as the female parent for hybridization with European birch, leading to trait segregation in the offspring, with the majority displaying non-lobed leaves [10]. To ensure a higher proportion of plants in the next generation with consistent hereditary traits, plant tissue culture proves to be one of the most effective propagation methods. However, during asexual reproduction, lobed–leaf birch may undergo a random reversion mutation, resulting in the disappearance of serrations and leaves reverting to their natural ovate or cordate shape. This phenomenon of reversion mutation can be reversed through treatment with 5-azacytidine (5-AzC), indicating a link between leaf morphological changes in lobed–leaf birch and epigenetics, particularly DNA methylation [11].
DNA methylation in eukaryotes can be classified into symmetric CG, CHG, and asymmetric CHH (with H representing A, T, or C) types. CHH methylation is a unique feature of plants and is established and maintained through the RNA-directed DNA methylation (RdDM) pathway [12]. These modifications play a controlled role in regulating the expression of neighboring genes [13,14]. Consequently, without altering the DNA sequence, they have a profound influence on leaf development and morphogenesis [15,16,17,18].
The morphological development of plant leaf primordia and young leaves is intricately regulated by the concentration of auxin, specifically Indole-3-Acetic Acid (IAA) [19]. Understanding leaf morphogenesis is critical for comprehending the formation and development mechanisms of nearly all lateral organs in plants, as these organs’ development is governed by the concentration gradients of auxin [20,21,22]. The Auxin/Indole-3-Acetic Acid (Aux/IAA) gene family encodes short-lived nuclear proteins. In model organisms, these proteins possess specific structural domains that interact with Auxin Response Factors (ARF) and control the transcription of genes activated by ARFs, thus facilitating the transmission of auxin signals [23].
In previous studies, it was revealed that the BpIAA10 gene is involved in the development of birch leaves, the formation of dormant buds, the initiation and development of roots and stomata, and high growth. The specific auxin signaling pathways involved in BpIAA10 transcription factors were summarized, confirming that the birch AUX/IAA family proteins represented by BpIAA10 perform similar auxin signaling functions [24]. However, no discernible impact of AUX/IAA on the serration of birch leaves has been observed.
This research was centered on an examination of two birch clones: one with lobed leaves and another without serrations, which were derived from the former during plant tissue culture. Employing a range of multi-omics techniques, including whole-genome resequencing, transcriptome sequencing, and methylation profiling, a comprehensive comparative analysis was carried out to elucidate the genomic variations and gene expression modifications between these two clones. The primary objective of this study was to unravel the underlying mechanism responsible for the formation of leaf serrations and validate the pivotal differential genes involved in this process. The investigation revealed that alterations in DNA methylation levels and the expression of a gene belonging to the AUX/IAA family were the primary drivers of this mutation. This discovery offers valuable insights for refining the birch auxin signal transduction network and can serve as an invaluable resource and theoretical foundation for future birch breeding programs.

2. Materials and Methods

The lobed–leaf birch clone L72 (Figure 1) was obtained through tissue culture from a selected bud of a high-quality birch tree at Northeast Forestry University’s Birch Strengthening Seed Orchard. During the tissue culture process, adventitious shoots bearing ovate leaves were differentiated from callus tissue and designated as Y72 (Figure 1). All plantlets from the test tubes were subsequently transplanted into nursery pots (with a diameter of 18 cm and a depth of 20 cm) using a soil mixture composed of peat soil, vermiculite, and perlite in a 3:1:1 ratio. They were then cultivated in the Birch Strengthening Seed Orchard, located at longitude 126.622615 E and latitude 45.716848 N.

2.1. Tissue Culture of Lobed–Leaf Birch

The process of tissue culture for lobed–leaf birch involved the following steps: Collecting axillary buds from selected trees, washing them in distilled water for 12–24 h, immersing them in 75% ethanol for 1 min within a clean bench, rinsing with sterile water three times, disinfecting with 30% hydrogen peroxide for 10 min, and rinsing again with sterile water five times. After removing the bud scales, the white meristematic tissue was inoculated into differentiation medium (WPM + 0.8 mg/L 6-BA + 0.02 mg/L NAA + 0.5 mg/L GA3 + 20 g/L sucrose + 5.65 g/L agar + 164 mg/L calcium nitrate). The wounded tissue developed into callus tissue and subsequently produced adventitious shoots. These shoots were transferred to the subculture medium (WPM + 0.8 mg/L 6-BA + 20 g/L sucrose + 5.65 g/L agar + 164 mg/L calcium nitrate), with fresh medium replaced every 25 days. Once the adventitious shoots grew into rootless plantlets, segments approximately 2 cm in height were cut and cultured on rooting medium (WPM + 0.4 mg/L IBA + 20 g/L sucrose + 5.65 g/L agar + 164 mg/L calcium nitrate) for 25–30 days until roots developed. Healthy, aseptic seedlings with well-developed roots, reaching a height of around 7 cm, were transplanted into nutrient pots containing a substrate mixture of peat soil, vermiculite, and perlite at a ratio of 3:1:1. These pots measured 10 × 10 × 10 cm and were placed in a greenhouse. Throughout the entire process, the cultivation conditions included a light intensity of 6000–8000 lux, a light/dark cycle of 16 h/8 h, an average temperature of 25 °C, and a relative humidity of 60%–70%.

2.2. Whole Genome Resequencing and Mutation Detection

On 2 July 2022, the fourth leaf of two-month-old lobed–leaf birch L72 and its ovate-leaf mutant Y72 (Figure 1C, right) underwent whole-genome resequencing. DNA extraction, library construction, and sequencing were conducted by Shanghai LingEn Biotechnology Co., Ltd., Shanghai, China, employing the Illumina NovaSeq 6000 platform. Following data filtering with fastp, clean reads were aligned to the reference genome using bwa [25], and the resulting files were sorted using samtools. Variant detection, encompassing SNPs and InDels, was executed using bcftools [26]. AnnoSNP was employed for the analysis of the impact of differential SNPs on coding genes, and the variant genes were annotated using eggnog-mapper.

2.3. Transcriptome (RNA-Seq) Sequencing and Analysis

On 2 July 2022, the fourth leaf of two-month-old lobed–leaf birch L72 and its ovate-leaf mutant Y72 (Figure 1B, right) underwent transcriptome sequencing. RNA extraction, library preparation, sequencing, data quality control, and filtering were carried out by Shanghai LingEn Biotechnology Co., Ltd., using the Illumina Novaseq 6000 platform. Each clone was triplicated, and each replicate involved 6GB of sequencing data. The sequencing data were aligned to the birch reference genome (CoGe: 35079) using HISAT2, and gene expression was quantified using HTSeq. Differential gene analysis was performed using DESeq2.

2.4. Whole-Genome Bisulfite Sequencing

Whole-genome bisulfite sequencing (WGBS) was conducted on the fourth leaves of two-month-old Betula pendula L72 and its ovate-leaf mutant Y72 on 2 July 2022 (Figure 1C, right). DNA extraction, bisulfite treatment, library construction, and sequencing were carried out by Shanghai Ling En Biotechnology Co., Ltd., with a sequencing depth of 10× on the Illumina Novaseq 6000 platform. The sequencing data underwent quality control, filtering, and adapter trimming using fastp. The clean data were aligned to a reference genome using bsmap for methylation analysis, which included the identification of differentially methylated regions (DMRs) with a differential rate > 0.33 and Fisher’s exact test p-value < 0.01 as the threshold. The results were visualized using the Integrative Genomics Viewer.

2.5. qRT-PCR

Buds, young leaves, and mature leaves were harvested from seedlings in June 2023. Total RNA was extracted using a plant RNA Extraction Kit (BioTeke Company, Beijing, China) and reverse-transcribed to cDNA using a PrimeScript RT reagent kit with a gDNA Eraser (Takara, Shiga, Japan). The reverse-transcribed cDNA at 1:10 served as a template. The SYBR Green PCR kit (Toyobo Co., Ltd., Tokyo, Japan) was used for qRT-PCR amplification, with BpACT, an actin gene of birch, as the internal reference gene [27,28].
The relative expression of each gene was calculated using the formula: RE = 2−ΔΔCt, where Ct is the cycle threshold, representing the number of cycles required for the fluorescent signal in the reaction tube to reach the threshold, ΔCt = the Ct value of the target gene—the average Ct value of the internal reference gene, and ΔΔCt = ΔCt (sample 1)—ΔCt (sample 2), and the gene expression in the ovate leaf was used as a control. The primers are presented in Supplementary Table S2.

2.6. McrBC-PCR

On 8 May 2023, leaf samples were collected and promptly preserved in liquid nitrogen. Total DNA extraction was carried out using a high-efficiency plant genomic DNA extraction kit (Trelief™ Hi-Pure Plant Genomic DNA Kit, Qiagen Biotech, Hilden, Germany). The digested DNA was prepared by subjecting the DNA samples to McrBC digestion, utilizing the following reaction mixture for the enzyme-digested group: NEBuffer2 1 μL, 2 mg/mL rAlbumin 0.1 μL, 10 mM GTP 0.1 μL, 40 ng/μL DNA 5 μL, McrBC 0.2 μL, and ultrapure water 3.6 μL. In the control group, all reagents necessary for the enzyme digestion reaction except McrBC were added to the DNA, and glycerol was used to reach the final volume (NEBuffer2 1 μL, 2 mg/mL rAlbumin 0.1 μL, 10 mM GTP 0.1 μL, 40 ng/μL DNA 5 μL, glycerol 0.2 μL, ultrapure water 3.6 μL). All reactions were conducted at 37 °C for 12 h. The digested DNA from both the enzyme-digested group and the control group served as templates for PCR amplification, utilizing the GoldenStarT6 DNA Polymerase Mix Ver.2 (TSE102, Qiagen, Beijing, China). The amplification products were visualized through GelRed staining and assessed by electrophoresis on a 2.5% agarose gel (120 V, 400 mA, 30 min). DNA bands were observed under ultraviolet imaging. The primers are presented in Supplementary Table S2.

3. Results

3.1. Detection of Ovate Leaf Reversion Mutants

The results of the whole-genome resequencing analysis revealed that the lobed–leaf birch and ovate−leaf reversion mutants yielded 184.348244 million (32×) and 222.066586 million (39×) clean reads, respectively, both achieving a Q30 ratio exceeding 95%. A total of 6,625,724 SNP/InDel variations were identified. Fisher’s test was conducted based on SNP/InDel sequencing depth for different genotypes, retaining 1464 variant sites as differential SNP/InDel with p < 0.05. These differential SNPs were annotated using AnnoSNP, resulting in the identification of 24 variant genes. However, gene annotation revealed that none of these genes were associated with leaf morphogenesis (see Supplementary Table S1).

3.2. Enrichment of Differentially Expressed Genes in Reversion Mutants in Auxin Response and Auxin-Activated Signaling Pathways

RNA-Seq sequencing was performed separately on the leaves of the lobed-leaf birch L72 and the reversion mutant Y72, with each having three biological replicates. To ensure data reproducibility (see Supplementary Figure S1), one set of data (Y72-3) was excluded. The remaining five sets of sequencing data totaled 51.82 gigabases (Gb), all exhibiting Q30 ratios exceeding 96% and genome alignment rates exceeding 80%. DESeq2 was used to analyze differential gene expression, employing a threshold of p < 0.05 and FC > 2. This analysis identified a total of 1009 differentially expressed genes, consisting of 392 upregulated genes and 617 downregulated genes (see Figure 2A). Enrichment analysis was performed separately for the upregulated and downregulated differentially expressed genes. Notably, only the downregulated gene set revealed potential pathways related to leaf margin morphology, particularly GO:0009733 (auxin response) and GO:0009734 (auxin-activated signaling) in the GO biological process enrichment analysis.

3.3. High Methylation in the Promoter Region of BpIAA9 in Mutant Plants with Downregulated Expression

Given the clonal reproduction of the ovate−leaf clone and the absence of genes related to leaf shape development, we conducted a comprehensive whole-genome methylation analysis to decipher the factors contributing to the variance in gene expression. Whole Genome Bisulfite Sequencing (WGBS) was performed on both sets of leaf samples, generating a total dataset of 48 Gbp (12×) with Q30 ratios exceeding 90%. Alignment using bsmap revealed alignment rates of over 60% to the reference genome.
We computed the average DNA methylation levels for genes and transposable elements (TEs) (see Figure 3). CpG DNA methylation levels were relatively low at gene transcription start and end sites but high in the gene bodies. In contrast, CHG and CHH methylation levels were highest in the gene promoter and terminator regions. Within transposable elements, all three DNA methylation types displayed elevated levels both upstream and downstream of the main body. Notably, the ovate−leaf mutant exhibited increased CHH DNA methylation in gene promoter and terminator regions (see Figure 3A). While the whole-genome methylation levels for all three DNA methylation types were higher in the ovate−leaf mutant compared to the lobed–leaf birch, these differences were not statistically significant (p > 0.05) (Figure 3B). These results suggest that the global DNA methylation levels in the ovate−leaf mutant have not significantly changed, but the transcription levels of specific genes may be influenced by variations in CHH methylation in their transcriptional regulatory regions.
A total of 3053 differential methylation regions (DMRs) were identified from the whole-genome analysis. We conducted an analysis of the overlap between DMRs and differentially expressed genes. Among these, there were nine downregulated genes associated with highly methylated regions and one upregulated gene associated with a low-methylation region (Figure 3C). Upon annotation, it was revealed that among these 10 genes, one belongs to the AUX/IAA transcription factor family, specifically BpIAA9 [29], and its expression was significantly decreased in the ovate-leaf mutant (p < 0.01) (Figure 3D).
The visualization of WGBS results using IGV (see Figure 4A) indicated that there were no significant changes in the CpG methylation level and CHG methylation level of BpIAA9 in the ovate-leaf mutant. However, its promoter region exhibited a differential CHH methylation site (−950 to −1000 bp) in the ovateleaf mutant, where DNA methylation levels were significantly higher compared to those in the silver birch. We examined the methylation level and transcription of BpIAA9 in the apical buds, young leaves, and mature leaves of both the silver birch and the ovate-leaf mutant. McrBC results revealed that the methylation level of this site in the ovate-leaf mutant was hyper in the apical buds than in the silver birch, but not hyper in the young and mature leaves (see Figure 4B). qPCR results indicated that BpIAA9 in the silver birch exhibited higher expression levels in young leaves, suggesting its involvement in leaf development (see Figure 4C). In contrast, the transcription level of BpIAA9 in the ovate−leaf mutant decreased, with significantly lower expression in young leaves compared to the silver birch (p < 0.01).

4. Discussion

Silver birch, Betula pendula, is a subspecies of European birch characterized by its lobed leaf margins. This trait is challenging to maintain during sexual reproduction and often spontaneously reverts to an ovate shape. It can also be induced to transform back into lobed leaves with the application of hormones or the epigenetic mutagen 5-azacytidine (5AzC) [12]. These observations strongly suggest that the lobed leaf trait is under the control of epigenetic mechanisms. In our investigation of the ovate-leaf mutant, we identified 1464 differential single nucleotide polymorphisms (SNPs). These SNPs arise spontaneously during asexual reproduction, and yet, upon annotation, none of the 24 affected genes were found to be associated with leaf development. This further substantiates the notion that the lobed leaf trait is regulated by epigenetic factors rather than classical genetic traits.
Auxin plays a crucial role in regulating the morphogenesis of plant leaves [30,31,32,33,34,35]. This regulatory function involves various processes, including synthesis, transport, signal transduction, and degradation. In our transcriptomic analysis of the ovate-leaf mutant Y72, we observed a downregulation of genes associated with the Gene Ontology (GO) terms GO:0009733 (response to auxin) and GO:0009734 (auxin-activated signaling). This enrichment of genes related to auxin signaling and activation pathways suggests that in this mutant, there is an impediment in the gene expression responsible for auxin signal transduction and activation. While the concentration of auxin in different regions of silver birch leaves has been considered an important indicator [36,37,38], the response of target genes to these auxin signals has received relatively less attention. Our findings underscore the critical role of normal auxin signal transmission and gene activation in leaf development and morphogenesis.
Previous studies have revealed that a decrease in methylation modification in the promoter region of the BpPIN1 gene, a growth hormone transport protein, serves as a heritable epigenetic variation and a primary inducer of the fissured leaf trait in Betula pendula in both sexual and asexual reproduction processes [39]. However, in the circular leaf mutant Y72, we did not observe a significant restoration of methylation levels in BpPIN1 to the high levels found in the fissured leaf, as depicted in Figure 3C,D. In comparison to fissured leaves, the global methylation levels across the genome of the circular leaf mutant showed no substantial changes in both genes and transposon elements, as shown in Figure 3A,B. This suggests that the epigenetic maintenance function of this mutant remains unaltered, and its variation arises from random mutations in individual gene epigenetics. Through a combined analysis of differential methylation sites and differentially expressed genes, we identified a growth hormone signal transporter gene, BpIAA9. In birch, the transcription levels of AUX/IAA family transcription factors, such as IAA9, are influenced by various factors, including environmental conditions and endogenous growth hormone concentration [25]. These factors act by regulating downstream gene transcription in response to these signals. IAA9 functions as a transcriptional activator in processes influenced by growth hormones, such as root development and seedling growth. In the circular leaf mutant, the increased methylation levels in the promoter region of BpIAA9 led to decreased expression, impairing its ability to effectively transmit the growth hormone signal. In this situation of signal transmission inhibition, even if the methylation levels and expression of BpPIN1 remain at their original levels, the accumulated growth hormone concentration is insufficient to induce the fissured leaf trait.
CHH-type methylation is a plant-specific epigenetic modification, generally maintained through the RdDM pathway. In this model, the interaction between the CLASSY (CLSY) protein and SAWADEE Homolog 1 (SHH1) recruits RNA Polymerase IV (Pol IV) to silent heterochromatin regions, using these heterochromatic DNA segments as templates to synthesize short non-coding RNAs. These RNAs undergo a series of transformations to generate 24-nt small RNAs and form complexes with certain AGO proteins. AGO-sRNAs proceed along the RNA scaffold synthesized by RNA polymerase V (Pol V), recruiting a series of protein complexes to enlist DNA methyltransferase 2 (DRM2) for catalyzing DNA methylation. Due to the positive feedback loop between CHH-type cytosine methylation and 24-nt small RNAs, once methylation is established, it can be heritably transmitted in both asexual and sexual reproductive processes [40,41]. In this study, a highly methylated site within the BpIAA9 promoter was discovered. This methylation belongs to the CHH-type, and McrBC-PCR analysis revealed that the level of methylation at this site is slightly lower in apical meristematic tissues but steadily increases in leaves as they grow and develop. This pattern could be attributed to the vigorous cell division in meristematic tissues, while this particular site lacks methylation in the Betula pendula.
This research, employing various omics sequencing approaches, identified an epigenetic mutation site within the BpIAA9 promoter. The elevated methylation levels at this site led to a reduction in BpIAA9 expression. This disruption hampers the normal role of auxin in growth regulation and weakens the impact of abnormal auxin concentration gradients in leaf growth and development, eventually eliminating the fissured leaf trait (Figure 5). However, if mutations occur in other genes involved in auxin regulation, they could also induce the spontaneous reversion of Betula pendula from fissured to circular leaves. Therefore, in the asexual reproduction of Betula pendula, it is advisable to avoid factors that can induce changes in epigenetic modifications, including but not limited to temperature, salt, drought stress, and exposure to agents such as nicotinic acid and 5AzC. Further in-depth research on the genetic transformation and methylation variation mechanisms of BpIAA9 is warranted in future studies.

5. Conclusions

The phenomenon of spontaneous reinstatement mutation in Betula pendula ‘Dalecarlica’ during tissue culture can be attributed to epigenetic factors. Specifically, the DNA methylation of the gene BpIAA9 plays a significant role in this process. This methylation event takes place in the promoter region of BpIAA9 and is characterized by CHH context methylation. Consequently, this methylation event leads to a decrease in the transcription level of BpIAA9, hindering the transmission of auxin signaling within cells. As a result, the elongation of leaf veins is slowed down, and the lobed leaf phenotype is eliminated.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/f15010095/s1, Figure S1: The principal component analysis results for biological replicates of transcriptome sequencing; Table S1: Annotation of Coding Variant Genes; Table S2: Primer sequences.

Author Contributions

Conceptualization, X.Z. and C.G.; methodology, H.L.; software, X.Z. and C.G.; validation, X.Z. and C.G.; formal analysis, C.G.; investigation, X.Z. and C.G.; resources, X.Z., C.G. and H.L.; data curation, C.G.; writing—original draft preparation, X.Z. and C.G.; writing—review and editing, X.Z. and H.L.; visualization, X.Z.; supervision, H.L., G.L. and J.J.; project administration, H.L.; funding acquisition, H.L., G.L. and J.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key R&D Program Sub-Project (2021YFD2200105) and the “Heilongjiang Touyan Innovation Team Program (Tree Genetics and Breeding Innovation Team)” Basic Research Fund (2021YFD2200304).

Data Availability Statement

The original contributions presented in the study are publicly available. These data can be found at the National Genomics Data Center (NGDC, Bio Project: PRJCA021170).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

WPMWoody Plant Medium
6-BA6-Benzylaminopurine
NAA1-Naphthaleneacetic Acid
GA3Gibberellic Acid
IBAIndole-3-Butyric Acid

References

  1. Qu, M.; Hamdani, S.; Li, W. Rapid stomatal response to fluctuating light: An under-explored mechanism to improve drought tolerance in rice. Funct. Plant Biol. 2016, 43, 727–738. [Google Scholar] [CrossRef] [PubMed]
  2. McAusland, L.; Vialet-Chabrand, S.; Davey, P. Effects of kinetics of light-induced stomatal responses on photosynthesis and water-use efficiency. New Phytol. 2016, 211, 1209–1220. [Google Scholar] [CrossRef] [PubMed]
  3. Zhao, W.; Liu, L.; Shen, Q. Effects of water stress on photosynthesis, yield, and water use efficiency in winter wheat. Water 2020, 12, 2127. [Google Scholar] [CrossRef]
  4. Xia, J.B.; Zhang, G.C.; Wang, R.R. Effect of soil water availability on photosynthesis in Ziziphus jujuba var. spinosus in a sand habitat formed from seashells: Comparison of four models. Photosynthetica 2014, 52, 253–261. [Google Scholar] [CrossRef]
  5. Shan, L.; Ding, Y.; Wang, S. Leaf photosynthesis and light response characteristics of Populus euphratica in different developmental stages. Ecol. Sci. 2019, 38, 22–29. (In Chinese) [Google Scholar]
  6. Ou, G.; Bei, L.; Zhang, J. Effects of the Leaf Shape and Growth Posture on Light Use Efficiency of Cassava. MPB 2023, 1–21. (In Chinese) [Google Scholar]
  7. Wang, H.; Yang, S.; Zhang, C. The photosynthetic characteristics of differently shaped leaves in Populus euphratica Olivier. Photosynthetica 1998, 34, 545–553. [Google Scholar] [CrossRef]
  8. Valobra, C.P.; James, D.J. In vitro shoot regeneration from leaf discs of Betula pendula ‘Dalecarlica’ EM 85. Plant Cell Tiss. Organ. Cult. 1990, 21, 51–54. [Google Scholar] [CrossRef]
  9. Bilsborough, G.D.; Runions, A.; Barkoulas, M. Model for the regulation of Arabidopsis thaliana leaf margin development. Proc. Natl. Acad. Sci. USA 2011, 108, 3424–3429. [Google Scholar] [CrossRef]
  10. Tian, S.; Ma, Q.; Wang, Y. Segregation of Seed Vigor and Leaf Traits in Hybrid Progenies of Betula pendula ‘Purple Rain’ and Betula pendula ‘Dplecprlicp’. For. Sci. Res. 2019, 32, 40–48. (In Chinese) [Google Scholar]
  11. Mashkina, O.S.; Tabatskaya, T.M. Morphogenesis of a Dissected Birch Leaf In Vitro Culture. Russ. J. Dev. Biol. 2020, 51, 397–409. [Google Scholar] [CrossRef]
  12. Zhang, H.; Lang, Z.; Zhu, J. Dynamics and function of DNA methylation in plants. Nature reviews. J. Mol. Cell Biol. 2018, 19, 489–506. [Google Scholar]
  13. Zhang, X.; Yazaki, J.; Sundaresan, A. Genome-wide high-resolution mapping and functional analysis of DNA methylation in Arabidopsis. Cell 2006, 126, 1189–1201. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, H.; Zhu, J. RNA-directed DNA methylation. Curr. Opin. Plant Biol. 2011, 14, 142–147. [Google Scholar] [CrossRef] [PubMed]
  15. Kakutani, T.; Jeddeloh, J.A.; Richards, E.J. Characterization of an Arabidopsis thaliana DNA hypomethylation mutant. Nucleic Acids Res. 1995, 23, 130–137. [Google Scholar] [CrossRef] [PubMed]
  16. Paula, J.M.D.; Pinto-Maglio, C.A.F.; Pinto, L.R. Morphological analysis and DNA methylation in Conyza bonariensis L. cronquist (Asteraceae) phenotypes. Bragantia 2017, 76, 480–491. [Google Scholar] [CrossRef]
  17. Finnegan, E.J.; Peacock, W.J.; Dennis, E.S. Reduced DNA methylation in Arabidopsis thaliana results in abnormal plant development. Proc. Natl. Acad. Sci. USA 1996, 93, 8449–8454. [Google Scholar] [CrossRef]
  18. Ci, D.; Song, Y.; Du, Q. Variation in genomic methylation in natural populations of Populus simonii is associated with leaf shape and photosynthetic traits. J. Exp. Bot. 2016, 67, 723–737. [Google Scholar] [CrossRef]
  19. Yanagisawa, M.; Poitout, A.; Otegui, M.S. Arabidopsis vascular complexity and connectivity controls PIN-FORMED1 dynamics and lateral vein patterning during embryogenesis. Development 2021, 148, dev197210. [Google Scholar] [CrossRef]
  20. Shen, J.; Zhang, Y.; Ge, D. CsBRC1 inhibits axillary bud outgrowth by directly repressing the auxin efflux carrier CsPIN3 in cucumber. Proc. Natl. Acad. Sci. USA 2019, 116, 17105–17114. [Google Scholar] [CrossRef] [PubMed]
  21. Zhu, M.; Chen, W.; Mirabet, V. Robust organ size requires robust timing of initiation orchestrated by focused auxin and cytokinin signalling. Nat. Plants 2020, 6, 686–698. [Google Scholar] [CrossRef] [PubMed]
  22. Lv, X.; Zhang, M.; Li, X. Transcriptome Profiles Reveal the Crucial Roles of Auxin and Cytokinin in the “Shoot Branching” of Cremastra appendiculata. Int. J. Mol. Sci. 2018, 19, 3354. [Google Scholar] [CrossRef]
  23. Luo, J.; Zhou, J.; Zhang, J. Aux/IAA Gene Family in Plants: Molecular Structure, Regulation, and Function. Int. J. Mol. Sci. 2018, 19, 259. [Google Scholar] [CrossRef]
  24. Xu, W.; Han, R.; Xu, S. Expression of BpIAA10 from Betula platyphylla (birch) is differentially regulated by different hormones and light intensities. Plant Cell Tiss. Org. 2018, 132, 371–381. [Google Scholar] [CrossRef]
  25. Li, H.; Durbin, R. Fast and accurate long-read alignment with Burrows-Wheeler transform. Bioinformatics 2010, 26, 589–595. [Google Scholar] [CrossRef] [PubMed]
  26. Danecek, P.; Bonfield, J.K.; Liddle, J. Twelve years of SAMtools and BCFtools. Gigascience 2021, 10, giab008. [Google Scholar] [CrossRef] [PubMed]
  27. Dai, C.; Liu, X.; Zhou, F. Selection of internal control genes in semi-quantitative RT-PCR in Betula platyphylla. Non-Wood For. Res. 2011, 29, 34–39. (In Chinese) [Google Scholar]
  28. Gao, K.; Khan, W.U.; Li, J. Identification and Validation of Reliable Reference Genes for Gene Expression Studies in Koelreuteria paniculata. Genes 2022, 13, 714. [Google Scholar] [CrossRef]
  29. Xu, W.; Chen, S.; Jiang, J. Expression profiling of the BpIAA gene family and the determination of IAA levels in Betula platyphylla tetraploids. J. For. Res. 2019, 30, 855–867. [Google Scholar] [CrossRef]
  30. Xiong, Y.; Wu, B.; Du, F. A crosstalk between auxin and brassinosteroid regulates leaf shape by modulating growth anisotropy. Mol. Plant 2021, 14, 949–962. [Google Scholar] [CrossRef]
  31. Ben-Gera, H.; Ori, N. Auxin and LANCEOLATE affect leaf shape in tomato via different developmental processes. Plant Signal. Behav. 2012, 7, 1255–1257. [Google Scholar] [CrossRef] [PubMed]
  32. Nikolov, L.A.; Runions, A.; Das Gupta, M. Chapter Five—Leaf development and evolution. In Current Topics in Developmental Biology; Ueli, G., Ed.; Academic Press: Grossniklaus, MD, USA, 2019; Volume 131, pp. 109–139. [Google Scholar]
  33. Ben-Gera, H.; Shwartz, I.; Shao, M.R. ENTIRE and GOBLET promote leaflet development in tomato by modulating auxin response. Plant J. 2012, 70, 903–915. [Google Scholar] [CrossRef] [PubMed]
  34. Du, F.; Guan, C.; Jiao, Y. Molecular mechanisms of leaf morphogenesis. Mol. Plant 2018, 11, 1117–1134. [Google Scholar] [CrossRef] [PubMed]
  35. Kierzkowskl, D.; Runions, A.; Vuolo, F. A growth-based framework for leaf shape development and diversity. Cell 2019, 177, 1405–1418. [Google Scholar] [CrossRef] [PubMed]
  36. Qu, C.; Bian, X.; Han, R. Expression of BpPIN is associated with IAA levels and the formation of lobed leaves in Betula pendula ‘Dalecartica’. J. For. Res. 2020, 31, 87–97. [Google Scholar] [CrossRef]
  37. Hay, A.; Barkoulas, M.; Tsiantis, M. ASYMMETRIC LEAVES1 and auxin activities converge to repress Brevipedicellus expression and promote leaf development in Arabidopsis. Development 2006, 133, 3955–3961. [Google Scholar] [CrossRef]
  38. Hu, Q.; Zhu, Z.; Yan, P. Cloning and characterization of auxin polar transport PIN3gene cDNA and its promoter in Capsella bursa-pastoris. J. China Agric. Univ. 2015, 20, 29–36. [Google Scholar]
  39. Gu, C.; Han, R.; Liu, C. Heritable epigenetic modification of BpPIN1 is associated with leaf shapes in Betula pendula. Tree Physiol. 2023, 43, 1811–1824. [Google Scholar] [CrossRef]
  40. Matzke, M.A.; Mosher, R.A. RNA-directed DNA methylation: An epigenetic pathway of increasing complexity. Nat. Rev. Genet. 2014, 15, 394–408. [Google Scholar] [CrossRef]
  41. Matzke, M.A.; Kanno, T.; Matzke, A.J. RNA-Directed DNA Methylation: The Evolution of a Complex Epigenetic Pathway in Flowering Plants. Annu. Rev. Plant Biol. 2015, 66, 243–267. [Google Scholar] [CrossRef]
Forests 15 00095 g001
Figure 1. Lobed-leaf birch and ovate-leaf mutants. (A,B) Seedlings and branches of Betula pendula ‘Dalecarlica’, identified as L72 (on the left), and its ovate−leaf mutant Y72 (on the right). (C) Leaves of L72 (at the top) and ovate−leaf mutant Y72 (at the bottom), depicting the 1st (on the left), 2nd (in the middle), and 4th (on the right) leaves. Bar, 10 cm.
Figure 1. Lobed-leaf birch and ovate-leaf mutants. (A,B) Seedlings and branches of Betula pendula ‘Dalecarlica’, identified as L72 (on the left), and its ovate−leaf mutant Y72 (on the right). (C) Leaves of L72 (at the top) and ovate−leaf mutant Y72 (at the bottom), depicting the 1st (on the left), 2nd (in the middle), and 4th (on the right) leaves. Bar, 10 cm.
Forests 15 00095 g001
Forests 15 00095 g002

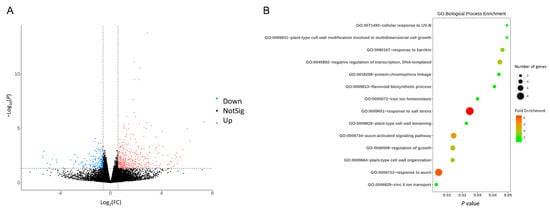

Figure 2. Transcriptome sequencing analysis. (A) Volcano plot of differentially expressed genes. (B) Enrichment results of downregulated differentially expressed genes in GO biological processes.
Figure 2. Transcriptome sequencing analysis. (A) Volcano plot of differentially expressed genes. (B) Enrichment results of downregulated differentially expressed genes in GO biological processes.
Forests 15 00095 g002
Forests 15 00095 g003

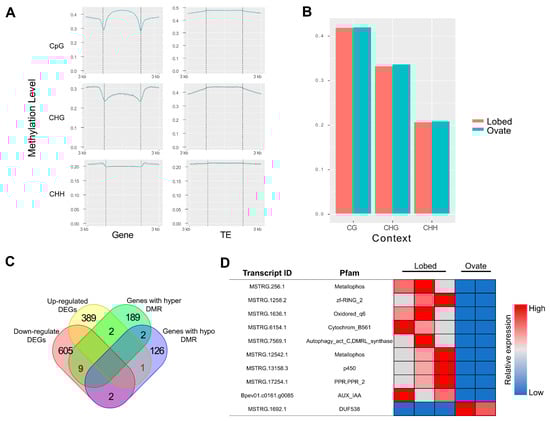

Figure 3. Whole-genome bisulfite sequencing results. (A) Distribution of DNA methylation levels in gene and transposable element (TE) regions. (B) Overall DNA methylation levels in the whole genome. (C) Venn diagram depicting overlap between differentially methylated sites and differentially expressed genes. DMR, differential methylation region (D) Gene family annotations and heatmap of expression levels of key genes.
Figure 3. Whole-genome bisulfite sequencing results. (A) Distribution of DNA methylation levels in gene and transposable element (TE) regions. (B) Overall DNA methylation levels in the whole genome. (C) Venn diagram depicting overlap between differentially methylated sites and differentially expressed genes. DMR, differential methylation region (D) Gene family annotations and heatmap of expression levels of key genes.
Forests 15 00095 g003
Forests 15 00095 g004

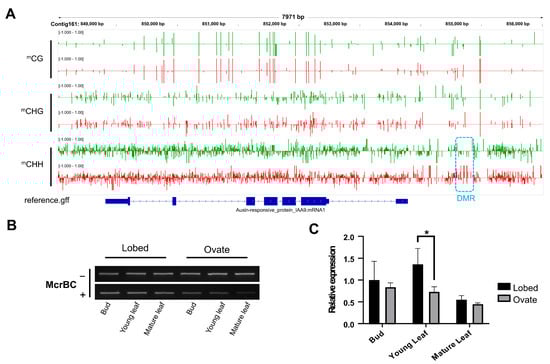

Figure 4. DNA methylation and transcription levels of BpIAA9. (A) IGV (Integrative Genomics Viewer) representation of DNA methylation levels of BpIAA9 in lobed-leaf birch and ovate-leaf mutants. Green bars represent the methylation level of L72. Red bars represent the methylation level of Y72. DMR, differential methylation region (B), McrBC−PCR results, where ‘−’ indicates PCR product bands from undigested DNA templates and ‘+’ indicates PCR product bands from DNA templates digested with McrBC. (C) qPCR results of BpIAA9 transcription levels, with ‘*’ indicating statistically significant differences determined by t-test (p < 0.05).
Figure 4. DNA methylation and transcription levels of BpIAA9. (A) IGV (Integrative Genomics Viewer) representation of DNA methylation levels of BpIAA9 in lobed-leaf birch and ovate-leaf mutants. Green bars represent the methylation level of L72. Red bars represent the methylation level of Y72. DMR, differential methylation region (B), McrBC−PCR results, where ‘−’ indicates PCR product bands from undigested DNA templates and ‘+’ indicates PCR product bands from DNA templates digested with McrBC. (C) qPCR results of BpIAA9 transcription levels, with ‘*’ indicating statistically significant differences determined by t-test (p < 0.05).
Forests 15 00095 g004
Forests 15 00095 g005

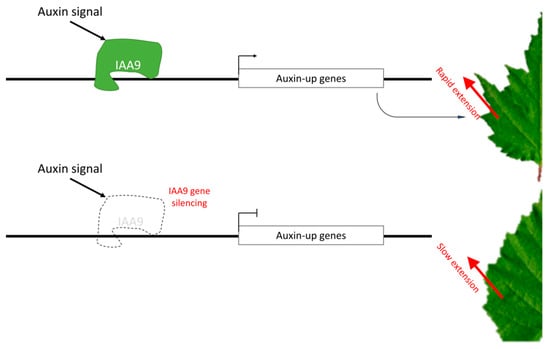

Figure 5. A schematic illustration of the proposed mechanism underlying the role of DNA methylation in altering the shape of birch leaves. The high methylation in the promoter region leads to decreased expression of BpIAA9 at the edge of the leaf primordia, thereby blocking the normal function of auxin, resulting in the elimination of the lobed leaf trait and the restoration of an ovate leaf shape.
Figure 5. A schematic illustration of the proposed mechanism underlying the role of DNA methylation in altering the shape of birch leaves. The high methylation in the promoter region leads to decreased expression of BpIAA9 at the edge of the leaf primordia, thereby blocking the normal function of auxin, resulting in the elimination of the lobed leaf trait and the restoration of an ovate leaf shape.
Forests 15 00095 g005
