1. Introduction
Pine wilt disease (PWD), caused by the pine wood nematode, is a forest disease characterized by high pathogenicity, rapid spread, and a wide transmission pathway, resulting in severe damage to pine forest resources in China [
1]. This disease has been classified as a quarantine pest in more than 40 countries, with China experiencing substantial direct economic losses and ecological service value depletion [
2]. Owing to the extensive forested area and the high costs and limited scope of manual inspection and monitoring, there is a need for efficient, cost-effective, and accurate monitoring techniques. In recent years, the advancement of UAV (Unmanned Aerial Vehicle) remote sensing technology has demonstrated significant potential for application in the monitoring of pine wood nematode disease, leveraging its operational ease, adaptability, extensive coverage, and real-time capabilities [
3].
The use of UAV remote sensing for monitoring pine blight outbreaks has undergone significant evolution over the past few decades. Traditional machine learning algorithms, such as SVM (Support Vector Machine), RF (Random Forest), and ANNs (Artificial Neural Networks), have been developed and optimized by integrating spectral and spatial features. These methods have been successfully employed for identifying pine blight tree damage in Multi-Spectral Imagery (MSI) and Hyper-Spectral Imagery (HSI) datasets. However, classical machine learning necessitates intricate feature selection and combination work, posing challenges for leveraging in-depth image information [
4].
In recent years, with the development of deep learning object classification and detection technology, researchers have gradually applied it to PWD detection [
5,
6]. For instance, Qin et al. [
7] utilized a proposed SCANet (spatial-context-attention network) to diagnose pine nematode disease in UAV-based MSI datasets, achieving an average overall accuracy of 79.33%. Wu et al. [
8] used Faster R-CNN (Region-CNN) and YOLOv3 for early diagnosis of infected trees, demonstrating that YOLOv3 is more suitable for PWD detection. Gong et al. [
9] identified pine blight spots affected by pine wilt using YOLOv5, achieving a mean Average Precision (mAP) of 84.5%. Similarly, Sun et al. [
10] utilized the improved MobileNetv2-YOLOv4 algorithm to identify abnormal discoloration blight caused by pine wilt nematode disease, and the improved model achieved higher detection accuracy of 86.85%.
Although current deep learning methods have achieved some results in disease detection, realizing real-time detection on UAV platforms still faces great challenges. Changes in UAV flight altitude and speed lead to too small and different scales of disease and pest targets in trees, making detection difficult. In addition, limited by the computational resources, storage, and communication capabilities of the UAV platform, it is difficult for the existing deep learning-based methods to achieve a balance between detection accuracy and speed due to the complexity of their models.
Aiming at the above problems and difficulties, this paper takes the YOLOv5 model as the baseline network, redesigns and optimizes the feature extraction network, neck network, and loss function, and proposes ViTeYOLO, a lightweight pine wilt detection method based on Vision Transformer-enhanced YOLO, to improve its detection accuracy for PWD and achieve light weight. The main contributions of this paper are as follows:
A lightweight Multi-Scale Attention module (MSA) is introduced to construct an EfficientViT feature extraction network, which achieves efficient global information extraction and multi-scale learning through efficient hardware operations, reducing network computational complexity;
A Content-Aware Cross-Scale bidirectional fusion neck network (CACSNet) is proposed, which uses the Content-Aware Reassembly Feature Enhancement (CARAFE) operator to replace the bilinear difference in PANET (Path Aggregation Network) for upsampling, and uses cross-scale weighting for feature fusion to improve the expression ability of fine-grained features of diseased trees, prevent small target feature loss, and improve detection accuracy;
Optimization of the loss function and introduction of EIOU (Efficient Intersection over Union) loss to help the model better balance the size and shape information of the target, improving the accuracy and robustness of PWD detection.
3. Materials and Methods

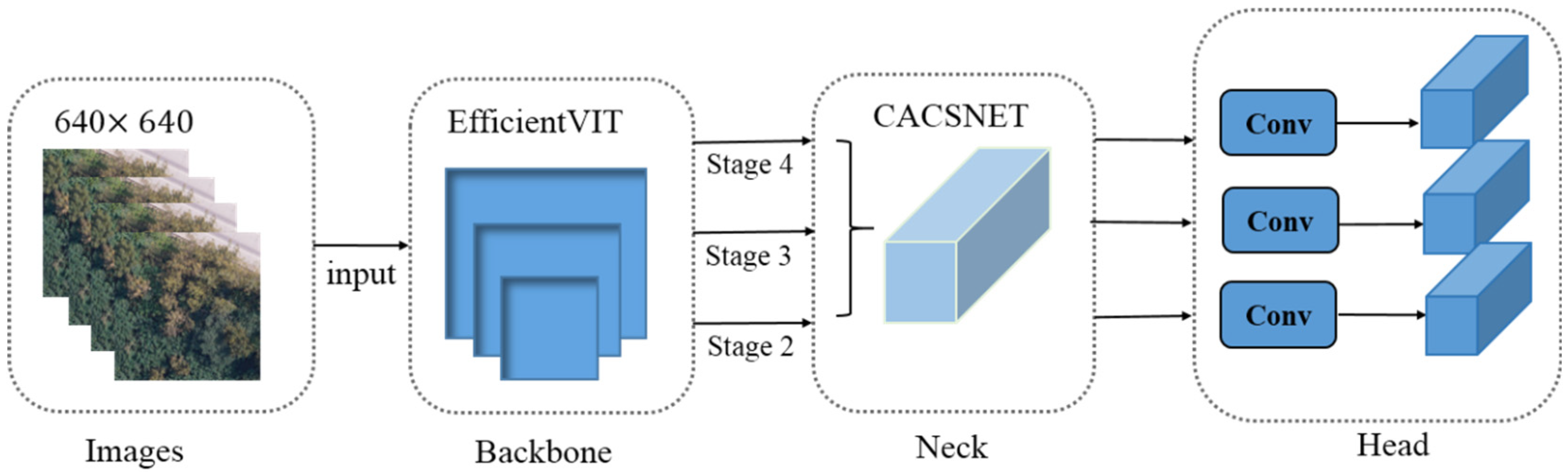

In this paper, we redesigned the feature extraction network based on the baseline network YOLOv5 and proposed a lightweight pine wilt detection method based on ViT-enhanced YOLO. Firstly, we constructed a lightweight EfficientViT feature extraction network with lightweight MSA as the core to replace YOLOv5’s CSPDarkNet53(DarkNet53 with Cross-stage Partial Connections). Secondly, a cross-scale feature fusion neck network (CACSNET) was designed, which uses the CARAFE operator to replace the bilinear difference in the original model for upsampling, and then performs cross scale feature fusion. Finally, EIOU was introduced to optimize the loss function. The comprehensive architecture of the proposed Light-ViTeYOLO is shown in
Figure 2.
Below, we will analyze YOLOv5 and provide a detailed explanation of the proposed Light-ViTeYOLO.
3.1. Baseline Network YOLOv5

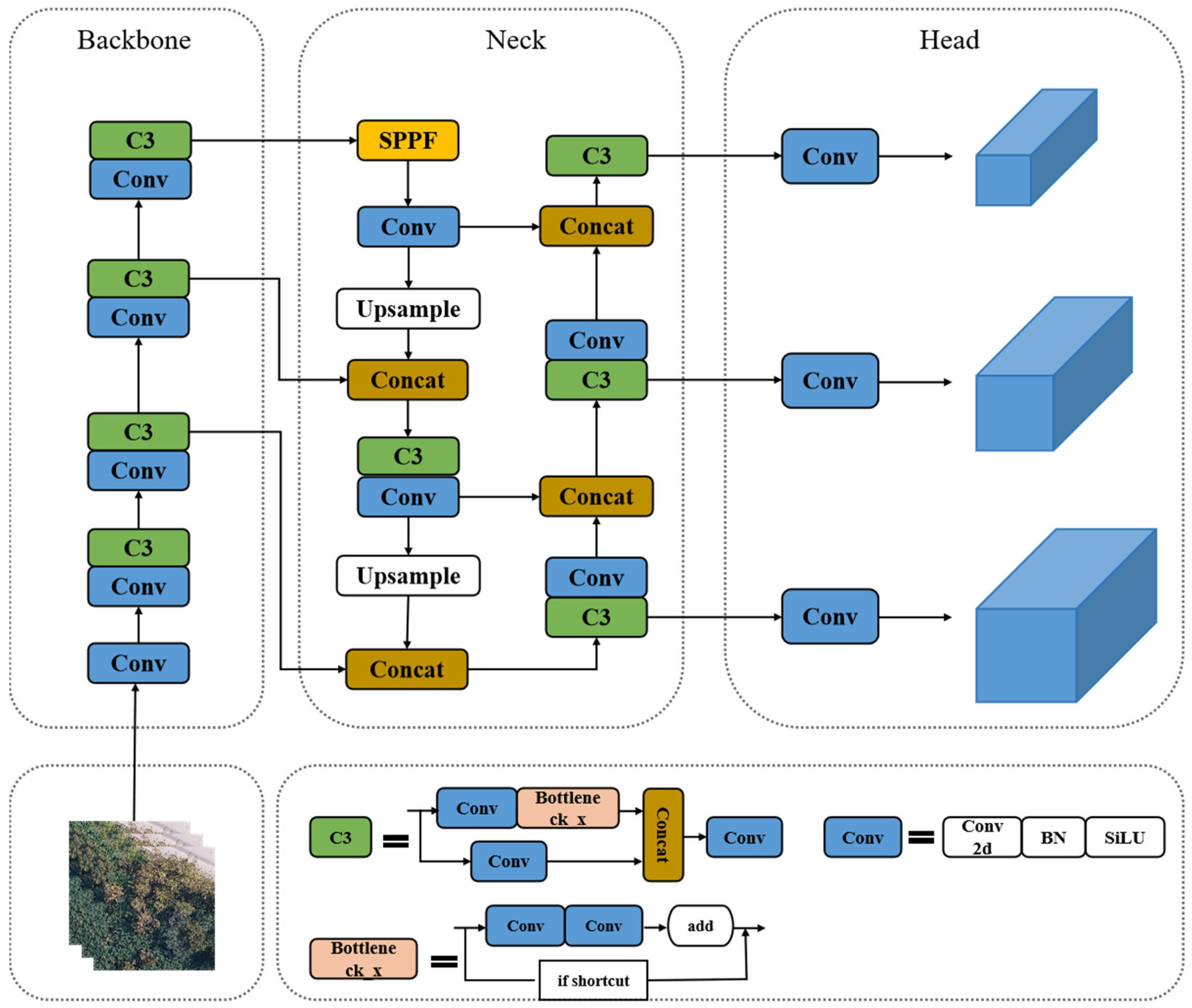

The network structure of YOLOv5 can be divided into the following three parts: the backbone, the neck segment, and the head output segment, with the specific structure depicted in
Figure 3.
After the input image undergoes preprocessing, it is fed into the backbone feature extraction network, CSPDarkNet53, associated with multiple convolutional operations. This process transforms the image into a feature map and facilitates the extraction of semantic and structural information from the input image. Subsequently, at the neck layer, a feature pyramid PANet is established at varying scales, with each feature map comprising different resolutions corresponding to receptive fields of different scales. Finally, YOLOv5 utilizes the output of detection frame processed by the NMS (Non-maximum Suppression)- as the ultimate target detection result.
However, YOLOv5’s use of a series of convolutional modules for feature extraction results in a complex network and the inability to effectively capture global information. Consequently, the bilinear interpolation used in the neck network cannot utilize the semantic information of the feature maps, and the perception domain is limited to the sub-pixel domain. The above design cannot be suitable for the real-time detection requirements of multi-scale and small targets in PWD detection tasks. In light of this, the following improvements will be carried out.
3.2. Redesign of Backbone Feature Extraction Network

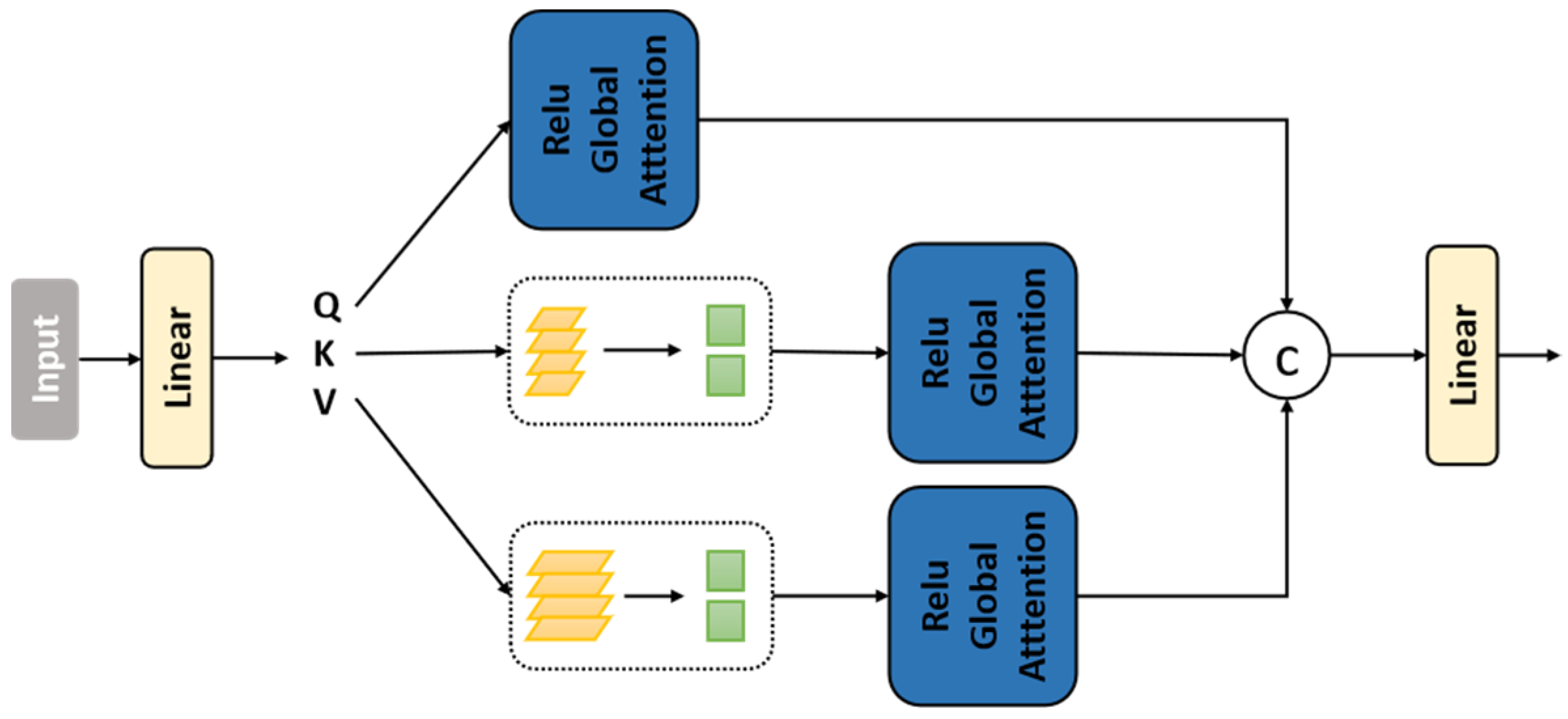

In this paper, an examination of the structure of the visual transformer (ViT) has revealed that the main computational bottleneck is the softmax attention module, which exhibits quadratic computational complexity with respect to the input resolution. To address this issue, the lightweight Multi-Scale Attention (MSA) module introduced in
Section 2.2 is specifically designed to enhance execution speed, delivering a substantial inference speedup while maintaining accuracy.

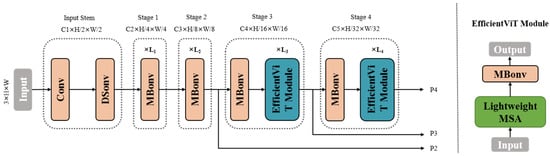

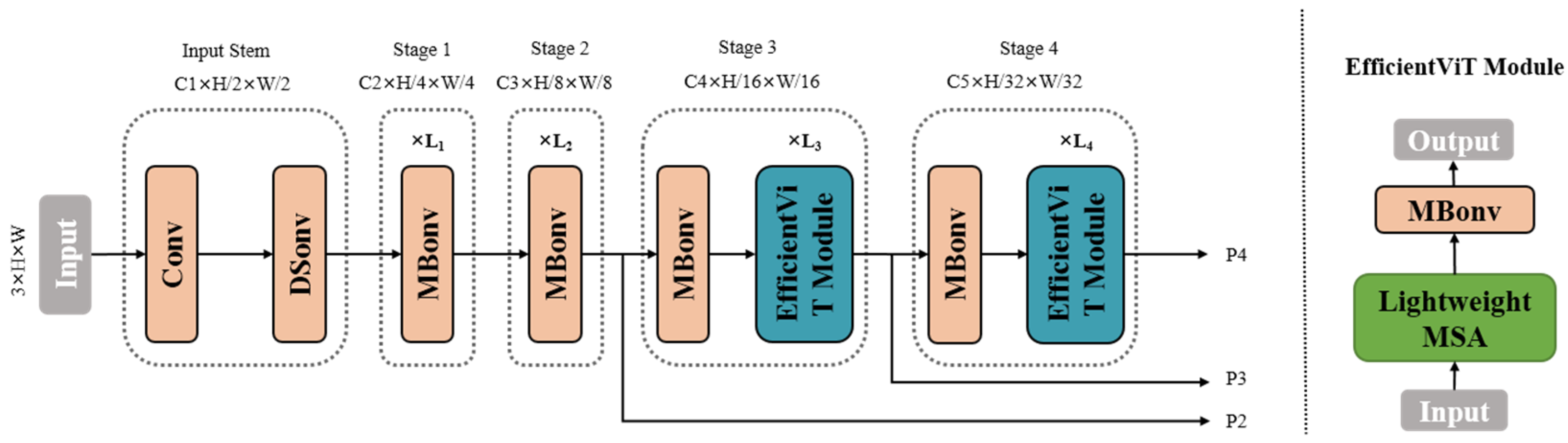

Based on this, we construct the EfficientViT module with lightweight MSA as the core, which is used for the design of the feature extraction network in this paper. The redesigned EfficientViT feature extraction model is shown in
Figure 4 (left), with the EfficientViT module shown in
Figure 4 (right).
The EfficientViT module comprises the lightweight MSA module and the MBConv module [
22]. The lightweight MSA module is employed for contextual information extraction, while the MBConv module facilitates local information extraction. Notably, the linear attention utilized by the lightweight MSA module has limitations in capturing localized details, potentially leading to a notable loss in accuracy. To mitigate this shortcoming, a deep convolutional MBConv module is integrated behind the MSA to enhance linear attention. This strategy incurs low computational overhead while significantly augmenting the capability of linear attention in local feature extraction.
The EfficientViT model adheres to the standard backbone head/decoder architecture, reflecting the following design features:
- (1)
The backbone network incorporates an input backbone and four stages, characterized by diminishing feature map size and escalating channel numbers;
- (2)
Lightweight MSAs are integrated into stages 3 and 4;
- (3)
For downsampling, the model employs MBConv with a step size of 2.
The outputs of Stage 2, Stage 3, and Stage 4 collectively generate a feature map pyramid, serving as the input for feature fusion in the neck network. The detailed architecture configurations of EfficientViT variants is shown in the following
Table 1.
Here, C denotes the number of channels, L denotes the number of blocks, H denotes the feature map height, and W denotes the feature map width.
In this paper, the above-designed EfficientViT model replaces the feature extraction network CSPDarkNet53 of YOLOv5, aiming to achieve efficient hardware operation through a lightweight MSA design to improve the accelerated inference performance of the model, to achieve global awareness and multi-scale learning to ensure that performance is not sacrificed, and ultimately, to enable the proposed model to realize the real-time PWD detecting task.
3.3. Design of CACSNet Neck Networks
YOLOv5 uses PANET as a neck network for feature extraction and fusion, and as a key operation of the feature pyramid, the feature upsampling method uses bilinear interpolation. This method is unable to utilize the semantic information of the feature map and the perceptual domain is limited to the sub-pixel domain. In order to further optimize the performance, in this paper, PANET is improved and a content-aware cross-scale bi-directional fusion network (CACSNet) is designed as a new neck network. The specific improvements are described as follows.
Firstly, we use the CARAFE [
23] operator as the new up-sampling kernel to complete the up-sampling operation of the neck network (P7_u,P6_u,P5_u,P4_u in
Figure 5b) to realize the up-sampling based on the input content. The implementation specifically consists of two steps: the first step is to predict the reorganization kernel of each target location based on its content, and the second step is to restructure the features with the predicted kernel.
Given a feature map X of size C × H × W and an up-sampling rate α (α is an integer), CARAFE will generate a new feature map of size C × αH × αW and, for any target location of , its corresponding original location is , where and . Here, we denote as the k × k subregion of X centered at location l, i.e., the neighbors of .
In the first step, the kernel prediction module
predicts the spatially variant kernels
for each position
based on the neighborhoods of
, as shown in Equation (3). The second step is the restructuring step shown in Equation (4), where
is the content-aware reassembly module, which reassembles the neighborhoods of
with the kernel
.
where weights are generated in a content-aware manner. In addition, for each location there exists multiple sets of such up-sampling weights, and then feature up-sampling is accomplished by generating features rearranged into spatial blocks. CARAFE up-sampling can aggregate and reorganize the contextual information around the target within a large perceptual field, which improves the ability to express feature details and introduces little computational overhead.

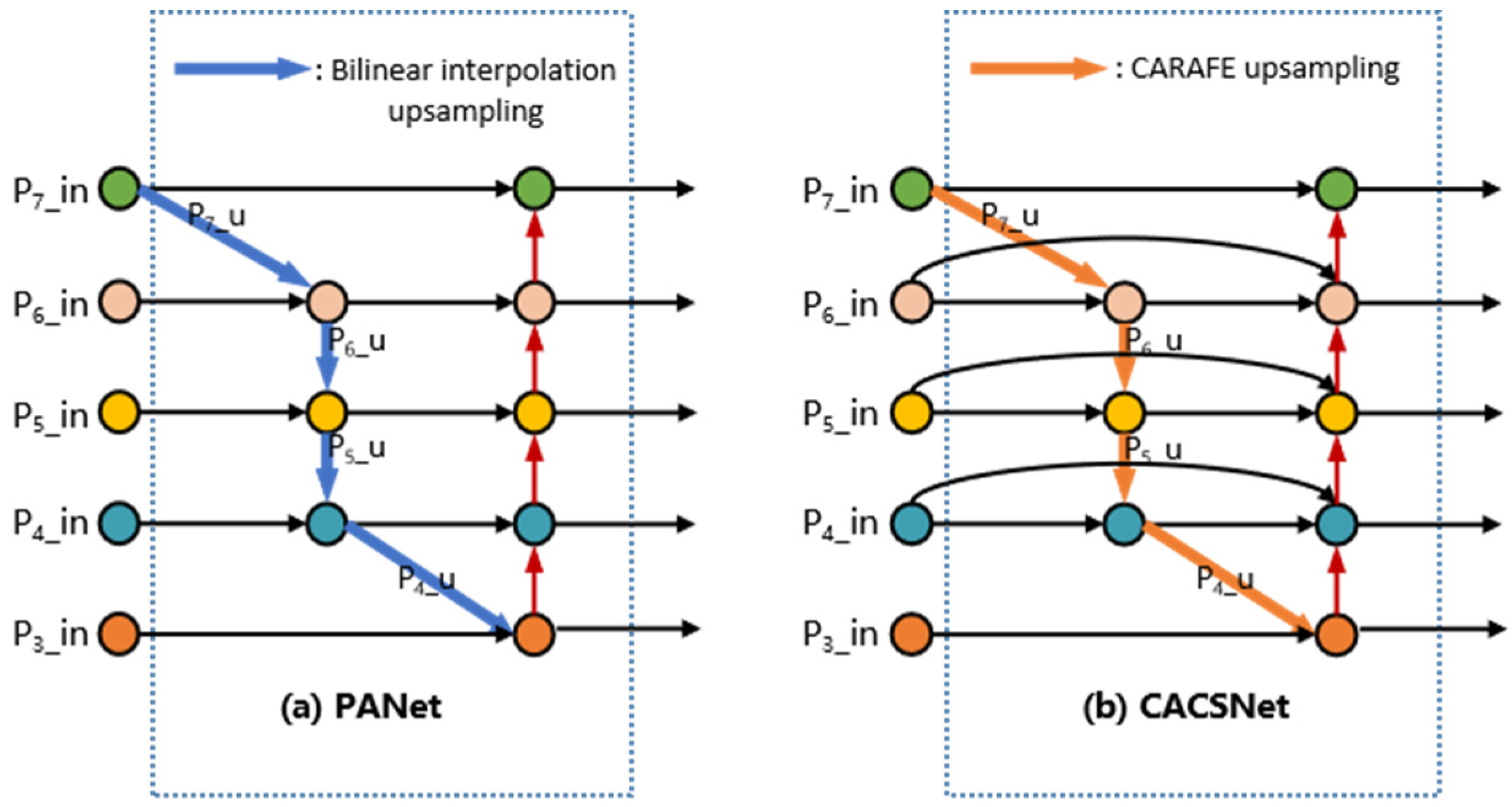

Furthermore, to prevent the loss of feature information related to small targets during the feature extraction process, the paper incorporates cross-scale weighting for feature fusion in the neck layer (see
Figure 5). This is achieved by introducing additional connections (depicted as curved edges in
Figure 5) between the feature input nodes from the backbone network and the output nodes of the neck network at the same level. This approach facilitates the fusion of more original image features to maximize the retention of features related to individual diseased trees.
3.4. Optimization of Loss Function
In target detection, the loss function is critical in quantifying the disparity between the model’s predicted output and the actual target, driving continual learning during training to enhance the performance of the detection task. Typically, loss functions in object detection encompass bounding box regression loss, classification loss, and object presence loss. While YOLOv5 employs the CIOU (complete concatenated intersection) loss function for bounding box regression, this approach has limitations in handling variations in object location and size. As the CIOU loss function does not directly consider target location information, the model may prioritize the wrong bounding box location during optimization, leading to mismatches between the detected and actual disease areas and affecting detection accuracy. Moreover, the CIOU loss function exhibits reduced sensitivity to the degree of deformation in small targets, resulting in suboptimal model performance for detecting small targets.
To address these limitations, this paper adopts the EIOU loss function as an alternative. EIOU loss better balances detection accuracy by integrating position and size information of the target frame. By combining width and height information of the target frame and considering the intersection region-to-minimum closure region ratio, the EIOU loss function effectively addresses target size changes and deformation issues, enhancing detection accuracy and robustness. The EIOU loss function is calculated as follows:
The loss function comprises three components: the overlap loss (), the center distance loss (), and the width-height loss (). The first two components follow the approach used in CIOU. However, the width-height loss directly minimizes the disparity between the widths and heights of the target box and the predicted box, thereby accelerating convergence. Here, and are the width and height of the minimum enclosing box covering both boxes. represents the Euclidean distance between the center points of the anchor box and the ground truth box, represents the Euclidean distance between the width of the anchor box and the ground truth box, and represents the Euclidean distance between the height of the anchor box and the ground truth box.
5. Conclusions
In current methods for pine wilt disease detection, convolutional neural networks (CNNs) are commonly utilized for network architecture, leveraging their strong performance in feature extraction. However, the sensory field of CNNs is constrained by kernel size and network depth, limiting their capacity to effectively model long-term dependencies. On the other hand, Transformers are adept at capturing global and rich contextual information, but their high computational demands hinder their practicality for real-time monitoring scenarios, such as UAV-based applications. To address these challenges, this paper introduces Light-ViTeYOLO, a lightweight PWD detection method based on Vision Transformer-enhanced YOLOv5. By incorporating a lightweight Multi-Scale Attention (MSA) to redesign the backbone network process and enhancing the neck and head, the proposed method achieves impressive performance in terms of detection accuracy, model complexity, and inference speed. Notably, this approach manages to exceed the detection accuracy of many target detectors even with significantly reduced parameters. This achievement marks a successful balance between model accuracy and efficiency, underscoring its strong robustness. The use of drones carrying our detection method for real-time detection of pine wilt disease-discolored wood may lead to higher economic results, including benefits in terms of improved detection efficiency, reduced costs, reduced risk of disease transmission, and optimized decision support. However, the specific economic effects still need to be professionally assessed based on actual applications and relevant cost data. Therefore, we have the following outlook for future work:
The method proposed in this paper has been experimentally verified on a standard platform. The next step is to deploy the application on a drone hardware platform through algorithms to further verify its feasibility and potential economic benefits;
Combining the method proposed in this paper with satellite-based forest monitoring to further strengthen the monitoring of pine tree discoloration caused by pine wilt disease. Integrating drone images with satellite images for multi-scale analysis from both macroscopic and local perspectives, comprehensively monitoring diseases through data fusion and analysis;
Applying the method proposed in this paper to the detection of other forest diseases, such as bark beetle damage.
