Insight into the Formation of Cocrystal and Salt of Tenoxicam from the Isomer and Conformation
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Methods
2.2.1. Preparation
2.2.2. Crystallization
2.3. Powder X-ray Diffraction (PXRD) Analysis
2.4. Single-Crystal X-ray Diffraction (SXRD) Analysis
2.5. Differential Scanning Calorimetry (DSC) Analysis
2.6. Infrared Spectroscopy (IR) Analysis
2.7. Raman Analysis
2.8. Theoretical Computation
2.9. Dissolution Measurements
3. Results and Discussion

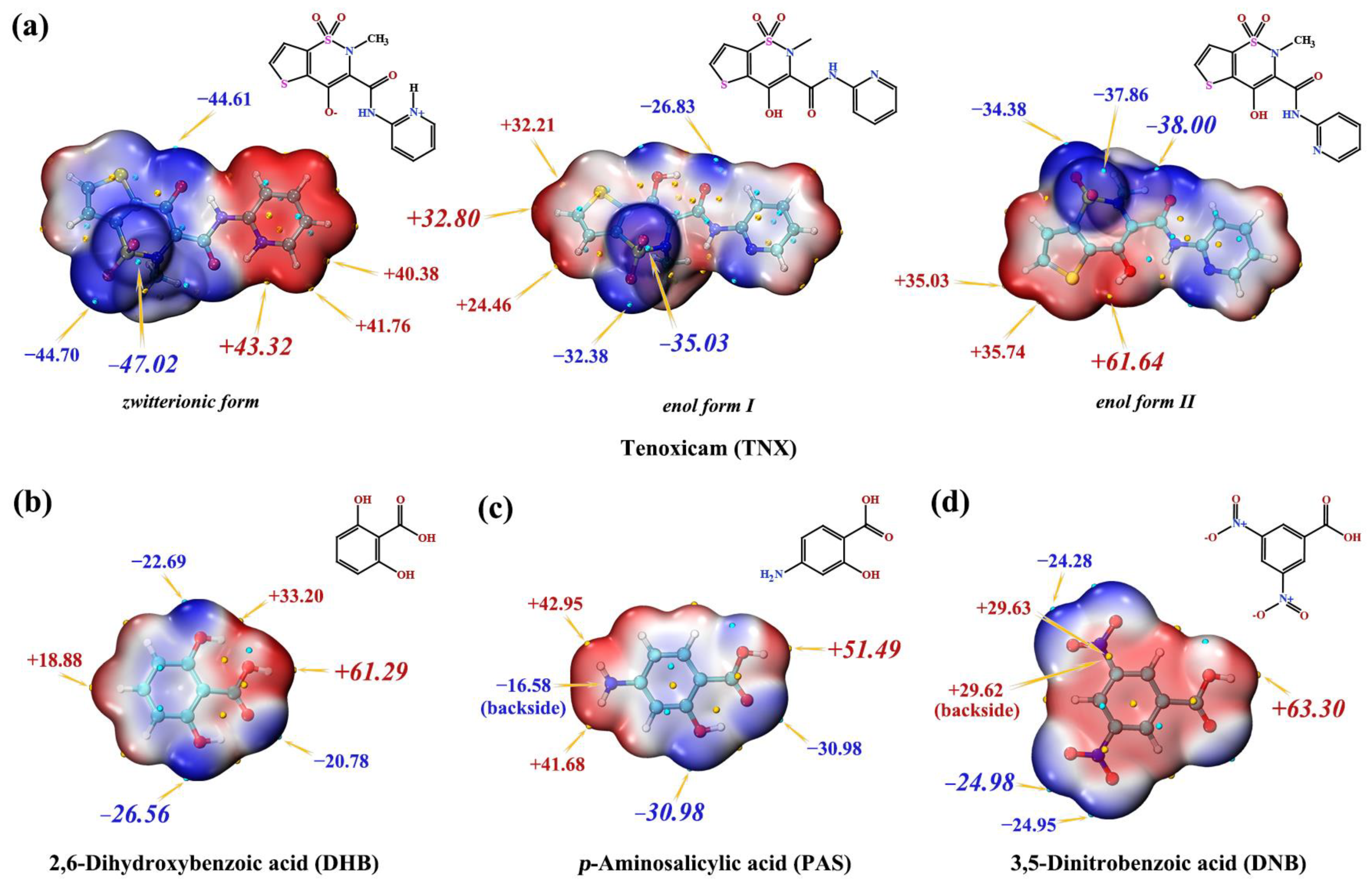

3.1. Prediction of Interaction Sites
3.2. Single-Crystal X-ray Diffraction (SXRD) Analysis
3.3. Powder X-ray Diffraction (PXRD) Analysis

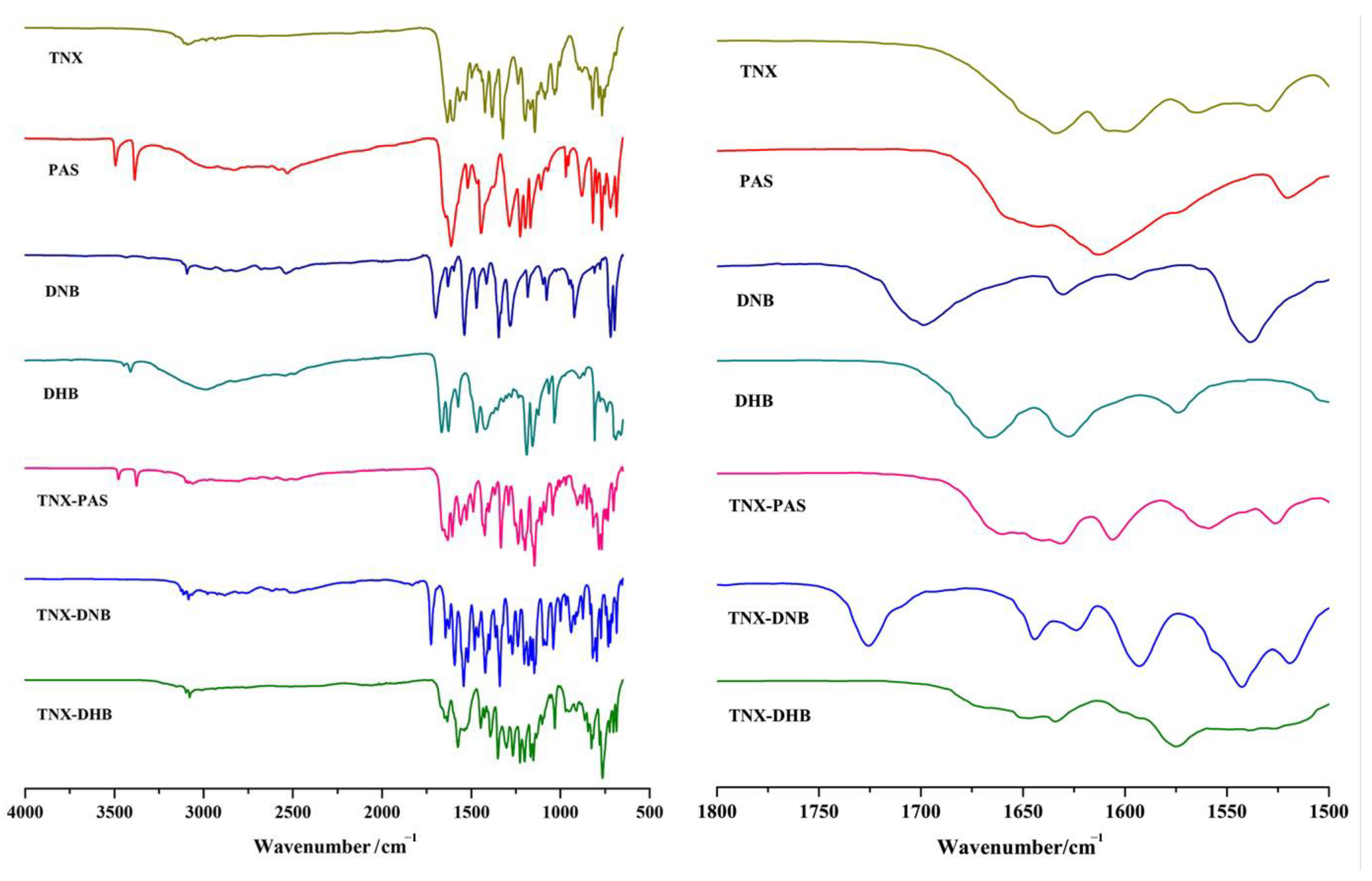

3.4. Infrared Spectroscopy (IR) Analysis
3.5. Raman Analysis
3.6. Differential Scanning Calorimetry (DSC) Analysis
3.7. Lattice Energy Analysis
3.8. Energy Decomposition Analysis (EDA)
3.9. Dissolution Measurement Analysis
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Eren, O.T.; Armağan, R.; Talmaç, M.A. Nonsteroidal Anti-inflammatory Drugs (NSAIDs) and Corticosteroids. In Musculoskeletal Research and Basic Science; Korkusuz, F., Ed.; Springer: Cham, Switzerland, 2016; pp. 683–693. ISBN 978-3-319-20777-3. [Google Scholar]
- Gonzalez, J.P.; Todd, P.A. Tenoxicam. Drugs 1987, 34, 289–310. [Google Scholar] [CrossRef]
- Chopade, S.S.; Gaikwad, E.; Jadhav, A.; Patil, N.; Payghan, S. Formulation and Evaluation of Fast Disintegrating Tenoxicam Tablets and The Comparison with Marketed Product. Asian J. Res. Pharm. Sci. 2020, 10, 257–263. [Google Scholar] [CrossRef]
- Qiu, L.; Xue, S.; Liu, Z.; Liu, Y. Study on pharmacokinetics and bioavailability of tenoxicam in human. Her. Med. 2007, 26, 1282–1283. [Google Scholar] [CrossRef]
- Ashri, L.Y.; Amal El Sayeh, F.; Ibrahim, M.A.; Alshora, D.H.; Naguib, M.J. Optimization and evaluation of chitosan buccal films containing tenoxicam for treating chronic periodontitis: In vitro and in vivo studies. J. Drug Deliv. Sci. Technol. 2020, 57, 101720. [Google Scholar] [CrossRef]
- Elakkad, Y.E.; Younis, M.K.; Allam, R.M.; Mohsen, A.F.; Khalil, I.A. Tenoxicam loaded hyalcubosomes for osteoarthritis. Int. J. Pharm. 2021, 601, 120483. [Google Scholar] [CrossRef] [PubMed]
- Gaydukova, I.Z.; Aparkina, A.V.; Khondkaryan, E.V.; Rebrov, A.P. Effectiveness of the tenoxicam in patients with ankylosing spondylitis. Zhurnal Nevrol. I Psikhiatrii Im. SS Korsakova 2018, 118, 35–39. [Google Scholar] [CrossRef]
- Lipinski, C. Poor aqueous solubility-an industry wide problem in drug discovery. Am. Pharm. Rev. 2002, 5, 82–85. [Google Scholar]
- Patel, J.R.; Carlton, R.A.; Needham, T.E.; Chichester, C.O.; Vogt, F.G. Preparation, structural analysis, and properties of tenoxicam cocrystals. Int. J. Pharm. 2012, 436, 685–706. [Google Scholar] [CrossRef]
- Patel, J.R.; Carlton, R.A.; Yuniatine, F.; Needham, T.E.; Wu, L.; Vogt, F.G. Preparation and structural characterization of amorphous spray-dried dispersions of tenoxicam with enhanced dissolution. J. Pharm. Sci. 2012, 101, 641–663. [Google Scholar] [CrossRef]
- Albadri, A.A.; Jihad, M.I.; Radhi, Z.A. Preparation, Characterization, and In-Vitro Evaluation of Tenoxicam-Paracetamol Cocrystal. Int. J. Drug Deliv. Technol. 2021, 10, 542–546. [Google Scholar] [CrossRef]
- Salahuddin, N.; Gaber, M.; Elneanaey, S.; Snowdon, M.R.; Abdelwahab, M.A. Co-delivery of norfloxacin and tenoxicam in Ag-TiO2/poly (lactic acid) nanohybrid. Int. J. Biol. Macromol. 2021, 180, 771–781. [Google Scholar] [CrossRef] [PubMed]
- Bawazeer, S.; El-Telbany, D.F.A.; Al-Sawahli, M.M.; Zayed, G.; Keed, A.A.A.; Abdelaziz, A.E.; Abdel-Naby, D.H. Effect of nanostructured lipid carriers on transdermal delivery of tenoxicam in irradiated rats. Drug Deliv. 2020, 27, 1218–1230. [Google Scholar] [CrossRef] [PubMed]
- Khattab, A.; Abouhussein, D.M.N. Development of injectable tenoxicam in situ forming microparticles based on sesame oil and poly-DL-lactide: Characterization, efficacy and acute toxicity. J. Drug Deliv. Sci. Technol. 2019, 51, 682–694. [Google Scholar] [CrossRef]
- Caira, M.R.; Nassimbeni, L.R.; Timme, M. Zwitterionic Nature of Tenoxicam: Crystal Structures and Thermal Analyses of a Polymorph of Tenoxicam and a 1: L Tenoxicam: Acetonitrile Solvate. J. Pharm. Sci. 1995, 84, 884–888. [Google Scholar] [CrossRef]
- Cantera, R.G.; Leza, M.G.; Bachiller, C.M. Solid phases of tenoxicam. J. Pharm. Sci. 2002, 91, 2240–2251. [Google Scholar] [CrossRef]
- Nabulsi, L.; Owais, L.; Arafat, T.A.; AIkaysi, H.; Sheikh Salem, M.; Badwan, A.A. Tenoxicam polymorphic modifications. In Proceedings of the Sixth International Conference on Pharmaceutical Technology, Paris, France, 2–4 June 1992; pp. 203–212. [Google Scholar]
- Jiao, L.T.; Yang, D.Z.; Zhang, L.; Yang, S.Y.; Du, G.H.; Lu, Y. Salt solvates of quinolones and oxicams: Theoretical computation, structural characterization and dissolution studies. J. Mol. Struct. 2021, 1223, 128865. [Google Scholar] [CrossRef]
- Bolla, G.; Sanphui, P.; Nangia, A. Solubility Advantage of Tenoxicam Phenolic Cocrystals Compared to Salts. Cryst. Growth Des. 2013, 13, 1988–2003. [Google Scholar] [CrossRef]
- Arkhipov, S.G.; Sherin, P.S.; Kiryutin, A.S.; Lazarenko, V.A.; Tantardini, C. The role of S-bond in tenoxicam keto-enolic tautomerization. CrystEngComm. 2019, 21, 5392–5401. [Google Scholar] [CrossRef]
- Childs, S.L.; Stahly, G.P.; Park, A. The salt-cocrystal continuum: The influence of crystal structure on ionization state. Mol. Pharm. 2007, 4, 323–338. [Google Scholar] [CrossRef]
- Allu, S.; Bolla, G.; Tothadi, S.; Nangia, A.K. Novel pharmaceutical cocrystals and salts of bumetanide. Cryst. Growth Des. 2020, 20, 793–803. [Google Scholar] [CrossRef]
- Wang, W.; Zhang, W.; Jiang, Y.; Wang, X.; Zhang, X.; Liu, H.; Zhang, T. Preparation of ursolic acid-phospholipid complex by solvent-assisted grinding method to improve dissolution and oral bioavailability. Pharm. Dev. Technol. 2020, 25, 68–75. [Google Scholar] [CrossRef] [PubMed]
- Grossjohann, C.; Serrano, D.R.; Paluch, K.J.; O’Connell, P.; Vella-Zarb, L.; Manesiotis, P.; McCabe, T.; Tajber, L.; Corrigan, O.I.; Healy, A.M. Polymorphism in sulfadimidine/4-aminosalicylic acid cocrystals: Solid-state characterization and physicochemical properties. J. Pharm. Sci. 2015, 104, 1385–1398. [Google Scholar] [CrossRef] [PubMed]
- Dhivya, C.; Vandarkuzhali, S.A.A.; Radha, N. Antimicrobial activities of nanostructured polyanilines doped with aromatic nitro compounds. Arab. J. Chem. 2019, 12, 3785–3798. [Google Scholar] [CrossRef]
- Santoso, S.P.; Ismadji, S.; Angkawijaya, A.E.; Soetaredjo, F.E.; Go, A.W.; Ju, Y.H. Complexes of 2, 6-dihydroxybenzoic acid with divalent metal ions: Synthesis, crystal structure, spectral studies, and biological activity enhancement. J. Mol. Liq. 2016, 221, 617–623. [Google Scholar] [CrossRef]
- Friščić, T.; Childs, S.L.; Rizvi, S.A.A.; Jones, W. The role of solvent in mechanochemical and sonochemical cocrystal formation: A solubility-based approach for predicting cocrystallisation outcome. CrystEngComm. 2009, 11, 418–426. [Google Scholar] [CrossRef]
- Friščić, T. New opportunities for materials synthesis using mechanochemistry. J. Mater. Chem. 2010, 20, 7599–7605. [Google Scholar] [CrossRef]
- Solares-Briones, M.; Coyote-Dotor, G.; Páez-Franco, J.C.; Zermeño-Ortega, M.R.; de la O. Contreras, C.M.; Canseco-González, D.; Avila-Sorrosa, A.; Morales-Morales, D.; Germán-Acacio, J.M. Mechanochemistry: A green approach in the preparation of pharmaceutical cocrystals. Pharmaceutics 2021, 13, 790. [Google Scholar] [CrossRef]
- Haskins, M.M.; Zaworotko, M.J. Screening and Preparation of Cocrystals: A Comparative Study of Mechanochemistry vs Slurry Methods. Cryst. Growth Des. 2021, 21, 4141–4150. [Google Scholar] [CrossRef]
- Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
- Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. A 2008, 64, 112–122. [Google Scholar] [CrossRef]
- Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
- Yang, D.; Wang, R.; Jin, G.; Zhang, B.; Zhang, L.; Lu, Y.; Du, G. Structural and computational insights into cocrystal interactions: A case on cocrystals of antipyrine and aminophenazone. Cryst. Growth Des. 2019, 19, 347–361. [Google Scholar] [CrossRef]
- Yuan, Y.; Li, D.; Wang, C.; Chen, S.; Kong, M.; Deng, Z.; Zhang, H. Structural features of sulfamethizole and its cocrystals: Beauty within. Cryst. Growth Des. 2019, 19, 7185–7192. [Google Scholar] [CrossRef]
- Frisch, M.; Trucks, G.; Schlegel, H.; Scuseria, G.; Robb, M.; Cheeseman, J.; Scalmani, G.; Barone, V.; Petersson, G.; Nakatsuji, H. Gaussian 16, Revision A.03; Gaussian Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
- Palatinus, L.; Brázda, P.; Boullay, P.; Perez, O.; Klementová, M.; Petit, S.; Eignerm, V.; Zaarour, M.; Mintova, S. Hydrogen positions in single nanocrystals revealed by electron diffraction. Science 2017, 355, 166–169. [Google Scholar] [CrossRef]
- Schmidt, M.W.; Baldridge, K.K.; Boatz, J.A.; Elbert, S.T.; Gordon, M.S.; Jensen, J.H.; Koseki, S.; Matsunaga, N.; Nguyen, K.A.; Su, S.J.; et al. General atomic and molecular electronic structure system. J. Comput. Chem. 1993, 14, 1347–1363. [Google Scholar] [CrossRef]
- Su, P.; Jiang, Z.; Chen, Z.; Wu, W. Energy Decomposition Scheme Based on the Generalized Kohn-Sham Scheme. J. Phys. Chem. A 2014, 118, 2531–2542. [Google Scholar] [CrossRef]
- Su, P.; Tang, Z.; Wu, W. Generalized Kohn-Sham energy decomposition analysis and its applications. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2020, 10, e1460. [Google Scholar] [CrossRef]
- Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]
- Ren, S.; Jiao, L.; Yang, S.; Zhang, L.; Song, J.; Yu, H.; Wang, J.R.; Lv, T.T.; Sun, L.; Lv, Y.; et al. A novel co-crystal of bexarotene and ligustrazine improves pharmacokinetics and tissue distribution of bexarotene in SD rats. Pharmaceutics 2020, 12, 906. [Google Scholar] [CrossRef]
- Yang, D.; Cao, J.; Heng, T.; Xing, C.; Du, G. Theoretical calculation and structural analysis of the cocrystals of three flavonols with praziquantel. Cryst. Growth Des. 2021, 21, 2292–2300. [Google Scholar] [CrossRef]
- Yang, D.; Wang, H.; Liu, Q.; Yuan, P.; Chen, T.; Zhang, L.; Yang, S.; Zhou, Z.; Lu, Y.; Du, G. Structural landscape on a series of rhein: Berberine cocrystal salt solvates: The formation, dissolution elucidation from experimental and theoretical investigations. Chin. Chem. Lett. 2022, 10, 43. [Google Scholar] [CrossRef]
- Wang, H.; Yang, D.; Zhang, W.; Song, J.; Gong, N.; Yu, M.; Yang, S.; Zhang, B.; Liu, Q.; Du, G. An innovative rhein-matrine cocrystal: Synthesis, characterization, formation mechanism and pharmacokinetic study. Chin. Chem. Lett. 2022. [Google Scholar] [CrossRef]
- Silverstein, R.M. Spectrometric Identification of Organic Compounds, 6th ed.; Webster, F.X., Ed.; John-Wiley: New York, NY, USA, 2002; pp. 71–143. [Google Scholar]
- Romero, S.; Escalera, B.; Bustamante, P. Solubility behavior of polymorphs I and II of mefenamic acid in solvent mixtures. Int. J. Pharm. 1999, 178, 193–202. [Google Scholar] [CrossRef]
- Babu, N.J.; Reddy, L.S.; Nangia, A. Amide−n-oxide heterosynthon and amide dimer homosynthon in cocrystals of carboxamide drugs and pyridine n-oxides. Mol. Pharm. 2007, 4, 417–434. [Google Scholar] [CrossRef] [PubMed]
- Hopffgarten, M.V.; Frenking, G. Energy decomposition analysis. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2012, 2, 43–62. [Google Scholar] [CrossRef]
- Gao, W.; Feng, H.; Xuan, X.; Chen, L. The assessment and application of an approach to noncovalent interactions: The energy decomposition analysis (EDA) in combination with DFT of revised dispersion correction (DFT-D3) with Slater-type orbital (STO) basis set. J. Mol. Model. 2012, 18, 4577–4589. [Google Scholar] [CrossRef] [PubMed]
- Zhao, L.; von Hopffgarten, M.; Andrada, D.M.; Frenking, G. Energy decomposition analysis. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2018, 8, e1345. [Google Scholar] [CrossRef]
CCF | Melting Point | Cocrystal Melting Point | pKa i Value | ΔpKa Value | Conformation of TNX |
---|---|---|---|---|---|
Glycolic acid (GLA) | 77.1 | 137.2 | 3.74 | 0.76 | Unknown |
4-Hydroxybenzoic acid (HBA) | 215.4 | 205.2 | 4.57 | 0.07 | Unknown |
α-Ketoglutaric acid (KLA) | 114.5 | 139.3 | 2.38 | 2.12 | Unknown |
Succinic acid (SNA) | 187.6 | 194 | 4.24 | 0.26 | Unknown |
Maleic acid (MLA) | 144.1 | 164.2 | 2.39 | 2.11 | Unknown |
Malonic acid (MNA) | 134.9 | 154 | 2.92 | 2.11 | Unknown |
Oxalic acid (OLA) | 191.7 | 203.6 | 1.38 | 1.58 | Unknown |
Saccharin (SCR) | 228.1 | 237.1 | 1.60 | 3.12 | Unknown |
Benzoic acid (BZA) | 122 | 185 | 4.20 | 1.49 | A |
Salicylic acid (SCA) | 159 | 200 | 3.01 | 0.30 | A |
Pyrocatechol (PRC) | 105 | 174 | 9.50 | 5.00 | A |
Resorcinol (RSC) | 110 | 190 | 9.45 | 4.95 | A |
Pyrogallol (PRG) | 131 | 180 | 9.28 | 4.78 | A |
Piperazine (PPZ) | 106 | 190 | 9.55 | 5.05 | B |
Hydrochloric acid (HCA) | — | 198 | −8 | 12.50 | B |
Methanesulfonic acid (MSA) | — | 209 | 1.75 | 2.75 | B |
p-Aminosalicylic acid (PAS) | 143.4 | 200.5 | 3.58 | 0.92 | A |
3,5-Dinitrobenzoic acid (DNB) | 205.9 | 209.3 | 2.77 | 1.73 | A |
2,6-Dihydroxybenzoic acid (DHB) | 169.3 | 206.4 | 1.30 | 3.20 | B |
TNX-PAS | TNX-DNB | TNX-DHB | |
---|---|---|---|
Formula | C13H11N3O4S2∙C7H7NO3 | C13H11N3O4S2∙C7H4N2O6 | C13H11N3O4S2∙C7H6O4 |
Description | flake | flake | flake |
Crystal system | monoclinic | triclinic | monoclinic |
Space group | P 21 | P | C 2/c |
Unit cell parameters (Å, °) | 9.220 (1) | 9.578 (1) | 21.516 (1) |
20.215 (1) | 10.721 (1) | 7.731 (1) | |
11.617 (1) | 11.617 (1) | 26.440 (1) | |
90 | 93.248 (3) | 90 | |
97.98 (1) | 107.587 (3) | 104.070 (10) | |
90 | 99.406 (2) | 90 | |
Volume (Å3) | 2144.65 (2) | 1114.75 (6) | 4266.37 (11) |
Z | 4 | 2 | 2 |
Density (g/cm3) | 1.519 | 1.637 | 1.530 |
Theta range for data collection | 3.84~72.14 | 4.01~71.55 | 3.42~72.16 |
Independent reflections | 7115 | 4187 | 4166 |
Reflections with I > 2σ(I) | 6192 | 3814 | 3694 |
R (I > 2σI) | R = 0.052 | R = 0.0404 | R = 0.0571 |
wR2 = 0.147 | wR2 = 0.1146 | wR2 = 0.1599 | |
Goodness-of-fit on F2 | 1.066 | 1.086 | 1.025 |
Completeness | 99.3 | 97.6 | 99.7 |
Deposition number | 2174287 | 2174286 | 2174285 |
Cocrystal/Salt | D–H…A | D…A (Å) | ∠DHA (°) |
---|---|---|---|
TNX-PAS | N2-H2…O1 | 2.607 | 140.28 |
N3-H3…O4 | 2.651 | 131.79 | |
N3-H3…O8 a | 2.894 | 139.58 | |
N1A-H1AB…O3 | 3.017 | 152.46 | |
O1A-H1A…O1 b | 2.572 | 160.00 | |
O3A-H3AA…O2A | 2.624 | 137.63 | |
TNX-DNB | N2-H2…O1 | 2.637 | 138.40 |
N3-H3…O4 (intra-) | 2.585 | 133.03 | |
N3-H3…O4 c (inter-) | 2.991 | 135.57 | |
O2D-H2D…O1 | 2.572 | 166.51 | |
TNX-DHB | N2-H2…O5 | 3.018 | 168.02 |
N3-H3A…O6 | 2.593 | 157.48 | |
O1-H1…O4 (intra-) | 2.559 | 142.82 | |
O1-H1…O4 d (inter-) | 2.886 | 122.41 | |
O7-H7…O6 | 2.529 | 146.91 | |
O8-H8…O5 | 2.568 | 147.81 |
