Mesenchymal Stromal Cell Exosomes Mediate M2-like Macrophage Polarization through CD73/Ecto-5′-Nucleotidase Activity

by
Kristeen Ye Wen Teo
1,2,
Shipin Zhang
1,2,
Jia Tong Loh
3,
Ruenn Chai Lai
4,
Hwee Weng Dennis Hey
1,
Kong-Peng Lam
3,
Sai Kiang Lim
4 and
Wei Seong Toh
1,2,5,6,*
1
Department of Orthopaedic Surgery, Yong Loo Lin School of Medicine, National University of Singapore, 1E Kent Ridge Road, Singapore 119228, Singapore
2
Faculty of Dentistry, National University of Singapore, 9 Lower Kent Ridge Road, Singapore 119085, Singapore
3
Singapore Immunology Network, Agency for Science, Technology and Research (A*STAR), 8A Biomedical Grove, Singapore 138648, Singapore
4
Institute of Molecular and Cell Biology, Agency for Science, Technology and Research (A*STAR), 61 Biopolis Drive, Proteos, Singapore 138673, Singapore
5
Tissue Engineering Program, Life Sciences Institute, National University of Singapore, 27 Medical Drive, Singapore 117510, Singapore
6
Integrative Sciences and Engineering Program, NUS Graduate School, National University of Singapore, 21 Lower Kent Ridge Road, Singapore 119077, Singapore
*
Author to whom correspondence should be addressed.
Pharmaceutics 2023, 15(5), 1489; https://doi.org/10.3390/pharmaceutics15051489
Submission received: 17 April 2023 / Revised: 6 May 2023 / Accepted: 10 May 2023 / Published: 13 May 2023
(This article belongs to the Special Issue Mesenchymal Stem/Stromal Cell Extracellular Vesicles: From Active Principle to Next Generation Drug Delivery)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mesenchymal stem/stromal cell (MSC) exosomes have been shown to alleviate immune dysfunction and inflammation in preclinical animal models. This therapeutic effect is attributed, in part, to their ability to promote the polarization of anti-inflammatory M2-like macrophages. One polarization mechanism has been shown to involve the activation of the MyD88-mediated toll-like receptor (TLR) signaling pathway by the presence of extra domain A-fibronectin (EDA-FN) within the MSC exosomes. Here, we uncovered an additional mechanism where MSC exosomes mediate M2-like macrophage polarization through exosomal CD73 activity. Specifically, we observed that polarization of M2-like macrophages by MSC exosomes was abolished in the presence of inhibitors of CD73 activity, adenosine receptors A2A and A2B, and AKT/ERK phosphorylation. These findings suggest that MSC exosomes promote M2-like macrophage polarization by catalyzing the production of adenosine, which then binds to adenosine receptors A2A and A2B to activate AKT/ERK-dependent signaling pathways. Thus, CD73 represents an additional critical attribute of MSC exosomes in mediating M2-like macrophage polarization. These findings have implications for predicting the immunomodulatory potency of MSC exosome preparations.

Graphical Abstract

1. Introduction

Immunomodulation plays an essential role in tissue repair and regeneration. Following injury, pro-inflammatory activities are necessary to neutralize injury and remove dead/injured tissue, while anti-inflammatory activities are important in facilitating migration and proliferation of reparative cell types to increase vascularization and nutrient supply needed for tissue repair and regeneration [1].
Macrophages are innate immune cells involved in host response to tissue injury [2]. Depending on the microenvironmental stimuli, naïve macrophages (M0) can be polarized into two distinct functional subsets, the pro-inflammatory M1 and anti-inflammatory M2 macrophages [3]. In general, inflammatory conditions such as interferon (IFN)-γ or lipopolysaccharide (LPS) polarize macrophages to the M1 phenotype, as characterized by the production of pro-inflammatory mediators such as tumor necrosis factor (TNF)-α, interleukin (IL)-1β, IL-6, nitric oxide (NO), and proteolytic enzymes, which aggravate inflammation and exacerbate tissue damage [4,5,6]. On the other hand, IL-4 or IL-13 can activate M2 macrophages to promote tissue homeostasis, resolution of inflammation, and tissue healing through the release of immunosuppressive molecules such as IL-10, transforming growth factor (TGF)-β, IL-1 receptor antagonist protein (IL-1RN), and arginase 1 (Arg1) [7,8,9]. These M2 macrophages are also characterized by the expression of CD163 and CD206 [9].
Mesenchymal stem/stromal cells (MSCs), which have well-documented immunomodulatory and regenerative properties, have been shown in many studies to promote M2-like over M1-like macrophage polarization [10,11,12]. The therapeutic efficacy of MSCs has been widely attributed to their secretion of extracellular vesicles (EVs) such as exosomes [13] and microvesicles [14], and indeed, accumulating evidence later establishes that they similarly possess immunomodulatory properties such as mediating M2-like macrophage polarization [15,16]. Macrophage polarization has been implicated as a key mechanism by which MSC exosomes alleviate disease severity in a range of preclinical models [17,18,19]. For instance, in a mouse model of hyperoxia-induced lung injury, MSC exosomes were observed to promote the infiltration of M2-like macrophages while simultaneously reducing the number of M1-like macrophages and pro-inflammatory cytokines such as TNF-α [17].
Despite the therapeutic potential of MSC exosomes, there are several challenges that need to be addressed. It is widely acknowledged that the therapeutic efficacy of MSC exosome preparation is influenced by the cell source, culture conditions, and isolation protocols. To overcome this and other limitations, immortalizing primary MSCs and establishing monoclonal MSC lines have been proposed and demonstrated as a feasible strategy to reduce the heterogeneity of MSCs and their derived exosomes [20]. We previously reported MYC transformation of human embryonic stem cell (ESC)-derived MSCs to generate a clonal E1-MYC 16.3 MSC line [20]. These immortalized E1-MYC MSCs grow faster and have increased telomerase activity while retaining the parental karyotype, thus providing an unlimited supply of MSCs for a scalable production of MSC exosomes in a consistent and reproducible manner [20]. These MSC exosomes are immunomodulatory and have been found to promote bone and cartilage repair by enhancing the infiltration of M2-like macrophages over M1-like macrophages with suppression of pro-inflammatory cytokines such as IL-1β and TNF-α [21,22]. In addition, they have been reported to enhance healing of radiation-induced injury by mobilizing monocytes from spleen and bone marrow to promote neovascularization at the wound site [23].
Although the mechanisms underlying these effects of MSC exosomes remain to be fully elucidated, MSC exosomes have been shown to induce an M2 phenotype in mouse and human monocytes through an extra domain A-fibronectin (EDA-FN) activated MyD88-dependent TLR signalling pathway [16]. As these MSC exosomes also carry several other immunomodulatory proteins [24,25], we investigate if these proteins could also mediate the polarization of M2 macrophages by MSC exosomes. A promising candidate was CD73, which is a surface ecto-5′-nucleotidase (NT5E) capable of converting adenosine monophosphate (AMP) to adenosine, and is widely recognized as an anti-inflammatory molecule, which exerts its effect through ubiquitously expressed receptors A1, A2A, A2B, and A3. In macrophages, adenosine has been shown to inhibit the production of pro-inflammatory cytokines such as TNF-α, IL-12, macrophage inflammatory protein (MIP)-2, and MIP-1α through interaction with A2A [26,27] and A2B adenosine receptors [28]. In other studies, adenosine reportedly enhanced IL-4 and IL-13 induction of M2 macrophage polarization through A2B receptor and, to a lesser extent, A2A receptor [29]. Consistent with these observations, activation of A2B adenosine receptor was reported to augment macrophage production of IL-10 [30]. Based on these studies, we hypothesized that MSC exosomes derived from an immortalized E1-MYC 16.3 MSC line could also mediate M2-like macrophage polarization through its CD73/NT5E activity.
In this study, we show that MSC exosomes can directly polarize M0 macrophages to an anti-inflammatory M2-like phenotype via a CD73/adenosine-dependent mechanism. Specifically, exosomal CD73 mediated M2-like macrophage polarization through an AKT/ERK-dependent pathway, downstream of adenosine receptors A2A and A2B. Our findings have provided a mechanistic context for MSC exosome-mediated polarization of M2-like macrophages, supporting the utility of MSC exosome therapy for tissue repair and regeneration.

2. Materials and Methods

2.1. Preparation and Characterization of MSC Exosomes

MSC exosomes were prepared from immortalized E1-MYC 16.3 human ESC-derived MSCs, as described previously [20]. Briefly, cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM; Thermo Fisher Scientific, Waltham, MA, USA) with 10% fetal bovine serum (FBS; Thermo Fisher Scientific). For exosome preparation, cells were cultured in a chemically defined culture medium composed of DMEM supplemented with 1% nonessential amino acids, 1% glutamine, 1% insulin-transferrin-selenium-X, 1 mM sodium pyruvate, 0.05 mM β-mercaptoethanol, 5 ng/mL fibroblast growth factor (FGF)-2 (Thermo Fisher Scientific), and 5 ng/mL platelet-derived growth factor (PDGF)-AB (Peprotech, Cranbury, NJ, USA) [31]. After 3 days, the conditioned medium was size fractionated by tangential flow filtration and concentrated 50× using a membrane with a molecular weight cut-off of 100 kDa (Sartorius, Göttingen, Germany). The MSC exosome preparation was assayed for protein concentration using Coomassie Plus protein assay (Thermo Fisher Scientific), particle size distribution and concentration by ZetaView (Particle Metrix, Munich, Germany), and CD73/NT5E activity using the PiColorLock Gold Phosphate Detection System (Innova Biosciences, Cambridge, UK) in accordance with the identity and potency metrics proposed for MSC-sEV preparations [32,33]. This protocol for exosome preparation has been used for the preparation of more than 100 batches of exosomes with a high batch reproducibility in their protein and particle concentrations, modal diameter, and CD73/NT5E activity. For this study, batch AC113 was characterized to have protein concentration of 1.053 mg/mL, particle concentration of 1.33 × 1011 particles/mg, particle of a modal size of 139.29 nm, and CD73/NT5E activity of 22.71 ± 0.54 mU/μg.

2.2. Rat Primary Macrophage Culture

All procedures were performed according to guidelines stipulated by the Institutional Animal Care and Use Committee at National University of Singapore under protocol number: R18-1295. Briefly, peripheral blood mononuclear cells (PBMCs) were isolated from the blood of female 8-week-old Sprague Dawley rats by separation through Ficoll-Paque (Cytiva, Marlborough, MA, USA) density gradient centrifugation according to the manufacturer’s protocol. The isolated PBMCs were then seeded at density of 0.5 × 106 cells/mL in Roswell Park Memorial Institute (RPMI) medium (Cytiva) supplemented with 1% (v/v) penicillin-streptomycin (PS; Thermo Fisher Scientific) and 10% (v/v) heat-inactivated FBS (Thermo Fisher Scientific). After overnight incubation, unattached cells were rinsed off with PBS, and the remaining cells were cultured in RPMI supplemented with 40 ng/mL rat macrophage colony-stimulating factor (M-CSF; Peprotech) for macrophage differentiation. Media change was performed every 2–3 days. Upon cell confluency >80% after 7–9 days of differentiation, macrophages were used for subsequent experiments.

2.3. Exosome Treatment and Inhibitor Study

To investigate the modulatory effects of MSC exosomes on macrophage polarization, the rat primary macrophages were treated with either 10 μg/mL exosomes or PBS vehicle for 24 and 48 h (Figure 1A). To investigate the role of CD73 in mediating the exosome effects, macrophages were co-treated with 10 μg/mL exosomes and 10 nM PSB12379 (CD73 inhibitor; Tocris Bioscience, Bristol, UK) (Figure 1B). The role of adenosine receptors in the activation of AKT and ERK pathways was investigated by pre-treating the cells with 2 μM of ZM241385 (A2A receptor antagonist; Tocris), 200 nM PSB1115 (A2B receptor antagonist; Tocris), 1 μM wortmannin (AKT inhibitor; Cell Signaling Technology, Danvers, MA, USA), or 10 μM U0126 (ERK inhibitor; Cell Signaling Technology) for 1 h, before treatment with 10 μg/mL exosomes (Figure 1C). For the inhibitor studies, the macrophages were harvested at 30 min for western blot analysis, 24 and 48 h for gene expression analysis, and 48 h for immunofluorescence staining (Figure 1B,C). All in vitro experiments were performed in triplicates (n = 3) in two independent trials.

2.4. Immunofluorescence Staining

The primary macrophages were washed with PBS and fixed with 4% paraformaldehyde (PFA; Sigma−Aldrich, St. Louis, MO, USA) for 30 min before permeabilization with 0.3% Triton X-100 (Sigma−Aldrich) for 15 min and blocking for 2 h with PBS supplemented with 10% FBS and 0.1% Triton X-100. Cells were then incubated overnight at 4 °C with anti-CD68 (1:100; Bio-Rad Laboratories, Hercules, CA, USA), anti-iNOS (1:200; Novus Biologicals, Centennial, CO, USA) and anti-CD206 (1:200; Abcam, Cambridge, UK) antibodies. Cells were then washed with PBS before incubation with the respective secondary antibodies, Alexa Fluor 594 goat anti-mouse IgG (1:1000; Thermo Fisher Scientific) or Alexa Fluor 488 goat anti-rabbit IgG (1:500; Thermo Fisher Scientific) antibodies for 2 h at room temperature. Finally, macrophages were counterstained with 4′,6-diamidino-2-phenylindole (DAPI) and examined under a fluorescence microscope (IX70, Olympus, Tokyo, Japan). The polarization of macrophages was analyzed by measuring the staining intensity in five randomly selected fields at 200× magnification and expressed as relative mean fluorescence intensity (MFI).

2.5. Quantitative Reverse Transcription Polymerase Chain Reaction

Quantitative reverse transcription polymerase chain reaction (qPCR) was used to analyze the gene expression of M1 and M2 associated markers. Total RNA from primary macrophages were isolated using PureLink® RNA Mini kit (Thermo Fisher Scientific) according to manufacturer’s instruction. RNA from each sample was then reverse transcribed using iScriptTM Reverse Transcription Supermix (Bio-Rad) before amplification using CFX ConnectTM real-time PCR system (Bio-Rad) with iTaqTM Universal SYBR® Green Supermix (Bio-Rad), and primers as shown in Table 1. PCR cycling condition comprised initial denaturation at 95 °C for 30 s, followed by 40 cycles of amplification consisting of 15 s denaturation at 95 °C and 30 s extension at 60 °C. The mRNA expression levels were normalized against glyceraldehyde 3-phosphate dehydrogenase (GAPDH), calculated using comparative ∆CT method [34], and expressed as fold changes.

2.6. Western Blot Analysis

Western blotting was performed following a standard procedure [21]. Briefly, proteins were denatured, separated on 4–12% polyacrylamide gels (Thermo Fisher Scientific), blotted onto nitrocellulose membrane (GE Healthcare, Chicago, IL, USA), and probed with primary antibody followed by incubation with horseradish peroxidase (HRP)-coupled secondary antibody against the primary antibody. Table 2 shows the list of antibodies. After incubation, the protein bands were visualized using the WesternBright ECL HRP substrate (Advansta, San Jose, CA, USA) and then documented using the ChemiDoc™ MP System (Bio-Rad). The individual blots for all biological replicates are included in the Supplementary Data as Figures S1–S3.

2.7. Statistical Analysis

Statistical analysis was performed using SPSS version 22.0 (SPSS, Chicago, IL, USA). The data were reported as mean ± SD and tested for normality. Statistical differences between the groups were determined by student’s t test or one-way ANOVA followed by Scheffe post hoc test for normally distributed data and Mann-Whitney U test or Kruskal–Wallis test followed by Dunn–Bonferroni post hoc test for non-normally distributed data. The statistical significance was set as p < 0.05.

3. Results

3.1. MSC Exosomes Promote M2-like Macrophage Polarization

To determine if MSC exosomes modulate macrophage polarization, we performed in vitro cell culture studies with primary naïve M0 macrophages differentiated from rat PBMCs using M-CSF. We first confirmed the expression of macrophage marker CD68 on PBMC-generated macrophages via immunofluorescence (Figure 2A,B). We observed that following exosome treatment, the expression of CD206, a M2 marker, was significantly elevated by ~3-folds (p < 0.001) on the CD68+ macrophages (Figure 2A,B). Enhanced M2 polarization of these macrophages was also confirmed by their M2-associated gene signature, including the upregulation of Arg1, CCL24, CCR1, CD206, IL-1RN, IL-10, IL-13, and PPARγ, as early as 24 h following exosome treatment (Figure 2C). However, MSC exosomes did not polarize macrophages toward a M1-like phenotype, as there were no changes in expression of M1 marker, iNOS, or other M1 signature genes such as CCL5, CD80, IFN-γ, IL-1β, IL-12β, IL-6, and TNF-α by the exosome-treated macrophages (Figure 2D–F). Collectively, these findings suggest that MSC exosomes can directly polarize M0 macrophages towards an anti-inflammatory M2-like phenotype.

3.2. MSC Exosomes Mediate M2-like Macrophage Polarization through CD73

We previously reported that MSC exosomes express CD73, a surface ecto-5′-nucleotidase (NT5E) that converts adenosine monophosphate (AMP) to adenosine [35], which in turn binds to the adenosine receptors to activate the AKT and ERK signaling pathways [36]. Given the well-documented immunomodulatory properties of adenosine [26,27,28,29,30,37], we hypothesize that MSC exosomes mediate M2-like macrophage polarization via a CD73/adenosine-dependent mechanism.
To test our hypothesis, we first confirm the presence of CD73 in MSC exosomes by western blot using anti-CD73 antibody (Figure 3A). We further demonstrated that the enzymatic activity of exosomal CD73 can be attenuated by 37.6 ± 7.2% with a specific CD73 inhibitor, PSB12379 (Figure 3B). To address the significance of exosomal CD73 on macrophage polarization, we treated M0 macrophages with MSC exosomes in the presence of PSB12379. We observed that CD73 inhibition by PSB12379 suppressed exosome-mediated M2-like macrophage polarization, as evidenced by a statistically significant reduction of ~62% in CD206 expression in the M0 + Exo + PSB12379 group, as compared to the M0 + Exo group (0.8 ± 0.2 vs. 2.1 ± 0.3, p = 0.001) (Figure 3C,D). In addition, gene expression analysis revealed that exosome-mediated upregulation of M2 signature genes such as Arg1, CCR1, CD206, IL-1RN, IL-10, and PPARγ were abrogated in the presence of CD73 inhibitor (Figure 3F). On the other hand, no induction of M1-like macrophages, as indicated by iNOS expression, was observed upon treatment with MSC exosomes in the presence or absence of CD73 inhibitor (Figure 3E). Collectively, these findings suggest that exosomal CD73 is required for M2-like macrophage polarization.

3.3. MSC Exosomes Promote M2-like Macrophage Polarization through Exosomal CD73-Mediated A2A and A2B Receptor Signaling

Next, to test whether exosomal CD73 mediates M2-like macrophage polarization through the adenosine pathway, we first investigated the AKT/ERK signaling downstream of adenosine receptors. Indeed, M0 + Exo macrophages show marked increase in the phosphorylation of AKT (1.3 ± 0.1 vs. 0.8 ± 0.03, p < 0.001) and ERK (3.0 ± 0.3 vs. 1.9 ± 0.3, p = 0.009) as compared to M0 macrophages (Figure 4A,B). This exosome-induced AKT and ERK phosphorylation was diminished in the presence of CD73 inhibitor with M0 + Exo + PSB12379 group having reduced phosphorylation of AKT (1.0 ± 0.1 vs. 1.3 ± 0.1, p = 0.003) and ERK (2.1 ± 0.2 vs. 3.0 ± 0.3, p = 0.026) as compared to the M0 + Exo group.
To confirm that exosome-mediated AKT and ERK phosphorylation occurs through adenosine signaling, we treated the cells with selective adenosine receptor A2A and A2B inhibitors, ZM241385 and PSB1115, respectively. Inhibition of A2A receptor with ZM241385 suppressed exosome-induced AKT (1.2 ± 0.5 vs. 2.9 ± 0.7, p = 0.017) and ERK (2.8 ± 0.2 vs. 5.8 ± 0.6, p = 0.001) phosphorylation, while inhibition of A2B receptor with PSB1115 resulted in the suppression of exosome-induced phosphorylation of AKT (0.9 ± 0.4 vs. 2.9 ± 0.7, p = 0.009), but not ERK (5.9 ± 0.7 vs. 5.8 ± 0.6, p = 0.991) (Figure 4C,D). We further demonstrated that inhibition of A2A or A2B receptor can significantly inhibit M2-like macrophage polarization, as evidenced by a statistically significant reduction in CD206 expression by ~59% (p < 0.001) and ~82% (p < 0.001), respectively (Figure 5A,B). On the contrary, inhibition of A2A or A2B receptor had no effect on M1-like macrophage polarization, as evidenced by no changes in iNOS expression across the groups (Figure 5C). Consistent with the decrease in CD206 expression by inhibition of A2A or A2B receptor, our gene expression results also showed that with the inhibition of A2A receptor, there was significant downregulation of M2-associated genes such as Arg1, CCR1, CD206, IL-10, and PPARγ (Figure 5D), and, with inhibition of A2B receptor, additional M2-associated genes including CCL24, IL-1RN and IL-13 were downregulated (Figure 5D). Taken together, our findings suggest that MSC exosomes promote M2-like macrophage polarization through exosomal CD73-mediated A2A and A2B receptor activation.

3.4. Inhibition of AKT and ERK Attenuate MSC Exosome-Induced M2-like Macrophage Polarization

Finally, to establish the roles of AKT and ERK signaling in MSC exosome-induced M2-like macrophage polarization, we treated M0 macrophages with MSC exosomes in the presence of AKT and ERK inhibitors, wortmannin and U0126, respectively. As shown in Figure 6A, wortmannin significantly reduced exosome-induced AKT phosphorylation (0.3 ± 0.1 vs. 5.7 ± 0.5, p < 0.001) to a level comparable to the M0 control (0.3 ± 0.1 vs. 1.1 ± 0.4, p > 0.05). Wortmannin also reduced exosome-induced ERK phosphorylation, although the reduction was not statistically significant (2.8 ± 0.2 vs. 3.8 ± 0.8, p = 0.145). On the other hand, U0126 significantly reduced exosome-induced ERK phosphorylation (0.3 ± 0.1 vs. 3.8 ± 0.8, p < 0.001) to a level lower than that in M0 control (0.3 ± 0.1 vs. 2.4 ± 0.3, p = 0.003) (Figure 6A, B). However, U0126 did not reduce exosome-induced AKT phosphorylation as evidenced by comparable levels of AKT phosphorylation with or without ERK inhibition (4.4 ± 1.2 vs. 5.7 ± 0.5, p = 0.226) (Figure 6A,B).
Functionally, treatment with either wortmannin or U0126 abolished exosome-induced CD206 expression (0.5 ± 0.1 vs. 2.1 ± 0.2, p < 0.001) or (0.5 ± 0.2 vs. 2.1 ± 0.2, p < 0.001), respectively. The level of CD206 expression in both treatment groups was similar to the baseline expression level in M0 control (0.6 ± 0.1, p > 0.05), suggesting that the silencing of either AKT or ERK abrogated exosome-mediated M2 polarization (Figure 6C,D). Consistent with this, AKT or ERK inhibition also inhibited the expression of M2 signature genes such as Arg1, CCL24, CCR1, CD206, IL-1RN, IL-10, IL-13, and PPARγ (Figure 6F). Hence, these findings suggest that MSC exosomes promote M2-like macrophage polarization through AKT and ERK activation. Incidentally, AKT or ERK inhibition had no effect on M1 polarization, as evidenced by minimal changes in iNOS expression across the groups (Figure 6E).

4. Discussion

Several studies have reported that native MSC exosomes have the capacity to modulate immune cell signaling and responses [16,17,21,38]. Among the wide range of immune cell activities, MSC exosomes have been reported to enhance M2-like over M1-like macrophage polarization and infiltration, thereby suppressing inflammation to promote tissue repair in many animal disease models [17,21]. In this study, we demonstrated that CD73 on MSC exosomes promotes M2-like macrophage polarization through an AKT/ERK-dependent pathway, downstream of adenosine receptors, A2A and A2B (Figure 7). Our results have provided a mechanistic basis of how MSC exosomes could suppress inflammation to promote tissue repair and regeneration following injury or disease. This, together with our previous study demonstrating that MSC exosomes induced M2-like macrophage polarization by activating an EDA-FN-dependent MyD88-mediated TLR signaling [16], highlights a robust redundancy in MSC exosomes to promote M2-like macrophage polarization.
In this study, we hypothesized that in addition to EDA-FN, MSC exosomes could mediate M2-like macrophage polarization through CD73 activity. We have previously reported that MSC exosomes express CD73, a surface ecto-5′-nucleotidase (NT5E) [35], which converts AMP to adenosine to elicit diverse cellular signaling and responses through adenosine receptors, A1, A2A, A2B, and A3 [35,36,39]. By inhibiting CD73 with PSB12379, A2A receptor with ZM241385, A2B receptor with PSB1115, and AKT phosphorylation with wortmannin or ERK phosphorylation with U0126, we systematically defined and established the role of each protein in MSC exosome-mediated M2 macrophage polarization. We determined that MSC exosome-mediated M2 macrophage polarization by catalyzing the production of adenosine from AMP through CD73 expressed on the surface of MSC exosome. The adenosine binds A2A/A2B adenosine receptor to activate AKT and ERK signaling pathways. Consistent with our observations, several studies have reported that adenosine being anti-inflammatory inhibits the production of pro-inflammatory cytokines by macrophages through interaction with the A2A receptor [26,27] and A2B receptor [28]. In other studies, adenosine reportedly enhanced IL-4 and IL-13 induced M2 macrophage polarization through A2B receptor, and A2A receptor at a lesser extent [29]. Additionally, activation of A2B receptor was reported to augment the macrophage production of anti-inflammatory cytokine IL-10 [30]. Our results showed that whilst A2A receptor triggered both AKT and ERK phosphorylation, and A2B receptor induced mainly AKT phosphorylation, inhibition of either receptor led to a reduction of M2 macrophage polarization. However, it is important to note that adenosine receptors, which are G protein-coupled receptors (GPCR) have the potential to activate multiple signaling pathways beyond AKT and ERK. While A1 and A3 receptors couple with G protein subtype Gi to inhibit adenylate cyclase and reduce cyclic AMP (cAMP) production, A2A and A2B receptors bind to G protein subtype Gs and activate adenylate cyclase, resulting in increased cAMP production [40]. The elevated cAMP level was reported to promote M2 macrophage polarization through activation of PKA-mediated signaling pathways such as CREB [41] and STAT3 [42]. Therefore, there could be other adenosine receptor-responsive pathways mediating the effects of MSC exosomes in M2-like macrophage polarization.
We further confirmed that AKT and ERK signaling pathways were involved in exosome-mediated M2 macrophage polarization, as inhibition of exosome-induced AKT or ERK phosphorylation suppressed M2 macrophage polarization and their expression of M2-associated genes including Arg1, CCL24, CCR1, CD206, IL-1RN, IL-10, IL-13, and PPARγ. In agreement with our findings, several studies have reported that AKT phosphorylation is required for M2 macrophage polarization [43,44,45,46]. For instance, treatment with bone morphogenetic protein (BMP)-7 was shown to promote polarization of human monocytes into M2 macrophages through activation of the AKT signaling pathway [45]. Similarly, TGF-β was found to contribute to IL-4-induced M2 polarization through activation of AKT signaling [46]. Besides AKT, activation of ERK signaling was also reported to be involved in M2 macrophage polarization. For example, treatment of human monocytes with tumor-derived lactate resulted in the activation of ERK signaling, leading to M2-like macrophage differentiation [47]. Likewise, treatment of human monocytes with programmed death-ligand (PDL) 1 protein promoted M2 macrophage polarization through activation of ERK signaling pathway [48].
The functional effects of MSC exosomes have been largely attributed to their rich diverse cargo of proteins, lipids, nucleic acids, and metabolites [24,49]. Several studies have suggested that MSC exosome-induced macrophage polarization is associated with its cargo of miRNAs. For instance, it was reported that exosomes derived from mouse MSCs induced M2 phenotype of RAW264.7 cells through transfer of exosomal miR-21-5p [50]. Similarly, exosomes from human umbilical cord-derived MSCs were reported to attenuate mouse myocardial infarction injury by enhancing M2 macrophage polarization through exosomal miR-24-3p-mediated Plcb3/NF-κB signaling pathway [51]. However, accumulating evidence suggests that miRNAs in the exosome cargo may not be present in biologically relevant concentration and/or equipped with the biochemical functionality and potential required to elicit an appropriate timely biochemical response [52,53,54]. Our study therefore supports our previous hypothesis that the mechanism of action for MSC exosomes involves proteins, rather than miRNAs [52]. This is likely due to the low copy number of miRNAs in exosomes, which may not be sufficient to elicit significant biological effects [53,54]. Furthermore, recent studies have shown that the uptake of exosomes by cells is inefficient, and only a small fraction of internalized exosomes was able to escape lysosomal degradation [55,56]. As such, any hypothesis involving cellular uptake of exosomes as part of the mode of action is increasingly untenable.
In summary, our study demonstrates that MSC exosomes can effectively polarize M0 macrophages towards an anti-inflammatory M2-like phenotype through a CD73/adenosine-dependent mechanism. Specifically, we found that exosomal CD73 activates an AKT/ERK-dependent pathway downstream of adenosine receptors A2A and A2B, leading to M2-like macrophage polarization. Our findings highlight the importance of CD73 as a key attribute of MSC exosomes responsible for inducing M2-like macrophage polarization, and suggest that it could be a valuable predictor of the immunomodulatory potency of MSC exosome preparations [33].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pharmaceutics15051489/s1, Figure S1: Individual blots for western blot analysis of AKT and ERK activation in primary macrophages treated with MSC exosomes in the presence or absence of CD73 inhibition by PSB12379; Figure S2: Individual blots for western blot analysis of AKT and ERK activation in primary macrophages pre-treated with A2A receptor inhibitor (ZM241385) and A2B receptor inhibitor (PSB1115) before exosome treatment; Figure S3: Individual blots for western blot analysis of AKT and ERK activation in primary macrophages pre-treated with AKT inhibitor (Wortmannin) and ERK inhibitor (U0126) before exosome treatment.

Author Contributions

Conceptualization, W.S.T. and S.K.L.; methodology, W.S.T. and K.Y.W.T.; formal analysis, K.Y.W.T. and S.Z.; investigation, K.Y.W.T.; resources, W.S.T.; data curation: W.S.T. and K.Y.W.T.; writing—original draft preparation, K.Y.W.T.; writing—review and editing, W.S.T., S.K.L., K.-P.L., J.T.L., R.C.L., H.W.D.H. and S.Z.; visualization, K.Y.W.T.; supervision, W.S.T.; funding acquisition, W.S.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministry of Education (MOE) Tier 2 grant (Project ID: MOE-T2EP30122-0008), MOE Tier 1 grant (Project ID: NUHSRO/2022/091/T1/Seed-Sep/04), and National Medical Research Council Singapore (Project ID: CIRG20nov-0016). W.S.T., K.P.L. and S.K.L. are supported by the Agency for Science, Technology, and Research under its Health and Biomedical Sciences Industry Alignment Fund Pre-positioning (award no. H19H6a0026).

Institutional Review Board Statement

The animal study protocol was approved by the Institutional Animal Care and Use Committee (IACUC) of National University of Singapore, Singapore (Protocol number: R18-1295).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available upon reasonable request to the corresponding author.

Acknowledgments

The authors thank Eugene Wei Kian Sim for performing the CD73 activity assay.

Conflicts of Interest

The authors report that they have no conflict of interest in this study. S.K.L. holds founder shares in Paracrine Therapeutics Pte Ltd.

References

  1. Toh, W.S.; Zhang, B.; Lai, R.C.; Lim, S.K. Immune regulatory targets of mesenchymal stromal cell exosomes/small extracellular vesicles in tissue regeneration. Cytotherapy 2018, 20, 1419–1426. [Google Scholar] [CrossRef] [PubMed]
  2. Watanabe, S.; Alexander, M.; Misharin, A.V.; Budinger, G.R.S. The role of macrophages in the resolution of inflammation. J. Clin. Invest. 2019, 129, 2619–2628. [Google Scholar] [CrossRef] [PubMed]
  3. Mills, C. M1 and M2 macrophages: Oracles of health and disease. Crit. Rev. ™ Immunol. 2012, 32, 463–488. [Google Scholar] [CrossRef] [PubMed]
  4. Okamoto, T.; Gohil, K.; Finkelstein, E.I.; Bove, P.; Akaike, T.; van der Vliet, A. Multiple contributing roles for NOS2 in LPS-induced acute airway inflammation in mice. Am. J. Physiol. Lung Cell Mol. Physiol. 2004, 286, L198–L209. [Google Scholar] [CrossRef] [PubMed]
  5. Zeidler, P.C.; Millecchia, L.M.; Castranova, V. Role of inducible nitric oxide synthase-derived nitric oxide in lipopolysaccharide plus interferon-γ-induced pulmonary inflammation. Toxicol. Appl. Pharmacol. 2004, 195, 45–54. [Google Scholar] [CrossRef]
  6. Arnold, C.E.; Whyte, C.S.; Gordon, P.; Barker, R.N.; Rees, A.J.; Wilson, H.M. A critical role for suppressor of cytokine signalling 3 in promoting M 1 macrophage activation and function in vitro and in vivo. Immunology 2014, 141, 96–110. [Google Scholar] [CrossRef]
  7. Gu, Q.; Yang, H.; Shi, Q. Macrophages and bone inflammation. J. Orthop. Transl. 2017, 10, 86–93. [Google Scholar] [CrossRef]
  8. Chen, Y.; Jiang, W.; Yong, H.; He, M.; Yang, Y.; Deng, Z.; Li, Y. Macrophages in osteoarthritis: Pathophysiology and therapeutics. Am. J. Transl. Res. 2020, 12, 261–268. [Google Scholar]
  9. Biswas, S.K.; Mantovani, A. Macrophage plasticity and interaction with lymphocyte subsets: Cancer as a paradigm. Nat. Immunol. 2010, 11, 889–896. [Google Scholar] [CrossRef]
  10. Vasandan, A.B.; Jahnavi, S.; Shashank, C.; Prasad, P.; Kumar, A.; Prasanna, S.J. Human Mesenchymal stem cells program macrophage plasticity by altering their metabolic status via a PGE(2)-dependent mechanism. Sci. Rep. 2016, 6, 38308. [Google Scholar] [CrossRef]
  11. Luque-Campos, N.; Bustamante-Barrientos, F.A.; Pradenas, C.; García, C.; Araya, M.J.; Bohaud, C.; Contreras-López, R.; Elizondo-Vega, R.; Djouad, F.; Luz-Crawford, P.; et al. The Macrophage Response Is Driven by Mesenchymal Stem Cell-Mediated Metabolic Reprogramming. Front. Immunol. 2021, 12, 624746. [Google Scholar] [CrossRef]
  12. Selleri, S.; Bifsha, P.; Civini, S.; Pacelli, C.; Dieng, M.M.; Lemieux, W.; Jin, P.; Bazin, R.; Patey, N.; Marincola, F.M.; et al. Human mesenchymal stromal cell-secreted lactate induces M2-macrophage differentiation by metabolic reprogramming. Oncotarget 2016, 7, 30193–30210. [Google Scholar] [CrossRef] [PubMed]
  13. Lai, R.C.; Arslan, F.; Lee, M.M.; Sze, N.S.; Choo, A.; Chen, T.S.; Salto-Tellez, M.; Timmers, L.; Lee, C.N.; El Oakley, R.M.; et al. Exosome secreted by MSC reduces myocardial ischemia/reperfusion injury. Stem Cell Res. 2010, 4, 214–222. [Google Scholar] [CrossRef] [PubMed]
  14. Bruno, S.; Grange, C.; Deregibus, M.C.; Calogero, R.A.; Saviozzi, S.; Collino, F.; Morando, L.; Busca, A.; Falda, M.; Bussolati, B.; et al. Mesenchymal stem cell-derived microvesicles protect against acute tubular injury. J. Am. Soc. Nephrol. 2009, 20, 1053–1067. [Google Scholar] [CrossRef]
  15. Du, T.; Ju, G.; Zhou, J.; Zhong, L.; Rong, L.; Chen, W.; Zhang, X.; Zhou, R.; Ding, D.; Ji, T. Microvesicles derived from human umbilical cord mesenchyme promote M2 macrophage polarization and ameliorate renal fibrosis following partial nephrectomy via hepatocyte growth factor. Hum. Cell 2021, 34, 1103–1113. [Google Scholar] [CrossRef]
  16. Zhang, B.; Yin, Y.; Lai, R.C.; Tan, S.S.; Choo, A.B.; Lim, S.K. Mesenchymal stem cells secrete immunologically active exosomes. Stem Cells Dev. 2014, 23, 1233–1244. [Google Scholar] [CrossRef]
  17. Willis, G.R.; Fernandez-Gonzalez, A.; Anastas, J.; Vitali, S.H.; Liu, X.; Ericsson, M.; Kwong, A.; Mitsialis, S.A.; Kourembanas, S. Mesenchymal Stromal Cell Exosomes Ameliorate Experimental Bronchopulmonary Dysplasia and Restore Lung Function through Macrophage Immunomodulation. Am. J. Respir. Crit. Care Med. 2018, 197, 104–116. [Google Scholar] [CrossRef] [PubMed]
  18. Dong, B.; Wang, C.; Zhang, J.; Zhang, J.; Gu, Y.; Guo, X.; Zuo, X.; Pan, H.; Hsu, A.C.; Wang, G.; et al. Exosomes from human umbilical cord mesenchymal stem cells attenuate the inflammation of severe steroid-resistant asthma by reshaping macrophage polarization. Stem Cell Res. 2021, 12, 204. [Google Scholar] [CrossRef]
  19. He, X.; Dong, Z.; Cao, Y.; Wang, H.; Liu, S.; Liao, L.; Jin, Y.; Yuan, L.; Li, B. MSC-Derived Exosome Promotes M2 Polarization and Enhances Cutaneous Wound Healing. Stem Cells Int. 2019, 2019, 7132708. [Google Scholar] [CrossRef] [PubMed]
  20. Chen, T.S.; Arslan, F.; Yin, Y.; Tan, S.S.; Lai, R.C.; Choo, A.B.; Padmanabhan, J.; Lee, C.N.; de Kleijn, D.P.; Lim, S.K. Enabling a robust scalable manufacturing process for therapeutic exosomes through oncogenic immortalization of human ESC-derived MSCs. J. Transl. Med. 2011, 9, 47. [Google Scholar] [CrossRef]
  21. Zhang, S.; Chuah, S.J.; Lai, R.C.; Hui, J.H.P.; Lim, S.K.; Toh, W.S. MSC exosomes mediate cartilage repair by enhancing proliferation, attenuating apoptosis and modulating immune reactivity. Biomaterials 2018, 156, 16–27. [Google Scholar] [CrossRef]
  22. Chuah, S.J.; Yong, C.W.; Teo, K.Y.W.; Chew, J.R.J.; Cheow, Y.A.; Zhang, S.; Wong, R.C.W.; Lim, A.A.T.; Lim, S.K.; Toh, W.S. Mesenchymal stromal cell-derived small extracellular vesicles modulate macrophage polarization and enhance angio-osteogenesis to promote bone healing. Genes Dis. 2022, 9, 841–844. [Google Scholar] [CrossRef] [PubMed]
  23. Loinard, C.; Ribault, A.; Lhomme, B.; Benderitter, M.; Flamant, S.; Paul, S.; Dubois, V.; Lai, R.C.; Lim, S.K.; Tamarat, R. HuMSC-EV induce monocyte/macrophage mobilization to orchestrate neovascularization in wound healing process following radiation injury. Cell Death Discov. 2023, 9, 38. [Google Scholar] [CrossRef] [PubMed]
  24. Lai, R.C.; Tan, S.S.; Teh, B.J.; Sze, S.K.; Arslan, F.; de Kleijn, D.P.; Choo, A.; Lim, S.K. Proteolytic Potential of the MSC Exosome Proteome: Implications for an Exosome-Mediated Delivery of Therapeutic Proteasome. Int. J. Proteom. 2012, 2012, 971907. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, B.; Yin, Y.; Lai, R.C.; Lim, S.K. Immunotherapeutic potential of extracellular vesicles. Front. Immunol. 2014, 5, 518. [Google Scholar] [CrossRef]
  26. Haskó, G.; Kuhel, D.G.; Chen, J.-F.; Schwarzschild, M.A.; Deitch, E.A.; Mabley, J.G.; Marton, A.; Szabó, C. Adenosine inhibits IL-12 and TNF-α production via adenosine A2a receptor-dependent and independent mechanisms. FASEB J. 2000, 14, 2065–2074. [Google Scholar] [CrossRef]
  27. Scheibner, K.A.; Boodoo, S.; Collins, S.; Black, K.E.; Chan-Li, Y.; Zarek, P.; Powell, J.D.; Horton, M.R. The adenosine a2a receptor inhibits matrix-induced inflammation in a novel fashion. Am. J. Respir. Cell Mol. Biol. 2009, 40, 251–259. [Google Scholar] [CrossRef]
  28. Chen, H.; Yang, D.; Carroll, S.H.; Eltzschig, H.K.; Ravid, K. Activation of the macrophage A2b adenosine receptor regulates tumor necrosis factor–α levels following vascular injury. Exp. Hematol. 2009, 37, 533–538. [Google Scholar] [CrossRef]
  29. Csóka, B.; Selmeczy, Z.; Koscsó, B.; Németh, Z.H.; Pacher, P.; Murray, P.J.; Kepka-Lenhart, D.; Moris, S.M., Jr.; Gause, W.C.; Leibovich, S.J. Adenosine promotes alternative macrophage activation via A2A and A2B receptors. FASEB J. 2012, 26, 376–386. [Google Scholar] [CrossRef]
  30. Németh, Z.H.; Lutz, C.S.; Csóka, B.; Deitch, E.A.; Leibovich, S.J.; Gause, W.C.; Tone, M.; Pacher, P.; Vizi, E.S.; Haskó, G. Adenosine augments IL-10 production by macrophages through an A2B receptor-mediated posttranscriptional mechanism. J. Immunol. 2005, 175, 8260–8270. [Google Scholar] [CrossRef]
  31. Sze, S.K.; de Kleijn, D.P.; Lai, R.C.; Khia Way Tan, E.; Zhao, H.; Yeo, K.S.; Low, T.Y.; Lian, Q.; Lee, C.N.; Mitchell, W.; et al. Elucidating the secretion proteome of human embryonic stem cell-derived mesenchymal stem cells. Mol. Cell Proteom. 2007, 6, 1680–1689. [Google Scholar] [CrossRef]
  32. Witwer, K.W.; Van Balkom, B.W.M.; Bruno, S.; Choo, A.; Dominici, M.; Gimona, M.; Hill, A.F.; De Kleijn, D.; Koh, M.; Lai, R.C.; et al. Defining mesenchymal stromal cell (MSC)-derived small extracellular vesicles for therapeutic applications. J. Extracell. Vesicles 2019, 8, 1609206. [Google Scholar] [CrossRef]
  33. Gimona, M.; Brizzi, M.F.; Choo, A.B.H.; Dominici, M.; Davidson, S.M.; Grillari, J.; Hermann, D.M.; Hill, A.F.; de Kleijn, D.; Lai, R.C.; et al. Critical considerations for the development of potency tests for therapeutic applications of mesenchymal stromal cell-derived small extracellular vesicles. Cytotherapy 2021, 23, 373–380. [Google Scholar] [CrossRef]
  34. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  35. Lai, R.C.; Yeo, R.W.Y.; Tan, S.S.; Zhang, B.; Yin, Y.; Sze, N.S.K.; Choo, A.; Lim, S.K. Mesenchymal Stem Cell Exosomes: The Future MSC-Based Therapy. In Mesenchymal Stem Cell Therapy; Chase, L.G., Vemuri, M.C., Eds.; Humana Press: Totowa, NJ, USA, 2013; pp. 39–61. [Google Scholar]
  36. Zhang, S.; Teo, K.Y.W.; Chuah, S.J.; Lai, R.C.; Lim, S.K.; Toh, W.S. MSC exosomes alleviate temporomandibular joint osteoarthritis by attenuating inflammation and restoring matrix homeostasis. Biomaterials 2019, 200, 35–47. [Google Scholar] [CrossRef]
  37. Belikoff, B.G.; Hatfield, S.; Georgiev, P.; Ohta, A.; Lukashev, D.; Buras, J.A.; Remick, D.G.; Sitkovsky, M. A2B adenosine receptor blockade enhances macrophage-mediated bacterial phagocytosis and improves polymicrobial sepsis survival in mice. J. Immunol. 2011, 186, 2444–2453. [Google Scholar] [CrossRef]
  38. Zhang, B.; Lai, R.C.; Sim, W.K.; Choo, A.B.H.; Lane, E.B.; Lim, S.K. Topical Application of Mesenchymal Stem Cell Exosomes Alleviates the Imiquimod Induced Psoriasis-Like Inflammation. Int. J. Mol. Sci. 2021, 22, 720. [Google Scholar] [CrossRef] [PubMed]
  39. Chew, J.R.J.; Chuah, S.J.; Teo, K.Y.W.; Zhang, S.; Lai, R.C.; Fu, J.H.; Lim, L.P.; Lim, S.K.; Toh, W.S. Mesenchymal stem cell exosomes enhance periodontal ligament cell functions and promote periodontal regeneration. Acta Biomater. 2019, 89, 252–264. [Google Scholar] [CrossRef] [PubMed]
  40. Franco, R.; Lillo, A.; Rivas-Santisteban, R.; Reyes-Resina, I.; Navarro, G. Microglial Adenosine Receptors: From Preconditioning to Modulating the M1/M2 Balance in Activated Cells. Cells 2021, 10, 1124. [Google Scholar] [CrossRef] [PubMed]
  41. Polumuri, S.; Perkins, D.J.; Vogel, S.N. cAMP levels regulate macrophage alternative activation marker expression. Innate Immun. 2021, 27, 133–142. [Google Scholar] [CrossRef] [PubMed]
  42. Li, Z.; Feng, P.P.; Zhao, Z.B.; Zhu, W.; Gong, J.P.; Du, H.M. Liraglutide protects against inflammatory stress in non-alcoholic fatty liver by modulating Kupffer cells M2 polarization via cAMP-PKA-STAT3 signaling pathway. Biochem Biophys Res Commun 2019, 510, 20–26. [Google Scholar] [CrossRef]
  43. Rückerl, D.; Jenkins, S.J.; Laqtom, N.N.; Gallagher, I.J.; Sutherland, T.E.; Duncan, S.; Buck, A.H.; Allen, J.E. Induction of IL-4Rα–dependent microRNAs identifies PI3K/Akt signaling as essential for IL-4–driven murine macrophage proliferation in vivo. Blood J. Am. Soc. Hematol. 2012, 120, 2307–2316. [Google Scholar] [CrossRef]
  44. Byles, V.; Covarrubias, A.; Ben-Sahra, I.; Lamming, D.; Sabatini, D.; Manning, B.; Horng, T. The TSC-mTOR pathway regulates macrophage polarization. Nat. Commun. 2013, 4, 2834. [Google Scholar] [CrossRef]
  45. Rocher, C.; Singla, D.K. SMAD-PI3K-Akt-mTOR pathway mediates BMP-7 polarization of monocytes into M2 macrophages. PLoS ONE 2013, 8, e84009. [Google Scholar] [CrossRef]
  46. Gong, D.; Shi, W.; Yi, S.-j.; Chen, H.; Groffen, J.; Heisterkamp, N. TGFβ signaling plays a critical role in promoting alternative macrophage activation. BMC Immunol. 2012, 13, 31. [Google Scholar] [CrossRef]
  47. Mu, X.; Shi, W.; Xu, Y.; Xu, C.; Zhao, T.; Geng, B.; Yang, J.; Pan, J.; Hu, S.; Zhang, C.; et al. Tumor-derived lactate induces M2 mac-rophage polarization via the activation of the ERK/STAT3 signaling pathway in breast cancer. Cell Cycle. 2018, 17, 428–438. [Google Scholar] [CrossRef] [PubMed]
  48. Wei, Y.; Liang, M.; Xiong, L.; Su, N.; Gao, X.; Jiang, Z. PD-L1 induces macrophage polarization toward the M2 phenotype via Erk/Akt/mTOR. Exp. Cell Res. 2021, 402, 112575. [Google Scholar] [CrossRef]
  49. Chen, T.S.; Lai, R.C.; Lee, M.M.; Choo, A.B.; Lee, C.N.; Lim, S.K. Mesenchymal stem cell secretes microparticles enriched in pre-microRNAs. Nucleic Acids Res. 2010, 38, 215–224. [Google Scholar] [CrossRef] [PubMed]
  50. Shen, D.; He, Z. Mesenchymal stem cell-derived exosomes regulate the polarization and inflammatory response of macrophages via miR-21-5p to promote repair after myocardial reperfusion injury. Ann. Transl. Med. 2021, 9, 1323. [Google Scholar] [CrossRef] [PubMed]
  51. Zhu, F.; Chen, Y.; Li, J.; Yang, Z.; Lin, Y.; Jiang, B.; Shao, L.; Hu, S.; Shen, Z. Human Umbilical Cord Mesenchymal Stem Cell-Derived Exosomes Attenuate Myocardial Infarction Injury via miR-24-3p-Promoted M2 Macrophage Polarization. Adv. Biol. 2022, 6, e2200074. [Google Scholar] [CrossRef]
  52. Toh, W.S.; Lai, R.C.; Zhang, B.; Lim, S.K. MSC exosome works through a protein-based mechanism of action. Biochem. Soc. Trans. 2018, 46, 843–853. [Google Scholar] [CrossRef] [PubMed]
  53. Albanese, M.; Chen, Y.A.; Hüls, C.; Gärtner, K.; Tagawa, T.; Mejias-Perez, E.; Keppler, O.T.; Göbel, C.; Zeidler, R.; Shein, M.; et al. MicroRNAs are minor constituents of extracellular vesicles that are rarely delivered to target cells. PLoS Genet. 2021, 17, e1009951. [Google Scholar] [CrossRef] [PubMed]
  54. Chevillet, J.R.; Kang, Q.; Ruf, I.K.; Briggs, H.A.; Vojtech, L.N.; Hughes, S.M.; Cheng, H.H.; Arroyo, J.D.; Meredith, E.K.; Gallichotte, E.N.; et al. Quantitative and stoichiometric analysis of the microRNA content of exosomes. Proc. Natl. Acad. Sci. USA 2014, 111, 14888–14893. [Google Scholar] [CrossRef] [PubMed]
  55. Bonsergent, E.; Grisard, E.; Buchrieser, J.; Schwartz, O.; Théry, C.; Lavieu, G. Quantitative characterization of extracellular vesicle uptake and content delivery within mammalian cells. Nat. Commun. 2021, 12, 1864. [Google Scholar] [CrossRef]
  56. O’Brien, K.; Ughetto, S.; Mahjoum, S.; Nair, A.V.; Breakefield, X.O. Uptake, functionality, and re-release of extracellular vesicle-encapsulated cargo. Cell Rep. 2022, 39, 110651. [Google Scholar] [CrossRef]
Pharmaceutics 15 01489 g001 550

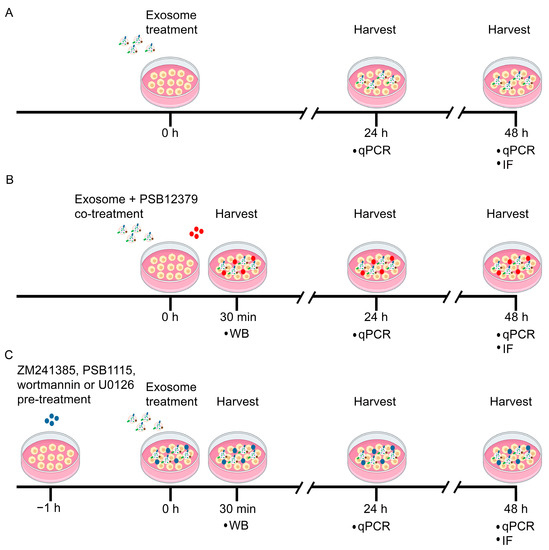

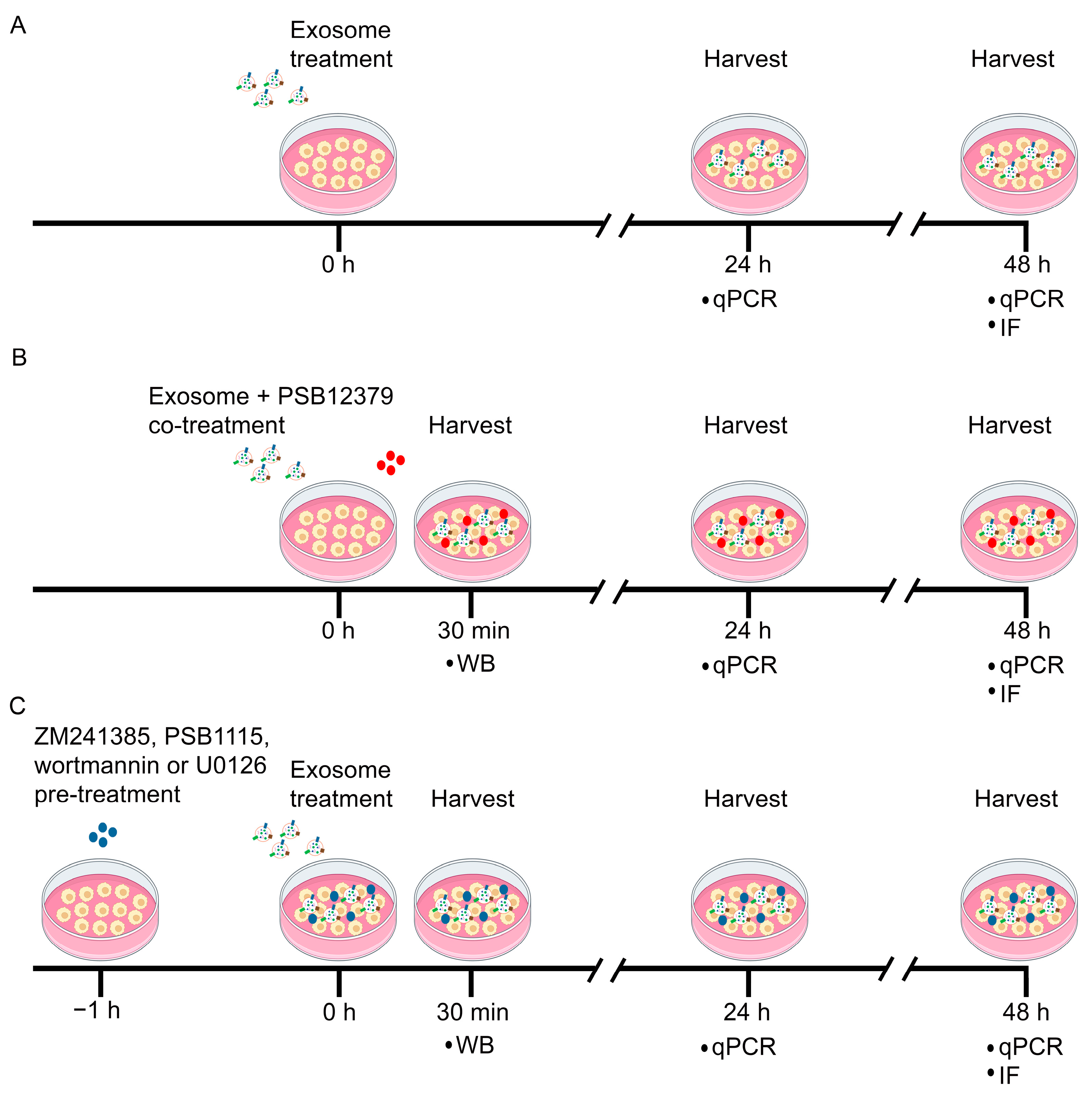

Figure 1. Time schedule for treatment of primary macrophages with MSC exosomes and inhibitors in vitro. (A) Primary macrophages were treated with MSC exosomes and harvested at 24 and 48 h for qPCR and IF. (B) Primary macrophages were co-treated with MSC exosomes and PSB12379 (CD73 inhibitor), before being harvested at 30 min for WB, and at 24 and 48 h for qPCR and IF analyses. (C) Primary macrophages were pre-treated with ZM241385 (A2A receptor inhibitor), PSB1115 (A2B receptor inhibitor), wortmannin (AKT inhibitor) or U0126 (ERK inhibitor) prior to exosome treatment, before being harvested at 30 min for WB, and at 24 and 48 h for qPCR and IF analyses. WB, western blot; qPCR, quantitative reverse transcription polymerase chain reaction; IF, immunofluorescence.
Figure 1. Time schedule for treatment of primary macrophages with MSC exosomes and inhibitors in vitro. (A) Primary macrophages were treated with MSC exosomes and harvested at 24 and 48 h for qPCR and IF. (B) Primary macrophages were co-treated with MSC exosomes and PSB12379 (CD73 inhibitor), before being harvested at 30 min for WB, and at 24 and 48 h for qPCR and IF analyses. (C) Primary macrophages were pre-treated with ZM241385 (A2A receptor inhibitor), PSB1115 (A2B receptor inhibitor), wortmannin (AKT inhibitor) or U0126 (ERK inhibitor) prior to exosome treatment, before being harvested at 30 min for WB, and at 24 and 48 h for qPCR and IF analyses. WB, western blot; qPCR, quantitative reverse transcription polymerase chain reaction; IF, immunofluorescence.
Pharmaceutics 15 01489 g001
Pharmaceutics 15 01489 g002 550

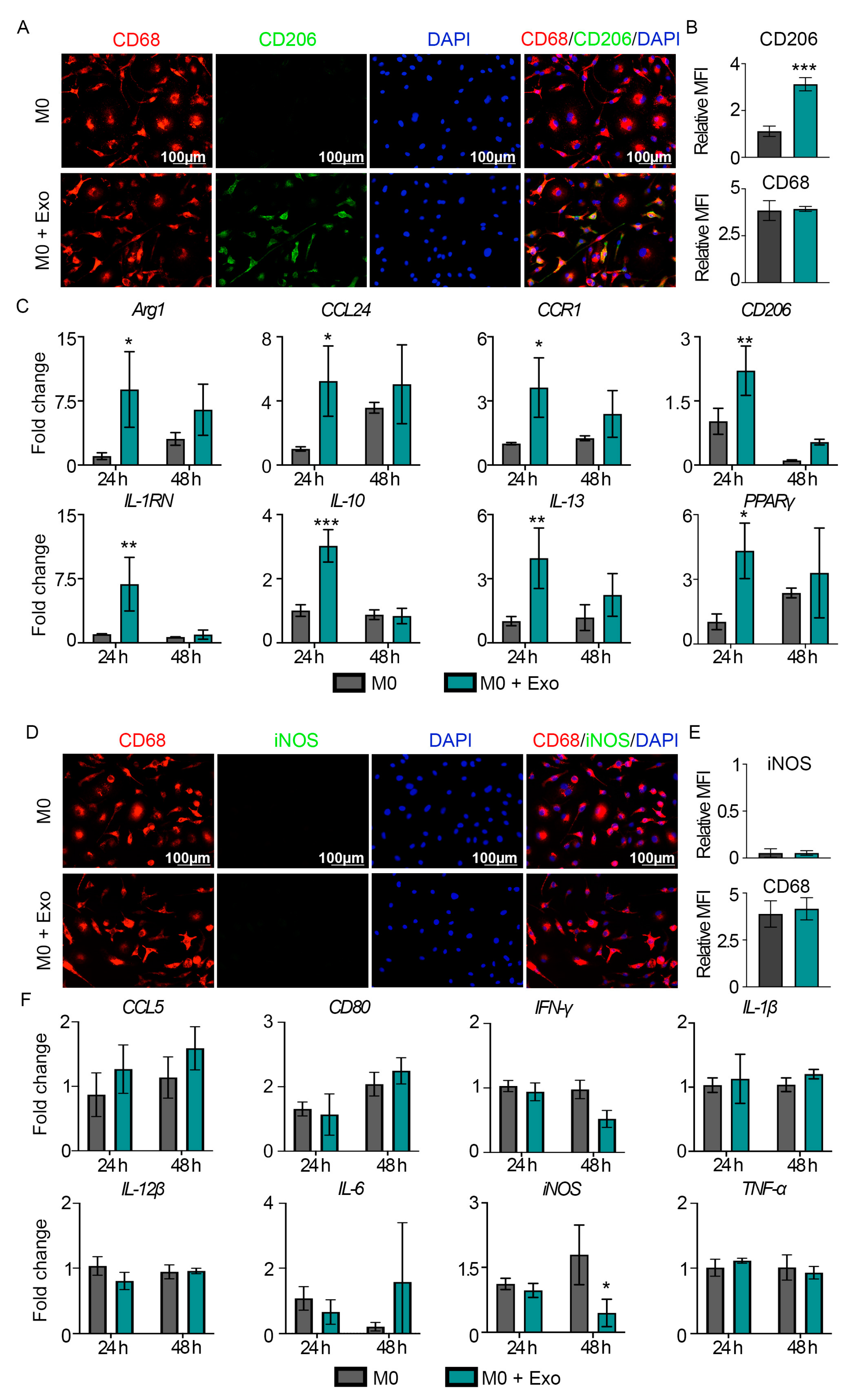

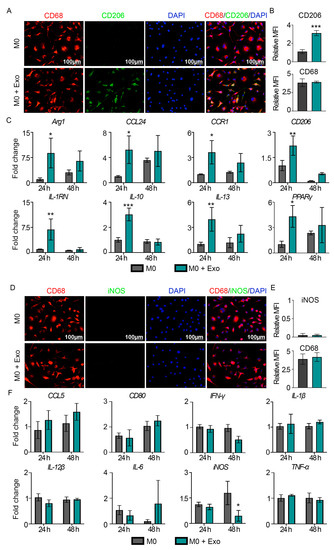

Figure 2. MSC exosomes promote M2-like but not M1-like macrophage polarization. (A) IF staining for CD206 and CD68 at 48 h. Representative images (n = 3). Scale bar: 100 μm. (B) Quantitative MFI of CD206 and CD68 at 48 h. (C) Gene expression analysis of M2-associated genes at 24 and 48 h. (D) IF staining for iNOS and CD68 at 48 h. Representative images (n = 3). Scale bar: 100 μm. (E) Quantitative MFI of iNOS and CD68 at 48 h. (F) Gene expression analysis of M1-associated genes at 24 and 48 h. Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, and *** p < 0.001 compared to M0 macrophages. n = 3/group.
Figure 2. MSC exosomes promote M2-like but not M1-like macrophage polarization. (A) IF staining for CD206 and CD68 at 48 h. Representative images (n = 3). Scale bar: 100 μm. (B) Quantitative MFI of CD206 and CD68 at 48 h. (C) Gene expression analysis of M2-associated genes at 24 and 48 h. (D) IF staining for iNOS and CD68 at 48 h. Representative images (n = 3). Scale bar: 100 μm. (E) Quantitative MFI of iNOS and CD68 at 48 h. (F) Gene expression analysis of M1-associated genes at 24 and 48 h. Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, and *** p < 0.001 compared to M0 macrophages. n = 3/group.
Pharmaceutics 15 01489 g002
Pharmaceutics 15 01489 g003 550

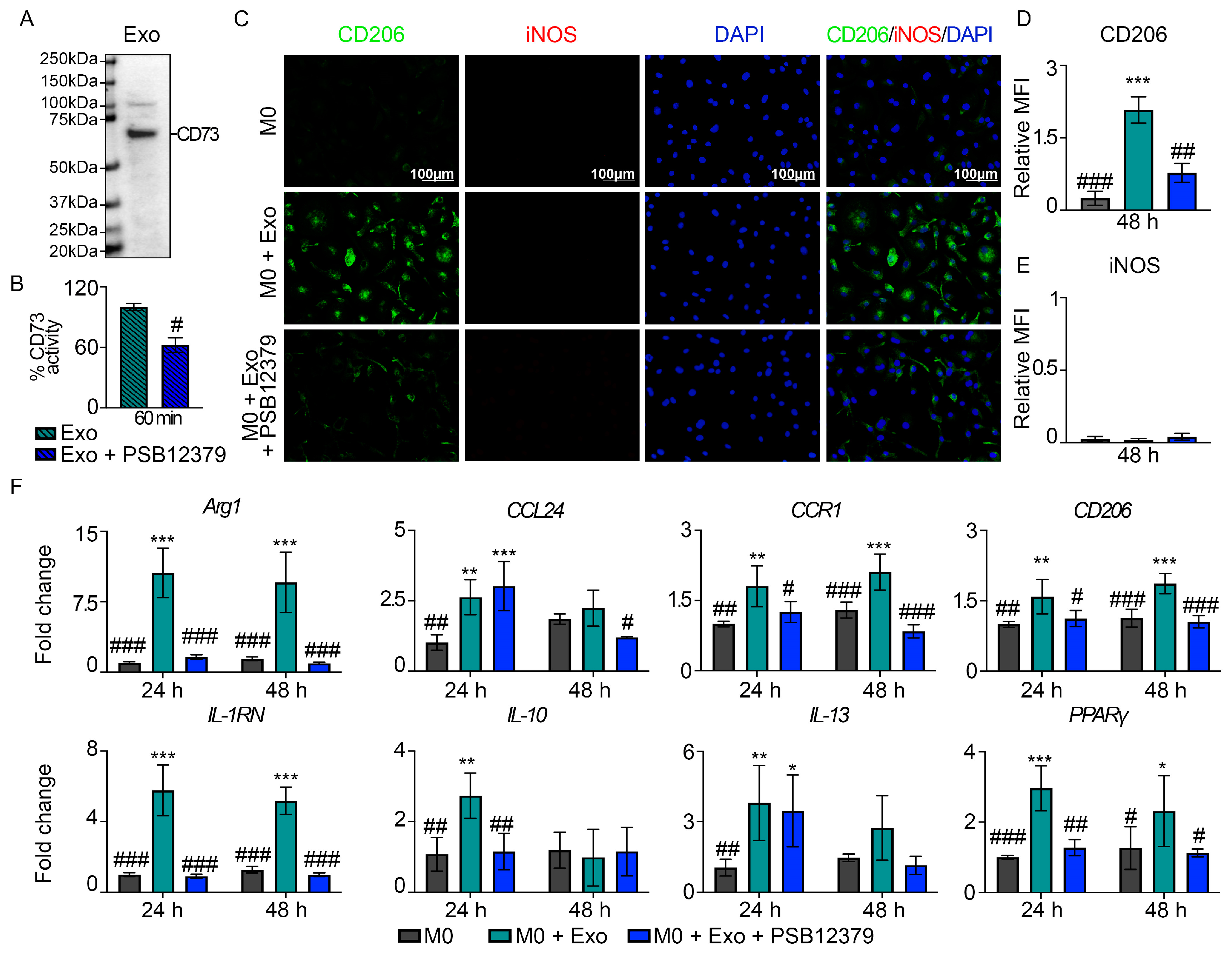

Figure 3. Exosomal CD73 mediates the effects of MSC exosomes in M2-like macrophage polarization. (A) Presence of CD73 protein band at ~70 kDa. (B) Percentage of CD73 activity in MSC exosomes following treatment with CD73 inhibitor (PSB12379) for 60 min. (C) IF staining of CD206 and iNOS in primary macrophages treated with MSC exosomes in presence or absence of CD73 inhibition (PSB12379) for 48 h. Representative images (n = 3). Scale bar: 100 μm. Quantitative MFI of (D) CD206 and (E) iNOS at 48 h. (F) Gene expression analysis of M2-associated genes at 24 and 48 h. Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001 compared to M0, # p < 0.05, ## p < 0.01, and ### p < 0.001 compared to Exo or M0 + Exo group. n = 3–4/group.
Figure 3. Exosomal CD73 mediates the effects of MSC exosomes in M2-like macrophage polarization. (A) Presence of CD73 protein band at ~70 kDa. (B) Percentage of CD73 activity in MSC exosomes following treatment with CD73 inhibitor (PSB12379) for 60 min. (C) IF staining of CD206 and iNOS in primary macrophages treated with MSC exosomes in presence or absence of CD73 inhibition (PSB12379) for 48 h. Representative images (n = 3). Scale bar: 100 μm. Quantitative MFI of (D) CD206 and (E) iNOS at 48 h. (F) Gene expression analysis of M2-associated genes at 24 and 48 h. Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001 compared to M0, # p < 0.05, ## p < 0.01, and ### p < 0.001 compared to Exo or M0 + Exo group. n = 3–4/group.
Pharmaceutics 15 01489 g003
Pharmaceutics 15 01489 g004 550

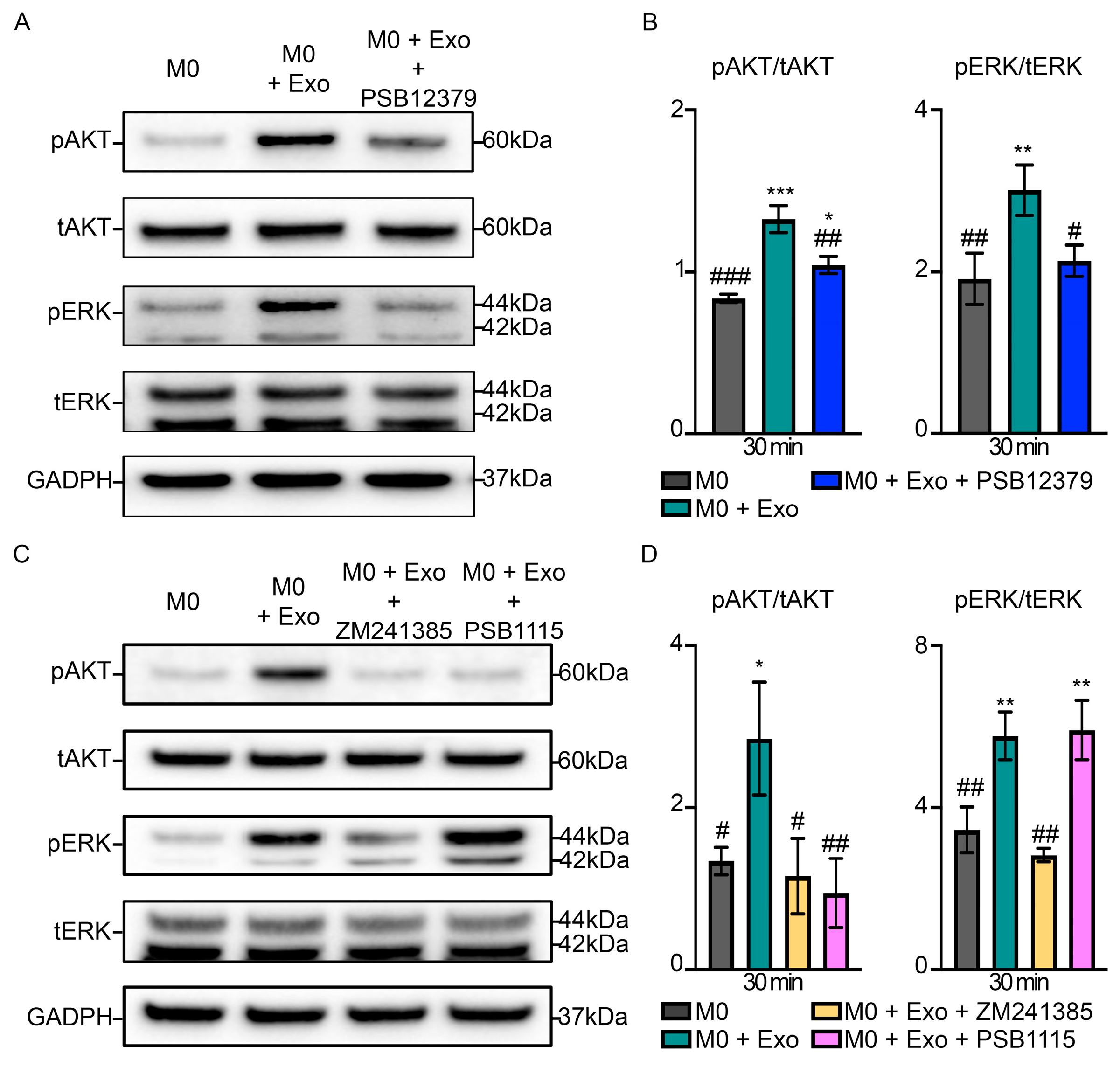

Figure 4. Exosomal CD73 mediates activation of AKT and ERK signaling through specific adenosine receptors A2A and A2B. (A) Western blotting and (B) semi-quantitative analysis of AKT and ERK phosphorylation in primary macrophages treated with MSC exosomes in the presence or absence of CD73 inhibition by PSB12379. Representative images (n = 3). (C) Western blotting and (D) semi-quantitative analysis of AKT and ERK phosphorylation in primary macrophages pre-treated with A2A receptor inhibitor (ZM241385) and A2B receptor inhibitor (PSB1115) before exosome treatment. Representative images (n = 3). Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001 compared to M0, # p < 0.05, ## p < 0.01, and ###p < 0.001 compared to M0 + Exo. n = 3–4/group.
Figure 4. Exosomal CD73 mediates activation of AKT and ERK signaling through specific adenosine receptors A2A and A2B. (A) Western blotting and (B) semi-quantitative analysis of AKT and ERK phosphorylation in primary macrophages treated with MSC exosomes in the presence or absence of CD73 inhibition by PSB12379. Representative images (n = 3). (C) Western blotting and (D) semi-quantitative analysis of AKT and ERK phosphorylation in primary macrophages pre-treated with A2A receptor inhibitor (ZM241385) and A2B receptor inhibitor (PSB1115) before exosome treatment. Representative images (n = 3). Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001 compared to M0, # p < 0.05, ## p < 0.01, and ###p < 0.001 compared to M0 + Exo. n = 3–4/group.
Pharmaceutics 15 01489 g004
Pharmaceutics 15 01489 g005 550

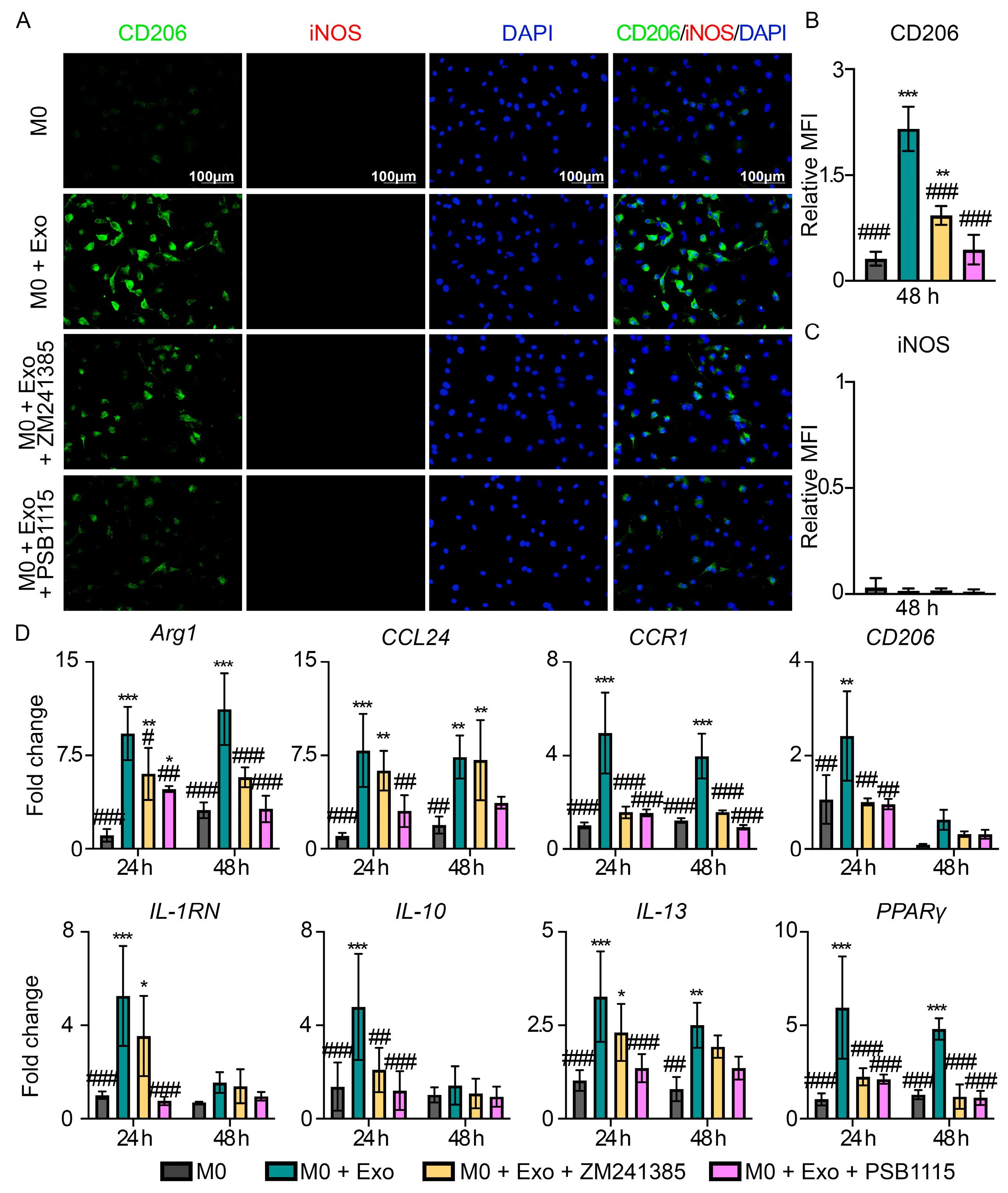

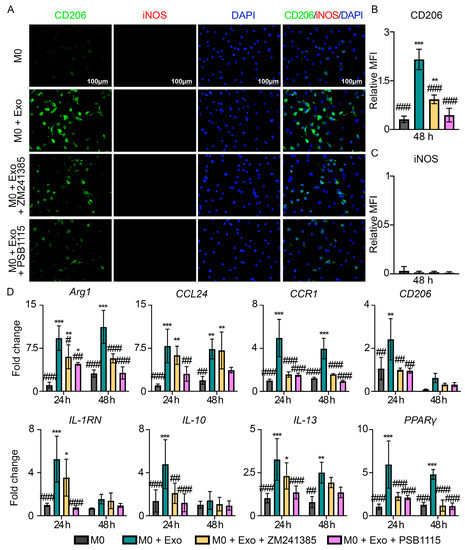

Figure 5. MSC exosomes modulate macrophage polarization through specific adenosine receptors A2A and A2B. (A) IF staining at 48 h for CD206 and iNOS in primary macrophages treated with MSC exosomes, following pre-treatment with adenosine A2A receptor inhibitor (ZM241385) and A2B receptor inhibitor (PSB1115). Representative images (n = 3). Scale bar: 100 μm. Quantitative MFI of (B) CD206 and (C) iNOS at 48 h. (D) Gene expression analysis of M2-associated genes at 24 and 48 h. Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001 compared to M0, # p < 0.05, ## p < 0.01, and ### p < 0.001 compared to M0 + Exo. n = 3–4/group.
Figure 5. MSC exosomes modulate macrophage polarization through specific adenosine receptors A2A and A2B. (A) IF staining at 48 h for CD206 and iNOS in primary macrophages treated with MSC exosomes, following pre-treatment with adenosine A2A receptor inhibitor (ZM241385) and A2B receptor inhibitor (PSB1115). Representative images (n = 3). Scale bar: 100 μm. Quantitative MFI of (B) CD206 and (C) iNOS at 48 h. (D) Gene expression analysis of M2-associated genes at 24 and 48 h. Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001 compared to M0, # p < 0.05, ## p < 0.01, and ### p < 0.001 compared to M0 + Exo. n = 3–4/group.
Pharmaceutics 15 01489 g005
Pharmaceutics 15 01489 g006 550

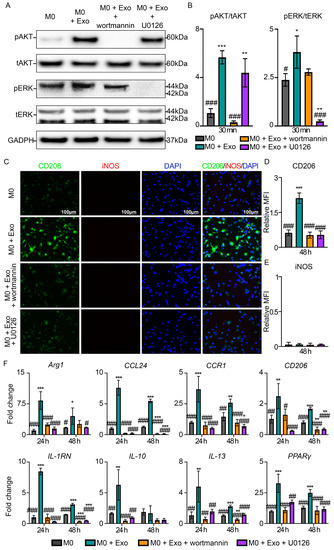

Figure 6. MSC exosomes promote M2 macrophage polarization via AKT and ERK signaling pathways. (A) Western blotting and (B) semi-quantitative analysis of AKT and ERK phosphorylation in primary macrophages pre-treated with AKT inhibitor (wortmannin) or ERK inhibitor (U0126) before exosome treatment. Representative images (n = 3). (C) IF staining at 48 h for CD206 and iNOS in primary macrophages treated with MSC exosomes, following pre-treatment with AKT inhibitor (wortmannin) and ERK inhibitor (U0126). Representative images (n = 3). Scale bar: 100 μm. Quantitative MFI of (D) CD206 and (E) iNOS at 48 h. (F) Gene expression analysis of M2-associated genes at 24 and 48 h. Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001 compared to M0, # p < 0.05, ## p < 0.01, and ### p < 0.001 compared to M0 + Exo. n = 3–4/group.
Figure 6. MSC exosomes promote M2 macrophage polarization via AKT and ERK signaling pathways. (A) Western blotting and (B) semi-quantitative analysis of AKT and ERK phosphorylation in primary macrophages pre-treated with AKT inhibitor (wortmannin) or ERK inhibitor (U0126) before exosome treatment. Representative images (n = 3). (C) IF staining at 48 h for CD206 and iNOS in primary macrophages treated with MSC exosomes, following pre-treatment with AKT inhibitor (wortmannin) and ERK inhibitor (U0126). Representative images (n = 3). Scale bar: 100 μm. Quantitative MFI of (D) CD206 and (E) iNOS at 48 h. (F) Gene expression analysis of M2-associated genes at 24 and 48 h. Data are presented as mean ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001 compared to M0, # p < 0.05, ## p < 0.01, and ### p < 0.001 compared to M0 + Exo. n = 3–4/group.
Pharmaceutics 15 01489 g006
Pharmaceutics 15 01489 g007 550

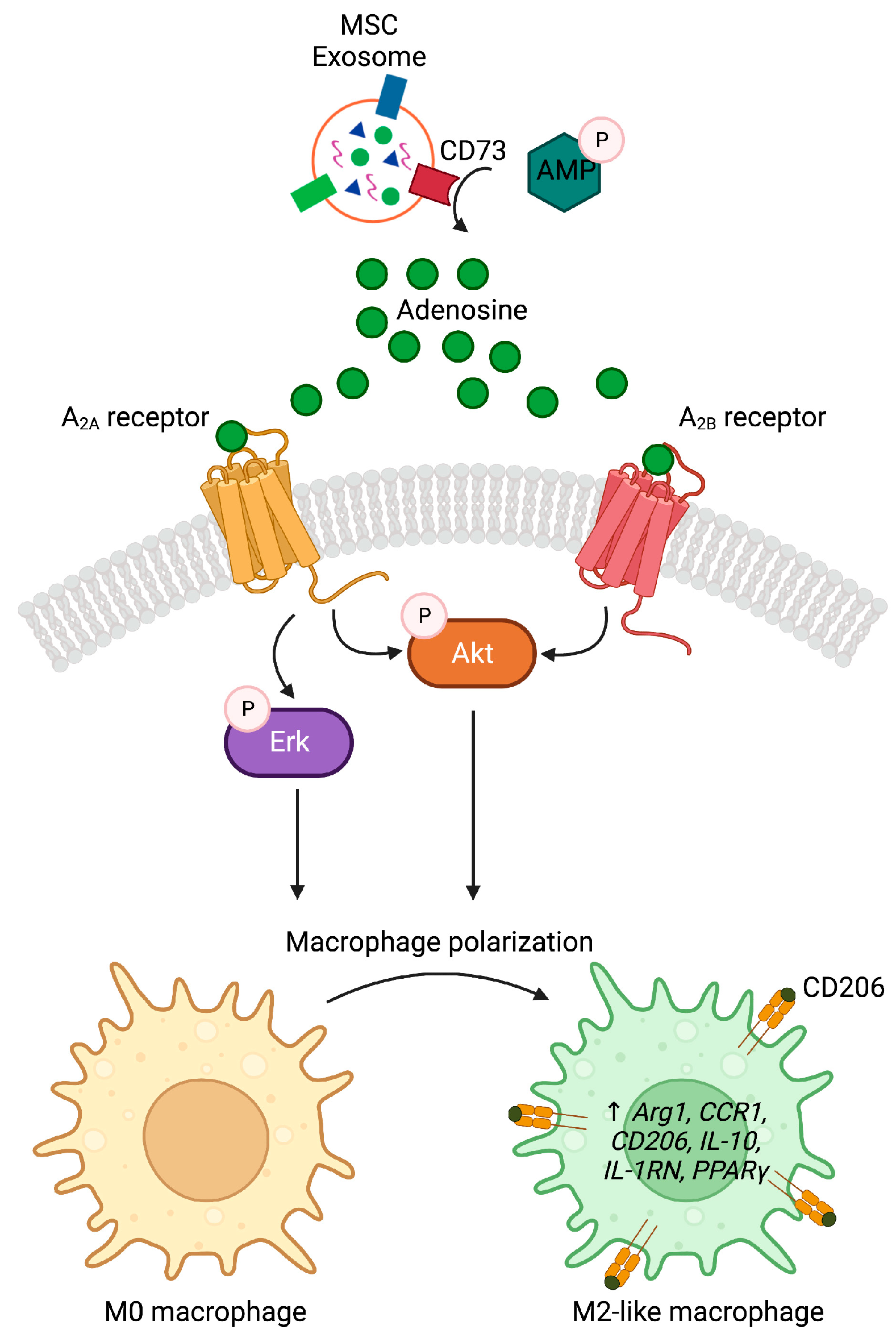

Figure 7. Proposed mechanism of MSC exosomes in promoting M2 macrophage polarization. Exosomal CD73 converts AMP to adenosine, which in turn interacts with A2A receptor to activate AKT and ERK signaling, and with A2B receptor to activate AKT signaling to promote M2 macrophage polarization. Image is created with Biorender.com on 8th May 2023.
Figure 7. Proposed mechanism of MSC exosomes in promoting M2 macrophage polarization. Exosomal CD73 converts AMP to adenosine, which in turn interacts with A2A receptor to activate AKT and ERK signaling, and with A2B receptor to activate AKT signaling to promote M2 macrophage polarization. Image is created with Biorender.com on 8th May 2023.
Pharmaceutics 15 01489 g007
Table
Table 1. Primer sequences.
Table 1. Primer sequences.
GenePrimer Sequences
Arg1FTTGATGTTGATGGACTGGAC
RTCTCTGGCTTATGATTACCTTC
CCL24FCCAAGGCAGGGGTCATCTTC
RACCTTGGTGCTATTGCCTCG
CCL5FCGTGAAGGAGTATTTTTACACCAGC
RCTTGAACCCACTTCTTCTCTGGG
CCR1FAAGTACCTTCGGCAGCTGTTTC
RACAGAGAAGAAGGGCAGCCAT
CD206FGGGTTCACCTGGAGTGATGG
RATTGTCTTGAGGAGCGGGTG
CD80FCCAAGTGTCCAAGTCGGTGA
RTTGTACTCGGGCCACACTTC
GAPDHFGGTCGGTGTGAACGGATTTGG
RGCCGTGGGTAGAGTCATACTGGAAC
IFN-γFGATCCAGCACAAAGCTGTCA
RGACTCCTTTTCCGCTTCCTT
IL-10FCTGTCATCGATTTCTCCCCTGT
RCAGTAGATGCCGGGTGGTTC
IL-1βFCCTCTGACAGGCAACCACTT
RCATCCCATACACACGGACAA
IL-12βFCCGATGCCCCTGGAGAAAC
RCCTTCTTGTGGAGCAGCAG
IL-13FGCTTATTGAGGAGCTGAGCAACA
RGCCAGGTCCACACTCCATA
IL-1RNFGTGTTCTTGGGCATCCACGG
RTGTCTCGGAGCGGATGAAGG
IL-6FCCAGGTTCTCTTCAAGGGACAA
RGGTATGAAATGGCAAATCGGCT
iNOSFGAAACTTCTCAGCCACCTTGG
RCCGTGGGGCTTGTAGTTGAC
PPARγFAGGATTCATGACCAGGGAGTT
RAGCAAACTCAAACTTAGGCTCCAT
TNF-αFCCAGGTTCTCTTCAAGGGACAA
RGGTATGAAATGGCAAATCGGCT
Table
Table 2. List of antibodies.
Table 2. List of antibodies.
AntibodySupplierCloneDilution
anti-CD73GeneTexRabbit polyclonal1:1000
anti-phospho-AKT (Ser473)CSTD9E1:1000
anti-AKT (pan)CST11E71:1000
anti-phospho-ERK1/2 (Thr202/Tyr204)CSTRabbit polyclonal1:1000
anti-ERK1/2CST137F51:1000
anti-GAPDHAbcam6C51:10,000
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Teo, K.Y.W.; Zhang, S.; Loh, J.T.; Lai, R.C.; Hey, H.W.D.; Lam, K.-P.; Lim, S.K.; Toh, W.S. Mesenchymal Stromal Cell Exosomes Mediate M2-like Macrophage Polarization through CD73/Ecto-5′-Nucleotidase Activity. Pharmaceutics 2023, 15, 1489. https://doi.org/10.3390/pharmaceutics15051489

AMA Style

Teo KYW, Zhang S, Loh JT, Lai RC, Hey HWD, Lam K-P, Lim SK, Toh WS. Mesenchymal Stromal Cell Exosomes Mediate M2-like Macrophage Polarization through CD73/Ecto-5′-Nucleotidase Activity. Pharmaceutics. 2023; 15(5):1489. https://doi.org/10.3390/pharmaceutics15051489

Chicago/Turabian Style

Teo, Kristeen Ye Wen, Shipin Zhang, Jia Tong Loh, Ruenn Chai Lai, Hwee Weng Dennis Hey, Kong-Peng Lam, Sai Kiang Lim, and Wei Seong Toh. 2023. "Mesenchymal Stromal Cell Exosomes Mediate M2-like Macrophage Polarization through CD73/Ecto-5′-Nucleotidase Activity" Pharmaceutics 15, no. 5: 1489. https://doi.org/10.3390/pharmaceutics15051489

APA Style

Teo, K. Y. W., Zhang, S., Loh, J. T., Lai, R. C., Hey, H. W. D., Lam, K. -P., Lim, S. K., & Toh, W. S. (2023). Mesenchymal Stromal Cell Exosomes Mediate M2-like Macrophage Polarization through CD73/Ecto-5′-Nucleotidase Activity. Pharmaceutics, 15(5), 1489. https://doi.org/10.3390/pharmaceutics15051489

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
