Micro Injection Molding of Drug-Loaded Round Window Niche Implants for an Animal Model Using 3D-Printed Molds

Mau, Robert; Eickner, Thomas; Jüttner, Gábor; Gao, Ziwen; Wei, Chunjiang; Fiedler, Nicklas; Senz, Volkmar; Lenarz, Thomas; Grabow, Niels; Scheper, Verena; Seitz, Hermann

doi:10.3390/pharmaceutics15061584

Open AccessArticle

Micro Injection Molding of Drug-Loaded Round Window Niche Implants for an Animal Model Using 3D-Printed Molds

by

Robert Mau

¹

,

Thomas Eickner

²,

Gábor Jüttner

³,

Ziwen Gao

^4,5

,

Chunjiang Wei

^4,5,

Nicklas Fiedler

²

,

Volkmar Senz

²

,

Thomas Lenarz

^4,5

,

Niels Grabow

^2,6

,

Verena Scheper

^4,5,*

and

Hermann Seitz

^1,6,*

¹

Microfluidics, Faculty of Mechanical Engineering and Marine Technology, University of Rostock, Justus-von-Liebig Weg 6, 18059 Rostock, Germany

²

Institute for Biomedical Engineering, University Medical Center Rostock, Friedrich-Barnewitz-Straße 4, 18119 Rostock, Germany

³

Kunststoff-Zentrum in Leipzig gGmbH (KUZ), Erich-Zeigner-Allee 44, 04229 Leipzig, Germany

⁴

Lower Saxony Center for Biomedical Engineering, Implant Research and Development (NIFE), Department of Otorhinolaryngology, Head and Neck Surgery, Hannover Medical School, Stadtfelddamm 34, 30625 Hannover, Germany

⁵

Cluster of Excellence “Hearing4all”, Department of Otorhinolaryngology, Head and Neck Surgery, Hannover Medical School, Carl-Neuberg-Straße 1, 30625 Hannover, Germany

⁶

Department Life, Light & Matter, Interdisciplinary Faculty, University of Rostock, Albert-Einstein-Str. 25, 18059 Rostock, Germany

^*

Authors to whom correspondence should be addressed.

Pharmaceutics 2023, 15(6), 1584; https://doi.org/10.3390/pharmaceutics15061584

Submission received: 14 April 2023 / Revised: 16 May 2023 / Accepted: 22 May 2023 / Published: 24 May 2023

(This article belongs to the Special Issue Local Drug Delivery System)

Download

Browse Figures

Review Reports Versions Notes

Abstract

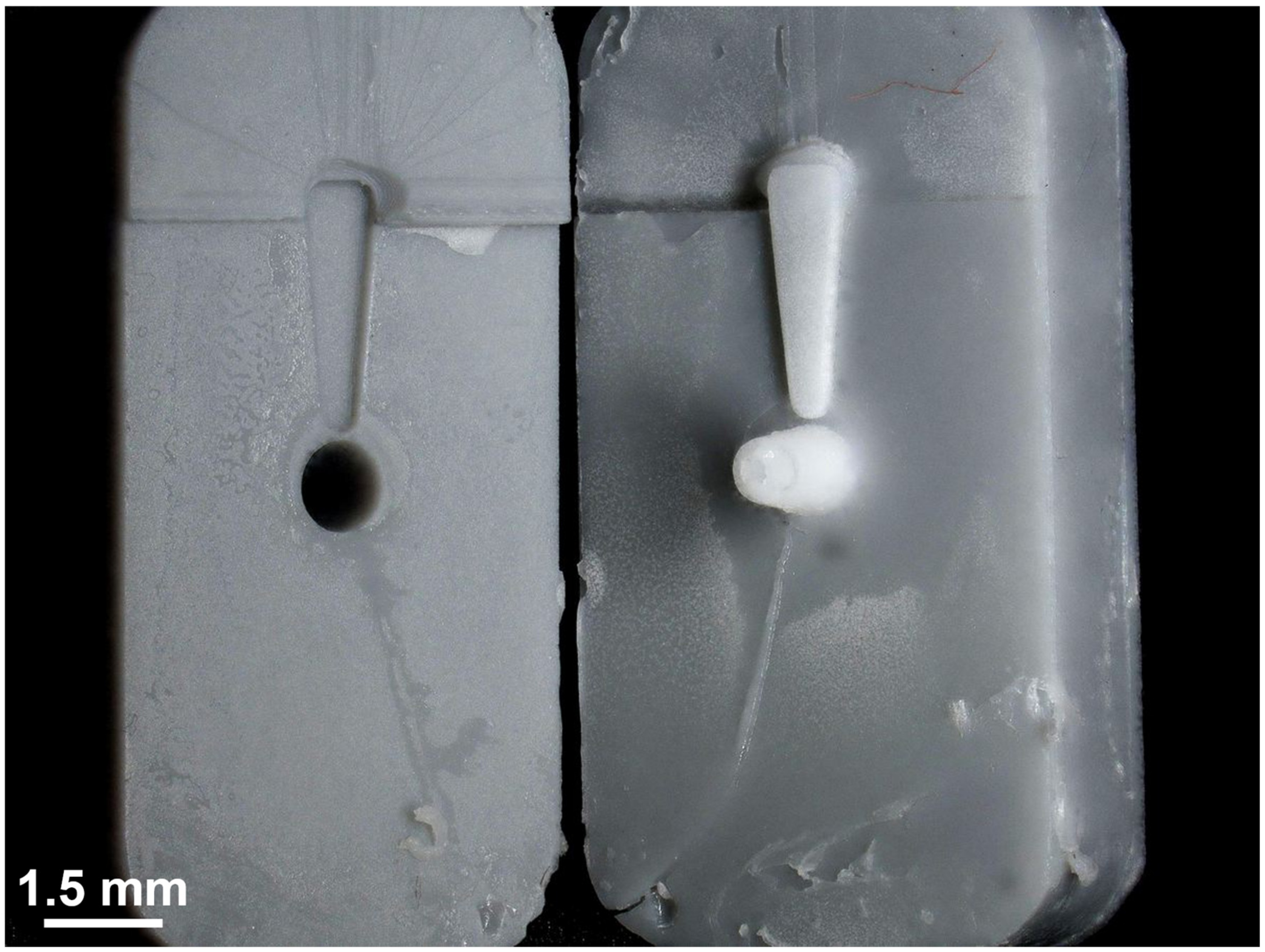

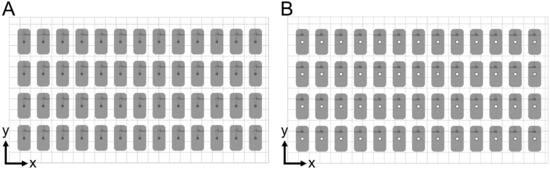

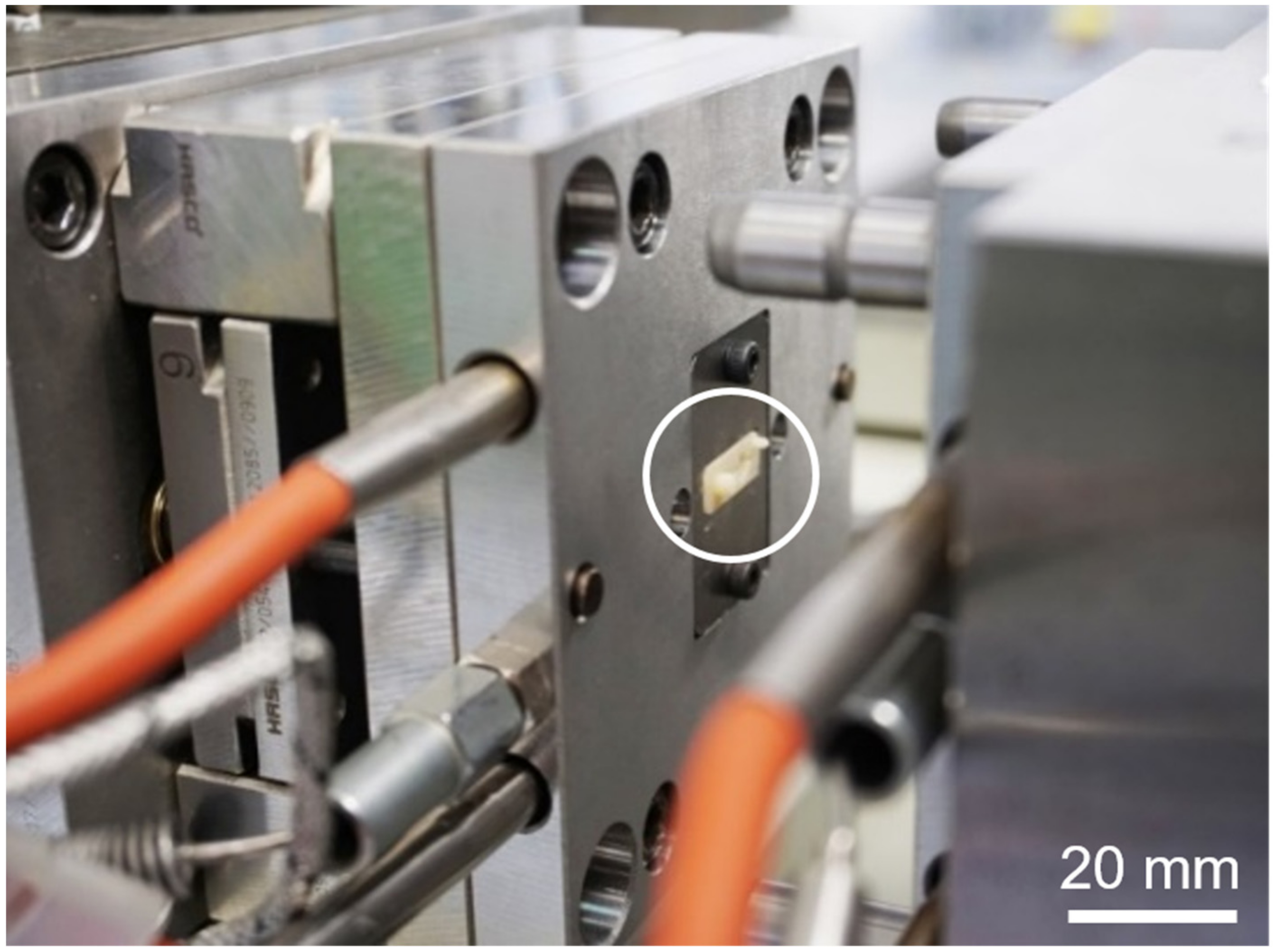

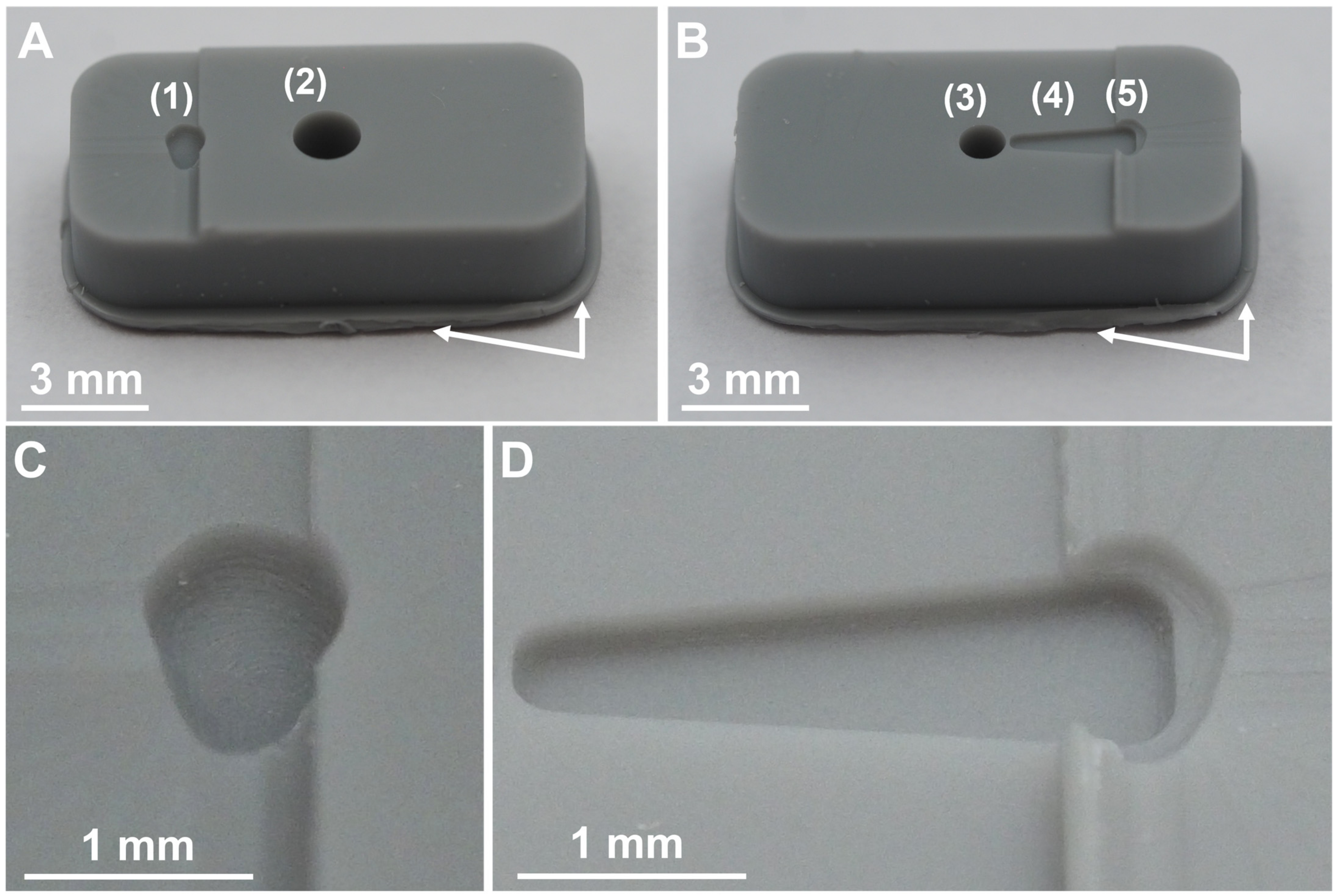

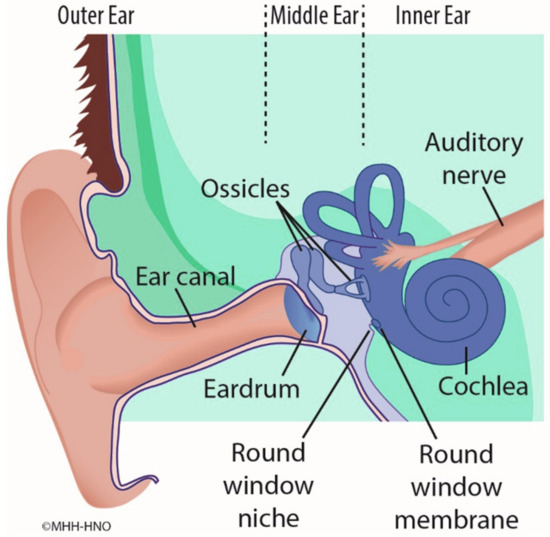

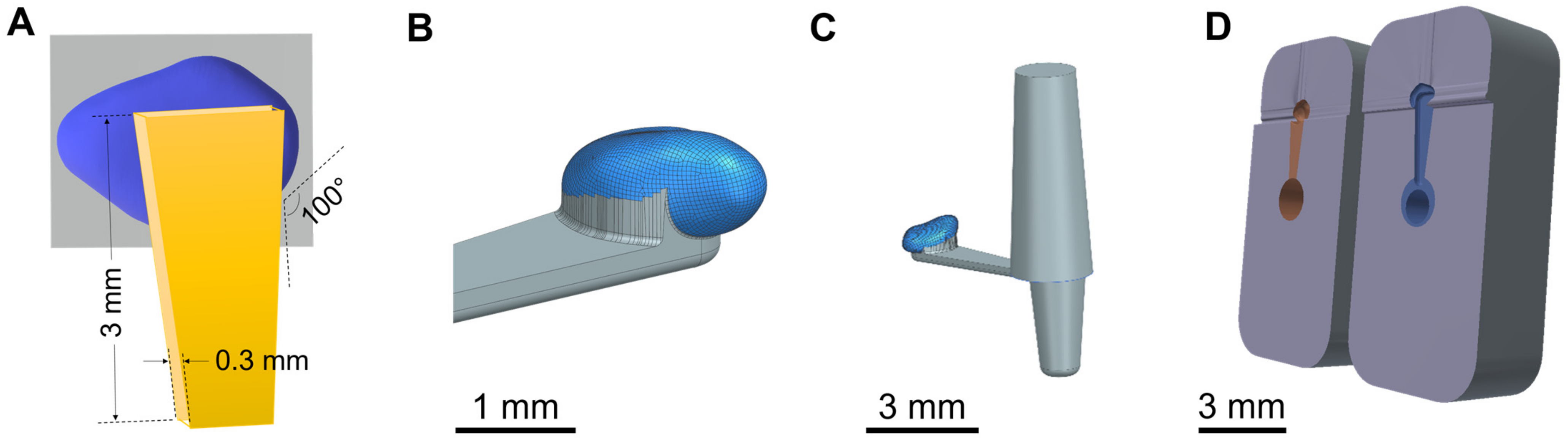

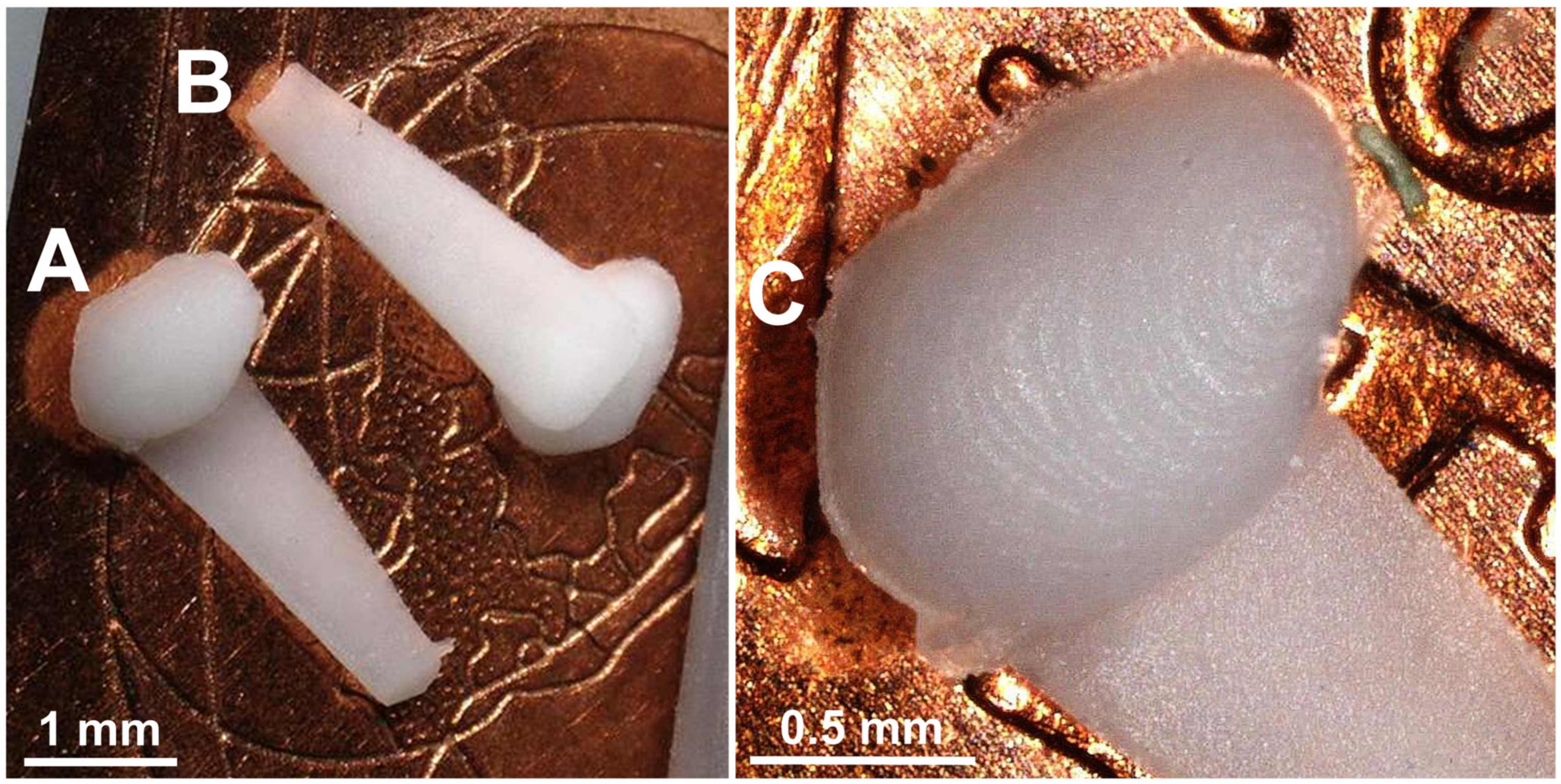

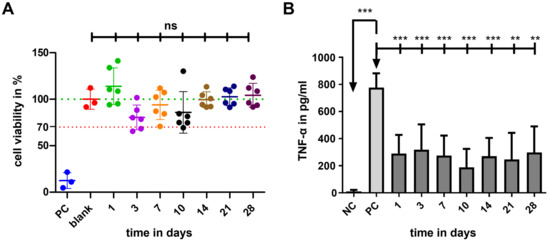

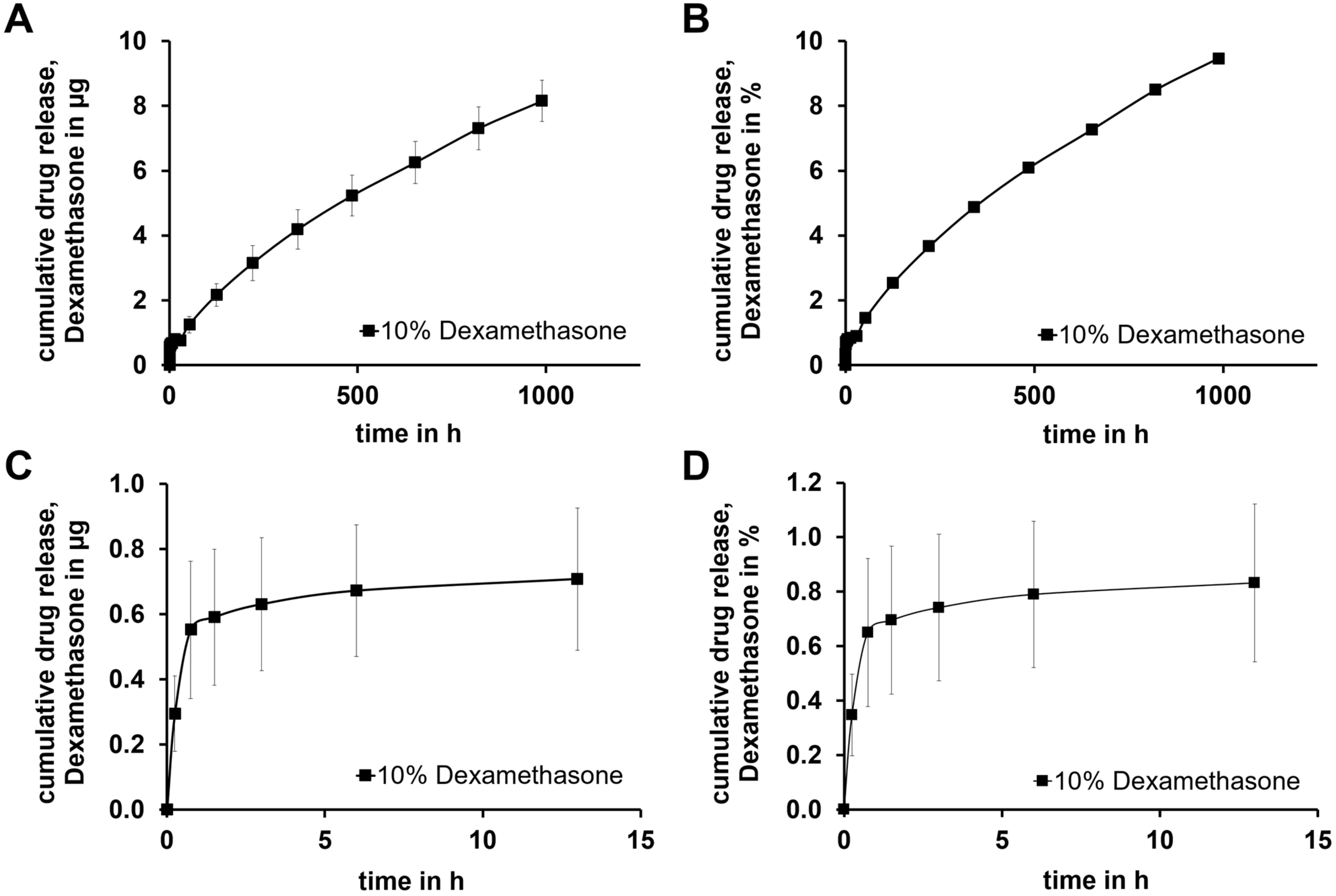

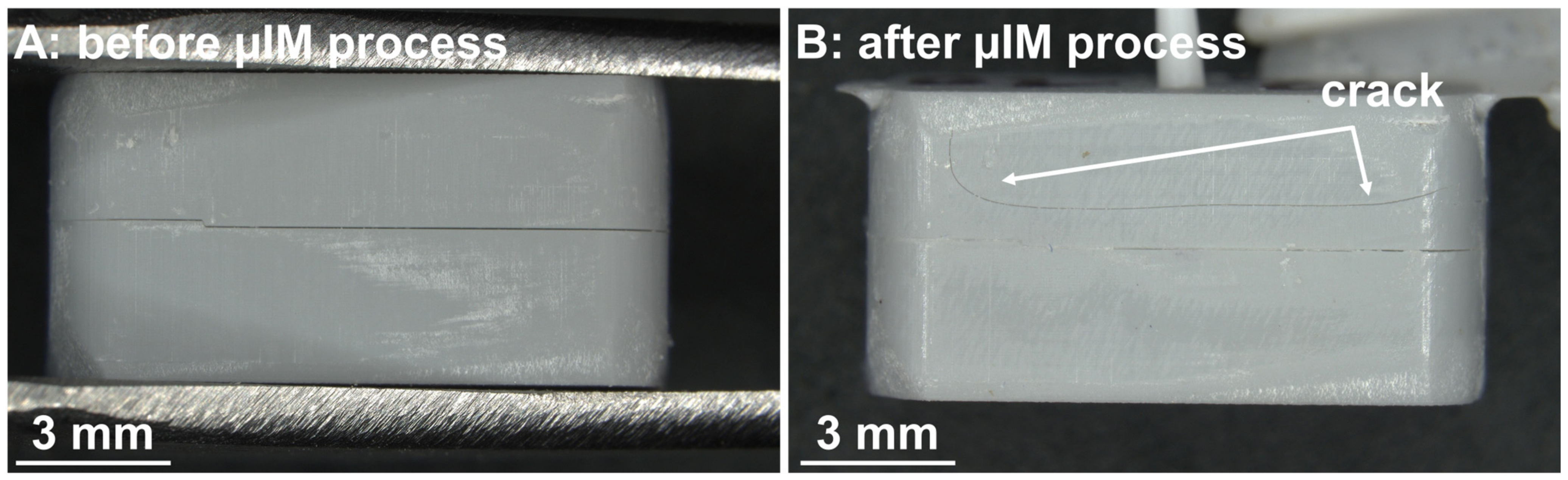

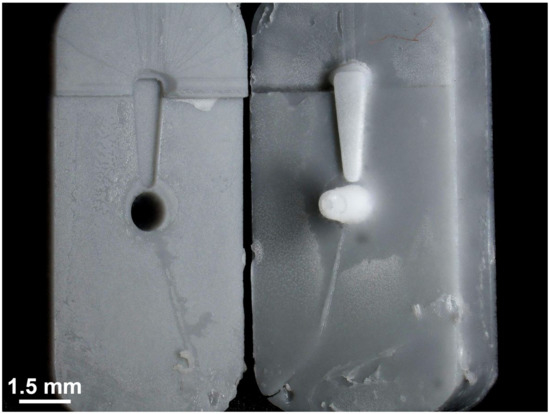

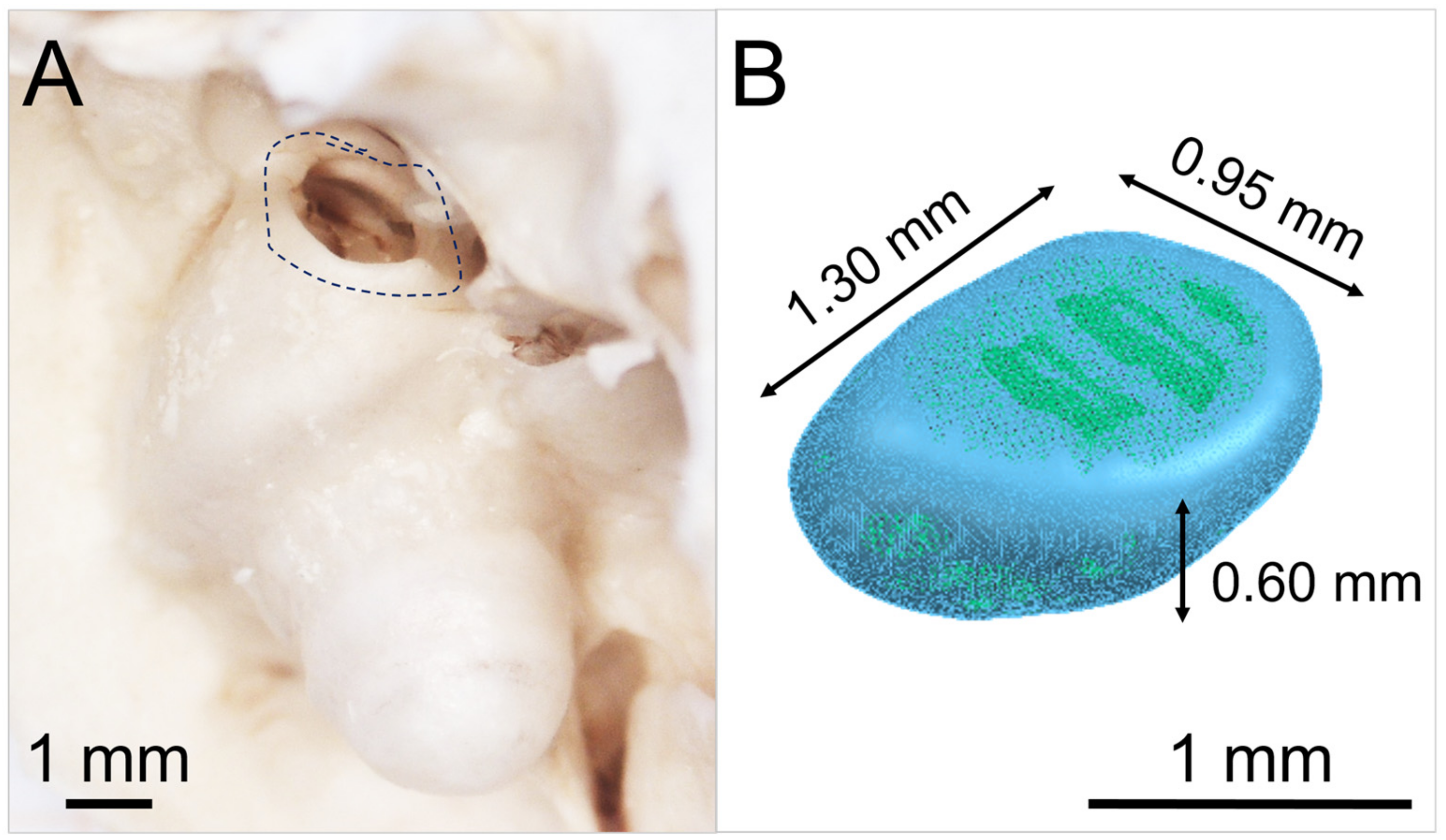

A novel approach for the long-term medical treatment of the inner ear is the diffusion of drugs through the round window membrane from a patient-individualized, drug-eluting implant, which is inserted in the middle ear. In this study, drug-loaded (10 wt% Dexamethasone) guinea pig round window niche implants (GP-RNIs, ~1.30 mm × 0.95 mm × 0.60 mm) were manufactured with high precision via micro injection molding (µIM, T_mold = 160 °C, crosslinking time of 120 s). Each implant has a handle (~3.00 mm × 1.00 mm × 0.30 mm) that can be used to hold the implant. A medical-grade silicone elastomer was used as implant material. Molds for µIM were 3D printed from a commercially available resin (T_G = 84 °C) via a high-resolution DLP process (xy resolution of 32 µm, z resolution of 10 µm, 3D printing time of about 6 h). Drug release, biocompatibility, and bioefficacy of the GP-RNIs were investigated in vitro. GP-RNIs could be successfully produced. The wear of the molds due to thermal stress was observed. However, the molds are suitable for single use in the µIM process. About 10% of the drug load (8.2 ± 0.6 µg) was released after 6 weeks (medium: isotonic saline). The implants showed high biocompatibility over 28 days (lowest cell viability ~80%). Moreover, we found anti-inflammatory effects over 28 days in a TNF-α-reduction test. These results are promising for the development of long-term drug-releasing implants for human inner ear therapy.

Keywords: micro injection molding; 3D printing; rapid tooling; digital light processing; implant; drug delivery system; dexamethasone; anti-inflammatory; TNF-α; biocompatibility; inner ear therapy
