Amorphous Solid Dispersions: Implication of Method of Preparation and Physicochemical Properties of API and Excipients

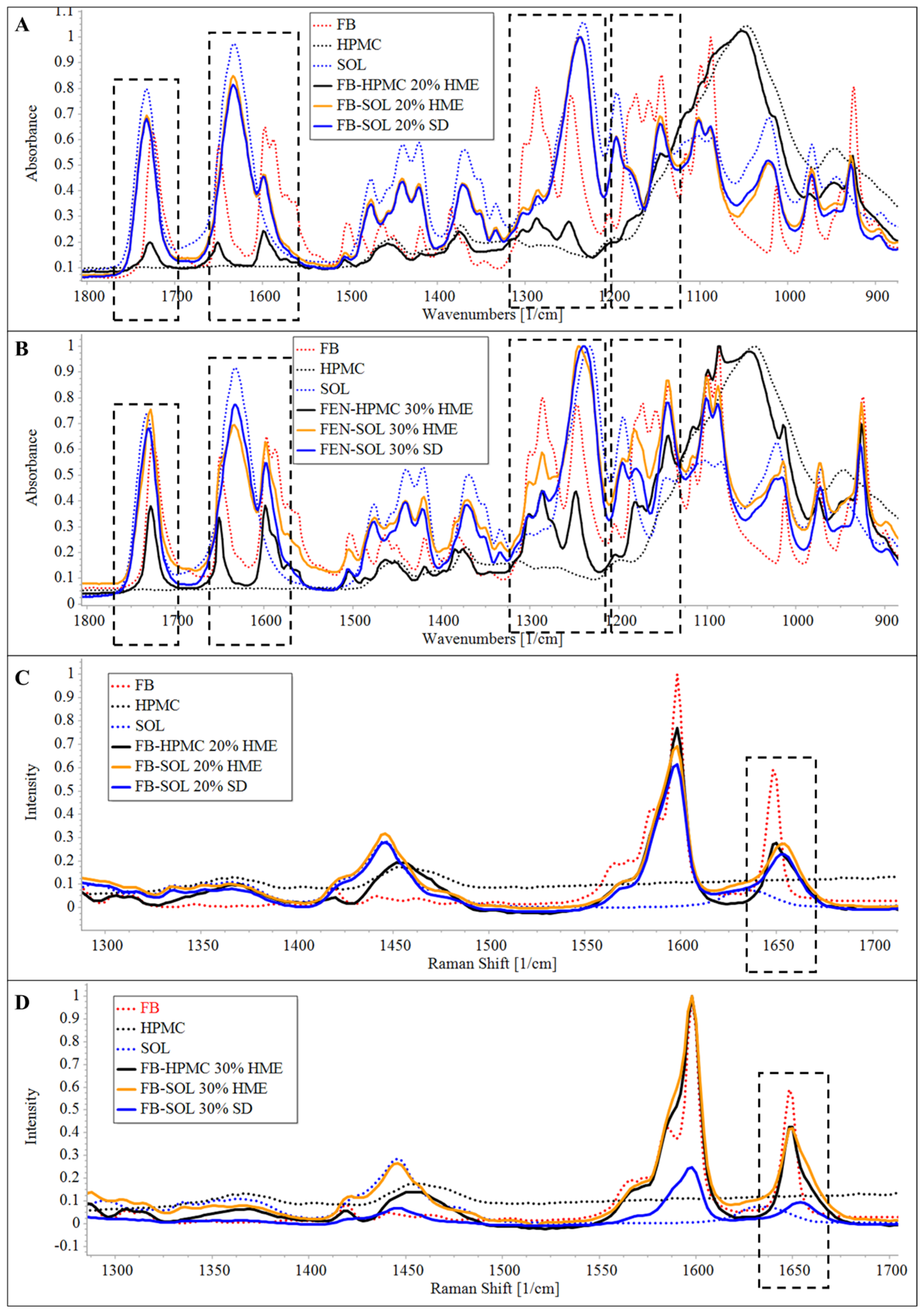

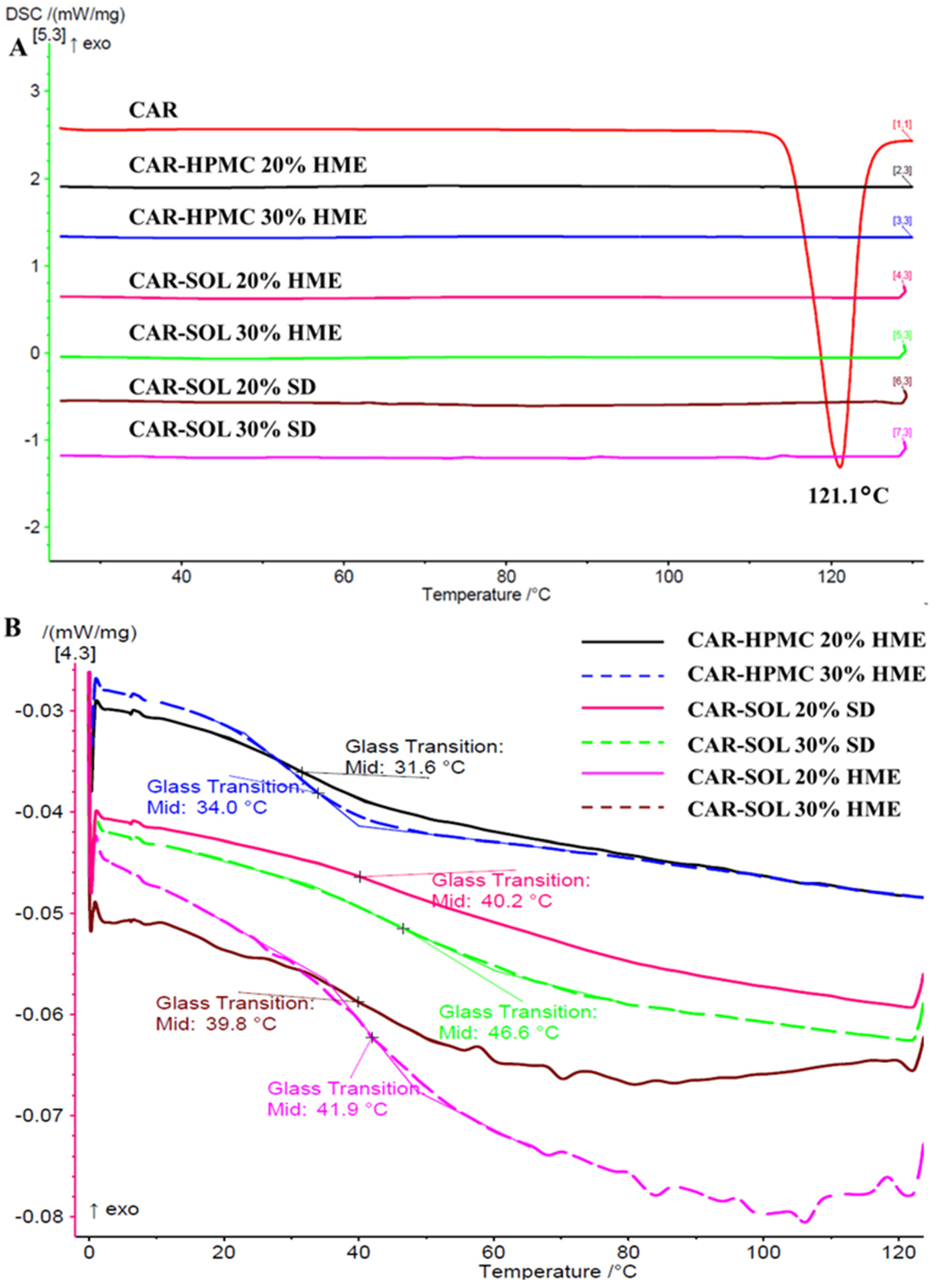

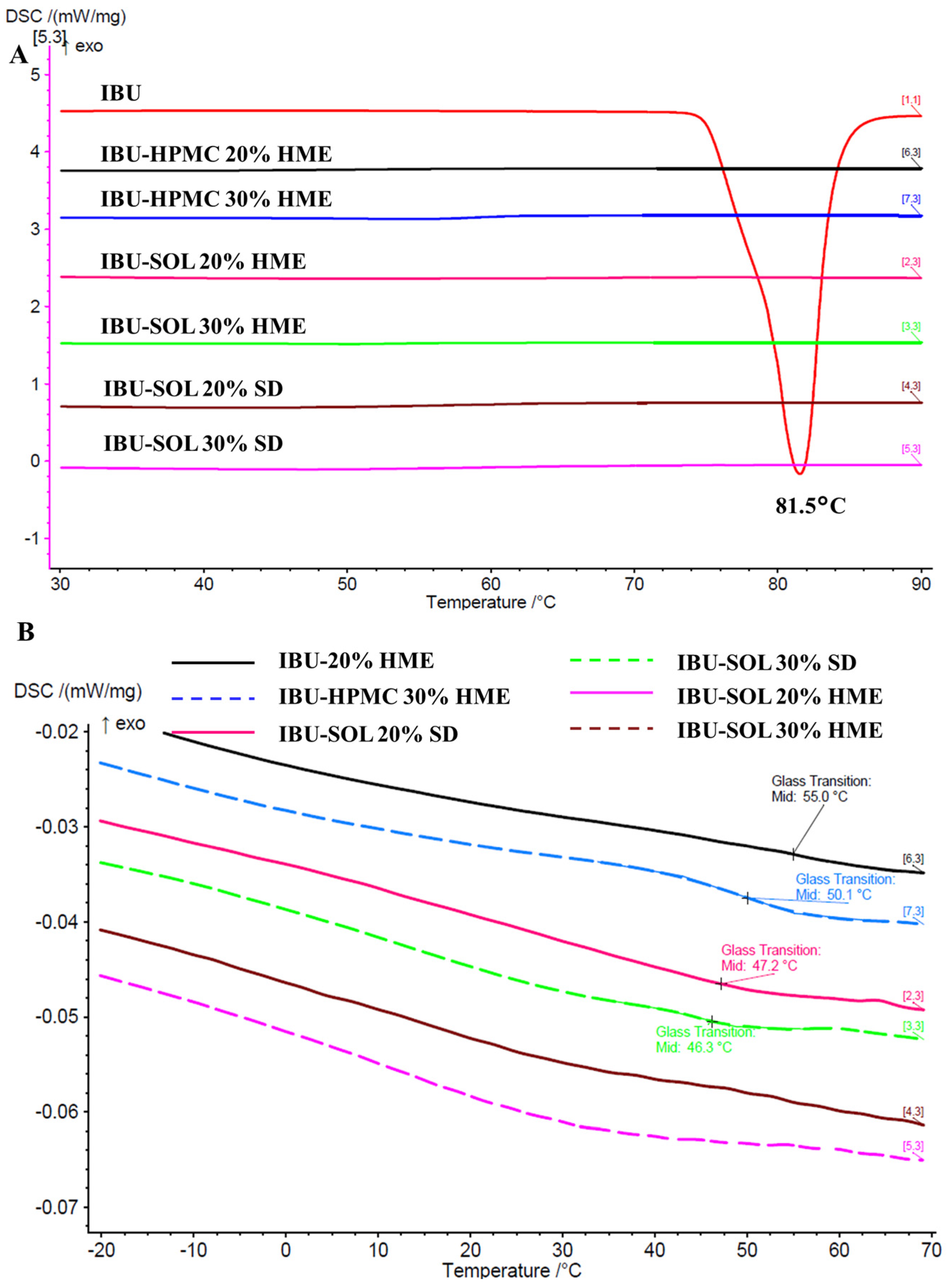

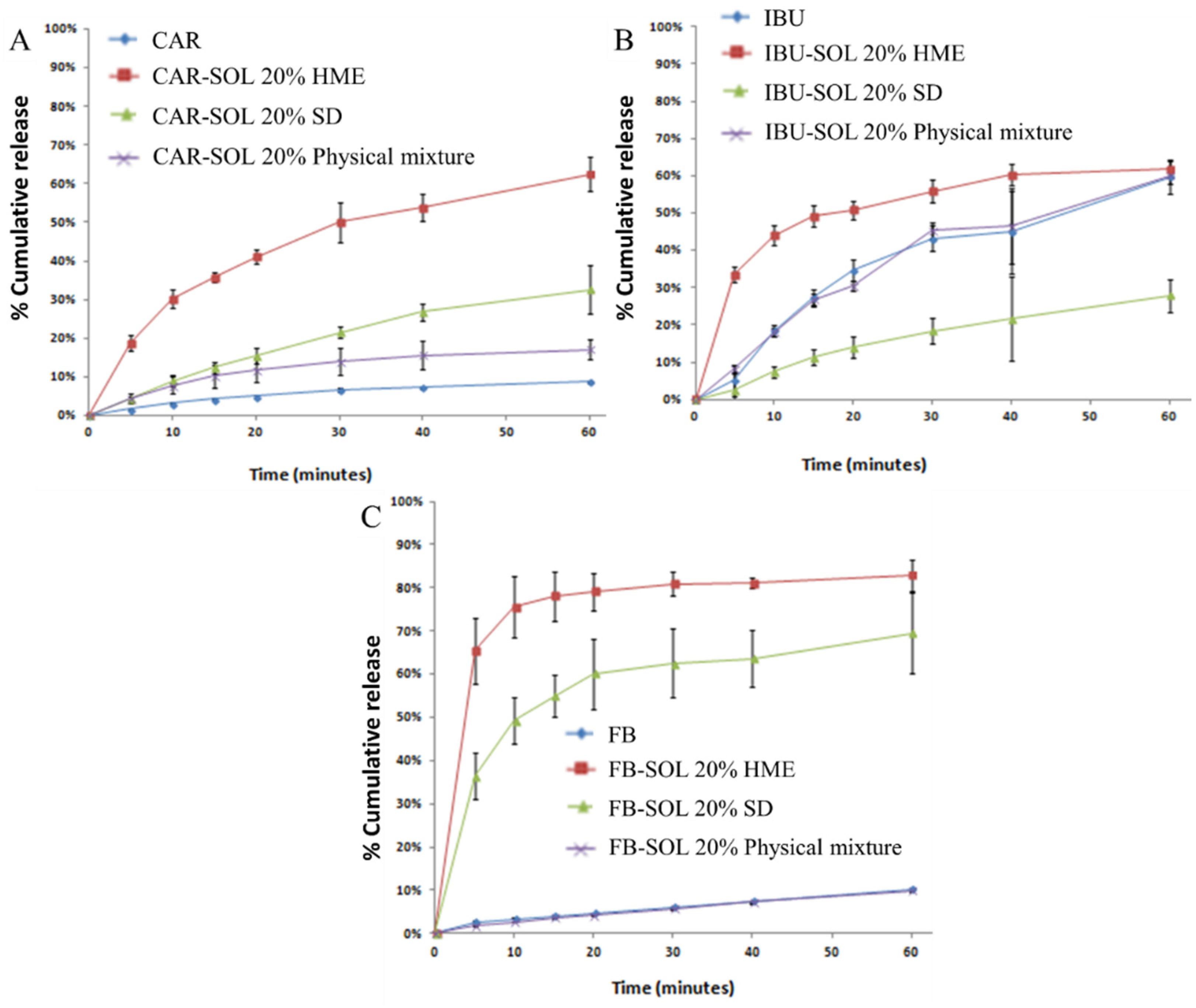

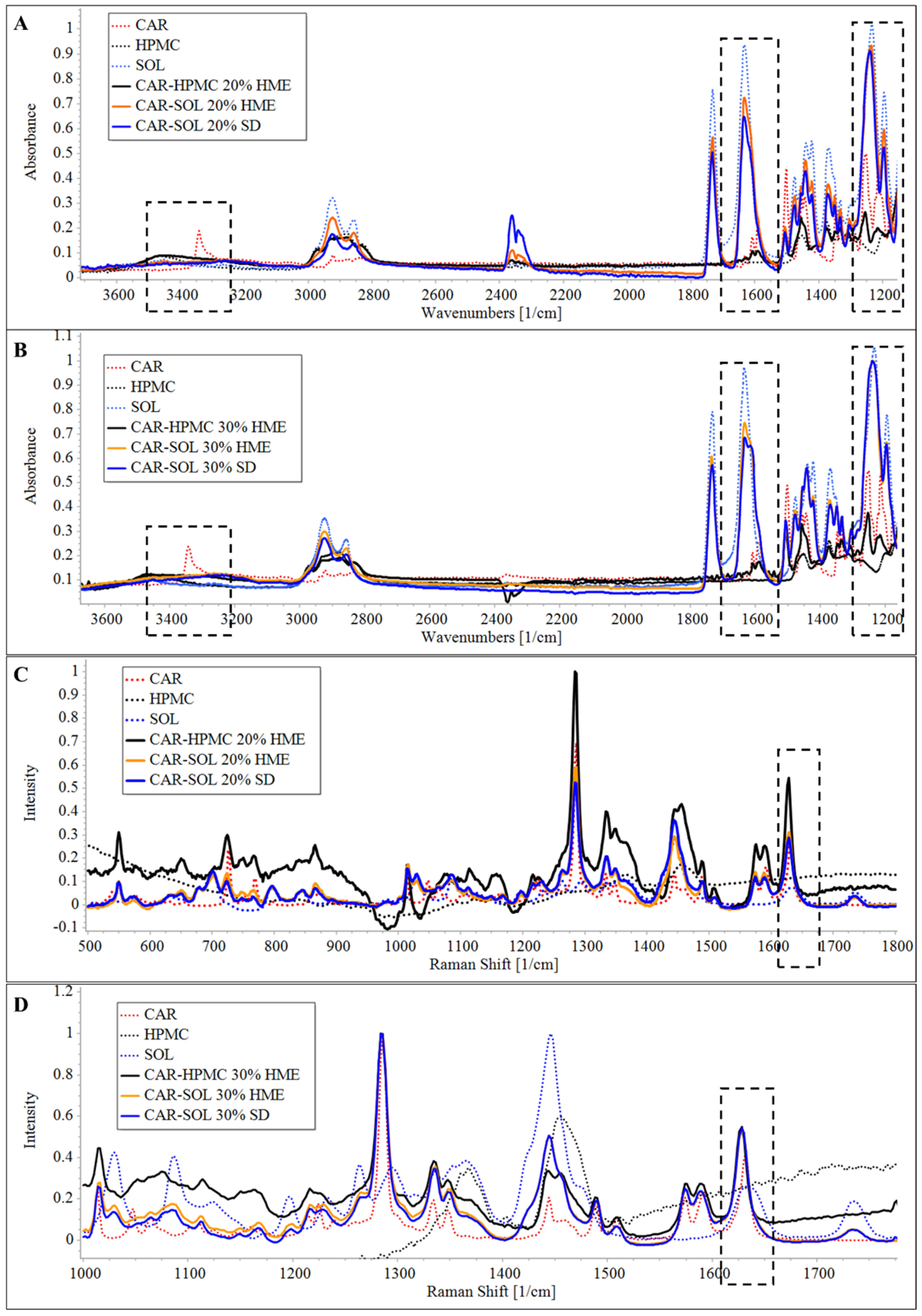

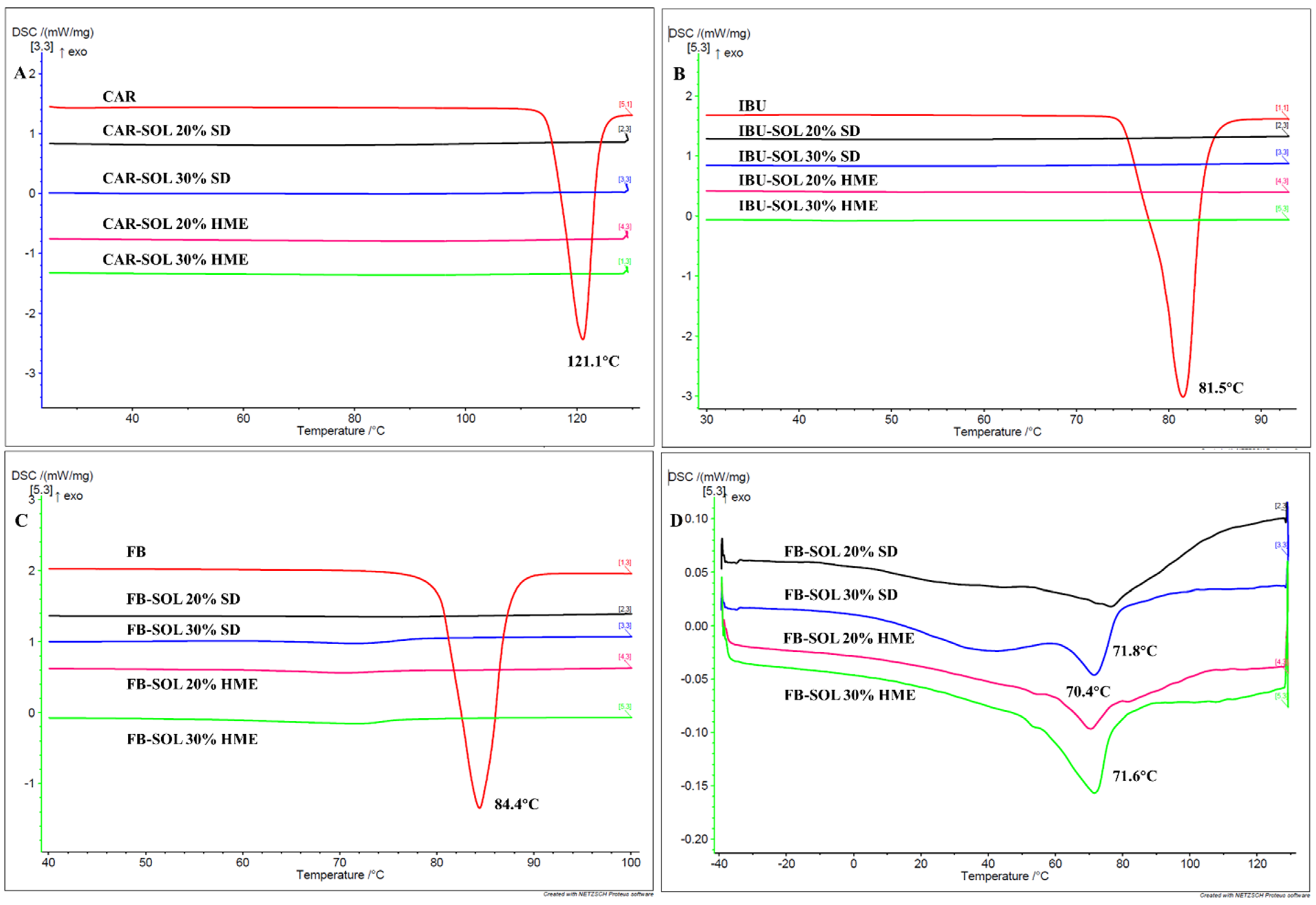

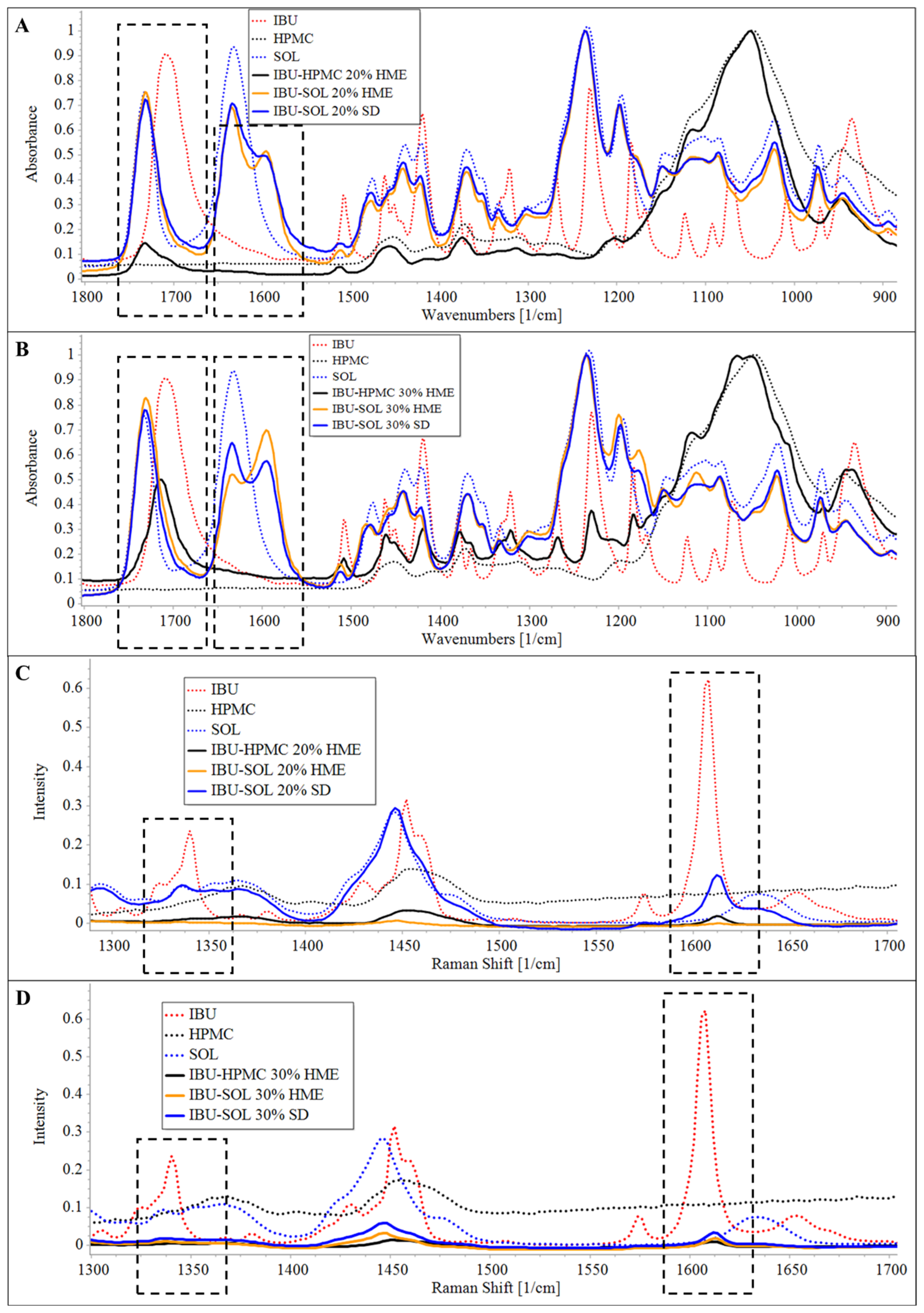

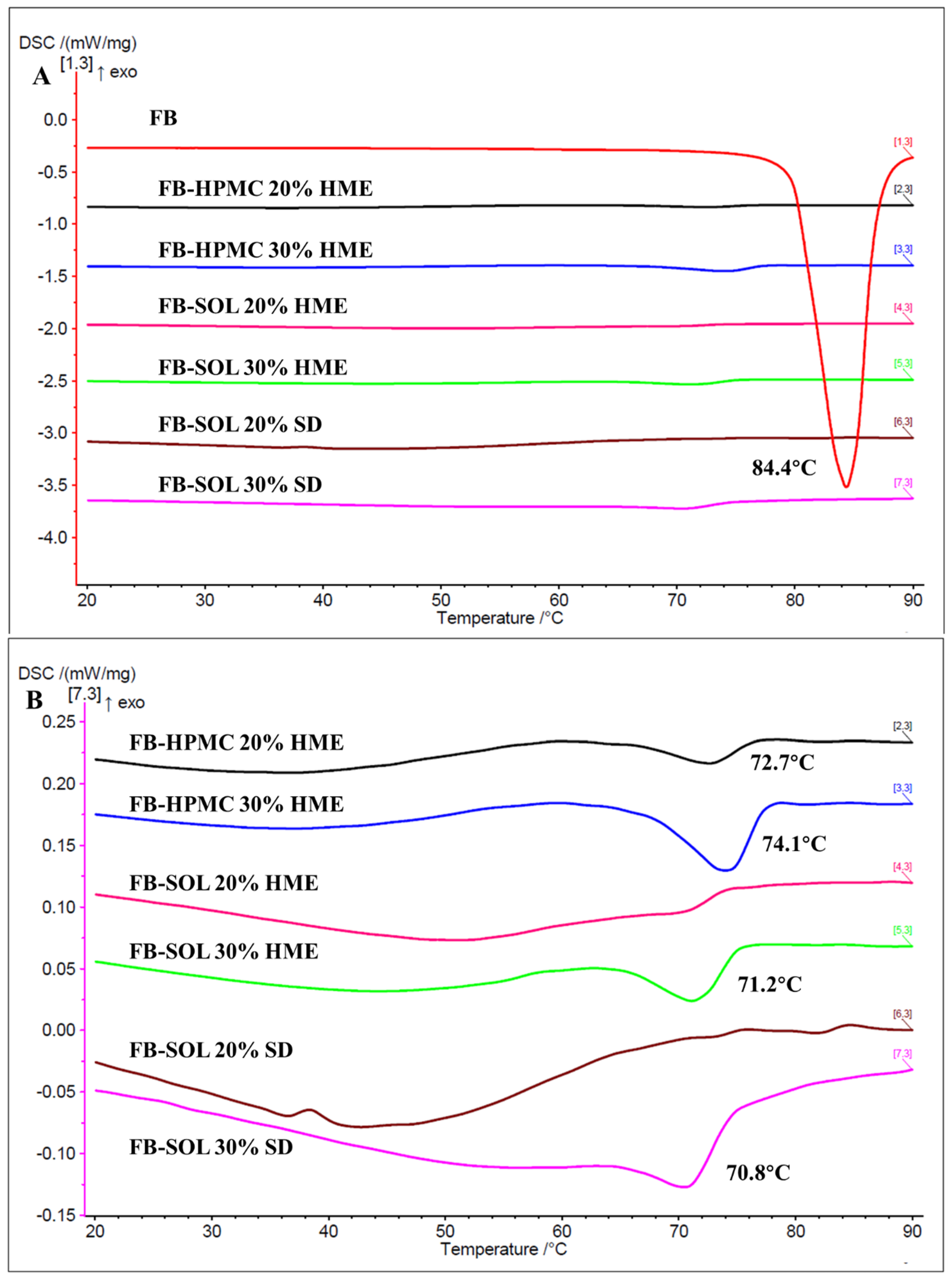

The present study investigated the effect of different polymers and manufacturing methods (hot melt extrusion, HME, and spray drying, SD) on the solid state, stability and pharmaceutical performance of amorphous solid dispersions. In the present manuscript, a combination of different binary amorphous solid dispersions containing 20% and 30% of drug loadings were prepared using SD and HME. The developed solid-state properties of the dispersions were evaluated using small- and wide-angle X-ray scattering (WAXS) and modulated differential scanning calorimetry (mDSC). The molecular interaction between the active pharmaceutical ingredients (APIs) and polymers were investigated via infrared (IR) and Raman spectroscopy. The in vitro release profile of the solid dispersions was also evaluated to compare the rate and extend of drug dissolution as a function of method of preparation. Thereafter, the effect of accelerated stability conditions on the physicochemical properties of the solid dispersions were also evaluated. The results demonstrated higher stability of Soluplus^® (SOL) polymer-based solid dispersions as compared to hydroxypropyl methylcellulose (HPMC)-based solid dispersions. Moreover, the stability of the solid dispersions was found to be higher in the case of API having high glass transition temperature (Tg) and demonstrated higher interaction with the polymeric groups. Interestingly, the stability of the melt-extruded dispersions was found to be slightly higher as compared to the SD formulations. However, the down-processing of melt-extruded strands plays critical role in inducing the API crystal nuclei formation. In summary, the findings strongly indicate that the particulate properties significantly influence the performance of the product.
