Synthetic Data Generation for AI-Informed End-of-Line Testing for Lithium-Ion Battery Production

Abstract

Lithium-ion batteries are a key technology in supply chains for modern electric vehicles. Their production is complex and can be prone to defects. As such, the detection of defective batteries is critical to ensure performance and consumer safety. Existing end-of-line testing relies heavily on electrical measurements for identifying defective cells. However, it is possible that not all pertinent information is encoded within the electrical measurements alone. Reversible expansion in lithium-ion cells is an indicator of lithiation within the cell, while irreversible expansion is a consequence of the ageing process; unexpected expansion may indicate the presence of undesirable defects. By measuring expansion in addition to electrical measurements, we aim to make better and faster quality predictions during end-of-line testing, thereby facilitating the early detection of potential defects. To make these predictions, we implement artificial intelligence algorithms to extract information from the measurements. Training these networks requires large training datasets, which are expensive to produce. In this paper, we demonstrate a first-order physical modelling approach for generating synthetic data to pre-train artificial intelligence algorithms that perform anomaly detection on lithium-ion battery cells at the end-of-line. The equivalent circuit model used to generate voltage curves could be fit to real data with a mean absolute error of less than 1%, and the expansion model could be fit to a mean absolute error of less than 2% of the measured values. By pretraining the artificial intelligence network using synthetic data, we can leverage existing physical models to reduce the amount of training data required.

1. Introduction

The production of lithium-ion batteries is a critical process in the manufacturing of modern electric vehicles. Lithium-ion battery technology requires complex, multi-step processes to generate cells, in which defects are likely to arise in various stages. These defects can have effects ranging from poor electrical performance to catastrophic thermal runaway, both of which must be avoided. Even a small number of defective cells can pose significant dangers to people and infrastructure; this underscores the necessity to identify and mitigate potential safety risks as much as possible to avoid both loss of trust in the technology and economic consequences for manufacturers.

As such, end-of-line testing is an important step in ensuring the safety and performance of products that contain lithium-ion battery cells. Existing end-of-line testing approaches typically rely on electrical and temperature measurements during battery cell testing. Lithium-ion battery cells experience reversible swelling due to the intercalation and deintercalation of lithium-ions into and out of the active materials within the cell. In addition to the unavoidable ageing process, irreversible expansion can occur due to undesirable gas formation, formation of the solid electrolyte interphase (SEI) and lithium plating, among other undesirable events within the cell. Characterizing the volume expansion of these cells—in addition to standard electrical and temperature measurements—creates the possibility of gaining additional insights into the quality of cells during final testing.

The resulting data from these end-of-line tests will be composed of complex multivariate time series. Artificial intelligence algorithms have shown promise in extracting meaningful information from multivariate time series data, such as those we are collecting. These algorithms typically require a large amount of training data, which for end-of-line battery testing are expensive and time-consuming to generate. In this paper, we propose a first-order physical model to generate synthetic cycling data for pre-training and evaluating the usefulness of artificial intelligence networks. These synthetic datasets are intended to be used for the pre-training and evaluation of unsupervised methods; therefore, we only must consider the modelling of normal, and not defective, lithium-ion battery cells.

2. Background

End-of-line testing is a ubiquitous step performed at the end of the battery manufacturing process to not only remove defective cells but also to assign grades indicating performance. End-of-line testing can involve visual inspection and various electrical measurements to ensure the cell meets design requirements [1,2,3]. Currently, there is no universally accepted standard for these end-of-line tests, and each cell manufacturer employs its own procedures.

In addition to electrical measurements, one could also measure the volume expansion of the battery cell to gain greater insights. Volume expansion in lithium-ion cells has irreversible and reversible manifestations; both modes of expansion provide valuable information regarding potential performance and manufacturing defects. Manufacturing defects could include issues such as uneven electrode coating, metal particle contamination, poor electrode sheet alignment, and compromised separator material, among others [4]. Irreversible expansion can be caused by the formation of the sei layer, as a result of gas formation, or by lithium plating, all of which are a consequence of undesirable electrochemical reactions occurring within the cell [5,6]. Reversible expansion is inherent during charge/discharge cycles because it is a product of the intercalation of lithium ions between the positive and negative electrodes [7]. A number of researchers have measured battery expansion during ageing. However, the goal of their research was to validate battery expansion models rather than to identify defects within the cells [8,9].

To extract information from the multivariate time series generated during end-of-line tests, artificial intelligence methods have shown promise in both anomaly detection and classification applications [10,11]. Artificial intelligence is already being used for assessing performance and quality in lithium-ion batteries. When large amounts of training data are available, artificial intelligence (AI) algorithms can glean more information from datasets than is possible with more traditional data analysis techniques [12]. One of the most common use cases for AI in lithium-ion battery applications is remaining useful lifetime (RUL) predictions [13,14]. In RUL applications, large datasets can be generated using relatively few batteries. These datasets typically include information on time, current, voltage, and temperature, and are collected over several months through continuous charging and discharging of the batteries. Some researchers have attempted to use artificial intelligence to improve quality assurance. In comparison with RUL prediction, in which multiple datasets can be generated from a single battery, quality assurance prediction necessitates one battery cell for every training sample. Generating a dataset that includes both normal and abnormal cells is particularly challenging and costly because it is rare to find multiple cells displaying the same type and position of defects. Additionally, these cells must be managed under the strictest safety conditions because of the potential risk of fire and explosion [4,15]. The controlled introduction of relevant defects is also very time-consuming and safety-critical [16]. To circumvent expensive and time-consuming dataset generation, some researchers are developing quality assurance predictors trained on synthetic data. Jia et al. created an internal short circuit classifier, trained on nearly exclusively simulation data [17]. Another example is the work of Turetskyy et al., who trained a neural network to solve for unknown parameters in electrochemical models using simulated voltage and current curves, as well as electrode information [18]. Both works achieved accurate predictions on computer-generated training data.

3. Methods and Materials

3.1. Measurement During Cell Cycling

The pouch cells used in this study have a nominal capacity of 1 $\mathrm{Ah}$ and are composed of a LiNi_0.6 Mn_0.2 Co_0.2 (NMC622) cathode and an artificial graphite anode. The cells have dimensions of 66 mm by 51 mm by 3 mm. Cycling was performed using a Basytec CTS Standard battery tester. To avoid inducing thermal expansion, cycling was performed with $0.5$ C charge current and 1 C discharge current. Data from the battery tester were acquired with a sampling rate of 1 $\mathrm{Hz}$. The recorded cycles are conducted on new, unaged cells.

In our previous study, the pouch cells were cycled without any external pressure [19]. These measurements were performed to assess the homogeneity of swelling across the cell’s surface during cycling. However, in practice, pouch cells are nearly always cycled under compression to prevent delamination and ensure good contact between the various components within the cell [20,21,22].

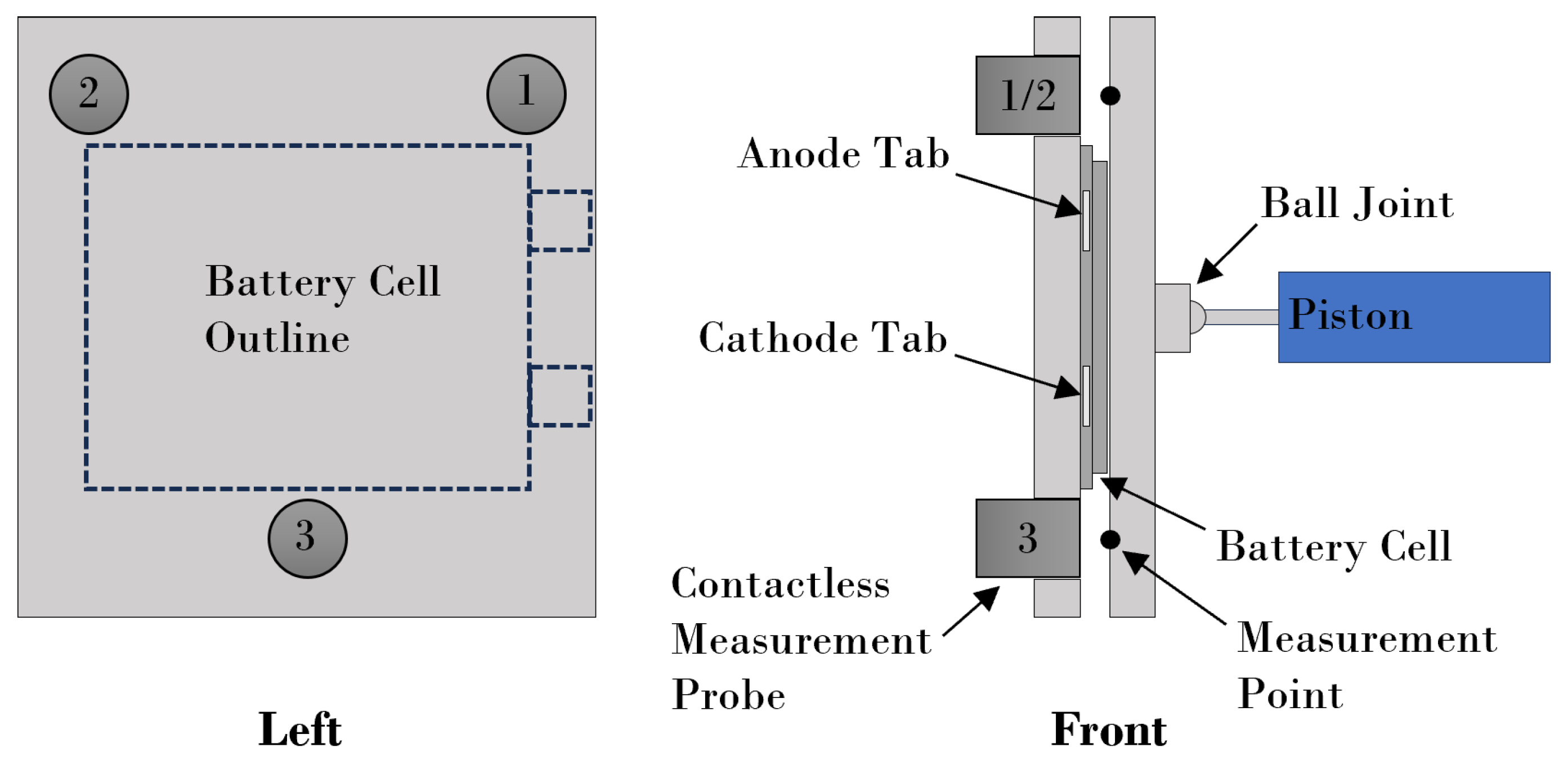

A testing setup developed by Fraunhofer ISE [23] was used to compress the battery cell in a vertical position. The apparatus is shown in Figure 1. To achieve compression, the test rig is composed of two pressure plates: one fixed and one moveable. A pneumatic cylinder applies a defined force against the moveable pressure plate and holds it in place. A ball joint is utilized at the connection point between the movable pressure plate and the pneumatic cylinder piston. This ball joint allows the pressure plate to move in the direction of the piston as the cell expands uniformly and rotate with respect to any non-uniform expansion of the battery cell. Three displacement sensors, which are connected to the fixed pressure plate, can measure this uniform or non-uniform movement of the moveable pressure plate. We utilised chromatic confocal point sensors produced by Precitec Optronik GmbH with a 2 $\mathrm{m}$$\mathrm{m}$ measurement range, a linearity of 260 $\mathrm{n}$$\mathrm{m}$, and a measurement spot size of 6 μm. This design enables the measurement of the spatially resolved expansion and contraction of the battery cell.

To ensure constant temperature conditions, the entire cycling program was performed in a climate chamber, a KB 720 produced by Binder GmbH, held at a temperature of 25 °C.

3.2. Cell Characterization

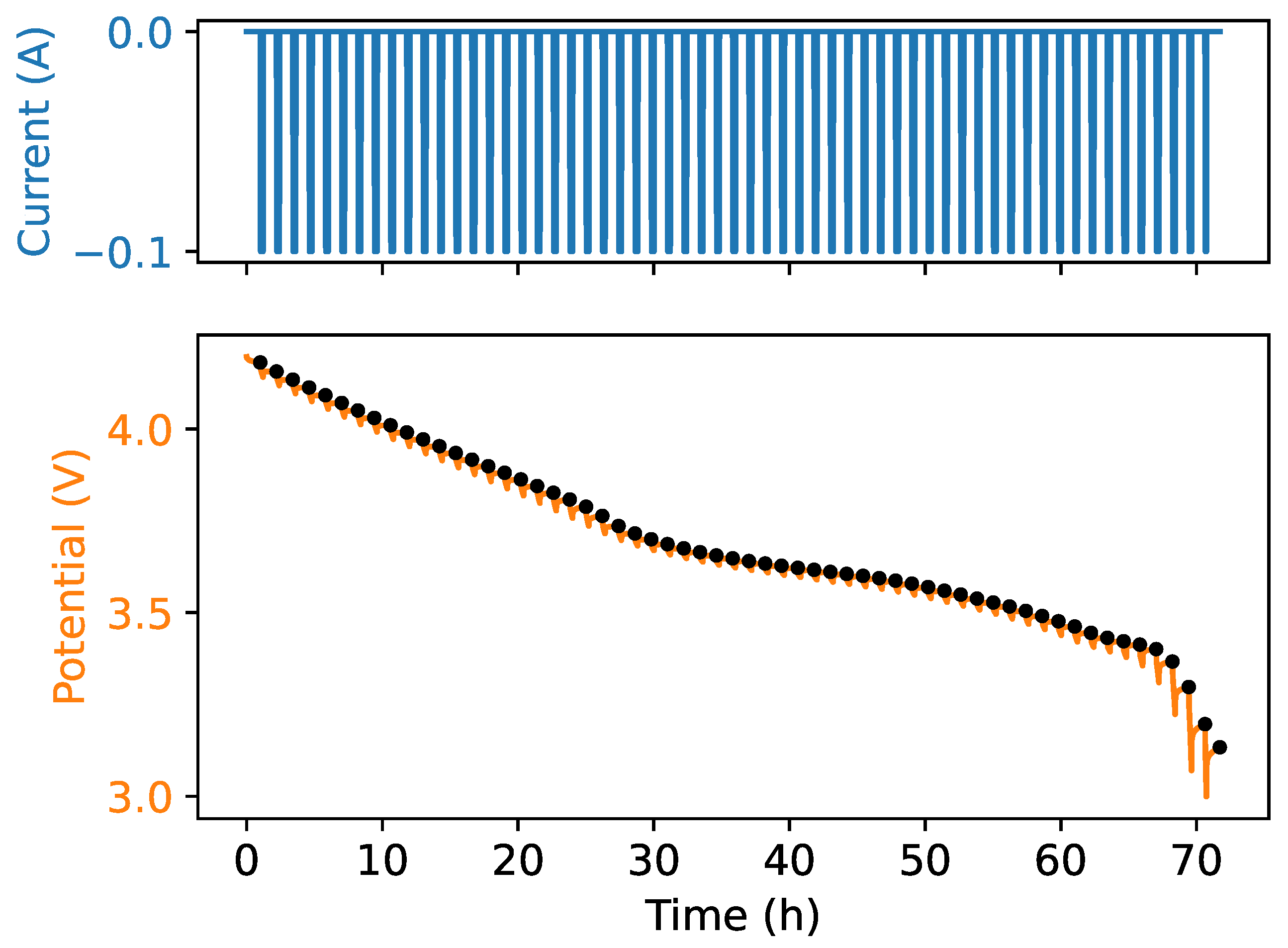

To perform equivalent circuit modelling, an open circuit voltage (OCV) curve is necessary. This curve was generated by charging the battery cell up to its upper cut-off voltage of $4.2$ $\mathrm{V}$ with a charging rate of C/10. A resting phase of 1 $\mathrm{h}$ was implemented to ensure thermal equilibrium after charging the battery cell. Discharging was then carried out with a discharge rate of C/10 in steps of 2% depth of discharge (DoD) until reaching the lower cut-off voltage of $3.0$ $\mathrm{V}$. These DoD steps were determined using coulomb counting. After every 2% DoD discharge step, a resting phase of 1 $\mathrm{h}$ was performed. A voltage drop can be seen at the beginning of the rest phase. This resting phase was then used to determine a thermal equilibrium as well as a load-free voltage level. At the end of the rest phase, the voltage level was taken to be the OCV at the corresponding state of charge (SoC). The measurement used to generate the OCV curve discharge is shown in Figure 2.

3.3. Modelling

To simplify the modelling and reduce the effects of thermal expansion in the battery cell, the cycling was performed at relatively low currents, which minimizes heat generation during the measurements. As such, no thermal modelling was performed, and thermal contributions were not considered in the electrical or expansion models.

3.3.1. Equivalent Thevenin Circuit Model

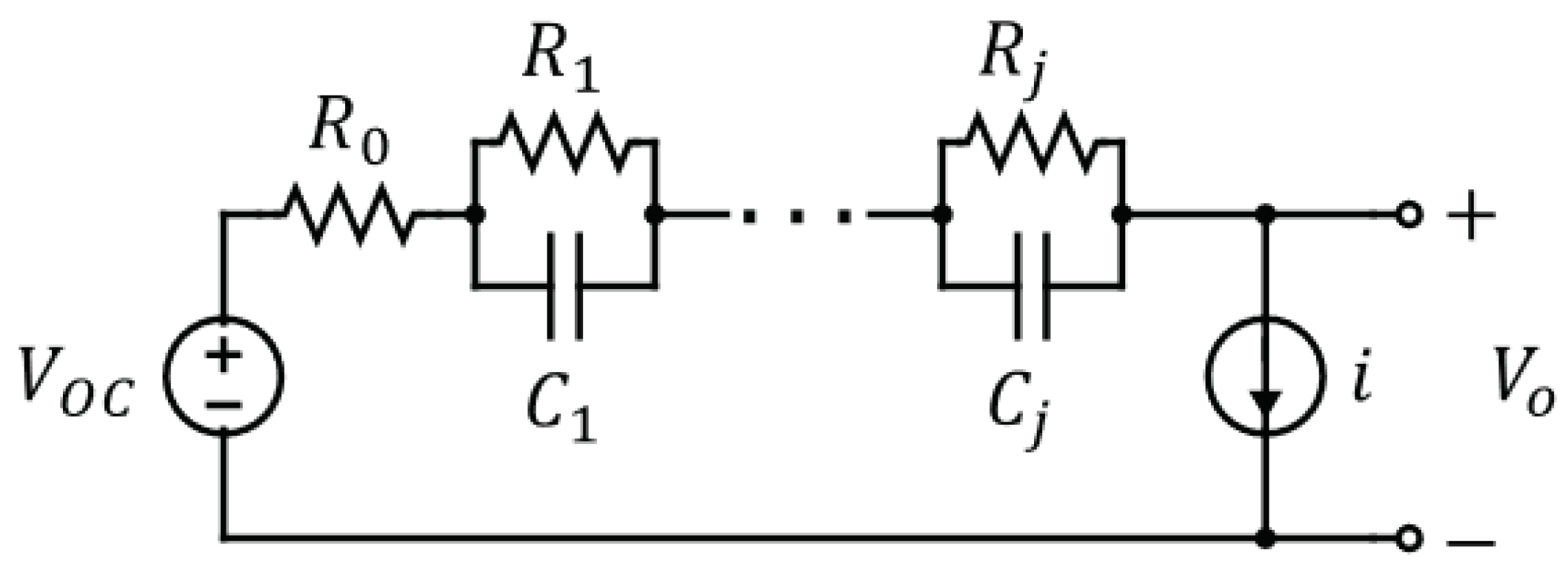

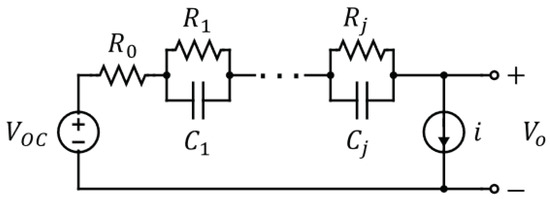

When modelling the electrical behaviour of lithium-ion cells, one could use either an electrochemical model or an equivalent circuit model [24,25]. The most common approach to electrochemical modelling is to utilise a pseudo 2-dimensional (P2D) interpretation of the dynamics inside the cell [26,27,28]. While P2D models offer a physical way to model the electrical behaviour of the cell, developing these models is complex and computationally expensive. The goal of this publication is to develop a first-order method for generating synthetic data rather than to generate the most accurate representation of the electrochemical dynamics within a lithium-ion cell. We therefore opt to implement an equivalent circuit model (ECM) to generate synthetic electrical data in favour of making use of an electrochemical model. ECMs are widely used to model the voltage output of a cell under different loading conditions [25,29,30,31]. The circuit diagram for the ECM is shown in Figure 3, where an integer number, n, of resistor-capacitor (RC) pairs in series are used to reproduce the transient voltage response of the cell during charge and discharge.

Starting from Kirchoff’s second rule, we generate the following expression for the output voltage:

$$V_o\left(k\right)=V_{OC}\left(SoC\right)+R_{0}i\left(k\right)+\sum _{j=1}^{n_{rc}}{R}_j\left(SoC\right)i_j\left(k\right).$$

(1)

It has been demonstrated that the resistors in the rc pairs, $R_j$, have a soc dependency [25,30,31], and we therefore must select an expression $f\left(SoC\right)$ such that

$$R_j\left(SoC\right)=f\left(SoC\right),$$

(2)

where $f\left(SOC\right)$ will be selected during model fitting.

Next, we require an expression for the current through the resistive element in the $j^{th}$ RC pair. This gives

$$i_j(k+1)=exp(-T_s/{\tau }_j)i_j\left(k\right)+(1-exp(-T_s/{\tau }_j))i\left(k\right),$$

(3)

where $T_s$ is the sampling period, k is the integer-valued time step, $i_j$ is the current through the $j^{th}$ resistive element, ${\tau }_j$ is the time constant for the $j^{th}$ RC pair, and i is the applied current [30]. For any RC pair, the time constant is given by

$$\tau ={\displaystyle \frac{1}{RC}}.$$

(4)

The state of charge is updated using current counting. This gives the expression

$$SoC(k+1)=SoC\left(k\right)+{\displaystyle \frac{T_s}{3600C_n}}i\left(k\right),$$

(5)

where $C_n$ is the nominal capacity of the battery cell in $\mathrm{Ah}$, which is multiplied by 3600 to convert the measurement to $\mathrm{As}$.

3.3.2. Expansion Model

To develop an expansion model, we first consider the expansion behaviour of an unconstrained cell, as outlined in Krause et al. [19], prior to considering the expansion behaviour of a compressed cell.

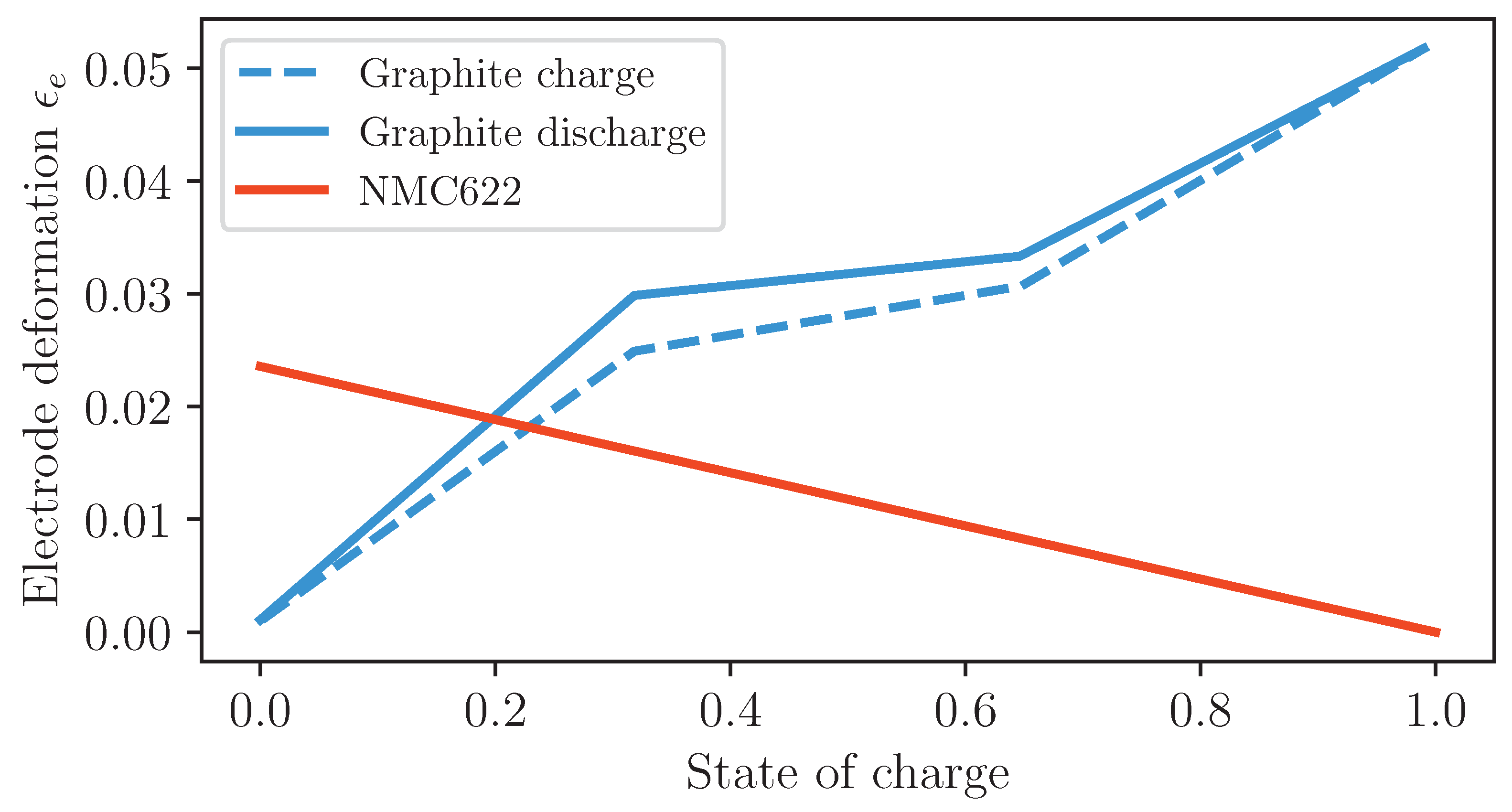

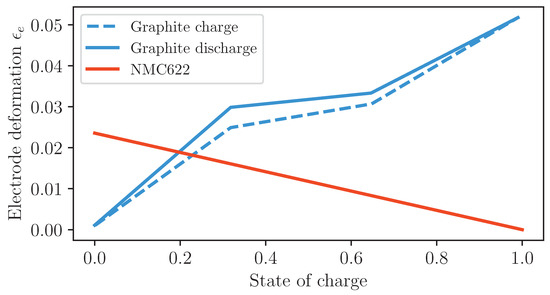

Before considering the expansion of the composite cell, we first look at the expansion behaviour of the individual electrode materials during lithiation. The cell being modelled has a graphite anode and an NMC622 cathode. The electrode deformation as a function of lithiation is taken from Clerici et al. [32] for graphite and Quilty et al. [33] for NMC622. The lithiation curves for both electrode materials were taken at 1 C. Electrode deformation is plotted as a function of SoC in Figure 4. Note that NMC622 demonstrates a linear relationship between expansion and lithiation. In addition, this material exhibits no hysteresis between charge and discharge. In contrast, the expansion of graphite is more complex due to the different stages of graphite lithiation.

The expansion of an uncompressed cell is given by

$$\Delta t_{unc}=M{C}_{case}({ϵ}_{an}{\xi }_{an}t+{ϵ}_{ct}{\xi }_{ct}{t}_{ct}),$$

(6)

where M is the number of electrode pairs, $C_{case}$ is the constraint ratio of the battery case, ${ϵ}_{an}$ and ${ϵ}_{ct}$ are the electrode deformation for the anode and cathode, respectively (shown in Figure 4 for a graphite anode and an NMC622 cathode), ${\xi }_{an}$ and ${\xi }_{ct}$ are the active volume fractions for the respective electrodes, $t_{an}$ and $t_{ct}$ are the respective electrode thicknesses.

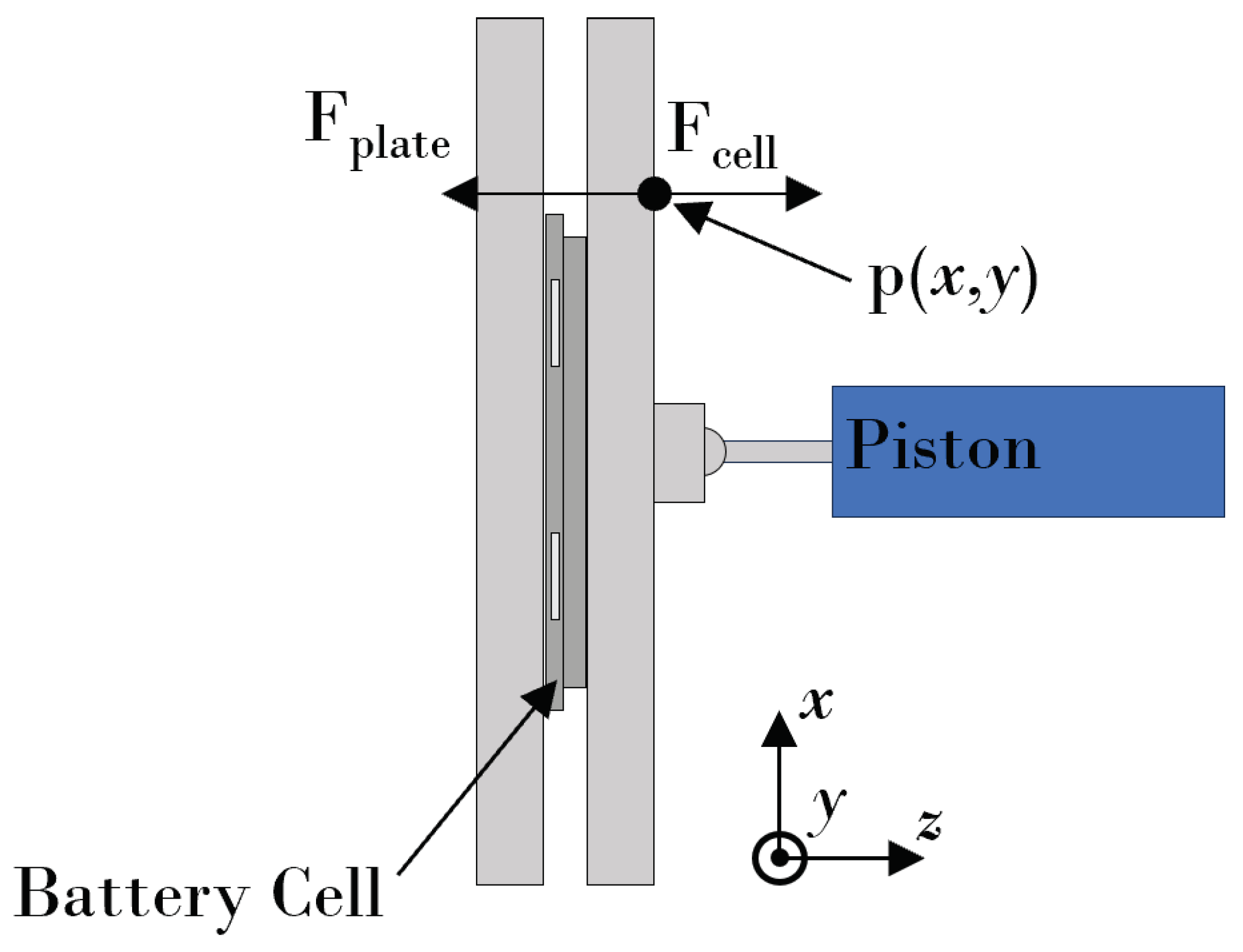

Now that we have an expression for the expansion of an uncompressed cell, we can consider the effect of the application of a compressive force on the total expansion. We start with the balance of forces in the system at an arbitrary point $p(x,y)$, as shown in Figure 5. This yields the balance of forces

$$F_{net}=F_{plate}-F_{cell}.$$

(7)

If the plate was not moving and the system were in equilibrium we would have

$$0=F_{plate}-F_{cell}.$$

(8)

However, the system is not in equilibrium, so we must develop representations for all forces within it. While we could model $F_{pis}$ as an air spring, because the displacement is relatively small, we assume that $F_{pis}$ is a constant. $F_{cell}$ is dependent on the unconstrained expansion calculated in Equation (6). We treat the cell as an expanding object with Young’s modulus E and area A, to give

$$F_{cell}=EA\Delta t_{unc}.$$

(9)

We are ultimately measuring the movement of a plate with mass m. This gives the differential equation

$$m\ddot{z}=F_{plate}-F_{cell}.$$

(10)

Since this equation is difficult to solve analytically, we implement Euler’s method, yielding

$$\left[\begin{array}{c}{z}_{n+1}\\ {\dot{z}}_{n+1}\\ {\ddot{z}}_{n+1}\end{array}\right]=\left[\begin{array}{c}{z}_n+h{\dot{z}}_n\\ {\dot{z}}_n+h{\ddot{z}}_n\\ {\displaystyle \frac{1}{m}}(F_{plate}-F_{cell}),\end{array}\right]$$

(11)

where z is the displacement at point $p(x,y)$ in the z direction, $\dot{z}$ and $\ddot{z}$ represent the first and second derivative with respect to time, and h represents the step size, also with respect to time.

3.3.3. Model Fitting

The models for both the electrical and expansion behaviour have now been established. Next, we must develop a fitting methodology, starting with the parameters that must be fit. It is useful to split the fitting process by whether the cell is charging or discharging. This will leave us with two sets of fitting parameters. For clarity, we further split the parameters into those needed for the electrical and expansion models. For the electrical model, we need to fit the parameters, with all variables being defined above. In total, there are 27 parameters that need to be fit for the electrical model, as $SO{C}_{init}$ is fit only for either charge or discharge, depending on which is performed first.

$$P=\left[\begin{array}{c}{R}_0\\ R_1(a_1,b_1,c_1)\\ R_2(a_2,b_2,c_2)\\ R_3(a_3,b_3,c_3)\\ {\tau }_1\\ {\tau }_2\\ {\tau }_3\\ SO{C}_{init}\end{array}\right].$$

(12)

Out of convenience, $R_j$ is chosen to be of the form

$$R_j\left(SoC\right)=c_{j}exp(-a_{j}SoC)+b_j,$$

(13)

where $a_j$,$b_j$, and $c_j$ must be fit for each RC-pair.

For the expansion model, we fit a separate set of parameters for each of the three sensor positions. In the expansion model, we bundle some of the variables in the expansion model to single parameters to be fit. This is shown below.

$$P=\left[\begin{array}{c}{A}_1\\ A_2\\ A_3\\ {\dot{z}}_0\\ SO{C}_{init}\end{array}\right]=\left[\begin{array}{c}{F}_{pis}\\ EAM{C}_{case}{\xi }_{an}{t}_{an}\\ EAM{C}_{case}{\xi }_{cat}{t}_{cat}\\ {\dot{z}}_0\\ SO{C}_{init}\end{array}\right]$$

(14)

Since there are three sensors, and we need a set of parameters for both charge and discharge, this gives 30 parameters that need to be fit for the expansion model.

In total, we have 57 parameters that need to be fit. Fitting is performed using the Scipy optimize package using the Nelder–Mead method.

4. Results and Analysis

4.1. Measurement

For the purpose of generating model parameters for synthetic data generation, we cycle nine cells. To obtain equivalent circuit model parameters, voltage curves from all nine cells were utilized. For the expansion model, the information from two of the nine cells is used. The electrical data collected in the original campaign are used to both verify the model fitting and generate parameters for synthetic data generation. At this time, the limited expansion data are only used to verify model fitting.

4.2. Model Fitting

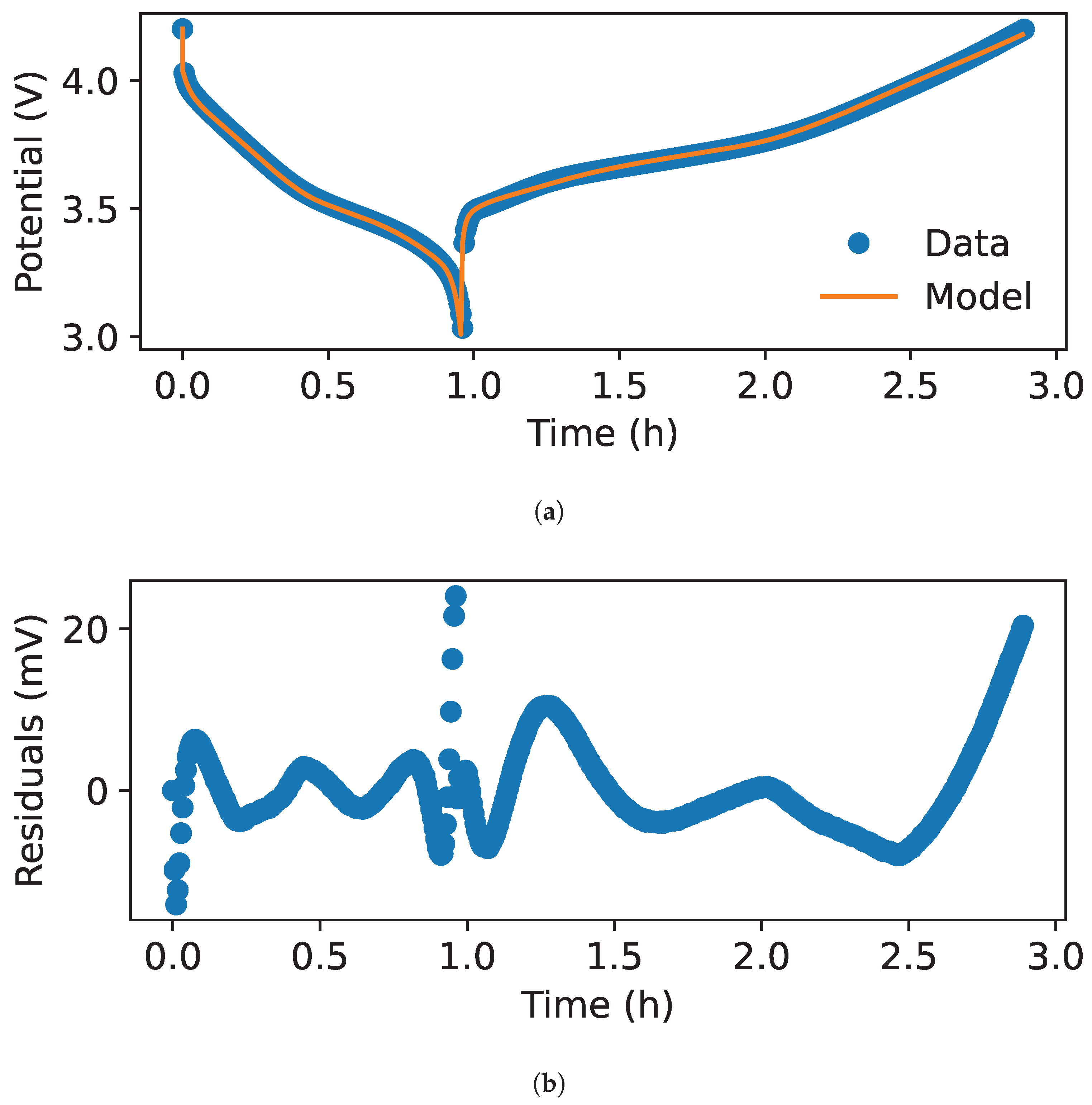

To verify that the models developed in the previous section accurately represent the experimental data, we fit the models using data from the two cells that provided both voltage and expansion curves. In Figure 6a, we present the fitted model alongside the experimental voltage curves. The results clearly show a strong agreement between the model and the data. We next examine the residuals, shown in Figure 6b. While it is clear that there are certain segments of the voltage curve that fit better than others, the mean absolute error is less than 6 $\mathrm{m}$$\mathrm{V}$ with a maximum residual of 24 $\mathrm{m}$$\mathrm{V}$.

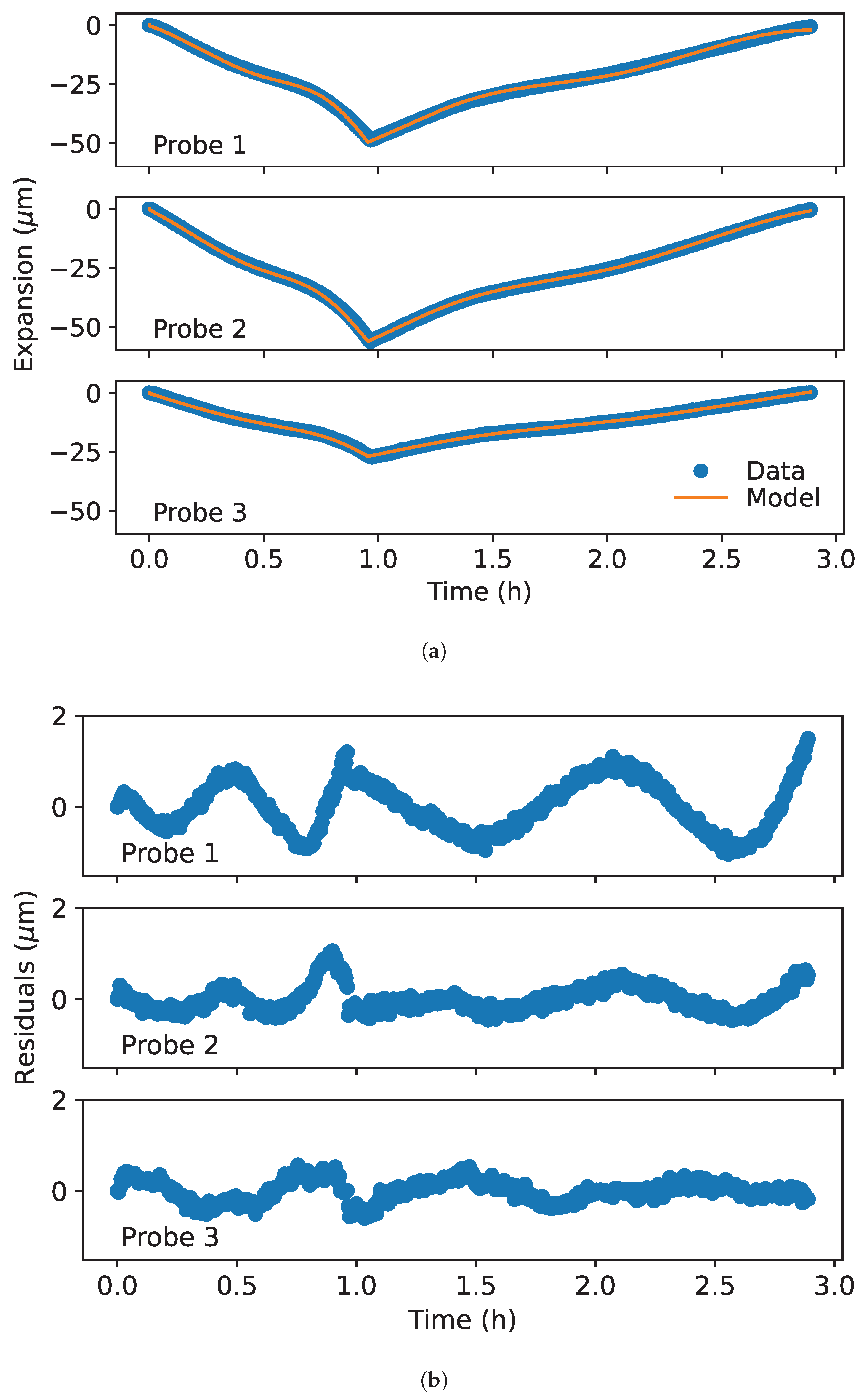

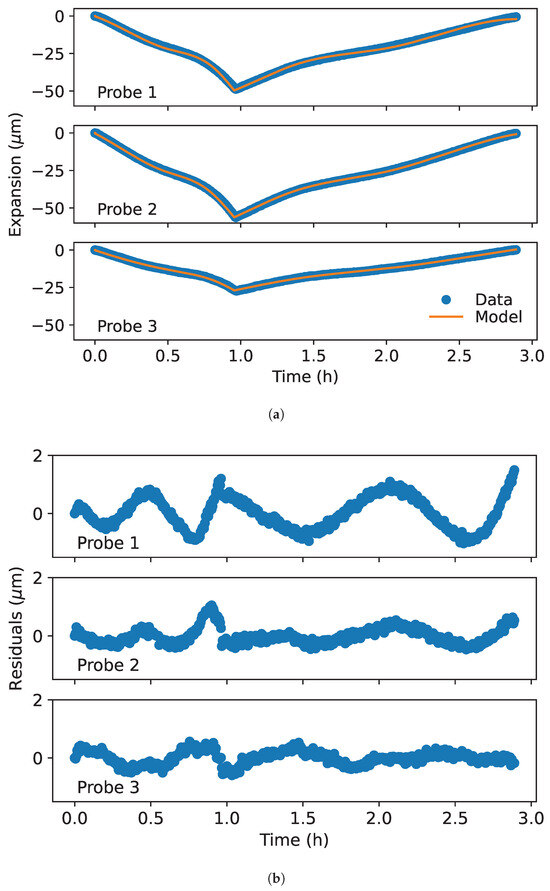

We next fit the model developed for cell expansion during cycling. As we measure cell expansion at three points, we must fit the model to the data taken at each of the measurement locations. The overlay of the model on the measurement data taken using the three optical probes is shown in Figure 7a. The corresponding residuals are shown in Figure 7b. The mean absolute errors between the model and the measurement data are 0.4 μm, 0.2 μm, and 0.2 μm for data taken using measurement probes 1, 2, and 3, respectively. The maximum residuals are 1.5 μm, 1 μm, and 0.6 μm for data taken using measurement probes 1, 2, and 3, respectively. The mean absolute error corresponds to a percentage error of 2%, 0.9%, and 1% relative to the average measurement for probes 1, 2, and 3 respectively. The residuals are evenly distributed around zero, implying a good fit to the measurement data.

4.3. Synthetic Data Generation

To demonstrate the synthetic data generation methodology, the electrical model is fit using data from nine identical battery cells, generating nine different sets of fitting parameters. During an initial inspection of values, it was discovered that the model could be simplified for this specific battery cell type. During charge, the values fit for the $a_j$ terms were on the order of less than ${10}^{-4}$. Due to the small $a_j$ terms, the input to the exponential function used to calculate $R_j$ approaches zero. This means that the transient resistance values can be represented as

$$R_j\approx c_j+b_j.$$

(15)

This simplification does not hold during discharge, and Equation (13) continues to be a reasonable representation of the transient resistance values when fitting the model to data taken during discharge.

To assess how the model is being fit to data taken from different battery cells, it is useful to visualize the distribution of parameter fits in each instance. Plotting the distributions is also useful in assessing whether any of the cells being used for model fitting are outliers. In order to effectively visualise the distribution of each fitting parameter, we scale each parameter to the mean and represent each individual fit parameter as a percentage deviation from the mean.

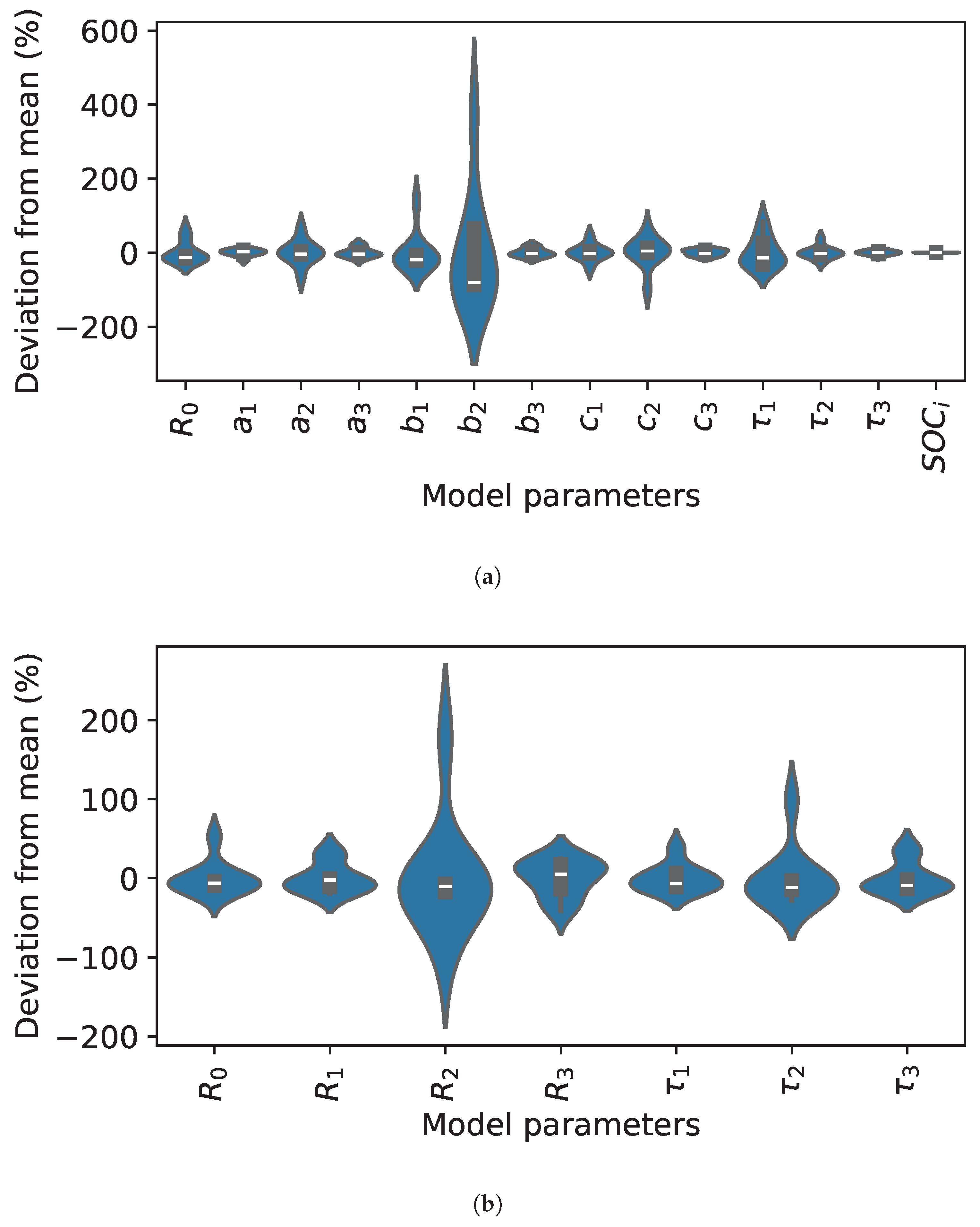

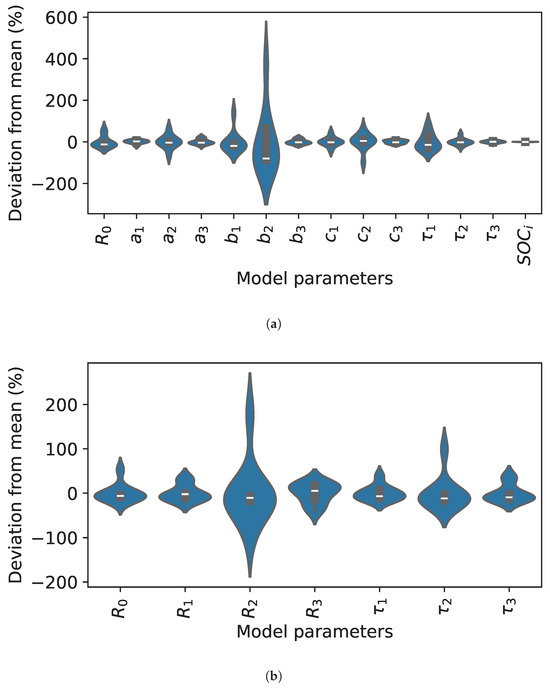

Figure 8 shows violin plots for both discharge and charge parameters, as detailed in the previous section. The distributions demonstrate that there is at least one battery cell with fit parameters that appear to be outlying. When looking at these distributions, it may be useful to consider that the mean values of each of these parameters are of different orders of magnitude. The mean and standard deviations of the model parameters are shown in

Table 1. Mean and standard deviation of model parameters for the discharge mode generated by fitting voltage curves of nine lithium-ion battery cells.

	Mean	Std
$R_0$	4.96 × 10−3 Ω	1.42 × 10−3 Ω
$a_1$	4.61 × 101	0.44 × 101
$a_2$	5.17	1.73
$a_3$	1.92	0.25
$b_1$	9.20 × 10−8 Ω	4.86 × 10−8 Ω
$b_2$	4.57 × 10−4 Ω	7.15 × 10−4 Ω
$b_3$	8.04 × 10−2 Ω	0.94 × 10−2 Ω
$c_1$	2.17 × 101 Ω	0.49 × 101 Ω
$c_2$	7.86 × 10−3 Ω	3.25 × 10−3 Ω
$c_3$	1.27 × 10−1 Ω	0.11 × 10−1 Ω
${\tau }_1$	1.35 × 103 s	0.57 × 103 s
${\tau }_2$	8.19 × 101 s	1.40 × 101 s
${\tau }_3$	8.12 × 101 s	0.54 × 101 s
$SO{C}_i$	1.044	0.007

and

Table 2. Mean and standard deviation of model parameters for the charge mode generated by fitting voltage curves of nine lithium-ion battery cells.

	Mean	Std
$R_0$	2.37 × 10−1 Ω	0.50 × 10−1 Ω
$R_1$	1.57 × 10−1 Ω	0.27 × 10−1 Ω
$R_2$	4.66 × 10−2 Ω	3.33 × 10−2 Ω
$R_3$	1.33 × 10−1 Ω	0.31 × 10−1 Ω
${\tau }_1$	3.12 × 104 s	0.54 × 104 s
${\tau }_2$	1.24 × 10−3 s	0.47 × 10−3 s
${\tau }_3$	3.91 × 101 s	0.79 × 101 s

.

The distributions, plotted in blue, are generated by fitting a kernel density estimation to the values generated by refitting the electrical model for each of the nine battery cells. Practically, this is achieved using the gaussian_kde function from the Python Scipy package.

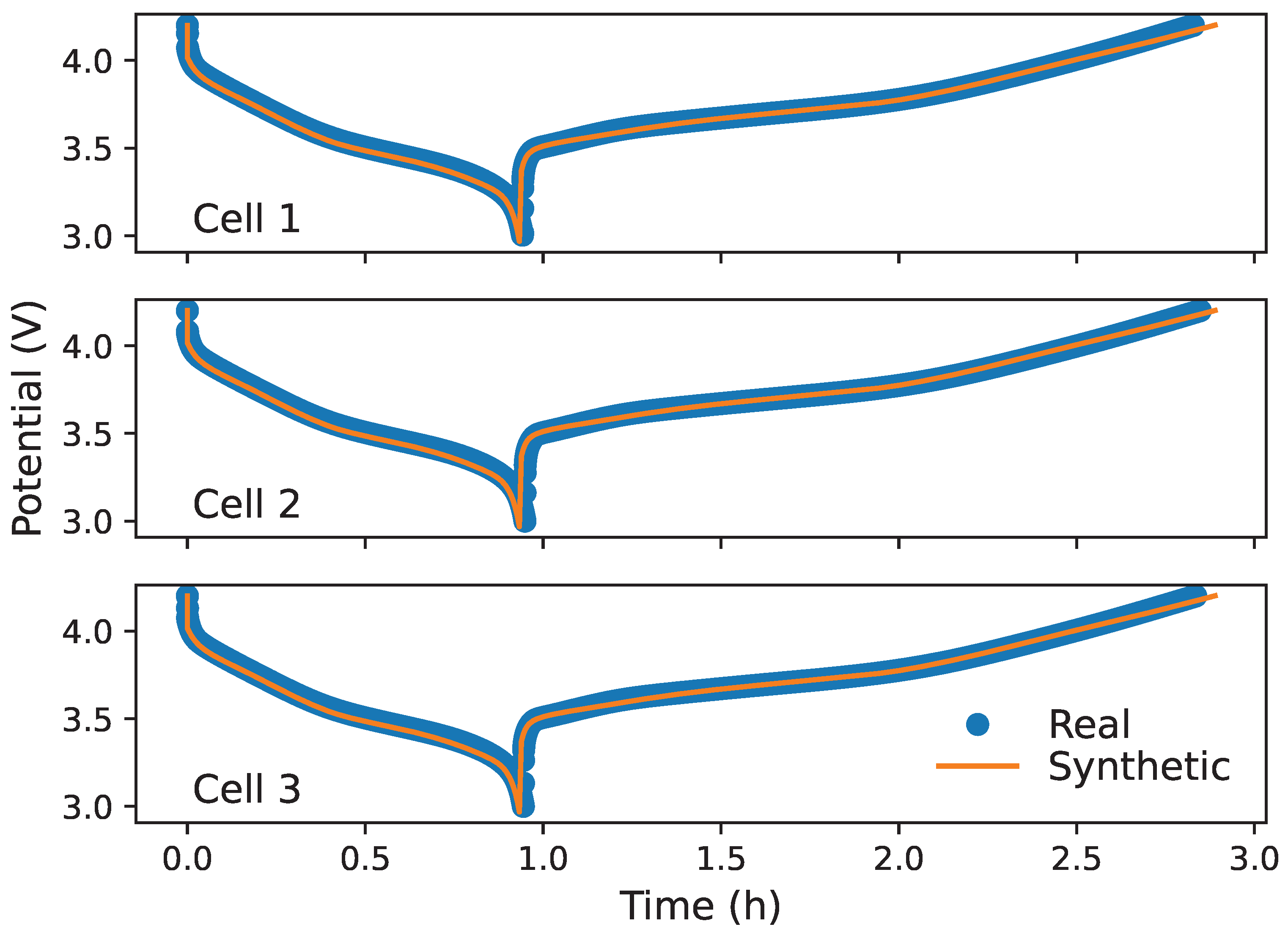

From these distributions, we can then randomly generate parameters to be fed back into the electrical model, generating a synthetic voltage curve for a battery cycle. An example of this is shown in Figure 9, where voltage curves measured from three cells during discharge are plotted alongside the synthetically generated curve, demonstrating our approach to synthetic data generation.

5. Discussion

We have demonstrated models that are capable of representing the changes in electric potential and thickness that occurs when lithium-ion cells are cycled. The models proposed are relatively simple when compared to others in the literature. It is assumed that simplifying a model may result in reduced accuracy. When considering the electrical behaviour of a lithium-ion cell, p2d models offer a more physical representation than is possible with an equivalent circuit model; however, they are far more complex to implement [26,27]. Similarly, researchers such as Clerici et al. have demonstrated more sophisticated approaches to modelling cell expansion. However, these approaches require techniques such as finite element analysis, a computationally expensive endeavour [32]. In this work, we accept that a decrease in complexity comes with a decrease in accuracy. That being said, the models developed are suitable for our use case.

In principle, these models, and by extension the synthetic data generation methodology, could be applied to other lithium-ion battery chemistries and formats and other cycling conditions. Both the electrical and expansion models would need to be adjusted to account for the varying electrode and electrolyte materials. In the case of prismatic and cylindrical cells, the casing itself applies the required pressure during cycling rather than relying on external forces to apply pressure. This would likely require revisions in the expansion model. When considering other cycling conditions, particularly at higher charge and discharge rates, it is important to note that neither the electrical nor expansion models take into account the effects of temperature. In our use case, slow cycling is desirable, as it prevents premature ageing in the cells [34]. As a result of cycling slowly, we see negligible fluctuations in temperature. Therefore, we are free to ignore temperature effects. If one wanted to cycle the cells at a higher current or in an environment with fluctuating temperatures, a thermal model would need to be developed.

The goal of developing the models presented in this work is not to generate the most accurate representation of lithium-ion battery cell behaviour across all cycling conditions but to create an easily deployable model for the purpose of generating synthetic data. Synthetic data are ultimately used to help an artificial intelligence algorithm learn features that it can expect to encounter in real data and, therefore, does not need to be a perfect representation of the real system.

It is, however, important that the parameters we sample from are representative of battery cells exhibiting normal behaviour. From the violin plots shown in Figure 8, it becomes apparent that the width of the distribution for each parameter is parameter dependent. The differing widths of the parameter distributions can at least partially be attributed to varying orders of magnitude for each parameter, as shown in Table 1 and Table 2. Parameters with a very small magnitude are more likely to have a wider distribution. This is the case when we examine the $R_2$ value in Figure 8b and Table 2. It is also useful to consider how a given parameter contributes to the output of the model. For instance, $b_2$ in Figure 8a has a wide distribution compared with that of other parameters. When we examine how $b_2$ contributes to the eventual calculation of $V_o$, we must recall its use as a bias term in Equation (13), where $a_2$, $b_2$, and $c_2$ are used to calculate $R_2$ during discharge. In the case of the $R_2$ term, the $c_{2}exp(-a_{2}SOC)$ component is an order of magnitude larger than $b_2$. Therefore, the model output, $V_o$, is relatively insensitive to the value of $b_2$, leading to a wider distribution. Variance in the widths for different parameters is therefore explainable and is not a cause for concern in generating synthetic data from the parameter distributions.

It is important to consider the possibility of outliers in the distributions, as this could cause a deviation from normal cell behaviour in synthetically generated data. Upon further inspection of the fit parameters, it appears that two battery cells contribute to the non-symmetric shape of the parameter distributions. More battery cells will be cycled to assess whether the two identified cells are outliers or if the true parameter distributions are wider than those generated by fitting to only nine cells. By fitting the models using more cells, we can minimise the effect of outliers and ensure the quality of the distributions that the parameters are sampled from.

6. Conclusions

We have established the need for end-of-line testing in lithium-ion battery production, the benefits of an expansion measurement in addition to existing electrical measurements, and the suitability of ai algorithms for extracting information from multi-sensor testing data. The limitations of using real battery cells to generate sufficient training data for the effective use of ai algorithms have also been introduced.

To address these limitations, we have established a methodology for generating synthetic data that can be used to train unsupervised ai algorithms. We first conducted expansion and voltage measurements on nine compressed 1 $\mathrm{Ah}$ lithium-ion cells under low current cycling conditions. These measurements were then used to parametrise an equivalent circuit model and model for compressed cell expansion. Finally, the distribution of parameters from fitting models with data from multiple cells was then sampled and passed back to the models to generate synthetic data.

This work allows for the production of large datasets without having to cycle a large number of battery cells. Anomaly detection algorithms for the purpose of identifying abnormal cells during end-of-line testing in lithium-ion battery production can then be pre-trained using the synthetic dataset. Real data can then later be used to retrain the models, reducing the number of cells that ultimately need to be cycled to train algorithms for end-of-line testing.
