Techno-Economic Analysis and Optimisation of Campus Grid-Connected Hybrid Renewable Energy System Using HOMER Grid
Abstract
:1. Introduction
2. Methodology
- (a)
- Location specification.
- (b)
- The modelling data require:
- (i)
- average electric load demand;
- (ii)
- daily radiation and clearness index at the location;
- (iii)
- daily temperature at the location.
- (c)
- System architecture.

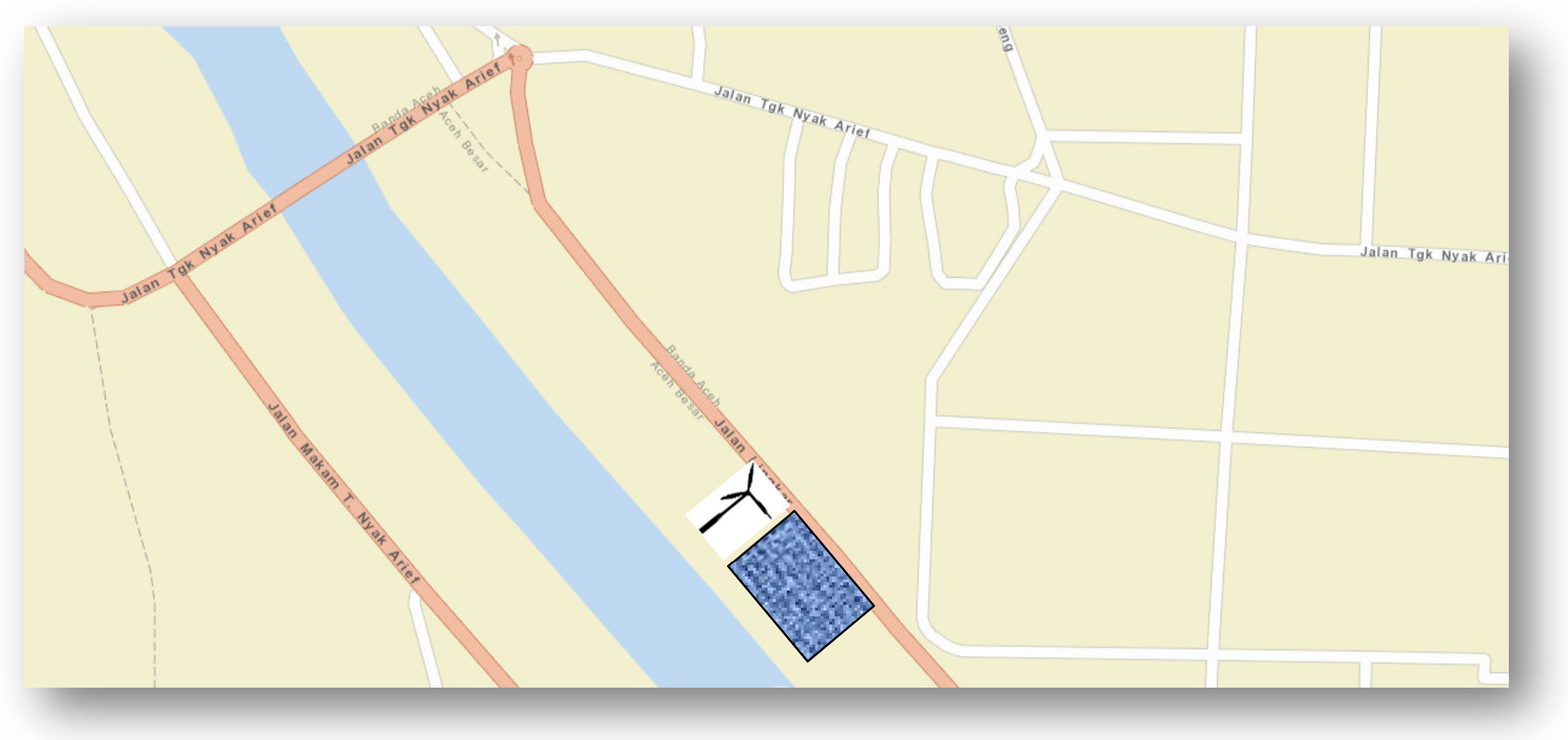

2.1. Location Specification
2.2. Modelling Data
2.2.1. Average Electric Load Demand
2.2.2. Radiation, Clearness Index, Temperature and Wind Speed

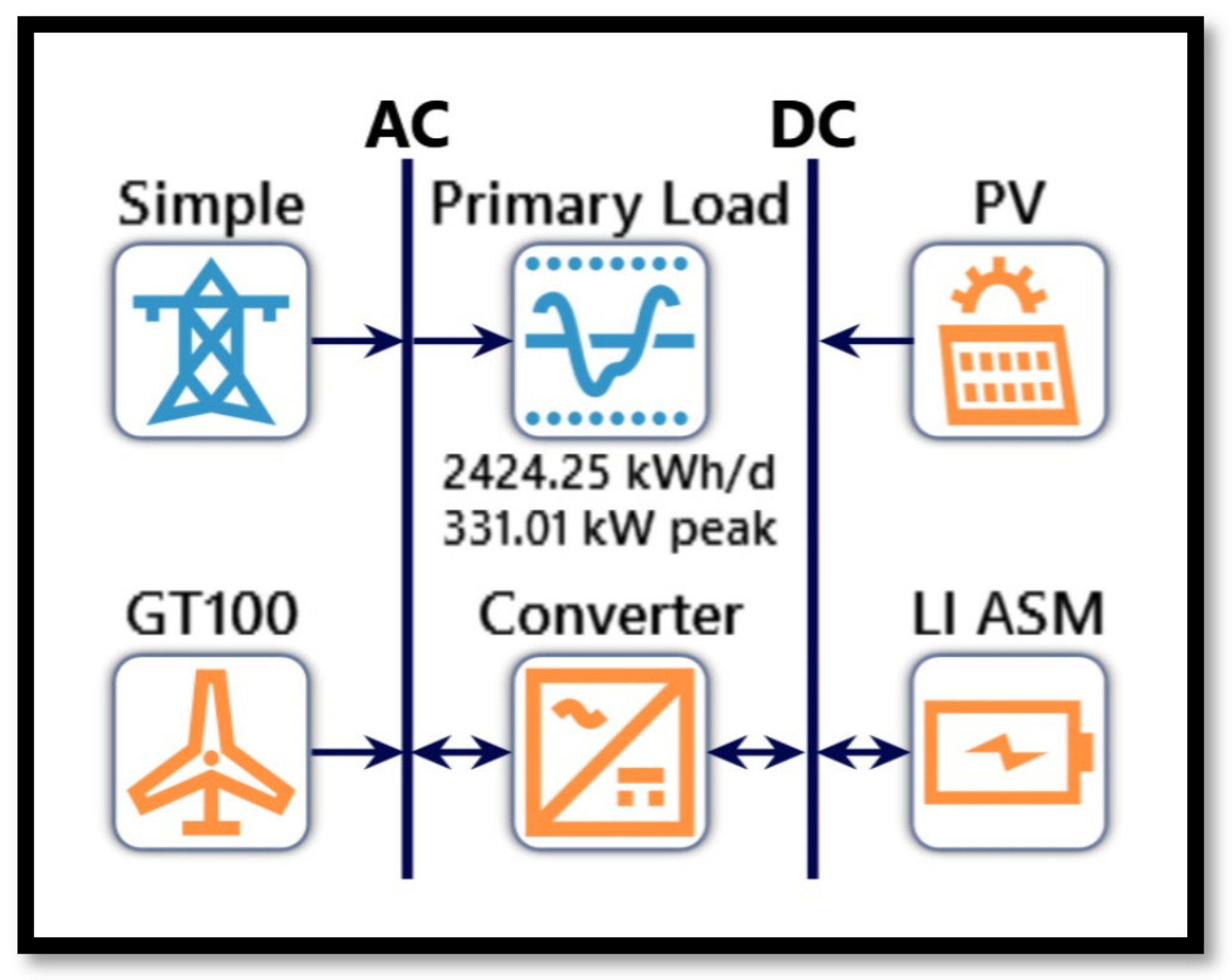

2.3. Proposed System Architecture
2.3.1. Photovoltaic
2.3.2. Wind Turbine
2.3.3. Battery
2.3.4. Converter
2.4. Economic Analysis
2.4.1. Interest Rate
2.4.2. Levelised Cost of Energy
2.4.3. Net Present Cost (NPC)
2.4.4. Salvage Value
2.4.5. Internal Rate of Return
2.4.6. Return on Investment
2.4.7. Simple Payback
2.4.8. Total Annualised Cost
2.4.9. Emissions Reduction
3. Results and Discussion
3.1. Optimisation Results

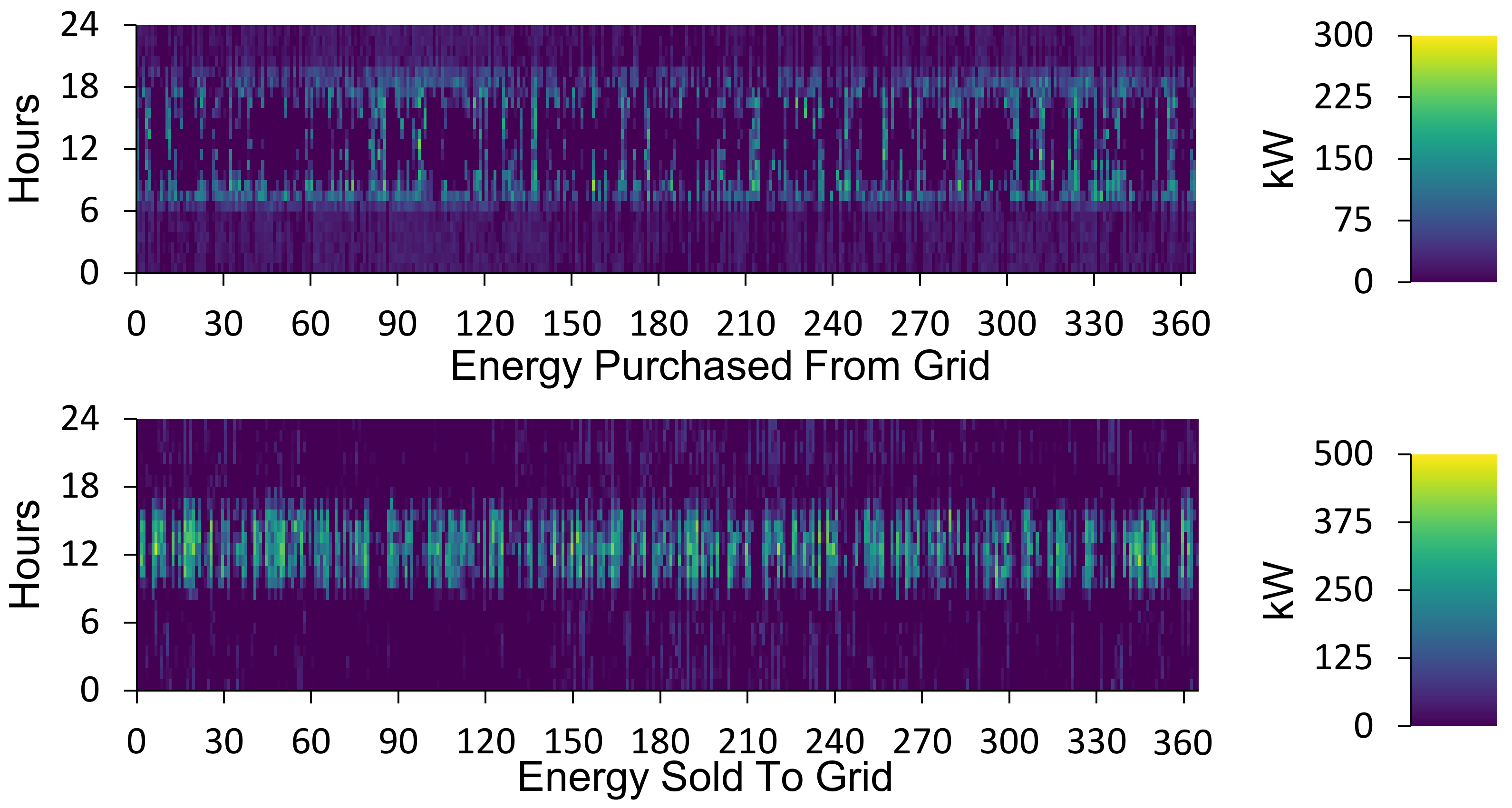

3.2. Electricity Generation and Consumption
3.3. Economic Evaluation Results
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Nomenclature
Cann,tot | total annualised cost [$/year] |
Ccap | capital cost of the current system [$] |
Ccap,ref | capital cost of the reference system [$] |
Ci,ref | nominal annual cash flow for reference system [$] |
Ci | nominal annual cash flow for current system [$] |
CNPC,tot | total net present cost [$] |
CoE | levelised cost of energy [$/kWh] |
CRF | capital recovery factor |
Crep | component replacement cost [$] |
Crep,batt | storage bank replacement cost [$] |
Eprim,AC | AC primary load served [kWh/year] |
Eprim,DC | DC primary load served [kWh/year] |
Egrid,sales | total grid sales [kWh/year] |
f | yearly inflation rate [%] |
fPV | derating factor [%] |
i | nominal interest rate [%] |
i0 | rate at which you may acquire a loan [%] |
IT | solar irradiation [kW/m2] |
Is | standard amount of radiation [kW/m2] |
IRR | internal rate of return [%] |
N | lifetime of the system [year] |
Nbatt | storage bank number of batteries |
PWTG | wind turbine power output [kW] |
PWTG,STP | wind turbine power output at standard temperature and pressure [kW] |
RF | renewable energy fraction [%] |
Qlifetime | single storage lifetime throughput [kWh] |
Qthrpt | storage throughput annually [kWh/year] |
Rbatt | life of storage bank [year] |
Rbatt,f | storage float life [year] |
Rcomp | component lifetime [year] |
ROI | return on investment [%] |
Rproj | project lifetime [year] |
Rrem | component remaining life [year] |
S | salvage value [$] |
Uanem | wind speed at anemometer height [m/s] |
Uhub | wind speed at the wind turbine hub height [m] |
YPV | total installed capacity of the PV panel [kW] |
Zhub | wind turbine hub height [m] |
Zanem | anemometer height [m] |
α | power-law exponent |
ρ | actual air density [kg/m3] |
ρo | air density at standard temperature and pressure (1.225 kg/m3) |
ηrt | storage roundtrip efficiency [%] |
References
- Norouzi, N. The Pahlev Reliability Index: A measurement for the resilience of power generation technologies versus climate change. Nucl. Eng. Technol. 2021, 53, 1658–1663. [Google Scholar] [CrossRef]
- Khan, H.; Khan, I.; BiBi, R. The role of innovations and renewable energy consumption in reducing environmental degradation in OECD countries: An investigation for Innovation Claudia Curve. Environ. Sci. Pollut. Res. 2022, 29, 43800–43813. [Google Scholar] [CrossRef] [PubMed]
- Utomo, F.G.; Yusgiantoro, Y.C. Can Renewable Energy Save Indonesia’s Economy? The Asean Post. 22 June 2022. Available online: https://theaseanpost.com/article/can-renewable-energy-save-indonesias-economy (accessed on 19 May 2022).
- Kaldjian, T.G.E. 5 Powerful Examples of Clean Energy Transitions in Asia. Green Biz. 1 February 2022. Available online: https://www.greenbiz.com/article/5-powerful-examples-clean-energy-transitions-asia (accessed on 19 May 2022).
- IEA. Indonesia—Key Energy Statistics; International Energy Agency: Paris, France, 2019. [Google Scholar]
- Norouzi, N.; Bozorgian, A.; Dehghani, M.A. Best Option of Investment in Renewable Energy: A Multicriteria Decision-Making Analysis for Iranian Energy Industry. J. Environ. Assess. Policy Manag. 2020, 22, 2250001. [Google Scholar] [CrossRef]
- Bhol, S.; Sahu, N.C. Decarbonizing the grid by optimal scheduling of solar PV-wind turbine-pumped hydro storage considering application on heuristic algorithms: A comprehensive review. Int. J. Energy Res. 2021, 45, 18473–18497. [Google Scholar] [CrossRef]
- Otsuki, T. Costs and benefits of large-scale deployment of wind turbines and solar PV in Mongolia for international power exports. Renew. Energy 2017, 108, 321–335. [Google Scholar] [CrossRef]
- Sunderland, K.; Narayana, M.; Putrus, G.; Conlon, M. Levelised Cost of Energy Analysis: A Comparison of Urban (Micro) Wind Turbines and Solar PV Systems. In Proceedings of the 51st International Universities Power Engineering Conference (UPEC), Coimbra Inst Engn, Coimbra, Portugal, 6–9 September 2016. [Google Scholar]
- Shoeibi, S. Numerical analysis of optimizing a heat sink and nanofluid concentration used in a thermoelectric solar still: An economic and environmental study. Environ. Res. Eng. Manag. 2021, 77, 110–122. [Google Scholar] [CrossRef]
- Shoeibi, S.; Kargarsharifabad, H.; Mirjalily, S.A.A.; Zargarazad, M. Performance analysis of finned photovoltaic/thermal solar air dryer with using a compound parabolic concentrator. Appl. Energy 2021, 304, 117778. [Google Scholar] [CrossRef]
- Kazerani, M.; Tehrani, K. Grid of Hybrid AC/DC Microgrids: A New Paradigm for Smart City of Tomorrow. In Proceedings of the 2020 IEEE 15th International Conference of System of Systems Engineering (SoSE), Budapest, Hungary, 2–4 June 2020; pp. 175–180. [Google Scholar]
- Türkay, B.E.; Telli, A.Y. Economic analysis of standalone and grid connected hybrid energy systems. Renew. Energy 2011, 36, 1931–1943. [Google Scholar] [CrossRef]
- Halabi, L.M.; Mekhilef, S.; Olatomiwa, L.; Hazelton, J. Performance analysis of hybrid PV/diesel/battery system using HOMER: A case study Sabah, Malaysia. Energy Convers. Manag. 2017, 144, 322–339. [Google Scholar] [CrossRef]
- Sen, R.; Bhattacharyya, S.C. Off-grid electricity generation with renewable energy technologies in India: An application of HOMER. Renew. Energy 2014, 62, 388–398. [Google Scholar] [CrossRef]
- Shahzad, M.K.; Zahid, A.; Rashid, T.U.; Rehan, M.A.; Ali, M.; Ahmad, M. Techno-economic feasibility analysis of a solar-biomass off grid system for the electrification of remote rural areas in Pakistan using HOMER software. Renew. Energy 2017, 106, 264–273. [Google Scholar] [CrossRef]
- Bahramara, S.; Moghaddam, M.P.; Haghifam, M.R. Optimal planning of hybrid renewable energy systems using HOMER: A review. Renew. Sustain. Energy Rev. 2016, 62, 609–620. [Google Scholar] [CrossRef]
- HOMER Grid. Homer Grid Software, Version 1.8.9; HOMER Grid: Boulder, CO, USA, 2022.
- PLN. Electricity Bill from Local Utility; PLN: Banda Aceh, Indonesia, 2021. [Google Scholar]
- HOMERPro HOMER Help Files; HOMER Pro Version 3.14.5; HOMER Grid: Boulder, CO, USA, 2021.
- NREL. National Solar Radiation Database; NREL: Golden, CO, USA, 2021.
- NASA. NASA Prediction of Worldwide Energy Resources (POWER); NASA: Washington, DC, USA, 2022.
- IRENA. Renewable Power Generation Costs in 2020; International Renewable Energy Agency: Abu Dhabi, United Arab Emirates, 2021. [Google Scholar]
- Energy, P. On Farm Power Generation—Wind Power; Applied Horticultural Research: Eveleigh, NSW, Australia, 2021. [Google Scholar]
- Demiroren, A.; Yilmaz, U. Analysis of change in electric energy cost with using renewable energy sources in Gökceada, Turkey: An island example. Renew. Sustain. Energy Rev. 2010, 14, 323–333. [Google Scholar] [CrossRef]
- Bloomberg USD-IDR X-Rate. Available online: https://www.bloomberg.com/quote/USDIDR:CUR (accessed on 16 December 2021).
- The World Bank. Real Interest Rate (%)—Indonesia; Statista Inc.: New York, NY, USA, 2021. [Google Scholar]
- The World Bank. The World Bank in Indonesia; Statista Inc.: New York, NY, USA, 2021. [Google Scholar]
- Attia, A.M.; Al Hanbali, A.; Saleh, H.H.; Alsawafy, O.G.; Ghaithan, A.M.; Mohammed, A. A multi-objective optimization model for sizing decisions of a grid-connected photovoltaic system. Energy 2021, 229, 120730. [Google Scholar] [CrossRef]
Consumption (kWh) | Bill (Rp) | Rp/kWh | Hour | Load (kW) | kWh/Day |
---|---|---|---|---|---|
814,040 | 663,756,828 | 815 | 744 | 1094 | 26,259 |
759,024 | 608,413,263 | 802 | 672 | 1130 | 27,108 |
766,541 | 619,772,327 | 809 | 696 | 1101 | 26,432 |
631,388 | 510,497,303 | 809 | 744 | 849 | 20,367 |
987,853 | 815,653,733 | 826 | 720 | 1372 | 32,928 |
906,319 | 737,186,032 | 813 | 744 | 1218 | 29,236 |
629,529 | 510,497,303 | 811 | 720 | 874 | 20,984 |
901,153 | 732,984,301 | 813 | 744 | 1211 | 29,069 |
1,000,082 | 833,579,199 | 834 | 744 | 1344 | 32,261 |
1,137,827 | 949,824,712 | 835 | 720 | 1580 | 37,928 |
1,049,616 | 884,629,528 | 843 | 744 | 1411 | 33,859 |
1,024,345 | 862,610,534 | 842 | 720 | 1423 | 34,145 |
Tot: 10,607,717 | Tot: 8,729,405,063 | Ave: 823 | Tot: 8760 | Ave: 1211 | Ave: 29,062 |
Component | Name | Capital Cost ($) | Replacement Cost $ | O&M Cost ($) | Lifetime | References |
---|---|---|---|---|---|---|
PV | Flat-plate PV | 1073/kW | 1073/kW | 10/year | 25 year | [23] |
Storage | 1 kWh Lead Acid | 300/kW | 2100/kW | 25/year | 10 year | [18] |
Wind turbine | GT [100 kW] | 210,000 | 210,000 | 3500/year | 25 year | [24] |
Converter | System Converter | 700/kW | 300/kW | 0 | 15 year | [18] |
Utility | Simple Tariff | 0.06/kWh | - | - | - | [19] |
Capacity (kW) | Capital ($) | Replacement ($) | O&M ($/Year) |
---|---|---|---|
5 | 5365 | 5365 | 100 |
10 | 9979 | 9979 | 180 |
1000 | 708,180 | 708,180 | 1500 |
2000 | 1,158,840 | 1,158,840 | 3000 |
Capacity (kW) | Capital ($) | Replacement ($) | O&M ($/Year) |
---|---|---|---|
5 | 3500 | 3500 | 0 |
10 | 7000 | 7000 | 0 |
200 | 110,000 | 110,000 | 1800 |
2000 | 850,000 | 850,000 | 16,000 |
8000 | 3,200,000 | 3,200,000 | 64,000 |
16,000 | 6,000,000 | 6,000,000 | 112,000 |
Description | Value | Unit | References |
---|---|---|---|
Currency | US$1 | Rp 14,000 | [26] |
Nominal discount rate | 6.6 | % | [27] |
Expected inflation rate | 2.0 | % | [28] |
Project lifetime | 25 | year | [29] |
Emissions | Quantity (g/kWh) | References |
---|---|---|
Carbon dioxide | 632 | [18] |
Sulphur dioxide | 2.74 | [18] |
Nitrogen oxides | 1.34 | [18] |
Component | Name | Size | Electricity Prod (kWh/Year) |
---|---|---|---|
Solar PV | Generic flat-plate PV | 682 kW | 833,813 |
Wind Turbine | GT100 (1 Unit) | 100 kW | 371.859 |
Utility | Simple Tariff | $0.06/kWh | 226,981 |
System converter | System Converter | 431 kW | - |
Description | Value |
---|---|
Internal Rate of Return | 4.00% |
Return on Investment | 2.41% |
Simple Payback | 16.9 year |
Annualised Utility Bill Savings | −$8693/year |
Net Present Value | −$43,239 |
Annualised Savings | $53,667 |
Carbon Dioxide | 143,452 kg/year |
Sulphur Dioxide | 622 kg/year |
Nitrogen Oxides | 304 kg/year |
Description | Reference System | Proposed System |
---|---|---|
Net Present Cost | $786,452 | $829,692 |
CAPEX | $0.00 | $838,217 |
OPEX | $53,091 | −$575.51 |
Annual Energy Charge | $53,091 | −$8693 |
LCoE (per kWh) | $0.0600 | $0.0446 |
CO2 Emitted (kg/year) | 559,226 | 143,452 |
