Water–Energy–Food Security Nexus—Estimating Future Water Demand Scenarios Based on Nexus Thinking: The Watershed as a Territory
Abstract
:1. Introduction
2. Materials and Methods

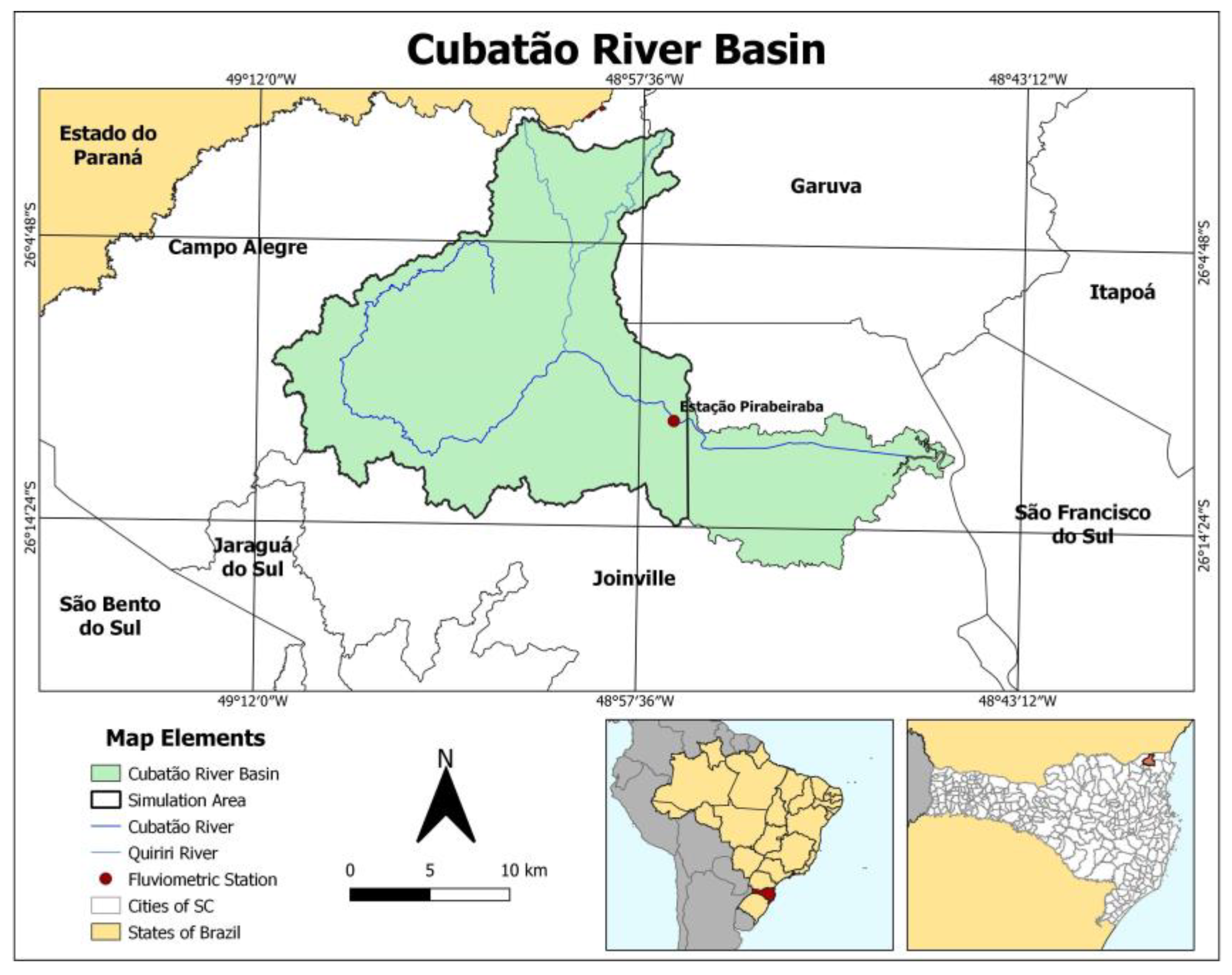

2.1. The Study Area
2.2. WEAP Software
2.3. Data Collection
2.4. Calibration and Validation
2.5. Developing Water Demand Scenarios
2.6. The WEF Sustainability Index
3. Results and Discussion

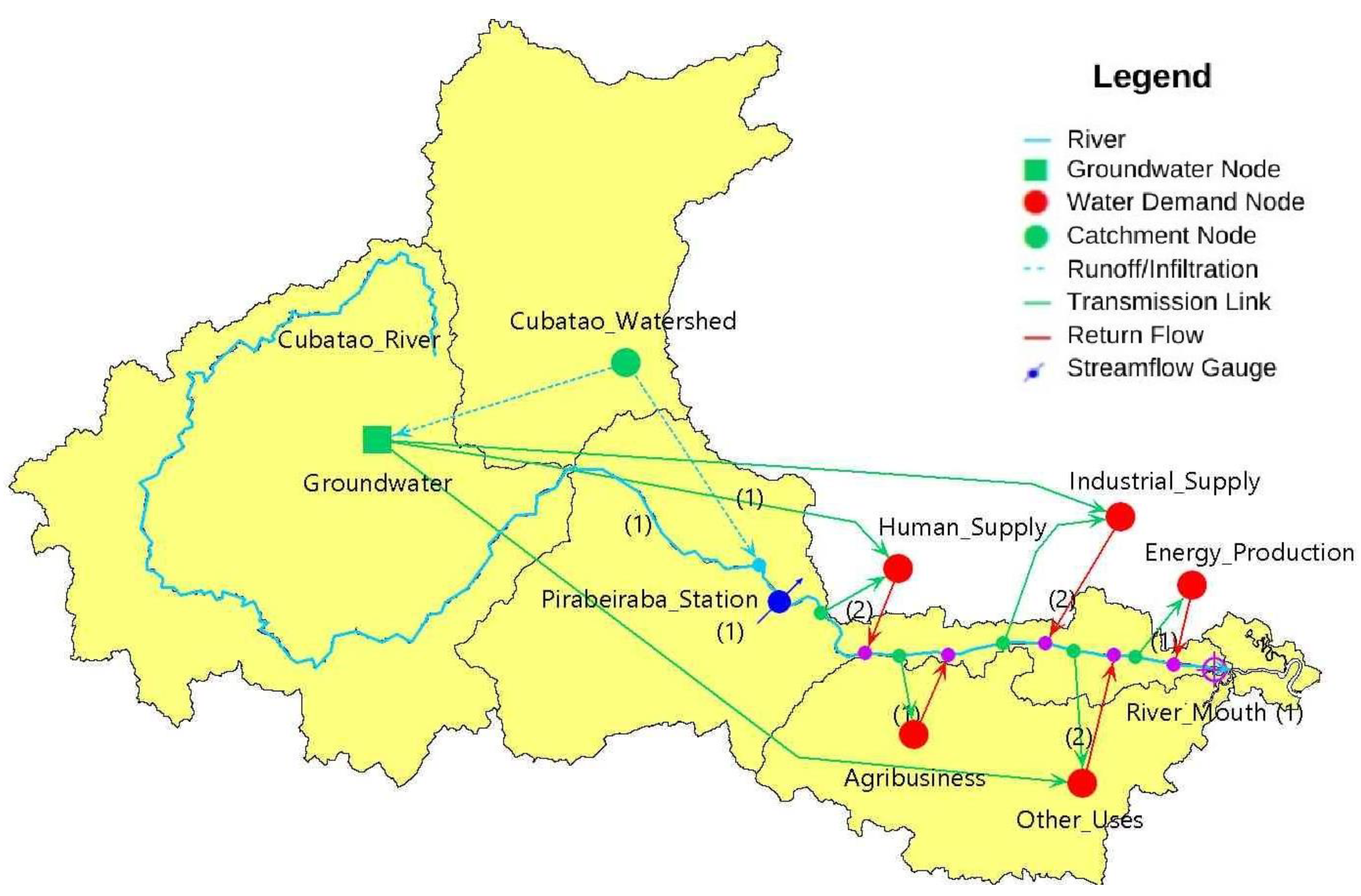

3.1. Model Construction

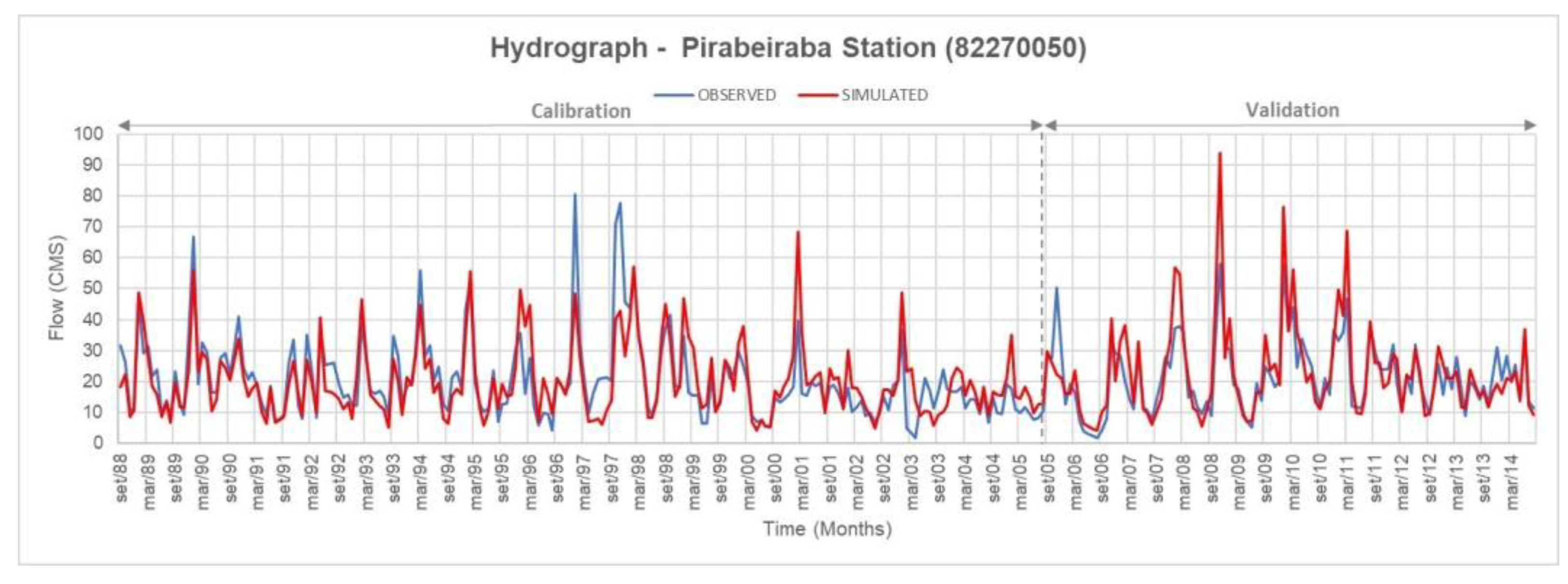

3.2. Model Calibration and Validation
3.3. Water Demand Future Scenarios
3.3.1. Water Demand for the Reference Scenario (C_REF)
3.3.2. The Water Demand Scenario for Alternative Energy Sources Demands (C_EAL)
3.3.3. Water Demand for the Scenario of Increased Usage of Water Resource Management Instruments (C_GES)
3.3.4. Water Demand for the Climatic Change Scenario (C_MCL)
3.3.5. Water Demand for the Integrated Scenario (C_INT)

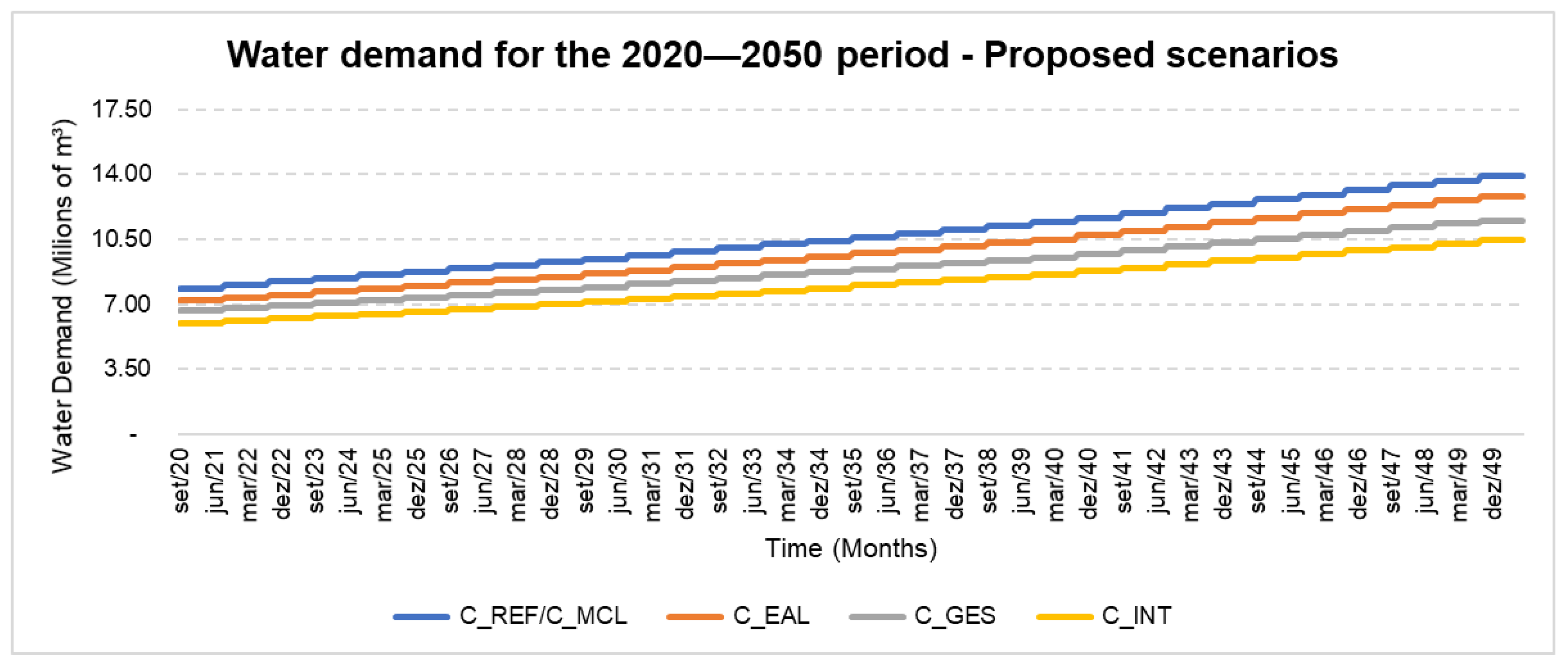

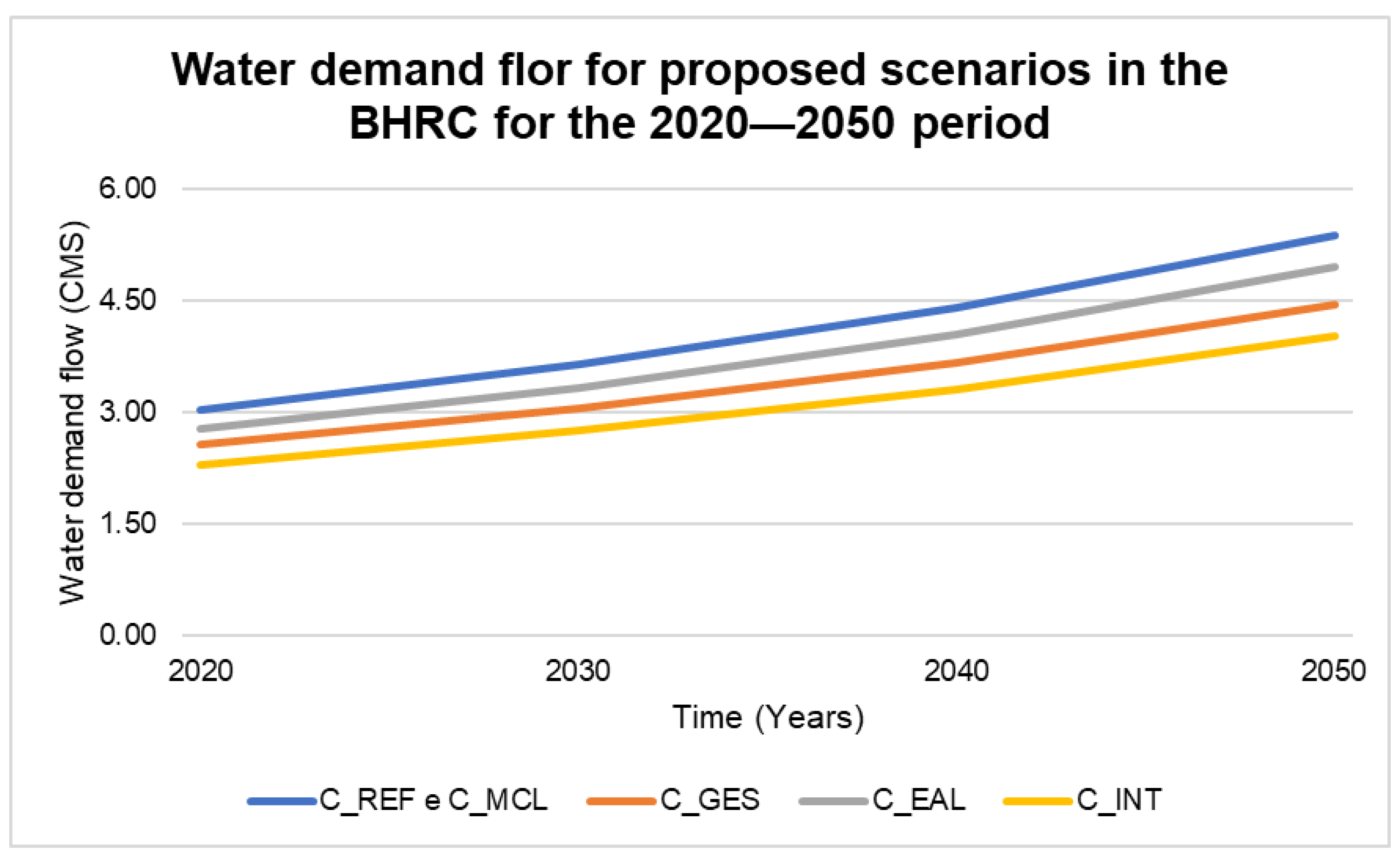

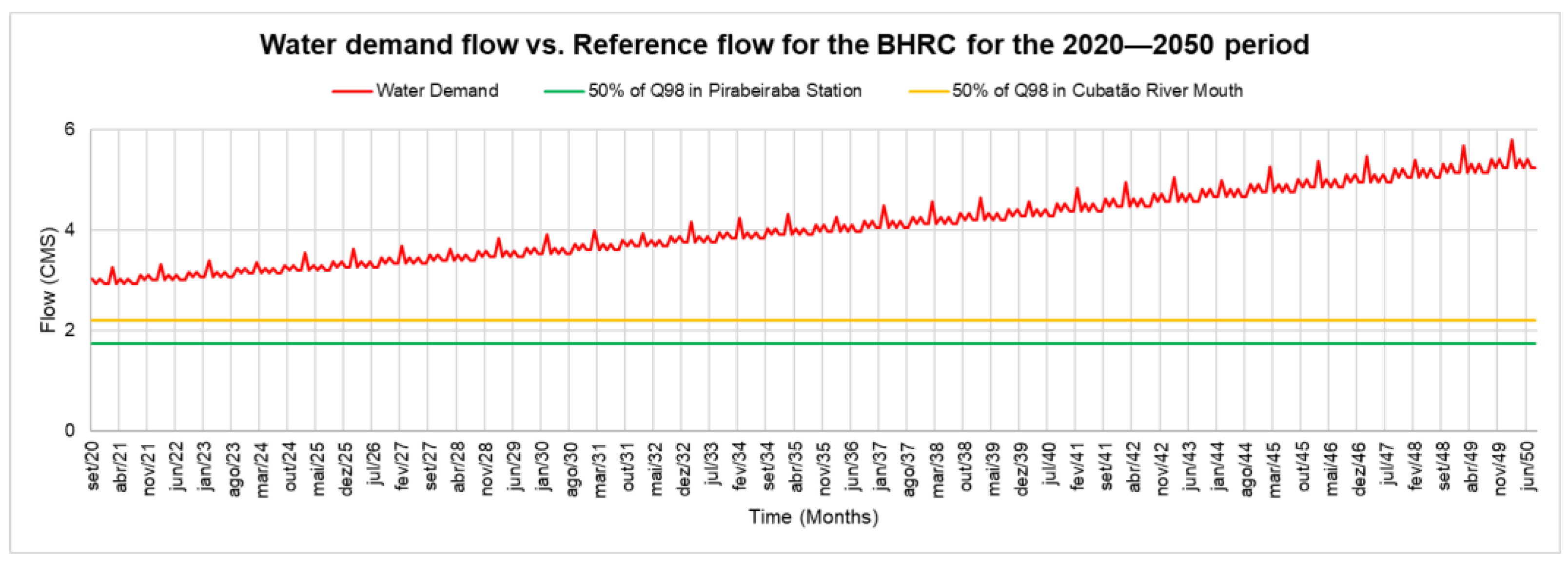

3.3.6. Evolution of Water Demand Based on the Proposed Scenarios

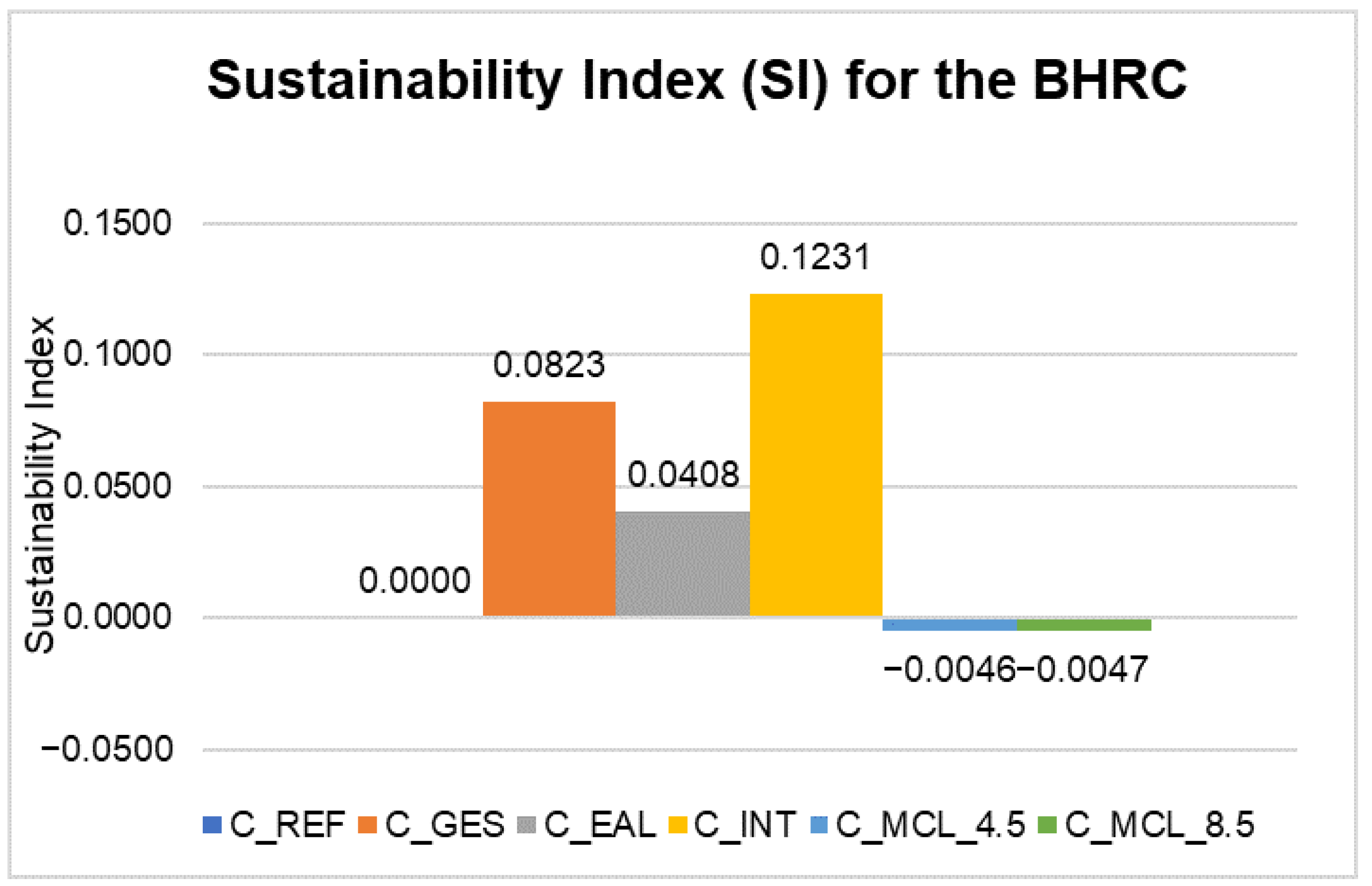

3.4. Sustainability Index
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Amaral, M.H.; Benites-Lazaro, L.L.; Sinisgalli, P.A.A.; Alves, H.P.F.; Giatti, L.L. Environmental injustices on green and blue infrastructure: Urban nexus in a macrometropolitan territory. J. Cleaner Prod. 2021, 289, 125–829. [Google Scholar] [CrossRef]
- Food and Agriculture Organization of the United Nations (FAO). FAO Framework for the Urban Food Agenda. 2019. Available online: http://www.fao.org/documents/card/en/c/ca3151en (accessed on 22 November 2022).
- Hoff, H. Understanding the Nexus. Background Paper for the Bonn 2011 Nexus Conference: The Water, Energy and Food Security Nexus. Stockholm Environment Institute (SEI). 2011. Available online: https://mediamanager.sei.org/documents/Publications/SEI-Paper-Hoff-UnderstandingTheNexus-2011.pdf (accessed on 23 October 2020).
- Food and Agriculture Organization of the United Nations (FAO). The Water-Energy-Food Nexus/A New Approach in Support of Food Security and Sustainable Agriculture. 2014. Available online: http://www.fao.org/3/a-bl496e.pdf (accessed on 30 September 2022).
- Lazaro, L.L.B.; Bellezoni, R.A.; Oliveira, J.A.P.; Jacobi, P.R.; Giatti, L.L. Ten Years of Research on the Water-Energy-Food Nexus: An Analysis of Topics Evolution. Front. Water 2022, 4, 859–891. [Google Scholar] [CrossRef]
- Albrecht, T.R.; Crootof, A.; Scott, C.A. The Water-Energy-Food Nexus: A systematic review of methods for nexus assessment. Environ. Res. Lett. 2018, 13, 043002. [Google Scholar] [CrossRef]
- Dalla Fontana, M.; Moreira, F.A.; Di Giulio, G.M.; Malheiros, T.F. The water-energy-food nexus research in the Brazilian context: What are we missing? Environ. Sci. Policy 2020, 112, 172–180. [Google Scholar] [CrossRef]
- Nexus Plataform. Mission Of The Nexus Resource Plataform. 2021. Available online: https://www.water-energy-food.org/mission (accessed on 20 June 2022).
- Sarkodie, S.A.; Owusu, P.A. Bibliometric analysis of water–energy–food nexus: Sustainability assessment of renewable energy. Curr. Opin. Environ. Sci. Health 2020, 13, 29–34. [Google Scholar] [CrossRef]
- Lazaro, L.L.B.; Giatti, L.L.; Oliveira, J.A.P. Water-energy-food nexus approach at the core of businesses—How businesses in the bioenergy sector in Brazil are responding to integrated challenges? J. Cleaner Prod. 2021, 303, 127102. [Google Scholar] [CrossRef]
- Bellfield, H. Water, Energy and Food Security Nexus in Latin America and the Caribbean. Global Canopy Programme. 2015. Available online: https://cdkn.org/wp-content/uploads/2015/04/The-Water-Energy-Food-Nexus-in-LAC-April-2015.pdf (accessed on 25 March 2021).
- Endo, A.; Tsutira, I.; Burnett, K.; Orencio, P.M. A review of the current state of research on the water, energy, and food nexus. J. Hydrol. Reg. Stud. 2017, 11, 20–30. [Google Scholar] [CrossRef]
- Chang, Y.; Li, G.; Yao, Y.; Zhang, L.; Yu, C. Quantifying the Water-Energy-Food Nexus: Current Status and Trends. Energies 2016, 9, 65. [Google Scholar] [CrossRef]
- Food and Agriculture Organization of the United Nations (FAO). Walking the Nexus Talk: Assessing the Water-Energy-Food Nexus in the Context of the Sustainable Energy for All Initiative. 2014. Available online: http://www.fao.org/3/i3959e/i3959e.pdf (accessed on 25 June 2022).
- Wicaksono, A.; Jeong, G.; Kang, D. Water, energy, and food nexus: Review of global implementation and simulation model development. Water Policy 2017, 19, 440–462. [Google Scholar] [CrossRef]
- Lazaro, L.L.B.; Giatti, L.L.; Bermann, C.; Giarolla, A.; Ometto, J. Policy and governance dynamics in the water-energy-food-land nexus of biofuels: Proposing a qualitative analysis model. Renew. Sustain. Energy Rev. 2021, 149, 111–384. [Google Scholar] [CrossRef]
- Zhang, P.; Zhang, L.; Chang, Y.; Xu, M.; Hao, Y.; Liang, S.; Liu, G.; Yang, Z.; Wang, C. Food-energy-water (FEW) nexus for urban sustainability: A comprehensive review. Resour. Conserv. Recycl. 2019, 142, 215–224. [Google Scholar] [CrossRef]
- Marin, M.; Clinciu, I.; Tudose, N.C.; Ungurean, C.; Adorjani, A.; Mihalache, A.L.; Davidescu, A.A.; Davidescu, S.O.; Dinca, L.; Cacovean, H. Assessing the vulnerability of water resources in the context of climate changes in a small forested watershed using SWAT: A review. Env. Res. 2020, 184, 109330. [Google Scholar] [CrossRef] [PubMed]
- Yates, D.; Sieber, J.; Purkey, D.; Huber-Lee, A. WEAP21—A Demand-, Priority-, and Preference-Driven Water Planning Model – Part 1: Model Characteristics. Water Int. 2005, 30, 487–500. [Google Scholar] [CrossRef]
- Yates, D.; Purkey, D.; Sieber, J.; Huber-Lee, A.; Galbraith, H. WEAP21—A Demand-, Priority-, and Preference-Driven Water Planning Model – Part 2: Aiding Freshwater Ecosystem Service Evaluation. Water Int. 2005, 30, 501–512. [Google Scholar] [CrossRef]
- Sieber, J.; Purkey, D. Water Evaluation and Planning System—User Guide. Stockholm Environment Institute (SEI). 2015. Available online: https://www.weap21.org/downloads/WEAP_User_Guide.pdf (accessed on 10 July 2022).
- Kim, T.; Yang, T.; Gao, S.; Zhang, L.; Ding, Z.; Wen, X.; Gourley, J.J.; Hong, Y. Can artificial intelligence and data-driven machine learning models match or even replace process-driven hydrologic models for streamflow simulation?: A case study of four watersheds with different hydro-climatic regions across the CONUS. J. Hydrol. 2021, 598, 126423. [Google Scholar] [CrossRef]
- Zhang, L.; Yang, T.; Gao, S.; Hong, Y.; Zhang, Q.; Wen, X.; Cheng, C. Improving Subseasonal-to-Seasonal forecasts in predicting the occurrence of extreme precipitation events over the contiguous US using machine learning models. Atmos. Res. 2023, 281, 106502. [Google Scholar] [CrossRef]
- Omar, M.E.D.M.; Moussa, A.M.A. Water management in Egypt for facing the future challenges. J. Adv. Res. 2016, 7, 403–412. [Google Scholar] [CrossRef]
- Kou, L.; Li, X.; Lin, J.; Kang, J. Simulation of Urban Water Resources in Xiamen Based on a WEAP Model. Water 2018, 10, 732. [Google Scholar] [CrossRef]
- de O. Vieira, E.; Sandoval-Solis, S. Water resources sustainability index for a water-stressed basin in Brazil. J. Hydrol. Reg. Stud. 2018, 19, 97–109. [Google Scholar] [CrossRef]
- Sandoval-Solis, S.; McKinney, D.C.; Loucks, D.P. Sustainability Index for Water Resources Planning and Management. J. Water Resour. Plann. Manag. 2011, 137, 381–390. [Google Scholar] [CrossRef]
- Guan, X.; Mascaro, G.; Sampson, d.; Maciejewski, R. A metropolitan scale water management analysis of the food-energy-water nexus. Sci. Total Environ. 2020, 701, 134478. [Google Scholar] [CrossRef] [PubMed]
- Momblanch, A.; Papadimitriou, L.; Jain, S.K.; Kulkarni, A.; Ojha, C.S.P.; Adeloye, A.J.; Holman, I.P. Untangling the water-food-energy-environment nexus for global change adaptation in a complex Himalayan water resource system. Sci. Total Environ. 2019, 655, 35–47. [Google Scholar] [CrossRef]
- Liu, Y. A quantitative analysis framework for water-food-energy nexus in an agricultural watershed using WEAP-MODFLOW. Sustain. Prod. Consum. 2022, 31, 693–706. [Google Scholar] [CrossRef]
- Carvalho, P.N.; Finger, D.C.; Masi, F.; Cipolletta, G.; Oral, H.V.; Tóth, A.; Regelsberger, M.; Exposito, A. Nature-based solutions addressing the water-energy-food nexus: Review of theoretical concepts and urban case studies. J. Clean. Prod. 2022, 338, 130625. [Google Scholar] [CrossRef]
- ANA—Agência Nacional de Águas e Saneamento. Conjuntura dos Recursos Hídricos no Brasil 2017: Relatório pleno/Agência Nacional de Águas. 2017. Available online: http://www.snirh.gov.br/portal/snirh/centrais-de-conteudos/conjuntura-dos-recursos-hidricos/conj2017_rel-1.pdf (accessed on 31 July 2021).
- Brasil. Lei n. 9.433, de 08 de Janeiro de 1997. Diário Oficial da União, Brasília, Distrito Federal. 1997. Available online: http://www.planalto.gov.br/ccivil_03/leis/l9433.htm (accessed on 15 March 2021).
- Oliveira, T.M.N.; Ribeiro, J.M.G.; Barros, V.G.; Simm, M.; Mello, Y.R.; Zeh, K.K. Bacias Hidrográficas da Região de Joinville: Gestão de Dados; Editora Univille: Joinville, Brazil, 2017; 94p, Available online: https://www.univille.edu.br/account/editora/VirtualDisk.html/downloadDirect/1145899/Bacias_hidrograficas_2017.pdf (accessed on 10 March 2021).
- SEPUD—Secretaria de Planejamento Urbano e Desenvolvimento Sustentável. Cidade em Dados: Ambiente Natural. Prefeitura Municipal, Joinville. 2020. Available online: https://www.joinville.sc.gov.br/publicacoes/joinville-cidade-em-dados-2020/ (accessed on 25 October 2022).
- Alvares, C.A.; Stape, J.L.; Sentelhas, P.C.; de Moraes Golçalves, J.L.; Sparovek, G. Köppen’s climate classification map for Brazil. Meteorol. Z. 2013, 22, 711–728. [Google Scholar] [CrossRef]
- Haak, L. Caracterização Granulométrica e Mineralógica dos Sedimentos de Carga de Fundo do Rio Cubatão do Norte. Master’s Thesis, Federal University of Parana, Curitiba, Brazil, 28 March 2013. Available online: https://acervodigital.ufpr.br/bitstream/handle/1884/31026/R%20-%20D%20-%20LETICIA%20HAAK.pdf?sequence=1&isAllowed=y (accessed on 25 June 2021).
- de Joinville, A. Relatório de Sustentabilidade—2020. 2021. Available online: https://www.aguasdejoinville.com.br/wp-content/uploads/2021/11/Relatorio_de_Sustentabilidade_2020.pdf (accessed on 20 February 2022).
- Sistema IBGE de Recuperação Automática—Sidra/IBGE. Banco de Tabelas Estatísticas. 2021. Available online: https://sidra.ibge.gov.br/home/pimpfbr/brasil (accessed on 30 August 2021).
- Mapbiomas, P. Coleção da Série Anual de Mapas de Cobertura e Uso de Solo do Brasil (1985–2020). 2021. Available online: https://mapbiomas.org/ (accessed on 20 August 2021).
- Secretaria de Estado do Desenvolvimento Econômico Sustentável (SDS). Plano Estadual de Recursos Hídricos de Santa Catarina: Caracterização Geral das Regiões Hidrográficas de Santa Catarina. 2017. Available online: https://www.aguas.sc.gov.br/jsmallfib_top/DHRI/Plano%20Estadual/etapa_a/PERH_SC_RH6_CERTI-CEV_2017_final.pdf (accessed on 20 July 2021).
- Amato, C.C.; McKinney, D.C.; Ingol-Blanco, E. WEAP Hydrology Model Applied: The Rio Conchos Basin. 2006. Available online: https://repositories.lib.utexas.edu/handle/2152/7025 (accessed on 10 May 2021).
- Stockholm Environment Institute (SEI). WEAP Licensing. Available online: https://www.weap21.org/index.asp?action=217&NewLang=EN (accessed on 15 February 2023).
- Agência Nacional de Águas (ANA). HidroWEB: Séries Históricas de Estações. Available online: https://www.snirh.gov.br/hidroweb/serieshistoricas (accessed on 10 April 2021).
- Koninklijk Nederlands Meteorologisch Instituut (KNMI). Climate Explorer. World Meteorological Organization. Available online: https://climexp.knmi.nl/selectfield_obs2.cgi?id=someone@somewhere (accessed on 10 May 2021).
- National Centers for Environmental Prediction (NCEP). Global Weather Data for SWAT. Available online: https://globalweather.tamu.edu/ (accessed on 20 August 2021).
- Empresa Brasileira De Pesquisa Agropecuária—EMBRAPA. Levantamento de reconhecimento dos Solos do Estado de Santa Catarina. 2018. Available online: http://geoinfo.cnps.embrapa.br/layers/geonode%3Alev_sc_estado_solos_lat_long_wgs84 (accessed on 28 July 2021).
- Bortolini, D. Estimativa da Retenção e Disponibilidade de Água nos Solos do Estado de Santa Catarina. Ph.D. Thesis, State University of Santa Catarina, Lages, Brazil, 26 February 2016. Available online: https://www.udesc.br/arquivos/cav/id_cpmenu/1476/Tese_Diego_Bortolini_versao_4_0__1__15694152311329_1476.pdf (accessed on 27 July 2021).
- Gonçalves, M.L.; Oliveira, F.A.; Zanotelli, C.T.; Oliveira, T.M.N. Elaboração do Plano Diretor dos Recursos Hídricos da Bacia Hidrográfica do Rio Cubatão do Norte, 1st ed.; Univille: Joinville, Brazil, 2007. [Google Scholar]
- Allen, R.G.; Pereira, L.S.; Raes, D.; Smith, M. Crop evapotranspiration: Guidelines for Computing Crop Water Requirements. 1998. Available online: https://www.fao.org/3/x0490e/x0490e00.htm (accessed on 1 August 2021).
- Silva, D.A.; Pfeifer, M.; Pattison, Z.; Vibrans, A.C. Drivers of leaf area index variation in Brazilian Subtropical Atlantic Forests. For. Ecol. Manag. 2020, 476, 118477. [Google Scholar] [CrossRef]
- Secretaria de Estado do Desenvolvimento Econômico Sustentável (SDS). Portarias—Outorgas. Governo do Estado de Santa Catarina. 2011. Available online: http://www.cadastro.aguas.sc.gov.br/sirhsc/conteudo_visualizar_dinamico.jsp?idEmpresa=12&idMenu=1102&idMenuPai=1101 (accessed on 15 September 2021).
- Sistema de Outorga da Água de Santa Catarina (SIOUT). Governo do Estado de Santa Catarina: Secretaria de Estado do Desenvolvimento Econômico e Sustentável (SDE). 2021. Available online: http://siout.aguas.sc.gov.br/ (accessed on 30 January 2022).
- Companhia De Pesquisa De Recursos Minerais (CPRM). Mapeamento geológico e hidrogeológico do município de Joinville, SC. 2021. Available online: https://www.joinville.sc.gov.br/publicacoes/mapeamento-geologico-e-hidrogeologico-do-municipio-de-joinville/ (accessed on 20 September 2022).
- Centrais Elétricas De Santa Catarina (CELESC). Dados de Consumo. 2021. Available online: https://www.celesc.com.br/home/mercado-de-energia/dados-de-consumo (accessed on 30 September 2021).
- Empresa Energética do Brasil (EPE). Balanço Energético Nacional 2021: Ano base 2020/Empresa de Pesquisa Energética; EPE: Rio de Janeiro, Brazil, 2021.
- Parameter Estimation Tool (PEST). Available online: https://pesthomepage.org/ (accessed on 10 August 2022).
- Tena, T.M.; Mudenda, F.; Nguvulu, A.; Mwaanga, P.; Gathenya, J.M. Analysis of River Tributaries Streamflow Contribution Using WEAP Model: A Case of the Ngwerere and Kanakatampa Tributaries to the Chongwe River in Zambia. J. Water Resour. Prot. 2021, 13, 309–323. [Google Scholar] [CrossRef]
- Oti, J.O.; Kabo-bah, A.T.; Ofusu, E. Hydrologic response to climate change in the Densu River Basin in Ghana. Heliyon 2020, 6, e04722. [Google Scholar] [CrossRef]
- Agarwal, S.; Patil, J.P.; Goyal, V.C.; Singh, A. Assessment of Water Supply–Demand Using Water Evaluation and Planning (WEAP) Model for Ur River Watershed, Madhya Pradesh, India. J. Inst. Eng. India Ser. A 2018, 100, 21–32. [Google Scholar] [CrossRef]
- Ingol-Blanco, E.; McKinney, D.C. Development of a Hydrological Model for the Rio Conchos Basin. J. Hydrol. Eng. 2013, 18, 340–351. [Google Scholar] [CrossRef]
- Abdi, D.A.; Ayenew, T. Evaluation of the WEAP model in simulating subbasin hydrology in the Central Rift Valley basin, Ethiopia. Ecol. Process. 2021, 10, 41. [Google Scholar] [CrossRef]
- Moriasi, D.N.; Arnold, J.G.; Van Liew, M.W.; Bingner, R.L.; Harmel, R.D.; Veith, T.L. Model Evaluation Guidelines for Systematic Quantification of Accuracy in Watershed Simulations. Trans. ASABE 2007, 50, 885–900. [Google Scholar] [CrossRef]
- Abbaspour, K.C. The fallacy in the use of the ‘best-fit’ solution in hydrologic modeling. Sci. Total Environ. 2022, 802, 149713. [Google Scholar] [CrossRef] [PubMed]
- Corpo De Engenheiros Consultores Ltda (ENGECORPS). Plano Municipal de Saneamento Básico de Joinville—SC. 2011. Available online: https://www.joinville.sc.gov.br/wp-content/uploads/2021/10/Relat%C3%B3rio-Final-Tomo-I-S%C3%ADntese.pdf (accessed on 5 September 2022).
- Município de Joinville/SC. Cidade em dados. 2019. Available online: https://www.joinville.sc.gov.br/wp-content/uploads/2019/08/Joinville-Cidade-em-Dados-2019-Ambiente-Constru%C3%ADdo.pdf (accessed on 20 August 2022).
- Stephens, J.C.; Stewart, E.H. A comparison of procedures for computing evaporation and evapotranspiration. Int. Assoc. Sci. Hydrol. 1963, 62, 123–133. [Google Scholar]
- Majidi, M.; Alizadeh, A.; Farid, A.; Vazifedoust, M. Estimating Evaporation from Lakes and Reservoirs under Limited Data Condition in a Semi-Arid Region. Water Resour. Manag. 2015, 29, 3711–3733. [Google Scholar] [CrossRef]
- Althoff, D.; Rodrigues, L.N.; da Silva, D.D. Evaluating Evaporation Methods for Estimating Small Reservoir Water Surface Evaporation in the Brazilian Savannah. Water 2019, 11, 1942. [Google Scholar] [CrossRef]
- Secretaria de Estado do Desenvolvimento Econômico Sustentável (SDS). Plano Estadual de Recursos Hídricos de Santa Catarina—PERH/SC: Plano de Ações do PERH/SC. 2017 – Objetivos, metas e ações. Available online: https://www.aguas.sc.gov.br/jsmallfib_top/DHRI/Plano%20Estadual/etapa_e/perh_sc_plano_de_acoes-2017-final.pdf (accessed on 20 August 2022).
- Catarina, S. Lei Estadual nº 9.748, de 30 de Novembro de 1994. Available online: https://www.aguas.sc.gov.br/jsmallfib_top/DHRI/Legislacao/Lei-Estadual-9748-1994.pdf (accessed on 15 March 2022).
- Tong, O. An AHP-based water-conservation and waste-reduction indicator system for cleaner production of textile-printing industry in China and technique integration. Clean Technol. Environ. Policy 2012, 14, 857–868. [Google Scholar] [CrossRef]
- Matsumura, E.M.; Mierzwa, J.C. Water conservation and reuse in poultry processing plant—A case study. Resour. Conserv. Recycl. 2008, 52, 835–842. [Google Scholar] [CrossRef]
- Blanke, A. Water saving technology and saving water in China. Agric. Water Manag. 2007, 87, 139–150. [Google Scholar] [CrossRef]
- Climate Change 2014: Synthesis Report. In Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate; Intergovernmental Panel on Climate Change (IPCC): Geneva, Switzerland, 2014.
- Instituto Nacional de Pesquisas Espaciais (INPE). Portal Projeções Climáticas no Brasil. 2022. Available online: http://pclima.inpe.br/ (accessed on 30 August 2022).
- Chou, S.C.; Lyra, A.; Mourão, C.; Dereczynski, C.; Pilotto, I.; Gomes, J.; Bustamante, J.; Tavares, P.; Silva, A.; Rodrigues, D.; et al. Assessment of Climate Change over South America under RCP 4.5 and 8.5 Downscaling Scenarios. Am. J. Clim. Chan. 2014, 3, 512–527. [Google Scholar] [CrossRef]
- Santa Catarina, 2008. Portaria SDS n° 51, de 02 de outubro de 2008—Altera a Portaria SDS nº 36, de 29 de julho de 2008. Available online: http://www.cadastro.aguas.sc.gov.br/sirhsc/conteudo_visualizar_dinamico.jsp?idEmpresa=12&idMenu=1011&idMenuPai=333 (accessed on 20 February 2022).
- Biggs, E.M. Sustainable development and the water–energy–food nexus: A perspective on livelihoods. Environ. Sci. Policy 2015, 54, 389–397. [Google Scholar] [CrossRef]
- Daher, B.T.; Mohtar, R.H. Water–energy–food (WEF) Nexus Tool 2.0: Guiding integrative resource planning and decision-making. Water Int. 2015, 40, 748–771. [Google Scholar] [CrossRef]
- Daher, B.; Lee, S.; Kaushik, V.; Blake, J.; Askariyeh, M.H.; Shafiezadeh, H.; Zamaripa, S.; Mohtar, R.H. Towards bridging the water gap in Texas: A water-energy-food nexus approach. Sci. Total Environ. 2019, 647, 449–463. [Google Scholar] [CrossRef] [PubMed]
- Moraes-Santos, E.C.; Dias, R.A.; Balestieri, J.A.P. Groundwater and the water-food-energy nexus: The grants for water resources use and its importance and necessity of integrated management. Land Use Policy 2021, 109, 105585. [Google Scholar] [CrossRef]
- Dill, J.; Dagios, R.N.; Barros, V.G. Public policies on water resource management and its impacts on the context of climatic changes and alterations in land use and land cover in small and protected rainforest river basins. Environ. Sci. Policy 2022, 137, 191–204. [Google Scholar] [CrossRef]
- Khalil, A.; Rittima, A.; Phankamolsil, Y. The projected changes in water status of the Mae Klong Basin, Thailand, using WEAP model. Paddy Water Environ. 2018, 16, 439–455. [Google Scholar] [CrossRef]
- World Bank. Lesotho WEAP Manual. Available online: https://documents1.worldbank.org/curated/en/543441486622913509/pdf/112725-WP-PUBLIC-Lesotho-Weap-Manual.pdf (accessed on 10 May 2022).
- Lang, M.; Pobanz, K.; Renard, B.; Renouf, E.; Sauquet, E. Extrapolation of rating curves by hydraulic modelling, with application to flood frequency analysis. Hydrol. Sci. J. 2010, 55, 883–898. [Google Scholar] [CrossRef]
- Mounir, A.; Mascaro, G.; White, D.D. A metropolitan scale analysis of the impacts of future electricity mix alternatives on the water-energy nexus. Appl. Energy 2019, 256, 113870. [Google Scholar] [CrossRef]
- ESMAP—SOLARGIS. Global Solar Atlas. Available online: https://globalsolaratlas.info/map (accessed on 1 November 2022).
- Pinto, J.T.M.; Amaral, K.J.; Janissek, P.R. Deployment of photovoltaics in Brazil: Scenarios, perspectives and policies for low-income housing. Sol. Energy 2016, 133, 73–84. [Google Scholar] [CrossRef]
- Garlet, T.B.; Ribeiro, J.L.D.; Savian, F.S.; Siluk, J.C.M. Paths and barriers to the diffusion of distributed generation of photovoltaic energy in southern Brazil. Renewable Sustainable Energy. Rev. 2019, 111, 157–169. [Google Scholar] [CrossRef]
- Sargentis, G.F.; Siamparina, P.; Sakki, G.; Efstratiadis, A.; Chiotinis, M.; Koutsoyiannis, D. Agricultural Land or Photovoltaic Parks? The Water–Energy–Food Nexus and Land Development Perspectives in the Thessaly Plain, Greece. Sustainability 2021, 13, 8935. [Google Scholar] [CrossRef]
- Lazaro, L.L.B.; Soares, R.S.; Bermann, C.; Collaço, F.M.A.; Giatti, L.L.; Abram, S. Energy transition in Brazil: Is there a role for multilevel governance in a centralized energy regime? Energy Res. Social Sci. 2022, 85, 102404. [Google Scholar] [CrossRef]
- Pearce, J.M. Agrivoltaics in Ontario Canada: Promise and Policy. Sustainability 2022, 14, 3037. [Google Scholar] [CrossRef]
- Trommsdorff, M.; Dhal, I.S.; Özdemir, Ö.E.; Ketzer, D.; Weinberger, N.; Rösch, C. Agrivoltaics: Solar power generation and food production. In Solar Energy Advancements in Agriculture and Food Production Systems; Academic Press: Cambridge, MA, USA, 2022; pp. 159–210. [Google Scholar] [CrossRef]
- Hachem, C.; Fazio, P.; Athienitis, A. Solar optimized residential neighborhoods: Evaluation and design methodology. Sol. Energy 2013, 95, 42–64. [Google Scholar] [CrossRef]
- Abu-Bakar, A.; Williams, L.; Hallett, S.H. A review of household water demand management and consumption measurement. J. Cleaner Prod. 2021, 292, 125872. [Google Scholar] [CrossRef]
- Sgroi, M. Feasibility, sustainability and circular economy concepts in water reuse. Curr. Opin. Environ. Sci. Health 2018, 2, 20–25. [Google Scholar] [CrossRef]
- Chen, Z.; Wu, Q.; Wu, G.; Hu, H. Centralized water reuse system with multiple applications in urban areas: Lessons from China’s experience. Resour. Conserv. Recycl. 2017, 117, 125–136. [Google Scholar] [CrossRef]
- Garcia-Cuerva, L.; Berglund, E.Z.; Binder, A.R. Public perceptions of water shortages, conservation behaviors, and support for water reuse in the U.S. Resour. Conserv. Recycl. 2016, 113, 106–115. [Google Scholar] [CrossRef]
- Stylianopoulou, K.G.; Papapostolou, C.M.; Kondili, E.M. Water–Energy–Food Nexus: A Focused Review on Integrated Methods. Environ. Sci. Proc. 2020, 2, 46. [Google Scholar] [CrossRef]
- Sun, L.; Niu, D.; Yu, M.; Li, M.; Yang, X.; Ji, Z. Integrated assessment of the sustainable water-energy-food nexus in China: Case studies on multi-regional sustainability and multi-sectoral synergy. J. Clean. Prod. 2022, 334, 130235. [Google Scholar] [CrossRef]
- Torres, C.J.F.; Lima, C.H.P.; Goodwin, B.S.A.; de Aguiar Junior, T.R.; Fontes, A.S.; Ribeiro, D.V.; da Silva, R.S.X.; Medeiros, Y.D.P. A Literature Review to Propose a Systematic Procedure to Develop ‘Nexus Thinking’ Considering the Water–Energy–Food Nexus. Sustainability 2019, 11, 7205. [Google Scholar] [CrossRef]
- Silva, V.S. Comparação das vazões mínimas para a Estação Pirabeiraba no Rio Cubatão, norte de Santa Catarina, e implicações na gestão dos recursos hídricos. Trabalho de Conclusão de Curso (Graduação em Engenharia Civil)—Universidade do Estado de Santa Catarina, Joinville. Available online: https://sistemabu.udesc.br/pergamumweb/vinculos/000074/0000741e.pdf (accessed on 20 June 2022).
- Dill, J. Gestão dos Recursos Hídricos da Bacia Hidrográfica do Rio Cubatão: Simulação dos Impactos das Mudanças Climáticas e de Uso do Solo Através da Modelagem Swat. Master’s Thesis, State University of Santa Catarina, Joinville, Brazil, 29 October 2021. Available online: https://www.udesc.br/arquivos/cct/id_cpmenu/706/2021_10_29_Jonas_Dill_1637842522989_706.pdf (accessed on 10 January 2022).
- da Silva Amorim, J. Quantifying the climate change-driven impacts on the hydrology of a data-scarce watershed located in the Brazilian Tropical Savanna. Hydrol. Process. 2022, 36, e14638. [Google Scholar] [CrossRef]
- Pham, B.Q.; Yu, P.; Yang, T.; Kuo, C.; Tseng, H. Assessment of climate change impacts on hydrological processes and water resources by water evaluation and planning (weap) model: Case study in Thac Mo Catchment, Vietnam. In Proceedings of the 37th IAHR World Congress, Kuala Lumpur, Malaysia, 13–18 August 2017; Available online: https://www.researchgate.net/publication/318671823 (accessed on 30 September 2022).
- Secretaria de Estado do Desenvolvimento Econômico Sustentável (SDS). Plano Estadual de Recursos Hídricos de Santa Catarina—PERH/SC: Documento Síntese. 2017. Available online: https://www.aguas.sc.gov.br/jsmallfib_top/DHRI/Plano%20Estadual/Documento%20Sintese/documento_sintese_do_plano_2018-03-15.pdf (accessed on 20 August 2022).
- Amin, A.; Iqbal, J.; Asghar, A.; Ribbe, L. Analysis of Current and Future Water Demands in the Upper Indus Basin under IPCC Climate and Socio-Economic Scenarios Using a Hydro-Economic WEAP Model. Water 2018, 10, 537. [Google Scholar] [CrossRef]
- Del Borghi, A.; Moreschi, L.; Gallo, M. Circular economy approach to reduce water–energy–food nexus. Curr. Opin. Environ. Sci. Health 2020, 13, 23–28. [Google Scholar] [CrossRef]
- Salmoral, G.; Yan, X. Food-energy-water nexus: A life cycle analysis on virtual water and embodied energy in food consumption in the Tamar catchment, UK. Resour. Conserv. Recycl. 2018, 133, 320–330. [Google Scholar] [CrossRef]
- Xiangmei, M.; Leping, T.; Chen, Y.; Lifeng, W. Forecast of annual water consumption in 31 regions of China considering GDP and population. Sustain. Prod. Consum. 2021, 27, 713–736. [Google Scholar] [CrossRef]
- International Energy Agency (IEA). If the Energy Sector is to Tackle Climate Change, It Must also Think About Water. Available online: https://www.iea.org/commentaries/if-the-energy-sector-is-to-tackle-climate-change-it-must-also-think-about-water (accessed on 20 October 2022).
- Vito, R.; Portoghese, I.; Pagano, A.; Fratino, U.; Vurro, M. An index-based approach for the sustainability assessment of irrigation practice based on the water-energy-food nexus framework. Adv. Water Resour. 2017, 110, 423–436. [Google Scholar] [CrossRef]
Data Set | Source |
---|---|
Rainfall | [44] |
Flow | [44] |
Temperature, Relative Humidity, and Wind Speed | [45,46] |
Soil Use and Occupation | [40,47,48] |
Vegetation Cover | [39,41,49,50,51] |
Water Demands | [52,53] |
Hydrogeological Data | [54] |
Energy Production | [55,56] |
Premises | 2020 | 2030 | 2040 | 2050 |
---|---|---|---|---|
Population Growth (inhab.) | 448,244 | 523,804 | 612,101 | 715,282 |
Industrial GDP (Thousand R$) | 6,665,888.22 | 10,117,658.81 | 15,356,846.14 | 23,309,021.18 |
Agricultural Areas (ha) | 9547 | 9083 | 8641 | 8220 |
Simulation Step | Precision Statistics | |||
---|---|---|---|---|
NSE | Pbias | R2 | D | |
Calibration | 0.602 | 0.545 | 0.618 | 0.882 |
Validation | 0.488 | −8.501 | 0.796 | 0.909 |
WEAP Parameter | Values | Units |
---|---|---|
Preferred Flow Direction—F | 0.68 | dimensionless |
Crop Coefficient—Kc | 0.40–1.20 | dimensionless |
Runoff Resistance Factor—RRF | 2.00–3.00 | dimensionless |
Soil Water Capacity—Sw | 480 | mm |
Initial Z1 | 13 | % |
Root Zone Conductivity—Ks | 188 | mm.month−1 |

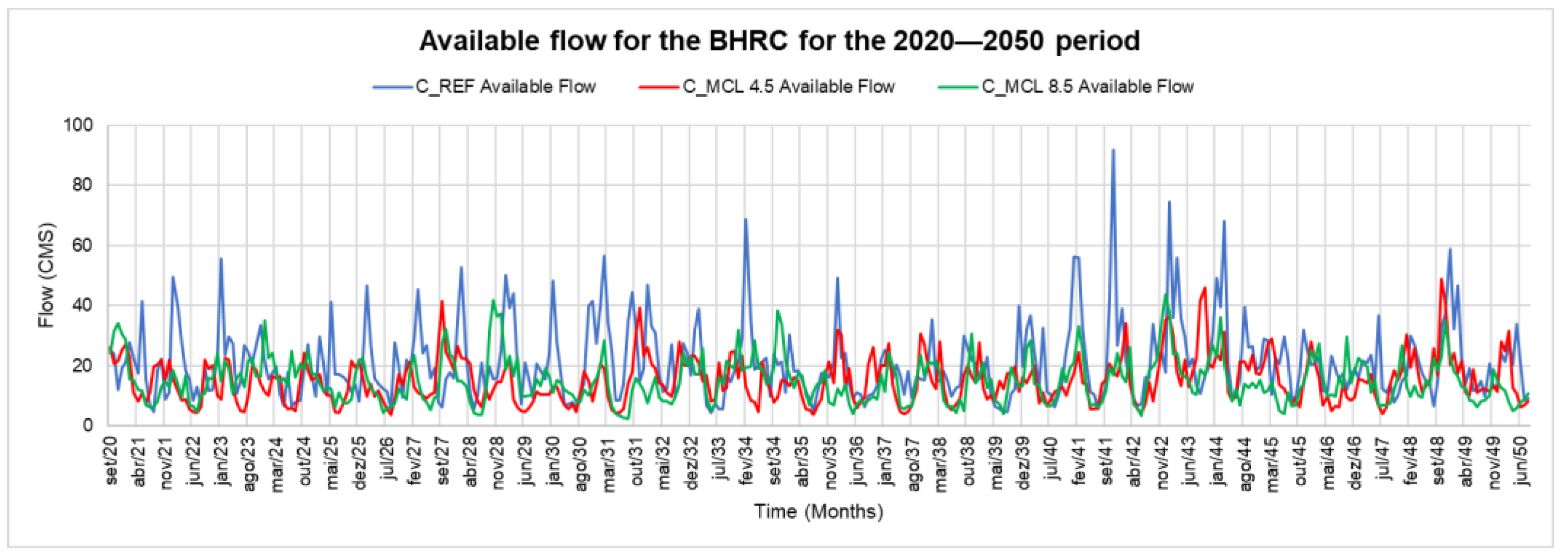

Month | Flow (m3/s) | Difference (%) | |||
---|---|---|---|---|---|
C_REF | C_MCL 4.5 | C_MCL 8.5 | REF—4.5 | REF—8.5 | |
January | 33.99 | 21.22 | 18.45 | −37.57% | −45.72% |
February | 32.80 | 19.85 | 19.22 | −39.48% | −41.40% |
March | 27.33 | 16.67 | 16.88 | −39.00% | −38.24% |
April | 17.32 | 11.88 | 12.57 | −31.41% | −27.42% |
May | 16.20 | 8.95 | 9.20 | −44.75% | −43.21% |
June | 14.38 | 8.22 | 8.43 | −42.84% | −41.38% |
July | 14.04 | 8.79 | 8.95 | −37.39% | −36.25% |
August | 11.94 | 12.07 | 10.79 | 1.09% | −9.63% |
September | 17.91 | 16.93 | 14.86 | −5.47% | −17.03% |
October | 20.48 | 20.48 | 19.18 | 0.00% | −6.35% |
November | 22.67 | 18.40 | 19.65 | −18.84% | −13.32% |
December | 21.55 | 17.45 | 21.13 | −19.03% | −1.95% |
Entire Hydrologic Year | 20.88 | 15.08 | 14.94 | −27.81% | −28.45% |
Wettest Season | 24.90 | 19.06 | 18.75 | −23.47% | −24.71% |
Driest Season | 16.87 | 11.10 | 11.14 | −34.22% | −33.98% |
WEF—BHRC Sustainability Index Parameters | ||||
---|---|---|---|---|
Scenario | Parameter I 1 | Parameter II 2 | Parameter III 3 | Parameter IV 4 |
C_REF | 3,834,443,824.00 | 29,990,510,592.00 | 2,684,103,676.80 | 222,367,574.15 |
C_GES | 3,205,182,576.00 | 29,990,510,592.00 | 2,243,627,803.20 | 222,367,574.15 |
C_EAL | 3,520,126,752.00 | 29,990,510,592.00 | 2,464,088,726.40 | 222,367,574.15 |
C_INT | 2,890,875,480.00 | 29,990,510,592.00 | 2,023,612,836.00 | 222,367,574.15 |
C_MCL_4.5 | 3,834,433,824.00 | 29,450,862,592.00 | 2,684,103,676.80 | 222,367,574.15 |
C_MCL_8.5 | 3,834,433,824.00 | 29,436,542,976.00 | 2,684,103,676.80 | 222,367,574.15 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Dias, I.Y.P.; Lazaro, L.L.B.; Barros, V.G. Water–Energy–Food Security Nexus—Estimating Future Water Demand Scenarios Based on Nexus Thinking: The Watershed as a Territory. Sustainability 2023, 15, 7050. https://doi.org/10.3390/su15097050
Dias IYP, Lazaro LLB, Barros VG. Water–Energy–Food Security Nexus—Estimating Future Water Demand Scenarios Based on Nexus Thinking: The Watershed as a Territory. Sustainability. 2023; 15(9):7050. https://doi.org/10.3390/su15097050
Chicago/Turabian StyleDias, Icaro Yuri Pereira, Lira Luz Benites Lazaro, and Virginia Grace Barros. 2023. "Water–Energy–Food Security Nexus—Estimating Future Water Demand Scenarios Based on Nexus Thinking: The Watershed as a Territory" Sustainability 15, no. 9: 7050. https://doi.org/10.3390/su15097050
