Exploring Future Renewable Energy Technologies Using a Developed Model and a Variety of MCDM Approaches
Abstract
:1. Introduction
2. Literature Review

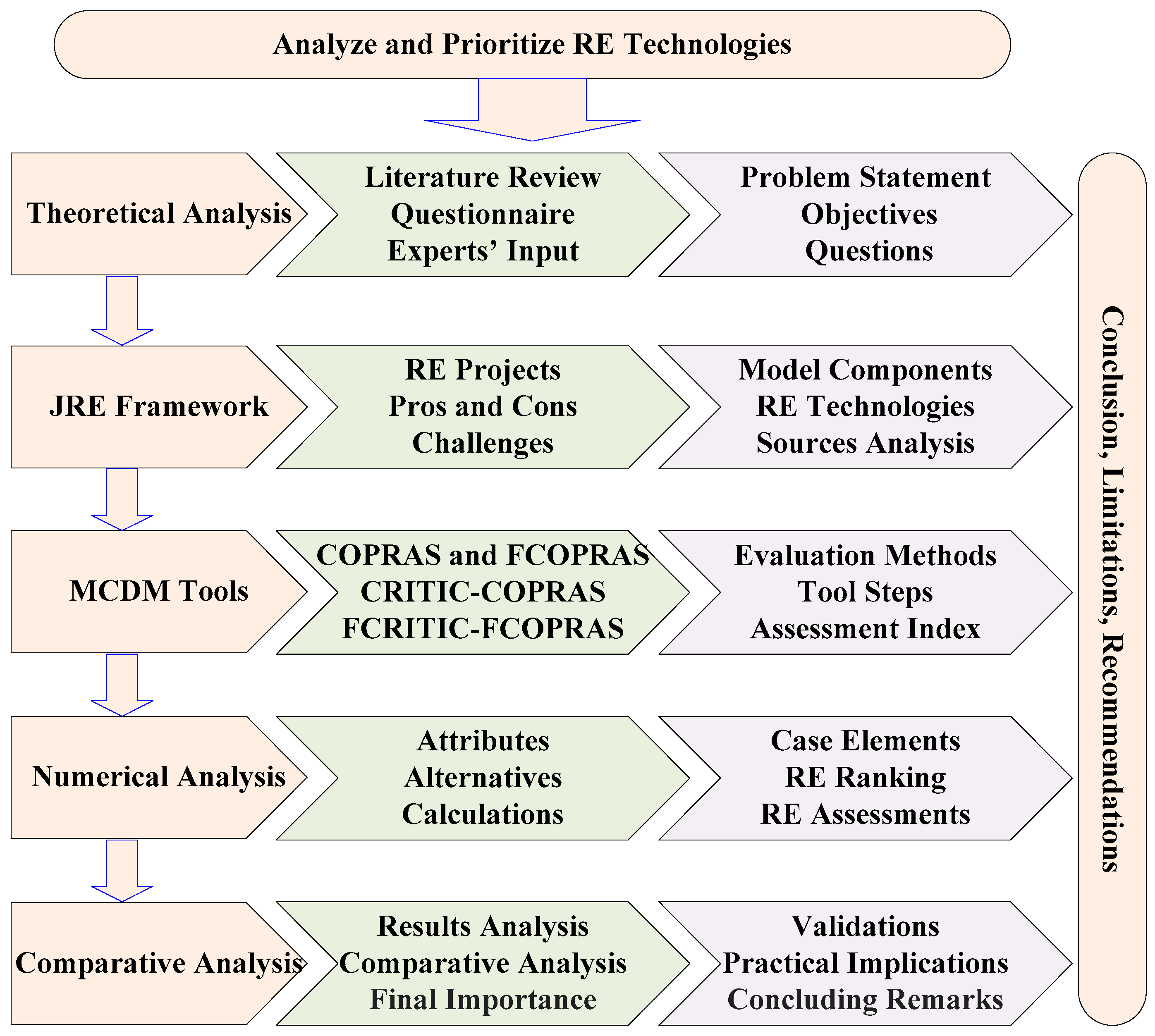

3. Research Methodology

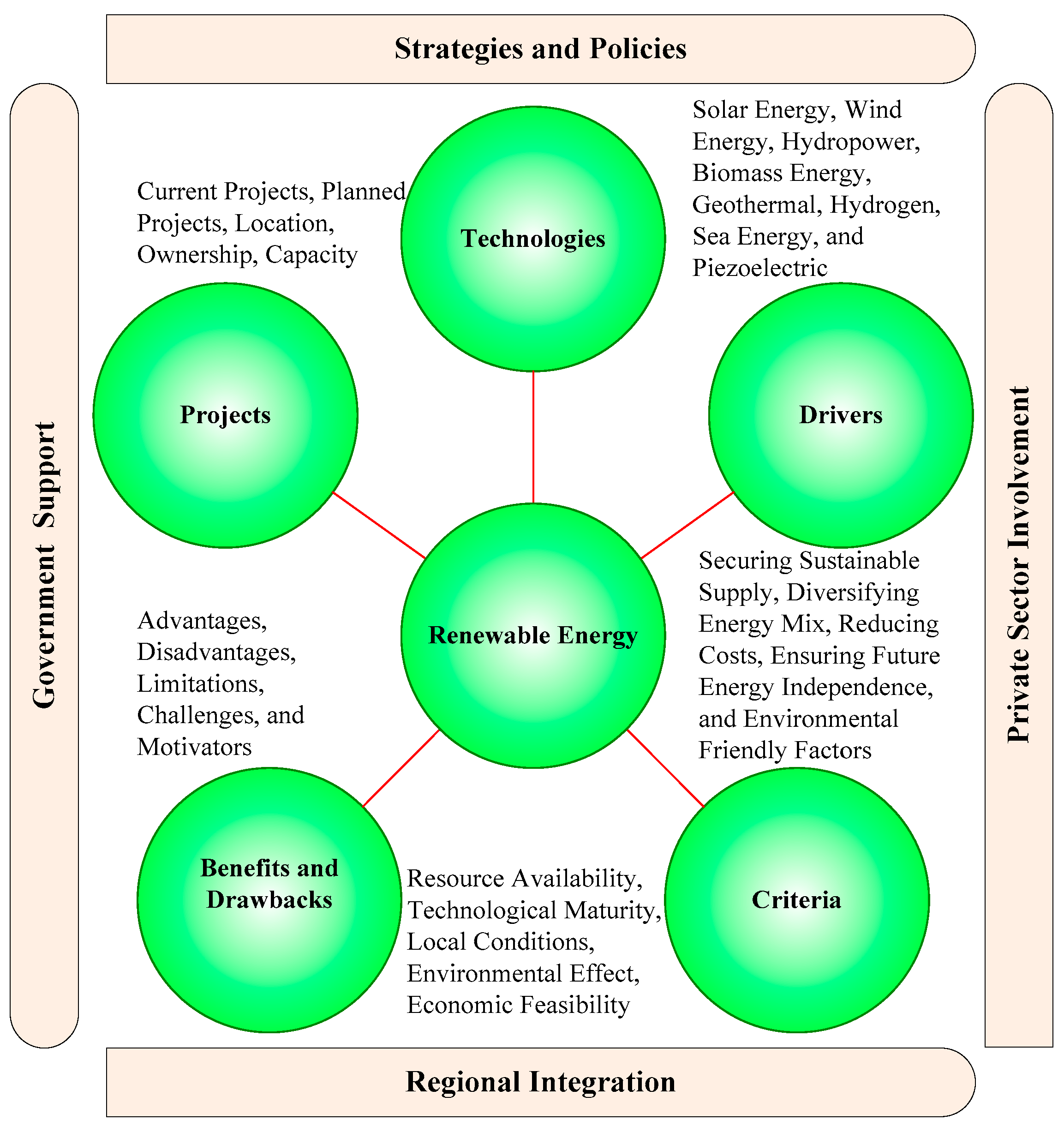

4. Renewable Energy Analysis
4.1. RE Technology
- Wind energy: Jordan is well positioned to harness wind energy for electricity generation, given its significant wind energy resources. The average wind speeds in the country range from 6 to 8 m per second in favorable locations [28]. According to a study carried out by Jordan’s Ministry of Energy and Mineral Resources (MEMR) in collaboration with the Royal Scientific Society, approximately 16% of the nation’s territory is considered viable for wind energy generation, offering a total technical capacity of 3.6 GW [29]. Jordan’s Wind Atlas reports a promising future for wind energy generation, with two projects, the first near Hofa and the second in Ibrahimyya, contributing 0.32 MW to the country’s energy output [8]. Another 117 MW project has been in operation since the second quarter of 2015 and is situated in Tafila, in the south of the nation. An additional project, located in Ma’an in the south of the country and producing 66 MW, has been connected to the national grid since 2016 [30]. There are several suitable locations for wind energy, which is considered a suitable source for generating electricity in Jordan.
- Solar energy: Jordan’s climate is highly suitable for utilizing solar energy, with the nation receiving an average solar irradiation ranging from 4 to 7 kWh/m2 daily and enjoying approximately 310 sunny days each year. This results in an annual average solar energy potential from 1400 to 2300 kWh/m2. These conditions have positioned Jordan as one of the leading locations in the region for solar projects, facilitating the production of electricity at a remarkably low cost from new installations [30]. There are currently over 300 PV installation companies in Jordan, 200 MW signed projects in Ma’an, and an additional 74–100 MW plants in Aqaba [30]. Solar cells are so common in Jordan that they can be used to pump water, lightning, and provide electrical services in the desert regions. They have a 1000 kW peak capacity. Approximately 20% of Jordanians have their own solar water heaters, the majority of which are made locally by 25 small companies that produce 4500 units a year, and 30% of residential buildings in the country are equipped with solar water heating systems [31]. Photo voltage technology installed on roofs has generated nearly 150 kWh for the grid. Jordan’s grid exhibits high harmonics, causing instability without proper filtering, as evidenced by frequent enological electric bills and frequent flutes in some areas [32,33].
- Hydropower: Jordan has limited hydropower resources because of the lack of water sources. Currently, the King Talal Dam is the country’s only hydropower plant, with a capacity of 7 MW. Additionally, the Aqaba Power Station includes hydropower turbines with a total capacity of 6 MW, which operate using the flow of returning cooling seawater. Despite these limitations, there is significant potential to generate more hydropower from the difference in altitude between the Dead Sea and the Red Sea, which is estimated to support a capacity of 400–800 MW. This could be achieved through the planned Red Sea–Dead Sea Canal project. To enhance the flexibility of the power system, MEMR is exploring the possibility of creating pumped storage hydropower projects by assessing the country’s dams and reservoirs [9].
- Bioenergy: Bioenergy, which includes biomass, biofuel, and biogas, can be created from organic materials like agricultural waste, companies waste, municipalities, and industries through the processes of gasification and anaerobic digestion. The Jordanian government’s initiative to use methane gas is backed by the United Nations Development Program (UNDP). Because of this help, a plant that generates 1 MW of grid flows was established in a waste dump. This alternative is a promising sector to be used in Jordan because it can be produced from a number of sources, such as animal manure, organic industrial wastes, urban wastes, and agricultural waste. Unfortunately, only 5% of the land is used for agriculture due to climate change and global warming, which limits the potential sources’ large-scale and profitable use. Based on daily waste generation which is estimated to be from 0.45 to 0.95 kg/capita, Jordan can generate up to 60 MW annually. Researchers advise that this source be used efficiently, particularly for livestock and poultry farms in Jordan [10,34,35]. Municipal solid waste (MSW) is a crucial energy source due to the growing population in Jordan. The Greater Amman Municipality has implemented a biogas project using methane gas from the Ghabawi landfill, with capacity expected to reach 7 MW. Animal waste, primarily from cattle, poultry, and sheep, has potential for heating and cooking, but has lower resource potential compared to municipal waste. Additionally, Irbid and Al-Mafraq offer olive ash and veneer, a byproduct of harvesting olive oil. Its total supply in these areas is estimated to be about 19,000 MT per year, and it can be used as feed or fuel [36].
- Geothermal energy: Geothermal energy is used to heat water and produce electricity, but the opinions of experts and researchers differed on the feasibility of using geothermal energy in Jordan, between supporters and pessimists. Due to the limited quantity of these pools and its favorable reputation for physical therapy applications, some studies claimed that this kind of energy could not be utilized in Jordan [3]. Jordan, however, has active geothermal activity, according to the Natural Resources Authority (NRA), with two energy levels: medium energy (110–114 °C) and low energy (30–65 °C) [37]. Therefore, using these sources is possible in certain locations in Jordan. In addition to thermal wells in the central and eastern plateau, the Rift Valley is home to a number of thermal water sources, such as springs and wells. Jordan’s geothermal gradient map shows two different areas with high gradients of up to 50 °C/km. One of these areas is in the northeast part of the country, and the other is close to the east Dead Sea escarpment. This indicates that the eastern Dead Sea Rift, where temperatures range from 45 to 63 °C, has a locally accessible energy source for heating [38].
- Sea energy: Ocean energy includes wave, tidal, and sea geothermal energy. Tidal energy (TE) is produced by intermittent currents and tides between water bodies but is limited in Jordan due to lack of oceans or seas. There are not many of these resources in Jordan and Aqaba, the country’s sole modest Red Sea seaport, is the only one. Exploiting such resources is currently not effective, considering infrastructure requirements, environmental impact assessment, and economic feasibility.
- Hydrogen energy: Hydrogen, a clean and adaptable energy source, is produced when excess electrical current from renewable sources like solar or wind power flows through water and uses electrolysis to separate hydrogen from oxygen. Despite its versatility, high manufacturing costs, storage and transportation issues, and energy-intensive manufacturing, hydrogen offers advantages such as resource availability, social acceptability, and reliability. It can be used as a fuel for transportation and electricity generation, making it a versatile energy carrier [39,40]. Jordan is exploring the use of RES like wind and solar power to produce green hydrogen, a clean fuel suitable for various applications. The country conducts feasibility studies and investigates the economic and technological feasibility of hydrogen production. Government regulations and partnerships with the private sector are crucial for a supportive environment. The hydrogen economy could integrate into energy storage, transportation, and industry sectors, promoting energy sustainability and diversification. Infrastructure development is essential for successful hydrogen projects. Jordan aims to generate 8 GW of renewable energy by 2030, increasing to 22 GW by 2040 and 47 GW by 2050. It also plans to produce 0.6 million metric tons per annum of hydrogen by 2030, increasing to 1.5MMTPA by 2040 and 3.4MMTPA by 2050. Jordan RE strategies and initiatives comprise many agreements and Energy Partnerships with several countries which aim to develop green hydrogen projects, promote innovation, and contribute to a sustainable energy transition. MEMR is developing a green hydrogen strategy to ensure Jordan’s competitiveness and independence in the energy sector, focusing on hydrogen energy as a promising renewable energy source [41,42].
- Other RE sources: There are additional SGE sources, such as piezoelectric and electromagnetic. Although piezoelectric technology might not be the best option to replace the other options, it might be applied on a medium scale in certain establishments, such as universities and airports, to lessen the strain on the grid. In certain locations, this technology is regarded as a good solution because it requires little maintenance and has low operating expenses [43], particularly after some studies confirmed its viability [44]. Additionally, the cost of the storage unit is the biggest problem. Therefore, putting these cells in a large area, such as the airport’s passenger hall, and connecting them to the grid with converters and high-quality filters will provide electricity required to light such facilities. While there are currently no projects or policies in Jordan regarding this type of energy source, it could be suitable for energy production in some areas with small capacity. However, since the energy produced is small and the technology is still in its infancy, the evaluation of other sources, except piezoelectric, will be disregarded.
4.2. RE Drivers
4.3. RE Technology Evaluation Criteria
4.4. Benefits and Drawbacks
4.5. RE Projects
5. RE Evaluation Approaches
5.1. COPRAS Method
- : sum of weighted normalized values for beneficial criteria.
- : sum of weighted normalized values for non-beneficial criteria.
- : weighted normalized value for the alternative under the criterion.
- : the number of beneficial criteria.
- : total number of criteria.
- : the relative weight of the ith alternative.
- : beneficial index for the ith alternative.
- : non-beneficial index for the ith alternative.
- : minimum value of the non-beneficial index across all alternatives.
- : number of alternatives.
5.2. FCOPRAS Method
- : represents the benefit ratings for beneficial criteria.
- : corresponds to the ratings for non-beneficial criteria.
- The subscripts stand for lower, medium, and upper values, respectively.
- refers to the set of beneficial criteria, and refers to the set of non-beneficial criteria.
5.3. CRITIC Method
5.4. Fuzzy CRITIC Method
5.5. Combined CRITIC-COPRAS and FCRITIC-FCOPERAS Techniques
6. Numerical Analysis
6.1. Criteria Importance
6.2. Outcomes Using COPRAS and FCOPRAS Approaches
6.3. Outcomes Using the Combined CRITIC-COPRAS
6.4. Outcomes Using the Combined FCRITIC-FCOPRAS

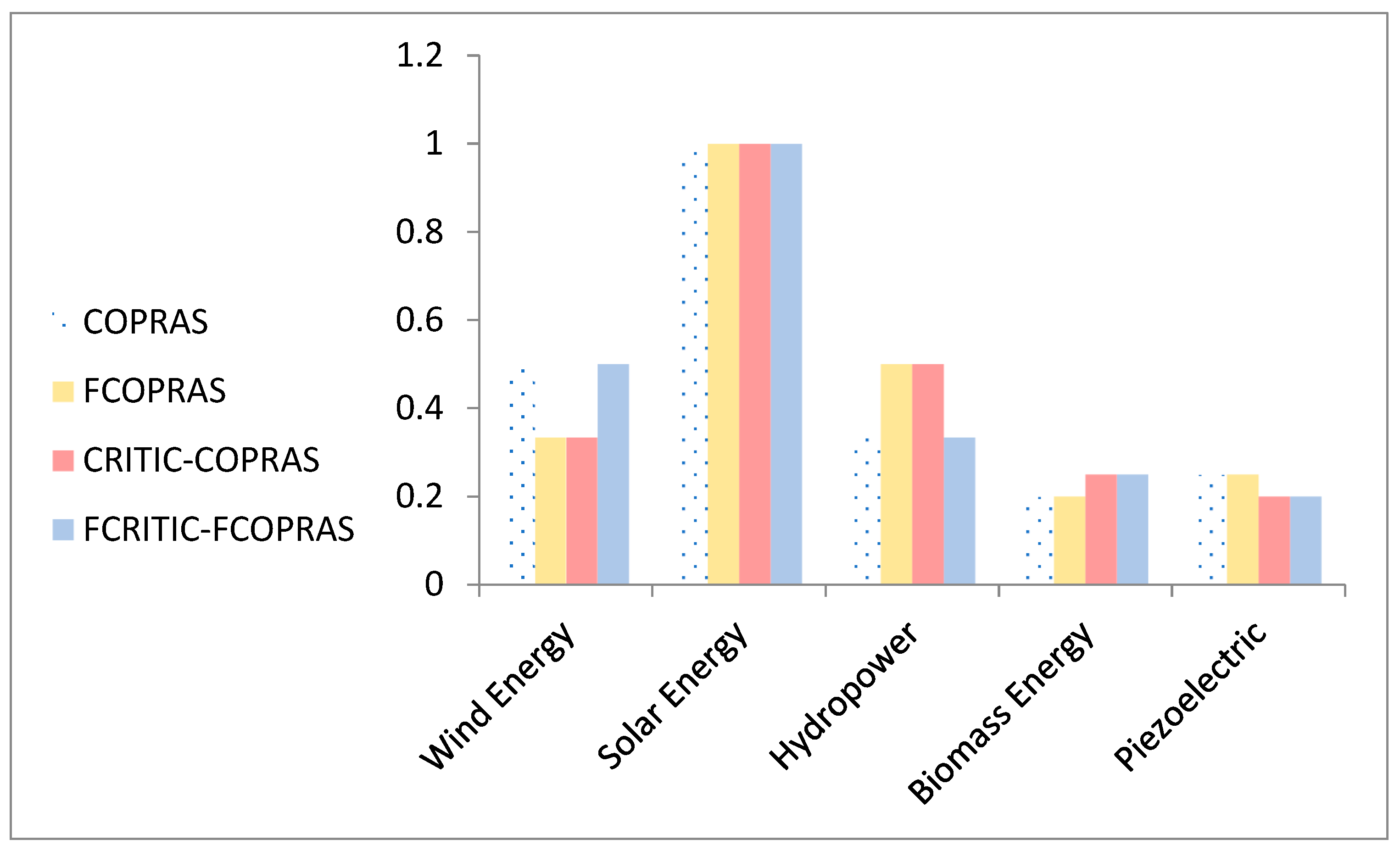

6.5. Analysis of Comparison Results
7. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
RES | Renewable energy sources |
MCDM | Multi-criteria decision-making |
CRITIC | Criteria Importance Through Intercriteria Correlation |
COPRAS | Complex Proportional Assessment |
RE | Renewable energy |
FCRITIC | Fuzzy CRITIC |
FCOPRAS | Fuzzy COPRAS |
CRITIC-COPRAS | Integrated CRITIC and COPRAS |
FCRITIC-FCOPRAS | Integrated FCRITIC and FCOPRAS |
FMCDM | Fuzzy MCDM |
JRE | Jordan renewable energy |
MEMR | Jordan’s Ministry of Energy and Mineral Resources |
GW | Gigawatt |
MW | Megawatt |
UNDP | United Nations Development Program |
MSW | Municipal solid waste |
MT | Metric ton |
NRA | Natural Resources Authority |
TE | Tidal energy |
MMTPA | Million Metric Tons Per Annum |
SGE | Sustainable green energy |
GDP | Gross Domestic Product |
TFN | Triangular Fuzzy Number |
References
- Combaz, E. Jordan’s environmental policies and engagement on climate change. J. Geosci. Environ. Prot. 2019, 8, e03346. [Google Scholar]
- Gielen, D.; Boshell, F.; Saygin, D.; Bazilian, M.D.; Wagner, N.; Gorini, R. The role of renewable energy in the global energy transformation. Energy Strategy Rev. 2019, 24, 38–50. [Google Scholar] [CrossRef]
- Abu-Rumman, G.; Khdair, A.I.; Khdair, S.I. Current status and future investment potential in renewable energy in Jordan: An overview. Heliyon 2020, 6, e03346. [Google Scholar] [CrossRef]
- Al-Ghussain, L.; Al-Ghussain, L.; Abujubbeh, M.; Ahmad, A.D.; Abubaker, A.M.; Taylan, O.; Fahrioglu, M.; Akafuah, N.K. 100% Renewable energy grid for rural electrification of remote areas: A case study in Jordan. Energies 2020, 13, 4908. [Google Scholar] [CrossRef]
- Anagreh, Y.; Bataineh, A.; Al-Odat, M. Assessment of renewable energy potential, at Aqaba in Jordan. Renew. Sustain. Energy Rev. 2010, 14, 1347–1351. [Google Scholar] [CrossRef]
- Kiwan, S.; Al-Gharibeh, E. Jordan toward a 100% renewable electricity system. Renew. Energy 2020, 147, 423–436. [Google Scholar] [CrossRef]
- Hrayshat, E.S. Analysis of renewable energy situation in Jordan. Renew. Sustain. Energy Rev. 2007, 11, 1873–1887. [Google Scholar] [CrossRef]
- Hamzeh, A.; Awad, M. Wind Power Generation in Jordan: Current Situation and Future Plans. In The Age of Wing Energy; Springer: Berlin/Heidelberg, Germany, 2020; pp. 63–77. [Google Scholar] [CrossRef]
- Hammad, M.; Aburas, R.; Abuzahra, B. The potential of hydropower generation in Jordan Micro-hydropower analysis. Energy Policy 1994, 22, 523–530. [Google Scholar]
- Al-Hamamre, Z.; Al-Mater, A.; Sweis, F.; Rawajfeh, K. Assessment of the status and outlook of biomass energy in Jordan. Energy Convers Manag. 2014, 77, 183–192. [Google Scholar] [CrossRef]
- Zawaydeh, S. Economic, Environmental and Social Impacts of Developing Energy from Sustainable Resources in Jordan. Strateg. Plan. Energy Environ. 2017, 36, 24–52. [Google Scholar] [CrossRef]
- Martin, N.; Deepak, F.X.E. Application of New Additive Ratio Assessment (NARAS) Method in Selection of Material for Optimal Design of Engineering Components. Mater. Today Proc. 2019, 11, 1049–1053. [Google Scholar]
- Dahooie, J.H.; Zavadskas, E.K.; Abolhasani, M.; Vanaki, A.; Turskis, Z. A Novel Approach for Evaluation of Projects Using an Interval–Valued Fuzzy Additive Ratio Assessment (ARAS) Method: A Case Study of Oil and Gas Well Drilling Projects. Symmetry 2018, 10, 45. [Google Scholar] [CrossRef]
- Turskis, Z.; Zavadskas, E.K. A new fuzzy additive ratio assessment method (ARAS-F). Case study: The analysis of fuzzy multiple criteria in order to select the logistic centers location. Transport 2010, 25, 423–432. [Google Scholar] [CrossRef]
- Zavadskas, E.K.; Turskis, Z.; Vilutiene, T. Multiple criteria analysis of foundation instalment alternatives by applying Additive Ratio Assessment (ARAS) method. Arch. Civ. Mech. Eng. 2010, 10, 123–141. [Google Scholar] [CrossRef]
- Karbassi Yazdi, A.; Muneeb, F.M.; Wanke, P.F.; Figueiredo, O.; Mushtaq, I. Critical Success Factors for Competitive Advantage in Iranian Pharmaceutical Companies: A Comprehensive MCDM Approach. In Mathematical Problems in Engineering; John and Wiley and Sons: Hoboken, NJ, USA, 2021. [Google Scholar] [CrossRef]
- Ceylan, E.; Kurt, R.; Akyüz, M.; Gencer, A.; Kilic-Pekgözlü, A. Effect of solvent type and pH degree on the chemical composition of kraft black liquor via ARAS method. Wood Sci. Technol. 2023, 57, 741–757. [Google Scholar] [CrossRef]
- Vijayakumar, A. Comparison of Multi Criteria Decision Making Methods SAW and ARAS: An Application to Performance of Indian Pharmaceutical Companies. J. Econ. Technol. Res. 2020, 1, 23. [Google Scholar] [CrossRef]
- Debnath, B.; Bari, A.B.M.M.; Haq, M.M.; de Jesus Pacheco, D.A.; Khan, M.A. An integrated stepwise weight assessment ratio analysis and weighted aggregated sum product assessment framework for sustainable supplier selection in the healthcare supply chains. Supply Chain. Anal. 2023, 1, 100001. [Google Scholar] [CrossRef]
- Kazimieras Zavadskas, E.; Turskis, Z.; Tamosaitiene, J.; Kaklauskas, A.; Kalibatas, D. Assessment of the indoor environment of dwelling houses by applying the COPRAS-G method: Lithuania case study. Environ. Eng. Manag. J. 2011, 10, 637–647. [Google Scholar] [CrossRef]
- Organ, A.; Engin Yalçın, A.; Ass, R. Performance Evaluation of Research Assistants by Copras Method. Eur. Sci. J. 2016, 12, 102–109. [Google Scholar]
- Stefano, N.M.; Casarotto Filho, N.; Garcia Lupi Vergara, L.; Garbin Da Rocha, R.U. COPRAS (Complex Proportional Assessment): State of the art research and its applications. IEEE Lat. Am. Trans. 2015, 13, 3899–3906. [Google Scholar] [CrossRef]
- Garg, R.; Kumar, R.; Garg, S. MADM-Based parametric selection and ranking of E-learning websites using fuzzy COPRAS. IEEE Trans. Educ. 2019, 62, 11–18. [Google Scholar] [CrossRef]
- Amudha, M.; Ramachandran, M.; Sivaji, C.; Gowri, M.; Gayathri, R. Evaluation of COPRAS MCDM Method with Fuzzy Approach; Rest Publisher: Tamil Nadu, India, 2021. [Google Scholar]
- Hagag, A.M.; Yousef, L.S.; Abdelmaguid, T.F. Multi-Criteria Decision-Making for Machine Selection in Manufacturing and Construction: Recent Trends. Mathematics 2023, 11, 631. [Google Scholar] [CrossRef]
- Zimmermann, H.J. Fuzzy Set Theory—And Its Applications; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
- Mukhametzyanov, I.Z. Specific character of objective methods for determining weights of criteria in MCDM problems: Entropy, CRITIC, SD. Decis. Mak. Appl. Manag. Eng. 2021, 4, 76–105. [Google Scholar] [CrossRef]
- Zaton, M.A. Spatial Analysis of Wind in Jordan to Determine the Suitable Spatial Analysis of Wind in Jordan to Determine the Suitable Locations for Establishment of Renewable Power Stations. Uniw. Śląski 2018, 7, 343–354. Available online: https://digitalcommons.aaru.edu.jo/jpu/vol20/iss1/9/ (accessed on 28 December 2024).
- Gharaibeh, A.A.; Al-Shboul, D.A.; Al-Rawabdeh, A.M.; Jaradat, R.A. Establishing Regional Power Sustainability and Feasibility Using Wind Farm Land-Use Optimization. Land 2021, 10, 442. [Google Scholar] [CrossRef]
- Annual Reports—Minister of Energy and Mineral Resources. Available online: https://www.memr.gov.jo/En/List/Annual_Reports (accessed on 25 October 2023).
- Awad, A.S.; Alsaqoor, S.; Alahmer, A.; Hamidi, M.; Abudayyeh, D. The Use of Solar Water Heaters in Jordan and its Impact on Human Development Index. SSRN Electron. J. 2023, 41, 821–835. [Google Scholar] [CrossRef]
- Almaita, E. Harmonic Pollution in Distribution Transformers: Evaluating the Effects of Pv Solar Installations in Jordan’s Electrical Grid. In Proceedings of the Workshop on Enabling Technologies: Infrastructure for Collaborative Enterprises, WETICE, Paris, France, 14–16 December 2023. [Google Scholar] [CrossRef]
- Almaita, E. Harmonic Assessment in Jordanian Low-Voltage Electrical Power Grid. Available online: https://wseas.com/journals/eshc/2021/a08eshc-004(2021).pdf (accessed on 13 December 2024).
- Al-Smairan, M.; Al-Harahsheh, S.; Al-Khazaleh, H. Biomass energy utilization in northeast Badia of Jordan. Res. J. Appl. Sci. Eng. Technol. 2015, 10, 1322–1329. [Google Scholar] [CrossRef]
- Al-Hamamre, Z.; Saidan, M.; Hararah, M.; Rawajfeh, K.; Alkhasawneh, H.E.; Al-Shannag, M. Wastes and biomass materials as sustainable-renewable energy resources for Jordan. Renew. Sustain. Energy Rev. 2017, 67, 295–314. [Google Scholar] [CrossRef]
- Mercy Corps. Market System Assessment of the Olive Oil Value Chain Irbid & Mafraq Governorates, Jordan; Mercy Corps: Portland, OR, USA, 2017. [Google Scholar]
- Abu-Hamatteh, Z.S.H.; Khitam, A.-Z.; Saleh, A.-J. Potential Geothermal Energy Utilization in Jordan: Possible Electrical Power Generation. 2011. Available online: https://iasks.org/articles/ijtee-v03-i1-pp-9-14.pdf (accessed on 13 December 2024).
- Raed, A.S.A.; Sakhrieh, A.H. Energy Saving by the Means of Geothermal Energy. J. Clean Energy Technol. 2014, 1, 243–245. [Google Scholar] [CrossRef]
- Sikiru, S.; Oladosu, T.L.; Amosa, T.I.; Olutoki, J.O.; Ansari, M.N.M.; Abioye, K.J.; Rehman, Z.U.; Soleimani, H. Hydrogen-powered horizons: Transformative technologies in clean energy generation, distribution, and storage for sustainable innovation. Int. J. Hydrogen Energy 2024, 56, 1152–1182. [Google Scholar] [CrossRef]
- Yue, M.; Lambert, H.; Pahon, E.; Roche, R.; Jemei, S.; Hissel, D. Hydrogen energy systems: A critical review of technologies, applications, trends and challenges. Renew. Sustain. Energy Rev. 2021, 146, 111180. [Google Scholar] [CrossRef]
- Khatatneh, A. Jordan intensifies green hydrogen efforts with major int’l partnerships. Uniw. Śląski 2024, 7. Available online: https://jordantimes.com/news/local/jordan-intensifies-green-hydrogen-efforts-major-intl-partnerships (accessed on 28 December 2024).
- smartwatermagazine, Jordan Sets Ambitious Plans to Lead Green Hydrogen Production in the Region. Available online: https://smartwatermagazine.com/news/smart-water-magazine/jordan-sets-ambitious-plans-lead-green-hydrogen-production-region (accessed on 13 December 2024).
- Rödig, T.; Schönecker, A.; Gerlach, G. A survey on piezoelectric ceramics for generator applications. J. Am. Ceram. Soc. 2010, 93, 901–912. [Google Scholar] [CrossRef]
- Lu, F.; Lee, H.P.; Lim, S.P. Modeling and analysis of micro piezoelectric power generators for micro-electromechanical-systems applications. Smart. Mater. Struct. 2004, 13, 57–63. [Google Scholar] [CrossRef]
- Ministry of Energy and Mineral, Ministry of Energy and Mineral Resources-Summary of the Jordan Energy Strategy for (2020–2030). 2020. Available online: https://www.memr.gov.jo/EBV4.0/Root_Storage/EN/EB_Info_Page/Summery_of_the_Comprehensive_Strategy_of_the_Energy_Sector_2020_2030.pdf (accessed on 13 December 2024).
- irena, Renewable Energy and Jobs Annual Review 2024. 2024. Available online: https://www.irena.org/-/media/Files/IRENA/Agency/Publication/2024/Oct/IRENA_Renewable_energy_and_jobs_2024.pdf (accessed on 13 December 2024).
- Jamal, O.J.; Mohammad, O.A.; Ali, S.D.; Ibrahim, M.M. Performance and Socioeconomics of 1st Wheeling PV Project Connected to Medium Grid in Jordan. 2022. Available online: https://jjmie.hu.edu.jo/vol-16-4/10-154-22.pdf (accessed on 13 December 2024).
- memr, Renewable Energy Projects in Jordan September/2021. 2021. Available online: https://www.memr.gov.jo/EBV4.0/Root_Storage/EN/Project/projects%D9%90ENg2021.pdf (accessed on 13 December 2024).
- Renewable Energy Agency. Renewables Readiness Assessment: The Hashemite Kingdom of Jordan; IRENA: Abu Dhabi, United Arab Emirates, 2021. [Google Scholar]
- Ministry of Energy and Mineral Resources. Renewable Energy Projects by Governorate. 2022. Available online: https://memr.gov.jo/EBV4.0/Root_Storage/AR/Projects/%D9%85%D8%B4%D8%A7%D8%B1%D9%8A%D8%B9_%D8%A7%D9%84%D8%B7%D8%A7%D9%82%D8%A9_%D8%A7%D9%84%D9%85%D8%AA%D8%AC%D8%AF%D8%AF%D8%A9_-_%D8%A8%D8%AD%D8%B3%D8%A8_%D8%A7%D9%84%D9%85%D8%AD%D8%A7%D9%81%D8%B8%D8%A9.pdf (accessed on 28 December 2024).
- Taherdoost, H.; Mohebi, A. A Comprehensive Guide to the COPRAS method for Multi-Criteria Decision Making. J. Manag. Sci. Eng. Res. 2024, 7, 1–14. [Google Scholar] [CrossRef]
- Radulescu, C.Z.; Radulescu, M.A. Hybrid Group Multi-Criteria Approach Based on SAW, TOPSIS, VIKOR, and COPRAS Methods for Complex IoT Selection Problems. Electronics 2024, 13, 789. [Google Scholar] [CrossRef]
- Cai, J.; Hu, Y.; Peng, Y.; Guo, F.; Xiong, J.; Zhang, R. A hybrid MCDM approach based on combined weighting method, cloud model and COPRAS for assessing road construction workers’ safety climate. Front. Public Health 2024, 12, 1452964. [Google Scholar] [CrossRef]
- Apriza, M.A.; Cipta, H. Analysis of the Selection of the Best Household Ceramics Using the Complex Proportional Assessment (COPRAS) Method. J. Comput. Netw. Archit. High Perform. Comput. 2024, 6, 1831–1842. [Google Scholar] [CrossRef]
- Mistarihi, M.Z.; Magableh, G.M.; Dalo, S.A. Evaluation of Potential Sustainable Green Energy Sources for United Arab Emirates. Results Eng. 2025, 26, 104527. [Google Scholar] [CrossRef]
- Uzun, B.; Uzun Ozsahin, D.; Duwa, B. Fuzzy Logic and Fuzzy Based Multi Criteria Decision Analysis. In Application of Multi-Criteria Decision Analysis in Environmental and Civil Engineering; Springer: Berlin/Heidelberg, Germany, 2021; pp. 47–56. [Google Scholar] [CrossRef]
- De, A.; Kar, S.; Das, S. Development of Fuzzy-Based Methodologies for Decision-Making Problem. Stud. Comput. Intell. 2022, 1028, 281–312. [Google Scholar] [CrossRef]
- Kahraman, C.; Haktanır, E. Fuzzy Multi-criteria Investment Decision Making. In Fuzzy Investment Decision Making with Examples; Springer: Berlin/Heidelberg, Germany, 2024; pp. 223–244. [Google Scholar] [CrossRef]
- Alinezhad, A.; Khalili, J. CRITIC Method. International Series in Operations Research and Management Science; Springer: Berlin/Heidelberg, Germany, 2019; Volume 277, pp. 199–203. [Google Scholar] [CrossRef]
- Krishnan, A.R. Research trends in criteria importance through intercriteria correlation (CRITIC) method: A visual analysis of bibliographic data using the Tableau software. Inf. Discov. Deliv. 2024, 53, 233–247. [Google Scholar] [CrossRef]
- van Dua, T.; van Duc, D.; Bao, N.C.; Trung, D.D. Integration of objective weighting methods for criteria and MCDM methods: Application in material selection. EUREKA Phys. Eng. 2024, 2024, 131–148. [Google Scholar] [CrossRef]
- Hosseinzadeh Lotfi, F.; Allahviranloo, T.; Pedrycz, W.; Shahriari, M.; Sharafi, H.; Razipour GhalehJough, S. The Criteria Importance Through Inter-Criteria Correlation (CRITIC) in Uncertainty Environment. In Fuzzy Decision Analysis: Multi Attribute Decision Making Approach; Springer: Berlin/Heidelberg, Germany, 2023; pp. 309–324. [Google Scholar] [CrossRef]
- Wang, Y.; Wang, W.; Wang, Z.; Deveci, M.; Roy, S.K.; Kadry, S. Selection of sustainable food suppliers using the Pythagorean fuzzy CRITIC-MARCOS method. Inf. Sci. 2024, 664, 120326. [Google Scholar] [CrossRef]
- Vijayananth, K.; Pudhupalayam Muthukutti, G.; Keerthiveettil Ramakrishnan, S.; Venkatesan, S.; Zhou, W. An integrated CRITIC-COPRAS approach for multi-response optimization on AWJM of hybrid filler–reinforced polymer composite and its surface integrity. Int. J. Adv. Manuf. Technol. 2024, 131, 4965–4980. [Google Scholar] [CrossRef]
- Mohata, A.; Mukhopadhyay, N.; Kumar, V. CRITIC-COPRAS-Based Selection of Commercially Viable Alternative Fuel Passenger Vehicle. In Lecture Notes in Mechanical Engineering; Springer: Berlin/Heidelberg, Germany, 2023; pp. 51–69. [Google Scholar] [CrossRef]
- Saraji, M.K.; Streimikiene, D.; Lauzadyte-Tutliene, A. A Novel Pythogorean Fuzzy-SWARA-CRITIC-COPRAS Method for Evaluating the Barriers to Developing Business Model Innovation for Sustainability. In Handbook of Research on Novel Practices and Current Successes in Achieving the Sustainable Development Goals; IGI Global: Hershey, PA, USA, 2021; pp. 1–31. [Google Scholar] [CrossRef]
- Ahmadsaraei, M.S.; Koshksaray, A.A.; Soleimani, M.; Kazemi, Z. Sustainable Supply Chain Risk in Food Packaging Industry: Integrated Delphi-CRITIC-COPRAS Method Using Fuzzy Set Theory. Int. J. Bus. Stud. Innov. 2022, 2, 61–78. [Google Scholar] [CrossRef]
- Ordu, M.; Der, O. Polymeric materials selection for flexible pulsating heat pipe manufacturing using a comparative hybrid MCDM approach. Polymers 2023, 15, 2933. [Google Scholar] [CrossRef]
- Bhaskar, A.S.; Khan, A. Comparative analysis of hybrid MCDM methods in material selection for dental applications. Expert Syst. Appl. 2022, 209, 118268. [Google Scholar] [CrossRef]
Attribute | Indicators | Explanation |
---|---|---|
Source Availability | Technology readiness, reliability, energy generated, scalability, energy potential, quantity, availability, trends, developed projects, initiatives, growth prospects, and cost-effectiveness. | Resource availability is crucial for renewable energy projects’ success, influencing operational performance and financial viability. It ensures a stable, consistent, and reliable energy supply. |
Technology Development | Technical viability, grid combination, storage abilities, scalability, safety, flexibility, commercialization, efficiency, source security, technological soundness, lifespan, integration capability, capacity, waste plans, transfer, variety, simplicity of employment, reduced risks, execution requirements, infrastructure requirements, and number of implemented projects. | The evaluation of RE source involves assessing technical requirements, practicality, feasibility, and expansion capabilities. It also evaluates the technology’s ability to meet rising demand, assesses the reliability and maturity of renewable energy sources, and manages implementation risks. |
Local Conditions | Community improvement, social benefits, health impacts, area used, employment generation, political stability, cost-effectiveness, continuity, confidence, supply security, social acceptance, regulations and policies, initiatives, legislation, incentives, stability, and strategies. | Local conditions significantly influence renewable energy sector appeal, attracting investments and deployment. Energy security systems, infrastructure, and projects impact efficiency, effectiveness, economic feasibility, and experience. Laws, regulations, and policies support expansion, with societal reactions affecting local communities. |
Environmental Effect | Air pollution, water contamination, emissions, biodiversity, resource conservation, area usage, water usage, ecosystem effect, noise, protection, natural resource reduction, and decreasing global warming. | Consider the environmental impacts of RE projects and sources, focusing on greenhouse gas emissions, pollution, land use, legislations conformity, and natural effects in Jordan. |
Economic Feasibility | Research and development, startup costs, potential return on investment, investor’s interests, operating expenses, maintenance costs, sustainment costs, subsidies, incentives, financing choices, investment cost, energy cost, service life, global marketplace trends, generation capacity, payback duration, potential revenue streams, and disposal costs. | Evaluates the economic viability and cost-effectiveness of renewable energy sources, considering project-related costs, expenditures, and investment concerns. Return on investment is a crucial criterion in Jordanian RE investments. |
Technology | Benefits | Drawbacks | Limitations |
---|---|---|---|
Solar Energy | Availability, environmental friendliness, independence, reliability, competitiveness, sustainability, and employment prospects. | The quantity of energy that solar panels can capture changes with the time of day and the season, and solar energy is dependent on the amount of sunshine that falls during the day. The quality of solar panels in converting solar energy into electricity is not high. There is a decrease in the effectiveness of solar energy depending on the region. The ability to capture solar energy decreases with distance from the equator to the poles. Decreased capacity to absorb solar radiation in the presence of rain, fog, and clouds. Installing solar panels outside and constantly exposing them to sunlight may increase their damage due to exposure to external conditions. | Release of toxic chemicals used in heat transfer system. Use of toxic chemicals in PV system. Water scarcity in arid regions. Disposal and recycling of toxic materials can bring negative impacts to the environment. |
Wind energy | Availability, environmental friendliness, independence, reliability, competitiveness, sustainability, job opportunities, low operating cost, and cost-effective. | Variable source of energy: although wind is renewable, it is not permanent, which sometimes causes a shortage in meeting energy needs. Biological impact: wind energy may cause disruption to wildlife, especially birds. Noise pollution: turbines produce too much noise to be ignored. Transportation: wind energy is unable to supply the transportation sector with the necessary energy, which makes its dependence on petroleum products inevitable. Location: establishing turbines and wind farms requires choosing suitable sites with large areas. | Birds collide with the supporting towers and rotating blades. Noise pollution. Adverse ecosystem. Social health issues. |
Hydropower | Sustainability, stable source of energy, enhancement of tourism, independence, reliability, and can be integrated with other energy sources such as wind and sun when energy demand is high or reduced intermittently. | Affects marine life by converting running water into stagnant water, preventing fish and marine animals from migrating. Characterized by its limitations, as it can only be established near water areas. Establishing hydroelectric stations requires a high initial cost, although it is an economical solution in the long term. Carbon and methane emissions are produced as turbines break down green cover. Dams pose a threat of potential flooding; this results in great destruction to the areas surrounding the dams. | Changes in hydrologic characteristics. Affects water body’s ecology by disturbing the ecological continuity of sediment transport and fish migration. Artificially created structure leads to flooding of the former natural environment. |
Bioenergy | A sustainable and renewable energy source, independence, a very low energy cost per unit, and worldwide availability. | Biofuel production can be quite inefficient. Requires large quantities of raw materials. High gas emissions in the production chain. The use of chemical fertilizers and pesticides. High initial investment is required. Water consumption. | Release of chemical pollutants. Overexploitation of forest. Diversion of crops or land. Air pollution. Soil erosion, vegetation degradation. Increase of food commodity prices and risks of food security. |
Geothermal energy | Reliability, availability, low operational costs, requires limited areas of land, and allows accuracy of energy calculation. | Can only be built in limited locations. Harm to the environment. High initial costs. It may cause surface destabilization. Land subsidence occurs. | Hydrogen sulfide production. Release of toxic metal (arsenic, boron, lead, mercury, radon, and vanadium). Disposal and recycling of highly toxic materials can bring negative impacts to the environment. |
Piezoelectric | No emissions during operation, compact size, suitable for micro-scale applications, and reliable in specific uses. | Limited efficiency in large-scale energy conversion, fragility of materials, and dependency on consistent mechanical pressure or vibrations. | Limited scalability, requires precise conditions for energy generation, and dependent on specialized materials that may not be widely available. |
RE Type | Project | RE Type | Project | RE Type | Project |
---|---|---|---|---|---|
Hydropower | King Talal Dam with a capacity of 7 MW. Aqaba Power Station with a capacity of 6 MW. | Soler | 60.3 MW King Hussein Bin Talal, Mafraq region. 13 company’s projects in Mafraq 10MW. 20 MW Solar Cells Jordan Solar comp. 133.4 MW FRV Al Mafraq. 50 MW Risha. 200 MW Baynouna, Ma’an. 103 MW Al Quweira. 100 MW ACWA + AES. | Soler | 51 MW Al Safawi. 5 MW Mafraq. 200 MW Mafraq. 200 MW Masdar. 50 MW Jordanian Government. 200 MW Decentralized. 179 MW Decentralized. 123 MW Decentralized. 200 MW Prequalified. |
Biomass | A pilot plant using MSW with a capacity of 3.5 MW | ||||
Wind | 50 MW New Tafileh Wind “Korea Southern Company” & “Daelim Company”. Fujeij 89.1 MW. Seoul, Republic of Korea 82 MW Al-Rajef. 45 MW Shobak. 80 MW Ma’an. 100 MW Prequalified. |
Linguistic Value | Criteria | Alternatives | ||
---|---|---|---|---|
Crisp Value | TFN | Crisp Value | TFN | |
Very Low (VL) | 0.1 | (0.0,0.1,0.2) | 1 | (0,1,2) |
Low (L) | 0.2 | (0.1,0.2,0.3) | 2 | (1,2,3) |
Medium Low (ML) | 0.3 | (0.2,0.3,0.4) | 3 | (2,3,4) |
Medium (M) | 0.5 | (0.4,0.5,0.6) | 5 | (4,5,6) |
Medium High (MH) | 0.6 | (0.5,0.6,0.7) | 6 | (5,6,7) |
High (H) | 0.7 | (0.6,0.7,0.8) | 7 | (6,7,8) |
Very High (VH) | 0.9 | (0.8,0.9,1.0) | 9 | (8,9,10) |
Expert/Criteria | SA | TD | LC | EE | EF |
---|---|---|---|---|---|
E1 | M | MH | VH | H | ML |
(0.4,0.5,0.6) | (0.5,0.6,0.7) | (0.8,0.9,1) | (0.6,0.7,0.8) | (0.2,0.3,0.4) | |
E2 | H | H | VH | M | H |
(0.6,0.7,0.8) | (0.6,0.7,0.8) | (0.8,0.9,1) | (0.4,0.5,0.6) | (0.8,0.9,1) | |
E3 | VH | H | H | VH | H |
(0.8,0.9,1) | (0.6,0.7,0.8) | (0.6,0.7,0.8) | (0.8,0.9,1) | (0.6,0.7,0.8) | |
E4 | H | M | M | VH | ML |
(0.6,0.7,0.8) | (0.4,0.5,0.6) | (0.4,0.5,0.6) | (0.8,0.9,1) | (0.2,0.3,0.4) | |
E5 | M | H | H | M | H |
(0.4,0.5,0.6) | (0.6,0.7,0.8) | (0.6,0.7,0.8) | (0.4,0.5,0.6) | (0.6,0.7,0.8) | |
E6 | M | MH | VH | VH | VH |
(0.4,0.5,0.6) | (0.5,0.6,0.7) | (0.8,0.9,1) | (0.8,0.9,1) | (0.8,0.9,1) | |
E7 | M | H | H | M | H |
(0.4,0.5,0.6) | (0.6,0.7,0.8) | (0.6,0.7,0.8) | (0.4,0.5,0.6) | (0.6,0.7,0.8) | |
E8 | VH | H | H | VH | H |
(0.8,0.9,1) | (0.6,0.7,0.8) | (0.6,0.7,0.8) | (0.8,0.9,1) | (0.6,0.7,0.8) | |
E9 | H | M | M | VH | ML |
(0.6,0.7,0.8) | (0.4,0.5,0.6) | (0.4,0.5,0.6) | (0.8,0.9,1) | (0.2,0.3,0.4) | |
E10 | M | H | H | M | H |
(0.4,0.5,0.6) | (0.6,0.7,0.8) | (0.6,0.7,0.8) | (0.4,0.5,0.6) | (0.6,0.7,0.8) | |
E11 | M | MH | VH | VH | VH |
(0.4,0.5,0.6) | (0.5,0.6,0.7) | (0.8,0.9,1) | (0.8,0.9,1) | (0.8,0.9,1) | |
Crisp weight | 0.627 | 0.636 | 0.736 | 0.736 | 0.645 |
Fuzzy weight | (0.527,0.627,0.727) | (0.536,0.636,0.736) | (0.636,0.736,0.836) | (0.636,0.736,0.836) | (0.545,0.645,0.745) |
RE Technology | Weighted Normalized Matrix | ||||
---|---|---|---|---|---|
Criteria | SA | TD | LC | EE | EF |
B/NB | B | B | B | NB | B |
Wind Energy | 7.75 | 6.167 | 5 | 7.917 | 7.167 |
Solar Energy | 7.833 | 8.75 | 4.083 | 7.25 | 4.917 |
Hydropower | 7.5 | 4.917 | 6.25 | 5.75 | 6.667 |
Biomass | 4.833 | 4.583 | 5.75 | 5.75 | 5.583 |
Piezoelectric | 2.667 | 3.083 | 6.583 | 6.75 | 6.5 |
RE Technology | Weighted Normalized Matrix | S+i | S−i | Qi | Rank | ||||
---|---|---|---|---|---|---|---|---|---|
Criteria | SA | TD | LC | EE | EF | ||||
Wind Energy | 0.043 | 0.010 | 0.007 | 0.010 | 0.057 | 0.060 | 0.120 | 0.760 | 2 |
Solar Energy | 0.044 | 0.014 | 0.006 | 0.01 | 0.039 | 0.063 | 0.081 | 0.763 | 1 |
Hydropower | 0.042 | 0.008 | 0.009 | 0.008 | 0.053 | 0.058 | 0.123 | 0.758 | 3 |
Biomass | 0.027 | 0.007 | 0.008 | 0.008 | 0.045 | 0.042 | 0.129 | 0.742 | 5 |
Piezoelectric | 0.030 | 0.007 | 0.010 | 0.006 | 0.053 | 0.047 | 0.132 | 0.747 | 4 |
Fuzzy Weighted Normalized Matrix | S+i | S−i | Qi | Ui | Rank | |||||
---|---|---|---|---|---|---|---|---|---|---|
RE Technology | C1 | C2 | C3 | C4 | C5 | |||||
Criteria | SA | TD | LC | EE | EF | |||||
Wind Energy | (0.011,0.013,0.014) | (0.008,0.01,0.012) | (0.008,0.01,0.006) | (0.011,0.013,0.014) | (0.01,0.012,0.013) | (0.026,0.031,0.035) | (0.027,0.031,0.036) | 0.055 | 84.2 | 3 |
Solar Energy | (0.011,0.013,0.014) | (0.012,0.014,0.016) | (0.007,0.008,0.005) | (0.01,0.012,0.013) | (0.006,0.008,0.01) | (0.028,0.033,0.038) | (0.019,0.024,0.029) | 0.066 | 100 | 1 |
Hydropower | (0.01,0.012,0.014) | (0.006,0.008,0.01) | (0.01,0.012,0.008) | (0.008,0.009,0.011) | (0.009,0.011,0.012) | (0.025,0.03,0.035) | (0.024,0.028,0.033) | 0.058 | 87.45 | 2 |
Biomass | (0.006,0.008,0.009) | (0.006,0.007,0.009) | (0.009,0.011,0.008) | (0.008,0.009,0.011) | (0.007,0.009,0.011) | (0.02,0.024,0.029) | (0.024,0.028,0.033) | 0.052 | 78.64 | 5 |
Piezoelectric | (0.007,0.009,0.01) | (0.006,0.007,0.009) | (0.011,0.013,0.01) | (0.006,0.007,0.009) | (0.009,0.011,0.012) | (0.022,0.027,0.032) | (0.023,0.028,0.032) | 0.055 | 83.78 | 4 |
Criteria | Sigma | Sum(1-Rik) | Cj | Wj | Rank |
---|---|---|---|---|---|
SA | 0.444 | 4.254 | 1.89 | 0.205 | 3 |
TD | 0.375 | 4.208 | 1.577 | 0.171 | 5 |
LC | 0.441 | 4.659 | 2.055 | 0.223 | 1 |
EE | 0.437 | 4.326 | 1.891 | 0.205 | 2 |
EF | 0.402 | 4.483 | 1.8 | 0.195 | 4 |
RE Technology | Weighted Normalized Matrix | S+i | S−i | Qi | Rank | ||||
---|---|---|---|---|---|---|---|---|---|
Criteria | SA | TD | LC | EE | EF | ||||
SA | 0.052 | 0.037 | 0.038 | 0.052 | 0.044 | 0.171 | 0.052 | 0.173 | 3 |
TD | 0.053 | 0.053 | 0.046 | 0.034 | 0.036 | 0.187 | 0.034 | 0.189 | 1 |
LC | 0.05 | 0.036 | 0.047 | 0.038 | 0.041 | 0.174 | 0.038 | 0.176 | 2 |
EE | 0.032 | 0.028 | 0.043 | 0.038 | 0.034 | 0.137 | 0.038 | 0.139 | 4 |
EF | 0.018 | 0.019 | 0.049 | 0.044 | 0.04 | 0.126 | 0.044 | 0.128 | 5 |
RE Technology/Criteria | Fuzzy Weighted Normalized Matrix | S+ | S− | Fuzzy Qi | Qi | Rank | ||||
---|---|---|---|---|---|---|---|---|---|---|
SA | TD | LC | EE | EF | ||||||
SA | (0.075,0.059,0.181) | (0.076,0.046,0.184) | (0.008,0.046,0.152) | (0.152,0.008,0.036) | (0.116,0.016,0.035) | (0.176,0.185,0.613) | (0.008,0.036,0.116) | (0.176,0.186,0.625) | (0.075,0.059,0.181) | 2 |
TD | (0.075,0.059,0.181) | (0.114,0.065,0.25) | (0.011,0.065,0.183) | (0.183,0.005,0.023) | (0.079,0.01,0.024) | (0.21,0.205,0.684) | (0.005,0.023,0.079) | (0.21,0.206,0.693) | (0.075,0.059,0.181) | 1 |
LC | (0.071,0.056,0.174) | (0.058,0.037,0.152) | (0.011,0.037,0.183) | (0.183,0.005,0.026) | (0.088,0.015,0.032) | (0.155,0.182,0.6) | (0.005,0.026,0.088) | (0.155,0.183,0.609) | (0.071,0.056,0.174) | 3 |
EE | (0.042,0.036,0.119) | (0.053,0.034,0.143) | (0.01,0.034,0.171) | (0.171,0.005,0.026) | (0.088,0.012,0.027) | (0.117,0.15,0.511) | (0.005,0.026,0.088) | (0.117,0.151,0.521) | (0.042,0.036,0.119) | 4 |
EF | (0.018,0.02,0.075) | (0.031,0.023,0.105) | (0.012,0.023,0.192) | (0.192,0.007,0.031) | (0.101,0.014,0.031) | (0.075,0.135,0.46) | (0.007,0.031,0.101) | (0.075,0.136,0.471) | (0.018,0.02,0.075) | 5 |
RE Technology | COPRAS | FCOPRAS | CRITIC-COPRAS | FCRITIC-FCOPRAS |
---|---|---|---|---|
Wind Energy | 2 | 3 | 3 | 2 |
Solar Energy | 1 | 1 | 1 | 1 |
Hydropower | 3 | 2 | 2 | 3 |
Biomass Energy | 5 | 5 | 4 | 4 |
Piezoelectric | 4 | 4 | 5 | 5 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Magableh, G.M.; Bazel, N.K. Exploring Future Renewable Energy Technologies Using a Developed Model and a Variety of MCDM Approaches. Sustainability 2025, 17, 3057. https://doi.org/10.3390/su17073057
Magableh GM, Bazel NK. Exploring Future Renewable Energy Technologies Using a Developed Model and a Variety of MCDM Approaches. Sustainability. 2025; 17(7):3057. https://doi.org/10.3390/su17073057
Chicago/Turabian StyleMagableh, Ghazi M., and Nasser K. Bazel. 2025. "Exploring Future Renewable Energy Technologies Using a Developed Model and a Variety of MCDM Approaches" Sustainability 17, no. 7: 3057. https://doi.org/10.3390/su17073057
APA StyleMagableh, G. M., & Bazel, N. K. (2025). Exploring Future Renewable Energy Technologies Using a Developed Model and a Variety of MCDM Approaches. Sustainability, 17(7), 3057. https://doi.org/10.3390/su17073057
