Assessment of Seven Atmospheric Correction Processors for the Sentinel-2 Multi-Spectral Imager over Lakes in Qinghai Province

Abstract

The European Space Agency (ESA) developed the Sentinel-2 Multispectral Imager (MSI), which offers a higher spatial resolution and shorter repeat coverage, making it an important source for the remote-sensing monitoring of water bodies. Atmospheric correction is crucial for the monitoring of water quality. To compare the applicability of seven publicly available atmospheric correction processors (ACOLITE, C2RCC, C2XC, iCOR, POLYMER, SeaDAS, and Sen2Cor), we chose complex and diverse lakes in Qinghai Province, China, as the research area. The lakes were divided into three types based on the waveform characteristics of R_rs: turbid water bodies (class I lakes) represented by the Dabusun Lake (DBX), clean water bodies (class II lakes) represented by the Qinghai Lake (QHH), and relatively clean water bodies (class III lakes) represented by the Longyangxia Reservoir (LYX). Compared with the in situ R_rs, it was found that for the DBX, the Sen2Cor processor performed best. The POLYMER processor exhibited a good performance in the QHH. The C2XC processor performed well with the LYX. Using the Sen2Cor, POLYMER, and C2XC processors for classes I, II, and III, respectively, compared with the Sentinel-3 OLCI Level-2 Water Full Resolution (L2-WFR) products, it was found that the estimated R_rs from the POLYMER had the highest consistency. Slight deviations were observed in the estimation results for both the Sen2Cor and C2XC.

1. Introduction

Qinghai Province (31°39′–39°19′N, 89°35′–103°04′E) is located in the northwest of China and the northeast of the Qinghai–Tibet Plateau. It has 231 lakes with areas greater than 1 km², and the total area of these lakes is approximately 14,374.56 km² [1]. The lakes in Qinghai Province are diverse and complex. In addition to freshwater lakes (such as the Longyangxia Reservoir), there are many saltwater and salt lakes, such as Qinghai Lake, the largest inland saltwater lake in China, and Qarhan Lake, the largest salt lake in China. The turbidity of the Qinghai Lake varies greatly with a distribution between 0.2 and 210 NTU. There are also certain differences in the chlorophyll-α concentration and suspended particulate matter in the water. Different atmospheric correction processors perform differently for waterbodies with different optical properties [2]. The European Space Agency (ESA) successfully launched the Sentinel-2A and Sentinel-2B satellites in June 2015 and March 2017, respectively, carrying Multi-Spectral Imager (MSI) sensors. MSI consists of 13 bands with spatial resolutions of 10 m (four bands), 20 m (six bands), and 60 m (three bands). The alternating coverage of the two stars lasted for five days. Its high spatial resolution, short repeat coverage, and unique vegetation red-edge band make it an important tool for monitoring inland water bodies [3].

Approximately 80–90% of the radiance received by satellite sensors from water bodies is a result of atmospheric interference [4]. For case 1 bodies of water (oceanic waters), many standard atmospheric correction algorithms have been developed based on the ‘black pixel’ hypothesis in the near-infrared (NIR) band [5,6]. This hypothesis assumes that the signals in the NIR band received by the sensors are mainly affected by atmospheric and air–water interface effects [7], because water itself is strongly absorbed, making the reflectance leaving the water almost negligible. Therefore, it is possible to extrapolate the signal to the visible-light (VIS) band using an aerosol model [8,9]. For case 2 bodies of water (coastal and inland water), owing to the influence of suspended sediments [10], the reflectance of remote sensing (R_rs) in the NIR wavelength range is not zero [11,12]. Many researchers have developed a variety of atmospheric correction algorithms suitable for case 2 water bodies through methods such as modifying the standard ‘black pixel’ assumption [13,14], a physical model based on a spectral optimisation method [15,16], and machine learning neural networks [17,18,19].

For the Sentinel-2 MSI imager, algorithms optimising the ‘black pixel’ hypothesis include the Atmospheric Correction for Operational Land Imager ‘lite’ (ACOLITE), the Image Correction for Atmospheric Effects (iCOR), the Sentinel 2 Atmospheric Correction (Sen2Cor), and the SeaWiFS Data Analysis System (SeaDAS). The ACOLITE includes two processors: the Exponential Function (EXP) and Dark Spectrum Fitting (DSF). The ACOLITE-EXP extends the ‘black pixel’ hypothesis to the short-wave infrared (SWIR) band; the processor assumes that the SWIR signal is considered to be solely caused by aerosols and Rayleigh scattering. After the Rayleigh correction, the remaining signal is expanded from the SWIR to the VIS and NIR bands using the EXP [20,21]. For high-resolution sensors without SWIR bands, the ACOLITE-DSF automatically captures all bands of a scene or sub-scene to estimate the atmospheric path reflectance (ρ_path) using the lowest observed top-of-atmosphere reflectance (ρ_TOA) [22,23,24]. Overall, the DSF performed better than the EXP [25]. Inland water areas influenced by neighbouring pixels had higher pixel radiation values [26]. The iCOR processor uses a Similarity Environmental Correction (SIMEC) method [27] based on the NIR similarity spectrum to detect and correct adjacency effects [11]. For atmospheric effects, the processor subdivides the raw images into 15 × 15 km² tiles and selects the lowest radiance value from among all the bands as the approximate dark target spectrum for each tile. It then uses MODTRAN5 lookup tables (LUTs) to eliminate atmospheric effects [28]. The Sen2Cor processor uses a Dense Dark Vegetation (DDV) algorithm to retrieve the relationship between the SWIR red (red) and blue bands (blue) [29] to obtain the aerosol optical thickness (AOT) [29,30]. The SeaDAS processor assumes that at 765 nm/865 nm, both the aerosol reflectance and the water-leaving reflectance have spatial homogeneity and uses these two ratios as correction parameters after a Rayleigh scattering correction [11].

Based on a spectral optimisation method, the polynomial-based algorithm applied to the MERIS (POLYMER) uses the entire spectral range from the blue to NIR bands to address the impact of sunlight [3,31,32]. It employs a simple polynomial atmospheric model representing atmospheric scattering, and the water reflectance above the water–air interface is obtained using a bio-optical ocean water reflectance model [15]. The neural network-based atmospheric correction algorithm, Case 2 Regional CoastColour (C2RCC), depends on a large database of simulated water, including reflectances and related top-of-atmosphere radiances. Neural networks are utilised for training to perform the spectrum inversion process, and specifically to calculate the radiance of water leaving the top of the atmosphere [17]. Nearly five million data points were collected from various waterbody types for training of the neural network. Using different databases, we trained three processors: the C2RCC, Case2eXtreme (C2X), and C2X-COMPLEX (C2XC) [33]. The C2RCC training dataset covers typical coastal areas. The C2X processor training set is the largest and includes extreme cases [33]. The C2XC processor training was set between C2RCC and C2X. Some studies found that the C2X processors have a higher degree of uncertainty [34].

Many studies have validated the abovementioned processors in different regions; however, current research has mainly focused on evaluating the optimal atmospheric correction method for a single lake. For example, the ACOLITE and Sen2Cor algorithms achieved satisfactory results in the treatment of turbid water [24]. In cleaner inland water bodies, the POLYMER, C2RCC, and C2XC are more suitable [34,35,36]. Although the applicability of atmospheric correction processors to Chinese lake groups has been discussed and analysed, no optimal atmospheric correction method has been identified for each type of water body [37]. However, the performances of atmospheric correction processors may vary for different types of water bodies. Therefore, we chose the Qinghai Province, which has diverse water body types, as the study area, and lakes with an area of more than 50 km² were considered as research objects. Lakes were classified based on their water reflectance spectral classification. We compared the estimated results using seven common atmospheric correction processors for the Sentinel-2 remote sensing images (ACOLITE, C2RCC, C2XC, iCOR, POLYMER, SeaDAS, and Sen2Cor) and discussed the applicability of different types of water body atmospheric correction processors.

2. Materials and Methods

2.1. Study Area

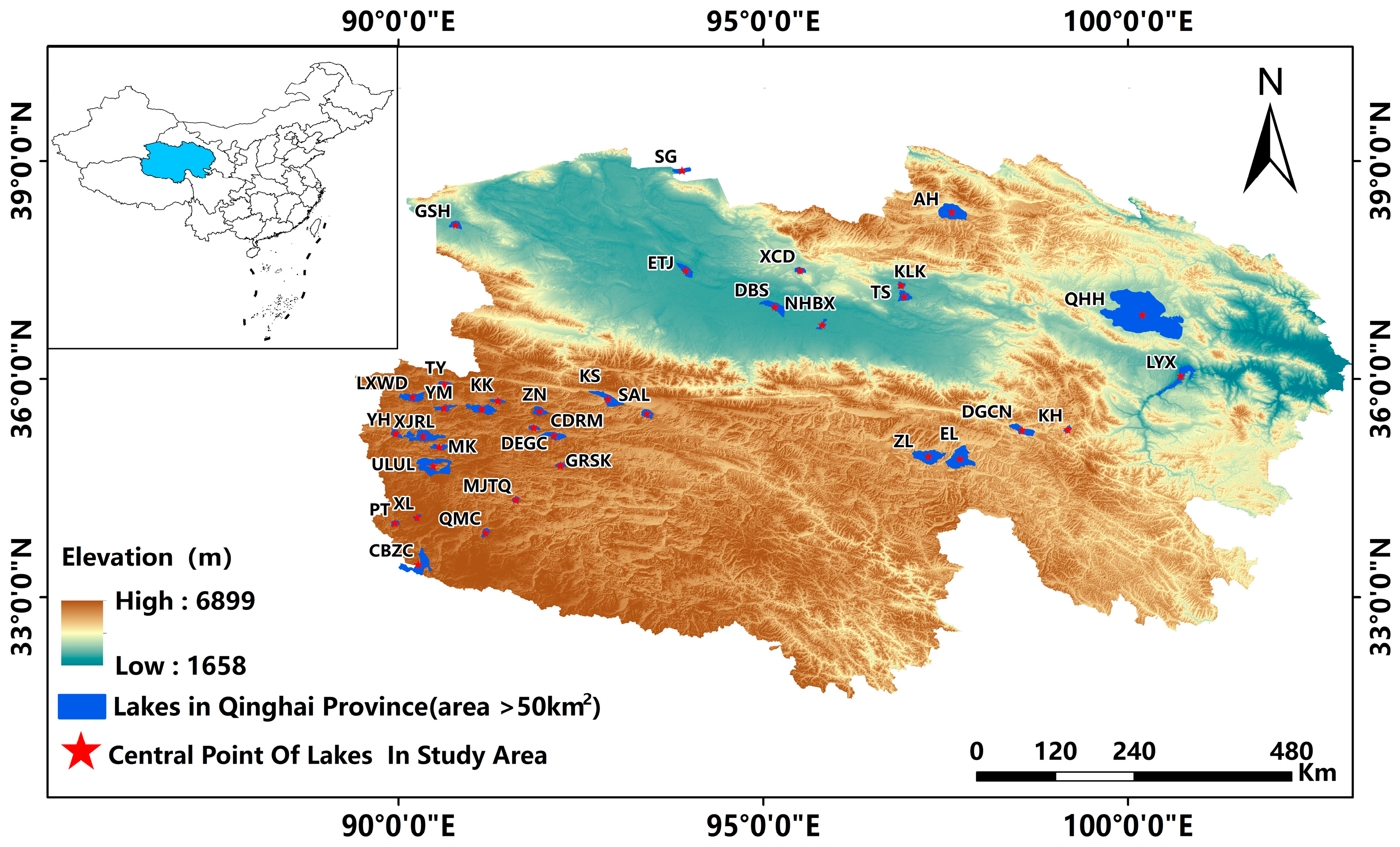

Qinghai Province has a geography featuring a high middle-low terrain, and its eastern region is a transition zone between the Tibetan Plateau and the Loess Plateau, with a complex topography and diverse landforms. Qinghai Province has numerous lakes and ranks second in China. It is the birthplace of the Yangtze, Yellow, and Lancang Rivers and contains complex and rich types of water bodies, such as salt lakes, saltwater lakes, and freshwater lakes. Some of these lakes, such as the Kusai Lake and Zonag Lake, are located in the uninhabited areas of Hoh Xil and are difficult to reach. In this study, 35 lakes with areas greater than 50 km² were selected as research areas, as shown in Figure 1 and

Table 1. Information on lake location in the study area.

Type of Lake	Lake Name	Acronym	Area/km2	Centre Point Location		Image Date Y-M-R
				E	N
Freshwater lakes	Donggi Conag Lake	DGCN	232.75	35.297	98.551	23 August 2022
	Cuorendejia Lake	DEGC	199.96	35.220	92.135	8 July 2022
	Eling Lake	EL	650.90	34.902	97.696	23 August 2022
	Gurusank Lake	GRSK	64.91	34.808	92.220	16 October 2022
	Keluke Lake	KLK	54.20	37.287	96.892	5 September 2022
	Kuhai	KH	50.01	35.304	99.176	23 August 2022
	Longyangxia Reservoir	LYX	310.12	36.038	100.725	6 July 2022
	Taiyang Lake	TY	102.18	35.925	90.628	23 July 2022
	Xuelian Lake	XL	50.02	34.094	90.257	18 July 2022
	Yinma Lake	YM	108.94	35.602	90.626	23 July 2022
	Zaling Lake	ZL	536.62	34.934	97.264	10 September 2022
Salt lakes	Dabusun Lake	DBX	264.23	36.993	95.161	5 July 2022
	East Taijinaier	ETJ	186.30	37.495	93.940	28 September 2022
	Gas Hure Lake	GSH	111.23	38.120	90.785	23 July 2022
	Lexiewudan Lake	LXWD	261.18	35.751	90.194	23 July 2022
	Meikei Lake	MK	104.13	35.064	90.560	8 July 2022
	South Horuson Lake	NHBX	61.33	36.743	95.808	22 July 2022
	Xiaochaidan Lake	XCD	90.64	37.494	95.506	28 September 2022
Saltwater lakes	Porto Lake	PT	61.21	34.012	89.954	8 July 2022
	Chibuzhang Co	CBZC	486.34	33.446	90.273	23 June 2022
	Cuodarima	CDRM	70.55	35.327	91.855	16 October 2022
	Aha Lake	AH	583.93	38.296	97.588	11 August 2022
	Zonag Lake	ZN	159.31	35.556	91.933	11 September 2022
	Kekao Lake	KK	67.35	35.698	91.363	11 September 2022
	the Hoh Xil Lake	HHXL	309.52	35.586	91.144	11 September 2022
	Kusai Lake	KS	314.60	35.725	92.874	11 September 2022
	Marjang Tsochin	MJTQ	57.63	34.339	91.609	11 September 2022
	Qinghai Lake	QHH	4252.58	36.885	100.201	13 August 2021
	Quemocuo	QMC	81.40	33.886	91.195	11 September 2022
	Sugan Lake	SG	111.82	38.869	93.887	4 August 2022
	Toso Lake	TS	145.07	37.136	96.934	5 September 2022
	Ulan-Ula Lake	ULUL	578.98	34.802	90.479	8 July 2022
	Xijirulan Lake	XJRL	395.93	35.213	90.340	23 July 2022
	Salt Lake	SAL	129.84	35.524	93.408	25 July 2022
	Yonghong Lake	YH	74.54	35.249	89.963	23 July 2022

.

2.2. Data

2.2.1. Image Data

The data used in this study were obtained from Sentinel-2 MSI (S2-MSI), Sentinel-3 Ocean, and Land Colour Instrument (S3-OLCI) images. Currently, for case 2, for water with optical properties, the S3-OLCI Level-2 Water Full Resolution (L2-WFR) products are strongly consistent with the in situ R_rs [38,39,40]. Therefore, the L2-WFR was selected for evaluating the atmospheric correction processor for S2-MSI. The 39-scene cloud-free and flare-free L1C-level images and L2-WFR data transited concurrently with the S2-MSI (see Table 1 for details) were freely downloaded from the ESA Copernicus Open Access Centre (https://dataspace.copernicus.eu/, accessed on 20 October 2022). The L1C-level image of S2-MSI is the product of geometric precision correction. The S3-OLCI was not geometrically corrected, and there were geometric deviations. This study used national S2-MSI image data as a base map, automatically obtained ground control points of S2-MSI and S3-OLCI images, and reprojected S3-OLCI images onto S2-MSI images to ensure consistent geometric information between the S2-MSI and S3-OLCI images in the subsequent research process [41].

2.2.2. In Situ Data

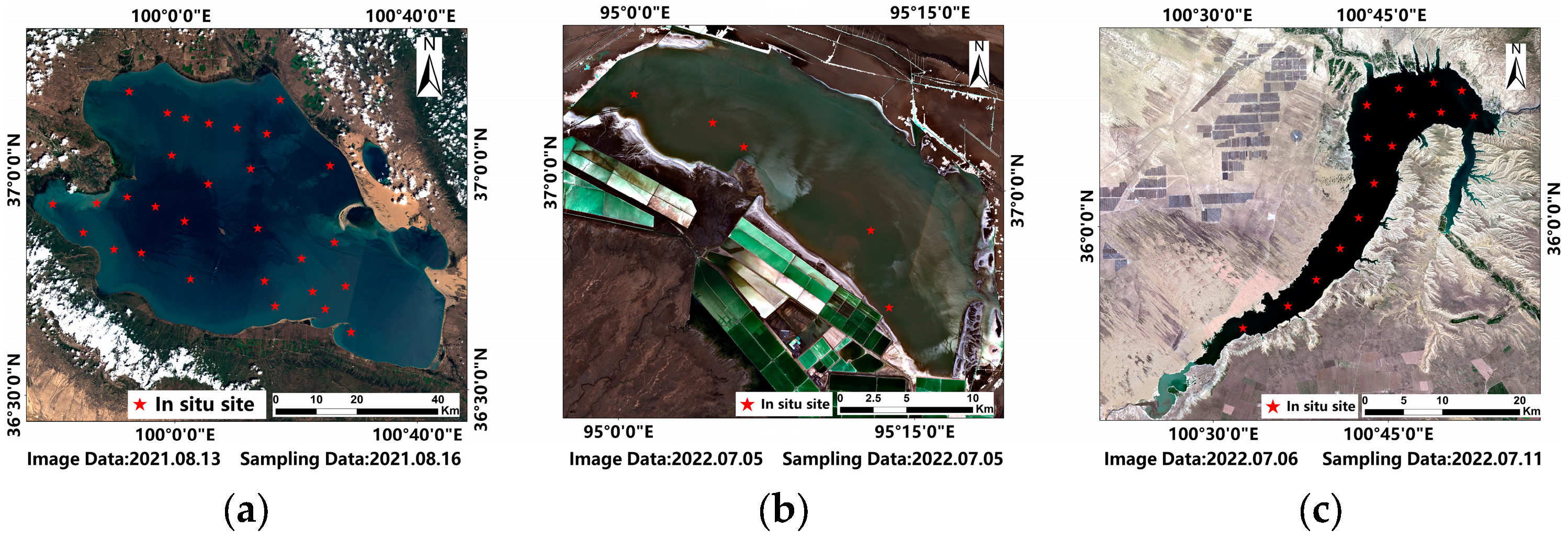

Qinghai Lake, Dabusun Salt Lake, and Longyangxia Reservoir were selected as representative areas of typical lakes, and field water spectrum measurements were conducted on the 16 August 2021, 5 July 2022, and 11 July 2022, respectively. A total of 49 measured data points and on-site measured water quality data points were collected, including water colour index and turbidity. The sampling point information is shown in Figure 2.

For each sampling point, a Trios spectrometer was used to continuously measure the ratio of the upwelling radiance ($L_u$), the reflectance of the sun and the sky glint ($L_{sky}$), and the downwelling irradiance ($E_{\mathrm{s}}$) based on the ‘surface method’ [42] and the remote sensing reflectance R_rs (λ) at each sampling point was calculated using Equation (1) [43].

$$R_{\mathrm{r}\mathrm{s}}(\lambda )=\frac{L_w\left(\lambda \right)}{E_s\left(\lambda \right)}=\frac{L_u\left(\lambda \right)-r_{sky}\times L_{sky}\left(\lambda \right)}{E_s\left(\lambda \right)}$$

(1)

where $L_u\left(\lambda \right)$ is the ratio of the upwelling radiance, $E_{\mathrm{s}}\left(\lambda \right)$ is the downwelling irradiance, and $L_{sky}\left(\lambda \right)$ is the reflectance of the sun and the sky glint.

Additionally, we measured the turbidity in situ using an American Orion AQ3010 turbidimeter and the water colour index using a Forel-Ule Index (FUI) colorimeter for each sampling point. The in situ data from Dabusun Lake show that the FUI ranges between 15 and 18 levels, the turbidity ranges between 30 and 150 NTU, and the reflectance spectrum displays the characteristics of typical turbid water bodies (as shown in Figure 3). It also exhibits strong reflections in the wavelength range of 580–800 nm [44]. The FUI of Qinghai Lake is between approximately 3 to 6 levels, the turbidity between 0.06 and 1.5 NTU, and its spectral characteristics display the characteristics of typical clean water bodies. The reflectance spectrum gradually changed between 500 and 600 nm. Above 700 nm, the water body absorbs strongly, and its reflectivity is almost zero. The FUI of the Longyangxia Reservoir was between 7 and 8, and the turbidity was between 1.4 and 3.3 NTU. Compared to Qinghai Lake, the water body of the Longyangxia Reservoir is slightly cloudy. At wavelengths between 500 and 600 nm, the reflectance of the water bodies gradually increased with increasing wavelength [45].

2.3. Method

2.3.1. Spectral Classification of 35 Water Bodies in Qinghai Province

We used the S3-OLCI image L2-WFR to classify the lakes in our research area. The lake boundaries generated by the Sentinel-3 image water mask were obtained and used as inputs for the formation of a 3 × 3 km² grid. We calculated the mean lake R_rs at the centre of the grid. Based on the spectral curve characteristics and in situ data of the three typical lakes, we classified the lakes with spectral characteristics similar to those of the typical lakes to further study the applicability of the atmospheric correction processor to water bodies of the same type.

2.3.2. Seven Atmospheric Correction Processors

Seven commonly used atmospheric correction processors were evaluated in this study: ACOLITE V20210802 [25]; C2RCC V1.1 [33]; C2XC V1.1, iCOR V3.0 [27]; POLYMER V4.13 [16]; SeaDAS/l2gen V8.2 [46]; Sen2Cor V2.11 [47]. Accordingly, the ACOLITE, C2RCC, C2XC, POLYMER, and SeaDAS are processors specifically designed for water bodies. The iCOR processor is the only atmospheric correction processor that considers the adjacent corrections. The Sen2cor is the default atmospheric correction processor for S2-MSI.

2.3.3. Accuracy Evaluation Method for Atmospheric Correction Processors

According to the spectral response function, the in situ R_rs convolution was calculated as R_rs at 443, 490, 560, 665, and 705 nm of the S2-MSI image using Equation (2).

$$R_{\mathrm{r}\mathrm{s}}=\frac{{\int }_{{\lambda }_1}^{{\lambda }_2}S\left({\lambda }_i\right)R_{\mathrm{r}\mathrm{s}}\left({\lambda }_i\right)\mathrm{d}\lambda }{{\int }_{{\lambda }_1}^{{\lambda }_2}S\left({\lambda }_i\right)\mathrm{d}\lambda }$$

(2)

where $R_{\mathrm{r}\mathrm{s}}$ is the R_rs after spectral normalization, ${\lambda }_1, {\lambda }_2$ are the lower and upper limits of the band range, respectively, $S\left({\lambda }_i\right)$ is the spectral response function, and $R_{\mathrm{r}\mathrm{s}}\left({\lambda }_i\right)$ is the in situ R_rs at ${\lambda }_i$.

The processor accuracy was evaluated by scoring the estimated R_rs results of seven processors [39,48,49]. The single-band score was calculated by comparing the results of each atmospheric correction processor for its corresponding band with all statistical indicators (R², S, I, Bias, RMSE, MRE). Each band has a maximum score of 12. The score of a single processor is the score of all the bands divided by the number of bands, and the final score of each processor is the score of the single processor divided by the average score of all processors. A final score greater than one indicates good performance of the atmospheric correction processor.

Table 2. Atmospheric correction processor scoring rules.

	0	1	2
R2	Under the lower limit of the mean 95% confidence interval	Within the mean 95% confidence interval	Exceeded the upper limit of the mean 95% confidence interval
Bias	Neither within the mean 95% confidence interval NOR zero ± twice the mean standard deviation	Within the mean 95% confidence interval OR zero ± twice the mean standard deviation	Within the mean 95% confidence interval AND zero ± twice the mean standard deviation
RMSE	Exceeded the upper limit of the mean 95% confidence interval	Within the mean 95% confidence interval	Under the lower limit of the mean 95% confidence interval
MRE
S	Neither within the mean 95% confidence interval NOR one ± the mean standard deviation	Within the mean 95% confidence interval OR one ± the mean standard deviation	Within the mean 95% confidence interval AND one ± the mean standard deviation
I

presents the scoring criteria for each statistical indicator.

The six statistical indicators can be expressed as the square of the correlation coefficient (R²), slope (S), intercept (I) of the linear regression, bias (Bias), root-mean-square error (RMSE), and mean relative error (MRE).

• Square of the correlation coefficient (R²): R² represents the consistency between the processor-estimated and in situ results. The higher the R² value, the higher the correlation between the processor-estimated results and the in situ results.

$$R^2=\frac{{\left({\sum }_{i=1}^n\left(x_i-\stackrel{⃐}{x}\right)\left(y_i-\stackrel{⃐}{y}\right)\right)}^2}{{\sum }_{i=1}^n{\left(x_i-\stackrel{⃐}{x}\right)}^2{\sum }_{i=1}^n{\left(y_i-\stackrel{⃐}{y}\right)}^2}$$

(3)

where n represents the total amount of data, $x_i$ and $y_i$ represent the in situ R_rs and estimated R_rs of the i-th point, respectively, from a particular atmospheric correction processor.

2.

Intercept (I) and slope (S): The closer the slope and intercept of the linear fit are to 1 and 0, respectively, the more suitable is the processor for estimating in situ data.

$$y_i=S{x}_i+I$$

(4)

3.

Bias (Bias): This Bias can be used to judge the degree of overestimation or underestimation of the processor-estimated results relative to the in situ data. A positive value indicates that the in situ data are overestimated compared with the processor-corrected result, whereas a negative value indicates an underestimation.

$$\mathit{Bias}=\frac{1}{n}{\sum }_{i=1}^n\left(y_i-x_i\right)$$

(5)

4.

Root-mean-square error (RMSE) and mean relative error (MRE): RMSE can be used to measure the absolute deviation between the processor estimates and the in situ data, whereas MRE represents the relative difference of each processor estimate.

$$RMSE=\sqrt{\frac{{\sum }_{i=1}^n{\left(y_i-x_i\right)}^2}{n}}$$

(6)

$$MRE=\frac{1}{n}{\sum }_{i=1}^n\frac{\left|y_i-x_i\right|}{x_i}\times 100\%$$

(7)

3. Results

3.1. Classification Results for 35 Water Bodies in Qinghai Province

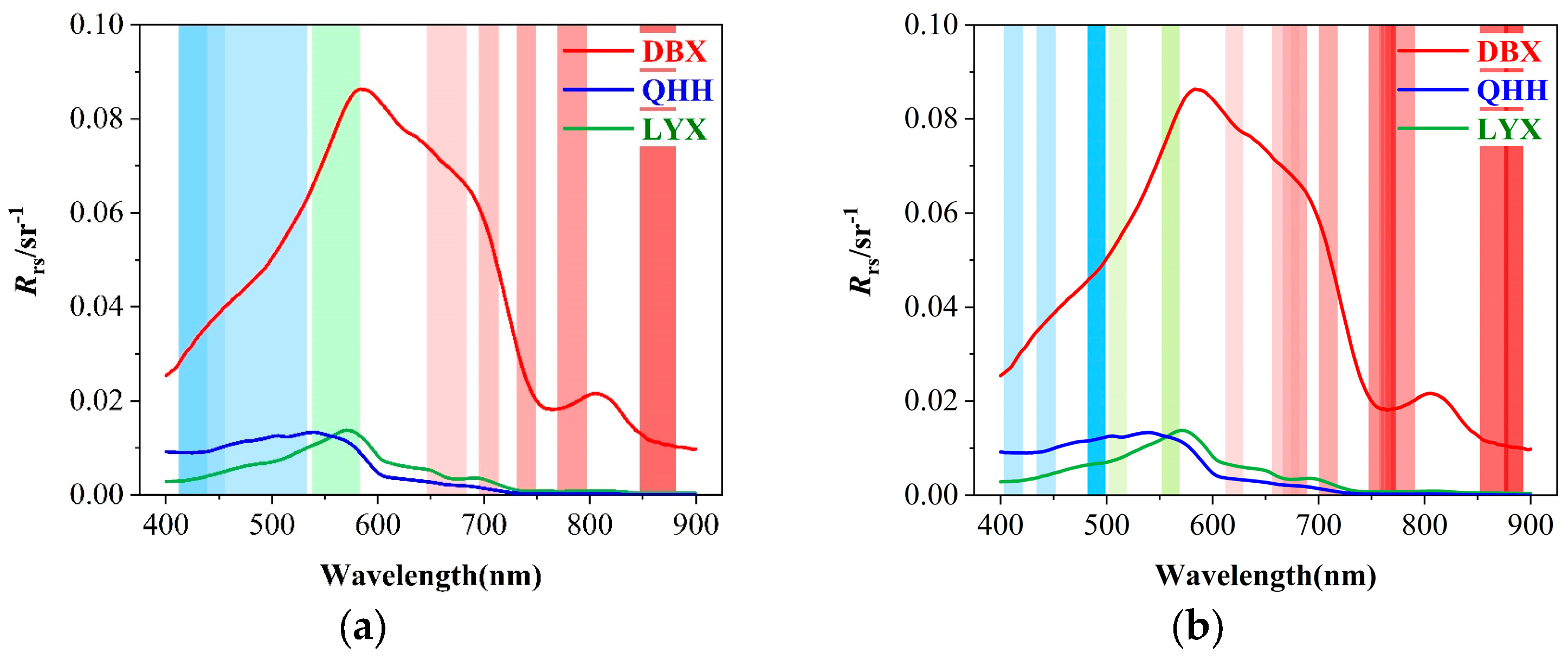

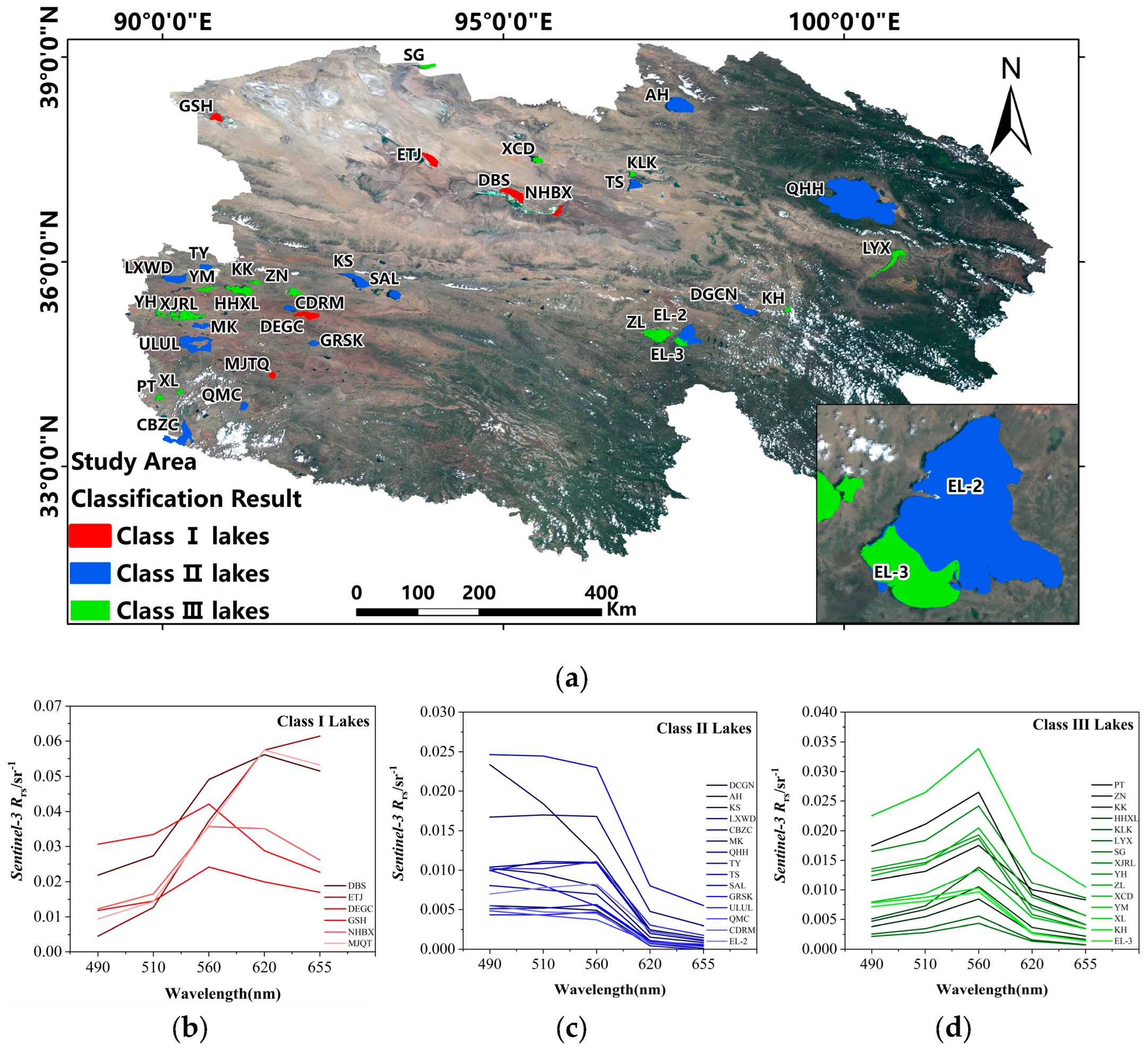

Using three representative lakes as examples, the water bodies in the study area were divided into three types based on the S3-OLCI image of the L2-WFR. The classification results are shown in Figure 4. Taking R_rs (665 nm) > 0.01 sr⁻¹ as the threshold, six lakes with similar spectral characteristics were classified as class I lakes (class I).

In addition, we used the second judgment condition of R_rs (490 nm/560 nm) > 0.8 to classify 14 lakes meeting this condition as class II lakes (class II), with Qinghai Lake as the typical representative. Lakes with R_rs (490 nm/560 nm) ≤ 0.8 were classified as class III lakes (class III), represented by Longyangxia Reservoir. However, Eling Lake is unique. This lake is influenced by the inflow of rivers and shore vegetation, which leads to significant differences in the reflectance spectra between the river mouth and the centre of the lake. Specifically, R_rs (490 nm/560 nm) in the centre of the lake was significantly lower than that in the river mouth. Therefore, Eling Lake can be classified as either Eling Lake-2(EL-2, class II) or Eling Lake-3 (EL-3, class III).

3.2. Accuracy Evaluation of Seven Atmospheric Correction Processors for the Different Classifications of Water Bodies

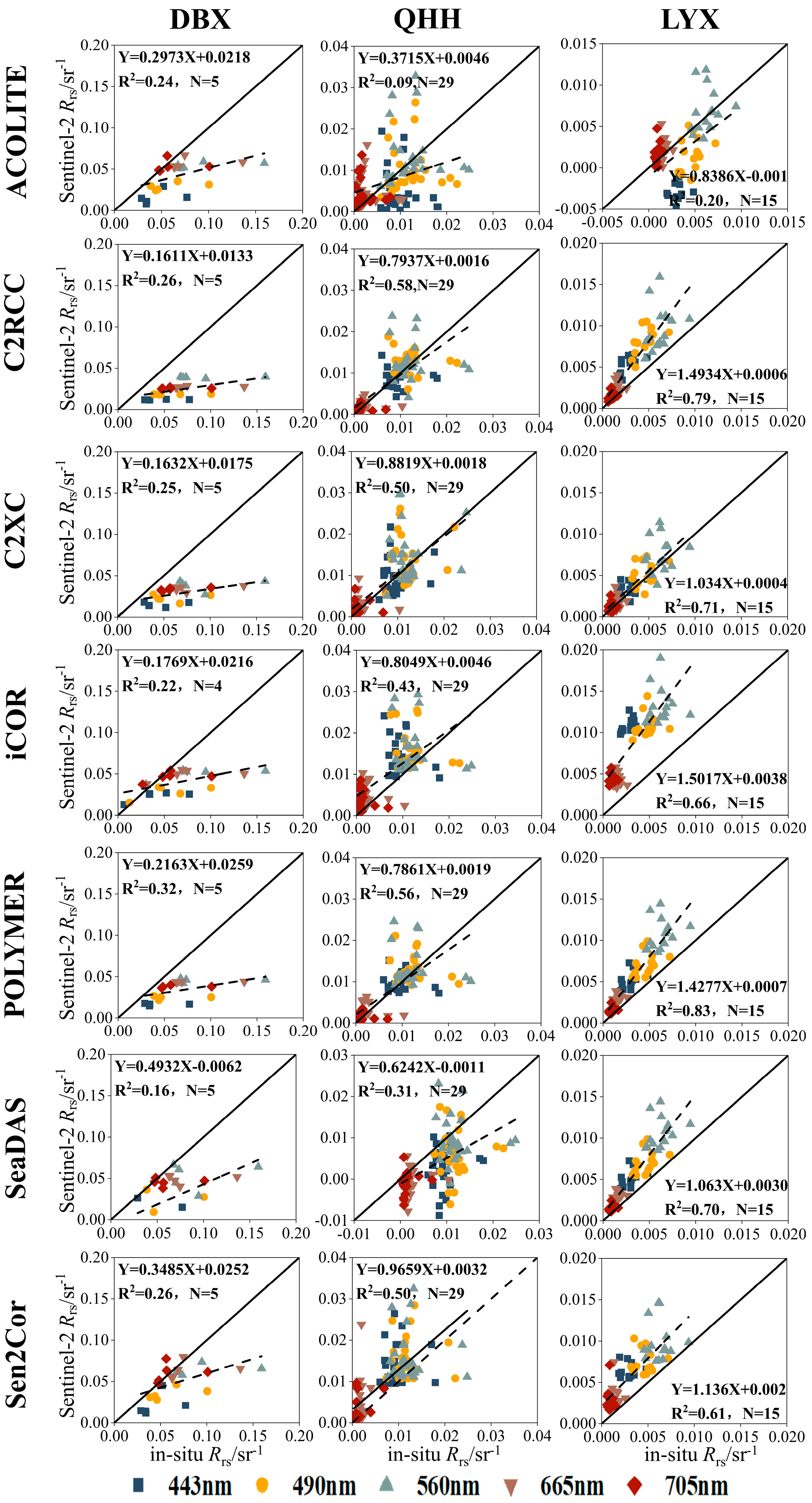

We conducted a linear fit between the in situ R_rs values of three representative lakes (Dabusun Lake, Qinghai Lake, and Longyangxia Reservoir) and the estimated R_rs values from seven different atmospheric correction processors. A comprehensive evaluation of the performances of these processors is shown in Figure 5. For class I (Dabusun Lake), the ACOLITE and Sen2Cor processors performed relatively better than the other atmospheric correction processors because their fitted lines are closer to the 1:1 line. For class II (Qinghai Lake), both the C2RCC and POLYMER processors had slopes (S) greater than 0.7, intercepts (I) at lower than 0.002, and R² values greater than 0.5. The estimated R_rs values of the atmospheric correction processors showed a high consistency and correlation with the in situ R_rs. For class III (Longyangxia Reservoir), the C2XC processor had a slope (S) of approximately 1.03, an intercept (I) of approximately 0, and a high degree of overlap between the fitted and 1:1 lines. Its performance is the best from among all processors. Both the C2RCC and POLYMER processors had R² values greater than 0.79, indicating a high degree of correlation between the estimated R_rs from the atmospheric correction processors and the in situ R_rs. The ACOLITE processor had a fitted line nearly parallel to the 1:1 line, indicating a high accuracy.

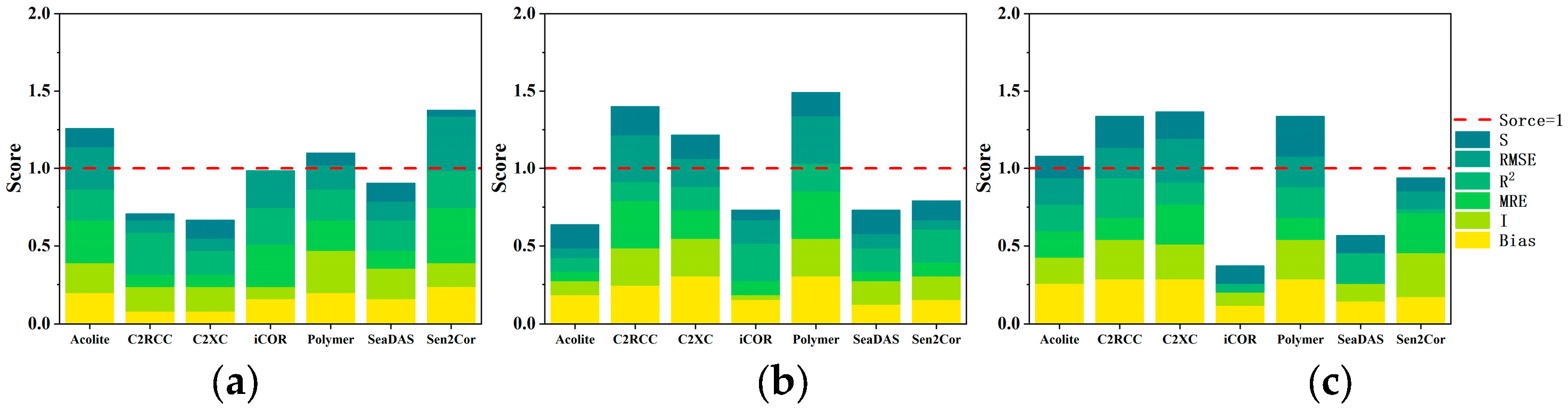

According to our findings, we observed significant differences in the performances of the seven atmospheric correction processors when applied to different types of water bodies. We used an accuracy evaluation method for seven atmospheric correction processors to provide a quantitative description of their performances. For the Dabusun Lake, the final scores of the Sen2Cor, ACOLITE, and POLYMER processors were greater than 1, indicating a good performance. The Sen2Cor processor performed best and achieved the highest score (1.38). For the Qinghai Lake, the performances of the POLYMER, C2RCC, and C2XC processors were the best, with final scores greater than 1. The POLYMER processor exhibited the best performance and obtained the highest score (1.49) from among them. It is worth noting that all four processors, C2XC, C2RCC, POLYMER, and ACOLITE, demonstrated a good processing performance for the Longyangxia Reservoir, with the C2XC processor achieving the highest final score (1.37). Overall, the Sen2Cor processor performed best for turbid water bodies such as Dabusun Lake, whereas it showed poor performance for clean water bodies. For clean water bodies, such as Qinghai Lake, and relatively clean water bodies, such as Longyangxia Reservoir, both the C2XC and C2RCC processors, which are based on neural networks, exhibited a good performance, but they were not suitable for turbid water bodies. Surprisingly, the POLYMER processor demonstrated a good performance for all lakes (Figure 6).

3.3. Atmospheric Correction Results of 35 Water Bodies

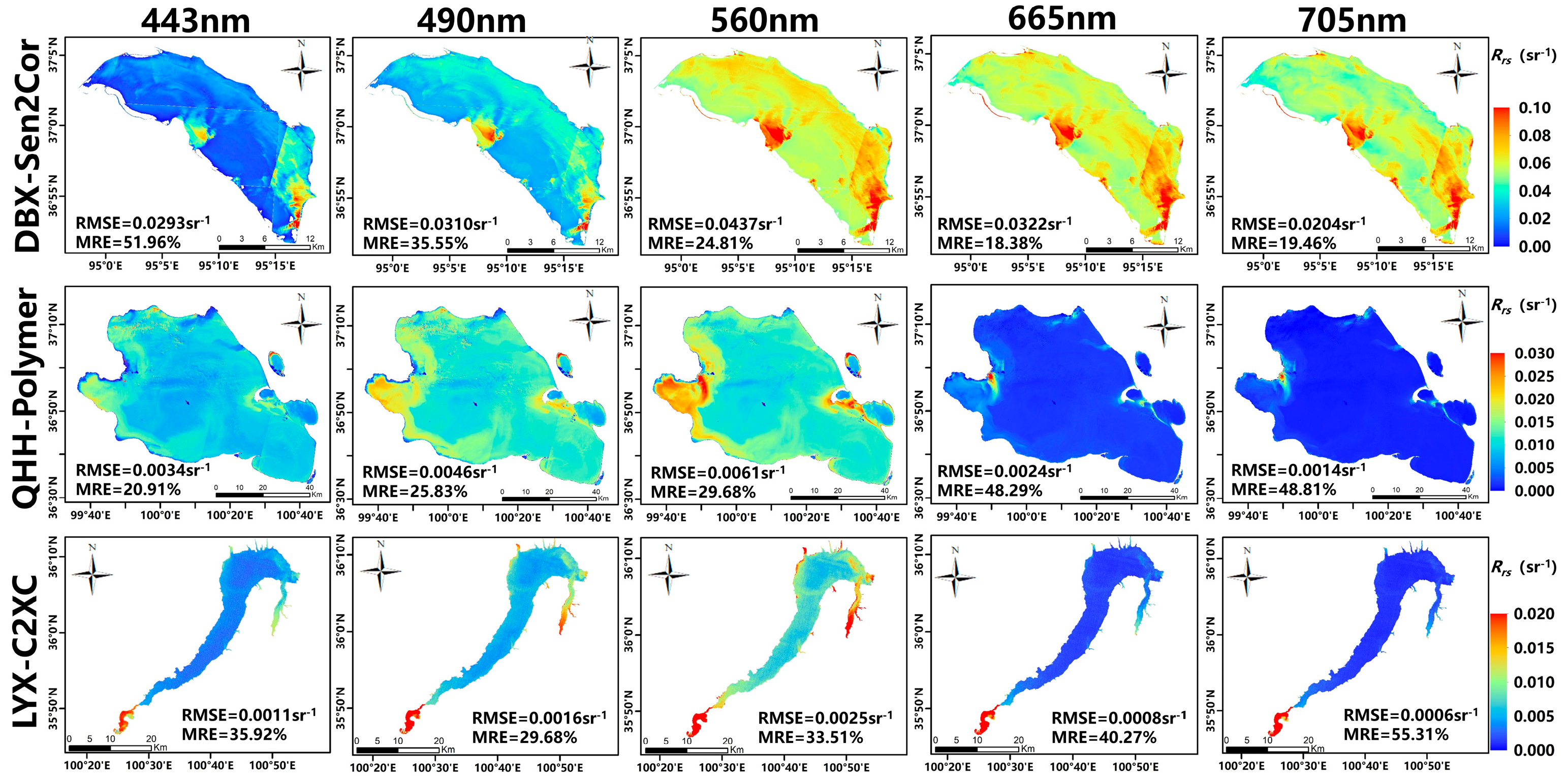

According to the determined optimal atmospheric correction processor for each typical lake, the in situ R_rs values were used as the true values for verifying the estimated R_rs products of the S2-MSI images on the 5 July 2022 (Dabusun Lake) with a 1-day difference, 13 August 2021 (Qinghai Lake) with a 3-day difference, and 6 July 2022 (Longyangxia Reservoir) with a 5-day difference. When the Sen2Cor processor was applied to Dabusun Lake, the MRE decreased gradually with increasing wavelengths. The MRE was less than 30% at 560, 665, and 705 nm, reaching its lowest value at 665 nm. The POLYMER processor was applied to Qinghai Lake, and the results show that the MRE gradually increased with increasing wavelength. At 443, 490, and 560 nm, the MRE was less than 30%, with the minimum value occurring at 443 nm. The C2XC processor was used for Longyangxia Reservoir, and its MRE was less than 30% at 490 nm. Dabusun Lake, Qinghai Lake, and Longyangxia Reservoir showed a consistent trend in RMSE with wavelength. The overall pattern was an initial increase followed by a decrease, reaching a maximum at 560 nm and a minimum at 705 nm. Furthermore, our study found that the atmospheric correction processor estimated the reflectance products with good spatial continuity (Figure 7).

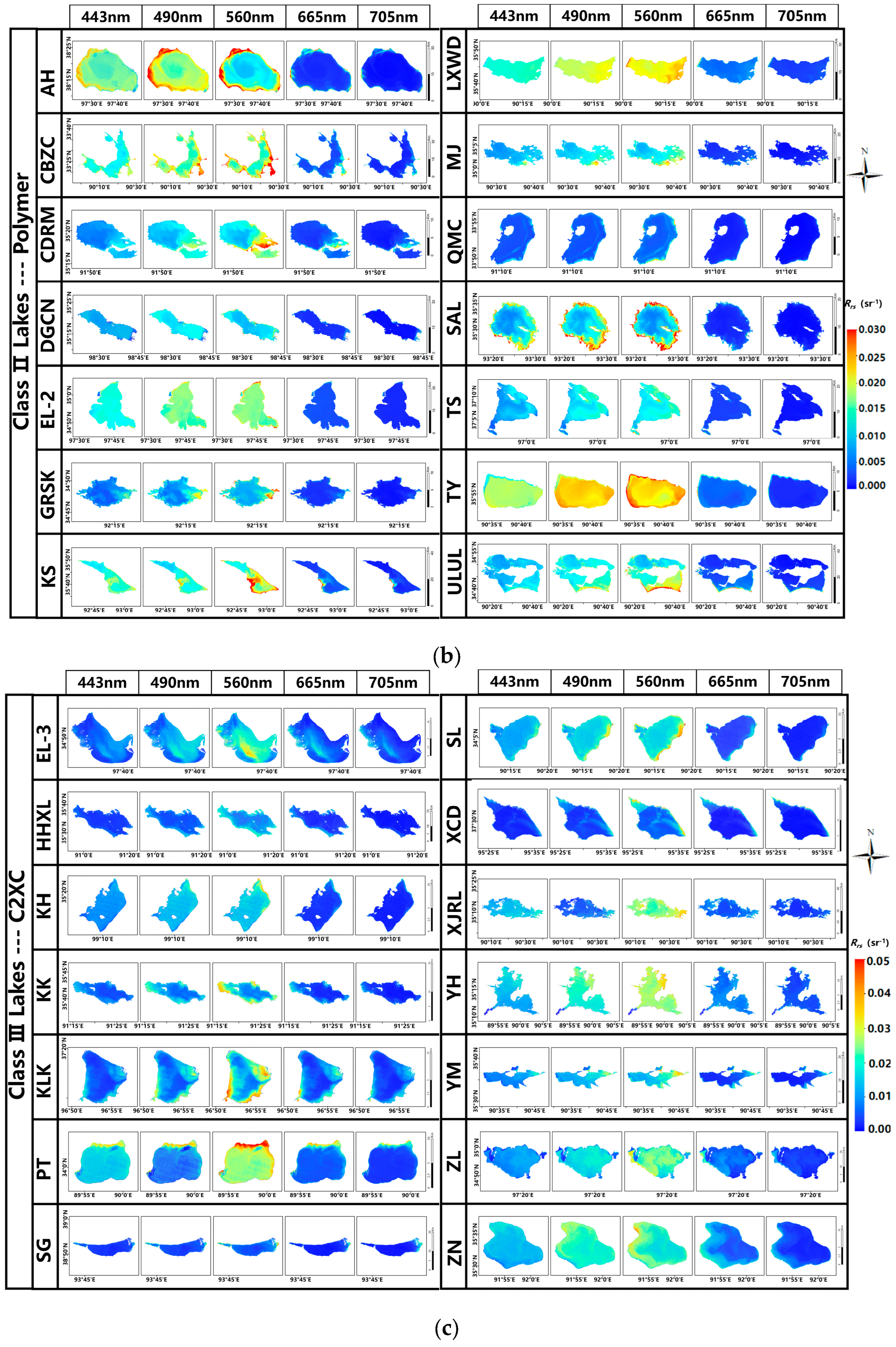

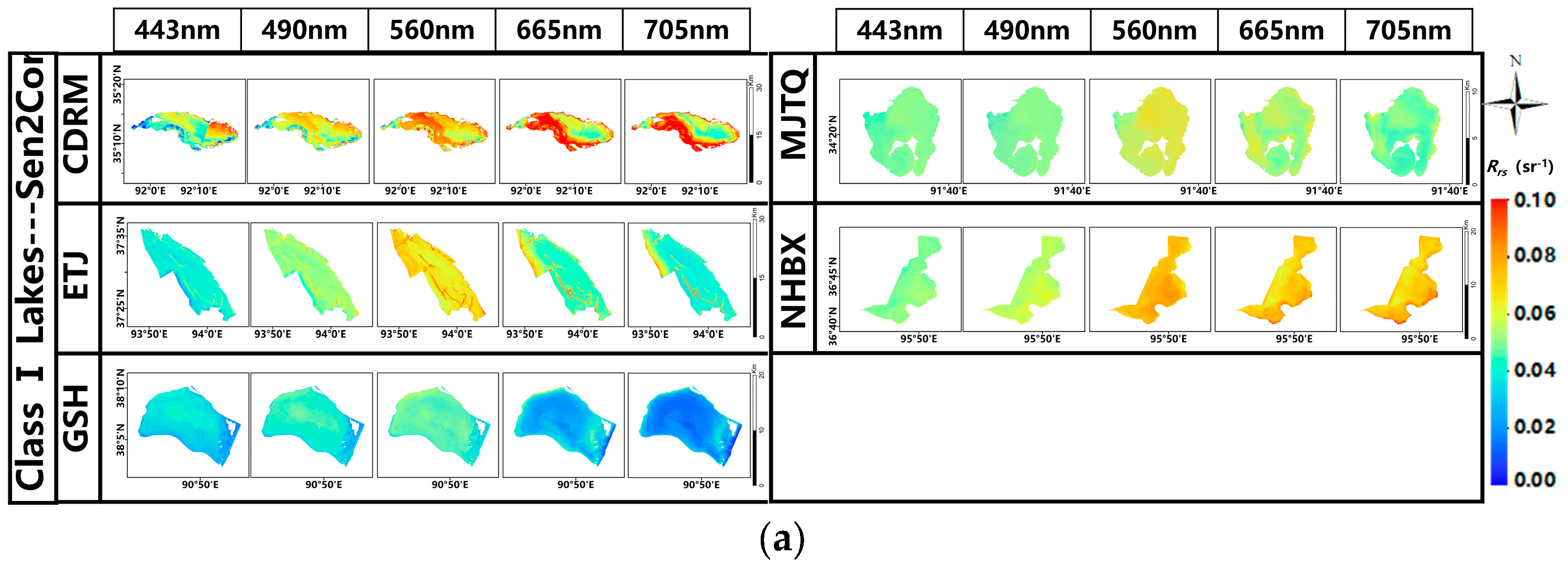

Simultaneously, we applied the three best processors to all study areas to observe the distribution characteristics of the R_rs products in the S2-MSI images (Figure 8). Class I water bodies are relatively turbid with a high reflectance, and the R_rs of the entire lake is approximately 0–0.1 sr⁻¹ (Figure 8a). The class II water bodies are relatively clear, with an R_rs of approximately 0–0.03 sr⁻¹ (Figure 8b). The water bodies in class III are slightly more turbid than those of class II, with an R_rs of approximately 0–0.05 sr⁻¹ (Figure 8c).

4. Discussion

4.1. Suitability Analysis of Different Types of Water Body Atmospheric Correction Algorithms

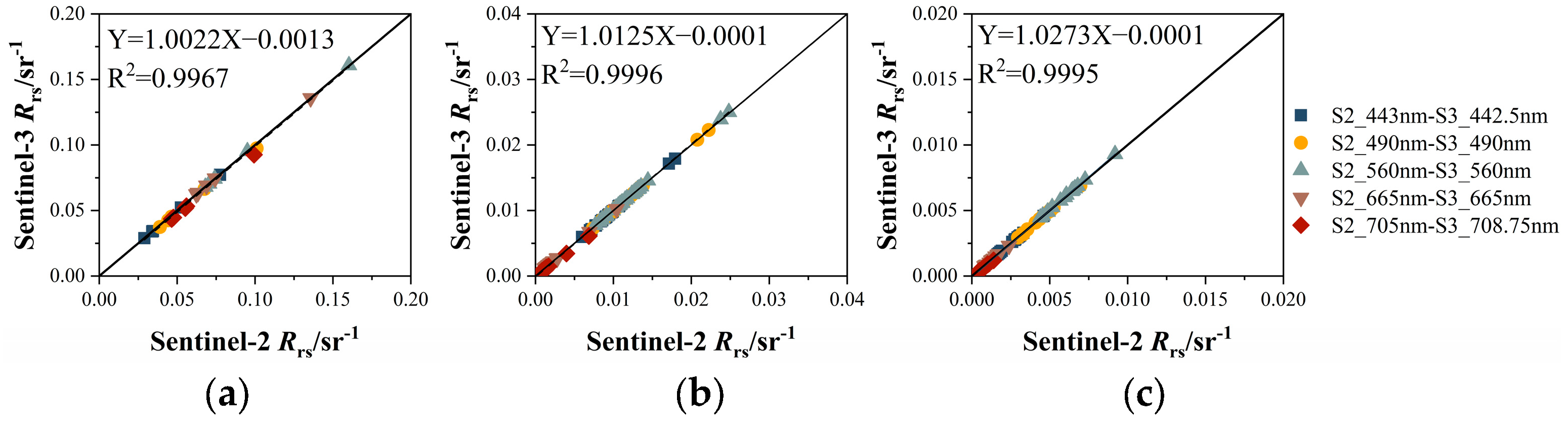

For the S2-MSI images, the central wavelengths of the coastal aerosol, blue, green, red, and vegetation red-edge bands were approximately 443, 490, 560, 655, and 705 nm, respectively. The central wavelengths of the S3-OLCI images of bands B3, B4, B6, B8, and B11 were 442.5, 490, 560, 665 and 708.75 nm, respectively. The two images have consistent or similar central wavelengths in these bands. Equation (2) was used to transform the in situ R_rs values into the wavelength range of the S2-MSI and S3-OLCI images. The error between the data from different sensor images was evaluated. As shown in Figure 9, there was a high degree of consistency between the R_rs values of the three typical lake S2-MSI and S3-OLCI images, with all R² values greater than 0.99.

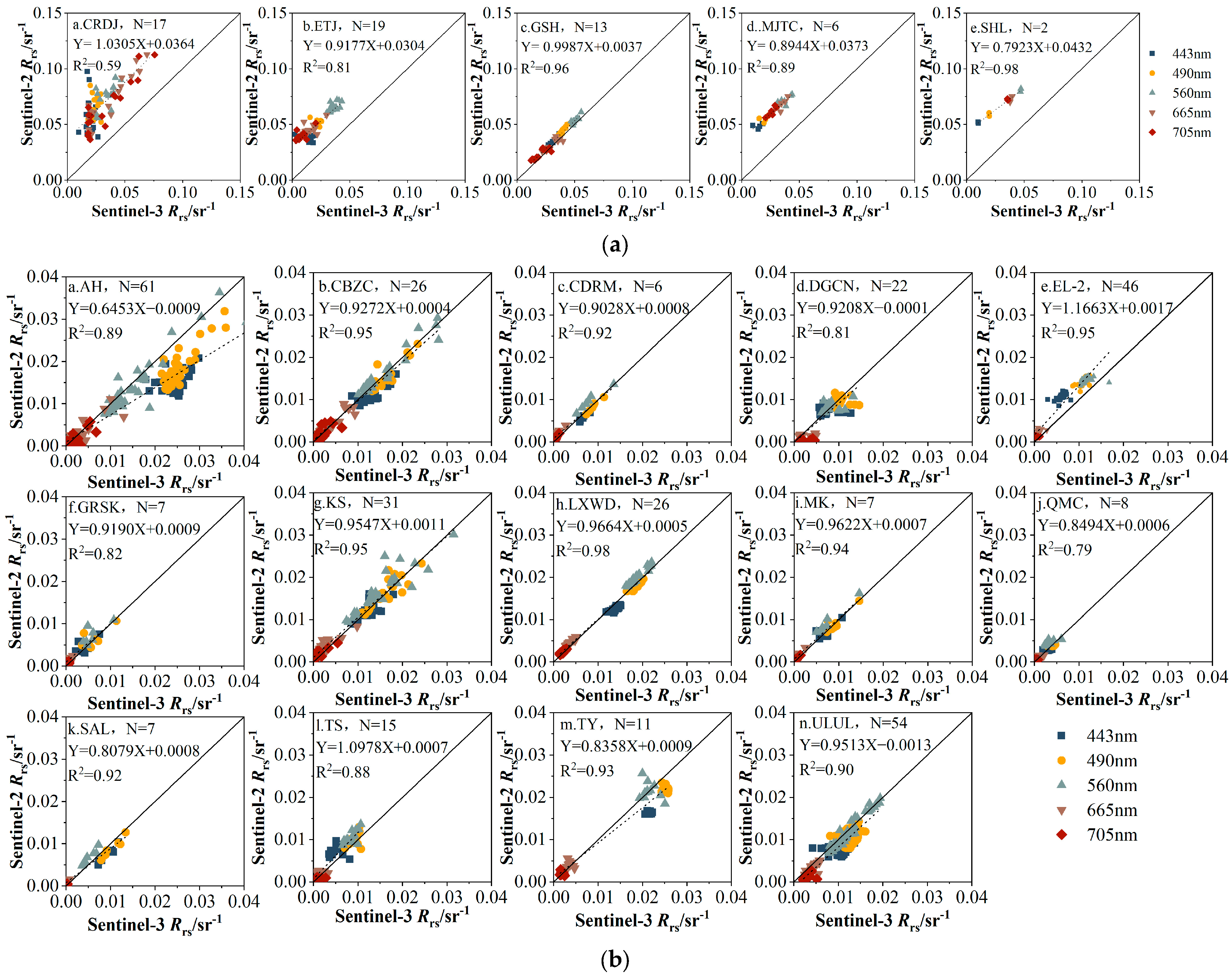

Based on the three classification results for the 35 lakes and taking the L2-WFR product of S3-OLCI as the true value, optimal atmospheric correction processors were applied to each lake type. The MRE and RMSE for the 35 lakes were calculated, respectively (as shown in Figure 10). In terms of overall accuracy, class II lakes > class III lakes > class I lakes. This may be due to the fact that class I water bodies are turbid water bodies and the R_rs of these water bodies is large, so the calculated error is relatively large.

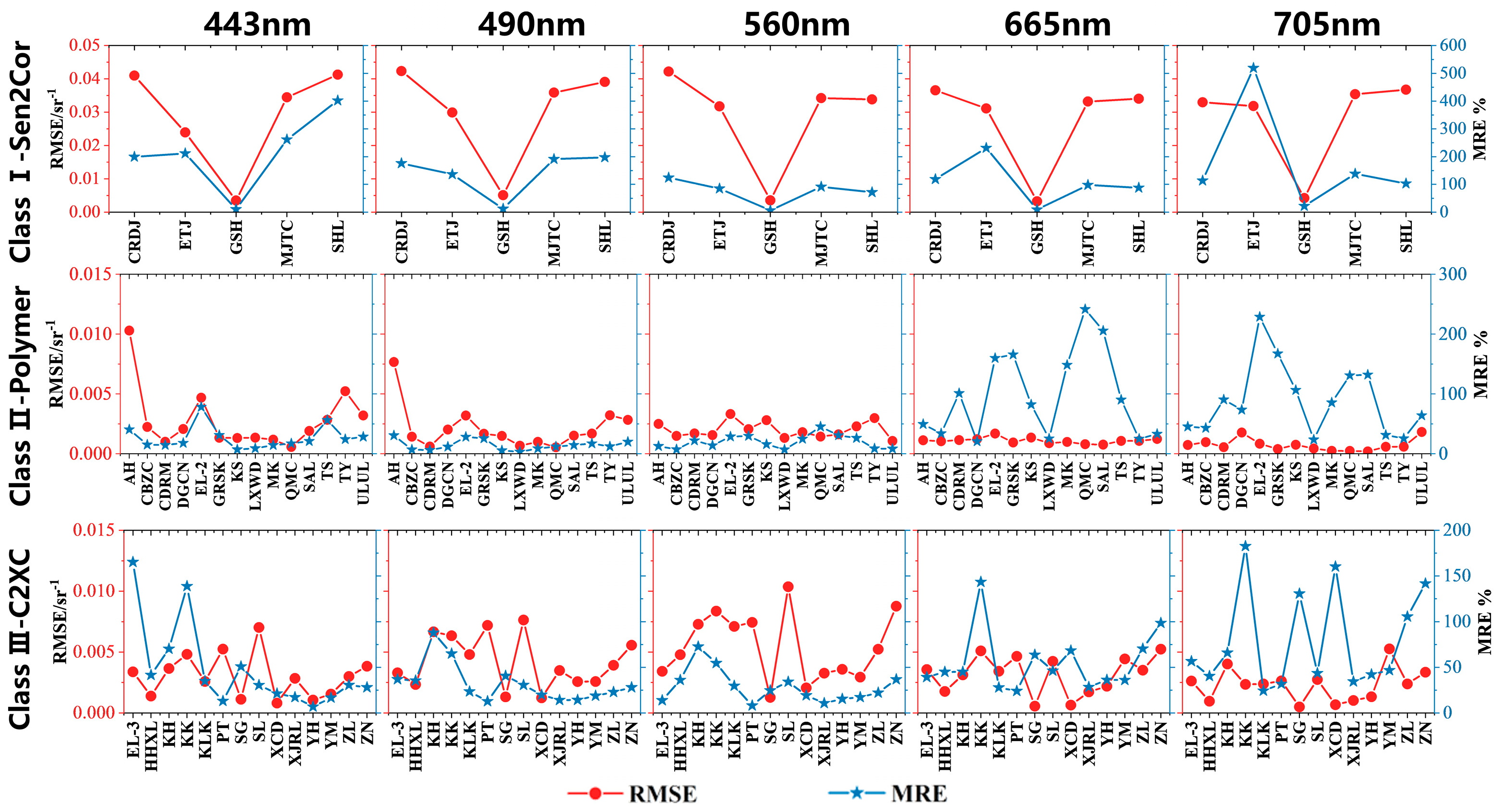

Next, we considered the application effects of the three optimal atmospheric correction processors according to different types of water bodies for the 35 lakes (Figure 11). For class I lakes, the Sen2Cor processor overestimated the R_rs values of the S2 MSI images to a certain extent. This may be due to an underestimation of the radiance of the atmospheric path by the Sen2Cor processor, which was derived from land pixels (Figure 11a).

For class II lakes, the POLYMER processor provided good estimation results for S2 MSI R_rs with correlation coefficients (R²) of above 0.79. The R² of Lexiewudan Lake (LXWD) reached 0.98, showing a high consistency between the R_rs of S2 MSI and the R_rs of S3 OLCI. The slopes of Aha Lake (AH), Quemocuo Lake (QMC), Salt Lake (SAL), and Taiyang Lake (TY) were below 0.9, indicating an underestimation of their R_rs values. The slopes of Eling Lake-2 (EL-2) and Toso Lake (TS) were slightly greater than 1, suggesting a slight overestimation of R_rs (Figure 11b).

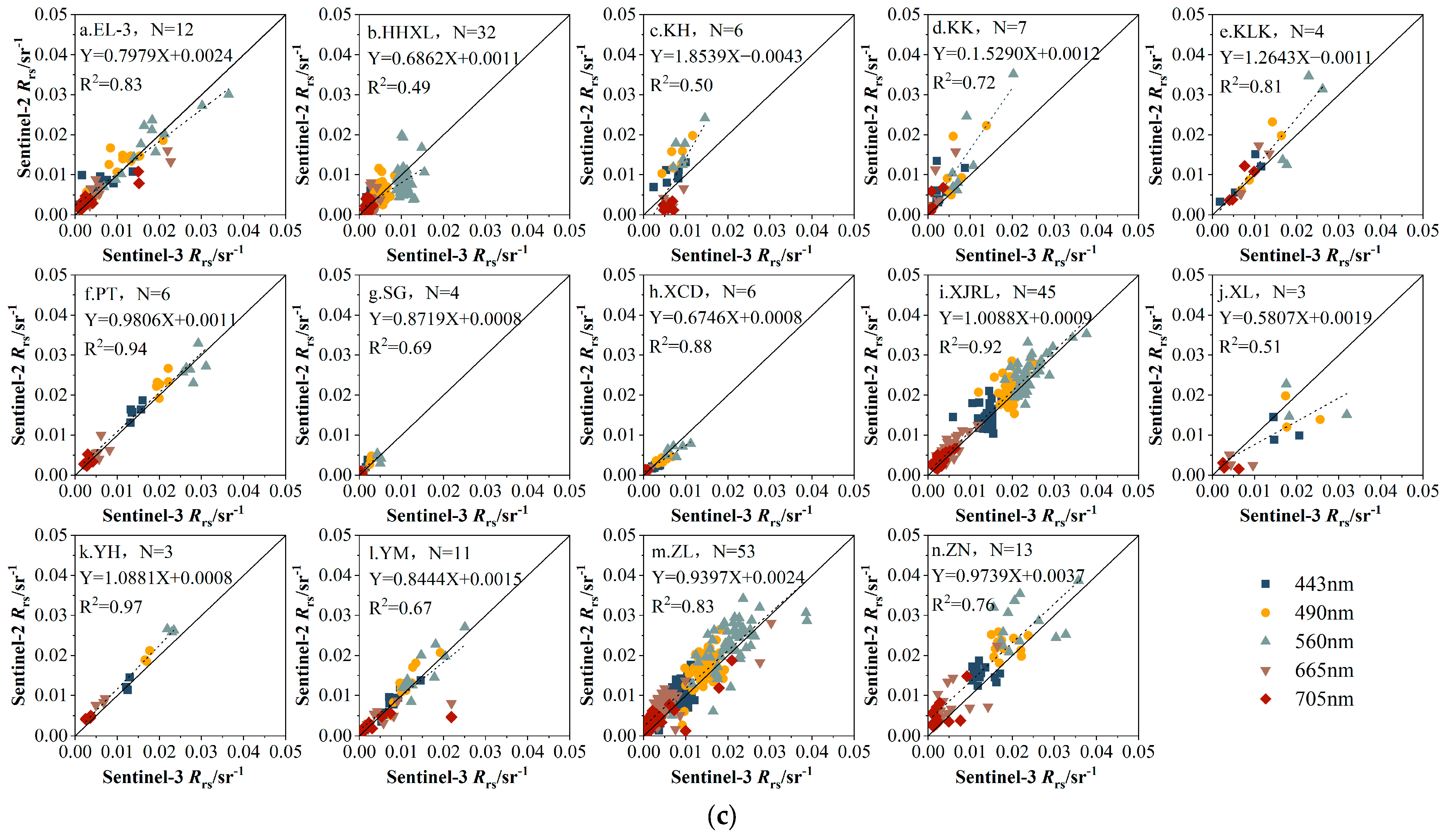

Although the estimated R_rs results of the C2XC processor also exhibited a good accuracy for class III lakes, they were slightly inferior to those of class II lakes. The slopes of Kuhai (KH), Kekao Lake (KK), Keluke Lake (KLK), and Yonghong Lake (YH) were all greater than 1, and the estimated R_rs values of these four lakes were overestimated to some extent after correction by the processor. However, the slopes of Eling Lake-3 (EL-3), Hoh Xil Lake (HHXL), Xiaochaidan Lake (XCD), and Xuelian Lake (XL) were less than 0.8, and the R_rs values of these four lakes were underestimated (Figure 11c).

4.2. Applicability Analysis of Different Atmospheric Correction Processors

For S2-MSI, the POLYMER processor accurately estimated the R_rs values of turbid water bodies (such as Dabusun Lake) and clean water bodies (Qinghai Lake and Longyangxia Reservoir). This may be because, during atmospheric correction, two key parameters, the chlorophyll concentration and the backscattering coefficient of non-covariant particles, were introduced into the bio-optical water reflectance model. The introduction of the backscattering coefficient of noncovariant particles makes this model more suitable for case 2 (water). Based on neural network models, the C2RCC and C2XC processors exhibited better estimation effects for clean water bodies (Qinghai Lake and Longyangxia Reservoir). This is due to the fact that the inversion algorithm of ‘secondary water body regional offshore water colour’ based on bio-optical models has collected a database of five million cases, but most of these sample sets come from typical sea areas and ocean waters around the globe, making them more suitable for clean water bodies. The Sen2Cor processor based on the ‘black pixel’ hypothesis can acquire AOT values based on image retrieval considering that the reflectance of inland water bodies in the NIR band is no longer zero and shows a better performance for turbid water bodies.

The atmospheric correction processor exhibits differences depending on the type of lake. For turbid water bodies, the Sen2cor processor performed better. Scholars have reached similar conclusions in the study of the Poyang Lake in China [50]. For clean water bodies, the POLYMER processor is better such as the Baltic Sea region [3]. For reservoirs with cleaner water bodies, we recommend using a C2XC processor.

5. Conclusions

Through a comparative analysis of the in situ data, we comprehensively assessed the estimation effect of seven common atmospheric correction processors on S2-MSI images. Our results revealed significant performance differences for different types of water bodies. The following conclusions were drawn.

(1)

The Sen2Cor, POLYMER, and ACOLITE processors exhibited a good performance for Dabusun Lake. For Qinghai Lake, the POLYMER, C2XC, and C2RCC processors exhibited a better performance, whereas for the Longyangxia Reservoir, C2XC, ACOLITE, C2RCC, and POLYMER exhibited a good performance.

(2)

The Sen2Cor processor performed best for turbid waters, such as the Dabusun Lake, and its performance was poor for clean water. Both the C2XC and C2RCC processors displayed a good performance for clean water bodies, such as the Qinghai Lake and Longyangxia Reservoir, but they were not suitable for turbid waters. The POLYMER processor demonstrated good accuracy for all lake types.

(3)

Based on the S3 OLCI image remote sensing reflectance waveform features, R_rs (665 nm) > 0.01 sr⁻¹ are classified as class I lakes (Dabusun Lake is a typical representative), R_rs (665 nm) ≤ 0.01 sr⁻¹ and R_rs (510 nm/560 nm) > 0.8 are classified as class II lakes (Qinghai Lake is a typical representative), and R_rs (665 nm) ≤ 0.01 sr⁻¹ and R_rs (510 nm/560 nm) ≤ 0.8 are classified as class III lakes (Longyangxia Reservoir is a typical representative).

(4)

Compared with the R_rs values of the S3 OLCI images, the R_rs values estimated by the POLYMER processor for class II lakes showed a high consistency. The Sen2Cor processor overestimated the results for class I lakes. The C2XC processor slightly underestimated or overestimated the results for class III lakes.
