Predicting China’s Maize Yield Using Multi-Source Datasets and Machine Learning Algorithms

Abstract

A timely and accurately predicted grain yield can ensure regional and global food security. The scientific community is gradually advancing the prediction of regional-scale maize yield. However, the combination of various datasets while predicting the regional-scale maize yield using simple and accurate methods is still relatively rare. Here, we have used multi-source datasets (climate dataset, satellite dataset, and soil dataset), lasso algorithm, and machine learning methods (random forest, support vector, extreme gradient boosting, BP neural network, long short-term memory network, and K-nearest neighbor regression) to predict China’s county-level maize yield. The use of multi-sourced datasets advanced the predicting accuracy of maize yield significantly compared to the single-sourced dataset. We found that the machine learning methods were superior to the lasso algorithm, while random forest, extreme gradient boosting, and support vector machine represented the most preferable methods for maize yield prediction in China (R² ≥ 0.75, RMSE = 824–875 kg/ha, MAE = 626–651 kg/ha). The climate dataset contributed more to the prediction of maize yield, while the satellite dataset contributed to tracking the maize growth process. However, the methods’ accuracies and the dominant variables affecting maize growth varied with agricultural regions across different geographic locations. Our research serves as an important effort to examine the feasibility of multi-source datasets and machine learning techniques for regional-scale maize yield prediction. In addition, the methodology we have proposed here provides guidance for reliable yield prediction of different crops.

1. Introduction

Among major crops planted around the world, maize is an important staple food for more than 4.5 billion members of the global population [1,2]. Thus, maize plays a critical role in global food security. Currently, the population is growing at a rate of approximately 1.1% per year, with projections indicating a potential population of 9.7 billion by 2050 [3]. Such a situation will have significant implications for the relationship between grain supply and demand. Based on the food consumption in 2010, 70% more food production is needed in 2050 [4,5]. As climate change intensifies, the demand for increased food production becomes more critical [6]. A decline in maize yield poses a substantial threat in the form of global food shortages [7,8], directly impacting the achievement of the UN sustainable development goals, especially the goal of “Zero hunger” by 2030 [9]. Hence, precise crop yield prediction is urgently needed to overcome the threat.

Recently, several mathematical models, including crop models, traditional regression, and machine learning (ML) methods, have been developed for the prediction of maize yield worldwide [10,11,12]. Although crop process models can accurately predict yields, their reliance on fine-grained soil and climate datasets poses challenges when applying them to regional-scale yield predictions [13,14]. Statistical regression models typically predict crop yields by exploring relationships between climate variables (e.g., temperature, precipitation, solar radiation, etc.) and actual crop yields [15]. However, due to the complex nonlinear relationships among variables, regression results often exhibit low and controversial explanatory power. Moreover, the primary factors influencing crop growth can vary across different geographical locations, seasons, and crop varieties, making it challenging to extrapolate these models to larger regions [16,17]. In contract, however, the ML methods can overcome the limitations posed by complex nonlinear relationships [18,19] inherent in many traditional regression models [20]. For example, recent studies have successfully utilized models based on high-resolution images to predict crop yield within fields at a resolution of 3 m, highlighting the enhanced practicality of machine learning methods [21,22].

Climate variables alone are used as the primary inputs for many crop yield prediction models [23,24,25]. However, only a few studies have considered the combination of multi-source datasets for simulating crop yield comprehensively [26,27]. For instance, plant growth is co-regulated by both abiotic factors and biotic factors [28,29], in which climate variables could be restricted to describing abiotic factors that limits maize growth, rather than detecting biotic factors that reflect maize growth conditions [30,31]. Hence, maize yield predictions solely based on climate variables are insufficient.

The combination of various spectral bands, multiple satellite datasets (e.g., the normalized difference vegetation index (NDVI), the enhanced vegetation index (EVI), the sun/solar-induced chlorophyll fluorescence (SIF), and the leaf area index (LAI)) are recommended for maize yield predictions [32,33]. Other determinants, such as soil information, are also suggested as important indicators for crop yield predictions [34]. Previous studies have successfully utilized various combinations of datasets throughout the entire maize growing season to accurately predict maize yield [35,36]. However, the optimal period for predicting maize yield using different datasets has not yet been determined. Additionally, only a few studies have considered the variations in the relative contributions of the combination of climate and satellite datasets to maize yield prediction across different maize growth stages [20]. This highlights the need for further enhancements in maize yield prediction models by combining the maize growth conditions.

China is the world’s second-largest maize-producing country, accounting for 21% of the global production with less than 9% of the global maize planting areas [37]. However, limited studies on the combination of different datasets and the use of ML algorithms in China’s maize planting regions have reduced the precision of county-level maize yield prediction. A timely and accurately predicted maize yield in China is therefore vital for ensuring both regional and global food security. Here, we have integrated satellite datasets, climate datasets, and soil datasets, to construct a reliable prediction model for maize yield in China. Seven algorithms were analyzed, including the random forest (RF), support vector machine (SVM), extreme gradient boosting (XGB), BP neural network (BPNN), long short-term memory network (LSTM), K-nearest neighbor (KNN), and least absolute shrinkage and selection operator (LASSO) algorithm, respectively. Overall, the main objectivities of this research were as follows: (1) to develop and select optimal models for predicting county-level maize yield in China; (2) to determine the contributions of satellite datasets and climate datasets at different growth stages of maize to the prediction of maize yield; (3) to evaluate the performance of selected maize yield prediction models in China’s four maize regions and identify the dominant factors influencing maize yield prediction.

2. Materials and Methods

2.1. Study Area

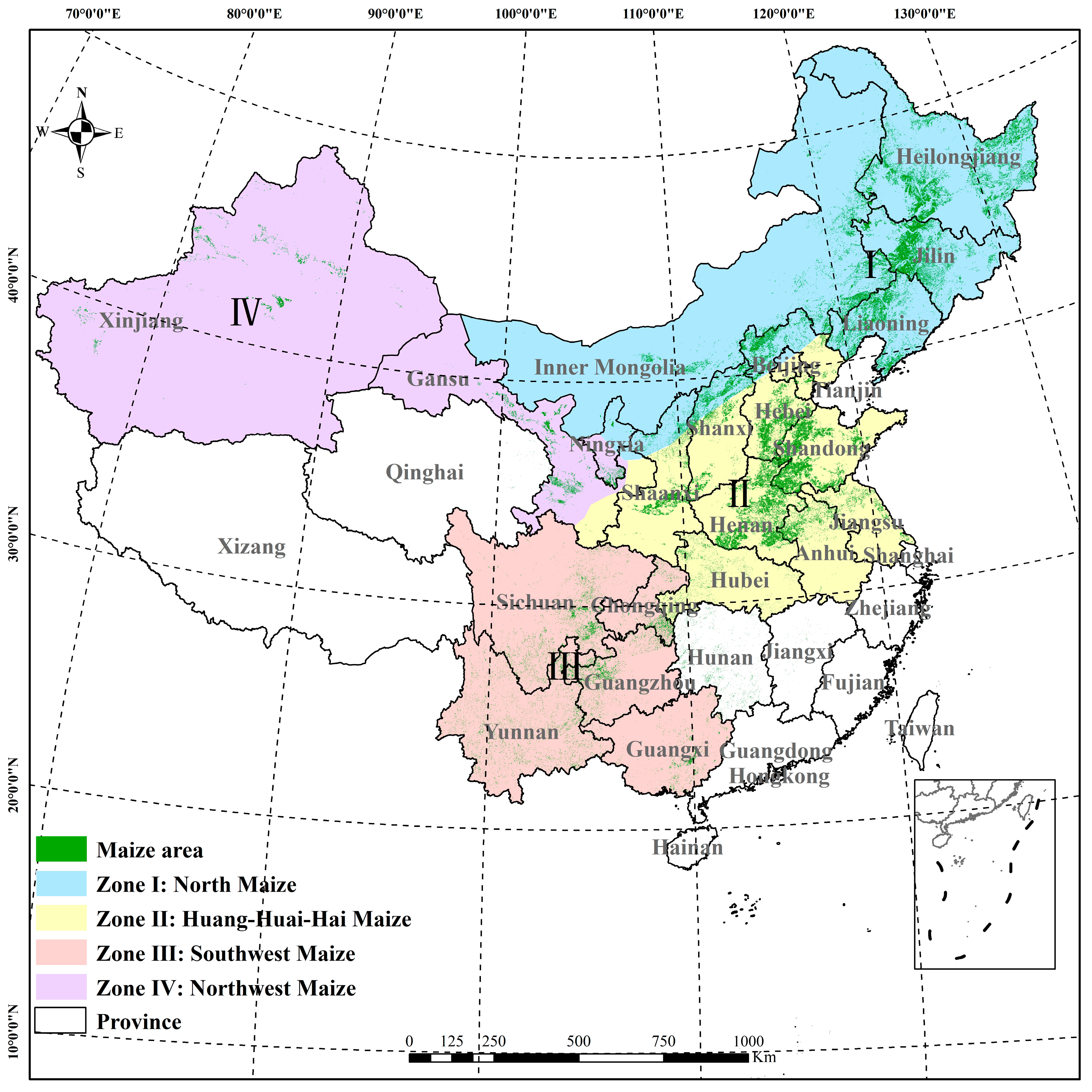

Based on the cultivation characteristics, management practices, and geographical environments, the planting regions of maize in China are divided into four zones: the north maize region (Zone I), the Huang-Huai-Hai summer maize region (Zone II), the southwest maize region (Zone III), and the northwest maize region (Zone IV) [38] (Figure 1). These four zones are predominantly influenced, respectively, by the continental monsoon climate, semi-humid monsoon climate, subtropical monsoon humid climate, and monsoon climate of medium latitudes. The annual mean temperature in all four zones is around 9–25 °C, which is the optimum temperature range for maize growth (9–29 °C) [39].

2.2. Data Sources

We collected multi-source datasets with various spatial and temporal resolutions, including annual maize planting areas, county-level yield, satellite dataset, and climate dataset. An overview of these datasets is included in the Supplementary Materials (Table S1).

2.2.1. Satellite Dataset

We used the enhanced vegetation index (EVI) extracted from the MODIS Terra monthly product from 2000 to 2010, featuring a spatial resolution of 1 km (MOD13A2V061, available from https://doi.org/10.5067/MODIS/MOD13A2.061, accessed on 13 January 2022). The leaf area index (LAI) was extracted from the MODIS Terra monthly product from 2000 to 2010, featuring a spatial resolution of 500 m (MOD15A2V061, available from https://doi.org/10.5067/MODIS/MOD15A2H.061, accessed on 13 January 2022). These products are calculated based on atmospheric BRDF (bidirectional reflectance distribution function) correction for bidirectional surface reflectance. The reflectance values have been masked for the effects of water, clouds, heavy aerosols, and cloud shadows through QA quality control bands. Specifically, the correction algorithm considers the interactions between atmospheric components, solar radiation, and surface reflectance. This helps eliminate atmospheric absorption and scattering effects while considering the BRDF of the Earth’s surface, ensuring that the final reflectance data more accurately reflect the true characteristics of the Earth’s surface. EVI has demonstrated a strong correlation with crop yield, as evidenced by previous studies [40,41,42], and LAI was an important indicator of plant productivity and photosynthetic capacity [43,44].

We used a global, long-term, spatially continuous sun/solar-induced chlorophyll fluorescence (SIF) product from CSIF, covering the period from 2000 to 2010, with a spatial resolution of 0.05 degree (https://doi.org/10.6084/m9.figshare.6387494, accessed on 13 January 2022). The CSIF product was generated through discrete Orbiting Carbon Observatory-2 (OCO-2), SIF soundings, and meteorological reanalysis data based on a data-driven method. Specifically, these data were generated by training a neural network (NN) using surface reflectance from the MODIS and SIF from the OCO-2. SIF has been developed and increasingly applied to crop yield predictions in recent years, as it can directly reflect the dynamic changes in actual plant photosynthesis and responds to crop stress [45,46].

2.2.2. Climate and Soil Dataset

The monthly climate dataset was derived from TerraClimate datasets (http://doi.org/10.7923/G43J3B0R, accessed on 13 January 2022) from 2000–2010, and it was commonly used for regional maize yield prediction with a high spatial resolution (1/24°, ~4 km) [47,48]. This dataset was created by using climatically aided interpolation, combining high-spatial-resolution data from the WorldClim version 1.4 and version 2 datasets with coarser-resolution time-varying (i.e., monthly) data from CRU Ts4.0 and JRA-55 to produce a monthly dataset. Here, we selected multiple features including monthly maximum temperature (TMAX), monthly minimum temperature (TMIN), monthly total precipitation (PRE), monthly actual evapotranspiration (AET), monthly potential evapotranspiration (PET), monthly downward surface shortwave radiation (SRAD), monthly vapor pressure deficit (VPD), and monthly Palmer drought severity index (PDSI).

The soil moisture (SM) dataset was also derived from TerraClimate datasets (1/24°, ~4 km). In addition, seven features describing the physical and the chemical properties of the soil from the Harmonized World Soil Database (HSWD) were selected [49]. These features are subsoil gravel content (GRAVEL), sand fraction (SAND), subsoil silt fraction (SILT), subsoil clay fraction (CLAY), subsoil reference bulk density (BULK), subsoil organic carbon (OC), and subsoil pH (pH). This dataset spans from 2000 to 2010, and its spatial resolution is 1 km.

2.2.3. Maize Yield

The county-level maize yield dataset (kg/ha) from 2000–2010 was obtained from the Agricultural Statistical Yearbook, compiled by the Ministry of Agriculture of China (http://www.stats.gov.cn, accessed on 19 March 2022). The maize planting area data are from a 1 km grid crop phenological dataset for three main crops from 2000–2010, with errors of the retrieved phenological date being less than 10 d [40]. Overall, we selected a total of 1021 counties for further analysis, choosing those counties that had maize yield data for over 8 years after removing outliers and that had more than 10 planting grids.

2.2.4. Data Preprocessing

First, we cleaned the data by removing counties where no yield was reported. To address missing data, we directly removed rows containing missing values. Given our focus on county-level maize yield in China, we resampled the climate, soil, leaf area index (LAI), and solar-induced fluorescence (SIF) datasets to a 1 km resolution using nearest neighbor interpolation. This ensured spatial alignment across all datasets.

Next, we used the maize planting area data to mask the climate, satellite, and soil datasets. This step eliminated the influence of other crops and vegetation types, further ensuring spatial consistency. For the satellite dataset, we employed maximum value compositing to synthesize the enhanced vegetation index (EVI) and normalized difference vegetation index (NDVI) monthly. This allowed us to temporally align the satellite dataset with the climate dataset. Considering the typical growing season of maize in China, which is generally sown in April and harvested in October [40,50], we selected satellite and climate data for the six-month period from April to September. The soil dataset, which only has one value per year, was treated as a static variable in our analysis. On the other hand, the satellite and climate datasets, which vary over time, were treated as dynamic variables.

Finally, we aggregated all datasets to the county level by calculating mean values and matched them with county-level maize yield. This comprehensive preprocessing approach ensured that our analysis was based on accurate and spatially/temporally aligned data. A total of 79 variables were considered across all datasets, as detailed in Table S2.

2.3. Methods for Predicting Maize Yield

This study primarily utilized six machine learning methods and a linear regression method for model construction, and the parameters of the machine learning models are shown in

Table 1. Machine learning model parameters.

Models	Parameters
RF	n_estimators, max_depth, max_features, min_samples_leaf, min_samples_split
SVM	C, kernel, gamma, epsilon
XGB	n_estimators, max_depth, eta, gamma, min_child_weight, subsample
BPNN	learning rate, epochs, batch size, activation function, regularization parameters, optimizer, hidden layers
LSTM	learning rate, epochs, batch size, activation function, regularization parameters, optimizer, hidden layers
KNN	n_neighbors, weights, algorithm

.

2.3.1. Random Forest

Random forest (RF) is an ensemble learning algorithm that performs regressions or classifications by combining a large number of decision trees [51]. The algorithm introduces additional randomness when growing trees and searches for the best trees in a subset of random features. This situation leads to greater tree diversity and usually produces an overall better model [52]. RF is a reasonable method for variable selection, as it could quantify the relative importance of measured variables [53] and efficiently handle high-dimensional datasets [54]. Here, we employed the “GridSearchCV” to tune five hyperparameters: “n_estimators = 355”, “max_depth = 20”, “max_features = 20”, “min_samples_leaf = 1”, and “min_samples_split = 2”.

2.3.2. Support Vector Machine

Support vector machine (SVM) is a supervised non-parametric algorithm, and it is based on the usage of kernels and action on the margins [55]. The input is mapped to a high-dimensional feature space using a kernel function, and then a linear regression model is constructed in the new feature space to balance between minimizing errors and overfitting [56]. In this study, we sequentially tuned the following four hyperparameters as follows: “GridSearchCV”: “C = 0.1”, “kernel = rbf”, “gamma = 0.01”, “epsilon = 0.1”.

2.3.3. Extreme Gradient Boosting

Extreme gradient boosting (XGB) is an optimized distributed gradient-boosting library designed for efficiency, flexibility, and portability [57]. The algorithm fits the first learner to the entire input and fits the second learner to the residuals of the first learner. The algorithm also simplifies the objective function by allowing regularization terms to prevent overfitting and is very useful for large data and high-dimensional data. By comparing different kernels, we can find the optimized kernel that reflects whether the relationship between the climate dataset and maize yield are linear or non-linear. Here, we tuned the six hyperparameters as follows: “n_estimators = 261”, “max_depth = 10”, “eta = 0.05”, “gamma = 0”, “min_child_weight = 1”, “subsample = 0.8”.

2.3.4. Back Propagation Neural Network

Neural networks consist of different elements that are highly interconnected. A back propagation neural network (BPNN) is a multi-layer feed-forward network trained by an error back-propagation algorithm; it belongs to one of the most widely used artificial neural networks [58]. Its learning rule is to use the gradient descent method to continuously adjust the weights and thresholds of the network by back-propagation to minimize the sum of squared errors of the network [59]. The topology of the BPNN model includes input layers, hidden layers, and output layers. A BPNN usually has the ability to detect complex relationships between variables [60] and is suitable to the complex nonlinear problem between maize yield and variables in this study. In this study, the climate dataset, satellite dataset, and soil dataset were processed into three hidden layers, each consisting of 150 neurons and employing a “ReLU” activation function. RMSprop was used to select the optimal learning rate, and L2 regularization was applied to adjust the model’s complexity and fitting capacity.

2.3.5. Long Short-Term Memory Neural Network

A long short-term memory neural network (LSTM) is a special kind of recurrent neural network (RNN) [61]. LSTM was used to deal with the inherent problem of RNN: with the prolongation of training time and the increase of network layers, the original RNN is prone to gradient explosion or gradient disappearance during training, resulting in the inability to process longer sequences of data and thus to obtain information about long-range data [62]. In this study, the optimal parameter search was conducted with respect to the activation function, hidden size, learning rate, and batch size. As a result, the activation function, hidden size, epochs, learning rate, and batch size were determined as hard sigmoid function, 150, 0.01, and 84, respectively.

2.3.6. K-Nearest Neighbor Regression

The K-nearest neighbor (KNN) is a theoretically mature method and one of the simplest machine learning algorithms [63]. The idea of the method is very simple and intuitive: if most of the K most similar (i.e., most neighboring) samples in the feature space belong to a certain category, then the sample also belongs to that category. KNN can tolerate noise and unrelated properties, but it has higher complexity and is also more time-consuming compared to other methods. For KNN in this study, key parameters to tune included “n_neighbors = 10”, “weights = distance”, and “algorithm = auto”.

2.3.7. Least Absolute Shrinkage and Selection Operator

The least absolute shrinkage and selection operator (LASSO) was first proposed by Robert Tibshirani in 1996 [64]. It is a regularization technique based on linear models, used to address regression problems with multiple features. It compresses some coefficients by constructing a penalty function, and sets some coefficients to zero to get a more refined model [65].

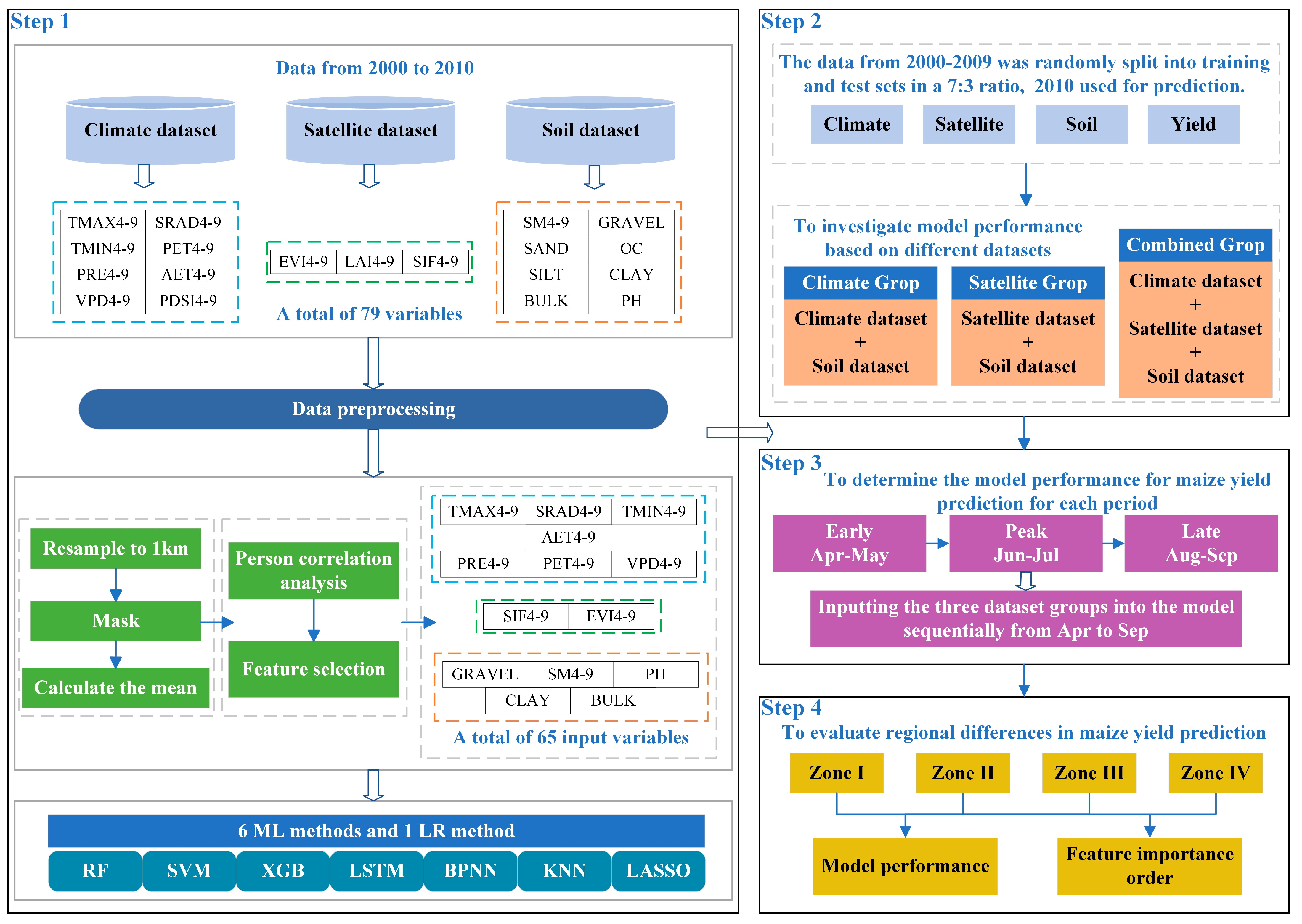

2.4. Experiment Design

To reduce the complexity of the model and enhance its stability, we conducted initial feature selection using Pearson correlation analysis. Then, we removed features within the same category that exhibited high correlation and had low or insignificant correlation with maize yield. Subsequently, through multiple comparative experiments, we assessed the model’s performance before and after removal to ensure that eliminating features did not adversely impact model performance. We conducted three groups of comparative experiments to achieve the objectives mentioned in the introduction: (1) To investigate model performance based on different datasets, all variables were categorized into three groups and input into seven models: the climate group (climate dataset and soil dataset), the satellite group (satellite dataset and soil dataset), and the combined group (satellite dataset, climate dataset, and soil dataset). (2) To determine the model performance for maize yield prediction for each period, variables were categorized into three stages: early—April to May (from planting to V3 (maize vegetative stages of third leaf, the first critical growth stage of maize); peak—June to July (from V3 to silking), and late—August to September (from silking to maturity), respectively. (3) To evaluate regional differences in maize yield prediction, we applied prediction models to each region, determining the order of feature importance and assessing model performance. Then, we input the three dataset groups from April to September into the model sequentially to evaluate how different categories of datasets contribute to variations in maize yield prediction across different growth stages. The flowchart of this study is shown in Figure 2.

Here, six ML methods (RF, SVM, XGB, BPNN, LSTM, KNN) and one linear regression method (LASSO) were applied to predict the maize yield, as detailed in Section 2.3.1. To eliminate the scale and unit effects of different variables and enhance the efficiency and accuracy of data analysis, the datasets were standardized using the min-max normalization method before fitting the model:

$$X_{nomal}=\frac{X-X_{min}}{X_{max}-X_{min}}$$

(1)

where $X_{max}$ is the maximum value of the dataset, and $X_{min}$ is the minimum value of the dataset.

All models were implemented using the “sklearn” package in Python 3.7. We randomly split the dataset from 2000 to 2009 into training and test sets with a 7:3 ratio using the “train_test_split”. The dataset from 2010 was reserved for prediction purposes. Cross-validation (CV) is a widely used strategy for algorithm selections [66]. We used ten-fold cross-validation to test the performance of the above-mentioned methods.

2.5. Model Results Evaluations

The coefficient of determination (R²), the root-mean-square error (RMSE), and the mean absolute error (MAE) were used to evaluate model performance. They can be calculated as follows:

$$R^2=\frac{{\left({{\displaystyle \sum }}_{i=1}^n\left(y_i-{\overline{y}}_i\right)\left(f_i-{\overline{f}}_i\right)\right)}^2}{{{\displaystyle \sum }}_{i=1}^n{\left(y_i-{\overline{y}}_i\right)}^2{{\displaystyle \sum }}_{i=1}^n{\left(f_i-{\overline{f}}_i\right)}^2}$$

(2)

$$RMSE=\sqrt{\frac{1}{n}{\displaystyle \sum }_{i=1}^n{\left(y_i-f_i\right)}^2}$$

(3)

$$MAE=\frac{1}{n}{\displaystyle \sum }_{i=1}^n\left|y_i-f_i\right|$$

(4)

where $n$ ($i$= 1, 2, …, $n$) is the number of samples input in the machine learning models, $y_i$ is the recorded maize yield, ${\overline{y}}_i$ is the corresponding mean value, $f_i$ is the predicted maize yield, and ${\overline{f}}_i$ is the corresponding mean value. The closer R² is to 1, the higher the prediction performance of the model is. Small RMSE and MAE values indicate less discrepancy between the recorded yield and predicted yield.

We used percentage error to measure the accuracy error of the model in different agricultural regions. The percentage error is calculated by (predicted yield—recorded yield)/recorded yield × 100.

3. Results

3.1. Selections of the Key Features for Maize Yield Predictions

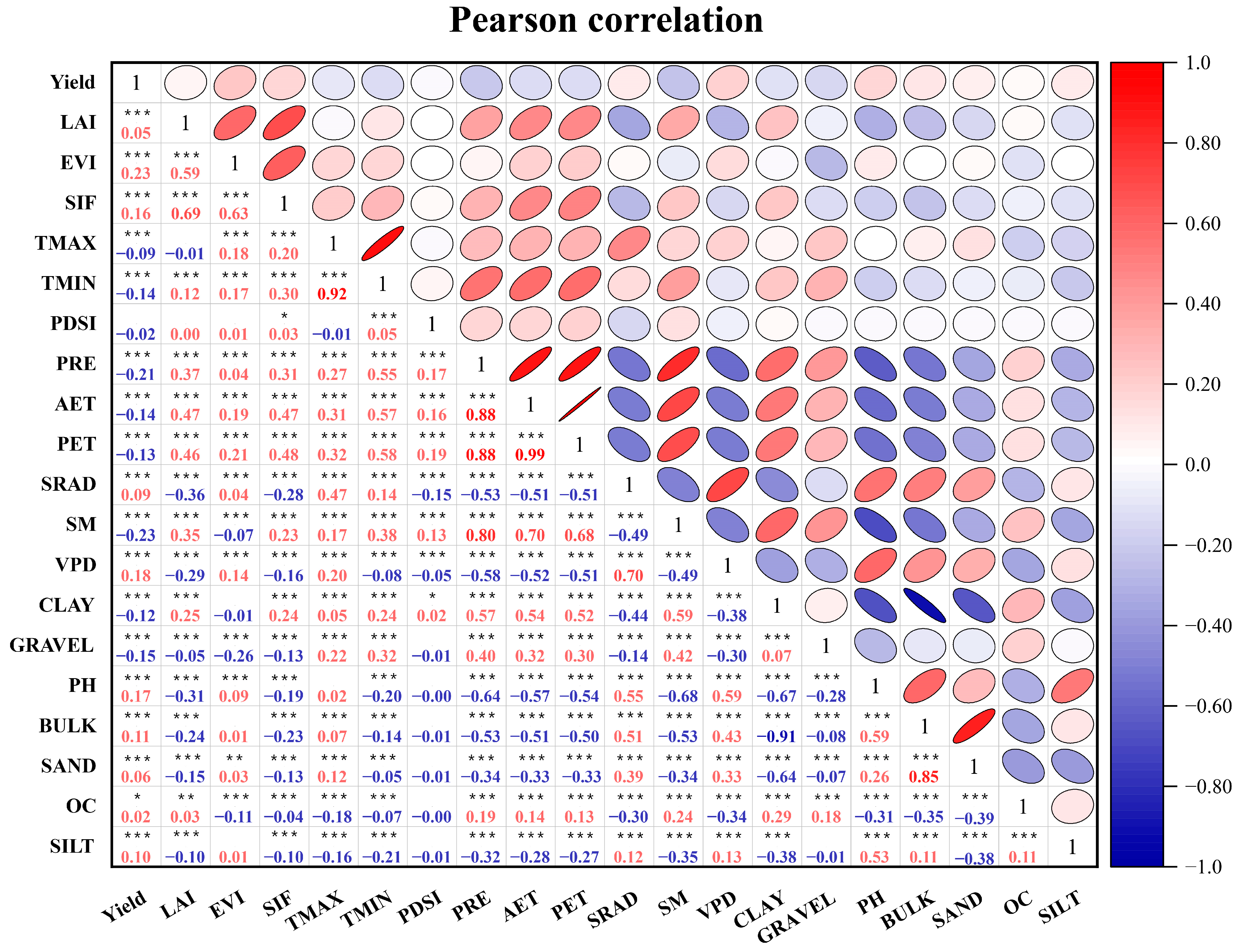

As shown in Figure 3, EVI (R = 0.23, p < 0.001) and SIF (R = 0.16, p < 0.001) were found to be highly correlated with maize yield. There were no significant correlations between PDSI and maize yield. All water-related features (SM, PRE, VPD, PET, and AET) showed higher correlations with maize yield than those of temperature-related features (TMIN and TMAX). Moreover, soil-property-related features (CLAY, GRAVEL, PH, BULK, and SLIT) showed slightly stronger correlations with maize yield than that of SAND. Eventually, 15 features significantly correlated with maize yield (p < 0.001) were selected for further model simulations. They were, separately, EVI, SM, PRE, VPD, PH, SIF, GRAVEL, TMIN, AET, PET, CLAY, BULK, SILT, TMAX, and SRAD, by the sequence of correlation coefficient from high to low. There were six months of data for each feature in the satellite dataset and climate dataset, resulting in a total of 65 input variables (

Table 2. Input variables for models.

Variables	Variable Descriptions
Climate variables (total of 42)
TMAX4-TMAX9	Monthly maximum temperature for each month from Apr to Sep (°C)
TMIN4-TMIN9	Monthly minimum temperature for each month from Apr to Sep (°C)
PRE4-PRE9	Monthly total precipitation for each month from Apr to Sep (mm)
SRAD4-SRAD9	Monthly solar radiation for each month from Apr to Sep (MJ/m2)
PET4-PET9	Monthly potential evapotranspiration for each month from Apr to Sep (mm)
AET4-AET9	Monthly actual evapotranspiration for each month from Apr to Sep (mm)
VPD4-VPD9	Monthly vapor pressure deficit for each month from Apr to Sep (h PA)
Satellite variables (total of 12)
EVI4-EVI9	Monthly enhanced vegetation index for each month from Apr to Sep
SIF4-SIF9	Monthly solar-induced chlorophyll fluorescence for each month from Apr to Sep
Soil variables (total of 11)
SM4-9	Monthly soil moisture for each month from Apr to Sep (mm)
GRAVEL	Gravel content (%)
SILT	Silt fraction (%)
CLAY	Clay fraction (%)
BULK	Bulk density (g/cm3)
PH	pH

).

3.2. Multi-Model Performances in Estimating China’s Maize Yield

3.2.1. The Performance of Predicted Maize Yield Models

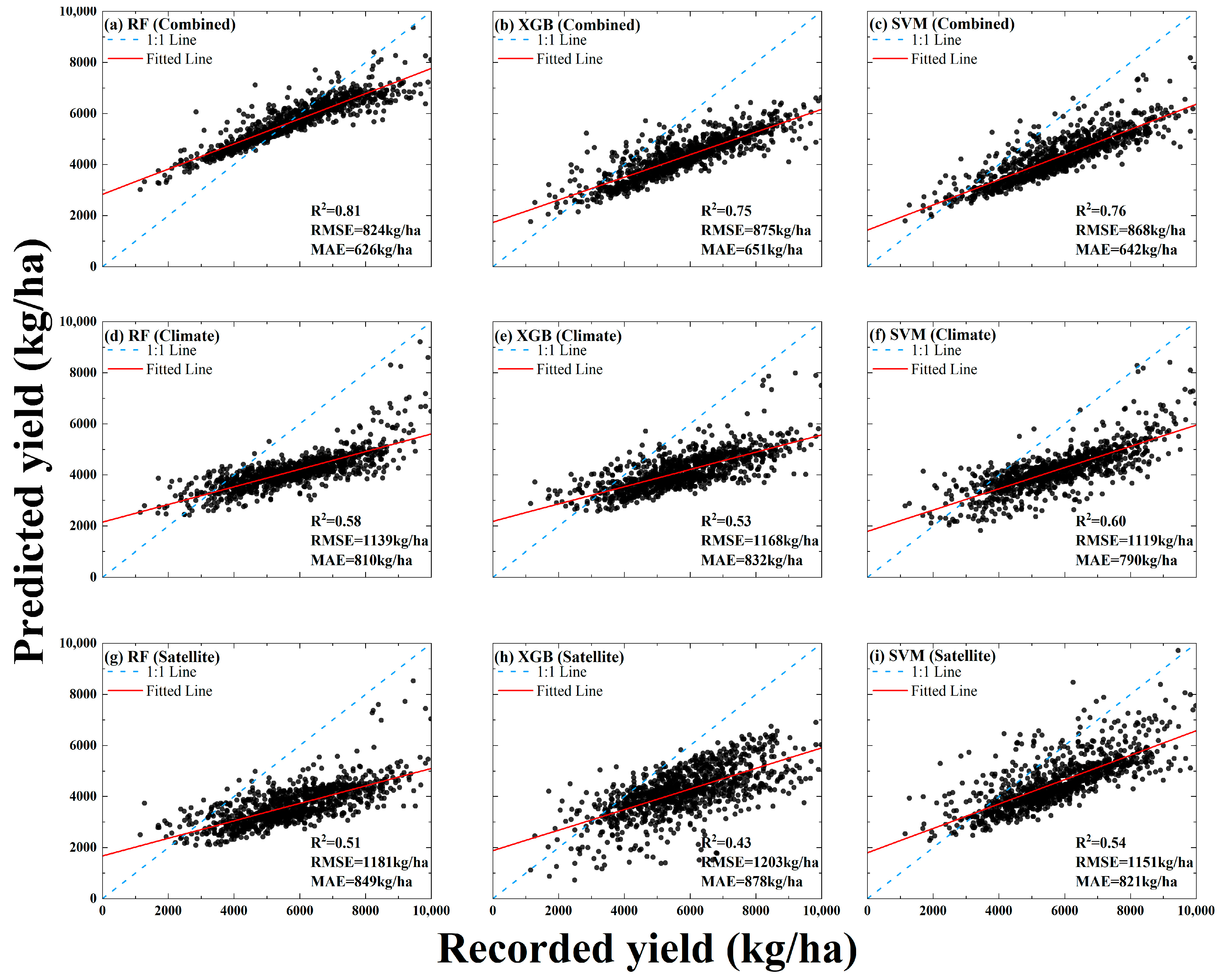

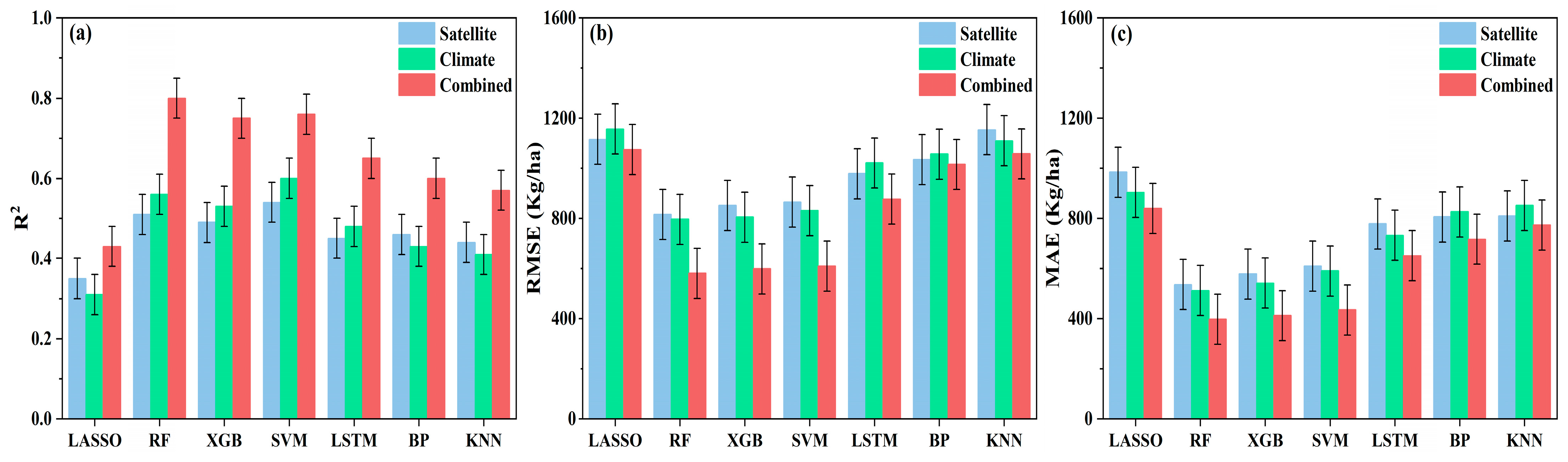

We extracted the maize yield datasets from 1021 counties from 2000 to 2009 to train the model. After several trials, we found the optimal model performance when 70% of data samples were randomly chosen as the training set and the remaining 30% were used as the test set. Results (Figure 4) showed that three methods, RF, SVM, and XGB, stood out in terms of model performance in estimating China’s maize yields during the period 2000–2009, with R² from 0.75 to 0.80, RMSE < 610 kg/ha, and MAE < 435 kg/ha. In terms of the three variable groups, the prediction performance of the combined group was constantly higher than that of the satellite group and climate group (Figure 4a–c). Finally, the three top-performing machine learning methods (i.e., RF, SVM, and XGB) were applied to predict county-level maize yield in China, leading to the following analysis. Descriptive statistics of the performance of the seven models are included in the Supplementary Materials (Table S3).

3.2.2. Comparison of Models in Predicting China’s Maize Yield in 2010

We further used China’s maize yield in 2010 as an independent dataset to verify the models’ performance with RF, SVM, and XGB. When a single dataset group (satellite group or climate group) was fed into these models, R² results were lower than 0.6, and RMSE was greater than 1100 kg/ha (Figure 5d–i). The performance of the models trained with the climate group datasets (R² = 0.53–0.6, RMSE = 1119–1168 kg/ha, and MAE = 790–832 kg/ha) was better than that of the models that trained with the satellite group datasets (R² = 0.43–0.54, RMSE = 1151–1203 kg/ha, and MAE = 821–878 kg/ha; Figure 5d–i). The performance of models trained by the combined dataset group (R² = 0.75–0.81, RMSE = 824–875 kg/ha, and MAE = 626–651 kg/ha) was much higher compared with the models trained by either of the individual dataset groups (i.e., climate or satellite group; Figure 5a–c). Overall, three machine learning models (RF, XGB, and SVM models) trained by the combined dataset group can better predict China’s maize yield in 2010. The performance ranking in terms of prediction accuracy was: RF > SVM > XGB.

3.2.3. Comparisons of Maize Yield Prediction at Different Growing Stages

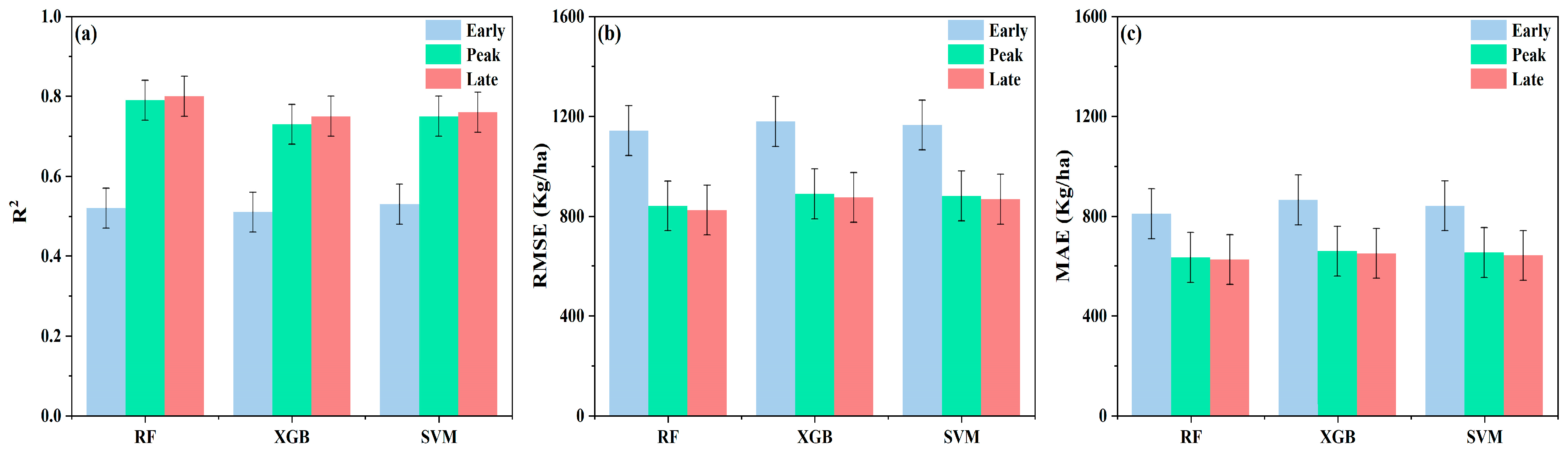

To find out whether the performance of maize yield models was related to maize growth stages or not, we used all stage data from 2000 to 2009 to train the model to predict the maize yield in 2010 separately. We divided the maize growing season into three phases, as indicated in Figure 6 (the early stage: April to May; the peak stage: June to July; and the late stage: August to September). For all three models (RF, XGB, or SVM), the highest model accuracies were discovered during the peak stage (R² = 0.65, RMSE = 941 kg/ha, MAE = 686 kg/ha); it was much higher than the early-stage simulation (R² = 0.45, RMSE = 1143 kg/ha, MAE = 810 kg/ha) and slightly higher than the late-stage simulation (R² = 0.56, RMSE = 1024 kg/ha, MAE = 752 kg/ha). Thus, the satellite and climate datasets at the peak stage were essential for predicting maize yields.

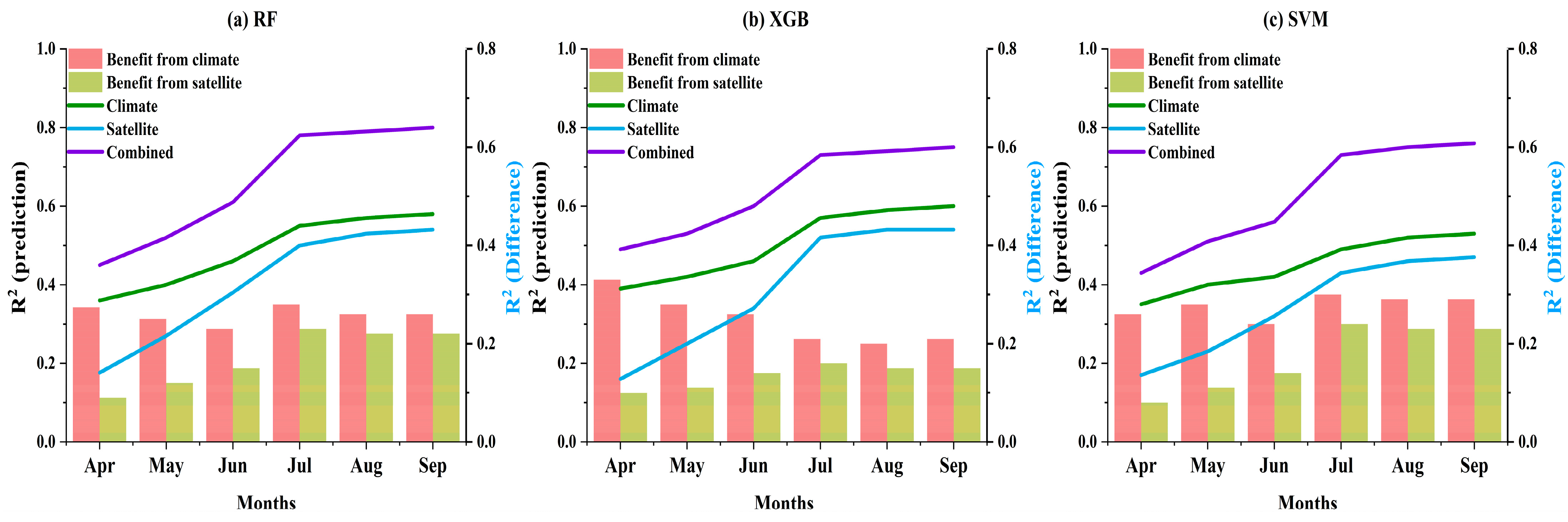

Figure 7 reveals the contributions of the climate dataset and satellite dataset from different growing stages to maize yield prediction. Figure 7a–c indicates that the R² of all three models consistently increased from April to September. For both the combined- and single-dataset groups, the model performance increased with the progression of time and reached the highest in September. From April to September, the models combined with the dataset group were quantified as the best models in predicting China’s maize yield. Across the three models, the predictions of models based on the climate dataset group generally outperformed those of the satellite dataset group. While the predictiveness of these models continuously increased from April to September, the predictive accuracy of the satellite dataset group increased much more than that of the climate dataset group. The three models showed that the contribution of the satellite dataset (bottom panels in Figure 7) increases from the early to the peak stages (from April to July), and then stagnates. In contrast, there was an overall decreasing trend in the contribution of the climate datasets, and the gaps between the contribution of the climate dataset and satellite dataset gradually decrease. This means that as the growing season progresses, the influence of climate information could be gradually compensated by satellite information, and that the satellite dataset could closely track the growth of the maize.

3.3. Regional Differences in Predicting Maize Yield in China

3.3.1. Spatial Patterns of Predicted Maize Yield in China

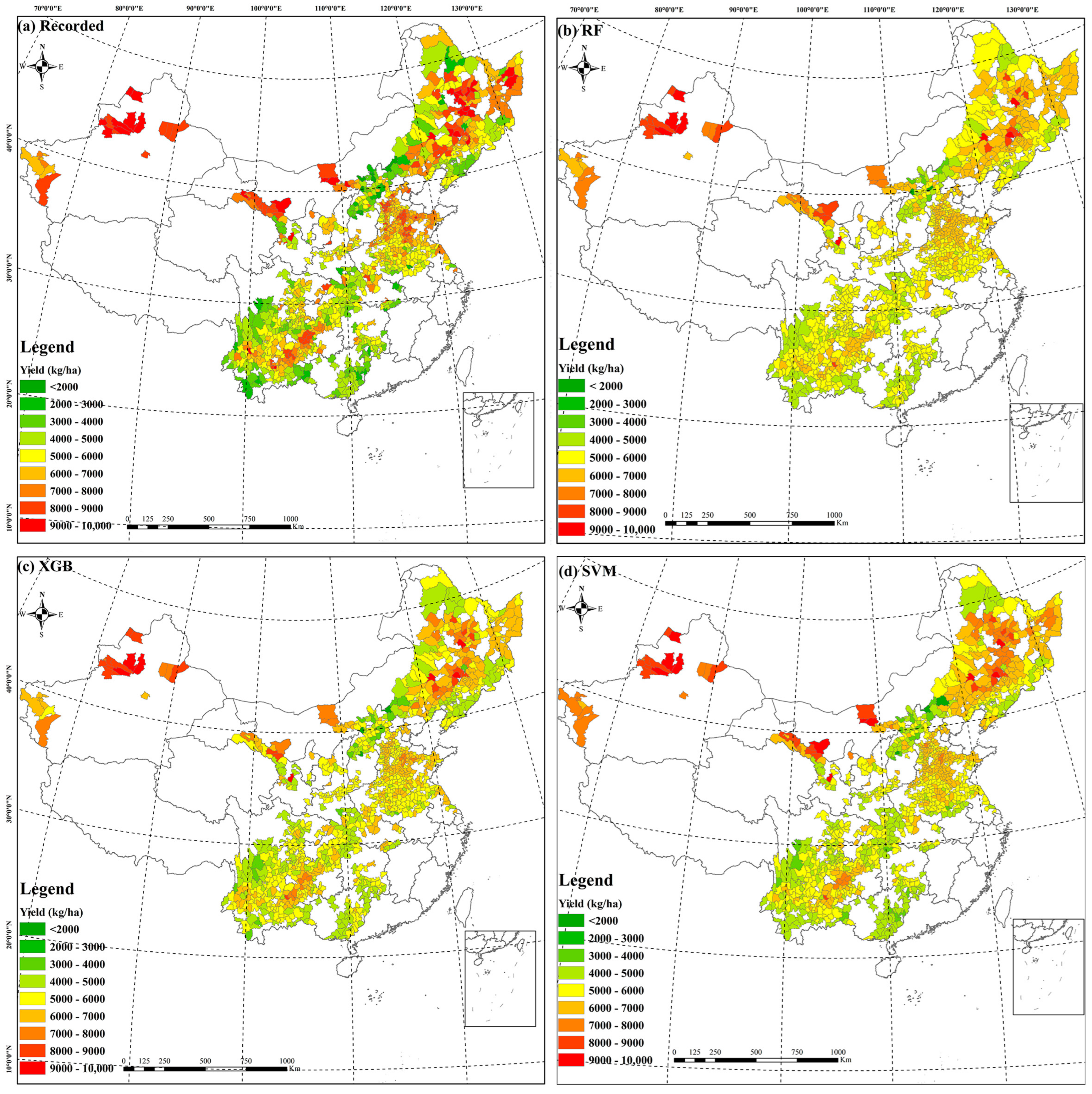

The high-maize-yield counties in China were mainly observed in the Huang-Huai-Hai maize planting area and in northeastern and northwestern China (Figure 8a). Counties with relatively low maize yield were concentrated in the farming–grazing ecotone of northern China and the mountainous areas of southwestern China (Figure 8a). The predicted maize yield showed a similar spatial pattern as the recorded maize yield (Figure 8b–d). This finding indicated that the three models (RF, XGB, and SVM) were suitable for county-level maize yield predictions in China. Nonetheless, the difference between predictions and observations suggested that maize yields were underestimated in high-yielding counties and overestimated in low-yielding counties (Figure 8a–d).

3.3.2. Model Comparisons in Different Agricultural Zones

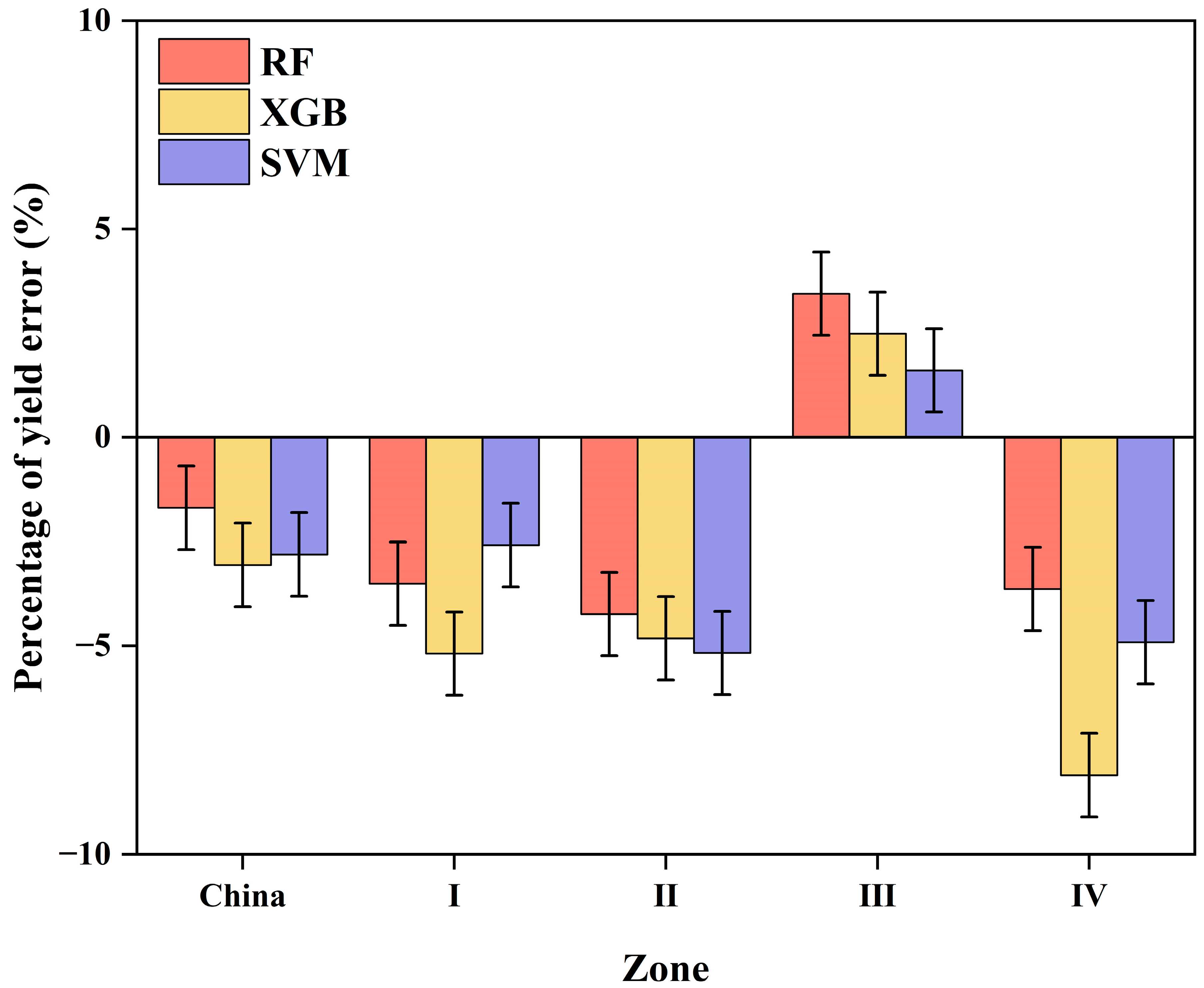

Across the four agricultural zones, the ranking of the prediction accuracy was RF > SVM > XGB (Figure 6). RF was the best in simulating China’s maize yield, with a relatively lower simulating error of −1.69% (Figure 9). The prediction accuracies of the machine learning methods varied by the maize planting zones. SVM was the optimal model in Zones I and III, with percentage errors of −2.58% and 1.60%, while RF performed best in Zones II and IV, with percentage errors of −4.23%, −3.63%. All three models overestimated maize yield in Zone III, which featured a relatively lower maize yield (Figure 6).

3.3.3. The Relative Importance of Individual Variables in Maize Yield Prediction

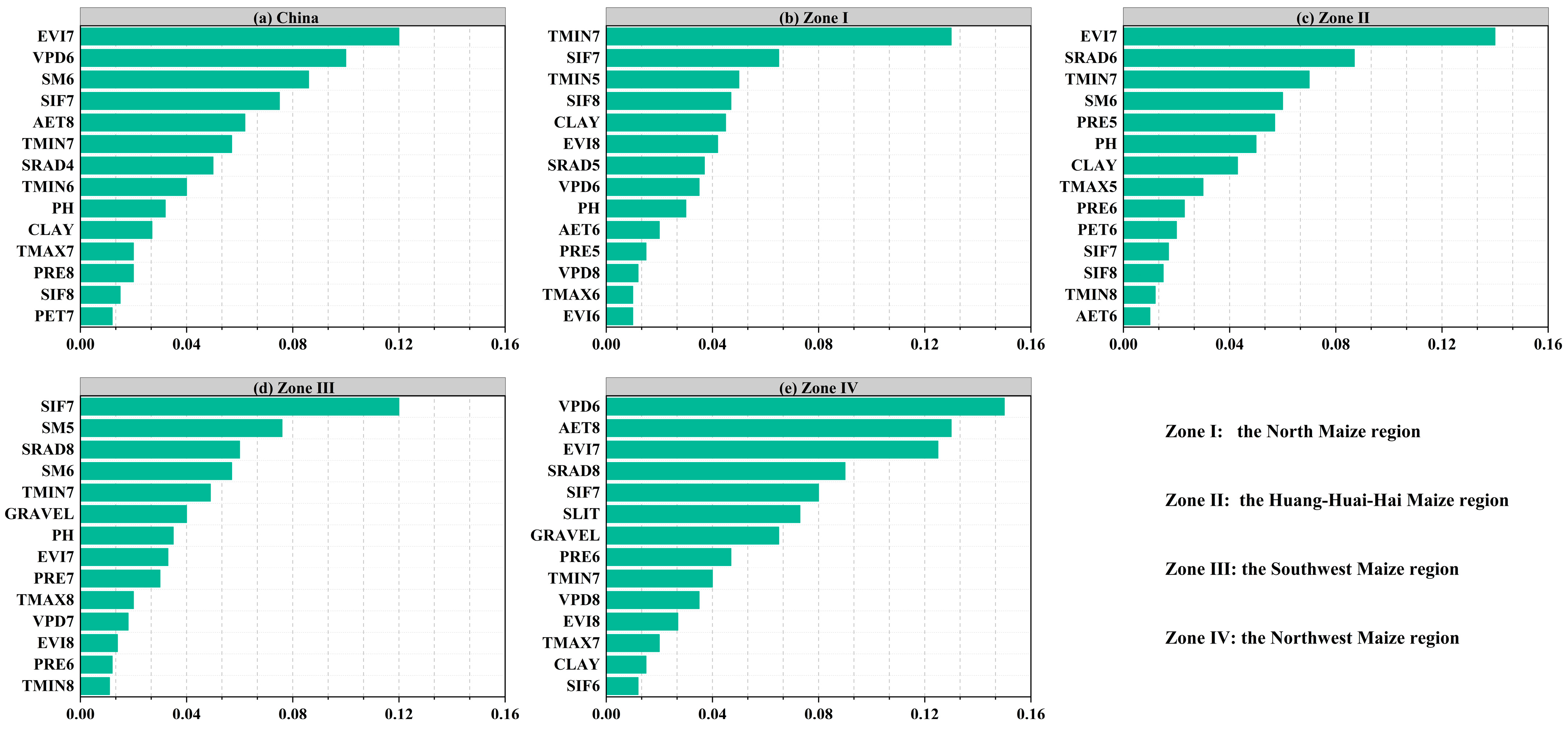

Given the good performance, we used RF to identify the important influencing variables in the four maize planting zones and their relative importance among the top 14 variables (Figure 10). As for China and its four maize planting zones, some satellite variables (EVI7, SIF7) in July were consistently important in influencing maize yield forecasting accuracy (Figure 10a–e), and it was consistent with previous conclusions that satellite variables contribute the most to maize yield prediction at the peak stage. Although EVI7 was the most important variable throughout the study area, the order of variable importance varies across regions, as shown in Figure 10a. In Zone I, the temperature-related variable (TMIN7) was identified as the most important variable in maize yield prediction (Figure 10b). Satellite variables were relatively more important than climate variables in Zone II and Zone III (Figure 10c–d). In Zone IV, the water-related variable (VPD6) was the most important influencing variable (Figure 10e). In addition, soil variables (PH, CLAY, SM, GRAVEL, and SLIT) were also important influencing factors in maize yield predictions (Figure 10).

4. Discussion

Based on analysis of the seven methods, the machine learning methods were found to be superior to the LASSO algorithm. This can be primarily attributed to the capacity of machine learning methods to unravel intricate relationships between maize yield and variables [67]. Machine learning methods exhibit significant superiority over traditional linear statistical regression methods, boasting higher computational efficiency and enhanced spatial generalization capabilities. RF, XGB, and SVM showed better advantages in predicting China county maize yield. The sequence of the prediction accuracy was RF > SVM > XGB (Table S3), and RF showed the greatest improvement over linear regression models (R² increased by 0.37, RMSE decreased by 494 kg/ha, and MAE decreased by 441 kg/ha). These improvements highlight the reliability and effectiveness of the RF model for maize yield prediction in China. The data used in this study are highly complex in terms of dimensions (a total of 65 input variables), with intricate nonlinear relationships among the variables. RF, known for its robustness, exhibits adaptability to complex nonlinear relationships and high-dimensional data, enabling it to capture specific patterns or relationships within the data [54]. Traditionally, county-level maize yield estimation was conducted through surveys, which were both time-consuming and costly. Furthermore, traditional methods could only estimate maize yield after harvest, making it impractical for making policy decisions before harvest. In contrast, the machine learning models used in this study accurately predicted county-level maize yield and provided forecasts 1–2 months before harvest. Hence, these models can be widely employed for pre-harvest yield predictions, significantly saving resources, and enabling timely maize yield estimation based on the current year’s climate conditions and environmental factors, thus facilitating policymaking processes.

Many studies suggest that the inclusion of multi-source datasets in yield prediction models usually increases the model accuracy when predicting maize yield. The satellite datasets provide mostly the biotic information related to crop growth [68,69], while the climate datasets contain the abiotic information that also influences the crop yield [70,71,72]. Yet studies have suggested that various factors related to maize yield showed disparate sensitivities to the growing season [73,74]. For instance, the silking stage of maize in China can happen in July or August. During this stage, maize exhibits heightened sensitivity to environmental conditions. Satellite datasets possess the capability to capture the physiological activities of maize, encompassing its growth and photosynthetic intensity. These factors were closely linked to the yield performance of maize during critical growth stages [75]. Drought and high temperatures during critical growth stages, particularly silking, significantly impact maize yield. Soil moisture reduction limits the availability of water for plant growth, while decreased photosynthetic efficiency reduces the production of energy necessary for plant development. Accelerated growth processes due to high temperatures can also alter the accuracy of yield predictions [76]. These factors explain why the random forest model achieves higher accuracy at the peak (silking) stage of maize in our study, as it captures the complex interactions between these critical environmental factors and plant growth.

The satellite dataset at early growth stages of maize, when used independently in the model, was weakly associated with the yield. Between the two, the climate dataset presented higher performance than the satellite dataset at this stage, probably because the early seasonal climatic information should have captured some spatial patterns of the maize yield [20]. For example, temperature shows a clear spatial pattern from the early to the late growing season, with significant differences between different maize growing areas [38]. If maize yield is correlated with the temperature, the early season temperature could capture the spatial maize yield patterns, consequently leading to a better performance in model accuracy. On the contrary, the distribution of EVI or SIF in space is uniformly low in the early stage of maize growth, with little variation between different maize growing areas, and provides little information about spatial patterns [77]. Hence, the relatively higher predictive performance obtained in the early stage based on climate-related dataset groups (e.g., climate dataset and combined dataset) is found to be largely attributable to the spatial patterns of climate variables and could capture the more spatial maize yield patterns [20]. Additionally, we recognized that the satellite dataset can provide supplementary information for yield prediction models, further enhancing crop yield forecasts.

The maize yield would vary not only from season to season but also from location to location [16], and the regional differences in model performance are mostly caused by regional differences in environmental characteristics such as temperature and precipitation [78,79]. In Zone I, the colder climate prolongs the growth cycle, affecting pollination and grain formation. This underscores the importance of temperature-related features in predicting maize yield, as colder temperatures can restrict nutrient uptake and exacerbate pest and disease impacts [80]. In Zones IV and III, water-related variables emerge as crucial factors (Figure 10d,e). In the Northwest (Zone IV), the importance of VPD6 highlights the region’s dependence on water availability for optimal yield [81]. In the Southwest (Zone III), excessive moisture can lead to rapid nitrogen loss in the soil, affecting maize yield [38,82]. The high ranking of soil moisture variables (SM5, SM6) reflects this region’s sensitivity to soil moisture conditions (Figure 10d). We argue that for an accurate maize yield prediction in different areas of China, the models should be adapted to appropriate methods and variables. For example, in Zones II and IV, we recommend using RF for maize yield prediction, while in Zones I and III, the SVM is used. Additionally, the observed impact of excessive moisture on maize yield suggests that cumulative precipitation and cumulative temperature may significantly influence maize growth [82]. Therefore, incorporating variables such as cumulative precipitation and cumulative temperature for the growing season into the model could potentially enhance its accuracy.

Yet there are some limitations in our study. Ground truth data may have inherent biases and limitations. The methods of data collection and environmental conditions can impact results, and the representativeness of samples and data gaps can affect the comprehensiveness of the analysis. In our study, despite implementing rigorous quality control measures, differences in data collection across different years and regions may lead to inconsistencies in the data. Future research could improve data collection methods, enhance sample diversity, utilize advanced technologies to increase data accuracy and comprehensiveness, and employ more robust uncertainty analysis methods to enhance the credibility and utility of the study. In addition, human management practices, such as irrigation, fertilization, and the selection of correct maize varieties as per season and location, are critical for maize growth and yield [83]. Their inclusion in the model could significantly improve predictions. Moreover, machine learning inherently operates as a black box, where model inputs and operations are not visible, posing challenges in comprehending internal decision-making processes and interpreting results [74]. This limitation restricts the informativeness of the conclusions drawn from our analysis in terms of plant physiology. Hence, it is still challenging to provide testable hypotheses giving biological explanations for crop growth and the final yield formation. Employing interpretability techniques to enhance understanding of model decisions, such as local interpretability methods and integrating crop process models, could improve the model’s credibility, making it more acceptable in practical applications. Future applications of process-based models may help elaborate the mechanisms behind the relationships between variables and yield. Therefore, the issue of combining machine learning with crop process models is an intriguing approach that could be explored in further research [84].

5. Conclusions

In the present study, we improved the prediction accuracy of China’s maize yield, specifically by employing a combination of multi-source datasets through various models. The performance of maize yield prediction was not sufficient when only the single satellite dataset or climate dataset was inputted into these models. As expected, machine learning methods outperformed traditional regression models. For example, RF, XGB, and SVM showed prominent advantages in predicting China’s maize yield, while RF was the best method. Nonetheless, it is worth noting that the climate dataset contributed more to the maize yield prediction than that of the satellite dataset. The satellite dataset was able to closely track the growth cycle of crops; its contribution to maize yield prediction, however, generally reached a maximum at the peaking growth stage. We also found that the model accuracy and maize yield prediction varied across China’s maize planting regions. The ML methods clearly showed advantages of spatial generalizations in providing new insights into crop yield prediction over a larger scale, and even a global scale. Our research could advance our understanding of the contributions of different growth stages of crops and multi-source dataset combinations in predicting maize yield at a larger spatial scale.
