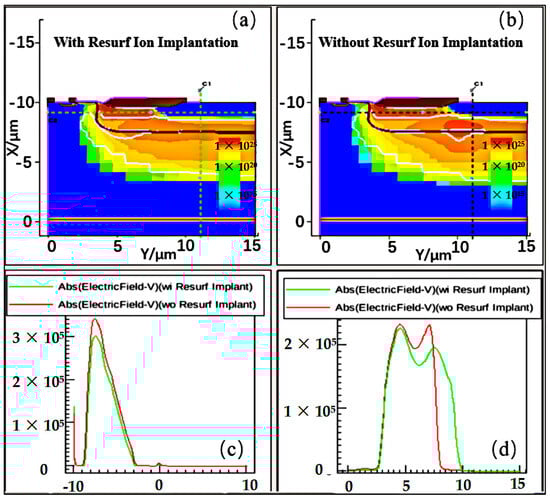

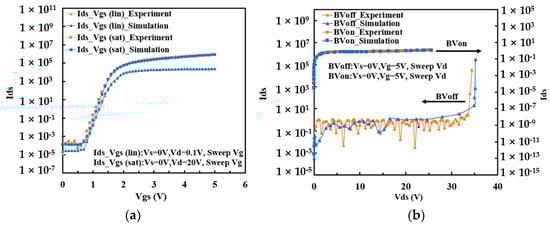

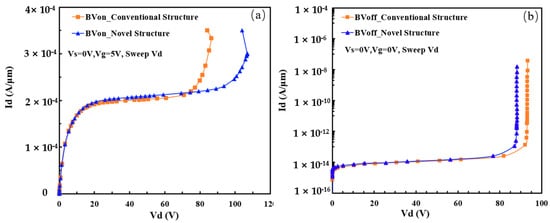

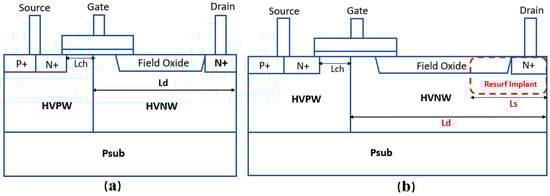

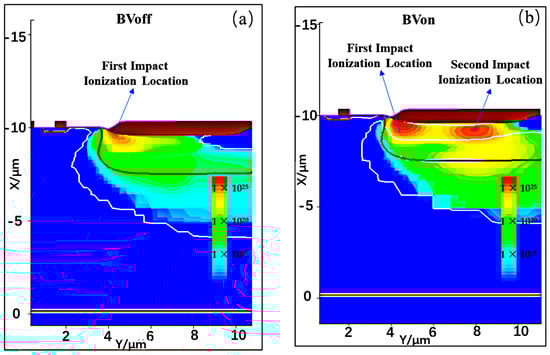

Enhancement of Electrical Safe Operation Area of 60 V nLDMOS by Engineering of Reduced Surface Electrical Field in the Drift Region
Abstract
:1. Introduction
2. Materials and Methods
3. Results

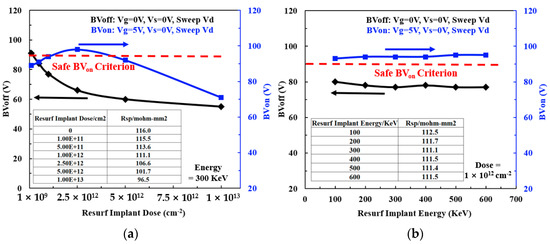

3.1. Effect of Resurf Ion Implantation Dose and Energy on BVon, BVoff, and RON,sp

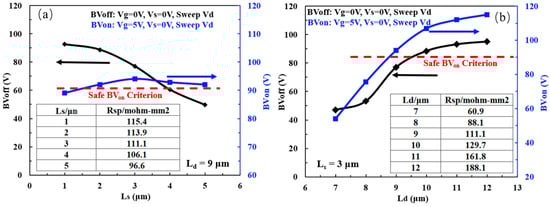

3.2. Effect of Resurf Ion Implantation Length Ls and the n-Drift Region Length Ld on BVon, BVoff, and RON,sp
4. Discussion
5. Conclusions
