Review

Cancer-Associated Fibroblasts and Tumor Cells in Pancreatic Cancer Microenvironment and Metastasis: Paracrine Regulators, Reciprocation and Exosomes

by
Yoshiaki Sunami
*,
Johanna Häußler
,
Anais Zourelidis
and
Jörg Kleeff
Department of Visceral, Vascular and Endocrine Surgery, Martin-Luther-University Halle-Wittenberg, University Medical Center Halle, 06120 Halle, Germany
*
Author to whom correspondence should be addressed.
Cancers 2022, 14(3), 744; https://doi.org/10.3390/cancers14030744
Submission received: 4 January 2022 / Revised: 27 January 2022 / Accepted: 28 January 2022 / Published: 31 January 2022
(This article belongs to the Section Molecular Cancer Biology)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Cancer-associated fibroblasts in the stromal tumor microenvironment play a key role in cancer progression, invasion, metastasis, and therapy resistance. Cancer-associated fibroblasts communicate with tumor cells through diverse factors, such as growth factors, hedgehog proteins, cytokines, and chemokines, regulating signaling activity in paracrine as well as paracrine-reciprocal ways. Furthermore, cancer-associated fibroblasts, not only tumor cells, secrete exosomes that drive pre-metastatic niche formation and metastasis.

Abstract

Pancreatic cancer is currently the fourth leading cause of cancer deaths in the United States, and the overall 5 year survival rate is still only around 10%. Pancreatic cancer exhibits a remarkable resistance to established therapeutic options such as chemotherapy and radiotherapy, in part due to the dense stromal tumor microenvironment, where cancer-associated fibroblasts are the major stromal cell type. Cancer-associated fibroblasts further play a key role in cancer progression, invasion, and metastasis. Cancer-associated fibroblasts communicate with tumor cells, not only through paracrine as well as paracrine-reciprocal signaling regulators but also by way of exosomes. In the current manuscript, we discuss intercellular mediators between cancer-associated fibroblasts and pancreatic cancer cells in a paracrine as well as paracrine-reciprocal manner. Further recent findings on exosomes in pancreatic cancer and metastasis are summarized.

1. Introduction

Pancreatic cancer is currently the fourth leading cause of cancer deaths in the United States, and its incidence continues to increase in both females and males [1]. Pancreatic cancer will most probably be the second most common cause of cancer death by 2030 [2]. The prognosis remains very poor, and the overall 5 year survival rate is still only around 10%, despite recent therapeutic advances such as more effective palliative, adjuvant, and neo-adjuvant chemotherapies and more radical and safer surgery [1,3]. A hallmark of pancreatic cancer is its remarkable resistance to established therapeutic options such as chemotherapy and radiotherapy, in part due to the dense stromal tumor microenvironment, where cancer-associated fibroblasts (CAF) are the major stromal cell type [4,5]. The molecular crosstalk between cancer cells and CAFs is crucial for tumor progression and metastatic process. Tumor cells communicate with CAFs not only through paracrine as well as paracrine-reciprocal signaling mechanisms, but also through exosomes [5,6]. In the current manuscript, we discuss intercellular mediators between CAFs and pancreatic cancer cells in a paracrine as well as a paracrine-reciprocal manner. Further, recent findings on exosomes in pancreatic cancer and metastasis are summarized.

2. Growth Factors Act as Paracrine Signals between Cancer-Associated Fibroblasts and Pancreatic Cancer Cells

Resident fibroblasts and especially pancreatic stellate cells (PSCs) are major sources of CAFs in pancreatic cancer, but also characterized by their diverse origins [5,7,8,9]. CAFs and activated PSCs produce several growth factors such as connective tissue growth factor (CTGF); epidermal growth factor (EGF); platelet-derived growth factor (PDGF); and inflammatory cytokines, chemokines, and extracellular matrix (ECM) proteins that promote cancer cell proliferation, therapy resistance, and immune escape [7,10]. CTGF is known to participate in neoplastic cell-stroma interactions in cancer. CTGF is highly expressed in CAFs and tumor cells in pancreatic cancer mouse model called KPC (Pdx1-Cre; lox-stop-lox-KrasG12D/+; Trp53R172H/+) (Table 1) [11]. Inhibition of CTGF with the monoclonal antibody FG-3019 enhances gemcitabine chemotherapy response without increasing gemcitabine concentrations in KPC mice (Figure 1) [11]. CTGF inhibition with FG-3019 does not lead to reduction of stromal contents; rather, it alters tumor cell survival as well as tumor-stromal interactions [11]. Treatment with another CTGF-neutralizing antibody FG-3154 suppresses PSC activation caused by repeated cerulein injection as an established pancreatitis model [12]. In cholangiocarcinoma, overexpression of the transcription factor zinc finger E-box-binding homeobox 1 (ZEB1) in tumor cells leads to increased CTGF expression. Culture medium from ZEB1-overexpressing tumor cells induces proliferation of myofibroblasts (Figure 1) [13]. In human cholangiocarcinoma, ZEB1 is expressed in CAFs, correlating with cellular communication network factor 2 (CCN2) gene (encoded for CTGF) expression (Figure 1) [13]. ZEB1 regulates the expression of paracrine signals such as hepatocyte growth factor (HGF) and interleukin 6 (IL-6) in tumor cells and CAFs, highlighting that the ZEB1–CTGF axis plays a key role in regulating the network between tumor cells and CAFs [13]. Dysregulation of phosphatidylinositol-4,5-bisphosphatase 3-kinase (PI3K) and Hippo signaling pathways synergistically induce Hippo effector YES-associated protein (YAP), which in turn upregulates CTGF for PSC activation (Figure 1) [12]. ZEB1 directly interacts with YAP, where ZEB1 turns into a transcriptional activator and regulates CCN2 gene expression (Figure 1) [14]. Zinc/iron-regulated transporter-like protein ZIP4 (encoded by solute carrier family 39 member 4 SLC39A4 gene) activates STAT3, which subsequently induces ZEB1. ZEB1 in turn activates the expression of integrin ITGA3 and ITGB1. Integrin α3β1 signaling inhibits the expression of gemcitabine transporter equilibrative nucleoside transporter 1 (ENT1, encoded by solute carrier family 29 member 1 SLC29A1) (Figure 1) [15]. ZIP4 also upregulates YAP1, and ZEB1-YAP1-containing complex activates ITGA3 transcription. ZEB1-YAP1 co-activation promotes pancreatic cancer metastasis as well as epithelial-to-mesenchymal transition (EMT) plasticity. EMT plasticity is a dynamic and reversible transition between EMT and mesenchymal-to-epithelial transition (MET) [16]. It has also been suggested that CTGF secreted from pancreatic cancer cells binds to integrin α5β1 and promotes proliferation, adhesion, and migration of PSCs [17]. In summary, CTGF acts as a key paracrine mediator in signal transduction networks derived from both CAFs and tumor cells.
EGF receptor signaling is important for pancreatic intraepithelial neoplasia (PanIN) and pancreatic cancer development induced by oncogenic KRAS [25,26]. Administration of 5-fluorouracil (5-FU)-incorporated EGFR receptor-targeted aptamers attenuates pancreatic cancer development in a pancreatic cancer mouse model (Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Trp53lox/+) [27]. A potent epigenetic regulator lysine (K) demethylase 3A (KDM3A) regulates expression of EGFR through Krueppel-like factor 5 (KLF5) and mother against decapentaplegic homolog 4 (SMAD4). CRISPR-mediated ablation of KLF5, SMAD4, or EGFR in pancreatic tumor cells leads to increased T-cell infiltration and improved combination immunotherapy response with gemcitabine, abraxane, CD40 agonistic antibody, CTLA4-blocking antibody, and PD-1-blocking antibody (named as GAFCP) [28]. Loss of SMAD4 is observed frequently in pancreatic cancer patients and has been considered as a tumor suppressor gene [4]. The discrepant observation—tumor suppressor or tumor promotor—may be due to the different roles of SMAD4 during tumor initiation vs. tumor progression [28].
With cancer cells isolated from KPC mice, it has been demonstrated that Trp53 mutations drive pancreatic cancer metastasis through PDGF receptor β (PDGFR-β) signaling [29]. Activation of PDGFR-β signaling by p53 mutations leads to expression of a small GTPase ADP ribosylation factor 6 (ARF6) and its downstream effector ArfGAP with SH3 domain, ankyrin repeat, and PH domain (ASAP1, also known as AMAP1), which drives PD-L1-mediated immune evasion [30]. Pancreatic cancer patients with tumors harboring high PDGFR-β and nuclear p53 protein expression exhibit a high incidence of metastasis and shorter postoperative survival [31]. PDGFR-β has also been suggested to be a marker of CAFs and activated PSCs. High stromal expression of PDGFR-β is associated with shorter overall survival of pancreatic cancer patients [32]. In another study, it has been demonstrated that CAFs overexpress PDGFR-α, which increases contractility leading to migration of cancer cells via αv integrins. Inhibition of PDGFR-α abrogates α5β1 integrin activity and changes in matrix organization, namely, from aligned fibers to more random organization (Figure 1) [33]. Taken together, growth factors can play key roles in cancer cell growth and metastasis in autocrine but also in paracrine manner between cancer cells and CAFs.

3. Sonic Hedgehog and Insulin Signaling as Paracrine and Paracrine-Reciprocal Signals between Cancer-Associated Fibroblasts and Pancreatic Cancer Cells

In the inducible KRAS pancreatic cancer mouse model (Ptf1-Cre; Rosa26-rtTa; TetO-KrasG12D), it has been described that pancreatic tumor cells regulate PSCs non-cell autonomously by secreting factors including Sonic hedgehog (SHH) [18]. HH ligands, such as SHH and Indian hedgehog (IHH), bind to the extracellular domain of patched 1 (PTCH) (Figure 2). This ligand–receptor complex loses repressive effect of Smoothened (SMO). Active SMO inhibits suppressor of fused homolog (SUFU), leading to release and activation of glioma-associated oncogene homolog (GLI) transcription factors, where GLI1 itself is a part of transcriptional targets (Figure 2) [34]. SHH from tumor cells in turn induces expression of growth factors insulin growth factor 1 (IGF1) and growth arrest-specific 6 (GAS6) in PSCs. IGF1 and GAS6 act as paracrine-reciprocal signals for activating the receptor tyrosine kinases IGF1R and AXL (“anexelenko”, which means “uncontrolled” in Greek [35]), respectively, in tumor cells (Table 1) [18]. IGF1R and AXL activate Akt signaling and increase mitochondrial performance, proliferation, and resistance to apoptosis in tumor cells [18]. Pharmacological inhibition of the Hedgehog pathway in CAFs with a SMO antagonist LDE225 attenuates expression of a Hedgehog target Gli1 in the fibroblast compartment as well as pancreatic cancer growth in KPC mice [36]. LDE225, also known as erismodegib, sonidegib, or Odomzo, is an FDA-approved SMO antagonist for treating cancer patients (Figure 2) [37]. Taken together, deletion of SHH or SMO commonly inhibits tumor growth. However, conditional deletion of Shh results in more aggressive, undifferentiated tumors in a pancreatic cancer mouse model (Pdx1-Cre; lox-stop-lox-KrasG12D/+; Trp53lox/+; Shhlox/lox; lox-stop-lox-YFP-Rosa26) [38]. Furthermore, treatment with LDE225 leads to a reduction of PDPN-positive, α-smooth muscle actin (α-SMA)-positive myofibroblastic CAFs (myCAFs) but an expansion of inflammatory CAFs (iCAFs) in KPC mice. Although the treatment with LDE225 attenuates pancreatic cancer growth in KPC mice, LDE225 increases chemokine Cxcl12 expression, reduces CD8-positive T cells, and increases regulatory T cell (Treg) immunosuppression [36]. It has been shown that genetic ablation of Smo in fibroblast-specific protein 1 (FSP1)-positive cells increases acinar-to-ductal metaplasia (ADM) in an oncogenic KRAS mouse model (Mist-KrasG12D/+; Fsp-Cre; Smolox/−) [39]. The role of Hedgehog signaling in pancreatic cancer is complex. Further studies are needed to unveil critical differences between SHH and IHH for activation of the Hedgehog signaling pathways in cell type-dependent manners.

4. Cancer-Associated Fibroblast Subtypes and Paracrine Factors

The myCAFs and iCAFs are well-described subtypes of CAFs, which co-exist both in pancreatic cancer patients and in KPC mice [40]. When PSCs are co-cultured with organoids derived from KPC mice, the cells differentiate into myCAFs and iCAFs [40]. It has been identified that myCAF subtype exhibits elevated fibroblast-activation protein α (FAP) and α-SMA. The majority of fibroblasts in human pancreatic tumors and in tumors from KPC mice express FAP but low levels of α-SMA [40]. Besides Acta2 (coding α-SMA), several genes such as Col1a1, Col5a1, Col6a1, Ctgf, and Vim are upregulated in myCAFs [40]. The iCAF subtype expresses cytokines IL-6, IL-11, and leukemia inhibitory factor (LIF) with low α-SMA expression. Several chemokines such as Cxcl1 and Cxcl2 are upregulated in iCAFs, but not in the myCAF subpopulation [40]. Indirect co-culture of quiescent PSCs with organoids derived from pancreatic cancer patients leads to differentiation of PSCs into iCAFs [40]. IL-1α from tumor cells activates nuclear factor kappa-light-chain-enhancer of activated B cells (NF-κB) signaling and expression of LIF in iCAFs [19]. LIF activates Janus kinase (JAK)/STAT signaling in iCAFs and establishes an autocrine positive feedback loop by upregulating expression of IL-1 receptor type 1 (IL-1R1) (Table 1) [19]. Further, LIF from CAFs can act as a key paracrine(-reciprocal) factor for activating signal transducer and activator of transcription 3 (STAT3) signaling in cancer cells [41]. LIF receptor and its co-receptor IL-6 signal transducer (IL6ST, gp130) interact with STAT3 in human pancreatic cancer cells stimulated with CAF-conditioned medium [41]. Conditional deletion of Lifr reduces pancreatic tumor progression, but not ADM formation or tumor initiation in an oncogenic KRAS mouse model (Pdx1-Cre; lox-stop-lox-KrasG12D/+; Trp53lox/lox; Lifrlox/lox; lox-stop-lox-Rosa26Luc/Luc). Conditional deletion of Lifr increases overall survival, which is further prolonged by gemcitabine administration, suggesting that LIFR signaling plays a role in gemcitabine chemoresistance [41]. Consistently, administration of LIF-neutralizing antibody also increases overall survival and gemcitabine chemoresistance [41]. A soluble recombinant variant of extracellular domain of human LIFR binds and sequesters human LIF for inhibiting LIFR signaling. Treatment with the variant attenuates tumor growth in a human pancreatic tumor cell xenograft [42]. LIF expression is associated with shorter overall survival and recurrence-free survival in pancreatic cancer patients. Increased serum LIF is a biomarker to predict lymph node metastasis and distant metastasis in pancreatic cancer patients [43]. Another study, however, showed that expression of LIFR was associated with longer overall survival of pancreatic cancer patients [44]. Oncogenic KRAS downregulates LIFR. Downregulation of LIFR is important for KRAS-mediated neoplastic transformation [44]. Wang et al. showed that oncogenic KRAS induced LIF expression in pancreatic cancer cells, where the mitogen-activated protein kinase kinase (MEK)/extracellular signal-regulated kinase (ERK) signaling is essential [45]. Treatment with LIF, but not IL-6, subsequently activates YAP/Tafazzin (TAZ, phospholipid-lysophospholipid transacylase)/TEA domain transcription factor (TEAD)-dependent transcription [45]. Further clarification is needed to understand the precise role of LIF/LIFR signaling in pancreatic cancer.

5. Chemokines as Paracrine and Paracrine-Reciprocal Factors Secreted by Cancer-Associated Fibroblasts and Tumor Cells

Oncogenic KRAS upregulates C-X-C motif chemokine receptor CXCR2 [20]. CXCL1, CXCL2, CXCL3, CXCL5, CXCL7, and CXCL8 are ligands for CXCR2 [46]. CXCL1 is highly expressed in human pancreatic cancer patient specimens [47]. Expression of CXCL1 is dependent on receptor-interacting protein 1 (RIP1) and RIP3, key regulators for necroptosis (programmed necrosis), which are also highly expressed in human pancreatic cancer [47]. In a KRAS-induced pancreas cell orthotopic implantation model, Rip3 deletion (KrasG12D/+; Rip−/−) leads to an increased number of T cells and decreased number of tumor-associated macrophages (TAM), indicating that necroptosis-induced CXCL1 signaling promotes immunosuppression [47]. Treating CAFs with conditioned media of cells derived from KC mice (Pdx1-Cre; lox-stop-lox-KrasG12D/+) increases Cxcl2 and Cxcl7 expression [20]. Treatment with KC-conditioned media on CAFs induces secretion of CXCL1, CXCL5, and CXCL7 greater than treatment with conditioned media from KRAS wild-type pancreatic cancer cells (Table 1) (Figure 3) [20]. These data suggest that KRAS-driven factors from pancreatic cells act on CAFs, inducing secretion of CXCR2 ligands. The CXCR2 ligands may reciprocally activate CXCR2 signaling in tumor cells (Figure 3). Deletion of type I collagen in myCAFs by using dual-recombinase pancreatic cancer mouse model (Pdx1-Flp; frt-stop-frt-KrasG12D/+; Trp53frt/frt; Acta2-Cre; Col1a1lox/lox) accelerates pancreatic cancer progression, decreases overall survival of mice, increases Cxcl5 expression, and increases number of myeloid-derived suppressor cells (MDSCs) [21]. CXCR2 ligands are also produced by pancreatic tumor cells, recruiting MDSCs [21], but also activating CXCR2 signaling in CAFs. CAFs express CXCR2 ligands as well as CXCR2 [20]. CXCR2 signaling in CAFs causes activation of NF-κB signaling and secretes inflammatory cytokines and CXCR2 ligands [20]. Primary pancreatic cancer cells from Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Tgfbr2lox/lox mice secrete CXCR2 ligands including CXCL1, CXCL2, and CXCL5 [22]. CXCR2 ligands induce Ctgf expression in CAFs via CXCR2 signaling [22]. Treatment with CXCR2 inhibitor Repertaxin or SB225002 inhibits Ctgf expression in CAFs (Figure 3) [22]. Blocking the paracrine activation of CXCR2 leads to attenuation of pancreatic tumor development, reduction of tumor angiogenesis, and prolongation of survival in Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Tgfbr2lox/lox mice [22]. Another study shows that CAFs in metastasis (also called metastasis-associated fibroblasts) secrete CXCL8 and CCL2 promoting angiogenesis in metastasized pancreatic cancer [48]. On the contrary, it has been shown in another study that when pancreatic tumor cells derived from KC mice are orthotopically implanted in the pancreas, host global Cxcr2 loss inhibits micro-vessel density in pancreatic tumors, but does not inhibit pancreatic cancer growth, and enhances liver metastasis [49]. Pancreas-specific deletion of Cxcr2 in KC mice prevents oncogene-induced senescence, increases tumor proliferation, and decreases survival (Pdx1-Cre; lox-stop-lox-KrasG12D/+; Cxcr2lox/lox) [50]. The reason why the outcomes between the study with the CXCR2 inhibitor and with the global Cxcr2 loss mouse model are different has not been fully answered.
Activated PSCs sequester CD8+ T cells to reduce their infiltration of the juxtatumoral compartment (less than 100 µm from the tumor) of pancreatic cancer [51]. Pancreatic cancer patients with high density of CD8+ T cells in the juxtatumoral compartment exhibit prolonged postsurgical survival [51]. Administration of all-trans retinoic acid (ATRA), which drives PSCs quiescent, increases numbers of CD8+ T cells in juxtatumoral compartments in KPC mice [51]. T cells are excluded where FAP-positive CAFs expressing CXCL12, also known as stromal cell-derived factor 1 (SDF1), are localized. CXCL12 plays a role in tumoral immunosuppression (Figure 3) [23]. Lack of NF-κB subunit Nfkb1 in PSCs reduces CXC12 secretion, increases infiltration of CD8+ T cells, inhibits tumor growth, and improves host survival, evaluated by orthotopic co-injection experiments with primary tumor cells from KPC mice and PSCs [52]. CXCL12 is the ligand for the chemokine receptor CXCR4 (also known as Fusin or CD184) and CXCR7 (also known as atypical chemokine receptor 3, ACKR3) (Figure 3) [53]. Treatment with AMD3100 (plerixafor), a CXCR4 antagonist, attenuates tumor growth after co-injection of tumor cells from KPC mice and PSCs [52]. Another CXCR4 antagonist, BL-8040 (Motixafortide), in combination with programmed death 1 (PD-1, also known as CD279) antagonist pembrolizumab increases CD8+ T cell tumor infiltration and decreases tumor cell density (COMBAT trial, NCT02826486) [54]. It has been however shown that conditional knockout of Cxcr4 in KPC mice (Pdx1-Cre; lox-stop-lox-KrasG12D/+; Trp53R172H/+; Cxcr4lox/lox) attenuates fibrogenesis and decreases α-SMA and PDGFR-α-positive cells but increases tumor size [55]. Further study is needed to answer why outcome between the study with CXCR4 inhibitor and with Cxcr4 loss are inconsistent. CXCL12 binds CXCR7 with higher affinity than CXCR4 [53]. High CXCR7 expression is associated with shorter overall survival of pancreatic cancer patients. Patients with high expression of both CXCL12 and CXCR7 have even shorter overall survival than patients with high tumoral CXCL12 expression or CXCR7 expression alone [56]. In CXCL12-treated pancreatic cancer cells, CXCR4 antagonist AMD3100 does not inhibit migration and invasion, indicating CXCR7 promotes pancreatic cancer cell migration and invasion (Figure 3) [56]. CXCR7 promotes hepatic metastasis, but not orthotopic pancreatic cancer cell growth [56]. Whether Cxcr4 deficiency can increase activity of CXCR7 signaling in pancreatic cancer has not been analyzed.
Depletion of focal-adhesion kinase (FAK) in the FSP1-positive cells in mice (Fsp-Cre; Faklox/lox) increases breast and pancreatic cancer growth [24]. Low FAK expression in the stromal compartment is associated with shorter overall survival in human breast and pancreatic cancer patients [24]. Fak-depletion in CAFs promote secretion of several chemokines CCL6, CCL11, and CCL12. These chemokines activate chemokine receptors CCR1/CCR2 on cancer cells (Figure 3). The enhanced activation of protein kinase A (PKA) in tumor cells is required for reprogramming cellular metabolism. Exposure to Fak-depleted CAF cellular medium enhances glycolysis in tumor cells by upregulating glycolysis enzymes including pyruvate kinase, as well as glucose-6-phosphate dehydrogenase (G6PD) and 6-phosphogluconate dehydrogenase (6PGD) in the oxidative branch of pentose-phosphate pathway (PPP) [24]. Paracrine activation of CCR1 signaling has also been shown to be associated with regulatory T cells (Tregs). The CXCL12-CXCR4 signaling pathway can recruit Tregs [57]. Treg frequency correlates with metastasis, advanced tumor stage, high tumor grade, and shorter overall survival of pancreatic cancer patients [58]. To that end, depletion of Tregs may be a therapeutic strategy for pancreatic cancer. However, depletion of Tregs in KC mice (Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Foxp3tm3(DTR/GFP)Ayr) induces reprogramming the fibroblast population, leading to a reduced number of α-SMA+ myCAFs; an increase in Ccl3, Ccl6, and Ccl8 expression; increased myeloid cell infiltration; and accelerated pancreatic carcinogenesis [59]. CCR1 is the common chemokine receptor for the chemokines CCL3, CCL6, and CCL8, which are chemoattractants for myeloid cells [60]. CCR1 blockade with an inhibitor BX471 attenuates pancreatic carcinogenesis in Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Foxp3tm3(DTR/GFP)Ayr mice [59].

6. Exosomes and Pro-Metastatic Niche in Pancreatic Cancer

Exosomes are a subset of cell-released, membranous-structured extracellular vesicles that also include microvesicles, microparticles, ectosomes, and apoptotic bodies [61]. Exosomes are of endosomal origin and secreted from various cell types including CAFs and cancer cells, and contribute to physiological processes, such as immune response and protein and RNA transport [62]. High KRAS mutation ratio (≥5%) in circulating exosomal DNA is associated with shorter progression-free survival and overall survival of pancreatic cancer patients [63]. Due to their endosomal origin, exosomes exhibit multiple proteins involved in the formation of multi-vesicular bodies (MVBs) such as annexins, Rab family GTPases, and endosomal sorting complexes required for transport (ESCRT) complex proteins [64]. Additional exosome protein markers include tetraspanins (CD9, CD63, CD81) and heat shock proteins (HSP60, HSP70, HSP90) [64]. A Dickkopf 1 (DKK1) receptor cytoskeleton-associated protein 4 (CKAP4) has been proposed as a biomarker, which is secreted with exsosomes from pancreatic cancer cells [65]. High expression of CKAP4 is detected in pancreatic cancer patient sera and in sera of pancreatic cancer cell-xenografted mice [65]. Blockade of the DKK1-CKAP4 binding by anti-CKAP4 monoclonal antibody inhibits xenograft tumor formation and metastasis of pancreatic cancer cells and extends survival of mice [65]. Glypican-1 (GPC1), a membrane-anchored protein that is overexpressed in pancreatic cancer, is present in cancer exosomes [66]. Pancreatic cancer patients exhibit higher GPC1+ circulating exosomes than in healthy donors, and elevated level of GPC1+ circulating exosomes is also observed in Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Tgfbr2lox/lox mice [66]. GPC1 alone has an 82% sensitivity and 52% specificity for pancreatic cancer screening [67]. Multiparametric plasma extracellular vesicle profiling with five markers (named PDACEV signature) with EGFR, EPCAM, MUC1, GPC1, and WNT2 shows an 86% sensitivity and 81% specificity [67]. Another study suggests combined detection of exosomal GPC1, exosomal CD82, and serum CA19-9 for pancreatic cancer screening [68]. Treatment with GPC1 antibody conjugated with microtubule inhibitor monomethyl auristatin E inhibits pancreatic cancer in a pancreatic tumor xenograft mouse model [69]. GPC1 is also expressed on FAP-positive CAFs in pancreatic cancer [69]. GPC1 antibody conjugated with monomethyl auristatin E is delivered to the GPC1-expressing CAFs, leading to apoptosis of surrounding pancreatic cancer cells [69]. It has been shown that exosomes from CAFs increase pancreatic cancer cell survival and proliferation [70]. GW4869 is a neutral sphigomyelinase inhibitor, which blocks release of mature exosomes from MVBs [71]. Inhibition of exosome secretion from CAFs by GW4869 reduces pancreatic cancer cell survival [70].
Tumor-driven exosomes can prepare the pre-metastatic niche in distant organs. Integrin subtypes expressed on tumor-driven exosomes can predict the site of metastasis [72]. It has been demonstrated that macrophage migration inhibitory factor (MIF) is highly expressed in pancreatic cancer-derived exosomes. Knockdown of MIF in exosomes prevents pre-metastatic niche formation in the liver and metastasis [73]. Integrin α6β4 and α6β1 associated with lung metastasis and integrin αvβ5 correlates with liver metastasis [72]. Protein kinase D1 (PRKD1) reprograms pancreatic acinar cells to a ductal phenotype and drives progression to intraepithelial neoplasia (PanIN) [74]. The expression of PRKD1 is, however, downregulated in human pancreatic cancer [75]. Conditional deletion of Prkd1 accelerates pancreatic tumorigenesis, drives lung metastasis, and enhances secretion of extracellular vesicles (Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Prkd1lox/lox) [75]. Prkd1-deficiency in pancreatic cancer cells increases α6β4 loading into extracellular vesicles that requires CD82 [75]. Exosomes from mutant p53 (R270H or R175H)-expressing cells increase diacylglycerol kinase α (DGKα)-dependent trafficking of integrin and cell migration [76]. Exosomes from mutant p53-expressing cells act on CAFs, leading to remodeling of ECM to support tumor cell migration and invasion [76]. Exosomes can be also considered as a carrier of therapeutic reagents. Treatment with exosomes carrying short interfering RNA or short hairpin RNA specific to KrasG12D suppresses pancreatic cancer progression and improves survival of KPC and Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Tgfbr2lox/lox mice [77].

7. Conclusions

Recent studies have demonstrated that a large number of factors, including growth factors, hedgehog molecules, inflammatory cytokines, and chemokines derived from both cancer-associated fibroblasts and tumor cells, act as key autocrine, paracrine, and reciprocal mediators in signal transduction networks. Cancer-associated fibroblasts play an important role, not only in the tumor microenvironment but also in secretion, regulation of exosomes, and in the preparation of the pre-metastatic niche in distant organs. Exosomes can be used as a carrier of therapeutic reagents for pancreatic cancer. A broad and better understanding of the interactions between cancer-associated fibroblasts and tumor cells is important for developing novel therapeutic strategies that improve the outcome of pancreatic cancer patients.

Author Contributions

Writing—original draft preparation, Y.S.; visualization, Y.S.; resources, J.H., A.Z.; supervision, J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Siegel, R.L.; Miller, K.D.; Fuchs, H.E.; Jemal, A. Cancer Statistics, 2021. CA Cancer J. Clin. 2021, 71, 7–33. [Google Scholar] [CrossRef] [PubMed]
  2. Rahib, L.; Smith, B.D.; Aizenberg, R.; Rosenzweig, A.B.; Fleshman, J.M.; Matrisian, L.M. Projecting cancer incidence and deaths to 2030: The unexpected burden of thyroid, liver, and pancreas cancers in the United States. Cancer Res. 2014, 74, 2913–2921, Erratum in: Cancer Res. 2014, 74, 4006. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Tanaka, M.; Mihaljevic, A.L.; Probst, P.; Heckler, M.; Klaiber, U.; Heger, U.; Büchler, M.W.; Hackert, T. Meta-analysis of recurrence pattern after resection for pancreatic cancer. Br. J. Surg. 2019, 106, 1590–1601. [Google Scholar] [CrossRef] [PubMed]
  4. Kleeff, J.; Korc, M.; Apte, M.; La Vecchia, C.; Johnson, C.D.; Biankin, A.V.; Neale, R.E.; Tempero, M.; Tuveson, D.A.; Hruban, R.H.; et al. Pancreatic cancer. Nat. Rev. Dis. Primers 2016, 2, 16022. [Google Scholar] [CrossRef] [PubMed]
  5. Sunami, Y.; Häußler, J.; Kleeff, J. Cellular Heterogeneity of Pancreatic Stellate Cells, Mesenchymal Stem Cells, and Cancer-Associated Fibroblasts in Pancreatic Cancer. Cancers 2020, 12, 3770. [Google Scholar] [CrossRef] [PubMed]
  6. Wortzel, I.; Dror, S.; Kenific, C.M.; Lyden, D. Exosome-Mediated Metastasis: Communication from a Distance. Dev. Cell. 2019, 49, 347–360. [Google Scholar] [CrossRef] [PubMed]
  7. Erkan, M.; Adler, G.; Apte, M.V.; Bachem, M.G.; Buchholz, M.; Detlefsen, S.; Esposito, I.; Friess, H.; Gress, T.M.; Habisch, H.J.; et al. StellaTUM: Current consensus and discussion on pancreatic stellate cell research. Gut 2012, 61, 172–178. [Google Scholar] [CrossRef] [PubMed]
  8. Sun, Q.; Zhang, B.; Hu, Q.; Qin, Y.; Xu, W.; Liu, W.; Yu, X.; Xu, J. The impact of cancer-associated fibroblasts on major hallmarks of pancreatic cancer. Theranostics 2018, 8, 5072–5087. [Google Scholar] [CrossRef] [PubMed]
  9. Neuzillet, C.; Tijeras-Raballand, A.; Ragulan, C.; Cros, J.; Patil, Y.; Martinet, M.; Erkan, M.; Kleeff, J.; Wilson, J.; Apte, M.; et al. Inter- and intra-tumoural heterogeneity in cancer-associated fibroblasts of human pancreatic ductal adenocarcinoma. J. Pathol. 2019, 248, 51–65. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Biffi, G.; Tuveson, D.A. Diversity and Biology of Cancer-Associated Fibroblasts. Physiol. Rev. 2021, 101, 147–176. [Google Scholar] [CrossRef] [PubMed]
  11. Neesse, A.; Frese, K.K.; Bapiro, T.E.; Nakagawa, T.; Sternlicht, M.D.; Seeley, T.W.; Pilarsky, C.; Jodrell, D.I.; Spong, S.M.; Tuveson, D.A. CTGF antagonism with mAb FG-3019 enhances chemotherapy response without increasing drug delivery in murine ductal pancreas cancer. Proc. Natl. Acad. Sci. USA 2013, 110, 12325–12330. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Tamura, T.; Kodama, T.; Sato, K.; Murai, K.; Yoshioka, T.; Shigekawa, M.; Yamada, R.; Hikita, H.; Sakamori, R.; Akita, H.; et al. Dysregulation of PI3K and Hippo signaling pathways synergistically induces chronic pancreatitis via CTGF upregulation. J. Clin. Invest. 2021, 131, e143414. [Google Scholar] [CrossRef] [PubMed]
  13. Lobe, C.; Vallette, M.; Arbelaiz, A.; Gonzalez-Sanchez, E.; Izquierdo, L.; Pellat, A.; Guedj, N.; Louis, C.; Paradis, V.; Banales, J.M.; et al. ZEB1 promotes cholangiocarcinoma progression through tumor dedifferentiation and tumor-stroma paracrine signaling. Hepatology 2021, 74, 3194–3212. [Google Scholar] [CrossRef] [PubMed]
  14. Lehmann, W.; Mossmann, D.; Kleemann, J.; Mock, K.; Meisinger, C.; Brummer, T.; Herr, R.; Brabletz, S.; Stemmler, M.P.; Brabletz, T. ZEB1 turns into a transcriptional activator by interacting with YAP1 in aggressive cancer types. Nat. Commun. 2016, 7, 10498. [Google Scholar] [CrossRef]
  15. Liu, M.; Zhang, Y.; Yang, J.; Cui, X.; Zhou, Z.; Zhan, H.; Ding, K.; Tian, X.; Yang, Z.; Fung, K.A.; et al. ZIP4 Increases Expression of Transcription Factor ZEB1 to Promote Integrin α3β1 Signaling and Inhibit Expression of the Gemcitabine Transporter ENT1 in Pancreatic Cancer Cells. Gastroenterology 2020, 158, 679–692.e1. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, M.; Zhang, Y.; Yang, J.; Zhan, H.; Zhou, Z.; Jiang, Y.; Shi, X.; Fan, X.; Zhang, J.; Luo, W.; et al. Zinc-Dependent Regulation of ZEB1 and YAP1 Coactivation Promotes Epithelial-Mesenchymal Transition Plasticity and Metastasis in Pancreatic Cancer. Gastroenterology 2021, 160, 1771–1783.e1. [Google Scholar] [CrossRef] [PubMed]
  17. Charrier, A.; Brigstock, D.R. Regulation of pancreatic function by connective tissue growth factor (CTGF, CCN2). Cytokine Growth Factor Rev. 2013, 24, 59–68. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Tape, C.J.; Ling, S.; Dimitriadi, M.; McMahon, K.M.; Worboys, J.D.; Leong, H.S.; Norrie, I.C.; Miller, C.J.; Poulogiannis, G.; Lauffenburger, D.A.; et al. Oncogenic KRAS Regulates Tumor Cell Signaling via Stromal Reciprocation. Cell 2016, 165, 910–920. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Biffi, G.; Oni, T.E.; Spielman, B.; Hao, Y.; Elyada, E.; Park, Y.; Preall, J.; Tuveson, D.A. IL1-Induced JAK/STAT Signaling Is Antagonized by TGFβ to Shape CAF Heterogeneity in Pancreatic Ductal Adenocarcinoma. Cancer Discov. 2019, 9, 282–301. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Awaji, M.; Saxena, S.; Wu, L.; Prajapati, D.R.; Purohit, A.; Varney, M.L.; Kumar, S.; Rachagani, S.; Ly, Q.P.; Jain, M.; et al. CXCR2 signaling promotes secretory cancer-associated fibroblasts in pancreatic ductal adenocarcinoma. FASEB J. 2020, 34, 9405–9418. [Google Scholar] [CrossRef] [PubMed]
  21. Chen, Y.; Kim, J.; Yang, S.; Wang, H.; Wu, C.J.; Sugimoto, H.; LeBleu, V.S.; Kalluri, R. Type I collagen deletion in αSMA+ myofibroblasts augments immune suppression and accelerates progression of pancreatic cancer. Cancer Cell 2021, 39, 548–565.e6. [Google Scholar] [CrossRef] [PubMed]
  22. Ijichi, H.; Chytil, A.; Gorska, A.E.; Aakre, M.E.; Bierie, B.; Tada, M.; Mohri, D.; Miyabayashi, K.; Asaoka, Y.; Maeda, S.; et al. Inhibiting Cxcr2 disrupts tumor-stromal interactions and improves survival in a mouse model of pancreatic ductal adenocarcinoma. J. Clin. Invest. 2011, 121, 4106–4117. [Google Scholar] [CrossRef] [PubMed]
  23. Feig, C.; Jones, J.O.; Kraman, M.; Wells, R.J.; Deonarine, A.; Chan, D.S.; Connell, C.M.; Roberts, E.W.; Zhao, Q.; Caballero, O.L.; et al. Targeting CXCL12 from FAP-expressing carcinoma-associated fibroblasts synergizes with anti-PD-L1 immunotherapy in pancreatic cancer. Proc. Natl. Acad. Sci. USA 2013, 110, 20212–20217. [Google Scholar] [CrossRef] [Green Version]
  24. Demircioglu, F.; Wang, J.; Candido, J.; Costa, A.S.H.; Casado, P.; de Luxan Delgado, B.; Reynolds, L.E.; Gomez-Escudero, J.; Newport, E.; Rajeeve, V.; et al. Cancer associated fibroblast FAK regulates malignant cell metabolism. Nat. Commun. 2020, 11, 1290. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Ardito, C.M.; Grüner, B.M.; Takeuchi, K.K.; Lubeseder-Martellato, C.; Teichmann, N.; Mazur, P.K.; Delgiorno, K.E.; Carpenter, E.S.; Halbrook, C.J.; Hall, J.C.; et al. EGF receptor is required for KRAS-induced pancreatic tumorigenesis. Cancer Cell 2012, 22, 304–317. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Navas, C.; Hernández-Porras, I.; Schuhmacher, A.J.; Sibilia, M.; Guerra, C.; Barbacid, M. EGF receptor signaling is essential for k-ras oncogene-driven pancreatic ductal adenocarcinoma. Cancer Cell 2012, 22, 318–330. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Mahajan, U.M.; Li, Q.; Alnatsha, A.; Maas, J.; Orth, M.; Maier, S.H.; Peterhansl, J.; Regel, I.; Sendler, M.; Wagh, P.R.; et al. Tumor-Specific Delivery of 5-Fluorouracil-Incorporated Epidermal Growth Factor Receptor-Targeted Aptamers as an Efficient Treatment in Pancreatic Ductal Adenocarcinoma Models. Gastroenterology 2021, 161, 996–1010. [Google Scholar] [CrossRef] [PubMed]
  28. Li, J.; Yuan, S.; Norgard, R.J.; Yan, F.; Sun, Y.H.; Kim, I.K.; Merrell, A.J.; Sela, Y.; Jiang, Y.; Bhanu, N.V.; et al. Epigenetic and Transcriptional Control of the Epidermal Growth Factor Receptor Regulates the Tumor Immune Microenvironment in Pancreatic Cancer. Cancer Discov. 2021, 11, 736–753. [Google Scholar] [CrossRef] [PubMed]
  29. Weissmueller, S.; Manchado, E.; Saborowski, M.; Morris JP 4th Wagenblast, E.; Davis, C.A.; Moon, S.H.; Pfister, N.T.; Tschaharganeh, D.F.; Kitzing, T.; Aust, D.; et al. Mutant p53 drives pancreatic cancer metastasis through cell-autonomous PDGF receptor β signaling. Cell 2014, 157, 382–394. [Google Scholar] [CrossRef] [Green Version]
  30. Hashimoto, S.; Furukawa, S.; Hashimoto, A.; Tsutaho, A.; Fukao, A.; Sakamura, Y.; Parajuli, G.; Onodera, Y.; Otsuka, Y.; Handa, H.; et al. ARF6 and AMAP1 are major targets of KRAS and TP53 mutations to promote invasion, PD-L1 dynamics, and immune evasion of pancreatic cancer. Proc. Natl. Acad. Sci. USA 2019, 116, 17450–17459. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Kurahara, H.; Maemura, K.; Mataki, Y.; Sakoda, M.; Shinchi, H.; Natsugoe, S. Impact of p53 and PDGFR-β Expression on Metastasis and Prognosis of Patients with Pancreatic Cancer. World J. Surg. 2016, 40, 1977–1984. [Google Scholar] [CrossRef] [PubMed]
  32. Yuzawa, S.; Kano, M.R.; Einama, T.; Nishihara, H. PDGFRβ expression in tumor stroma of pancreatic adenocarcinoma as a reliable prognostic marker. Med. Oncol. 2012, 29, 2824–2830. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Erdogan, B.; Ao, M.; White, L.M.; Means, A.L.; Brewer, B.M.; Yang, L.; Washington, M.K.; Shi, C.; Franco, O.E.; Weaver, A.M.; et al. Cancer-associated fibroblasts promote directional cancer cell migration by aligning fibronectin. J. Cell Biol. 2017, 216, 3799–3816. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Sigafoos, A.N.; Paradise, B.D.; Fernandez-Zapico, M.E. Hedgehog/GLI Signaling Pathway: Transduction, Regulation, and Implications for Disease. Cancers 2021, 13, 3410. [Google Scholar] [CrossRef] [PubMed]
  35. Zhu, C.; Wei, Y.; Wei, X. AXL receptor tyrosine kinase as a promising anti-cancer approach: Functions, molecular mechanisms and clinical applications. Mol. Cancer 2019, 18, 153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Steele, N.G.; Biffi, G.; Kemp, S.B.; Zhang, Y.; Drouillard, D.; Syu, L.; Hao, Y.; Oni, T.E.; Brosnan, E.; Elyada, E.; et al. Inhibition of Hedgehog Signaling Alters Fibroblast Composition in Pancreatic Cancer. Clin. Cancer Res. 2021, 27, 2023–2037. [Google Scholar] [CrossRef] [PubMed]
  37. Rimkus, T.K.; Carpenter, R.L.; Qasem, S.; Chan, M.; Lo, H.W. Targeting the Sonic Hedgehog Signaling Pathway: Review of Smoothened and GLI Inhibitors. Cancers 2016, 8, 22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Rhim, A.D.; Oberstein, P.E.; Thomas, D.H.; Mirek, E.T.; Palermo, C.F.; Sastra, S.A.; Dekleva, E.N.; Saunders, T.; Becerra, C.P.; Tattersall, I.W.; et al. Stromal elements act to restrain, rather than support, pancreatic ductal adenocarcinoma. Cancer Cell 2014, 25, 735–747. [Google Scholar] [CrossRef] [Green Version]
  39. Liu, X.; Pitarresi, J.R.; Cuitiño, M.C.; Kladney, R.D.; Woelke, S.A.; Sizemore, G.M.; Nayak, S.G.; Egriboz, O.; Schweickert, P.G.; Yu, L.; et al. Genetic ablation of Smoothened in pancreatic fibroblasts increases acinar-ductal metaplasia. Genes Dev. 2016, 30, 1943–1955. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Öhlund, D.; Handly-Santana, A.; Biffi, G.; Elyada, E.; Almeida, A.S.; Ponz-Sarvise, M.; Corbo, V.; Oni, T.E.; Hearn, S.A.; Lee, E.J.; et al. Distinct populations of inflammatory fibroblasts and myofibroblasts in pancreatic cancer. J. Exp. Med. 2017, 214, 579–596. [Google Scholar] [CrossRef] [PubMed]
  41. Shi, Y.; Gao, W.; Lytle, N.K.; Huang, P.; Yuan, X.; Dann, A.M.; Ridinger-Saison, M.; DelGiorno, K.E.; Antal, C.E.; Liang, G.; et al. Targeting LIF-mediated paracrine interaction for pancreatic cancer therapy and monitoring. Nature 2019, 569, 131–135. [Google Scholar] [CrossRef] [PubMed]
  42. Hunter, S.A.; McIntosh, B.J.; Shi, Y.; Sperberg, R.A.P.; Funatogawa, C.; Labanieh, L.; Soon, E.; Wastyk, H.C.; Mehta, N.; Carter, C.; et al. An engineered ligand trap inhibits leukemia inhibitory factor as pancreatic cancer treatment strategy. Commun. Biol. 2021, 4, 452. [Google Scholar] [CrossRef] [PubMed]
  43. Jiang, W.; Bai, W.; Li, J.; Liu, J.; Zhao, K.; Ren, L. Leukemia inhibitory factor is a novel biomarker to predict lymph node and distant metastasis in pancreatic cancer. Int. J. Cancer 2021, 148, 1006–1013. [Google Scholar] [CrossRef] [PubMed]
  44. Liu, S.; Gandler, H.I.; Tošić, I.; Ye, D.Q.; Giaccone, Z.T.; Frank, D.A. Mutant KRAS Downregulates the Receptor for Leukemia Inhibitory Factor (LIF) to Enhance a Signature of Glycolysis in Pancreatic Cancer and Lung Cancer. Mol. Cancer Res. 2021, 19, 1283–1295. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, M.T.; Fer, N.; Galeas, J.; Collisson, E.A.; Kim, S.E.; Sharib, J.; McCormick, F. Blockade of leukemia inhibitory factor as a therapeutic approach to KRAS driven pancreatic cancer. Nat. Commun. 2019, 10, 3055. [Google Scholar] [CrossRef] [PubMed]
  46. Cheng, Y.; Ma, X.L.; Wei, Y.Q.; Wei, X.W. Potential roles and targeted therapy of the CXCLs/CXCR2 axis in cancer and inflammatory diseases. Biochim. Biophys. Acta Rev. Cancer 2019, 1871, 289–312. [Google Scholar] [CrossRef] [PubMed]
  47. Seifert, L.; Werba, G.; Tiwari, S.; Giao Ly, N.N.; Alothman, S.; Alqunaibit, D.; Avanzi, A.; Barilla, R.; Daley, D.; Greco, S.H.; et al. The necrosome promotes pancreatic oncogenesis via CXCL1 and Mincle-induced immune suppression. Nature 2016, 532, 245–249. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Aue, E.; Wirsik, N.M.; Freire Valls, A.; Shen, Y.; Radhakrishnan, P.; Hackert, T.; Schneider, M.; Schmidt, T. Metastasis-associated fibroblasts promote angiogenesis in metastasized pancreatic cancer via the CXCL8 and the CCL2 axes. Sci. Rep. 2020, 10, 5420. [Google Scholar] [CrossRef]
  49. Purohit, A.; Saxena, S.; Varney, M.; Prajapati, D.R.; Kozel, J.A.; Lazenby, A.; Singh, R.K. Host Cxcr2-Dependent Regulation of Pancreatic Cancer Growth, Angiogenesis, and Metastasis. Am. J. Pathol. 2021, 191, 759–771. [Google Scholar] [CrossRef] [PubMed]
  50. Lesina, M.; Wörmann, S.M.; Morton, J.; Diakopoulos, K.N.; Korneeva, O.; Wimmer, M.; Einwächter, H.; Sperveslage, J.; Demir, I.E.; Kehl, T.; et al. RelA regulates CXCL1/CXCR2-dependent oncogene-induced senescence in murine Kras-driven pancreatic carcinogenesis. J. Clin. Invest. 2016, 126, 2919–2932. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Ene-Obong, A.; Clear, A.J.; Watt, J.; Wang, J.; Fatah, R.; Riches, J.C.; Marshall, J.F.; Chin-Aleong, J.; Chelala, C.; Gribben, J.G.; et al. Activated pancreatic stellate cells sequester CD8+ T cells to reduce their infiltration of the juxtatumoral compartment of pancreatic ductal adenocarcinoma. Gastroenterology 2013, 145, 1121–1132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Garg, B.; Giri, B.; Modi, S.; Sethi, V.; Castro, I.; Umland, O.; Ban, Y.; Lavania, S.; Dawra, R.; Banerjee, S.; et al. NFκB in Pancreatic Stellate Cells Reduces Infiltration of Tumors by Cytotoxic T Cells and Killing of Cancer Cells, via Up-regulation of CXCL12. Gastroenterology 2018, 155, 880–891.e8. [Google Scholar] [CrossRef] [PubMed]
  53. Khare, T.; Bissonnette, M.; Khare, S. CXCL12-CXCR4/CXCR7 Axis in Colorectal Cancer: Therapeutic Target in Preclinical and Clinical Studies. Int. J. Mol. Sci. 2021, 22, 7371. [Google Scholar] [CrossRef] [PubMed]
  54. Bockorny, B.; Semenisty, V.; Macarulla, T.; Borazanci, E.; Wolpin, B.M.; Stemmer, S.M.; Golan, T.; Geva, R.; Borad, M.J.; Pedersen, K.S.; et al. BL-8040, a CXCR4 antagonist, in combination with pembrolizumab and chemotherapy for pancreatic cancer: The COMBAT trial. Nat. Med. 2020, 26, 878–885. [Google Scholar] [CrossRef] [PubMed]
  55. Morita, T.; Kodama, Y.; Shiokawa, M.; Kuriyama, K.; Marui, S.; Kuwada, T.; Sogabe, Y.; Matsumori, T.; Kakiuchi, N.; Tomono, T.; et al. CXCR4 in Tumor Epithelial Cells Mediates Desmoplastic Reaction in Pancreatic Ductal Adenocarcinoma. Cancer Res. 2020, 80, 4058–4070. [Google Scholar] [CrossRef] [PubMed]
  56. Guo, J.C.; Li, J.; Zhou, L.; Yang, J.Y.; Zhang, Z.G.; Liang, Z.Y.; Zhou, W.X.; You, L.; Zhang, T.P.; Zhao, Y.P. CXCL12-CXCR7 axis contributes to the invasive phenotype of pancreatic cancer. Oncotarget 2016, 7, 62006–62018. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Nagarsheth, N.; Wicha, M.S.; Zou, W. Chemokines in the cancer microenvironment and their relevance in cancer immunotherapy. Nat. Rev. Immunol. 2017, 17, 559–572. [Google Scholar] [CrossRef] [Green Version]
  58. Hiraoka, N.; Onozato, K.; Kosuge, T.; Hirohashi, S. Prevalence of FOXP3+ regulatory T cells increases during the progression of pancreatic ductal adenocarcinoma and its premalignant lesions. Clin. Cancer Res. 2006, 12, 5423–5434. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Zhang, Y.; Lazarus, J.; Steele, N.G.; Yan, W.; Lee, H.J.; Nwosu, Z.C.; Halbrook, C.J.; Menjivar, R.E.; Kemp, S.B.; Sirihorachai, V.R.; et al. Regulatory T-cell Depletion Alters the Tumor Microenvironment and Accelerates Pancreatic Carcinogenesis. Cancer Discov. 2020, 10, 422–439. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Griffith, J.W.; Sokol, C.L.; Luster, A.D. Chemokines and chemokine receptors: Positioning cells for host defense and immunity. Annu. Rev. Immunol. 2014, 32, 659–702. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Théry, C.; Witwer, K.W.; Aikawa, E.; Alcaraz, M.J.; Anderson, J.D.; Andriantsitohaina, R.; Antoniou, A.; Arab, T.; Archer, F.; Atkin-Smith, G.K.; et al. Minimal information for studies of extracellular vesicles 2018 (MISEV2018): A position statement of the International Society for Extracellular Vesicles and update of the MISEV2014 guidelines. J. Extracell. Vesicles 2018, 7, 1535750. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Kalluri, R. The biology and function of exosomes in cancer. J. Clin. Invest. 2016, 126, 1208–1215. [Google Scholar] [CrossRef] [PubMed]
  63. Bernard, V.; Kim, D.U.; San Lucas, F.A.; Castillo, J.; Allenson, K.; Mulu, F.C.; Stephens, B.M.; Huang, J.; Semaan, A.; Guerrero, P.A.; et al. Circulating Nucleic Acids Are Associated with Outcomes of Patients with Pancreatic Cancer. Gastroenterology 2019, 156, 108–118.e4. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Taylor, D.D.; Gercel-Taylor, C. Exosomes/microvesicles: Mediators of cancer-associated immunosuppressive microenvironments. Semin. Immunopathol. 2011, 33, 441–454. [Google Scholar] [CrossRef] [PubMed]
  65. Kimura, H.; Yamamoto, H.; Harada, T.; Fumoto, K.; Osugi, Y.; Sada, R.; Maehara, N.; Hikita, H.; Mori, S.; Eguchi, H.; et al. CKAP4, a DKK1 Receptor, is a Biomarker in Exosomes Derived from Pancreatic Cancer and a Molecular Target for Therapy. Clin. Cancer Res. 2019, 25, 1936–1947. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Melo, S.A.; Luecke, L.B.; Kahlert, C.; Fernandez, A.F.; Gammon, S.T.; Kaye, J.; LeBleu, V.S.; Mittendorf, E.A.; Weitz, J.; Rahbari, N.; et al. Glypican-1 identifies cancer exosomes and detects early pancreatic cancer. Nature 2015, 523, 177–182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Yang, K.S.; Ciprani, D.; O’Shea, A.; Liss, A.S.; Yang, R.; Fletcher-Mercaldo, S.; Mino-Kenudson, M.; Fernández-Del Castillo, C.; Weissleder, R. Extracellular Vesicle Analysis Allows for Identification of Invasive IPMN. Gastroenterology 2021, 160, 1345–1358.e11. [Google Scholar] [CrossRef] [PubMed]
  68. Xiao, D.; Dong, Z.; Zhen, L.; Xia, G.; Huang, X.; Wang, T.; Guo, H.; Yang, B.; Xu, C.; Wu, W.; et al. Combined Exosomal GPC1, CD82, and Serum CA19-9 as Multiplex Targets: A Specific, Sensitive, and Reproducible Detection Panel for the Diagnosis of Pancreatic Cancer. Mol. Cancer Res. 2020, 18, 300–310. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Tsujii, S.; Serada, S.; Fujimoto, M.; Uemura, S.; Namikawa, T.; Nomura, T.; Murakami, I.; Hanazaki, K.; Naka, T. Glypican-1 is a novel target for stroma and tumor cell dual-targeting antibody-drug conjugates in pancreatic cancer. Mol. Cancer Ther. 2021, 20, 2495–2505. [Google Scholar] [CrossRef] [PubMed]
  70. Richards, K.E.; Zeleniak, A.E.; Fishel, M.L.; Wu, J.; Littlepage, L.E.; Hill, R. Cancer-associated fibroblast exosomes regulate survival and proliferation of pancreatic cancer cells. Oncogene 2017, 36, 1770–1778. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Essandoh, K.; Yang, L.; Wang, X.; Huang, W.; Qin, D.; Hao, J.; Wang, Y.; Zingarelli, B.; Peng, T.; Fan, G.C. Blockade of exosome generation with GW4869 dampens the sepsis-induced inflammation and cardiac dysfunction. Biochim. Biophys. Acta 2015, 1852, 2362–2371. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Hoshino, A.; Costa-Silva, B.; Shen, T.L.; Rodrigues, G.; Hashimoto, A.; Tesic Mark, M.; Molina, H.; Kohsaka, S.; Di Giannatale, A.; Ceder, S.; et al. Tumour exosome integrins determine organotropic metastasis. Nature 2015, 527, 329–335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Costa-Silva, B.; Aiello, N.M.; Ocean, A.J.; Singh, S.; Zhang, H.; Thakur, B.K.; Becker, A.; Hoshino, A.; Mark, M.T.; Molina, H.; et al. Pancreatic cancer exosomes initiate pre-metastatic niche formation in the liver. Nat. Cell Biol. 2015, 17, 816–826. [Google Scholar] [CrossRef] [PubMed]
  74. Liou, G.Y.; Döppler, H.; Braun, U.B.; Panayiotou, R.; Scotti Buzhardt, M.; Radisky, D.C.; Crawford, H.C.; Fields, A.P.; Murray, N.R.; Wang, Q.J.; et al. Protein kinase D1 drives pancreatic acinar cell reprogramming and progression to intraepithelial neoplasia. Nat. Commun. 2015, 6, 6200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Armacki, M.; Polaschek, S.; Waldenmaier, M.; Morawe, M.; Ruhland, C.; Schmid, R.; Lechel, A.; Tharehalli, U.; Steup, C.; Bektas, Y.; et al. Protein Kinase D1, Reduced in Human Pancreatic Tumors, Increases Secretion of Small Extracellular Vesicles from Cancer Cells That Promote Metastasis to Lung in Mice. Gastroenterology 2020, 159, 1019–1035.e22. [Google Scholar] [CrossRef] [PubMed]
  76. Novo, D.; Heath, N.; Mitchell, L.; Caligiuri, G.; MacFarlane, A.; Reijmer, D.; Charlton, L.; Knight, J.; Calka, M.; McGhee, E.; et al. Mutant p53s generate pro-invasive niches by influencing exosome podocalyxin levels. Nat. Commun. 2018, 9, 5069. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Kamerkar, S.; LeBleu, V.S.; Sugimoto, H.; Yang, S.; Ruivo, C.F.; Melo, S.A.; Lee, J.J.; Kalluri, R. Exosomes facilitate therapeutic targeting of oncogenic KRAS in pancreatic cancer. Nature 2017, 546, 498–503. [Google Scholar] [CrossRef] [PubMed]
Cancers 14 00744 g001 550

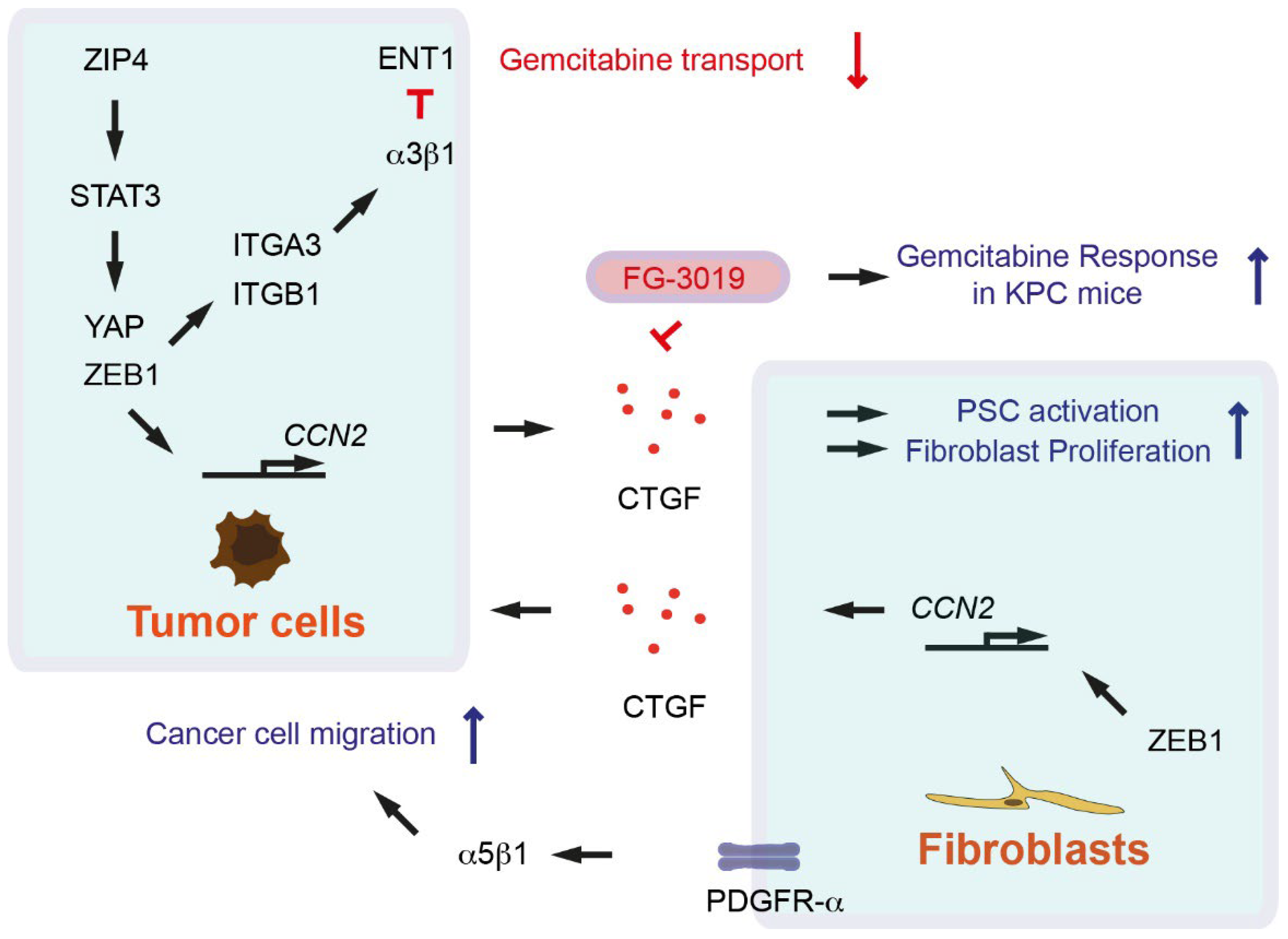

Figure 1. Growth factors as paracrine factors for cancer-associated fibroblasts (CAFs) and tumor cells. Arrows indicate activation or induction symbols. The inhibition symbols are colored in red.
Figure 1. Growth factors as paracrine factors for cancer-associated fibroblasts (CAFs) and tumor cells. Arrows indicate activation or induction symbols. The inhibition symbols are colored in red.
Cancers 14 00744 g001
Cancers 14 00744 g002 550

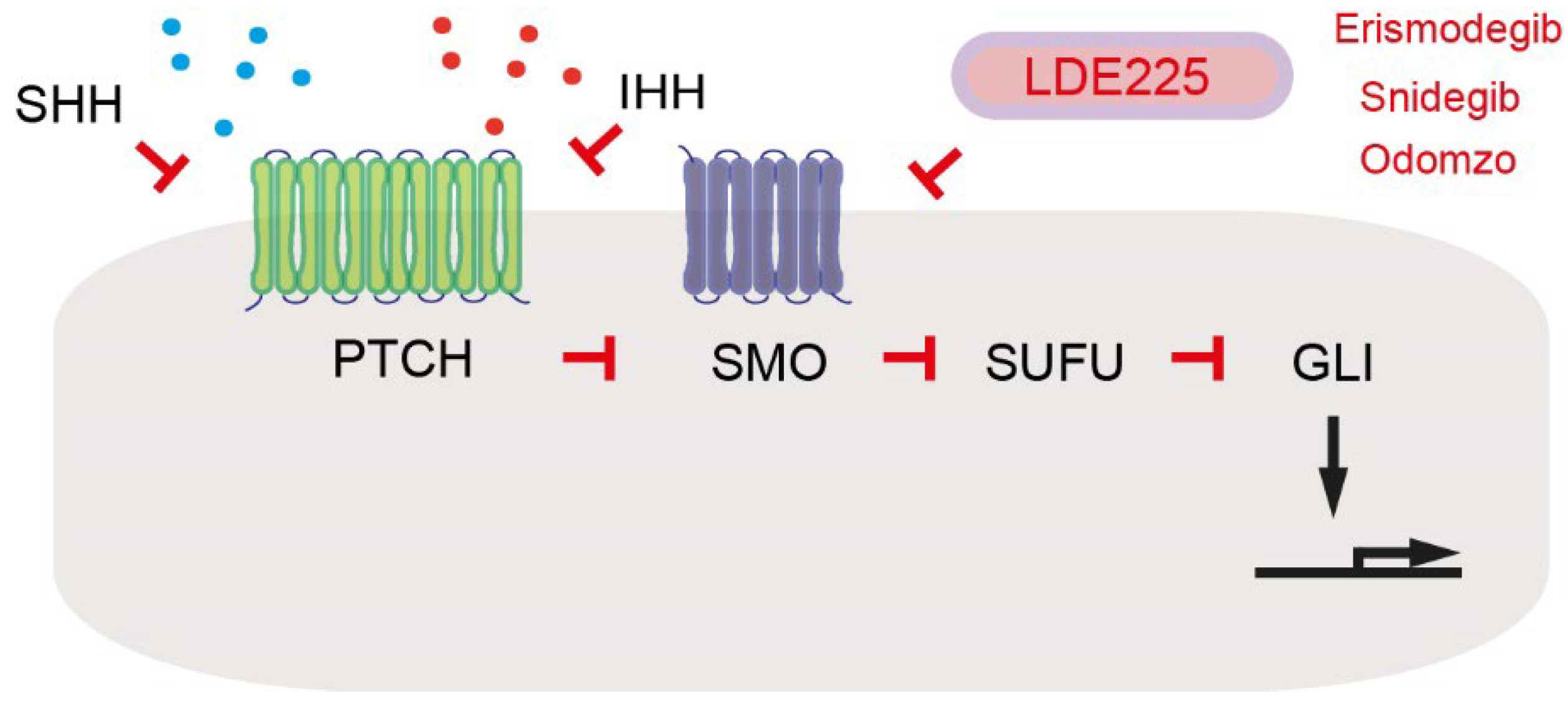

Figure 2. Hedgehog signaling. Arrows indicate activation or induction. Inhibition symbols are colored in red.
Figure 2. Hedgehog signaling. Arrows indicate activation or induction. Inhibition symbols are colored in red.
Cancers 14 00744 g002
Cancers 14 00744 g003 550

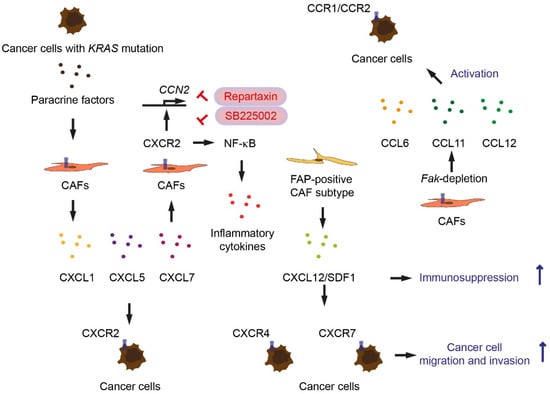

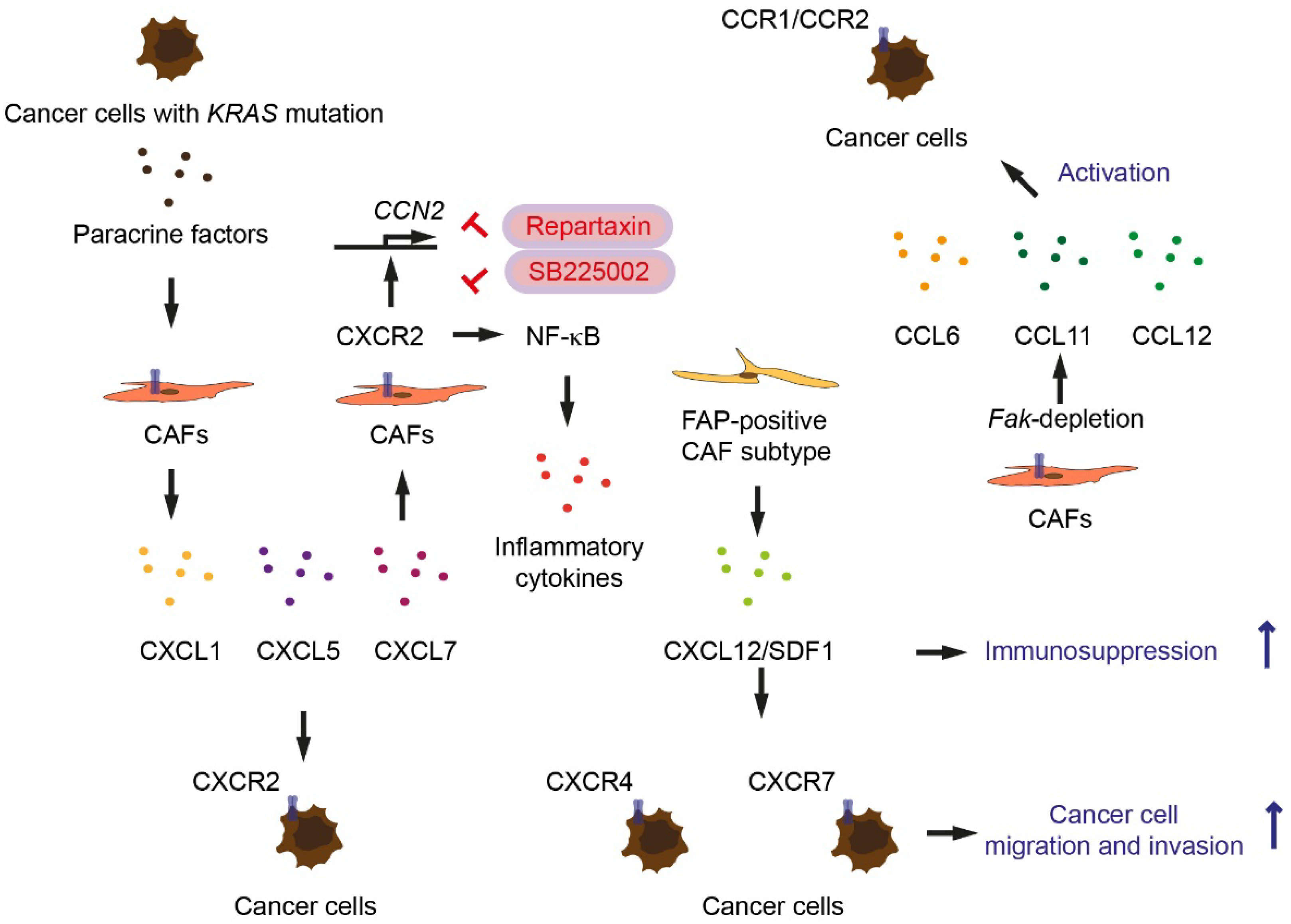

Figure 3. Chemokines and chemokine receptors as paracrine and paracrine-reciprocal factors for cancer-associated fibroblasts (CAFs) and tumor cells. Arrows indicate activation or induction. Inhibition symbols are colored in red.
Figure 3. Chemokines and chemokine receptors as paracrine and paracrine-reciprocal factors for cancer-associated fibroblasts (CAFs) and tumor cells. Arrows indicate activation or induction. Inhibition symbols are colored in red.
Cancers 14 00744 g003
Table
Table 1. Overview of autocrine, paracrine, and paracrine-reciprocal factors secreted from cancer-associated fibroblasts and tumor cells.
Table 1. Overview of autocrine, paracrine, and paracrine-reciprocal factors secreted from cancer-associated fibroblasts and tumor cells.
FactorSourceMode of ActionFunctional RelevanceReference
CTGFCAFs, tumor cells from KPC miceParacrineAct on CAFs and tumor cells[11]
Pancreatic cancer cellsParacrinePromotes proliferation, adhesion,
migration of PSCs		[17]
HGF, IL-6CAFs, tumor cellsParacrineAct on CAFs and tumor cells[13]
SHHPancreatic tumor cellsParacrineInduces expression of IGF1 and GAS6 in PSCs[18]
IGF1PSCsParacrine-
reciprocal		Activates IGF1R signaling[18]
GAS6PSCsParacrine-
reciprocal		Activates AXL signaling[18]
IL-1αPancreatic tumor cellsParacrineActivates NF-κB signaling and expression
of LIF in iCAFs		[19]
LIFiCAFsAutocrineActivates JAK/STAT signaling and establishes a positive feedback loop by upregulating
IL-1R1		[19]
LIFiCAFsParacrine
(-reciprocal)		Activate STAT3 signaling in cancer cells[19]
KRAS-driven
factors (unknown)		Pancreatic cellsParacrineAct on CAFs inducing secretion of CXCR2
ligands and CXCR2 expression		[20]
CXCR2 ligandsCAFsAutocrineCXCR2 signaling in CAFs[20]
CXCR2 ligandsPancreatic tumor cellsParacrineRecruit MDSCs[21]
CXCR2 ligandsPancreatic cancer cells from Ptf1a-Cre; lox-stop-lox-KrasG12D/+; Tgfbr2lox/lox miceParacrineInduce Ctgf expression in CAFs[22]
CXCL12CAFsParacrineImmunosuppression[23]
CCL6, CCL11,
CCL12		Fak-depleted CAFsParacrineActivate CCR1/CCR2 on cancer cells[24]
AXL: anexelenko, CAF: cancer-associated fibroblast, CTGF: connective tissue growth factor, CXCR: C-X-C motif chemokine receptor, GAS: growth arrest-specific, HGF: hepatocyte growth factor, iCAF: inflammatory CAF, IGF: insulin growth factor, IL: interleukin, IL-1R1: IL-1 receptor type 1, KPC: Pdx1-Cre; lox-stop-lox-KrasG12D/+; Trp53R172H/+, LIF: leukemia inhibitory factor, MDSC: myeloid-derived suppressor cell, NF-κB: nuclear factor kappa-light-chain-enhancer of activated B cells, PSC: pancreatic stellate cell, SHH: Sonic hedgehog.
