Review

Integrating Imaging and Circulating Tumor DNA Features for Predicting Patient Outcomes

by
Mark Jesus M. Magbanua
1,*,
Wen Li
2 and
Laura J. van ’t Veer
1
1
Department of Laboratory Medicine, University of California San Francisco, San Francisco, CA 94115, USA
2
Department of Radiology and Biomedical Imaging, University of California San Francisco, San Francisco, CA 94115, USA
*
Author to whom correspondence should be addressed.
Cancers 2024, 16(10), 1879; https://doi.org/10.3390/cancers16101879
Submission received: 15 April 2024 / Revised: 6 May 2024 / Accepted: 10 May 2024 / Published: 15 May 2024
(This article belongs to the Special Issue Imaging and Liquid Biopsy Biomarkers for Cancer Diagnosis and Treatment)
Browse Figure
Versions Notes

Abstract

:

Simple Summary

Predicting which patients will respond to therapy or experience disease relapse can help clinicians select treatments that could slow down or prevent the spread of cancer. Clinicians have routinely used imaging to measure the size of the tumor to assess whether or not it is responding to treatment. A recent development for monitoring tumors involves a test to detect mutated DNA shed by tumors into the blood, called circulating tumor DNA (ctDNA). The authors searched the scientific literature to find studies that have combined imaging and ctDNA to build tools that can predict treatment response or patient survival. The authors noted that only a few studies have been reported, indicating that this field is new and needs further exploration. These early studies, however, showed that combining these two clinical tests (imaging + ctDNA) may improve the prediction of tumors’ response to therapy and the return of cancer. While promising, these tools need to be refined to improve the accuracy of the predictions and the results confirmed in more extensive studies.

Abstract

Biomarkers for evaluating tumor response to therapy and estimating the risk of disease relapse represent tremendous areas of clinical need. To evaluate treatment efficacy, tumor response is routinely assessed using different imaging modalities like positron emission tomography/computed tomography or magnetic resonance imaging. More recently, the development of circulating tumor DNA detection assays has provided a minimally invasive approach to evaluate tumor response and prognosis through a blood test (liquid biopsy). Integrating imaging- and circulating tumor DNA-based biomarkers may lead to improvements in the prediction of patient outcomes. For this mini-review, we searched the scientific literature to find original articles that combined quantitative imaging and circulating tumor DNA biomarkers to build prediction models. Seven studies reported building prognostic models to predict distant recurrence-free, progression-free, or overall survival. Three discussed building models to predict treatment response using tumor volume, pathologic complete response, or objective response as endpoints. The limited number of articles and the modest cohort sizes reported in these studies attest to the infancy of this field of study. Nonetheless, these studies demonstrate the feasibility of developing multivariable response-predictive and prognostic models using regression and machine learning approaches. Larger studies are warranted to facilitate the building of highly accurate response-predictive and prognostic models that are generalizable to other datasets and clinical settings.

1. Introduction

Predictive and prognostic biomarkers can help guide treatment to improve the out comes of patients with cancer [1]. Biomarkers that predict response to treatment can aid therapeutic decisions to prevent or delay disease relapse [2]. For instance, patients whose tumors are predicted to respond poorly to a specific therapy may benefit from an early switch in treatment to improve the chances of achieving a favorable response. Additionally, prognostic biomarkers that can predict disease relapse after the surgical resection of primary cancer can help guide therapy in the adjuvant setting to prevent metastatic recurrence [3]. In patients with metastatic disease, biomarkers can aid in selecting efficacious agents that could delay disease progression [4]. Thus, using biomarkers to inform treatment decisions can lead to higher response rates, reduced exposure to toxicities of ineffective or unnecessary treatments, and improved patient survival.
Biomedical imaging plays a crucial role in cancer treatment, from planning therapy [5] to real-time monitoring and response assessment [6,7,8]. Imaging biomarkers derived from magnetic resonance imaging (MRI), positron emission tomography (PET), or computed tomography (CT) have extensively been used in the assessment of tumor response to cancer treatment [8]. Tumor burden measurements from imaging, such as longest diameter or tumor volume, have also shown promise in predicting patient outcomes and guiding treatment decisions in the clinic [9,10]. Recent advances in machine learning/deep learning and radiomics have allowed a more extensive and iterative search for imaging features and model parameters that are highly predictive of patient outcomes [11].
More recently, liquid biopsy biomarkers from blood [12], e.g., circulating tumor DNA (ctDNA), have been developed to assess treatment response and estimate the risk of recurrence and disease progression [13]. ctDNA-based biomarkers represent less invasive approaches to evaluating tumor response and patient survival and, therefore, can be measured repeatedly via serial blood draws to improve prediction accuracy. In addition, ctDNA can be used to monitor treatment response or resistance with minimal risks to the patient [14,15].
In this mini-review, we reviewed studies that combined ctDNA and imaging biomarkers to build models for predicting patient outcomes across different cancer types and therapeutic settings. We described the different platforms used for imaging and ctDNA analysis. We then examined the biomarkers and approaches the investigators utilized to create models for predicting treatment response and survival. Finally, we summarized the key findings of each study and their implications for improving cancer treatment.

2. Materials and Methods

2.1. Literature Search

We searched the scientific literature to identify studies that leveraged both imaging and ctDNA data to build integrative predictive and prognostic models (Figure 1). We used the keywords “imaging” and “ctDNA” in a PubMed search and found 496 entries. After reviewing the article titles, 36 publications were deemed candidates for a full abstract review. Review articles and original studies that only reported correlations between imaging and ctDNA biomarkers without modeling were excluded from further review.

2.2. ctDNA Detection Platforms and Biomarkers

One of the most well-studied blood-based liquid biopsy biomarkers is ctDNA [17]. In most cases, this biomarker represents a minute fraction of the total cell-free DNA floating in the plasma and is exclusively shed into circulation by tumor cells [12]. There are many platforms for detecting ctDNA, which are relatively rare, small fragments of DNA molecules present in a cell-free DNA background, mainly derived from dying hematopoietic cells [17]. ctDNA detection platforms can be classified into two major categories: tumor agnostic and tumor informed [18]. Tumor-agnostic platforms do not require sequence information of tumors of origin but are based on detecting altered copies of commonly mutated cancer-related genes such as TP53 and PIK3CA. Mutant and wild-type copies of the genes are sequestered from plasma by hybridization capture. Then, the captured DNA molecules are subjected to next-generation sequencing (NGS) to estimate the variant allele fraction (VAF, also called mutant allele frequency or MAF) or mutant copies per mL of plasma. In contrast, tumor-informed platforms require the sequencing of the original tumor (e.g., whole-exome sequencing), and a panel of patient-specific mutations is selected. The region containing the mutation in each gene is then amplified by polymerase chain reaction (PCR), and the amplicons are subjected to deep NGS to detect mutated copies.

2.3. Imaging Platforms and Quantitative Biomarkers

Biomedical imaging consists of many platforms for non-invasive quantitative measurements of tumors from medical images. The most common modalities used in conjunction with cancer treatment are dynamic contrast-enhanced MRI, CT, X-ray, and PET. The most frequently used quantitative imaging biomarkers from the first three modalities include measures of tumor size, e.g., longest diameter and tumor volume [19]. Different from MRI, CT, and X-ray, which represent anatomical imaging modalities, PET and PET/CT are functional imaging modalities measuring the metabolic or biochemical function of tissues or organs [20,21]. In particular, fluorine isotope 18 (18F)-fluorodeoxyglucose (FDG) PET can be used to measure FDG uptake in targeted organs such as the liver, brain, or breast. The most common measurement derived from FDG PET imaging is the standardized uptake value (SUV, unit: grams per milliliter) reflecting the relative uptake of FDG in an organ normalized to the injected dose of FDG and patient body weight [22]. The maximum SUV (SUVmax) is the tumor’s maximum FDG uptake value measured within a defined region of interest (ROI). The measurement of SUVmax has been demonstrated to be highly reproducible despite variability in the ROI delineation by image readers [23,24]. Metabolic tumor volume (MTV) is the volume of metabolically active tumor cells that have uptake above the pre-defined threshold on FDG PET examination, while the total lesion glycolysis (TLG) is the product of the mean SUV and the MTV within the ROI [25].

2.4. Response and Survival Endpoint

Outcomes refer to the results of the treatment and care the patient receives in a clinical setting. Endpoints are specific outcome measures and can refer to whether a patient’s tumor responds to treatment or not (response endpoint) or how long the patient lives with or without disease relapse (survival endpoint). The response endpoints used in the studies discussed in this review include pathologic complete response (pathCR) and objective response, as defined by the Response Evaluation Criteria in Solid Tumors (RECIST) guidelines, and the survival endpoints include overall survival (OS), progression-free survival (PFS), and distant recurrence-free survival (DRFS).
PathCR is defined as the absence of invasive cancer in the primary tumor bed following neoadjuvant therapy (treatment administered before surgery). PathCR, assessed at surgery, allows for the rapid evaluation of drug efficacy and has been proposed as a surrogate endpoint of long-term clinical benefit [26]. Studies showed that achieving a pathCR is a strong predictor of favorable survival [27,28]. Objective response is based on RECIST guidelines, which provide a framework for tumor response evaluation based on quantitative changes in tumor burden assessed by imaging or clinical exams. RECIST was initially published in 2000 [29] and updated in 2009 (RECIST 1.1 [30]). Imaging modalities often used for objective response evaluation include MRI, CT, X-ray, and FDG PET. Four types of objective responses can be measured at the target lesions [31]: (1) complete response (CR) is defined as the disappearance of all lesions and pathologic lymph nodes; (2) partial response (PR) refers to a ≥30% decrease in the sum of the longest diameters of the target lesions; (3) stable disease (SD) is neither PR nor (4) progressive disease (PD), defined as an increase of at least 20% in the sum of the longest diameters of target lesions with an absolute increase of ≥5 mm, or the development of one or more new lesions [30].
OS is usually defined as the time interval between the start of treatment and death from any cause and is considered the “gold standard” in assessing treatment efficacy [32]. An early surrogate endpoint for OS is PFS, the time interval between the start of treatment and the documentation of disease progression or death from any cause [33]. In clinical studies involving patients with early stage (non-metastatic) cancer, the endpoint often used is DRFS, defined as the time interval between treatment start and the diagnosis of distant recurrence or death from any cause [27].

3. Results

In total, seven original studies were chosen for a full review, including six from the literature search [34,35,36,37,38,39]. One additional article was found using a separate search engine, as the authors used the term “plasma tumor DNA (ptDNA)” instead of ctDNA [40], and thus, the article was missed during the initial PubMed search.
The studies involved patients with different cancer types, including three non-small cell lung carcinoma (NSCLC), one high-grade serous ovarian cancer (HGSOC), one prostate, and two breast cancer studies (Table 1). Two studies were performed in early stage (Stage I–III), two in advanced (Stage III–IV), and three in metastatic (Stage IV) cancer settings. Patients received various types of treatment, including chemotherapy and targeted therapies. Two studies used machine learning approaches to identify ctDNA and imaging features that are predictive of patient outcomes. Detailed information regarding the studies is summarized in Table 2 and Table 3.

3.1. Combined Imaging and ctDNA Biomarkers for Predicting Survival

This section discusses two studies on NSCLC [36,39] and one on breast cancer [38] that built prognostic models combining imaging and ctDNA biomarkers.
Yousefi and colleagues investigated whether imaging features of tumors from patients with metastatic NSCLC can be combined with ctDNA data to improve the prediction of survival after epidermal growth factor receptor (EGFR)-targeted therapy [36]. The investigators extracted 429 imaging features of primary tumors from 40 patients using data from pretreatment chest CT scans. These features were then used in unsupervised hierarchical clustering to group tumors into two imaging phenotypes. NGS of cell-free DNA (cfDNA) was used to estimate the number of ctDNA mutations in the blood. In addition to imaging and ctDNA information, Yousefi et al. used clinical data, including age, smoking status, and ECOG (Eastern Cooperative Oncology Group) performance status, to calculate a prognostic score for each patient. Using the median value of this measure, the patients were divided into two groups. Survival analysis showed that using the prognostic score derived from ctDNA, clinical variables, and imaging phenotypes improved the prediction of PFS and OS.
Ottestad et al. examined whether ctDNA levels are correlated with tumor metabolic activity as measured by PET/CT [39]. ctDNA data from 63 patients with stage I–III NSCLC were obtained from previously published studies [41,42,43]. A patient-specific NGS panel or digital droplet polymerase chain reaction (ddPCR) was used to detect ctDNA, and ctDNA levels were reported as VAF. The levels of ctDNA were positively correlated with PET/CT features, including MTV and TLG, but not with SUVmax. Univariable Cox proportional hazard analysis showed that ctDNA detection, MTV, TLG, and SUVmax were significantly associated with PFS and OS. In a multivariable Cox model, none of the predictors were significantly associated with PFS, while only ctDNA remained a significant prognostic factor for OS.
Everolimus, an mTOR inhibitor, when combined with endocrine therapy, has been shown to improve PFS in patients with breast cancer [44]. Exemestane, a steroidal (Type I) endocrine therapy, inactivates aromatase, a key enzyme in estrogen biosynthesis. Gombos and colleagues reported the results of a trial (Pearl) that assessed response by PET/CT and ctDNA 14 days after everolimus–exemestane treatment initiation [38]. CfDNA from plasma was subjected to deep NGS to detect mutations in 40 cancer-specific genes. The investigators examined whether a prognostic model including ctDNA and imaging features can predict PFS and identify patients who do not benefit from adding everolimus to exemestane. Using a “post-hoc” cut-off of <15% for SUVmax decrease to dichotomize patients into non-responders and responders, they found a significant difference in PFS between the two groups. ctDNA on treatment day 14 was also shown to be significantly associated with PFS. Multivariate Cox proportional hazard analysis showed that the detection of ctDNA and the absence of PET/CT response on day 14 identified patients with a low probability of benefiting from everolimus–exemestane treatment.

3.2. Integrating Imaging and ctDNA Biomarkers in Predictive and Prognostic Models

Next, we highlight two studies integrating imaging and ctDNA biomarkers to build models for predicting response and survival [35,37].
The first study involves patients with stage III–IV NSCLC receiving chemotherapy [37]. Fiala et al. examined the prognostic value of PET/CT and ctDNA measurements collected at pretreatment and after two cycles of chemotherapy (follow up) in 84 patients. The PCR/DCE-based heteroduplex method (heteroduplex analysis after the amplification of the mutated tumor-specific gene fragment) was used to detect mutations in genes commonly altered in lung cancer, e.g., EGFR, KRAS, TP53, PIK3CA, and BRAF. VAF was used as the quantitative ctDNA measure for correlation analyses. The authors found that pretreatment and ∆ctDNA VAF values were significantly correlated with PET/CT features, MTV, TLG, and IC. They also observed that follow-up ctDNA and changes in all PET/CT parameters were associated with treatment response based on RECIST guidelines. Receiver-operating characteristic (ROC) analyses showed that adding follow-up ctDNA to ∆SUVmax (%) improved the prediction of objective response and PFS.
Second, our group demonstrated the feasibility of building models to predict pathCR and DRFS in patients with high-risk, early stage (Stage II–III) breast cancer receiving neoadjuvant chemotherapy (NAC) in the I-SPY2 trial [35]. The trial used MRI for serial imaging of the breast to assess tumor burden, reported as FTV. ctDNA was analyzed using a tumor-informed test (SignateraTM) involving the sequencing of pretreatment tumors and the selection of up to 16 clonal mutations (high VAF in tissue). PCR primers were then designed to amplify the regions containing the alterations, and the amplicons were subjected to deep NGS to detect mutant copies (ctDNA) in cfDNA. ctDNA was reported as a dichotomous (positive vs. negative) and continuous variable (MTM/mL). ROC analysis showed that adding ctDNA to the response-predictive model containing FTV only improved the early prediction of pathCR (3 weeks after treatment initiation). A bivariable Cox proportional hazard analysis showed that the ctDNA detection and larger FTV after NAC were significantly associated with DRFS.

3.3. Machine Learning Approaches to Discover Predictive and Prognostic Imaging and ctDNA Biomarkers

Machine learning is a novel approach to finding features predictive of an outcome, e.g., response vs. no response or recurrence vs. no recurrence. First, the data are split into training and test sets. The training set (usually a larger portion of the complete dataset, e.g., 70–80%) is then used to build a prediction model by learning which features are associated with an outcome. The model’s performance is then evaluated by applying the parameters of the model, learned in the training set, to a test set, the remaining dataset that the model has not seen. Accurate predictions in the test set and, sometimes, in an external validation set indicate the robustness of the model (generalizability). This section discusses two studies that used machine learning to find imaging and ctDNA features predictive of treatment response [34] or survival [40].
In the first study, Conteduca et al. investigated whether pretreatment ctDNA levels reflect metabolic tumor burden assessed by PET/CT and better predict survival in combination with imaging features [40]. CtDNA was detected using targeted NGS in 102 patients with Stage IV castration-resistant prostate cancer treated with abiraterone, an inhibitor of androgen receptor (AR) signaling. The authors calculated a prognostic score using the Weibull multiple regression model, which assessed the correlation of ctDNA and imaging features with PFS and OS. The levels of ctDNA were significantly correlated with imaging features, e.g., SUVmax, MTV, and TLA (total lesion activity, also referred to as TLG). Patients were randomly assigned into a training (n = 68) and a test (n = 34) set. In the training set, multivariable Cox proportional hazard analyses showed that ctDNA, MTV, serum lactate dehydrogenase (LDH), and the presence of visceral metastasis were independent predictors of PFS and OS. The calculated prognostic scores were then used to group patients into three risk groups with significantly different median PFS and OS values. The parameters in the training set were then used to calculate prognostic scores in patients in the test set. The significant differences in median OS and PFS between risk groups were confirmed in the test set, indicating that combining ctDNA and imaging may improve risk stratification in castration-resistant prostate cancer.
The second study by Crispin-Ortuzar et al. showcased a machine learning framework to build a response-predictive model in patients with stage III–IV high-grade serous ovarian cancer (HGSOC) receiving NAC [34]. The framework involved integrating baseline clinical information, blood-based biomarkers (CA-125 and ctDNA), and imaging features (combined model) extracted from all primary and metastatic lesions of 92 patients. CtDNA was detected by NGS of the plasma cfDNA. The researchers then used an ensemble machine learning model that included three different algorithms: elastic net, support vector regressor, and random forest, to predict the change in total tumor volume. The model was trained using data obtained at diagnosis (training set n = 72). An internal hold-out cohort (test set, n = 20) and an independent external patient cohort (validation set, n = 42) were then used to validate the model. In the validation set, the combined model was better at predicting tumor response classification based on the RECIST guidelines (area under the receiver-operating characteristic curve, AUC = 0.8) than the clinical model (AUC = 0.5). The study showed that adding imaging data into an integrative model that included ctDNA improved the prediction of treatment response. This provides a framework for developing response-predictive models to guide NAC trials in HGSOC.

4. Limitations

Quantitative imaging and ctDNA biomarkers are measures of tumor burden and can be highly correlated [35]. This represents a major limitation that could negatively impact the performance of predictive models that combine these two biomarkers. Studies by the authors, however, have revealed discordances between these two measures and surmised that it is in these cases that the models could be most informative [35]. Another limitation is the lack of sensitivity of ctDNA assays, particularly in early stage cancer, when the tumor burden is low, and in the minimal residual disease setting, when the tumor has been surgically resected [45]. Previous work by the authors has also shown undetectable ctDNA levels in patients with no pathCR, indicating the limited sensitivity of the test, even in patients with extensive residual cancer burden after NAC [46,47]. New ctDNA tests with increased sensitivity are being developed to address this limitation [48]. The cost associated with testing, especially NGS-based ctDNA assays, represents another barrier that could limit widespread adoption and access to underrepresented communities. The high costs could also impede the expansion of biomarker studies to larger cohorts, which is key to building accurate models for predicting patient outcomes.

5. Conclusions

Our literature search yielded studies that combined imaging and ctDNA features in models predictive of treatment response and survival. The studies involved cohorts that vary in terms of the type of cancer, stage, and treatment received. Most studies used PET/CT for tumor imaging and NGS-based assays to detect ctDNA in the blood. In addition, the RECIST guidelines and PFS were often used as the response and survival endpoint, respectively.
Two studies demonstrated the feasibility of machine learning approaches for identifying predictors of outcome. Logistic regression was commonly used to predict binary outcomes (e.g., response), and Cox proportional hazard analysis was used to predict survival. Overall, the cohorts’ sample sizes were limited (40–84 patients). The authors are expanding efforts in the I-SPY2 trial to validate results from initial studies combining information from a tumor-informed ctDNA test and MRI-based FTV to build models predicting patient outcomes [1]. Since 95% of patients with a pathCR are free from metastatic recurrence after three years of follow up (i.e., 95% 3-year DRFS), the goal of I-SPY2 is to bring patients to achieve a pathCR by offering the most efficacious treatment available. Models predicting response as early as three to six weeks after treatment initiation will inform clinicians on whether to escalate or de-escalate therapy. Patients predicted to achieve a pathCR early during treatment could go to surgery early, therefore limiting exposure to the toxicity of unnecessary treatment (de-escalation). In contrast, those predicted to have a poor response may switch to a different treatment to improve the likelihood of achieving a pathCR (escalation). The authors plan to expand their studies to 1000 patients in I-SPY2, as larger training datasets are needed to create robust models to accurately predict patient outcomes. Nonetheless, despite high correlations between imaging and ctDNA features—which might imply that they lack additive value—studies in this mini-review demonstrate the feasibility of combining these biomarkers to predict treatment response and disease relapse.

6. Future Directions

Investigations focused on combining imaging and ctDNA features to build predictive models are in their embryonic stages. More studies are needed to determine optimal strategies for building models for predicting outcomes. This includes multimodal approaches that involve biomarkers beyond ctDNA and imaging features. For example, the I-SPY2 trial is testing whether gene expression- [49] and protein-based [50] tumor biomarkers can improve the prediction of pathCR to guide treatment selection. Wolf and colleagues in I-SPY2 have created alternative breast cancer subtypes by incorporating these molecular biomarkers into the standard breast cancer subtyping and showed improved performance in predicting treatment response [49]. The authors recently reported on the predictive and prognostic value of ctDNA in 283 patients representing two of the three major receptor breast cancer subtypes [46]. Currently, ctDNA data collection is being expanded (as discussed above) to cover all breast cancer subtypes, including patients with HER2-positive disease. Work to integrate ctDNA data with FTV using machine learning tools to identify features predictive of response (pathCR) and metastatic recurrence (DRFS) is ongoing. Adding molecular biomarkers to ctDNA and imaging information may further improve model performance. Nonetheless, larger cohorts are warranted to validate the response-predictive and prognostic models to ensure generalizability to other datasets.

Author Contributions

Conceptualization, M.J.M.M. and W.L.; methodology, M.J.M.M.; resources, L.J.v.’t.V.; writing—original draft preparation, M.J.M.M. and W.L.; writing—review and editing, M.J.M.M. and W.L.; visualization, M.J.M.M.; funding acquisition, L.J.v.’t.V., W.L. and M.J.M.M. All authors have read and agreed to the published version of the manuscript.

Funding

The authors received funding from the NIH/NCI (grant R01CA255442). Other sources of funds include: NIH/NCI I-SPY2+ (Grant PO1-CA210961), NIH/NCI Imaging (Grant 28XS197 P-0518835), NIH/NCI CCMI (Grant U54CA209891), NIH/NCI CCSG (Grant P30-CA82103), NIH/NHGRI Big Data (Grant U54-HG007990), Breast Cancer Research Foundation (Grant BCRF-20-142), Breast Cancer Research Foundation (Grant BCRF-20-165), Breast Cancer Research–Atwater Trust, Stand up to Cancer, California Breast Cancer Research Program, and Give Breast Cancer the Boot.

Acknowledgments

The authors thank advocates Amy L. Delson and Barbara K. LeStage for their critical review of the manuscript.

Conflicts of Interest

L.J.v.’t.V. is a stockholder and part-time employee of Agendia NV for work not related to this manuscript. W.L. and M.J.M.M. declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
18Ffluorine isotope 18
ARandrogen receptor
BCAbreast cancer
cfDNAcell-free DNA
CRcomplete response
CTcomputed tomography
ctDNAcirculating tumor DNA
DCEdenaturing capillary electrophoresis
ddPCRdigital droplet polymerase chain reaction
DRFSdistant recurrence-free survival
EGFRepidermal growth factor receptor
ERestrogen receptor
FCHfluorocholine
FDGfluorodeoxyglucose
FTVfunctional tumor volume
HGSOChigh-grade serous ovarian cancer
ICiodine concentration
IUiodine uptake
LDHlactate dehydrogenase
MAFmutant allele frequency
mPCRmassively parallel polymerase chain reaction
MRImagnetic resonance imaging
MTMmean tumor molecules
MTVmetabolic tumor volume
NACneoadjuvant chemotherapy
NGSnext-generation sequencing
NSCLCnon-small cell lung cancer
OSoverall survival
pathCRpathologic complete response
PCRpolymerase chain reaction
PDprogressive disease
PETpositron emission tomography
PET/CTpositron emission tomography/computed tomography
PFSprogression-free survival
PRpartial response
ptDNAplasma tumor DNA
RECISTResponse Evaluation Criteria in Solid Tumors
ROIregion of interest
SDstable disease
SUVstandardized uptake value
TLGtotal lesion glycolysis
VAFvariant allele frequency

References

  1. Ballman, K.V. Biomarker: Predictive or Prognostic? J. Clin. Oncol. 2015, 33, 3968–3971. [Google Scholar] [CrossRef] [PubMed]
  2. Amin, S.; Bathe, O.F. Response biomarkers: Re-envisioning the approach to tailoring drug therapy for cancer. BMC Cancer 2016, 16, 850. [Google Scholar] [CrossRef] [PubMed]
  3. Kerr, D.J.; Yang, L. Personalising cancer medicine with prognostic markers. EBioMedicine 2021, 72, 103577. [Google Scholar] [CrossRef] [PubMed]
  4. O’Dwyer, P.J.; Gray, R.J.; Flaherty, K.T.; Chen, A.P.; Li, S.; Wang, V.; McShane, L.M.; Patton, D.R.; Tricoli, J.V.; Williams, P.M.; et al. The NCI-MATCH trial: Lessons for precision oncology. Nat. Med. 2023, 29, 1349–1357. [Google Scholar] [CrossRef] [PubMed]
  5. Secerov Ermenc, A.; Segedin, B. The Role of MRI and PET/CT in Radiotherapy Target Volume Determination in Gastrointestinal Cancers-Review of the Literature. Cancers 2023, 15, 2967. [Google Scholar] [CrossRef] [PubMed]
  6. Ko, C.C.; Yeh, L.R.; Kuo, Y.T.; Chen, J.H. Imaging biomarkers for evaluating tumor response: RECIST and beyond. Biomark. Res. 2021, 9, 52. [Google Scholar] [CrossRef]
  7. Newitt, D.C.; Aliu, S.O.; Witcomb, N.; Sela, G.; Kornak, J.; Esserman, L.; Hylton, N.M. Real-Time Measurement of Functional Tumor Volume by MRI to Assess Treatment Response in Breast Cancer Neoadjuvant Clinical Trials: Validation of the Aegis SER Software Platform. Transl. Oncol. 2014, 7, 94–100. [Google Scholar] [CrossRef] [PubMed]
  8. O’Connor, J.P.; Aboagye, E.O.; Adams, J.E.; Aerts, H.J.; Barrington, S.F.; Beer, A.J.; Boellaard, R.; Bohndiek, S.E.; Brady, M.; Brown, G.; et al. Imaging biomarker roadmap for cancer studies. Nat. Rev. Clin. Oncol. 2017, 14, 169–186. [Google Scholar] [CrossRef] [PubMed]
  9. Hylton, N.M.; Blume, J.D.; Bernreuter, W.K.; Pisano, E.D.; Rosen, M.A.; Morris, E.A.; Weatherall, P.T.; Lehman, C.D.; Newstead, G.M.; Polin, S.; et al. Locally advanced breast cancer: MR imaging for prediction of response to neoadjuvant chemotherapy–results from ACRIN 6657/I-SPY TRIAL. Radiology 2012, 263, 663–672. [Google Scholar] [CrossRef]
  10. Hylton, N.M.; Gatsonis, C.A.; Rosen, M.A.; Lehman, C.D.; Newitt, D.C.; Partridge, S.C.; Bernreuter, W.K.; Pisano, E.D.; Morris, E.A.; Weatherall, P.T.; et al. Neoadjuvant Chemotherapy for Breast Cancer: Functional Tumor Volume by MR Imaging Predicts Recurrence-free Survival-Results from the ACRIN 6657/CALGB 150007 I-SPY 1 TRIAL. Radiology 2016, 279, 44–55. [Google Scholar] [CrossRef]
  11. Santini, D.; Danti, G.; Bicci, E.; Galluzzo, A.; Bettarini, S.; Busoni, S.; Innocenti, T.; Galli, A.; Miele, V. Radiomic Features Are Predictive of Response in Rectal Cancer Undergoing Therapy. Diagnostics 2023, 13, 2573. [Google Scholar] [CrossRef] [PubMed]
  12. Stejskal, P.; Goodarzi, H.; Srovnal, J.; Hajduch, M.; van ’t Veer, L.J.; Magbanua, M.J.M. Circulating tumor nucleic acids: Biology, release mechanisms, and clinical relevance. Mol. Cancer 2023, 22, 15. [Google Scholar] [CrossRef] [PubMed]
  13. Pessoa, L.S.; Heringer, M.; Ferrer, V.P. ctDNA as a cancer biomarker: A broad overview. Crit. Rev. Oncol. Hematol. 2020, 155, 103109. [Google Scholar] [CrossRef] [PubMed]
  14. Gouda, M.A.; Huang, H.J.; Piha-Paul, S.A.; Call, S.G.; Karp, D.D.; Fu, S.; Naing, A.; Subbiah, V.; Pant, S.; Dustin, D.J.; et al. Longitudinal Monitoring of Circulating Tumor DNA to Predict Treatment Outcomes in Advanced Cancers. JCO Precis. Oncol. 2022, 6, e2100512. [Google Scholar] [CrossRef] [PubMed]
  15. Filis, P.; Kyrochristos, I.; Korakaki, E.; Baltagiannis, E.G.; Thanos, D.; Roukos, D.H. Longitudinal ctDNA profiling in precision oncology and immunomicron-oncology. Drug Discov. Today 2023, 28, 103540. [Google Scholar] [CrossRef] [PubMed]
  16. Li, W.; Le, N.N.; Onishi, N.; Newitt, D.C.; Wilmes, L.J.; Gibbs, J.E.; Carmona-Bozo, J.; Liang, J.; Partridge, S.C.; Price, E.R.; et al. Diffusion-Weighted MRI for Predicting Pathologic Complete Response in Neoadjuvant Immunotherapy. Cancers 2022, 14, 4436. [Google Scholar] [CrossRef] [PubMed]
  17. Krebs, M.G.; Malapelle, U.; Andre, F.; Paz-Ares, L.; Schuler, M.; Thomas, D.M.; Vainer, G.; Yoshino, T.; Rolfo, C. Practical Considerations for the Use of Circulating Tumor DNA in the Treatment of Patients with Cancer: A Narrative Review. JAMA Oncol. 2022, 8, 1830–1839. [Google Scholar] [CrossRef] [PubMed]
  18. Magbanua, M.J.M.; Gumusay, O.; Kurzrock, R.; van ’t Veer, L.J.; Rugo, H.S. Immunotherapy in Breast Cancer and the Potential Role of Liquid Biopsy. Front. Oncol. 2022, 12, 802579. [Google Scholar] [CrossRef] [PubMed]
  19. Mahadevan, L.S.; Zhong, J.; Venkatesulu, B.; Kaur, H.; Bhide, S.; Minsky, B.; Chu, W.; Intven, M.; van der Heide, U.A.; van Triest, B.; et al. Imaging predictors of treatment outcomes in rectal cancer: An overview. Crit. Rev. Oncol. Hematol. 2018, 129, 153–162. [Google Scholar] [CrossRef]
  20. Cecil, K.; Huppert, L.; Mukhtar, R.; Dibble, E.H.; O’Brien, S.R.; Ulaner, G.A.; Lawhn-Heath, C. Metabolic Positron Emission Tomography in Breast Cancer. PET Clin. 2023, 18, 473–485. [Google Scholar] [CrossRef]
  21. Kwon, H.W.; Becker, A.K.; Goo, J.M.; Cheon, G.J. FDG Whole-Body PET/MRI in Oncology: A Systematic Review. Nucl. Med. Mol. Imaging 2017, 51, 22–31. [Google Scholar] [CrossRef] [PubMed]
  22. Kinahan, P.E.; Perlman, E.S.; Sunderland, J.J.; Subramaniam, R.; Wollenweber, S.D.; Turkington, T.G.; Lodge, M.A.; Boellaard, R.; Obuchowski, N.A.; Wahl, R.L. The QIBA Profile for FDG PET/CT as an Imaging Biomarker Measuring Response to Cancer Therapy. Radiology 2020, 294, 647–657. [Google Scholar] [CrossRef] [PubMed]
  23. Hatt, M.; Cheze Le Rest, C.; Albarghach, N.; Pradier, O.; Visvikis, D. PET functional volume delineation: A robustness and repeatability study. Eur. J. Nucl. Med. Mol. Imaging 2011, 38, 663–672. [Google Scholar] [CrossRef] [PubMed]
  24. Lodge, M.A. Repeatability of SUV in Oncologic (18)F-FDG PET. J. Nucl. Med. 2017, 58, 523–532. [Google Scholar] [CrossRef] [PubMed]
  25. Sarikaya, I.; Sarikaya, A. Assessing PET Parameters in Oncologic (18)F-FDG Studies. J. Nucl. Med. Technol. 2020, 48, 278–282. [Google Scholar] [CrossRef] [PubMed]
  26. Prowell, T.M.; Pazdur, R. Pathological complete response and accelerated drug approval in early breast cancer. N. Engl. J. Med. 2012, 366, 2438–2441. [Google Scholar] [CrossRef] [PubMed]
  27. Consortium, I.S.T.; Yee, D.; DeMichele, A.M.; Yau, C.; Isaacs, C.; Symmans, W.F.; Albain, K.S.; Chen, Y.Y.; Krings, G.; Wei, S.; et al. Association of Event-Free and Distant Recurrence-Free Survival with Individual-Level Pathologic Complete Response in Neoadjuvant Treatment of Stages 2 and 3 Breast Cancer: Three-Year Follow-up Analysis for the I-SPY2 Adaptively Randomized Clinical Trial. JAMA Oncol. 2020, 6, 1355–1362. [Google Scholar] [CrossRef] [PubMed]
  28. Spring, L.M.; Fell, G.; Arfe, A.; Sharma, C.; Greenup, R.; Reynolds, K.L.; Smith, B.L.; Alexander, B.; Moy, B.; Isakoff, S.J.; et al. Pathologic Complete Response after Neoadjuvant Chemotherapy and Impact on Breast Cancer Recurrence and Survival: A Comprehensive Meta-analysis. Clin. Cancer Res. 2020, 26, 2838–2848. [Google Scholar] [CrossRef] [PubMed]
  29. Therasse, P.; Arbuck, S.G.; Eisenhauer, E.A.; Wanders, J.; Kaplan, R.S.; Rubinstein, L.; Verweij, J.; Van Glabbeke, M.; van Oosterom, A.T.; Christian, M.C.; et al. New guidelines to evaluate the response to treatment in solid tumors. European Organization for Research and Treatment of Cancer, National Cancer Institute of the United States, National Cancer Institute of Canada. J. Natl. Cancer Inst. 2000, 92, 205–216. [Google Scholar] [CrossRef]
  30. Eisenhauer, E.A.; Therasse, P.; Bogaerts, J.; Schwartz, L.H.; Sargent, D.; Ford, R.; Dancey, J.; Arbuck, S.; Gwyther, S.; Mooney, M.; et al. New response evaluation criteria in solid tumours: Revised RECIST guideline (version 1.1). Eur. J. Cancer 2009, 45, 228–247. [Google Scholar] [CrossRef]
  31. Aykan, N.F.; Ozatli, T. Objective response rate assessment in oncology: Current situation and future expectations. World J. Clin. Oncol. 2020, 11, 53–73. [Google Scholar] [CrossRef] [PubMed]
  32. Cheema, P.K.; Burkes, R.L. Overall survival should be the primary endpoint in clinical trials for advanced non-small-cell lung cancer. Curr. Oncol. 2013, 20, e150–e160. [Google Scholar] [CrossRef] [PubMed]
  33. Kovic, B.; Jin, X.; Kennedy, S.A.; Hylands, M.; Pedziwiatr, M.; Kuriyama, A.; Gomaa, H.; Lee, Y.; Katsura, M.; Tada, M.; et al. Evaluating Progression-Free Survival as a Surrogate Outcome for Health-Related Quality of Life in Oncology: A Systematic Review and Quantitative Analysis. JAMA Intern. Med. 2018, 178, 1586–1596. [Google Scholar] [CrossRef] [PubMed]
  34. Crispin-Ortuzar, M.; Woitek, R.; Reinius, M.A.V.; Moore, E.; Beer, L.; Bura, V.; Rundo, L.; McCague, C.; Ursprung, S.; Escudero Sanchez, L.; et al. Integrated radiogenomics models predict response to neoadjuvant chemotherapy in high grade serous ovarian cancer. Nat. Commun. 2023, 14, 6756. [Google Scholar] [CrossRef] [PubMed]
  35. Magbanua, M.J.M.; Li, W.; Wolf, D.M.; Yau, C.; Hirst, G.L.; Swigart, L.B.; Newitt, D.C.; Gibbs, J.; Delson, A.L.; Kalashnikova, E.; et al. Circulating tumor DNA and magnetic resonance imaging to predict neoadjuvant chemotherapy response and recurrence risk. NPJ Breast Cancer 2021, 7, 32. [Google Scholar] [CrossRef]
  36. Yousefi, B.; LaRiviere, M.J.; Cohen, E.A.; Buckingham, T.H.; Yee, S.S.; Black, T.A.; Chien, A.L.; Noel, P.; Hwang, W.T.; Katz, S.I.; et al. Combining radiomic phenotypes of non-small cell lung cancer with liquid biopsy data may improve prediction of response to EGFR inhibitors. Sci. Rep. 2021, 11, 9984. [Google Scholar] [CrossRef] [PubMed]
  37. Fiala, O.; Baxa, J.; Svaton, M.; Benesova, L.; Ptackova, R.; Halkova, T.; Minarik, M.; Hosek, P.; Buresova, M.; Finek, J.; et al. Combination of Circulating Tumour DNA and (18)F-FDG PET/CT for Precision Monitoring of Therapy Response in Patients with Advanced Non-small Cell Lung Cancer: A Prospective Study. Cancer Genom. Proteom. 2022, 19, 270–281. [Google Scholar] [CrossRef] [PubMed]
  38. Gombos, A.; Venet, D.; Ameye, L.; Vuylsteke, P.; Neven, P.; Richard, V.; Duhoux, F.P.; Laes, J.F.; Rothe, F.; Sotiriou, C.; et al. FDG positron emission tomography imaging and ctDNA detection as an early dynamic biomarker of everolimus efficacy in advanced luminal breast cancer. NPJ Breast Cancer 2021, 7, 125. [Google Scholar] [CrossRef] [PubMed]
  39. Ottestad, A.L.; Johansen, H.; Halvorsen, T.O.; Dai, H.Y.; Wahl, S.G.F.; Emdal, E.F.; Gronberg, B.H. Associations between detectable circulating tumor DNA and tumor glucose uptake measured by (18)F-FDG PET/CT in early-stage non-small cell lung cancer. BMC Cancer 2023, 23, 646. [Google Scholar] [CrossRef]
  40. Conteduca, V.; Scarpi, E.; Caroli, P.; Lolli, C.; Gurioli, G.; Brighi, N.; Poti, G.; Farolfi, A.; Altavilla, A.; Schepisi, G.; et al. Combining liquid biopsy and functional imaging analysis in metastatic castration-resistant prostate cancer helps predict treatment outcome. Mol. Oncol. 2022, 16, 538–548. [Google Scholar] [CrossRef]
  41. Ottestad, A.L.; Dai, H.Y.; Halvorsen, T.O.; Emdal, E.F.; Wahl, S.G.F.; Gronberg, B.H. Associations between tumor mutations in cfDNA and survival in non-small cell lung cancer. Cancer Treat. Res. Commun. 2021, 29, 100471. [Google Scholar] [CrossRef] [PubMed]
  42. Ottestad, A.L.; Wahl, S.G.F.; Gronberg, B.H.; Skorpen, F.; Dai, H.Y. The relevance of tumor mutation profiling in interpretation of NGS data from cell-free DNA in non-small cell lung cancer patients. Exp. Mol. Pathol. 2020, 112, 104347. [Google Scholar] [CrossRef] [PubMed]
  43. Wahl, S.G.F.; Dai, H.Y.; Emdal, E.F.; Ottestad, A.L.; Dale, V.G.; Richardsen, E.; Halvorsen, T.O.; Gronberg, B.H. Prognostic value of absolute quantification of mutated KRAS in circulating tumour DNA in lung adenocarcinoma patients prior to therapy. J. Pathol. Clin. Res. 2021, 7, 209–219. [Google Scholar] [CrossRef]
  44. Baselga, J.; Campone, M.; Piccart, M.; Burris, H.A., III; Rugo, H.S.; Sahmoud, T.; Noguchi, S.; Gnant, M.; Pritchard, K.I.; Lebrun, F.; et al. Everolimus in postmenopausal hormone-receptor-positive advanced breast cancer. N. Engl. J. Med. 2012, 366, 520–529. [Google Scholar] [CrossRef]
  45. Peng, Y.; Mei, W.; Ma, K.; Zeng, C. Circulating Tumor DNA and Minimal Residual Disease (MRD) in Solid Tumors: Current Horizons and Future Perspectives. Front. Oncol. 2021, 11, 763790. [Google Scholar] [CrossRef] [PubMed]
  46. Magbanua, M.J.M.; Brown Swigart, L.; Ahmed, Z.; Sayaman, R.W.; Renner, D.; Kalashnikova, E.; Hirst, G.L.; Yau, C.; Wolf, D.M.; Li, W.; et al. Clinical significance and biology of circulating tumor DNA in high-risk early-stage HER2-negative breast cancer receiving neoadjuvant chemotherapy. Cancer Cell 2023, 41, 1091–1102.e4. [Google Scholar] [CrossRef] [PubMed]
  47. Magbanua, M.J.M.; Swigart, L.B.; Wu, H.T.; Hirst, G.L.; Yau, C.; Wolf, D.M.; Tin, A.; Salari, R.; Shchegrova, S.; Pawar, H.; et al. Circulating tumor DNA in neoadjuvant-treated breast cancer reflects response and survival. Ann. Oncol. 2021, 32, 229–239. [Google Scholar] [CrossRef] [PubMed]
  48. Gydush, G.; Nguyen, E.; Bae, J.H.; Blewett, T.; Rhoades, J.; Reed, S.C.; Shea, D.; Xiong, K.; Liu, R.; Yu, F.; et al. Massively parallel enrichment of low-frequency alleles enables duplex sequencing at low depth. Nat. Biomed. Eng. 2022, 6, 257–266. [Google Scholar] [CrossRef] [PubMed]
  49. Wolf, D.M.; Yau, C.; Wulfkuhle, J.; Brown-Swigart, L.; Gallagher, R.I.; Lee, P.R.E.; Zhu, Z.; Magbanua, M.J.; Sayaman, R.; O’Grady, N.; et al. Redefining breast cancer subtypes to guide treatment prioritization and maximize response: Predictive biomarkers across 10 cancer therapies. Cancer Cell 2022, 40, 609–623.e6. [Google Scholar] [CrossRef] [PubMed]
  50. Gallagher, R.I.; Wulfkuhle, J.; Wolf, D.M.; Brown-Swigart, L.; Yau, C.; O’Grady, N.; Basu, A.; Lu, R.; Campbell, M.J.; Magbanua, M.J.; et al. Protein signaling and drug target activation signatures to guide therapy prioritization: Therapeutic resistance and sensitivity in the I-SPY 2 Trial. Cell Rep. Med. 2023, 4, 101312. [Google Scholar] [CrossRef]
Cancers 16 01879 g001

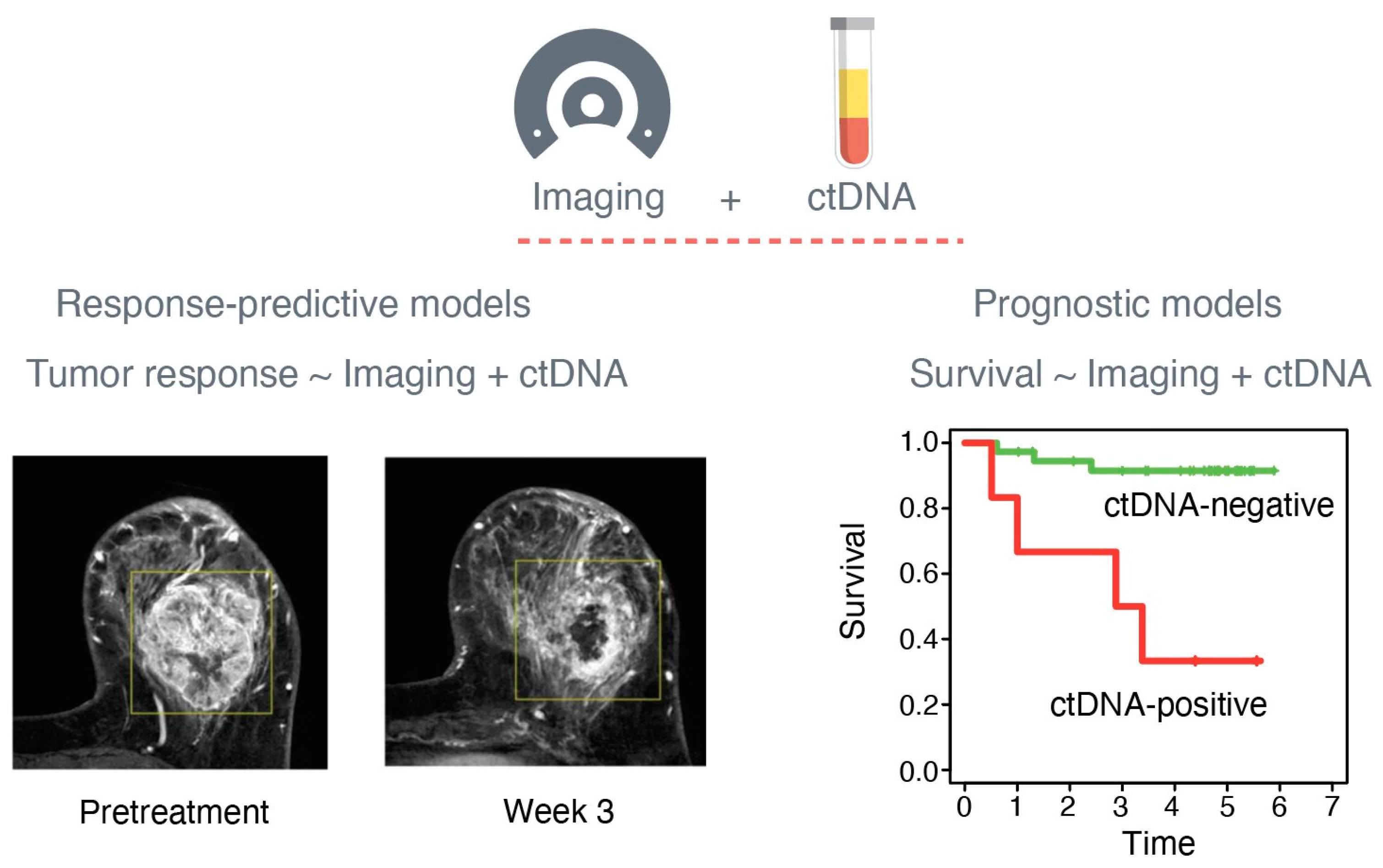

Figure 1. Imaging and circulating tumor DNA (ctDNA) biomarkers for predicting patient outcomes. Quantitative biomarkers from imaging and ctDNA can be combined to build response-predictive and prognostic models to predict tumor response and survival, respectively. Images of the breast by magnetic resonance imaging were adapted from Li et al. [16].
Figure 1. Imaging and circulating tumor DNA (ctDNA) biomarkers for predicting patient outcomes. Quantitative biomarkers from imaging and ctDNA can be combined to build response-predictive and prognostic models to predict tumor response and survival, respectively. Images of the breast by magnetic resonance imaging were adapted from Li et al. [16].
Cancers 16 01879 g001
Table 1. Selected studies combining imaging and ctDNA biomarkers for predicting patient outcomes.
Table 1. Selected studies combining imaging and ctDNA biomarkers for predicting patient outcomes.
Cancer TypeCancer StageTreatmentNo. of PatientsRef.
NSCLCStage IVEGFR-targeted therapy40[36]
NSCLCStage I–IIISurgery, curative radiotherapy
+/− chemotherapy, palliative therapy		63[39]
BCA (luminal or ER-positive)Stage IVAromatase and mTOR inhibitors47[38]
NSCLCStage III–IVChemotherapy84[37]
BCAStage II–IIINAC84[35]
PCAStage IV (castration-resistant)AR signaling inhibitors68 training set[40]
34 test set
HGSOCStage III–IVNAC72 training set[34]
20 test set
42 validation set
Abbreviations: AR, androgen receptor; BCA, breast cancer; EGFR, epidermal growth factor receptor; ER, estrogen receptor; HGSOC, high-grade serous ovarian cancer; NAC, neoadjuvant chemotherapy; NSCLC, non-small cell lung cancer. Stage I–III and Stage IV refer to early stage and metastatic settings, respectively.
Table 2. Imaging and ctDNA platforms used by selected studies to build models predictive of response or survival.
Table 2. Imaging and ctDNA platforms used by selected studies to build models predictive of response or survival.
Imaging ModalityImaging FeaturesctDNA AssayctDNA FeaturePrediction TargetStatistical Model *Ref.
CT429 imaging
(radiomic)
features		NGSNumber of
mutations		PFS, OSCox regression[36]
18F-FDG PET/CTSUVmax, MTV,
TLG		Tumor-informed
ddPCR or NGS		ctDNA+/−, VAFPFS, OSCox regression[39]
18F-FDG PET/CTSUVmaxNGSctDNA+/−PFSCox regression[38]
18F-FDG PET/CTSUV, MTV, TLG,
IU, IC		PCR/DCE heteroduplex
method		VAFPFS, OSCox regression[37]
MRIFTVTumor-informed
mPCR + NGS
(Signatera)		ctDNA+/−,
MTM/mL		pathCR, DRFSLogistic
regression, Cox
regression		[35]
18F-FCH PET/CTSUVmax, MTV,
TLG		NGSctDNA fractionPFS, OSCox regression,
Weibull multiple
regression		[40]
CTVolume, number of lesions, disease distribution, lesion shape, texture, heterogeneity, peripheric contextNGSTP53 VAFTumor
volumetric
response		Ensemble
machine learning		[34]
Abbreviations: cfDNA, cell-free DNA; ctDNA, circulating tumor DNA; DCE, denaturing capillary electrophoresis; ddPCR, digital droplet polymerase chain reaction; DRFS, distant recurrence-free survival; 18F, fluorine isotope 18; CH, fluorocholine; FDG, fluorodeoxyglucose; FTV, functional tumor volume; IC, iodine concentration; IU, iodine uptake; mPCR, massively parallel polymerase chain reaction; MRI, magnetic resonance imaging; MTM, mean tumor molecules; MTV, metabolic tumor volume; NGS, next-generation sequencing; OS, overall survival; pathCR, pathologic complete response; PCR, polymerase chain reaction; PET/CT, positron emission tomography/computed tomography; PFS, progression-free survival, SUV, standard uptake value; TLG, total lesion glycolysis; VAF, variant allele frequency. * The Cox regression model is also called the Cox proportional hazards model.
Table 3. Endpoints, models, and summary of results from selected studies that built models predictive of response or survival.
Table 3. Endpoints, models, and summary of results from selected studies that built models predictive of response or survival.
Response
Endpoint		Predictive ModelSurvival
Endpoint		Prognostic ModelFindings *Ref.
n.a.n.a.PFS, OSPFS, OS ~ clinical + ctDNA +
imaging phenotype		1[36]
n.a.n.a.PFS, OSPFS, OS ~ ctDNA + MTV
PFS, OS ~ ctDNA + TLG		2[39]
RECISTn.a.PFSPFS ~ ΔSUVmax + ctDNA (day
14)		3[38]
RECISTCR + PR < SD < PD ~ ∆SUVmax (%) +
Follow-up ctDNA		PFS, OSPFS ~ ΔSUVmax + follow-up
ctDNA		4[37]
pathCRpathCR ~ FTV + ctDNADRFSDRFS ~ ctDNA + FTV (+ pathCR +
subtype)		5[35]
RECISTn.a.PFS, OSPFS, OS ~ MTV + ctDNA +
visceral metastasis + serum LDH		6[40]
RECISTTumor volume ~ clinical + CA-125 + imaging + ctDNAn.a.n.a.7[34]
* Findings: 1. Combining imaging phenotypes with ctDNA and clinical variables improved the prediction of OS and PFS. 2. ctDNA quantity was positively correlated with MTV and TLG. UniV Cox analysis showed that ctDNA detection, MTV, TLG, and SUVmax were significantly associated with PFS and OS. In a MultiV Cox model, none were associated with PFS, and only ctDNA remained a significant prognostic factor for OS. 3. The detection of ctDNA and the absence of a PET/CT response at day 14 identified patients with a low probability of benefiting from everolimus–exemestane treatment. 4. ctDNA was correlated with MTV, TLG, and IC. Follow-up ctDNA and ∆ in all PET/CT parameters were associated with survival. Adding follow-up ctDNA to ∆SUVmax improved the prediction of objective response and PFS, but not OS. 5. ctDNA provided additive value to FTV by MRI in predicting pathCR and identifying patients with reduced DRFS. 6. ctDNA, MTV, visceral metastasis, and serum LDH were independent predictors of both PFS and OS in the training set. The prognostic scores were used to group patients into three risk groups. Differences in median survival between risk groups were confirmed in the validation cohort for both OS and PFS. 7. A combined model integrating imaging and ctDNA data improved the prediction of treatment response. Abbreviations: ctDNA, circulating tumor DNA; CR, complete response; DRFS, distant recurrence-free survival; FTV, functional tumor volume; IC, iodine concentration; IU, iodine uptake; LDH, lactate dehydrogenase; MRI, magnetic resonance imaging; MTM, mean tumor molecules; MTV, metabolic tumor volume; MultiV, multivariable; n.a., not applicable; OS, overall survival; pathCR, pathologic complete response; PD, progressive disease; PET/CT, positron emission tomography/computed tomography; PFS, progression-free survival; PR, partial response; RECIST, Response Evaluation Criteria in Solid Tumors; SD, stable disease; SUV, standard uptake value; TLG, total lesion glycolysis; UniV, univariable; VAF, variant allele frequency.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Magbanua, M.J.M.; Li, W.; van ’t Veer, L.J. Integrating Imaging and Circulating Tumor DNA Features for Predicting Patient Outcomes. Cancers 2024, 16, 1879. https://doi.org/10.3390/cancers16101879

AMA Style

Magbanua MJM, Li W, van ’t Veer LJ. Integrating Imaging and Circulating Tumor DNA Features for Predicting Patient Outcomes. Cancers. 2024; 16(10):1879. https://doi.org/10.3390/cancers16101879

Chicago/Turabian Style

Magbanua, Mark Jesus M., Wen Li, and Laura J. van ’t Veer. 2024. "Integrating Imaging and Circulating Tumor DNA Features for Predicting Patient Outcomes" Cancers 16, no. 10: 1879. https://doi.org/10.3390/cancers16101879

APA Style

Magbanua, M. J. M., Li, W., & van ’t Veer, L. J. (2024). Integrating Imaging and Circulating Tumor DNA Features for Predicting Patient Outcomes. Cancers, 16(10), 1879. https://doi.org/10.3390/cancers16101879

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
