Tumor-Infiltrating Lymphocyte Level Consistently Correlates with Lower Stiffness Measured by Shear-Wave Elastography: Subtype-Specific Analysis of Its Implication in Breast Cancer

by
Na Lae Eun
1,†,
Soong June Bae
2,3,†,
Ji Hyun Youk
1,
Eun Ju Son
1,
Sung Gwe Ahn
2,3,
Joon Jeong
2,3,
Jee Hung Kim
2,4,
Yangkyu Lee
2,5 and
Yoon Jin Cha
2,5,*
1
Department of Radiology, Gangnam Severance Hospital, Yonsei University College of Medicine, Seoul 06273, Republic of Korea
2
Institute of Breast Cancer Precision Medicine, Yonsei University College of Medicine, Seoul 06273, Republic of Korea
3
Department of Surgery, Gangnam Severance Hospital, Yonsei University College of Medicine, Seoul 06273, Republic of Korea
4
Division of Medical Oncology, Department of Internal Medicine, Yonsei University College of Medicine, Seoul 06273, Republic of Korea
5
Department of Pathology, Gangnam Severance Hospital, Yonsei University College of Medicine, Seoul 06273, Republic of Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cancers 2024, 16(7), 1254; https://doi.org/10.3390/cancers16071254
Submission received: 16 February 2024 / Revised: 19 March 2024 / Accepted: 21 March 2024 / Published: 22 March 2024
(This article belongs to the Special Issue Application of Imaging in Breast Cancer)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Tumor stiffness in breast cancer displays varied clinical implications depending on the tumor subtype, with higher stiffness indicating a more aggressive tumor biology particularly in hormone receptor-positive and HER2-negative breast cancer. This study investigated the relationship between tumor stiffness, measured by shear-wave elastography, and clinicopathologic parameters such as the tumor-infiltrating lymphocytes (TIL) levels in 803 breast cancer patients across different subtypes. The results showed that higher tumor stiffness is associated with more aggressive tumor features, especially in hormone receptor-positive and HER2-negative breast cancer. Across all subtypes, a positive correlation was observed between tumor stiffness and size, while the TIL level showed a significant negative correlation. The TIL level was the only parameter to correlate with low tumor stiffness consistently and significantly, which was further confirmed by linear regression.

Abstract

Background: We aimed to elucidate the clinical significance of tumor stiffness across breast cancer subtypes and establish its correlation with the tumor-infiltrating lymphocyte (TIL) levels using shear-wave elastography (SWE). Methods: SWE was used to measure tumor stiffness in breast cancer patients from January 2016 to August 2020. The association of tumor stiffness and clinicopathologic parameters, including the TIL levels, was analyzed in three breast cancer subtypes. Results: A total of 803 patients were evaluated. Maximal elasticity (Emax) showed a consistent positive association with an invasive size and the pT stage in all cases, while it negatively correlated with the TIL level. A subgroup-specific analysis revealed that the already known parameters for high stiffness (lymphovascular invasion, lymph node metastasis, Ki67 levels) were significant only in hormone receptor-positive and HER2-negative breast cancer (HR + HER2-BC). In the multivariate logistic regression, an invasive size and low TIL levels were significantly associated with Emax in HR + HER2-BC and HER2 + BC. In triple-negative breast cancer, only TIL levels were significantly associated with low Emax. Linear regression confirmed a consistent negative correlation between TIL and Emax in all subtypes. Conclusions: Breast cancer stiffness presents varying clinical implications dependent on the tumor subtype. Elevated stiffness indicates a more aggressive tumor biology in HR + HER2-BC, but is less significant in other subtypes. High TIL levels consistently correlate with lower tumor stiffness across all subtypes.

1. Introduction

Shear-wave elastography (SWE) in an advanced ultrasound technique used to visualize and quantitatively assess tissue stiffness in kPa by employing the generation of radiation force through pulses from a transducer [1]. SWE shows good performance in differentiation between benign and malignant breast lesions, achieving sensitivities and specificities ranging from 80 to 90% [1,2]. Of its quantitative parameters, the maximal elasticity (Emax) and elasticity ratio (Eratio) stand out as the most reliable for breast lesion diagnosis [3,4]. Within the spectrum of malignant breast lesions, SWE serves as a robust predictive tool. It distinctly differentiates invasive carcinoma from intraductal lesions, with the former exhibiting higher stiffness [5,6].
Beyond the differentiation of benign and malignant lesions, the stiffness of lesions determined by elasticity values derived from SWE has been correlated with various clinicopathologic attributes in invasive breast cancer. Higher stiffness has shown significant correlation with poor prognostic factors, including a larger tumor size, lymphovascular invasion (LVI), a higher histologic grade (HG), lymph node (LN) metastasis, a triple-negative status, and a high Ki67 labeling index (LI) [7,8,9,10,11,12]. From a prognostic perspective, higher stiffness has been linked to worse disease-free survival in patients with early breast cancer [13].
While the existing literature has highlighted the correlation between tumor stiffness and the aggressive biological behavior of breast cancer, it is essential to consider the molecular heterogeneity of the disease. Breast cancer displays varying biological characteristics and trajectories across its subtypes: HR + HER2-BC (hormone receptor-positive, human epidermal growth factor receptor 2-negative breast cancer), HER2 + BC, and triple-negative breast cancer (TNBC). In the current therapeutic landscape, the tumor-infiltrating lymphocyte (TIL) level is a key predictor of treatment outcomes, especially for HER2 + BC and TNBC [14,15]. However, the relationship between TIL levels and tumor stiffness remains unexplored. Furthermore, many past studies have focused on individual immunohistochemical profiles rather than evaluating stiffness across the specific breast cancer subtypes. Given the distinct clinicopathological attributes of each subtype, the clinical impact of stiffness could vary. In this study, we examined the ties between clinicopathological factors—including TIL levels—and tumor stiffness across breast cancer subtypes.

2. Materials and Methods

2.1. Patient Selection and Clinicopathologic Evaluation

Patients with invasive breast cancer (stages I–III; age  ≥  20 years at the time of surgery) who were treated between January 2016 and August 2020 at Gangnam Severance Hospital according to standard protocols were included in this study. A total of 803 female patients underwent SWE examination before curative resection. The tumor stiffness, measured by SWE and documented as elasticity values, was obtained from the patients’ breast ultrasound exam records prior to their curative surgeries. The clinicopathologic parameters evaluated in each case from the electronic medical records included the age of the patient at initial diagnosis, the tumor size, nuclear grade (NG) and HG based on the Nottingham grading system [16], level of TIL, pathologic tumor stage, LVI, LN metastasis, percentage and the extent of intraductal carcinoma component, and the status of estrogen receptor (ER), progesterone receptor (PR), HER2, and Ki67 LI.

2.2. Elastography

Breast US examinations were conducted by one of four radiologists with 5–10 years of experience, utilizing the Aixplorer US system (SuperSonic Imagine, Aix-en-Provence, France) equipped with a 4–15 MHz linear array transducer. Investigators were provided with clinical and mammographic results during the breast US exam. Following grayscale ultrasound imaging, Shear Wave Elastography (SWE) images were captured statically for breast masses slated for biopsy or surgical resection. The system’s integrated region of interest (ROI) (Q-box, SuperSonic Imagine) was configured to encompass the lesion and surrounding normal tissue, presenting a grayscale image overlaid with a translucent color map. The tissue stiffness was represented from dark blue (indicating the lowest stiffness) to red (indicating the highest stiffness) within a range of 0–180 kPa (Supplementary Figure S1). Black regions in the SWE image indicated areas where no shear waves were detected. An investigator placed a fixed 2 × 2 mm ROI in the most rigid part of the lesion, encompassing the immediately adjacent tissue or halo. Elasticity measurements were taken using the average, maximum, and minimum elasticity values, as well as the elasticity ratio, which compares values with adjacent fat tissue.

2.3. Pathologic Review of Cases

The histology slides were reviewed by two breast pathologists (YL and YJC). The tumor–stroma ratio (TSR) is defined as the density of tumor cells within the tumor area [17]. A nuclear positivity of 1% or higher was considered positive for ER and PR [18]. The interpretation of HER2 immunohistochemistry was based on the 2018 American Society of Clinical Oncology/College of American Pathologists [19]. Only strong and circumferential membranous HER2 immunoreactivity (3+) was considered positive. Otherwise, 0 or 1+ HER2 staining was considered negative. Cases with equivocal HER2 expression (2+) underwent further evaluation using silver in situ hybridization to evaluate HER2 gene amplification.

2.4. Evaluation of TIL

The TIL level was evaluated according to the guidelines suggested by the International TIL Working Group [20]. Briefly, among the total intratumoral stromal area, the percentage of the space occupied by mononuclear inflammatory cells, including lymphocytes and plasma cells, was measured. The tumor area was defined by the boundaries of invasive tumor cells. Polymorphonuclear leukocytes, granulocytes, dendritic cells, and macrophages were excluded from the scoring. Areas beyond the invasive tumor border, such as the periphery of the intraductal component and normal lobules area, were also excluded. Within the tumor border, TILs located in extensive fibrosis, crush artifacts, necrosis, and regressive hyalinization were not considered in the measurement. A comprehensive assessment of the average TIL score was reported as a percentage.

2.5. Statistical analysis

Analyses were conducted using R software (https://www.r-project.org (accessed on 18 November 2023); version 4.3.1). In this study, the continuous variables of clinicopathologic parameters were analyzed using Wilcoxon tests, and pairwise Wilcoxon tests with Bonferroni correction were applied for tumor subtype comparisons. As the distribution of the patient number across the tumor subtype was uneven, we chose Wilcoxon tests as an alternative to the t-test. For further comparisons across multiple tumor subtypes, we employed pairwise Wilcoxon tests with a Bonferroni correction. This approach was chosen to manage the increased risk of type I errors (false positives) that occurs when conducting multiple comparisons.
The optimal cutoff values distinguishing low and high tumor elasticity were established by analyzing the receiver operating characteristic (ROC) curves, which were plotted based on the relationship between tumor elasticity and LN metastasis. Categorical variables were evaluated with Pearson’s Chi-squared test. Correlations between stiffness and the clinicopathologic parameters were visualized using the ggcorrplot package.
Our study investigated the relationship between tumor elasticity and clinicopathologic parameters using linear and logistic regression analyses. For logistic regression, we categorized tumor elasticity into low and high groups based on a cutoff that was determined using ROC curves, yielding odds ratios (ORs) to assess the impact of elasticity levels on binary clinicopathologic outcomes. In linear regression, we used the continuous values of tumor elasticity to explore the correlations with continuous clinicopathologic parameters, calculating β coefficients to quantify the relationships’ strength and direction. The results from both analyses were summarized in forest plots, displaying point estimates (β coefficients or ORs) along with 95% confidence intervals (CIs). Statistical significance was set at p < 0.05.

3. Results

3.1. Basal Characteristics of Patients

A total of 803 patients with breast cancer were analyzed (Figure 1). HR + HER2-BC was the most predominant subtype (79.5%, n = 628), followed by HER2 + BC (12.8%, n = 103) and TNBC (9.0%, n = 72). The clinicopathologic characteristics of the patients are shown in Table 1. The majority of HR + HER2-BC cases presented with intermediate NG (86.9%) and HG II (69.1%). In contrast, HER2 + BC and TNBC showed a higher prevalence of high NG. Notably, HG III was especially pronounced in TNBC, accounting for 59.7%. LN metastasis was more frequent in HR + HER2-BC (21.2%) than in HER2 + BC (13.6%) and TNBC (9.7%). Ki67 LI was highest in TNBC, followed by HER2 + BC and HR + HER2-BC (p < 0.001). The mean TIL level was significantly higher in HER2 + BC and TNBC than HR + HER2-BC (p < 0.001). The mean elasticity values demonstrated no significant differences across tumor subtypes.

3.2. Clinicopathologic Impact of Tumor Stiffness in Different Subtype of Breast Cancer

We determined three cutoff values for each tumor subtype: the mean, the median, and a value derived from the ROC curves related to LN metastasis for Emean, Emin, and Emax (Table 2). Using these cutoff values, the patients were divided into two low- and high-stiffness groups. Given the nine cutoffs used for each elasticity value, distinct significance was observed in various clinicopathologic parameters across each tumor subtype (Figure 2). In the HR + HER2-BC subtype, both the mean and median Emax showed significant differences in 9 of the 12 parameters. In the HER2 + BC subtype, comparisons based on the cutoff values of the median Emean, the ROC-derived cutoff from Emean, the median Emax, and the ROC-derived cutoff from Emax revealed significant differences between the two groups in six parameters. For TNBC, the mean Emax cutoff value demonstrated significant differences between the groups for four parameters. Parameters such as the total size, invasive size, LVI, and pT stage exhibited consistent and significant differences between the stiffness groups. In HER2 + BC, the invasive size, HG, and pT stage showed notable differences between the stiffness groups. Using the cutoff values for Emean and Emax, the TIL level exhibited a significant difference between the stiffness groups. For TNBC, size-related factors, especially the total size, invasive size, and pT stage, showed significant differences between the stiffness groups based on the ROC-derived cutoffs. The TIL level exhibited significant differences between the stiffness groups using the Emean and Emax cutoffs, except for when using the ROC-derived cutoffs.
For each tumor subtype, the cutoff of the elasticity values associated with the largest number of significant parameters was averaged to determine the cutoff for distinguishing between the low- and high-stiffness groups. In the HR + HER2-BC subtype, the mean Emax and median Emax were averaged, establishing 173.0 kPa as the cutoff. For the HER2 + BC subtype, the average of median Emean, the ROC-derived threshold from Emean, median Emax, and the ROC-derived threshold from Emax was taken, setting the cutoff at 133.0 kPa. In the case of TNBC, the mean Emax value of 172.0 kPa was selected as the cutoff.

3.3. Subgroup Analysis between Low- and High-Stiffness Groups

Using the predetermined cutoff values, we compared the low- and high-stiffness groups within each tumor subtype based on Emax values (Table 3). In all tumor subtypes, three parameters—the invasive size, pT stage, and TIL level—consistently differed between stiffness groups. Specifically, tumors in the high-stiffness group exhibited a larger invasive size, higher pT stage, and lower TIL level.

3.4. Correlation Analysis of Tumor Stiffness and Clinicopathologic Parameters

Across all tumor subtypes, the invasive size consistently exhibited a significant positive correlation with stiffness, while the TIL level showed a significant negative trend, except for Emin in HR + HER2-BC (Figure 3). Specifically, in HR + HER2-BC, both the total and invasive sizes were positively correlated with stiffness. Ki67 LI was positively associated with Emax and Emin, while the proportion of DCIS and TIL demonstrated a negative relationship with Emean and Emax. For the HER2 + BC subtype, the invasive size and TSR displayed positive correlations with stiffness, in contrast to the negative associations observed with the proportion of DCIS and TIL level. In TNBC, while the TIL level consistently revealed a significant negative relationship with stiffness, the total size was positively correlated with Emean and Emax. Information about the Pearson correlation coefficient (r) and p-value is provided in Supplementary Table S1.

3.5. Predictive Clinicopathologic Parameters for High Stiffness

Following the logistic regression analysis, only the TIL level turned out to be an independent factor associated with reduced odds of Emax across all subtypes (Figure 4). When examining all cases as a whole, a low TIL level (OR 0.981, 95% CI 0.973–0.988), the presence of LVI (OR 1.773, 95% CI 0.128–2.789), and a high pT stage (OR 1.828, 95% CI 1.081–3.090) were identified as independent predictors of a high Emax. For the HR + HER2-BC, the invasive size (OR 1.590, 95% CI 1.063–2.376) and TIL level (OR 0.988, 95% CI 0.978–0.998) demonstrated significant ORs in predicting a high and low Emax, respectively. As seen in HR + HER2-BC, the invasive size (OR 5.437, 95% CI 1.429–20.690) and TIL level (OR 0.977, 95% CI 0.961–0.993) significantly predicted a high and low Emax in HER2 + BC. In TNBC, only the TIL level served as a significant negative predictor for a high Emax (OR 0.961, 95% CI 0.940–0.983). Detailed values from the regression analyses can be found in Supplementary Table S2. Furthermore, the linear regression analysis underscored that the TIL level is the consistent independent predictor for a decreased Emax across all subtypes (Supplementary Figure S2 and Supplementary Table S3).

4. Discussion

In this study, we reinforced the established findings and elucidated the implications of stiffness across various breast cancer subtypes. Moreover, to our knowledge, this is the first study highlighting the strong correlation between TIL levels and reduced tumor stiffness in breast cancer. Our findings validated the significant association of the invasive size with elevated stiffness. In contrast to the invasive size, the proportion of DCIS presented a significant OR for decreased stiffness at the univariate level in both HR + HER2-BC and HER2 + BC. Since DCIS is a non-invasive component that does not evoke the desmoplastic reaction, a tumor with a higher proportion of DCIS might be less stiff than similar-sized tumors with lower DCIS proportions. Previous studies have repeatedly linked Ki67 LI with stiffness [9,11,21,22]. In our research, the multiple linear regression analysis identified a significant positive correlation between Ki67 LI and Emax, but this was exclusive to the HR + HER2-BC subtype (β 0.43, 95% CI 0.026–0.837, Supplementary Table S3). Contrastingly, the univariate logistic regression analysis revealed only a subtle trend associating Ki67 LI with increased stiffness. Given that HR + HER2-BC represents the predominant subtype of breast cancer, it is plausible that the outcomes of previous studies may have been skewed by its characteristics. We verified that the parameters for high stiffness used in preceding studies, such as the tumor size, LVI, LN metastasis, and the tendency towards higher Ki67 LI, were predominantly observed in HR + HER2-BC. These findings remained largely consistent when analyzing all tumors together. However, a more detailed subgroup analysis revealed unique attributes inherent to each subtype. Only a large invasive size and low TIL level were correlated with increased stiffness in HR + HER2-BC and HER2 + BC. TNBC displayed the fewest associations; only the TIL level demonstrated significant OR, with its negative correlation also uniquely identified in the multiple linear regression analysis (Supplementary Table S3).
Elevated stiffness in cancer lesions mirrors the invasive nature of cancer cells and their interactions with the stroma. When invasive cancer cells penetrate the basement membrane, they trigger a stromal reaction known as the desmoplastic reaction [23]. The reconstitution of extracellular matrix, particularly by fibroblasts, changes stromal fibers to tenascin and fibronectin, rendering the stroma denser and more rigid, thereby facilitating cancer invasion [24]. In contrast to the typically tight cellular adhesions found in epithelial and stromal cells, TILs display loose adhesions, allowing them to effectively navigate towards target lesions [25,26]. Consequently, an elevated TIL level might disrupt varied cellular adhesions, leading to diminished tumor stiffness. This supports our observation of a consistent negative correlation between the TIL level and stiffness.
The TIL level, in solid tumors including breast cancer, is perceived as an indicator of anti-tumor immunity [27], predicting the response to neoadjuvant chemotherapy (NAC) across all subtypes [15]. NAC is now the standard treatment option in most early HER2 + BC and TNBC patients [28]. Particularly in HER2 + BC and TNBC, the TIL level predicts the long-term survival outcome after NAC as well as the treatment response [29,30,31]. A few antecedent studies have explored the link between stiffness and the response to NAC in breast cancer, albeit with a limited cohort [32,33,34,35]. Their primary emphasis has been on the pre- and post-NAC stiffness alterations, bypassing the significance of TIL levels. Recently, our team validated the importance of TIL levels in HER2 + BC in the NAC setting [36]. In addition, we investigated the association between tumor stiffness and the response to NAC in breast cancer, which showed lower elasticity correlated with a better response to NAC as well as higher TIL levels [37].
This study, despite its insights, has limitations, including the unequal subtype distribution and the unexplored connection between clinical outcomes and tumor stiffness. Still, each subtype retained a representative sample size. Our findings suggest that tumor stiffness measured by SWE could serve as a non-invasive biomarker considering the potential ability of lower stiffness to predict elevated TIL levels in breast cancer, which has not been reported so far. Exploring further subtype-specific implications, our analysis reveals that in HR + HER2-BC, where TIL levels are usually low and upfront surgery is common, stiffness could serve as a non-invasive predictor of aggressive tumor behavior. For HER2 + BC and TNBC, the emphasis shifts to TIL levels, where reduced stiffness may indicate higher TIL levels, reflecting their ability to predict responses to NAC and their prognostic significance for survival outcomes.

5. Conclusions

In conclusion, our comprehensive analysis across a large cohort segmented by tumor subtype illuminates the distinct clinical implications of tumor stiffness in breast cancer. Notably, most previously recognized poor prognostic factors related to higher tumor stiffness were primarily observed in HR + HER2-BC. Meanwhile, a consistent inverse correlation emerged between TIL levels and tumor stiffness across subtypes, highlighting their potential predictive and prognostic roles, especially in HER2 + BC and TNBC in the context of NAC. These findings pave the way for future research exploring how integrating tumor stiffness and TIL levels into existing diagnostic and treatment frameworks could enhance personalized treatment strategies and improve patient outcomes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers16071254/s1, Supplementary Figure S1. Representative image of shear-wave elastography; Supplementary Figure S2. Forest plots of linear regression analysis assessing the association between tumor elasticity and clinicopathologic parameters across different tumor subtypes; Supplementary Table S1. Correlation matrix of different tumor subtypes (r coefficient and p-value); Supplementary Table S2. Logistic regression analysis to predict high tumor stiffness; Supplementary Table S3. Linear regression analysis assessing factors correlated with tumor stiffness.

Author Contributions

N.L.E.: Data curation, formal analysis, software, writing—original draft, writing—review and editing; S.J.B.: Data curation, investigation, resources, writing—original draft, writing—review and editing; J.H.Y.: Data curation, investigation, resources, writing—review and editing; E.J.S.: Data curation, investigation, resources, writing—review and editing; S.G.A.: Data curation, investigation, resources, writing—review and editing; J.J.: Data curation, investigation, resources, writing—review and editing; Y.L.: Data curation, investigation, resources, writing—review and editing; J.H.K.: Data curation, investigation, resources, writing—review and editing; Y.J.C.: Conceptualization, data curation, formal analysis, funding acquisition, investigation, methodology, project administration, resources, supervision, writing—original draft, writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by a National Research Foundation of Korea (NRF) grant funded by the Korean government [grant number: NRF-2021R1G1A1093596]. This research was supported by a grant of the Korea Health Technology R&D Project through the Korea Health Industry Development Institute (KHIDI), funded by the Ministry of Health & Welfare, Republic of Korea [grant number: HI22C2194]. This study was supported by a faculty research grant of Yonsei University College of Medicine [grant number: 6-2023-0200].

Institutional Review Board Statement

This study was approved by the Institutional Review Board of Gangnam Severance Hospital (3-2023-0308, approved on 9 October 2023), specifically for the analysis of data collected between January 2016 and August 2020. The study conformed to the clinical practice guidelines of the Declaration of Helsinki (2013 amendment). Given its retrospective nature, informed consent was waived for all participants.

Informed Consent Statement

Given its retrospective nature, informed consent was waived for all participants.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

CIconfidence interval
DCISductal carcinoma in situ
EICextensive intraductal component
Emaxmaximal elasticity
Emeanmean elasticity
Eminminimal elasticity
ERestrogen receptor
Eratioelasticity ratio
HGhistologic grade
HR + HER2-BChormone receptor-positive, human epidermal growth factor receptor 2-negative breast cancer
IQRinterquartile range
LIlabeling index
LNlymph node
LVIlymphovascular invasion
NGnuclear grade
ORodds ratio
PRprogesterone receptor
ROCreceiver operating characteristic
ROIregion of interest
SDstandard deviation
SWEshear-wave elastography
TILtumor-infiltrating lymphocytes
TNBCtriple-negative breast cancer
TSRtumor–stroma ratio

References

  1. Youk, J.H.; Gweon, H.M.; Son, E.J. Shear-wave elastography in breast ultrasonography: The state of the art. Ultrasonography 2017, 36, 300–309. [Google Scholar] [CrossRef]
  2. Berg, W.A.; Cosgrove, D.O.; Dore, C.J.; Schafer, F.K.; Svensson, W.E.; Hooley, R.J.; Ohlinger, R.; Mendelson, E.B.; Balu-Maestro, C.; Locatelli, M.; et al. Shear-wave elastography improves the specificity of breast us: The be1 multinational study of 939 masses. Radiology 2012, 262, 435–449. [Google Scholar] [CrossRef]
  3. Au, F.W.; Ghai, S.; Moshonov, H.; Kahn, H.; Brennan, C.; Dua, H.; Crystal, P. Diagnostic performance of quantitative shear wave elastography in the evaluation of solid breast masses: Determination of the most discriminatory parameter. Am. J. Roentgenol. 2014, 203, W328–W336. [Google Scholar] [CrossRef]
  4. Cantisani, V.; David, E.; Barr, R.G.; Radzina, M.; de Soccio, V.; Elia, D.; De Felice, C.; Pediconi, F.; Gigli, S.; Occhiato, R.; et al. Us-elastography for breast lesion characterization: Prospective comparison of us birads, strain elastography and shear wave elastography. Ultraschall Med.-Eur. J. Ultrasound 2021, 42, 533–540. [Google Scholar] [CrossRef]
  5. Bae, J.S.; Chang, J.M.; Lee, S.H.; Shin, S.U.; Moon, W.K. Prediction of invasive breast cancer using shear-wave elastography in patients with biopsy-confirmed ductal carcinoma in situ. Eur. Radiol. 2017, 27, 7–15. [Google Scholar] [CrossRef] [PubMed]
  6. Shi, J.; Chen, L.; Wang, B.; Zhang, H.; Xu, L.; Ye, J.; Liu, Y.; Shao, Y.; Sun, X.; Zou, Y. Diagnostic value of ultrasound elastography in the differentiation of breast invasive ductal carcinoma and ductal carcinoma in situ. Curr. Med. Imaging 2023, 19, 286–291. [Google Scholar] [CrossRef] [PubMed]
  7. Chang, J.M.; Park, I.A.; Lee, S.H.; Kim, W.H.; Bae, M.S.; Koo, H.R.; Yi, A.; Kim, S.J.; Cho, N.; Moon, W.K. Stiffness of tumours measured by shear-wave elastography correlated with subtypes of breast cancer. Eur. Radiol. 2013, 23, 2450–2458. [Google Scholar] [CrossRef]
  8. Choi, W.J.; Kim, H.H.; Cha, J.H.; Shin, H.J.; Kim, H.; Chae, E.Y.; Hong, M.J. Predicting prognostic factors of breast cancer using shear wave elastography. Ultrasound Med. Biol. 2014, 40, 269–274. [Google Scholar] [CrossRef] [PubMed]
  9. Youk, J.H.; Gweon, H.M.; Son, E.J.; Kim, J.A.; Jeong, J. Shear-wave elastography of invasive breast cancer: Correlation between quantitative mean elasticity value and immunohistochemical profile. Breast Cancer Res. Treat. 2013, 138, 119–126. [Google Scholar] [CrossRef]
  10. Huang, Y.; Liu, Y.; Wang, Y.; Zheng, X.; Han, J.; Li, Q.; Hu, Y.; Mao, R.; Zhou, J. Quantitative analysis of shear wave elastic heterogeneity for prediction of lymphovascular invasion in breast cancer. Br. J. Radiol. 2021, 94, 20210682. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, C.; Zhou, J.; Chang, C.; Zhi, W. Feasibility of shear wave elastography imaging for evaluating the biological behavior of breast cancer. Front. Oncol. 2021, 11, 820102. [Google Scholar] [CrossRef]
  12. Kim, H.J.; Kim, H.H.; Choi, W.J.; Chae, E.Y.; Shin, H.J.; Cha, J.H. Correlation of shear-wave elastography parameters with the molecular subtype and axillary lymph node status in breast cancer. Clin. Imaging 2023, 101, 190–199. [Google Scholar] [CrossRef]
  13. Kim, J.Y.; Kim, J.J.; Hwangbo, L.; Suh, H.B.; Lee, J.W.; Lee, N.K.; Choo, K.S.; Kim, S. Tumor stiffness measured by shear-wave elastography: Association with disease-free survival in women with early-stage breast cancer. Br. J. Radiol. 2021, 94, 20210584. [Google Scholar] [CrossRef]
  14. Denkert, C.; Loibl, S.; Noske, A.; Roller, M.; Muller, B.M.; Komor, M.; Budczies, J.; Darb-Esfahani, S.; Kronenwett, R.; Hanusch, C.; et al. Tumor-associated lymphocytes as an independent predictor of response to neoadjuvant chemotherapy in breast cancer. J. Clin. Oncol. 2010, 28, 105–113. [Google Scholar] [CrossRef] [PubMed]
  15. Denkert, C.; von Minckwitz, G.; Darb-Esfahani, S.; Lederer, B.; Heppner, B.I.; Weber, K.E.; Budczies, J.; Huober, J.; Klauschen, F.; Furlanetto, J.; et al. Tumour-infiltrating lymphocytes and prognosis in different subtypes of breast cancer: A pooled analysis of 3771 patients treated with neoadjuvant therapy. Lancet Oncol. 2018, 19, 40–50. [Google Scholar] [CrossRef] [PubMed]
  16. Elston, C.W.; Ellis, I.O. Pathological prognostic factors in breast cancer. I. The value of histological grade in breast cancer: Experience from a large study with long-term follow-up. Histopathology 1991, 19, 403–410. [Google Scholar] [CrossRef] [PubMed]
  17. Kemi, N.; Eskuri, M.; Herva, A.; Leppänen, J.; Huhta, H.; Helminen, O.; Saarnio, J.; Karttunen, T.J.; Kauppila, J.H. Tumour-stroma ratio and prognosis in gastric adenocarcinoma. Br. J. Cancer 2018, 119, 435–439. [Google Scholar] [CrossRef] [PubMed]
  18. Hammond, M.; Hayes, D.F.; Dowsett, M.; Allred, D.C.; Hagerty, K.L.; Badve, S.; Fitzgibbons, P.L.; Francis, G.; Goldstein, N.S.; Hayes, M. College of american pathologists guideline recommendations for immunohistochemical testing of estrogen and progesterone receptors in breast cancer. J. Clin. Oncol. 2010, 28, 2784–2795. [Google Scholar] [CrossRef] [PubMed]
  19. Wolff, A.C.; Hammond, M.E.H.; Allison, K.H.; Harvey, B.E.; Mangu, P.B.; Bartlett, J.M.S.; Bilous, M.; Ellis, I.O.; Fitzgibbons, P.; Hanna, W.; et al. Human epidermal growth factor receptor 2 testing in breast cancer: American society of clinical oncology/college of american pathologists clinical practice guideline focused update. J. Clin. Oncol. 2018, 36, 2105–2122. [Google Scholar] [CrossRef] [PubMed]
  20. Salgado, R.; Denkert, C.; Demaria, S.; Sirtaine, N.; Klauschen, F.; Pruneri, G.; Wienert, S.; Van den Eynden, G.; Baehner, F.L.; Pénault-Llorca, F. The evaluation of tumor-infiltrating lymphocytes (tils) in breast cancer: Recommendations by an international tils working group 2014. Ann. Oncol. 2015, 26, 259–271. [Google Scholar] [CrossRef] [PubMed]
  21. Ganau, S.; Andreu, F.J.; Escribano, F.; Martin, A.; Tortajada, L.; Villajos, M.; Bare, M.; Teixido, M.; Ribe, J.; Sentis, M. Shear-wave elastography and immunohistochemical profiles in invasive breast cancer: Evaluation of maximum and mean elasticity values. Eur. J. Radiol. 2015, 84, 617–622. [Google Scholar] [CrossRef]
  22. Gu, J.; Polley, E.C.; Boughey, J.C.; Fazzio, R.T.; Fatemi, M.; Alizad, A. Prediction of invasive breast cancer using mass characteristic frequency and elasticity in correlation with prognostic histologic features and immunohistochemical biomarkers. Ultrasound Med. Biol. 2021, 47, 2193–2201. [Google Scholar] [CrossRef]
  23. Valkenburg, K.C.; de Groot, A.E.; Pienta, K.J. Targeting the tumour stroma to improve cancer therapy. Nat. Rev. Clin. Oncol. 2018, 15, 366–381. [Google Scholar] [CrossRef]
  24. Kalluri, R. The biology and function of fibroblasts in cancer. Nat. Rev. Cancer 2016, 16, 582–598. [Google Scholar] [CrossRef] [PubMed]
  25. Gonzalez-Amaro, R.; Diaz-Gonzalez, F.; Sanchez-Madrid, F. Adhesion molecules in inflammatory diseases. Drugs 1998, 56, 977–988. [Google Scholar] [CrossRef] [PubMed]
  26. Harjunpaa, H.; Llort Asens, M.; Guenther, C.; Fagerholm, S.C. Cell adhesion molecules and their roles and regulation in the immune and tumor microenvironment. Front. Immunol. 2019, 10, 1078. [Google Scholar] [CrossRef] [PubMed]
  27. Savas, P.; Salgado, R.; Denkert, C.; Sotiriou, C.; Darcy, P.K.; Smyth, M.J.; Loi, S. Clinical relevance of host immunity in breast cancer: From tils to the clinic. Nat. Rev. Clin. Oncol. 2016, 13, 228–241. [Google Scholar] [CrossRef] [PubMed]
  28. Loibl, S.; Andre, F.; Bachelot, T.; Barrios, C.H.; Bergh, J.; Burstein, H.J.; Cardoso, M.J.; Carey, L.A.; Dawood, S.; Del Mastro, L.; et al. Early breast cancer: Esmo clinical practice guideline for diagnosis, treatment and follow-up. Ann. Oncol. 2024, 35, 159–182. [Google Scholar] [CrossRef] [PubMed]
  29. Fernandez-Martinez, A.; Krop, I.E.; Hillman, D.W.; Polley, M.Y.; Parker, J.S.; Huebner, L.; Hoadley, K.A.; Shepherd, J.; Tolaney, S.; Henry, N.L.; et al. Survival, pathologic response, and genomics in calgb 40601 (alliance), a neoadjuvant phase iii trial of paclitaxel-trastuzumab with or without lapatinib in her2-positive breast cancer. J. Clin. Oncol. 2020, 38, 4184–4193. [Google Scholar] [CrossRef] [PubMed]
  30. Shepherd, J.H.; Ballman, K.; Polley, M.C.; Campbell, J.D.; Fan, C.; Selitsky, S.; Fernandez-Martinez, A.; Parker, J.S.; Hoadley, K.A.; Hu, Z.; et al. Calgb 40603 (alliance): Long-term outcomes and genomic correlates of response and survival after neoadjuvant chemotherapy with or without carboplatin and bevacizumab in triple-negative breast cancer. J. Clin. Oncol. 2022, 40, 1323–1334. [Google Scholar] [CrossRef] [PubMed]
  31. Fernandez-Martinez, A.; Pascual, T.; Singh, B.; Nuciforo, P.; Rashid, N.U.; Ballman, K.V.; Campbell, J.D.; Hoadley, K.A.; Spears, P.A.; Pare, L.; et al. Prognostic and predictive value of immune-related gene expression signatures vs tumor-infiltrating lymphocytes in early-stage erbb2/her2-positive breast cancer: A correlative analysis of the calgb 40601 and pamela trials. JAMA Oncol. 2023, 9, 490–499. [Google Scholar] [CrossRef]
  32. Evans, A.; Armstrong, S.; Whelehan, P.; Thomson, K.; Rauchhaus, P.; Purdie, C.; Jordan, L.; Jones, L.; Thompson, A.; Vinnicombe, S. Can shear-wave elastography predict response to neoadjuvant chemotherapy in women with invasive breast cancer? Br. J. Cancer 2013, 109, 2798–2802. [Google Scholar] [CrossRef]
  33. Singh, T.; Kumar, N.; Sandhu, M.; Singla, V.; Singh, G.; Bal, A. Predicting response to neoadjuvant chemotherapy in locally advanced breast cancer after the second cycle of chemotherapy using shear-wave elastography-a preliminary evaluation. Ultrasound Q. 2021, 37, 16–22. [Google Scholar] [CrossRef]
  34. Yuan, S.; Shao, H.; Na, Z.; Kong, M.; Cheng, W. Value of shear wave elasticity in predicting the efficacy of neoadjuvant chemotherapy in different molecular types. Clin. Imaging 2022, 89, 97–103. [Google Scholar] [CrossRef]
  35. Zhou, W.; Wu, M.; Lin, H.; Chen, W.; Lu, G.; Yang, F.; Chen, Y.; Chen, G. Potential value of tumor stiffness and se-cadherin in predicting the response to neoadjuvant therapy in her2-positive breast cancers. Future Oncol. 2022, 18, 2817–2825. [Google Scholar] [CrossRef]
  36. Bae, S.J.; Kim, J.H.; Lee, M.J.; Baek, S.H.; Kook, Y.; Ahn, S.G.; Cha, Y.J.; Jeong, J. Predictive markers of treatment response to neoadjuvant systemic therapy with dual her2-blockade. Cancers 2024, 16, 842. [Google Scholar] [CrossRef]
  37. Kim, M.J.; Eun, N.L.; Ahn, S.G.; Kim, J.H.; Youk, J.H.; Son, E.J.; Jeong, J.; Cha, Y.J.; Bae, S.J. Elasticity values as a predictive modality for response to neoadjuvant chemotherapy in breast cancer. Cancers 2024, 16, 377. [Google Scholar] [CrossRef]
Cancers 16 01254 g001

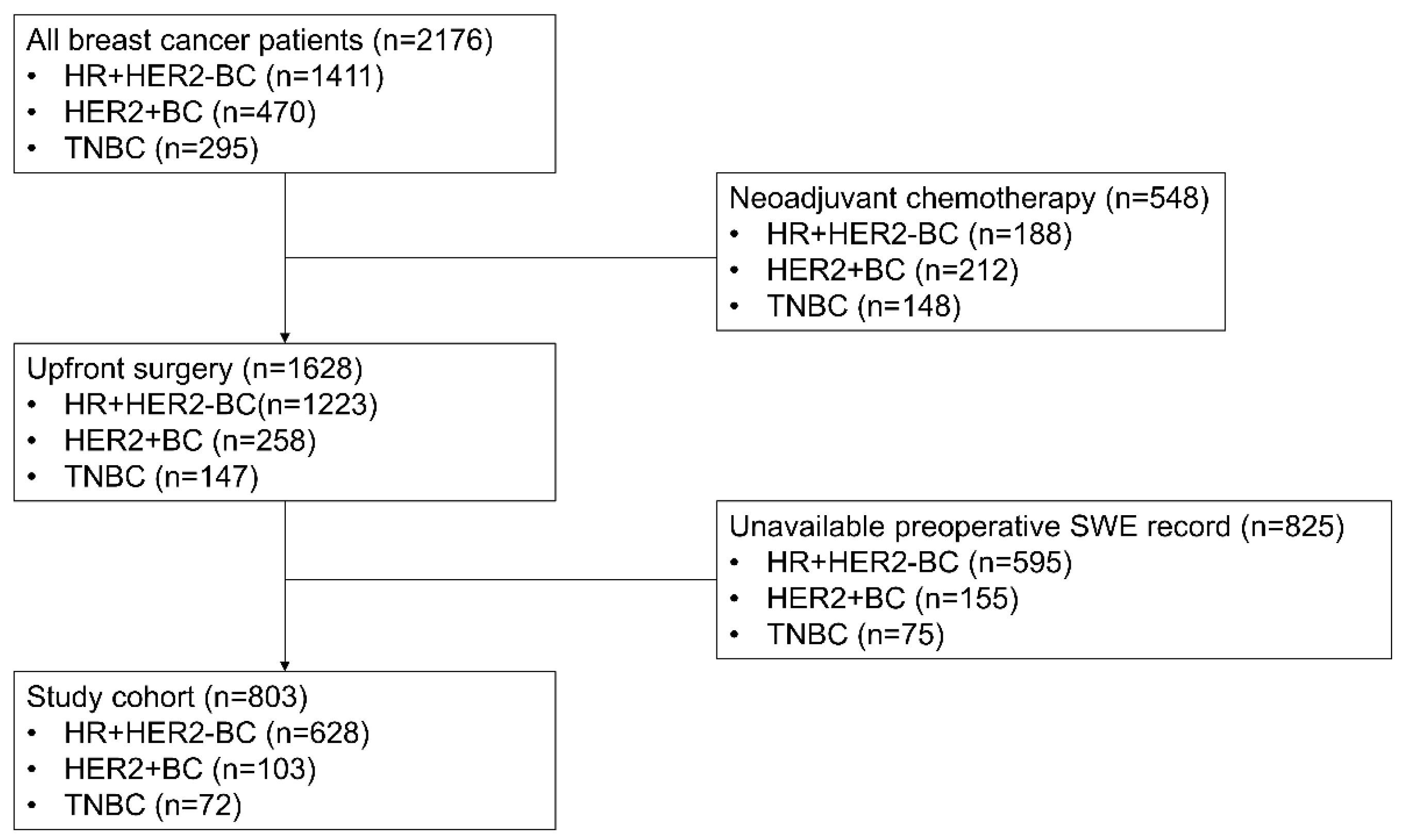

Figure 1. Study flowchart with inclusion and exclusion criteria. HR + HER2-, hormone receptor-positive, HER2-negative; BC, breast cancer; TNBC, triple-negative breast cancer; SWE, shear-wave elastography.
Figure 1. Study flowchart with inclusion and exclusion criteria. HR + HER2-, hormone receptor-positive, HER2-negative; BC, breast cancer; TNBC, triple-negative breast cancer; SWE, shear-wave elastography.
Cancers 16 01254 g001
Cancers 16 01254 g002

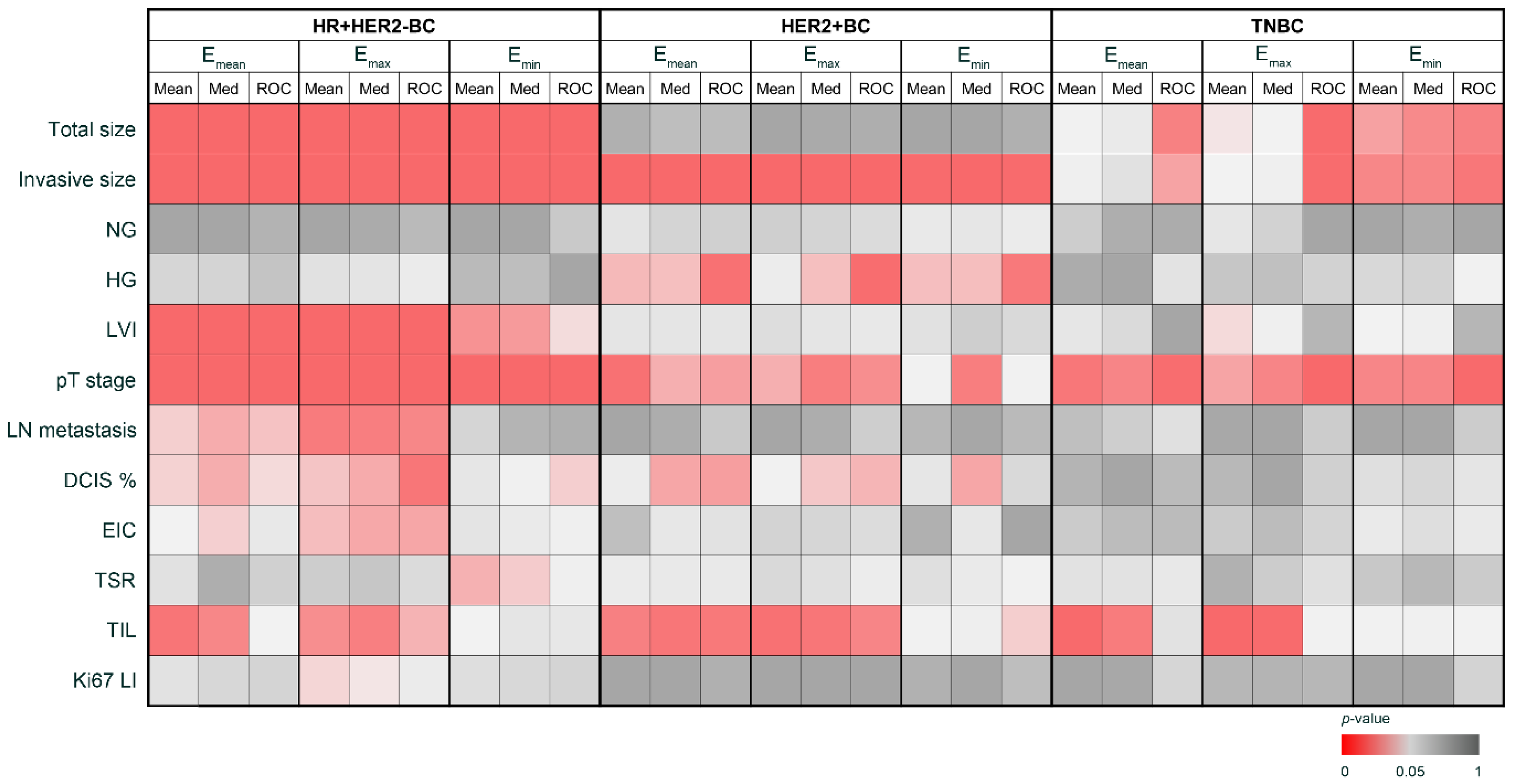

Figure 2. Clinicopathologic implication of tumor stiffness in different tumor subtypes. Med, median; ROC, ROC-derived threshold.
Figure 2. Clinicopathologic implication of tumor stiffness in different tumor subtypes. Med, median; ROC, ROC-derived threshold.
Cancers 16 01254 g002
Cancers 16 01254 g003

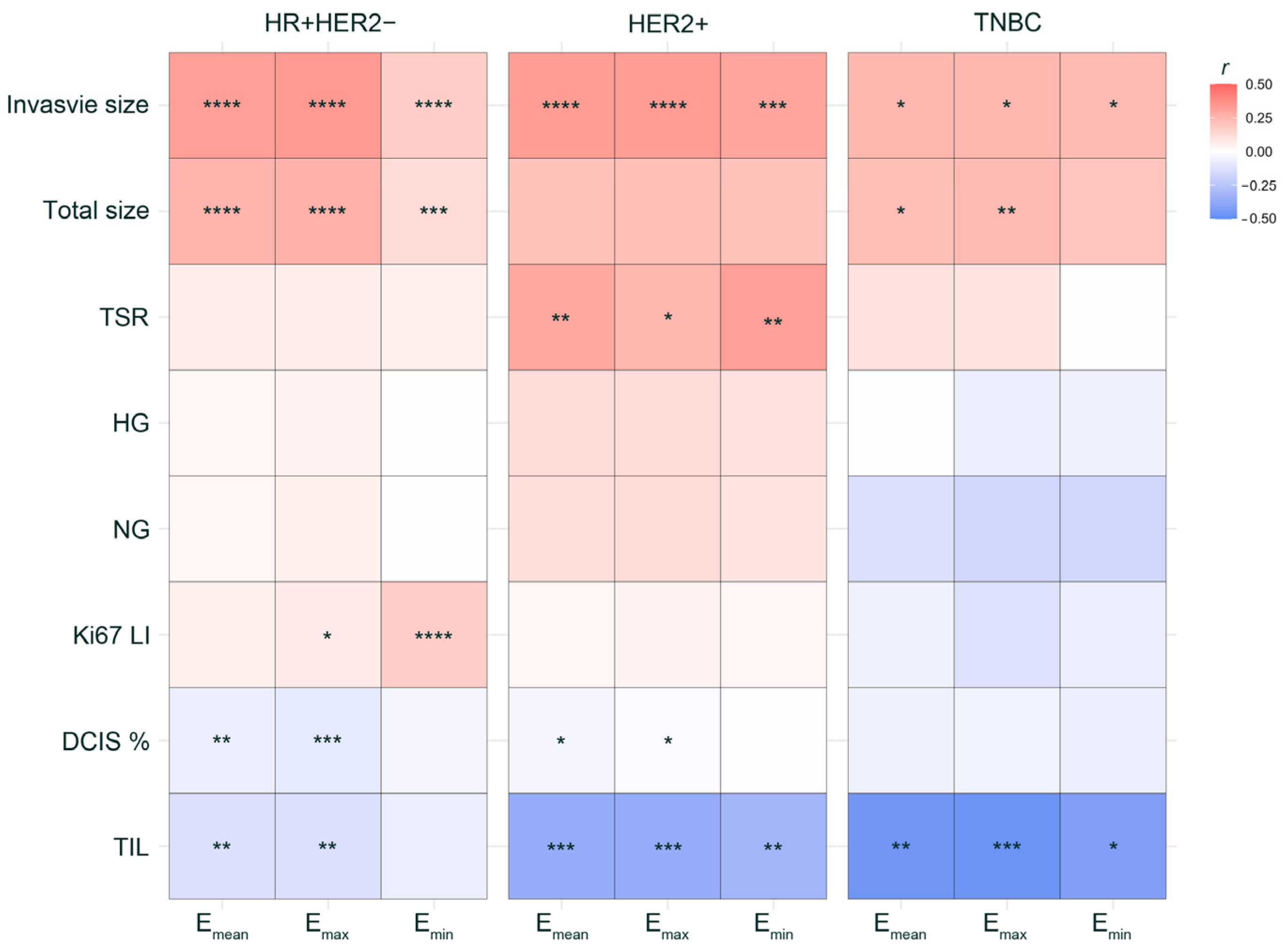

Figure 3. Correlation of tumor stiffness with clinicopathologic parameters in different tumor subtypes. * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001; r, Pearson correlation coefficient.
Figure 3. Correlation of tumor stiffness with clinicopathologic parameters in different tumor subtypes. * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001; r, Pearson correlation coefficient.
Cancers 16 01254 g003
Cancers 16 01254 g004

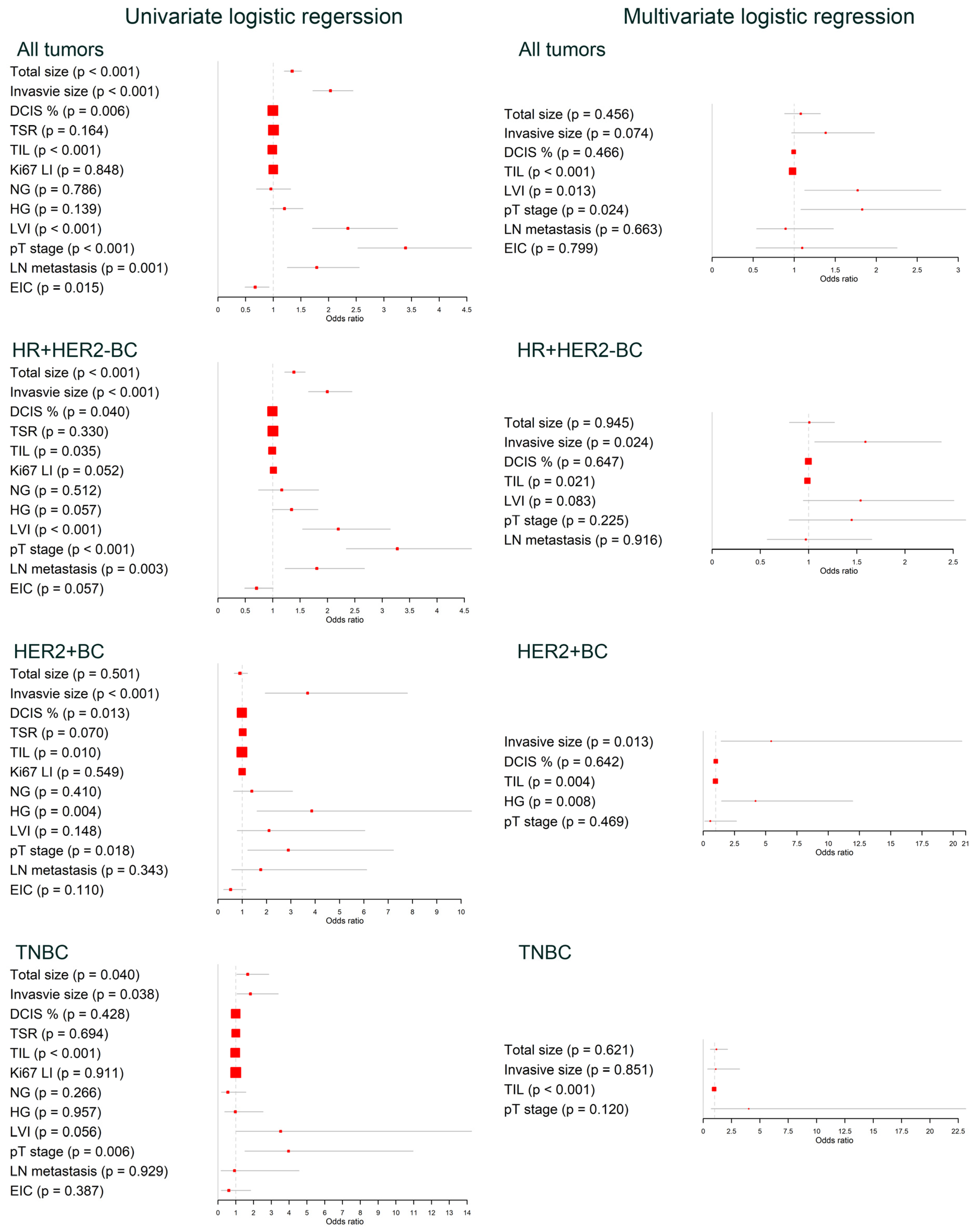

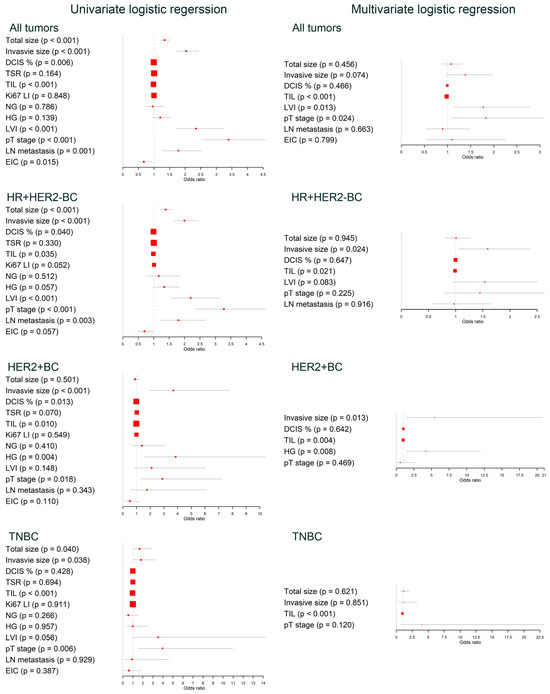

Figure 4. Forest plots of logistic regression analysis assessing the association between tumor stiffness and clinicopathologic parameters across different tumor subtypes.
Figure 4. Forest plots of logistic regression analysis assessing the association between tumor stiffness and clinicopathologic parameters across different tumor subtypes.
Cancers 16 01254 g004
Table 1. Basal clinicopathologic characteristics of patients.
Table 1. Basal clinicopathologic characteristics of patients.
HR + HER2-BC
(n = 628)		HER2 + BC
(n = 103)		TNBC
(n = 72)		p
Age, years (median, IQR)51 (45–60)55 (48–60)54 (46–61)0.081
Histologic diagnosis, n (%) 0.002
Invasive ductal carcinoma529 (84.2)99 (96.1)61 (84.7)
Invasive lobular carcinoma37 (5.9)1 (1.0)2 (2.8)
Mixed invasive ductal carcinoma15 (2.4)2 (1.9)2 (2.8)
Mucinous carcinoma27 (4.3)0 (0.0)0 (0.0)
Others20 (3.2)1 (1.0)7 (9.7)
Total size, cm (mean ± SD)2.2 ± 1.42.6 ± 1.32.3 ± 1.1<0.001 *
Invasive sizes, cm (mean ± SD)1.8 ± 1.11.6 ± 0.81.9 ± 0.90.110
NG, n (%) <0.001
Low8 (1.3)0 (0.0)0 (0.0)
Intermediate546 (86.9)44 (42.7)20 (27.8)
High74 (11.8)59 (57.3)52 (72.2)
HG, n (%) <0.001
I159 (25.3)3 (2.9)0 (0.0)
II434 (69.1)73 (70.9)29 (40.3)
III35 (5.6)27 (26.2)43 (59.7)
LVI, n (%) 0.052
Absent449 (71.5)82 (79.6)59 (81.9)
Present179 (28.5)21 (20.4)13 (18.1)
pT stage <0.001
1429 (68.3)70 (68.0)38 (52.8)
2186 (29.6)33 (32.0)34 (47.2)
313 (2.1)0 (0.0)0 (0.0)
LN metastasis, n (%) 0.019
Absent494 (78.8)89 (86.4)65 (90.3)
Present133 (21.2)14 (13.6)7 (9.7)
DCIS %19.6 ± 23.528.3 ± 30817.1 ± 25.90.003 **
EIC <0.001
Negative468 (74.5)63 (61.2)55 (76.4)
Positive160 (25.5)40 (38.8)17 (23.6)
TSR, % (mean ± SD)51.5 ± 30.061.0 ± 23.460.6 ± 26.30.321
TIL, % (mean ± SD)12.8 ± 16.837.9 ± 33.236.9 ± 31.1<0.001 ***
Ki67 LI, % (mean ± SD)12.1 ± 14.231.2 ± 18.751.1 ± 28.8<0.001 ****
Stiffness parameters
Eratio (mean ± SD)12.7 ± 10.713.7 ± 14.216.2 ± 20.30.366
Emean, kPa (mean ± SD)150.5 ± 65.7142.0 ± 75.3151.8 ± 65.80.330
Emax, kPa (mean ± SD)172.8 ± 72.7160.0 ± 80.7171.0 ± 72.20.194
Emin, kPa (mean ± SD)119.1 ± 85.9108.7 ± 65.1122.0 ± 63.40.220
Pairwise comparisons adjusted using the post hoc Bonferroni method: * HR + HER2-BC vs. HER2 + BC, p < 0.001; HER2 + BC vs. TNBC, p = 0.382; HR + HER2-BC vs. TNBC, p = 0.455. ** HR + HER2-BC vs. HER2 + BC, p = 0.066; HER2 + BC vs. TNBC, p = 0.003; HR + HER2-BC vs. TNBC, p = 0.059. *** HR + HER2-BC vs. HER2 + BC, p < 0.001; HER2 + BC vs. TNBC, p = 1.000; HR + HER2-BC vs. TNBC, p < 0.001. **** HR + HER2-BC vs. HER2 + BC, p < 0.001; HER2 + BC vs. TNBC, p < 0.001; HR + HER2-BC vs. TNBC, p < 0.001. IQR, interquartile range; SD, standard deviation; EIC, extensive intraductal component (>25%).
Table 2. Cutoff of elasticity values and thresholds from ROC curves for lymph node metastasis.
Table 2. Cutoff of elasticity values and thresholds from ROC curves for lymph node metastasis.
HR + HER2-BCHER2 + BCTNBC
MeanMedianROC ThresholdMeanMedianROC ThresholdMeanMedianROC Threshold
Emean, kPa151.9146.8134.6142.7122.9121.7152.1147.2140.2
Emin, kPa119.0111.5121.3108.695.4110.1121.2114.1100.5
Emax, kPa173.8172.1178.0160.5145.4141.8172.0161.0150.4
Table 3. Comparison between low- and high-stiffness group in each tumor subtype.
Table 3. Comparison between low- and high-stiffness group in each tumor subtype.
HR + HER2- BC (n = 628)
Cutoff Emax = 173.0 kPa		HER2 + BC (n = 103)
Cutoff Emax = 133.0 kPa		TNBC (n = 72)
Cutoff Emax = 172.0 kPa
Low EmaxHigh EmaxpLow EmaxHigh EmaxpLow EmaxHigh Emaxp
Total size, cm (mean ± SD)1.9 ± 1.32.5 ± 1.4<0.0012.7 ± 1.52.5 ± 1.10.5122.1 ± 1.02.6 ± 1.10.031
Invasive size, cm (mean ± SD)1.4 ± 0.92.2 ± 1.2<0.0011.3 ± 0.71.9 ± 0.7<0.0011.7 ± 1.02.2 ± 0.80.028
NG, n (%) 0.785 0.532 0.394
15 (1.6)3 (1.0) 0 (0.0)0 (0.0) 0 (0.0)0 (0.0)
2280 (87.2)266 (86.6) 23 (46.9)21 (38.9) 9 (22.5)11 (34.4)
336 (11.2)38 (12.4) 26 (53.1)33 (61.1) 31 (77.5)21 (65.6)
HG, n (%) 0.134 0.004 1.000
I92 (28.7)67 (21.8) 2 (4.1)1 (1.9) 0 (0.0)0 (0.0)
II213 (66.4)221 (72.0) 41 (83.7)32 (59.3) 16 (40.0)13 (40.6)
III16 (5.0)19 (6.2) 6 (12.2)21 (38.9) 24 (60.0)19 (59.4)
LVI, n (%) <0.001 0.223 0.093
Absent254 (79.1)195 (63.5) 42 (85.7)40 (74.1) 36 (90.0)23 (71.9)
Present67 (20.9)112 (36.5) 7 (14.3)14 (25.9) 4 (10.0)9 (28.1)
pT stage, n (%) <0.001 0.028 0.010
1261 (81.3)168 (54.7) 39 (79.6)31 (57.4) 27 (67.5)11 (34.4)
258 (18.1)128 (41.7) 10 (20.4)23 (42.6) 13 (32.5)21 (65.6)
32 (0.6)11 (3.6) 0 (0.0)0 (0.0) 0 (0.0)0 (0.0)
LN metastasis, n (%) 0.004 0.504 1
Absent268 (83.5)226 (73.9) 44 (89.8)45 (83.3) 36 (90.0)29 (90.6)
Present53 (16.5)80 (26.1) 5 (10.2)9 (16.7) 4 (10.0)3 (9.4)
DCIS, % (mean ± SD)21.5 ± 25.617.5 ± 21.00.03436.3 ± 34.121.0 ± 25.60.01219.3 ± 27.014.4 ± 24.60.426
EIC, n (%) 0.062 0.160 0.556
Absent228 (71.0)239 (77.9) 26 (53.1)37 (68.5) 29 (72.5)26 (81.3)
Present93 (29.0)68 (22.1) 23 (46.9)17 (31.5) 11 (27.5)6 (18.8)
TSR, % (mean ± SD)50.1 ± 29.252.8 ± 30.60.33155.3 ± 26.464.7 ± 20.60.08359.3 ± 26.762.2 ± 26.30.700
TIL, % (mean ± SD)14.3 ± 18.211.3 ± 15.00.02846.8 ± 35.429.7 ± 29.10.00949.4 ± 29.921.4 ± 35.4<0.001
Ki67 LI, % (mean ± SD)11.0 ± 13.513.2 ± 14.80.05132.4 ± 18.530.2 ± 19.00.55251.4 ± 27.050.7 ± 24.60.911
In the HR + HER2-BC subtype, the high-stiffness group showed a higher frequency of LVI (p < 0.001) and LN metastasis (p = 0.004). Such trends were not observed in the high-stiffness groups of other subtypes. Additionally, the proportion of ductal carcinoma in situ (DCIS) was significantly lower in the high-stiffness groups of both HR + HER2-BC (p = 0.003) and HER2 + BC (p = 0.012). For the HER2 + BC subtype, tumors of the high-stiffness group had a more frequent HG III (p = 0.004).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Eun, N.L.; Bae, S.J.; Youk, J.H.; Son, E.J.; Ahn, S.G.; Jeong, J.; Kim, J.H.; Lee, Y.; Cha, Y.J. Tumor-Infiltrating Lymphocyte Level Consistently Correlates with Lower Stiffness Measured by Shear-Wave Elastography: Subtype-Specific Analysis of Its Implication in Breast Cancer. Cancers 2024, 16, 1254. https://doi.org/10.3390/cancers16071254

AMA Style

Eun NL, Bae SJ, Youk JH, Son EJ, Ahn SG, Jeong J, Kim JH, Lee Y, Cha YJ. Tumor-Infiltrating Lymphocyte Level Consistently Correlates with Lower Stiffness Measured by Shear-Wave Elastography: Subtype-Specific Analysis of Its Implication in Breast Cancer. Cancers. 2024; 16(7):1254. https://doi.org/10.3390/cancers16071254

Chicago/Turabian Style

Eun, Na Lae, Soong June Bae, Ji Hyun Youk, Eun Ju Son, Sung Gwe Ahn, Joon Jeong, Jee Hung Kim, Yangkyu Lee, and Yoon Jin Cha. 2024. "Tumor-Infiltrating Lymphocyte Level Consistently Correlates with Lower Stiffness Measured by Shear-Wave Elastography: Subtype-Specific Analysis of Its Implication in Breast Cancer" Cancers 16, no. 7: 1254. https://doi.org/10.3390/cancers16071254

APA Style

Eun, N. L., Bae, S. J., Youk, J. H., Son, E. J., Ahn, S. G., Jeong, J., Kim, J. H., Lee, Y., & Cha, Y. J. (2024). Tumor-Infiltrating Lymphocyte Level Consistently Correlates with Lower Stiffness Measured by Shear-Wave Elastography: Subtype-Specific Analysis of Its Implication in Breast Cancer. Cancers, 16(7), 1254. https://doi.org/10.3390/cancers16071254

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
