Evaluation of Grading Estrogen Receptors in Breast Cancer Using Fully Automated Rapid Immunohistochemistry Based on Alternating-Current Electric Field Technology

by
Chiaki Kudo
1,2,3,
Kaori Terata
1,2,*,
Hiroshi Nanjo
4,
Kyoko Nomura
5,
Yuko Hiroshima
4,
Eriko Takahashi
1,2,
Ayuko Yamaguchi
1,2,
Hikari Konno
1,2,
Masaaki Onji
1,2,
Yuki Wakamatsu
1,
Yoshihiko Kimura
3,
Shinogu Takashima
1,
Akiyuki Wakita
1,
Yusuke Sato
1,
Yoshihiro Minamiya
1 and
Kazuhiro Imai
1
1
Department of Thoracic Surgery, Akita University Graduate School of Medicine, Akita 010-8543, Japan
2
Department of Breast and Endocrine Surgery, Akita University Hospital, Akita 010-8543, Japan
3
Department of Thoracic and Breast Surgery, Akita Kousei Medical Center, Akita 011-0948, Japan
4
Department of Pathology, Akita University Hospital, Akita 010-8543, Japan
5
Department of Environmental Health Science and Public Health, Akita University Graduate School of Medicine, Akita 010-8543, Japan
*
Author to whom correspondence should be addressed.
Cancers 2025, 17(3), 363; https://doi.org/10.3390/cancers17030363
Submission received: 27 December 2024 / Revised: 15 January 2025 / Accepted: 17 January 2025 / Published: 23 January 2025
(This article belongs to the Special Issue Advances in the Molecular Biology and Pathology of Breast Cancer)
Browse Figures
Review Reports Versions Notes

Simple Summary

We previously developed a rapid immunohistochemistry (R-IHC) method based on alternating-current electric field technology and have now developed a fully automated rapid IHC stainer (R-Auto). We evaluated 188 breast cancer surgical specimens at our hospital via estrogen receptor (ER) staining using R-Auto, conventional IHC, and a commercial autostainer. The specimens were scored using Allred scores, after which the staining results were compared between R-Auto and conventional IHC or the commercial autostainer. The AC1 statistic for comparison between R-Auto and conventional IHC and R-Auto was 0.9490, with a 95.7% agreement rate, and that for comparison between R-Auto and the commercial autostainer was 0.9095, with a 92.6% agreement rate. There was substantial agreement between R-Auto and each procedure. Furthermore, R-Auto shortened the time required for IHC from 210 min with the commercial autostainer and 209 min with conventional IHC to 42 min.

Abstract

Background: Immunohistochemistry (IHC) is crucial for determining cancer treatments. We previously developed a rapid IHC method and have now developed a fully automated rapid IHC stainer (R-Auto). This study aimed to evaluate the clinical reliability of the R-Auto protocol for staining estrogen receptors (ERs) in breast cancer specimens and evaluate the staining performance. Methods: Between January 2015 and June 2020, 188 surgical specimens collected from breast cancer patients treated at our hospital were evaluated via ER staining using R-Auto, conventional manual IHC, and a commercial autostainer. The specimens were scored using Allred scores, after which the staining results were compared between R-Auto and conventional IHC or the commercial autostainer. Weighted kappa coefficients and AC1 statistics were used to assess the agreement between the methods. Results: The AC1 statistic for comparison between R-Auto and conventional IHC was 0.9490 (0.9139–0.9841), with a 95.7% agreement rate, and that for comparison between R-Auto and the commercial autostainer was 0.9095 (0.8620–0.9570), with a 92.6% agreement. There was, thus, substantial agreement between R-Auto and both conventional IHC and the commercial autostainer. However, R-Auto shortened the time required for IHC from 209 min with conventional IHC to 121 min. Conclusions: R-Auto enables a good staining performance in a shorter time with less effort.

1. Introduction

The immunohistochemistry (IHC) technique uses antibodies to detect specific antigens within samples. Combining antigen–antibody reactions with a color reaction enables the presence and localization of an antigen within a tissue sample to be observed under a microscope, thereby confirming the expression of specific genes or proteins. For cancer treatment, IHC helps make differential diagnoses of benign and malignant tumors, visualize the extent of cancers, and select drug therapies. However, standard IHC procedures in frozen or paraffin sections take 2–4 h, so they cannot be used for intraoperative frozen section diagnosis [1,2,3].
We developed an innovative device that enables the rapid completion of IHC analyses within approximately 20 min. With this device, we apply a high-voltage, low-frequency alternating-current (AC) electric field to tissue sections. The resultant coulomb force stirs the antibody solution within droplets on the sections without increasing the temperature of the droplets. We previously reported the utility of this method for staining frozen sections for the intraoperative detection of lymph node metastasis in non-small cell lung cancer [4]; the differential diagnosis of brain [5] and lung tumors [6]; and the detection of sentinel lymph node metastasis in breast cancer [7]. The activated antigen–antibody reaction induced with this method could also reduce the amount of the expensive antibody needed for analysis [8]. Similarly, there have been reports on developments related to rapid IHC. For example, the literature reported that the rapid IHC method using the intermittent microwave irradiation method (MW) makes it possible to reduce the entire immunohistochemical staining process to one hour [9]. However, because this method uses microwaves, there is concern about tissue and cell degeneration due to high-temperature heat. Our technology has an advantage in this respect.
As originally developed, our rapid IHC (R-IHC) method was largely manual. Only the antibody reaction was carried out in a staining machine, and the application of reagents and washing out of antibodies were carried out manually. We developed a fully automated R-IHC staining device (R-Auto) that automates all steps in the IHC protocol to streamline the protocol and make it more reproducible. The entire staining process can be carried out automatically by filling the cartridge with the necessary reagents, registering them in the instrument, and setting the protocol. Moreover, the AC electric field is applied to the process of washing out the antibody solutions, which was not performed when washouts were carried out manually.
We previously reported that R-IHC is a time-saving utility useful for intraoperative frozen sections. Meanwhile, formalin-fixed paraffin-embedded (FFPE) sections are crucial for diagnosis and treatment decision making in nearly all cancer patients, regardless of the disease stage, and many diagnoses are made using FFPE sections in daily practice. Against that background, in this report, we evaluated the utility of R-Auto for use with FFPE specimens of breast cancer, the most commonly occurring cancer in women worldwide [10]. IHC analyses of the estrogen receptor (ER), the progesterone receptor (PgR), human epidermal growth factor receptor type 2 (HER2), and the Ki-67 index were used as surrogates for genetic profiling to determine breast cancer treatment strategies, which include neoadjuvant or adjuvant systemic therapy to reduce the risk of recurrence, to prolong life and maintain quality of life. IHC has contributed to the remarkable progress in breast cancer therapeutics by enabling the assembly of the most appropriate treatments against specific forms of the disease.
This study aimed to establish a staining protocol and evaluate the staining performance of R-Auto against ERs as a prototype for breast cancer FFPE specimens.

2. Methods

2.1. Ethical Conditions and Patient Samples

The medical records of 200 patients who underwent surgery for breast cancer at our hospital between July 2014 and January 2017 were serially extracted. Among them, 188 eligible patients with appropriate pathological specimens were enrolled in this study. This retrospective study was approved by the Institutional Review Board at the Akita University School of Medicine and University Hospital (permit number: 3105). All samples were collected under IRB Protocol No. 3105. A diagram of the case selection process for this study is shown in Figure 1.

2.2. IHC Procedures

The breast cancer specimens were fixed in 10% buffered formalin and embedded in paraffin. Four-micrometer-thick sections from the FFPE samples were incubated with Paraffin Stretcher (Sakura Finetek Japan Co., Ltd., Tokyo, Japan) at 50 °C overnight and then stained using IHC. At the time of their surgery, each patient’s FFPE specimen was stained for ER using IHC performed with a commercially available autostainer (Ventana BenchMark ULTRA (Ventana Medical Systems, Tucson, AZ, USA)). In this study, staining for ER was also carried out using R-Auto and conventional manual (hereafter referred to as conventional) IHC.

2.3. R-IHC Method and R-Auto Protocol

We developed a device that reduces the time required for IHC analysis. Its mechanism has been previously described in detail [6,11]. Briefly, in this R-IHC system, a high-voltage, low-frequency (4 KV; 10 Hz) alternating-current (AC) electric field is applied to tissue sections while they are incubating with the antibodies. A schematic diagram of the device used to apply the high-voltage, low-frequency AC electric field is shown (Figure 2a,b). The slide is placed between the electrodes, and a high-voltage (4 KV), low-frequency (5 Hz) AC current is applied. The arrows in each figure indicate that the antibodies are being stirred due to the vibration of the droplets. “Schema of the device used to apply a high-voltage, low-frequency AC electric field. The slide was placed between the electrodes, and a high-voltage (4 KV), low-frequency (5 Hz) AC current was applied. The schema shows the changes within a microdroplet as the voltage is switched on and off in a time series (I → II → III → IV), which mixes the antibodies” (this sentence is cited from reference [7]) (Figure 2b). This significantly shortens the time required for the antigen–antibody reaction. The AC electric field is effective for stirring liquids in the order of µL and is an ideal technique for IHC as it does not increase the temperature of the droplets. Furthermore, in R-Auto (Figure 2c), the AC electric field is applied to the process of washing out the antibody solutions, which was previously performed manually (reprinted with permission from Ref. [7]. Copyright 2017 K. Terata et al. Licensed under Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/ (15 January 2025))).
The details of the staining method are listed in Table 1. For deparaffinization and antigen activation, the samples were first immersed three times for 3 min each in a solution of 85% xylene and 10% ethylbenzene. This was followed by three immersions for 3 min each in 99.5% ethanol. Thereafter, the samples were immersed in distilled water for 5 min and then treated with a heated antigen activation solution (ULTRA Cell Conditioning Solution (ULTRA CC2) Roche Diagnostics Inc., Tokyo, Japan) at 98 °C for 40 min. Finally, the samples were left at room temperature for 20 min to complete the antigen activation process. The pretreatment was completed in 83 min.
For the IHC antigen–antibody reaction, the slides were first incubated for 6 min with the anti-ER antibody (CONFIRM anti-estrogen receptor (ER) (SP1) rabbit monoclonal primary antibody, Roche Diagnostics Inc., Tokyo, Japan) in R-Auto. The primary antibody was then detected by incubating the slides for 4 min with a secondary antibody (ultraView Universal DAB Detection Kit, Roche Diagnostics Inc., Tokyo, Japan). As in previous reports [4,5,6,7,8,9,11], the application of an AC electric field reduced the reaction time needed for the primary antibody from 32 min to 6 min compared with conventional IHC and the commercial autostainer. Similarly, the reaction time of the secondary antibody was reduced from 32 min to 4 min compared with conventional IHC and from 12 min to 4 min compared with the commercial autostainer. An additional unique feature of R-Auto is that an AC electric field is applied for the washing process, which reduces the time required for washing out the antibody from 10 min (as needed for the conventional method) to 5 min. As a result, the total time required for IHC was significantly reduced from 209 min with conventional IHC and 210 min with the commercial autostainer to 121 min with the R-Auto method.
Finally, the slides were developed using 3,3′-diaminobenzidine (Dako liquid DAB+ Substrate Chromogen System, Dako, Tokyo, Japan) and counterstained with hematoxylin. The slides were incubated in Bluing Reagent (Roche Diagnostics Inc., Tokyo, Japan) and Ventana universal DAB copper (included in the ultraView Universal DAB Detection Kit) before and after counterstaining. The R-Auto protocol was established by setting the reaction times of the primary and secondary antibodies in 1 min increments and performing test staining. The protocol was subsequently judged by a pathologist to produce the best diagnostic performance. With the previously reported equipment for R-IHC, only the primary and secondary antibody reactions were performed in the automated equipment. However, with R-Auto, all steps in the protocol, including washing out of the antibody solution, were automated.

2.4. Histopathological Evaluation

Assigning Allred scores, which combines five levels of positive cell occupancy (proportion score (PS)) and three levels of staining intensity (intensity score (IS)), is a typical scoring method [12] for assessing the ER status of breast cancers. The proportion score has six levels: 0 (all negative), 1 (stained area < 1/100), 2 (1/100 to 1/10), 3 (1/10 to 1/3), 4 (1/3 to 2/3), and 5 (≥2/3). The intensity score has four levels: 0 (negative), 1 (weak), 2 (intermediate), and 3 (strong). The total score is classified into eight levels, ranging from 0 to 8. A total Allred score (TS) of 0-2 was classified as ER-negative, 3–6 as weakly positive, and 7–8 as strongly positive [13]. Pathological diagnoses were made by two certified pathologists.

2.5. Statistical Analysis

The diagnostic concordances between R-Auto and conventional IHC and between R-Auto and the commercial autostainer were evaluated. The number of required cases was calculated to be 214 (192 cases excluding specimen deficiencies) for 80% power when tested at a significance level of 0.05, assuming an expected concordance rate of 0.8 and a dropout rate of 10% due to incomplete specimens. Because evaluation bias was expected, the AC1 statistic [14], in addition to the weighted kappa coefficient, was used to evaluate the degree of agreement. The AC1 statistic is a measure used to assess the level of agreement between evaluators. It was developed as an alternative to the kappa coefficient [15], which can be difficult to use in certain situations. While the kappa coefficient adjusts for the probability of chance agreement, it tends to yield lower values when the agreement rate is high, which can be problematic. The AC1 statistic addresses this issue by accounting for the probability of chance agreement in its calculation. As a result, it provides more stable reliability, even in cases of high agreement rates. The cutoffs for the weighted kappa coefficient and the AC1 statistic were defined as poor for less than 0.40, moderate for 0.40 to 0.60, and substantive agreement for 0.60 or more. Statistical analysis was performed using the SAS 9.4 software (SAS Institute, Cary, NC, USA).

3. Results

The characteristics of the 188 patients evaluated are shown in Table 2. Based on the pathological diagnostics at surgery, most (70.2%) were diagnosed with invasive carcinoma NST. The staging revealed that 53.2% were stage I, 21.3% were stage II, and 10.2% were stage III. The ER immunostaining results (synonymous with the commercial autostainer staining results) at the time of postoperative diagnosis were TS0–2 in 28 specimens (14.9%), TS3–6 in 11 specimens (5.9%), and TS7–8 in 149 specimens (79.2%).
The staining profile obtained with R-Auto was TS0–2 in 28, TS3–6 in 13, and TS7–8 in 147 specimens; with conventional IHC, the corresponding staining profile was 28, 5, and 155 specimens; and for postoperative diagnosis with the commercial autostainer, it was 28, 11, and 149 specimens, respectively (Table 3 and Table 4). The AC1 statistic for comparison between R-Auto and conventional IHC was 0.9490 (0.9139–0.9841), with a 95.7% agreement rate. For comparison between R-Auto and the commercial autostainer, the AC1 statistic was 0.9095 (0.8620–0.9570), with a 92.6% agreement rate. Thus, the AC1 statistics showed substantial agreement between the results obtained using R-Auto and both the conventional staining method and staining using the commercial autostainer. Moreover, when we separately compared the agreement rate for each score from TS0 to TS8 instead of the three-level scoring, the AC1 statistic was 0.9160 (0.8749–0.9572) for R-Auto vs. conventional IHC and 0.8372 (0.7816–0.8927) for R-Auto vs. the commercial autostainer. There was substantial agreement. The microscopic images show that the samples were stained very well and clearly with R-Auto and nearly equally (Figure 3).

4. Discussion

In this study, there was strong agreement between the Allred scores obtained using R-Auto, conventional IHC, and the commercial autostainer. In addition, R-Auto reduced the antigen–antibody reaction time from 64 and 44 min to 10 min compared with conventional IHC and commercial autostainer, respectively. Additionally, R-Auto reduced the washing time from 28 min to 15 min compared with conventional IHC. The time reduction and good staining performance are attributable to the activation of the antigen–antibody reaction using an AC electric field, which also sped up the washing process.
Although good agreement was obtained, some differences in the staining results obtained with the commercial autostainer and R-Auto were noted. In that regard, a study examining the staining of old FFPE specimens reported no differences in the IHC staining intensity of cytoplasmic antigens in old specimens, but the staining of the membrane and nuclear antigens declined over time [16]. It has also been reported that the intensity of ER staining differs depending on the storage method [17]. In this study, the staining intensity may have been affected by the use of thin slices of the specimens that were prepared several years after the tissue blocks were made, and this may have limited obtaining the most accurate results possible.
IHC has several limitations. In basic research, IHC involves the use of a wide variety of antibodies. Since it is difficult to explore the optimal conditions for all of them, the reproducibility of the experimental results decreases. Variability in results occurs between laboratories and researchers, and this is considered a problem as it leads to prolonged research periods and significant costs [18]. Additionally, in pathological diagnosis, it is also a problem that the standardization of IHC protocols and the assurance of reproducibility are not ensured between institutions [19,20]. R-IHC makes the staining intensity reproducible by applying an AC electric field, and R-Auto can further standardize protocols. These features can contribute to solving such issues in both research laboratories and hospitals.
Currently, the use of IHC in determining treatment strategies for breast cancer is influenced by gene expression profiles (GEPs). Perou et al. performed GEPs of breast cancer using cDNA microarrays and proposed an intrinsic subtype classification based on GEPs in 2000 [18,19,20]. In this classification, breast cancer was divided into subtypes with different biological characteristics, such as luminal A, luminal B, HER2-enriched, basal-like, normal breast-like, etc. The subtypes have different prognoses and drug resistance. Although GEPs are useful in that they can serve as an indicator of drug therapy selection, it is not clinically realistic to perform GEPs in all breast cancer patients. Therefore, since 2011, an alternative definition of intrinsic subtype based on pathological ER/PgR/HER2/Ki67 status has been proposed [21,22,23,24,25]. However, treatment strategies cannot always be determined by the IHC alone. In ER-positive HER2-negative breast cancer especially, it is recommended to use multi-gene assays, such as Oncotype DX [26], which assess the additional effects of chemotherapy and prognostic predictions based on the intrinsic subtype, to decide on the treatment strategy. The results from such assays take approximately one month to be returned. In addition to ER, HER2 is also determined as positive or negative using ISH, which requires approximately two weeks when outsourced. Therefore, it is crucial to quickly complete the initial IHC. A study of 5137 breast cancer patients requiring neoadjuvant chemotherapy reported that the estimated 5-year overall survival significantly worsened as the number of days from diagnosis to intervention increased [27]. In recent years, the development of novel systemic therapies, such as antibody–drug conjugates [28] and immune checkpoint inhibitors [29,30,31,32,33,34], has progressed, leading to an increasing number of IHC tests required for selecting cancer drug therapies [35]. There is a growing demand for rapid and highly accurate IHC.
The limitation of this study is that we only evaluated ER among the IHCs required for breast cancer. Previous studies have shown that PgR expression fluctuates according to the menstrual cycle [36]. In the data used in this study, there was no information available about the patients’ menstrual statuses at the time of surgery, which may have hindered an accurate assessment of PgR expression. Additionally, if HER2 scores are 2+, further testing using IHC or ISH methods is required for accurate evaluation, which delays treatment initiation as we must wait for the results. For this reason, we decided to focus on ER first. Meanwhile, a key feature of R-Auto is its universal applicability. R-IHC protocols for HER2 and Ki67 on frozen sections have already been reported [5,8]. These protocols do not significantly differ in antigen–antibody reaction times from the ER protocols evaluated in this study. By applying these findings, we anticipate that we will be able to smoothly evaluate other IHC tests for R-Auto on FFPE sections.
In this study, we showed that R-Auto can perform IHC with sufficient staining accuracy in the same or less time than commercial autostainers. We suggest R-Auto could be used in both clinical practice and the laboratory to provide high-quality, reproducible IHC results. In addition, R-Auto reduces the amount of the expensive antibody needed by activating the antigen–antibody reaction with AC electric field agitation [4,8]. Furthermore, we anticipate that it will also be applicable to in situ hybridization [11]. Although we stained only for ER in this study, a strength of this method is that it could also be applied to PgR, HER2, and Ki-67, which are important biomarkers in breast cancer treatment. Additionally, it could be used to expedite immunostaining in other types of cancer. Furthermore, with the potential spread of digital pathology in daily practice, it is essential to work toward standardizing and streamlining IHC. We believe that our technology can contribute to this effort.

5. Conclusions

We developed a fully automated R-IHC staining machine that achieves rapid, high-quality IHC staining with little human effort via the application of an AC electric field to enhance the antibody–antigen interaction and the washing process. This enables the establishment of an ER immunostaining protocol in breast cancer that could be the basis for the use of R-IHC in many other cancers.

Author Contributions

Conceptualization, K.T.; methodology, H.N., K.N. and Y.H.; validation, H.N., K.N. and Y.H.; investigation, C.K., E.T., A.Y., H.K., M.O. and Y.W.; writing—original draft preparation, C.K.; writing—review and editing, K.I., K.T., Y.K., S.T., A.W., Y.S. and Y.M.; supervision, K.I.; project administration, K.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Japan Agency for Medical Research and Development (AMED), grant number 21he0422008j0002.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board of Akita University Hospital (protocol code 3105, approved on 20 February 2024). The authors are accountable for all aspects of the work and ensure that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Informed Consent Statement

This study uses samples and information collected from human subjects; however, as the collection is non-invasive, it follows the ethical guidelines at the time of the application and will proceed with an opt-out approach according to the following procedures. Information regarding the study, including the purpose of utilizing the samples and data, will be communicated publicly to the research participants, ensuring they are allowed to refuse participation in the study or its continuation. Therefore, in this study, a document approved by the committee will be posted on the Akita University School of Medicine Clinical Research Support Center website (https://www2.hos.akitau.ac.jp/chiken/info/index.html (15 January 2025)) for public disclosure.

Data Availability Statement

Samples and information related to the research are managed with a unique identification number and anonymized, with full consideration given to protecting the confidentiality of the research participants. The data are stored offline in a database, kept in a locked location within our department, and shared with all authors.

Acknowledgments

This R-IHC technology is supported by R-IHC Study Group.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Nakane, P.K.; Pierce, G.B. Enzyme-labeled antibodies: Preparation and application for the localization of antigens. J. Histochem. Cytochem. 1966, 14, 929–931. [Google Scholar] [CrossRef] [PubMed]
  2. Hsu, S.M.; Raine, L.; Fanger, H. Use of avidin-biotin-peroxidase complex (ABC) in immunoperoxidase techniques: A comparison between ABC and unlabeled antibody (PAP) procedures. J. Histochem. Cytochem. 1981, 29, 577–580. [Google Scholar] [CrossRef]
  3. Cordell, J.L.; Falini, B.; Erber, W.N.; Ghosh, A.K.; Abdulaziz, Z.; MacDonald, S.; Pulford, K.A.; Stein, H.; Mason, D.Y. Immunoenzymatic labeling of monoclonal antibodies using immune complexes of alkaline phosphatase and monoclonal anti-alkaline phosphatase (APAAP complexes). J. Histochem. Cytochem. 1984, 32, 219–229. [Google Scholar] [CrossRef] [PubMed]
  4. Toda, H.; Minamiya, Y.; Kagaya, M.; Nanjo, H.; Akagami, Y.; Saito, H.; Ito, M.; Konno, H.; Motoyama, S.; Ogawa, J.; et al. A Novel Immunohistochemical Staining Method Allows Ultrarapid Detection of Lymph Node Micrometastases While Conserving Antibody. Acta Histochem Cytochem. 2011, 44, 133–139. [Google Scholar] [CrossRef]
  5. Tanino, M.; Sasajima, T.; Nanjo, H.; Akesaka, S.; Kagaya, M.; Kimura, T.; Ishida, Y.; Oda, M.; Takahashi, M.; Sugawara, T.; et al. Erratum to: Rapid immunohistochemistry based on alternating current electric field for intraoperative diagnosis of brain tumors. Brain Tumor Pathol. 2015, 32, 12–19. [Google Scholar] [CrossRef] [PubMed]
  6. Kuriyama, S.; Imai, K.; Nanjo, H.; Wakamatsu, Y.; Takashima, S.; Matsuo, T.; Iwai, H.; Demura, R.; Suzuki, H.; Harata, Y.; et al. Multiplex Intraoperative Rapid Immunohistochemistry with Noncontact Antibody Mixing for Distinguishing the Histologic Phenotype of Lung Cancer. Pathobiology 2024, 91, 383–392. [Google Scholar] [CrossRef] [PubMed]
  7. Terata, K.; Saito, H.; Nanjo, H.; Hiroshima, Y.; Ito, S.; Narita, K.; Akagami, Y.; Nakamura, R.; Konno, H.; Ito, A.; et al. Novel rapid-immunohistochemistry using an alternating current electric field for intraoperative diagnosis of sentinel lymph nodes in breast cancer. Sci. Rep. 2017, 7, 2810. [Google Scholar] [CrossRef]
  8. Hoshino, I.; Imai, K.; Nanjo, H.; Nakamura, R.; Saito, Y.; Fujishima, S.; Saito, H.; Terata, K.; Wakita, A.; Sato, Y.; et al. Reagent-saving immunohistochemistry for HER2 using non-contact alternating current electric field mixing. J. Clin. Pathol. 2019, 72, 25–30. [Google Scholar] [CrossRef]
  9. Kumada, T.; Tsuneyama, K.; Hatta, H.; Ishizawa, S.; Takano, Y. Improved 1-h rapid immunostaining method using intermittent microwave irradiation: Practicability based on 5 years application in Toyama Medical and Pharmaceutical University Hospital. Modern Pathol. 2004, 17, 1141–1149. [Google Scholar] [CrossRef]
  10. Global Burden of Disease Cancer Collaboration. Global, Regional, and National Cancer Incidence, Mortality, Years of Life Lost, Years Lived with Disability, and Disability-Adjusted Life-Years for 29 Cancer Groups, 1990 to 2017: A Systematic Analysis for the Global Burden of Disease Study. JAMA Oncol. 2019, 5, 1749–1768. [Google Scholar] [CrossRef] [PubMed]
  11. Saito, Y.; Imai, K.; Nakamura, R.; Nanjo, H.; Terata, K.; Konno, H.; Akagami, Y.; Minamiya, Y. Novel method for rapid in-situ hybridization of HER2 using noncontact alternating-current electric field mixing. Sci Rep. 2016, 6, 30034. [Google Scholar] [CrossRef] [PubMed]
  12. Harvey, J.M.; Clark, G.M.; Osborne, C.K.; Allred, D.C. Estrogen receptor status by immunohistochemistry is superior to the ligand-binding assay for predicting response to adjuvant endocrine therapy in breast cancer. J. Clin. Oncol. 1999, 17, 1474–1481. [Google Scholar] [CrossRef] [PubMed]
  13. Toyama, T.; Yoshimoto, N. New treatment strategy for triple-negative breast cancer targeting micro RNA. Grants-in-Aid for Scientific Research. Japan Society for the Promotion of Science; 2012–2015. Available online: https://kaken.nii.ac.jp/file/KAKENHI-PROJECT-24591916/24591916seika.pdf (accessed on 15 January 2025).
  14. Gwet, K.L. Computing Inter-rater Reliability and Its Variance in the Presence of High Agreement. Br. J. Math. Stat. Psychol. 2008, 61, 29–48. [Google Scholar] [CrossRef]
  15. Landis, J.R.; Koch, G.G. The measurement of observer agreement for categorical data. Biometrics 1977, 33, 159–174. [Google Scholar] [CrossRef] [PubMed]
  16. Grillo, F.; Bruzzone, M.; Pigozzi, S.; Prosapio, S.; Migliora, P.; Fiocca, R.; Mastracci, L. Immunohistochemistry on old archival paraffin blocks: Is there an expiry date? J. Clin. Pathol. 2017, 70, 988–993. [Google Scholar] [CrossRef] [PubMed]
  17. Grillo, F.; Pigozzi, S.; Ceriolo, P.; Calamaro, P.; Fiocca, R.; Mastracci, L. Factors affecting immunoreactivity in long-term storage of formalin-fixed paraffin-embedded tissue sections. Histochem Cell Biol. 2015, 144, 93–99. [Google Scholar] [CrossRef] [PubMed]
  18. Focke, C.M.; Bürger, H.; van Diest, P.J.; Finsterbusch, K.; Gläser, D.; Korsching, E.; Decker, T.; German Breast Screening Pathology Initiative. Interlaboratory variability of Ki67 staining in breast cancer. Eur. J. Cancer 2017, 84, 219–227. [Google Scholar] [CrossRef] [PubMed]
  19. Köbel, M.; Ronnett, B.M.; Singh, N.; Soslow, R.A.; Gilks, C.B.; McCluggage, W.G. Interpretation of p53 immunohistochemistry in endometrial carcinomas: Toward increased reproducibility. Int. J. Gynecol. Pathol. 2019, 38 (Suppl. S1), S123–S131. [Google Scholar] [CrossRef]
  20. Michel, M.C.; Wieland, T.; Tsujimoto, G. How reliable are G-protein-coupled receptor antibodies? Naunyn Schmiedebergs Arch. Pharmacol. 2009, 379, 385–388. [Google Scholar] [CrossRef]
  21. Perou, C.M.; Sørlie, T.; Eisen, M.B.; van de Rijn, M.; Jeffrey, S.S.; Rees, C.A.; Pollack, J.R.; Ross, D.T.; Johnsen, H.; Akslen, L.A.; et al. Molecular portraits of human breast tumors. Nature 2000, 406, 747–752. [Google Scholar] [CrossRef]
  22. Sørlie, T.; Perou, C.M.; Tibshirani, R.; Aas, T.; Geisler, S.; Johnsen, H.; Hastie, T.; Eisen, M.B.; van de Rijn, M.; Jeffrey, S.S.; et al. Gene expression patterns of breast carcinomas distinguish tumor subclasses with clinical implications. Proc. Natl. Acad. Sci. USA 2001, 98, 10869–10874. [Google Scholar] [CrossRef]
  23. Goldhirsch, A.; Wood, W.C.; Coates, A.S.; Gelber, R.D.; Thürlimann, B.; Senn, H.J.; Panel members. Strategies for subtypes—Dealing with the diversity of breast cancer: Highlights of the St. Gallen International Expert Consensus on the Primary Therapy of Early Breast Cancer 2011. Ann. Oncol. 2011, 22, 1736–1747. [Google Scholar] [CrossRef] [PubMed]
  24. Goldhirsch, A.; Winer, E.P.; Coates, A.S.; Gelber, R.D.; Piccart-Gebhart, M.; Thürlimann, B.; Panel members. Personalizing the treatment of women with early breast cancer: Highlights of the St. Gallen International Expert Consensus on the Primary Therapy of Early Breast Cancer 2013. Ann. Oncol. 2013, 24, 2206–2223. [Google Scholar] [CrossRef]
  25. Coates, A.S.; Winer, E.P.; Goldhirsch, A.; Gelber, R.D.; Gnant, M.; Piccart-Gebhart, M.; Thürlimann, B.; Senn, H.-J. Tailoring therapies—Improving the management of early breast cancer: St. Gallen International Expert Consensus on the Primary Therapy of Early Breast Cancer 2015. Ann. Oncol. 2015, 26, 1533–1546. [Google Scholar] [CrossRef] [PubMed]
  26. Kalinsky, K.; Barlow, W.E.; Gralow, J.R.; Meric-Bernstam, F.; Albain, K.S.; Hayes, D.F.; Lin, N.U.; Perez, E.A.; Goldstein, L.J.; Chia, S.K.L.; et al. 21-Gene Assay to Inform Chemotherapy Benefit in Node-Positive Breast Cancer. N. Engl. J. Med. 2021, 385, 2336–2347. [Google Scholar] [CrossRef] [PubMed]
  27. de Melo Gagliato, D.; Lei, X.; Giordano, S.H.; Valero, V.; Barcenas, C.H.; Hortobagyi, G.N.; Chavez-MacGregor, M. Impact of Delayed Neoadjuvant Systemic Chemotherapy on Overall Survival Among Patients with Breast Cancer. Oncologist 2020, 25, 749–757. [Google Scholar] [CrossRef]
  28. Cortés, J.; Kim, S.B.; Chung, W.P.; Im, S.A.; Park, Y.H.; Hegg, R.; Hurvitz, S.A. Trastuzumab Deruxtecan versus Trastuzumab Emtansine for Breast Cancer. N. Engl. J. Med. 2022, 386, 1143–1154. [Google Scholar] [CrossRef] [PubMed]
  29. Finn, R.S.; Martin, M.; Rugo, H.S.; Jones, S.; Im, S.-A.; Gelmon, K.; Harbeck, N.; Lipatov, O.N.; Walshe, J.M.; Moulder, S.; et al. Palbociclib and letrozole in advanced breast cancer. N. Engl. J. Med. 2016, 375, 1925–1936. [Google Scholar] [CrossRef]
  30. Rugo, H.S.; Finn, R.S.; Diéras, V.; Ettl, J.; Lipatov, O.; Joy, A.A.; Harbeck, N.; Castrellon, A.; Iyer, S.; Lu, D.R.; et al. Palbociclib plus letrozole as first-line therapy in estrogen receptor-positive/human epidermal growth factor receptor 2-negative advanced breast cancer with extended follow-up. Breast Cancer Res. Treat. 2019, 174, 719–729. [Google Scholar] [CrossRef]
  31. Cristofanilli, M.; Turner, N.C.; Bondarenko, I.; Ro, J.; Im, S.-A.; Masuda, N.; Colleoni, M.; DeMichele, A.; Loi, S.; Verma, S.; et al. Fulvestrant plus palbociclib versus fulvestrant plus placebo for treatment of hormone-receptor-positive, HER2-negative metastatic breast cancer that progressed on previous endocrine therapy (PALOMA-3): Final analysis of the multicentre, double-blind, phase 3 randomised controlled trial. Lancet Oncol. 2016, 17, 425–439. [Google Scholar] [CrossRef]
  32. Sledge, G.W., Jr.; Toi, M.; Neven, P.; Sohn, J.; Inoue, K.; Pivot, X.; Burdaeva, O.; Okera, M.; Masuda, N.; Kaufman, P.A.; et al. MONARCH 2: Abemaciclib in combination with fulvestrant in women with HR+/HER2- advanced breast cancer who had progressed while receiving endocrine therapy. J. Clin. Oncol. 2017, 35, 2875–2884. [Google Scholar] [CrossRef] [PubMed]
  33. Slamon, D.J.; Lipatov, O.; Nowecki, Z.; McAndrew, N.; Kukielka-Budny, B.; Stroyakovskiy, D.; Yardley, D.A.; Huang, C.-S.; Fasching, P.A.; Crown, J.; et al. Ribociclib plus Endocrine Therapy in Early Breast Cancer. N. Engl. J. Med. 2024, 390, 1080–1091. [Google Scholar] [CrossRef]
  34. Johnston, S.R.D.; Harbeck, N.; Hegg, R.; Toi, M.; Martin, M.; Shao, Z.M.; Zhang, Q.Y.; Martinez Rodriguez, J.L.; Campone, M.; Hamilton, E.; et al. Abemaciclib combined with endocrine therapy for the adjuvant treatment of HR+, HER2-, node-positive, high-risk, early breast cancer (monarchE). J. Clin. Oncol. 2020, 38, 3987–3998. [Google Scholar] [CrossRef] [PubMed]
  35. Ecker, D.M.; Jones, S.D.; Levine, H.L. The therapeutic monoclonal antibody market. MAbs 2015, 7, 9–14. [Google Scholar] [CrossRef]
  36. Coradini, D.; Cappelletti, V.; Miodini, P.; Ronchi, E.; Scavone, G.; Di Fronzo, G. Variations in estrogen and progesterone receptor content in premenopausal breast cancer patients throughout the menstrual cycle. Tumori J. 1984, 70, 339–344. [Google Scholar] [CrossRef] [PubMed]
Cancers 17 00363 g001

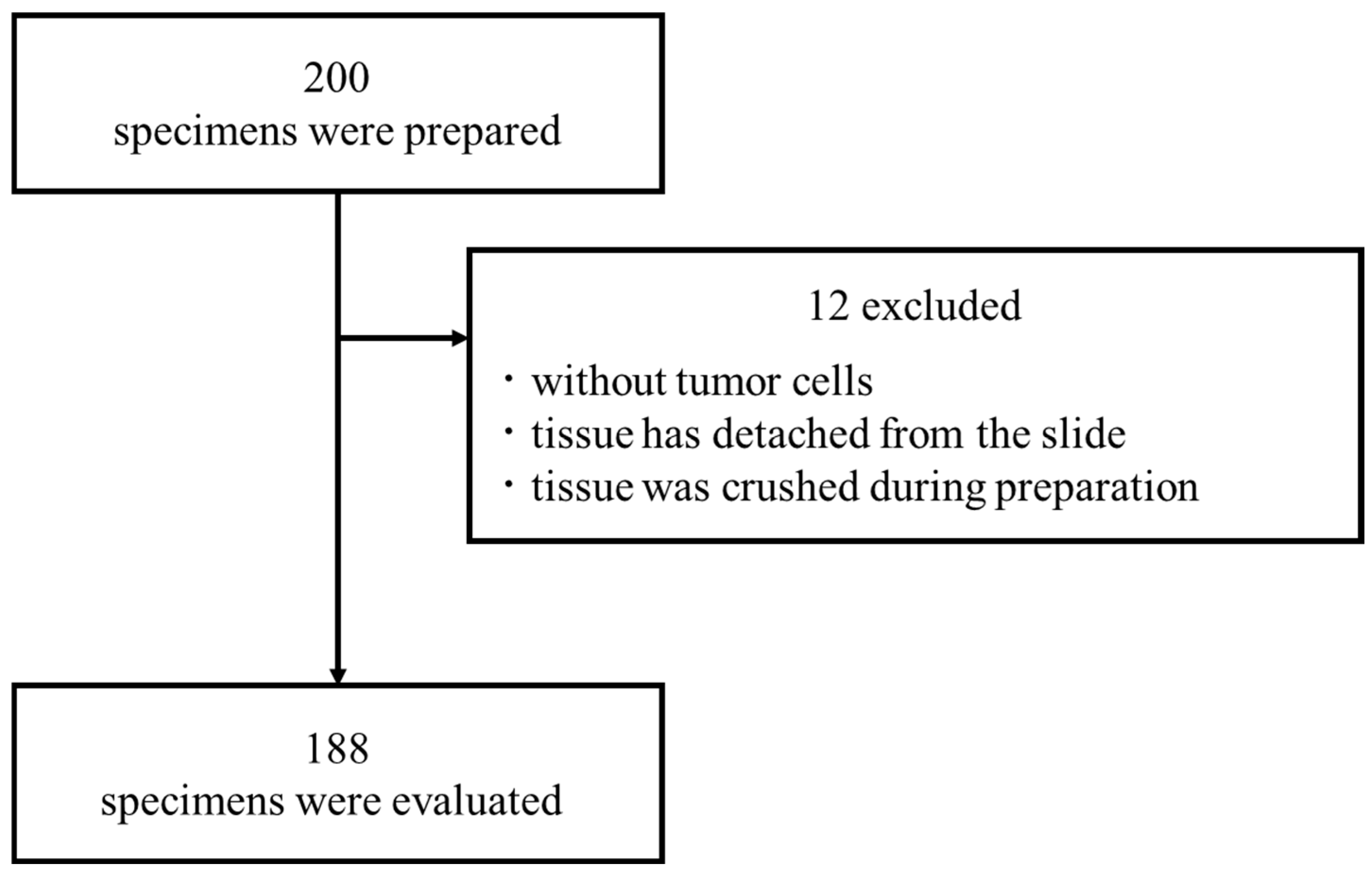

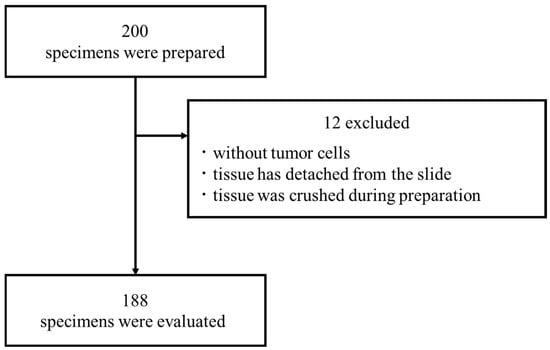

Figure 1. Data collection and exclusion criteria.
Figure 1. Data collection and exclusion criteria.
Cancers 17 00363 g001
Cancers 17 00363 g002aCancers 17 00363 g002bCancers 17 00363 g002c

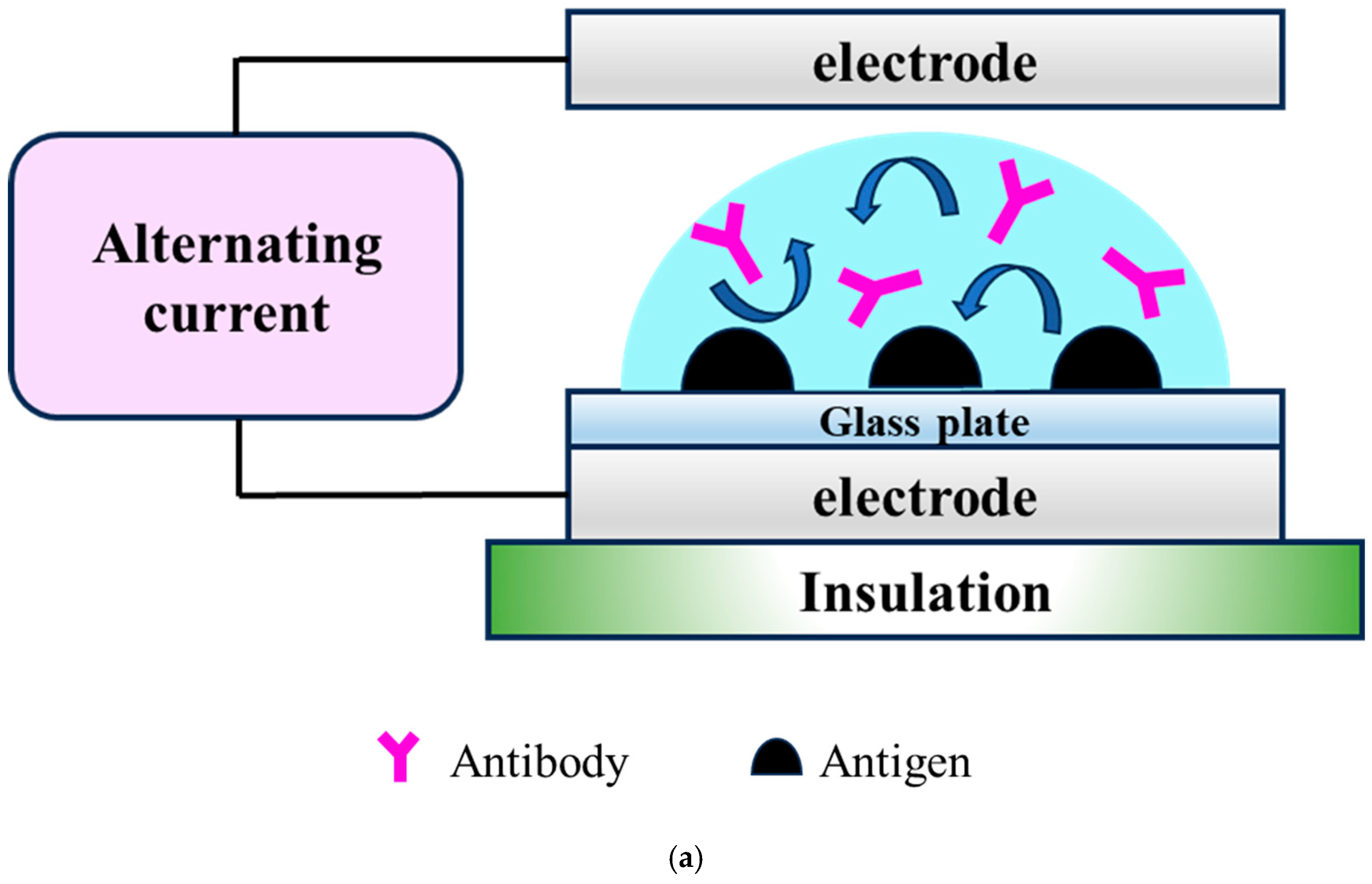

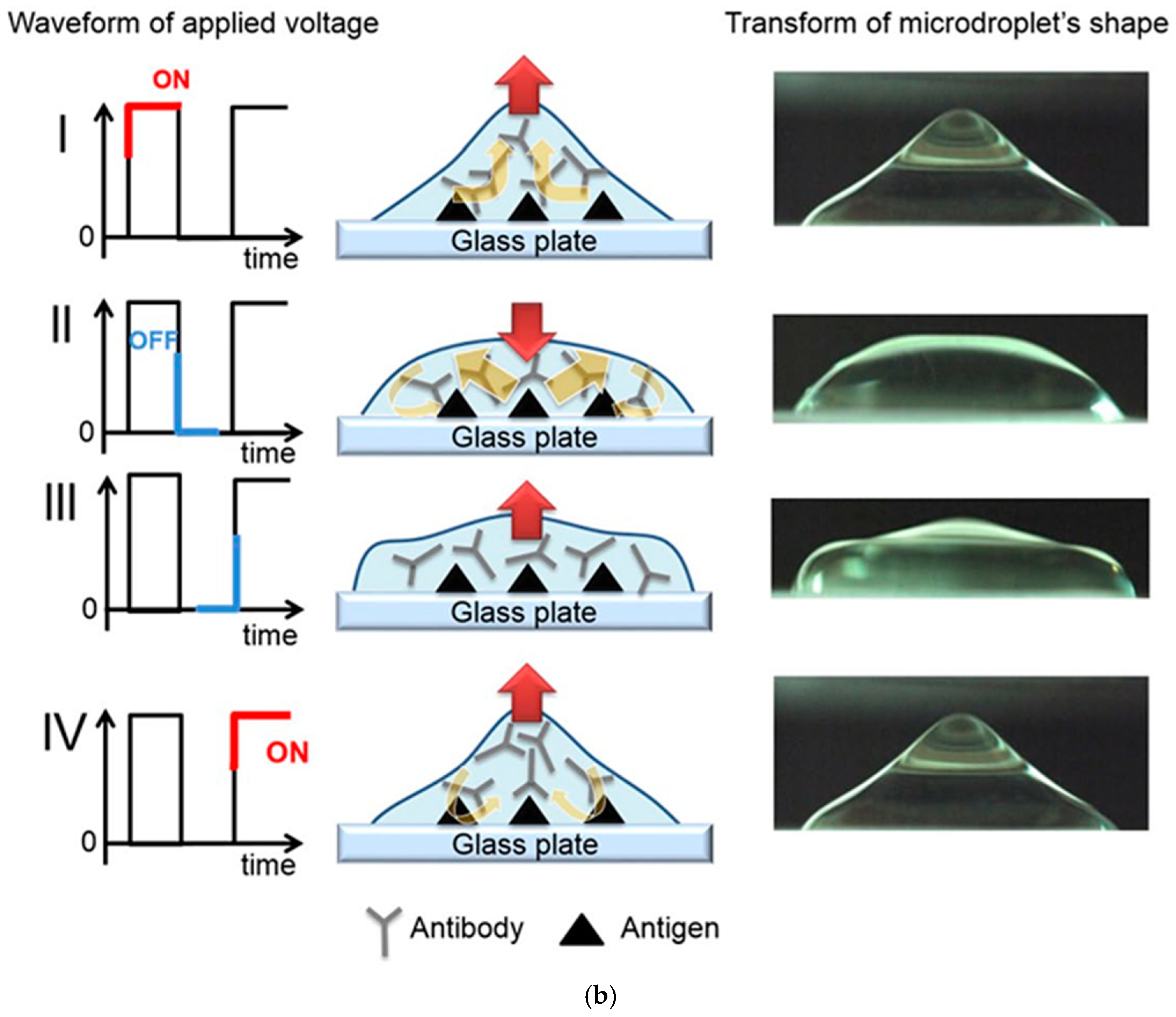

Figure 2. Principles of rapid immunohistochemistry. (a) The slide was placed between the electrodes, and a high-voltage (4 KV), low-frequency (5 Hz) alternating current (AC) was applied. Reprinted with permission from Ref. [7]. Copyright 2017 K. Terata et al. Licensed under Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/ (15 January 2025)). The illustration (a) was modified based on Ref. [7]. (b) The changes within a microdroplet as the voltage was switched on and off mixed the antibodies. Reprinted with permission from Ref. [7]. Copyright 2017 K. Terata et al. Licensed under Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/ (15 January 2025)). (c) The fully automated rapid immunohistochemistry stainer (R-Auto).
Figure 2. Principles of rapid immunohistochemistry. (a) The slide was placed between the electrodes, and a high-voltage (4 KV), low-frequency (5 Hz) alternating current (AC) was applied. Reprinted with permission from Ref. [7]. Copyright 2017 K. Terata et al. Licensed under Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/ (15 January 2025)). The illustration (a) was modified based on Ref. [7]. (b) The changes within a microdroplet as the voltage was switched on and off mixed the antibodies. Reprinted with permission from Ref. [7]. Copyright 2017 K. Terata et al. Licensed under Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/ (15 January 2025)). (c) The fully automated rapid immunohistochemistry stainer (R-Auto).
Cancers 17 00363 g002aCancers 17 00363 g002bCancers 17 00363 g002c
Cancers 17 00363 g003

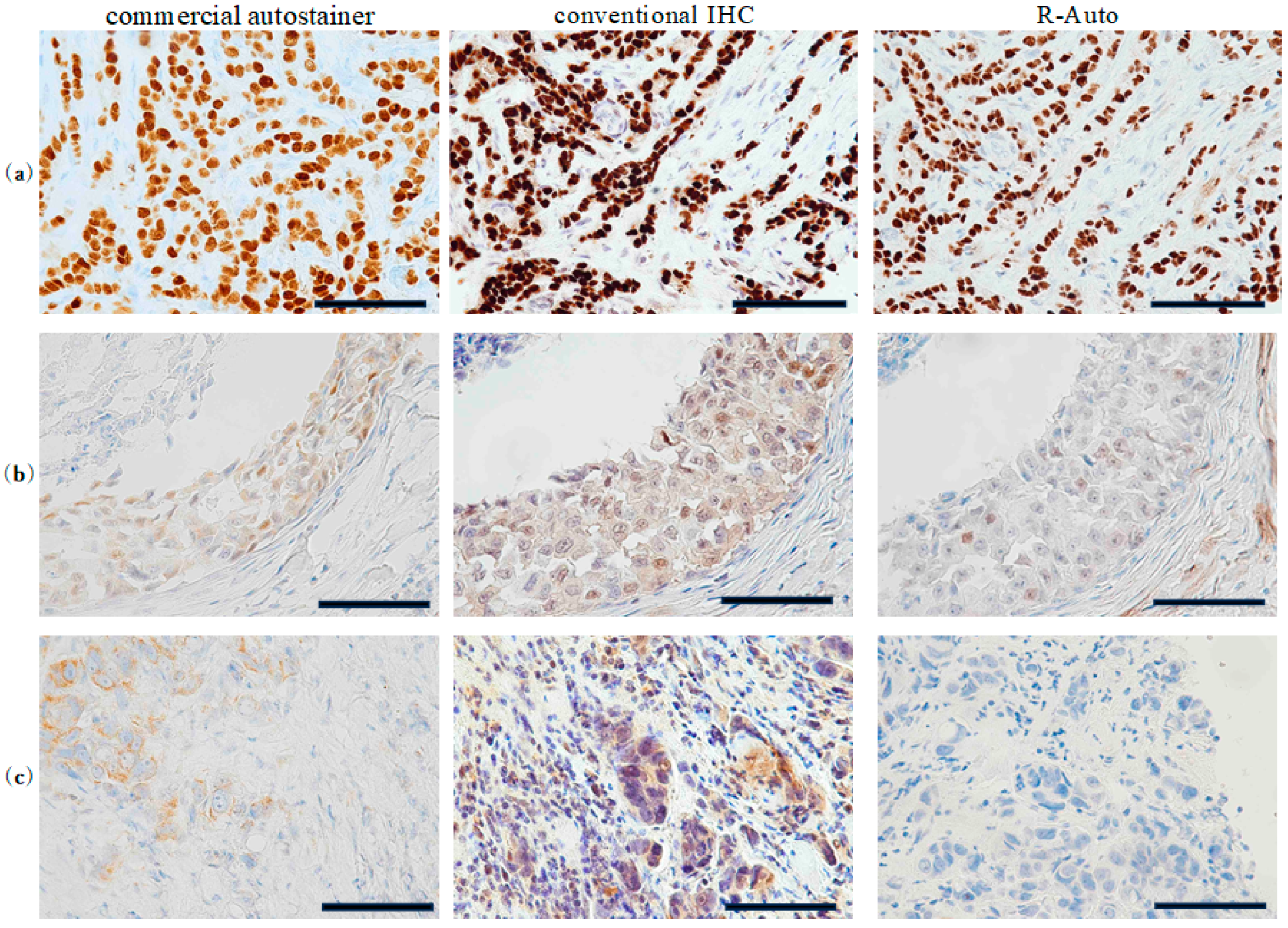

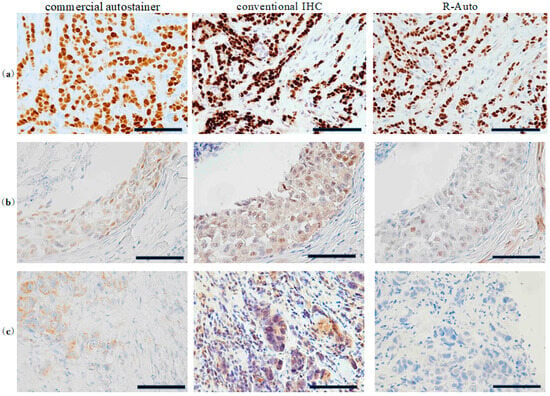

Figure 3. Image showing immunoreactivity of ER expressed in the nucleus of breast cancer. Tissue sections were stained with hematoxylin and anti-ER antibody. (a) All matching cases of TS7 or -8. (b) All matching cases of TS3–6. (c) All matching cases of TS0–2. Scale bar represents 250 μm. ER, estrogen receptor. TS, total score. Magnification of objective lens is 40×.
Figure 3. Image showing immunoreactivity of ER expressed in the nucleus of breast cancer. Tissue sections were stained with hematoxylin and anti-ER antibody. (a) All matching cases of TS7 or -8. (b) All matching cases of TS3–6. (c) All matching cases of TS0–2. Scale bar represents 250 μm. ER, estrogen receptor. TS, total score. Magnification of objective lens is 40×.
Cancers 17 00363 g003
Table 1. The procedures of the commercial autostainer, conventional IHC, and R-Auto.
Table 1. The procedures of the commercial autostainer, conventional IHC, and R-Auto.
Time (Minutes)
ProcedureCommercial Autostainer Conventional IHCR-Auto
Pretreatment *6483
Blocking endogenous peroxidase activity103
Washing with PBS- *6
Primary antibody32326 **
Washing with PBS- *105 **
Ventana ultraView Universal DAB Detection Kit12324 **
Washing with PBS- *105 **
3,3′-diaminobenzidine- *56
Washing with PBS- *22
Hematoxylin nuclear counter staining12111
Approximate time required ****- *108 ***42 ***
Dehydrating, permeating, and sealing- *18
Approximate overall time required *****210209121
*: not disclosed; **: with AC electric field (4 KV; 10 Hz); ***: approximate time required for IHC excluding pretreatment; PBS: phosphate-buffered saline; ****: time required for dyeing; *****: total time required including all processes; DAB: 3,3′-diaminobenzidine. The concentration of the solution used for pretreatment: a solution of 85% xylene and 10% ethylbenzene.
Table 2. Clinical details of these breast cancer patients.
Table 2. Clinical details of these breast cancer patients.
n = 188
AgeMedian (Range)62 (21–91)
Histological typeInvasive carcinoma NST132 (70.2%)
Lobular10 (5.3%)
Intraductal28 (14.9%)
Others18 (9.6%)
Histological gradeI61 (32.4%)
II93 (49.5%)
III24 (12.8%)
Unknown10 (5.3%)
Vessel invasionNo150 (79.8%)
Yes36 (19.1%)
Unknown2 (1.1%)
Lymphatic invasionNo100 (53.2%)
Yes86 (42.6%)
Unknown2 (1.1%)
Stage 028 (14.9%)
I100 (53.2%)
IIA30 (16.0%)
IIB10 (5.3%)
IIIA9 (4.8%)
IIIB8 (4.3%)
IIIC2 (1.1%)
Unknown1 (0.5%)
ER (Allred score)Total score 7–8149 (79.2%)
      3–611 (5.9%)
      0–228 (14.9%)
PgR (Allred score)Total score 7–8149 (79.2%)
      3–611 (5.9%)
      0–228 (14.9%)
HER2 score055 (29.3%)
1+44 (23.4%)
2+67 (35.6%)
3+22 (11.7%)
Ki6720<124 (66.0%)
≦2064 (34.0%)
Table 3. Comparison of diagnostic results between R-Auto and conventional IHC.
Table 3. Comparison of diagnostic results between R-Auto and conventional IHC.
Conventional IHC
Allred ScoreTS0–23–67–8Total
R-AutoTS0–2280028
3–605813
7–800147147
Total285155188
Estimated Value95% Confidence Interval
Kappa coefficient0.87160.7859–0.9572
Weighted kappa coefficient0.92540.8727–0.9782
AC1 statistics0.94900.9139–0.9841
Agreement95.7%
Table 4. Comparison of diagnostic results between R-Auto and commercial autostainer.
Table 4. Comparison of diagnostic results between R-Auto and commercial autostainer.
Commercial Autostainer
Allred ScoreTS0–23–67–8Total
R-AutoTS0–2233228
3–656213
7–802145147
Total2811149188
Estimated Value95% Confidence Interval
Kappa coefficient0.78970.6938–0.8856
Weighted kappa coefficient0.85540.7814–0.9294
AC1 statistics0.90950.8620–0.9570
Agreement92.6%
