Article

Steam Reforming of Chloroform-Ethyl Acetate Mixture to Syngas over Ni-Cu Based Catalysts

by
Qiong Wu
,
Chenghua Xu
*,
Yuhao Zheng
,
Jie Liu
*,
Zhiyong Deng
and
Jianying Liu
College of Resources and Environment, Chengdu University of Information and Technology, Chengdu 610225, China
*
Authors to whom correspondence should be addressed.
Catalysts 2021, 11(7), 826; https://doi.org/10.3390/catal11070826
Submission received: 31 May 2021 / Revised: 4 July 2021 / Accepted: 6 July 2021 / Published: 8 July 2021
Browse Figures
Review Reports Versions Notes

Abstract

:
NiCuMoLaAl mixed oxide catalysts are prepared and applied in the steam reforming of chloroform-ethyl acetate (CHCl3-EA) mixture to syngas in the present work. The pre-introduction of Cl- ions using chloride salts as modifiers aims to improve the chlorine poisoning resistance. Catalytic tests show that KCl modification is obviously advantageous to increase the catalytic life. The destruction of catalyst structure induced by in situ produced HCl and carbon deposits that occurred on acidic sites are two key points for deactivation of reforming catalysts. The presence of Cl− ions gives rise to the formation of an Ni-Cu alloy, which exhibits a synergetic effect on catalyzing reforming along with metallic Ni crystals formed from excess nickel species, and giving an excellent catalytic stability. Less CHCl3 and more steam can also increase the catalytic stable time of KCl-modified NiCuMoLaAl reforming catalyst.

Graphical Abstract

1. Introduction

With the rapid development of industrialization and urbanization, there are large amounts of organic waste liquid discharged from organic synthesis labs and many productive processes involved in the petrochemical, papermaking, leather, food, and pharmaceutical industries [1,2,3]. The discharged organic waste liquid has a wide range of sources, complex components, high chromaticity, and heavy odor [4], which can not only damage the environment, but eventually endanger humans and earth creatures through bioaccumulation.
At present, some available methods, including physical, biological, and chemical oxidation, have been applied in treating organic waste. For example, some physical technologies such as adsorption, precipitation, filtration, and ultrasound are used to remove organic compounds in wastewater [5,6]. Biological and chemical oxidation, such as the Fenton-like process, incineration, and electrochemical and photocatalytic oxidation [7,8,9,10,11,12,13], are applied to degrade organic substances dissolved in wastewater. As is well known, organic waste liquid contains rich carbon and hydrogen resources. However, the above treatment technologies have no obvious advantages on resource utilization of organic waste. Driven by energy and environmental issues, catalytic steam reforming (CSR) has been widely used in recycling organic materials to produce clean energy hydrogen and high-value syngas because of its high effectiveness and economic feasibility [14,15,16].
Noble metal (Pt, Ru, and Pd) supported catalysts have been found to exhibit excellent activity and stability for CSR of alcohols, alkanes, and their mixed system [17,18,19]. Considering catalyst cost, many non-noble metals such as Ni, Cu, and Co-based catalysts have been explored and applied in the production of hydrogen and syngas through CSR [20,21]. Of course, the catalysts simultaneously containing noble and transition metals as an active phase are also used in steam reforming [22,23]. Among these catalysts, Ni-based catalysts are widely investigated due to their excellent activity and relatively low cost [24,25,26,27]. However, active catalytic Ni species are found to succumb to sintering at a high temperature, leading to deactivation during reforming [28], which can be inhibited by the incorporation of Cu [21,29]. In order to obtain Ni-based reforming catalysts with a good stability, Mo and rare earth La oxide as a promoter have been introduced. They can disperse active metal species of the catalyst and provide medium and strong basic sites, which are beneficial to increasing catalytic activity and inhibiting coking during the steam reforming of organic substances [16,30,31,32]. As is well known, the composition of organic waste is complex and often contains N, S, and Cl-heteroatom chemicals, aromatic compounds, and toxic organic substances [33]. In particular, the presence of heteroatom-containing chemicals will probably lead to catalyst rapid deactivation during CSR. For example, HCl as a by-product of the steam reforming of chlorocarbons contains a Cl element that easily reacts with the catalytic active phase. From the investigation on CSR of methyl chloride and chlorinated aromatics over Ni-based catalysts as earlier reported [17,34,35,36,37,38], it has been concluded that the deactivation of reforming catalysts mainly results from the following issues: (1) the produced HCl can react with catalysts support metal oxides; (2) the presence of HCl leads to the sintering of catalytic active phase with support; (3) HCl adsorbed on catalyst surface can provide acidic sites resulting in carbon deposits. Therefore, it is important for the steam reforming of chlorocarbon-containing organic waste liquid to improve its ability to resist Cl-poisoning of catalysts. Although noble metals and high-loading Ni catalysts exhibit a better resistance to HCl poisoning, the destruction of the catalyst structure cannot be avoided due to HCl reaction with support. Other previous studies [39,40] have revealed that pre-treatment using HCl before catalytic reaction can prevent catalysts from reacting to HCl generated during hydrodechlorination of chlorobenzene and other complex chlorocarbons.
Therefore, the present work prepares a NiCuMoLaAl complex oxide precursor by using co-precipitation according to the catalyst system used in glycerol steam reforming reported in our previous work [41], and followed by pre-introducing chloride salts to obtain Cl− ion-incorporated reforming catalysts through impregnation. The presence of Cl− ions in the catalyst is expected to inhibit the rapid deactivation from adsorption of and reaction with HCl produced during reforming. The effect of introduced chloride salts on physicochemical and catalytic performance in steam reforming of CHCl3-EA mixture is also investigated. It aims to explore the function of Cl− ions in catalytic active phase formation, acid-base property, and resistance to HCl-poisoning of catalyst during steam reforming of CHCl3 and EA mixture (CHCl3 + H2O → CO + 3HCl and C4H8O2 + 2H2O → 4CO + 6H2), and obtain a potential catalyst to apply to resource utilization of chlorocarbon-containing organic waste liquid to H2 or syngas through steam catalytic reforming.

2. Results and Discussion

2.1. Catalytic Performance

From Table 1, it can be clearly observed that all prepared NiCuMoLaAl mixed oxide catalysts (NCML) exhibit high catalytic activity in steam reforming of CHCl3-EA mixture, almost all organic reactants are converted to gaseous products. Moreover, the collected liquid products over all catalysts are observed to be colorless and clear liquid. Steam reforming gives a conversion of about 99.46% organic reactant and has a gas production capacity of 4.07 m3 k g oil − 1 over NCML without any modifier. For the catalysts modified by chloride salts, such as NH4Cl, NaCl, or KCl, the conversion of organic reactant is decreased to some extent. However, the gas production capacity of NCML catalyst is increased by modification of chloride salts. From gaseous product distribution, the reforming gas obtained over all catalysts mainly contains about 70% H2, 12–16% CO, 14–16% CO2, and 1–4% CH4. From Table 1, NCML catalysts modified by chloride salts are found to exhibit a higher H2 and CO2 selectivity, and a lower CO selectivity than NCML without any modifiers in steam reforming of CHCl3-EA. It is mainly because during the CSR of CHCl3-EA, the formed CO can cause a water-gas shift reaction to generate CO2, which will give rise to the formation of more H2. Therefore, the modification with chloride salts is proven to improve the catalytic ability of the catalyst for water-gas shift reactions (CO + H2O ↔ CO2 + H2) resulting in a higher gas production capacity.
From Figure 1, it can clearly be found that the capacity of gas production from CSR of CHCl3-EA over all catalysts rapidly increases from about 3.6 to 4.2 m3· k g oil − 1 when CSR starts about 20 min, indicating that there is a catalytic activation process during the initial reforming stage. It is mainly due to the presence of reducing atmosphere provided by the produced H2 from CSR. NaCl/NCML catalysts exhibit another increased stage in their capacity to produce gas after reforming 130 min, showing the reforming active sites are increased due to further exposure to the reducing atmosphere. Meanwhile, from Table 1 and Figure 1 it is also observed that the NCML catalyst without the chloride salt modification sees a sharp decrease in its capacity to produce gas after about 4 h of steam reforming. As is well known, CHCl3 molecules in CHCl3-EA mixtures contain a Cl element, which can be converted to HCl during steam reforming. The formed HCl will give rise to two possible negative effects: (1) reactions with a catalytic active phase leading to the destruction of the catalyst structure; (2) more acidic sites leading to carbon deposition on the catalyst’s surface. All these can result in the catalyst deactivation during reforming. If the deactivation of catalysts results from the destruction of catalyst structure by HCl, the production of gaseous products should exhibit a gentle decrease. However, it is found from Figure 1 that CSR of CHCl3-EA over all catalysts gives a rapid termination, indicating that acidic species provided by the formed HCl result in the occurrence of carbon deposit. The modification of chloride salts such as NH4Cl, NaCl, and KCl can prolong the catalytic life of NCML to 272 min, 291 min, and 408 min, respectively. It shows that the introduced chloride salts can improve the catalytic stability of catalysts in the CSR of CHCl3-EA. Moreover, it is also found that the KCl-modified NCML catalyst exhibits an excellent catalytic stability, and still gives a longer stable catalytic time of 638 min in the reforming of organic mixture with a lower chlorine content. It further proves that the formed HCl plays an important role in affecting the catalyst’s stability.

2.2. Textural and Structure Properties

The N2 adsorption–desorption results of the catalysts are shown in Table 2. Obviously, specific surface area, pore volume, and pore diameter of NCML reforming catalysts are increased by the addition of chloride salts. It shows that the introduction of chloride salts does not give rise to the blockage effect, but possibly results in the change of catalyst structure during calcination [42,43]. XRD results of reduced catalysts (Figure 2) show that aluminum oxide in the catalyst mainly exists in the form of γ-Al2O3 (pdf No. 1-1308) acting as a support. The fresh reduced NCML without chloride salt modification exhibits some weak metal Ni0 diffraction peaks (pdf No. 1-1258) at 2θ = 44.7°, 51.7°, and 71.6°, respectively. It shows that nickel species in NCML without chlorinated salts mainly exist in a solid solution through reaction with Mo, La, and Al oxides during catalyst calcination [32,44], which H2 struggles to reduce.
From Figure 2, all NCML catalysts modified by chloride salts including NH4Cl, NaCl, and KCl are clearly observed to exhibit obvious diffraction peaks characteristic of metallic nickel crystal (pdf No. 65-380) or Ni-Cu alloy (pdf No. 65-9047) at 2θ = 44.7°, 51.8°, and 76.1° [45]. Moreover, the intensity of the diffraction peak at 2θ = 37.7° is characteristic of NiO (pdf No. 2-1216). Furthermore, γ-Al2O3 is weakened by the modification of the chloride salts. It indicates that the modification of the chloride salts leads to the agglomeration of highly dispersed nickel and copper species or migration of NiO and CuO species from solid solution, resulting in the formation of bigger metallic nickel or Ni-Cu alloy particles after reduction by H2 [46]. From Table 2, the size of nickel crystals in the reduced catalyst is also found to increase as a modifier order of none < NH4Cl < NaCl < KCl, which is consistent with the catalytic life order of catalysts (see Table 1). Therefore, the modification of chloride salts results in Ni crystal or Ni-Cu alloy growth of catalysts, and big metallic nickel or Ni-Cu alloy particles exhibit a catalytic stability in steam reforming of CHCl3-EA.
From the XRD patterns of the spent catalysts (Figure 2), the NCML catalyst is observed to give obvious diffraction peaks of metallic Ni or Ni-Cu alloy after steam reforming. In fact, the steam reforming of CHCl3-EA mixture has produced gases of H2, CO, CO2, and HCl, providing a reducing atmosphere. The NiCuMoLa mixed oxide catalysts are easily destroyed to form dissociated nickel and copper species such as NiCl2, CuCl2, NiO, or CuO, free of the catalyst phase, which is on-line reduced by the formed H2 to metallic Ni crystal or Ni-Cu alloy [34]. Of course, occurrence of this process easily gives rise to the rapid deactivation of NCML without chloride salts modification in the steam reforming. On the other hand, although the spent NCML catalysts modified by NH4Cl, NaCl, and KCl also give increasing diffraction peaks characteristic of metallic Ni, the growth of nickel crystalline particles is not too obvious (see Figure 2 and Table 2). Therefore, the modification of chloride salts is deduced to act as preventing the destruction of the catalyst structure, which can improve the life of catalysts in steam reforming. However, it has been found from catalytic testing that the stability of catalysts modified by chloride salts still does not reach an ideal level for the steam reforming of CHCl3-EA mixture. In fact, deposited carbon, which possibly comes from direct cleavage of organic reactants (2CHCl3→2C + H2 + 3Cl2, C4H8O2→2C + 2H2O + 2H2) or CO disproportionation reaction (2CO→C + CO2) has also been found over the spent catalysts by the XRD result (pdf No. 3-401) peak at 2θ = 26.5° [47]. These further prove that the main factor for affecting the catalytic stability is the carbon deposit that occurs on acidic sites provided by the adsorbed HCl, which can be inhibited by the pre-introduced Cl− ions to some extent.

2.3. Reductive Property

From H2-TPR profiles (Figure 3), two obvious reduction peaks for the NCML catalyst are observed at about 270 °C and 800 °C, respectively. The low-temperature reduction peak is assigned to the reduction of highly dispersed NiO, CuO, or Ni-Cu mixed oxides to metallic Ni or Ni-Cu alloys [21]. The high-temperature reduction peak at about 800 °C is attributed to the reduction of Ni2+ species located in the NiAl2O4 or NiO-Al2O3 solid solution [32], which exhibits a strong interaction between metal and supports (SIMS). Meanwhile, the modification of chloride salts such as NH4Cl, NaCl and KCl is found to make NCML catalysts exhibit two reduction peaks in the low-temperature range of 200–400 °C. The H2-consumption peak at about 269 °C should be assigned to the reduction of CuO to Cu0 [48], and another one at about 340 °C possibly results from the reduction of NiO dispersed over the catalyst surface [16]. It shows that the highly dispersed nickel and copper oxide species over the NCML catalyst mainly exist in the form of NiO-CuO mixed oxides [21]. The modification of chloride salts can lead to the disassociation of mixed oxides to isolated NiO and CuO species. Moreover, three H2-consumption peaks, assigned to the reduction of CuO, NiO, and Ni2+ in NiAl2O4 or NiO-Al2O3 solid solution, shift to lower temperature as the order of NH4Cl < NaCl < KCl, which is in agreement with the catalytic life of modified NCML catalysts (see Table 1 and Figure 1). Combined with the XRD results, the reduction order of active components in NCML catalysts modified by chloride salts should be highly dispersed CuO, NiO, and Ni2+ located in NiAl2O4 or Ni-Al2O3 solid solution during catalyst reduction by H2. Therefore, it can be concluded that modification of chloride salts promotes the easy reduction of Ni2+ and Cu2+ to the metallic phase, which acts as a catalytic site for steam reforming.

2.4. Acid-Base Property

From the NH3-TPD results (Figure 4a), it can be observed that the four catalysts have two obvious NH3-desorption peaks. The low-temperature peak at about 190 °C is assigned to NH3 desorption over weak acidic sites, while the one at about 500 °C is from medium-strong acidic sites [49]. NH4Cl modification will make both desorption peaks strong and shift to high temperature. This is due to the fact that the introduced NH4Cl can be decomposed to HCl, which interacts with the oxide phase in catalysts to provide more acidic sites during calcination. Although the presence of Cl− ions is helpful to the formation of stable Ni metallic and Ni-Cu alloy active centers, the formation of more acidic sites will be disadvantageous to increase catalytic stability due to the possible carbon deposit. This is just the reason for no obvious improvement in the catalytic stability of NH4Cl-modified NCML (see Table 1 and Figure 1). Moreover, the introduction of alkali metal chloride salts is found to make both NH3-desorption peaks small and shift to lower temperature, indicating that acidic sites and acidity of NCML reforming catalysts are decreased. From the CO2-TPD results (Figure 4b), for chloride salt-modified NCML catalysts CO2-desorption peaks assigned to weak base sites shift to much lower temperatures and their intensities decrease. Although the high-temperature CO2-desorption peaks also shift to lower temperature, their intensities increase. These indicate that the introduction of chloride salts leads to the formation of less weak base sites and more medium-strong base sites over the catalyst surface.

2.5. SEM Results

The surface morphology of fresh NCML catalysts were obtained by SEM, and the results are shown in Figure 5. It is seen that the surface of fresh catalysts modified with chloride salts are distinctly different from that of NCML without any modifier. HCl from NH4Cl decomposition can destroy NCML morphology (Figure 5b). Modification of NaCl and KCl (Figure 5c,d) is obviously found and results in the formation of isolated Ni crystals and Ni-Cu alloy particles over the reduced NCML catalysts.
From SEM results of spent NCML catalysts (Figure 6), NCML without any modifier gives abundant slim filamentous coke covering its surface after reforming (Figure 6a). The formation of pulverized surface is observed for the spent NH4Cl-modified NCML, perhaps resulting from the partial destruction of the structure. From Table 1 and Figure 1, NH4Cl/NCML also exhibits a poor catalytic life and carbon deposit similar to NCML without chloride salts. Therefore, carbon deposit and structure damage are concluded to be two key factors affecting the reforming life of catalysts. Carbon species deposited on NaCl-modified NCML (Figure 6c) are discovered to exhibit a rough filamentous coke, which is due to the fact that NaCl introduction decreases the acidity of the catalyst surface. However, compact spherical carbon particles are deposited on surface of deactivated KCl-modified NCML (Figure 6d), which will produce major gas resistance, which leads to catalyst deactivation during reforming [50]. Combined with the catalytic life of catalysts (Table 1), it can be deduced that KCl modification has no damage catalyst structure, but cannot completely avoid the carbon deposit.

2.6. Effect of Reforming Parameters

According to results obtained in Section 3.3, a low heating rate during catalysts reduction easily leads to complete reduction of Cu2+ to Cu0 in the low-temperature range, resulting in the production of Cu crystal cores. From Table 3, it can be found that the heating rate during catalysts reduction has no obvious effect on the catalytic activity and gas production capacity of KCl/NCML in reforming of CHCl3-EA mixture. However, a low heating rate will make KCl/NCML exhibit a longer catalytic life and produce more CH4 along with a decreasing H2 in reforming. It shows that Ni metallic particles and Ni-Cu alloy exhibit excellent catalytic reforming stability due to the presence of the metal–metal interface. Of course, the simultaneous formation of Ni metallic particles and Ni-Cu alloy probably provides catalytic sites for methanation.
Moreover, the increase in liquid hourly space velocity (LHSV) will give rise to a decrease in catalytic stable time and conversion of organic substance CHCl3 and EA. It is mainly because the contact time between reactants and catalytic active centers has been shortened, but the by-produced HCl is increased. Meanwhile, a high LHSV can inhibit water-gas shift reaction to CO2 and H2 (CO + H2O ↔ CO2 + H2). However, CH4 content in reforming gas increases with an increasing LHSV. As is well known, methanation reaction of CO or CO2 is a reversible process (CO + 3H2 ↔ CH4 + H2O and CO2 + 4H2 ↔ CH4 + 2H2O). At a high LHSV, the formed CH4 from methanation of CO or CO2 easily runs off the catalyst surface. The reverse reaction such as steam reforming of CH4 has difficulty being carried out.
From the effect of H2O/C molar ratio on CSR of CHCl3-EA over KCl/NCML catalyst, it can easily be discovered that increasing H2O/C ratio of the reforming system is beneficial to prolonging catalyst stability and an increase in CHCl3-EA conversion, gas production capacity, and content of H2 and CO2 in reforming gaseous products. It is mainly because the introduction of more steam can accelerate the reforming of organic substances including CHCl3, EA, and even CH4 from the methanation, improve the gasification of the deposited carbon, and promote the water-gas shift reaction of CO to CO2 and H2. Moreover, the presence of more steam in the reforming system with a high H2O/C ratio will decrease the content of the by-produced HCl in the reaction system, which is helpful to protecting catalytic active sites. Meanwhile, at an H2O/C ratio of 8.11, the catalytic life can reach up to 3060 min, which is much longer than the 750 min catalytic life of the reported Ni-base catalyst [35,42].
Moreover, for KCl/NCML reduced at 800 °C with a heating rate of 5 °C⋅min−1, it is found that the catalytic property of spent catalyst can be recovered to some extent after calcination at 750 °C in air. Under the reforming conditions of temperature 750 °C, LHSV 3.3 h−1, chlorine content in organic waste liquid 67,800 ppm and H2O/C molar ratio 2.13, oil conversion of and gas production capacity reach 93.2% and 3.85 m3·k g oil − 1 , respectively. The catalytic life can also reach up to about 400 min. However, the spent NCML without chlorinated salts modification exhibits a weak catalytic activity after the same regeneration. It shows that KCl modification protects the NCML reforming catalyst.

3. Materials and Methods

3.1. Catalysts Preparation

According to our previous work [41], Ni-Cu reforming catalysts supported Al2O3 modified by Mo and La as promoters were prepared through coprecipitation. Typically, nitrates of metals such as Ni, Cu, La, and Al were first dissolved in a desired amount of distilled water, the total concentration of all metal ions was kept to 1 mol·L−1. The metal ion aqueous solution and Na2CO3-NaOH mixed alkaline solution containing (NH4)6Mo7O2 were simultaneously added dropwise into a reactor under stirring. Meanwhile, the pH value of reacted slurry during coprecipitation was kept at about 8.5 ± 0.2. The molar ratio of the introduced metal ions such as Ni, Cu, Mo, La, and Al was controlled to a value of 8:2:1:1.5:31. After finishing coprecipitation, the stirring was continued for another 2 h. The resulting slurry was aged overnight, filtered, and washed with distilled water till pH = 7. Finally, the filter cakes were dried at 105 °C, and calcined at 950 °C for 6 h in air atmosphere. The obtained samples were donated as NCML. The pre-introduction of Cl− ions into catalysts was achieved by impregnation using NH4Cl, NaCl, and KCl as chlorination agents, respectively. The introduced amount of chlorination agent was kept to 1 wt% Cl relative to catalyst solid. The impregnated samples were dried at 50 °C and calcined at 800 °C for 2 h. The obtained catalysts were donated as NH4Cl/NCML, NaCl/NCML, and KCl/NCML, respectively.

3.2. Catalysts Characterization

N2 adsorption–desorption of samples were carried out on an SSA-4200 micromeritics instrument (Beijing Builder Co., Beijing, China) at −196 °C. BET specific surface area of samples was calculated by the BET method according to the adsorption isotherms at the relative pressure (p/p0) of 0.05–0.35, and pore volume was obtained by BJH method according to desorption isotherms.
Power X-ray diffraction (XRD) technique was used to analyze crystal composition of calcined and reduced samples, their XRD patterns were recorded on a DX-2700 powder diffractometer (Dandong Fangyuan Co., Dandong, China) using Cu Kα radiation (λ = 0.15406 nm) at 40 kV and 30 mA. The metal unit cell size of Ni metallic crystal for the catalyst was calculated by using the Scherrer formula.
Hydrogen temperature-programmed reduction (H2-TPR), ammonia or CO2 temperature-programmed desorption (NH3-TPD or CO2-TPD) were performed with a PCA-1200 adsorption instrument (Beijing Builder Co., Beijing, China) equipped with a thermal conductivity detector (TCD). Typically, 200 mg samples of H2-TPR were pretreated at 300 °C for 30 min in 30 mL·min−1 of He flow to remove adsorbed water and impurities. After cooling down to room temperature, samples were heated to 950 °C with a heating rate of 10 °C·min−1 in 30 mL·min−1 of 5 vol% H2-N2 mixture gas flow. The consumption of H2 was detected by TCD. For NH3-TPD and CO2-TPD, 200 mg samples were first reduced by H2 through heating at 10 °C·min−1 to 800 °C and kept for 30 min. An amount totaling 30 mL·min−1 of NH3 or CO2 was introduced for adsorption 30 min after sample temperature was cooled to 80 °C. After completing adsorption of NH3 or CO2, 30 mL·min−1 of He was shifted to remove physically adsorbed NH3 or CO2 for 2 h. At last, the sample was heated in He at a rate of 10 °C·min−1 from room temperature to 850 °C for NH3 or CO2 desorption. The desorbed NH3 or CO2 was also monitored by TCD.
Scanning electron micrographs (SEM) were obtained with ZEISS Gemini 300 scanning microscope operating at an accelerating voltage in a range of 2–3 kV, work distance of 4.9–5.1 mm.

3.3. Catalytic Test

The mixture of CHCl3-EA with a molar ratio of 1:16.5 was used as the simulated organic waste liquid containing chlorocarbon. Steam reforming reaction was carried out in a fixed-bed quartz tube reactor (øin 14 mm). 10 g dry catalysts (apparent volume about 15 mL) were loaded and reduced at 800 °C for 2 h in a 60 mL·min−1 H2 flow. Then, 80 mL·min−1 of N2 as balance carrier gas was switched to remove residual H2 for 30 min, and the temperature was adjusted to 750 °C. CHCl3-EA mixture liquid and distilled water were simultaneously injected into the catalyst bed by two HPLC pumps (Beijing Qingfang Co., Beijing, China) to start the reaction measurements. The volume of produced gaseous mixture was measured with a wet-type gas flowmeter, and the composition of gas products including H2, CO, CO2, and CH4 was analyzed by an on-line gas chromatograph (GC-2000 Chongqing Sichuan Instrument, Chongqing, China) equipped with a TDX-01 packed column (carbon molecular sieves, 3 m × 3 mm) and TCD. The unreacted CHCl3 and EA in the collected liquid mixture were analyzed by GC-3000 gas chromatograph equipped with a DB-5 capillary column and FID to calculate carbon conversion. The amount of deposited carbon on spent catalyst samples was measured according to weight loss after carbon combustion as the following formula: carbon deposit (mg⋅ g Cat − 1 ⋅h−1) = (Wspent − Wc,s)*1000/Wc,s/T, where Ws represents the weight of spent catalyst (g), Wc,s weight of spent catalyst after calcination at 750 °C (g), T time on stream for reforming.

4. Conclusions

Chloride salts are introduced into Ni-Cu-Mo-La catalysts in order to prevent adsorption and reaction of produced HCl during steam reforming of chloroform-ethyl acetate mixture. The resistance to Cl-poisoning and a good stability of reforming catalyst are hoped to be improved greatly. It is proved that the pre-introduced Cl− ions exhibit a synergic effect on the improvement of catalytic stability in the steam reforming that occurs in the catalytic active sites of the Ni-Cu metallic phase. The destruction of catalyst structure caused by the produced HCl and carbon deposits are two important factors affecting the catalytic life of catalysts in the steam reforming of CHCl3-EA. KCl-modification increases the catalytic life of NiCuMoLaAl reforming catalyst from 208 min to 408 min, which can be further prolonged up to 3060 min when decreasing chlorine content in organic reactant and increasing the introduced amount of steam. Meanwhile, the catalytic performance of the deactivated KCl/NiCuMoLaAl can be recovered to some extent after regeneration through calcination at 750 °C in air. All evidence shows that KCl/NiCuMoLaAl is a potential catalyst for resource utilization of chlorocarbon-containing organic waste liquid to hydrogen or syngas.

Author Contributions

Conceptualization, Q.W. and C.X.; writing—original draft preparation, Q.W.; writing—review and editing, C.X.; supervision, C.X., discussion and analysis, Y.Z., J.L. (Jie Liu), Z.D., and J.L. (Jianying Liu); All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by International Corporation Projects, the Science and Technology Department of Sichuan Province (2019YFH0133), and the Education Department of Sichuan Province (14CZ0020).

Data Availability Statement

Data is contained within the article.

Acknowledgments

We would like to thank Mengdie Li from Shiyanjia Lab for her help with the SEM experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hu, G.J.; Li, J.B.; Zeng, G.M. Recent development in the treatment of oily sludge from petroleum industry: A review. J. Hazard. Mater. 2013, 261, 470–490. [Google Scholar] [CrossRef]
  2. Wang, R.K.; Ye, X.M.; Zhao, Z.H.; Yin, Q.Q.; Qi, Z.F.; Wang, Z.Y. Simultaneous disposal and utilization of coal chemical wastewater in coal and petroleum coke slurry preparation: Slurrying performance and mechanism. Fuel 2018, 215, 312–319. [Google Scholar] [CrossRef]
  3. Wang, S.N.; Liu, J.Z.; Pisupatil, S.V.; Li, D.D.; Wang, Z.H.; Cheng, J. Dispersion mechanism of coal water slurry prepared by mixing various high-concentration organic waste liquids. Fuel 2020, 287. [Google Scholar] [CrossRef]
  4. Wang, H.L.; Fu, P.B.; Li, J.P.; Huang, Y.; Zhao, Y.; Jiang, L.; Fang, X.C.; Yang, T.; Huang, Z.H.; Huang, C. Separation-and-recovery technology for organic waste liquid with a high concentration of inorganic particles. Engineering 2018, 4, 405–415. [Google Scholar] [CrossRef]
  5. Sun, W.L.; Qu, Y.Z.; Yu, Q.; Ni, J.R. Adsorption of organic pollutants from coking and papermaking wastewaters by bottom ash. J. Hazard. Mater. 2008, 154, 595–601. [Google Scholar] [CrossRef]
  6. Molina, R.; Martínez, F.; Melero, J.A.; Bremner, D.H.; Chakinala, A.G. Mineralization of phenol by a heterogeneous ultrasound/Fe-SBA-15/H2O2 process: Multivariate study by factorial design of experiments. Appl. Catal. B 2006, 66, 198–207. [Google Scholar] [CrossRef]
  7. Xing, Z.P.; Sun, D.Z.; Yu, X.J.; Zou, J.L.; Zhou, W. Treatment of antibiotic fermentation-based pharmaceutical wastewater using anaerobic and aerobic moving bed biofilm reactors combined with ozone/hydrogen peroxide process. Environ. Prog. Sustain. Energy 2013, 33, 170–177. [Google Scholar] [CrossRef]
  8. Lee, Y.H.; Von Gunten, U. Oxidative transformation of micropollutants during municipal wastewater treatment: Comparison of kinetic aspects of selective (chlorine, chlorine dioxide, ferrateVI, and ozone) and non-selective oxidants (hydroxyl radical). Water Res. 2010, 44, 555–566. [Google Scholar] [CrossRef]
  9. Andreozzi, R.; Caprio, V.; Insola, A.; Marotta, R. Advanced oxidation processes (AOP) for water purification and recovery. Catal. Today 1999, 53, 51–59. [Google Scholar] [CrossRef]
  10. Wang, N.N.; Zheng, T.; Zhang, G.S.; Wang, P. A review on fenton-like processes for organic wastewater treatment. J. Environ. Chem. Eng. 2016, 4, 762–787. [Google Scholar] [CrossRef] [Green Version]
  11. Martínez-Huitle, C.A.; Brillas, E. Decontamination of wastewaters containing synthetic organic dyes by electrochemical methods: A general review. Appl. Catal. B 2009, 87, 105–145. [Google Scholar] [CrossRef]
  12. Zhu, Q.S.; Guo, S.H.; Guo, C.M.; Dai, D.; Jiao, X.K.; Ma, T.Q.; Chen, J.F. Stability of Fe-C micro-electrolysis and biological process in treating ultra-high concentration organic wastewater. Chem. Eng. J. 2014, 255, 535–540. [Google Scholar] [CrossRef]
  13. El-Bahy, Z.M.; Ismail, A.A.; Mohamed, R.M. Enhancement of titania by doping rare earth for photodegradation of organic dye (direct blue). J. Hazard. Mater. 2009, 166, 138–143. [Google Scholar] [CrossRef] [PubMed]
  14. Lu, L.; Li, Z.D.; Chen, X.; Wang, H.; Dai, S.; Pan, X.Q.; Ren, Z.J.; Gu, J. Spontaneous solar syngas production from CO2 driven by energetically favorable wastewater microbial anodes. Joule 2020, 4, 2149–2161. [Google Scholar] [CrossRef]
  15. Kumar, G.; Eswari, A.P.; Kavitha, S.; Kumar, M.D.; Kannah, R.Y.; How, L.C.; Muthukaruppan, G.; Banu, J.R. Thermochemical conversion routes of hydrogen production from organic biomass: Processes, challenges and limitations. Biomass Conv. Bioref. 2020, 2, 1–26. [Google Scholar] [CrossRef]
  16. Nabgan, B.; Abdullah, T.A.T.; Tahir, M.; Nabgan, W.; Triwahyono, S.; Jalil, A.A.; Gambo, Y.; Ibrahim, M.; Moghadamian, K. Pellet size dependent steam reforming of polyethylene terephthalate waste for hydrogen production over Ni/La promoted Al2O3 catalyst. Int. J. Hydrogen Energy 2017, 42, 21571–21585. [Google Scholar] [CrossRef]
  17. Shafiei, M.; Richardson, J.T. Dechlorination of chlorinated hydrocarbons by catalytic steam reforming. Appl. Catal. B 2004, 54, 251–259. [Google Scholar] [CrossRef]
  18. Kousi, K.; Kondarides, D.I.; Verykios, X.E.; Papadopoulou, C. Glycerol steam reforming over modified Ru/Al2O3 catalysts. Appl. Catal. A 2017, 542, 201–211. [Google Scholar] [CrossRef]
  19. Vita, A.; Cristiano, G.; Italiano, C.; Specchia, S.; Cipití, F.; Specchi, V. Methane oxy-steam reforming reaction: Performances of Ru/γ-Al2O3 catalysts loaded on structured cordierite monoliths. Int. J. Hydrogen. Energy 2014, 39, 18592–18603. [Google Scholar] [CrossRef]
  20. Shejale, A.D.; Yadav, G.D. Cu promoted Ni-Co/hydrotalcite catalyst for improved hydrogen production in comparison with several modified Ni-based catalysts via steam reforming of ethanol. Int. J. Hydrogen Energy 2017, 42, 11321–11332. [Google Scholar] [CrossRef]
  21. De Rogatis, L.; Montini, T.; Lorenzut, B.; Fornasiero, P. NixCuy/Al2O3 based catalysts for hydrogen production. Energy Environ. Sci. 2008, 1, 501–509. [Google Scholar] [CrossRef]
  22. Palma, V.; Ruocco, C.; Meloni, E.; Ricca, A. Oxidative reforming of ethanol over CeO2-SiO2 based catalysts in a fluidized bed reactor. Chem. Eng. Process. 2018, 124, 319–327. [Google Scholar] [CrossRef]
  23. Palma, V.; Ruocco, C.; Meloni, E.; Ricca, A. Influence of catalytic formulation and operative conditions on coke deposition over CeO2-SiO2 based catalysts for ethanol reforming. Energies 2017, 10, 1030. [Google Scholar] [CrossRef] [Green Version]
  24. Dou, B.L.; Song, Y.C.; Wang, C.; Chen, H.S.; Xu, Y.J. Hydrogen production from catalytic steam reforming of biodiesel byproduct glycerol: Issues and challenges. Renew. Sustain. Energy Rev. 2014, 30, 950–960. [Google Scholar] [CrossRef]
  25. Italiano, C.; Bizkarra, K.; Barrio, V.L.; Cambra, J.F.; Pino, L.; Vita, A. Renewable hydrogen production via steam reforming of simulated bio-oil over Ni-based catalysts. Int. J. Hydrogen Energy 2019, 44, 14671–14682. [Google Scholar] [CrossRef]
  26. Fu, P.; Zhang, A.; Luo, S.; Yi, W.; Hu, S.; Zhang, Y. Catalytic steam reforming of biomass-derived acetic acid over two supported Ni catalysts for hydrogen-rich syngas production. ACS Omega 2019, 4, 13585–13593. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Landi, G.; Di Benedetto, A. Ni/CeO2 structured catalysts for solar reforming of spent solvents. Catalysts 2019, 9, 688. [Google Scholar] [CrossRef] [Green Version]
  28. Ramesh, S.; Yang, E.H.; Jung, J.S.; Moon, D.J. Copper decorated perovskite an efficient catalyst for low temperature hydrogen production by steam reforming of glycerol. Int. J. Hydrogen Energy 2015, 40, 11428–11435. [Google Scholar] [CrossRef]
  29. Liu, J.Y.; Su, W.N.; Rick, J.; Yang, S.C.; Cheng, J.H.; Pan, C.J.; Lee, J.F.; Hwang, B.J. Hierarchical copper-decorated nickel nanocatalysts supported on La2O3 for low-temperature steam reforming of ethanol. ChemSusChem 2014, 7, 570–576. [Google Scholar] [CrossRef]
  30. Toops, T.J.; Walters, A.B.; Vannice, M.A. The effect of CO2, H2O and SO2 on the kinetics of NO reduction by CH4 over La2O3. Appl. Catal. B 2002, 38, 183–199. [Google Scholar] [CrossRef]
  31. Cui, Q.; Wang, H.H.; Gao, N.B. Development of activated biochar supported Ni catalyst for enhancing toluene steam reforming. Int. J. Energy Res. 2020, 44, 1–16. [Google Scholar] [CrossRef]
  32. Maluf, S.S.; Assaf, E.M. Ni catalysts with Mo promoter for methane steam reforming. Fuel 2009, 88, 1547–1553. [Google Scholar] [CrossRef]
  33. Saitoh, T.; Yamaguchi, M.; Hiraide, M. Surfactant-coated aluminum hydroxide for the rapid removal and biodegradation of hydrophobic organic pollutants in water. Water Res. 2011, 45, 1879–1889. [Google Scholar] [CrossRef] [PubMed]
  34. Ortego, J.D., Jr.; Richardson, J.T.; Twigg, M.V. Catalytic steam reforming of chlorocarbons: Methyl chloride. Appl. Catal. B 1997, 12, 339–355. [Google Scholar] [CrossRef]
  35. Veksha, A.; Giannis, A.; Oh, W.D.; Chang, V.W.C.; Lisak, G.; Lim, T.T. Catalytic activities and resistance to HCl poisoning of Ni-based catalysts during steam reforming of naphthalene. Appl. Catal. A 2018, 557, 25–38. [Google Scholar] [CrossRef]
  36. Kiskinova, M.; Goodman, D.W. Modification of chemisorption properties by electronegative adatoms: H2 and CO on chlorided, sulfided, and phosphided Ni (100). Surf. Sci. 1981, 108, 64–76. [Google Scholar] [CrossRef]
  37. Couté, N.; Richardson, J.T. Catalytic steam reforming of chlorocarbons: Polychlorinated biphenyls (PCBs). Appl. Catal. B 2000, 26, 265–273. [Google Scholar] [CrossRef]
  38. Couté, N.; Richardson, J.T. Steam reforming of chlorocarbons: Chlorinated aromatics. Appl. Catal. B 2000, 26, 217–226. [Google Scholar] [CrossRef]
  39. Cesteros, Y.; Salagre, P.; Medina, F.; Sueiras, J.E. Effect of the alumina phase and its modification on Ni/Al2O3 catalysts for the hydrodechlorination of 1,2,4-trichlorobenzene. Appl. Catal. B 1999, 22, 135–147. [Google Scholar] [CrossRef]
  40. Srinivas, S.T.; Prasad, P.S.S.; Madhavendra, S.S.; Rao, P.K. Hydrodechlorination of chlorobenzene over MgO modified Pt/A12O3 catalysts. Stud. Surf. Sci. Catal. 1998, 113, 835–839. [Google Scholar] [CrossRef]
  41. Huang, Z.Y.; Xu, C.H.; Liu, C.Q.; Xiao, H.W.; Chen, J.; Zhang, Y.X.; Lei, Y.C. Glycerol steam reforming over Ni/γ-Al2O3 catalysts modified by metal oxides. Korean J. Chem. Eng. 2013, 30, 587–592. [Google Scholar] [CrossRef]
  42. Dou, X.M.; Veksha, A.; Chan, W.P.; Oh, W.D.; Liang, Y.N.; Teoh, F.; Mohamed, D.K.B.; Giannis, A.; Lisak, G.; Lim, T.T. Poisoning effects of H2S and HCl on the naphthalene steam reforming and water-gas shift activities of Ni and Fe catalysts. Fuel 2019, 241, 1008–1018. [Google Scholar] [CrossRef]
  43. Seo, J.G.; Youn, M.H.; Song, I.K. Hydrogen production by steam reforming of liquefied natural gas (LNG) over nickel catalyst supported on mesoporous alumina prepared by a non-ionic surfactant-templating method. Int. J. Hydrogen Energy 2009, 34, 1809–1817. [Google Scholar] [CrossRef]
  44. Lee, J.H.; Lee, E.G.; Joo, O.S.; Jung, K.D. Stabilization of Ni/Al2O3catalyst by Cu addition for CO2 reforming of methane. Appl. Catal. A 2004, 269, 1–6. [Google Scholar] [CrossRef]
  45. Li, D.L.; Koike, M.; Chen, J.H.; Nakagawa, Y.; Tomishige, K. Preparation of Ni-Cu/Mg/Al catalysts from hydrotalcite-like compounds for hydrogen production by steam reforming of biomass tar. Int. J. Hydrogen Energy 2014, 39, 10959–10970. [Google Scholar] [CrossRef]
  46. Yu, Z.J.; Zhang, L.J.; Zhang, C.T.; Gao, G.G.; Ye, Z.M.; Zhang, S.; Liu, Q.; Hu, G.Z.; Hu, X. Steam reforming of acetic acid over nickel catalysts: Impacts of fourteen additives on the catalytic behaviors. J. Energy Inst. 2020, 93, 1000–1019. [Google Scholar] [CrossRef]
  47. Abd El-Hafiz, D.R.; Ebiad, M.A.; El-salamony, R.A. Hydrogen selectivity and carbon behavior during gasoline steam reforming over nano-Al2O3 catalysts. Mater. Renew. Sustain. Energy 2014, 3, 34–46. [Google Scholar] [CrossRef] [Green Version]
  48. Lorenzut, B.; Montini, T.; De Rogatis, L.; Canton, P.; Benedetti, A.; Fornasiero, P. Hydrogen production through alcohol steam reforming on Cu/ZnO-based catalysts. Appl. Catal. B 2011, 101, 397–408. [Google Scholar] [CrossRef]
  49. Wang, X.T.; Su, X.X.; Zhang, Q.W.; Hu, H.P. Effect of additives on Ni-based catalysts for hydrogen-enriched production from steam reforming of biomass. Energy Technol. 2020, 8, 2000136. [Google Scholar] [CrossRef]
  50. Ochoa, A.; Bilbao, J.; Gayubo, A.G.; Castano, P. Coke formation and deactivation during catalytic reforming of biomass and waste pyrolysis products: A review. Renew. Sustain. Energy Rev. 2020, 119, 109600. [Google Scholar] [CrossRef]
Catalysts 11 00826 g001 550

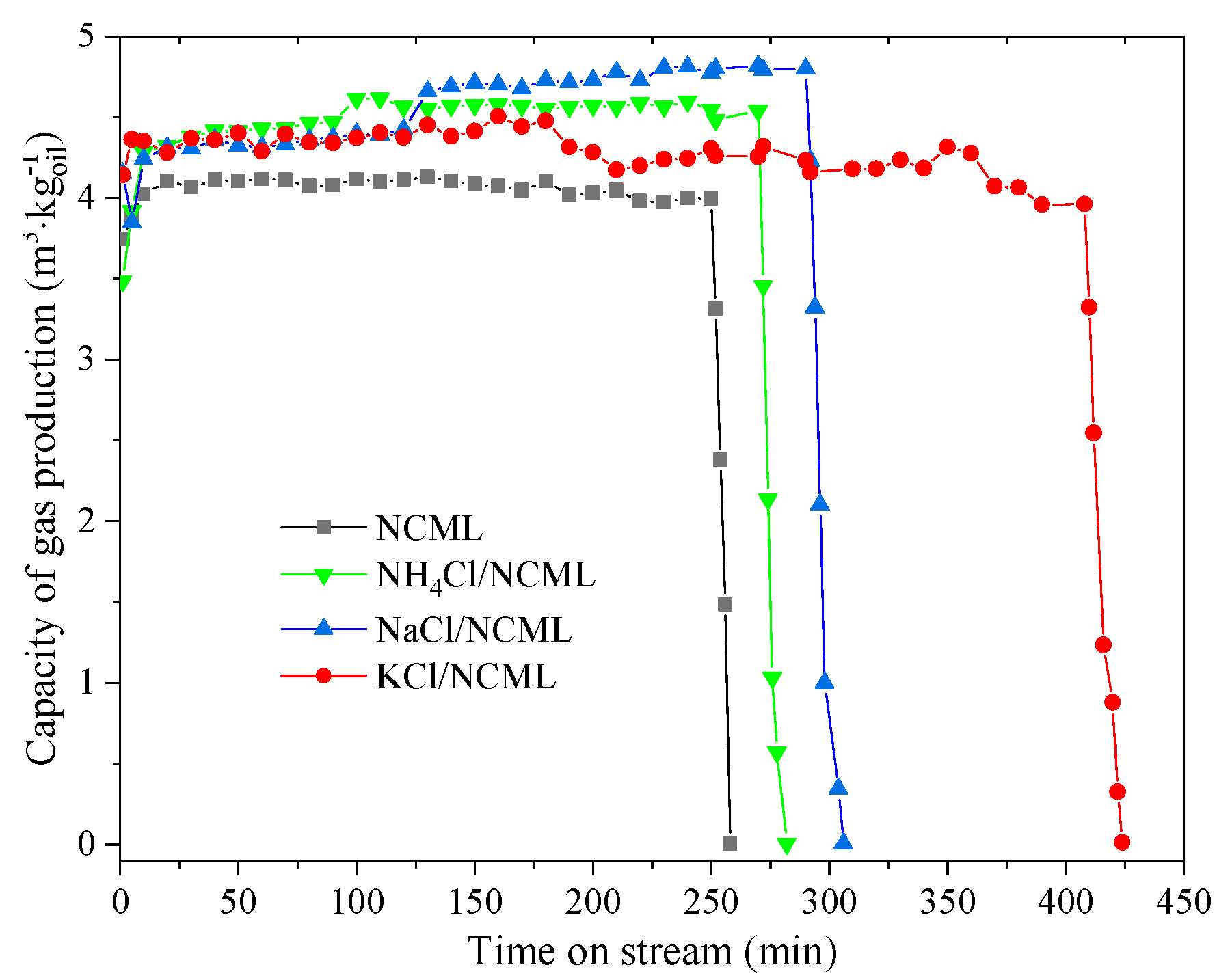

Figure 1. Stability of gas production from steam reforming of CHCl3-EA mixture over different catalysts. Reforming conditions: temperature 750 °C, LHSV 3.3 h−1, chlorine content in organic waste liquid 67800 ppm, H2O/C molar ratio 2.13, balance gas 80 mL·min−1 N2.
Figure 1. Stability of gas production from steam reforming of CHCl3-EA mixture over different catalysts. Reforming conditions: temperature 750 °C, LHSV 3.3 h−1, chlorine content in organic waste liquid 67800 ppm, H2O/C molar ratio 2.13, balance gas 80 mL·min−1 N2.
Catalysts 11 00826 g001
Catalysts 11 00826 g002 550

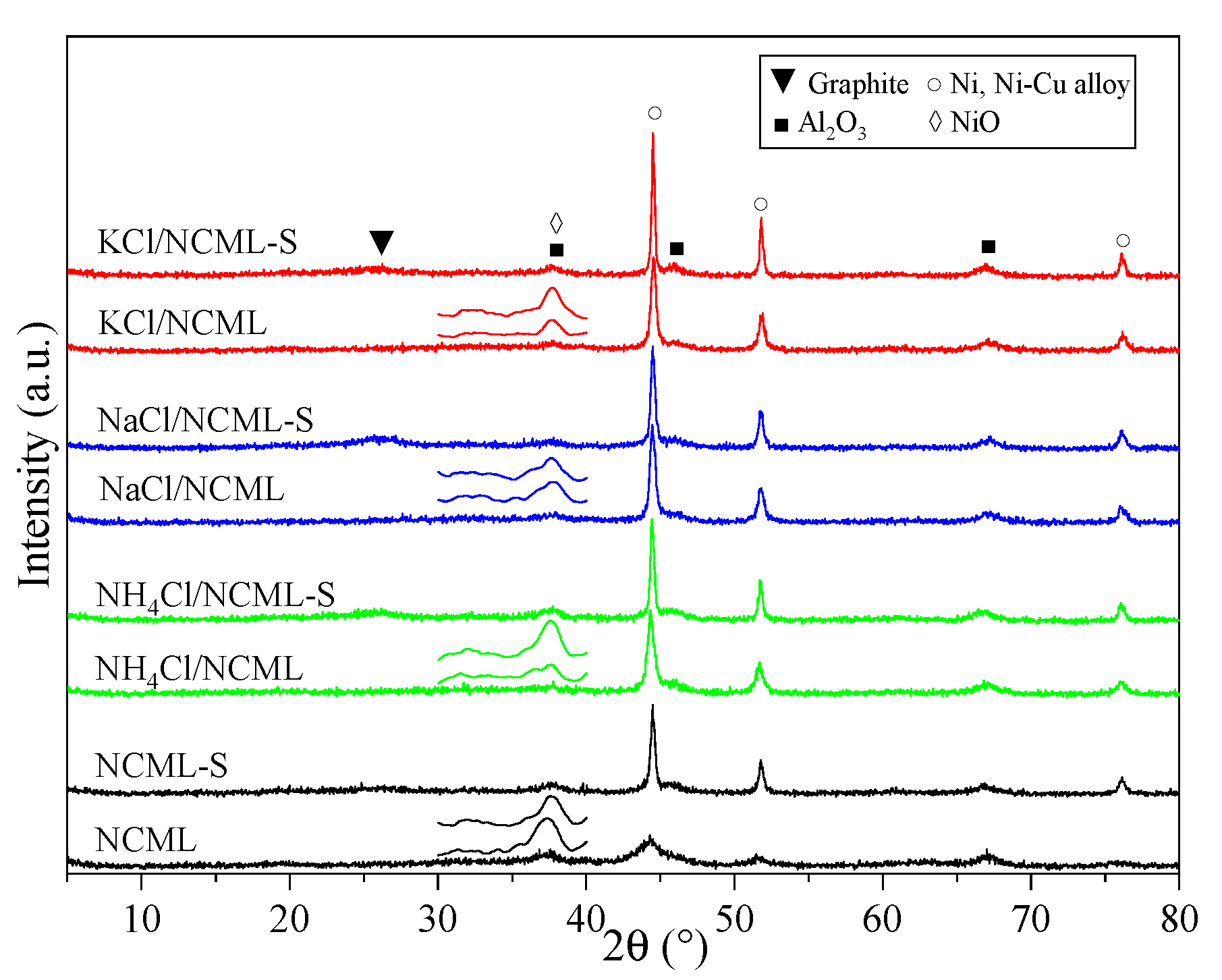

Figure 2. XRD patterns of fresh and spent (S) catalysts reduced at 800 °C.
Figure 2. XRD patterns of fresh and spent (S) catalysts reduced at 800 °C.
Catalysts 11 00826 g002
Catalysts 11 00826 g003 550

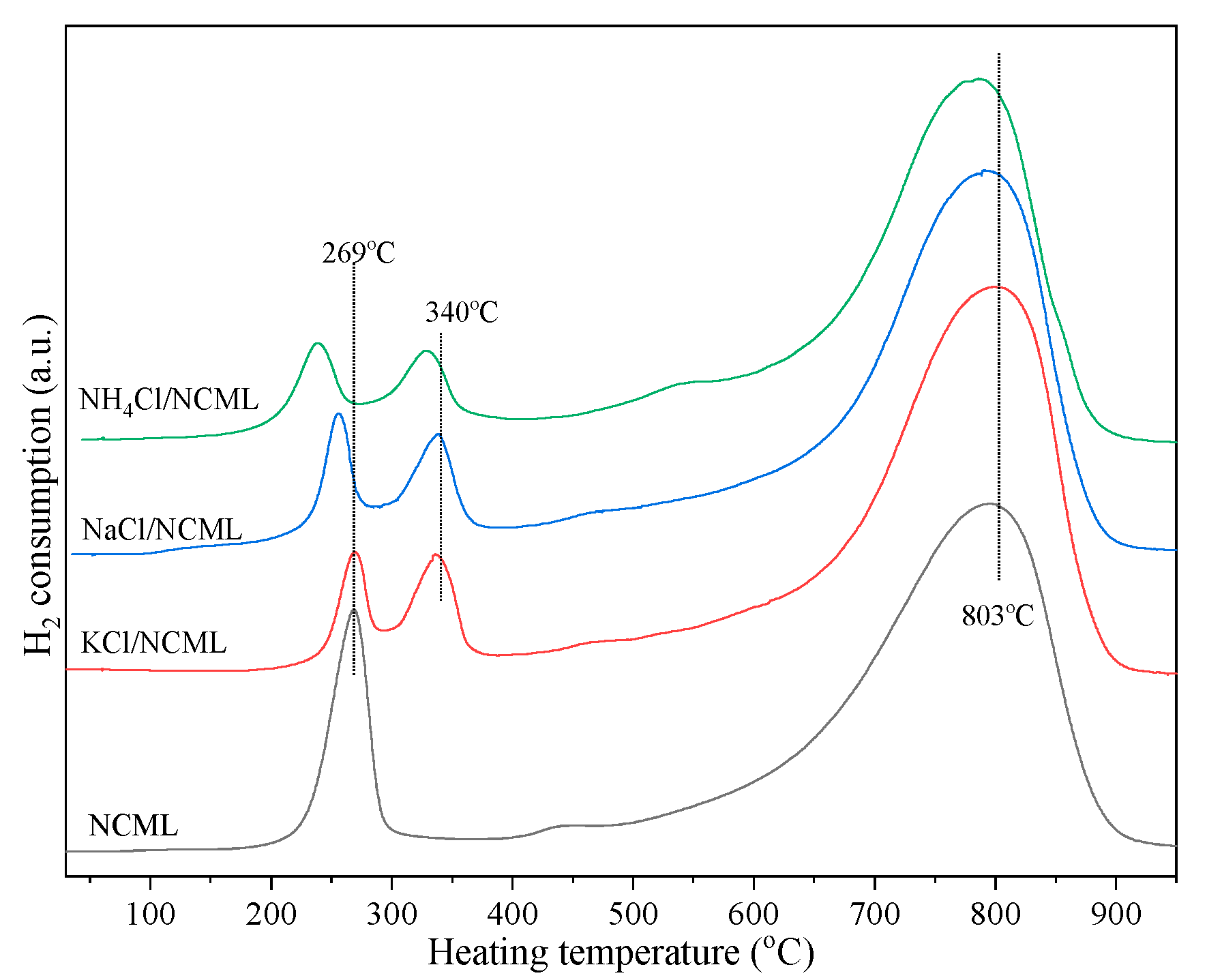

Figure 3. H2-TPR profiles of catalysts with and without Cl− ion modification.
Figure 3. H2-TPR profiles of catalysts with and without Cl− ion modification.
Catalysts 11 00826 g003
Catalysts 11 00826 g004 550

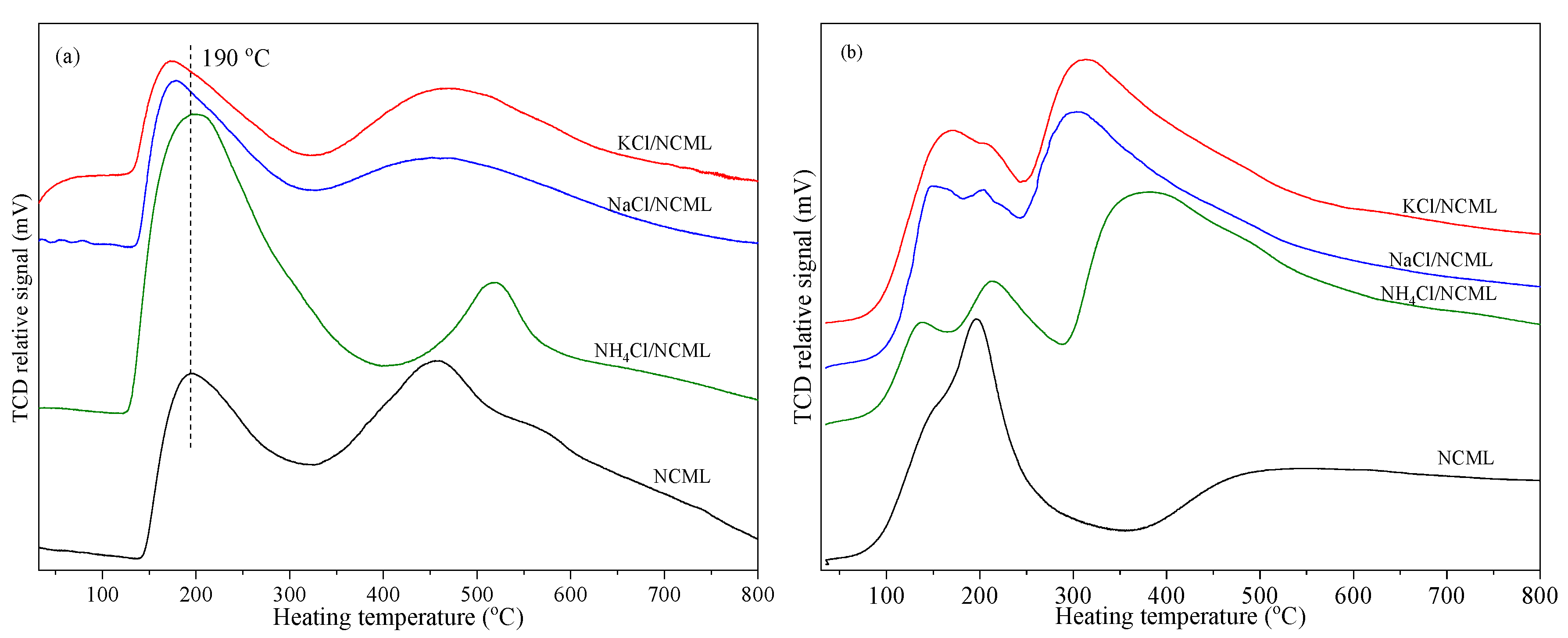

Figure 4. NH3-TPD (a) and CO2-TPD (b) curves of reduced catalysts.
Figure 4. NH3-TPD (a) and CO2-TPD (b) curves of reduced catalysts.
Catalysts 11 00826 g004
Catalysts 11 00826 g005 550

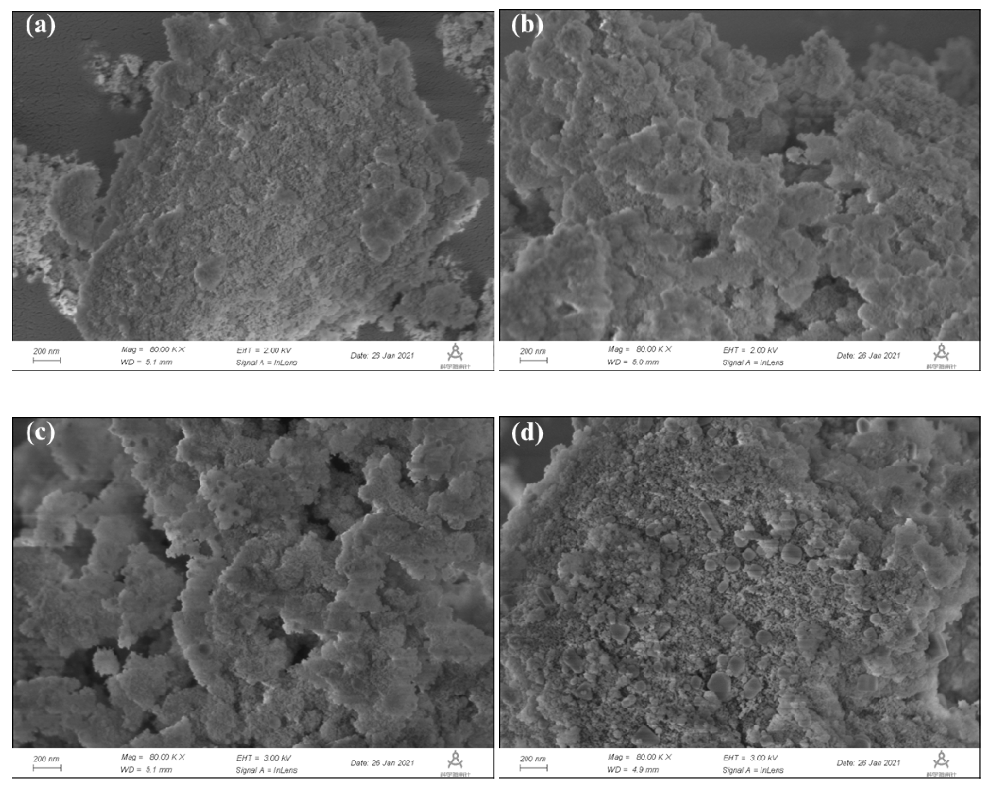

Figure 5. SEM images of fresh reduced NCML catalysts modified by none (a), NH4Cl (b), NaCl (c), and KCl (d).
Figure 5. SEM images of fresh reduced NCML catalysts modified by none (a), NH4Cl (b), NaCl (c), and KCl (d).
Catalysts 11 00826 g005
Catalysts 11 00826 g006 550

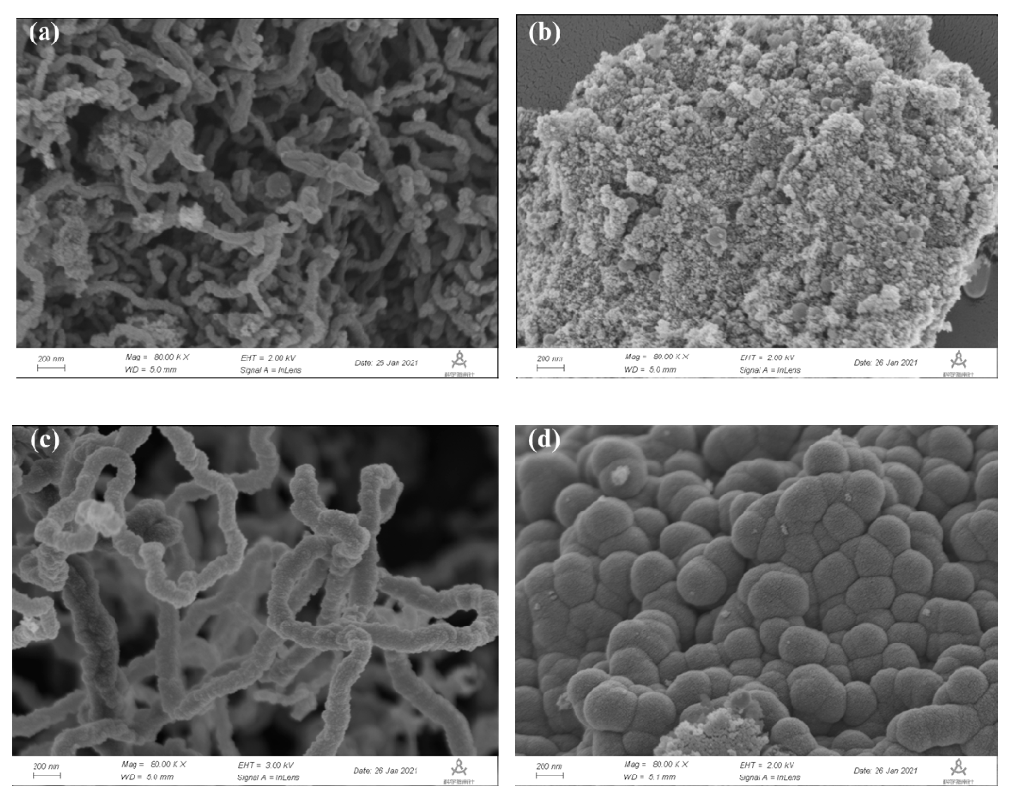

Figure 6. SEM images of spent NCML catalysts modified by none (a), NH4Cl (b), NaCl (c), and KCl (d).
Figure 6. SEM images of spent NCML catalysts modified by none (a), NH4Cl (b), NaCl (c), and KCl (d).
Catalysts 11 00826 g006
Table
Table 1. Catalytic performance of modified catalysts in steam reforming of organic waste liquid *.
Table 1. Catalytic performance of modified catalysts in steam reforming of organic waste liquid *.
CatalystsConversion of Oil (%)Capacity of Gas Production (m3·k g oil − 1 )Catalytic Life (min)Carbon Deposit (mg g cat − 1 ·h−1)Gaseous Products Distribution (mol%)
H2COCO2CH4
NCML99.464.0724843.768.2516.3614.271.12
NH4Cl/NCML98.834.5227249.670.0713.1615.161.61
NaCl/NCML98.304.5529142.469.2712.1515.213.37
KCl/NCML97.834.3540840.769.8312.8514.772.55
KCl/NCML @97.974.2763838.069.6813.1514.063.11
* Catalyst reduction at 800 °C with a heating rate of 8 °C⋅min−1, reforming temperature 750 °C, liquid hourly space velocity (LHSV, pumped volume (ml) of CHCl3-EA mixture liquid per hour per ml catalyst) 3.3 h−1, H2O/C molar ratio 2.13, chlorine content of CHCl3-EA 67,800 ppm, 80 mL·min−1 N2 as balance gas; @ chlorine content of CHCl3-EA 33,900 ppm.
Table
Table 2. The physical properties of different catalysts.
Table 2. The physical properties of different catalysts.
CatalystsN2 Adsorption–DesorptionAcidic Sites (mmol· g cat − 1 ) aCell Size of Nickel b
SBET (m2·g−1)VBJH (mL·g−1)Dpore (nm)AWAMATdNi,F (nm)dNi,S (nm)∆dNi (nm)
NCML87.910.406.250.0380.1730.2118.1022.8914.78
NH4Cl/NCML92.830.516.830.1060.1120.21814.6123.238.63
NaCl/NCML94.370.526.650.0390.0900.12817.0822.024.94
KCl/NCML95.040.466.340.0360.0710.10718.4424.216.78
a Calculated by NH3-TPD results of catalyst reduced at 800 °C for 2 h. AW—amount of weak acidic sites, AM—amount of medium-strong acidic sites, AT—amount of total acid sites per gram catalyst. b Calculated by Scherrer formula from XRD results of reduced samples, F fresh catalyst, S spent catalyst. dNi,F—Ni cell size of fresh catalyst, dNi,F—Ni cell size of spent catalyst, ∆dNi—growth of Ni cell size.
Table
Table 3. Effect of reforming parameters on catalytic property of KCl-modified NCML in steam reforming CHCl3-EA *.
Table 3. Effect of reforming parameters on catalytic property of KCl-modified NCML in steam reforming CHCl3-EA *.
Heating Rate during Catalyst Reduction (°C⋅min−1)LHSV (h−1)H2O/C RatioConversion of Oil (%)Capacity of Gas Production (m3 k g oil − 1 )Catalytic Life (min)Gaseous Products Distribution (mol%)
H2COCO2CH4
23.302.1396.243.9546066.3812.8914.945.79
53.302.1397.374.2645067.3413.3214.884.46
83.302.1397.834.3540869.8312.8514.782.55
103.302.1398.164.2741269.5612.5314.893.02
56.662.1383.643.0419066.1916.7711.145.90
54.402.1390.204.0328066.8415.6212.045.51
53.772.1394.964.1143068.1015.0612.524.31
53.304.2197.964.55114068.9611.5616.862.62
53.305.1798.344.72162069.0711.3616.972.60
53.308.1198.645.48306070.318.0119.512.17
* Catalyst reduction at 800 °C, reforming temperature 750 °C, chlorine content of CHCl3-EA 67,800 ppm, 80 mL·min−1 N2 as balance gas.
