NO Reduction Reaction by Kiwi Biochar-Modified MnO2 Denitrification Catalyst: Redox Cycle and Reaction Process

by
Hao Fan
1,
Zhenxing Shen
1,*,
Xiuru Wang
1,
Jie Fan
1,
Jian Sun
1 and
Jiaxiang Sun
2
1
Xi’an Key Laboratory of Solid Waste Recycling and Resource Recovery, Department of Environmental Sciences and Engineering, Xi’an Jiaotong University, Xi’an 710049, China
2
Instrumental Analysis Center of Xi’an Jiaotong University, Xi’an Jiaotong University, Xi’an 710049, China
*
Author to whom correspondence should be addressed.
Catalysts 2022, 12(8), 870; https://doi.org/10.3390/catal12080870
Submission received: 30 June 2022 / Revised: 28 July 2022 / Accepted: 29 July 2022 / Published: 7 August 2022
(This article belongs to the Special Issue Environmental Catalysis for Air Pollution Applications)
Browse Figures
Versions Notes

Abstract

:
NO is a major environmental pollutant. MnO2 is often used as a denitrification catalyst with poor N2 selectivity and weak SO2 resistance. Kiwi twig biochar was chosen to modify MnO2 samples by using the hydrothermal method. The NO conversion rates of the biochar-modified samples were >90% at 125–225 °C. Kiwi twig biochar made the C2MnO2 sample with a larger specific surface area, a higher number of acidic sites and Oβ/Oα molar ratio, leading to more favorable activity at high temperatures and better SO2 resistance. Moreover, the inhibition of the NH3 oxidation reaction and the Mn3+ → Mn4+ process played a crucial role in the redox cycle. What was more, Brønsted acidic sites present on the C1MnO2 sample participate in the reaction more rapidly. This study identified the role of biochar in the reaction process and provides a reference for the wide application of biochar.

1. Introduction

The implementation of the ultralow emission policy for power plants in China has achieved initial success, and the pollution emission standards of other NO sources have been lowered as well [1,2]. In the Emission Standard of Air Pollutants for Iron Smelt Industry released in 2012, the NO emission limit of the iron-making industry was set at 300 mg·m−3. In 2021, the NO emission limits of the sintering process and hot blast furnace were set at 50 and 150 mg·m−3, respectively, in the consultation draft of the Emission Standard of Air Pollutants for Iron and Steel Industry released by Jiangsu Province. NO not only adversely affects cell division and genetic information, but also causes lung and bronchial diseases [3]. Moreover, NO is a precursor of nitric and nitrous acid in acid rain and participates in the formation of particulate matter [4,5]. Under ultraviolet light, NO interacts with carbon and oxygen compounds in the atmosphere to generate photochemical smog and ozone [6].
In the last decades, selective catalytic reduction (SCR) with NH3 (NH3-SCR) for NO conversion has been regarded as a promising technology to remove NO [7,8,9]. V2O5–WO3/TiO2 is the most widely investigated commercial denitration (deNO) catalyst within the temperature range of 300–400 °C, but the use of V2O5–WO3/TiO2 is limited by its thermal deactivation and vanadium species volatilization at high temperatures [10]. In addition, the practical application of NH3-SCR technology is limited due to the lower temperature of flue gas released from the steel industry than that released from coal-fired power plants [11]. Therefore, a new denitrification catalyst that exhibits satisfactory activity at low temperatures and has a wide temperature window is required.
Transition metals are widely used in various catalytic reactions because of their satisfactory electron transport properties and availability [12,13,14]. Among them, the Mn series of denitration catalysts have attracted increasing research attention because of their satisfactory activity at low temperatures [15,16,17,18]. Zhang et al. synthesized MnO2 with an interlayer Ce3+ cation with favorable NH3-SCR catalytic activity (over 90%) at 80–200 °C because of the easy supply of labile oxygen species [19]. However, with an increase in temperature, bridged oxygen captures more H atoms on NH3, generates N atoms, and then reacts with NO to generate N2O, resulting in the side reaction of NH3 oxidation [20,21,22]. To improve the N2 selectivity, in our previous work, a FeMnO2 catalyst was obtained with good NH3-SCR activity (over 90% at 125–225 °C), indicating that the surface properties of MnO2 can be modified by adding other substances [23]. Meanwhile, many studies have proved that biochar, a carbon-rich material, can improve catalytic activity [24,25]. Biochar materials not only possess a large specific surface area [26], which can improve the distribution of active sites and adsorb more reactants [27]. Chen et al. reported a MnO2 composite modified with samarium and biochar that exhibited a NO conversion of 85% at 200 °C [28]. Furthermore, Yang et al. indicated that a certain surface area and a smaller pore size of biochar played a significant role in the denitration process [29]. In addition, kiwi twigs can increase the specific area of the biochar-modified catalyst and enhance catalyst activity, because they possess abundant water transport channels and pores [30]. Therefore, it is expected that biochar can change the surface properties of a MnO2 catalyst and increase the specific surface area of the catalyst.
In this paper, we synthesized a kiwi twig biochar-modified MnO2 catalyst by using a one-step hydrothermal reaction. In this study, we investigated the effect of biochar on the MnO2 denitrification catalyst by examining the catalyst morphology, element valence state, acid position, and reaction process. The results of this study can provide new insights into employing biochar as a catalyst modifier in chemical reactions.

2. Results and Discussion

2.1. Crystal Morphology and Structure

The crystal structure of the as-prepared samples was investigated through PXRD (Figure 1a). A peak around 20° to 30° was related to amorphous carbon [31]. This finding indicated that the kiwi twig biochar had amorphous carbon and was partially graphitized. This result was further validated through Raman spectroscopy. Peaks at 1346–1350 cm−1 and 1598–1604 cm−1 were assigned to D and G peaks [32,33], as presented in Figure 1c. The D and G peaks were associated with edge defects and highly ordered graphite, respectively. The Raman ID/IG ratios of intensity were calculated to determine the degree of disorder of samples [34]. The ID/IG ratios for the C1MnO2 and C2MnO2 samples were 1.0 and 0.97, respectively, indicating that the two samples had similar degrees of disorder and lattice defects.
Similar diffraction peaks appearing at 37.1°, 42.4°, 42.5°, and 56.1° (Figure 1a) were assigned to the (100), (101), and (102) crystal planes of ε-MnO2 (PDF#30-0820) [35], respectively, indicating that these two samples possessed the same ε-MnO2 crystal phase. Moreover, the peak of the C2MnO2 sample at 42.5° increased by 0.1°, demonstrating that the (102) crystal plane of the C2MnO2 sample was affected by macroscopic residual stress. The morphology of the samples was obtained through FE-SEM (Figure 2). The two samples exhibited similar morphology; both MnO2 nanorods and carbon materials were observed. In addition, thermogravimetric analysis was performed to evaluate the thermal stability of the catalysts. The weight loss of the samples was approximately 0.7% at a temperature of <180 °C because of water desorption [36] and approximately 0.8% between 180 and 350 °C, indicating that the sample was stable in the NH3-SCR reaction temperature range.
The specific surface area and pore size distribution of the catalysts were measured through N2 adsorption and desorption isotherms (Figure 1b and Figure S1 and Table 1). All the samples were determined to be type IV(a) according to the IUPAC classification denitration, indicating that the products had a mesopores structure [37]. Concurrently, the pore size distribution was mainly concentrated between 30 and 80 nm. The specific surface areas of the C1MnO2 and C2MnO2 samples were 36.48 and 119.74 m2·g−1, and their pore volumes were 0.18 and 0.17 cm3·g−1, respectively.

2.2. NH3-SCR Activity

NH3-SCR experiments were performed to evaluate the catalytic activity of the samples (Figure 3). Overall, the C1MnO2 and C2MnO2 samples demonstrated similar activity at low temperatures; their NO conversion rates were >90% at 125–225 °C (Figure 3a). The denitrification activity of pure MnO2 was higher than 90% at 150–175 °C. When the temperature reached 175 °C, the N2 selectivity of the MnO2 sample decreased sharply [23]. Therefore, biochar broadened the temperature window of the catalyst. The specific reaction rate of C1MnO2 and C2MnO2 samples at 125 °C were 1.65 × 10−7 and 1.70 × 10−7 mol·s−1·g−1, respectively. Furthermore, the de-NO activity of the C2MnO2 sample at >250 °C was higher than that of the C1MnO2 sample. The N2 selectivity exhibited the same trend. Therefore, the inhibition of the NH3 oxidation reaction at high temperatures might have led to the higher deNO activity of the C2MnO2 sample. Moreover, after the introduction of SO2 (Figure 3b), the denitrification activity of the C2MnO2 sample decreased at a lower rate than that of the C1MnO2 sample. After approximately 300 min, the denitrification efficiency of both samples was approximately 70%. When SO2 was stopped, the denitrification activity of the C2MnO2 sample recovered to approximately 77%, whereas that of the C1 sample rapidly decreased to approximately 57% after brief recovery. Therefore, the C2MnO2 sample had a higher SO2 resistance than the C1 catalyst, which facilitated the practical application of the catalyst in industry.
The NO conversion rate of the C2MnO2 sample was higher than that of the C1MnO2 sample, especially SO2 resistance. The surface acidity and redox property of the catalysts were determined to understand the difference in activity.

2.3. Surface Acidity

The adsorption of NH3 on acid sites is a prerequisite for the occurrence of the NH3-SCR reaction. Therefore, the acid content and acidity of the catalyst are crucial. In this study, we used NH3-TPD to characterize the acid content and acid strength and employed in situ DRIFTS to characterize the type of acid sites in the samples. As depicted in Figure 4a, the acid strength of the C2MnO2 sample was weaker than that of the C1MnO2 sample. The desorption peaks of the samples at 194 and 204 °C were assigned to weak acid sites, and those at 261 and 282 °C were attributed to medium–strong acid sites [38]. The total acid content of the C2MnO2 sample was 1.39 times higher than that of the C1MnO2 sample. In addition, the weak and medium–strong acid contents of the C2MnO2 sample were 1.35 times and 1.58 times higher than those of the C1MnO2 sample, respectively (Table 2). With an increase in temperature, the NH3 adsorbed on the catalyst was oxidized to NO at 285 and 290 °C (Figure 4a). The C1MnO2 sample promoted the NH3 oxidation reaction, which might be a reason for its weaker activity at high temperatures; this finding is consistent with our previous conjecture. Furthermore, as presented in the results of in situ DRIFTS (Figure 4b), the peak at 1103 cm−1 was assigned to NH3 adsorbed on Lewis sites [28], and peaks at 1034 and 1066 cm−1 were ascribed to the deformation mode of coordinated ammonia at Lewis acidic sites [39]. In addition, peaks at 1354 and 1359 cm−1 belonged to the oxidation/deformation species of adsorbed ammonia species [40]. Peaks at 1541 and 1559 cm−1 belonged to the asymmetric bending vibration of the N–H bond in the -NH3 group, which is formed by the decomposition of NH4+ chemisorbed on Brønsted acidic sites [41].
Overall, the two samples possessed both Brønsted and Lewis acidic sites, and the C2MnO2 sample contained more acid sites. However, the intensity of the acidic sites in the C2MnO2 sample was weaker than that in the C1MnO2 sample, indicating that the number of acidic sites plays a crucial role in the NH3-SCR process.

2.4. Active Sites

The chemical composition and elemental state of the fabricated samples were determined through XPS (Figure 5). Two inconspicuous high-resolution peaks were noted in the C 1s XPS (Figure 5a), indicating that the C element on the surface of catalysts mainly existed as the C–C bond. The XPS of Mn species (Figure 5b) was composed of Mn 2p 3/2 (642.1, 643.4, and 643.5 eV) and Mn 2p 1/2 (653.9 eV) [42]. Among them, the peak at 642.1 eV was ascribed to Mn3+ [43], and other peaks were attributed to Mn4+ [44]. Furthermore, the ratio of Mn4+ to Mn3+ in the C1MnO2 sample was 1.77, which was slightly higher than that of the C2MnO2 sample (1.72). By contrast, peaks in the O 1s spectra (Figure 5c) of the as-prepared catalysts suggested the presence of two oxygen species; the binding energy at 529.7 eV was assigned to lattice oxygen (denoted as Oα) [45], and the binding energy at 531.1 eV was attributed to defect oxide or a low-coordination surface oxygen ion (denoted as Oβ) [46]. Subsequently, the Oβ/Oα molar ratio of the biochar-modified MnO2 catalyst was in the order of C2MnO2 (0.84) > C1MnO2 (0.77). Oβ was beneficial for promoting the conversion of NO to NO2 and the release of the H atom from NH3. Therefore, the higher Oβ/Oα ratio of the C2MnO2 sample was responsible for its excellent denitrification performance.
The redox capacity of the catalysts was analyzed through H2-TPR (Figure 5d). Peaks below 337 °C might be attributable to the reduction of Mn4+ to Mn3+ [47], and peaks above 365 °C were assigned to the transition from Mn3+ to Mn2+ [48]. Overall, Mn4+ in the C1MnO2 sample was more easily reduced to Mn3+, indicating that Mn4+ in the C1MnO2 sample was more likely to participate in the NH3-SCR reaction corresponding to worse N2 selectivity. At the same time, Mn3+ in the C2MnO2 sample experienced more difficulty reducing to Mn2+, indicating that the Mn3+ of the C2MnO2 sample was more easily oxidized to Mn4+ compared with that of the C1MnO2 sample to complete the redox cycle in the NH3-SCR reaction. In addition, the NO conversion rate of the C2MnO2 sample at >250 °C was higher than that of the C1 sample. Therefore, the process Mn3+ → Mn4+ was more crucial than Mn4+ → Mn3+ in the NH3-SCR reaction.

2.5. Reaction Process

In situ DRIFTS was employed to examine the reaction process of modified samples. As presented in Figure 6a, after the introduction of NO into the reaction system for 25 min, a band peak appeared at approximately 1313 and 1329 cm−1, and sharp peaks appeared at 1596, 1598, 1629 and 1857 cm−1. Peaks at 1596 and 1598 cm−1 were associated with bidentate nitrate, and the peak at 1629 cm−1 was attributed to bridging bidentate nitrates [49]. Therefore, as shown in Figure 7, NO was adsorbed to the catalyst surface to form a variety of nitrates. In addition, the peak at 1857 cm−1 was deemed gaseous or weakly adsorbed NO [50]. However, the band at 1313–1329 cm−1 could not be assigned to either catalyst due to a lack of studies.
The introduced gas was changed to NH3 (Figure 6b). In the C2MnO2 sample, NO adsorption peaks at 1598 and 1629 cm−1 disappeared after 15 min, indicating that bidentate nitrate and bridging bidentate nitrates were both involved in the NH3-SCR reaction of the C2MnO2 sample. Moreover, gaseous or weakly adsorbed NO at 1857 cm−1 was involved in the reaction. After the saturation of NH3 (Figure 6c), the introduced gas was changed to NO + O2; both Brønsted and Lewis acidic sites (NH4+ or NH2) on the samples were involved in the reaction at the same time. As shown in Figure 7, both adsorbed NH3 and adsorbed NO were reactive species to obtain N2 and H2O. Moreover, Lewis acidic sites located on both the samples rapidly participated in the reaction, and Brønsted acidic sites on the C1MnO2 sample were involved in the reaction more easily than those on the C2MnO2 sample.
In summary, adsorbed NH3 could react with gaseous NO and adsorbed NO in the NH3-SCR reaction of the C1MnO2 and C2MnO2 samples, with the difference that the Brønsted acidic sites on the C1MnO2 sample could participate in the NH3-SCR reaction more rapidly.

3. Materials and Methods

3.1. Synthesis of the Catalyst

All reagents used in this study were of analytical grade and purchased from the Sinopharm Chemical Reagent Company (Shanghai, China). Kiwi twig biochar was prepared using two procedures, which were denoted as C1 and C2, respectively. For C1, twigs were treated with KOH (mtwings:mKOH = 1:1, m stood for mass) by using the impregnation method. The mixture was then calcinated at 500 °C for 2 h and at 900 °C for 2 h under N2 atmosphere (heating rate was 5 °C·min−1) with a tubular reactor. After flushing with diluted HCl and deionized water several times, we obtained the final C1 product by drying at 80 °C for 12 h. For C2, twigs were calcined at 500 °C for 2 h and 900 °C for 2 h under N2 atmosphere. The calcined product was then treated with KOH and calcined again under the aforementioned conditions. After washing and drying, we obtained the final C2 biochar.
The kiwi twig biochar-modified MnO2 sample was synthesized as follows: 0.316 g of KMnO4 was dissolved in 45 mL of deionized water and stirred for 2 min. Subsequently, 0.05 g of C1 or C2 and 0.25 mL of 37.5% HCl were added into the solution. The solution mixture was transferred into a 100 mL polytetrafluoroethylene autoclave after being stirred for 10 min and was then heated at 140 °C for 12 h. The obtained product was washed several times with deionized water and dried at 80 °C for 12 h. The sample was named C1MnO2 or C2MnO2. The experiment is less dangerous, easy to perform and highly reproducible.

3.2. Catalyst Characterization

The crystal structure of the catalysts was analyzed through powder X-ray diffraction (PXRD, Shimadzu PXRD-6100 (Shimadzu Corporate Management (China) Co., Ltd., Shanghai, China) from 8° to 80° of 2θ at a scanning rate of 2° per minute. The pore size and distribution were measured through N2 adsorption–desorption by using ASAP 2020 Plus HD88 (Micromeritics (shanghai) instruments Co., Ltd., Shanghai, China), and the samples were pretreated at 250 °C. The morphology of the as-prepared products was observed through field-emission scanning electron microscopy (FE-SEM, ZEISS GeminiSEM 500, Zeiss Optical Instruments (Shanghai) International Trading Co., Ltd., Shanghai, China). The Raman spectra were obtained using inViaQontor (Renishaw Co., Ltd., Gloucestershire, UK). The chemical composition and elemental valence state of different catalysts were determined through X-ray photoelectron spectroscopy (XPS, Thermo Fisher ESCALAB Xi+ spectrograph, Thermo Fisher Scientific Co., Waltham, MA, USA), which was corrected by C 1s (284.6 eV), and XPS Peak 41 software was used to process the data. Moreover, the acid sites and oxidative reducibility of the catalysts were examined through ammonia temperature-programmed desorption (NH3-TPD, Thermo 17i NH3 analyzer, Thermo Fisher Scientific Co., Waltham, MA, USA) and hydrogen temperature-programmed reduction (H2-TPR, Auto ChemTM II 2920, Micromeritics (shanghai) instruments Co., Ltd., Shanghai, China) with a heating rate of 10 °C·min−1, and the total carrier gas flow was 50 mL·min−1. In situ diffuse reflectance Fourier transform infrared spectroscopy (in situ DRIFTS) was conducted using the Nicolet iS 50 system (Thermo Fisher Scientific Co., Waltham, MA, USA) by accumulating four scans at 150 °C with a resolution of 4 cm−1; the diameter of the crucible was 5 mm.

3.3. NH3-SCR Activity

The NO removal efficiency of the C1MnO2 or C2MnO2 catalyst was investigated using a NH3-SCR activity evaluation system equipped with the Thermo Fisher 17i NH3 detector (Thermo Fisher Scientific Co., Waltham, MA, USA). We used 0.09 g of the composite catalyst in the sampling stage. The original gas contained 500 parts per million by volume (ppmv) NO, 500 ppmv NH3, and 5% O2 (N2 as the equilibrium gas), and 200 ppmv SO2 was introduced in Poisson experiment at 175 °C. The flow rate was 60 mL·min−1, and space velocity was 15,000 h−1. The NO conversion rate and N2 selectivity were calculated using the following Equations (1) and (2).
XNO = ([NO]in − [NO]out)/[NO]in × 100%
SN2 = ([NO]in + [NH3]in − [NO]out − [NO2]out − [NH3]out − 2[N2O])/([NO]in + [NH3]in − [NO]out − [NO2]out − [NH3]out) × 100%.

4. Conclusions

The kiwi twig biochar-modified MnO2 samples were successfully synthesized using the hydrothermal method, and the NO conversion rates of the two samples were >90% at 125–225 °C. A larger specific surface area, a higher number of acidic sites, and higher Oβ/Oα molar ratio were responsible for more favorable activity at high temperatures and SO2 resistance in the C2MnO2 sample. Furthermore, the C2MnO2 sample inhibited the NH3 oxidation reaction and promoted the Mn3+ → Mn4+ process, which were crucial for better deNO activity. Moreover, the Brønsted acidic sites on the C1MnO2 sample could participate in the NH3-SCR reaction more rapidly. Overall, this study provides new insights into the application of biochar in the catalytic field and the basis for catalyst design by examining the reaction process.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal12080870/s1, Figure S1: N2 absorption and desorption curves of C1MnO2 and C2MnO2 composite catalysts. Figure S2: The complete scan XPS spectra of C1MnO2 and C2MnO2 samples.

Author Contributions

Conceptualization, H.F. and Z.S.; methodology, H.F., Z.S. and J.S. (Jiaxiang Sun); investigation, H.F., X.W., J.F., J.S. (Jian Sun) and J.S. (Jiaxiang Sun); data curation, H.F.; writing—original draft, H.F.; funding acquisition, Z.S.; writing—review and editing, Z.S. and J.S. (Jian Sun). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Science and Technology plan project of Xi’an city, grant number 21NYYF0041, and a grant from State Key Laboratory of Loess and Quaternary Geology, the Chinese Academy of Sciences, grant number SKLLQG2103.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zheng, C.; Li, X.; Li, J.; Duan, J.; Wu, H.; Zhu, F. Investigation on the ammonia emission characteristics in coal-fired power plants of China. Fuel 2022, 314, 123046–123054. [Google Scholar] [CrossRef]
  2. Chen, C.; Shen, A.; Duan, Y.; Meng, J.; Hu, B.; Tan, H.; Ruan, R.; Liu, X.; Liu, M. Removal characteristics of particulate matters and hazardous trace elements in a 660 MW ultra-low emission coal-fired power plant. Fuel 2022, 311, 122535–122545. [Google Scholar] [CrossRef]
  3. Chen, J.H.; Tseng, T.H.; Ho, Y.C.; Lin, H.H.; Lin, W.L.; Wang, C.J. Gaseous nitrogen oxides stimulate cell cycle progression by retinoblastoma phosphorylation via activation of cyclins/Cdks. Toxicol. Sci. 2003, 76, 83–90. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Jia, Y.; Jiang, J.; Zheng, R.; Guo, L.; Yuan, J.; Zhang, S.; Gu, M. Insight into the reaction mechanism over PMoA for low temperature NH3-SCR: A combined In-situ DRIFTs and DFT transition state calculations. J. Hazard. Mater. 2021, 412, 125258–125272. [Google Scholar] [CrossRef]
  5. Cao, J.; Rohani, S.; Liu, W.; Liu, H.; Lu, Z.; Wu, H.; Jiang, L.; Kong, M.; Liu, Q.; Yao, X. Influence of phosphorus on the NH3-SCR performance of CeO2-TiO2 catalyst for NOx removal from co-incineration flue gas of domestic waste and municipal sludge. J. Colloid Interface Sci. 2022, 610, 463–473. [Google Scholar] [CrossRef] [PubMed]
  6. Chen, J.; Guo, L.; Zhu, H.; Qiu, Y.; Yin, D.; Zhang, T.; Chen, J.; Peng, Y.; Li, J. Balancing redox and acidic properties for optimizing catalytic performance of SCR catalysts: A case study of nanopolyhedron CeOx-supported WOx. J. Environ. Chem. Eng. 2021, 9, 105828–105838. [Google Scholar] [CrossRef]
  7. Kubota, H.; Toyao, T.; Maeno, Z.; Inomata, Y.; Murayama, T.; Nakazawa, N.; Inagaki, S.; Kubota, Y.; Shimizu, K.-I. Analogous Mechanistic Features of NH3-SCR over Vanadium Oxide and Copper Zeolite Catalysts. ACS Catal. 2021, 11, 11180–11192. [Google Scholar] [CrossRef]
  8. Croisé, C.; Pointecouteau, R.; Akil, J.; Demourgues, A.; Bion, N.; Courtois, X.; Can, F. Insight into the praseodymium effect on the NH3-SCR reaction pathways over W or Nb supported ceria-zirconia based catalysts. Appl. Catal. B Environ. 2021, 298, 120563–120576. [Google Scholar] [CrossRef]
  9. Liu, K.; He, H.; Chu, B. Microkinetic study of NO oxidation, standard and fast NH3-SCR on CeWOx at low temperatures. Chem. Eng. J. 2021, 423, 130128–130140. [Google Scholar] [CrossRef]
  10. Li, M.; Sakong, S.; Groß, A. In Search of the Active Sites for the Selective Catalytic Reduction on Tungsten-Doped Vanadia Monolayer Catalysts Supported by TiO2. ACS Catal. 2021, 11, 7411–7421. [Google Scholar] [CrossRef]
  11. Wang, X.; Lei, Y.; Yan, L.; Liu, T.; Zhang, Q.; He, K. A unit-based emission inventory of SO2, NOx and PM for the Chinese iron and steel industry from 2010 to 2015. Sci. Total Environ. 2019, 676, 18–30. [Google Scholar] [CrossRef]
  12. Zhao, S.; Shi, J.-W.; Niu, C.; Wang, B.; He, C.; Liu, W.; Xiao, L.; Ma, D.; Wang, H.; Cheng, Y. FeVO4-supported Mn–Ce oxides for the low-temperature selective catalytic reduction of NOx by NH3. Catal. Sci. Technol. 2021, 11, 6770–6781. [Google Scholar] [CrossRef]
  13. Huang, X.; Dong, F.; Zhang, G.; Guo, Y.; Tang, Z. A strategy for constructing highly efficient yolk-shell Ce@Mn@TiOx catalyst with dual active sites for low-temperature selective catalytic reduction of NO with NH3. Chem. Eng. J. 2021, 419, 129572–129584. [Google Scholar] [CrossRef]
  14. Lu, P.; Ye, L.; Yan, X.; Fang, P.; Chen, X.; Chen, D.; Cen, C. Impact of toluene poisoning on MnCe/HZSM-5 SCR catalyst. Chem. Eng. J. 2021, 414, 128838–128847. [Google Scholar] [CrossRef]
  15. Ye, L.; Lu, P.; Chen, D.; Chen, D.; Wu, H.; Dai, W.; Gan, Y.; Xiao, J.; Xie, Z.; Li, Z.; et al. Activity enhancement of acetate precursor prepared on MnOx-CeO2 catalyst for low-temperature NH3-SCR: Effect of gaseous acetone addition. Chin. Chem. Lett. 2021, 32, 2509–2512. [Google Scholar] [CrossRef]
  16. Kang, K.; Yao, X.; Huang, Y.; Cao, J.; Rong, J.; Zhao, W.; Luo, W.; Chen, Y. Insights into the co-doping effect of Fe3+ and Zr4+ on the anti-K performance of CeTiOx catalyst for NH3-SCR reaction. J. Hazard. Mater. 2021, 416, 125821–125833. [Google Scholar] [CrossRef] [PubMed]
  17. Shi, Y.; Yi, H.; Gao, F.; Zhao, S.; Xie, Z.; Tang, X. Evolution mechanism of transition metal in NH3-SCR reaction over Mn-based bimetallic oxide catalysts: Structure-activity relationships. J. Hazard. Mater. 2021, 413, 125361–125373. [Google Scholar] [CrossRef] [PubMed]
  18. Meng, D.; Zhan, W.; Guo, Y.; Guo, Y.; Wang, L.; Lu, G. A Highly Effective Catalyst of Sm-MnOx for the NH3-SCR of NOx at Low Temperature: Promotional Role of Sm and Its Catalytic Performance. ACS Catal. 2015, 5, 5973–5983. [Google Scholar] [CrossRef]
  19. Zhang, N.; Li, L.; Guo, Y.; He, J.; Wu, R.; Song, L.; Zhang, G.; Zhao, J.; Wang, D.; He, H. A MnO2-based catalyst with H2O resistance for NH3-SCR: Study of catalytic activity and reactants-H2O competitive adsorption. Appl. Catal. B Environ. 2020, 270, 118860–118875. [Google Scholar] [CrossRef]
  20. Yuan, H.; Sun, N.; Chen, J.; Jin, J.; Wang, H.; Hu, P. Insight into the NH3-Assisted Selective Catalytic Reduction of NO on β-MnO2(110): Reaction Mechanism, Activity Descriptor, and Evolution from a Pristine State to a Steady State. ACS Catal. 2018, 8, 9269–9279. [Google Scholar] [CrossRef]
  21. Zhang, B.; Liebau, M.; Suprun, W.; Liu, B.; Zhang, S.; Gläser, R. Suppression of N2O formation by H2O and SO2 in the selective catalytic reduction of NO with NH3 over a Mn/Ti–Si catalyst. Catal. Sci. Technol. 2019, 9, 4759–4770. [Google Scholar] [CrossRef]
  22. Wang, D.; Yao, Q.; Mou, C.; Hui, S.; Niu, Y. New insight into N2O formation from NH3 oxidation over MnO/TiO2 catalyst. Fuel 2019, 254, 115719–115725. [Google Scholar] [CrossRef]
  23. Fan, H.; Fan, J.; Chang, T.; Wang, X.; Wang, X.; Huang, Y.; Zhang, Y.; Shen, Z. Low-temperature Fe–MnO2 nanotube catalysts for the selective catalytic reduction of NOx with NH3. Catal. Sci. Technol. 2021, 11, 6553–6563. [Google Scholar] [CrossRef]
  24. Jiang, Z.; Zou, Y.; Li, Y.; Kong, F.; Yang, D. Environmental life cycle assessment of supercapacitor electrode production using algae derived biochar aerogel. Biochar 2021, 3, 701–714. [Google Scholar] [CrossRef]
  25. Liu, L.; Wang, B.; Yao, X.; Yang, L.; Jiang, W.; Jiang, X. Highly efficient MnOx/biochar catalysts obtained by air oxidation for low-temperature NH3-SCR of NO. Fuel 2021, 283, 119336–119343. [Google Scholar] [CrossRef]
  26. Hou, Y.; Liang, Y.; Hu, H.; Tao, Y.; Zhou, J.; Cai, J. Facile preparation of multi-porous biochar from lotus biomass for methyl orange removal: Kinetics, isotherms, and regeneration studies. Bioresour. Technol. 2021, 329, 124877–124883. [Google Scholar] [CrossRef]
  27. Xu, X.; Guo, Y.; Shi, R.; Chen, H.; Du, Y.; Liu, B.; Zeng, Z.; Yin, Z.; Li, L. Natural Honeycomb-like structure cork carbon with hierarchical Micro-Mesopores and N-containing functional groups for VOCs adsorption. Appl. Surf. Sci. 2021, 565, 150550–150559. [Google Scholar] [CrossRef]
  28. Chen, L.; Yang, J.; Ren, S.; Chen, Z.; Zhou, Y.; Liu, W. Effects of Sm modification on biochar supported Mn oxide catalysts for low-temperature NH3-SCR of NO. J. Energy Inst. 2021, 98, 234–243. [Google Scholar] [CrossRef]
  29. Yang, J.; Su, Z.; Ren, S.; Long, H.; Kong, M.; Jiang, L. Low-temperature SCR of NO with NH3 over biomass char supported highly dispersed Mn-Ce mixed oxides. J. Energy Inst. 2019, 92, 883–891. [Google Scholar] [CrossRef]
  30. Fan, H.; Shen, Z.; Wang, X.; Fan, J.; Sun, J.; Chang, T.; Huang, Y.; Wang, X.; Sun, J. Kiwi twig biochar recycling promoting the reduction of NO by a MnO2 catalyst. Appl. Surf. Sci. 2022, 596, 153644. [Google Scholar] [CrossRef]
  31. Xiong, X.; Yu, I.K.M.; Dutta, S.; Masek, O.; Tsang, D.C.W. Valorization of humins from food waste biorefinery for synthesis of biochar-supported Lewis acid catalysts. Sci. Total Environ. 2021, 775, 145851–145858. [Google Scholar] [CrossRef] [PubMed]
  32. Yuan, S.; Dong, B.; Dai, X. Facile and scalable synthesis of high-quality few-layer graphene from biomass by a universal solvent-free approach. Appl. Surf. Sci. 2021, 562, 150203–150210. [Google Scholar] [CrossRef]
  33. Nanda, S.S.; Kim, M.J.; Yeom, K.S.; An, S.S.A.; Ju, H.; Yi, D.K. Raman spectrum of graphene with its versatile future perspectives. TrAC Trends Anal. Chem. 2016, 80, 125–131. [Google Scholar] [CrossRef]
  34. Zhou, Q.; Zhao, Z.; Zhang, Y.; Meng, B.; Zhou, A.; Qiu, J. Graphene Sheets from Graphitized Anthracite Coal: Preparation, Decoration, and Application. Energy Fuel 2012, 26, 5186–5192. [Google Scholar] [CrossRef]
  35. Zhang, Y.; Liu, Y.; Liu, Z.; Wu, X.; Wen, Y.; Chen, H.; Ni, X.; Liu, G.; Huang, J.; Peng, S. MnO2 cathode materials with the improved stability via nitrogen doping for aqueous zinc-ion batteries. J. Energy Chem. 2022, 64, 23–32. [Google Scholar] [CrossRef]
  36. Sun, X.; Shi, Y.; Zhang, W.; Li, C.; Zhao, Q.; Gao, J.; Li, X. A new type Ni-MOF catalyst with high stability for selective catalytic reduction of NOx with NH3. Catal. Commun. 2018, 114, 104–108. [Google Scholar] [CrossRef]
  37. Saha, S.; Pal, A. Microporous assembly of MnO2 nanosheets for malachite green degradation. Sep. Purif. Technol. 2014, 134, 26–36. [Google Scholar] [CrossRef]
  38. Shi, X.; Guo, J.; Shen, T.; Fan, A.; Yuan, S.; Li, J. Enhancement of Ce doped La–Mn oxides for the selective catalytic reduction of NOx with NH3 and SO2 and/or H2O resistance. Chem. Eng. J. 2021, 421, 129995–130005. [Google Scholar] [CrossRef]
  39. Jiang, H.; Wang, Q.; Wang, H.; Chen, Y.; Zhang, M. MOF-74 as an Efficient Catalyst for the Low-Temperature Selective Catalytic Reduction of NOx with NH3. ACS Appl. Mater. Inter. 2016, 8, 26817–26826. [Google Scholar] [CrossRef]
  40. Du, H.; Han, Z.; Wu, X.; Wang, Q.; Li, C.; Gao, Y.; Yang, S.; Song, L.; Dong, J.; Pan, X. Enhancement effects of Er modification on comprehensive performance of FeMn/TiO2 catalysts for selective reduction of NO with NH3 at low temperature. J. Environ. Chem. Eng. 2021, 9, 105653–105666. [Google Scholar] [CrossRef]
  41. Chen, L.; Yao, X.; Cao, J.; Yang, F.; Tang, C.; Dong, L. Effect of Ti4+ and Sn4+ co-incorporation on the catalytic performance of CeO2-MnOx catalyst for low temperature NH3-SCR. Appl. Surf. Sci. 2019, 476, 283–292. [Google Scholar] [CrossRef]
  42. Liu, Z.; Tian, X.; Xu, X.; He, L.; Yan, M.; Han, C.; Li, Y.; Yang, W.; Mai, L. Capacitance and voltage matching between MnO2 nanoflake cathode and Fe2O3 nanoparticle anode for high-performance asymmetric micro-supercapacitors. Nano Res. 2017, 10, 2471–2481. [Google Scholar] [CrossRef]
  43. Xu, H.; Qu, Z.; Zhao, S.; Mei, J.; Quan, F.; Yan, N. Different crystal-forms of one-dimensional MnO2 nanomaterials for the catalytic oxidation and adsorption of elemental mercury. J. Hazard. Mater. 2015, 299, 86–93. [Google Scholar] [CrossRef] [PubMed]
  44. Shi, Q.; Liu, T.; Li, Q.; Xin, Y.; Lu, X.; Tang, W.; Zhang, Z.; Gao, P.-X.; Anderson, J.A. Multiple strategies to decrease ignition temperature for soot combustion on ultrathin MnO2-x nanosheet array. Appl. Catal. B Environ. 2019, 246, 312–321. [Google Scholar] [CrossRef]
  45. Chen, B.; Wu, B.; Yu, L.; Crocker, M.; Shi, C. Investigation into the Catalytic Roles of Various Oxygen Species over Different Crystal Phases of MnO2 for C6H6 and HCHO Oxidation. ACS Catal. 2020, 10, 6176–6187. [Google Scholar] [CrossRef]
  46. Gong, P.; Xie, J.; Fang, D.; Han, D.; He, F.; Li, F.; Qi, K. Effects of surface physicochemical properties on NH3-SCR activity of MnO2 catalysts with different crystal structures. Chin. J. Catal. 2017, 38, 1925–1934. [Google Scholar] [CrossRef]
  47. Fang, D.; Xie, J.; Hu, H.; Yang, H.; He, F.; Fu, Z. Identification of MnOx species and Mn valence states in MnOx/TiO2 catalysts for low temperature SCR. Chem. Eng. J. 2015, 271, 23–30. [Google Scholar] [CrossRef]
  48. Niu, C.; Wang, B.; Xing, Y.; Su, W.; He, C.; Xiao, L.; Xu, Y.; Zhao, S.; Cheng, Y.; Shi, J. Thulium modified MnOx/TiO2 catalyst for the low-temperature selective catalytic reduction of NO with ammonia. J. Clean. Prod. 2021, 290, 125858–125869. [Google Scholar] [CrossRef]
  49. Yao, X.; Chen, L.; Cao, J.; Yang, F.; Tan, W.; Dong, L. Morphology and Crystal-Plane Effects of CeO2 on TiO2/CeO2 Catalysts during NH3-SCR Reaction. Ind. Eng. Chem. Res. 2019, 57, 12407–12419. [Google Scholar] [CrossRef]
  50. Wang, J.; Yan, Z.; Liu, L.; Chen, Y.; Zhang, Z.; Wang, X. In situ DRIFTS investigation on the SCR of NO with NH3 over V2O5 catalyst supported by activated semi-coke. Appl. Surf. Sci. 2014, 313, 660–669. [Google Scholar] [CrossRef]
Catalysts 12 00870 g001 550

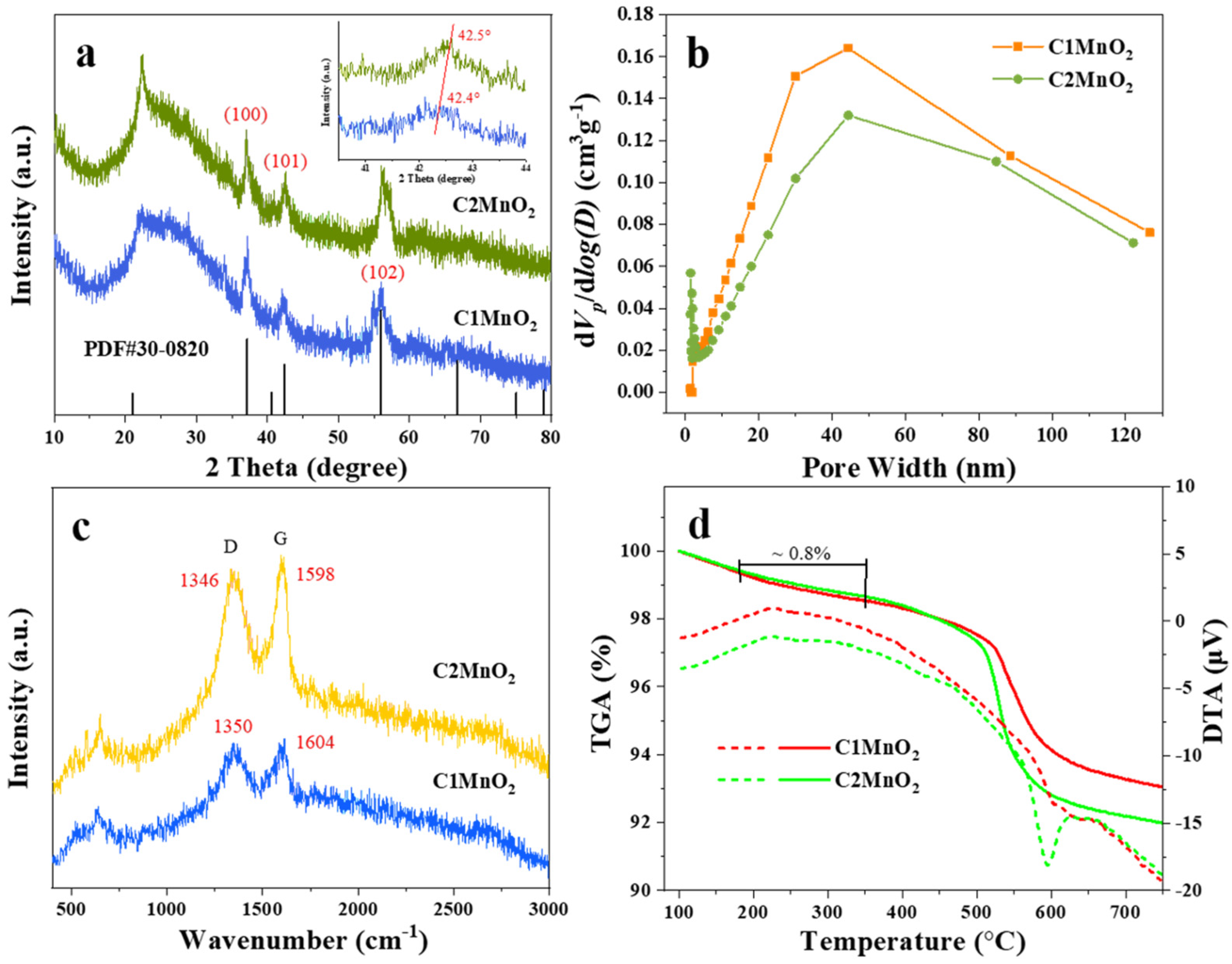

Figure 1. (a) XRD patterns, (b) pore size distribution from BJH algorithm, (c) Raman spectra, (d) TGA (Solid lines) and DTA (dotted lines) curves of C1MnO2 and C2MnO2 composite catalysts.
Figure 1. (a) XRD patterns, (b) pore size distribution from BJH algorithm, (c) Raman spectra, (d) TGA (Solid lines) and DTA (dotted lines) curves of C1MnO2 and C2MnO2 composite catalysts.
Catalysts 12 00870 g001
Catalysts 12 00870 g002 550
Figure 2. FESEM images of C1MnO2 (a,b) and C2MnO2 (c,d) catalysts.
Figure 2. FESEM images of C1MnO2 (a,b) and C2MnO2 (c,d) catalysts.
Catalysts 12 00870 g002
Catalysts 12 00870 g003 550

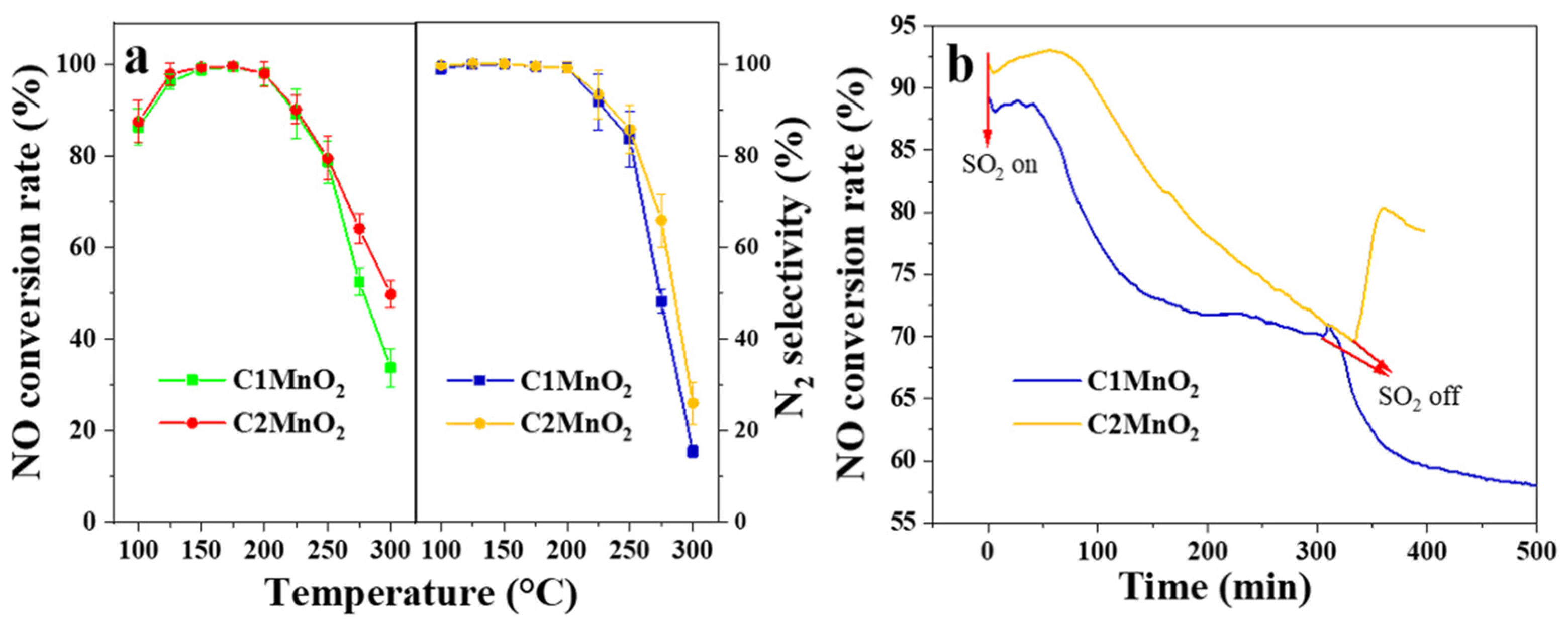

Figure 3. (a) NO conversion rate and N2 selectivity and (b) SO2 resistance under 250 ppmv SO2 at 175 °C of C1MnO2 and C2MnO2 samples.
Figure 3. (a) NO conversion rate and N2 selectivity and (b) SO2 resistance under 250 ppmv SO2 at 175 °C of C1MnO2 and C2MnO2 samples.
Catalysts 12 00870 g003
Catalysts 12 00870 g004 550

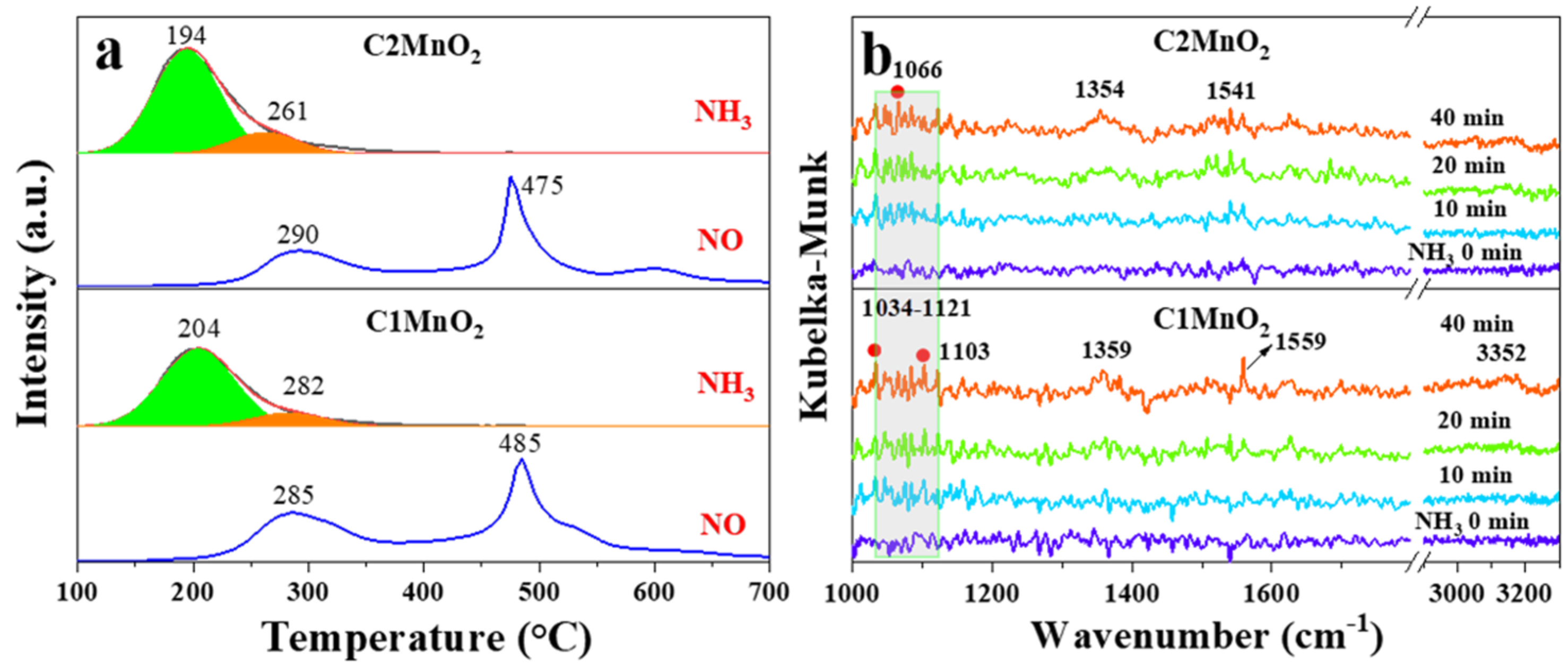

Figure 4. NH3-TPD and NH3 oxidization curves (a), in situ DRIFTS spectra of NH3 adsorption (b) on C1MnO2 and C2MnO2 samples.
Figure 4. NH3-TPD and NH3 oxidization curves (a), in situ DRIFTS spectra of NH3 adsorption (b) on C1MnO2 and C2MnO2 samples.
Catalysts 12 00870 g004
Catalysts 12 00870 g005 550

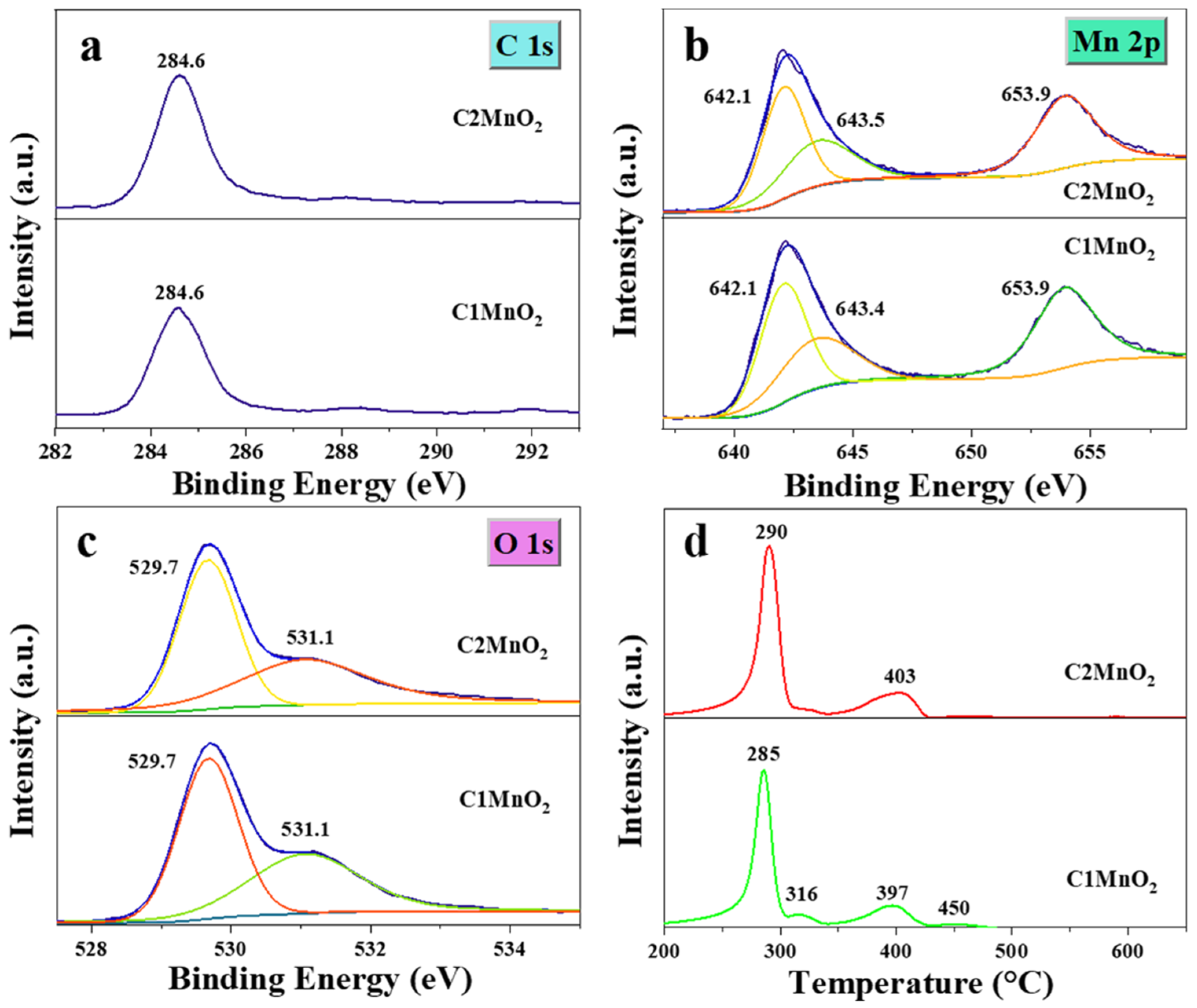

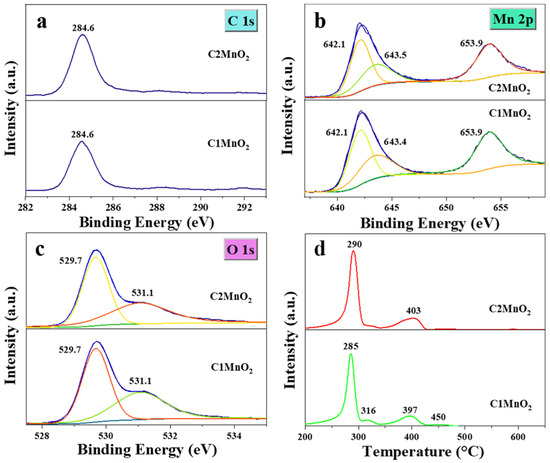

Figure 5. (a) C 1s, (b) Mn 2p, (c) O 1s high-resolution XPS spectra and (d) H2-TPR profiles of C1MnO2 and C2MnO2 samples.
Figure 5. (a) C 1s, (b) Mn 2p, (c) O 1s high-resolution XPS spectra and (d) H2-TPR profiles of C1MnO2 and C2MnO2 samples.
Catalysts 12 00870 g005
Catalysts 12 00870 g006 550

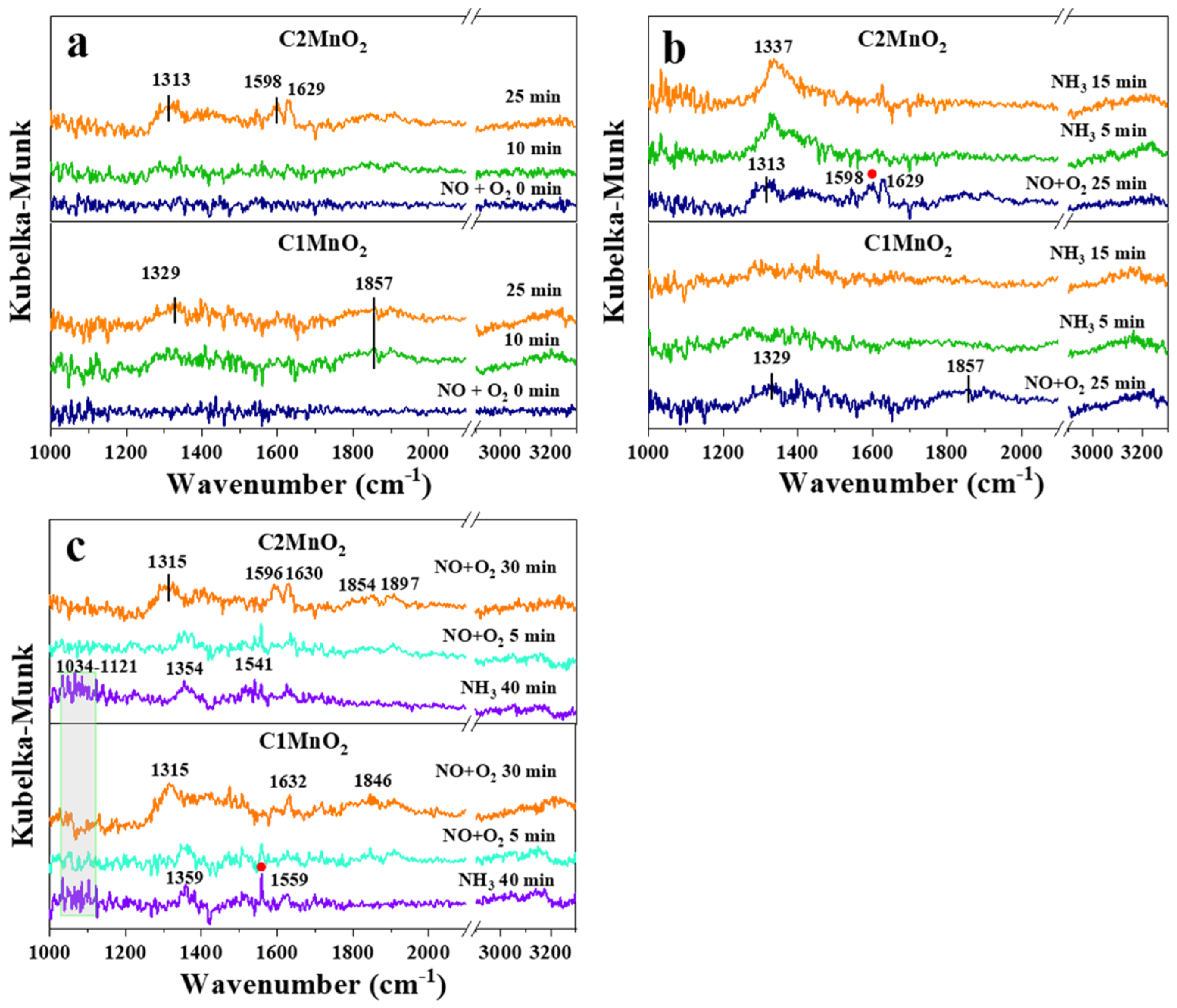

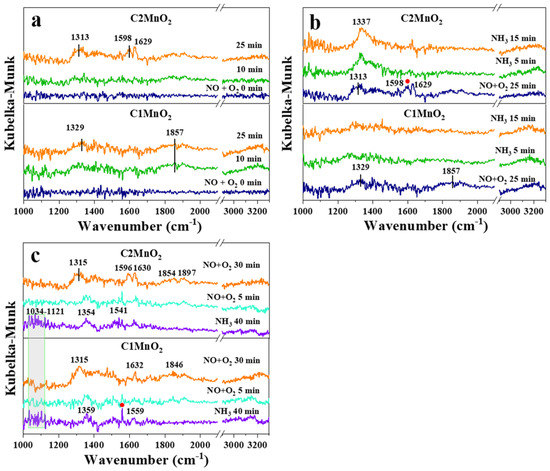

Figure 6. In situ DRIFTS spectra of C1MnO2 and C2MnO2 samples at 150 °C. (a) 500 ppmv NO + 5% O2 were introduced for 25 min, (b) 500 ppmv NO + 5% O2 were absorbed for 25 min and then changed the gas into 500 ppmv NH3, (c) 500 ppmv NH3 was absorbed for 40 min and then changed the gas into 500 ppmv NO + 5% O2.
Figure 6. In situ DRIFTS spectra of C1MnO2 and C2MnO2 samples at 150 °C. (a) 500 ppmv NO + 5% O2 were introduced for 25 min, (b) 500 ppmv NO + 5% O2 were absorbed for 25 min and then changed the gas into 500 ppmv NH3, (c) 500 ppmv NH3 was absorbed for 40 min and then changed the gas into 500 ppmv NO + 5% O2.
Catalysts 12 00870 g006
Catalysts 12 00870 g007 550

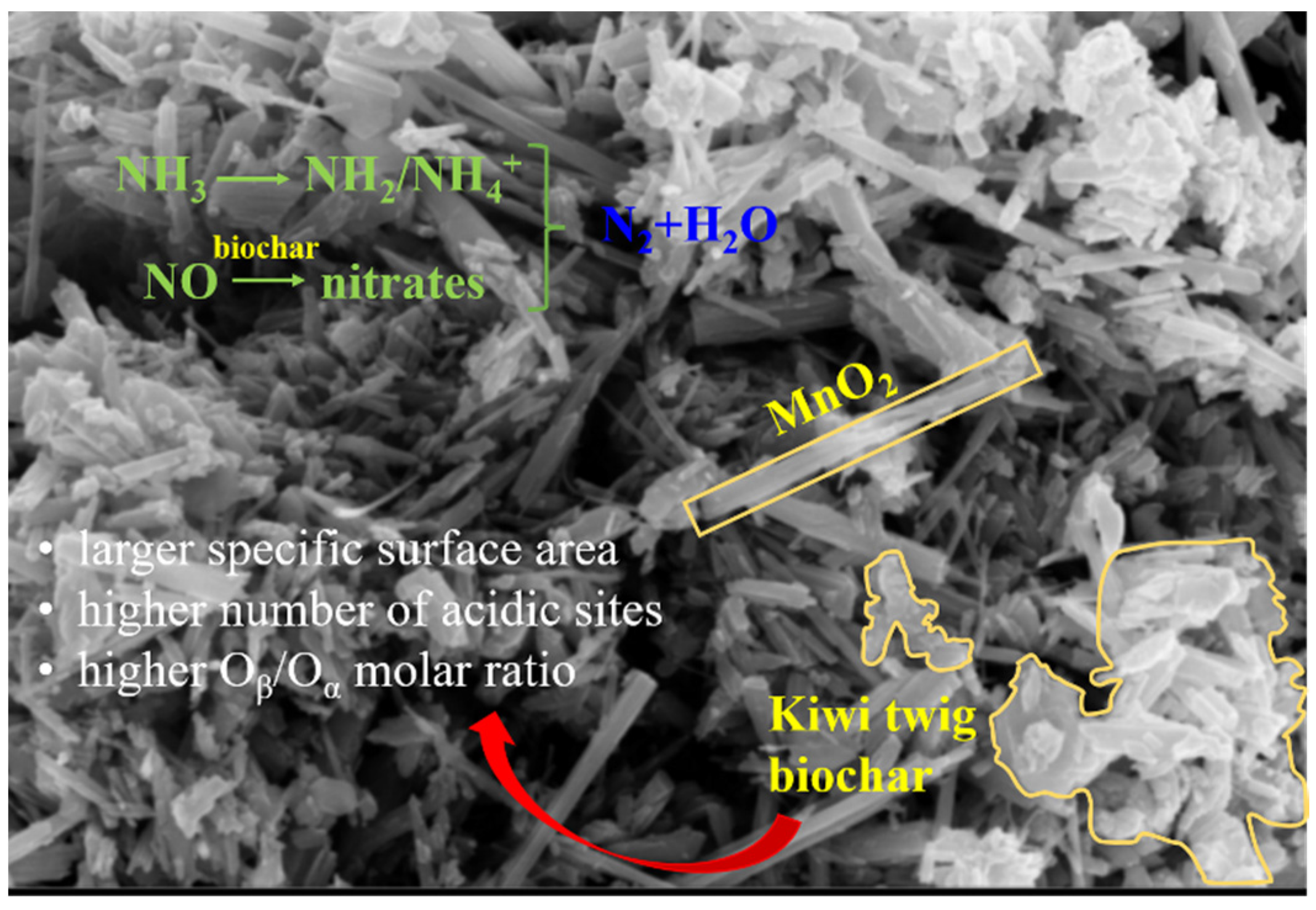

Figure 7. Schematic diagram of the NH3-SCR process over C2MnO2 sample.
Figure 7. Schematic diagram of the NH3-SCR process over C2MnO2 sample.
Catalysts 12 00870 g007
Table
Table 1. Specific surface area, total pore volume, pore size (BJH), Raman data and different atomic percentage ratios of samples.
Table 1. Specific surface area, total pore volume, pore size (BJH), Raman data and different atomic percentage ratios of samples.
SamplesSBET
(m2·g−1)		Vtotal
(cm3·g−1)		Pore Size
(nm)		ID/IGMn4+/Mn3+Oα/(Oα + Oβ)
C1MnO236.480.17185.471.011.770.43
C2MnO2119.740.1859.930.971.720.46
Table
Table 2. Peak area of NH3-TPD profiles.
Table 2. Peak area of NH3-TPD profiles.
C1MnO2C2MnO2
Position (°C)AreaSumPosition (°C)AreaSum
20439.346.219453.364.2
2826.926110.9
Sum was the total amount of the weak acid sites and the medium–strong acid sites.
