Effect of Pd-Doping Concentrations on the Photocatalytic, Photoelectrochemical, and Photoantibacterial Properties of CeO₂

Abstract

Cerium oxide (CeO₂) can exhibit good photocatalytic and photoantibacterial activities. However, its light-harvesting property is rather limited due to its large band gap. In order to boost these properties, doping with metal ions can improve light absorption and charge mobility. In this report, CeO₂ and palladium−doped CeO₂ (Pd−CeO₂) NPs were synthesized via the microwave-assisted synthesis method. The structural, optical, and morphological studies of CeO₂ and Pd−CeO₂ NPs were carried out using various techniques. Mixed phases of CeO₂/Ce₂O₃ were observed in pure CeO₂ (S−CeO₂) and Pd−CeO₂. However, the Ce₂O₃ phase gradually disappeared upon doping with a higher percentage of Pd. Almost spherical particles were observed with average sizes between 6 and 13 nm. It was found that the incorporation of Pd reduced the particle size. Moreover, band gap energies of S−CeO₂ and Pd−CeO₂ NPs were reduced from 2.56 to 2.27 eV, and the PL intensities were also quenched with more Pd doping. The shifts in the conduction band and valence band were found to cause the reduction in the band gap energies of S−CeO₂ and Pd−CeO₂ NPs. In the case of photocatalytic degradation of methylene blue, photoelectrochemical, and photoantibacterial activities, Pd−CeO₂ NPs showed enhanced activities under visible light irradiation. Therefore, Pd−CeO₂ NPs have been shown to be a visible-light active material.

1. Introduction

Antibiotics have been used to treat bacterial infections that are major causes of chronic infections and mortality. However, studies found that the widespread use of antibiotics has led to the emergence of multidrug-resistant bacterial strains [1]. In general, the major groups of antibiotics that are currently in use have three bacterial targets, namely: cell wall synthesis, translational machinery, and DNA replication machinery [2]. However, bacterial resistance can develop at each mode of action. Nanoparticles (NPs) have demonstrated broad-spectrum antibacterial properties against Gram-positive and Gram-negative bacteria. Studies have revealed that NPs do not show antibiotic resistance mechanisms because NPs contact directly with the bacterial cell wall, which would be less prone to promoting resistance in bacteria. Therefore, NPs can be potentially used as an alternative antibiotic. According to research, the major processes underlying the antibacterial effects of NPs are disruption of the bacterial cell membrane, generation of ROS, penetration of bacterial cell membrane, and induction of intracellular antibacterial effects, including interactions with DNA and proteins [2,3].

Organic dyes, which generally consist of non-biodegradable, highly poisonous, and colored pigments, have been reported to be present and widely spread in industrial wastewater originating from the paper, textile, and apparel industries [4,5]. Even at low concentrations, dyes can be clearly seen and pollute various aquatic environments [6]. These dye-polluted effluents are harmful to living organisms [7]. Dyes such as methylene blue (MB) can also cause serious threats to humans, for example, abdominal disorders, respiratory problems, and digestive and mental disorders [8,9]. Hence, the removal of dyes from wastewater is important. Apart from that, redox reactions have shown promising water treatment activity as the reaction products can be conveniently separated and removed [10]. Owing to this, researchers have applied electrochemical systems to diverse functional applications, including photovoltaics [11], fuel cells [12], supercapacitors [13], as well as sensors [14]. It is reported that heterostructure exhibits interesting electrochemical properties owing to the possibility of a dual charge storage contribution from both materials [15]. Nevertheless, materials with high porosity and large surface areas are highly suitable for electrochemical applications [16].

Metal oxides such as TiO₂ [17], ZnO [18], Fe₂O₃ [19], CeO₂ [20], etc., have shown remarkable activities in biological and photocatalytic activities. Among these, CeO₂ has shown extensive industrial applications in medicine, catalysis, solid oxide fuel cells, luminescence, optical, and sensor technologies [21,22,23,24,25]. Despite being a highly abundant material, its redox ability to change between Ce³⁺ ⇿ Ce⁴⁺ has also attracted significant attention. CeO₂ has been synthesized using hydrothermal, sol-gel, precipitation, microwave, and green synthesis methods where multiple morphologies such as cube, rod, spherical, and flower-like particles have been produced [26,27,28,29,30]. In catalytic applications, the activity of CeO₂ primarily arises from the reduction of Ce⁴⁺ to Ce³⁺ and the formation of oxygen vacancies [31,32]. The modification in shape and size results in the formation of surface defects such as V_o, which endows it with the ability to exist in either the Ce³⁺ or Ce⁴⁺ state on the surface of the particle [33,34].

In addition, dopants with different ionic states incorporated into CeO₂ can generate more structural defects to gain charge neutrality, enhancing physical properties and biocompatibility. Many studies have emphasized a strong synergy between CeO₂ and noble metals, which can significantly enhance catalytic activities [35]. Among the noble metals, palladium is increasingly used in electrical equipment, dental materials, implanted medical devices and automobiles as catalysts [36]. The incorporation of Pd²⁺ into the CeO₂ crystal lattice has shown better catalytic activity than the palladium-supported CeO₂ catalyst [37]. It is believed that the unique properties of Pd-doped CeO₂ depend on the active components of palladium and the interaction between palladium and CeO₂ [38].

Therefore, in this study, CeO₂ (S−CeO₂) and Pd−doped CeO₂ (Pd−CeO₂) NPs were synthesized using a microwave-assisted synthesis method. To the best of the authors’ knowledge, a study on Pd−CeO₂ with mixed phases of CeO₂ and Ce₂O₃ has not yet been explored. Moreover, studies on the photocatalytic degradation of methylene blue (MB) were conducted using synthesized-CeO₂ (S−CeO₂) and (0.5, 1, 3 and 5%) Pd−CeO₂ under visible light irradiation for 5 h. The photoelectrochemical studies, namely, linear sweep voltammetry (LSV) and electrochemical impedance spectroscopy (EIS), were performed under dark and visible light conditions using NaCl as the electrolyte. Moreover, the photoantibacterial/antibacterial properties of S−CeO₂ and (0.5, 1, 3 and 5%) Pd−CeO₂ NPs were also carried out for 24 h using bacterial strain Staphylococcus aureus (S. aureus) KCTC 1916 (Gram-positive) and Pseudomonas aeruginosa (P. aeruginosa) KCTC 1637 (Gram-negative).

2. Results and Discussion

2.1. Structural Analysis of CeO₂ and Pd−CeO₂ NPs

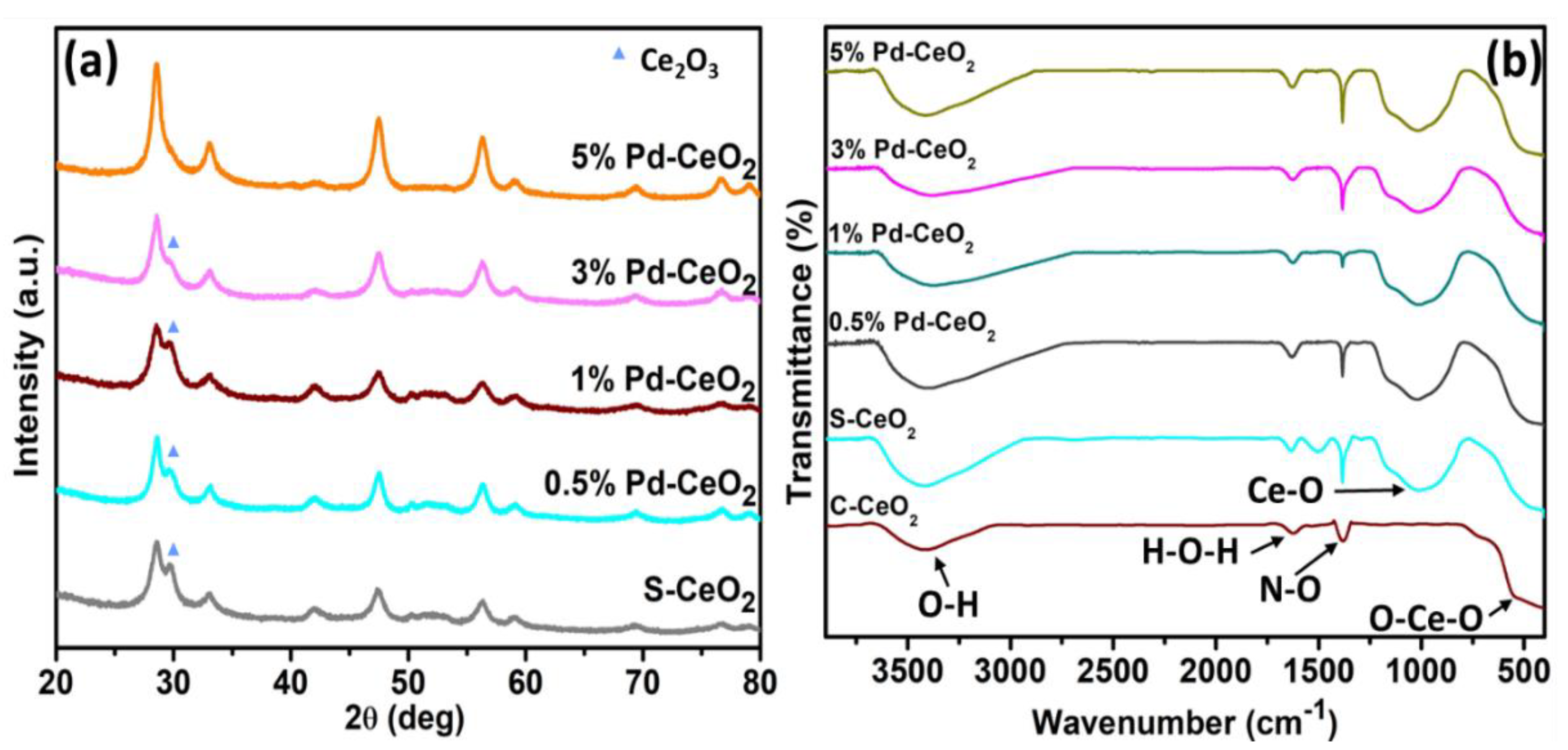

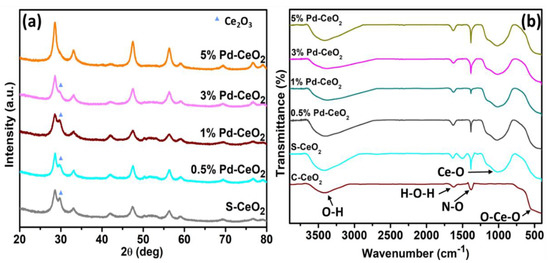

XRD provides a broad range of information related to the crystallographic nature and chemical structure of materials. The XRD patterns of the S−CeO₂ and Pd−CeO₂ NPs are shown in Figure 1a, with diffraction peaks in the range of 20° to 80°. The peak positions at about 2θ = 28.56°, 33.27°, 47.36°, 56.40°, and 59.10° of each sample correspond to the (111), (200), (220), (311), and (222) planes of CeO₂ cubic fluorite phase (JCPDS no. 00-004-0593) (Figure S1). In S−CeO₂, the diffraction peak of Ce₂O₃ was observed, suggesting that mixed-phase CeO₂/Ce₂O₃ (JCPDS no. 00-023-1048) was present. It was found that gradually, the peak corresponding to Ce₂O₃ decreased with higher Pd doping. Hence, the peak intensity at 28.56° was seen to increase. This suggests that Pd doping inhibited the formation of Ce₂O₃ and suggested that the incorporation of Pd²⁺ lowered the appearance of the Ce₂O₃ phase. The ionic radii of Pd²⁺ and Ce⁴⁺ are 86 and 101 pm, respectively. No other peaks were observed that contribute to the presence of PdO. Therefore, it can be concluded that Pd²⁺ was successfully incorporated into the CeO₂ lattice.

Furthermore, the average crystallite sizes were estimated using Debye-Scherrer’s Formula (1):

$$D=\frac{0.9\lambda }{\beta cos\theta }$$

(1)

where β is the full width at half maximum (FWHM), in radians, of the peak for a given (hkl) value, λ = 1.5406 Å for the CuKα radiation used, and θ is the diffracting angle. The average crystallite sizes were found to be 34.67, 37.25, 16.25, 23.03, and 19.17 nm for S−CeO₂, 0.5%, 1%, 3%, and 5% Pd−CeO₂ NPs, respectively (

Table 1. The average crystallite size (D), lattice parameter, cell volume, and average lattice strain of S−CeO₂ and Pd−CeO₂ NPs.

Sample	Average Crystallite Size (D, nm)	Lattice Parameter, a (Å)	Cell Volume (Å3)	Average Lattice Strain
S−CeO2	34.67	5.414	158.69	0.0022
0.5% Pd−CeO2	37.25	5.408	158.16	0.0009
1% Pd−CeO2	16.25	5.423	159.48	0.0004
3% Pd−CeO2	23.03	5.409	158.25	0.0019
5% Pd−CeO2	19.17	5.428	159.93	0.0022

).

The average lattice strain was also calculated using Equation (2):

$$\epsilon =\frac{{\beta }_{hkl}}{4tan\theta }$$

(2)

The lattice parameters of S−CeO₂ and Pd−CeO₂ were observed to be comparable with the bulk CeO₂ (5.411 Å). The average lattice strain was decreased significantly when 0.5% and 1% Pd were incorporated. However, as more Pd²⁺ were incorporated into the lattice, it would cause higher lattice strain. This can also be seen that as more Pd was doped, the cell volume increased slightly.

2.2. Fourier Transform-Infrared Spectroscopy of CeO₂ and Pd−CeO₂ NPs

FT-IR spectroscopic studies of S−CeO₂ and Pd−CeO₂ NPs were carried out within the range of 450–4000 cm⁻¹ at room temperature (Figure 1b). The broad band at approximately 3400 cm⁻¹ for all samples is attributed to the stretching mode of absorbed O-H in the samples. A broad, intense peak at 450 cm⁻¹ corresponds to the O-Ce-O stretching mode. At approximately 900 cm⁻¹, a broad peak was observed in S−CeO₂ and Pd−CeO₂ NPs, which corresponds to the bending of the intercalated Ce-O [39]. Moreover, a peak at about 1730 cm⁻¹ was also observed in all samples, and it could be assigned to the H-O-H bending mode.

2.3. X-ray Photoelectron Spectroscopy

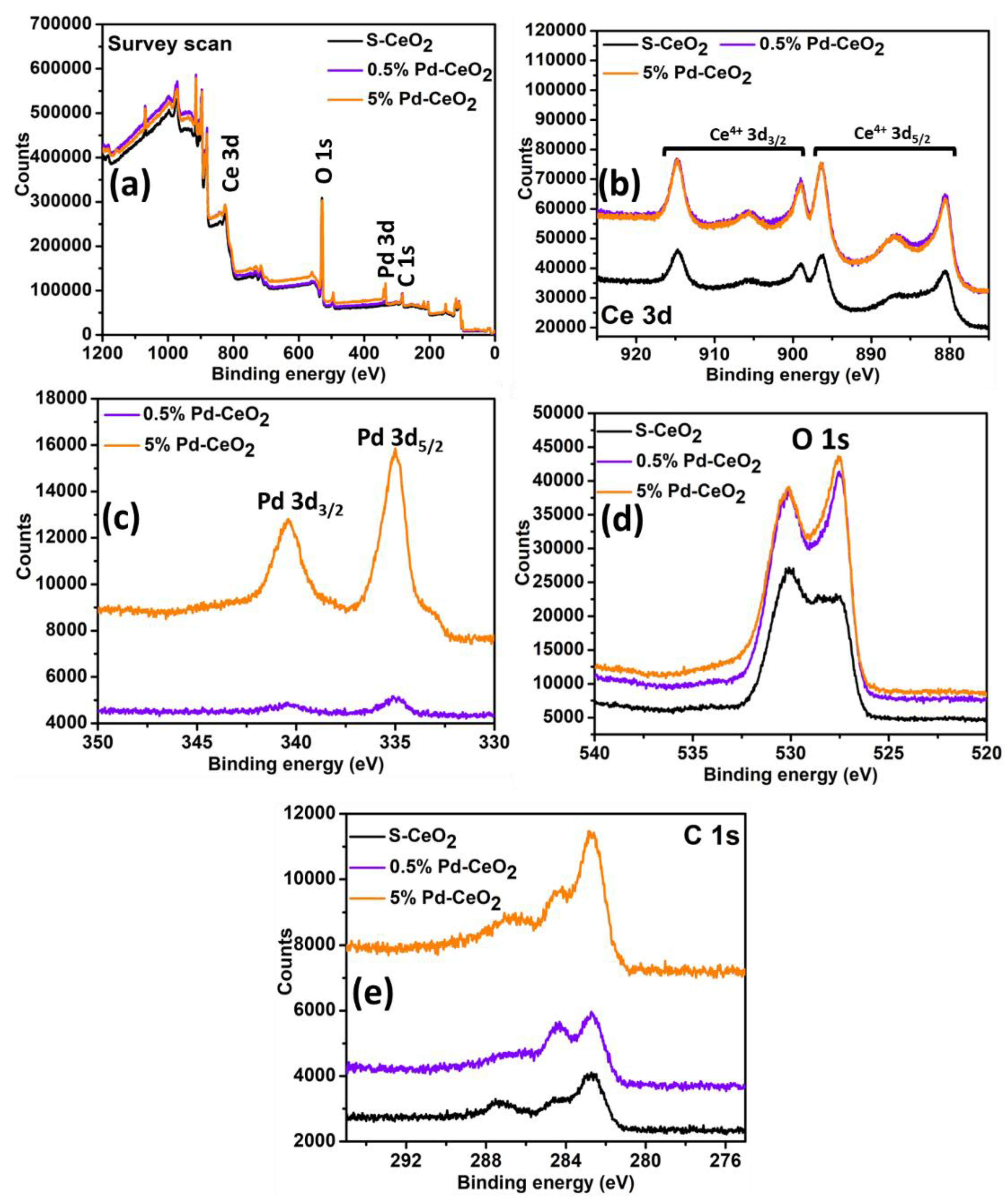

XPS was performed at room temperature to investigate the chemical state and the electronic structure of the elements in S−CeO₂ and 0.5 and 5% Pd−CeO₂ NPs (Figure 2). Figure 2a shows the complete survey scan spectra of the samples, which confirmed the presence of Pd 3d, O 1s, and Ce 3d. Figure 2b shows the six typical peaks for Ce 3d. The peaks positioned at 883.43, 886.80, 896.26, 898.89, 905.59, and 914.75 eV is characteristic of Ce⁴⁺ [40]. Peaks at 898.89, 905.59, and 914.75 eV correspond to 3d_3/2, whereas peaks at 883.43, 886.80, and 896.26 eV correspond to 3d_5/2 [41]. No obvious shift in the binding energy of Ce 3d spectra was observed.

Figure 2c shows the Pd 3d spectra of 0.5% Pd−CeO₂ and 5% Pd−CeO₂ NPs. As a result of the spin-orbit coupling, the Pd 3d spectra are split into two peaks of 3d_5/2 and 3d_3/2 at 335.03:335.03 eV and 340.40:340.31 eV, respectively. The XPS spectrum of O 1s can be seen in Figure 2d, in which all peaks exhibit two asymmetrical peaks, indicating the presence of O²⁻, OH⁻, and O⁻ at the surface of the nanostructures. The peak at higher binding energy, i.e., 531–532 eV, is attributed to O²⁻ vacancies and adsorbed -OH or H₂O, while the peak at lower binding energy, 529 eV, is attributed to the metal-oxygen binding [42]. S−CeO₂ showed a dominant peak at 531–532 eV, suggesting that O²⁻ vacancies or adsorbed -OH were mainly found in the sample. On the other hand, 0.5 and 5% Pd−CeO₂ showed a dominant peak at 529 eV [42]. The difference might be due to the formation of the Ce₂O₃ phase in S−CeO₂ and the gradual decrease of the Ce₂O₃ phase in both 0.5 and 5% Pd−CeO₂, as shown in XRD. The typical C 1s were observed in the spectra (Figure 2e), which were derived from the carbon coating used in the analysis. The atomic concentration of C 1s, O 1s, Ce 3d, and Pd 2p can be found in

Table 2. Atomic concentration of C 1s, O 1s, Ce 3d, and Pd 3d of S−CeO₂, 0.5% Pd−CeO₂, and 5% Pd−CeO₂.

Sample	Atomic Concentration (%)
	C 1s	O 1s	Ce 3d	Pd 3d
S−CeO2	12.4	74.1	13.5	-
0.5% Pd−CeO2	12.6	72.1	15.1	0.2
5% Pd−CeO2	19.0	66.3	12.8	1.9

. The estimated Pd content in both 0.5% and 5% Pd−CeO₂ is lower than the expected value.

The band gap reduction of S−CeO₂ and Pd−CeO₂ NPs might be due to the development of mid-gap states either above the valence band (VB) or below the conduction band (CB). Therefore, to study the cause of the reduction of band gap energy, VB-XPS was carried out for S−CeO₂ and Pd−CeO₂ NPs (Figure 3a).

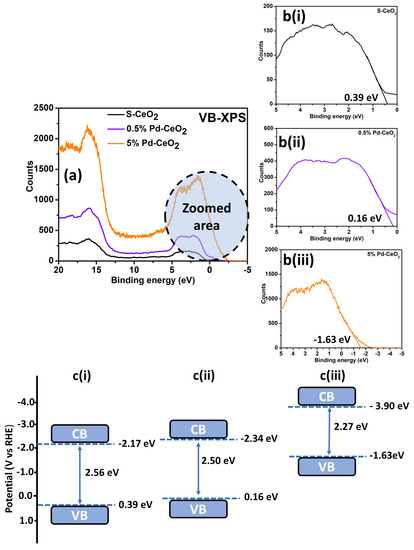

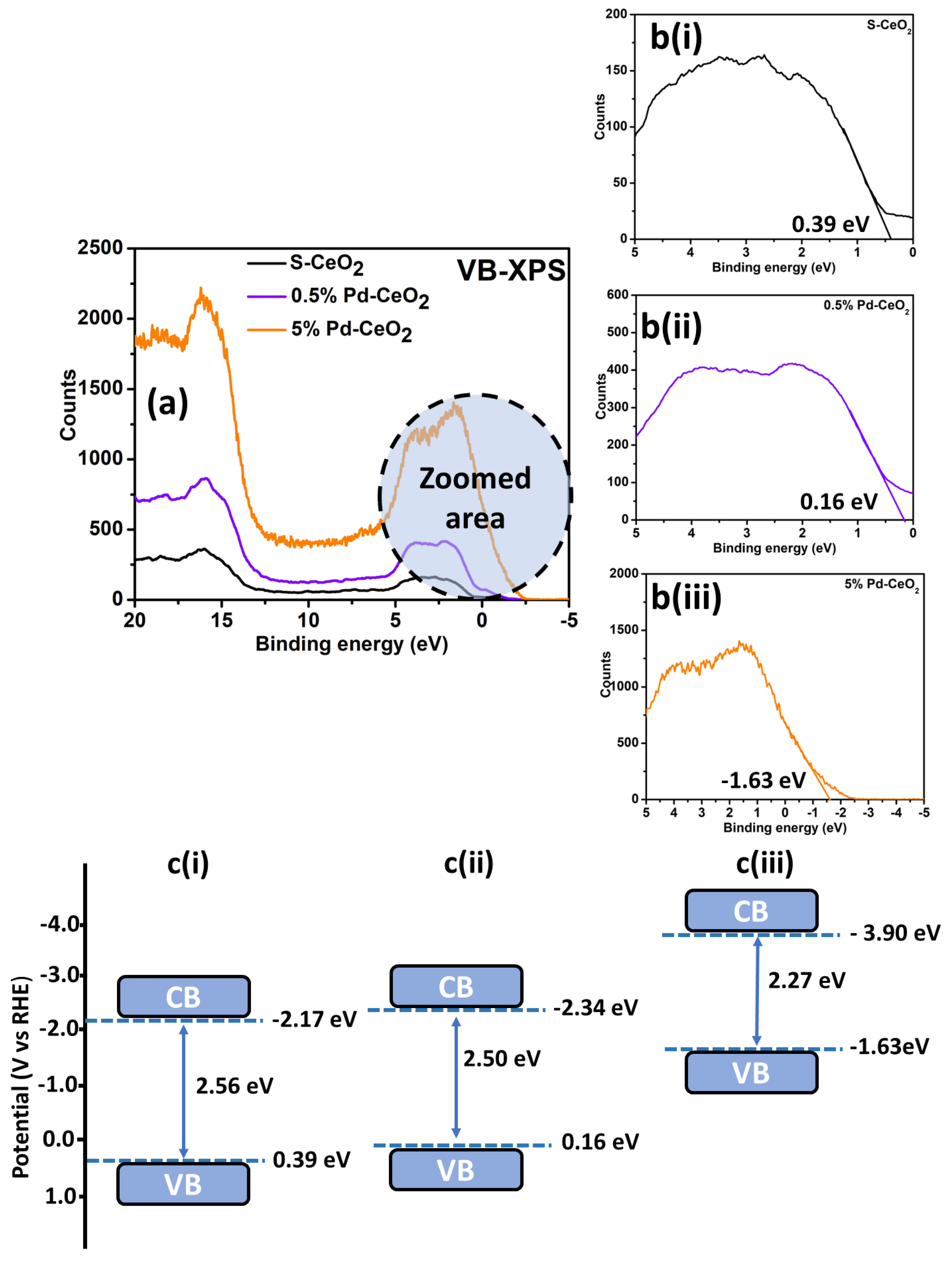

The zoomed area of VB-XPS is shown in Figure 3b. The VB maximum of S−CeO₂, 0.5% Pd−CeO₂, and 5% Pd−CeO₂ NPs were found to be at 0.39, 0.16, and −1.63 eV, respectively (Figure 3b(i–iii)). The optical band gap energy obtained from the Tauc plot was 2.56, 2.50, and 2.27 eV for S−CeO₂, 0.5% Pd−CeO_2, and 5% Pd−CeO₂ NPs, respectively. Consequently, based on the materials’ optical band gap and VB maxima, the CB minima would follow at −2.17, −2.34, and −3.90 eV for S−CeO₂, 0.5% Pd−CeO₂, and 5% Pd−CeO₂ NPs, respectively. The shifts of VB and CB result in the band gap energy reduction, as proposed in Figure 3c.

2.4. Optical Studies of CeO₂ and Pd−CeO₂ Using UV-vis-DRS and Photoluminescence Spectroscopy

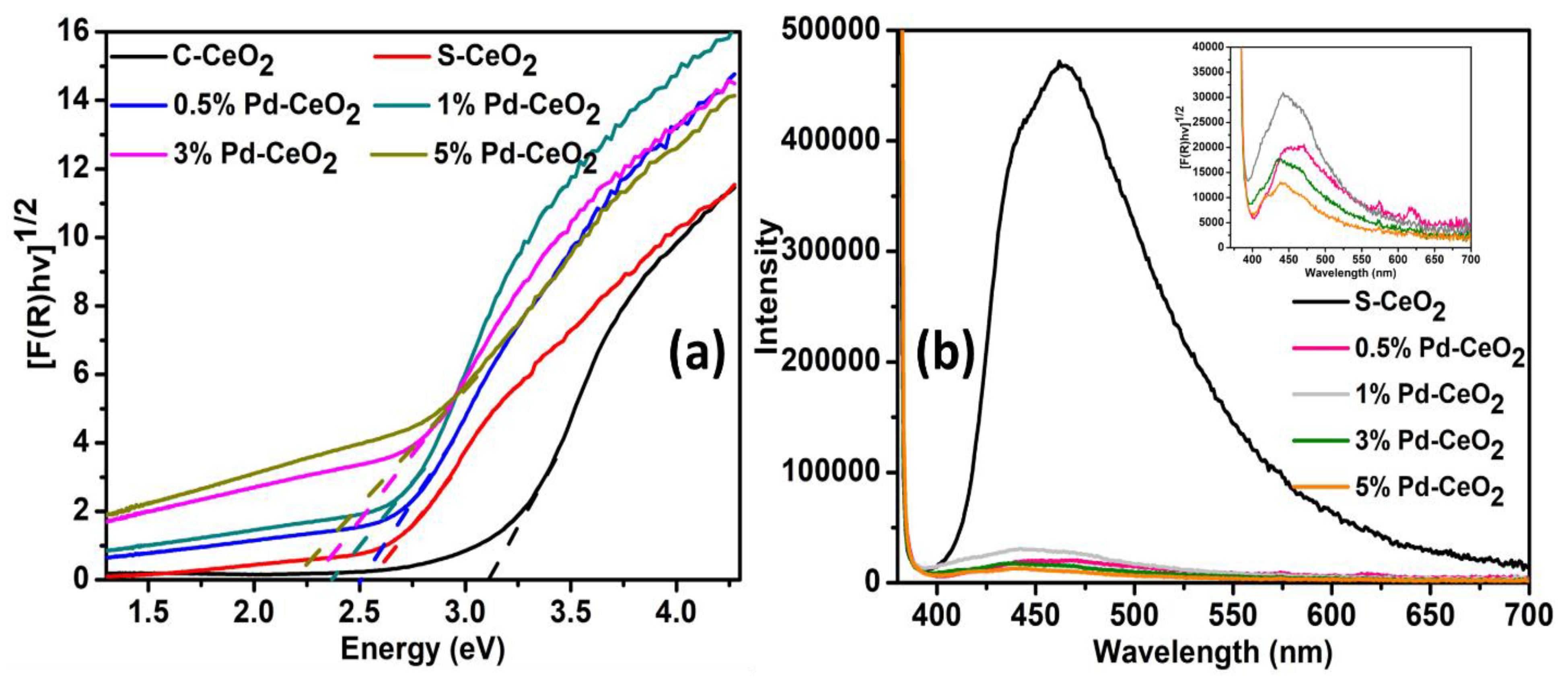

UV-Vis DRS analysis is used to estimate the band gap energies of S−CeO₂ and Pd−CeO₂ NPs. The Tauc plot derived from the Kubelka–Munk function is shown in Figure 4a. The band gap energies of all samples were estimated using the Kubelka–Munk Equation (3):

$$\mathrm{F}\left(R\right)={\left(\frac{{\left(1-R\right)}^2}{2R}\times h\nu \right)}^{\frac{1}{2}}$$

(3)

where R is the measured absolute reflectance of the samples. The band gap was obtained from the plots of [F(R)hv]^1/2 versus hv, as the intercept of the extrapolated linear part of the plot at [F(R)hv]^1/2 = 0, assuming that the absorption coefficient (α) is proportional to the Kubelka-Munk function F(R).

The band gap energy of C−CeO₂, S−CeO₂, 0.5% Pd−CeO₂, 1% Pd−CeO₂, 3% Pd−CeO₂, and 5% Pd−CeO₂ NPs were found to be decreasing (3.10 to 2.27 eV) as shown in

Table 3. Band gap energy of C−CeO₂, S−CeO_2, and Pd−CeO₂ NPs.

Sample	Band Gap Energy (eV)
C−CeO2	3.10
S−CeO2	2.56
0.5% Pd−CeO2	2.50
1% Pd−CeO2	2.47
3% Pd−CeO2	2.42
5% Pd−CeO2	2.27

. This shows that Pd doping is proven to decrease the band gap energy of the CeO₂. Pd doping is reported to help in reducing the energy difference between a CB and VB of CeO₂, which enhances the electronic conductivity of CeO₂. Moreover, oxygen vacancies (V_o) might be produced at the interface between the grains of Pd−CeO₂ NPs. Furthermore, the absorption edge of C−CeO₂, S−CeO₂, 0.5% Pd−CeO₂, 1% Pd−CeO₂, 3% Pd−CeO₂, and 5% Pd−CeO₂ NPs were greatly shifted into the visible region with the Pd doping as shown in Figure 4a.

PL is used to evaluate the optical study of the crystals, defects on the surface and excitation fine structure of the semi-conducting materials. PL intensity describes the lifetime of electron relaxation from the VB to the CB, as well as the separation efficiency of photogenerated e⁻/h⁺ [43]. From Figure 4b, the PL intensity was decreased with more Pd doping concentration. This indicates that Pd doping can efficiently inhibit the e⁻/h⁺ recombination process due to the electron or hole trap levels (in this case, Pd²⁺/Pd³⁺ or Pd⁺/Pd²⁺) in the band structure of CeO₂. Moreover, the reduction in peak intensity might be due to the formation of more oxygen defects, increased surface defects, as well as maximum separation of charge carriers [44].

2.5. Transmission Electron Microscopy Analysis of CeO₂ and Pd−CeO₂ NPs

Figure 5 exhibits the TEM, HR-TEM, and SAED images of S−CeO₂, 0.5%, and 5% Pd−CeO₂ NPs. Both S−CeO₂ and Pd−CeO₂ (Figure 5a,d and g) have almost spherical morphology. At the same time, a rod-like structure was observed for S−CeO₂ NPs only. The average particle sizes of S−CeO₂, 0.5% Pd−CeO₂, and 5% Pd−CeO₂ are about 13, 9, and 6 nm, respectively. This shows that the incorporation of Pd into the lattice of CeO₂ decreased the particle size. The d-spacing value of the lattice planes was also determined from the HR-TEM images (Figure 5b,e,h). The d-spacing values for S−CeO₂, 0.5% Pd−CeO_2, and 5% Pd−CeO₂ NPs are estimated to be around 0.3, 0.2 and 0.1 nm, which corresponds to the (111), (200), and (220) planes of a fluorite-structure of cubic CeO₂ [45]. This is in accordance with the XRD analysis (Section 2.1).

Moreover, the nano-crystallinity of S−CeO₂ and Pd−CeO₂ NPs were examined by selected area electron diffraction (SAED) analysis, as shown in Figure 5c,f and i. It was observed that S−CeO₂, 0.5%, and 5% Pd−CeO₂ exhibit four prominent broad rings, which can be attributed to the (111), (200), (220), and (311) reflections of the fluorite cubic CeO₂ structure. This observation is supported by the XRD patterns reported earlier (Section 2.1).

The EDX mapping images shown in Figure S2a–c confirmed the presence of Ce, O, and Pd in S−CeO₂, 0.5%, and 5% Pd−CeO₂ NPs, respectively. The percentage of Ce was seen to decrease with more Pd content. The percentage mass of Ce, O, and Pd can be found in Table S1. This shows that Pd has been successfully incorporated into the CeO₂ lattice.

3. Applications

3.1. Photocatalytic Degradation of MB

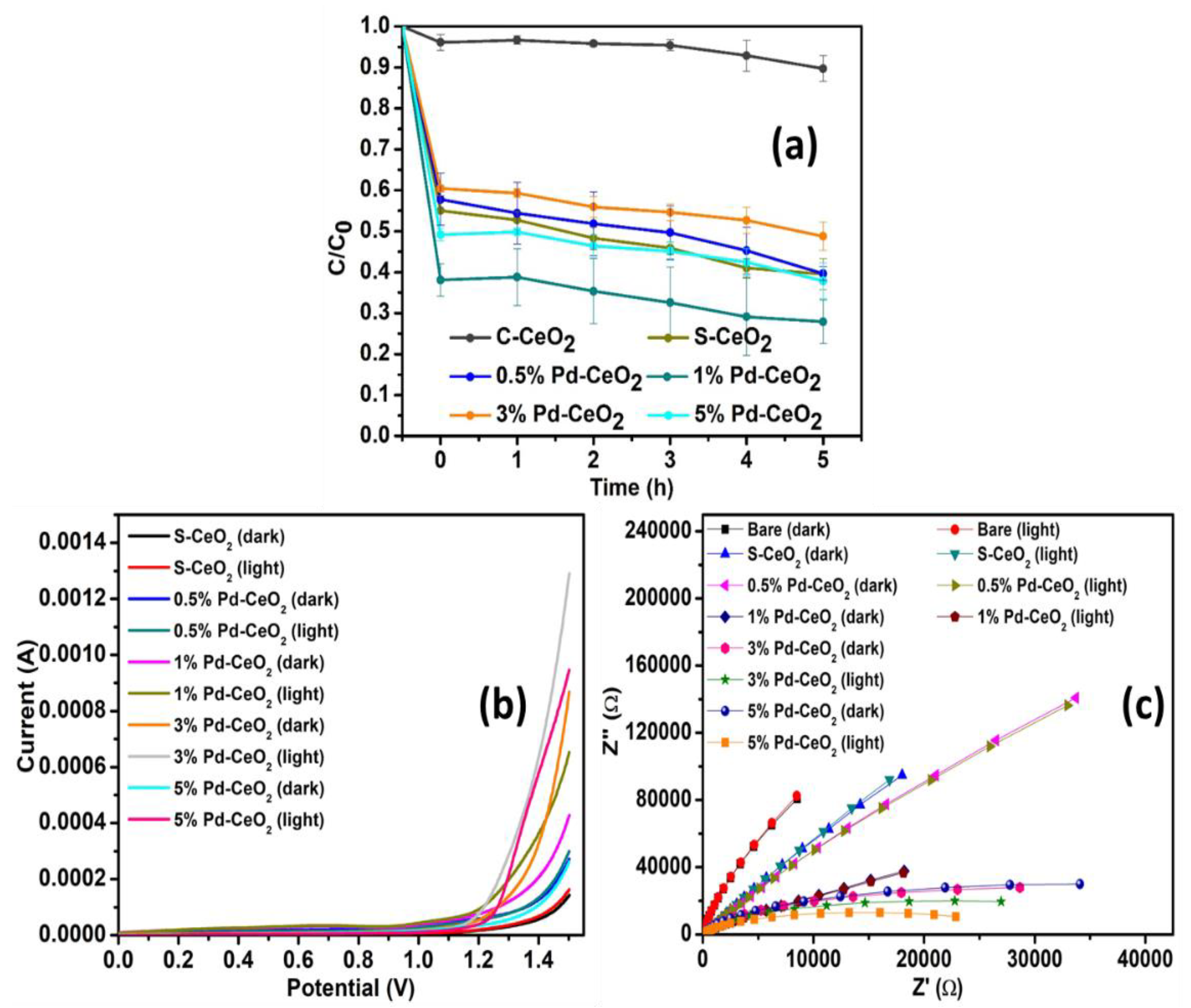

The photocatalytic degradation of MB using S−CeO₂ and Pd−CeO₂ NPs was carried out under visible light irradiation in a total experiment duration of 5 h. The activity of C−CeO₂ against MB dye under visible light was also investigated to compare the photocatalytic efficiency with the synthesized materials. Figure 6a shows the average C/C₀ of the photocatalytic degradation of MB using C−CeO₂, S−CeO₂, and Pd−CeO₂ NPs, while the average percentage of the photocatalytic degradation of MB and the absorption spectra of MB within 5 h can be seen in Figures S3 and S4, respectively. Based on the study, adsorption-desorption equilibrium was reached in 30 min, in which C−CeO₂ showed a slight adsorption capacity. About 39–61% adsorption was reached for the synthesized materials suggesting that the addition of Pd effectively increases the affinity of MB molecules towards photocatalysts [46]. The enhanced adsorption is also driven by the increase in the surface area contributed by significantly reduced particle size [46].

The effectiveness of the photocatalysts in the photocatalytic degradation of MB was seen as follows: 1% Pd−CeO₂ > 5% Pd−CeO₂ > S−CeO₂ > 0.5% Pd−CeO₂ > 3% Pd−CeO₂ > C−CeO₂. A small response from C−CeO₂ might be due to the larger band gap energy, which was found to be 3.10 eV. Moreover, 3% Pd−CeO₂ and 0.5% Pd−CeO₂ also showed lower responses despite their lower band gap energies. This might be due to variations in particle size, which resulted in lower responses in the photocatalytic activity. In addition to that, a smaller surface area might also lead to less active sites present on the surface of the photocatalysts [47]. S−CeO₂ and 5% Pd−CeO₂ showed almost similar activities. The activity of S−CeO₂ was higher than some of the materials, which might be due to the mixed CeO₂/Ce₂O₃ phases, as shown in Figure 1a. The presence of both phases can ease the redox reaction between Ce³⁺ and Ce⁴⁺, which causes the photocatalytic activities to increase [48,49,50]. Choudhury et al. also stated that an electron from Ce³⁺ can be transferred to adsorbed oxygen to form reactive oxygen species (ROS), i.e., superoxide radicals (O₂^•−), whereas holes interact with water to form hydroxyl radicals (^•OH) [51]. In addition, the e⁻ in the CB can be trapped by oxygen vacancies and then react with O₂ to form O₂^•−. These radicals are involved in the degradation of MB into harmless products [52]. Recombination of photogenerated e⁻ and h⁺ was restrained through the Ce³⁺/Ce⁴⁺ redox and oxygen vacancies which finally improved the photocatalytic performance of the Pd−CeO₂ materials [53]. Moreover, smaller particle size as well as low band gap energy also effectively increased the photocatalytic activity [54]. Nevertheless, 5% Pd−CeO₂ showed a slightly better performance than S−CeO₂ due to its smaller particle size and band gap energy. Accordingly, 1% Pd−CeO₂ showed the highest response, which might be due to the optimum Pd loading. This shows that a further increase in doping does not enhance the photocatalytic degradation of MB [46].

Table 4. The average percentage MB dye degradation using C−CeO₂, S−CeO_2, and Pd−CeO₂ under visible light irradiation.

	C−CeO2	S−CeO2	0.5% Pd−CeO2	1% Pd−CeO2	3% Pd−CeO2	5% Pd−CeO2
0 h	3.87 ± 1.94	44.92 ± 3.60	42.21 ± 6.34	61.87 ± 3.97	39.57 ± 0.81	50.83 ± 1.52
1 h	3.33 ± 1.04	47.22 ± 2.06	45.58 ± 7.54	61.20 ± 6.92	40.67 ± 1.03	50.18 ± 0.80
2 h	4.19 ± 0.66	51.69 ± 2.77	48.19 ± 7.73	64.63 ± 7.92	44.07 ± 2.50	53.62 ± 2.72
3 h	4.57 ± 1.33	54.13 ± 1.52	50.35 ± 6.55	67.42 ± 8.64	45.36 ± 2.02	54.85 ± 2.15
4 h	7.12 ± 3.82	58.99 ± 2.29	54.72 ± 5.71	70.87 ± 9.48	47.31 ± 3.19	57.56 ± 3.31
5 h	10.28 ± 3.13	60.48 ± 3.76	60.33 ± 1.76	72.07 ± 5.34	51.20 ± 3.47	62.10 ± 4.27

summarizes the average percentage of photocatalytic degradation of MB activities using S−CeO₂ and Pd−CeO₂ NPs under visible light irradiation.

3.2. Photoelectrochemical Studies of Pd−CeO₂ NPs

The electrochemical and photoelectrochemical studies of S−CeO₂ and Pd−CeO₂ NPs were analyzed using LSV and EIS. Figure 6b shows the LSV analysis carried out in the dark and under visible light at 100 mV/s in the range of −0.7–1.5 V. S−CeO₂ showed the lowest photocurrent, and 5% Pd−CeO₂ showed the highest photocurrent. As the doping percentage increases (Figure 6b), the photocurrent response also increases. Each material, respectively, showed a higher response under visible light irradiation as compared to their response in the dark, suggesting that the materials were light-responsive. The improvement in the photocurrent response in Pd−CeO₂ was attributed to the light absorption ability due to the creation of a mid-gap state which lowered the band gap energy [55]. The band gap energy of Pd−CeO₂ was narrowed with higher Pd doping, in which the valence electrons can be excited to the conduction band state by absorbing light. It is stated that the e⁻/h⁺ pairs will recombine unless they are separated quickly [56]. In general, a high photocurrent suggests that the material has a strong ability for the generation and transfer of the photoexcited charge carrier under light irradiation [57]. Therefore, in this case, 5% Pd−CeO₂ exhibits better electron-hole separation, and it might be excited easily by visible light.

EIS was performed in the dark and under visible light irradiation at 0.0 V with a frequency ranging from 1–10⁶ Hz (Figure 6c). The EIS Nyquist plots show the charge transfer resistance and separation efficiency between the photogenerated electrons and holes [58]. In general, a small arc radius and low resistance indicate higher charge transfer efficiency [55]. S−CeO₂ showed the highest resistance, followed by 0.5% and 1% Pd−CeO₂ indicating the slow interfacial charge-transfer process. This response might be due to their high band gap energies. In each case, there was no significant decrease in the resistance under visible light, which suggests that the transfer efficiency of the photogenerated electrons and holes was not accelerated under light irradiation. On the other hand, 3% Pd−CeO₂ and 5% Pd−CeO₂ showed significant responses, especially under visible light irradiation. This suggests that lower resistances derived from both 3% and 5% Pd−CeO₂ show a faster interfacial charge-transfer process. Other factors can also facilitate charge separation and transfer efficiency, such as the presence of Ce³⁺ and oxygen vacancies [55].

3.3. Antibacterial Activities of Pd−CeO₂ NPs

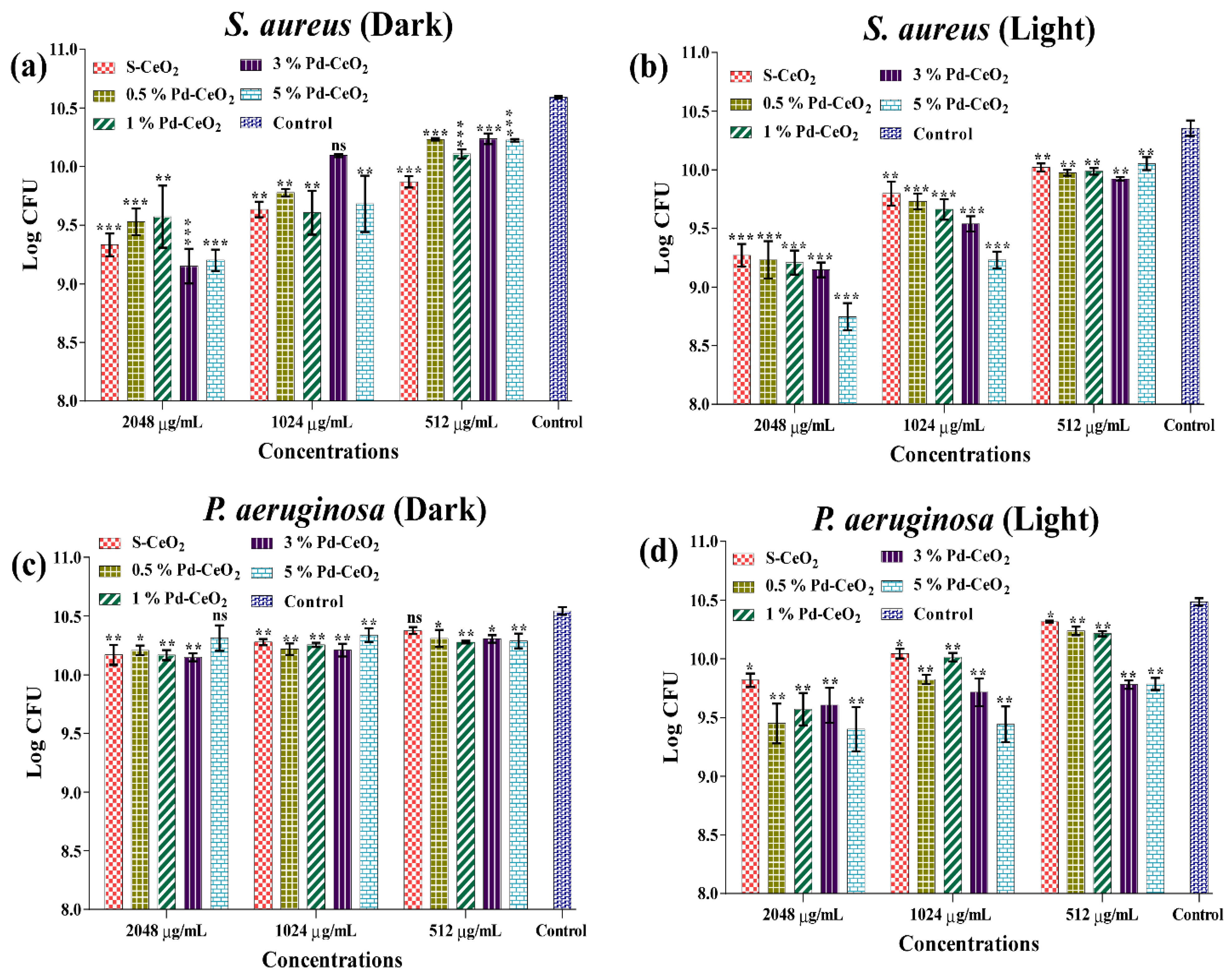

The effect of bactericidal activities of S−CeO₂ NPs and Pd−CeO₂ NPs was examined against one Gram-positive bacteria (i.e., S. aureus) and another against Gram−negative pathogenic bacteria (i.e., P. aeruginosa). Since the synthesized NPs are light sensitive, the antibacterial activities were performed in the absence and presence of light. The antibacterial effect of Pd−CeO₂ and S−CeO₂ NPs under light and dark conditions is shown in Figure 7. The results showed that both S−CeO₂ NPs and Pd−CeO₂NPs exhibit concentration-dependent inhibitions of S. aureus growth under light or dark conditions (Figure 7a,b). At a high concentration of 2048 µg/mL in the dark, the growth inhibition of S. aureus cells was found to be higher (reduction of 1.3 log CFU) in the presence of 5% Pd−CeO₂ NPs as compared to the CeO₂ NPs (reduction of 1.2 log CFU) (Figure 7a). Similarly, in the presence of light at 2048 µg/mL, the antibacterial effect of 5% Pd−CeO₂ NPs was also found to be higher (reduction of 1.6 log CFU) as compared to the S−CeO₂ NPs (reductions 1.0 log CFU) (Figure 7b). The bactericidal effect of CeO₂ NPs was found to be higher in the presence of light as compared to dark conditions. This finding suggests that light enhances the bactericidal effect of CeO₂ NPs towards Gram-positive bacteria S. aureus.

The antibacterial effect of S−CeO₂ NPs and Pd−CeO₂ NPs on P. aeruginosa was found to be different as compared to S. aureus (Figure 7c,d). There was no concentration-dependent inhibition of P. aeruginosa cell growth in the presence of light and dark conditions. The growth inhibition at the higher concentration (2048 µg/mL) and dark conditions was found to be non-significant in the presence of 5% Pd−CeO₂ NPs as compared to the S−CeO₂ NPs (Figure 7c). The results in the presence of light were found to be significantly effective at all tested concentrations of S−CeO₂ NPs and Pd−CeO₂ NPs (Figure 7d).

In the presence of light and high concentration (2048 µg/mL), the 5% Pd−CeO₂ NPs showed a significant reduction of P. aeruginosa cells (1.0 log CFU) compared to the S−CeO₂ NPs (0.6 log CFU). Based on the findings of the present study, it is clear that light acts as a sensitizing agent, which results in the enhanced antibacterial activity of CeO₂ NPs as compared to dark conditions. Previous research has shown that UV light irradiation causes the formation of reactive oxygen species (ROS) such as ^•OH, O₂^•−, and singlet oxygen (O⁻) from metal-NPs [59,60,61,62]. This evidence can be explained in the current study by the possibility of ROS generation during the photocatalytic degradation of the MB experiment (Section 3.1). In addition, Pd-doping will also result in the enhanced antibacterial effect of CeO₂ NPs, and the effect was increased with the increasing concentration of Pd. Overall, these effects were found to be more effective towards Gram-positive bacteria S. aureus than the Gram-negative pathogen P. aeruginosa.

In general, the antibacterial activity of metal oxides is associated with the release of metal ions from metal oxides. It is reported that metal ions are involved in the destruction of the bacterial cell and membrane [63]. This could lead to the possibility of metal oxides penetrating the cell. In the case of CeO₂, CeO₂ dissociates into Ce⁴⁺ ions (most of the time under irradiation of visible light) and interacts with the bacterial cell and penetrates the cell [64]. This might lead to changes in cell integrity, lactate dehydrogenase leakage and cell death. Moreover, the generation of ROS is also responsible for antibacterial activity [65]. When CeO₂ is irradiated with light, e⁻ are promoted to CB and reacted with molecular oxygen to form O₂^•−. The photogenerated h⁺ reacts with H₂O molecules on the surface of CeO₂ to form ^•OH radicals. These two radicals are believed to be contributing significantly to the destruction of the bacterial cell membrane [60].

4. Experimental

4.1. Chemicals, Bacterial Strain, Culture Media, and Growth Conditions

Cerium(III) nitrate hexahydrate 98% (Ce(NO₃)₃·6H₂O) and commercial CeO₂ (C−CeO₂) were purchased from Sigma-Aldrich whereas, palladium(II) chloride anhydrous (PdCl₂) was obtained from Fluka. Water was purified using Aquatron (England) prior to use. For photocatalytic degradation of MB and photoelectrochemical studies, MB and NaCl were obtained from Merck. For electrode preparation, ethanol (95%), ethyl cellulose 48–49.5% (w/w) ethoxy basis, and alpha-terpineol were obtained from Daejung Chemicals and Metals Co., Ltd., Sigma-Aldrich and Merck, respectively. The bacterial strain S. aureus KCTC 1916 (Gram-positive) and P. aeruginosa KCTC 1637 (Gram-negative) were purchased from the Korean Collection for Type Cultures (KCTC, Daejeon, Korea). The bacteria were cultivated using Tryptic soy broth (TSB) and a TSB agar plate (Difco Laboratory Inc., Detroit, MI, USA). The growth temperature of the bacterial strain was 37 °C under aerobic conditions.

4.2. Instrumentations

CeO₂ and (0.5, 1, 3, and 5%) Pd−doped CeO₂ NPs were synthesized using a microwave-assisted method (Anton Paar Monowave 400, Graz, Austria). Fourier Transform-Infrared Spectroscopy (FT-IR) was used to identify the possible functional groups present in the synthesized CeO₂ and Pd−CeO₂ NPs using Shimadzu IRPrestige-21 FT-IR Spectrophotometer. The stretching frequencies obtained were plotted as %transmittance mode on the y-axis and wavenumber (cm⁻¹) on the x-axis from 450 to 4000 cm⁻¹. The morphology, structure, and elemental mapping were analyzed using field emission transmission electron microscopy (FE-TEM) and selected area electron diffraction (SAED) using JEM-F200 (JEOL Ltd., Tokyo, Japan). The determination of band gap energy of S−CeO₂ and Pd−CeO₂ NPs was investigated using UV-Vis diffuse reflectance spectroscopy (DRS) (Shimadzu, UV-2600, Tokyo, Japan). A photoluminescence (PL) study was carried out using F-7000 Fluorescence spectroscopy (Hitachi High Tech, Tokyo, Japan) with an excitation wavelength of 370 nm. X-ray photoelectron spectroscopy (XPS) and valence band (VB)-XPS were performed (Kratos Analytical, AXIS Nova, Manchester, UK). Photocatalytic activities of MB dye degradation were carried out using a photochemical reactor Toption (TOPT-V) having a 300 W Xenon lamp, and the photocatalytic degradation of MB was monitored using UV–visible spectrophotometer (Shimadzu UV-1900, Japan). Photoelectrochemical studies were performed using Autolab (MetroHm, Herisau, Switzerland) under dark and visible light irradiation (Simon FL30 LED Floodlight, 100 W, Jiangsu, China). The measurements were carried out and taken from NOVA software. Photoantibacterial studies of S−CeO₂ and Pd−CeO₂ NPs were investigated using a 96-well microplate in the presence of the LED light (One & One Plus OP-0303 Nape Slim LED Stand).

4.3. Microwave-Assisted Synthesis of Cerium Oxide Nanoparticles

CeO₂ NPs were synthesized using the microwave-assisted method. Briefly, 0.05 M of Ce(NO₃)₃·6H₂O solution (15 mL) was prepared in a microwave vessel. Exactly 2.4 mL of 1 M NaOH was added dropwise into the solution. Subsequently, the microwave reaction was carried out at 180 °C for 15 min at 850 W microwave power. The precipitate formed was centrifuged and washed three times with water before it was dried at 80 °C. The product was stored and labeled as S−CeO₂.

4.4. Microwave-Assisted Synthesis of Pd−CeO₂ Nanoparticles

Pd−CeO₂ NPs were synthesized using the same method as mentioned above. A 15 mL of 0.05 M Ce(NO₃)₃ solution was prepared. A specific amount of PdCl₂ was then added to prepare 0.5, 1, 3, and 5% Pd−CeO₂. Subsequently, 1 M NaOH was added dropwise into the solution. The microwave reaction was carried out at 180 °C for 15 min at 850 W microwave power. The precipitate was formed, centrifuged, and washed three times with water before it was dried at 80 °C. The products were stored and labeled as 0.5% Pd−CeO₂, 1% Pd−CeO₂, 3% Pd−CeO₂, and 5% Pd−CeO₂ for further use.

4.5. Electrode Preparation

S−CeO₂, 0.5%, 1%, 3%, and 5% Pd−CeO₂ electrodes were prepared using the doctor blade method. In brief, 25 mg of the respective sample was mixed with 0.5 mL ethanol and 0.5 mL α-terpineol. The mixture was sonicated for 10 min. Then, 25 mg of ethyl cellulose was added to the mixture and stirred at 80 °C for ~2 h to produce a thick paste. The paste was then spread on fluorine-doped tin oxide (FTO) glass electrode by 2 cm × 1 cm using a doctor blade. The glass electrode was dried at 80 °C for 24 h prior to use.

4.6. Photocatalytic Degradation of MB Dye

The photocatalytic degradation of MB dye using S−CeO₂ and Pd−CeO₂ NPs under visible light irradiation was monitored using UV-Vis spectroscopy. Exactly 10 mg of S−CeO₂ and 0.5, 1, 3, and 5% Pd−CeO₂ NPs were dispersed in 50 mL of 10 ppm MB dye solution. The sample mixture was stirred in the dark for 30 min to reach adsorption-desorption equilibrium. Then, the reaction tubes were irradiated with visible light (300 W) for 5 h in which the absorbance of the solution was measured every 1 h. The percentage of photocatalytic dye degradation of MB was obtained using Equation (4):

$$\% \mathrm{photocatalytic} \mathrm{MB} \mathrm{dye} \mathrm{degradation}=\frac{\left({\mathrm{A}}_{\mathrm{blank}}-{\mathrm{A}}_{\mathrm{sample}}\right)}{{\mathrm{A}}_{\mathrm{blank}}}\times 100$$

(4)

where A_blank is the absorbance of MB only and A_sample is the absorbance of MB dye after photocatalytic degradation by the photocatalyst.

4.7. Photoelectrochemical Studies

The photoelectrochemical response of S−CeO₂ and Pd−CeO₂ NPs was examined through linear sweep voltammetry (LSV) and electrochemical impedance spectroscopy (EIS) experiments. The experiments were carried out under ambient conditions in the dark and under visible light irradiation (LED, 100 W) in 100 mL of a 1 M NaCl aqueous electrolyte solution. The distance between the light and reactor vial was 22 cm. The prepared glass electrode, Ag/AgCl electrode, and Pt electrode were used as the working electrode, reference electrode, and counter electrode, respectively. For each electrode, LSV and EIS were performed in the dark and later under visible light irradiation at 100 mV/s in the potential range of −0.7–1.5 V and at 0.0 V with a frequency ranging from 1–10⁶ Hz, respectively.

4.8. Assays for Antibacterial Activities of Pd−CeO₂ Nanoparticles

A single colony from the agar plate of each bacterium was inoculated in the TSB and incubated for 12 h at 37 °C under shaking conditions (250 rpm). The seed culture was diluted into fresh TSB in order to achieve the final OD₆₀₀ ~0.05. The diluted cell culture (300 µL) was placed in a 96-well microtiter plate and treated with different concentrations of S−CeO₂ and 0.5, 1, 3, and 5% Pd−CeO₂ NPs. The concentrations of these NPs ranged from 265 to 2048 µg/mL. Two sets of microtiter plates were prepared to contain different concentrations of NPs. One set of microplates was incubated in the dark for 24 h at 37 °C. The second set of the microplates was incubated in the presence of LED light that was set at the height of 27 cm for 24 h at 37 °C. After incubation, the cell culture (100 µL) was transferred into another 96-well microplate containing 200 µL sterile TSB. A two-fold serial dilution (up to 10⁻⁸ dilutions) of the cell culture was carried out. The serially diluted cell culture (100 µL) was spread-plated on the TSA plates. The TSA plates were incubated at 37 °C for 24 h, followed by the counting of the total colonies. The log colony forming unit (CFU) values of treated and untreated cells were calculated. All the experiments were carried out in triplicate.

5. Conclusions

S−CeO₂ and 0.5, 1, 3, and 5% Pd−CeO₂ NPs were successfully synthesized using the microwave-assisted method. Mixed phases of CeO₂/Ce₂O₃ were obtained in S−CeO₂ and 0.5, 1, and 3% Pd−CeO₂. However, there were no mixed phases observed in 5% Pd−CeO₂ NPs. Average crystallite sizes were found to be between 16.25–37.25 nm. Based on the TEM images, irregularly spherical shaped S−CeO₂ and Pd−CeO₂ NPs were observed with an average particle size between 6 and 13 nm. The band gap energy of S−CeO₂ decreased with the addition of higher Pd content, in which the band gap narrowing phenomena was illustrated through the DOS scheme. One percent of Pd−CeO₂ NPs showed enhanced responses under visible light irradiation in photocatalytic degradation of MB. Meanwhile, 5% Pd−CeO₂ showed enhanced responses in photoelectrochemical and photoantibacterial activities. Therefore, Pd−CeO₂ has shown visible light active properties and can be potentially used in photocatalysis and photoantibacterial applications.
