Article

First Examples of Reactions of 3-Trimethylsilyl-2-Propynamides and Organic Diselenides: Synthesis of Novel Derivatives of Propynamides

by
Mikhail V. Andreev
,
Vladimir A. Potapov
*,
Maxim V. Musalov
and
Lyudmila I. Larina
A. E. Favorsky Irkutsk Institute of Chemistry, Siberian Division of The Russian Academy of Sciences, 1 Favorsky Str., Irkutsk 664033, Russia
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(10), 1326; https://doi.org/10.3390/catal13101326
Submission received: 17 August 2023 / Revised: 23 September 2023 / Accepted: 25 September 2023 / Published: 28 September 2023

Abstract

:
First examples of the reactions of 3-trimethylsilyl-2-propynamides with organic diselenides yielding 3-alkylselanyl-2-propenamides and 3-organylselanyl-2-propynamides were realized. The latter compounds were obtained by the Cu-catalyzed reaction of organic diselenides with 4-propioloylmorpholine. The reaction of 3-trimethylsilyl-2-propynamides with dialkyl diselenides in the system NaBH4/H2O/K2CO3/THF proceeded in a regio- and stereoselective fashion, affording 3-alkylselanyl-2-propenamides in 90–94% yields. An unsymmetrical divinyl selenide with the cyclic amide groups and a product, containing two selanyl-2-propenamide moieties and three cyclic amide groups, were synthesized. The Cu-catalyzed allylation reaction of 3-trimethylsilyl-2-propynamides was accompanied with desilylation to yield 3-allyl-2-propynamides.

1. Introduction

Selenium is an essential trace element for humans. A number of selenium-containing enzymes (e.g., glutathione peroxidase) have been discovered [1,2,3,4,5]. Glutathione peroxidase plays an important role in the human body, protecting the body from oxidative damage and supporting the antioxidant-antiradical defense system [1,2,3,4,5].

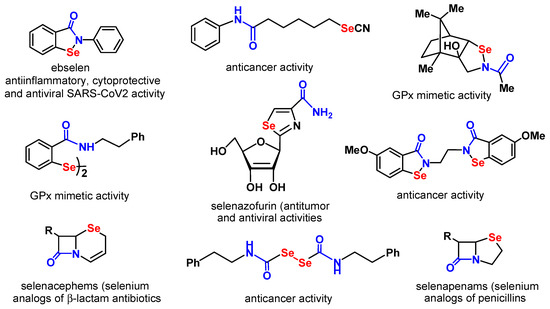

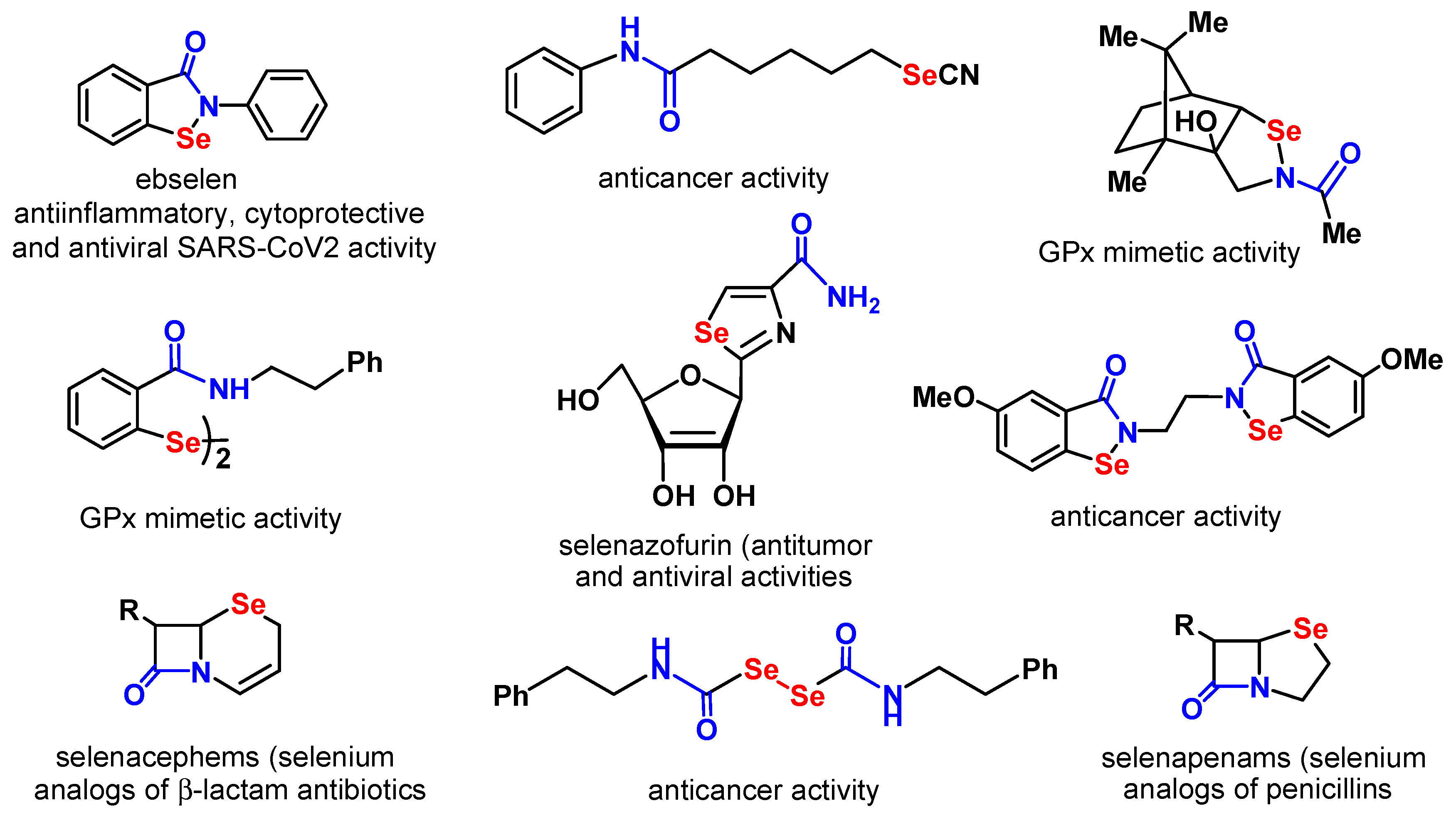

Organoselenium compounds exhibit a variety of biological activities [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22] including antitumor [10,11,12,13], antibacterial [13,14], antiviral [15,16] and glutathione peroxidase mimetic properties [17,18,19].
The most studied in terms of biological activity is 2-phenyl-1,2-benzoselenazol-3(2H)-one (ebselen). This well-known selenium-containing heterocyclic drug exhibits anti-inflammatory, neuroprotective and glutathione peroxidase mimetic properties [22,23,24,25,26]. Interestingly, ebselen also inhibits the SARS-CoV-2 viral replication [25,26]. This compound has been investigated in clinical trials as a therapeutic agent for the treatment of a number of diseases including COVID-19, hearing loss and bipolar disorder [22,23].
An important structural feature of ebselen is the presence of an amide group in its molecule. Some functional derivatives of ebselen are superior to this drug in glutathione peroxidase mimetic activity [22,23]. Along with ebselen and its functional derivatives, a number of biologically relevant organoselenium compounds contain the amide group in their structure (Figure 1). The presence of the amide group in organoselenium compounds is considered as a favorable circumstance for the possible manifestation of biological activity [21,22].
An important achievement in the synthetic organoselenium chemistry is the development of effective methods for the preparation of selenium analogs of β-lactam antibiotics−selenacephems and selenium analogs of penicillins−selenapenams (Figure 1) [21,22].
The synthesis of various functionalized organoselenium compounds with the amide group and studying their properties is a promising area of research. In this work, we developed the synthesis of vinylic and acetylenic selenides with the amide group based on 3-trimethylsilyl-2-propynamides and organic diselenides. The first examples of reactions of organic diselenides with 3-trimethylsilyl-2-propynamides were realized. The reactions of 3-trimethylsilyl-2-propynamides were accompanied by the desilylation process. The copper-catalyzed allylation reaction of propynamides afforded 3-allyl-2-propynamides. The starting 3-trimethylsilyl-2-propynamides were prepared from 3-trimethylsilylpropiolic acid and amines according to methods previously developed at this institute [27].
It is worth noting that vinylic selenides are versatile intermediates for organic synthesis. Recently, vinyl and divinyl selenides have been served as useful starting materials in various reactions [28,29,30,31,32,33,34,35,36,37,38]. A variety of valuable products including resveratrol and some its analogs have been synthesized based on vinyl and divinyl selenides [28,29,30,31,32,33,34,35,36,37,38].
The synthesis of various vinylic selenides is within the scope of our scientific interests, and a number of effective methods for the preparation of functionalized vinyl and divinyl selenides, including unsubstituted divinyl selenide, have been previously developed [39,40,41,42,43,44,45,46].

2. Results and Discussion

Most of the catalytic reactions of 3-trimethylsilyl-2-propynamides and 2-propynamides have not yet been investigated, and we continue to study the chemical properties of these compounds.
The goal of this work is to implement the first examples of the reactions of 3-trimethylsilyl-2-propynamides and organic diselenides and to develop an effective and selective synthesis of the first representatives of 3-alkylselanyl-2-propenamides and 3-organylselanyl-2-propynamides (4-organylselanylprop-2-ynoylmorpholines), as well as allylacetylenes, containing the amide group at the triple bond.
The addition of alkylselenolate anions to 2-propynamides has not yet been reported. We have studied the nucleophilic addition reaction of alkylselenolates to 2-propynamides. Sodium benzyl- and butyl selenolates were generated from dibenzyl and dibutyl diselenides under the action of sodium borohydride. The reaction was carried out by portionwise addition of sodium borohydride to a solution of 3-trimethylsilyl-2-propynamides 1a or 1b and dibenzyl or dibutyl diselenides in THF containing some water to dissolve sodium borohydride. Experimental studies of this reaction showed that these conditions are favorable for the formation of the target products. The synthesis of compounds 3a and 3b was developed from dibutyl diselenide 2a and 3-trimethylsilyl-2-propynamides 1a and 1b in 94% and 90% yields, respectively (Scheme 1).

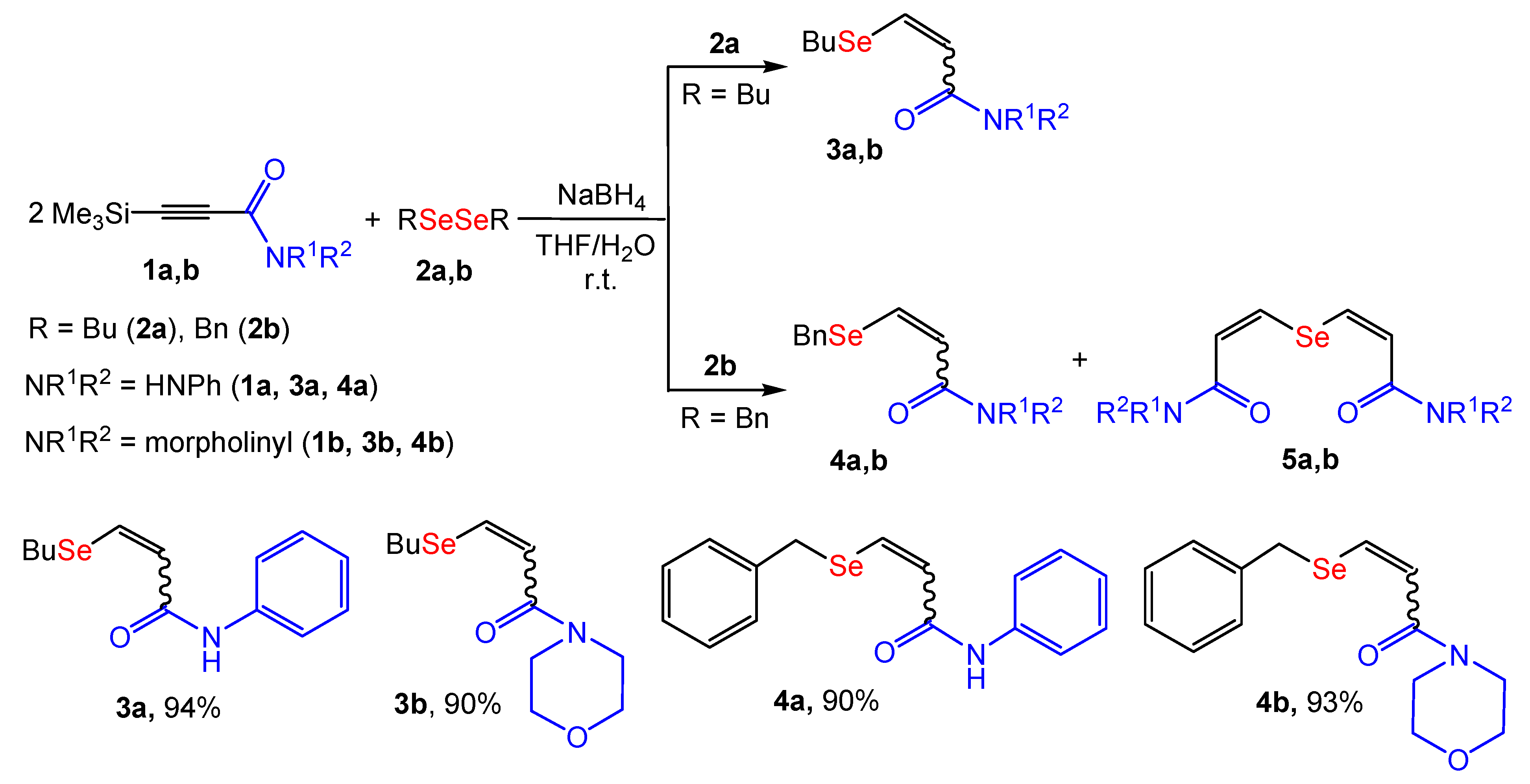

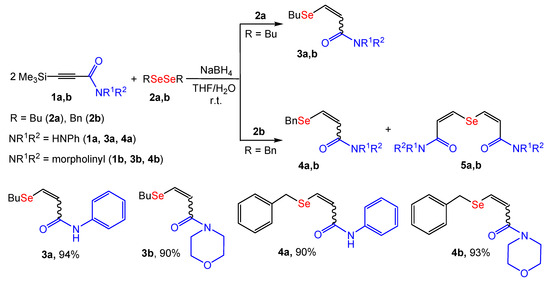

In the case of the reaction of 3-trimethylsilyl-2-propynamides 1a,b with dibenzyl diselenide 2b and sodium borohydride, along with the target products 4a,b, formed in high yields (90–93%), the formation of divinyl selenides 5a,b in 7–10% yields was observed (Scheme 1).

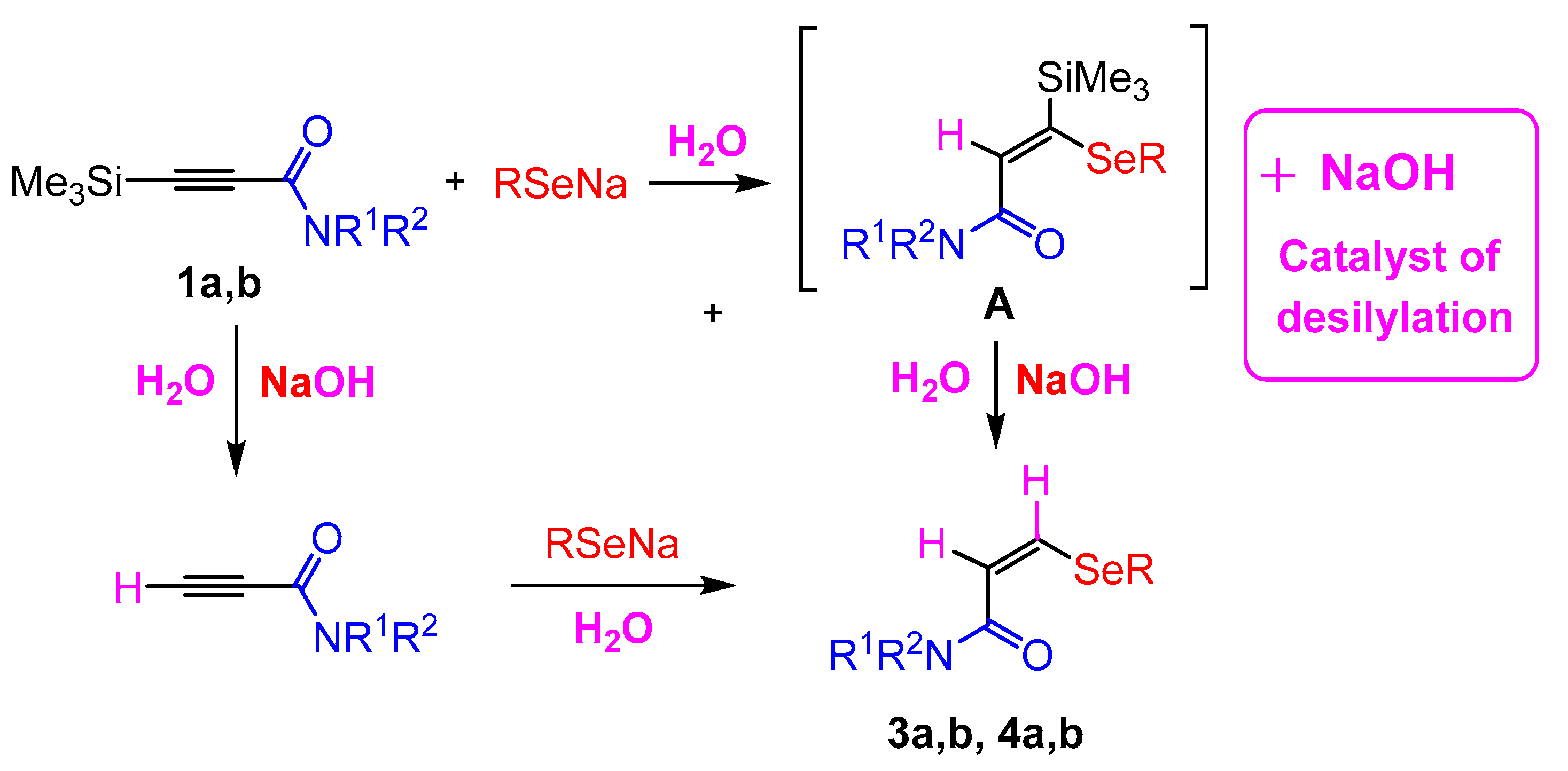

It was assumed that the formation of divinyl selenides 5a,b resulted from the reaction of sodium benzylselenolate with excess sodium borohydride, leading to the formation of some sodium selenide (Na2Se). We previously obtained selenides 5a,b in high yields through the nucleophilic addition of sodium selenide (generated from elemental selenium and NaBH4) to 3-trimethylsilyl-2-propynamides in a THF/water mixture at room temperature [40].
The reaction proceeded in a regio- and stereoselective fashion as anti-addition with the formation of the target product predominantly with (Z)-configuration. The content of (E)-isomers was less than 8% (Table 1). Table 1 shows the Z/E ratios of the products 3a,b and 4a,b formed in the reaction of propynamide 1a,b with diselenides 2a,b, as well as the Z/E ratio of these products in the fractions isolated by column chromatography on silica gel. The pure (Z)-isomers were isolated by column chromatography in the case of morpholine derivatives 3b and 4b (entries 2 and 4). The content of (E)-isomers in the samples of compounds 3a and 4a (entries 1 and 3) was less than 2% (practically pure (Z)-isomers). The (E)-isomer of product 4b was also isolated, containing less than 4% of the (Z)-isomer.
The process was accompanied by the desilylation of the trimethylsilyl group. This desilylation reaction proceeded under the action of water and was catalyzed by a base, sodium hydroxide, formed by the nucleophilic addition of sodium selenolates to the triple bond (Scheme 2).
The desilylation reaction of the trimethylsilyl group can occur in the starting 3-trimethylsilyl-2-propynamides 1a,b, as well as in the intermediate A, formed by the nucleophilic addition of sodium selenolates to the triple bond (Scheme 2).
Unsymmetrical divinyl selenides with the amide function at the double bond have not yet been described in the literature. We obtained unsymmetrical bis(3-amino-3-oxo-1-propenyl) selenide 9 in 66% yield from divinyl diselenide 6 and 3-trimethylsilyl-2-propynamide 8, containing a piperidine heterocycle in the amide function (Scheme 3).

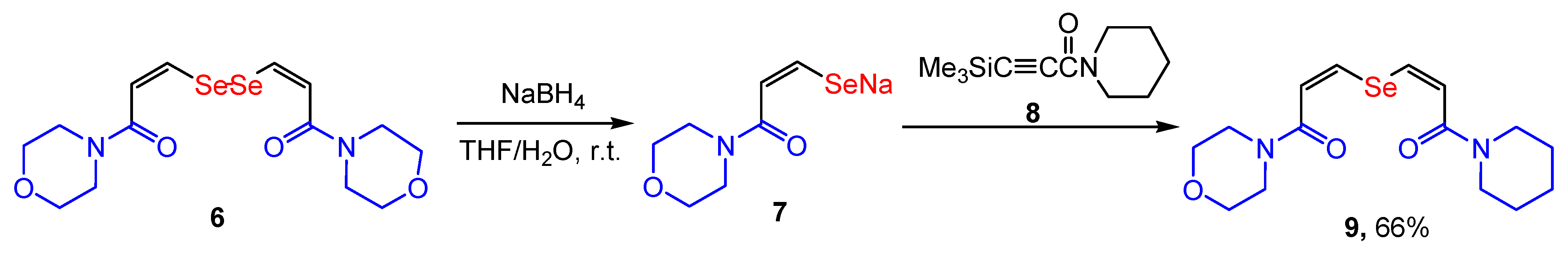

The reaction was carried out through the generation of sodium selenolate 7 from divinyl diselenide 6 under the action of sodium borohydride in a THF/water mixture, followed by the addition of 3-trimethylsilyl-2-propynamide 8 to the reaction mixture at room temperature (Scheme 3). We previously obtained diselenide 6 in a high yield through the nucleophilic addition of sodium diselenide to 3-trimethylsilyl-2-propynamides [39].

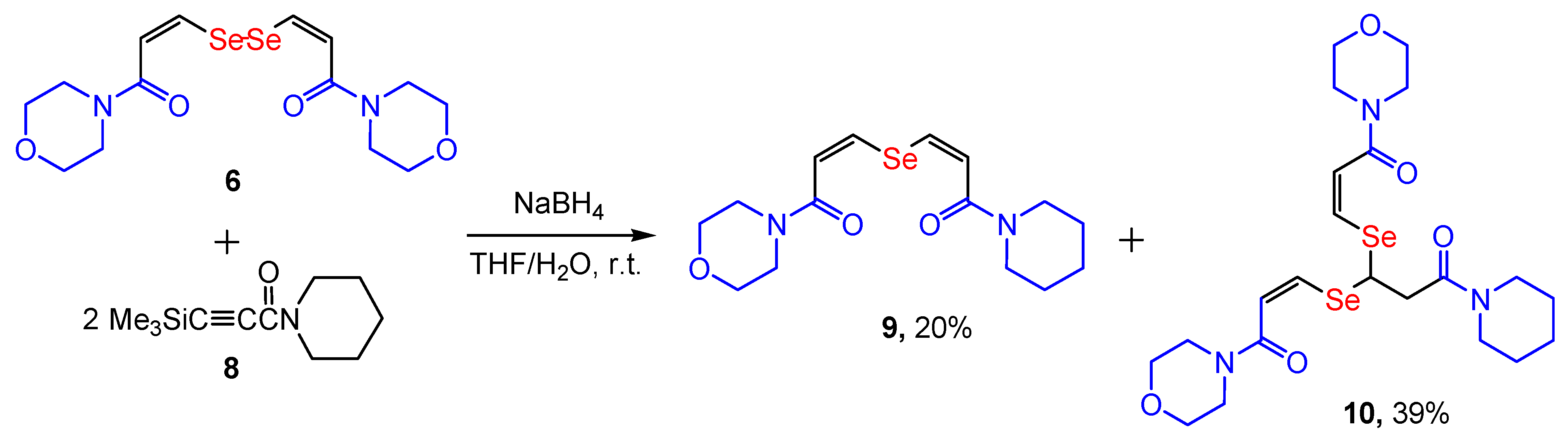

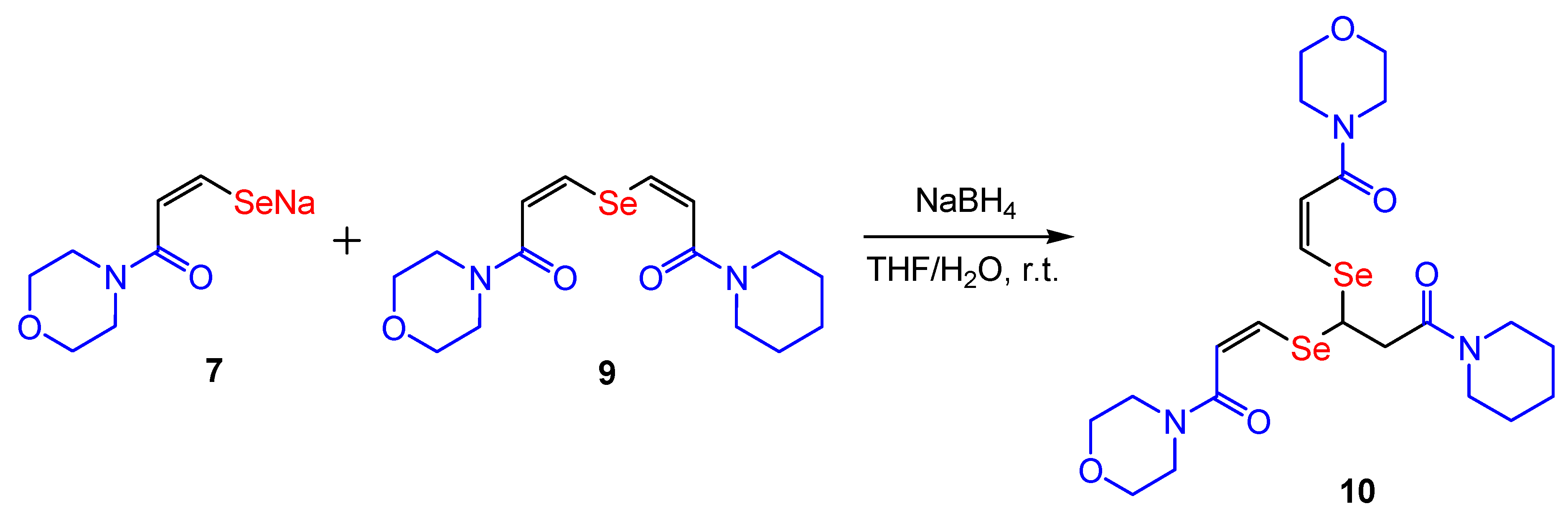

Conducting another experiment, we changed the sequence of adding reagents to the reaction mixture. Sodium borohydride was added portionwise to the solution of divinyl diselenide 6 and 3-trimethylsilyl-2-propynamide 8 in a THF/water mixture. In this case, along with unsymmetrical divinyl selenide 9, a very interesting compound 10 was obtained, containing two selanyl-2-propenamide moieties and three cyclic amide groups (Scheme 4).
The yields of compound 10 and unsymmetrical divinyl selenide 9 after purification by column chromatography were 39% and 20%, respectively (Scheme 5). It is assumed that the route of the formation of polyfunctional compound 10 involves the nucleophilic addition of sodium selenolate 7 (formed from divinyl diselenide 6) to unsymmetrical divinyl selenide 9 (Scheme 5). This assumption about the formation route of compound 10 was confirmed by an additional experiment.
The reaction of organic diselenides with 2-propynamides with the formation of selanylpropynamide has not been previously reported. We studied the copper-catalyzed reaction of organic diselenides with 2-propynamide 11, containing a morpholine heterocycle in the amide group. The CuI-catalyzed reaction of dipropyl and diphenyl diselenides 12a,b with 4-propioloylmorpholine 11 was carried out in DMSO at room temperature, producing acetylenic selenides 13a,b in 70% and 75% yields, respectively (Scheme 6).
Recently, we developed the synthesis of 2,6-bis(1,2,3-triazol-1-yl)-9-selenabicyclo[3.3.1]nonanes through the copper-catalyzed azide-alkynes 1,3-dipolar cycloaddition reaction [47,48]. The Cu(OAc)2/sodium ascorbate catalytic system was used to carry out the cycloaddition reaction. This system has proven to be very effective in the reactions of selenium-containing organic azides with terminal acetylenes [49,50]. The active Cu(I) catalyst was generated in situ from copper acetate by its reduction with sodium ascorbate. It is known that the mechanism of the copper-catalyzed azide-alkynes 1,3-dipolar cycloaddition reactions involves the formation of copper acetylide intermediates [51]. Assuming that the Cu-catalyzed reaction of organic diselenides with 2-propynamide may also involve the formation of copper acetylide intermediates, we attempted to use the Cu(OAc)2/sodium ascorbate catalytic system in the reaction of diselenides 12a,b with 4-propioloylmorpholine 11 (Scheme 6). The target products 13a,b were also obtained in this case, but in lower yield (about 50%), and the reaction proceeded less selectively.
4-Propioloylmorpholine 11 with the terminal triple bond was obtained by desilylation of the corresponding 3-trimethylsilyl-2-propynamide 1b.

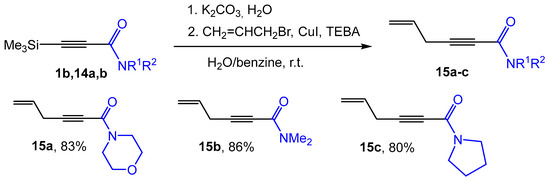

The allylation reaction of propynamides has not yet been reported. We performed the copper-catalyzed allylation reaction of propynamides starting from 3-trimethylsilyl-2-propynamide 1b,14a,b and obtained new unsaturated compounds containing both triple and double bonds. The reaction used copper(I) iodide, which has been proven to be an excellent catalyst for the allylation of acetylenes [52,53].
The CuI-catalyzed reaction of 3-trimethylsilyl-2-propynamide 1b,14a,b with allyl bromide was carried out at room temperature under phase transfer catalysis conditions (phase transfer catalyst: triethylbenzylammonium chloride) in the two-phase system K2CO3/water/benzene affording 5-hexen-2-ynamides 15ac in 83%, 86% and 80% yields, respectively (Scheme 7).
The first stage of this process was the desilylation, followed by the allylation reaction of 2-propynamides with terminal triple bond.

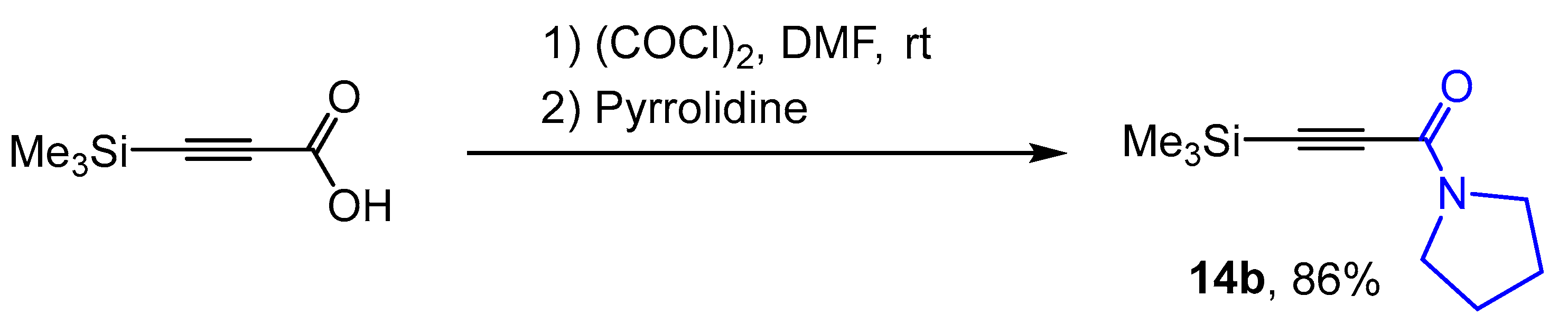

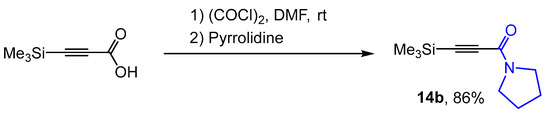

The compound 15c was obtained from 1-[3-(trimethylsilyl)prop-2-ynoyl]pyrrolidine (14b). The synthesis of the latter silylpropynamide has not previously been reported. We obtained the compound 14b in 86% yield through the reaction of trimethylsilylpropiolic acid with oxalyl chloride followed by amidation (Scheme 8).

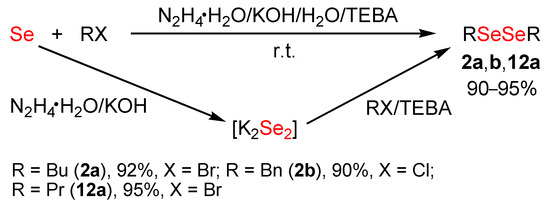

Dialkyl diselenides 2a, 12a and dibenzyl diselenide 2b were synthesized in high yields (90–95%) from elemental selenium and corresponding alkyl halides in the two-phase catalytic system: hydrazine hydrate/potassium hydroxide/water/triethylbenzylammonium chloride/alkyl halide (Scheme 9). Alkyl halides also played a role of the organic phase in this reaction, and no organic solvent was added during the synthesis.
Elemental selenium under the action of an aqueous solution of hydrazine hydrate and potassium hydroxide was reduced to potassium diselenide, which underwent the nucleophilic substitution reaction with alkyl halides (butyl bromide, benzyl chloride and propyl bromide) under phase-transfer catalysis conditions at room temperature (Scheme 9).
It is worth noting that hydrazine hydrate selectively reduces elemental selenium to diselenide anion in the presence of potassium hydroxide. The selectivity of the reduction may be determined by the selenium-catalyzed generation of the highly reactive reducing agent diimide from hydrazine [54].
It may be assumed that the target products can be obtained by the reactions of acetylenes containing terminal triple bond. However, 2-propynamides with terminal triple bond are difficult to obtain and even the simplest representatives of these reagents are absent in the catalogs of the most leading suppliers of chemicals. The efficient synthesis of a number of 3-trimethylsilyl-2-propynamides by the reaction of 3-trimethylsilylpropiolic acid with oxalyl chloride, followed by amidation of 3-trimethylsilylprop-2-ynoyl chloride with amines, was previously developed in this institute [27].
Thus, first examples of reactions of 3-trimethylsilyl-2-propynamides and organic diselenides were realized. Efficient and selective methods for the preparation of 3-alkylselanyl-2-propenamides, 3-organylselanyl-2-propynamides and 3-allyl-2-propynamide derivatives were developed based on 3-trimethylsilyl-2-propynamides and organic diselenides.
The structural assignment of the obtained compounds was carried out based on the multinuclear NMR investigations and confirmed by the data from mass spectra, IR data and elemental analysis. Some of the obtained compounds may contain amide rotamers [55]. Figure S1 can be found in Supplementary Materials.

3. Materials and Methods

3.1. General Information

The 1H (400.1 MHz), 13C (100.6 MHz), 77Se (76.3 MHz) and 15N (40.6 MHz) NMR spectra (the spectra can be found in Supplementary Materials) were recorded on a Bruker DPX-400 spectrometer (Bruker BioSpin GmbH, Rheinstetten, Germany) in CDCl3 or DMSO-d6 solutions and referred to the residual solvent peaks (CDCl3, δ = 7.27 and 77.1 ppm; DMSO-d6, δ = 2.50 and 39.6 ppm for 1H- and 13C-NMR, respectively), nitromethane (15N) and dimethyl selenide (77Se).
IR spectra were taken on a Bruker Vertex-70 spectrometer (Bruker, Karlsruhe, Germany). Melting points were determined on a Kofler Hot-Stage Microscope PolyTherm A apparatus (Wagner & Munz GmbH, München, Germany). Elemental analysis was performed on a Thermo Scientific Flash 2000 Elemental Analyzer (Thermo Fisher Scientific Inc., Milan, Italy). The distilled organic solvents and degassed water were used in syntheses. Diphenyl diselenide was purchased from Sigma-Aldrich (St. Louis, MO, USA).

3.2. Synthesis of Vinyl Selenides 3a,b and 4a,b from 3-Trimethylsilyl-2-Propynamides and Organic Diselenides

General Procedure. Sodium borohydride (30 mg, 0.79 mmol) was added portionwise to a solution of 3-trimethylsilyl-2-propynamide (0.48 mmol) and organic diselenide (0.24 mmol) in THF (2 mL), which contained water (0.5 mL). The mixture was stirred at room temperature for 4 h and water (0.5 mL) and chloroform (2 mL) were added. The mixture was extracted with chloroform (4 × 2 mL) and the organic phase was dried over Na2SO4. The solvent was removed under reduced pressure. The residue was dissolved in chloroform, and precipitated by cold hexane. The target products were isolated by column chromatography on silica gel.
(Z)-N-Phenyl-3-(butylselanyl)-2-propenamide (3a). Yield: 94% (Z/E = 100:7). The product was purified by column chromatography (eluent: chloroform; R(f) = 0.33). Yield: 69 mg (51%), Z/E = 100:2, white solid; mp 126–128 °C.
1H NMR (400 MHz, d6-DMSO): δ 0.89 (t, CH3, 3J = 7.4, 3H), 1.37 (m, 2H, CH3CH2), 1.64 (m, 2H, CH2CH2Se), 2.65 (t, 3J = 7.3 Hz, 2H, CH2Se, Z-), 2.91 (t, 3J = 7.3 Hz, 2H, CH2Se, E-), 6.37 (d, 3J = 15.4 Hz, 1H, =CHCO, E-), 6.58 (d, 3J = 9.4 Hz, 1H, =CHCO, Z-), 7.03 (t, 3J = 7.5 Hz, 1H, Hp), 7.29 (dd, 3J = 7.5 Hz, 3J = 8.3 Hz 2H, Hm), 7.62 (d, 3J = 8.3 Hz, 2H, Ho), 7.67 (d, 3J = 9.4 Hz, 1H, SeC=, Z-), 7.94 (d, 3J = 15.4 Hz, 1H, SeC=, E-), 9.90 (br s, 1H, NH, E-), 10.05 (br s, 1H, NH, Z-).
13C NMR (100 MHz, d6-DMSO): δ 13.5 (CH3), 22.3 (CH3C), 27.5 (SeCH2, 1JSe–C = 55.1 Hz), 32.7 (CCH2Se), 118.8 (Co), 119.6 (=CCO), 123.1 (Cp), 128.8 (Cm), 139.3 (Ci), 144.3 (SeC=, 1JSe–C = 134.3 Hz), 164.8 (C=O).
77Se NMR (76 MHz, d6-DMSO): δ 365.2. 15N NMR (40 MHz, d6-DMSO): δ −244.1 (1JN–H = 90.7 Hz); The 2D 15N NMR HMBC {1H–15N} spectrum contain cross-peaks of the nitrogen atom with protons of Ho and NH.
IR (KBr): 3320, 3203, 3134, 3066, 3024, 2954, 2923, 2859, 1643 (C=O), 1599 (C=C, Ph), 1549 (C=C, Ph), 1535 (C=C, Ph), 1494, 1435, 1363, 1306, 1243, 1188, 1168, 974, 898, 839, 791, 752, 719, 694, 613, 508 cm−1.
Anal. calcd for C13H17NOSe (282.24): C 55.32, H 6.07, N 4.96, Se 27.98; found: C 55.56, H 6.20, N 4.46, Se 28.06.
(Z)-N-Morpholino-3-(butylselanyl)-2-propenamide (3b): Yield: 90%, Z/E = 100:7. Pure Z-isomer was isolated by column chromatography (eluent: chloroform:ethyl acetate = 1:1; Rf = 0.93). Yield: 72 mg (54%); viscous oil.
1H NMR (400 MHz, CDCl3): δ 0.89 (t, CH3, 3J = 7.3 Hz, 3H), 1.40 (m, 2H, CH3CH2), 1.68 (m, 2H, CH2CH2Se), 2.62 (t, 3J =7.5 Hz, 2H, CH2Se), 3.49 (br m, 2H, H3,5), 3.65 (br m, 6H, H2,6, H3,5), 6.63 (d, 3J = 9.4 Hz, 1H, =CHCO), 7.56 (d, 3J = 9.4 Hz, 1H, SeCH=).
13C NMR (100 MHz, CDCl3): 13.6 (CH3), 22.7 (CH3CH2), 28.5 (CH2Se, 1JSe–C = 56.2 Hz), 32.9 (CH2CH2), 41.9, 45.8 (C2,6), 66.6, 66.8 (C3,5), 114.0 (=CCO), 147.3 (SeC=, 1JSe–C = 136.2 Hz), 166.1 (C=O).
77Se NMR (76 MHz, d6-DMSO): δ 373.1. 15N NMR (40 MHz, d6-DMSO): δ −268.2; The 2D 15N NMR HMBC {1H–15N} spectrum contain cross-peaks of the nitrogen atom with protons of H3,5 and the =CHCO group.
IR (KBr): 3165, 2958, 2922, 2856, 1620 (C=O), 1552 (C=C, Ph), 1433, 1348, 1298, 1264, 1236, 1202, 1116, 1043, 968, 914, 838, 783, 740, 627, 574, 534 cm−1.
Anal. calcd for C11H19NO2Se (276.23): C 47.83, H 6.93, N 5.07, Se 28.58; found: C 47.48, H 6.84, N 4.82, Se 28.49.
(Z)-N-Phenyl-3-(benzylselanyl)-2-propenamide (4a). Yield: 90%, Z/E = 100:8. The product was purified by column chromatography (eluent: chloroform, Rf = 0.96); Yield: 106 mg (70%); Z/E = 100:2, white solid; mp 163–164 °C.

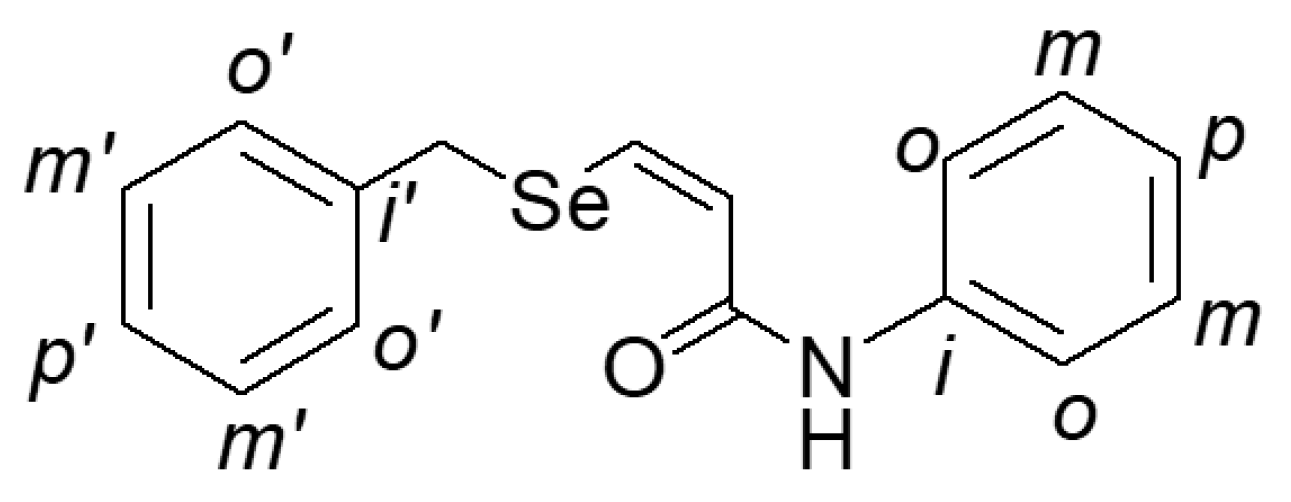

1H NMR (400 MHz, d6-DMSO, Figure 2): δ 3.94 (s, 2H, CH2Se, Z-), 4.20 (s, 2H, CH2Se, E-), 6.44 (d, 3J = 15.9 Hz, 1H, =CHCO, E-), 6.56 (d, 3J = 9.4 Hz, 1H, =CHCO, Z-), 7.02 (t, 3J = 7.3 Hz, 1H, Hp), 7.20 (t, 3J = 7.3 Hz, 1H, Hp′), 7.26–7.33 (m, 4H, Hm, Hm′), 7.36 (d, 3J = 7.0 Hz, 2H, Ho′), 7.59 (d, 3J = 7.8 Hz, 2H, Ho), 7.75 (d, 3J = 9.4 Hz, 1H, SeCH=, Z-), 7.97 (d, 3J = 15.9 Hz, 1H, SeCH=, E-), 9.93 (br s, 1H, NH, E-), 10.08 (br s, 1H, NH, Z-).
13C NMR (100 MHz, d6-DMSO, Figure 2): δ 30.9 (SeCH2, 1JSe–C = 53.2 Hz), 119.0 (Co), 120.0 (=CCO), 123.3 (Cp), 126.6 (Cp′), 128.7 (Cm′), 128.8 (Cm), 128.9 (Co,o′), 139.3 (Ci′), 140.3 (Ci), 143.9 (SeC=, 1JSe–C = 137.3 Hz), 164.9 (C=O).
77Se NMR (76 MHz, d6-DMSO): δ 447.1. 15N NMR (40 MHz, d6-DMSO): δ −245.8 (1JN–H = 90.0 Hz); The 2D 15N NMR HMBC {1H–15N} spectrum contain cross-peaks of N-atom with protons of Ho and NH.
IR (KBr): 3443, 3247, 3117, 3036, 1633 (C=O), 1593, 1564, 1531, 1494, 1441, 1359, 1297, 1254, 1180, 1164, 1068, 1027, 983, 909, 839, 791, 746, 692, 613, 502 cm−1.
Anal. calcd for C16H15NOSe (316.26): C 60.76, H 4.78, N 4.43, Se 24.97; found: C 60.75, H 4.65, N 4.32, Se 25.13.
1-Morpholino-3-(benzylselanyl)-2-propen-1-one (4b). Yield: 93%, Z/E = 100:8). Pure Z-isomer (67 mg), a mixture of Z,E-isomers (36 mg, Z/E = 100:33) and almost pure E-isomer (3 mg, Z/E = 4:100) were isolated by column chromatography (eluent: chloroform:ethyl acetate = 1:1; Rf = 0.88). Z-isomer, yield: 74%; white solid; mp 124–126 °C.
(Z)-4b. 1H NMR (400 MHz, CDCl3): δ 3.40–3.52 (m, 2H, H3,5), 3.53–3.75 (m, 6H, H2,6, H3,5), 3.87 (s, 2H, CH2Se), 6.61 (d, 3J = 9.4 Hz, 1H, =CHCO), 7.18–7.25 (m, 2H, Hm), 7.29–7.35 (m, 3H, Ph), 7.56 (d, 3J = 9.4 Hz, 1H, SeCH=).
13C NMR (100 MHz, CDCl3): δ 31.5 (SeCH2, 1JSe–C = 55.1 Hz), 41.9 (C3,5), 45.8 (C3,5), 66.6, 66.8 (C2,6), 114.1 (=CCO), 126.7 (Cp), 128.6 (Co,m), 128.9 (Co,m), 139.0 (Ci), 145.9 (SeC=, 1JSe–C = 137.7 Hz), 165.9 (C=O).
77Se NMR (76 MHz, CDCl3): δ 442.4. 15N NMR (40 MHz, CDCl3): δ–266.2; The 2D 15N NMR HMBC {1H–15N} spectrum contain cross-peaks of the nitrogen atom with the proton of the =CHCO group.
IR (KBr): 3499, 3443, 3045, 2958, 2905, 2849, 1611 (C=O), 1546, 1451, 1349, 1304, 1266, 1229, 1190, 1107, 1063, 1036, 965, 916, 834, 774, 751, 695, 664, 618, 577, 533, 453 cm−1.
Anal. calcd for C14H17NO2Se (296.22): C 54.20, H 5.52, N 4.51, Se 25.45; found: C 54.23, H 5.36, N 4.27, Se 25.26.
(E)-4b.1H NMR (400 MHz, CDCl3): δ 3.42–3.55 (m, 2H, H3,5), 3.55–3.75 (m, 6H, H2,6, H3,5), 4.08 (s, 2H, CH2Se), 6.45 (d, 3J = 15.0 Hz, 1H, =CHCO), 7.18–7.25 (m, 2H, Hm), 7.29–7.35 (m, 3H, Ph), 8.02 (d, 3J = 15.0 Hz, 1H, SeCH=).
13C NMR (100 MHz, CDCl3): δ 30.2 (SeCH2), 42.4 (C3,5), 46.0 (C3,5), 66.9 (C2,6), 118.6 (=CCO), 127.5 (Cp), 128.9 (Co,m), 137.4 (Ci), 141.0 (SeC=), 163.9 (C=O).
77Se NMR (76 MHz, CDCl3): δ 357.2.

3.3. Synthesis of Compounds 9 and 10

(Z)-3-[(Z)-3-oxo-3-piperidino-1-propenyl]selanyl-1-morpholino-2-propen-1-one (9). To a stirred mixture of diselenide 6 (39 mg, 0.09 mmol), THF (3 mL) and water (1 mL), NaBH4 (20 mg) portions were added at room temperature. Then, 3-trimethylsilyl-2-propynamide 8 (0.18 mmol) in THF (2 mL) was added. The solution was stirred at room temperature for 2 h and CHCl3 (2.0 mL) were added. An aqueous layer was extracted with CHCl3 (4 × 2 mL) and extract was dried over Na2SO4. The solvent was removed under reduced pressure. The residue was dissolved in CHCl3, precipitated by cold hexane that afforded the compound 9 (42 mg, 66%); white solid; mp 204–205 °C.

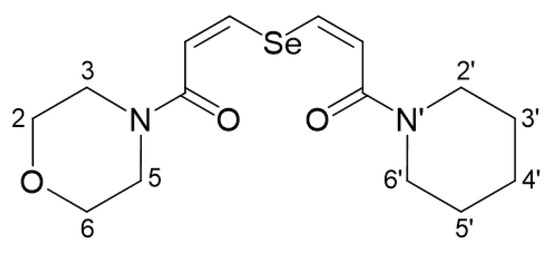

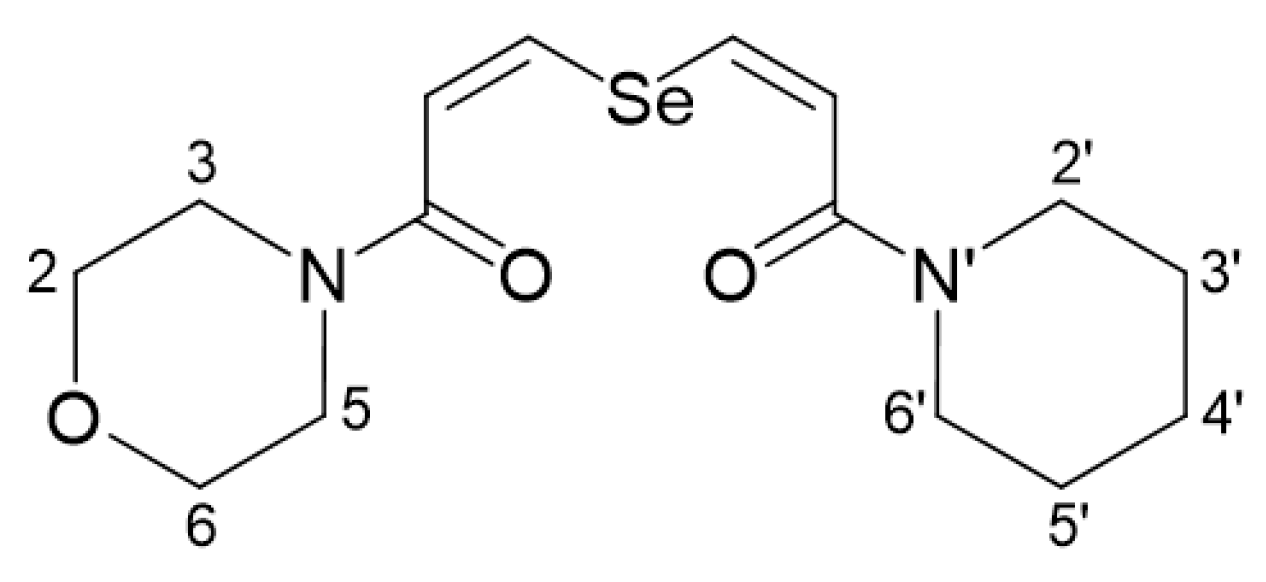

1H NMR (400 MHz, CDCl3, Figure 3): δ 1.56, 1.62 (br m, 6H, H3′,5′, H4′), 3.46, 3.58, 3.66 (br m, 12H, H2′,6′, H3,5, H2,6), 6.69 (d, 3J = 9.8 Hz, 1H, =CHCO), 6.76 (d, 3J = 9.7 Hz, 1H, =CH′CO), 7.48 (d, 3J = 9.7 Hz, 1H, SeCH′=), 7.58 (d, 3J = 9.8 Hz, 1H, SeCH=).
13C NMR (100 MHz, CDCl3, Figure 3): δ 24.5 (C4′), 25.5, 26.6 (C3′,5′), 42.0 (C3,5), 49.9 (C2′,6′), 46.0 (C3,5), 46.8 (C2′,6′), 66.8 (C2,6), 115.8 (=CCO, 1JC–H = 159.4 Hz), 117.0 (=C′CO, 1JC–H = 161.1 Hz), 146.9 (SeC′=, 1JC–H = 169.7 Hz, 2JC–H = 5.1 Hz), 148.9 (SeC=, 1JC–H = 169.5 Hz, 2JC–H = 5.9 Hz), 165.3 (C′=O), 165.7 (C=O).
77Se NMR (76.3 MHz, CDCl3): δ 518.5. 15N NMR (40.6 MHz, CDCl3): δ −266.2 (N), −256.8 (N′); The 2D 15N NMR HMBC {1H–15N} spectrum contain cross-peaks of N-atom with protons of H2,6, =CHCO and N′-atom with protons of H3′,5′, =CH′CO.
IR (KBr): 2930, 2855, 1613 (C=O), 1564 (C=C), 1441, 1344, 1233, 1114, 1036, 1019, 962, 856, 831, 783, 644, 601, 573 cm−1.
MS (EI), m/z (%): 358 (6) [M + 1]+, 356 (4) [M − 1]+, 277 (11), 220 (9), 218 (16), 216 (8), 187 (7), 161 (17), 159 (10), 140 (23), 138 (59), 114 (14), 112 (24), 86 (32), 85 (13), 84 (100), 82 (8), 70 (26), 69 (27), 57 (8), 56 (31), 55 (26), 44 (8), 42 (20), 41 (27).
Anal. calcd for C15H22N2O3Se (357.31): C 50.42, H 6.21, N 7.84, Se 22.10; found: C 50.27, H 6.05, N 7.93, Se 22.01.
(Z)-3-[(1-[(Z)-3-morpholino-3-oxo-1-propenyl]selanyl-3-oxo-3-piperidinopropyl)selanyl]-1-morpholino-2-propen-1-one (10).
NaBH4 (30 mg) was added portionwise to a stirred mixture solution of diselenide 6 (63 mg, 0.14 mmol) and 3-trimethylsilyl-2-propynamide 8 (59 mg, 0.28 mmol) in THF (2.5 mL) and water (0.5 mL). The solution was stirred at room temperature for 2 h, and water (0.5 mL) and CHCl3 (2.0 mL) were added. The aqueous layer was extracted with CHCl3 (4 × 2 mL), and the extract was dried over Na2SO4. The solvent was removed under reduced pressure. The residue was dissolved in chloroform, precipitated by cold hexane and subjected to column chromatography (SiO2, eluent: ethyl acetate/methanol = 30/1), resulting in the compounds 9 (20%, Rf = 0.76) and 10 (32 mg, 39%, Rf = 0.47); white solid; mp 60–62 °C.

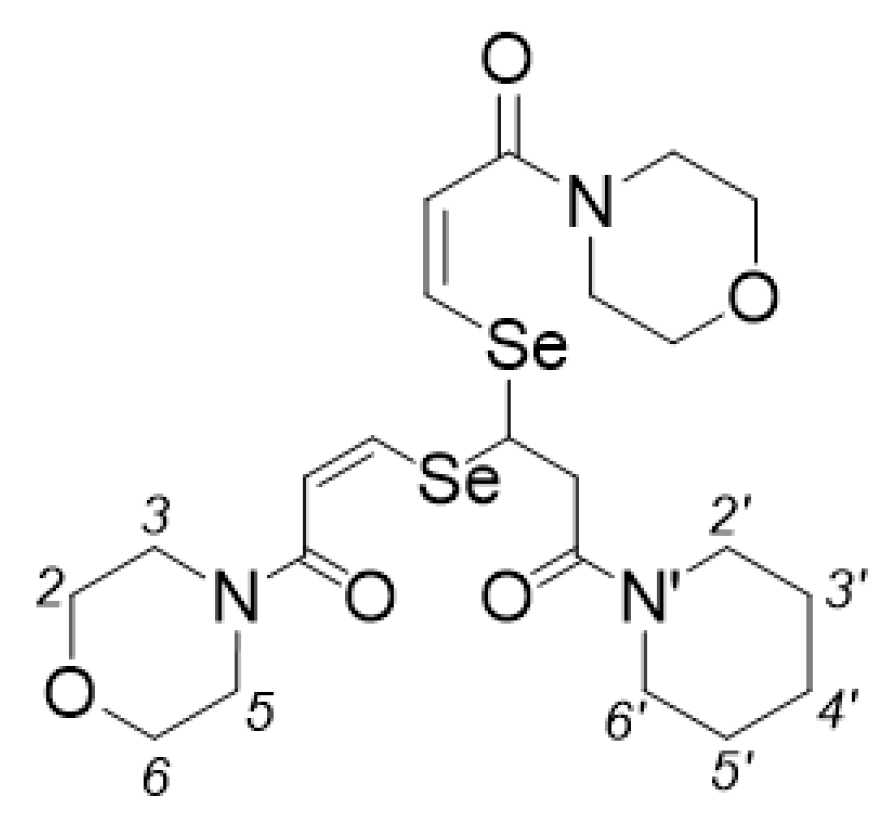

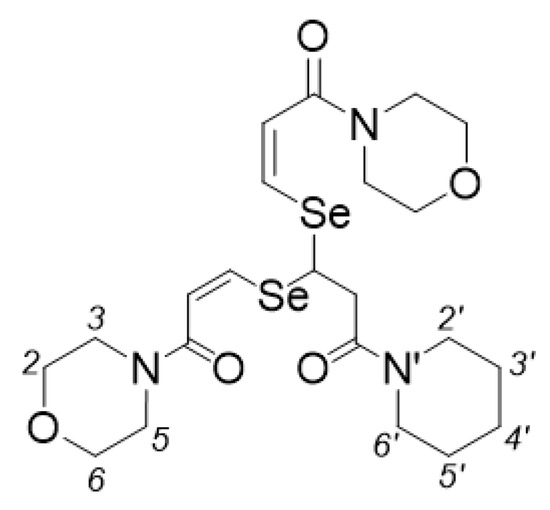

1H NMR (400 MHz, CDCl3, Figure 4): δ 1.56, 1.64 (br m, 6H, H3′,5′, H4), 3.10 (d, 3J = 7.1 Hz, 2H, CH2CO), 3.39–3.76 (m, 20H, H2,6, H3,5, H2′,6′), 4.57 (t, 3J = 7.1 Hz, 1H, Se2CH), 6.70, 6.76 (d, 3J = 9.2 Hz, 2H, =CHCO), 7.76, 7.89 (d, 3J = 9.2 Hz, 2H, SeCH=).
13C NMR (100 MHz, CDCl3, Figure 4): δ 24.6, 25.6, 26.7 (C3′,5′, C4′), 34.7 (Se2CH), 40.9 (CH2CO), 42.2, 43.1, 46.0, 46.8 (C3,5), 43.4, 46.3 (C2′,6′), 66.6, 66.8 (C2,6).
77Se NMR (76.3 MHz, CDCl3): δ 477.0, 482.2. 15N NMR (40.6 MHz, CDCl3): δ −262.7 (N), −256.4 (N′); The 2D 15N NMR HMBC {1H–15N} spectrum contains cross-peaks of nitrogen atoms with H3′,5′ and H2,6 protons.
MS, m/z: 577 (9) [M], 279 (10), 277 (8), 220 (20), 218 (28), 161 (18), 159 (11), 140 (42), 138 (44), 135 (15), 133 (12), 114 (40), 112 (19), 86 (69), 84 (100), 70 (56), 69 (24), 57 (30), 56 (66), 55 (36), 44 (13), 42 (38), 41 (34).
Anal. calcd for C22H33N3O5Se2 (577.43): C 45.78, H 5.76, N 7.28, Se 27.35; found: C 46.07, H 5.95, N 6.97, Se 27.05.

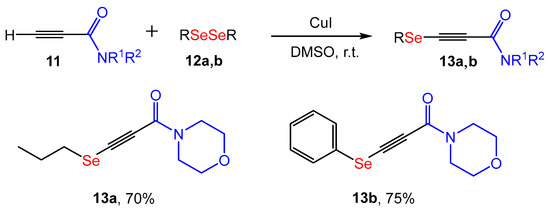

3.4. Synthesis of Acetylenic Selenides 13a,b

The solution of propynamide (0.36 mmol), CuI (34 mg, 0.18 mmol) and diorganyl diselenide (0.18 mmol) in DMSO (1 mL) was stirred at room temperature for 20 h. Water (3.0 mL) was added and the mixture was extracted with Et2O (5 × 5.0 mL), and the organic lay was washed with water (4 × 10 mL). Washing water was again extracted with Et2O (2 × 15 mL). The organic phase was dried over Na2SO4. After removal of the solvent on a rotary evaporator, the residue was dried in vacuum while yielding the product, which did not require additional purification.
4-[3-(propylselanyl)prop-2-ynoyl]morpholine (13a). Yield: 66 mg (70%); viscous oil.
1H NMR (400 MHz, CDCl3): δ 1.04 (t, 3J =7.2 Hz, 3H, CH3), 1.85 (q, 3J = 7.2 Hz, 2H, CH3CH2), 2.87 (t, 3J = 7.2 Hz, 2H, CH2Se), 3.59–3.66 (m, 4H, H3,5), 6.66–3.70 (br m, 4H, H2,6).
13C NMR (100 MHz, CDCl3): δ 13.5 (CH3), 23.3 (CH2), 31.8 (Se–CH2), 41.4, 46.8 (C3,5) 66.1, 66.5 (C2,6), 79.1 (SeC≡, 1JSe-C = 204.1 Hz), 93.2 (≡CCO, 2JSe-C = 37.7 Hz), 152.0 (C=O).
77Se NMR (76 MHz, CDCl3): δ 163.5. 15N NMR (40 MHz, CDCl3): δ −261.3.
C10H15NO2Se (260.19): calcd. C 46.16, H 5.81, N 5.38, Se 30.35; found: C 45.89, H 5.68, N 5.22, Se 30.61.
4-[3-(Phenylselanyl)prop-2-ynoyl]morpholine (13b). Yield: 80 mg (75%); viscous oil
1H NMR (400 MHz, CDCl3): δ 3.63–3.69 (m, 4H, H3,5), 3.69–3.76 (m, 4H, H2,6), 7.32–7.41 (m, 3H, H3′,4′,5′), 7.55–7.62 (m, 2H, H2′,6′).
13C NMR (100 MHz, CDCl3): δ 40.7, 47.0 (C3,5), 66.3, 66.7 (C2,6), 77.9 (SeC≡, 1JSe–C = 197.4 Hz), 96.0 (≡CCO, 2JSe–C = 35.8 Hz), 126.5 (C1′), 128.1 (C4′), 129.8 (C3′), 130.2 (C2′), 152.0 (C=O).
77Se NMR (76 MHz, CDCl3): δ 279.3 Hz. 15N NMR (40 MHz, CDCl3): δ −262.6 (NH, 1JN─H = 90.4 Hz).
C13H13NO2Se (294.21): calcd. C 53.07, H 4.45, N 4.76, Se 26.84; found: C 52.95, H 4.47, N 4.64, Se 27.00.

3.5. Synthesis of Compound 14b

1-[3-(Trimethylsilyl)prop-2-ynoyl]piperidine (14b). Compound was prepared by the method [27]. Yield: 86%; beige powder; mp 37–38 °C.
1H NMR (400 MHz, CDCl3): δ 0.23 (s, 9H, Me3Si), 1.86–1.98, 1.99–2.03* (m, 4H, H3,4), 3.31*, 3.46, 3.63 (t, 3J = 6.5 Hz, 4H, H2,5).
13C NMR (100 MHz, CDCl3): δ −1.0 (Si–C), 24.3, 25.0 (C3,4), 44.9, 47.8 (C2,5), 95.0 (Si–C≡), 96.9 (≡CCO), 151.7 (C=O).
15N NMR (40 MHz, CDCl3): δ −245.9. 29Si NMR (79 MHz, CDCl3):δ −15.4. IR (KBr): 2965, 2885, 1636 (C=O), 1472, 1423, 1340, 1251, 1227, 1196, 1176, 1117, 1046, 1006, 967, 912, 847, 761, 732, 705, 630, 604, 572.
C10H17NOSi (195.33): calcd. C 61.49, H 8.77, N 7.17, Si 14.38; found: C 61.55, H 8.64, N 7.26, Si 14.48. *Content of other rotamer 10%.

3.6. Synthesis of 5-Hexen-2-Ynamides 15ac

Potassium carbonate (K2CO3, 14 mg, 0.10 mmol) was added to a solution of 3-trimethylsilyl-2-propynamide (0.50 mmol) in water (1.5 mL) and the mixture was stirred for 1 h. Another portion of potassium carbonate (86 mg. 0.62 mmol) and CuI (95 mg, 0.50 mmol) were added followed by the addition of a solution of allyl bromide (73 mg, 0.60 mmol) in benzene (1 mL) and TEBA (2 mg). The reaction mixture was stirred for 96 h at room temperature and extracted with methylene chloride (6 × 5 mL). The organic phase was dried over Na2SO4 and the solvent was removed on a rotary evaporator. The residue was dried in vacuum, yielding the target product as colorless viscous liquids.
1-Morpholino-5-hexen-2-yn-1-one (15a). Yield: 83%.
1H NMR (400 MHz, CDCl3): δ 3.12–3.20 (m, 2H, CH2C≡), 3.62–3.68 (m, 4H, H3,5), 3.68–3.80 (m, 4H, H2,6), 5.18, 5.32 (d, 3J = 10.0 Hz, 16.6 Hz, 2H, =CH2), 5.75–5.86 (m, 1H, =CH).
13C NMR (100 MHz, CDCl3) δ 23.2 (CH2C≡), 41.8, 47.2 (C3,5), 66.4, 66.9 (C2,6) 75.2 (≡CCO), 90.4 (CH2C≡), 117.5 (=CH2), 130.3 (CH=), 153.1 (C=O).
Anal. Calcd for C10H13NO2 (179.22): C 67.02; H 7.31; N 7.82%. Found: C 66.79; H 7.13; N 8.02%.
N,N-dimethyl-5-hexen-2-ynamide (15b). Yield: 86%.
1H NMR (400 MHz, CDCl3): δ 2.94 (s, 3H, CH3), 3.09–3.15 (m, 2H, CH2C≡), 3.19 (s, 3H, CH3), 5.15, 5.32 (d, 3J = 9.9 Hz, 16.9 Hz, 2H, =CH2), 5.72–5.85 (m, 1H, =CH).
13C NMR (100 MHz, CDCl3) δ 23.2 (CH2C≡), 34.0, 38.3 (CH3), 76.0 (≡CCO), 89.3 (CH2C≡), 117.3 (=CH2), 130.6 (CH=), 154.6 (C=O).
Anal. Calcd for C8H11NO (137.18): C 70.04; H 8.08; N 10.21%. Found: C 69.86; H 7.89; N 9.94%.
1-(1-Pyrrolidinyl)-5-hexen-2-yn-1-one (15c). Yield: 80%.
1H NMR (400 MHz, CDCl3): 1.85–2.04 (m, 4H, H3,4), 3.11–3.18 (m, 2H, CH2C≡), 3.47, 3.64 (t, 3J = 6.8 Hz, 6.4 Hz, 4H, H2,5), 5.17, 5.34 (d, 3J = 9.9 Hz, 17.0 Hz, 2H, =CH2), 5.75–5.87 (m, 1H, =CH).
13C NMR (100 MHz, CDCl3) δ 23.1 (CH2C≡), 24.8, 25.4 (C3,4), 45.2, 48.2 (C2,5) 76.9 (≡CCO), 87.7 (CH2C≡), 117.2 (=CH2), 130.7 (CH=), 152.7 (C=O).
Anal. Calcd for C10H13NO (163.22): C 73.59; H 8.03; N 8.58%. Found: C 73.85; H 7.86; N 8.75%.

3.7. Synthesis of Organic Diselenides 2a,b,12a

A mixture of powdered selenium (7.9 g, 0.1 mol), hydrazine hydrate (6 mL), KOH (8 g) and water (40 mL) was stirred at room temperature for 4 h. Alkyl halide (0.12 mol) and TEBA (0.2 g) were added, and the mixture was vigorously stirred for 4 h. The mixture was extracted with hexane (3 × 20 mL). The organic phase was dried over Na2SO4 and the solvent was removed by a rotary evaporator to give organic diselenides 2a,b,12a in 90–95% yields (Scheme 9).

4. Conclusions

Efficient and selective methods for the preparation of 3-alkylselanyl-2-propenamides, 3-organylselanyl-2-propynamides and 3-allyl-2-propynamide derivatives were developed based on 3-trimethylsilyl-2-propynamides and organic diselenides. The copper-catalyzed reaction of organic diselenides with 4-propioloylmorpholine was conducted in DMSO at room temperature to yield corresponding acetylenic selenides. The reaction of 3-trimethylsilyl-2-propynamides with dialkyl diselenides was carried out in the system NaBH4/H2O/K2CO3/THF and was accompanied by the generation of sodium alkylselenolates and desilylation. The nucleophilic addition of sodium alkylselenolates to propynamides occurred in a regio- and stereoselective fashion, producing corresponding (Z)-vinyl selenides in 90–94% yields. Unsymmetrical divinyl selenide with the amide groups was synthesized from (Z,Z)-bis(3-morpholino-3-oxo-1-propenyl) diselenide and 1-[3-(trimethylsilyl)prop-2-ynoyl]piperidine. Using the same starting compounds, a very unusual product: (Z)-3-[(1-[(Z)-3-morpholino-3-oxo-1-propenyl]selanyl-3-oxo-3-piperidinopropyl)selanyl]-1-morpholino-2-propen-1-one was obtained in 39% yield. The copper-catalyzed allylation reaction of propynamides was carried out. 3-Trimethylsilyl-2-propynamides were used as starting material in this reaction, which was accompanied by desilylation to form 3-allyl-2-propynamides in 80–86% yields.
The obtained products are promising intermediates for organic synthesis. The synthesized organoselenium compounds with the amide group can exhibit glutathione peroxidase-like activity.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal13101326/s1, Figure S1: Examples of 1H and 13C NMR spectra of the products.

Author Contributions

Conceptualization, V.A.P. and M.V.A.; methodology, V.A.P. and M.V.A.; formal analysis, M.V.A. and M.V.M.; investigation, M.V.A. and L.I.L.; data curation, V.A.P. and M.V.M.; supervission, V.A.P.; Writing—original draft preparation, M.V.A.; Writing—review and editing, V.A.P. and M.V.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank Baikal Analytical Center SB RAS for providing the instrumental equipment.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Flohe, L.; Gunzler, W.A.; Schock, H.H. Glutathione peroxidase: A selenoenzyme. FEBS Lett. 1973, 32, 132–134. [Google Scholar] [CrossRef] [PubMed]
  2. Rotruck, J.T.; Pope, A.L.; Ganther, H.E.; Swanson, A.B.; Hafeman, D.G.; Hoekstra, W.G. Selenium: Biochemical role as a component of glutathione peroxidase. Science 1973, 179, 588–590. [Google Scholar] [CrossRef] [PubMed]
  3. Gladyshev, V.N.; Hatfield, D.L. Selenocysteine-Containing Proteins in Mammals. J. Biomed. Sci. 1999, 6, 151–160. [Google Scholar] [CrossRef] [PubMed]
  4. Gandhil, U.H.; Nagaraja, T.P.; Prabhu, K.S. Selenoproteins and their role in oxidative stress and inflammation. Curr. Chem. Biol. 2013, 7, 65–73. [Google Scholar] [CrossRef]
  5. Longtin, R. A forgotten debate: Is selenocysteine the 21st amino acid? J. Nat. Cancer Inst. 2004, 96, 504–505. [Google Scholar] [CrossRef]
  6. Tiekink, E.R.T. Therapeutic potential of selenium and tellurium compounds: Opportunities yet unrealized. Dalton Trans. 2012, 41, 6390–6395. [Google Scholar] [CrossRef]
  7. Młochowski, J.; Kloc, K.; Lisiak, R.; Potaczek, P.; Wójtowicz, H. Developments in the chemistry of selenaheterocyclic compounds of practical importance in synthesis and medicinal biology. Arkivoc 2007, vi, 14–46. [Google Scholar] [CrossRef]
  8. Banerjee, B.; Koketsu, M. Recent developments in the synthesis of biologically relevant selenium-containing scaffolds. Coord. Chem. Rev. 2017, 339, 104–127. [Google Scholar] [CrossRef]
  9. Rafique, J.; Canto, R.F.S.; Saba, S.; Barbosa, F.A.R.; Braga, A.L. Recent Advances in the Synthesis of Biologically Relevant Selenium-containing 5-Membered Heterocycles. Curr. Org. Chem. 2016, 20, 166–188. [Google Scholar] [CrossRef]
  10. Shaaban, S.; Ashmawy, A.M.; Negm, A.; Wessjohann, L.A. Synthesis and biochemical studies of novel organic selenides with increased selectivity for hepatocellular carcinoma and breast adenocarcinoma. Eur. J. Med. Chem. 2019, 179, 515–526. [Google Scholar] [CrossRef]
  11. Ramos-Inza, S.; Encío, I.; Raza, A.; Sharma, A.K.; Sanmartín, C.; Plano, D. Design, synthesis and anticancer evaluation of novel Se-NSAID hybrid molecules: Identification of a Se-indomethacin analog as a potential therapeutic for breast cancer. Eur. J. Med. Chem. 2022, 244, 114839. [Google Scholar] [CrossRef] [PubMed]
  12. Astrain-Redin, N.; Paoletti, N.; Plano, D.; Bonardi, A.; Gratteri, P.; Angeli, A.; Sanmartin, C.; Supuran, C.T. Selenium-analogs based on natural sources as cancer-associated carbonic anhydrase isoforms IX and XII inhibitors. J. Enzym. Inhib. Med. Chem. 2023, 38, 2191165. [Google Scholar] [CrossRef] [PubMed]
  13. Gouda, M.; Abbas, Y.J.; Abd El-Lateef, H.M.; Khalaf, M.M.; Shaaban, S. Design, Synthesis, and Biological Evaluations of Novel Naphthalene-based Organoselenocyanates. Biointerface Res. Appl. Chem. 2023, 13, 219. [Google Scholar]
  14. Di Leo, I.; Messina, F.; Nascimento, V.; Nacca, F.G.; Pietrella, D.; Lenardão, E.J.; Perin, G.; Sancineto, L. Synthetic Approaches to Organoselenium Derivatives with Antimicrobial and Anti-Biofilm Activity. Mini-Rev. Org. Chem. 2018, 16, 589–601. [Google Scholar] [CrossRef]
  15. Sarturi, J.M.; Dornelles, L.; Segatto, N.V.; Collares, T.; Seixas, F.K.; Piccoli, B.C.; D’Avila da Silva, F.; Omage, F.B.; Rocha, J.B.T.; Balaguez, R.A.; et al. Chalcogenium-AZT Derivatives: A Plausible Strategy To Tackle The RT-Inhibitors-Related Oxidative Stress While Maintaining Their Anti- HIV Properties. Curr. Med. Chem. 2023, 30, 2449–2462. [Google Scholar] [CrossRef]
  16. Omage, F.B.; Madabeni, A.; Tucci, A.R.; Nogara, P.A.; Bortoli, M.; dos Santos Rosa, A.; dos Santos Ferreira, V.N.; Rocha, J.B.T.; Miranda, M.D.; Orian, L. Diphenyl Diselenide and SARS-CoV-2: In silico Exploration of the Mechanisms of Inhibition of Main Protease (Mpro) and Papain-like Protease (PLpro). J. Chem. Inf. Model. 2023, 63, 2226–2239. [Google Scholar] [CrossRef]
  17. Refaay, D.A.; Ahmed, D.M.; Mowafy, A.M.; Shaaban, S. Evaluation of novel multifunctional organoselenium compounds as potential cholinesterase inhibitors against Alzheimer’s disease. Med. Chem. Res. 2022, 31, 894–904. [Google Scholar] [CrossRef]
  18. Mamgain, R.; Kostic, M.; Singh, F.V. Synthesis and Antioxidant Properties of Organoselenium Compounds. Curr. Med. Chem. 2023, 30, 2421–2448. [Google Scholar] [CrossRef]
  19. Elsherbini, M.; Hamama, W.S.; Zoorob, H.H. Recent advances in the chemistry of selenium-containing heterocycles: Five-membered ring systems. Coord. Chem. Rev. 2016, 312, 149–177. [Google Scholar] [CrossRef]
  20. Elsherbini, M.; Hamama, W.S.; Zoorob, H.H. Recent advances in the chemistry of selenium-containing heterocycles: Six-membered ring systems. Coord. Chem. Rev. 2017, 330, 110–126. [Google Scholar] [CrossRef]
  21. Ninomiya, M.; Garud, D.R.; Koketsu, M. Biologically significant selenium-containing heterocycles. Coord. Chem. Rev. 2011, 225, 2968–2990. [Google Scholar] [CrossRef]
  22. Obieziurska-Fabisiak, M.; Pacuła-Miszewska, A.J.; Laskowska, A.; Ścianowski, J. Organoselenium compounds as antioxidants. Arkivoc 2023, v, 69–92. [Google Scholar] [CrossRef]
  23. Parnham, M.J.; Sies, H. The early research and development of ebselen. Biochem. Pharmacol. 2013, 86, 1248–1253. [Google Scholar] [CrossRef] [PubMed]
  24. Azad, G.K.; Tomar, R.S. Ebselen, a promising antioxidant drug: Mechanisms of action and targets of biological pathways. Mol. Biol. Rep. 2014, 41, 4865–4879. [Google Scholar] [CrossRef] [PubMed]
  25. Jin, Z.; Du, X.; Xu, Y.; Deng, Y.; Liu, M.; Zhao, Y.; Zhang, B.; Li, X.; Zhang, L.; Peng, C.; et al. Structure of Mpro from SARS-CoV-2 and discovery of its inhibitors. Nature 2020, 582, 289–293. [Google Scholar] [CrossRef]
  26. Weglarz-Tomczak, E.; Tomczak, J.M.; Talma, M.; Burda-Grabowska, M.; Giurg, M.; Brul, S. Identification of ebselen and its analogues as potent covalent inhibitors of papain-like protease from SARS-CoV-2. Sci. Rep. 2021, 11, 3640. [Google Scholar] [CrossRef]
  27. Medvedeva, A.S.; Andreev, M.V.; Safronova, L.P. One-Pot Synthesis of 3-(Trimethylsilyl)propynamides. Russ. J. Org. Chem. 2010, 46, 1466–1470. [Google Scholar] [CrossRef]
  28. Perin, G.; Barcellos, A.M.; Luz, E.Q.; Borges, E.L.; Jacob, R.G.; Lenardão, E.J.; Sancineto, L.; Santi, C. Green Hydroselenation of Aryl Alkynes: Divinyl Selenides as a Precursor of Resveratrol. Molecules 2017, 22, 327. [Google Scholar] [CrossRef]
  29. Perin, G.; Lenardão, E.J.; Jacob, R.G.; Panatieri, R.B. Synthesis of Vinyl Selenides. Chem. Rev. 2009, 109, 1277–1301. [Google Scholar] [CrossRef]
  30. Silveira, C.C.; Braga, A.L.; Vieira, A.S.; Zeni, G. Stereoselective Synthesis of Enynes by Nickel-Catalyzed Cross-Coupling of Divinylic Chalcogenides with Alkynes. J. Org. Chem. 2003, 68, 662–665. [Google Scholar] [CrossRef]
  31. Silveira, C.C.; Mendes, S.R.; Wolf, L. Iron-Catalyzed Coupling Reactions of Vinylic Chalcogenides with Grignard Reagents. J. Braz. Chem. Soc. 2010, 11, 2138–2145. [Google Scholar] [CrossRef]
  32. Lenardão, E.J.; Cella, R.; Jacob, R.G.; da Silva, T.B.; Perin, G. Synthesis and Reactivity of α-Phenylseleno-β-substituted Styrenes. Preparation of (Z)-Allyl Alcohols, (E)-α-Phenyl-α,β-unsaturated Aldehydes and α-Aryl Acetophenones. J. Braz. Chem. Soc. 2006, 17, 1031–1038. [Google Scholar] [CrossRef]
  33. Potapov, V.A.; Musalov, M.V.; Musalova, M.V.; Amosova, S.V. Recent Advances in Organochalcogen Synthesis Based on Reactions of Chalcogen Halides with Alkynes and Alkenes. Curr. Org. Chem. 2016, 20, 136–145. [Google Scholar] [CrossRef]
  34. Perin, G.; Alves, D.; Jacob, R.G.; Barcellos, A.M.; Soares, L.K.; Lenardão, E.J. Synthesis of Organochalcogen Compounds using Non-Conventional Reaction Media. ChemistrySelect 2016, 2, 205–258. [Google Scholar] [CrossRef]
  35. Lenardão, E.J.; Dutra, L.G.; Saraiva, M.T.; Jacob, R.G.; Perin, G. Hydroselenation of alkynes using NaBH4/BMIMBF4: Easy access to vinyl selenides. Tetrahedron Lett. 2007, 48, 8011–8013. [Google Scholar] [CrossRef]
  36. Soares, L.K.; Silva, R.B.; Peglow, T.J.; Silva, M.S.; Jacob, R.G.; Alves, D.; Perin, G. Selective Synthesis of Vinyl- or Alkynyl Chalcogenides from Glycerol and their Water-Soluble Derivatives. ChemistrySelect 2016, 1, 2009–2013. [Google Scholar] [CrossRef]
  37. Gonçalves, L.C.C.; Victória, F.N.; Lima, D.B.; Borba, P.M.Y.; Perin, G.; Savegnago, L.; Lenardão, E.J. CuI/glycerol mediated stereoselective synthesis of 1,2-bis-chalcogen alkenes from terminal alkynes: Synthesis of new antioxidants. Tetrahedron Lett. 2014, 55, 5275–5279. [Google Scholar] [CrossRef]
  38. Orlov, N.V. Metal Catalysis in Thiolation and Selenation Reactions of Alkynes Leading to Chalcogen-Substituted Alkenes and Dienes. ChemistryOpen 2015, 4, 682–697. [Google Scholar] [CrossRef]
  39. Potapov, V.A.; Andreev, M.V.; Musalov, M.V.; Sterkhova, I.V.; Amosova, S.V.; Larina, L.I. Regioand Stereoselective Synthesis of (Z,Z)-Bis(3-amino-3-oxo-1-propenyl) Selenides and Diselenides Based on 2-propynamides: A Novel Family of Diselenides with High Glutathione Peroxidase-like Activity. Inorganics 2022, 10, 74. [Google Scholar] [CrossRef]
  40. Andreev, M.V.; Potapov, V.A.; Musalov, M.V.; Amosova, S.V. (Z,Z)-Selanediylbis(2-propenamides): Novel Class of Organoselenium Compounds with High Glutathione Peroxidase-Like Activity. Regio- and Stereoselective Reaction of Sodium Selenide with 3-Trimethylsilyl-2-propynamides. Molecules 2020, 25, 5940. [Google Scholar] [CrossRef]
  41. Andreev, M.V.; Potapov, V.A.; Musalov, M.V.; Larina, L.I.; Amosova, S.V. Regio- and stereoselective reaction of sodium benzeneselenolate with 3-(trimethylsilyl)prop-2-ynamides. Russ. Chem. Bull. 2019, 68, 2134–2136. [Google Scholar] [CrossRef]
  42. Potapov, V.A.; Elokhina, V.N.; Larina, L.I.; Yaroshenko, T.I.; Tatarinova, A.A.; Amosova, S.V. Reactions of sodium selenide with ethynyl and bromoethynyl ketones: Stereo- and regioselective synthesis of functionalized divinyl selenides and 1,3-diselenetanes. J. Organomet. Chem. 2009, 694, 3679–3682. [Google Scholar] [CrossRef]
  43. Potapov, V.A.; Amosova, S.V.; Kashik, A.S. Reactions of selenium and tellurium metals with phenylacetylene in 3-phase catalytical systems. Tetrahedron Lett. 1989, 30, 613–616. [Google Scholar] [CrossRef]
  44. Gusarova, N.K.; Trofimov, B.A.; Potapov, V.A.; Amosova, S.V.; Sinegovskaya, L.M. Reactions of Elemental Selenium with Acetylenes. 1. Identification of Products of Reaction of Elemental Selenium with Acetylene. Zhurnal Org. Khimii 1984, 20, 484–489. (In Russian) [Google Scholar]
  45. Potapov, V.A.; Gusarova, N.K.; Amosova, S.V.; Kashik, A.S.; Trofimov, B.A. Reactions of Chalcogen with Acetylenes. 2. Reaction of Selenium Metals with Acetylene in the HMPA and DMSO Media. Zhurnal Org. Khimii 1986, 22, 276–281. (In Russian) [Google Scholar]
  46. Gusarova, N.K.; Potapov, V.A.; Amosova, S.V.; Trofimov, B.A. Alkylvinyl Selenides from Acetylene, Elemental Selenium and Alkyl Halides. Zhurnal Org. Khimii 1983, 19, 2477–2480. (In Russian) [Google Scholar]
  47. Potapov, V.A.; Musalov, M.V. Triple-click chemistry of selenium dihalides: Catalytic regioselective and highly efficient synthesis of bis-1,2,3-triazole derivatives of 9-selenabicyclo[3.3.1]nonane. Catalysts 2022, 12, 1032. [Google Scholar] [CrossRef]
  48. Musalov, M.V.; Potapov, V.A. Click Chemistry of Selenium Dihalides: Novel Bicyclic Organoselenium Compounds Based on Selenenylation/BisFunctionalization Reactions and Evaluation of Glutathione Peroxidase-like Activity. Int. J. Mol. Sci. 2022, 23, 15629. [Google Scholar] [CrossRef]
  49. Deobald, A.M.; Camargo, L.R.S.; Hörner, M.; Rodrigues, O.E.D.; Alves, D.; Braga, A.L. Synthesis of arylseleno-1,2,3-triazoles via copper-catalyzed 1,3-dipolar cycloaddition of azido arylselenides with alkynes. Synthesis 2011, 43, 2397–2406. [Google Scholar]
  50. Seus, N.; Saraiva, M.T.; Alberto, E.E.; Savegnago, L.; Alves, D. Selenium compounds in click chemistry: Copper catalyzed 1,3-dipolar cycloaddition of azidomethyl arylselenides and alkynes. Tetrahedron 2012, 68, 10419–10425. [Google Scholar] [CrossRef]
  51. Rodionov, V.O.; Fokin, V.V.; Finn, M.G. Mechanism of the Ligand-Free CuI-Catalyzed Azide–Alkyne Cycloaddition Reaction. Angew. Chem. Int. Ed. Engl. 2005, 44, 2210–2215. [Google Scholar] [CrossRef] [PubMed]
  52. Bieber, L.W.; da Silva, M.F. Copper catalyzed regioselective coupling of allylic halides and alkynes promoted by weak inorganic bases. Tetrahedron Lett. 2007, 48, 7088–7090. [Google Scholar] [CrossRef]
  53. Potapov, V.A.; Yaroshenko, T.I.; Panov, V.A.; Musalov, M.V.; Khabibulina, A.G.; Musalova, M.V.; Amosova, S.V. Efficient Methods of Synthesis of Unsaturated Alcohols and Ketones by Allylation of Favorsky Reaction Products under Phase Transfer Conditions. Russ. J. Org. Chem. 2016, 52, 1733–1737. [Google Scholar] [CrossRef]
  54. Kondo, K.; Murai, S.; Sonoda, N. Selenium catalyzed generation of diimide from hydrazine. Selenium as a novel oxidizing reagent. Tetrahedron Lett. 1977, 42, 3727–3730. [Google Scholar] [CrossRef]
  55. Larina, L.I.; Albanov, A.I.; Zelinskiy, S.N.; Annenkov, V.V.; Rusakova, I.L. Acrylamide Derivatives: A Dynamic Nuclear Magnetic Resonance Spectroscopy. Magn. Reson. Chem. 2023, 61, 277–283. [Google Scholar] [CrossRef]
Figure 1. Examples of biologically relevant organoselenium compounds containing the amide group.
Figure 1. Examples of biologically relevant organoselenium compounds containing the amide group.
Catalysts 13 01326 g001
Scheme 1. The reaction of 3-trimethylsilyl-2-propynamides 1a,b with diselenides 2a,b.
Scheme 1. The reaction of 3-trimethylsilyl-2-propynamides 1a,b with diselenides 2a,b.
Catalysts 13 01326 sch001
Scheme 2. The reaction path of the formation of the products 3a,b and 4a,b.
Scheme 2. The reaction path of the formation of the products 3a,b and 4a,b.
Catalysts 13 01326 sch002
Scheme 3. The addition reaction of sodium selenolate 7 to acetylene 8.
Scheme 3. The addition reaction of sodium selenolate 7 to acetylene 8.
Catalysts 13 01326 sch003
Scheme 4. The reaction of divinyl diselenide 6 with acetylene 8.
Scheme 4. The reaction of divinyl diselenide 6 with acetylene 8.
Catalysts 13 01326 sch004
Scheme 5. The path of the formation of compound 10.
Scheme 5. The path of the formation of compound 10.
Catalysts 13 01326 sch005
Scheme 6. The Cu-catalyzed reaction of diselenides 12a,b with 4-propioloylmorpholine 11.
Scheme 6. The Cu-catalyzed reaction of diselenides 12a,b with 4-propioloylmorpholine 11.
Catalysts 13 01326 sch006
Scheme 7. The synthesis of 5-hexen-2-ynamides 15ac.
Scheme 7. The synthesis of 5-hexen-2-ynamides 15ac.
Catalysts 13 01326 sch007
Scheme 8. The synthesis of compound 14b.
Scheme 8. The synthesis of compound 14b.
Catalysts 13 01326 sch008
Scheme 9. The synthesis of dialkyl diselenides 2a, 12a and dibenzyl diselenide 2b.
Scheme 9. The synthesis of dialkyl diselenides 2a, 12a and dibenzyl diselenide 2b.
Catalysts 13 01326 sch009
Figure 2. The structure of the compound 4a.
Figure 2. The structure of the compound 4a.
Catalysts 13 01326 g002
Figure 3. The structure of the compound 9.
Figure 3. The structure of the compound 9.
Catalysts 13 01326 g003
Figure 4. The structure of the compound 10.
Figure 4. The structure of the compound 10.
Catalysts 13 01326 g004
Table 1. A Z/E ratio of the products 3a,b and 4a,b in the reaction of propynamides 1a,b with diselenides 2a,b.
Table 1. A Z/E ratio of the products 3a,b and 4a,b in the reaction of propynamides 1a,b with diselenides 2a,b.
EntriesAmides 1a,b,
R1NR2
Diselenides 2a,bProduct,
Yield
Ratio
(Z/E)
The Fractions Isolated by
Column Chromatography
entry 11a HNPhBuSeSeBu (2a)3a, 94%100/7(Z/E) = 100/2
entry 21b MorpholinylBuSeSeBu (2a)3b, 90%100/7(Z)
entry 31a HNPhBnSeSeBn (2b)4a, 90%100/4(Z/E) = 100/2
entry 41b MorpholinylBnSeSeBn (2b)4b, 93%100/847% (Z);
25% (Z/E) = 100/33;
2% (Z/E) = 4/100
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Andreev, M.V.; Potapov, V.A.; Musalov, M.V.; Larina, L.I. First Examples of Reactions of 3-Trimethylsilyl-2-Propynamides and Organic Diselenides: Synthesis of Novel Derivatives of Propynamides. Catalysts 2023, 13, 1326. https://doi.org/10.3390/catal13101326

AMA Style

Andreev MV, Potapov VA, Musalov MV, Larina LI. First Examples of Reactions of 3-Trimethylsilyl-2-Propynamides and Organic Diselenides: Synthesis of Novel Derivatives of Propynamides. Catalysts. 2023; 13(10):1326. https://doi.org/10.3390/catal13101326

Chicago/Turabian Style

Andreev, Mikhail V., Vladimir A. Potapov, Maxim V. Musalov, and Lyudmila I. Larina. 2023. "First Examples of Reactions of 3-Trimethylsilyl-2-Propynamides and Organic Diselenides: Synthesis of Novel Derivatives of Propynamides" Catalysts 13, no. 10: 1326. https://doi.org/10.3390/catal13101326

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
