Unraveling the Mechanism for H₂O₂ Photogeneration on Polymeric Carbon Nitride with Alkali Metal Modification

Abstract

K and Na have been widely used in photocatalytic H₂O₂ production. However, Rb and Cs have rarely been studied for their photocatalytic potentials. In addition, the mechanism regulating H₂O₂ production from different alkali metal (M)-modified polymeric carbon nitride (PCN) is still unknown. Therefore, M-doped PCN was fabricated using thermal copolymerization in the presence of Li, Na, K, Rb, or Cs. The activity of CN-M was enhanced by the increase in the metallic character of alkali metals. However, CN-Cs’s photocatalytic H₂O₂ activity is not optimal even though it has the strongest metallic character. A stronger metallic character is anticipated to yield stronger Lewis acidic sites. Although ethanol can be adsorbed and activated at strong Lewis acidic sites, H₂O₂ can also be activated at these sites, which speeds up H₂O₂ degradation. CN-Rb—with its acceptable metallic character, excellent oxygen adsorption capacity, and reduced H₂O₂ degradation—has the best photocatalytic H₂O₂ yield.

1. Introduction

Hydrogen peroxide (H₂O₂) is an essential inorganic chemical that has been extensively employed in organic syntheses, environmental remediations, paper pulp bleaching, and medical disinfection [1,2,3,4]. Being an environmentally friendly technique, photocatalytic H₂O₂ generation has recently attracted wider scientific attention as a topic [5,6,7,8,9]. In particular, polymeric carbon nitride (PCN) has received greater scientific attention for its potential to produce H₂O₂ by photocatalysis. This is likely because PCN has a high selectivity for this reaction and can easily change its morphology, molecular structure, and band gap [2,10,11].

Various techniques have been employed for the modification of PCN for photocatalytic H₂O₂ generation. Molecular doping [12], morphological or defect engineering [13], and the construction of composite semiconductors [14,15] are currently the key research areas for the modification of PCN for photocatalytic H₂O₂ generation. Notably, there are a number of research studies on alkali metal ions, such as K⁺ and Na⁺ [16,17]. For example, Wang et al. obtained CNK_0.2 containing N vacancies by calcining KOH and supramolecules [18]. The more negative charge on the surface of CNK_0.2 improves its capacity to adsorb oxygen and, as a result, increases the production of photocatalytic H₂O₂, under the impact of N vacancy. Due to the synergistic effects of doping and defect, K⁺/Na⁺-doped PCN fabricated by Wu et al., demonstrated good photocatalytic H₂O₂ generation [19]. By using KOH and melamine to modify PCN, Zhang et al. created a material that increased electron transport owing to the existence of a K bridge between the C₃N₄ layers and had a great ability to attract electrons due to a N defect formed by a cyano group and a vacancy [20]. K intercalation produced Lewis acidic sites for isopropanol adsorption and enhanced Lewis basic sites for proton release and hydrogen abstraction in PCN with Lewis acidic–basic sites prepared by Long et al. [17]. Liu et al. prepared oxygen- and potassium-dual-heteroatom-incorporated PCN, which demonstrated a significantly improved photocatalytic H₂O₂ production [21]. Na⁺ doping has also been thoroughly investigated. With cyano groups and Na dopants, Chen et al. created a porous PCN with improved photocatalytic activity (7.01 mM/h under visible light) [22]. Zhao et al. discovered that the pyridinic nitrogen-coordinated sodium and cyanamino group in the PCN modified with NaSCN led to better charge separation efficiency, increased surface adsorption of O₂, and produced surface-active sites for 2e⁻-oxygen-reduction reaction [16]. The above research shows that the introduction of K or Na alkali metal ions can greatly improve the H₂O₂ production activity of modified PCN. Among alkali metals, there are, however, only a few studies on the modification of PCN with Li, Rb, or Cs, and it is important to investigate if these modifications are similarly efficient and also what the essential mechanism regulating their function is.

Therefore, in this work, Li, Na, K, Rb, and Cs alkali metal ions were introduced into the structure of PCN via elemental doping, and the optimal addition amount of each metal ion was optimized. By measuring their photocatalytic H₂O₂ production activities, the order of influence of the above five ions on the photocatalytic performance was determined. A series of characterization methods, such as TPD-NH₃ and TPD-O₂, were used to examine the influence of the five ions on the photocatalytic activity. For the modified PCN, metallicity, oxygen and alcohol adsorption, and activation ability on the catalyst surface are the key factors affecting photocatalytic H₂O₂ production. Finally, it was concluded that Rb ion—on account of its appropriate metallic character, Lewis acidic activity intensity, excellent oxygen and alcohol adsorption, and activation ability—had the best photocatalytic performance. This paper provides a useful foundation for further investigating the photocatalytic reactions of alkali metal ion-modified PCN.

2. Results and Discussion

2.1. Morphology and Chemical Structures

The obtained PCN’s morphological characteristics were determined via SEM. All samples, as seen in Figure S1, have asymmetrical forms and lack any unique morphology or structure. Table S1 and Figure S2 show the N₂ sorption–desorption isotherms and pore size distribution curves of the acquired PCN specimens. The modified PCN’s particular surface areas are not much larger than those of CN. The specific surface areas of CN-Cs CN-K, and CN-Rb, on the other hand, decrease, which might be caused by the addition of metal ions and the filling of the holes. The short metallic atomic radius of CN-Li and CN-Na may be the cause of the minor rise in their specific surface areas. The same pattern can also be seen in the plots of the pore size distribution (Figure S2b). The results show that improving photocatalytic activity in this work was not primarily influenced by the particular surface area of modified PCN.

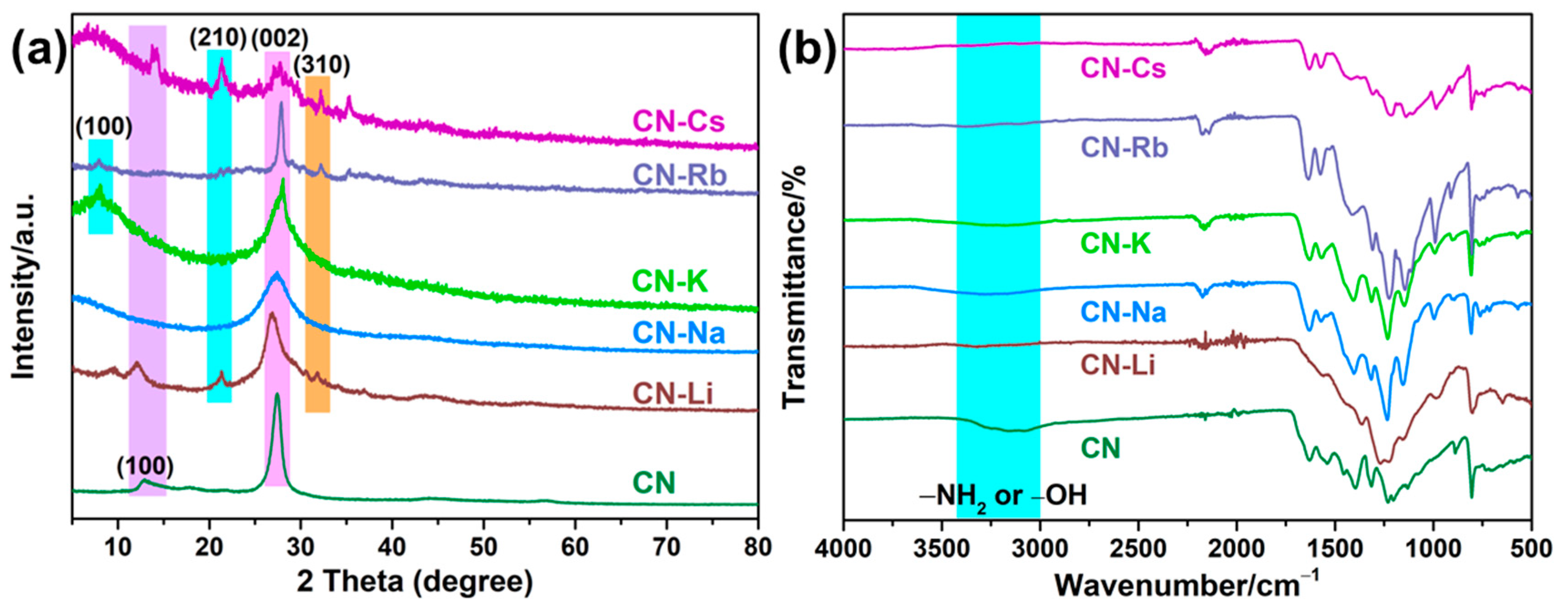

Measurements of XRD spectra, FT-IR patterns, and XPS spectra were made to acquire an understanding of PCN structures. Two diffraction peaks at 12.83° and 27.40°, corresponding to the (100) and (002) planes of PCN, were observed for the CN specimen, as depicted in Figure 1a. The first peak was the interlayer heptazine motif periodic array, while the second peak was the interlayer aromatic packing structure [23]. As for CN-Na, CN-K, and CN-Rb, the diffraction peak at 12.83° disappeared, illustrating that the in-plane packing structure was destroyed [18]. The periodic array of 100 interlayer heptazine motifs’ diffraction peak for CN-K and CN-Rb shifts to 7.78° [17,24]. Additionally, the formation of the poly(heptazine imide) structure was indicated by the appearance of two additional peaks in the CN-Li, CN-Rb, and CN-Cs spectra at 21° and 32°, corresponding to the 210 and 310 planes, respectively [25,26]. The metallic character of Li is the lowest among these metals, but the structure of CN-Li was similar to that of CN-Rb, which may be due to the high addition of Li. When preparing the catalyst, the optimal addition amount of each metal was explored, as shown in Table S1. To confirm the above speculation, the XRD pattern of CN-Li-0.5 was measured (shown in Figure S3). The structure of CN-Li-0.5 was similar to CN-Na, which means that the above speculation is correct.

The resulting PCN’s FT-IR spectra (Figure 1b) display structures that are similar to typical PCN characteristic peaks. Notably, the O–H or N–H stretching vibrations of uncondensed –NH₂ or adsorbed H₂O on the surface correlate to the broadband in the 2800–3600 cm⁻¹ area [27]. The stretching vibration of the triazine ring and vibration of the C–N heterocycle skeleton, respectively, were attributed to the peaks at 1100–1800 cm⁻¹ and 805 cm⁻¹. The CN-M spectra also showed new peaks at 2000–2250 cm⁻¹ [28], which were ascribed to –C≡N stretching vibrations, while the peak strength at 2800–3200 cm⁻¹ becomes weaker. These findings suggested that some uncondensed –NH₂ on the surface of PCN had been partially replaced by –C≡N. In the CN-M spectra, a brand-new peak at 989 cm⁻¹ was also discovered and was considered to arise from the C–O–H group’s stretching vibration [29]. The findings suggest that the CN-M surface included a substantial number of hydrophilic groups, which may have improved the dispersion of the specimen in water.

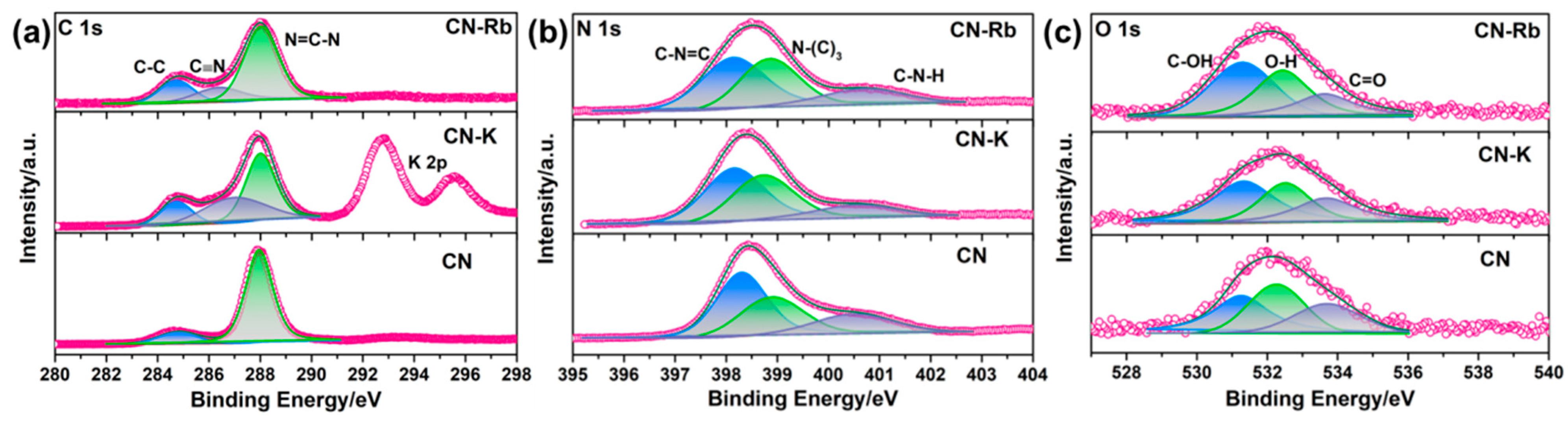

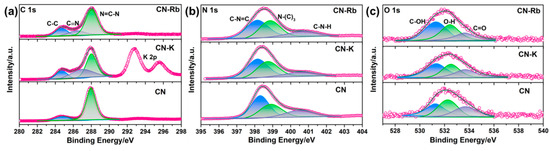

To investigate the variations in PCN’s chemical states, an XPS analysis was conducted. The XPS survey spectra of CN-M showed that C, N, O, and M were present (Figure S4a). Additionally, the high-resolution C 1s, N 1s, and O 1s XPS spectra of the PCNs revealed that they have similar peak shapes (Figure 2 and Figure S4). The two typical peaks for C 1s at 288.2 and 284.8 eV were respectively ascribed to N–C=N and C–C [30]. A new peak that was assigned to CN at 286.5 eV may also be seen in the C 1s spectra of CN-M when compared to C≡N. N–(C)₃ bridging N atoms, sp²-bonded N atoms within triazine rings (C–N=C), and C–N–H, are respectively indexed to the three typical peaks in N 1s spectra (Figure 2b and Figure S4c) at 399.1, 398.6, and 400.7 eV [31]. The high-resolution O 1s spectra of CN and CN-M have been shown in Figure 2c and Figure S4d. The spectra of CN and CN-M show three peaks at 531.1, 532.4, and 533.3 eV, attributed to C–O–H and O–H of the water absorbed and C=O, respectively [32,33]. In addition, chloride ion content is negligible in CN-M (as shown in Table S2). Meanwhile, the mole percentage of M has also been listed in Table S2, indicating that M ions are successfully introduced into the CN-M structure.

According to these findings, the addition of M causes the formation of a cyano group at the triazine ring’s terminal position, which can be utilized as an inhibitor to stop PCN from polymerizing. The resulting CN-M, however, provides numerous edge active sites with –C≡N and –OH groups, including CN-K, CN-Rb, and CN-Cs, while maintaining the PCN structure. It indicates that CN-K, CN-Rb, and CN-Cs have better hydrophilicity, which is helpful for aqueous phase dispersion. The findings of free deposition and contact angle experiments provide evidence for the aforementioned conclusion, as depicted in Figures S5 and S6.

2.2. Optical and Photoelectrochemical Properties

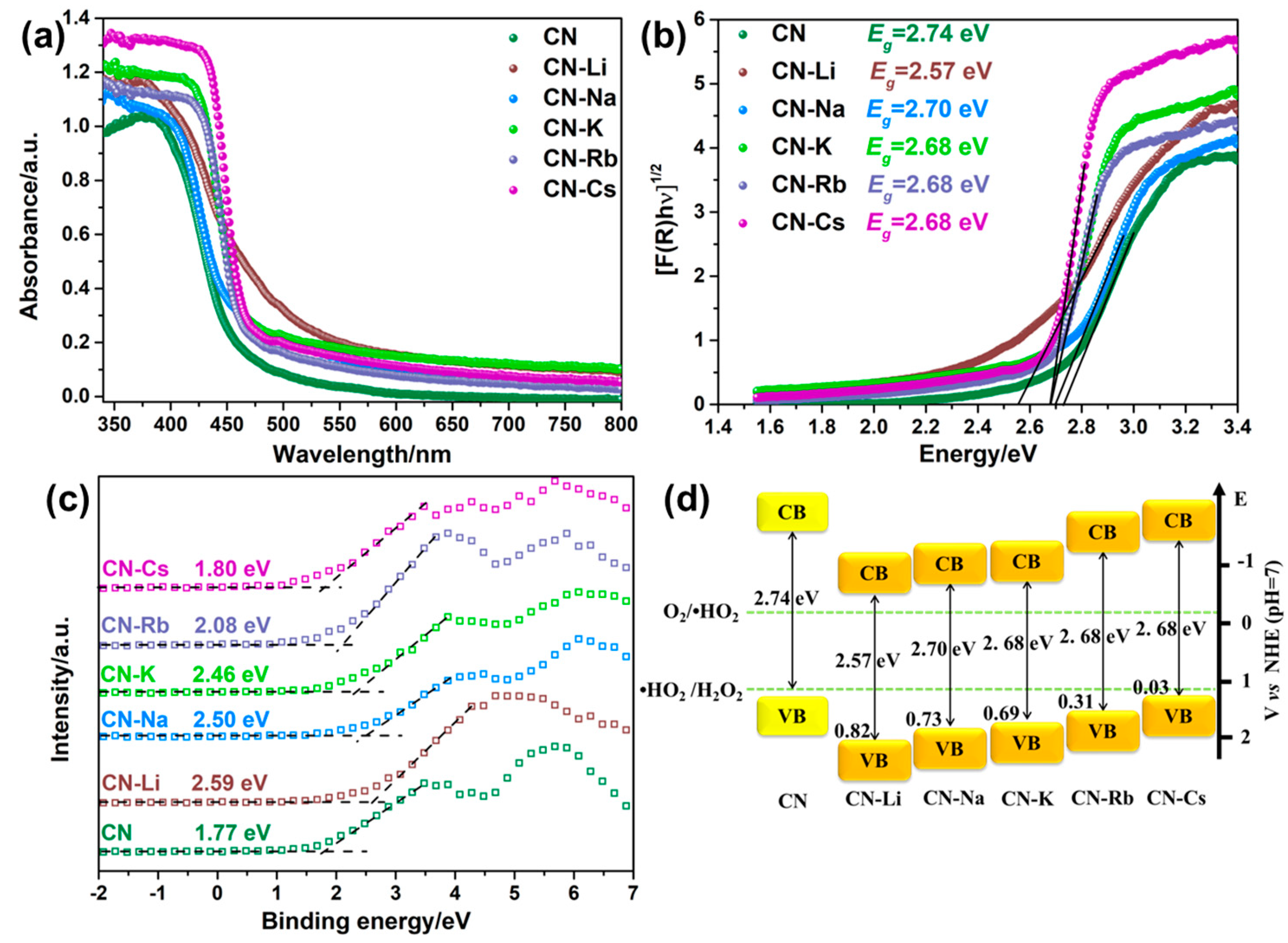

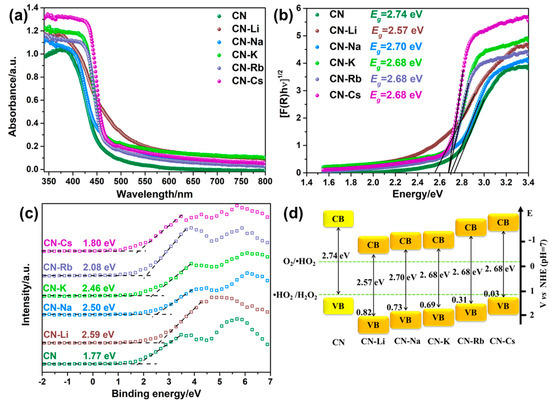

Figure 3a displays the spectra of CN and CN-M’s UV–Vis absorption. In the intrinsic absorption margin, CN-M shows an apparent redshift in comparison to CN, and its absorption property is improved in the visible area, which helps absorb and use visible light. The acquired results have been displayed in Figure 3b and Table S1 after the bandgaps of the various specimens were determined from the UV–Vis absorption spectra. A narrower bandgap (Eg) for CN-M than for CN (2.74 eV) renders it convenient for electrons to transition to the conduction band from the valence band.

The specific band locations of CN and CN-M can be identified from the Mott-Schottky (M-S) plot and XPS-VB spectrum (VB) data. First, the n-type feature of the semiconductors is revealed by the positive slope in the M-S plots of CN and CN-M (Figure S8) [34]. The photocatalytic reduction reaction benefits from the higher electron concentration found in CN-M, as evidenced by the fact that the CN-M slope is low in comparison to that of CN [34]. Combining with the XPS-VB spectra, the VB value (EV) can be estimated with the equation ${\mathrm{E}}_{\mathrm{V}}=\mathrm{\Phi }+{\mathrm{V}\mathrm{B}}_{\mathrm{m}\mathrm{a}\mathrm{x}}-4.44$ at pH = 7 versus the normal hydrogen electrode, where Φ is the analyzer’s electron–work function (3.88 eV) and VBmax is the VB maximum that can be obtained from the XPS-VB spectrum. As shown in Figure 3c, the VBmax value of CN is 1.77 eV. Consequently, the VB value of CN is 1.21 eV. The CN and CN-M bandgaps have been illustrated in Figure 3d. Both are thermodynamically satisfied for 2e⁻-ORR.

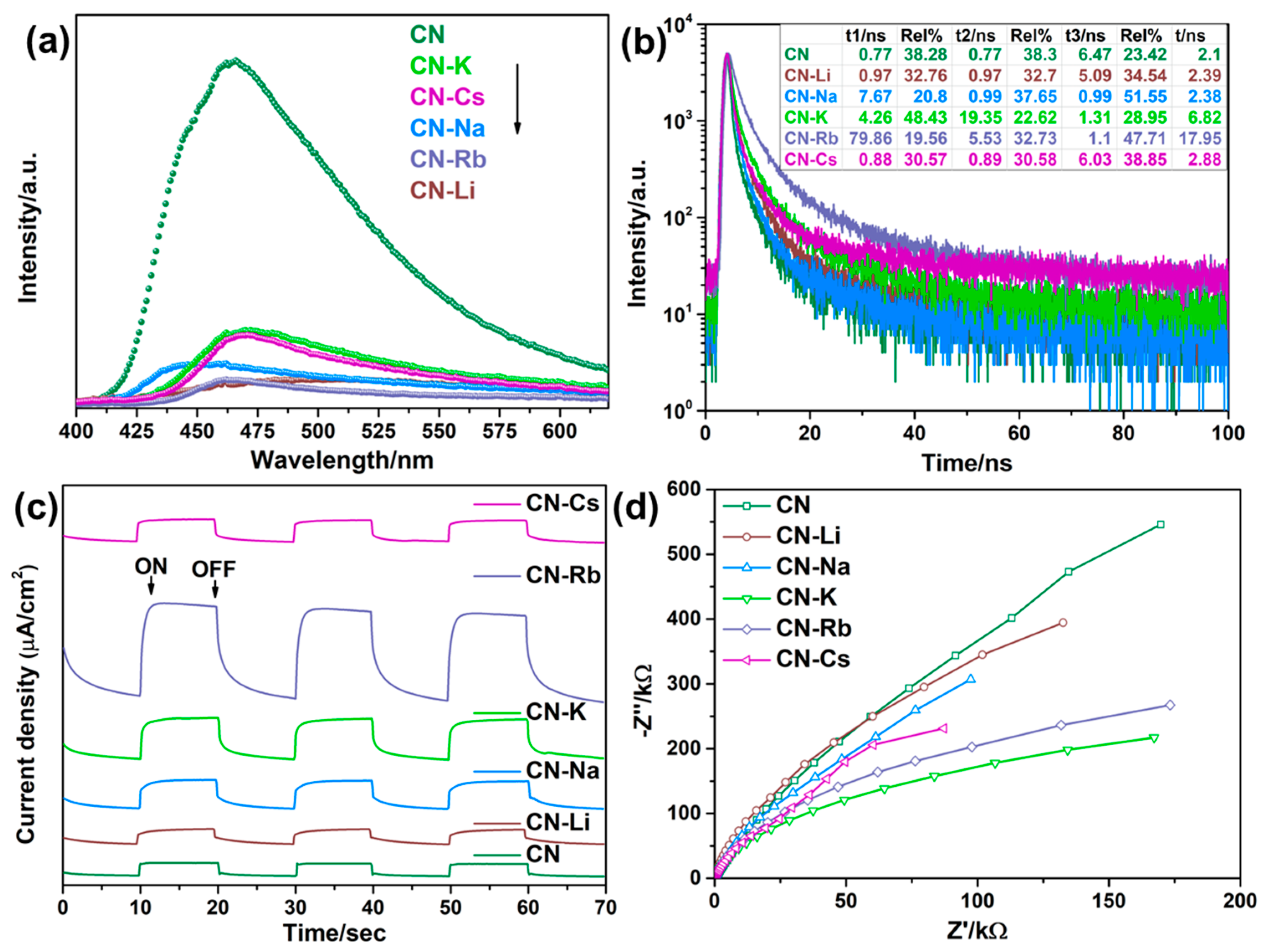

To examine the charge recombination behavior, the steady-state and time-resolved PL spectroscopies of CN and CN-M were put to the test. Because of the synergistic interaction between the improved transport of electrons between the PCN layers caused by the M bridges and the strong electron-withdrawing capability of the cyano group, as shown in Figure 4a, the CN-M specimens demonstrate substantially less PL emission than CN, suggesting lower charge recombination. In addition, time-resolved transient PL spectroscopy was used to examine the average charge-carrier lifetime and the behaviors of charge-carrier separation. The decay curves were fitted by using the triexponential function. The average charge-carrier lifespan rose from 2.10 ns for CN to 17.95 ns for CN-Rb, as shown in Figure 4b and Table S1, demonstrating that more photogenerated carriers can transfer to its surface to be involved in the reactions occurring on the surface. Additionally, different degrees of advancement had been made in the typical charge-carrier lifetimes of CN-Li, CN-Na, CN-K, and CN-Cs.

Transient photocurrent–time and Nyquist plots for the collected PCN specimens were analyzed. The photocurrent density of CN-Rb is 1.76 A/cm², 7.04 times more than that of CN (0.25 A/cm²) as shown in Figure 4c and Table S1. Further evidence supporting the observation that the modified PCN with alkali metal ions exhibits a more effective interface transfer and separation of charge carriers, comes from the higher photocurrent densities of CN-Li, CN-Na, CN-K, and CN-Cs. In addition, the semicircular curve radius in the CN-M Nyquist plot (Figure 4d) is smaller than that in CN, suggesting that the CN-M has a lower charge transfer resistance than CN. The results show that cyano groups and M dopants can significantly increase light absorption and encourage charge separation.

2.3. Photocatalytic Activity

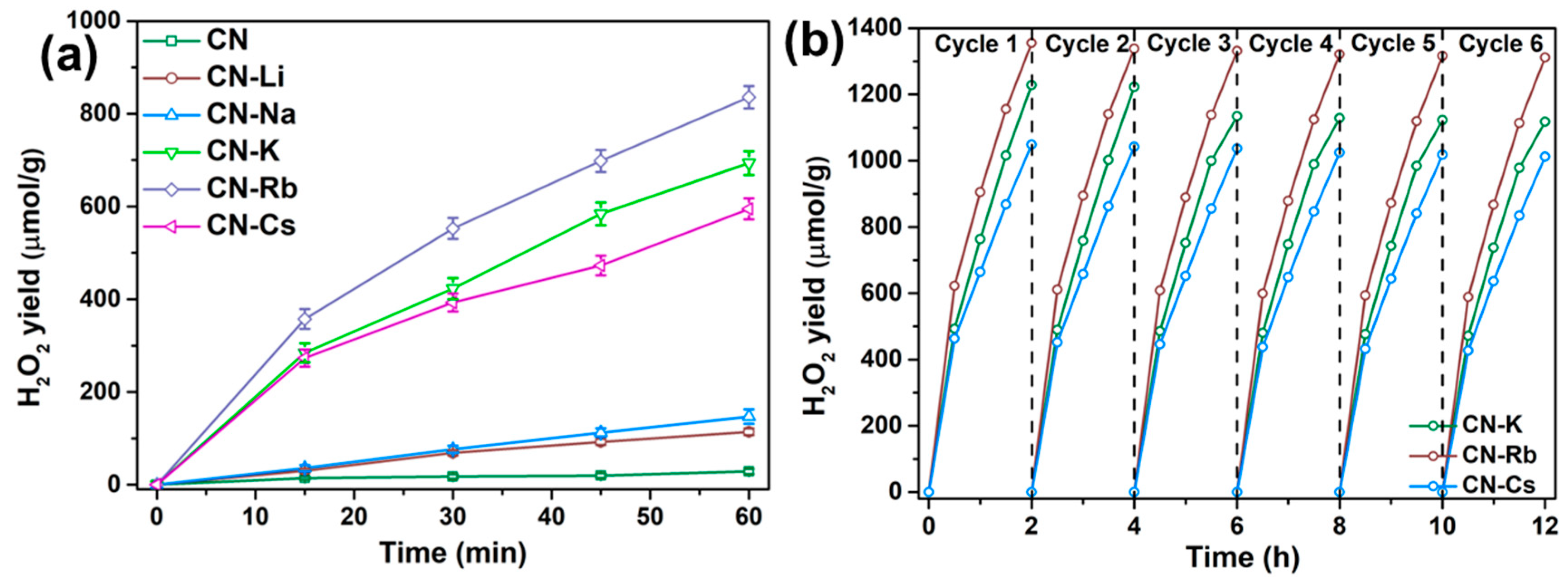

The acquired samples’ photocatalytic activity for the generation of H₂O₂ was assessed under white LED light. All of the samples display H₂O₂ production performances following 60 min of irradiation, as shown in Figure 5a. In particular, the amount of H₂O₂ produced by CN was much lower than that of CN-M samples, at just 59.20 μmol/g. The H₂O₂ production by CN-M increased with an increasing metallic character from Li to Rb. It then decreased for CN-Cs. Therefore, in comparison to CN, 14.11 times more H₂O₂ (835.51 μmol/g) was generated by CN-Rb. Additionally, under visible light (λ > 420 nm), the time-dependent variation in the H₂O₂ generation rates of CN and CN-M was evaluated. Figure S9 demonstrates that with CN-M, sustained H₂O₂ production is seen within 12 h without degradation. The H₂O₂ yield of CN-Rb is 12.52 mmol/g after 12 h of exposure, which is 156.04 times greater than that of CN (80.21 μmol/g). In addition, after 12 h of irradiation, the H₂O₂ yields of CN-K and CN-Cs are 9.10 and 8.54 mmol/g, respectively, indicating that CN-K, CN-Rb, and CN-Cs have outstanding long-term stability. The reaction solution’s dissolved oxygen content (DO) was measured at 1 atm, ~9.82 mg/L, and 283.15 K. The yield of H₂O₂ in a 200 mL solution should be 61.37 μmol if all oxygen is converted to H₂O₂. The H₂O₂ yields of CN-Rb, CN-K, and CN-Cs in our experiment exceeded the theoretical value by 82.60, 65.96, and 66.77 μmol, respectively, at 1 h. H₂O₂ output grew steadily throughout the reaction, showing that O₂ from the air supplemented the O₂ in the reaction’s solution. This is likely because CN-Rb, CN-K, and CN-Cs have strong O₂ adsorption capabilities. The performance stabilities of CN-Rb, CN-K, and CN-Cs were assessed by a cycling 0.03 g specimen that was washed following centrifugation from the reacted solution (Figure 5b). As a result of the increased reaction time, the H₂O₂ yield did not demonstrate any substantial reduction, suggesting outstanding stability for photocatalytic H₂O₂ production.

Moreover, the activity changes of modified PCN obtained by different preparation methods were explored. Melem-M was prepared by calcining melem with MCl. As shown in Figure S10a, compared to CN-M, melem-M shows a similar trend, except that the activity of melem-K was slightly better than that of melem-Rb. This result shows that the order of influence of alkali metal ions on PCN activity is Rb, K, Cs, Na, Li. The photocatalytic H₂O₂ generation of CN with RbCl or KCl was also carried out to confirm the impact of stray Rb⁺ or K⁺ on performance. Figure S10b,c demonstrate that the H₂O₂ yields for CN with various RbCls or KCls are comparable, demonstrating that stray Rb⁺ or K⁺ does not facilitate photocatalytic H₂O₂ synthesis. In addition, the photocatalytic decomposition of H₂O₂ for the samples was tested. In contrast to CN, Figure S10d demonstrates that CN-Li and CN-Na may effectively prevent the breakdown of H₂O₂ because the amine entities in the PCN edge have been swapped out for cyano groups. Furthermore, CN-K, CN-Rb, and CN-Cs also exhibit decreased decomposition of H₂O₂. The amine groups in the CN edge can operate as active sites for H₂O₂ breakdown, which explains the aforementioned results [35]. However, CN-Cs demonstrates apparent H₂O₂ decomposition when compared to CN-Li, CN-Na, CN-Rb, and CN-K, which may occur because the strong Lewis acid sites contribute to the H₂O₂ activation [36].

2.4. Mechanism

The mechanistic details for photocatalytic H₂O₂ production for various specimens were explored. First, from the results of XRD patterns, it could be inferred that CN-Rb and CN-Cs with poly(heptazine imide) structure have excellent activity. CN-Li also has a similar structure. however, its performance is poor, indicating that poly(heptazine imide) structure is not the fundamental factor affecting the performance. In addition, the structure of CN-K is different from CN-Rb. However, its photocatalytic H₂O₂ activity is excellent, which means that crystal structure is not the key element influencing the photocatalytic activity.

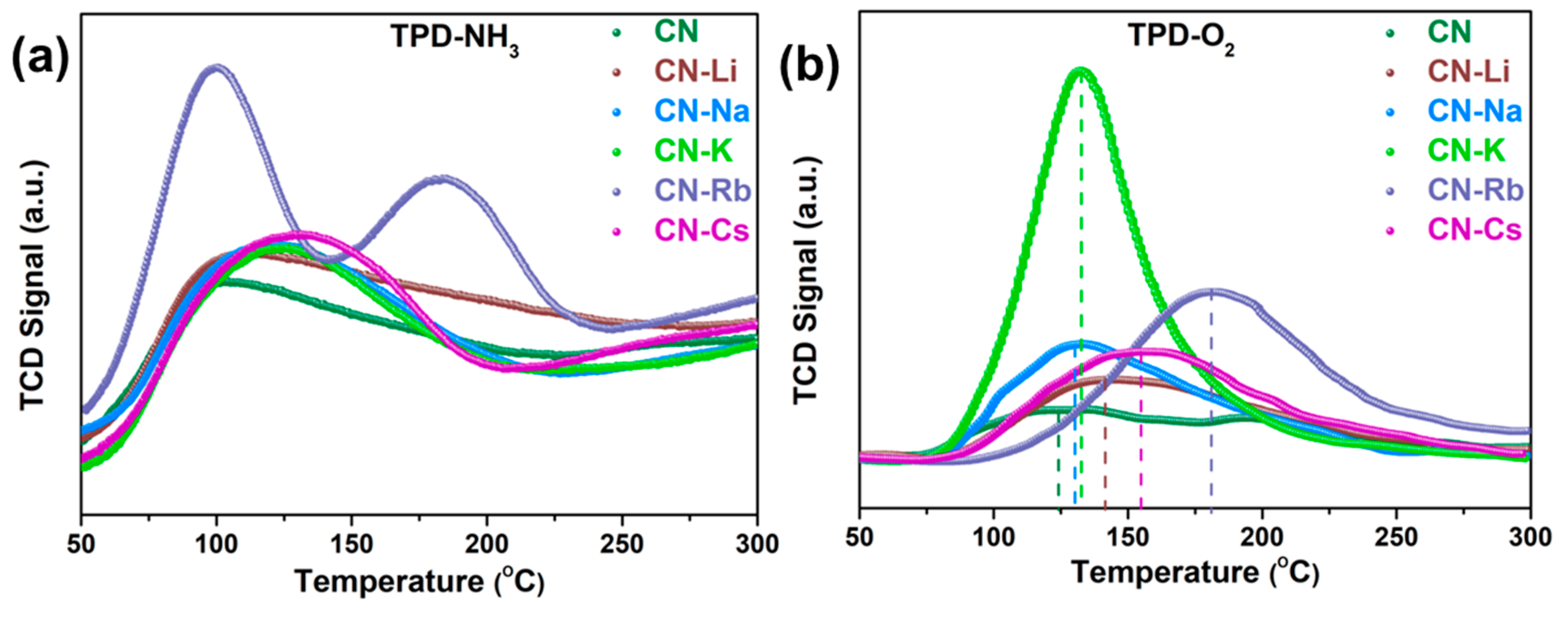

TPD-NH₃ and TPD-O₂ tests on acquired samples were conducted to further investigate the mechanism of photocatalytic H₂O₂ synthesis. Figure 6a demonstrates that all of the CN-M display greater NH₃ desorption temperatures when compared to CN, indicating that the Lewis acidic sites in CN-M—particularly CN-K, CN-Rb, and CN-Cs—are more potent. Meanwhile, the adsorbed NH₃ quantity of the sample is listed in Table S3; the adsorbed NH₃ quantities of CN-K, CN-Rb, and CN-Cs are 0.58, 0.72, and 1.35 mmol/g, respectively—significantly increased compared to CN (0.38 mmol/g). The increased adsorbed NH₃ quantities indicate that more Lewis acidic sites are formed with the enhanced metallic character of alkali metal. Alcohol may be adsorbed onto CN and CN-Rb with adsorption energies of 1.11 and 3.16 eV, respectively, as suggested by the outcome of the DFT calculation (Figure S11e,f). This finding suggests that the increased Lewis acidic sites are involved in the alcohol adsorption process. As is common knowledge, oxygen adsorption on the catalyst surface is essential for ORR. Consequently, TPD-O₂ data (Figure 6b and Table S3) showed that CN showed an O₂ desorption peak at 123 °C with 13.18 mol/g, whereas the desorption temperature and amount of CN-M adsorbed underwent an increase. This shows that CN-M has good chemisorption capacity and capability of O₂ adsorption. In particular, the adsorbed O₂ amounts for CN-Rb and CN-Cs are 97.47 and 112.47 mol/g, respectively. Furthermore, the DFT calculation showed that the energies of adsorption onto CN and CN-Rb were −0.77 and −3.38 eV, respectively (Figure S11c,d), which agrees well with the TPD-O₂ results. Moreover, to further explore the change in oxygen content in the reaction liquid during the reaction process, the dissolved oxygen (DO) values in the reaction mixture were determined. The DO values of CN-M samples, particularly CN-Rb and CN-Cs, fell after stirring for 30 min in the dark, as shown in Figure S12a, indicating that a significant amount of oxygen was transferred from the solution to the catalyst surface. At the beginning of illumination, the DO values of CN-K, CN-Rb, and CN-Cs decreased sharply, corresponding to their excellent photocatalytic H₂O₂ production. After 45 min, their DO values tended to remain constant. The equilibrium between dissolution and consumption, which indicates that the reaction system may swiftly add oxygen derived from air to the reaction, is the cause of the DO value’s tendency to balance when compared to the photocatalytic H₂O₂ production. Additionally, an intriguing phenomenon was observed: relative to the initial DO, the DO rose after stirring for 5 min in the dark, as shown in Figure S13, and the D-values for various catalysts agree with the TPD-O₂ results. For TPD-O₂ results, CN-Cs has the highest adsorbed O₂ quantity, and for DO, it also has the highest D-value. Meanwhile, the DO values of the closed system with catalyst degassing treatment were also tested (Figure S12b). It can be seen that as the reaction proceeds, the DO of CN-M gradually decreases, especially for CN-K, CN-Rb, and CN-Cs. Therefore, with the increased metallic character of alkali metals, the modified CN-M exhibits excellent alcohol and oxygen adsorption, which is favorable to photocatalytic H₂O₂ production.

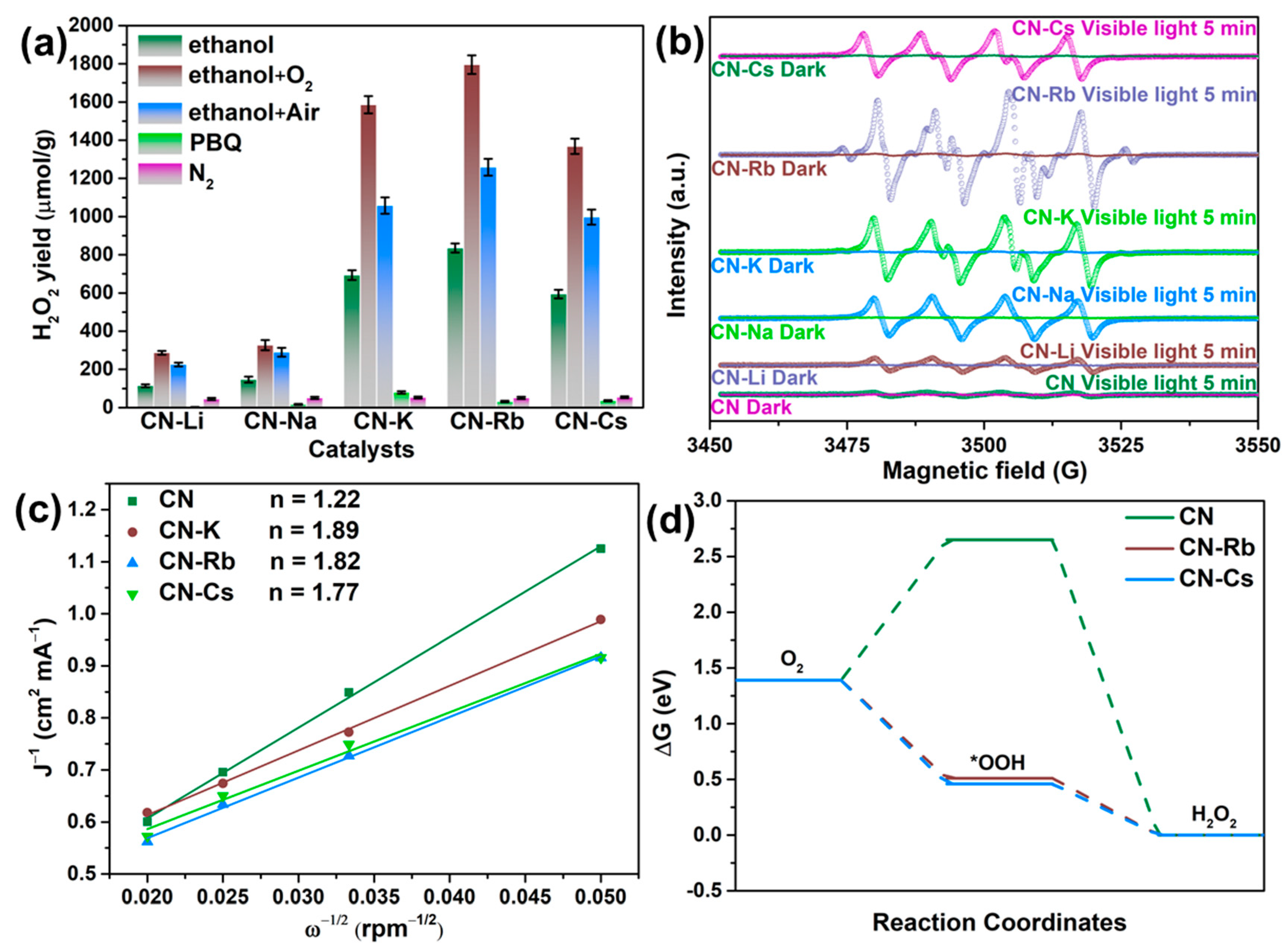

Various reaction settings were used to examine the CN-M sample’s reaction pathway (as shown in Figure 7a). The photocatalytic synthesis of H₂O₂ was carried out in nitrogen—that is, the reaction bottle was sealed after 5 min of N₂ being injected into the system to replace O₂. The H₂O₂ yields for the N₂ atmosphere of CN-M were significantly reduced, as shown in Figure 7a. The H₂O₂ yield increased visibly when O₂ or air was fed into the reaction system, demonstrating that O₂ was essential to the process. Additionally, a radical-capture experiment was carried out using p-benzoquinone (PBQ) as a superoxide radical-trapping agent. The findings demonstrate that superoxide radicals were essential for the photocatalytic generation of H₂O₂ using PCN since the H₂O₂ yields were significantly reduced. Additionally, the spin-trapping ESR/DMPO approach has proven the formation of superoxide radicals (as shown in Figure 7b) [37]. When exposed to visible light, which also identified the superoxide radical intermediates, the signal of DMPO/•OOH of CN-M is noticeably higher in comparison to that of CN. Therefore, the two-step single-electron ORR pathway may represent the CN-M’s reaction pathway.

Additionally, the electron transfer number (n) and kinetic current density (J_K) in the ORR routes on the PCN samples were assessed through LSV in accordance with the Koutecky–Levich equation to further demonstrate that the reaction followed the 2e⁻-ORR pathway. The current densities of CN-K, CN-Rb, and CN-Cs were much higher than those of CN, as shown in Figure 7c and Figure S15, showing that they had better oxygen-reduction activities than CN. Moreover, the values of n were 1.22, 1.89, 1.82, and 1.77 for CN, CN-K, CN-Rb, and CN-Cs, respectively, indicating that two-step single-electron ORR occurred on CN-K, CN-Rb, and CN-Cs.

DFT calculations were performed to understand the H₂O₂-generation mechanism on PCN. A typical 2e⁻-ORR pathway was proposed as the route by which oxygen was photocatalytically reduced to H₂O₂ [38]. Figure 7d demonstrates that CN-Rb and CN-Cs had lower G values during the •OOH production stage (0.51 and 0.46 eV, respectively) than CN (2.65 eV). The activated O₂ on CN-Rb and CN-Cs appeared to be converted more readily to •OOH based on the lower G values of •OOH production. The fact that adding Rb and Cs ions to PCN increased its kinetic activity was corroborated by the lower G of the protonation step for CN-Rb and CN-Cs.

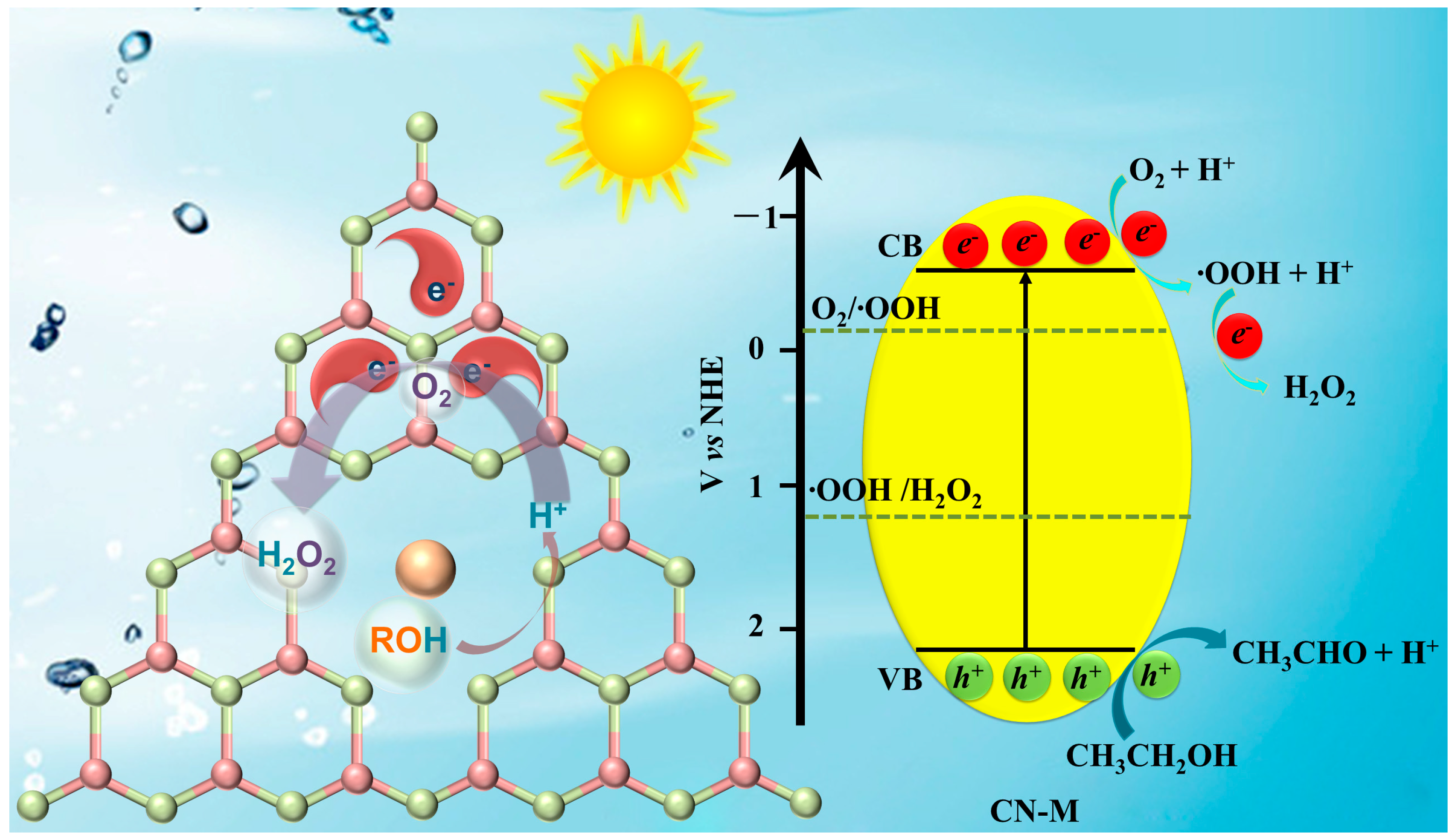

In conclusion, Scheme 1 can be used to comprehend the processes that lead to the photocatalytic oxidation of ethanol and the creation of H₂O₂ on CN-M. The photogenerated electrons were distributed on the N and C atoms (Figure S16b). At Lewis acidic sites, ethanol might be oxidized and adsorbed simultaneously. H₂O₂ was produced when the adsorbed O₂ reacted with the special C and N atoms with two electrons.

3. Methods and Materials

3.1. Materials

The Shanghai Macklin Biochemical Co. Ltd. (Shanghai, China) supplied the dicyandiamide (DCDA). Salts including, LiCl, NaCl, KCl, RbCl, and CsCl, were provided by the Saan Chemical Technology Co. Ltd. (Shanghai, China).

3.2. Synthesis of CN-M

DCDA (5 g) and MCl (LiCl, NaCl, KCl, RbCl, or CsCl) were added into 50 mL beakers with 30 mL distilled water and heated at 80 °C for 2 h while stirring. After drying at 80 °C in an oven overnight, a white powder was heated at 550 °C for 4 h (4 °C/min) in a muffle furnace. After natural cooling to room temperature, the yellow solid was ground and filtered three times with boiling water and ethanol. After drying at 80 °C overnight, the modified PCN was obtained and named CN-M (M: Li, Na, K, Rb, Cs).

3.3. Synthesis of CN

DCDA was directly heated at 550 °C for 4 h at a heating rate of 4 °C/min in a muffle furnace to act as a control, and the obtained PCN was named CN.

3.4. Synthesis of Melem-M

DCDA was directly heated at 425 °C for 4 h at a heating rate of 4 °C/min in a muffle furnace. After cooling to room temperature, the sample was ground and named melem. Melem (1 g) and MCl (LiCl, NaCl, KCl, RbCl, or CsCl) were ground, mixed and heated at 550 °C for 2 h at a heating rate of 4 °C/min in a muffle furnace. After cooling to room temperature, the sample was filtered three times with distilled water and ethanol. After drying at 80 °C overnight, a yellow powder was obtained and named melem-M (M: Li, Na, K, Rb, Cs).

3.5. Photocatalytic Production of H₂O₂

First, the photocatalytic H₂O₂-production properties of the obtained samples were screened on a multipass light catalytic reaction system (Perfectlight PCX50C Discover, Beijing, China) under white LED irradiation. Briefly, 0.03 g of the photocatalyst was adequately dispersed in 50 mL of an ethanol solution (10 vol%), after which the solution was irradiated under white LED light. The photocatalytic reaction was performed for 1 h with a 15-min interval for sample collection. The H₂O₂ concentration was determined by the colorimetric method, which is based on the peroxidase (POD)-catalyzed oxidation of N, N-diethyl-p-phenylenediamine (DPD) by hydrogen peroxide [16].

In order to further analyze the performance of samples, the photocatalytic H₂O₂ production was measured employing a 350 W Xe lamp comprising a 420 nm UV filter(Perfectlight PLS-SXE300D, Beijing, China). Namely, 0.05 g of each sample was dispersed in 200 mL of aqueous ethanol (10 vol%). The photocatalytic process was performed for 12 h with an interval of 1 h for sample collection. The H₂O₂ concentration was subsequently measured using the colorimetric method.

4. Conclusions

Using thermal copolymerization with Li, Na, K, Rb, or Cs, alkali metal (M)-doped PCN was created and used to generate H₂O₂ under the illumination of white LEDs. According to a comprehensive analysis, the activity of CN-M enhanced with the increase of the metallic character of alkali metals. The higher metallic character will give rise to stronger Lewis acidic sites. Although the strong Lewis acidic sites are helpful for the adsorption and activation of ethanol, they will also act as the activation sites of H₂O₂ and enhance the self-degradation of H₂O₂. Hence, even though CN-Cs have the strongest oxygen adsorption capacity and the strongest and the highest number of Lewis acid sites, their photocatalytic performance for H₂O₂ production is not optimal because of their strongest H₂O₂ self-degradation activity. CN-Rb, on the other hand, has the best photocatalytic activity for H₂O₂ production due to its suitable metallic character. This work presents a useful foundation for further exploring the photocatalytic reaction of metal-ion-modified PCN.
