Next Article in Journal
Selection of Putative Polyester Hydrolases from the Metagenome of Los Humeros Geothermal Field by Means of In Silico Probes
Previous Article in Journal
Photocatalytic Degradation of Crystal Violet (CV) Dye over Metal Oxide (MOx) Catalysts
Previous Article in Special Issue
Layered Double Hydroxide-Based Photocatalysts for the Removal of Emerging Contaminants: Progress in Past Ten Years


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Review

Advancements in Materials Science and Photocatalysts for Sustainable Development

by
Dhanalakshmi Vadivel
1,2,
Swetha Suryakumar
3,
Claudio Casella
4,
Andrea Speltini
1 and
Daniele Dondi
1,2,*
1
Department of Chemistry, University of Pavia, Via Taramelli 12, 27100 Pavia, Italy
2
Istituto Nazionale di Fisica Nucleare (INFN), Sezione di Pavia, Via Agostino Bassi 6, 27100 Pavia, Italy
3
Department of Biotechnology, University of Rome-Tor Vergata, Via Cracovia 50, 00133 Rome, Italy
4
Department of Chemical and Environmental Engineering, University of Oviedo, C/Julián Clavería s/n, 33006 Oviedo, Spain
*
Author to whom correspondence should be addressed.
Catalysts 2024, 14(6), 378; https://doi.org/10.3390/catal14060378
Submission received: 1 December 2023 / Revised: 7 June 2024 / Accepted: 8 June 2024 / Published: 14 June 2024
(This article belongs to the Special Issue Photocatalysis and Renewable Materials, 2nd Edition)

Abstract

:
Materials science and catalysis advancements play a critical role in achieving sustainable development by managing environmental, energy, and resource challenges. Catalyst design advancements focus on enhancing selectivity to achieve sustainable chemical reactions, reducing energy consumption. Designing catalysts that are environmentally friendly and biodegradable is increasingly gaining importance. This aligns with the principles of green chemistry and contributes to minimizing the environmental impact of catalytic processes. These advances, taken as a whole, lead to more sustainable and efficient processes in industries ranging from energy production to pollutant removal, fueling the advancement toward a more sustainable future. Photochemistry, that is, the activation of a stable compound (catalyst) into the highly reactive excited state, is of particular importance, since photons—especially when they come from solar light—are a green and renewable resource. This review article has provided the overall idea of the photocatalysts and materials under green chemistry perspective from the standpoint of the concept of sustainable development.

1. Introduction

Water and sunlight are the inexhaustible resources that we have to stabilize our life on Earth and use for the different needs of life, especially for energy. There is an immediate requirement for an energy supply like hydrogen, nicknamed “clean fuel,” as it is a fuel with zero carbon dioxide emissions. Being the “energy carrier,” hydrogen is considered to be the best alternative to the liquified energy sources used today. According to the U.S. Energy Information Administration (International Energy Outlook, 2021, in Figure 1), by 2050, renewable energy consumption for the generation of electricity will expand by 27%, surpassing the usage of coal and natural gases. It also states that, by 2050, Plug-in Electric Vehicles (PEVs) will grow to make up to one-third of the global light-duty stock. This rate shows a 5% increase in electricity consumption for global transportation by 2050.
In 1972, Fujishima and Honda designed a photo-electrochemical cell that could be used to induce water splitting (or the decomposition of water) for the production of hydrogen gas (H2), using TiO2 as a photocatalyst. The conditions that they put forward to meet the requirement of water splitting or the decomposition of water (for hydrogen production) were that the potential for oxygen evolution is made more negative, and that of hydrogen evolution is made more positive [1].
Photocatalysis occurs when the energy of the incident light is greater than the band gap energy between the conduction band (CB) and the valence band (VB) in a semiconductor material. After the absorption of light, e/h+ pairs are generated, as shown in Figure 2. These electron–hole pairs are then transferred to the surface of the photocatalyst, where the splitting of water molecules occurs. The redox potential of the VB should be more positive for the generation of free OH radicals than that of the CB. The major requirements for a semiconductor material to be photochemically active are high stability, sufficient light absorption, favorable band gaps with respect to water oxidation potential, slow recombination rate, and low cost [2]. Photocatalysts are used in a wide range of applications, such as wastewater treatment and hydrogen and freshwater production [3].

2. Photocatalytic Reduction of CO2

Depending on the number of electrons used in the reduction, carbon dioxide reduction can result in a variety of C1 compounds and intermediates. Obviously, transferring a single electron at a time is simple in practice, but single electron reduction of carbon dioxide results in the unstable radical anion intermediate at an extremely high reduction potential. Nonetheless, the free energy value for the reduction corresponds to a photon in the visible-light spectrum, illustrating the importance of photochemistry [4]. Out of all of the CO2 reduction strategies in this category, photocatalytic methods that use solar energy appear to be the most strategic and in need of improvement, since they have the potential to produce green organic molecules that can be used to produce renewable fuels. Higher levels of catalytic carbon dioxide reduction are limited by inadequate energy efficiency and product selectivity. Rui Pang et al. reported the use of alkaline earth metals to modify the surface of photocatalysts, so as to act as a Lewis base that attracts the acidic CO2. In addition to that, a core–shell Ag@Cr was used as a cocatalyst to help to retain the adsorption of CO2. The composite produced, Ag@Cr/Ga2O3-Ca, was checked for the photoreduction of CO2 by H2O. It was observed that the photocatalyst Ag@Cr/Ga2O3-Ca exhibited a high CO formation rate (794.2 μmol h−1) and selectivity to CO absorption at 82%. It was also clear that a significantly lower amount of Ca present on the photocatalyst leads to efficient selectivity of CO2 adsorption on the surface of the catalyst [5].
Shan Hu et al. proposed that strong metal support interactions favor *CO2 adsorption and *COOH generation and desorption by preparing the photocatalyst Ag1@PCN. This photocatalyst was prepared by anchoring Ag single atoms on polygonal C3N4 nanotubes [6].
Yuxiang Yang conducted a study on nitrogen doping of In2O3 using discharge-enhanced nitrogen doping via dielectric barrier discharge (DBD) plasma. The resulting N-In2O3 photocatalyst exhibited enhanced light absorption, superior charge separation efficiency, improved activity, and an increased methanol yield. The controllable production of methanol from CO2 was achieved by tuning the nitrogen doping content. High-resolution transmission electron microscopy (HRTEM) images confirmed the lattice fringes of cubic In2O3, while elemental mapping showed a uniform distribution of nitrogen on the N-In2O3 surface. Nitrogen doping altered the charge distribution on the photocatalyst surface. UV–visible diffuse reflectance spectroscopy (UV–Vis–DRS) spectra revealed reduced band gaps for N-In2O3 variants, enhancing the solar photon collection efficiency [7].
As they are inexpensive and made of earth-abundant and environmentally friendly elements, lead-free magnesium iodide (KMgI3) perovskite films were fabricated by ink-jet printing on different supports, namely glass, mica, and magnesium oxychloride, which work as nucleation sites for the controlled growth of the perovskite. The morphology of the film depended on the type of substrate, with glass favoring the formation of bigger particles and mica inducing agglomerates, while the perovskite cubes trapped in the needle-like morphology were obtained on the latter support. The devices (band gap 3.2–3.4 eV) proved to be capable of generating formic acid by CO2 reduction under visible light, and also H2 gas, with the best performance being shown by the KMgI3 printed on mica, due to more reactive surface being available for the photoreaction and enhanced adhesion of the perovskite to the mica substrate due to the co-sharing of K+ ions. The stability of the photoactive layer, verified over three consecutive photocatalytic cycles, strengthens the sustainability of this lead-free perovskite [8].
The combination of graphitic carbon nitride with inorganic modifiers, proposed for H2 production (see Section 3), has been investigated also to carry forward CO2 reduction in the gas–solid reaction mode. To compensate for indium vanadate (InVO4)’s low reduction capability, short charge carrier lifetime, and poor sorption affinity for CO2, this visible-light active catalyst has been coupled with g-C3N4 containing nitrogen defects. The latter, obtained by thermal condensation under a N2 atmosphere, was dispersed in a solution with the inorganic precursor, and the composite was finally obtained by hydrothermal treatment. The 30% w/w InVO4 composite showed the highest CO2 photoreduction performance under visible illumination, as apparent from the CO, CH4, and formic acid production, which were around two and three times higher compared to the unmodified g-C3N4 and the inorganic catalyst alone, respectively. The reason of this improvement is the enlarged CO2 adsorption and the enhanced charge carrier separation provided by the formation of a Z-scheme heterojunction between InVO4 and g-C3N4, wherein the reduction capability of the latter is powered and conveniently exploited to produce the CO2 byproducts. The stability of the hybrid material, verified by XRD and FT-IR, is reflected in a negligible decrease in efficiency over four irradiations, suggesting a reusability of the catalyst for consecutive photoreactions [9].
Other inorganic co-catalysts can be used to tune the properties of g-C3N4, as shown by Zhai and co-workers. In their investigation, nickel hydroxide coupled with potassium-doped g-C3N4 is a working hybrid catalyst for this purpose. The rationale for designing this material comes from the evidence that the incorporation of potassium in the carbon nitride, through calcination, suppresses the electron–hole pairs recombination, and that Ni(OH)2 converts into Ni and NiO during irradiation, working as an electron collector, thus facilitating the reductive reactions and representing a more sustainable approach compared to use of noble (expensive) metals, such as platinum. As highlighted by the transient photocurrent curves, the photocurrent increases in the order of g-C3N4 < K-g-C3N4 < 30% Ni(OH)2/K-g-C3N4, suggesting that the modification of pristine carbon nitride prolongs the electrons’ lifetime. Another key point is the enlarged CO2 adsorption rate after coupling with nickel hydroxide and the higher visible-light harvesting compared to use of undoped g-C3N4, altogether resulting in a boosted carbon dioxide conversion into CO and CH4 (with no decrease in their production over four catalytic cycles), under full spectrum simulated sunlight and just with water as reducing agent [10].
Independently of the specific type of catalyst, the base photoelectronic requirements are the key feature for an efficient CO2 photoreduction process, as discussed by Cheng et al. in the application of the fully conjugated covalent organic framework (COF). Specifically, vinylene-linked COF incorporating rhenium complexes with the bypiridine moieties as reductive sites and triazine ring structures as oxidative sites was prepared by aldol condensation and proved to be efficient for CO2 conversion into CO (around 190 μmol g−1 h−1) and simultaneous O2 evolution, under visible light, with no need for sacrificial agents. We can see that combining Re with the conjugated skeleton leads to many advantages, namely (i) an increased sorption affinity for carbon dioxide (+65%); (ii) an efficient charge carrier separation due to a charge transfer channel from ligand to metal, making excited electrons move to the Re complex units to sustain CO2 reduction, while holes in the triazine ring units are consumed for H2O oxidation; and (iii) a synergistic effect between the base COF and the one embedding the Re complex in terms of CO2 conversion. The cycling stability was verified over five photoreactions and pointed out the substantial stability of the COF, with about 10% decrease in the reaction yield ascribable to Re photobleaching [11].
J.G. Swadener reported the strain engineering of TiO2 shell nanoparticles to obtain the desired band gaps for the photocatalytic activation of TiO2, whose band gap energy is 3.2 eV, limited to the UV range of 375 nm for electron–hole production. A novel ZrO2@TiO2 nanoparticle strain was developed with a TiO2 shell and tetragonal ZrO2 core. A maximum 7% c-axis strain was observed in a 12 nm ZrO2 core and 10 nm TiO2 shell, with a decrease in the band gap of 0.35 eV. The electron–hole generation in this core@shell was predicted to be increased by 22%, with the use of longer wavelength sunlight increasing up to 420 nm. This novel material was predicted to have carbon dioxide reduction photocatalytic activity up to 420 nm, as there was a decreased band gap energy in the shell of TiO2 [12].
Irradiated GO was studied by Yu Kuang et al. for CO2 reduction. The photocatalytic reduction activity of sunlight simulated GO (Gss) production, and UV-irradiated GP (Guv) was observed to be 2.7- and 2.1-fold higher than that of pristine graphene oxide (GO). GOSS had more CO production than GOUV, indicating that simulated sunlight irradiation is better for GO activation [13].

3. Photocatalytic Hydrogen Production

The valorization of wastewaters in a circular economy approach to produce clean energy is a smart task and is of great relevance, owing to the possibility to exploit the organic load naturally present in the water effluents and sewage.
Oxidized graphitic carbon nitride (o-g-C3N4), prepared from a low-cost precursor through a post-synthetic oxidation step—as a photochemically efficient derivative of the pristine carbon nitride, due to the greater surface area and electron-rich states—was compared to commercial Evonik AEROXIDE® P25 TiO2, chosen as the benchmark catalyst, for photocatalytic H2 evolution. To boost the photoreaction, metal co-catalysts were deposited on the catalysts, evaluating Pt or the bimetallic system Cu-Ni, for which a synergistic effect between the two metals was ascertained. It was found that, despite having lower yields than the classical pairing Pt/TiO2, coupling o-g-C3N4 with Cu-Ni and working with low-cost sacrificial bio-oxygenates (starch and mono- and di-saccharides) in the solution, under simulated solar light, produced significantly higher amounts of H2 compared to pure water, as also verified in untreated sugar-rich wastewaters from the production processes of food industries, such as as dairy and brewery [14].
Another strategy used to boost the performance of g-C3N4 is the fabrication of heterojunctions with perovskites, possibly avoiding those containing lead. It was reported that the DMASnBr3/g-C3N4 composite (DMA: dimethylammonium) affords a HER 15-fold higher in aqueous glucose than that found in neat water, with consistent production, also avoiding the use of any metal as a co-catalyst. The synergistic effect between the two constituents of the DMASnBr3-based photocatalyst, which works as a Z-scheme heterojunction, results from favorable band alignment and extended charge carrier lifetimes, in line with the experimental HER that was 12-fold higher than that achieved for the pure carbon nitride. The composite proved to be reusable for three photocatalytic treatments and was able to sustain H2 formation (~150 µmoles g−1 h−1) when exploiting a raw polysaccharide like soluble starch. With reference to the photoactivity of the heterojunction, this was tested parallel to P25 TiO2 under selected conditions, i.e., with the same catalytic surface area in suspension, gaining 2.5-times higher H2 evolution when using the composite [15].
Z-scheme heterojunction was proposed by Bo et al. using noble elements (carbon quantum dots or CQDs) to obtain effective surface plasmon resonance, band gap width, charge separation, and good visible light utilization. The composite produced was g-C3N4/TiO2/CQDs/Au nanoparticles, which are shown in Figure 3. The band gap of the composite material was observed to be from 2.9 eV to 3.0 eV, as opposed to the wider band gap width of TiO2. The photocatalytic hydrogen production of the composite was observed to be 6.2 times higher than that of pristine g-C3N4. This difference was observed owing to the heterojunction formation between g-C3N4 and TiO2, which helped to reduce the electron–hole pair recombination of pristine g-C3N4. In addition to that, the introduction of Au nanoparticles and CQDs to the combination enhanced the composite material’s ability to absorb visible light [16].
Kunlei et al. utilized a water-in-oil (w/o) microemulsion method to synthesize a core–shell CuxO@TiO2 composite material under alkaline conditions. The reasons for utilizing Cu2O were its narrow band gap width and its ability to act as a photocatalyst under visible-light irradiation. The material was synthesized with Cu2O as the core and titania as the shell. A narrow band gap value was seen for the core–shell material, which was probably because of the interfacial charge transfer of the mixed copper oxides. The highest photocatalytic activity for H2 generation was observed with a higher concentration of ground CuXO. The Z-scheme charge transfer process was confirmed by XPS analysis [17].
A 2D-g-C3N4/Porphyrin MOF was fabricated by Yuzhi et al., and the hydrogen production capability of the novel nanohybrid was investigated. Characterization studies using SEM imaging showed that the 2D nanohybrid consisted of dispersed sheets, with π–π interaction between porphyrin and g-C3N4/cobalt ions. The nanohybrid had 15.7-times greater hydrogen generation capacity than the g-C3N4/cobalt ions without the addition of any co-catalyst. This may be due to the presence of more photoactive sites and a better electron transfer network in the nanohybrid [18].

4. Wastewater Treatment

4.1. Dye Degradation

Industrial dyeing produces effluents that include organic pollutants that must be treated before being released into natural water sources. Modern approaches to wastewater treatment comprise the implementation of specialized oxidation methodologies, such as photocatalysis, Fenton reactions, and ozonation [19,20,21].
The photocatalytic activity of a catalyst is often tested by using organic dyes. It is also well known that water polluted with organic dyes is difficult to treat. A combination of physical, chemical, and biological processes is utilized in standard wastewater treatment plants to reduce the amounts of solids and diverse organic and inorganic substances. Aliyar et al. carried out dynamic surface phenomenon analysis to study the interaction between a photocatalyst and the dye for surface dynamics. Malachite green (MG) was used as the target dye, and its surface interaction with TiO2 was determined by drop profile analysis. Their results suggested that a MG-TiO2 nanoparticle complex at pH 9 showcased a decreased mobility of the dye, as compared to the free MG particles, owing to the increased surface tension [22,23].
A novel nanoflower-like CdS/SnS2/TiO2 NTs photocatalyst was synthesized by the hydrothermal method. It was further used for photocatalytic degradation of MB-contaminated water and showed quantitative photodegradation. This material is being suggested as a novel technique for efficient H2 generation, as well as for photocatalytic wastewater treatment [24], which is described in Figure 4.
Hu et al. [25] designed the “Trash to Treasure” strategy by developing an iodine (I)-doped hydrothermal carbonation carbon (HTCC), which can be used as a photocatalyst for environmental remediation, as shown in Figure 5.
The surface area was found to be about 254 m2/g. The characterization studies showed that the iodine-doped HTCC has properties like previously reported polyfuran structures. The Fermi level of I-HTCC was observed in the CB and VB at 0.6 V, 0.26 V, and 1.2 V vs. RHE. The band gap was observed to be 0.94 eV, which was reduced as compared to that of HTCC, which has a band gap of 1.34 eV. It was, therefore, apparent that the band gap narrowed with the insertion of iodine in the HTCC. The generation of OH radicals was observed by a rising peak at 460 nm, as monitored with a coumarin fluorescence probe. The insertion of iodine into the sp2-hybridized polyfuran structure serves as a charge transfer bridge to generate more active hydroxyl radicals, thus increasing the photocatalytic activity [25]. The as-prepared catalyst was checked on the degradation of rhodamine B, and its activity was used for the degradation of organic pollutants and water disinfection.
Salma et al. worked on the green synthesis of a ZnO nanoparticle in combination with Punica granatum leaf extract. The characterization studies showed that the green nanoparticles were of an average size of 80 nm. The photolytic activity of the synthesis of the ZnO nanoparticles was tested by photolytic dye degradation of Orange 16 reactive dye. A total of 96% degradation was observed in 30 min in the presence of UV radiation [26].
The ultrasonication approach was used to create layered aluminosilicates of montmorillonite K30 (MK30) with varying ZnO nanoparticle (ZnO NPs) loadings. The photocatalytic degradation process of MB was found to be consistent with the pseudo-first-order kinetic model, with the Zn/MK30 degradation rate constant determined to be 2.86 × 10−2 min−1. Using C. edulis fruit extract, ZnO nanoparticles and a ZnO/MK30 nanocomposite were developed [27].
The photocatalytic degradation study was performed with methyl orange dye under visible-light irradiation, achieving 82% degradation after 150 min of the dye when utilizing less than 20% per mass of catalyst. This corresponds to a three-times-faster degradation rate [28].
Santos et al. made use of Taua (red clay in Brazilian) to form a composite with TiO2, giving rise to a photocatalyst with a narrow band gap. They obtained 80% degradation of MB after 300 min of irradiation in the following conditions: 40 mg/L of MB; 1.7 mg/L of H2O2; pH adjusted to 9, with sodium borate buffer; catalyst 1 mg/mL (6 mL); and irradiation with a high-pressure Hg-Xe arc lamp (Newport) IR, filtered at >418 nm. The band gap energy for the Taua/TiO2 composite was observed to be 2.08 eV, which is equal to anatase Taua, which contains hematite (α-Fe2O3). This also coincides with the XRD data that explains the presence of hematite in Taua, and the absorption of the composite in visible light is due to the presence of hematite. However, the photocatalytic activity of Taua alone is lower (38%) when compared to the composite, which has 100% photocatalytic activity at pH 9 in the presence of hydrogen peroxide. This is attributable to the formation of a heterojunction between TiO2 and α-Fe2O3 and the higher surface area of the composite. H2O2 enhances the reduction reaction in the following ways [29]:
H2O2 + e(CB) → OH· + OH
H2O2 + O2·− → OH + OH· + O2
The green synthesis of ultra-small silver nanoparticles was carried out by Sayra et al., using aqueous extracts of P. hortorum and A. fistulosum as reducing stabilizing agents. The band gap energy for the nanoparticles prepared was 2.38 eV and 2.43 eV, respectively. The ATR-FTIR spectra revealed that the phytochemicals present in the nanoparticles are responsible for reduction-stabilization, as well as capping. The photocatalytic activity of the AgNPs/Phf (from extract of P. hortorum) was found to be 95%, and that of AgNPs/Afs (from extract of A. fistulosum) was found to be 100% against azo dyes. This high photocatalytic efficiency is due to the narrow band gap energy value. The ultra small size of the synthesized AgNPs/Afs was confirmed to be a mode size of 0.6 nm, with a reported size interval of 0.3 to 0.1 nm, owing to the higher photocatalytic efficiency [30].
A novel core–shell green photocatalyst, Fe3O4@PDA/CuS, was reported by Ludan et al., with Fe3O4 as the core–shell, polydopamine (PDA) to be used as a self-polymerizing protectant with the novel semiconductor material, and CuS with a band gap energy of 2.5 eV. The photophysical properties were characterized by UV–Vis DRS, showing that Fe3O4@PDA had an absorption range in the ultraviolet region, whereas CuS had absorption spectrum in the range of 200–800 nm. The composite Fe3O4@PDA/CuS demonstrated enhanced absorption in the visible and infrared regions, making it photocatalytically active in natural light. The photocatalyst was seen to have a surface area of about 154 m2/g, with micropore structures determined by the Brunauer–Emmett–Teller test. The photocatalytic activity was tested on an organic probe pollutant like MB, and the degradation was observed to be 92.1% in 180 min under visible light. The magnetic property provided by Fe3O4 made it possible to easily remove the catalyst from the solution by using a magnet, as it had a magnetic saturation value of 26.01 emu/g (26.01 Am2/kg). The band gap energy of CuS was found to be 2.56 eV [31].
A bi-functional remediation medium was prepared by Amit et al., having both photocatalytic activities provided by bismuth oxychloride (BiOCl) and the absorption activity of biochar produced from kraft lignin, which is shown in Figure 6. The composite was produced by a one-step hydrothermal process. The SBET value showed a surface area of 19 m2/g and 1161 m2/g for BiOCl and biochar, respectively, whereas the SBET value of the composite was 126 m2/g. The biochar was used as a substrate for the synthesis of BiOCl nanoparticles, as seen from the SEM images. The results showed the formation of micro- and mesopores formed by biochar in the composite. This morphological structure allows the diffusion or mass transfer. The band gap energy of BiOCl was initially observed to be 3.43 eV, which, upon the introduction of biochar, dropped down to 3.30 eV. This also led to an increased photocatalytic activity of the composite in the visible-light region, according to the diffuse reflectance spectroscopy (DRS) results.
The microwave-assisted solvothermal method was used by Megxin et al. to synthesize CuS@In2S3-hybridized core–shell nanoparticles. The nanoparticles synthesized by this method took a very short time to form, as compared to other traditional techniques. The photocatalytic activity of the CuS@In2S3-Hy nanoparticles was the highest (MB and MO degradation) at 10% weight, owing to its narrow band gap energy, and the presence of S anions inhibited the recombination of the electron–hole pair formed in the heterojunction [32].
The use of microorganisms as a bio-support material for green photocatalysis is increasingly being studied by scientists. In a study by Akbar et al., Bacillus thuringiensis was used to synthesize a nano-biocatalyst coupled with ruthenium/nickel co-doped zinc nanoparticles (btRNZn NPs) to generate hydrogen through the methanolysis of NaBH4. These catalysts are also utilized in the removal of MO dye. The nanoparticles produced were a size of 11.78 nm, as unveiled by TEM analysis. It served as a great biocatalyst, with a photodegradation activity of 68.2% against MO dye after 90 min of irradiation [33].
Diverse graphene-based semiconductor materials with potential as excellent photocatalysts have been discussed [34]. Tamizharasan et al. synthesized sulfur-nitrogen co-doped graphene quantum dots (GQDs) by the top-down approach. Starch was used as the carbon precursor material and thiourea as a precursor material for the S and N elements. The XRD and SEM analyses revealed the morphology of the prepared compound, showing a bulk of graphite with a small amount of amorphous carbon. The concentration of nitrogen, oxygen, and sulfur present in the S,N-GQDs was low in comparison to the carbon element. After the addition of the dopants (S, N) to the GQDs, its band gap energy was observed to decrease from 3.07 eV to 2.54 eV. The dopants acted as photosensitizers, allowing the catalyst to work under visible light, and also slowed down the electron–hole pair recombination. The S,N-GQDs showed high photocatalytic activity against the cationic dye crystal violet (CV) (91% degradation of a 20 ppm solution in 100 min with a 400 W xenon lamp), while the undoped GQDs showed only 56% photodegradation activity in the same conditions. Scavenger studies have demonstrated that three active species were involved in the photocatalytic mechanism, namely h+, O2−., and OH [35].
Non-covalently linked composites are unstable in their structure, thus showing a decrease in their photoactivity. This drawback was overcome by Reena et al. by synthesizing a GO/porphyrin composite material with covalent linkages. The solvothermal method was used to prepare the composite with Fe-THPP and GO-COCL. Characterization studies carried out using UV–Vis spectrophotometry highlighted π–π* transition in both GO and Fe-TPP. The photocatalyst was found to have a high specific surface area (68.781 m2/g), providing many catalytically active sites, and the band gap energy value of the nanocomposite was found to be 2.78 eV, according to Tauc’s plot. Taking these properties into consideration, the photocatalytic activity of the material was tested against crystal violet dye, and the photodegradation efficiency was found to be 93.45% in 80 min [36].
Kraft lignin is often used as a green precursor for activated carbon [37], since its pyrolysis produces different products at different temperatures [38]. The discovery of an extremely persistent peroxyl radical on carbon-modified silica is a significant achievement, because these species are often short-lived. EPR spectroscopy has revealed two distinct forms of peroxyl radicals [39]. The peroxyl radical on carbon-modified silica was exploited by using MB as a reference probe to identify the photocatalytic behavior of the catalyst [40].

4.2. Drug Degradation

Drug disintegrating in water is a complicated process that is influenced by multiple variables, including hydrolysis, oxidation [41], photolysis, and microbial metabolism [42]. Understanding the mechanisms and environmental issues associated with drug degradation is essential to formulate efficacious approaches to alleviate pharmaceutical pollution, protect aquatic ecosystems, and maintain public health [43]. “Emerging contaminants” are substances that are present in low concentrations across all ecosystems. In this category of pollutants, there are several medicines, including metoprolol, propranolol, atenolol, and pindolol, among others [37]. They are characteristic compounds of the multi-functionalized aromatic group, are soluble in water, and are susceptible to deionization [44,45,46].
The photocatalytic degradation of tetracycline-contaminated water bodies by the semiconductor cadmium sulfide nanoparticles along with a co-catalyst, copper sulfide (CuS), was studied by E.V. Sriddharan et al. The CuS/CdS nanocomposite, prepared by a hydrothermal procedure, had the CdS nanorod structure placed over the CuS nanoplate, as revealed by HR-SEM imaging. This structural morphology increased the surface area of the composite and enabled efficient charge separation. CuS/CdS has a band gap energy of 2.30 eV, as calculated from Tauc’s plot, with an absorption edge in the visible region at 560 nm, enabling the degradation of tetracycline under sunlight. The results observed in the photoluminescence spectra suggest that the catalyst has a slower electron–hole recombination rate as the intensity of the emission peaks decreases. The composite material exhibited enhanced photocatalytic activity, with a 90% degradation in 50 min under simulated sunlight.
The photocatalytic mechanism of the material was predicted as follows [47]:
CuS/CdS + hν → CuS/CdS (e + h+)
e + O2 → O2−·
h+ + H2O → H+ + OH·
O2−· + H+ → HO2·
HO2· + H· → H2O2
e + H2O2 → ·OH + OH
Bismuth tungstate has been utilized as a photocatalyst (0.05 g L−1) to facilitate the simulated solar light degradation of the antimicrobial ofloxacin (OFL), under relevant real-life conditions (µg L−1, freshwater). A quantifiable drug degradation occurred according to a bi-exponential first-order law, with a better efficiency compared to the most commonly employed P25 TiO2 catalyst, as apparent from the higher kinetic constant value (0.38 min−1), as experimentally determined. The primary photoproducts analyzed by HPLC-ESI-MS/MS included formerly unidentified photoproducts for this class of pharmaceuticals [48].
Titania can be efficiently layered with pyrolytic carbon by employing a low-cost recyclable resource such as kraft lignin. The crystalline structure of the P25 TiO2 photocatalyst was unaffected by the 600 °C pyrolytic procedure (p-C/TiO2) [49]. The photocatalytic performance of p-C/TiO2 was assessed for the degradation of a fluoroquinolone antimicrobial drug in tap water under simulated sunlight.
2,4-dichlorophenol (2,4-DCP) is a priority contaminant by the Environmental Protection Agency (EPA) from the United States, being an endocrine disruptor with significant bioaccumulation. Its photodegradation conducted by using assessed catalysts like semiconductors is not producing good results, due also to the unknown degradation mechanism. For this particular application, nanostructured NaBiS2 showed an increased efficiency, low toxicity, and antimicrobial effects altogether. Authors have reported an 80% degradation in 18 h of a solution of 50 ppm of 2,4-DCP, with 200 mg/L of catalyst, at pH = 5.3, and under a 50 W LED visible-light source [50].

4.3. Other Water Pollutant Removal and Further Applications

Farukh et al. described a method for the synthesis of acidic-group-functionalized catalysts from date pit biomass by in situ carbonization and sulfonation. The activated carbon (ACT-C) and sulfonated carbon (SUL-C) were produced and characterized. XRD studies showed a weak and broad peak between 10° and 40°, similar to the graphite structure. TEM analysis showed the presence of mesopores, in addition to micropores, in SUL-C, due to the sulfonation of the carbon material. After sulfonation, SO3H occupied a small volume of the pores as the surface area of SUL-C reduced to 272.09 m2/g from 432.4 m2/g in ACT-C. The pore size was also reduced in the SUL-C. TCA analysis exhibited that SUL-C is highly thermally stable, as compared to ACT-C [51].
A ternary composite, XC/TiO2/Nb2O5, was created with tannin carbon xerogel incorporated into the TiO2/Nb2O5 hybrid photocatalyst. A reduction in crystallite size, along with an increase in surface area, was observed after the addition or incorporation of carbonaceous material to the semiconductor. These morphological changes are predicted to enhance the photocatalytic activity of TiO2. In addition, the incorporation of carbon xerogel exhibited a decrease in band gap energy, thereby allowing the absorption of wavelengths within the visible-light spectrum, i.e., below 380 nm, thereby enhancing the photocatalytic activity by solar light irradiation. The photocatalytic degradation of 4-chlorophenol (4CP) taking place with XC/TiO2/Nb2O5 was described as follows [52], as shown in Figure 7.
Photocatalyst + hν → e + h+
H2O + h+ → ·OH + H+
O2 + e → O2−·
OH + ·OH → H2O2
H2O2 + e → ·OH + OH
H2O2 + O2−· → ·OH + O2 + OH
4CP + O2−· → → H2O + CO2
4CP + h+ → → H2O + CO2
4CP + ·OH → → H2O + CO2
Nicolas et al. published an article describing how kraft-lignin-based carbon xerogel enhanced the photocatalytic activity of ZnO, owing to the morphological changes and an increase in surface area observed in the material after the incorporation of the xerogel. The material, tested for photocatalytic activity against hexavalent chrome (Cr(VI)) in direct sunlight, demonstrated 20% higher photocatalytic efficiency compared to pure ZnO [53].
The same work was carried forward by the team to synthesize a carbon-based composite utilizing the heterojunctions formed between the semiconductors, viz. carbon semiconductors, and metal semiconductors. This study focused on altering the recombination of charges and improving the photocatalytic activity of ZnO by forming p-n heterojunctions with bismuth oxide and a metallic heterojunction with Bi0 to form hybrid photocatalysts. Lignin/cellulose carbon xerogel functions as a reduction agent of Bi2O3 and also enhances charge separation. The photocatalytic activity of the composite was tested by the photodegradation of bisphenol-A, providing higher photocatalytic activity in comparison with ZnO/Bi. However, there was no difference in the band gap energy (3.5 eV) in comparison with pure ZnO. The morphological changes observed in XCL/ZnO/Bi were an increase in surface area and pore formation during the addition of the carbon xerogel, as well as the formation of plates and smaller particle aggregates. These characteristics made it possible for the composite to efficiently degrade the dye in the presence of visible light and simulated sunlight [54].
The green synthesis of a novel metal-free photocatalyst, carboxyl-acid-functionalized ionic-liquid-entangled porphyrin photocatalyst (CAFILP) was carried out by Subodh et al. The article focused on the development of a novel photocatalyst to be used for the conversion of sugarcane biorefinery products to value-added compounds. Characterization studies with UV–Vis DRS spectra revealed a band gap energy of 1.49 eV, which allows the photocatalyst to function efficiently in the visible-light range. The synthesized photocatalyst has a relative acidity of 0.99 (as shown by the Hammett value), and the material is predicted to have substantial proton levels. Thereby, the photocatalyst is seen to have more acid sites to form bonds with the substrate. Molasses was used as the substrate for conversion to ethyl levulinate by the action of a photocatalyst under a 5 W LED light. The highest conversion rate was observed after 25 h with 18 mg of photocatalyst (about 1% m/m), with a yield of 94% in the presence of ethanol [55].
This study continued to use the novel photocatalyst for the esterification of levulinic acid and the etherification of biomass-derived glycerol. The best conditions for catalytic action were 1% m/m of the photocatalyst for an 18 h reaction time to obtain 78% levulinates from the biomass converted to levulinic acid. The etherification of glycerol was seen to obtain a yield of 88% under optimal photocatalytic conditions [56].
A graphene oxide/porphyrin nanocomposite was prepared via non-covalent interactions, employing two forms of porphyrin, i.e., tetraphenylporphyrin (TPP) and zinc tetraphenylporphyrin (ZnTPP). The UV–Visible absorption spectra of the composite showed a shift in wavelength, reflecting the π–π interaction of the porphyrins with the GO sp2 carbons. It was also apparent that GO was able to form a more stable complex with ZnTPP than TPP, because of the interaction with the oxygen in the ZnTPP core. The photocatalytic activity of the nanocomposite was studied in terms of the oxidation of benzyl alcohol under visible-light irradiation. It was observed that GO-TPP had higher catalytic activity than ZnTPP, probably due to the presence of more active sites of graphene on GO-TPP than on its counterpart. As discussed in earlier sections, epoxides of GO and the Zn center of ZnTPP hindered the active sites for the GO-catalyzed oxidation of alcohols. TPP aggregation on the GO surface, on the other hand, exposed some sections of the GO surface, exposing the accessible active sites [57].
A green method for uranium recovery from water by the production of photosynthetic H2O2 was proposed by Lang et al. The photocatalyst used was prepared by an aldimine reaction between 5,10,15,20-(tetra-4-aminophenyl)porphyrin-Ni (TPP-Ni) and thieno[3,2-b]thiophene-2,5-dicarbaldehyde (TT) to produce the TT-Por/covalent organic framework (COF)-Ni. The photocatalyst enables the synthesis of H2O2 without any co-catalyst or sacrificial agent, with the subsequent recovery of (metastudtite) uranium. The band gap energy of the synthesized photocatalyst was 2.01 eV and the VB and CB values were feasible for the oxygen reduction reaction (ORR), allowing the synthesis of hydrogen peroxide. The photocatalytic removal of uranium was noted to be 94% under solar light [56].

5. Conclusions

Visible-light photocatalysis, especially when the catalyst is prepared from renewable resources [58] or microorganisms, can be considered as sustainable [59]. The possibility of photocatalysis spans from wastewater treatment to carbon dioxide reduction and hydrogen production, some of the hottest topics nowadays. In modern chemistry, the use of nanomaterials, especially when noble metals (or toxic metals) are employed, should be reconsidered. In fact, carbon materials are attracting more and more attention, especially when they are derived from natural resources (like graphite and its derivatives) or produced by pyrolysis from biomasses. The ability of carbon to create from zero- to three-dimensional structures, together with the possibility of ‘doping’ by the addition of other materials, is unrivalled, and only nowadays we are starting to explore and understand their properties. In fact, carbon materials could act as photocatalysts by themselves or in conjunction with other inorganic materials. Furthermore, porous carbon materials have a high capacity of absorbing chemicals. This can be implemented both in water treatment for the removal of pollutants and in soils as biochar.

Author Contributions

Conceptualization and investigation, D.V. and D.D.; validation, C.C., S.S. and A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work is part of the project NODES, which has received funding from the MUR—M4C2 1.5 of PNRR, funded by the European Union—NextGenerationEU (Grant agreement no. ECS00000036).

Data Availability Statement

The datasets used and/or analyzed during this study are available upon reasonable request.

Acknowledgments

D.V., D.D., and A.S. acknowledge support from the Ministry of University and Research (MUR) and the University of Pavia through the program “Dipartimenti di Eccellenza 2023–2027”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef]
  2. Photocatalysis: Present, Past and Future. In Materials Research Foundations; Materials Research Forum LLC: Millersville, PA, USA, 2018; Volume 29, pp. 183–206. ISBN 978-1-945291-63-0.
  3. Demir, M.E.; Dincer, I. An Integrated Solar Energy, Wastewater Treatment and Desalination Plant for Hydrogen and Freshwater Production. Energy Convers. Manag. 2022, 267, 115894. [Google Scholar] [CrossRef]
  4. Vadivel, D.; Ferraro, F.; Merli, D.; Dondi, D. Carbon Dioxide Photoreduction in Prebiotic Environments. Photochem. Photobiol. Sci. 2022, 21, 863–878. [Google Scholar] [CrossRef]
  5. Pang, R.; Teramura, K.; Morishita, M.; Asakura, H.; Hosokawa, S.; Tanaka, T. Enhanced CO Evolution for Photocatalytic Conversion of CO2 by H2O over Ca Modified Ga2O3. Commun. Chem. 2020, 3, 137. [Google Scholar] [CrossRef]
  6. Hu, S.; Qiao, P.; Yi, X.; Lei, Y.; Hu, H.; Ye, J.; Wang, D. Selective Photocatalytic Reduction of CO2 to CO Mediated by Silver Single Atoms Anchored on Tubular Carbon Nitride. Angew. Chem. 2023, 135, e202304585. [Google Scholar] [CrossRef]
  7. Yang, Y.; Pan, Y.-X.; Tu, X.; Liu, C. Nitrogen Doping of Indium Oxide for Enhanced Photocatalytic Reduction of CO2 to Methanol. Nano Energy 2022, 101, 107613. [Google Scholar] [CrossRef]
  8. Luévano-Hipólito, E.; Fabela-Cedillo, M.G.; Torres-Martínez, L.M. Novel Lead-Free Halide Perovskite KMgI3 for Photocatalytic Hydrogen Evolution (HER) and Carbon Dioxide Reduction Reaction (CO2RR). Mater. Lett. 2024, 361, 136066. [Google Scholar] [CrossRef]
  9. Yu, M.; Wang, J.; Li, G.; Zhang, S.; Zhong, Q. Construction of 3D/2D Indium Vanadate/Graphite Carbon Nitride with Nitrogen Defects Z-Scheme Heterojunction for Improving Photocatalytic Carbon Dioxide Reduction. J. Mater. Sci. Technol. 2023, 154, 129–139. [Google Scholar] [CrossRef]
  10. Zhai, M.; Zhang, Y.; Xu, J.; Lin, H.; Wang, J.; Wang, L. Nickel Hydroxide-Decorating Potassium-Doped Graphitic Carbon Nitride for Boosting Photocatalytic Carbon Dioxide Reduction. J. Colloid Interface Sci. 2023, 650, 1671–1678. [Google Scholar] [CrossRef]
  11. Cheng, Y.; Ji, W.; Hao, P.; Qi, X.; Wu, X.; Dou, X.; Bian, X.; Jiang, D.; Li, F.; Liu, X.; et al. A Fully Conjugated Covalent Organic Framework with Oxidative and Reductive Sites for Photocatalytic Carbon Dioxide Reduction with Water. Angew. Chem. Int. Ed. 2023, 62, e202308523. [Google Scholar] [CrossRef]
  12. Swadener, J.G. Strain Engineering of ZrO2@TiO2 Core@shell Nanoparticle Photocatalysts. Solar 2023, 3, 15–24. [Google Scholar] [CrossRef]
  13. Kuang, Y.; Shang, J.; Zhu, T. Photoactivated Graphene Oxide to Enhance Photocatalytic Reduction of CO2. ACS Appl. Mater. Interfaces 2020, 12, 3580–3591. [Google Scholar] [CrossRef] [PubMed]
  14. Speltini, A.; Gualco, F.; Maraschi, F.; Sturini, M.; Dondi, D.; Malavasi, L.; Profumo, A. Photocatalytic Hydrogen Evolution Assisted by Aqueous (Waste)Biomass under Simulated Solar Light: Oxidized g-C3N4 vs. P25 Titanium Dioxide. Int. J. Hydrogen Energy 2019, 44, 4072–4078. [Google Scholar] [CrossRef]
  15. Speltini, A.; Romani, L.; Dondi, D.; Malavasi, L.; Profumo, A. Carbon Nitride-Perovskite Composites: Evaluation and Optimization of Photocatalytic Hydrogen Evolution in Saccharides Aqueous Solution. Catalysts 2020, 10, 1259. [Google Scholar] [CrossRef]
  16. Lv, B.; Feng, X.; Lu, L.; Xia, L.; Yang, Y.; Wang, X.; Zou, X.; Wang, H.; Zhang, F. Facile Synthesis of G-C3N4/TiO2/CQDs/Au Z-Scheme Heterojunction Composites for Solar-Driven Efficient Photocatalytic Hydrogen. Diam. Relat. Mater. 2021, 111, 108212. [Google Scholar] [CrossRef]
  17. Wang, K.; Bielan, Z.; Endo-Kimura, M.; Janczarek, M.; Zhang, D.; Kowalski, D.; Zielińska-Jurek, A.; Markowska-Szczupak, A.; Ohtani, B.; Kowalska, E. On the Mechanism of Photocatalytic Reactions on CuxO@TiO2 Core–Shell Photocatalysts. J. Mater. Chem. A 2021, 9, 10135–10145. [Google Scholar] [CrossRef]
  18. Zhou, Y.; Zhang, T.; Zhu, W.; Qin, L.; Kang, S.-Z.; Li, X. Enhanced Light Absorption and Electron Transfer in Dimensionally Matched Carbon Nitride/Porphyrin Nanohybrids for Photocatalytic Hydrogen Production. Fuel 2023, 338, 127394. [Google Scholar] [CrossRef]
  19. Chen, S.; Ren, T.; Zhou, Z.; Lu, K.; Huang, X.; Zhang, X. Insights into Mn Loaded Carbon-Silica-Membrane Based Catalytic Ozonation Process for Efficient Wastewater Treatment: Performance and Mechanism. Chem. Eng. J. 2023, 475, 145874. [Google Scholar] [CrossRef]
  20. Lee, K.-T.; Ho, K.-Y.; Chen, W.-H.; Kwon, E.E.; Lin, K.-Y.A.; Liou, S.-R. Construction and Demolition Waste as a High-Efficiency Advanced Process for Organic Pollutant Degradation in Fenton-like Reaction to Approach Circular Economy. Environ. Pollut. 2023, 335, 122246. [Google Scholar] [CrossRef]
  21. Sarvothaman, V.P.; Velisoju, V.K.; Subburaj, J.; Panithasan, M.S.; Kulkarni, S.R.; Castaño, P.; Turner, J.; Guida, P.; Roberts, W.L.; Nagarajan, S. Is Cavitation a Truly Sensible Choice for Intensifying Photocatalytic Oxidation Processes?—Implications on Phenol Degradation Using ZnO Photocatalysts. Ultrason. Sonochem. 2023, 99, 106548. [Google Scholar] [CrossRef]
  22. Javadi, A.; Nourizade, M.; Rahmani, M.; Eckert, K. Interaction of Catalyst Nanoparticles and Pollutant Molecules in Photocatalytic Wastewater Treatment: Novel Characterization via Dynamic Surface Properties. Chem. Eng. Sci. 2023, 269, 118459. [Google Scholar] [CrossRef]
  23. Sonune, A.; Ghate, R. Developments in Wastewater Treatment Methods. Desalination 2004, 167, 55–63. [Google Scholar] [CrossRef]
  24. Zhu, S.; Wu, G.; Liu, Z.; Zhao, S.; Cao, D.; Li, C.; Liu, G. Nanoflower-like CdS and SnS2 Loaded TiO2 Nanotube Arrays for Photocatalytic Wastewater Treatment and Hydrogen Production. Ceram. Int. 2023, 49, 5893–5904. [Google Scholar] [CrossRef]
  25. Hu, Z.; Shen, Z.; Yu, J.C. Converting Carbohydrates to Carbon-Based Photocatalysts for Environmental Treatment. Environ. Sci. Technol. 2017, 51, 7076–7083. [Google Scholar] [CrossRef] [PubMed]
  26. Al-Zahrani, S.A.; Patil, M.B.; Mathad, S.N.; Patil, A.Y.; Otaibi, A.A.; Masood, N.; Mansour, D.; Khan, A.; Manikandan, A.; Syafri, E. Photocatalytic Degradation of Textile Orange 16 Reactive Dye by ZnO Nanoparticles Synthesized via Green Route Using Punica Granatum Leaf Extract. Crystals 2023, 13, 172. [Google Scholar] [CrossRef]
  27. Chellapandi, T.; Madhumitha, G.; Roopan, S.M.; Elamathi, M.; Leeladevi, K.; Nagarajan, E.R.; Vadivel, D.; Dondi, D. Construction of ZnO Nanoparticles on the Layered Aluminosilicate Montmorillonite K30 Nanocomposite and Its Enhanced Photocatalytic Removal Performance. Opt. Mater. 2023, 142, 114099. [Google Scholar] [CrossRef]
  28. Singh, A.; Giannakoudakis, D.; Arkas, M.; Triantafyllidis, K.; Nair, V. Composites of Lignin-Based Biochar with BiOCl for Photocatalytic Water Treatment: RSM Studies for Process Optimization. Nanomaterials 2023, 13, 735. [Google Scholar] [CrossRef] [PubMed]
  29. Santos, L.R.D.; Mascarenhas, A.J.S.; Silva, L.A. Preparation and Evaluation of Composite with a Natural Red Clay and TiO2 for Dye Discoloration Assisted by Visible Light. Appl. Clay Sci. 2017, 135, 603–610. [Google Scholar] [CrossRef]
  30. Bustos-Guadarrama, S.; Nieto-Maldonado, A.; Flores-López, L.Z.; Espinoza-Gomez, H.; Alonso-Nuñez, G. Photocatalytic Degradation of Azo Dyes by Ultra-Small Green Synthesized Silver Nanoparticles. J. Taiwan Inst. Chem. Eng. 2023, 142, 104663. [Google Scholar] [CrossRef]
  31. Shang, L.; Li, W.; Wang, X.; Ma, L.; Li, L.; Duan, Q.; Li, Y. Preparation of Magnetic Fe3O4@PDA/CuS Core-Shell Nanocomposite as a Green Photocatalyst. Synth. Met. 2023, 292, 117230. [Google Scholar] [CrossRef]
  32. Liu, M.; Sheardy, A.; Pathiraja, G.; Tukur, F.; Jayapalan, A.; Wei, J. Tuning the Core-Shell Ratio in Nanostructured CuS@In2S3 Photocatalyst for Efficient Dye Degradation. Clean. Chem. Eng. 2023, 5, 100093. [Google Scholar] [CrossRef]
  33. Hojjati-Najafabadi, A.; Aygun, A.; Tiri, R.N.E.; Gulbagca, F.; Lounissaa, M.I.; Feng, P.; Karimi, F.; Sen, F. Bacillus Thuringiensis Based Ruthenium/Nickel Co-Doped Zinc as a Green Nanocatalyst: Enhanced Photocatalytic Activity, Mechanism, and Efficient H2 Production from Sodium Borohydride Methanolysis. Ind. Eng. Chem. Res. 2023, 62, 4655–4664. [Google Scholar] [CrossRef]
  34. Pastrana-Martínez, L.M.; Morales-Torres, S.; Figueiredo, J.L.; Faria, J.L.; Silva, A.M.T. Graphene Photocatalysts. In Multifunctional Photocatalytic Materials for Energy; Elsevier: Amsterdam, The Netherlands, 2018; pp. 79–101. ISBN 978-0-08-101977-1. [Google Scholar]
  35. Selvakumar, T.; Rajaram, M.; Natarajan, A.; Harikrishnan, L.; Alwar, K.; Rajaram, A. Highly Efficient Sulfur and Nitrogen Codoped Graphene Quantum Dots as a Metal-Free Green Photocatalyst for Photocatalysis and Fluorescent Ink Applications. ACS Omega 2022, 7, 12825–12834. [Google Scholar] [CrossRef] [PubMed]
  36. Raveena; Singh, M.P.; Sengar, M.; Kumari, P. Synthesis of Graphene Oxide/Porphyrin Nanocomposite for Photocatalytic Degradation of Crystal Violet Dye. ChemistrySelect 2023, 8, e202203272. [Google Scholar] [CrossRef]
  37. Speltini, A.; Sturini, M.; Maraschi, F.; Mandelli, E.; Vadivel, D.; Dondi, D.; Profumo, A. Preparation of Silica-Supported Carbon by Kraft Lignin Pyrolysis, and Its Use in Solid-Phase Extraction of Fluoroquinolones from Environmental Waters. Microchim. Acta 2016, 183, 2241–2249. [Google Scholar] [CrossRef]
  38. Dondi, D.; Zeffiro, A.; Speltini, A.; Tomasi, C.; Vadivel, D.; Buttafava, A. The Role of Inorganic Sulfur Compounds in the Pyrolysis of Kraft Lignin. J. Anal. Appl. Pyrolysis 2014, 107, 53–58. [Google Scholar] [CrossRef]
  39. Vadivel, D.; Speltini, A.; Zeffiro, A.; Bellani, V.; Pezzini, S.; Buttafava, A.; Dondi, D. Reactive Carbons from Kraft Lignin Pyrolysis: Stabilization of Peroxyl Radicals at Carbon/Silica Interface. J. Anal. Appl. Pyrolysis 2017, 128, 346–352. [Google Scholar] [CrossRef]
  40. Vadivel, D.; Malaichamy, I. Pyrolytic formation and photoactivity of reactive oxygen species in a SiO2/carbon nanocomposite from kraft lignin. F1000Research 2018, 7, 1574. [Google Scholar] [CrossRef] [PubMed]
  41. Mohamadpour, F.; Mohamadpour, F. Photodegradation of Six Selected Antipsychiatric Drugs; Carbamazepine, Sertraline, Amisulpride, Amitriptyline, Diazepam, and Alprazolam in Environment: Efficiency, Pathway, and Mechanism—A Review. Sustain. Environ. Res. 2024, 34, 8. [Google Scholar] [CrossRef]
  42. Tang, G.; Chen, Y.; Lin, S.; Li, X. The Photo- and Microbial Degradation Kinetics and Pathways of Sulfadoxine in Seawater Elucidated by Liquid Chromatography Coupled with Time-of-Flight Mass Spectrometry. Chemosphere 2024, 351, 141225. [Google Scholar] [CrossRef]
  43. Renu; Kaur, J.; Garg, T.; Aggarwal, D.; Kumar, V.; Tikoo, K.; Kaushik, A.; Singhal, S. Synthesis of Novel α-Cyclodextrin Conjugated ZnFe2O4-GO Nanocomposites for Electrochemical Detection of Hazardous Imidacloprid Insecticide and Enhanced Photodegradation of Levofloxacin Drug. J. Electroanal. Chem. 2024, 956, 118074. [Google Scholar] [CrossRef]
  44. Zhang, R.; Zhang, G.; Zheng, Q.; Tang, J.; Chen, Y.; Xu, W.; Zou, Y.; Chen, X. Occurrence and Risks of Antibiotics in the Laizhou Bay, China: Impacts of River Discharge. Ecotoxicol. Environ. Saf. 2012, 80, 208–215. [Google Scholar] [CrossRef] [PubMed]
  45. Zou, S.; Xu, W.; Zhang, R.; Tang, J.; Chen, Y.; Zhang, G. Occurrence and Distribution of Antibiotics in Coastal Water of the Bohai Bay, China: Impacts of River Discharge and Aquaculture Activities. Environ. Pollut. 2011, 159, 2913–2920. [Google Scholar] [CrossRef] [PubMed]
  46. Martínez Bueno, M.J.; Hernando, M.D.; Agüera, A.; Fernández-Alba, A.R. Application of Passive Sampling Devices for Screening of Micro-Pollutants in Marine Aquaculture Using LC–MS/MS. Talanta 2009, 77, 1518–1527. [Google Scholar] [CrossRef] [PubMed]
  47. Siddhardhan, E.V.; Surender, S.; Arumanayagam, T. Degradation of Tetracycline Drug in Aquatic Environment by Visible Light Active CuS/CdS Photocatalyst. Inorg. Chem. Commun. 2023, 147, 110244. [Google Scholar] [CrossRef]
  48. Vadivel, D.; Sturini, M.; Speltini, A.; Dondi, D. Tungsten Catalysts for Visible Light Driven Ofloxacin Photocatalytic Degradation and Hydrogen Production. Catalysts 2022, 12, 310. [Google Scholar] [CrossRef]
  49. Vadivel, D.; Branciforti, D.S.; Speltini, A.; Sturini, M.; Bellani, V.; Malaichamy, I.; Dondi, D. Pyrolytic Formation of TiO2/Carbon Nanocomposite from Kraft Lignin: Characterization and Photoactivities. Catalysts 2020, 10, 270. [Google Scholar] [CrossRef]
  50. Kumar, V.D.; Balaji, K.R.; Viswanatha, R.; Ambika, G.; Roopa, R.; Basavaraja, B.M.; Santosh, M.S. Visible light photodegradation of 2, 4-dichlorophenol using nanostructured NaBiS2: Kinetics, cytotoxicity, antimicrobial and electrochemical studies of the photocatalyst. Chemosphere 2022, 287, 132174. [Google Scholar] [CrossRef] [PubMed]
  51. Jamil, F.; Al-Muhtaseb, A.H.; Naushad, M.; Baawain, M.; Al-Mamun, A.; Saxena, S.K.; Viswanadham, N. Evaluation of Synthesized Green Carbon Catalyst from Waste Date Pits for Tertiary Butylation of Phenol. Arab. J. Chem. 2020, 13, 298–307. [Google Scholar] [CrossRef]
  52. De Moraes, N.P.; Torezin, F.A.; Jucá Dantas, G.V.; De Sousa, J.G.M.; Valim, R.B.; Da Silva Rocha, R.; Landers, R.; Da Silva, M.L.C.P.; Rodrigues, L.A. TiO2/Nb2O5/Carbon Xerogel Ternary Photocatalyst for Efficient Degradation of 4-Chlorophenol under Solar Light Irradiation. Ceram. Int. 2020, 46, 14505–14515. [Google Scholar] [CrossRef]
  53. De Moraes, N.P.; De Siervo, A.; Silva, T.O.; Da Silva Rocha, R.; Reddy, D.A.; Lianqing, Y.; De Vasconcelos Lanza, M.R.; Rodrigues, L.A. Kraft Lignin-Based Carbon Xerogel/Zinc Oxide Composite for 4-Chlorophenol Solar-Light Photocatalytic Degradation: Effect of pH, Salinity, and Simultaneous Cr(VI) Reduction. Environ. Sci. Pollut. Res. 2023, 30, 8280–8296. [Google Scholar] [CrossRef] [PubMed]
  54. De Moraes, N.P.; Campos, T.M.B.; Thim, G.P.; De Siervo, A.; Lanza, M.R.D.V.; Rodrigues, L.A. Application of a New Lignin/Cellulose Carbon Xerogel/ZnO/Bi2O3/Bi° Composite Photocatalyst for the Degradation of Bisphenol-A under Sunlight. Chem. Phys. Impact 2023, 6, 100182. [Google Scholar] [CrossRef]
  55. Raut, S.U.; Bhagat, P.R. Sugarcane Bio-Refinery Products: An Efficient One Umbrella Approach for Synthesis of Biofuel and Value-Added Compounds Using Metal-Free Photo-Catalyst. Fuel 2021, 303, 121154. [Google Scholar] [CrossRef]
  56. Chen, L.; Hang, J.; Chen, B.; Kang, J.; Yan, Z.; Wang, Z.; Zhang, Y.; Chen, S.; Wang, Y.; Jin, Y.; et al. Photocatalytic Uranium Removal from Basic Effluent by Porphyrin-Ni COF as the Photocatalyst. Chem. Eng. J. 2023, 454, 140378. [Google Scholar] [CrossRef]
  57. Phuangburee, T.; Solonenko, D.; Plainpan, N.; Thamyongkit, P.; Zahn, D.R.T.; Unarunotai, S.; Tuntulani, T.; Leeladee, P. Surface Modification of Graphene Oxide via Noncovalent Functionalization with Porphyrins for Selective Photocatalytic Oxidation of Alcohols. New J. Chem. 2020, 44, 8264–8272. [Google Scholar] [CrossRef]
  58. Dondi, D.; Vadivel, D. Preparation of catalysts from renewable and waste materials. Catalysts 2020, 10, 662. [Google Scholar] [CrossRef]
  59. Ravelli, D.; Dondi, D.; Fagnoni, M.; Albini, A. Photocatalysis. A multi-faceted concept for green chemistry. Chem. Soc. Rev. 2009, 38, 1999–2011. [Google Scholar] [CrossRef]

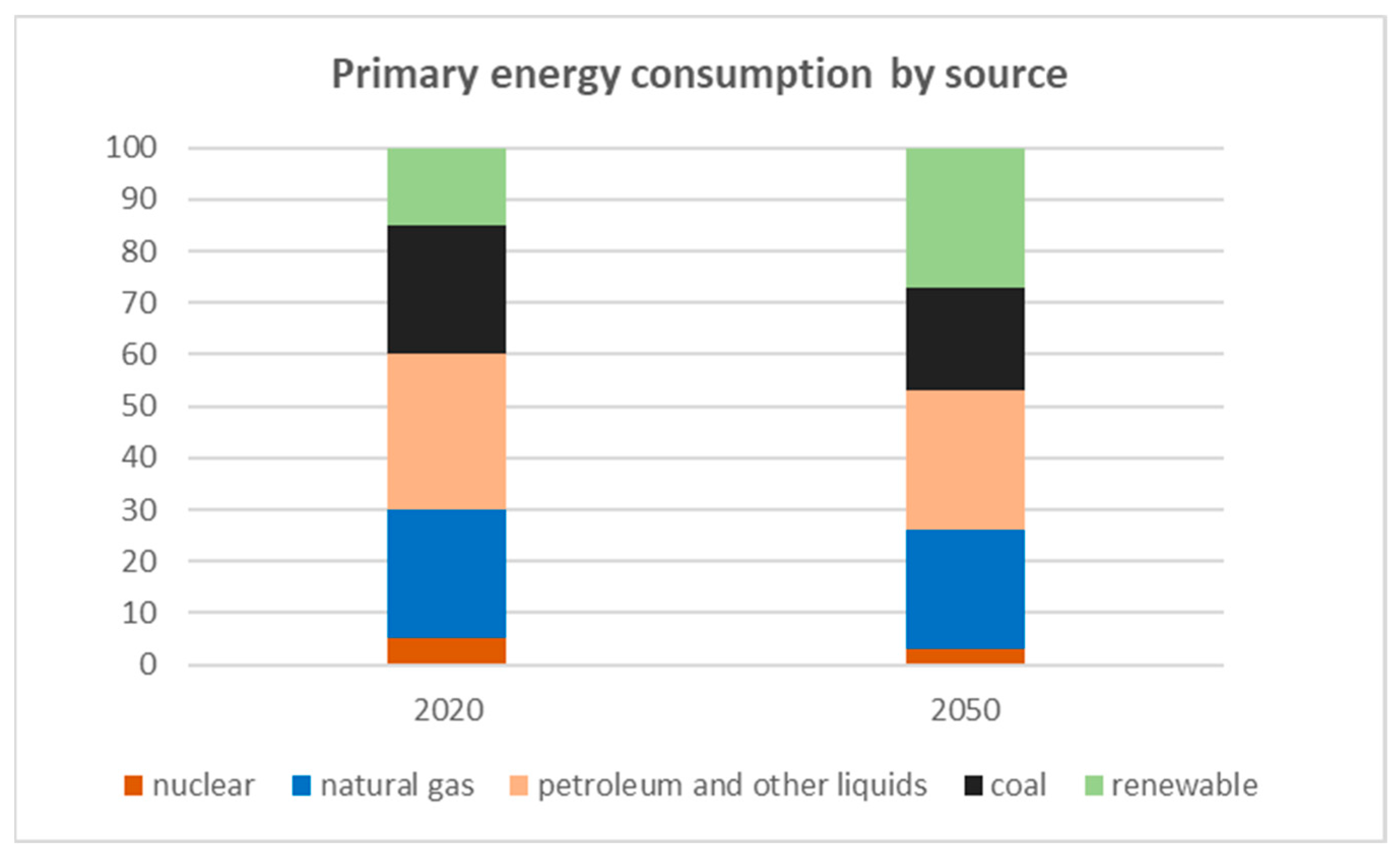

Figure 1. International Energy Outlook, 2021.
Figure 1. International Energy Outlook, 2021.
Catalysts 14 00378 g001

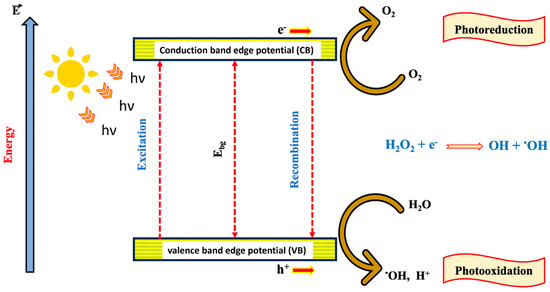

Figure 2. Electron–hole pair generation in an illuminated semiconductor particle and consecutive reactions for degradation.
Figure 2. Electron–hole pair generation in an illuminated semiconductor particle and consecutive reactions for degradation.
Catalysts 14 00378 g002

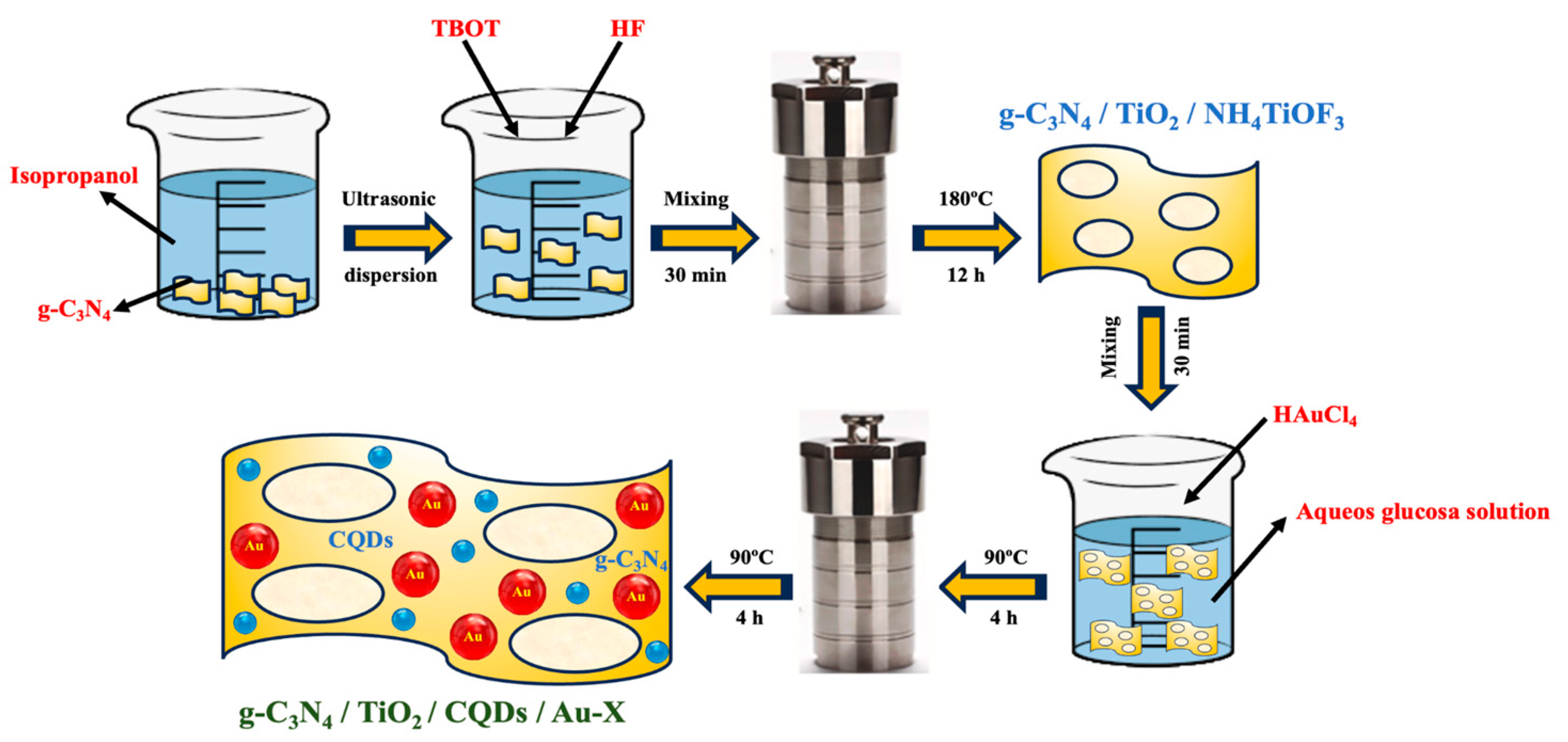

Figure 3. Preparation procedure for g-C3N4/TiO2/CQDs/Au-X.
Figure 3. Preparation procedure for g-C3N4/TiO2/CQDs/Au-X.
Catalysts 14 00378 g003

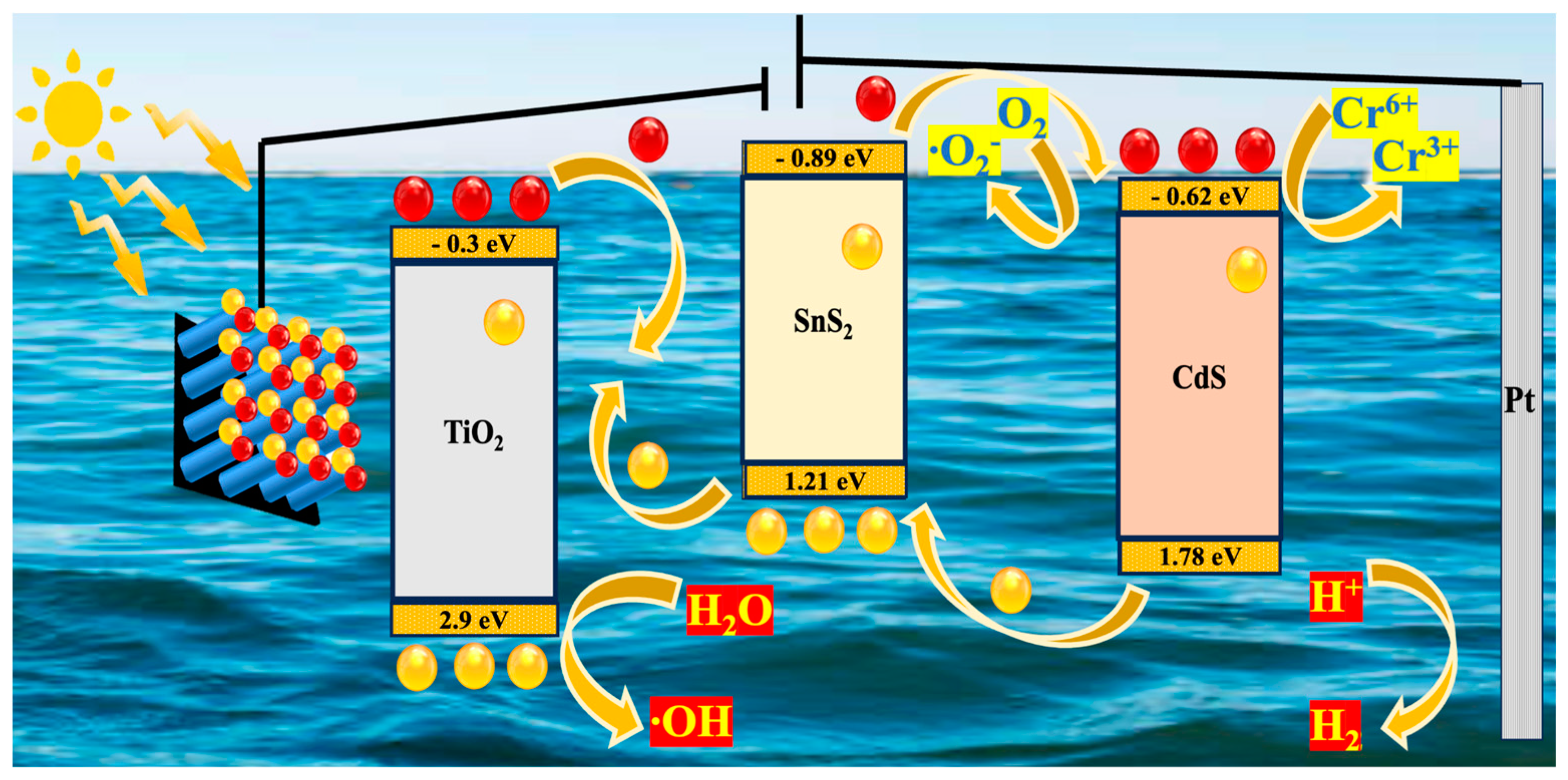

Figure 4. Photocatalytic charge carrier transfer mechanism of CdS/SnS2/TiO2 NTs.
Figure 4. Photocatalytic charge carrier transfer mechanism of CdS/SnS2/TiO2 NTs.
Catalysts 14 00378 g004

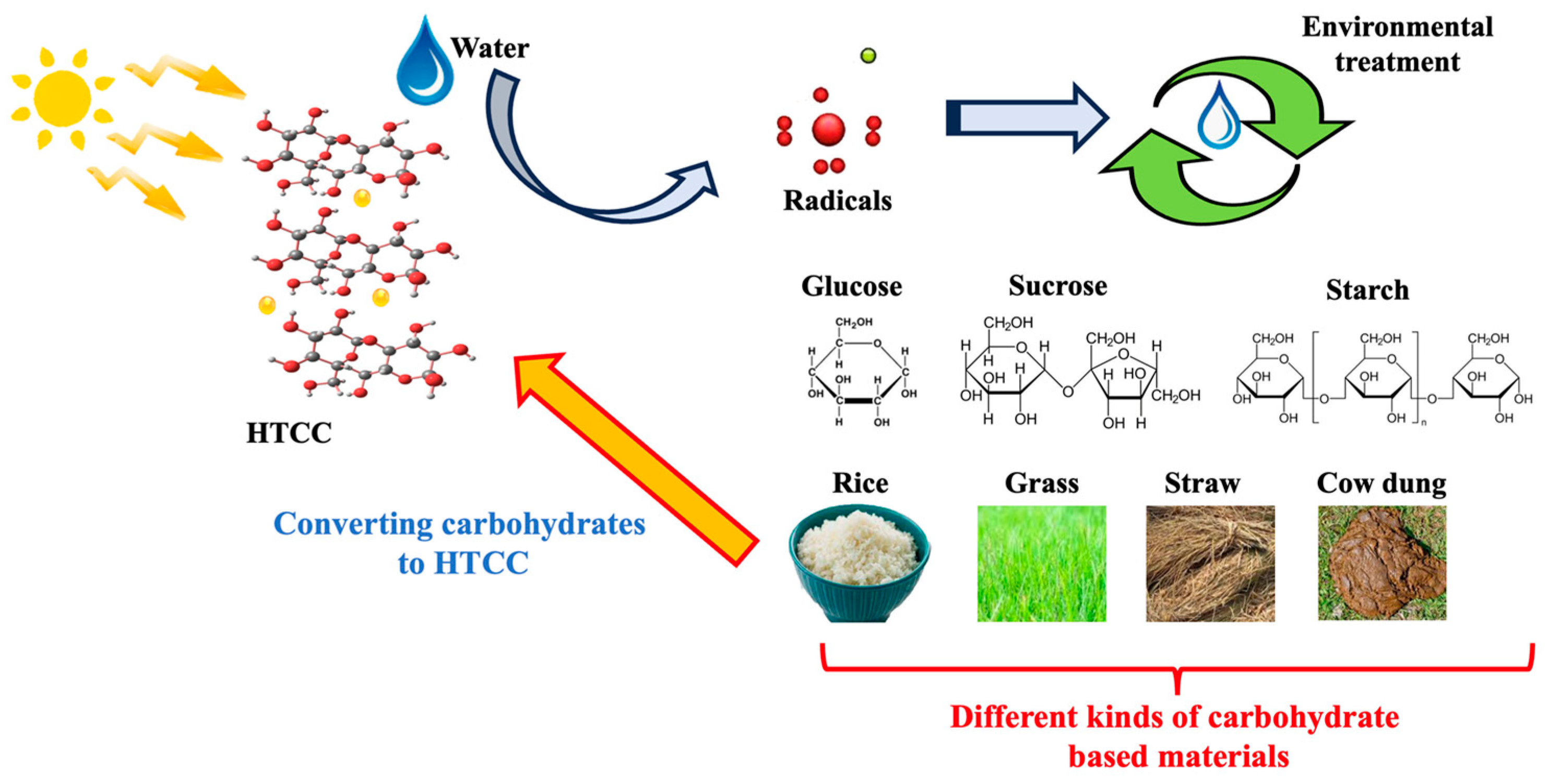

Figure 5. Converting carbohydrates into carbon-based photocatalysts for environmental treatment.
Figure 5. Converting carbohydrates into carbon-based photocatalysts for environmental treatment.
Catalysts 14 00378 g005

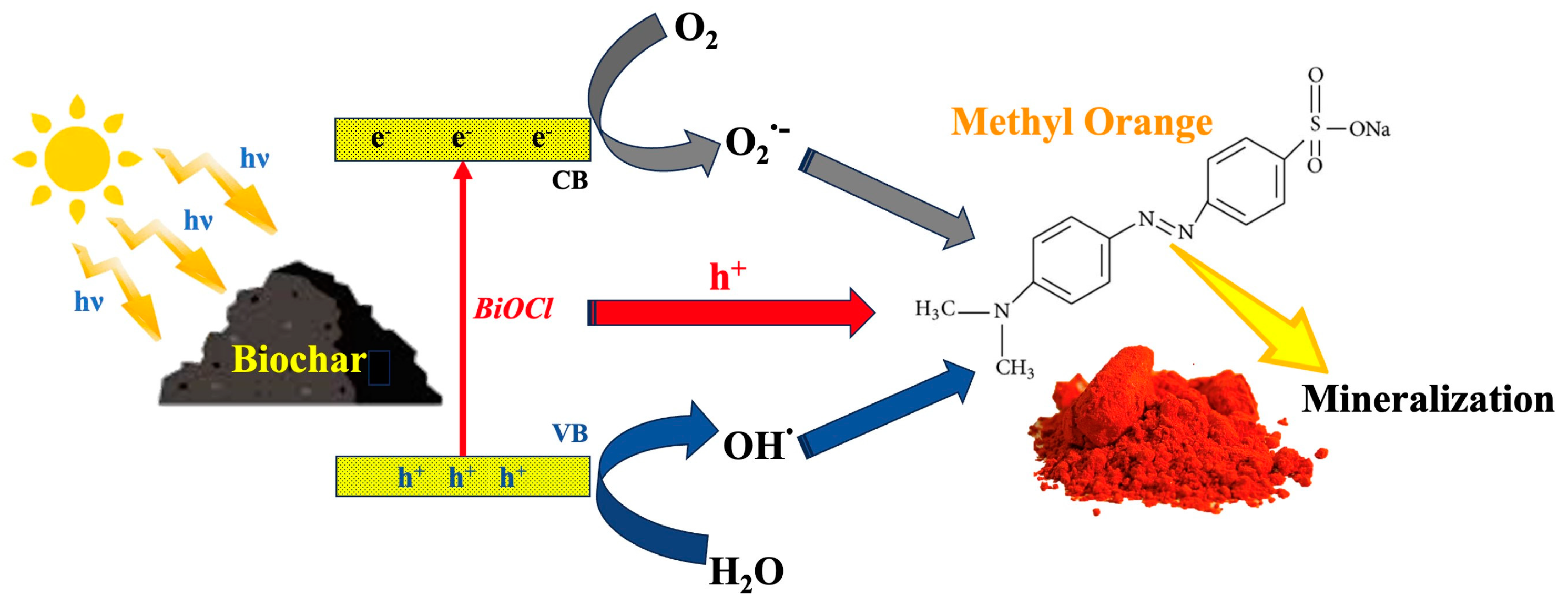

Figure 6. Composites of lignin-based biochar with BiOCl for photocatalytic water treatment.
Figure 6. Composites of lignin-based biochar with BiOCl for photocatalytic water treatment.
Catalysts 14 00378 g006

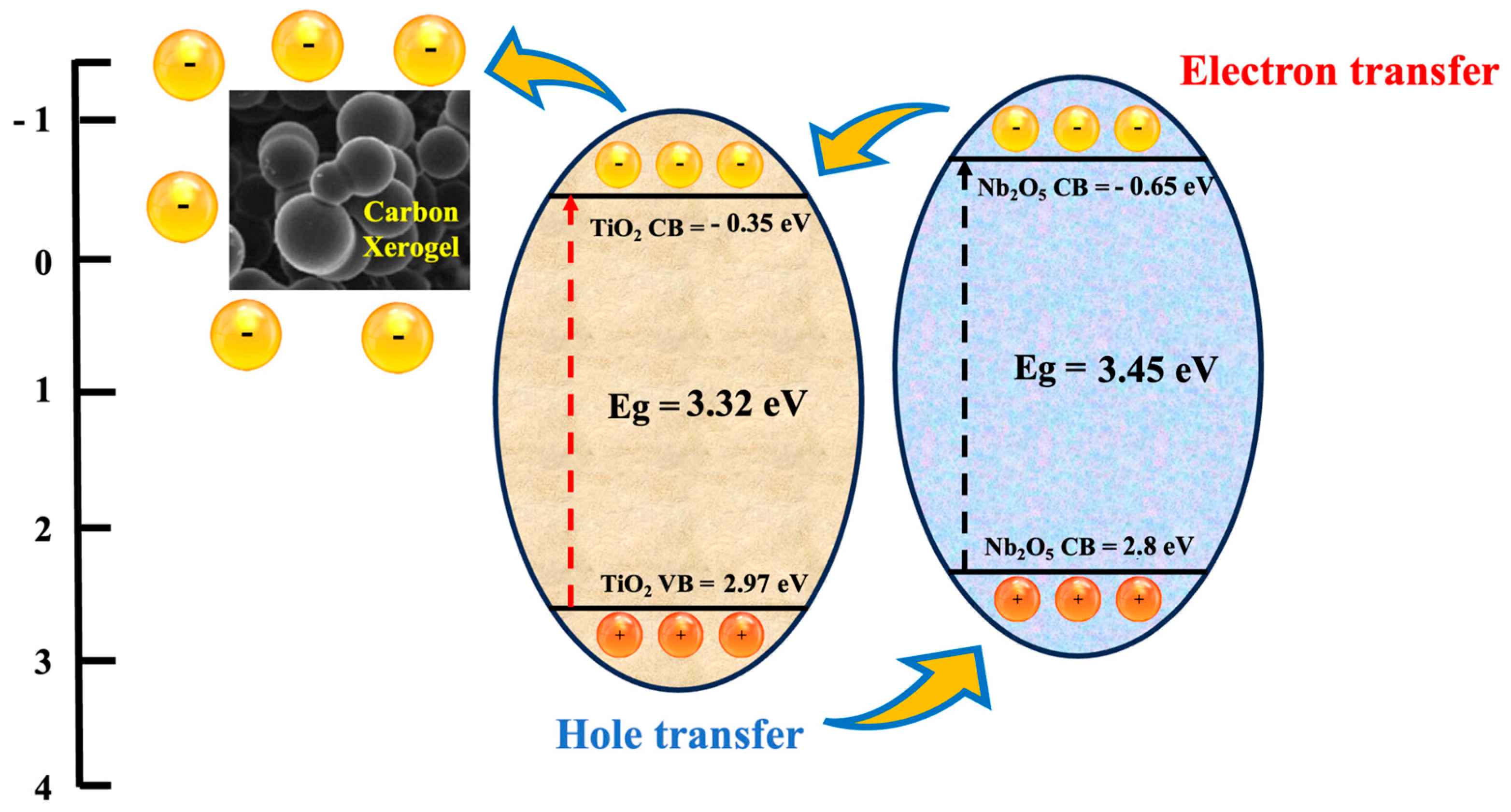

Figure 7. Band diagram of the TiO2/Nb2O5 heterojunction.
Figure 7. Band diagram of the TiO2/Nb2O5 heterojunction.
Catalysts 14 00378 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Vadivel, D.; Suryakumar, S.; Casella, C.; Speltini, A.; Dondi, D. Advancements in Materials Science and Photocatalysts for Sustainable Development. Catalysts 2024, 14, 378. https://doi.org/10.3390/catal14060378

AMA Style

Vadivel D, Suryakumar S, Casella C, Speltini A, Dondi D. Advancements in Materials Science and Photocatalysts for Sustainable Development. Catalysts. 2024; 14(6):378. https://doi.org/10.3390/catal14060378

Chicago/Turabian Style

Vadivel, Dhanalakshmi, Swetha Suryakumar, Claudio Casella, Andrea Speltini, and Daniele Dondi. 2024. "Advancements in Materials Science and Photocatalysts for Sustainable Development" Catalysts 14, no. 6: 378. https://doi.org/10.3390/catal14060378

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
