A 2.5D Electrode System Constructed of Magnetic Sb–SnO₂ Particles and a PbO₂ Electrode and Its Electrocatalysis Application on Acid Red G Degradation

Abstract

A novel electrode consisting of a Ti/PbO₂ shell and Fe₃O₄/Sb–SnO₂ particles was developed for electrochemical oxidation treatment of wastewater. Scanning electron microscope (SEM), X-ray diffraction (XRD), the current limiting method, toxicity experiments, and high-performance liquid chromatography were adopted to characterize its morphology, crystal structure, electrochemical properties, the toxicity of the wastewater, and hydroxyl radicals. Acid Red G (ARG), a typical azo dye, was additionally used to test the oxidation ability of the electrode. Results indicated that the 2.5D electrode could significantly improve the mass transfer coefficient and •OH content of the 2D electrode, thereby enhancing the decolorization, degradation, and mineralization effect of ARG, and reducing the toxicity of the wastewater. The experiments revealed that, at higher current density, lower dye concentration and higher temperature, the electrochemical oxidation of ARG favored. Under the condition of 50 mA/cm², 25 °C, and 100 ppm, the ARG, Chemical Oxygen Demand (COD) and Total Organic Carbon (TOC) removal efficiency reached 100%, 65.89%, and 52.52%, respectively, and the energy consumption and the current efficiency were 1.06 kWh/g COD, 8.29%, and energy consumption for TOC and mineralization current efficiency were 3.81 kWh/g COD, 9.01%. Besides, the Fe₃O₄/Sb–SnO₂ particles after electrolysis for 50 h still had remarkable stability. These results indicated that the ARG solution could be adequately removed on the 2.5D electrode, providing an effective method for wastewater treatment.

1. Introduction

Electrochemical oxidation (EO) is an environmentally friendly technology for treatment of hazardous or refractory contaminants from wastewater [1,2,3,4,5]. The application of EO is highly promising for yielding some useful by-products. Electrodes, especially the anode, are the core of the electrochemical system, therefore, numerous studies have been carried out on the various electrode materials [6,7,8]. The most common electrocatalytic anodes include titanium-based electrode (Dimension stable anode (DSA electrode), including PbO₂ [9,10], Sb–SnO₂ [11,12], IrO₂ [13] and RuO₂ [14] electrodes), noble metal electrode and graphite electrode (including common graphite electrode and boron doped diamond electrode [15,16]). Each electrode has some specific properties on account of its advantages and disadvantages [1]. Compared with other electrodes, the DSA electrodes are inexpensive, easy to prepare, and have high catalytic properties and strong stability [1,11,17,18].

The mass transfer process, as a significant restriction of the electrochemical oxidation, is primarily influenced by the electrochemical reactor structure [2]. The EO system has been conducted by using a conventional 2D electrode or by a newly developed 3D cell while both have their limitations regarding practical applications [19]. The traditional 2D electrochemical reactor, including cathodes and anodes, has the mass transfer limitation and the low area–volume ratio [20,21,22]. On the other hand, 3D electrochemical reactor promotes the mass transfer efficiency, current efficiency, and decreases the energy consumption, whereas relatively low cyclic stability is still an issue [23,24,25].

During the process of pollutants oxidization in the 2D reactor, the DSA electrode became inactive due to corrosion and the coatings dispersed in solution that also cannot be recycled, which result in serious material waste [26]. In our previous work [27,28], a new electrolytic cell type named 2.5D electrode system was proposed, as shown in Scheme 1. It consists of a DSA anode as the central electrode, and metal oxide coated magnetic particles as the auxiliary electrodes while the use of a magnet conduces to tightly join the central electrode and the auxiliary electrodes as well as to effectively recycle the magnetic particles. In contrast to the 3D reactor, the particles do not scatter in the solution but comes on the surface of the electrode, which increases the real surface area of the electrode and decreases the applied current density on the central electrode, leading to higher current efficiency and stronger electrode stability.

In the preliminary work, Sb–SnO₂ electrode shell (central electrode) and Fe₃O₄/Sb–SnO₂ magnetic particles (auxiliary electrodes) were used for electrochemical oxidation. The Sb–SnO₂ electrode did not perform well in terms of stability [4], and the accelerated life of the previous 2.5D electrode was only 24 h [27], which would limit its further industrial application. The PbO₂ electrode was a typical titanium-based electrode with excellent stability and high hydroxyl radical yield [29]. However, the leakage of lead ions was an obstacle in further use [7,26]. In this work, the new 2.5D electrode system (as shown in Scheme 1) consists of PbO₂ electrode and Sb–SnO₂ particles. That combination makes full use of the high stability of PbO₂ electrode and the high catalytic activity of Sb–SnO₂ particles. At the same time, it is also expected to reduce the release of lead ions on the surface of PbO₂ electrode by covering with Sb–SnO₂ particles. In this paper, the mass transfer and electrochemical performance of this new 2.5D electrode system were investigated in detail, and the electrocatalytic degradation experiments of relevant target organics were also conducted.

2. Materials and Experiment

2.1. Chemicals and Reagents

All chemicals used in the experiment were obtained from Sinopharm Chemical Reagent Xi’an Co., Ltd. (Xi’an, China), and were of analytical grade without further purification. The pure water fabricated in a water purification system (EPED-S2-D, EPED, Nanjing, China).

2.2. Electrode and Magnetic Powder Preparation

Ti cylinder tube (Purity > 99.6%, BaoTi Ltd., Baoji, China) with a dimension of φ 3 cm × 12 cm were used as the electrode substrate. The Sb–SnO₂ layer was coated on the Ti tubes through a brush coating method as reported by our previous work [30,31]. After that, one end of the Ti tubes was sealed with epoxy ethyl ester and polyamide ethyl ester. Finally, the PbO₂ coating was fabricated by electrodeposition with an inner layer (α-PbO₂) and an outer layer (β-PbO₂). The electrodeposition process was conducted in a two-electrode system undercurrent of 10 mA∙cm⁻². The α-PbO₂ and β-PbO₂ layers were prepared by electrodeposition at 40 °C for 30 min and 65 °C for 120 min respectively. Details for the electrodeposition process of PbO₂ coating can be found in our previous work [6,7,32,33].

The specific preparation method of the Sb–SnO₂ magnetic particles was the same as our previous work [27], mainly including heating and stirring, calcination, grinding, and sieving.

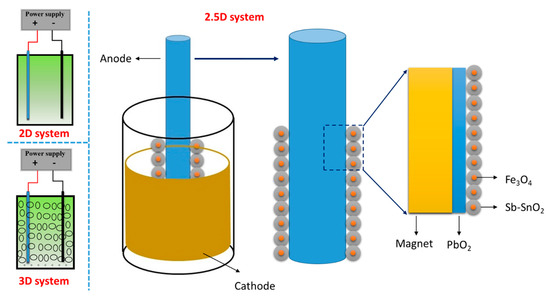

The 2D electrode system consisted of titanium tube-based lead dioxide anode and annular copper cathode. In the 2.5D electrode system, the titanium tube-based lead dioxide electrode was covered by a certain amount of Sb–SnO₂, magnetic powder used as the anode. The annular copper cathode in the same size as the 2D electrode system was used as the cathode.

2.3. Material Characterizations

The morphology, microstructure and element content of the prepared magnetic particles were analyzed by scanning electron microscopy (SEM: JSM-6390A, JEOL, Tokyo, Japan) equipped with an EDX (energy-dispersive X-ray spectroscopy) detector. X-ray diffraction (XRD: X’pert PRO MRD, PANalytical, Almelo, Holland, Cu Kα) was adopted to analyze crystal structure, with the scanning angle ranging from 10° to 80°. The magnetic property of the granules was determined by a vibrating sample magnetometer (VSM: 735 VSM Controller, LakeShore, Westerville, OH., USA). The powder sample was sealed in a 3 mm × 1 mm space on the vibrating stick and the mass of each sample was recorded. The range of magnet field intensity was set between −7500 Oe and 7500 Oe.

2.4. Electrode System Characterizations

2.4.1. Determination of Mass Transfer Coefficient

The mass transfer coefficient determined by the most common method reported in the literatures is the current limiting method [34,35]. The volume of the test solution was 500 mL, and it contained 0.2 mol/L K₃Fe(CN)₆ and 0.1 mol/L K₄Fe(CN)₆ with 1mol/L Na₂SO₄ as the supporting electrolyte. Then a three-electrode system was scanned with an Amperometric i-t Curve in an electrochemical workstation (CHI 660D, Chenhua, Shanghai, China). The working electrode was a 2.5D electrode and a 2D electrode, respectively. The reference electrode was a saturated calomel electrode. Raising voltage from 0.4 V to 3.4 V every 0.2 V with a scanning interval of 400 s, the results were made into a U–I curve. The corresponding mass transfer coefficient can be calculated through Equation (1).

$$k=\frac{I_{lim}}{nFA{C}_B},$$

(1)

where k is the mass transfer coefficient, m/s; I_lim is the limiting current, A; n is the electron transfer number; F is the Faraday constant (96,500 C·mol⁻¹); A is the plate area, m²; C_B is the bulk solution concentration, kmol/m³.

2.4.2. Cyclic Voltammogram Test

The cyclic voltammogram test was performed at an electrochemical workstation (CHI 660D, Chenhua, Shanghai, China) in a three-electrode cell system. Copper sheets acted as the counter electrode, and Ag/AgCl (sat KCl) served as a reference electrode. The measure of cyclic voltammogram test performed in 0.5 mol·L⁻¹ Na₂SO₄ solutions at the scan rate of 0.05 V·s⁻¹ from 0 V to 2 V.

2.4.3. The Determination of •OH

Hydroxyl radicals were measured by an indirect method with DMSO as the capture agent [36,37]. 2.5D and 2D electrode were used to electrolysis a 500 mL-volume solution with 250 mmol/L DMSO for 1 h at 40 mA/cm², sampling 2 mL every 15 min. The samples were filtered through a 0.45 μm filter, maintained at 25 °C for a certain time, then 2.5 mL pH 4.0 H₃PO₄–NaH₂PO₄ and 0.2 mL six mmol/LDNPH were added and diluted to 5 mL. The mixture was maintained at room temperature for 30 min and analyzed by HPLC (Sykam S500, Sykam, Eresing, Germany). HPLC conditions: λ = 355 nm, injection volume: 20 μL, mobile phase: methanol/water = (60/40, v/v). The flow rate of 1.0 mL·min⁻¹. Samples were ultrasonically degassed and filtered with a 0.45 μm PTFE filter.

2.5. Electrochemical Oxidation Process

Acid Red G (C₁₈H₁₃N₃Na₂O₈S₂, Chemical Abstracts Service Number ( CAS no.) 3734-67-6) and three other organics (including Salicylic acid (CAS no.69-72-7), Phenol (CAS no.108-95-2), and Aniline (CAS no.62-53-3)) were selected as the target organics in the electrochemical oxidation process. Electrochemical oxidation was conducted in a thermostatic glass cell (φ = 5 cm) using the two-electrode configuration, and the electrolyte circulated through a peristaltic pump. The 2.5D and 2D electrode were used as the anode and a copper sheet was employed as the cathode. The volume of the electrolyte solutions was 500 mL. To maintain the conductivity of the solution (27.2 mS/cm), 0.1 mol·L⁻¹ Na₂SO₄ was added to the aqueous solution. The experiments were operated with a magnetic stirrer for 120 min, sampling 5 mL every 30 min. A UV-visible spectrophotometer (UV2600A, Unico, Shanghai, China) was employed to measure the absorbance spectra of Acid Red G (ARG), and the maximum absorption peak of ARG was at 505 nm. The Chemical Oxygen Demand (COD) was measured with a water quality tester (ET99722 Lovibond, Shanghai, China). TOC was analyzed by ET1020A TOC analyzer.

The calculation methods of some indexes, such as ARG removal efficiency (η_ARG), COD removal efficiency (η_COD), TOC removal efficiency (η_TOC), current efficiency (CE), energy consumption (EC_COD, kWh/gCOD), mineralization current efficiency (MCE) and TOC energy consumption (EC_TOC, kWh/gTOC), are shown in the following equations.

$${\eta }_{ARG}=\frac{A_0-A_t}{A_0}\times 100\%,$$

(2)

$${\eta }_{COD}=\frac{CO{D}_0-CO{D}_t}{CO{D}_0}\times 100\%,$$

(3)

$${\eta }_{TOC}=\frac{TO{C}_0-TO{C}_t}{TO{C}_0}\times 100\%,$$

(4)

$$CE=FV\frac{CO{D}_0-CO{D}_t}{CO{D}_0}\times 100\%,$$

(5)

$$E{C}_{COD}=\frac{UIt}{V\left(CO{D}_0-CO{D}_t\right)},$$

(6)

$$E{C}_{TOC}=\frac{50UIt}{3V\times TO{C}_0\times {\eta }_{TOC}},$$

(7)

$$MCE= \frac{nFV\left(TO{C}_0-TO{C}_t\right)}{mIt\times 4.32\times {10}^7}\times 100\%,$$

(8)

where A₀ and A_t are the absorbance value in 505 nm of initial wastewater sample and electrolysis at the given times t, COD₀ and COD_t are the COD of initial wastewater sample and electrolysis at the given times t, g·m⁻³. TOC₀ and TOC_t are the TOC of initial wastewater sample and electrolysis at the given times t, g·m⁻³. I is the current (A); U is the cell voltage (V); V is the volume of the electrolyte (m³); t is the treatment time (min); n is the number of electrons consumed during ARG mineralization (98); 4.32 × 10⁷ is the conversion factor (3600 s·h⁻¹ × 12,000 mg); m is the number of carbon atoms in the ARG molecule (18).

2.6. Toxicity Evaluation of Degradation Result

The concentration of a metal element in the solution after electrolysis was determined by ICP-OES (ICPE-9000, SHIMADZU, Kyoto, Japan).

Biofluorescence method. According to GB 15441-1995, toxicity experiments were carried out to evaluate the toxicity of samples after electrochemical oxidation. Photobacterium phosphoreum T₃ was purchased from the China Microorganisms Collection Center. Three sets of parallel and one control group were set for each sample to test. In the parallel-group, 867 μL of the test sample was added, and in the control group, 867 μL of pure water was added. After contacting with the sample, the broth was placed on a Modulus™ single-tube multi-purpose detector and counted. Relative luminosity significantly negatively correlated with the concentration of toxic components in the water sample. Therefore, the relative luminosity of the water sample can be measured with a bioluminescence photometer to indicate its toxic luminescence level.

3. Results and Discussion

3.1. The Comparison of 2D and 2.5D Electrode

3.1.1. Mass Transfer Coefficient

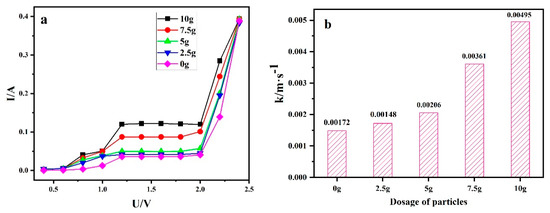

Figure 1a shows the ampere-voltage curve of 2.5D electrode system under different magnetic particle dosage. As shown in Figure 1a, one can find that the ampere-voltage curve of the 2.5D electrode at different particle dosage has the current plateau. When the particle dosage increased from 0 to 5 g, the plateau current value increased slowly. When the particle dosage increased to 7.5 g and 10 g, the plateau current value was significantly higher than the data when the particle dosage was 0 g. The mass transfer coefficient can be calculated by combining the current platform value with equation 1, as shown in Figure 1b. The corresponding mass transfer coefficients were 0.00148, 0.00172, 0.00206, 0.00361, and 0.00495 m·s⁻¹ when the particle dosage was 0 g, 2.5 g, 5 g, 7.5 g, and 10 g. The data confirmed that the addition of particle dosage could increase the electrochemical system mass transfer coefficient.

3.1.2. Hydroxyl Radicals

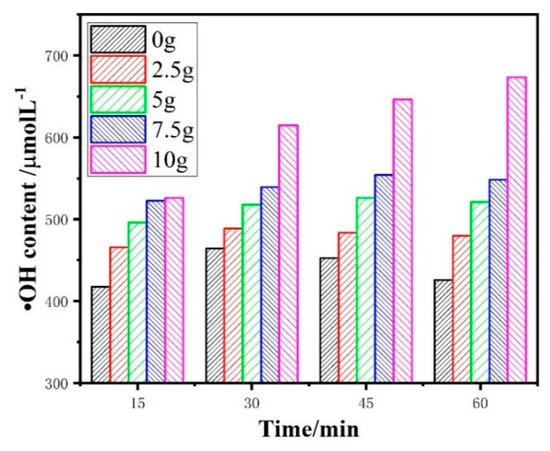

Hydroxyl radicals are generated from the oxidation of water, as shown in Equation (9). It is the core of electrocatalytic reaction. Hydroxyl radicals were measured by an indirect method with DMSO as the capture agent. HPLC was used to qualitatively determine the •OH content of 2.5D electrodes with different magnetic particle dosage. The variation of •OH content with electrolysis time is shown in Figure 2. The •OH content grew up improperly with the increase of Sb–SnO₂ magnetic particle dosage and the extension of electrolysis time as shown in Figure 2. It meant that the •OH yield of the 2.5D electrode system was more than that of the traditional 2D electrode system. When the magnetic particle was 10 g, the •OH yield of the 2.5D electrode system was the highest. At 60min, the •OH yield of 2.5D electrode system was 673.4 µmol·L⁻¹, while that of 2 D electrode system was 425.8 µmol·L⁻¹.

H₂O → •OH + H⁺ + e

(9)

3.1.3. Electrochemically Active Site

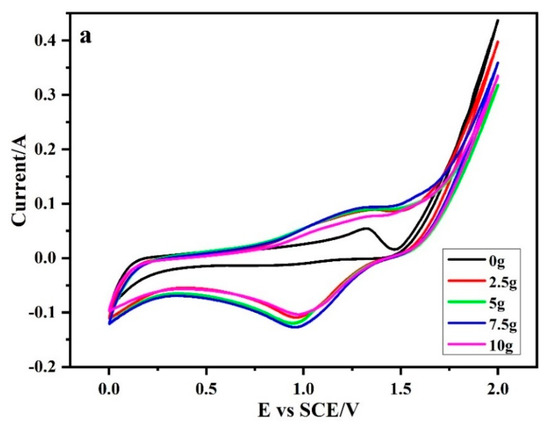

Literature reports that the number of electroactive sites on the electrode surface is proportional to the area of its cyclic voltammetry curve. Figure 3 is the cyclic voltammetry curve of a 2.5D electrode system under different Sb–SnO₂ magnetic particle dosage. It can be seen from Figure 3 that the introduction of magnetic particles significantly increased the cyclic voltammogram area of the electrode system. This indicates that the number of electrode surface active sites in 2.5D electrode system was larger than that in the traditional 2D electrode system.

Comprehensive appeal results show that the 2.5D electrode system is superior to the traditional 2D electrode system in terms of mass transfer coefficient, hydroxyl radical yield, and surface-active sites. The reason for that phenomenon is that Sb particles are excellent electroactive particles, whose introduction can greatly expand the surface area of lead dioxide electrode. Considering that the electrode surface cannot adsorb more particles magnetically, 10 g was chosen as the number of magnetic particles.

3.1.4. Electrocatalytic Capacity Comparison

An electrocatalytic degradation experiment was carried out with ARG as the target. The results are shown in Figure 4 and

Table 1. The parameters comparison of 2.5D and 2D electrode.

		CE/%	ECCOD/kWh/gCOD	ηTOC/%
ARG a	2D	7.10	1.71	15.6
	2.5D	12.2	0.961	22.6
Salicylic acid	2D	5.04	0.45	40.85
	2.5D	7.30	0.32	54.68
Phenol	2D	6.97	0.34	27.04
	2.5D	8.64	0.27	52.77
Aniline	2D	10.05	0.23	28.92
	2.5D	12.06	0.19	56.01

^a The applied current density was 10 mA/cm² for ARG and 50 mA/cm² for three other organisms. The electrolysis time was 1 h for ARG and 2 h for three other microorganisms.

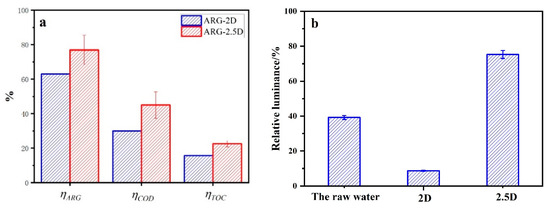

. As shown in Figure 4a, the removal efficiency (including η_ARG, η_COD, and η_TOC) of the 2.5D electrode system is higher than that of the 2D electrode system. Meanwhile, the 2.5D electrode system has a higher CE, almost twice as much as the 2D electrode, with the current efficiency of 12.21% compared with 7.1%. The EC_COD decreases from 1.71 kWh/gCOD to 0.961 kWh/gCOD, as shown in Table 1. From the above results, one can find that the 2.5D electrode system has better performance in the electrocatalytic process than 2D electrode system. It may be because the 2.5D electrode system has a higher mass transfer coefficient, greater hydroxyl radical production, and more surface-active sites than the 2D electrode system.

According to GB/T 15441-1995, the toxicity of wastewater samples before and after degradation by the 2D and 2.5D electrode system were tested, as shown in Figure 4b, indicating that the relative luminosity of samples treated by 2.5D electrode system is higher than that of the raw water. Nevertheless, the relative luminosity of samples treated by the 2D electrode was significantly lower than that of the raw water. It means that the 2.5D electrode system reduced the biotoxicity of the raw water and greatly increased compared to the 2D electrode system. One of the reasons for this phenomenon is that the electrocatalytic oxidation ability of the 2.5D electrode system is stronger than that of the 2D electrode system. ARG molecules can be decomposed by the 2.5D electrode system to a higher degree and more non-toxic or low-toxic small molecular substances. Another reason is the concentration of lead ions released during electrolysis. The lead dioxide of the 2D electrode system is exposed to the solution. In this case, the lead ion will leak into the solution, increasing the toxicity of the wastewater. Inductively Coupled Plasma (ICP) test results showed that the concentration of a lead ion in the electrolyzed water of 2D electrode system was 0.25 mg/L. For the 2.5D electrode system, the Sb−SnO₂ magnetic particles adhere to the lead dioxide electrode surface and can inhibit the leakage of lead ion during the electrolysis. The concentration of lead ion in the electrolyzed water of 2.5D electrode system was 0.10 mg/L, less than that of the 2D electrode system.

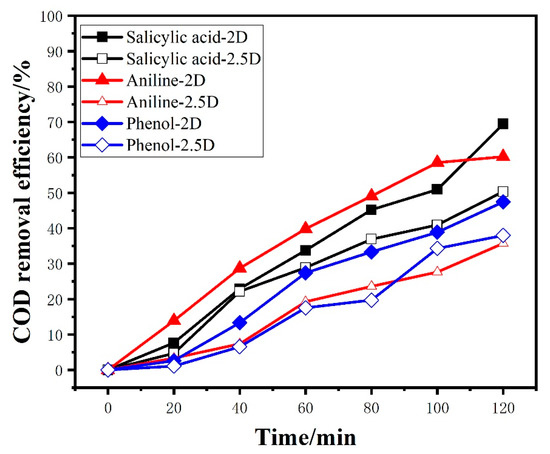

To further verify the superiority of the 2.5D electrode system in electrocatalytic capability, three other typical organic compounds (including Salicylic acid, Phenol, and Aniline) were used as degradation targets for electrocatalytic degradation experiments. The results are shown in Figure 5 and Table 1. The η_COD-2 h and η_TOC-2 h of aniline were 60.18% and 56.01% by using the 2.5D electrode system, which were higher than 35.71% and 28.92% of the 2D electrode system. The CE of aniline for the 2.5D electrode system was 12.06%, higher than 10.05% for 2D electrode system. Meanwhile, the EC_COD decreased from 0.23 kWh/gCOD to 0.19 kWh/gCOD. Similar results could be obtained when the other two organics were degraded. All the above results show that the 2.5D electrode system has advantages in electrocatalytic capability over the 2D electrode system.

3.2. Degradation of ARG by Using the 2.5D Electrode System

3.2.1. Effect of Current Density

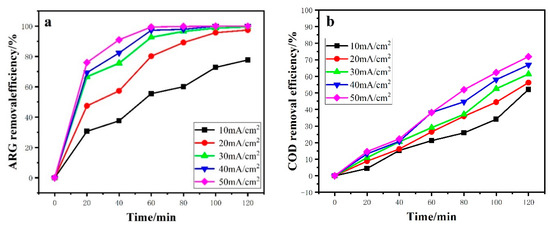

Current density is an important parameter in controlling the reaction rate and has a significant effect on the electrochemical oxidation process. The current density was changed from 10 to 50 mA/cm² in the process of degrading the ARG. As shown in Figure 6a,b, current density had a positive effect on the degradation of ARG with the increasing of current density. The η_ARG increased from 77.69% to 100% after 120 min of electrolysis. When the current density reached 40 mA/cm², the complete discoloration of ARG can be achieved after 60 min. The η_COD increased from 52.6% to 65.89% with the raising of current density from 10 to 50 mA/cm², but not completely removed. It may be because, of the process of electrochemical oxidation where an azo bond oxidation easily occurred, the intermediate products and other organics continued to be oxidized so that the rate of color removal was higher than the COD reduction. Yao et al. [38] reported that current density was proportional to electrochemical oxidation and could increase •OH production. Therefore, in the 2.5D electrode system, the increasing current density is also beneficial to organic matter removal.

From

Table 2. Effect of different factors on ARG degradation by using the 2.5D electrode system.

		CE/%	ECCOD/kWh/gCOD	ηTOC/%	MCE/%	ECTOC/kWh/gTOC
Current density (mA/cm2)	10	5.90	0.22	18.64	3.28	1.43
	20	3.48	0.46	23.76	2.52	2.28
	30	2.56	0.71	27.05	1.90	3.46
	40	2.45	0.83	37.35	1.97	3.74
	50	2.07	1.06	52.51	1.62	4.94
Dye concentration (mg/L)	50	0.89	2.43	41.77	0.86	9.13
	100	2.07	1.06	52.52	1.62	4.94
	200	3.08	0.7	35.22	2.55	3.09
	300	3.39	0.66	17.70	1.45	5.60
Temperature (°C)	5	5.76	1.72	40.69	6.8	4.60
	15	6.48	1.46	46.07	7.92	4.03
	25	8.29	1.06	52.52	9.01	3.81
	35	5.79	1.45	62.97	11.11	3.24

, it can be seen that with the increase of current density, η_TOC increased from 18.64% to 52.51%. However, EC_COD and EC_TOC both increased, and CE and MCE gradually decreased. Li et al. [19] considered that with the increase of current density, the reaction of oxygen production increased, which would compete with the degradation of organics, leading to the decrease of current efficiency and the increase of energy consumption.

3.2.2. Effect of Initial Organic Concentration

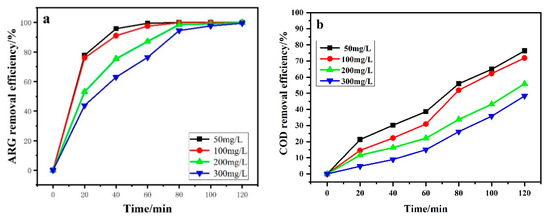

Figure 7 shows the effect of initial dye concentration on ARG degradation. As shown in Figure 7a, complete color removal could be achieved when the ARG concentration increased from 50 ppm to 300 ppm. However, it would take more time to achieve the complete decolorization for higher ARG concentration solution. The η_COD after 120 min electrolysis was 76.17%, 71.96%, 56.05%, and 48.18% when the initial ARG concentration was 50, 100, 200, and 300 mg·L⁻¹, respectively. Table 2 also shows that EC_COD and EC_TOC significantly reduced with increasing initial dye concentration, while CE and MCE significantly increased with the increasing initial dye concentration.

The electrocatalytic oxidation process is controlled by mass transfer. At low initial ARG concentrations, the electrochemical reaction is faster than the diffusion process. The dye molecule was expected to be degraded completely at the electrode–solution interface. When the initial ARG concentrations increased, the amount of ARG molecule achieved the anode surface was larger than that in the low concentration solution. Thus, more ARG molecules reacted with the •OH on the anode surface in the high concentration solution [2]. The amount of •OH generated on the surface of the PbO₂ anode at a given current density fixed. Active free radicals generated on the electrode surface were insufficient for pollutant degradation with increasing ARG concentration. Then the η_COD decreased with the increase of the initial ARG concentrations, while EC_COD and EC_TOC decreased with the increase of the initial ARG concentrations.

3.2.3. Effect of Temperature

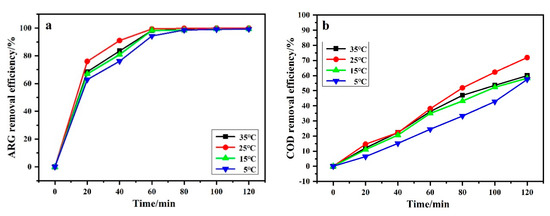

Figure 8 shows the effect of temperature on ARG removal efficiency and COD removal efficiency. One can find that when the temperature was lower than 25 °C, η_ARG and η_COD increased as the temperature rose. However, η_ARG and η_COD declined when the temperature rose to 35 °C. As shown in Table 2, η_TOC follows the same rules. Generally speaking, when the temperature is higher, the chemical reaction rate increases, thereby increasing the utilization of •OH. When the temperature does not exceed 25 °C, the experimental results prove this. However, when the temperature exceeds 25 °C, all chemical reactions in the electrolytic cell are accelerated, including various side reactions. The oxygen evolution side reaction reduced the utilization rate of hydroxyl radical and current efficiency, and finally reduced the overall reaction effect.

3.3. The Stability of Fe₃O₄/Sb–SnO₂

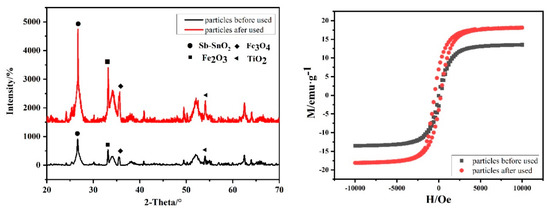

The XRD patterns, magnetization curves, and surface element content of the magnetic particles before and after 50 h-electrolysis are shown in Figure 9 and

Table 3. The surface element content of magnetic particles before and after electrolysis.

	Sn	Sb	Fe	Ti	C	O
Before electrolysis	23.57	3.03	7.23	11.89	10.26	44.01
After 50 h electrolysis	20.47	2.86	11.24	12.67	10.38	42.38

. As shown in Figure 9a, there were the diffraction peaks of Fe₃O₄ (35.51°), Fe₂O₃ (33.1°), TiO₂ (62.8°), Sb–SnO₂ (26.6° and 51.8°), which were consistent with previous researches. After the electrolysis for 50 h, there was no change in particle diffraction peak. It can be seen from Table 3 that, after electrolysis, the element content on the surface of particles changed slightly. Sn and Sb decreased, while Fe and Ti increased. It indicates that the surface of magnetic particles dissolved to a certain extent after electrolysis for 50 h, resulting in increased exposure of ferric oxide. As shown in Figure 9b, the magnetic properties of the particles increased after use. These results indicate that Sb–SnO₂ magnetic particles had better stability than Sb–SnO₂ electrodes. More importantly, this 2.5D electrode system provides excellent convenience for particle replacement and is conducive to the continuity of the electrocatalytic process improvement.

4. Conclusions

In this study, the PbO₂ electrode and the Sb–SnO₂ electrode were combined by a magnet to construct a newly assembled 2.5D electrode. Due to the existence of Fe₃O₄/Sb–SnO₂ particles, it proved that the 2.5D electrode could improve the mass transfer coefficient and increase •OH content, relative to the traditional 2D electrode. The degradation experiments showed that the 2.5D electrode could improve the performance of decolorization, degradation, and mineralization for ARG, reduce the energy consumption significantly, and increase the current efficiency, indicating the superiority of the 2.5D electrode in ARG removal from wastewater. Through the experiments of temperature, concentration, and current density, it was found that the removal efficiency of ARG is more favorable at higher current density, average temperature, and lower concentration. Toxicity experiments revealed that, compared with the 2D electrode, the 2.5D electrode could significantly reduce the toxicity of wastewater, indicating the potential for reducing the toxicity of the dyeing wastewater.
