Enhancement of the Stability of Encapsulated Pomegranate (Punica granatum L.) Peel Extract by Double Emulsion with Carboxymethyl Cellulose

by
Essam Hady
1,
Mahmoud Youssef
1,
Amani H. Aljahani
2,
Huda Aljumayi
3,
Khadiga Ahmed Ismail
4,
El-Sayed El-Damaty
1,
Rokkaya Sami
3,* and
Gamal El-Sharnouby
1,*
1
Department of Food Science and Technology, Faculty of Agriculture, Al-Azhar University, Cairo 11751, Egypt
2
Department of Physical Sport Science, College of Education, Princess Nourah bint Abdulrahman University, P.O. Box 84428, Riyadh 11671, Saudi Arabia
3
Department of Food Science and Nutrition, College of Sciences, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
4
Department of Clinical Laboratory Sciences, College of Applied Medical Sciences, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Crystals 2022, 12(5), 622; https://doi.org/10.3390/cryst12050622
Submission received: 7 April 2022 / Revised: 23 April 2022 / Accepted: 25 April 2022 / Published: 27 April 2022
(This article belongs to the Special Issue New Trends in Crystals at Saudi Arabia (Volume II))
Browse Figures
Versions Notes

Abstract

:
Pomegranate peel enriched with high value of bioactive phenolics with valuable health benefits. However, after extraction of the phenolic compounds, diverse factors can affect their stability. Therefore, we, herein, aimed to prepare W1/O/W2 double nanoemulsions loaded with phenolic-rich extract from pomegranate peel in the W1 phase. Double emulsions were fabricate during a two-step emulsification technique. Furthermore, the influence of sodium carboxymethyl cellulose (CMC) in the outer aqueous phase was also investigated. We found that W1/O/W2 emulsions containing phenolic-rich extract showed good physical stability, especially in the particle size, polydispersity index, zeta potential, and creaming index. Intriguingly, high encapsulation rates of pomegranate polyphenols >95% were achieved; however, emulsion with CMC had the best encapsulation stability during storage. Thus, our study provides helpful information about the double nanoemulsions delivery system for polyphenols generated from pomegranate peel, which may lead to the development of innovative polyphenol-enriched functional foods.

Graphical Abstract

1. Introduction

Pomegranate (Punica granatum L.; Punicaceae) is a fruit-bearing deciduous shrub extensively grown in many areas such as the Middle East, Europe, and Southeast Asia [1]. The global pomegranate production is around 8 M tons [2]. Pomegranate consumption has dramatically risen as people become more aware about its excellent therapeutic properties [3]. It is commonly consumed fresh or in the form of juice. Pomegranate juice manufacturing generates vast amounts of by-products, such as seeds and peels, which cause disposal problems and environmental pollution [4]. Hence, these wastes have received great attention from investigators.
Pomegranate peel accounts for nearly around 30 to 40% of the whole fruit weight [5]. The utilization of pomegranate peel to produce bioactive compounds leads to yield a high value of by-products, and reduces agricultural waste and environmental problems [6]. Pomegranate peel contains large amounts of different secondary metabolites, especially flavonoids, phenols, and hydrolyzable tannins such as catechin, gallic acid, caffeic acid, anthocyanins, and many others [7].
Historically, the ancient Egyptians and Indians used pomegranate peel against various diseases such as cough, diarrhea, dysentery, ulcers, diabetes, cancer, and cardiovascular diseases. This is because of its biological activities, e.g., antioxidant, anti-inflammatory, antihepatotoxic, antigenotoxic, and memory-enhancing characteristics [8,9,10]. Furthermore, pomegranate peel has proven its beneficial effects in treating diseases caused by free radicals such as aging, wounds, and ulcers [11,12].
Despite the numerous health benefits of pomegranate peel extract (PPE), it is unstable and vulnerable to oxidation, polymerization, and condensation reactions [13]. In addition, phenolic compounds, in general, can be easily destroyed during processing and storage due to its sensitivity to high temperatures, oxygen, and light or when exposed to the gastrointestinal conditions, which restricts their activity and compromises their valuable effects in health [14,15]. Moreover, when pomegranate peel phenolics are incorporated into food, they can cause astringent flavor [16]. Furthermore, the industry currently demands proven methods that permit the using of polyphenols, instead of free molecules for the bioavailability [17]. Consequently, encapsulation of PPE can be an approach not only to improve their stability [18], but also to mask astringency and bitterness [19], and improve their bioavailability and controlled release [20,21].
Thus, emulsion-based encapsulation systems provide an attractive alternative solution to overcome these issues. It is a valuable system to incorporate water-soluble and/or oil-soluble bioactive compounds in functional food products [22].
Double emulsions, in general, can be emulsions inside emulsions. The 1st phase is small spherical droplets dispersed into the 2nd phase to form a primary emulsion, and this primary emulsion is re-dispersed as droplets into the 3rd phase to obtain the double emulsion. There are many types of double emulsions, but the main two types are: water-oil-water (W1/O/W2) emulsions and oil-water-oil (O1/W/O2) emulsions. The W1/O/W2 emulsions have considerable promise for food applications since most foods are constituted of a continuous aqueous phase [23].
Double emulsions display many advantages as follows: 1. Besides their ability to incorporate two types of bioactive compounds together in one system, the double emulsion can be used for targeted delivery of these compounds at a controlled release rate. 2. They can be used to prepare low-fat foods such as salad dressings, fat spreads, and cheeses without affecting the sensory properties. 3. They can be used to deliver functional components by masking their undesirable flavor or odor and protecting sensitive compounds [24].
Recently, W1/O/W2 emulsions have been used to encapsulate and protect hydrophilic bioactive compounds such as anthocyanin [25], catechin [26], oleuropein [27], and gallic acid [28]. They have also been used to encapsulate phenolic-rich extracts, such as mango peel [29], olive leaf [30], grape seed [31], red dragon fruit [32], or blueberry pomace [33]. To date, encapsulation of PPE in double emulsions has not been studied yet.
The main goal of this study was to prepare W1/O/W2 double nanoemulsions loaded with pomegranate peel extract (PPE-DE) in the W1 phase. Non-ionic emulsifiers: “PGPR” and “Tween 20” were used as emulsifiers in W1–O and O–W2 interfaces, respectively. The influence of the presence of carboxymethyl cellulose (CMC) in the outer aqueous phase (W2) was also investigated. The formulated emulsions were characterized based on their physico-chemical properties, namely their microstructures, viscosities, zeta potentials (ζ), mean droplet sizes, droplet size distributions, and Fourier Transform Infrared (FTIR) spectra, in addition to the encapsulation efficiency (EE) of PPE.

2. Materials and Methods

2.1. Materials

Fresh pomegranate fruits (Punica granatum L.) Sahrawy Sp. were obtained from the El-Obourmarket (Cairo, Egypt). Corn oil without any added antioxidants (TBHQ -ve) was donated by Arma Food Industries Company, 10th of Ramadan city (Egypt). Gallic acid and Folin–Ciocalteu reagentwere obtained from Sigma-Aldrich (St. Louis, MO, USA); sodium carbonate from Surechem (Suffolk, England). Sodium carboxy methyl cellulose and Tween 20 were purchased from Advent company, Navi Mumbai (India); polyglycerol polyricinolate (Grinsted PGPR 90 Kosher) was provided from Danisco Company (Copenhagen, Denmark). Other chemicals (analytical grade) were purchased from El-Gamhouria Company (Cairo, Egypt).

2.2. Preparation of Pomegranate Peel Powder

Fresh pomegranate fruits were cleaned up with tap water and dried with a cloth, and seeds were removed. After that, peels were cut using a sharp knife into small pieces around 2 × 2 cm, and then allowed to dry in a laboratory oven with forced air circulation at 45 °C for 24 h. The dried peels were ground into fine powder. Afterwards, the powder was sieved through a 500 µm mesh and kept at −20 °C until analysis.

2.3. Preparation of PPE

To obtain PPE, peel powder (25 g) was extracted with 70% (v/v) EtOH solution (500 mL). The mixture was put in a shaker incubator set at 125 rpm for 24 h in the dark at ambient temperature. The flask was covered with aluminum foil to avoid exposure of light during the extraction process. The extract was filtered through Whatman No.1 filter paper after centrifugation at 3500 rpm for 15 min. A rotary evaporator was used to concentrate the filtered extract at a temperature of 40 °C. Finally, the remaining extract was pre-frozen in −80 °C freezer overnight, and then lyophilized in a freeze dryer at −50 °C for 24 h. The resulting powder was kept at −20 °C for further use.

2.4. Preparations of PPE-DE

As shown in Figure 1, double W1/O/W2 nanoemulsions were fabricated according to a method previously optimized by Velderrain-Rodriguez et al. [29], with slight changes, as follows: In the first step, primary W1/O emulsions were comprised of corn oil (70%, wt/wt), the internal water phase (W1) (22%, wt/wt), glycerol (3%, wt/wt) as cosurfactant, and PGPR (5%, wt/wt) as lipophilic surfactant. Loaded W1/O emulsions were prepared using the PPE solution (1 mg/mL) dissolved in 0.1 M NaCl solution as W1, while non-loaded emulsion (Blank, without PPE) was prepared using 0.1 M NaCl solution as W1. Before emulsification, glycerol and PGPR were dissolved in W1 and corn oil, respectively, using a magnetic stirrer (60 °C for 5 min). W1 phase was dispersed in corn oil using a high-speed homogenizer (Unidrive X1000D-CAT, Ballrechten-Dottingen, Germany) operated at 6000 rpm/8 min. Subsequently, to diminish the water droplets’ particle size, W1/O emulsions were sonicated with an Ultrasonic liquid processor (Vibra-cell, VCX-750, Sonics & Materials, Inc., Newtown, CT, USA) for 3 min at 24 kHz frequency and 40% amplitude. In the second step, W1/O/W2 emulsions were comprised of 25, 73, and 2% (wt/wt) of the W1/O emulsion, external water phase (W2), and Tween 20 (as a hydrophilic surfactant), respectively. The W2 of emulsions was comprised of 0.1 M NaCl solution which was used to dissolve Tween 20 and CMC (0.5% wt/wt). The final W1/O/W2 emulsions were homogenized with a high-speed homogenizer at 6000 rpm/4 min, and subsequently sonicated for 1.5 min at a frequency of 24 kHz and 30% amplitude.

2.5. Emulsion Characterization

Physical characterization of the double emulsion encapsulating the PPE was performed by measuring mean particle diameter, particle distribution, particle charge via zeta potential, apparent viscosity, and morphological characteristics via transmission electron microscopy (TEM).

2.5.1. Particle Size, Polydispersity Index (PDI), and ζ Potential Measurements

Dynamic light scattering (DLS) (NICOMP 380 ZLS, PSS, Santa Barbara, CA, USA) is a method used to measure particle diameter, PDI, and ζ potential of the prepared emulsions. Samples were analyzed using the 632 nm line of a HeNe laser as the incident light with an angle of 90° and ζ potential with an external angle of 18.9°.

2.5.2. Viscosity Measurement

Brookfield viscometer (Brookfield, WI, USA, DV-II Brookfield) was used to estimate the viscosity of double emulsions at controlled room temperature (25 °C) and 250 rpm with spindle No. 21. The viscosity value was read and reported in terms of centipoises (cp).

2.5.3. Creaming Index (CI)

Creaming of double emulsions was monitored through the storage at 4 °C by measuring the total emulsion height (EH) and the serum layer height (SH). The following formula was used to determine the creaming index (CI) [34]:
CI ( % ) = 100 × SH EH
Creaming of the W1/O/W2 emulsion led toseparating the aqueous phase at the bottom and the oil phase at the top, which was seen easily by the naked eye.

2.5.4. FTIR

FTIR of spectra of corn oil, PPE, CMC, double emulsion contained PPE in W1 (PPE-DE), and double emulsion contained PPE in W1 with CMC in W2 (CMC/PPE-DE) were recorded using the Agilent Cary 630 FTIR-spectroscopy (Santa Clara, CA, USA). Samples were mixed with KBr powder, then pressed into a disk, and scanned in the frequency range of 650–4000 cm−1 at ambient temperature.

2.5.5. Measurement of EE

The EE (%) of double W1/O/W2 emulsions loaded with PPE was determined as the total phenolic content (PC) remaining in the primaryemulsions (W1/O) during the emulsification process. The remaining PC content was determined according to Velderrain-Rodriguez et al. [29] with slight changes. Firstly, double W1/O/W2 emulsion samples were centrifuged (13,600× g/15 min/4 °C). Then, a syringe needle was used to gently remove the bottom aqueous layer, which was then filtered through a 0.45 mm syringe filter to collect just water and exclude oil droplets. Thereafter, the recovered PC was measured bythe Folin–Ciocalteu method [35]. The results (mg GAE/g emulsion) were determined from a standard calibration curve (Figure 2). The equation below was used to calculate the EE (%) of emulsions:
EE ( % ) = [ 1 − TP S − TP C TPP PE ] × 100
where TPs: Total GAE found in PPE-DE and CMC/PPE-DE after centrifugation; TPC: GAE value in the Blank-DE after centrifugation; TPPPE: Total amount of GAE in the PPEdissolved inW1 phase solution.

2.5.6. TEM

The morphology of double W1/O/W2 emulsions was observed by TEM (JEOL GEM-1010, Tokyo, Japan) operated at 80 kV. The W1/O/W2 emulsions were diluted 10 times with distilled water, and the diluted emulsion was put onto carbon-coated copper grids (CCG) and retained for 1 min at ambient conditions. Then, Whatman filter paper was used to absorb the excess sample. The grid was stained with 2% uranyl acetate as a negative staining agent, and was left to dry before the TEM images were captured.

2.6. Statistical Analysis

Results are shown as mean ± SD. Statistical analyses were performed during one-way analysis of variance (ANOVA) using SPSS software (version 26); p < 0.05 was considered significant.

3. Results and Discussion

3.1. Droplet Size Distribution and ζ Potential

The particle size Intensity-Gaussian distributions and its related indices of the W1/O/W2 nanoemulsions loading with/without PPE are shown in Figure 3 and Table 1. The results revealed that emulsions containing phenolic compounds (PPE-DE and CMC/PPE-DE) have a lower particle size in comparison with Blank-DE. PPE-DE achieved the smallest size (259.2 nm); this decrease is mostly because of the surface activity of phenolic compounds, which lowered the interfacial tension at the oil/water interface [36,37].
The PDI indicates the level of dispersion homogeneity, which ranged from 0 to 1. If this value is close to 0, it means that the dispersion particles are homogeneous in their size. If the PDI value > 0.5, it means the presence of non-uniform sized particles [38]. In our study, all the W1/O/W2 emulsions exhibited monodisperse (homogeneous) particle size distribution with PDIs less than 0.3, thus demonstrating high kinetic stability. The formulation prepared with CMC presented the lowest PDI value (0.169). Commonly, it is presumed that the smaller the droplet size, the more stable emulsion’s stability, especially against creaming and sedimentation phenomena [39]. It seems that “average globule diameter and size distribution in the multiple emulsion might be influenced by factors such as nature and concentration of surfactants, aqueous and oil phase viscosity, oil phase composition, and production formulation conditions”. According to Silva et al. [40], previous factors make the comparison among studies complicated.
Zeta potential has a significant role in the physical stability of the emulsions [41]. Notably, the higher value of zeta potential (positive or negative) indicates that the emulsions are more stable [42]. Figure 4 and Table 2 show the average value of zeta potential and its related indices of the W1/O/W2 nanoemulsions.
Zeta potential values were within a range of −19.41 to −45.81 mV, and the greatest potentials were obtained in the emulsion belonging to the PPE-DE sample, in which the smallest particle size was also achieved, hence exhibiting higher stability than other samples. Generally, when the absolute value of zeta potential is more than 25 mV, emulsions are usually considered stable [43].

3.2. Viscosity and Creaming Index

Table 3 depicts the viscosity and CI of the W1/O/W2 nanoemulsions. The viscosity of Blank-DE exhibited the lowest value (3.4 cP), while it was significantly increased with the addition of phenolic-rich extract in the inner phase. This observation could be due to the interaction between the phenolic compounds in PPE and Tween 20 which are absorbed at the oil–water interface [29]. These findings are consistent with Velderrain-Rodríguez et al. [29], who reported that the W1/O/W2 emulsions containing mango peel phenolic extract had higher apparent viscosity as compared to control emulsion, and the W1/O/W2 emulsions made with Tween 20 or lecithin had the highest values of apparent viscosity.
In our study, the emulsion supplemented with 0.5% CMC in the outer phase was observed to have the highest viscosity. Several previous studies indeed reported that the addition of CMC or other biopolymers in double emulsions induced a considerable increase of viscosity [25,44].
On the other hand, the creaming index expresses the emulsion’s stability in relation to the separation process of the phases of an emulsion. “It is influenced by many factors such as the difference in densities between the aqueous and oil phases, the viscosity of the continuous phase, the interactions between the droplets of the discontinuous phase, etc.” [45].
At the beginning, fresh W1/O/W2 nanoemulsions showed no signs of phase separation irrespective of the formulation. Posteriorly, creaming of Blank-DE increased significantly with the storage time and reached out to 51.87 and 57.22% at 20 and 30 days, respectively (Figure 5). In contrast, we observed an extreme little separation at the top in PPE-DE and CMC/PPE-DE formulations after 20 days of storage and it remained unchanged after 30 days; in other words, emulsion stability evolved in the order, CMC/PPE-DE > PPE-DE > Blank-DE, as shown in Table 3, which agreed with the viscous character increment discussed previously in Section 3.2. This superior stability of emulsion containing phenolic compounds compared to blank emulsion might be due to these phenolic compounds working as emulsifiers and forming stable emulsions. Finally, our findings were in agreement with that reported by Ye et al. [46], who noted that integration of polysaccharides into the continuous aqueous phase (W2) at a concentration of >0.1% avoids creaming throughthe storage period.

3.3. FTIR Analysis

FTIR spectra of raw materials (CMC, PPE, and corn oil) and the prepared emulsions (PPE-DE and CMC/PPE-DE) are presented in Figure 6.
Figure 6a is the FTIR spectra of the corn oil; the large peak at 1744 cm−1 corresponding to absorption by carbonyl double bonds (C=O stretching) of the free fatty acids (oleic and linoleic acids) found in corn oil [32]. Notably, the band at 3008 cm−1 is due to the =C–H stretching vibration. The spectrum had strong band absorptions in the region of 3000–2800 cm−1 caused by C–H stretching vibrations. Methylene (–CH2–) and methyl (–CH3) stretching vibrations occur at frequencies of 2922 and 2851 cm−1, respectively [47]. Figure 6b represents the FTIR spectrum of pomegranate peel extract. Five bands appeared at 3321, 2355, 2124, 2001, and 1636 cm−1 are assigned to active groups. Mainly, the major peaks were obtained at 3321 and 1636 cm−1. The 3321 cm−1 peak corresponded to -NH, and the -OH groups and the 1636 cm−1 peak were attributed to stretching vibration of C=C of the aromatic compounds [48]. However, the weak band at 2355 cm−1 indicates carbonyl-specific absorption.
Figure 6c shows the FTIR spectrum of CMC, the peak at 1408 cm−1 was due to symmetrical stretching vibrations of COO- groups [49].The band at 2892 cm−1 corresponded to carbon-hydrogen bond (C-H) stretching [50]. Figure 5e and Figure 6d are the FTIR spectrum of PPE-DE and CMC/PPE-DE, respectively. Bands at 3321, 2355, and 1636 cm−1 in Figure 6d, and peaks at 3354, 2355, and 1636 cm−1 in Figure 6e indicate that the spectrum of pomegranate peel extract is present in the W1/O/W2 nanoemulsions, and other bands in Figure 6d,e are similar to peaks corresponding to the triglycerides functional groups present in the corn oil. Thus, it can be concluded from the FTIR study that the components were present in the W1/O/W2 emulsion samples; however, the observed shift in wavenumbers indicates a strong interaction between the emulsion components.

3.4. Encapsulation Efficiency

The Encapsulation Efficiency (EE) is a significant parameter determining the effectiveness of W1/O/W2 emulsion for retaining PPE in the internal aqueous phase. Furthermore, it has been suggested that a higher value of encapsulation efficiency is a direct consequence of the good stability of double emulsions [51]. Here, the initial EE of double W1/O/W2 emulsions was 96.1% for the PPE-DE, whereas it was 95.4% for those containing CMC (Figure 7). This finding may be attributed to using the lipophilic emulsifier PGPR, which verifies a high-water EE [52] attributable to a steric stabilization of the interfacial layer [53]. Many researchers have reported similar results; Velderrain-Rodríguez et al. [29] reported that the double emulsion formulated using PGPR and Tween 20 as the first and second surfactants, respectively, had the higher encapsulation efficiency (98.65 ± 1.14%) of mango peel extract. Likewise, Aditya et al. [26] fabricated W1/O/W2 emulsions loaded with catechin inside the internal aqueous phase using PGPR as a lipophilic emulsifier and found that the encapsulation efficiency of catechin was 97 ± 0.3%. Wang et al. [54] found good encapsulation efficiency (over > 95%) between PGPR and Tween 80, showed EE > 95%.
After 30 days of storage, EE slightly decreased by 6% for PPE-DE and 4.4% for CMC/PPE-DE; the higher stability in the latter may be due to the synergistic effect that occurred when Tween 20 and CMC were used together in W2 phase. Mohammadi et al. [30] observed that using a hydrophilic emulsifier of WPC and pectin in the outer aqueous phase of W/O/W emulsion has led to increasing the EE and reducing the release of PC through storage. Matos et al. [44] also encapsulated trans-resveratrol in the W/O/W emulsion with a hydrophobic emulsifier (PGPR). He found that the recovery yield values were 97.84 ± 2.96% using Tween 20 and 95.14 ± 3.37% using Tween 80. The authors also suggested that the system with sodium carboxymethyl cellulose leads to better encapsulation efficiency values.

3.5. Morphology of W1/O/W2 Nanoemulsions

TEM is an extremely useful technique that provides a deeper understanding of the microstructure characterization of colloidal systems, such as W1/O/W2 emulsions. As shown in Figure 8, the TEM images of the three formulations of W1/O/W2 nanoemulsions: Blank-DE, EPP-DE, and CMC/EPP-DE show that the W1/O emulsion droplets were uniformly distributed in the continuous phase (W2) as can be seen in the obtained images (Figure 8a–c). This homogeneous distribution indicates the successful preparation of the W1/O/W2 nanoemulsions. However, the reverse micelle structures inside the oil droplets were too small to be clearly visualized with this technique [55]. It was also notedthat the particle size distribution for all emulsions was narrow, which was consistent with the previous PDI values obtained by DLS (Section 3.1). Furthermore, the W1/O droplets in all formulations appeared spherical in their shape. The TEM images showed the absorption of the hydrophilic emulsifiers used at the O–W2 interface, resulting in the formation of a compact layer on the surfaces of the spherical oil droplets, thereby enhancing the stability of emulsions. Besides, the images revealed that the three emulsions had individual particles (Figure 8a–c), indicating that there was no sign of flocculation in these emulsions.
As anticipated, the particle sizes determined with TEM (Figure 8a–c) were smaller than those obtained by the DLS instrument (Figure 3, Table 1). This difference is because of the measurements by TEM require the emulsion to be in a dry state by air-drying. In contrast, DLS measures the hydrodynamics of the dispersed particles [56].

4. Conclusions

To sum up, a food-grade W1/O/W2 emulsions system was effectively fabricated to encapsulate the natural bioactive compounds extracted from pomegranate peel through a two-step emulsification method. The phenolic-rich inner aqueous phase (W1) was emulsified in corn oil with PGPR as a hydrophobic emulsifier, while the oil droplets of the double W1/O/W2 emulsion were stabilized with Tween 20 as a hydrophilic emulsifier. The formulated emulsions loaded with PPE, both with or without CMC, were more stable with smaller particle size and PDI than the blank emulsion. Moreover, these emulsions exhibited excellent initial encapsulation efficiency and phenolics retention during storage. Nevertheless, the emulsion with CMC showed the highest stability compared to the emulsion without CMC. The FTIR spectra showed that the PPE and the other ingredients were presented in the emulsion, while the TEM images showed that the prepared emulsions had good morphology.
Thus, our work suggests that the W1/O/W2 emulsion system can be used as an applicable and effective method to encapsulate phenolic-rich extract from pomegranate peel. Therefore, the release and bioavailability characteristics of double emulsions loaded with phenolic-rich extract from pomegranate peel are recommended for future work.

Author Contributions

Conceptualization, E.H. and G.E.-S.; methodology, E.H.; validation, E.H. and G.E.-S.; investigation, E.H., G.E.-S. and E.-S.E.-D.; resources, E.H. and M.Y.; data curation, M.Y.; writing—original draft preparation, A.H.A., H.A., K.A.I. and R.S.; supervision, G.E.-S.; project administration, E.-S.E.-D.; funding acquisition, R.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

Princess Nourah bint Abdulrahman University Researchers Supporting Project Number (PNURSP2022R249), Princess Nourah bint Abdulrahman University, Riyadh, Saudi Arabia. Taif University Researchers Supporting Project Number (TURSP-2020/117), Taif University, Taif, Saudi Arabia. We thank the Faculty of Agriculture, Al-Azhar Uni, Egypt, for the opportunity to use their resources.

Conflicts of Interest

The authors state no conflict of interest.

References

  1. El-Hadary, A.; Taha, M. Pomegranate peel methanolic-extract improves the shelf-life of edible-oils under accelerated oxidation conditions. Food Sci. Nutr. 2020, 8, 1798–1811. [Google Scholar] [CrossRef]
  2. Pienaar, L. The Economic Contribution of South Africa’s Pomegranate Industry; Technical Report for Western Cape Department of Agriculture: Elsenburg, South Africa, 2021. [Google Scholar]
  3. Kahramanoglu, I.; Usanmaz, S. Pomegranate Production and Marketing. Pomegranates 2016. [Google Scholar] [CrossRef]
  4. Kaderides, K.; Kyriakoudi, A.; Mourtzinos, I.; Goula, A.M. Potential of pomegranate peel extract as a natural additive in foods. Trends Food Sci. Technol. 2021, 115, 380–390. [Google Scholar] [CrossRef]
  5. Çam, M.; Içyer, N.C.; Erdoğan, F. Pomegranate peel phenolics: Microencapsulation, storage stability and potential ingredient for functional food development. Food Sci. Technol. 2014, 55, 117–123. [Google Scholar] [CrossRef]
  6. Roy, S.; Lingampeta, P. Solid Wastes of Fruits Peels as Source of Low Cost Broad Spectrum Natural Antimicrobial Compounds- Furanone, Furfural and Benezenetriol. Int. J. Res. Eng. Technol. 2014, 3, 273–279. [Google Scholar] [CrossRef]
  7. Kaderides, K.; Mourtzinos, I.; Goula, A.M. Stability of pomegranate peel polyphenols encapsulated in orange juice industry by-product and their incorporation in cookies. Food Chem. 2019, 310, 125849. [Google Scholar] [CrossRef]
  8. Adiga, S.; Trivedi, P.; Ravichandra, V.; Deb, D.; Mehta, F. Effect of Punica granatum peel extract on learning and memory in rats. Asian Pac. J. Trop. Med. 2010, 3, 687–690. [Google Scholar] [CrossRef]
  9. Ismail, T.; Sestili, P.; Akhtar, S. Pomegranate peel and fruit extracts: A review of potential anti-inflammatory and anti-infective effects. J. Ethnopharmacol. 2012, 143, 397–405. [Google Scholar] [CrossRef]
  10. Aqil, F.; Munagala, R.; Vadhanam, M.V.; Kausar, H.; Jeyabalan, J.; Schultz, D.J.; Gupta, R.C. Anti-proliferative activity and protection against oxidative DNA damage by punicalagin isolated from pomegranate husk. Food Res. Int. 2012, 49, 345–353. [Google Scholar] [CrossRef] [Green Version]
  11. Gharzouli, K.; Khennouf, S.; Amira, S.; Gharzouli, A. Effects of aqueous extracts fromQuercus ilex l. root bark, Punica granatum l. fruit peel andArtemisia herba-alba Asso leaves on ethanol-induced gastric damage in rats. Phytother. Res. 1999, 13, 42–45. [Google Scholar] [CrossRef]
  12. Hayouni, E.; Miled, K.; Boubaker, S.; Bellasfar, Z.; Abedrabba, M.; Iwaski, H.; Oku, H.; Matsui, T.; Limam, F.; Hamdi, M. Hydroalcoholic extract based-ointment from Punica granatum L. peels with enhanced in vivo healing potential on dermal wounds. Phytomedicine 2011, 18, 976–984. [Google Scholar] [CrossRef]
  13. Munin, A.; Edwards-Lévy, F. Encapsulation of Natural Polyphenolic Compounds; A Review. Pharmaceutics 2011, 3, 793–829. [Google Scholar] [CrossRef] [Green Version]
  14. Medina-Pérez, G.; Estefes-Duarte, J.A.; Afanador-Barajas, L.N.; Fernández-Luqueño, F.; Zepeda-Velázquez, A.P.; Franco-Fernández, M.J.; Peláez-Acero, A.; Campos-Montiel, R.G. Encapsulation Preserves Antioxidant and Antidiabetic Activities of Cactus Acid Fruit Bioactive Compounds Under Simulated Digestion Conditions. Molecules 2020, 25, 5736. [Google Scholar] [CrossRef]
  15. Šaponjac, V.T.; Ćetković, G.; Čanadanović-Brunet, J.; Pajin, B.; Djilas, S.; Petrović, J.; Lončarević, I.; Stajčić, S.; Vulić, J. Sour cherry pomace extract encapsulated in whey and soy proteins: Incorporation in cookies. Food Chem. 2016, 207, 27–33. [Google Scholar] [CrossRef]
  16. Salgado, J.M.; Ferreira, T.R.B.; Biazotto, F.D.O.; Dias, C.T.D.S. Increased Antioxidant Content in Juice Enriched with Dried Extract of Pomegranate (Punica granatum) Peel. Mater. Veg. 2012, 67, 39–43. [Google Scholar] [CrossRef]
  17. Niknam, S.M.; Escudero, I.; Benito, J.M. Formulation and Preparation of Water-In-Oil-In-Water Emulsions Loaded with a Phenolic-Rich Inner Aqueous Phase by Application of High Energy Emulsification Methods. Foods 2020, 9, 1411. [Google Scholar] [CrossRef]
  18. Echeverria, F.; Patino, P.A.J.; Castro-Sepulveda, M.; Bustamante, A.; Concha, P.A.G.; Poblete-Aro, C.; Valenzuela, R.; Garcia-Diaz, D.F. Microencapsulated pomegranate peel extract induces mitochondrial complex IV activity and prevents mitochondrial cristae alteration in brown adipose tissue in mice fed on a high-fat diet. Br. J. Nutr. 2020, 126, 825–836. [Google Scholar] [CrossRef]
  19. Sandhya, S.; Khamrui, K.; Prasad, W.; Kumar, M. Preparation of pomegranate peel extract powder and evaluation of its effect on functional properties and shelf life of curd. LWT 2018, 92, 416–421. [Google Scholar] [CrossRef]
  20. Saadat, S.; Emam-Djomeh, Z.; Askari, G. Antibacterial and Antioxidant Gelatin Nanofiber Scaffold Containing Ethanol Extract of Pomegranate Peel: Design, Characterization and In Vitro Assay. Food Bioprocess Technol. 2021, 14, 935–944. [Google Scholar] [CrossRef]
  21. Surendhiran, D.; Li, C.; Cui, H.; Lin, L. Fabrication of high stability active nanofibers encapsulated with pomegranate peel extract using chitosan/PEO for meat preservation. Food Packag. Shelf Life 2019, 23, 100439. [Google Scholar] [CrossRef]
  22. Aditya, N.; Aditya, S.; Yang, H.-J.; Kim, H.W.; Park, S.O.; Lee, J.; Ko, S. Curcumin and catechin co-loaded water-in-oil-in-water emulsion and its beverage application. J. Funct. Foods 2015, 15, 35–43. [Google Scholar] [CrossRef]
  23. Kaimainen, M.; Marze, S.; Järvenpää, E.; Anton, M.; Huopalahti, R. Encapsulation of betalain into w/o/w double emulsion and release during in vitro intestinal lipid digestion. Food Sci. Technol. 2015, 60, 899–904. [Google Scholar] [CrossRef]
  24. Silva, M.; Chandrapala, J. Ultrasonic Emulsification of Milk Proteins Stabilized Primary and Double Emulsions: A Review. Food Rev. Int. 2021, 1–23. [Google Scholar] [CrossRef]
  25. Teixé-Roig, J.; Oms-Oliu, G.; Velderrain-Rodríguez, G.R.; Odriozola-Serrano, I.; Martín-Belloso, O. The Effect of Sodium Carboxymethylcellulose on the Stability and Bioaccessibility of Anthocyanin Water-in-Oil-in-Water Emulsions. Food Bioprocess Technol. 2018, 11, 2229–2241. [Google Scholar] [CrossRef]
  26. Aditya, N.; Aditya, S.; Yang, H.; Kim, H.W.; Park, S.O.; Ko, S. Co-delivery of hydrophobic curcumin and hydrophilic catechin by a water-in-oil-in-water double emulsion. Food Chem. 2015, 173, 7–13. [Google Scholar] [CrossRef]
  27. Gharehbeglou, P.; Jafari, S.M.; Homayouni, A.; Hamishekar, H.; Mirzaei, H. Fabrication of double W1/O/W2 nano-emulsions loaded with oleuropein in the internal phase (W1) and evaluation of their release rate. Food Hydrocoll. 2018, 89, 44–55. [Google Scholar] [CrossRef]
  28. Martins, C.; Higaki, N.T.F.; Montrucchio, D.P.; de Oliveira, C.F.; Gomes, M.L.S.; Miguel, M.D.; Miguel, O.G.; Zanin, S.M.W.; Dias, J.D.F.G. Development of W1/O/W2 emulsion with gallic acid in the internal aqueous phase. Food Chem. 2020, 314, 126174. [Google Scholar] [CrossRef]
  29. Rodríguez, G.V.; Acevedo-Fani, A.; González-Aguilar, G.A.; Martín-Belloso, O. Encapsulation and stability of a phenolic-rich extract from mango peel within water-in-oil-in-water emulsions. J. Funct. Foods 2019, 56, 65–73. [Google Scholar] [CrossRef]
  30. Mohammadi, A.; Jafari, S.M.; Assadpour, E.; Esfanjani, A.F. Nano-encapsulation of olive leaf phenolic compounds through WPC–pectin complexes and evaluating their release rate. Int. J. Biol. Macromol. 2015, 82, 816–822. [Google Scholar] [CrossRef]
  31. Estévez, M.; Güell, C.; De Lamo-Castellví, S.; Ferrando, M. Encapsulation of grape seed phenolic-rich extract within W/O/W emulsions stabilized with complexed biopolymers: Evaluation of their stability and release. Food Chem. 2018, 272, 478–487. [Google Scholar] [CrossRef]
  32. Harimurti, N.; Nasikin, M.; Mulia, K. Water-in-Oil-in-Water Nanoemulsions Containing Temulawak (Curcuma xanthorriza Roxb) and Red Dragon Fruit (Hylocereus polyrhizus) Extracts. Molecules 2021, 26, 196. [Google Scholar] [CrossRef] [PubMed]
  33. Bamba, B.S.B.; Shi, J.; Tranchant, C.C.; Xue, S.J.; Forney, C.F.; Lim, L.-T.; Xu, W.; Xu, G. Coencapsulation of Polyphenols and Anthocyanins from Blueberry Pomace by Double Emulsion Stabilized by Whey Proteins: Effect of Homogenization Parameters. Molecules 2018, 23, 2525. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Delfanian, M.; Razavi, S.M.; Khodaparast, M.H.H.; Kenari, R.E.; Golmohammadzadeh, S. Influence of main emulsion components on the physicochemical and functional properties of W/O/W nano-emulsion: Effect of polyphenols, Hi-Cap, basil seed gum, soy and whey protein isolates. Food Res. Int. 2018, 108, 136–143. [Google Scholar] [CrossRef]
  35. Mazzucotelli, C.A.; González-Aguilar, G.A.; Villegas-Ochoa, M.A.; Domínguez-Avila, A.J.; Ansorena, M.R.; Di Scala, K.C. Chemical characterization and functional properties of selected leafy vegetables for innovative mixed salads. J. Food Biochem. 2017, 42, e12461. [Google Scholar] [CrossRef] [Green Version]
  36. Akhtar, M.; Murray, B.S.; Afeisume, E.I.; Khew, S.H. Encapsulation of flavonoid in multiple emulsion using spinning disc reactor technology. Food Hydrocoll. 2014, 34, 62–67. [Google Scholar] [CrossRef]
  37. Huang, H.; Belwal, T.; Liu, S.; Duan, Z.; Luo, Z. Novel multi-phase nano-emulsion preparation for co-loading hydrophilic arbutin and hydrophobic coumaric acid using hydrocolloids. Food Hydrocoll. 2019, 93, 92–101. [Google Scholar] [CrossRef]
  38. Lutz, R.; Aserin, A.; Wicker, L.; Garti, N. Release of electrolytes from W/O/W double emulsions stabilized by a soluble complex of modified pectin and whey protein isolate. Colloids Surf. B Biointerfaces 2009, 74, 178–185. [Google Scholar] [CrossRef]
  39. Suárez, M.A.; Gutiérrez, G.; Coca, J.; Pazos, C. Geometric parameters influencing production of O/W emulsions using flat metallic membranes and scale-up. J. Membr. Sci. 2013, 430, 140–149. [Google Scholar] [CrossRef]
  40. Silva, W.; Torres-Gatica, M.F.; Oyarzun-Ampuero, F.; Silva-Weiss, A.; Robert, P.; Cofrades, S.; Giménez, B. Double emulsions as potential fat replacers with gallic acid and quercetin nanoemulsions in the aqueous phases. Food Chem. 2018, 253, 71–78. [Google Scholar] [CrossRef]
  41. Wu, Z.; Wu, J.; Zhang, R.; Yuan, S.; Lu, Q.; Yu, Y. Colloid properties of hydrophobic modified alginate: Surface tension, ζ-potential, viscosity and emulsification. Carbohydr. Polym. 2018, 181, 56–62. [Google Scholar] [CrossRef]
  42. Zimmermann, E. Electrolyte- and pH-stabilities of aqueous solid lipid nanoparticle (SLN™) dispersions in artificial gastrointestinal media. Eur. J. Pharm. Biopharm. 2001, 52, 203–210. [Google Scholar] [CrossRef]
  43. Lamba, H.; Sathish, K.; Sabikhi, L. Double Emulsions: Emerging Delivery System for Plant Bioactives. Food Bioprocess Technol. 2015, 8, 709–728. [Google Scholar] [CrossRef]
  44. Matos, M.; Gutiérrez, G.; Coca, J.; Pazos, C. Preparation of water-in-oil-in-water (W1/O/W2) double emulsions containing trans-resveratrol. Colloids Surf. A Physicochem. Eng. Asp. 2014, 442, 69–79. [Google Scholar] [CrossRef]
  45. Dima, C.; Dima, S. Water-in-oil-in-water double emulsions loaded with chlorogenic acid: Release mechanisms and oxidative stability. J. Microencapsul. 2018, 35, 584–599. [Google Scholar] [CrossRef]
  46. Ye, A.; Hemar, Y.; Singh, H. Influence of Polysaccharides on the Rate of Coalescence in Oil-in-Water Emulsions Formed with Highly Hydrolyzed Whey Proteins. J. Agric. Food Chem. 2004, 52, 5491–5498. [Google Scholar] [CrossRef]
  47. Rohman, A.; Man, Y.B.C. Quantification and Classification of Corn and Sunflower Oils as Adulterants in Olive Oil Using Chemometrics and FTIR Spectra. Sci. World J. 2012, 2012, 1–6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Pirsa, S.; Sani, I.K.; PirouziFard, M.K.; Erfani, A. Smart film based on chitosan/Melissa officinalis essences/ pomegranate peel extract to detect cream cheeses spoilage. Food Addit. Contam. Part A 2020, 37, 634–648. [Google Scholar] [CrossRef] [PubMed]
  49. Ghorai, S.; Sarkar, A.; Raoufi, M.; Panda, A.B.; Schönherr, H.; Pal, S. Enhanced Removal of Methylene Blue and Methyl Violet Dyes from Aqueous Solution Using a Nanocomposite of Hydrolyzed Polyacrylamide Grafted Xanthan Gum and Incorporated Nanosilica. ACS Appl. Mater. Interfaces 2014, 6, 4766–4777. [Google Scholar] [CrossRef]
  50. Jafirin, S.; Ahmad, I.; Ahmad, A. Composite polymer electrolytes based on MG49 and carboxymethyl cellulose from kenaf. In AIP Conference Proceedings; American Institute of Physics: College Park, MD, USA, 2013; pp. 822–828. [Google Scholar] [CrossRef] [Green Version]
  51. Ding, S.; Serra, C.A.; Vandamme, T.F.; Yu, W.; Anton, N. Double emulsions prepared by two–step emulsification: History, state-of-the-art and perspective. J. Control Release 2018, 295, 31–49. [Google Scholar] [CrossRef]
  52. Perez-Moral, N.; Watt, S.; Wilde, P. Comparative study of the stability of multiple emulsions containing a gelled or aqueous internal phase. Food Hydrocoll. 2014, 42, 215–222. [Google Scholar] [CrossRef]
  53. Márquez, A.L.; Medrano, A.; Panizzolo, L.A.; Wagner, J.R. Effect of calcium salts and surfactant concentration on the stability of water-in-oil (w/o) emulsions prepared with polyglycerol polyricinoleate. J. Colloid Interface Sci. 2010, 341, 101–108. [Google Scholar] [CrossRef] [PubMed]
  54. Wang, J.; Shi, A.; Agyei, D.; Wang, Q. Formulation of water-in-oil-in-water (W/O/W) emulsions containing trans-resveratrol. RSC Adv. 2017, 7, 35917–35927. [Google Scholar] [CrossRef] [Green Version]
  55. Schwarz, J.C.; Klang, V.; Karall, S.; Mahrhauser, D.; Resch, G.P.; Valenta, C. Optimisation of multiple W/O/W nanoemulsions for dermal delivery of aciclovir. Int. J. Pharm. 2012, 435, 69–75. [Google Scholar] [CrossRef]
  56. Yang, L.; Qin, X.; Kan, J.; Liu, X.; Zhong, J. Improving the Physical and Oxidative Stability of Emulsions Using Mixed Emulsifiers: Casein-Octenyl Succinic Anhydride Modified Starch Combinations. Nanomaterials 2019, 9, 1018. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Crystals 12 00622 g001 550

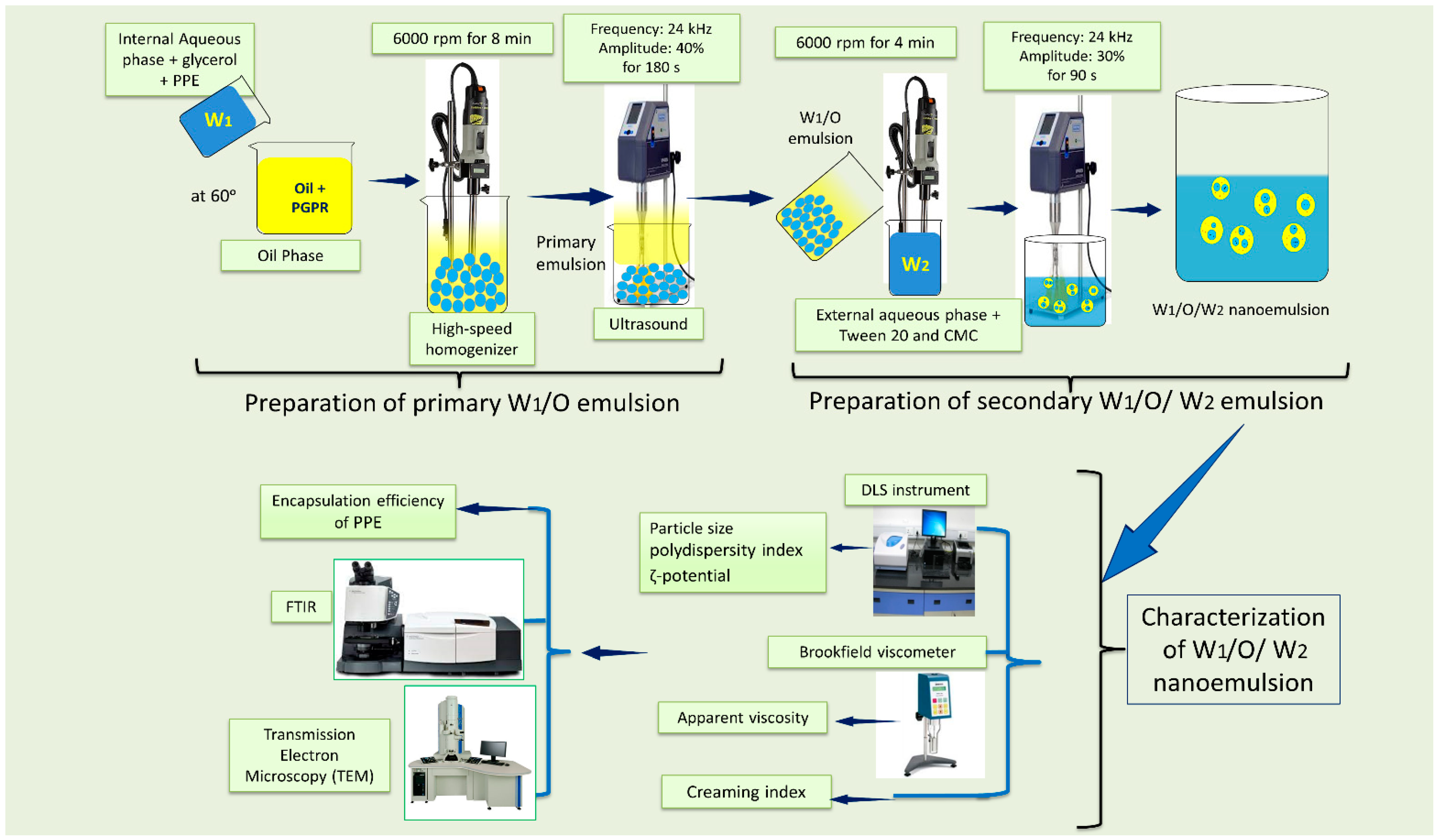

Figure 1. Shows the preparation and characterization of W1/O/W2 nanoemulsions.
Figure 1. Shows the preparation and characterization of W1/O/W2 nanoemulsions.
Crystals 12 00622 g001
Crystals 12 00622 g002 550

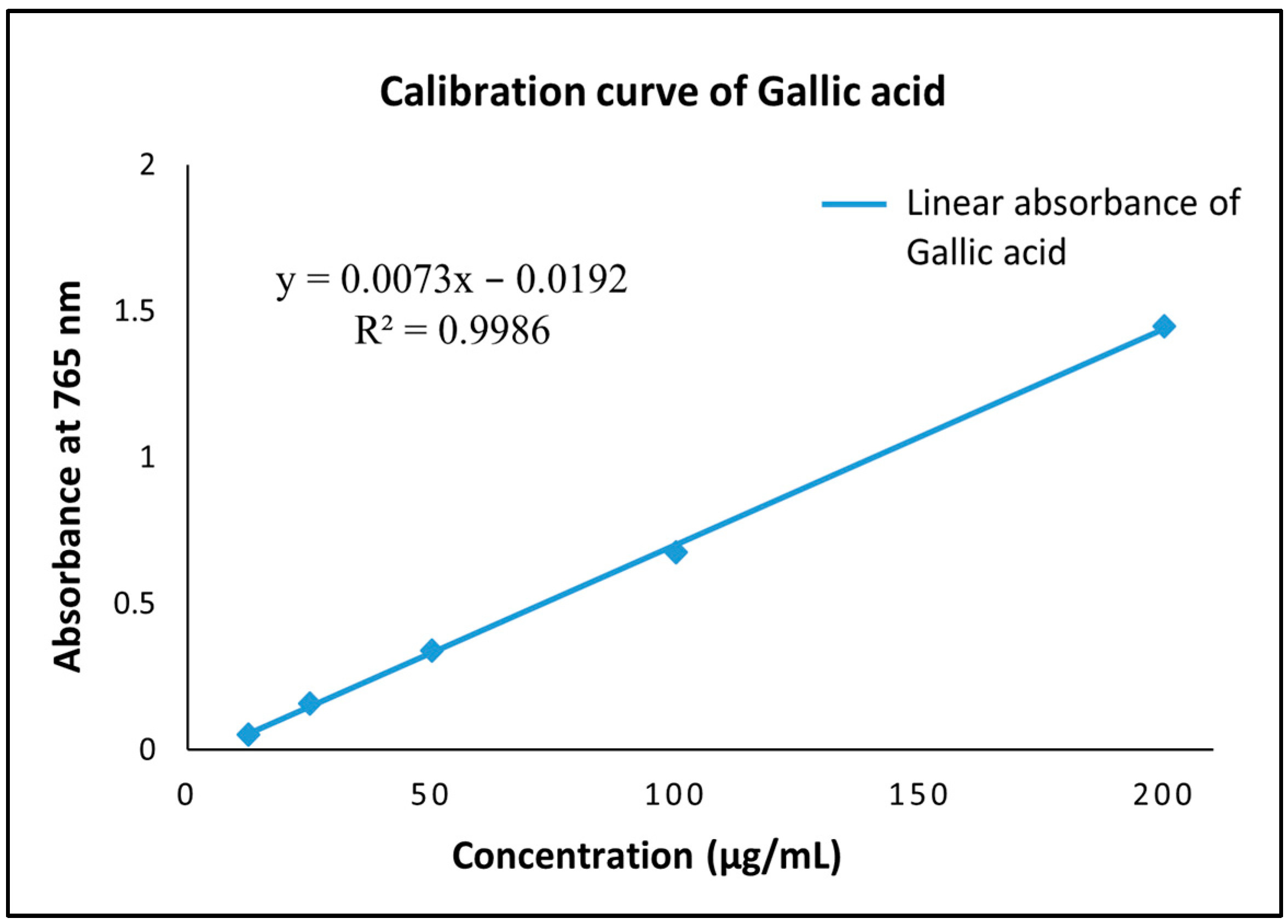

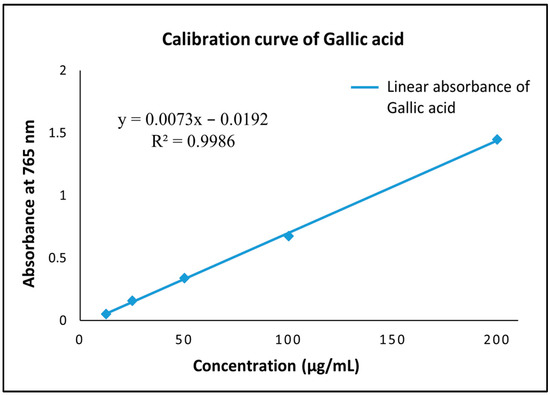

Figure 2. Gallic acid standard calibration curve.
Figure 2. Gallic acid standard calibration curve.
Crystals 12 00622 g002
Crystals 12 00622 g003 550

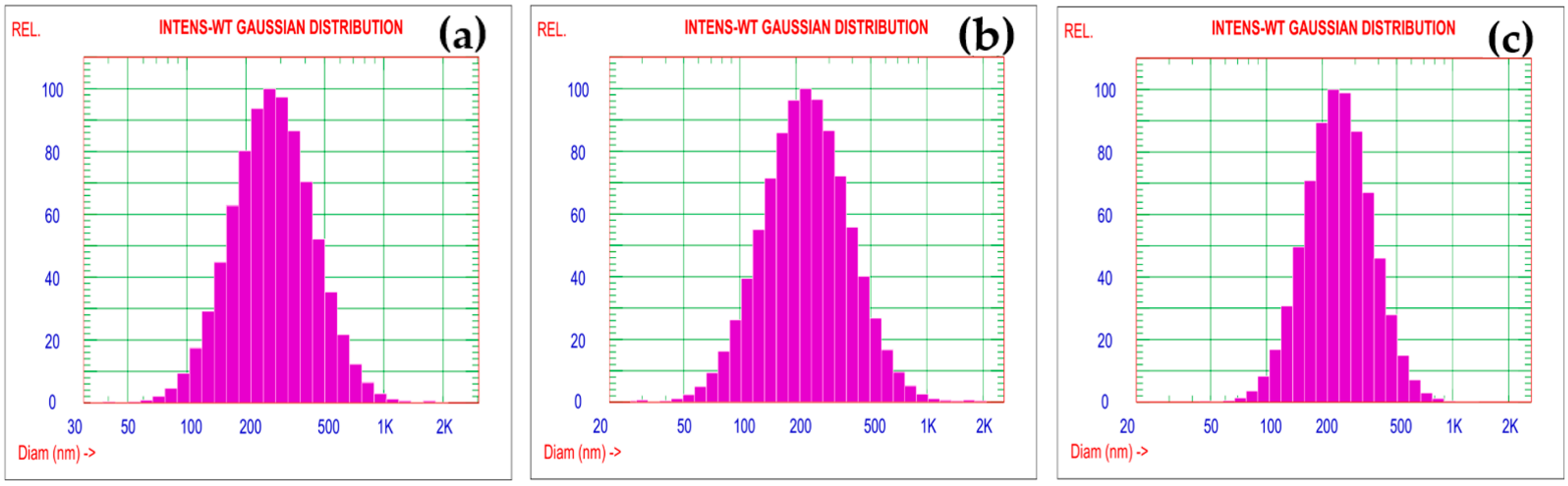

Figure 3. The particle size distribution of (a) Blank W1/O/W2 emulsion (Blank-DE); (b) DE containing pomegranate peel extract in the internal (W1) phase (PPE-DE), and (c) DE containing pomegranate peel extract in the internal (W1) phase with carboxymethyl cellulose in the external (W2) phase (CMC/PPE-DE).
Figure 3. The particle size distribution of (a) Blank W1/O/W2 emulsion (Blank-DE); (b) DE containing pomegranate peel extract in the internal (W1) phase (PPE-DE), and (c) DE containing pomegranate peel extract in the internal (W1) phase with carboxymethyl cellulose in the external (W2) phase (CMC/PPE-DE).
Crystals 12 00622 g003
Crystals 12 00622 g004 550

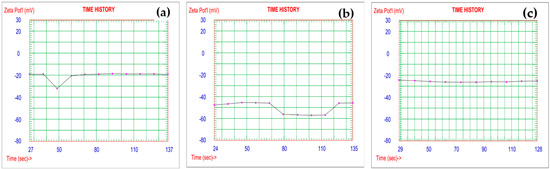

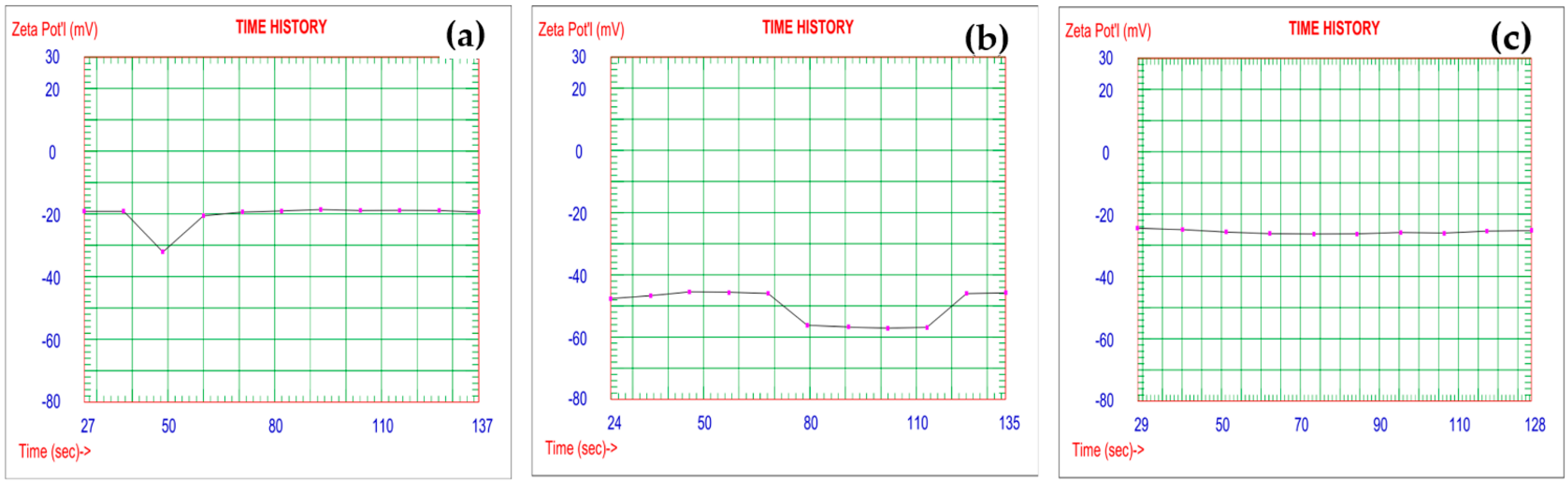

Figure 4. Zeta potential measurements of (a) Blank W1/O/W2 emulsion (Blank-DE); (b) W1/O/W2 emulsions containing pomegranate peel extract in the internal (W1) phase (PPE-DE), and (c) W1/O/W2 emulsions containing pomegranate peel extract in the internal (W1) phase with carboxymethyl cellulose in the external (W2) phase (CMC/PPE-DE).
Figure 4. Zeta potential measurements of (a) Blank W1/O/W2 emulsion (Blank-DE); (b) W1/O/W2 emulsions containing pomegranate peel extract in the internal (W1) phase (PPE-DE), and (c) W1/O/W2 emulsions containing pomegranate peel extract in the internal (W1) phase with carboxymethyl cellulose in the external (W2) phase (CMC/PPE-DE).
Crystals 12 00622 g004
Crystals 12 00622 g005 550

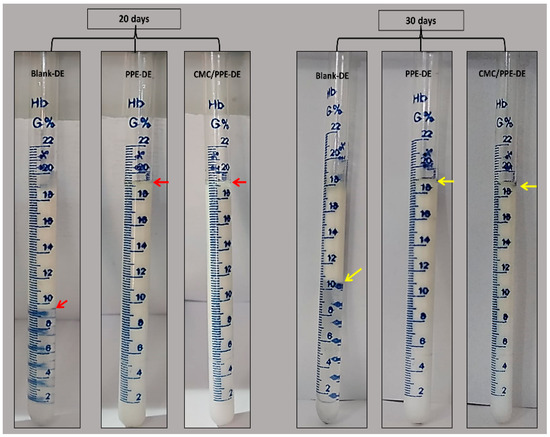

Figure 5. Digital photographs of Blank double emulsion (Blank-DE); DE containing pomegranate peel extract in the inner (W1) phase (PPE-DE), and DE containing pomegranate peel extract in the inner(W1) phase with CMC in the external (W2) phase (CMC/PPE-DE) at 20, 30 days.
Figure 5. Digital photographs of Blank double emulsion (Blank-DE); DE containing pomegranate peel extract in the inner (W1) phase (PPE-DE), and DE containing pomegranate peel extract in the inner(W1) phase with CMC in the external (W2) phase (CMC/PPE-DE) at 20, 30 days.
Crystals 12 00622 g005
Crystals 12 00622 g006 550

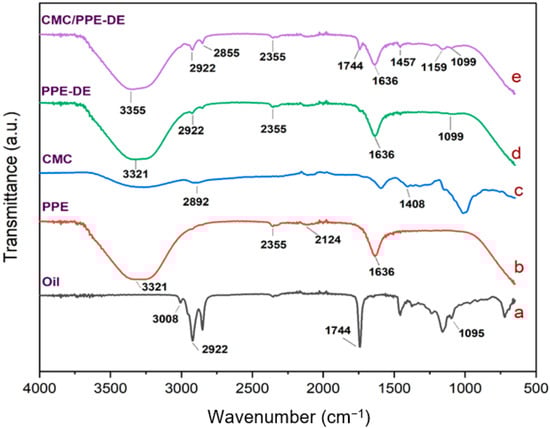

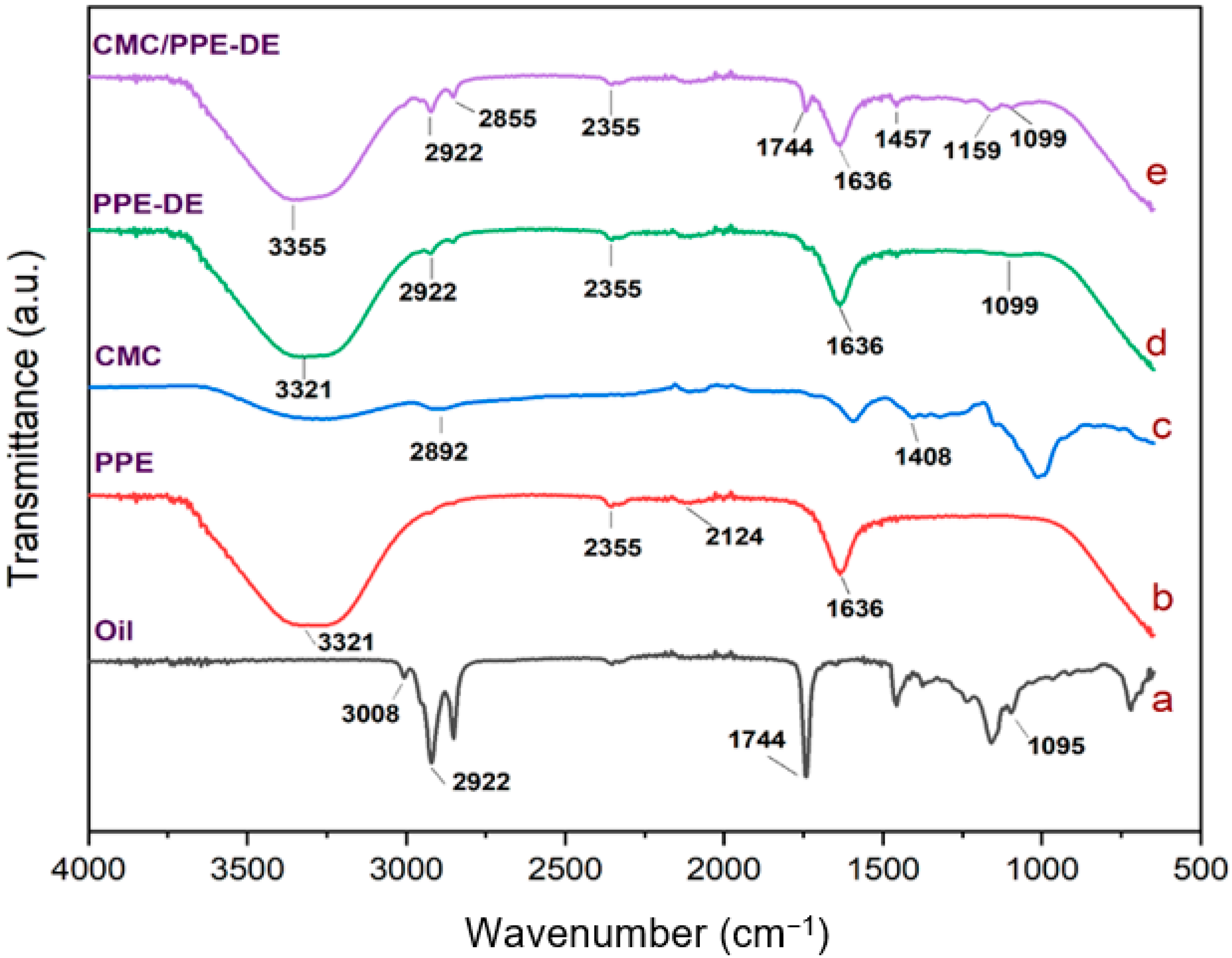

Figure 6. FTIR spectra of (a) Corn oil; (b) pomegranate peel extract (PPE); (c) carboxymethyl cellulose; (d) DE containing pomegranate peel extract in the internal (W1) phase (PPE-DE), and (e) DEcontaining pomegranate peel extract in the internal (W1) phase with CMC in the external (W2) phase (CMC/PPE-DE) scanned in mid-infrared region (wavenumbers 4000–500 cm−1).
Figure 6. FTIR spectra of (a) Corn oil; (b) pomegranate peel extract (PPE); (c) carboxymethyl cellulose; (d) DE containing pomegranate peel extract in the internal (W1) phase (PPE-DE), and (e) DEcontaining pomegranate peel extract in the internal (W1) phase with CMC in the external (W2) phase (CMC/PPE-DE) scanned in mid-infrared region (wavenumbers 4000–500 cm−1).
Crystals 12 00622 g006
Crystals 12 00622 g007 550

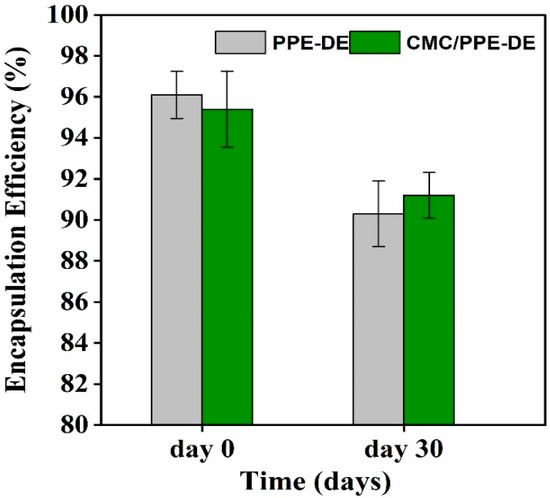

Figure 7. Encapsulation efficiency of DE containing pomegranate peel extract in the inner (W1) phase (PPE-DE), and DE containing pomegranate peel extract in the inner (W1) phase with CMC in the external (W2) phase (CMC/PPE-DE).
Figure 7. Encapsulation efficiency of DE containing pomegranate peel extract in the inner (W1) phase (PPE-DE), and DE containing pomegranate peel extract in the inner (W1) phase with CMC in the external (W2) phase (CMC/PPE-DE).
Crystals 12 00622 g007
Crystals 12 00622 g008 550
Figure 8. TEM Image of (a) Blank (Blank-DE); (b) DE containing PPE in the internal (W1) phase (PPE-DE), and (c) DE containing PPE in the internal (W1) phase with CMC in the external (W2) phase (CMC/PPE-DE).
Figure 8. TEM Image of (a) Blank (Blank-DE); (b) DE containing PPE in the internal (W1) phase (PPE-DE), and (c) DE containing PPE in the internal (W1) phase with CMC in the external (W2) phase (CMC/PPE-DE).
Crystals 12 00622 g008
Table
Table 1. Particle size and polydispersity index for different double nanoemulsions.
Table 1. Particle size and polydispersity index for different double nanoemulsions.
SampleMean
Diameter (nm)		Standard
Deviation (nm)		Chai
Square		Variation
PDI
Blank-DE304.1145.112.1570.228
PPE-DE259.2137.41.0910.281
CMC+PPE-DE264.5108.74.7930.169
Table
Table 2. Zeta potential measurements for different double nanoemulsions.
Table 2. Zeta potential measurements for different double nanoemulsions.
SampleAvg. Zeta
Potential (mV)		Cell Current (mA)Avg. Mobility (M. U.)Frequency Shift (Hz)
Blank-DE−19.410.09−1.36−2.42
PPE-DE−45.810.06−3.20−6.36
CMC/PPE-DE−25.300.13−6.36−2.85
Table
Table 3. Shows the viscosity for different double nanoemulsions.
Table 3. Shows the viscosity for different double nanoemulsions.
SampleViscosity (cP)Creaming Index (% CI)Thermodynamical
Stability
20 Days30 Days
Blank-DE3.4 ± 0.07 b51.87 ± 0.98 a57.22 ± 1.18 aInstable
PPE-DE3.6 ± 0.10 a1.55 ± 0.11 b1.55 ± 0.11 bStable
CMC/PPE-DE3.7 ± 0.12 a0.52 ± 0.06 b0.52 ± 0.06 bStable
Note: Values ± SD. Letters (a, b) mean significant differences in the same column.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hady, E.; Youssef, M.; Aljahani, A.H.; Aljumayi, H.; Ismail, K.A.; El-Damaty, E.-S.; Sami, R.; El-Sharnouby, G. Enhancement of the Stability of Encapsulated Pomegranate (Punica granatum L.) Peel Extract by Double Emulsion with Carboxymethyl Cellulose. Crystals 2022, 12, 622. https://doi.org/10.3390/cryst12050622

AMA Style

Hady E, Youssef M, Aljahani AH, Aljumayi H, Ismail KA, El-Damaty E-S, Sami R, El-Sharnouby G. Enhancement of the Stability of Encapsulated Pomegranate (Punica granatum L.) Peel Extract by Double Emulsion with Carboxymethyl Cellulose. Crystals. 2022; 12(5):622. https://doi.org/10.3390/cryst12050622

Chicago/Turabian Style

Hady, Essam, Mahmoud Youssef, Amani H. Aljahani, Huda Aljumayi, Khadiga Ahmed Ismail, El-Sayed El-Damaty, Rokkaya Sami, and Gamal El-Sharnouby. 2022. "Enhancement of the Stability of Encapsulated Pomegranate (Punica granatum L.) Peel Extract by Double Emulsion with Carboxymethyl Cellulose" Crystals 12, no. 5: 622. https://doi.org/10.3390/cryst12050622

APA Style

Hady, E., Youssef, M., Aljahani, A. H., Aljumayi, H., Ismail, K. A., El-Damaty, E. -S., Sami, R., & El-Sharnouby, G. (2022). Enhancement of the Stability of Encapsulated Pomegranate (Punica granatum L.) Peel Extract by Double Emulsion with Carboxymethyl Cellulose. Crystals, 12(5), 622. https://doi.org/10.3390/cryst12050622

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
