Semi-Natural Superabsorbents Based on Starch-g-poly(acrylic acid): Modification, Synthesis and Application

by
Elżbieta Czarnecka
1,2,* and
Jacek Nowaczyk
1
1
Chair of Physical Chemistry and Physicochemistry of Polymers, Faculty of Chemistry, Nicolaus Copernicus University in Toruń, 7 Gagarina street, 87-100 Toruń, Poland
2
Plastica Sp. z o.o., Frydrychowo 55, 87-410 Kowalewo Pomorskie, Poland
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(8), 1794; https://doi.org/10.3390/polym12081794
Submission received: 13 July 2020 / Revised: 6 August 2020 / Accepted: 9 August 2020 / Published: 10 August 2020
(This article belongs to the Special Issue Polymeric Biomaterials of Natural and Synthetic Origin)

Abstract

:
Biopolymer-based superabsorbent polymers (SAPs) are being synthesized and investigated as a biodegradable alternative for an entirely synthetic SAPs, particularly those based on acrylic acid and its derivatives. This article focuses on the chemical modification of starch (S), and synthesis of new potentially biodegradable polymers using acrylic acid (AA) as side chain monomer and crosslinking mediator together with N,N’-methylenebisacrylamide (MBA). The graft co-polymerization was initiated by ceric ammonium nitrate (CAN) or potassium persulfate (KPS), leading to different reaction mechanisms. For each of the initiators, three different synthetic routes were applied. The structures of new bio-based SAPs were characterized by means of IR spectroscopy. Thermogravimetric measurements were made to test the thermal stability, and morphology of the samples were examined using scanning electron microscopy (SEM). Physico-chemical measurements were performed to characterize properties of new materials such as swelling characteristics. The water absorption capacity of resulting hydrogels was measured in distilled water and 0.9% NaCl solution.

Graphical Abstract

1. Introduction

The acrylic acid-based segment accounted for the largest share of 59.57% of the total volume in 2018. However, the polyacrylamide segment is expected to witness the fastest CAGR (Compound Annual Growth Rate) of 6.08% and the baby diaper segment will achieve CAGR (Compound Annual Growth Rate) of 6.01%, over the period of 2019 to 2024. The baby diapers segment accounted for the largest share of 70.38% of the total volume in 2018 [1].
The biocompatibility and high absorption capacity of hydrogels favor their use in tissue engineering [2], wound dressing [3], dental materials, cosmetics [4], drug delivery systems, and proteins [5]. In the agricultural sector, hydrogels are widely used, e.g., in the form of slow release systems for fertilizers [6], nutrients and water, or to fertilize the soil [7]. Additionally, hydrogels have been used in wastewater treatment [8] to remove toxic arsenate and Cr (VI) from aqueous solutions [9,10].
SAPs are three-dimensional polymeric networks capable of absorbing and holding an enormous amount of water or aqueous solutions. An important feature of these polymers is their ability to soak up water in relatively short time [3]. Superabsorbents have wide applications in a variety of fields, such as personal care, agricultural, forestry, chemical industry, and drug-delivery systems [11,12,13]. Superabsorbents manufactured using natural polymers have recently been extensively investigated due to their positive environmental impact. They are mainly based on polysaccharide hydrogels, and their most important advantage is biodegradability. Various SAPs based on natural polymers have been synthesized using cellulose [14,15], starch [16], chitosan [17,18,19], alginate [20], and gelatin [21]. Biodegradable polymers can be degraded by the enzymatic action of the microorganisms or their polymer chains can be broken down by processes such as chemical hydrolysis.
Starch is a natural polysaccharide, renewable, relatively cheap, abundant, and biodegradable polymer produced by plants as a reservoir of stored energy [22]. Starch is a blend of amylose and amylopectin, both consisting of α-d-glucose rings linked together via a α-d-(1,4) and/or α-d-(1,6) bonds. Amylose consists of long linear chains having sporadic side chains, in contrast to amylopectin molecules, which are heavily branched. Starch is found in staple crops such as potato, corn, rice, tapioca, wheat and in plant roots, crop seeds, and stalks [23]. It is a hydrophilic polymer containing a multitude of hydroxyl groups with a reactivity comparable to alcohols. Native starch shows a considerably low absorption ability and cannot be used directly as an absorbent. To improve absorption, it is necessary to modify native starch by introducing active groups with chelating and sorption abilities. Basically, there are four kinds of modifications mentioned in the literature: physical, chemical, genetical, and enzymatic [24,25].
Chemically modified starch shows a higher application potential and can be used more efficiently. The most common modifications of this polymer concern the esterification of hydroxyl groups or oxidative cleavage of C3-C4 bond of glucose ring. The modification is an important preliminary step of further graft copolymerization. The copolymerization following the C3–C4 bond cleavage in the starch polymers can be initiated with ceric salts and hydrogen peroxide. Further grafting reaction requires monomers such as acrylonitrile, acrylic acid, acrylate, and acrylamide. Usage of multifunctional (more than one C=C bond) acrylates will provide crosslinking necessary to the formation of 3D net structure important in hydrogels.
The most common method of synthesizing starch graft copolymers is the formation of active sites. Free radicals or ions are formed at a specific position in the polymer backbone. The network graft polymerization of starch and acrylic acid started with the decomposition of the initiator, resulting in the formation of free radicals [26]. The graft copolymerization of acrylic monomers onto natural polymers is almost exclusively performed by free radical polymerization. Among the chemical initiators, the ceric ion is the most selective initiator because it reacts directly with the starch backbone, forming free radicals at the point of attachment of the graft polymer. Due to its high cost, this initiator is not suitable for use on an industrial scale. In contrast, potassium persulfate decomposes on heating to form sulfate anionic radicals. The final step is a cross-linking agent to bind the acrylic acid chain and starch. Due to the presence of the cross-linking agent, a three-dimensional network was formed in the superabsorbent polymer system.
In gels, acrylic acid causes the formation of hydrogen bonds between the hydroxyl and carboxylic groups of starch. The reaction of acrylic acid with the initiator and gelatinized starch in water is a homogeneous system due to the excellent solubility of the discussed monomer. This will be advantageous in terms of responsiveness and ease of operation.
According to literature survey, most of the recent research in the field of biodegradable SAPs is focused on synthesis and modification of cellulose based polymers [27]. In the majority of solutions cellulose or modified cellulose chains are crosslinked and grafted using acrylic monomers [28]. Considerable interest in this approach turned our attention toward another abundant in nature polysaccharide, i.e., starch. In contrast to cellulose based SAPs starch based SAPs are seldom studied [29]. In the published studies concerning starch crosslinked with acrylic monomers, there is no information giving insight into aspects of polymer morphology influence on swelling properties. In our study, we have decided to emphasize on the part of material characterization concerning swelling properties of similar materials differing in morphology. In the course of this investigation, nine new SAP materials have been synthesized based on starch and acrylic acid. Application of nine different synthetic routes yielded morphologically different polymers. New materials were characterized structurally by means of infrared spectroscopy, structurally using electron microscopy technique and physio-chemically. The most important part of the characterization was the determination of swelling characteristics in water and artificial body fluids, which is of particular interest from the point of view of potential application as absorbent for hygiene products. The main goal of this investigation is the development of a methodology for synthesis of biodegradable SAPs based on starch as an alternative for non-degradable SAPs currently available. The study is part of a broader research of new biodegradable SAPs.

2. Methods of Characterization of Superabsorbents

2.1. Materials

Soluble starch (SS) ACS reagent grade (Sigma Aldrich, Poznań, Poland); corn starch (CS) pure (Sigma Aldrich, Poznań, Poland); acrylic acid (AA) pure (Sigma Aldrich); ceric ammonium nitrate (CAN) pure (Sigma Aldrich, Poznań, Poland); potassium persulfate analytical grade (Sigma Aldrich, Poznań, Poland); N,N’-methylenebisacrylamide (MBA) pure (Sigma Aldrich, Poznań, Poland); sodium hydroxide (NaOH) (Sigma Aldrich, Poznań, Poland); nitrogen gas (N2) technical grade; ethanol 96%vol. (Bioetanol AEG Ltd., Chełmża, Poland). The chemicals were used without further purification. All solutions were prepared using deionized water.

2.2. Fourier Transform Infrared Spectroscopy

Fourier transform infrared spectroscopy (FTIR) was used to identify the presence of specific chemical groups in the materials. FTIR spectra were obtained using a Bruker Vertex 70V spectrometer (Bruker Optoc GmbH, Ettlingen, Germany) in the wavenumber range from 4000 to 400 cm−1, for 16 scans with a resolution of 4 cm−1. FTIR spectra have been normalized and the main vibration bands have been associated with corresponding chemical groups. All spectra were analyzed using OPUS 7.5 software (Bruker Optoc GmbH, Ettlingen, Germany).

2.3. Thermal Analysis

Analyzes were carried out using a Simultaneous TGA-DTA thermal-analyzer type SDT 2960 Simultaneous TGA-DTA from TA Instruments, Champaign, IL, USA) at temperatures ranging from 20 °C to 1000 °C, at a heating rate of 10 °C·min−1, under atmospheric air with samples of ca. 2–4 mg. The total mass loss of the sample is equal to the peak area on the DTA curve. Recorded thermograms were analyzed using TA Universal Analysis Software.

2.4. Scanning Electron Microscopy

Surface topography and size of superabsorbent particles were tested using a scanning electron microscope manufactured by LEO Electron Microscopy Ltd. Cambridge, UK, model 1430 VP. Scanning electron microscopy was used to determine the shape, size, morphology, crosslinking density, and porosity of superabsorbents.

2.5. Preparation of Graft Polymerization with Ceric Ammonium Nitrate

The superabsorbents were obtained by graft polymerization of starch in aqueous solution using ceric ammonium nitrate as an initiating agent (Figure 1). Starch solution was prepared in a three-neck flask equipped with a magnetic stirrer, a condenser, and a thermometer. All processes were carried out under nitrogen atmosphere. The starch was prepared by stirring of 4.013 g starch powder in 100 mL deionized water at 95 °C. Afterwards, the starch solution was cooled down to room temperature. Then, 2 mL of CAN solution (0.005 mol/dm3) was poured into the solution in order to activate reactive sites in the starch backbone and initiate free radical polymerization of acrylic monomers [30,31]. AA (5.998 g) monomer neutralized beforehand with NaOH was added as grafting monomer and after that 0.05% (relative to monomer) of MBA was added as crosslink agent. The mixture was stirred and kept for 2 h at 70 °C. Afterwards, the system was cooled down to room temperature. The product was washed with ethanol and distilled water and dried in a vacuum oven (40 °C) to constant weight. This product has been given an abbreviated name SS-g-PAA(CAN).
Another superabsorbent was made in the same way, except that this time the gelatinized starch obtained by seasoning the solution for 12 h at 4 °C and later used in the synthesis yielded with a product called SS(12)-g-PAA(CAN).
The third superabsorbent was made in the same way, with the difference being that the precipitated end product was left in the dark for 12 h in a solution of deionized water and ethanol and later separated from post reaction mixture. The product was called SS-g-PAA(12/CAN).

2.6. Preparation of Starch Graft Copolymer Using Potassium Persulfate Initiator

Another set of superabsorbents was obtained by graft polymerization of starch using KPS as an initiating agent (Figure 2). The starch solution was prepared according to the same procedure as in previously described examples. After cooling to room temperature, KPS was added followed by addition of AA neutralized with NaOH and then MBA [32]. The system was cooled to room temperature and pH was adjusted to 10 with acetic acid. The mixture was stirred for 3 h under N2 atmosphere and at 70 °C. The product was washed with ethanol and deionized water and then dried. This product was named as SS-g-PAA (KPS).

2.7. Preparation Synthesis with Urea/NaOH

The graft copolymerization was performed in beaker equipped with stirrer. Corn starch (1.509 g) was dispersed in 27 mL of deionized water, and then 18 mL of 4.509 g NaOH solution was added dropwise. After the starch was fully gelatinized, 12 mL of 3.007 g urea solution and 0.153 g KPS or 0.300 g CAN in aqueous solution was added subsequently and stirred for 30 min at room temperature. Then, 0.063 g MBA and 4.498 g AA dissolved in 4.5 mL of deionized water were added in sequence into the stirred mixture and finally capped and maintained at 65 °C for 5 h. The reaction mixture was cooled to room temperature, and a hydrogel was precipitated and washed with ethanol-water mixture (7:3 wt) [33]. Subsequently, it was dehydrated by 95% and anhydrous ethanol and then dried at 40 °C for 48 h under vacuum oven. The regenerated starch was ground [34]. These products were named as CS-g-PAA (KPS/U/NaOH) or CS-g-PAA (CAN/U/NaOH), respectively.
The polymer sample codes related to different synthesis methods are summarized in Table 1.

2.8. Swelling Properties

To determine the gel content values, 0.100 g of dried sample was dispersed in double distilled water to swell for 72 h. After filtration, the extracted gel was dewatered by ethanol, dried for 24 h at 40 °C, and then reweighed. Gel content (gel %) was calculated using following formula Equation (1):
G e l   [ % ] = m m 0 × 100 ,
where, m and m0 stand for final and initial weight of sample, respectively.
The equilibrium water absorption of the superabsorbent was calculated using following equation (Equation (2)):
Q e q   [ g g ] = w s w d w d ,
where Qeq [g/g] is the equilibrium water absorption calculated as grams of water per gram of sample, wd and ws are the weights of the dry sample and water swollen sample, respectively.

2.9. Swelling Kinetics and Effect of Particle Size on Swelling

Water absorption and water retention of superabsorbent hydrogels with different particle sizes were determined according to methods widely described in the literature. The study of absorbency rate of the synthesized hydrogels, approximately (0.100 ± 0.001 g) with various particle sizes were poured into weighted tea bags (270 mesh) and immersed in 250 mL distilled water. The water absorbency (Qt) was measured as a function of time (t). The swelling behavior of SAP samples were studied by using salt solutions (0.9 wt% NaCl solution).

3. Results and Discussion

3.1. Analysis of the Synthesis Mechanism

Two main reactions for the production of polysaccharide-based hydrogels can be distinguished: graft copolymerization of vinyl monomers on a polysaccharide in the presence of a cross-linking agent and a direct cross-linking reaction of the polysaccharide. The first of these methods is used in this publication.
OH groups derived from saccharide units interact with Ce4+ ions to form complexes based on redox pairs. The next step is the cleavage of C2-C3 bonds of the saccharide units as a result of the action of carbon radicals formed as a result of the dissociation of the complexes. The resulting free radicals initiate the graft polymerization of the crosslinker and vinyl monomers on the starch chains. The formation of hydrogels by graft copolymerization of acrylic acid on corn starch was also analyzed in Athawale et al. [30]. The publication by Dragan and Apopea presents the results of the research and the mechanism of grafting acrylamide onto starch with Ce4+ as a free radical initiator [35]. The same mechanism was proposed for the grafting reaction of acrylic acid onto starch in Figure 1.
As a result of the action of potassium persulfate as an initiator on polysaccharide chains, free hydrogen radicals from OH groups are detached. In this method, it is important to maintain a certain temperature (much higher than in the case of Ce4+) because a thermal initiator was used. As a result of the action of potassium persulfate as an initiator on polysaccharide chains, free hydrogen radicals from OH groups are detached. In this method, it is important to maintain a certain temperature (twice as high as for Ce4+) because a thermal initiator is used. In the publication of Pourjavadi et al. ammonium persulfate was used as an initiator of the graft copolymerization reaction of acrylic acid with kappa-carrageenan in the presence of a cross-linking agent in the form of N,N’-methylenebisacrylamide [36]. The persulfate initiator decomposes on heating to form the sulfate anion. The radical cleaves hydrogen from the starch hydroxyl groups, forming alkoxy radicals on the starch chains.
In the case of direct cross-linking of polysaccharides, polyfunctional or polyvinyl compounds are used, however, this method will be described in subsequent papers, as research is currently underway.

3.2. FTIR Analysis

FTIR spectra of all monomers grafted on starch (corn starch, soluble starch) were quite similar to each other. In the spectrum of starch, the transmittance bands at 3312 cm−1, 573 cm−1, 528 cm−1 are attributed to the OH group and a smaller band at 2928 cm−1 to C–H stretching vibration [37]. The pattern of the signals changes after polymerization, which indicated that graft copolymerization occurred between the AA monomer and the molecules SS and CS. The PAA-grafted chains showed a new band at about 1700 cm−1 characteristic for C=O stretching. The most significant notion derived from juxtaposition of the FTIR spectra of four grafted starch gels in Figure 3 is the presence of several peaks at the same position, which indicates that the resulting materials contain moieties derived from starch, acrylic acid, and MBA included in its structure. Moreover, FTIR spectra of the gels show no signals indicating the presence of C=C groups, which proves that the AA in free form is not present in the material, and all the monomer undergone graft copolymerization. All spectra with designated characteristic peaks were situated in the Supplementary materials (Figures S23–S34).
Analyzing the spectra of superabsorbent obtained in presence of urea, no significant differences in spectra were observed in comparison with that of starch-AA without urea. Peaks appeared at 3303 cm−1, 2922 cm−1, 1704 cm−1, 1558 cm−1, 1447 cm−1, and 1405 cm−1. Additionally, in comparison with the IR spectrum of native starch, similar absorption peaks appeared in 1151 cm−1, 1078 cm−1, 993 cm−1, and 930 cm−1, which are the characteristic peaks of starch structure. The C–O–C symmetrical stretching, C-OH bending and the skeletal vibration of the pyranose ring are characterized by peaks at 928 cm−1, 851 cm−1, and 573 cm−1 [33]. The intensities of all characteristic bands decreased after the polymerization process, which proves that the copolymerization between AA and starch was successful [38]. A remarkable change in FTIR spectra of starch-based copolymers was the appearance of the peak at 1700–1728 cm−1, which is regarded to C=O vibrations in aldehyde groups [39].
The largest changes were observed for material prepared instantly after initial solution preparation (SS-g-AA (CAN)), while the smallest differences were noted for the product obtained from the starch solution seasoned by 12 h (SS-g-AA (12) (CAN)).

3.3. Scanning Electron Microscope

The pore size of the superabsorbents mainly depends on the many factors affecting the swelling and micromorphology of hydrogels. The large differences in the surface morphology of starch copolymers are shown in Figure 4 (original size SEM images are included in Supplementary Materials). The starch copolymers prepared in urea/sodium hydroxide solution: CS-g-PAA (CAN/U/NaOH) (c) and CS-g-PAA (KPS/U/NaOH) (d) presents the largest variation in morphology and pore size compared with the other compositions. These polymers form agglomerates resembling bushes. Their structure is looser and highly porous with irregular voids appearing between agglomerates. The average diameter of the holes or interstices is ranging from 11 to 136 μm and the average is 57 μm.
The hydrogels containing low crosslinking density generally form structures with wider pores. Those containing high crosslinking density are randomly aggregated and exhibit more granular-like structure. This is due to the differences in the expansion of polymer network and in the magnitude of the affinity of the polymer network for water. Additionally, the decrease in pore size can be attributed to the increase in the elasticity of the hydrogels related to crosslinking density.
In the literature, it was found that CS and SS hydrogels occur in the form of variable size irregular granules having smooth surface [30,40]. After binding acrylic acid into the starch backbone, the surface roughness increased, and some folds can be observed (Figure 4c–g). The material has a higher specific surface area when the surface of the hydrogel composite is folded. These folds may be regions where water or other external stimuli can interact with the hydrophilic groups of the grafted copolymers and permeate, which facilitated the permeation of water into the polymeric network [41]. Regarding micrographs e) SS-g-PAA (CAN), (f) SS(12)-g-PAA (CAN), g) SS-g-PAA (12/CAN), and h) SS-g-PAA (KPS), all materials were found to be granular, with divergent particles size and shape. The majority of the granules showed oval shape and rather smooth surface. Observed occasionally truncations and slight erosion marks can be attributed to either mechanical damage of the granules during the extraction process or partial oxidation of the surface.
The granule size distributions for both starch kinds revealed a bimodal feature with a lot of small and large particles, but not many medium-sized. The small-size granules had diameters ranging between 6 to 10 µm. Starch (CS and SS) particles have oval shapes with smooth surfaces, unlike acrylic acid modified products. The modification not only changes the surface, but also leads to the formation of particles of larger size with diameter between the 250 and 600 µm.
In the case of CS-g-PAA (CAN/U/NaOH) (c) and CS-g-PAA (KPS/U/NaOH) (d), more compact and porous structures were found in the micrographs that can be attributed to the granules’ agglomeration. The presence of spacious pores guarantees a reduction in transport resistance and an increase in the total water sorption capacity [41,42]. The channels, cracks, and pores in the copolymers create accessible spaces for the extensive hydration of hydrophilic groups of the material responsible for swelling.

3.4. Thermogravimetric Analysis

TGA methods were used to investigate thermal behavior of starch and copolymers obtained by grafting acrylic monomers. All the recorded thermograms are included in Supplementary materials and only the most important data are shown in the Table 2 and Table 3. Starch shows a typical two–steps thermogram. The first step shows weight loss at about 5.0%, in 70.62 °C for CS and 59.24 °C for SS. In the second step, the main weight loss occurs for CS (54.88%) at 313.85 °C, and for SS (77.82%) at 229.49 °C [43]. Based on this data, we can assume that corn starch is more thermally stable than soluble starch. The thermogram of AA show a multi-step degradation process with the lack of weight loss up to 100 °C except for a modest weight loss between 80 and 100 °C found for each sample investigated in this study. There are three to seven decomposition stages on the thermograms of (SS-g-PAA(12/CAN), CS-g-PAA(CAN/U/NaOH)), and (SS-g-PAA(CAN)). The loss of water captured in the polymer network can be attributed to the weight loss below 200 °C. The maximum weight loss was recorded in the temperature range between 250 and 500 °C, which may be explained by the degradation of starch backbone of the superabsorbent. The weight loss found above 500 °C, can be ascribed to degradation of the polymer chains and acrylate crosslinked grafts, which shows that the thermal stability of the starch copolymers is higher than that of native starch. Additionally, the addition of AA and other synthetic monomers to starch improves its thermal stability.
Analyzing SS-g-PAA (CAN) and SS-g-PAA (KPS) one can notice an additional weight loss stage (~10%) at 260–270 °C, which is caused by the breakdown of starch. The next stage of decomposition in the temperature range between ~260–340 °C is ~35–45% weight loss associated with the degradation of the starch backbone in each sample. Starch pyrolysis is the main cause of weight loss, which is associated to the formation of ether segments and dehydration of its chains, elimination of CO and CO2 and random chain scission [44]. The greater the ratio of amylopectin to amylose improves the thermal stability of starch-based superabsorbents, because the resulting additional glycosidic bonds in the amylopectin molecule increase the thermal stability of the copolymers compared to the linear structure of amylose [45]. For CS-g-PAA (CAN / U / NaOH) and CS-g-PAA (KPS / U / NaOH) the highest weight loss (45%) was observed at the decomposition temperature of 292.54 and 340.49 °C. These peaks are attributed to oxidation and thermal decomposition, but peaks at 452.38 and 432.84 °C may be due to carbonate formation. The product with the addition of urea has better thermal stability due to nitrogen.

3.5. Swelling Properties of Superabsorbents

In personal hygiene products, the important feature is the swelling ability in salt solutions. The grafting of acrylic acid onto starch produces polymer chains with a large number of negatively charged groups, e.g., –COO¯. Although carboxyl groups are accompanied by cationic counter-ions, the negative charge groups repel each other yielding in chains stretching. This provides extra space in the polymer network that can occupied by water or aqueous solution entering the polymer network to level the osmotic pressure. Consequently, polymer absorbs and retains a large volume of water or aqueous solutions. The insolubility of superabsorbent in aqueous solutions is achieved by cross-linking with N,N-methylenebisacrylamide.
The screening effect of positive cation charges is the reason for the decrease in the degree of swelling of superabsorbents in salt solutions compared to the absorption of pure water (Figure 5.). Electrostatic repulsion between anions present in the system leads to a decrease in the osmotic pressure between the hydrogel internal solution and the external solution. Salt solutions with polyvalent cations reduce the swelling of hydrogel more than univalent cations, moreover, multivalent cations can cause so called ionic crosslinking of the polymer matrix. In consequence, the gel absorption significantly decreases with increase of cations valence [46,47].
The increase in the ionic strength of the salt solution reduces the absorption of deionized water. Therefore, the experimental results abide by Flory’s equation [48,49] (Equation (3)):
S w e l l i n g 5 3 ( v   M c ) 1   ( M c M ) 1 ( 1 2 x 1 ) v 1 ,
where
v—the specific volume of the polymer [m3·kg−1],
Mc—the chain length between crosslinks [n],
M—primary molecular mass [u],
x1—the Flory solvent-polymer interaction term [-],
v1—the volume fraction of the polymer [-].
The addition of urea to the mixture during synthesis has a significant impact on the water absorption capacity of polymers, as is the case with NaOH. At the presence of water in elevated temperature urea molecules can undergo hydrolysis, liberating NH4+ and CNO ions [50]. The main purpose of adding urea was to increase the extent of the starch molecule chains in the solution.
The high swelling ability is of great importance in the practical application of a hydrogel, while the swelling speed is particularly important in superabsorbent applications. The swelling kinetics of superabsorbents are significantly influenced by factors such as swelling capacity, powder particle size distribution, specific surface area, and polymer composition [51,52]. The plots in Figure 6 show the dynamics of swelling of a superabsorbent sample with certain particle sizes (larger than 40 meshes, 40–60 meshes and smaller than 60 meshes) in water. Initially, a sharp increase in swelling rate was noted, while the longer, the more flattened the line until the process equilibrium value was reached. The initial swelling rate can be calculated using an equation based on Voigt [51] (Equation (1)),
S t = S e   ( 1 e t T ) ,
where: St ( g g ) - swelling at time t (min), Se ( g g ) - equilibrium swelling, t (min) – time, τ (min) - “rate parameter”.
Table 4 presents the rate parameters for superabsorbents with different particle sizes. Since τ is a measure of the resistance to water permeation, the lower the τ value, the higher the rate of water uptake will be. The lower the particles size, the higher the rate of water uptake, which is closely related to superabsorbent surface area to volume ratio. Since the uptake rate depends on the diffusion process it is obvious that the increase of the contact area will improve the diffusion rate [53]. Another important aspect is of structural nature and involves the degree of crosslinking, which influences both the swelling capacity and sorption rate. The crosslinking is important to prevent the polymer dissolution, however a high crosslinking degree makes the polymer more compact and less susceptible to swelling.
The complex kinetics of SAP swelling is related to a specific interaction between the swelling medium molecules and the polymer side groups and the structural topology of the polymeric 3D network responsible for susceptibility to formation of voids that can be filled with the medium [54].
According to the results presented in this article, hydrogels based on acrylic acid and starch show good absorption properties, high thermal capacity, and reusability. These properties require further improvement, which should be considered in future research works. The presented work includes preliminary studies for a large research project with the main goal of developing a biodegradable superabsorbent for use in the hygiene sector. Low cost, biodegradable properties, and non-toxicity make starch hydrogels attractive subjects of investigation due to their ability to absorb large amounts of water as well as heavy metals and dyes. Hydrogels are widely used in everyday products, although their potential has not yet been fully explored. These materials are known in the market for wound dressings, contact lenses, and hygiene products. Commercial hydrogel products in tissue engineering and drug delivery are still limited, despite numerous publications, projects and patents that have been produced. The high cost of production is a major limitation in the production of the discussed hydrogels on an industrial scale.
There are preliminary studies, so for us the most important conclusion is that the synthesis process should be modified and improved, and a better superabsorbent composition should be developed so that the degree of liquid absorption is much higher.

4. Conclusions

Significant research effort is underway around the world to obtain new materials, that will combine raw material obtained from natural, renewable sources and, biodegradability. This is extremely important for new superabsorbent materials for personal hygiene products such as disposable diapers, which are responsible for serious environmental issues. Several starch-based superabsorbent co-polymers using acrylic acid were prepared by copolymerization via free radical grafting. The syntheses were carried out in different medium including deionized water, sodium hydroxide solutions, and urea solutions. Potassium persulphate and ceric ammonium nitrate (IV) were used as initiators, while hydrophilic N,N’-methylenebisacrylamide was used as the crosslinking agent. Comparing the effect of discussed initiators, it can be concluded that the persulfate oxidation capacity is weaker, the reaction rate is lower, the reaction time is longer, and the reaction temperature is higher. FTIR analysis and thermogravimetric analysis revealed that AA monomers were grafted to macromolecular chains of CS or SS. The swelling capacity of hydrogels depends on the concentration of crosslinker (MBA) and the monomer ratio, such that swelling is reduced by increasing the MBA concentration. The decrease in absorption capacity in salt solutions compared to distilled water can be attributed to the effect of screening charge and ion crosslinking for mono and multivalent cations respectively. The obtained results confirmed the assumptions that the smaller the particle size, the faster the liquid absorption rate. Materials synthesized with sodium hydroxide and urea solution showed the best absorption of salty water.
The synthesized materials can be considered as an effective alternative to improve the moisture content of various soils for agricultural use. Moreover, in the future, such materials can be used as ion exchangers to increase their efficiency in wastewater treatment. Efforts to improve the property profile of cross-linked hydrogels are still ongoing, and we hope that the overall performance in terms of water absorption capacity and aqueous solutions will further improve.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/8/1794/s1, Figure S1: TGA of N,N’-methylenebisacrylamide (MBA), Figure S2: DTA of N,N’-methylenebisacrylamide (MBA), Figure S3: TGA of ceric ammonium nitrate (CAN), Figure S4: DTA of ceric ammonium nitrate (CAN), Figure S5: TGA of potassium persulfate (KPS), Figure S6: DTA of potassium persulfate (KPS), Figure S7: TGA of corn starch (CS), Figure S8: DTA of corn starch (CS), Figure S9: TGA of soluble starch (SS), Figure S10: DTA of soluble starch (SS), Figure S11: TGA of soluble starch-g-poly(acrylic acid) with potassium persulfate (SS-g-PAA (KPS)), Figure S12: DTA of soluble starch-g-poly(acrylic acid) with potassium persulfate (SS-g-PAA (KPS)), Figure S13: TGA of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS-g-PAA(12/CAN)), Figure S14: DTA of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS-g-PAA(12/CAN)), Figure S15: TGA of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS(12)-g-PAA(CAN)), Figure S16: DTA of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS(12)-g-PAA(CAN)), Figure S17: TGA of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS-g-PAA (CAN)), Figure S18: DTA of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS-g-PAA (CAN)), Figure S19: TGA of corn starch-g-poly(acrylic acid) with ceric ammonium nitrate, urea and NaOH, Figure S20: DTA of corn starch-g-poly(acrylic acid) with ceric ammonium nitrate, urea and NaOH, Figure S21: TGA of corn starch-g-poly(acrylic acid) with potassium persulfate, urea and NaOH, Figure S22: DTA of corn starch-g-poly(acrylic acid) with potassium persulfate, urea and NaOH, Figure S23: FTIR spectra of ceric ammonium nitrate (CAN), Figure S24: FTIR spectra of potassium persulfate (KPS), Figure S25: FTIR spectra of N,N’-methylenebisacrylamide (MBA), Figure S26: FTIR spectra of acrylic acid (AA), Figure S27: FTIR spectra of corn starch (CS), Figure S28: FTIR spectra of soluble starch (SS), Figure S29: FTIR spectra of soluble starch-g-poly(acrylic acid) with potassium persulfate (SS-g-PAA/KPS), Figure S30: FTIR spectra of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS-g-PAA(12/CAN)), Figure S31: FTIR spectra of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS(12)-g-PAA (CAN)), Figure S32: FTIR spectra of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS-g-PAA (CAN)), Figure S33: FTIR spectra of corn starch-g-poly(acrylic acid) with ceric ammonium nitrate, urea and NaOH (CS-g-PAA/U/NaOH/CAN), Figure S34: FTIR spectra of corn starch-g-poly(acrylic acid) with potassium persulfate, urea and NaOH (CS-g-PAA/U/NaOH/KPS), Figure S35: SEM images at 10,000× and 25,000× magnifications of corn starch (CS), Figure S36: SEM images at 200× and 10,000× magnifications of corn starch (CS), Figure S37: SEM images at 200× and 10,000× magnifications of corn starch-g-poly(acrylic acid) with ceric ammonium nitrate, urea and NaOH (CS-g-PAA/U/NaOH/CAN), Figure S38: SEM images at 200× and 10,000× magnifications of corn starch-g-poly(acrylic acid) with potassium persulfate, urea and NaOH (CS-g-PAA/U/NaOH/KPS), Figure S39: SEM images at 200× and 10,000× magnifications of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate ((SS-g-PAA (CAN)), Figure S40: SEM images at 200× and 10,000× magnifications of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS(12)-g-PAA (CAN)), Figure S41: SEM images at 200× and 10,000× magnifications of soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate (SS-g-PAA (12/CAN)), Figure S42: SEM images at 200× and 10,000× magnifications of of soluble starch-g-poly(acrylic acid) with potassium persulfate (SS-g-PAA/KPS).

Author Contributions

Conceptualization, E.C.; formal analysis, E.C.; visualization, E.C.; investigation, E.C.; methodology, E.C.; project administration, E.C.; resources, E.C.; supervision, J.N.; validation, J.N.: writing—original draft preparation, E.C.; writing—review and editing, J.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors. This work was supported by statutory founds of Nicolaus Copernicus University in Toruń, Poland and budget of Plastica Sp. z o. o in Frydrychowo, Poland.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. M Inteligence Global Superabsorbent Polymers Market (Study Period: 2016–2024). Available online: http://dln.jaipuria.ac.in:8080/jspui/bitstream/123456789/2836/1/Global Super Absorbent Polymers %28SAP%29 Market - Growth%2C Trends%2C and Forecast %282016 - 2024%29.pdf (accessed on 6 August 2020).
  2. Rosiak, J.M.; Ulański, P.; Pajewski, L.A.; Yoshii, F.; Makuuchi, K. Radiation formation of hydrogels for biomedical purposes. Some remarks and comments. Radiat. Phys. Chem. 1995, 46, 161–168. [Google Scholar] [CrossRef]
  3. Rosiak, J.M.; Yoshii, F. Hydrogels and their medical applications. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. Atoms 1999, 151, 56–64. [Google Scholar] [CrossRef]
  4. Drury, J.L.; Mooney, D.J. Hydrogels for tissue engineering: Scaffold design variables and applications. Biomaterials 2003, 24, 4337–4351. [Google Scholar] [CrossRef]
  5. Bai, X.; Gao, M.; Syed, S.; Zhuang, J.; Xu, X.; Zhang, X.Q. Bioactive hydrogels for bone regeneration. Bioact. Mater. 2018, 3, 401–417. [Google Scholar] [CrossRef]
  6. Rabat, N.E.; Hashim, S.; Majid, R.A. Effect of Different Monomers on Water Retention Properties of Slow Release Fertilizer Hydrogel. Procedia Eng. 2016, 148, 201–207. [Google Scholar] [CrossRef] [Green Version]
  7. Chen, Y.C.; Chen, Y.H. Thermo and pH-responsive methylcellulose and hydroxypropyl hydrogels containing K2SO4 for water retention and a controlled-release water-soluble fertilizer. Sci. Total Environ. 2019, 655, 958–967. [Google Scholar] [CrossRef] [PubMed]
  8. Mohammadzadeh Pakdel, P.; Peighambardoust, S.J. A review on acrylic based hydrogels and their applications in wastewater treatment. J. Environ. Manag. 2018, 217, 123–143. [Google Scholar] [CrossRef] [PubMed]
  9. Barakat, M.A.; Sahiner, N. Cationic hydrogels for toxic arsenate removal from aqueous environment. J. Environ. Manag. 2008, 88, 955–961. [Google Scholar] [CrossRef] [PubMed]
  10. Mahmoud, M.E. Water treatment of hexavalent chromium by gelatin-impregnated-yeast (Gel-Yst) biosorbent. J. Environ. Manag. 2015, 147, 264–270. [Google Scholar] [CrossRef] [PubMed]
  11. Feng, E.; Ma, G.; Wu, Y.; Wang, H.; Lei, Z. Preparation and properties of organic–inorganic composite superabsorbent based on xanthan gum and loess. Carbohydr. Polym. 2014, 111, 463–468. [Google Scholar] [CrossRef] [PubMed]
  12. Pathak, V.M.; Kumar, N. Dataset on the superabsorbent hydrogel synthesis with SiO2 nanoparticle and role in water restoration capability of agriculture soil. Data Br. 2017, 13, 291–294. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, Y.; Wu, F.; Liu, L.; Yao, J. Synthesis and urea sustained-release behavior of an eco-friendly superabsorbent based on flax yarn wastes. Carbohydr. Polym. 2013, 91, 277–283. [Google Scholar] [CrossRef] [PubMed]
  14. Zhou, J.; Chang, C.; Zhang, R.; Zhang, L. Hydrogels prepared from unsubstituted cellulose in NaOH/urea aqueous solution. Macromol. Biosci. 2007, 7, 804–809. [Google Scholar] [CrossRef] [PubMed]
  15. Chang, C.; Duan, B.; Cai, J.; Zhang, L. Superabsorbent hydrogels based on cellulose for smart swelling and controllable delivery. Eur. Polym. J. 2010, 46, 92–100. [Google Scholar] [CrossRef]
  16. Li, X.; Xu, S.; Pen, Y.; Wang, J. The swelling behaviors and network parameters of cationic starch-g-acrylic acid/poly(dimethyldiallylammonium chloride) semi-interpenetrating polymer networks hydrogels. J. Appl. Polym. Sci. 2008, 110, 1828–1836. [Google Scholar] [CrossRef]
  17. Moura, M.J.; Figueiredo, M.M.; Gil, M.H. Rheological study of genipin cross-linked chitosan hydrogels. Biomacromolecules 2007, 8, 3823–3829. [Google Scholar] [CrossRef] [Green Version]
  18. Kadokawa, J.-I. Ionic Liquid as Useful Media for Dissolution, Derivatization, and Nanomaterial Processing of Chitin. Green Sustain. Chem. 2013, 03, 19–25. [Google Scholar] [CrossRef] [Green Version]
  19. Peng, Z.; Peng, Z.; Shen, Y. Fabrication and properties of gelatin/chitosan composite hydrogel. Polym. - Plast. Technol. Eng. 2011, 50, 1160–1164. [Google Scholar] [CrossRef]
  20. Chan, A.W.; Whitney, R.A.; Neufeld, R.J. Semisynthesis of a Controlled Stimuli-Responsive Alginate Hydrogel. Biomacromolecules 2009, 10, 609–616. [Google Scholar] [CrossRef]
  21. Gattás-Asfura, K.M.; Weisman, E.; Andreopoulos, F.M.; Micic, M.; Muller, B.; Sirpal, S.; Pham, S.; Leblanc, R.M. Nitrocinnamate-functionalized gelatin: Synthesis and “smart” hydrogel formation via photo-cross-linking. Biomacromolecules 2005, 6, 1503–1509. [Google Scholar] [CrossRef]
  22. Meng, Y.; Ye, L. Synthesis and swelling property of superabsorbent starch grafted with acrylic acid / 2-acrylamido-2-methyl-1-propanesulfonic acid. J. Sci. Food Agric. 2017, 97, 3831–3840. [Google Scholar] [CrossRef] [PubMed]
  23. Szepes, A.; Szabó-Révész, P.; Bajdik, J.; Kása, P., Jr.; Neményi, M.; Pap, R.; Kovács, A.J.; Pintye-Hódi, K. Characterization and Utilization of Starches Extracted from Florencia and Waxy Maize Hybrids for Tablet Formulation: Compaction Behaviour and Tablet Properties. Am. J. Plant Sci. 2014, 05, 787–798. [Google Scholar] [CrossRef] [Green Version]
  24. Bemiller, J.N. Starch Modification: Challenges and Prospects. Starch - Stärke 1997, 49, 127–131. [Google Scholar] [CrossRef]
  25. Jobling, S. Improving starch for food and industrial applications. Curr. Opin. Plant Biol. 2004, 7, 210–218. [Google Scholar] [CrossRef]
  26. Siong, K.K.; Amari, N.F.; Yuan, T.C.; Radiman, S.; Yahaya, R.; Yasir, M.S. Preparation, characterization and properties of core-shell cobalt ferrite/polycaprolactone nanomagnetic biomaterials. Sains Malays. 2013, 42, 167–173. [Google Scholar]
  27. Samaha, S.H.; Essa, D.M.; Osman, E.M.; Ibrahim, S.F. Synthesis and characterization of hydroxyethyl cellulose grafted copolymers and its application for removal of nickel ions from aqueous solutions. Int. J. Eng. Innov. Res. 2015, 4, 645–653. [Google Scholar]
  28. Sadeghi, M.; Ghasemi, N.; Yarahmadi, M. Synthesis of biosuperabsorbent based on carboxymethylcellulose-g-poly(AcA- co-AN). Biosci. Biotechnol. Res. Asia 2011, 8, 455–461. [Google Scholar] [CrossRef]
  29. Article, R.; Neelam, K.; Vijay, S.; Lalit, S. Various Techniques For The Modification Of Starch And The Applications Of Its Derivatives. Int. Res. J. Pharm. 2012, 3, 25–31. [Google Scholar]
  30. Athawale, V.D.; Lele, V. Graft copolymerization onto starch. II. Grafting of acrylic acid and preparation of it’s hydrogels. Carbohydr. Polym. 1998, 35, 21–27. [Google Scholar] [CrossRef]
  31. Das, P.; Saikia, C.N.; Dass, N.N. Thermal behavior of some homogeneously polymethyl methacrylate (PMMA)-grafted high α-cellulose products. J. Appl. Polym. Sci. 2004, 92, 3471–3478. [Google Scholar] [CrossRef]
  32. Li, A.; Liu, R.; Wang, A. Preparation of Starch-Graft-Poly(Acrylamide)/Attapulgite Superabsorbent Composite. J. Appl. Polym. Sci. 2005. [Google Scholar] [CrossRef]
  33. Xiao, X.; Yu, L.; Xie, F.; Bao, X.; Liu, H.; Ji, Z.; Chen, L. One-step method to prepare starch-based superabsorbent polymer for slow release of fertilizer. Chem. Eng. J. 2017, 309, 607–616. [Google Scholar] [CrossRef] [Green Version]
  34. Liu, T.; Qian, L.; Li, B.; Li, J.; Zhu, K.; Deng, H.; Yang, X.; Wang, X. Homogeneous synthesis of chitin-based acrylate superabsorbents in NaOH/urea solution. Carbohydr. Polym. 2013, 94, 261–271. [Google Scholar] [CrossRef] [PubMed]
  35. Dragan, E.S.; Apopei, D.F. Synthesis and swelling behavior of pH-sensitive semi-interpenetrating polymer network composite hydrogels based on native and modified potatoes starch as potential sorbent for cationic dyes. Chem. Eng. J. 2011, 178, 252–263. [Google Scholar] [CrossRef]
  36. Pourjavadi, A.; Harzandi, A.M.; Hosseinzadeh, H. Modified Carrageenan. 6. Crosslinked Graft Copolymer of Methacrylic Acid and kappa-Carrageenan as a Novel Superabsorbent Hydrogel with Low Salt- and High pH-Sensitivity. Macromol. Res. 2005, 13, 483–490. [Google Scholar] [CrossRef]
  37. Kizil, R.; Irudayaraj, J.; Seetharaman, K. Characterization of irradiated starches by using FT-Raman and FTIR spectroscopy. J. Agric. Food Chem. 2002, 50, 3912–3918. [Google Scholar] [CrossRef]
  38. Sharma, R.K.; Chauhan, G.S. Synthesis and characterization of graft copolymers of 2-hydroxymethyl methacrylate and some commoners on to extracted cellulose for use in separation technologies. BioResources 2009, 4, 986–1005. [Google Scholar] [CrossRef]
  39. Lee, J.; Park, S.; Roh, H.G.; Oh, S.; Kim, S.; Kim, M.; Kim, D.; Park, J. Preparation and characterization of superabsorbent polymers based on starch aldehydes and carboxymethyl cellulose. Polymers 2018, 8, 605. [Google Scholar] [CrossRef] [Green Version]
  40. Pathania, D.; Sharma, R.; Kalia, S. Graft copolymerization of acrylic acid onto gelatinized patato starch for removal of metal ions and organic dyes from aqueous system. Adv. Mater. Lett. 2012, 3, 259–264. [Google Scholar] [CrossRef]
  41. Chen, J.; Blevins, W.E.; Park, H.; Park, K. Gastric retention properties of superporous hydrogel composites. J. Control. Release 2000, 64, 39–51. [Google Scholar] [CrossRef]
  42. Chen, J.; Park, K. Synthesis and characterization of superporous hydrogel composites. J. Control. Release 2000, 65, 73–82. [Google Scholar] [CrossRef]
  43. El-mohdy, H.L.; Hegazy, E.S.; El-rehim, H.A.A. Characterization of starch/acrylic acid super-absorbent hydrogels prepared by ionizing radiation. J. Macromol. Sci. Part A Pure Appl. Chem. 2006, 43, 1051–1063. [Google Scholar] [CrossRef]
  44. Elomaa, M.; Asplund, T.; Soininen, P.; Laatikainen, R.; Peltonen, S.; Hyvärinen, S.; Urtti, A. Determination of the degree of substitution of acetylated starch by hydrolysis, 1H NMR and TGA/IR. Carbohydr. Polym. 2004. [Google Scholar] [CrossRef]
  45. Athawale, V.D.; Lele, V. Thermal Studies on Granular Maize Starch and its Graft Copolymers with Vinyl Monomers. Starch-Stärke 2000, 52, 205–213. [Google Scholar] [CrossRef]
  46. Kowalski, G.; Kijowska, K.; Witczak, M.; Kuterasiński, Ł.; Łukasiewicz, M. Synthesis and Effect of Structure on Swelling Properties of Hydrogels Based on High Methylated Pectin and Acrylic Polymers. Polymers 2019, 11, 114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Pourjavadi, A.; Farhadpour, B.; Seidi, F. Synthesis and investigation of swelling behavior of new agar based superabsorbent hydrogel as a candidate for agrochemical delivery. J. Polym. Res. 2009, 16, 655–665. [Google Scholar] [CrossRef]
  48. Flory, P.J. Principles of Polymer Chemistry; Cornell Univ. Press: Ithaca, NY, USA, 1954; pp. 555–556. [Google Scholar] [CrossRef]
  49. Lanthong, P.; Nuisin, R.; Kiatkamjornwong, S. Graft copolymerization, characterization, and degradation of cassava starch-g-acrylamide/itaconic acid superabsorbents. Carbohydr. Polym. 2006, 66, 229–245. [Google Scholar] [CrossRef]
  50. Sigurdarson, J.J.; Svane, S.; Karring, H. The molecular processes of urea hydrolysis in relation to ammonia emissions from agriculture. Rev. Environ. Sci. Biotechnol. 2018, 17, 241–258. [Google Scholar] [CrossRef] [Green Version]
  51. Omidian, H.; Hashemi, S.A.; Sammes, P.G.; Meldrum, I. A model for the swelling of superabsorbent polymers. Polymer (Guildf) 1998. [Google Scholar] [CrossRef]
  52. Pourjavadi, A.; Mahdavinia, G.R. Superabsorbency, pH-sensitivity and swelling kinetics of partially hydrolyzed chitosan-g-poly(acrylamide) hydrogels. Turkish J. Chem. 2006, 30, 595–608. [Google Scholar]
  53. Omidian, H.; Hashemi, S.A.; Sammes, P.G.; Meldrum, I. Modified acrylic-based superabsorbent polymers (dependence on particle size and salinity). Polymer (Guildf) 1999, 40, 1753–1761. [Google Scholar] [CrossRef]
  54. Davis, C.R.; Kelly, S.L.; Erk, K.A. Comparing laser diffraction and optical microscopy for characterizing superabsorbent polymer particle morphology, size, and swelling capacity. J. Appl. Polym. Sci. 2018, 135, 1–10. [Google Scholar] [CrossRef]

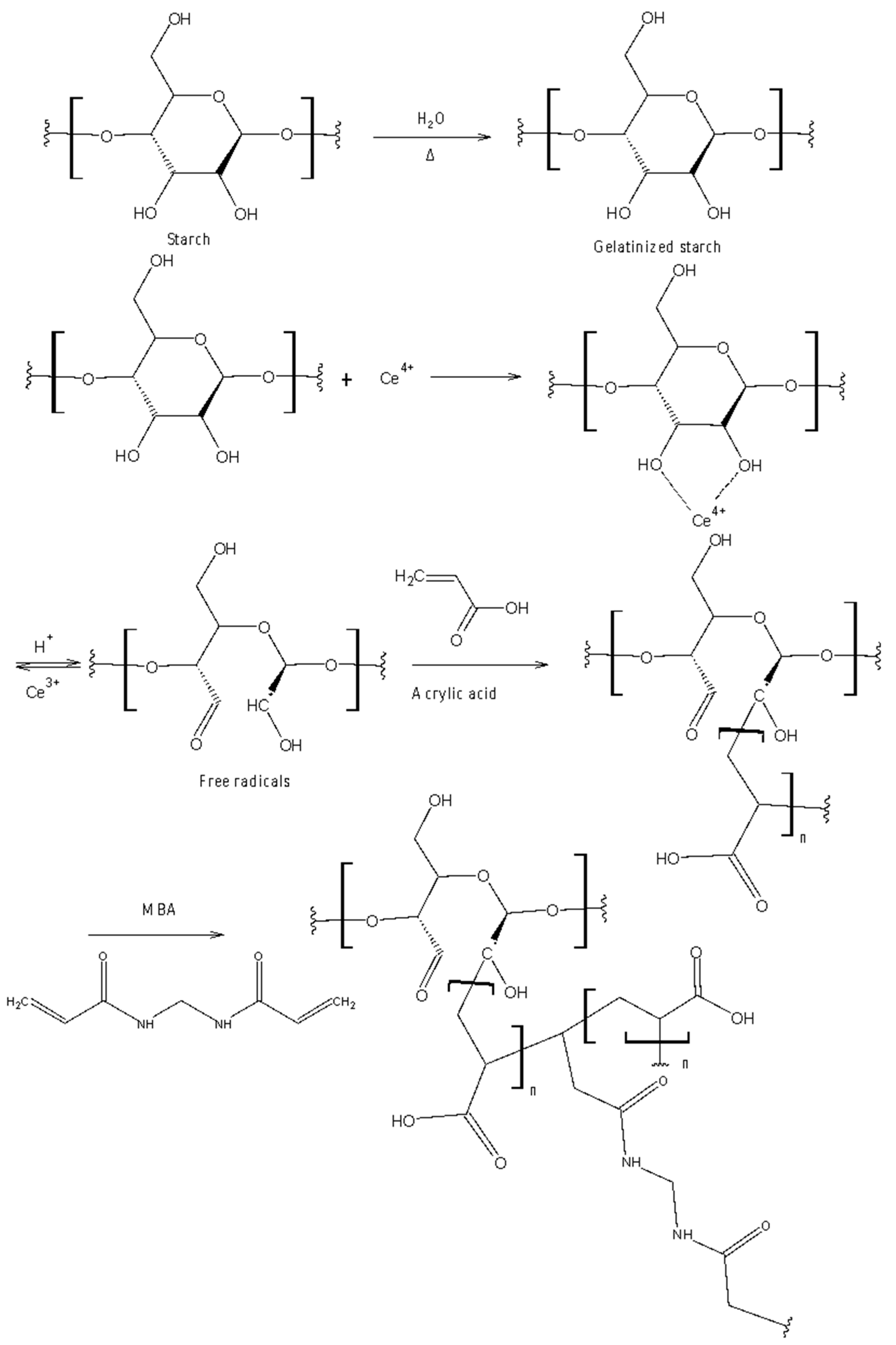

Figure 1. Mechanism of the crosslinking reaction of starch and acrylic acid initiated by ceric IV ions as a crosslinking agent.
Figure 1. Mechanism of the crosslinking reaction of starch and acrylic acid initiated by ceric IV ions as a crosslinking agent.
Polymers 12 01794 g001

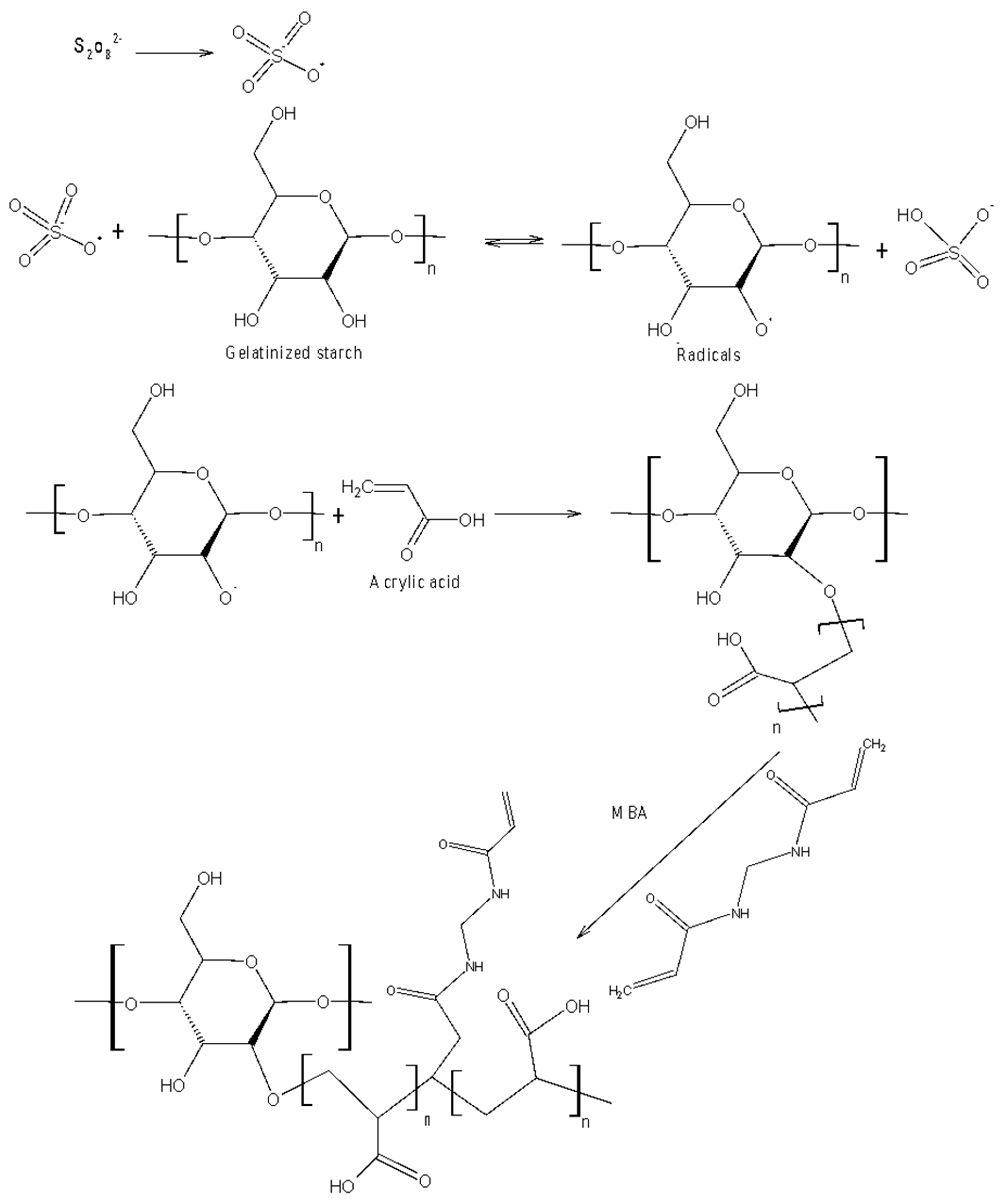

Figure 2. Mechanism of the crosslinking reaction of starch and acrylic acid with potassium persulfate as a crosslinking agent.
Figure 2. Mechanism of the crosslinking reaction of starch and acrylic acid with potassium persulfate as a crosslinking agent.
Polymers 12 01794 g002

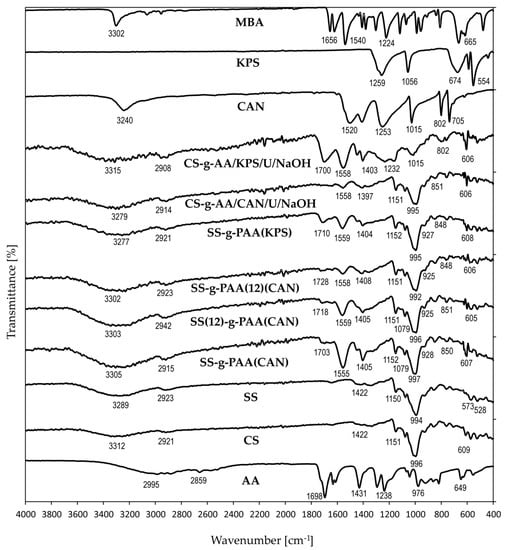

Figure 3. FTIR spectra of SS, SS-g-PAA (12)(CAN), SS(12)-g-PAA (CAN), SS-g-PAA (CAN), SS-g-PAA (KPS), CS, CS-g-PAA (KPS), CS-g-PAA (U/NaOH/CAN), AA and MBA.
Figure 3. FTIR spectra of SS, SS-g-PAA (12)(CAN), SS(12)-g-PAA (CAN), SS-g-PAA (CAN), SS-g-PAA (KPS), CS, CS-g-PAA (KPS), CS-g-PAA (U/NaOH/CAN), AA and MBA.
Polymers 12 01794 g003

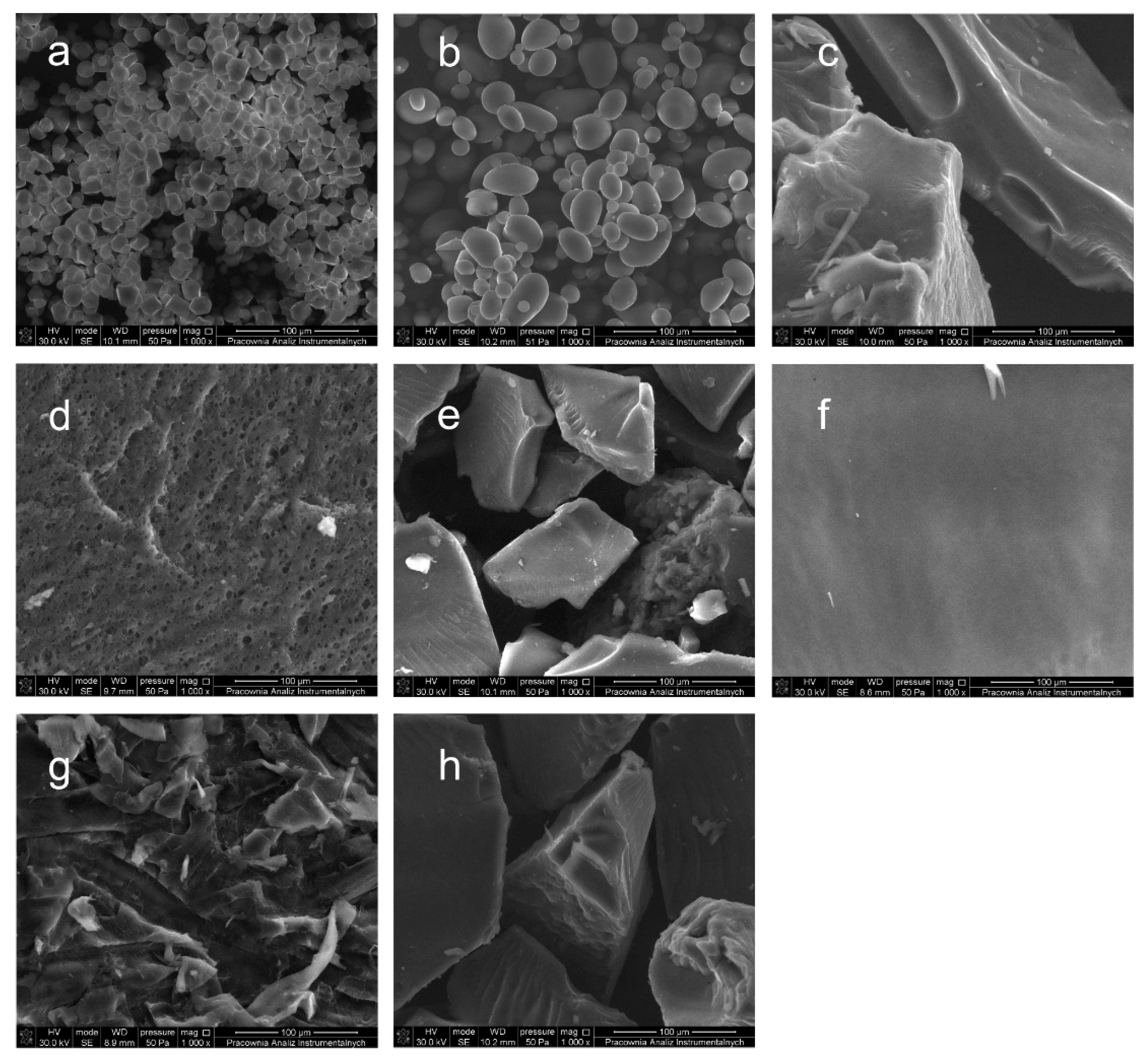

Figure 4. SEM images at 1000× magnification of substances: (a) corn starch, (b) solvent starch, (c) CS-g-PAA (CAN/U/NaOH), (d) CS-g-PAA (KPS/U/NaOH), (e) SS-g-PAA (CAN), (f) SS(12)-g-PAA (CAN), (g) SS-g-PAA (12/CAN), (h) SS-g-PAA (KPS).
Figure 4. SEM images at 1000× magnification of substances: (a) corn starch, (b) solvent starch, (c) CS-g-PAA (CAN/U/NaOH), (d) CS-g-PAA (KPS/U/NaOH), (e) SS-g-PAA (CAN), (f) SS(12)-g-PAA (CAN), (g) SS-g-PAA (12/CAN), (h) SS-g-PAA (KPS).
Polymers 12 01794 g004

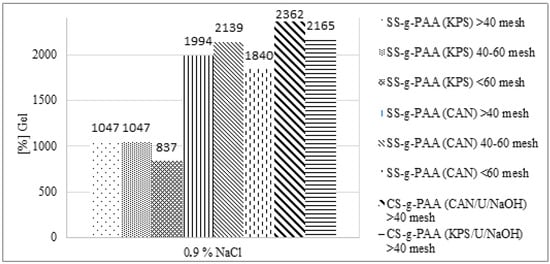

Figure 5. Swelling capacity of superabsorbents in 0.9 wt% NaClaq solution (A) percentage of gel in all samples, (B) saline absorbency of samples prepared with potassium persulfate in a given time for different grain sizes, (C) saline absorbency of samples prepared with ceric ammonium nitrate in a given time for different grain sizes.
Figure 5. Swelling capacity of superabsorbents in 0.9 wt% NaClaq solution (A) percentage of gel in all samples, (B) saline absorbency of samples prepared with potassium persulfate in a given time for different grain sizes, (C) saline absorbency of samples prepared with ceric ammonium nitrate in a given time for different grain sizes.
Polymers 12 01794 g005aPolymers 12 01794 g005b

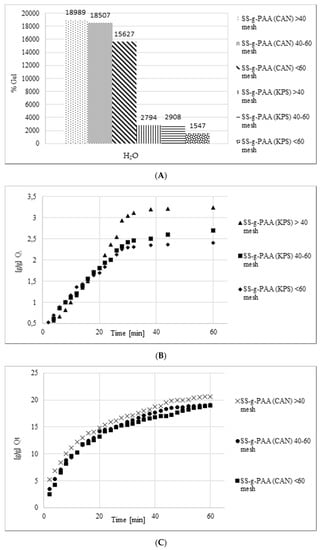

Figure 6. Swelling capacity of superabsorbents in dejonized water: (A) percentage of gel in all samples, (B) water absorbency of samples prepared with potassium persulfate in a given time for different grain sizes, (C) water absorbency of samples prepared with ceric ammonium nitrate in a given time for different grain sizes.
Figure 6. Swelling capacity of superabsorbents in dejonized water: (A) percentage of gel in all samples, (B) water absorbency of samples prepared with potassium persulfate in a given time for different grain sizes, (C) water absorbency of samples prepared with ceric ammonium nitrate in a given time for different grain sizes.
Polymers 12 01794 g006
Table 1. Explanation of polymer sample codes.
Table 1. Explanation of polymer sample codes.
Samples CodeDescription
SS Soluble starch
CS Corn starch
CANCeric ammonium nitrate
KPS Potassium persulfate
MBAN,N’-methylenebisacrylamide
SS-g-PAA(12/CAN)Soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate and the precipitated end product was left in the dark for 12 h in a solution of deionized water and ethanol and later separated from post reaction mixture.
SS(12)-g-PAA (CAN)Soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate and the superabsorbent was cooled for 12 h at 4 °C and then precipitated.
SS-g-PAA (CAN)Soluble starch-g-poly(acrylic acid) with ceric ammonium nitrate and the product was washed with ethanol and distilled water immediately.
SS-g-PAA (KPS)Soluble starch-g-poly(acrylic acid) with potassium persulfate and the product was washed with ethanol and distilled water immediately.
CS-g-PAA (CAN/U/NaOH) Corn starch-g-poly(acrylic acid) with ceric ammonium nitrate and the product was prepared in deionized water and NaOH solution.
CS-g-PAA (KPS/U/NaOH)Corn starch-g-poly(acrylic acid) with potassium persulfate and the product was prepared in deionized water and NaOH solution.
Table 2. The mass loss results derived from thermogravimetric analysis (TGA).
Table 2. The mass loss results derived from thermogravimetric analysis (TGA).
Samples TGA (5 wt % Loss) [°C]TGA (10 wt % Loss) [°C]TGA (50 wt % Loss) [°C]
SS59.24105.44355.92
CS70.62280.23315.80
CAN209.77211.97220.87
KPS295.48472.73
MBA198.50210.74250.24
SS-g-PAA(12/CAN)139.04244.64328.84
SS(12)-g-PAA142.25232.38362.80
SS-g-PAA (CAN)97.26174.90451.69
CS-g-PAA (CAN/U/NaOH)118.26254.35315.37
SS-g-PAA (KPS)112.73214.19384.57
CS-g-PAA(KPS/U/NaOH)137.02193.60340.02
Table 3. The specific decomposition temperatures read from DTA plots of the polymers.
Table 3. The specific decomposition temperatures read from DTA plots of the polymers.
Sample CodeDecomposition Temperature [°C]
Step 1Step 2Step 3Step 4Step 5Step 6Step 7
SS 59.00 229.49 361.80 - - - -
CS 60.77 313.85 - - - - -
CAN 200.03 221.88 257.04 - - - -
KPS 237.48 294.32 321.84 532.30 590.91 805.81 -
MBA 187.76 239.26 333.39 348.48 364.47 - -
SS-g-PAA(12/CAN) 121.16 290.76 451.49 - - - -
SS(12)-g-PAA (CAN) 128.26 259.68 288.99 447.94 912.37 - -
SS-g-PAA (CAN) 66.99 273.00 291.65 344.93 452.38 732.10 814.69
CS-g-PAA 88.30 292.54 452.38 - - - -
SS-g-PAA (KPS) 67.88 267.68 293.43 356.43 448.83 787.16 -
CS-g-PAA(KPS/U/NaOH) 193.08 296.09 340.49 432.84 804.92 - -
Table 4. The rate parameters for superabsorbent with different particle sizes.
Table 4. The rate parameters for superabsorbent with different particle sizes.
τ [min] for SS-g-PAA (KPS)τ [min] for SS-g-PAA (CAN)
<60 mesh40–60 mesh>40 mesh<60 mesh40−60 mesh>40 mesh
17.0423.4230.0311.8315.8018.73

Share and Cite

MDPI and ACS Style

Czarnecka, E.; Nowaczyk, J. Semi-Natural Superabsorbents Based on Starch-g-poly(acrylic acid): Modification, Synthesis and Application. Polymers 2020, 12, 1794. https://doi.org/10.3390/polym12081794

AMA Style

Czarnecka E, Nowaczyk J. Semi-Natural Superabsorbents Based on Starch-g-poly(acrylic acid): Modification, Synthesis and Application. Polymers. 2020; 12(8):1794. https://doi.org/10.3390/polym12081794

Chicago/Turabian Style

Czarnecka, Elżbieta, and Jacek Nowaczyk. 2020. "Semi-Natural Superabsorbents Based on Starch-g-poly(acrylic acid): Modification, Synthesis and Application" Polymers 12, no. 8: 1794. https://doi.org/10.3390/polym12081794

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
