Synthesis and Characterization of Eco-Friendly Bio-Composite from Fenugreek as a Natural Resource

by
Nayem Hossain
1,
Mohammad Asaduzzaman Chowdhury
2,*,
Tauhidul Islam Noman
2,
Md. Masud Rana
2,
Md. Hasan Ali
2,
Raja Saad Alruwais
3,
Md. Shafiul Alam
2,
Khalid A. Alamry
4,
Mahmood D. Aljabri
5,* and
Mohammed M. Rahman
4,6,*
1
Department of Mechanical Engineering, IUBAT-International University of Business Agriculture and Technology, Dhaka 1230, Bangladesh
2
Department of Mechanical Engineering, Dhaka University of Engineering and Technology (DUET), Gazipur 1700, Bangladesh
3
Chemistry Department, Faculty of Science and Humanities, Shaqra University, Dawadmi 11912, Saudi Arabia
4
Chemistry Department, King Abdulaziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia
5
Department of Chemistry, University College in Al-Jamoum, Umm Al-Qura University, Makkah 21955, Saudi Arabia
6
Center of Excellent for Advanced Materials Research (CEAMR) & Department of Chemistry, King Abdulaziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Polymers 2022, 14(23), 5141; https://doi.org/10.3390/polym14235141
Submission received: 19 September 2022 / Revised: 2 November 2022 / Accepted: 10 November 2022 / Published: 25 November 2022
(This article belongs to the Special Issue Polymers Synthesis and Characterization)
Browse Figures
Versions Notes

Abstract

:
The present study show the usability of starch (tamarind) based-bio-composite film reinforced by fenugreek by various percentages to replace the traditional petrochemical plastics. The prepared bio-composite films were systematically characterized using the universal testing machine (UTM), soil degradation, scanning electron microscope (SEM), X-ray diffraction (XRD), thermogravimetric analyzer (TGA), and antibacterial tests. The experiments showed that a lower percentage of fenugreek improves biodegradation and mechanical strength. More than 60% of biodegradation occurred in only 30 days. Almost 3 N/mm2 tensile strength and 6.5% tensile strain were obtained. The presence of micropores confirmed by SEM images may accelerate the biodegradation process. Antibacterial activity was observed with two samples of synthesized bio-composite, due to photoactive compounds confirmed by FTIR spectra. The glass transition temperature was shown to be higher than the room temperature, with the help of thermal analysis. The prepared bio-composite containing 5% and 10% fenugreek showed antibacterial activities.

1. Introduction

Our everyday human life has been transformed by plastic playing an important part in many aspects of life. Global plastic production from petrochemical sources is increasing rapidly, owing to its extraordinary mechanical, versatility, and barrier properties [1]. As a raw material, around 4% of the total extracted fossil fuels are consumed for the production of these bio-composites. Increasing future demand suggests that by the year 2050, 20% of total fossil fuel extracted internationally may be consumed to produce plastic [2]. The production of these plastics is creating a big challenge, as very few of them are recycled or reused [3,4]. These plastics can remain in the environment for a long period of time, even 1000 years. Moreover, the harmful effect of this waste on the environment is very high. A significant amount of carbon dioxide and other toxic gases are released from this waste, which is harmful to human health and nature [5]. Because of these effects on human health and the environment, finding an alternative has become inevitable.
Bio-composite can be a suitable alternative to petrochemical plastic. Significant development is being made in bio-composite, to make it usable. The production of these plastics has also significantly increased, although the production of bio-composites is only 0.59% of total plastic production [6,7]. The data suggest that more research is necessary to replace harmful plastics completely in any kind of application. One big drawback of bio-composite is its high price compared to conventional plastic, which makes it uncompetitive in the market and limits its use. One alternative to reduce the cost can be the use of waste or by-products of the agri-food industry, which are produced every day in huge quantities [8]. This low-cost waste and by-products are rich in protein, making them competitive candidates to be used as raw material to synthesize bio-composite [9].
The materials of bio-composite that need to biodegrade quickly should have antibacterial properties to kill harmful viruses and bacteria produced from food, but should not have harmful effects on human health and the environment, in order to be used as biodegradable food packaging. Many researchers have synthesized composite bio-composite to improve physio-chemical properties, but such a type of bio-composite contains harmful additives, such as sulfuric acid or titanium dioxide [10,11,12,13,14]. Thus, it is necessary to focus on the research of synthesizing biodegradable bio-secured plastic that is not harmful to human beings and the environment, is not expensive, has antibacterial properties, is available in nature, and represents properties allowing it to be used as a true alternative to petrochemical plastic.
Starch is an available, biodegradable, and low-cost material used as a renewable polymer in wide number of applications. The production of biodegradable films using starch shows promising results, although shortcomings are still there in mechanical properties, dimensional stability, hydrophilicity, and light permissibility. A nonstructured and plasticized version of starch is known as thermoplastic starch, prepared by adding plasticizers to the mixture of starch. Plasticizers can penetrate starch molecules and form hydrogen bonds, which are necessary to increase the durability of the bio-composite [14]. Thermoplastic starch materials are cost-effective, biodegradable, abundant in nature, and renewable. However, humidity causes recrystallization problems in these materials, which drastically decreases their mechanical properties [15]. The other shortcomings of these materials are their hydrophilic character and lower thermal stability [16,17].
Throughout human history, it has been known that Fenugreek is consumed as a food and used as medicine. Its seeds are used in spices, to increase the taste of food. Numerous medicinal properties such as hypocholesterolemic, gastric stimulant, antidiabetic agent, hepatoprotective effect, lactation aid, anticancer, galactagogue, and antibacterial, are available in the seeds of fenugreek. Some of these effects are attributed to the intrinsic dietary fiber constituent. The texture of food is changed by the dietary fiber, which is almost 25% of the seeds. It is also used as a food stabilizer, emulsifying agent, and adhesive, because of its high fiber, gum, and protein content. The protein is more soluble in an alkaline solution. It helps us with digestion, and it can modify food [18,19]. Fenugreek contains up to 60% starch. Different industrial products such as polysaccharides, kernel powder, gum, starch, and oil are produced (Table 1) from fenugreek [20,21,22].
Tamarind is a commercially valuable plant that grows in different parts of Asia, Africa, and America. It is an evergreen plant belonging to the Fabaceae family and Caesalpinioideae subfamily. Different parts of the tree, including leaves, seed, shell, and fiber are used in pharmaceutical, food, electrochemical, biofuel, composite, water, and textile industries [23]. Around 55% pulp, 34% seed, and 11% shell and fiber are available in a typical tamarind pod. Tartaric acid, reducing sugar, and minerals including calcium, phosphorus, and potassium are available in the pulp of tamarind seeds [24]. The pulp has antimicrobial properties and can be used as a preservative. Tamarind seeds contain Zn, Fe, Mg, P, Na, K and Ca as minerals [25]. Tamarind seeds contain polysaccharides that are naturally biodegradable and biocompatible. A typical tamarind fruit fiber contains cellulose, hemicelluloses, lignin, wax, and moisture. The tamarind shell which covers the pulp contains carbohydrates, free tartaric acid, and protein [26]. The leaves of tamarind are composed of lipids, vitamins, fatty acids, and flavonoids [27]. Table 2 shows the percentages of chemical compounds present in the tamarind seed [28].
In the current situation of increased pollution worldwide because of synthetic petrochemical plastic, biodegradable composite can be a good source that will help to minimize environmental pollution. Both tamarind and fenugreek are abundant in the local area, and can be grown in vast quantities because of the good quality of the soil. Therefore, it can be said that both tamarind and fenugreek can be used as raw materials to manufacture bio-composite as an alternative source.
The current research work shows the synthesis and characterization of biodegradability properties of bio-composites synthesized from naturally available and cheap sources, which can be used as an alternative to synthetic plastic. The purpose of this work is to show the usability of naturally cheap sources of a biodegradable composite material that can kill bacteria, so that the material can be used for food-packaging applications. The bio-composite in this research work was synthesized from naturally available fenugreek seeds. The synthesized bio-composites were characterized by biodegradable, mechanical, FTIR, SEM, XRD, thermal and antimicrobial tests.

2. Materials and Methodology

2.1. Materials

The bio-composites were synthesized by tamarind, fenugreek, distilled water, vinegar, and glycerin. After collecting the tamarind seeds from the local market of the Gazipur district, Bangladesh, they were washed properly with deionized water, boiled for 30 min, and blended to make the extract of starch. Fenugreek was also collected from the local market of the Gazipur district of Bangladesh. The collected fenugreek was also washed properly with deionized water, boiled for 30 min, and blended, and thus starch was obtained. The environmental lab of IUBAT within the department of civil engineering supplied the necessary distilled water for the experiments. Glycerin and white vinegar were also collected from the local market of the Gazipur District of Bangladesh.

2.2. Production of Bio-Composite

Table 3 shows the synthesized bio-composites at different percentages of fenugreek. Initially, with the help of a precise electronic scale, all the ingredients were carefully and precisely weighted. After measuring, the mixing of the ingredients was performed using a magnetic stirrer shown in Figure 1, followed by blending. Clumping was avoided by stirring for seven minutes. Heat was applied to the process at 100 °C temperature. A thick and translucent mixture was obtained after some time. Aluminum foil was used for pouring the mixture, and bubbles were removed if found. The desired bio-composites were obtained after six hours of natural cooling. The thickness of the obtained bio-composite was 1 mm, and it was opaque and chocolate-colored. The obtained bio-composite samples were then taken for characterization. All the samples were made in a dry environment.

2.3. Characterization

2.3.1. Biodegradation Test

The synthesized bio-composites were subjected to different characterization processes. For the biodegradability test, each sample was cut to a size of 50 mm × 20 mm × 1 mm. The average weight of each sample was 10 gm. The samples were buried at 2 cm depth. The pH value of the soil was 6. Weight loss was measured by burying the bio-composite samples in soil for 7, 15, and 30 days, in aerobic conditions. Before burying the bio-composite samples under the soil, the weight of each sample was measured carefully, using a precise electronic balance. After the test, each sample was removed from the soil, cleaned with water, dried, and the weight was taken again (Table 3). The biodegradability was measured using the following formula:
Biodegradability   ( % ) = W 1 − W 2 W 1 × 100
Here, W1 = the weight of the bio-composite sample before the biodegradable test.
W2 = the weight of the bio-composite sample after the biodegradable test [29,30,31,32,33,34].

2.3.2. Mechanical Test

After production, the bio-composite samples were taken for mechanical testing. A universal testing machine controlled by a computer called CMT-10 was employed to evaluate the tensile properties of the bio-composite samples. All the tests were conducted maintaining the ASTM D638-77 standard method. The samples were cut with a dimension of 100 mm × 30 mm, in a dry environment. Then the samples were hung on a ring, using a thread at the bottom part of the samples with an attached hook, to place the loads. Maintaining a 2 mm/min strain rate, the force–distance data was measured at room temperature, and the loads were applied until the samples failed. The total length of the failure samples was measured carefully, and recorded. The total applied loads were recorded as well. Elongation and tensile strength were measured with the help of a stress–strain curve. For the same condition, 5 experiments were done for each sample, and the average value was considered.

2.3.3. Scanning Electron Microscopy Test

The surface microstructure of the synthesized bio-composites was analyzed by a Hitachi brand scanning electron microscope, model number S-4800. For analyzing the surface of these bio-composite samples, the bio-composites were submerged in liquid nitrogen and cut into 0.5 cm2-sized samples. Then, cryo-fracturing was performed. The cryo-fractured samples were fixed onto the support using adhesive tape and mounted on aluminum stubs. Coating of the bio-composite samples was performed with gold-palladium, to observe the microstructure.

2.3.4. X-ray Diffraction Test

The X-ray diffraction analysis of the synthesized bio-composites was performed using a Rigaku, Tokyo, Japanese-made X-ray diffractometer, where scattering speed was 0.02(θ) s−1 ranging 5 to 60° (2θ) angles maintaining 40 kV voltage and 35 mA current, to determine the crystallographic structure.

2.3.5. Thermal Analysis

An SDT 650 TA-Instrument was employed to analyze the TGA of the synthesized bio-composites at a heating rate of 5 °C and weighing 10–25 mg, from room temperature to 500 °C temperature. TGA was performed in a nitrogen environment, with the lid kept hermetically sealed.

2.3.6. Antimicrobial Test

The evaluation of the antimicrobial properties of the developed bio-composite samples was performed using the ASTM-E2149-01 standard. Here, the evaluation of microbial growth and the resistivity of the non-leaching antimicrobial-treated specimens was performed under dynamic conditions. The microbiology department of Dhaka University supplied the necessary microbial for the experiments. The Kirby–Bauer disk-diffusion method was used to examine the antimicrobial performance of the synthesized bio-composites. Staphylococcus aureus was the bacteria cell subjected to the microbial test. The bacterial cell and sample concentrations were 1000 CFU/mL and 200 mg/mL, respectively, and the disc size was 6 mm × 6 mm.

3. Results and Discussion

3.1. Biodegradation

The biodegradation process of the synthesized bio-composites is represented by Figure 2a–d, Figure 3a–d, Figure 4a–d, Figure 5a–d and Figure 6. The weight loss of the bio-composite films was estimated after 7, 15, and 30 days. Linear biodegradation was observed in the bio-composite samples, which indicated obedience to pseudo-zero-order kinetics in reaction rates and constant, as well as independent rates of biodegradation [35]. From the figures, it can also be seen that the bio-composite films had a slower degradation initially. However, after 30 days the degradation was enhanced. The results also suggest that the addition of fenugreek slowed the degradation process of the starch-based bio-composite films. A sample with a lower percentage of fenugreek was obtained with maximum degradation among all synthesized bio-composite films. Ecologically-friendly and biodegradable properties were proved by the outcomes demonstrated.

3.2. Tensile Strength

Figure 7a–c shows the tensile behavior of the developed bio-composites. Table 4 shows the comparison of tensile strength, tensile strain, and the Young’s modulus of the prepared samples. An increase in the percentage of fenugreek decreased both the tensile strength and the tensile strain of the bio-composites, up to a certain level. Maximum stress development was reflected in the tensile strength of the film during the tensile testing [36]. The higher concentration of fenugreek decreased tensile strength and increased flexibility [37]. The presence of 15% of fenugreek exhibited the lowest tensile strength of 1.357 N/mm2, due to the increased water presence in the matrix of the film, provided by the hygroscopic nature of fenugreek. The disarrangement of the polymer network was caused by the fenugreek present in the film, which worked to decrease the tensile strength and increase the film’s flexibility [38]. Lower concentration percentages of fenugreek were distributed properly in the matrix, resulting in higher mechanical strength. However, minimum tensile strain was obtained after the addition of 10% of fenugreek. Tensile strain slightly increased after that percentage.

3.3. Scanning Electron Microscopy

The microstructure of the developed bio-composites is seen in Figure 8a–d, Figure 9a–d and Figure 10a–d. Defects such as voids, cracks, and micropores are seen in SEM images, and result in more porous and irregular surfaces. The samples containing a higher percentage of fenugreek show more micropores, due to the cohesion between the tamarind starch and fenugreek. Voids and micropores may affect the modulus of elasticity and tensile strength of the bio-composite samples [39,40]. The biodegradation process of the bio-composite samples may be accelerated in the soil, due to the interaction between micropores and microorganisms [41]. Impurities are seen with globular-like fibers on the surface in higher magnification images, because potency is provided to the biomass by the non-cellulosic contained in the natural biomass [42].

3.4. X-ray Diffraction Analysis

Figure 11a–c shows the X-ray diffraction patterns of the bio-composite samples with different percentages of fenugreek, where intensity is shown vertically and the 2θ region is shown horizontally. The bio-composite sample with 5% fenugreek shows only two distinct peaks. Small peaks in the region of 2θ are represented in the bio-composite by the XRD pattern. Sharp peaks confirm the crystalline nature of the cellulose [43]. The peak at 2θ = 20° is attributed to the parallel-chain-segment aggregate region, which confirms the bio-composite semi-crystalline nature [44]. The region of 2θ = 28° also relates to the occurred disturbance in the cellulose at the time of the acetylation process, which can cause breakage in the micro-fibrillar structure of the cellulose [45,46]. However, the bio-composite samples with 10% and 15% fenugreek show no peaks, confirming the amorphous structure of the synthesized bio-composite samples.

3.5. Thermal Analysis

Figure 12a–c shows the TGA analysis of the bio-composite samples. Similar trends are observed in all the samples with variable temperatures. However, the graphs indicate that weight loss is reduced, due to the higher fenugreek percentage at elevated temperatures. Initially, 5% of weight loss is observed, because of moisture evaporation as the temperature changes from 25 to 100 °C [47,48]. Moreover, cellulose decomposes rapidly at around 350 °C because of the removal of hemicelluloses. Only about 30% weight is left for the pyrolysis of the cellulose skeleton at 350 °C [49].

3.6. Antibacterial Activity

The antibacterial analysis of the bio-composite samples against Staphylococcus aureus is seen in Figure 13a–c. The samples showed some form of antibacterial activity against Staphylococcus aureus, due to the presence of active phytocompounds shown in FTIR analysis. The antibacterial performance was obtained due to the presence of fenugreek. Reducing and/or capping agents containing phytochemicals may be present in the samples, which kill the virus. Moreover, inherent antibacterial activities may also be present in those botanic compounds. In addition, different types of metabolites such as alkaloids, terpenoids, tannins, flavonoids, and glycosides are available in fenugreek. These metabolites have antibacterial properties which make fenugreek active against bacterial strains [50].

4. Conclusions

Starch-based bio-composite films with varying percentages of fenugreek were successfully developed, using vinegar and glycerin. The properties of the bio-composite films were significantly affected by the concentration percentages of fenugreek. It was observed from the biodegradability test that a maximum of 62.5% of the bio-composite film was biodegraded in only 30 days. Lower percentages of fenugreek distributed properly in the film resulted in higher mechanical strength. Higher percentages of fenugreek led to the formation of an amorphous structure of bio-composite films, confirmed with XRD analysis. Thermal stability was assured for the synthesized bio-composites by thermal analysis. Some samples showed antimicrobial activity against Staphylococcus aureus bacteria, which confirmed the usability of the synthesized bio-composites in packaging applications.

Author Contributions

Conceptualization, N.H. and M.A.C.; methodology, T.I.N.; software, M.M.R. (Md. Masud Rana); validation, M.H.A., M.S.A. and N.H.; formal analysis, M.A.C., K.A.A. and M.M.R. (Md. Masud Rana); investigation, M.A.C., K.A.A., M.D.A. and M.M.R. (Md. Masud Rana); resources, M.A.C., K.A.A., R.S.A., M.D.A. and M.M.R. (Mohammed M. Rahman); data curation, K.A.A., M.A.C., R.S.A., M.D.A. and M.M.R. (Mohammed M. Rahman); writing—original draft preparation, N.H.; writing—review and editing, K.A.A., M.A.C., M.D.A. and M.M.R. (Mohammed M. Rahman); visualization, K.A.A., M.A.C., M.D.A. and M.M.R. (Mohammed M. Rahman); supervision, M.A.C.; project administration, M.A.C., K.A.A., M.D.A. and M.M.R. (Mohammed M. Rahman); funding acquisition, K.A.A., R.S.A., M.D.A. and M.M.R. (Mohammed M. Rahman). All authors have read and agreed to the published version of the manuscript.

Funding

Deanship of Scientific Research at Umm Al-Qura University for supporting this work with Grant Code: 22UQU4290372DSR06.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be available upon reasonable request.

Acknowledgments

The authors would like to thank the Deanship of Scientific Research at Umm Al-Qura University for supporting this work with Grant Code: (22UQU4290372DSR06).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sanyang, M.; Sapuan, S.; Jawaid, M.; Ishak, M.; Sahari, J. Effect of plasticizertype and concentration on tensile, thermal and barrier properties of biodegradable films based on sugar palm (Arengapinnata) starch. Polymers 2015, 7, 1106–1124. [Google Scholar] [CrossRef]
  2. Lebreton, L.; Andrady, A. Future scenarios of global plastic waste generation and disposal. Palgrave Commun. 2019, 5, 6. [Google Scholar] [CrossRef] [Green Version]
  3. Blank, L.M.; Narancic, T.; Mampel, J.; Tiso, T.; O’Connor, K. Biotechnological upcycling of plastic waste and other non-conventional feedstocks in a circulareconomy. Curr. Opin. Biotechnol. 2020, 62, 212–219. [Google Scholar] [CrossRef]
  4. Jogi, K.; Bhat, R. Valorization of food processing wastes and by-products for bioplastic production. Sustain. Chem. Pharm. 2020, 18, 100326. [Google Scholar] [CrossRef]
  5. Méité, N.; Konan, L.K.; Tognonvi, M.T.; Doubi, B.I.H.G.; Gomina, M.; Oyetola, S. Properties of hydric and biodegradability of cassava starch-based bio-composites reinforced with thermally modified kaolin. Carbohydr. Polym. 2021, 254, 117322. [Google Scholar] [CrossRef]
  6. European Bioplastic. 2020. Bioplastic Market Data 2019 [WWW Document]. Available online: https://docs.european-bioplastic.org/publications/market_data/Report_Bio-composites_Market_Data_2019.pdf (accessed on 21 September 2020).
  7. Plastics Europe. 2020. Plastics: The Facts 2019 [WWW Document]. Available online: https://www.plasticseurope.org/application/fles/9715/7129/9584/FINAL_web_version_Plastics_the_facts2019_14102019.pdf (accessed on 10 June 2020).
  8. Morone, P.; Koutinas, A.; Gathergood, N.; Arshadi, M.; Matharu, A. Food waste: Challenges and opportunities for enhancing the emerging bio-economy. J. Clean. Prod. 2019, 221, 10–16. [Google Scholar] [CrossRef]
  9. Jiménez-Rosado, M.; Rubio-Valle, J.F.; Perez-Puyana, V.; Guerrero, A.; Romero, A. Use of heat treatment for the development of protein-based bioplastic. Sustain. Chem. Pharm. 2020, 18, 100341. [Google Scholar] [CrossRef]
  10. Amin, M.R.; Chowdhury, M.A.; Kowser, M.A. Characterization and performance analysis of composite bioplastic synthesized using titanium dioxide nanoparticles with corn starch. Heliyon 2019, 5, e02009. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Xie, F.; Pollet, E.; Halley, P.J.; Avérous, L. Starch-based nano-bioplastic. Prog. Polym. Sci. 2013, 38, 1590–1628. [Google Scholar] [CrossRef] [Green Version]
  12. Roy, K.; Thory, R.; Sinhmar, A.; Pathera, A.K.; Nain, V. Development and characterization of nano starch-based composite flms from mung bean (Vignaradiata). Int. J. Biol. Macromol. 2020, 144, 242–251. [Google Scholar] [CrossRef]
  13. Zoungranan, Y.; Lynda, E.; Dobi-Brice, K.K.; Tchirioua, E.; Bakary, C.; Yannick, D.D. Influence of natural factors on the biodegradation of simple and composite bioplastic based on cassava starch and corn starch. J. Environ. Chem. Eng. 2020, 8, 104396. [Google Scholar] [CrossRef]
  14. Peidayesh, H.; Ahmadi, Z.; Khonakdar, H.A.; Abdouss, M.; Chodák, I. Fabrication and properties of thermoplastic starch/Montmorillonite composite using dialdehyde starch as a crosslinker. Polym. Int. 2020, 69, 317–327. [Google Scholar] [CrossRef]
  15. Peidayesh, H.; Heydari, A.; Mosnáčková, K.; Chodak, I. In situ dual crosslinking strategy to improve the physico-chemical properties of thermoplastic starch. Carbohydr. Polym. 2021, 269, 118250. [Google Scholar] [CrossRef] [PubMed]
  16. Peidayesh, H.; Mosnáčková, K.; Špitalský, Z.; Heydari, A.; Šišková, A.O.; Chodák, I. Thermoplastic Starch–Based Composite Reinforced by Conductive Filler Networks: Physical Properties and Electrical Conductivity Changes during Cyclic Deformation. Polymers 2021, 13, 3819. [Google Scholar] [CrossRef] [PubMed]
  17. Paluch, M.; Ostrowska, J.; Tyński, P.; Adurski, W.; Konkol, M. Structural and Thermal Properties of Starch Plasticized with Glycerol/Urea Mixture. J. Polym. Environ. 2022, 30, 728–740. [Google Scholar] [CrossRef]
  18. Meghwal, M.; Goswami, T.K. A review on the functional properties, nutritional content, medicinal utilization and potential application of fenugreek. J. Food Process. Technol. 2012, 3, 9. [Google Scholar] [CrossRef] [Green Version]
  19. Wani, S.A.; Kumar, P. Fenugreek: A review on its nutraceutical properties and utilization in various food products. J. Saudi Soc. Agric. Sci. 2018, 17, 97–106. [Google Scholar] [CrossRef] [Green Version]
  20. Nagar, C.K.; Dash, S.K.; Rayaguru, K. Tamarind seed: Composition, applications, and value addition: A comprehensive review. J. Food Process. Preserv. 2022, 46, e16872. [Google Scholar] [CrossRef]
  21. Doharey, V.; Sharma, N. The permutation role of fenugreek seeds starch and Gunda glue as a binder in Paracetamol tablets. J. Pharm. Sci. Res. 2010, 2, 64–68. [Google Scholar]
  22. Pasha, I.; AsimShabbir, M.; Haider, M.A.; Afzal, B. Muhammad Farhan Jahangir Chughtai, Shabbir Ahmad and Muhammad SajidManzoor, Biochemical Evaluation of Trigonellafoenumgraecum (Fenugreek) with Special Reference to Phenolic Acids. Pak. J. Sci. Ind. Res. Ser. B Biol. Sci. 2017, 60, 154–161. [Google Scholar]
  23. Ghaffaripour, S.; van den Bilcke, N.; Samson, R. The importance of seed reserve on performance and breeding of tamarind seedlings. Sci. Hortic. 2017, 222, 145–152. [Google Scholar] [CrossRef]
  24. Okello, J.; John, B.; Okullo, L.; Eilu, G.; Nyeko, P.; Joseph, O. Physicochemical composition of Tamarindusindica L. (Tamarind) in the agro-ecological zones of Uganda. Food Sci. Nutr. 2018, 6, 1179–1189. [Google Scholar] [CrossRef] [PubMed]
  25. Okello, J.; John, B.; Okullo, L.; Eilu, G.; Nyeko, P.; Joseph, O. Mineral composition of Tamarindusindica LINN (tamarind) pulp and seeds from different agro-ecological zones of Uganda. Food Sci. Nutr. 2017, 5, 959–966. [Google Scholar] [CrossRef] [PubMed]
  26. Radhakrishnan, P.G.; Varghese, S.P.; Das, B.C. Application of ethylene diamine hydroxypropyl tamarind fruit shell as adsorbent to remove Eriochrome black T from aqueous solutions—Kinetic and equilibrium studies. Separ. Sci. Technol. 2018, 53, 417–438. [Google Scholar] [CrossRef]
  27. Mansingh, B.B.; Binoj, J.S.; PremSai, N.; Hassan, S.A.; Siengchin, S.; Sanjay, M.R.; Liu, Y.C. Sustainable development in utilization of Tamarindusindica L. and its by-products in industries: A review. Curr. Res. Green Sustain. Chem. 2021, 4, 100207. [Google Scholar] [CrossRef]
  28. Kumar, C.S.; Bhattacharya, S. Tamarind Seed: Properties, Processing and Utilization. Crit. Rev. Food Sci. Nutr. 2008, 48, 1–20. [Google Scholar] [CrossRef]
  29. Chowdhury, M.A.; Badrudduza, M.D.; Hossain, N.; Rana, M.M. Development and characterization of natural sourced bioplastic synthesized from tamarind seeds, berry seeds and licorice root. Appl. Surf. Sci. Adv. 2022, 11, 100313. [Google Scholar] [CrossRef]
  30. Shanmathy, M.; Mohanta, M.; Thirugnanam, A. Development of biodegradable bio-composite films from Taro starch reinforced with bentonite. Carbohydr. Polym. Technol. Appl. 2021, 2, 100173. [Google Scholar]
  31. Marichelvam, M.K.; Manimaran, P.; Sanjay, M.R.; Siengchin, S.; Geetha, M.; Kandakodeeswaran, K.; Boonyasopon, P.; Gorbatyuk, S. Extraction and development of starch-based bio-composites from Prosopis Juliflora Plant: Eco-friendly and sustainability aspects. Curr. Res. Green Sustain. Chem. 2022, 5, 100296. [Google Scholar] [CrossRef]
  32. Behera, L.; Mohanta, M.; Thirugnanam, A. Intensification of yam-starch based biodegradable bioplastic film with bentonite for food packaging application. Environ. Technol. Innov. 2022, 25, 102180. [Google Scholar] [CrossRef]
  33. Baidurah, S.; Takada, S.; Shimizu, K.; Ishida, Y.; Yamane, T.; Ohtani, H. Evaluation of biodegradation behavior of poly(butylene succinate-co-butylene adipate) with lowered crystallinity by thermally assisted hydrolysis and methylation-gas chromatography. J. Anal. Appl. Pyrolysis 2013, 103, 73–77. [Google Scholar] [CrossRef]
  34. Cucina, M.; Carlet, L.; De Nisi, P.; Somensi, C.A.; Giordano, A.; Adani, F. Degradation of bio-composites in organic waste by mesophilic anaerobic digestion, composting and soil incubation. Waste Manag. 2021, 134, 67–77. [Google Scholar] [CrossRef] [PubMed]
  35. Sachdeva, A.; Vashist, S.; Chopra, R.; Puri, D. Antimicrobial activity of active packaging film to prevent bread spoilage. Int. J. Food Sci. Nutr. 2017, 2, 29–37. [Google Scholar]
  36. Goncalves, S.M.; dos Santos, D.C.; Motta, J.F.G.; dos Santos, R.R.; Chavez, D.W.H.; de Melo, N.R. Structure and functional properties of cellulose acetate films incorporated with glycerol. Carbohydr. Polym. 2019, 209, 190–197. [Google Scholar] [CrossRef] [PubMed]
  37. Nigam, S.; Das, A.K.; Patidar, M.K. Synthesis, characterization and biodegradation of bio-composite films produced from Parthenium hysterophorus by incorporating a plasticizer (PEG600). Environ. Chall. 2021, 5, 100280. [Google Scholar] [CrossRef]
  38. Gaaz, T.S.; Sulong, A.B.; Akhtar, M.N.; Kadhum, A.A.; Mohamad, A.B.; Al-Amiery, A.A. Properties and applications of polyvinyl alcohol. Halloysite Nanotub. Nanocomposite Mol. 2015, 20, 22833–22847. [Google Scholar] [CrossRef] [Green Version]
  39. Jayakumar, S.; Bhuyar, P.; Pugazhendhi, A.; Rahim, M.H.; Maniam, G.P.; Govindan, N. Effects of lightintensity and nutrients on the lipid contentof marine microalga (diatom) Amphiprora sp. for promising biodiesel production. Sci. Total Environ. 2021, 768, 145471. [Google Scholar] [CrossRef]
  40. Rohmawati, B.; AtikahNataSya’idah, F.; Rhismayanti, R.; Alighiri, D.; Tirza Eden, W. Synthesis of bio-composite-based renewable cellulose acetate from teak wood (Tectonagrandis) biowaste using glycerol-chitosan plasticizer. Orient. J. Chem. 2018, 34, 1810–1816. [Google Scholar] [CrossRef] [Green Version]
  41. Kaith, B.S.; Mittal, H.; Jindal, R.; Maiti, M.; Kalia, S. Environment benevolent biodegradable polymers: Synthesis, biodegradability, and applications. In Cellulose Fibers: Bio- and Nano-Polymer Composites; Springer: Berlin/Heidelberg, Germany, 2011; pp. 425–451. [Google Scholar]
  42. Montgomery, D.C. Design and Analysis of Experiments, 5th ed.; Wiley: New York, NY, USA, 2001; p. 697. [Google Scholar]
  43. Hassan, M.; Berglund, L.; Abou-Zeid, R.; Hassan, E.; Abou-Elseoud, W.; Oksman, K. Nanocomposite film based on cellulose acetate and lignin-rich rice straw nanofibers. Materials 2019, 12, 595. [Google Scholar] [CrossRef] [Green Version]
  44. Chen, J.; Xu, J.; Wang, K.; Cao, X.; Sun, R. Cellulose acetate fibers prepared from different raw materials with rapid synthesis method. Carbohydr. Polym. 2016, 137, 685–692. [Google Scholar] [CrossRef]
  45. Chowdhury, M.A.; Hossain, N.; Noman, T.I.; Hasan, A.; Shafiul, A.; Abul, K.M. Biodegradable, physical and microbial analysis of tamarind seed starch infused eco-friendly bioplastic by different percentage of Arjuna powder. Results Eng. 2022, 13, 100387. [Google Scholar] [CrossRef]
  46. Huang, F.Y. Thermal properties and thermal degradation of cellulose tri-stearate (CTs). Polymers 2012, 4, 1012–1024. [Google Scholar] [CrossRef] [Green Version]
  47. Fortunati, E.; Pugliaa, D.; Luzia, F.; Santulli, C.; Kenny, J.M.; Torrea, L. Binary PVA bionanocomposites containing cellulose nanocrystals extracted from different natural sources. Carbohydr. Polym. 2013, 97, 825–836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Melikoglu, A.Y.; Bilek, S.E.; Cesur, S. Optimum alkaline treatment parameters forthe extraction of cellulose and production of cellulose nanocrystals from apple pomace. Carbohydr. Polym. 2019, 215, 330–337. [Google Scholar] [CrossRef] [PubMed]
  49. Nigam, S.; Das, A.K.; Patidar, M.K. Valorization of Partheniumhy sterophorus weed for cellulose extraction andits application for bioplastic preparation. J. Environ. Chem. Eng. 2021, 9, 105424. [Google Scholar] [CrossRef]
  50. Al-Timimi, L.A.N. Antibacterial and Anticancer Activities of Fenugreek Seed Extract. Asian Pac. J. Cancer Prev. 2019, 20, 3771–3776. [Google Scholar] [CrossRef]
Polymers 14 05141 g001 550

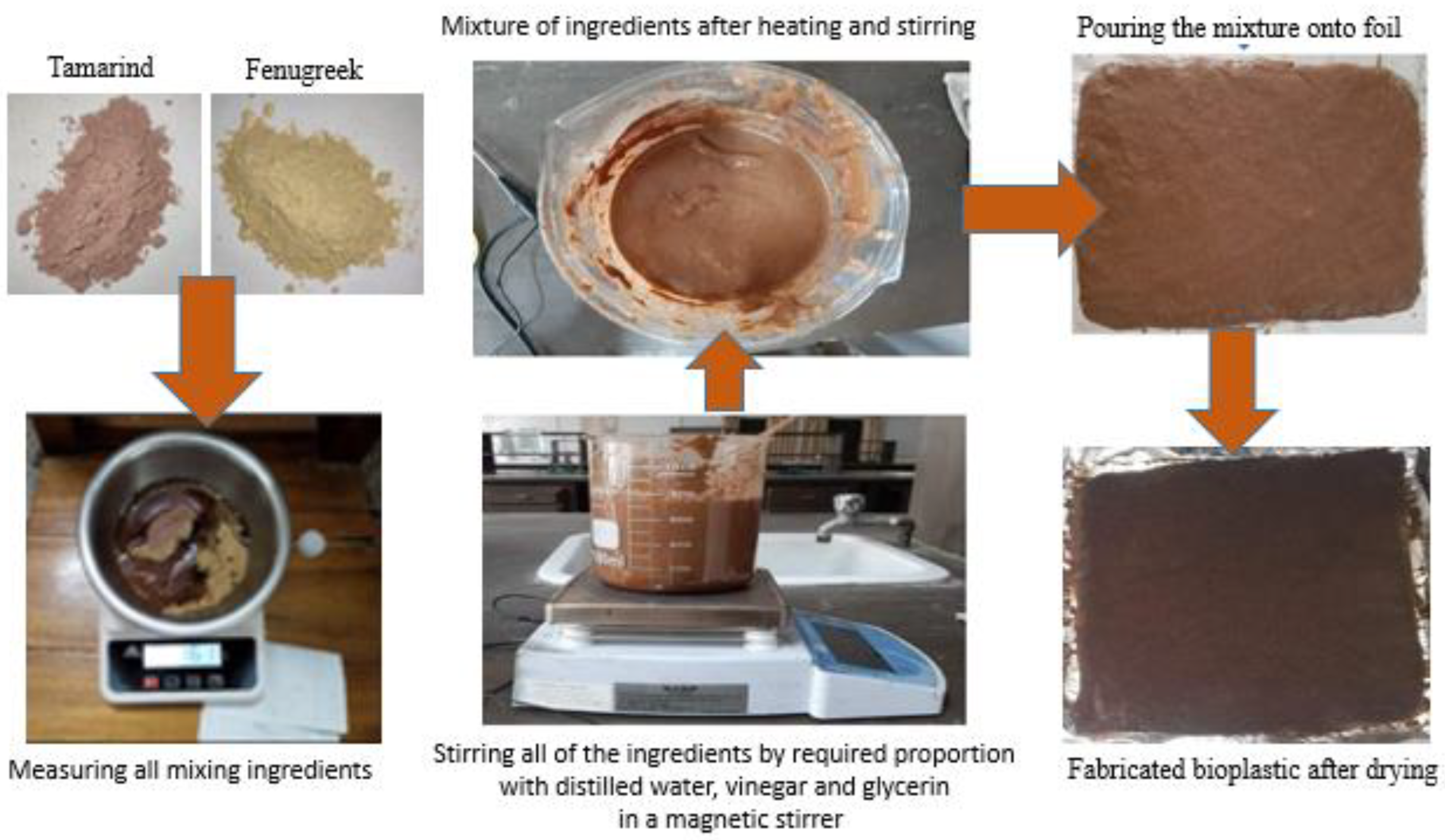

Figure 1. Bio-composite preparation from the natural sources.
Figure 1. Bio-composite preparation from the natural sources.
Polymers 14 05141 g001
Polymers 14 05141 g002 550

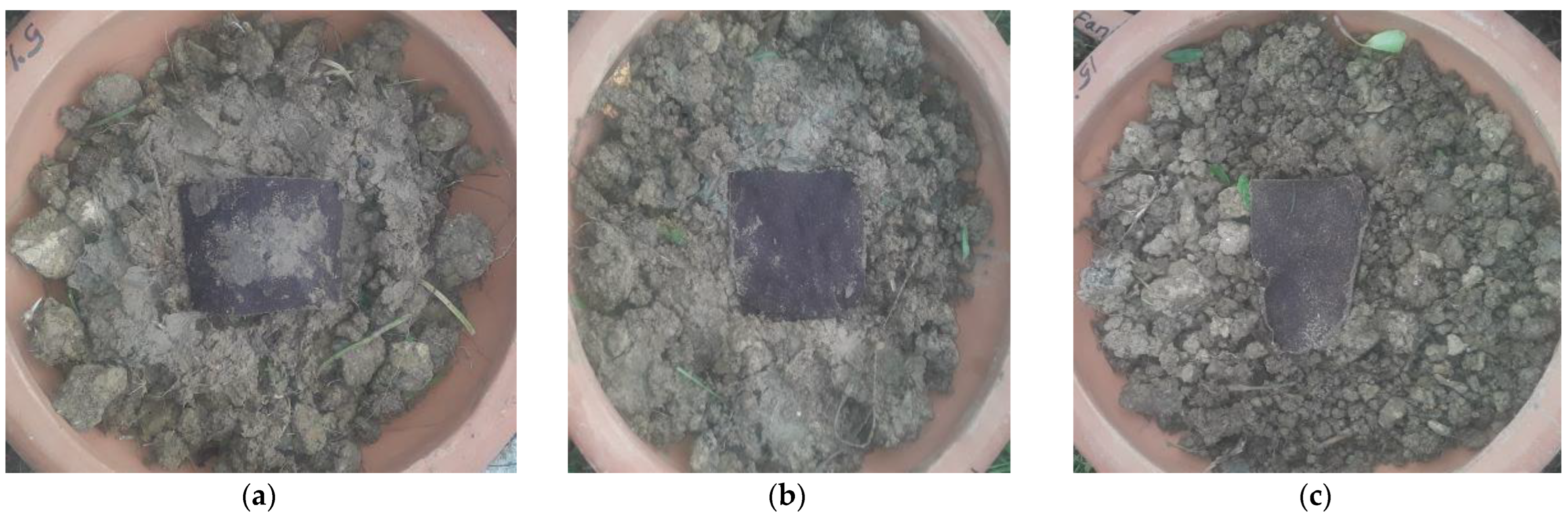

Figure 2. Prepared samples for soil biodegradation test (a) 5% fenugreek, (b) 10% fenugreek, and (c) 15% fenugreek.
Figure 2. Prepared samples for soil biodegradation test (a) 5% fenugreek, (b) 10% fenugreek, and (c) 15% fenugreek.
Polymers 14 05141 g002
Polymers 14 05141 g003 550

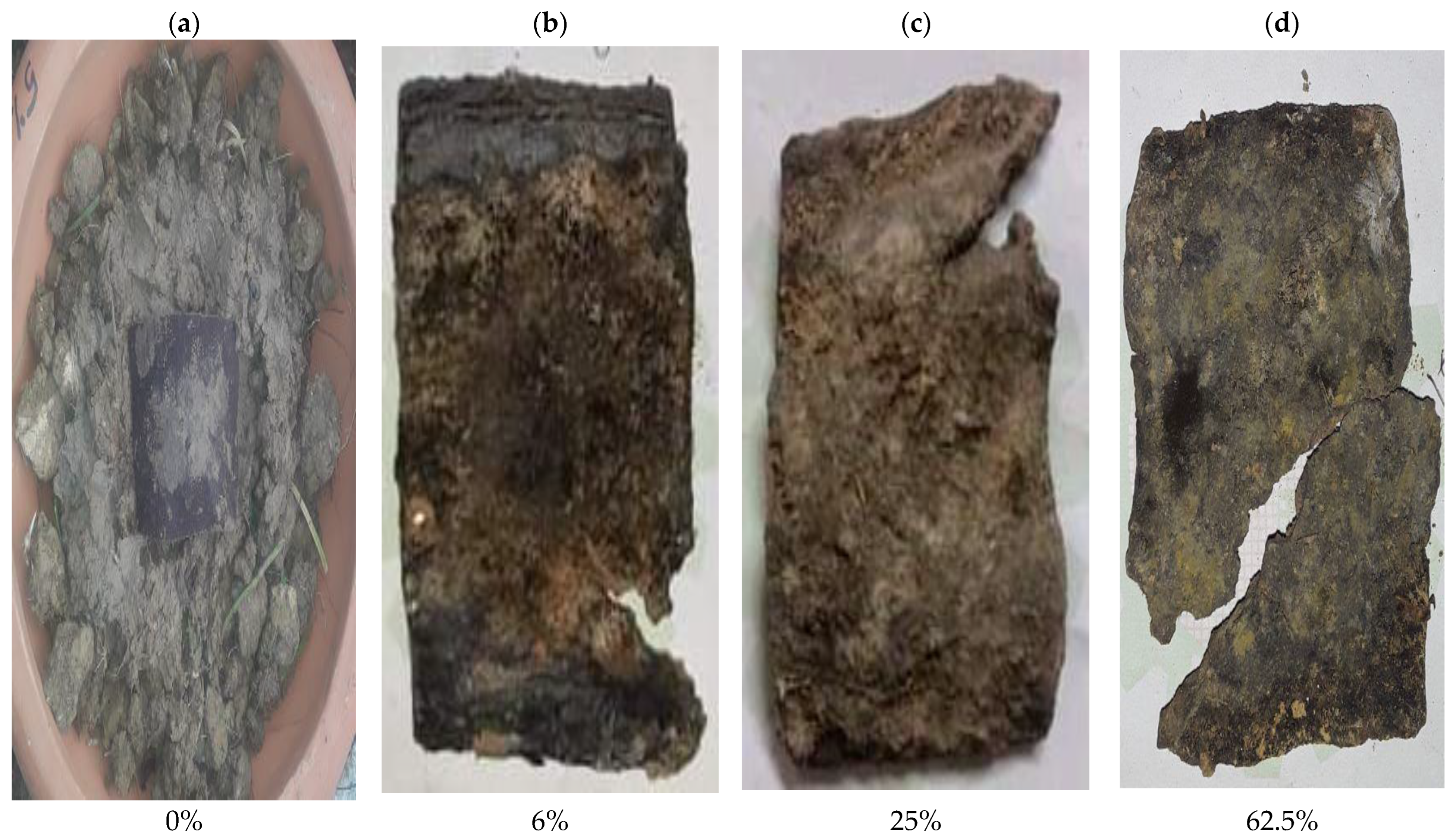

Figure 3. 5% fenugreek containing bio-composite degradation sample on (a) Day 1, (b) Day 7, (c) Day 15, and (d) Day 30.
Figure 3. 5% fenugreek containing bio-composite degradation sample on (a) Day 1, (b) Day 7, (c) Day 15, and (d) Day 30.
Polymers 14 05141 g003
Polymers 14 05141 g004 550

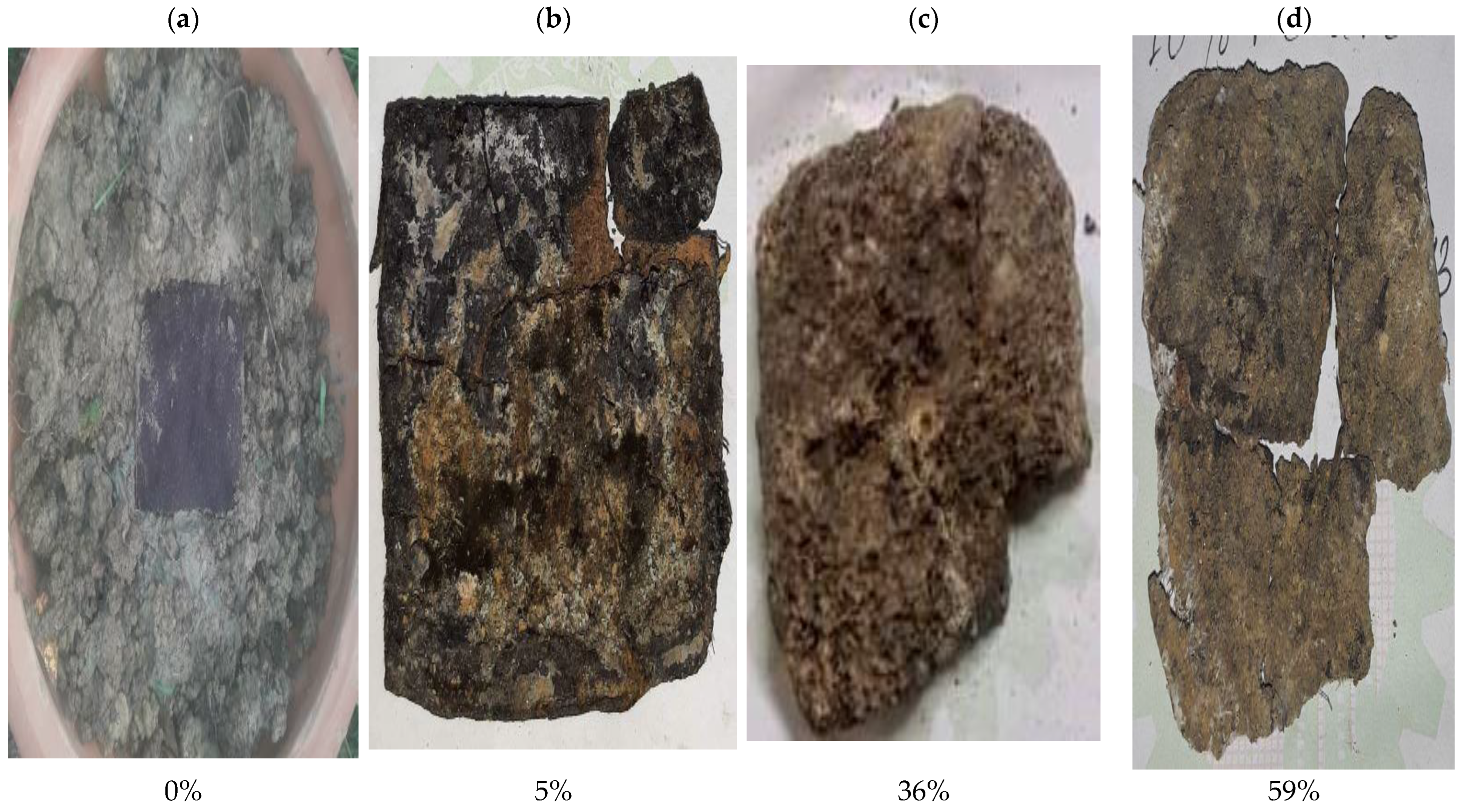

Figure 4. 10% fenugreek containing bio-composite degradation sample on (a) Day 1, (b) Day 7, (c) Day 15, and (d) Day 30.
Figure 4. 10% fenugreek containing bio-composite degradation sample on (a) Day 1, (b) Day 7, (c) Day 15, and (d) Day 30.
Polymers 14 05141 g004
Polymers 14 05141 g005 550

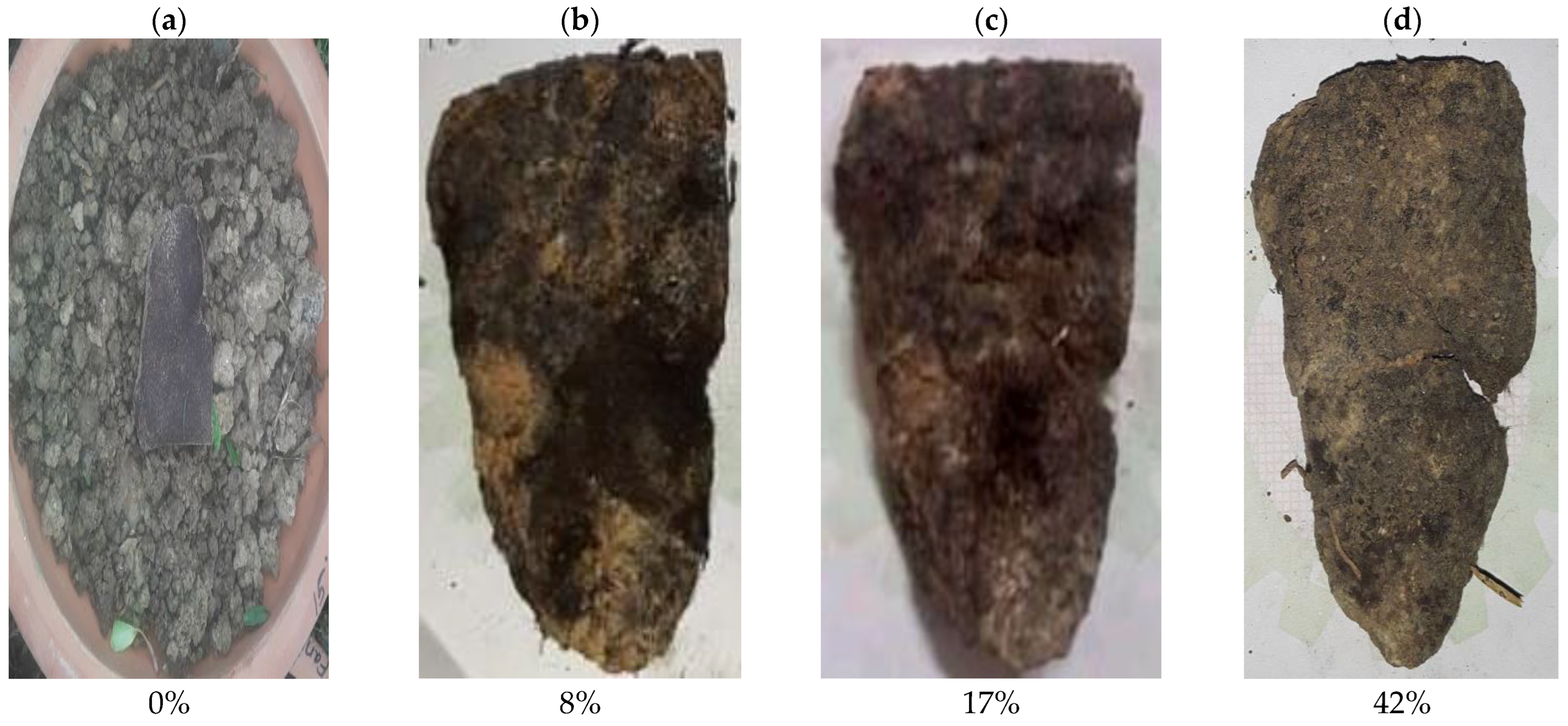

Figure 5. 15% fenugreek containing bio-composite degradation sample on (a) Day 1, (b) Day 7, (c) Day 15, and (d) Day 30.
Figure 5. 15% fenugreek containing bio-composite degradation sample on (a) Day 1, (b) Day 7, (c) Day 15, and (d) Day 30.
Polymers 14 05141 g005
Polymers 14 05141 g006 550

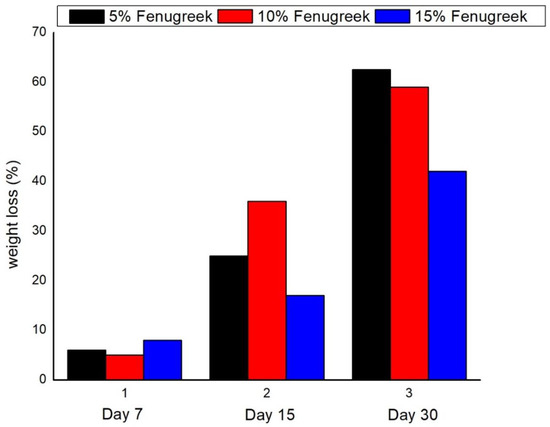

Figure 6. Biodegradibility comparison of the synthesized bio-composites at different percentages of fenugreek.
Figure 6. Biodegradibility comparison of the synthesized bio-composites at different percentages of fenugreek.
Polymers 14 05141 g006
Polymers 14 05141 g007 550

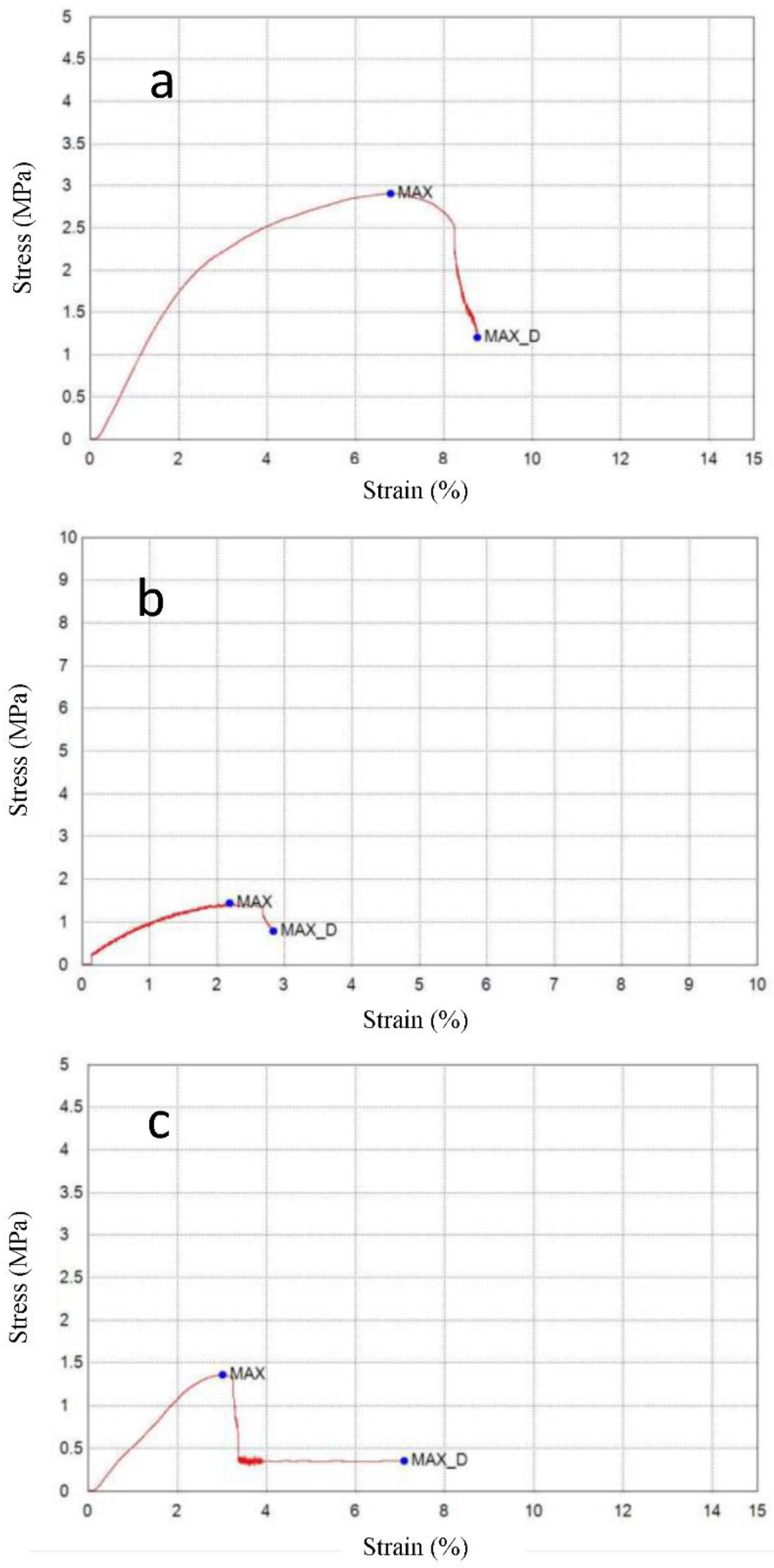

Figure 7. Tensile behavior of the bio-composite samples at various ratios of fenugreek (a) 5%, (b) 10%, and (c) 15%.
Figure 7. Tensile behavior of the bio-composite samples at various ratios of fenugreek (a) 5%, (b) 10%, and (c) 15%.
Polymers 14 05141 g007
Polymers 14 05141 g008 550
Figure 8. SEM images of 5% fenugreek bio-composite at (a) 500 µm (b) 200 µm (c) 100 µm (d) 50 µm.
Figure 8. SEM images of 5% fenugreek bio-composite at (a) 500 µm (b) 200 µm (c) 100 µm (d) 50 µm.
Polymers 14 05141 g008
Polymers 14 05141 g009 550
Figure 9. SEM images of 10% fenugreek bio-composite at (a) 500 µm (b) 200 µm (c) 100 µm (d) 50 µm.
Figure 9. SEM images of 10% fenugreek bio-composite at (a) 500 µm (b) 200 µm (c) 100 µm (d) 50 µm.
Polymers 14 05141 g009
Polymers 14 05141 g010a 550Polymers 14 05141 g010b 550
Figure 10. SEM images of 15% fenugreek bio-composite at (a) 500 µm (b) 200 µm (c) 100 µm (d) 50 µm.
Figure 10. SEM images of 15% fenugreek bio-composite at (a) 500 µm (b) 200 µm (c) 100 µm (d) 50 µm.
Polymers 14 05141 g010aPolymers 14 05141 g010b
Polymers 14 05141 g011a 550Polymers 14 05141 g011b 550

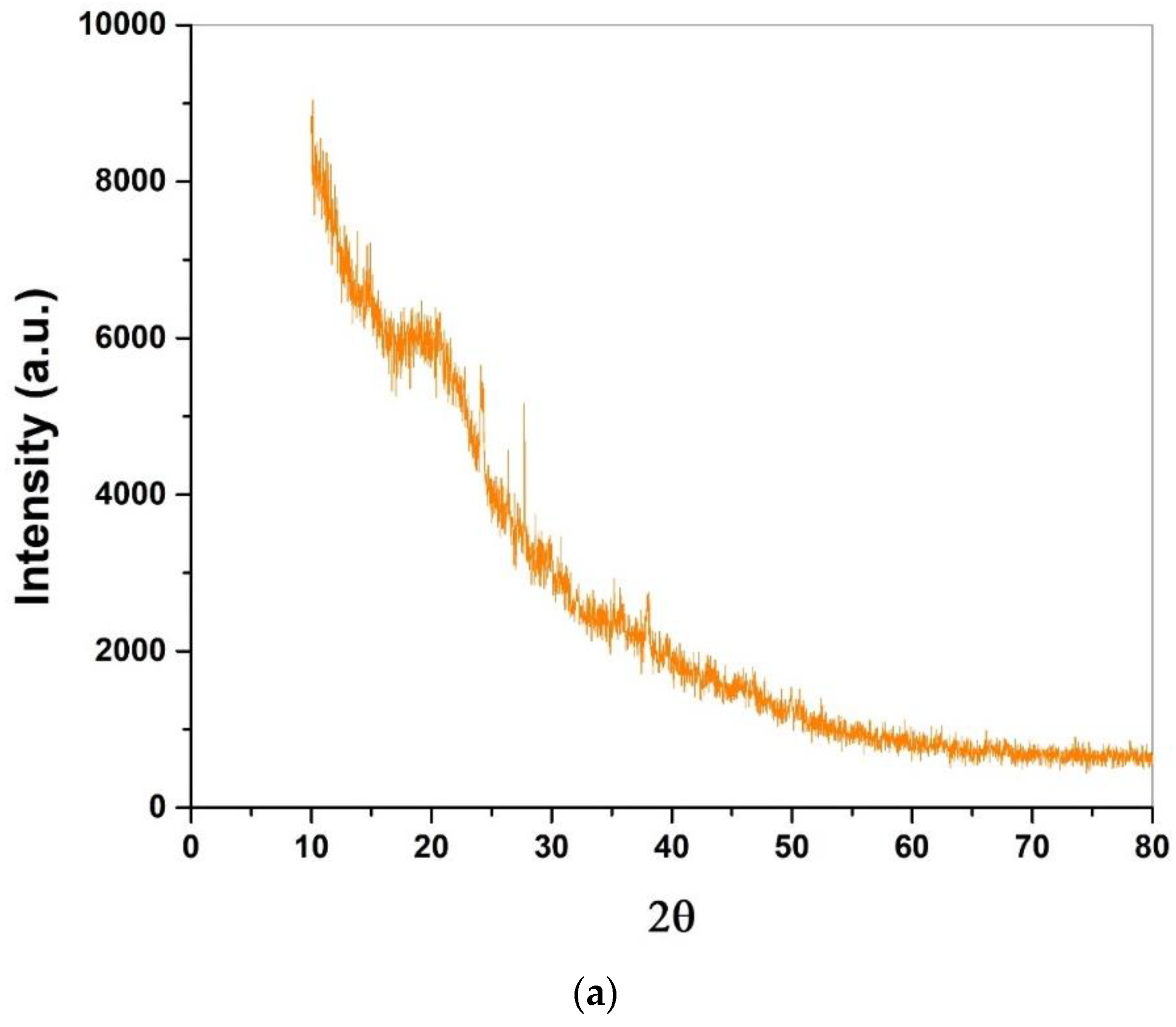

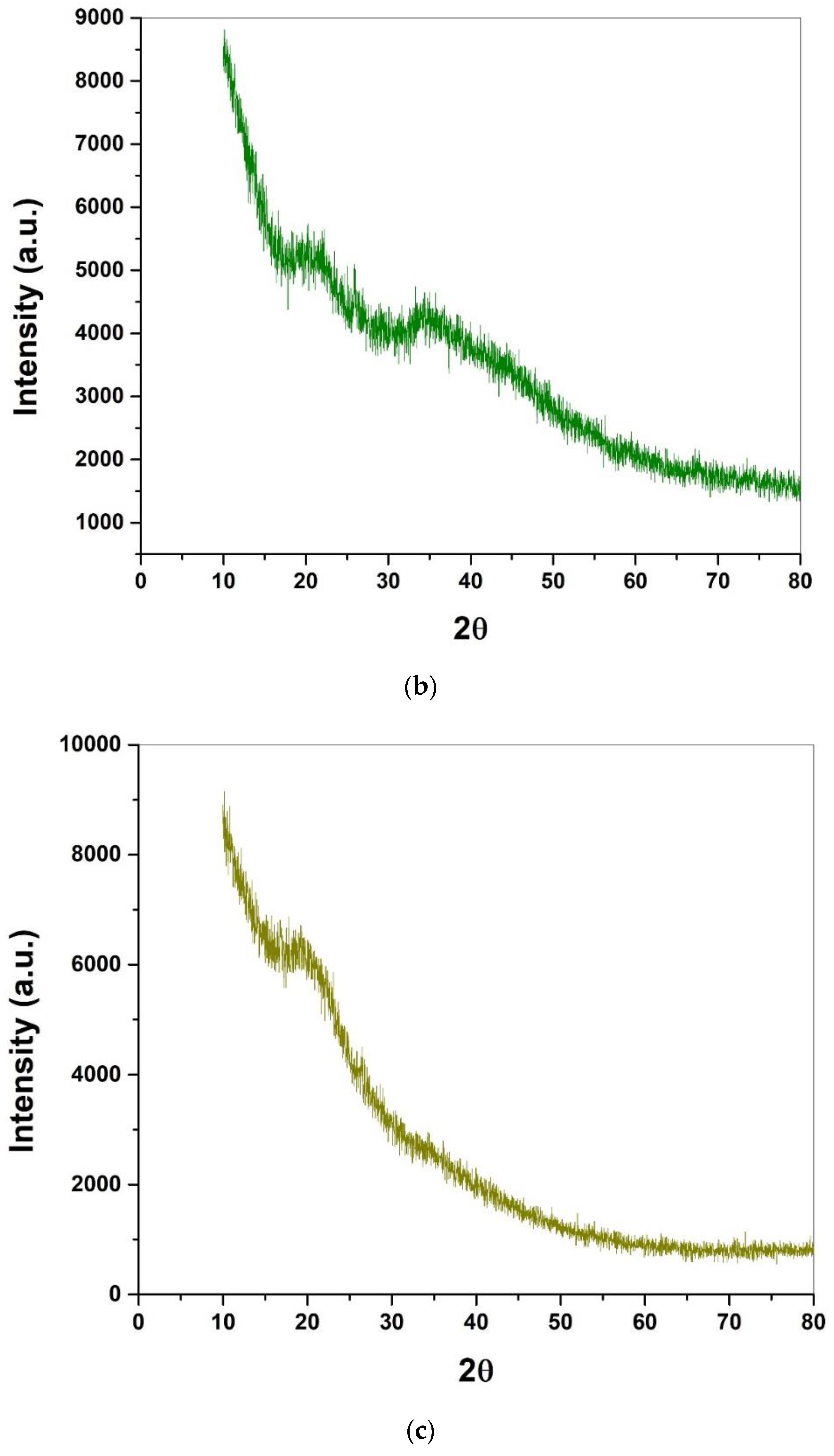

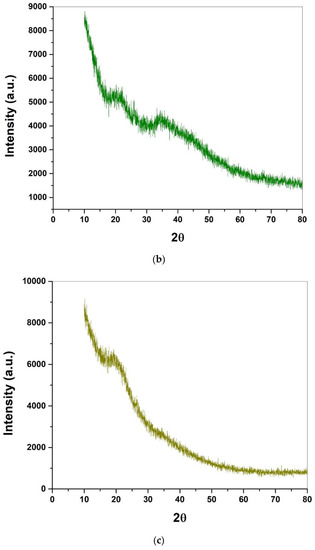

Figure 11. XRD analysis of the bio-composite samples at various ratio of fenugreek (a) 5%, (b) 10%, and (c) 15%.
Figure 11. XRD analysis of the bio-composite samples at various ratio of fenugreek (a) 5%, (b) 10%, and (c) 15%.
Polymers 14 05141 g011aPolymers 14 05141 g011b
Polymers 14 05141 g012 550

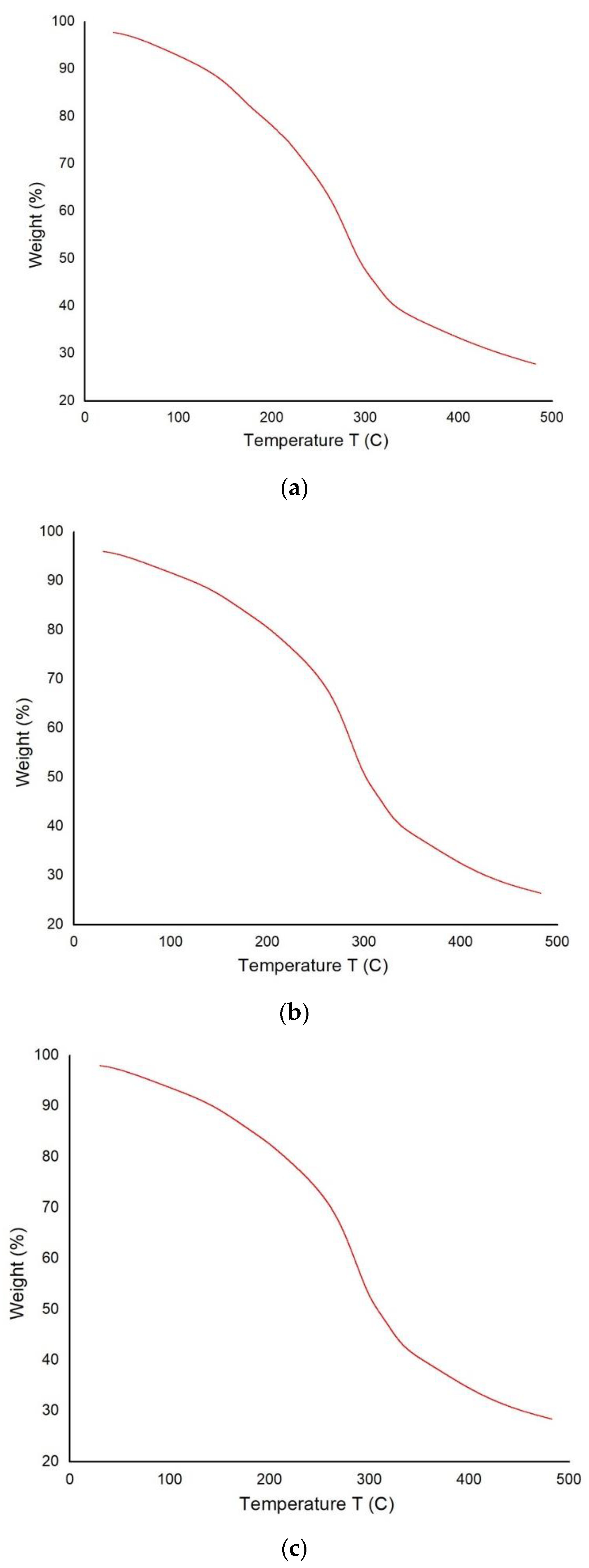

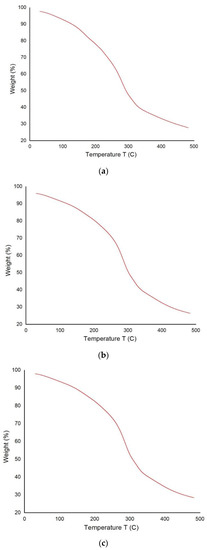

Figure 12. TGA analysis of the bio-composite samples at various ratios of fenugreek (a) 5% (b) 10% and (c) 15%.
Figure 12. TGA analysis of the bio-composite samples at various ratios of fenugreek (a) 5% (b) 10% and (c) 15%.
Polymers 14 05141 g012
Polymers 14 05141 g013 550
Figure 13. Antimicrobial analysis of the bio-composite samples at various ratio of fenugreek (a) 5%, (b) 10%, and (c) 15%.
Figure 13. Antimicrobial analysis of the bio-composite samples at various ratio of fenugreek (a) 5%, (b) 10%, and (c) 15%.
Polymers 14 05141 g013
Table
Table 1. Percentages of chemical compounds present in fenugreek seed.
Table 1. Percentages of chemical compounds present in fenugreek seed.
ConstituentMoistureAshFatProteinFiberNFE
Percentages10.17 ± 0.062.63 ± 0.157.47 ± 0.3127.55 ± 1.563.79 ± 0.3148.39 ± 1.33
Table
Table 2. Percentages of chemical compounds present in tamarind seed.
Table 2. Percentages of chemical compounds present in tamarind seed.
ConstituentMoistureProteinFat/OilCrude FiberCarbohydratesTotal AshTotal Sugar
Percentages9.4–11.313.3–26.94.5–16.27.4–8.850.0–57.01.6–4.211.3–25.3
Table
Table 3. The used constituents with their percentages.
Table 3. The used constituents with their percentages.
SampleDistilled WaterWhite VinegarGlycerolTamarind Seed StarchFenugreek Powder
S169% (360 mL)8% (40 mL)6% (30 mL)12% (60 gm)5% (26 gm)
S266% (360 mL)8% (40 mL)6% (30 mL)11% (60 gm)10% (54 gm)
S362% (360 mL)7% (40 mL)5% (30 mL)11% (60 gm)15% (85 gm)
Table
Table 4. Comparison of tensile strength, tensile strain and Young’s modulus of the prepared samples.
Table 4. Comparison of tensile strength, tensile strain and Young’s modulus of the prepared samples.
SampleTensile Strength (MPa)Standard DeviationTensile Strain (%)Standard DeviationYoung’s Modulus (MPa)
S12.9050.1106.7970.3530.427
S21.4350.0712.1890.0940.655
S31.3570.0623.0290.1250.448
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hossain, N.; Chowdhury, M.A.; Noman, T.I.; Rana, M.M.; Ali, M.H.; Alruwais, R.S.; Alam, M.S.; Alamry, K.A.; Aljabri, M.D.; Rahman, M.M. Synthesis and Characterization of Eco-Friendly Bio-Composite from Fenugreek as a Natural Resource. Polymers 2022, 14, 5141. https://doi.org/10.3390/polym14235141

AMA Style

Hossain N, Chowdhury MA, Noman TI, Rana MM, Ali MH, Alruwais RS, Alam MS, Alamry KA, Aljabri MD, Rahman MM. Synthesis and Characterization of Eco-Friendly Bio-Composite from Fenugreek as a Natural Resource. Polymers. 2022; 14(23):5141. https://doi.org/10.3390/polym14235141

Chicago/Turabian Style

Hossain, Nayem, Mohammad Asaduzzaman Chowdhury, Tauhidul Islam Noman, Md. Masud Rana, Md. Hasan Ali, Raja Saad Alruwais, Md. Shafiul Alam, Khalid A. Alamry, Mahmood D. Aljabri, and Mohammed M. Rahman. 2022. "Synthesis and Characterization of Eco-Friendly Bio-Composite from Fenugreek as a Natural Resource" Polymers 14, no. 23: 5141. https://doi.org/10.3390/polym14235141

APA Style

Hossain, N., Chowdhury, M. A., Noman, T. I., Rana, M. M., Ali, M. H., Alruwais, R. S., Alam, M. S., Alamry, K. A., Aljabri, M. D., & Rahman, M. M. (2022). Synthesis and Characterization of Eco-Friendly Bio-Composite from Fenugreek as a Natural Resource. Polymers, 14(23), 5141. https://doi.org/10.3390/polym14235141

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
