Article

Bacterial Nanocellulose from Komagataeibacter Medellinensis in Fique Juice for Activated Carbons Production and Its Application for Supercapacitor Electrodes

by
Juliana Villarreal-Rueda
1,
Zulamita Zapata-Benabithe
2,*,
Laia Posada
3,
Estefanía Martínez
3,
Sara Herrera
3,
Stiven López
3,
Ana B. J. Sobrido
4 and
Cristina I. Castro
3
1
Semillero de Termofluidos y Conversión de la Energía, Ingeniería Química, Escuela de Ingenierías, Universidad Pontificia Bolivariana, Medellín 050031, Colombia
2
Grupo de Energía y Termodinámica, Ingeniería Química, Escuela de Ingenierías, Universidad Pontificia Bolivariana, Medellín 050031, Colombia
3
Grupo de Investigación sobre Nuevos Materiales, Ingeniería en Nanotecnología, Escuela de Ingenierías, Universidad Pontificia Bolivariana, Medellín 050031, Colombia
4
School of Engineering and Materials Science, Queen Mary University of London, London E1 4NS, UK
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(7), 1760; https://doi.org/10.3390/polym15071760
Submission received: 19 February 2023 / Revised: 27 March 2023 / Accepted: 28 March 2023 / Published: 1 April 2023
(This article belongs to the Special Issue Advanced Preparation and Application of Cellulose)

Abstract

:
This paper presents the results obtained from the chemical activation of bacterial nanocellulose (BCN) using fique juice as a culture medium. BNC activation (BNCA) was carried out with H3PO4 and KOH at activation temperatures between 500 °C to 800 °C. The materials obtained were characterized morphologically, physicochemically, superficially, and electrochemically, using scanning electron microscopy, X-ray photoelectron spectroscopy (XPS), the physisorption of gases N2 and CO2 at 77 K and 273 K, respectively, cyclic voltammetry, chronopotentiometry, and electrochemical impedance spectroscopy (EIS). The samples activated with H3PO4 presented specific surface areas (SBET) around 780 m2 g−1, while those activated with KOH values presented specific surface areas between 680 and 893 m2 g−1. The XPS analysis showed that the PXPS percentage on the surface after H3PO4 activation was 11 wt%. The energy storage capacitance values ranged between 97.5 F g−1 and 220 F g−1 by EIS in 1 M H2SO4. The samples with the best electrochemical performance were activated with KOH at 700 °C and 800 °C, mainly due to the high SBET available and the accessibility of the microporosity. The capacitance of BNCAs was mainly improved by electrostatic effects due to the SBET rather than that of pseudocapacitive ones due to the presence of phosphorus heteroatoms.

Graphical Abstract

1. Introduction

The increasing of global population is followed by a marked rise in energy consumption, primarily from fossil fuels, which has a detrimental effect on environment. In order to struggle these issues, there is a current trend toward adopting alternative technologies to produce “green” energy through the promotion of renewable energy sources such as solar and wind. However, implementing these alternatives is not trivial, mainly because of their intermittency. Therefore, it is critical to guarantee their effective large-scale distribution and storage. In other words, if a large part of the energy comes from renewable sources, there must be a suitable way of storage it and its surpluses, paired with a distribution network with the capacity to transport all the energy generated [1].
Energy storage systems (ESS) come in a variety of forms, such as mechanical (hydroelectric power plants), electrical, thermal (solar thermal power plants), and electrochemical (supercapacitors (SCs) and batteries). Essential parameters in electrochemical ESS are energy density (Wh kg−1) to determine how much electrical energy can be stored, and power density (W kg−1) to resolve the maximum power the device will deliver. From the Ragone diagram [2], it can be concluded that SCs can store more energy than conventional electrolytic capacitors can, although their power density is lower. On the other hand, the power density of SCs is higher than that of batteries, but the former exhibit lower energy density. SCs store energy by adsorbing ions by a double-layer mechanism [3] and are currently used in applications where fast charging and small amounts of energy are required.
Currently, electrochemical storage systems are getting more attention and having relevance due to the interest in replacing fossil fuels as a primary energy source with more environmentally friendly alternatives, which is why the world is in an “energy transition” process. Due to the low cost, outstanding lifetime and low maintenance of SCs, they are one of the most promising energy storage systems in cases where high power density is needed [4]. SCs are formed by two conductive electrodes spaced apart by an insulating dielectric (usually a polymer) impregnated with a conductive electrolyte (usually a polymer). Applying a voltage to the electrodes causes an accumulation of opposite charges on the material’s surface; those charges are kept apart by the dielectric function, producing an electric field that allows SCs to store electrical energy [5]. There are three different forms of electrochemical energy storage for SCs: (a) pseudocapacitors, which store electrochemical energy transferring electrons between the electrode and an electrolyte; (b) double-layer capacitors, which store energy through the phenomenon of electrostatic charge; and (c) hybrid capacitors, which combine the advantages of the previous two to generate higher energy densities and increase their lifetime [6].
In commercial SCs, carbonaceous materials from non-renewable sources such as graphite or coke carbon serve as primary sources for electrode production. Therefore, it is necessary to look for novel renewable alternatives to replace them and satisfy the currently high demand for sustainability. Activated carbons, carbon nanotubes, and carbon nanofibers are some of the most common materials used to prepare SCs electrodes, each of them presenting different properties and characteristics. For instance, activated carbons with high specific surface areas can be produced from several sources, such as banana peel, palm kernel, sawdust, and others [7]. Additionally, other materials such as aerogels, xerogels, carbon nanotubes, and nanofibers are able to achieve the desired physical and chemical properties for electrodes of SCs, such as moderate conductivity, high thermal resistance, a large specific surface area, and a relatively low cost [8].
There is great interest in using and transforming “green” materials for energy applications. Among these materials is cellulose, one of the most abundant renewable biopolymers in nature, with an outstanding production of around 100 billion metric tons per year, and cellulose-derived carbon materials are ideal for SCs electrodes owing to their high carbon content and tridimensional structure [9,10]. Bacterial nanocellulose (BNC) is a renewable, degradable, and safe-to-use material, as it is a non-toxic material with an interconnected three-dimensional morphology and carbonaceous chemistry. BNC offers significant advantages over vegetable cellulose, with the possibility of large-scale production using raw materials from agroindustrial activity in a relatively straightforward process, which results in a low-cost and ecofriendly material. Additionally, BNC exhibits high crystallinity and mechanical properties of industrial interest, such as a high Young’s modulus (100–130 GPa) and the property of being lightweight (density of 1.6 g cm−3), which makes it interesting for applications in portable devices [11]. BNC also offers other physical properties that make it attractive for application as an active material in SCs, including a hierarchical fibrillar structure that promotes a high liquid absorption capacity, high chemical stability, and high mechanical strength [12]. Furthermore, the BNC morphology facilitates the production of active materials with increased interaction between the electrolyte and surface, guaranteeing continuity in ion transmission, which translates into high material performance [13].
Moreover, BNC has attractive properties for application in energy storage devices, such as its high carbon content, ease of surface modification and doping, high specific surface area, and high thermal and structural stability [14]. Some authors have reported the obtention of BNC from bacterial strains such as Acetobacter xylinum [15,16,17] or food sources such as nata de coco [18], and its chemically (KOH and H3PO4) and physically (CO2) activation to improve the BNC-specific surface area values (SBET) between 340 and 1754 m2 g−1. The active material has been used as electrochemical double-layer electrodes [18] and catalyst support for the catalytic dehydration of ethanol [16]. For example, Lee et al. [18] reported energy storage capacity values ranging from 26 to 42 F g−1 using 0.5 M K2SO4 as an electrolyte in a potential range between −0.2 V and 0.2 V in a three-electrode cell configuration. Usually, Hestrin-Schramm (HS), a nutrient culture medium obtained via oxidative fermentation, is employed to obtain BNC. However, fique juice is an agroindustrial waste with high levels of nitrogen and carbon in the form of glucose, and it is therefore considered an excellent substrate for BNC production [19]. This work presents the results from the activation of BNC obtained by Komagataeibacter Medellinensis using fique juice as a culture medium. The activated carbons chemically obtained are evaluated as supercapacitor electrodes in a two-electrode electrochemical cell in an aqueous medium.

2. Materials and Methods

2.1. Chemical Activation of the Bacterial Nanocellulose

The BNC was produced by the K. Medellinensis strain using fique juice, from the northeast region of Antioquia, Colombia, as a culture medium in accordance with the methodology presented by Castro et al. [20], and dried by lyophilization [19]. The chemical activation of BNC (BNCA) was carried out by impregnation with an activating agent (H3PO4 85% or KOH, supplied by Merck (Colombia/Bogotá)) for 24 h at a 1:1 dry weight ratio. The impregnated BNC was dried at 100 °C for 24 h and then heat-treated in a horizontal tube oven in a nitrogen environment at a flow rate of 100 mL min−1 at different temperatures: 500 and 600 °C for H3PO4 (BNCA-P), and 600, 700 and 800 °C for KOH (BNCA-K). The heat treatment was carried out at two heating ramps: the first one was carried out at 3 °C min−1 from room temperature to 300 °C for 60 min, and the second one was carried out at 5 °C min−1 from 300 °C up to the final temperature for 60 min. Finally, the activated BNC was successively washed with distilled water until it reached a constant pH, and then it was dried in an oven at 100 °C for 24 h.

2.2. Morphological, Superficial, Porous, and Physicochemical Characterization

The morphological and compositional characterization of the obtained materials was carried out by scanning electron microscopy (SEM-EDX) using Thermo Fisher Scientific (Colombia/Bogotá) model Apreo 2 S LoVac 5 kV Field Emission Electron Microscope (FESEM).
The superficial and porous characterization was determined by using the physical adsorption/desorption technique for gases (N2 at 77 K and CO2 at 273 K) in ASAP 2020 Plus equipment (Micromeritics, Colombia/Medellín) after degassing the samples for 8 h at 120 °C in high vacuum conditions. The specific surface area (SBET) was calculated by applying the BET model [21], micropore volume (VN2 and VCO2) determined by the Dubinin–Radushkevich model [22], the micropore size (Dmicro) which was calculated by applying the Stoeckli equation [23], the mesopore volume (Vmeso) which was calculated by the difference in the volume of nitrogen adsorbed at P/P0 of 0.98 and the VN2 (Gurvicht’s rule). The pore distribution was determined by the density functional theory (DFT) model and Barrett–Joyner–Halenda (BJH) model from the N2 isotherm at 77 K. The true density was determined using an Accupyc II 1340 helium pycnometer (Micromeritics, Colombia/Medellín).
The surface chemistry was determined by confocal Raman spectroscopy on Horiba Jobin Yvon equipment (Colombia/Bogotá), the Labram HR model with a high resolution, a 633 nm laser and 15 s exposure time, and by X-ray photoelectron spectroscopy (XPS) X-ray photoelectron spectroscopy (NAP-XPS) with a PHOIBOS 150 1D-DLD analyzer, using a monochromatic Al-Kα (1486. 7 eV, 13 kV, 100 W) with a step energy of 90 eV for general spectra and 20 eV for high-resolution spectra. The high-resolution spectra were recorded for the C1s, O1s, and P2p elements. The C1s peak at 284.6 eV was used as a reference.

2.3. Electrochemical Characterization

The active material was mixed with a polymeric binder (60 wt% polytetrafluoroethylene, PTFE, dispersed in water, supplied by Merck (Colombia/Bogotá)) and a conductive material (acetylene black, Químicos JM (Colombia/Medellín)) in an 80/10/10 weight ratio. The mixture was left to dry in an oven at 100 °C for 24 h. Then, the electrodes were assembled with 7 mg of the mixture on 12.2 mm diameter graphite paper. The electrodes were impregnated with a 1 M H2SO4 solution (supplied by Merck (Colombia/Bogotá)) for 72 h. The electrodes were characterized in a Swagelok two-electrode cell in a symmetric arrangement and in a three-electrode configuration between 0 and 0.75 V. The gravimetric capacitance was calculated from the capacitance (F) by different techniques (electrochemical impedance spectroscopy, cyclic voltammetry, and chronopotentiometry) [24,25] and normalized by the mass (g) of the active material. The electrochemical characterization was carried out in a Multi Autolab/M204 (Metrohm, Colombia/Bogotá).
  • Electrochemical impedance spectroscopy (EIS) is a technique used to characterize the frequency response of a device. The Nyquist plot was carried out in a frequency range between 1 mHz and 100 kHz with a sinusoidal amplitude of ± 10 V. The CEIS (F g−1) is the maximum gravimetric capacitance, which was determined according to Equation (1) at the minimum frequency, and the interfacial capacitance IC (μF cm−2) is the gravimetric capacitance normalized by the specific surface area according to Equation (2).
C E I S = Z m ω Z 2
I C = C E I S S B E T
where Z is the imaginary impedance, Z is the complex impedance, ω is the angular frequency and m is the total active material weight (g).
Additionally, important parameters on supercapacitor behavior, such as the equivalent series resistance (ESR), charging time (τ) and phase angle (φ), could be determined from the EIS.
  • The cyclic voltammetry (CV) technique applies a potential perturbation (scan rate) in a specific potential range. The cyclic voltammetry curves were carried out between 0 and 0.75 V at different scan rates V b : 0.5, 1, 2, 5, 10, 25, and 50 mV s−1. The kinetic or diffusion limitation can be detected from CV curves [24]. The CCV (F g−1) is the gravimetric capacitance, and it was determined from the voltammetry curves according to Equation (3).
C C V = 2 i t m V
where i t is the change in the current as a function of time, V is the potential window and, m is the total active material weight (g). The capacitance value decreases as the scan rate increases because the number of active sites diminish inside the material and the redox reaction is not complete with a higher potential.
The capacitance retention percentage (RCV) was determined from the CCV values at different sweep ratios with respect to the CCV calculated at 2 mV s−1 (Equation (4)).
R C V % = C C V , s m V s 1 C C V , 2 m V s 1 × 100
  • The chronopotentiometry (CP) technique applies a constant current density and measures the potential (E) with respect to time, allowing it to determine the device’s stability. The charge and discharge curves were performed between a potential window from 0 to 0.75 V at different current densities: 0.156, 0.313, 0.625, and 0.938 A g−1. The gravimetric capacity (CCP) was calculated from the discharge curve according to Equation (5). Additionally, the best samples underwent cyclability analysis at the 0.33 A g−1 current density (5000 charge–discharge cycles).
C C P = 4 I c t m V
where I c is the current density (A g−1), t is the discharge time (s), V is the potential range (V) and m is the total active material weight (g).

3. Results and Discussion

The yield of activated carbons after the BNC activation process ranged from 5% to 38%. BNC activated with H3PO4 are represented by the letter P followed by the heat treatment temperature (T = 500 and 600 °C), PT, and those activated with KOH are represented by the letter K followed by the heat treatment temperature (T = 600, 700 and 800 °C), KT.

3.1. Morphological Characterization of BNCAs

Figure 1 shows SEM micrographs of freeze-dried BNC. The BNC showed a long fiber structure with diameters between 70 and 100 nm and a true density of 1.09 ± 0.01 cm3 g−1. After activation, the fibrous structure disappeared and the fibers collapsed. The EDX spectra are presented in the Supplementary Information (SI).
SEM micrographs of H3PO4-activated carbons (P500 and P600) are presented in Figure 2. Primary particles in the form of microspheres constituted some of the surface morphology of P500 (Figure 2a), but in other regions of this sample, these particles merged into a continuous network (Figure 2b). The primary particles in Sample P600 were also microspheres but smaller than those in P500 (Figure 2c). However, in some areas (P area in Figure 2d), there was a cluster of different morphology particles in the network that was identified by EDX as phosphorus particles (Figure S1c).
In the case of BNC activated with KOH, sample K600 exhibited an interconnected structure formed by open pores in some sections (Figure 3a) and a compact surface with macropores (Figure 3b). Sample K700 presented a nanostructured network with variously sized accessible pores (Figure 3c,d). Sample K800 showed a heterogeneous morphology (Figure 3e,f); in one section, the carbon network was composed by primary particles in small microspheres, and, in another section, a three-dimensional network was formed by accessible pores of a smaller size than those of K700. The rise in the temperature significantly affected the morphology of the activated carbons, especially at 800 °C where K800 apparently showed a weaker structure, similarly to the findings reported by Boongate and Phisalaphong [15].

3.2. Superficial and Porous Characterization of BNCAs

N2 adsorption/desorption isotherms at 77 K are shown in Figure 4a,b, and CO2 adsorption isotherms at 273 K are shown in Figure 4c. Samples P500 and P600 present type IV isotherms (Figure 4a) with a type H3 hysteresis cycle according to IUPAC, which corresponds to that of materials with heterogeneous micropore distribution and the presence of wider micropores (~4 nm). Samples K600 and K700 are classified as type Ia, corresponding to the properties of essentially microporous materials, while sample K800 can be classified as type Ia-IV due to the H4 hysteresis cycle, suggesting the presence of both micropores and mesopores (Figure 4b) [26].
The pore size distribution for samples P500 and P600 (Figure 4d) presented a similar distribution of around 1.2 nm and a wide distribution of mesopores of between 2–20 nm. Activated samples with KOH (Figure 4e) exhibited a similar micropore size distribution in the microporous region (<2 nm), with a strong peak at 0.5 nm, for K800.
Table 1 presents the structural properties of the activated materials. The SBET values ranged from 718 to 893 m2 g−1, values slightly higher than those found in the literature for this type of material [16,17,18]. The temperature did not have a significant effect on microporous development when H3PO4 was selected as the activating agent; however, the volume of mesopores increased when using H3PO4. Additionally, the activated samples with KOH showed a substantial increase in the SBET, particularly the sample treated at 800 °C, which can be explained by the intercalation of K between the walls of the carbonaceous structure which promotes changes in the microstructure (including defects, edges, morphology, and pore size) [27], and the formation of hierarchical pores. The micropore size of activated samples with H3PO4 was 1.26 nm and for the activated samples with KOH, the micropore size was 1 nm. The micropore size distribution was broad and heterogeneous because VN2 > VCO2; the N2 could fill all the micropores during its adsorption at 77 K, and the CO2 could only fill the ultramicropores (<0.7–0.8 nm wide) [28]. Figure 4f shows that the activation with H3PO4 mainly promoted the development of mesopores. P500 presented an average pore diameter of 2.8 nm, while P600 presented an average pore diameter of 7 nm with a wider distribution.

3.3. Physico-Chemical Characterization of BNCAs

Figure 5a shows Raman spectra of BNCAs which were used to evaluate the degree of graphitization of surfaces.
Three prominent peaks were observed; The first signal intensity (ID) of the D-peak at ~1335 cm−1, corresponding to the vibrations of carbon atoms with sp3 bonding assigned to defects and disorder of the lattice and to the low symmetry carbon structure of graphite. The second signal intensity (IG) of the G-peak at ~1590 cm−1 (IG), which is characteristic of graphite, corresponding to the sp2 stretching vibration of carbon atoms in the graphite phase. The third peak was observed at 2710–2724 cm−1, which can be attributed to second-order phonons [29]. Table 2 compiles the main physicochemical properties of BNCAs determined by XPS, SEM-EDX and Raman.
The graphitization degree is determined from the ratio of ID/IG peak areas, and it is related to the carbon material structure as a measure of the extent of disorder in a carbon layer [30]. The ID/IG ratio is slightly lower for BNCA-K (~1.87) than BNCA-P (~2.0), indicating that graphitic carbon formation is associated with a loss of dissociable functional groups. An increased in the ID/IG ratio promotes a loose fibrous form, as shown by the SEM images of BNCA-P (Figure 2) [18], caused, in this case, by H3PO4 activation. The disorder in carbon surface distortions could be related to the microporous structure or disorganized regions near the edges, possibly as a result of the introduction of phosphorus functional groups to the surface [31]. Additionally, P600 showed a high ID intensity and a low full width at the half maximum (FWHM) of the IG (Figure 5b), which suggests that structural disorder is caused by the presence of oxygen and hydrogen atoms.
Figure 6 shows XPS high-resolution spectra of C1s, O1s, and P2p for samples P500 and P600, and Figure 7 shows the C1s, and O1s spectra of samples K600 (a and b), K700 (c and d), and K800 (e and f). These peaks were deconvolved according to the binding energy, corresponding to a specific functional group presented in Table S1 [31,32,33]. The BNCAs presented O/C ratios between 13% and 30%, where P600 presented the highest percentage, suggesting that at 600 °C, surface oxidation came from functional groups of phosphors [32].
The percentage of nitrogen on the surface was lower than 0.6 wt% (0.16–0.6 wt%), which may be associated with the residual impurities. However, samples treated at the lowest temperatures showed the highest percentage (P500 and K600). The phosphorus percentage on the surface was 3.1 wt% and 11.1 wt% for P500 and P600, respectively, which are higher than other biomasses activated with H3PO4 [34]. The P500 sample showed, in the P2p region, a higher percentage (38%) at ~133.5 eV, which corresponds to the C-PO3 or C2-PO2 functional groups. However, the P600 sample presented an increase in pyrophosphates functional groups at ~135.2 eV (33.5 wt%), and an increase in P2O5 at ~136 eV (33.7 wt%), while C-PO3 or C2-PO2 groups at ~133.5 eV decreased (12 wt%). This suggests that activation temperature plays a key role in the formation of functional groups at the surface of the resulting carbons.

3.4. Electrochemical Characterization of BNCAs

Figure 8a,d show the Nyquist plots for the BNCAs. A semicircle in the high-frequency region is observed, followed by a gradual change in the slope from 45° to 90°, which represents Warburg diffusive behavior and is attributed to the diffusive effects of chemical species along the electrode [35]. In the low-frequency region (<1 Hz), a vertical line is observed and represents capacitive behavior. The P600, K700 and K800 samples presented the best capacitive behavior, while the P500 and K600 samples presented a distorted semicircle associated with difficulty in electrolyte diffusion inside the electrode in the mid-frequency region [36].
The CVs of the K700 and K800 samples showed a quasirectangular, horizontal and symmetrical shape at low (Figure 8e) and high (Figure 8f) scan speeds, which is similar behavior to that of an ideal electrochemical double-layer capacitor (EDLC). The P500 (Figure 8b,c) and K600 (Figure 8e,f) samples presented CVs with a nonrectangular shape and that were deviated from being horizontal, which was related to the diffusion limitations of electrolyte ions in the micropores. The P600 sample presented ideal behavior at 2 mV s−1 (Figure 8b) with an additional shoulder at a lower potential, which was associated with pseudocapacitive effects, most likely due to the presence of phosphorus heteroatoms [37,38] on the surface (11.1 wt%). However, at 25 mV s−1 (Figure 8c), ideality was lost due to the diffusive limitations of the electrolyte inside the carbonaceous matrix. Part of the electrode surface was inaccessible, and just its external surfaces interacted.
Table 3 presents the main electrochemical properties of the BNCAs in terms of the CV and EIS. The K700 and K800 samples presented the highest values of gravimetric capacitance (CEIS), 181 F g−1 and 219.5 F g−1, respectively, values higher than those reported in the literature for materials produced under similar conditions [18], but slightly lower than those reported for some electrodes prepared with doped materials mainly with nitrogen, phosphorus and sulfur heteroatoms (43–509 F g−1).
The equivalent series resistance (ESR) value can be calculated in the high-frequency area of the Nyquist plot. The ESR represents the sum of the contact resistance, charge transfer resistance, and diffusion resistance in electrolyte pores during the electrochemical process. The ESR is calculated from the vertical line extrapolation at medium-low frequencies of the Nyquist diagram and its cut on the abscissa [39]. The K800 sample presented the lowest ERS value (2 Ω), which benefits electrochemical double-layer formation, while P500 showed the highest ERS value (23 Ω) mainly due to electrolyte diffusion limitations. The relaxation time (τ) is how quickly a capacitor can be charged or discharged. The K800, K700 and P600 samples exhibited the lowest relaxation times due to their low ESR in the order K800 < K700 < P600. The phase angle (φ) is obtained from the bode diagram at the lowest frequency. K700 showed the lowest phase angle value near −90° and the lowest ID/IG value, properties that suggest better conductivity due to high graphitization, and the behavior of an ideal supercapacitor [40,41].
From the EIS and CV curves (Figure 8), no supercapacitor works entirely as an ideal capacitor. Therefore, the electrical equivalent circuit could be represented by a “Randles circuit” that is conformed for a double layer capacitance (Cdl) component parallel to the Faradaic charge (RF) and impedance Warburg (W) components, and these are in series with an electrolytic resistance (Rs) [24]. The K800 sample presented the highest CEIS and IC value (24.6 µF cm−2). This last value is slightly higher than that reported for a clean graphite surface [42] and indicates deeper electrolyte accessibility to micropores. The electrochemical behavior of the P600 sample suggests that the presence of phosphorus functional groups improves surface conductivity. However, phosphorus superficial functional groups (135 eV and 136 eV) did not improve electrode surface wettability by electrolytes or the formation of EDLC. Additionally, the P500 sample had a PXPS of 3.1 wt% and an SBET that was like that of other samples. Nevertheless, it presented low electrochemical performance, which may have been related to its compact external morphology, making it difficult for the electrolyte access the micropores.
Microporosity seems to have the largest effect on capacitance (Figure 9a). According to the pore distribution (Figure 4e), the BNCA-K samples presented narrow pore distribution below 2 nm, with an average micropore size between 0.9 and 1.27 nm, which is higher than the optimal size for hydrated molecules S O 4 2 , which is 0.7 nm [43]. Figure 9b,c show that capacity increases as ESR decreases as a consequence of the presence of oxygen and phosphorus surface functional groups, mainly C—O single bonds (532.3 eV). Oxygen superficial functional groups are important for the introduction of pseudocapacitive effects that influence the increase in IC.
Based on the data shown in Table 3, Figure 10a depicts a reduction in capacitance retention as a function of the scan rate increasing. The K800 sample presented the highest RCV (84%) at 25 mV s−1, followed by K700 (75%) and P600 (73%). The low behavior of the P500 and K600 samples is attributed to the presence of functional groups, which hinder electrolyte ion diffusion. Figure S2 shows the electrochemical performance of the K700 sample characterized in a three-electrode cell configuration. The cyclic voltammetry curves show a quasirectangular, horizontal, and symmetrical shape, with the presence of redox peaks in −0.3 V and 0.3 V being assigned to quinone/hydroquinone groups. Additionally, the charge and discharge curves were symmetrical, suggesting supercapacitor behavior. The capacitance values were higher than those shown in Table 4, verifying that these materials could be considered excellent for electrodes for supercapacitor devices.
Figure 10b presents high stability after the 5000 charge and discharge cycles at 0.313 A g−1 for the K700 sample. The charge and discharge curves of the first and last cycles are presented in Figure 10c, which have a quasitriangular and symmetrical shape that indicates ideal conservation. The capacitance retention after 5000 cycles was 66% compared to the first cycle at 0.313 A g−1. The increase in capacitance around cycle 3500 was related to the contribution of pseudocapacitance by surface functional groups [52].

4. Conclusions

BNC obtained from K. Medellinensis using fique juice as a culture medium allowed the obtention of chemically activated carbons with high specific surface areas. The materials were evaluated by different electrochemical techniques, obtaining the highest gravimetric capacitances between 180 and 220 F g−1, corresponding to those of the KOH-activated materials at 700 °C and 800 °C. These materials showed higher capacitance retention, and after 5000 cycles, a retention of 66% was still present. Temperature is a crucial parameter for developing microporosity and thus improving electrochemical double-layer formation. H3PO4 activation allowed a high content of phosphorus heteroatoms to be incorporated into the surface; however, the functional groups formed did not show any significant contribution to the pseudocapacitive effects that could have increased the overall electrode performance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym15071760/s1. Figure S1: SEM images and EDX spectra of BNCA-P at 500 °C X10000 (a) and 600 °C X50000 (b and c); Table S1: Binding energies of functional groups of XPS high-resolution spectra C1s, O1s, and P2p; Figure S2: (a) Cyclic voltammetry curves at 0.5 mV s—1, (b) Charge/Discharges curves at 0.125 A g—1, and (c) Capacitance as a function of different scan rates for the K700 sample.

Author Contributions

Conceptualization, Z.Z.-B.; methodology, Z.Z.-B., J.V.-R. and S.H.; formal analysis, Z.Z.-B.; investigation, J.V.-R. and S.L.; resources, E.M., L.P. and J.V.-R.; data curation, S.L. and J.V.-R.; writing—original draft preparation, Z.Z.-B. and J.V.-R.; writing—review and editing, Z.Z-B. and A.B.J.S.; visualization, C.I.C.; supervision, Z.Z.-B.; project administration, A.B.J.S. and C.I.C.; funding acquisition, A.B.J.S. and C.I.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science, Technology, and Innovation (Min-Ciencias) and Newton Fund, British Council, grant number 527320452: “Bacterial nanocellulose obtained from biomass residues of the Colombian fique plant for application in storage power—No UPB 621C-10/20-18, Universidad Pontificia Bolivariana (UPB) and Queen Mary University of London (QMUL)”. Also, this research was funded by the Ministry of Science, Technology, and Innovation (Min-Ciencias) and FONDO FRANCISCO JOSÉ DE CALDAS, grant number 1210-903-86606 CT 80740-448-2021: “Misión Bioeconomía para una Colombia potencia viva y diversa hacia una sociedad impulsada por el conocimiento”.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The authors confirm the data transparency included in the manuscript. The data supporting the findings of this study are available within the manuscript and its supplementary information files.

Acknowledgments

The authors acknowledge XPS Laboratory and Cidemat Laboratory of the University of Antioquia for the development of the XPS and Raman analyses.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Chowdhury, B.H.; Tseng, C.-L. Distributed energy resources: Issues and challenges. J. Energy Eng. 2007, 133, 109–110. [Google Scholar] [CrossRef] [Green Version]
  2. Ibrahim, H.; Ilinca, A.; Perron, J. Energy storage systems—Characteristics and comparisons. Renew. Sustain. Energy Rev. 2008, 12, 1221–1250. [Google Scholar] [CrossRef]
  3. Simon, P.; Gogotsi, Y. Materials for electrochemical capacitors. Nat. Mater. 2008, 7, 845–854. [Google Scholar] [CrossRef] [Green Version]
  4. Jin, J.; Geng, X.; Chen, Q.; Ren, T.-L. A better Zn-ion storage device: Recent progress for Zn-ion hybrid supercapacitors. Nano-Micro Lett. 2022, 14, 64. [Google Scholar] [CrossRef] [PubMed]
  5. Halper, M.S.; Ellenbogen, J.C. Supercapacitors: A Brief Overview; MITRE Corporation: McLean, VA, USA, 2006. [Google Scholar]
  6. Ho, J.; Jow, T.R.; Boggs, S. Historical introduction to capacitor technology. IEEE Electr. Insul. Mag. 2010, 26, 20–25. [Google Scholar] [CrossRef] [Green Version]
  7. Belaineh, D.; Brooke, R.; Sani, N.; Say, M.G.; Håkansson, K.M.; Engquist, I.; Berggren, M.; Edberg, J. Printable carbon-based supercapacitors reinforced with cellulose and conductive polymers. J. Energy Storage 2022, 50, 104224. [Google Scholar] [CrossRef]
  8. Calvo, E.; Arenillas, A.; Menendez, J.; Gonzalez, M.; Viera, J. Properties, advantages and disadvantages of materials used in supercapacitors. Afinidad 2009, 66, 380–387. [Google Scholar]
  9. Zhang, Y.-Z.; Wang, Y.; Cheng, T.; Lai, W.-Y.; Pang, H.; Huang, W. Flexible supercapacitors based on paper substrates: A new paradigm for low-cost energy storage. Chem. Soc. Rev. 2015, 44, 5181–5199. [Google Scholar] [CrossRef]
  10. Yang, S.; Cui, Y.; Yang, G.; Zhao, S.; Wang, J.; Zhao, D.; Yang, C.; Wang, X.; Cao, B. ZnCl2 induced hierarchical porous carbon for zinc-ion hybrid supercapacitors. J. Power Sources 2023, 554, 232347. [Google Scholar] [CrossRef]
  11. Castro, C.; Delgado, F. La nanocelulosa: Propiedades y aplicaciones. Boletín IEE 2016, 40, 56–60. [Google Scholar]
  12. Ma, L.; Bi, Z.; Xue, Y.; Zhang, W.; Huang, Q.; Zhang, L.; Huang, Y. Bacterial cellulose: An encouraging eco-friendly nano-candidate for energy storage and energy conversion. J. Mater. Chem. A 2020, 8, 5812–5842. [Google Scholar] [CrossRef]
  13. Bai, Q.; Shen, Y.; Asoh, T.-A.; Li, C.; Dan, Y.; Uyama, H. Controlled preparation of interconnected 3D hierarchical porous carbons from bacterial cellulose-based composite monoliths for supercapacitors. Nanoscale 2020, 12, 15261–15274. [Google Scholar] [CrossRef] [PubMed]
  14. Du, X.; Zhang, Z.; Liu, W.; Deng, Y. Nanocellulose-based conductive materials and their emerging applications in energy devices-A review. Nano Energy 2017, 35, 299–320. [Google Scholar] [CrossRef]
  15. Boongate, C.; Phisalaphong, M. Activated carbons from bacterial cellulose by chemical activation with potassium hydroxide. In Proceedings of the 2015 International Conference on Science and Technology (TICST), Pathum Thani, Thailand, 4–6 November 2015; pp. 144–147. [Google Scholar]
  16. Khamkeaw, A.; Phanthang, L.; Jongsomjit, B.; Phisalaphong, M. Activated carbon derived from bacterial cellulose and its use as catalyst support for ethanol conversion to ethylene. Catal. Commun. 2019, 129, 105750. [Google Scholar] [CrossRef]
  17. Khamkeaw, A.; Asavamongkolkul, T.; Perngyai, T.; Jongsomjit, B.; Phisalaphong, M. Interconnected Micro, Meso, and Macro Porous Activated Carbon from Bacterial Nanocellulose for Superior Adsorption Properties and Effective Catalytic Performance. Molecules 2020, 25, 4063. [Google Scholar] [CrossRef]
  18. Lee, K.-Y.; Qian, H.; Tay, F.H.; Blaker, J.J.; Kazarian, S.G.; Bismarck, A. Bacterial cellulose as source for activated nanosized carbon for electric double layer capacitors. J. Mater. Sci. 2013, 48, 367–376. [Google Scholar] [CrossRef]
  19. Martínez, E.; Posada, L.; Botero, J.; Rios-Arango, J.; Zapata-Benabithe, Z.; López, S.; Molina-Ramírez, C.; Osorio, M.; Castro, C. Nata de fique: A cost-effective alternative for the large-scale production of bacterial nanocellulose. Ind. Crops Prod. 2023, 192, 116015. [Google Scholar] [CrossRef]
  20. Castro, C.; Cleenwerck, I.; Trček, J.; Zuluaga, R.; De Vos, P.; Caro, G.; Aguirre, R.; Putaux, J.-L.; Ganan, P. Gluconacetobacter medellinensis sp. nov., cellulose-and non-cellulose-producing acetic acid bacteria isolated from vinegar. Int. J. Syst. Evol. Microbiol. 2013, 63, 1119–1125. [Google Scholar] [CrossRef] [Green Version]
  21. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  22. Dubinin, M. Generalization of the theory of volume filling of micropores to nonhomogeneous microporous structures. Carbon 1985, 23, 373–380. [Google Scholar] [CrossRef]
  23. Stoeckli, F. The name of this reference is wrong. The correct name is Water adsorption in activated carbons of various degrees of oxidation described by the Dubinin equation. Carbon 2002, 40, 969–971. [Google Scholar] [CrossRef] [Green Version]
  24. Conway, B.E. Electrochemical Supercapacitors: Scientific Fundamentals and Technological Applications; Kluwer Academic: Amsterdam, The Netherlands, 1996. [Google Scholar]
  25. Kim, B.K.; Sy, S.; Yu, A.; Zhang, J. Electrochemical supercapacitors for energy storage and conversion. Handb. Clean Energy Syst. 2015, 1–25. [Google Scholar] [CrossRef]
  26. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  27. Wu, S.; Chen, G.; Kim, N.Y.; Ni, K.; Zeng, W.; Zhao, Y.; Tao, Z.; Ji, H.; Lee, Z.; Zhu, Y. Creating Pores on Graphene Platelets by Low-Temperature KOH Activation for Enhanced Electrochemical Performance. Small 2016, 12, 2376–2384. [Google Scholar] [CrossRef] [PubMed]
  28. Molina-Sabio, M.; Rodrıguez-Reinoso, F. Role of chemical activation in the development of carbon porosity. Colloids Surf. A Physicochem. Eng. Asp. 2004, 241, 15–25. [Google Scholar] [CrossRef]
  29. Viswanathan, B.; Neel, P.I.; Varadarajan, T. Methods of activation and specific applications of carbon materials. India Chennai 2009, 600, 1–160. [Google Scholar]
  30. Liu, Y.; Liu, X.; Dong, W.; Zhang, L.; Kong, Q.; Wang, W. Efficient adsorption of sulfamethazine onto modified activated carbon: A plausible adsorption mechanism. Sci. Rep. 2017, 7, 12437. [Google Scholar] [CrossRef] [Green Version]
  31. Puziy, A.; Poddubnaya, O.; Ziatdinov, A. On the chemical structure of phosphorus compounds in phosphoric acid-activated carbon. Appl. Surf. Sci. 2006, 252, 8036–8038. [Google Scholar] [CrossRef]
  32. Li, W.-J.; Chou, S.-L.; Wang, J.-Z.; Liu, H.-K.; Dou, S.-X. Significant enhancement of the cycling performance and rate capability of the P/C composite via chemical bonding (P–C). J. Mater. Chem. A 2016, 4, 505–511. [Google Scholar] [CrossRef] [Green Version]
  33. Liu, Y.; Li, K.; Liu, Y.; Pu, L.; Chen, Z.; Deng, S. The high-performance and mechanism of P-doped activated carbon as a catalyst for air-cathode microbial fuel cells. J. Mater. Chem. A 2015, 3, 21149–21158. [Google Scholar] [CrossRef]
  34. Elmouwahidi, A.; Bailón-García, E.; Pérez-Cadenas, A.F.; Maldonado-Hódar, F.J.; Carrasco-Marín, F. Activated carbons from KOH and H3PO4-activation of olive residues and its application as supercapacitor electrodes. Electrochim. Acta 2017, 229, 219–228. [Google Scholar] [CrossRef]
  35. Liu, X.-M.; Zhang, R.; Liang, Z.; Long, D.-H.; Qiao, W.-M.; Yang, J.-h.; Ling, L.-C. Impedance of carbon aerogel/activated carbon composites as electrodes of electrochemical capacitors in aprotic electrolyte. New Carbon Mater. 2007, 22, 153–158. [Google Scholar] [CrossRef]
  36. Ghaemi, M.; Ataherian, F.; Zolfaghari, A.; Jafari, S. Charge storage mechanism of sonochemically prepared MnO2 as supercapacitor electrode: Effects of physisorbed water and proton conduction. Electrochim. Acta 2008, 53, 4607–4614. [Google Scholar] [CrossRef]
  37. Qu, J.; Geng, C.; Lv, S.; Shao, G.; Ma, S.; Wu, M. Nitrogen, oxygen and phosphorus decorated porous carbons derived from shrimp shells for supercapacitors. Electrochim. Acta 2015, 176, 982–988. [Google Scholar] [CrossRef]
  38. Fang, Y.; Zhang, Q.; Cui, L. Recent progress of mesoporous materials for high performance supercapacitors. Microporous Mesoporous Mater. 2021, 314, 110870. [Google Scholar] [CrossRef]
  39. Bordjiba, T.; Mohamedi, M.; Dao, L.H. Synthesis and electrochemical capacitance of binderless nanocomposite electrodes formed by dispersion of carbon nanotubes and carbon aerogels. J. Power Sources 2007, 172, 991–998. [Google Scholar] [CrossRef]
  40. Yang, S.; Zhang, L.; Sun, J.; Li, K.; Zhao, S.; Zhao, D.; Wang, J.; Yang, C.; Wang, X.; Cao, B. Corncob-derived hierarchical porous activated carbon for high-performance lithium-ion capacitors. Energy Fuels 2020, 34, 16885–16892. [Google Scholar] [CrossRef]
  41. Tang, C.; Liu, Y.; Yang, D.; Yang, M.; Li, H. Oxygen and nitrogen co-doped porous carbons with finely-layered schistose structure for high-rate-performance supercapacitors. Carbon 2017, 122, 538–546. [Google Scholar] [CrossRef]
  42. Babić, B.; Kaluđerović, B.; Vračar, L.; Krstajić, N. Characterization of carbon cryogel synthesized by sol–gel polycondensation and freeze-drying. Carbon 2004, 42, 2617–2624. [Google Scholar] [CrossRef]
  43. Raymundo-Pinero, E.; Kierzek, K.; Machnikowski, J.; Béguin, F. Relationship between the nanoporous texture of activated carbons and their capacitance properties in different electrolytes. Carbon 2006, 44, 2498–2507. [Google Scholar] [CrossRef]
  44. Wang, S.; Dong, L.; Li, Z.; Lin, N.; Xu, H.; Gao, S. Sustainable supercapacitors of nitrogen-doping porous carbon based on cellulose nanocrystals and urea. Int. J. Biol. Macromol. 2020, 164, 4095–4103. [Google Scholar] [CrossRef] [PubMed]
  45. Li, Z.; Wang, Y.; Xia, W.; Gong, J.; Jia, S.; Zhang, J. Nitrogen, phosphorus and sulfur co-doped pyrolyzed bacterial cellulose nanofibers for supercapacitors. Nanomaterials 2020, 10, 1912. [Google Scholar] [CrossRef] [PubMed]
  46. Liu, Y.; Pan, X.; Zhao, Y.; Zhou, J.; Ma, X.; Xie, E. Organic molecules assisted synthesis of carbon nanofibers with controlled surface area for high-performance supercapacitors. J. Energy Storage 2020, 31, 101653. [Google Scholar] [CrossRef]
  47. Fang, D.; Zhou, J.; Sheng, L.; Tang, W.; Tang, J. Juglone bonded carbon nanotubes interweaving cellulose nanofibers as self-standing membrane electrodes for flexible high energy supercapacitors. Chem. Eng. J. 2020, 396, 125325. [Google Scholar] [CrossRef]
  48. Wang, W.; Yang, Y.; Chen, Z.; Deng, Z.; Fan, L.; Guo, W.; Xu, J.; Meng, Z. High-performance yarn supercapacitor based on directly twisted carbon nanotube@ bacterial cellulose membrane. Cellulose 2020, 27, 7649–7661. [Google Scholar] [CrossRef]
  49. Zhang, Z.J.; Chen, X.Y. Carbon nanofibers derived from bacterial cellulose: Surface modification by polydopamine and the use of ferrous ion as electrolyte additive for collaboratively increasing the supercapacitor performance. Appl. Surf. Sci. 2020, 519, 146252. [Google Scholar] [CrossRef]
  50. Wannasen, L.; Swatsitang, E.; Pinitsoontorn, S. Flexible supercapacitors based on mesoporous nanocrystalline cobalt ammonium phosphates and bacterial cellulose composite electrode. Int. J. Energy Res. 2021, 45, 3075–3088. [Google Scholar] [CrossRef]
  51. Xu, J.; Zhu, L.; Bai, Z.; Liang, G.; Liu, L.; Fang, D.; Xu, W. Conductive polypyrrole–bacterial cellulose nanocomposite membranes as flexible supercapacitor electrode. Org. Electron. 2013, 14, 3331–3338. [Google Scholar] [CrossRef]
  52. Martinez-Casillas, D.C.; Mascorro-Gutierrez, I.; Betancourt-Mendiola, M.L.; Palestino, G.; Quiroga-Gonzalez, E.; Pascoe-Sussoni, J.E.; Guillen-Lopez, A.; Muniz, J.; Cuentas-Gallegos, A.K. Residue of corncob gasification as electrode of supercapacitors: An experimental and theoretical study. Waste Biomass Valorization 2021, 12, 4123–4140. [Google Scholar] [CrossRef]
Figure 1. SEM micrographs of freeze-dried BNC at (a) ×10,000 and (b) ×50,000.
Figure 1. SEM micrographs of freeze-dried BNC at (a) ×10,000 and (b) ×50,000.
Polymers 15 01760 g001
Figure 2. SEM micrographs at ×50,000 of BNCA-Pat 500 °C (a,b) and at 600 °C (c,d). P area: clusters of phosphorus particles.
Figure 2. SEM micrographs at ×50,000 of BNCA-Pat 500 °C (a,b) and at 600 °C (c,d). P area: clusters of phosphorus particles.
Polymers 15 01760 g002
Figure 3. SEM micrographs at ×50,000 of BNCA-K (a) at 600 °C (a,b), at 700 °C (c,d), and at 800 °C (e,f).
Figure 3. SEM micrographs at ×50,000 of BNCA-K (a) at 600 °C (a,b), at 700 °C (c,d), and at 800 °C (e,f).
Polymers 15 01760 g003

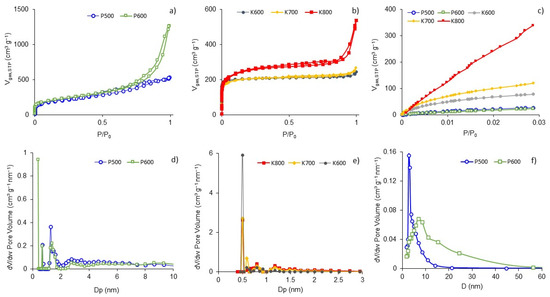

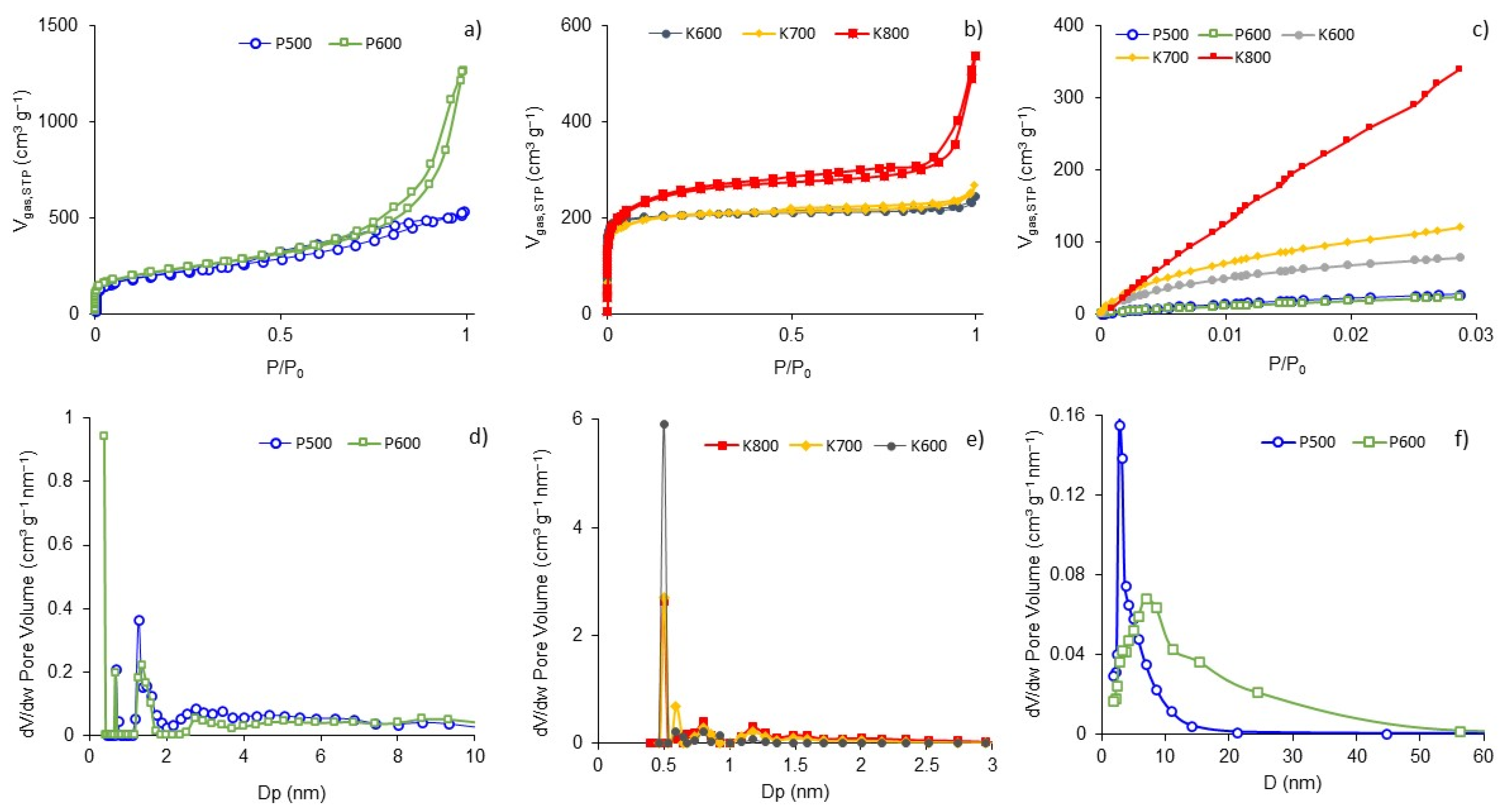

Figure 4. N2 isotherms at 77 K for (a) BNCA-P and (b) BNCA-K; (c) CO2 isotherms at 273 K, with pore size distribution by DFT for (d) BNCA-P and (e) BNCA-K, and (f) pore size distribution by BJH for BNCA-P.
Figure 4. N2 isotherms at 77 K for (a) BNCA-P and (b) BNCA-K; (c) CO2 isotherms at 273 K, with pore size distribution by DFT for (d) BNCA-P and (e) BNCA-K, and (f) pore size distribution by BJH for BNCA-P.
Polymers 15 01760 g004

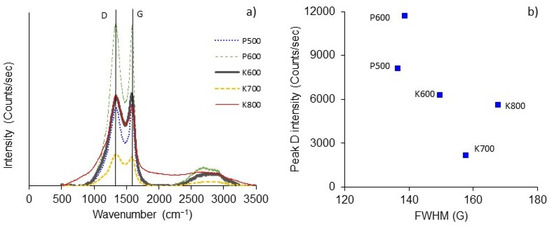

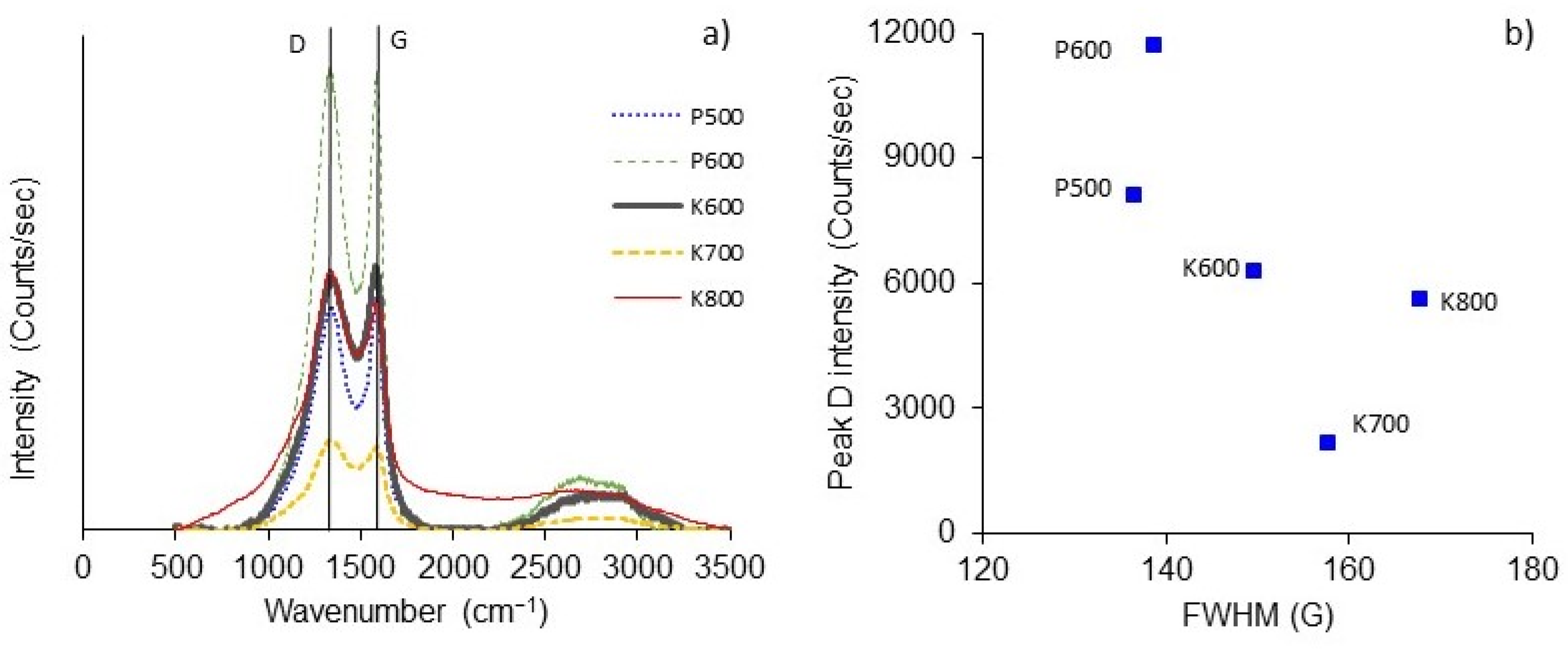

Figure 5. (a) Raman spectra of BNCAs, and (b) the intensity of ID as a function of the FWHM of IG. D-peak: intensity (ID); G-peak: intensity (IG).
Figure 5. (a) Raman spectra of BNCAs, and (b) the intensity of ID as a function of the FWHM of IG. D-peak: intensity (ID); G-peak: intensity (IG).
Polymers 15 01760 g005

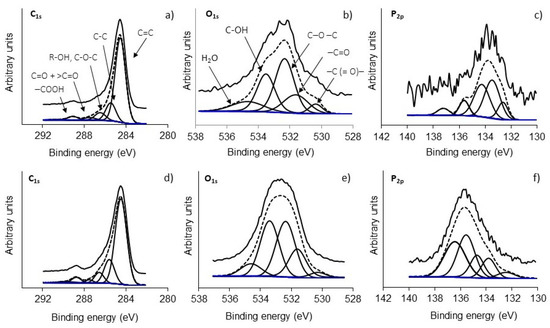

Figure 6. XPS high-resolution spectra of (a) C1s, (b) O1s and (c) P2p regions for P500 and (d) C1s, (e) O1s, and (f) P2p regions for P600.
Figure 6. XPS high-resolution spectra of (a) C1s, (b) O1s and (c) P2p regions for P500 and (d) C1s, (e) O1s, and (f) P2p regions for P600.
Polymers 15 01760 g006

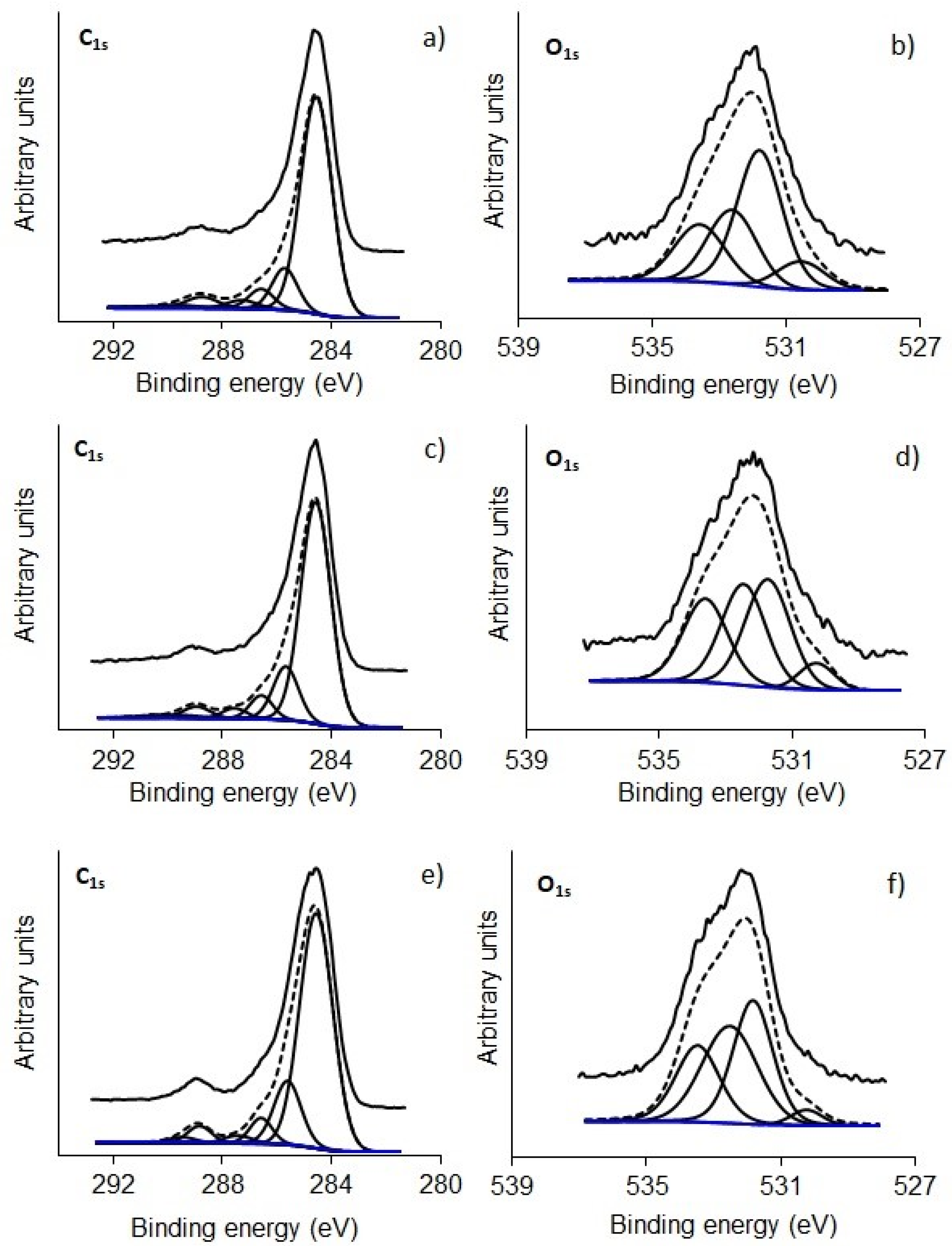

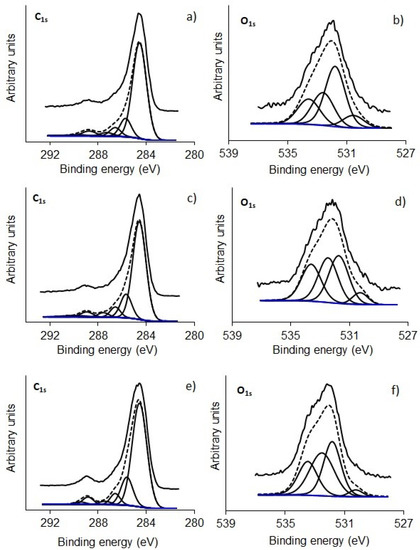

Figure 7. XPS high-resolution spectra of (a) C1s and (b) O1s regions for K600, (c) C1s and (d) O1s, regions for K700 and (e) C1s and (f) O1s regions for K800.
Figure 7. XPS high-resolution spectra of (a) C1s and (b) O1s regions for K600, (c) C1s and (d) O1s, regions for K700 and (e) C1s and (f) O1s regions for K800.
Polymers 15 01760 g007

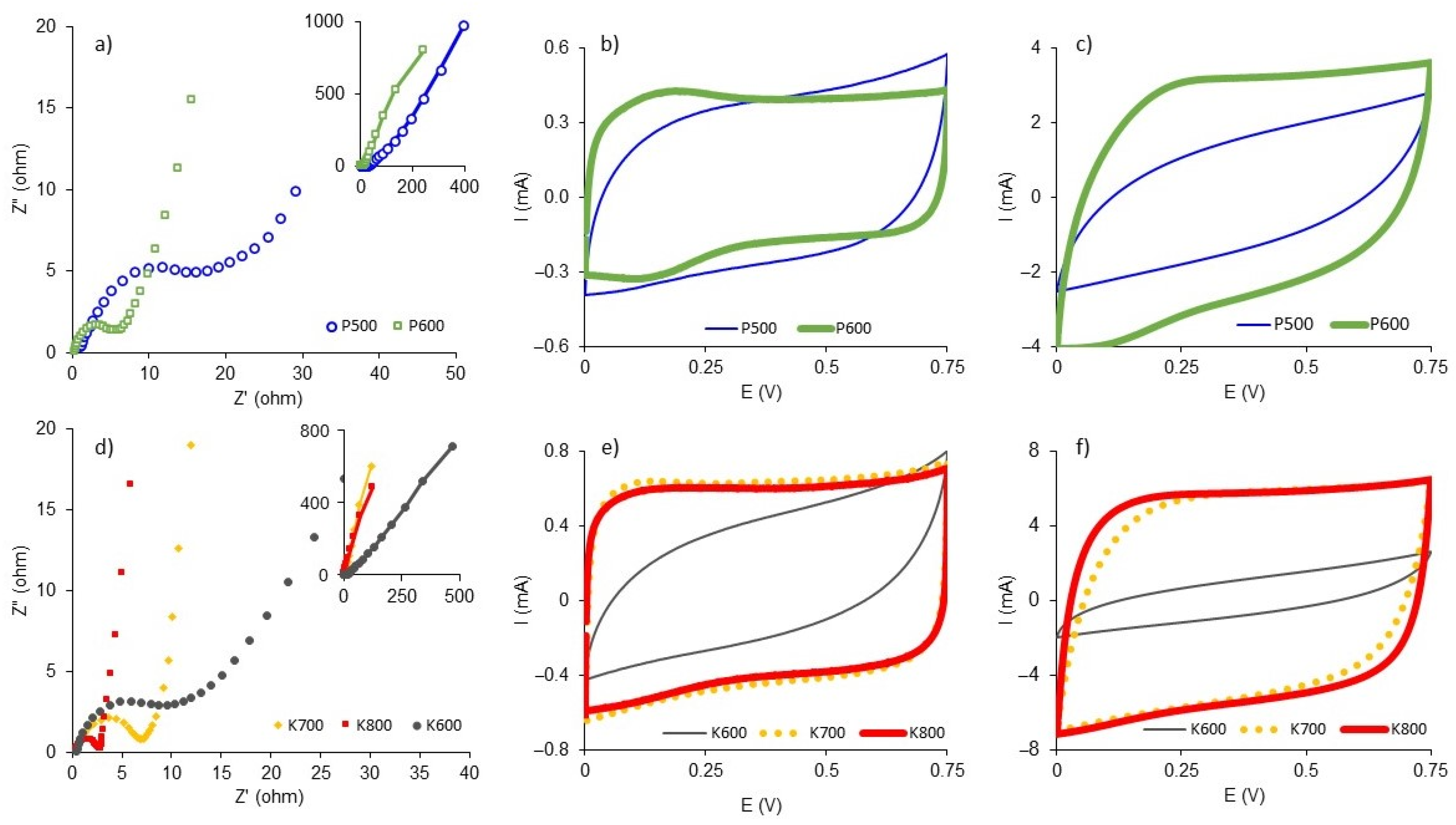

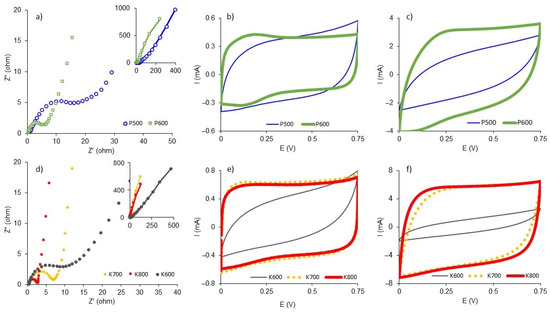

Figure 8. (a) Nyquist plot, cyclic voltammetry curves at (b) 2 mV s−1 and (c) 25 mV s−1 for samples BNCA-P, and (d) Nyquist plot and cyclic voltammetry curves at (e) 2 mV s−1 and (f) 25 mV s−1 for samples BNCA-K at 1 M H2SO4.
Figure 8. (a) Nyquist plot, cyclic voltammetry curves at (b) 2 mV s−1 and (c) 25 mV s−1 for samples BNCA-P, and (d) Nyquist plot and cyclic voltammetry curves at (e) 2 mV s−1 and (f) 25 mV s−1 for samples BNCA-K at 1 M H2SO4.
Polymers 15 01760 g008

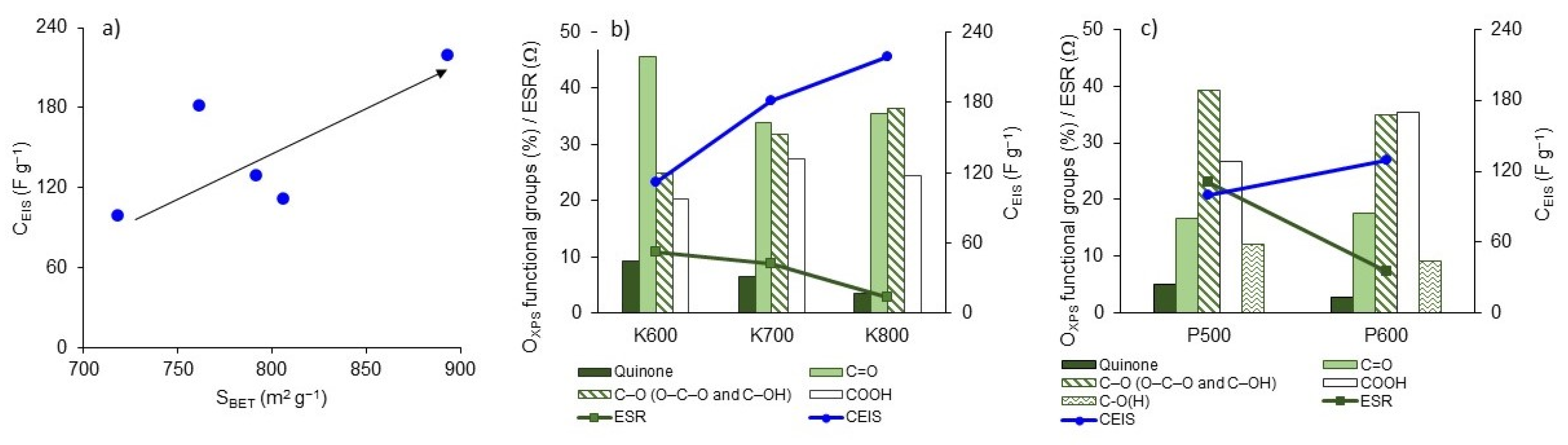

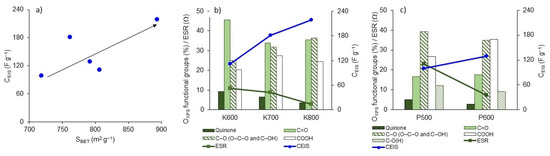

Figure 9. Relationship of gravimetric capacitance (CEIS) to (a) SBET, ESR and oxygen superficial functional groups of (b) BNCA-K and (c) BNCA-P.
Figure 9. Relationship of gravimetric capacitance (CEIS) to (a) SBET, ESR and oxygen superficial functional groups of (b) BNCA-K and (c) BNCA-P.
Polymers 15 01760 g009

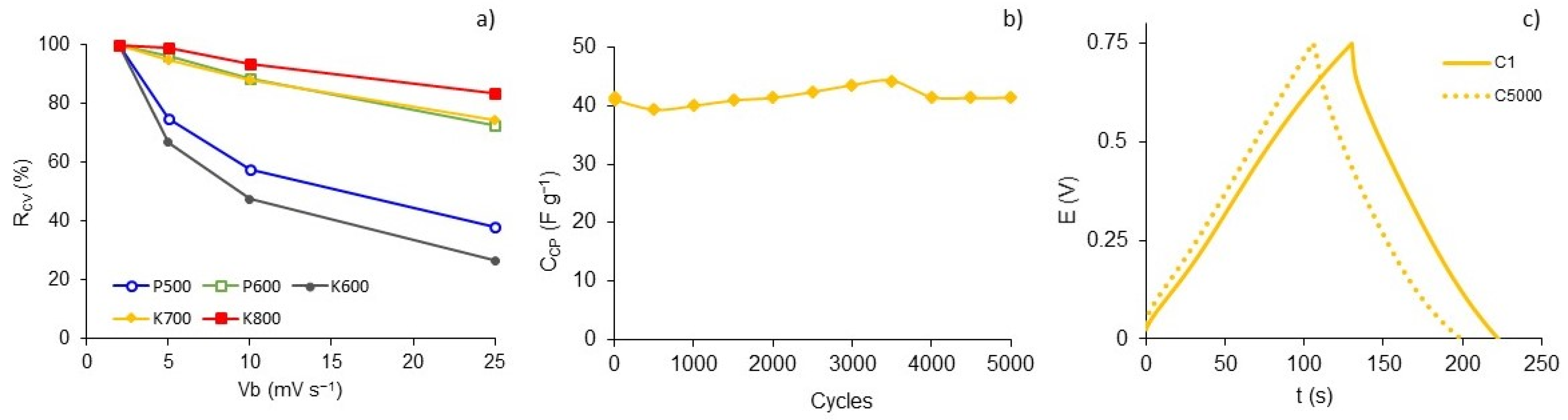

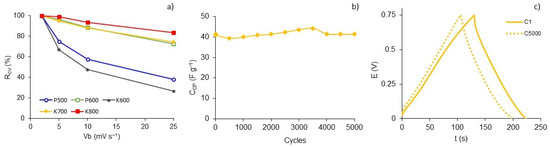

Figure 10. (a) Capacitance retention as a function of different scan rates, (b) gravimetric capacitance (CCP) evolution during 5000 charge and discharge cycles at 0.313 A g−1 in 1 M H2SO4 of K700, and (c) charge–discharge curves between 0 and 0.75 V of the first and last cycle of K700.
Figure 10. (a) Capacitance retention as a function of different scan rates, (b) gravimetric capacitance (CCP) evolution during 5000 charge and discharge cycles at 0.313 A g−1 in 1 M H2SO4 of K700, and (c) charge–discharge curves between 0 and 0.75 V of the first and last cycle of K700.
Polymers 15 01760 g010
Table 1. Structural properties of BNCA.
Table 1. Structural properties of BNCA.
BNCASBET
(m2 g−1)
Dmicro
(nm)
VN2
(cm3 g−1)
Vtotal,0.985
(cm3 g−1)
Vmeso
(cm3 g−1)
VCO2
(cm3 g−1)
P5007181.270.2340.730.500.084
P6007911.260.2581.721.460.045
K6008060.910.2630.330.060.245
K7007611.000.2360.350.120.177
K8008931.220.3150.690.380.169
Table 2. Physicochemical properties of BNCA by XPS, SEM-EDX and Raman.
Table 2. Physicochemical properties of BNCA by XPS, SEM-EDX and Raman.
BNCAXPS (wt%)EDX (wt%)Wavelength (cm−1)ID/IG
C1sO1sN1sP2pO/C (%)CONPDG
P50084.711.70.53.113.831.249.6-19.21336.51585.62.00
P60068.220.40.211.129.940.15.1-54.71333.61585.62.03
K60081.917.50.6-21.482.417.6--1342.31583.71.87
K70084.815.00.16-17.770.030.0--1345.21590.51.86
K80082.916.880.21-20.467.033.0--1337.51590.51.89
Table 3. Electrochemical properties of BNCAs determined by cyclic voltammetry and electrochemical impedance spectroscopy.
Table 3. Electrochemical properties of BNCAs determined by cyclic voltammetry and electrochemical impedance spectroscopy.
BNCACCV (F g−1)/Vb (mV s−1)CEIS
(F g−1)
ESR
(Ω)
−φ
(°)
τ
(s)
IC
(μF cm−2)
251025
P50011284644399.823.268.1159.213.9
P6001071039478129.97.473.35.816.4
K600119795732111.611.056.8159.213.8
K700192182169143181.68.878.82.323.9
K800180179169151219.52.975.70.924.6
Table 4. Gravimetric capacities of electrodes from doped BNCs. 3E: three-electrodes configuration; 2E: two-electrodes configuration.
Table 4. Gravimetric capacities of electrodes from doped BNCs. 3E: three-electrodes configuration; 2E: two-electrodes configuration.
ReferenceCelluloseDopant AgentSBET
(m2 g−1)
Capacitance
(F g−1)
Wang et al.
[44]
Hydrolyzed
cotton
N:Urea123–366220–275
3E 6 M KOH
Li et al.
[45]
BC, Hainan Yide Food Industry Co.N, P, and S:(NH4)H2PO4, (NH4)2SO4
(NH4)H2PO4/(NH4)2SO4
296–49880–255
2 M H2SO4
Liu et al.
[46]
BC, Guilin Qi Hong Technology Co.N, P, and S:Thiourea (CH4N2S)
Rogor (C5H12NO3PS2, 40 wt%)
Phoxim (C12H15N2O3PS, 40 wt%)
261–589132–509
3E and 2E
0.5 M H2SO4
Fang et al.
[47]
BC, Hainan Yide Food Industry Co.O:Juglone (5-hy-droxy-1,4-naphthalenedione)
Carbon nanotubes
95–10274.8–461.8
3E 1 M H2SO4
Wang et al.
[48]
BC, Hainan Yeguo Food CompanyN:Polypyrrole
Carbon nanotubes (20–50 µm)
0.15–0.5 F cm−2
Gel PVA/H2SO4
Zhang and Chen
[49]
BC, Hainan Yide Food Co.N:Polydopamine191–46426–260
2E and Coin CR2032
1 M H2SO4
Bai et al.
[13]
BC. Yeguo Foods Co.O:Poly(ethylene-co-vinyl alcohol)747–2189420
3E 6 M KOH
Wannasen et al.
[50]
BC. Gluconacetobacter xylinum en D-glucoseN, P, Co:Cobalt(II) nitrate hexahydrate
Phosphoric acid
12–4443.3
(158.5 mF cm−2)
3E 3 M KOH
Xu et al.
[51]
BC. Hainan Yide Foods Co., Ltd. N:1 M Pyrrole 459.5
3E 1 M NaCl
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Villarreal-Rueda, J.; Zapata-Benabithe, Z.; Posada, L.; Martínez, E.; Herrera, S.; López, S.; Sobrido, A.B.J.; Castro, C.I. Bacterial Nanocellulose from Komagataeibacter Medellinensis in Fique Juice for Activated Carbons Production and Its Application for Supercapacitor Electrodes. Polymers 2023, 15, 1760. https://doi.org/10.3390/polym15071760

AMA Style

Villarreal-Rueda J, Zapata-Benabithe Z, Posada L, Martínez E, Herrera S, López S, Sobrido ABJ, Castro CI. Bacterial Nanocellulose from Komagataeibacter Medellinensis in Fique Juice for Activated Carbons Production and Its Application for Supercapacitor Electrodes. Polymers. 2023; 15(7):1760. https://doi.org/10.3390/polym15071760

Chicago/Turabian Style

Villarreal-Rueda, Juliana, Zulamita Zapata-Benabithe, Laia Posada, Estefanía Martínez, Sara Herrera, Stiven López, Ana B. J. Sobrido, and Cristina I. Castro. 2023. "Bacterial Nanocellulose from Komagataeibacter Medellinensis in Fique Juice for Activated Carbons Production and Its Application for Supercapacitor Electrodes" Polymers 15, no. 7: 1760. https://doi.org/10.3390/polym15071760

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
