1. Introduction
Fibrous filters are widely utilised in many industrial applications [
1,
2,
3], environmental protection [
4,
5], and healthcare [
6,
7,
8]. They are used to remove both solid and liquid particles from gas streams. A logical development of the described topic is the issue of the three-component aerosol filtration, i.e., consisting of solid particles and drops of two types of liquid that do not mix with each other, e.g., oil and water. This problem may be of great practical importance, especially in the case of engine exhaust filtration, where apart from solid soot aggregates, the water droplets resulting from the condensation from combustion and drops of unburned liquid fuel may appear [
9]. Additionally, in the oil industry, a coexistence of oily liquids (crude oil), water, and solid particles from the parent rock may appear [
10]. This work is the first attempt to describe the filtration process defined in this way.
The reason for the high demand for fibrous filters is their very high efficiency, which often exceeds 90%, and the relatively low cost of production. The extensive knowledge of the phenomena occurring inside these filters is also important, which allows the design of an appropriate nonwoven structure defined primarily by the porosity of the filter, the size distribution of fibres, and the material from which the fibres are made. Importantly, it does not have to be a homogeneous structure: often, the use of multi-layer or gradient filters gives better results or leads to easier modifications/alterations for specific usage [
11,
12]. As the production technologies allow for the production of such designed structures, it opens the way for further improvement of the separation properties of fibrous filters.
The first works on filtration on nonwoven filters, the efficiency of these filters, pressure drops, and the evolution of both of these values during filter operation dealt with the filtration of solid particles [
3,
13]. As part of these studies, the classical filtration theory (CFT) has been formulated, allowing to determine the filtration efficiency of particles of particular sizes depending on the average diameter of the filter fibres and the linear velocity of the gas [
14,
15]. More advanced studies on filtration efficiency have utilised more indirect simulations. There is a large number of studies describing the gas flow field in the filter by means of computational fluid dynamics (CFD) and the particle–fibre interactions by means of the discrete element method (DEM) [
16,
17,
18]. Other methods for filtration efficiency simulations were based on the lattice Boltzmann method [
19,
20].
A description of the formation of filtration aggregates and their influence on changes in filtration efficiency and flow resistance through the filter was also formulated, both in terms of experimental studies and numerical simulations [
21,
22]. The formed aggregates increase the surface area of the fibres. Such an effect leads to an increase in filtration efficiency. At the same time, by reducing the porosity of the filter, they caused an almost monotonic increase in the flow resistance through the filter [
23,
24]. In subsequent studies, much attention was also paid to the phenomenon of re-entrainment, i.e., the secondary entrainment of deposited aerosol particles (individual particles or fragments of filter deposits) into the flowing gas stream [
25,
26]. This phenomenon resulted in an effective decrease in the filtration efficiency (secondary entrained particles appeared in the outlet stream) or a modification of the mass distribution of the retained dust inside the filter.
The next stage of filtration research on nonwoven filters was related to droplet filtration. It was quickly noticed that in the case of droplets with sizes below 10 µm, the initial filtration efficiency is described by the same relationships as the filtration efficiency for solid particles obtained from the classical theory of filtration [
27]. However, the dynamics of filtration efficiency, as well as the dynamics of pressure drop, are completely different for both solid and liquid particles. This is due to a completely different nature of the liquid retained in the filter structure. While in the case of the filtration of solid particles, fractal-like, highly developed, but equally highly porous filtration aggregates were formed; the droplets formed relatively homogeneous layers surrounding the filter fibres. As more and more liquid accumulates, these layers join together to form liquid bridges, which constitute a very high resistance to the flowing gas [
28]. This resulted in a characteristic shape of the dynamics of the pressure drop—after the initial, relatively smooth increase, there was a rapid, several-fold jump in the pressure drop [
28,
29]. Then, a state was developed close to dynamic equilibrium—the amount of liquid retained by the filter was balanced by the amount of liquid entrained from the filter, and the pressure drop did not experience any major changes.
Another development on the subject of filtration on nonwoven filters was the issue of the filtration of mixture aerosols, i.e., aerosols containing both solid particles and liquid drops. In one of the first studies [
30], the dynamics of pressure drop during the filtration of such aerosols has been investigated. One of the main conclusions was the sharp jump in the flow resistance that is highly characteristic of mist filtration. Ref. [
31] investigated the effect of oil deposited on filter fibres on the efficiency of the removal of solid particles from a gas stream. In contrast, in the work by [
32], the influence of soot particles on the filtration efficiency of liquid aerosols was investigated. There are also studies on the alternating (consecutive) filtration of solid and liquid particles [
33,
34]. These works theoretically and experimentally observed as well as numerically described the collapse of the filtration deposits under the influence of the deposited liquid, which resulted in a decrease in filtration efficiency and flow resistance during such a process compared to the filtration of only solid particles. A simultaneous filtration of solid and liquid particles was investigated in our last work. By examining the simultaneous filtration of soot particles and water droplets [
35], as well as soot particles and oil droplets [
36], we observed similar effects as in the case of alternate filtration: the collapse of the filter deposits leading to a decrease in efficiency and the evolution of the pressure drop similar to the filtration of liquid aerosols.
However, it should be emphasised that in the vast majority of the mentioned theoretical and numerical works, the authors focus mainly on determining the filtration efficiency and its evolution, ignoring the size of the pressure drop and its changes. The methods of determining the initial pressure drop, i.e., for unloaded filters, were presented in Davies’ fundamental work [
37] and the approximate formulas presented there, together with the concept of equivalent “Davies diameter”, are utilised even today. Wang et al. [
38] used stochastic modelling to determine the pressure drop values for filters of different porosity and thickness, obtaining similar results as from the approximate Davies equations. In [
39], the pressure drop of nonwoven filters has been obtained by the means of the Hagen–Poiseuille equation for gas flow through porous materials. Changes in pressure drop due to filter deposits build-up has been addressed by Thomas et al. [
23] using an approximate method that treats filter deposits as additional fibres that are present in the filter structure. When analysing the evolution of pressure drop during liquid aerosol filtration, one should note the works by Frising et al. [
40] and Payet et al. [
41] along with utilising a semi-empirical model work by Gac. When considering the filtration of mixed solid–liquid aerosols, to our knowledge, there are currently no papers numerically or analytically describing the changes in pressure drop during such a process.
Our current work is the next step in the topic of mixture aerosol filtration. We move from binary systems to ternary systems containing solid particles and liquid particles of two different liquids. The results of experimental research will be supported by an analytical description, which is a certain extension of Davies’ description for the case of filtration of binary and ternary aerosol systems.

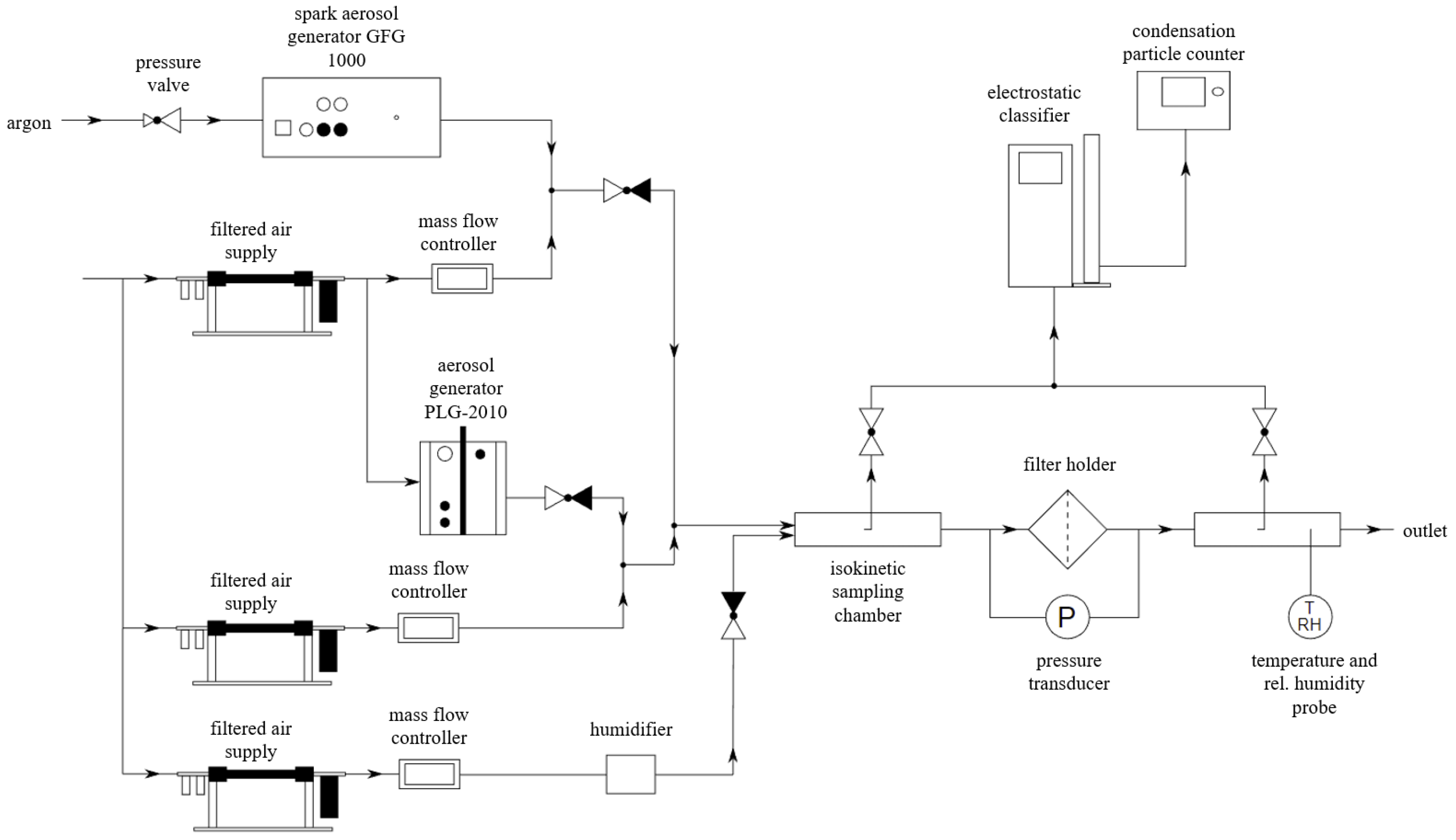

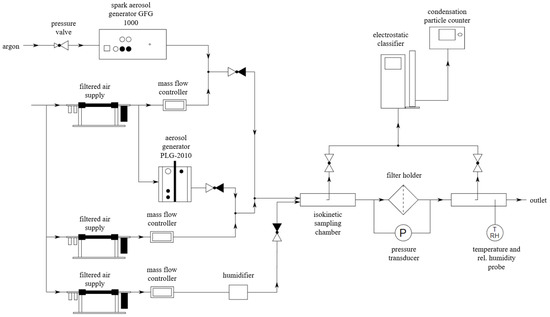

3. Results

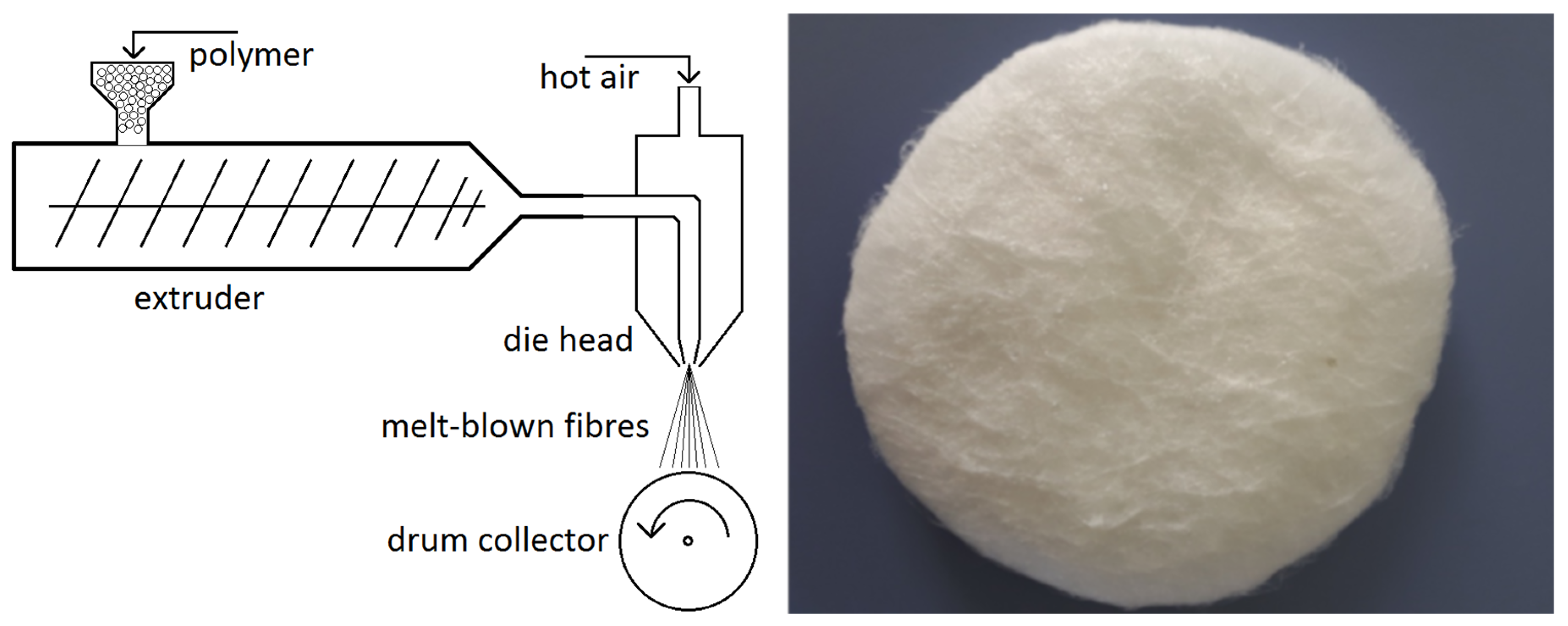

3.1. Filter Properties

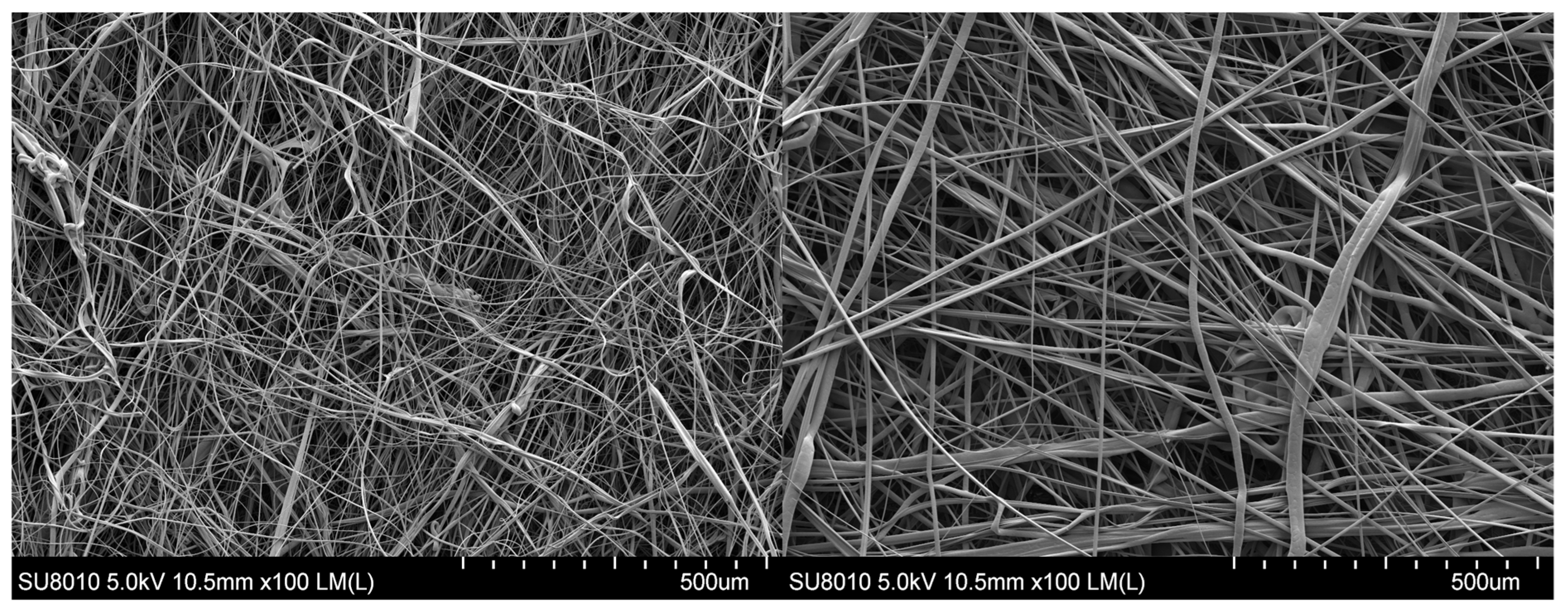

The nonwoven filters were analysed by SEM and the results are presented in

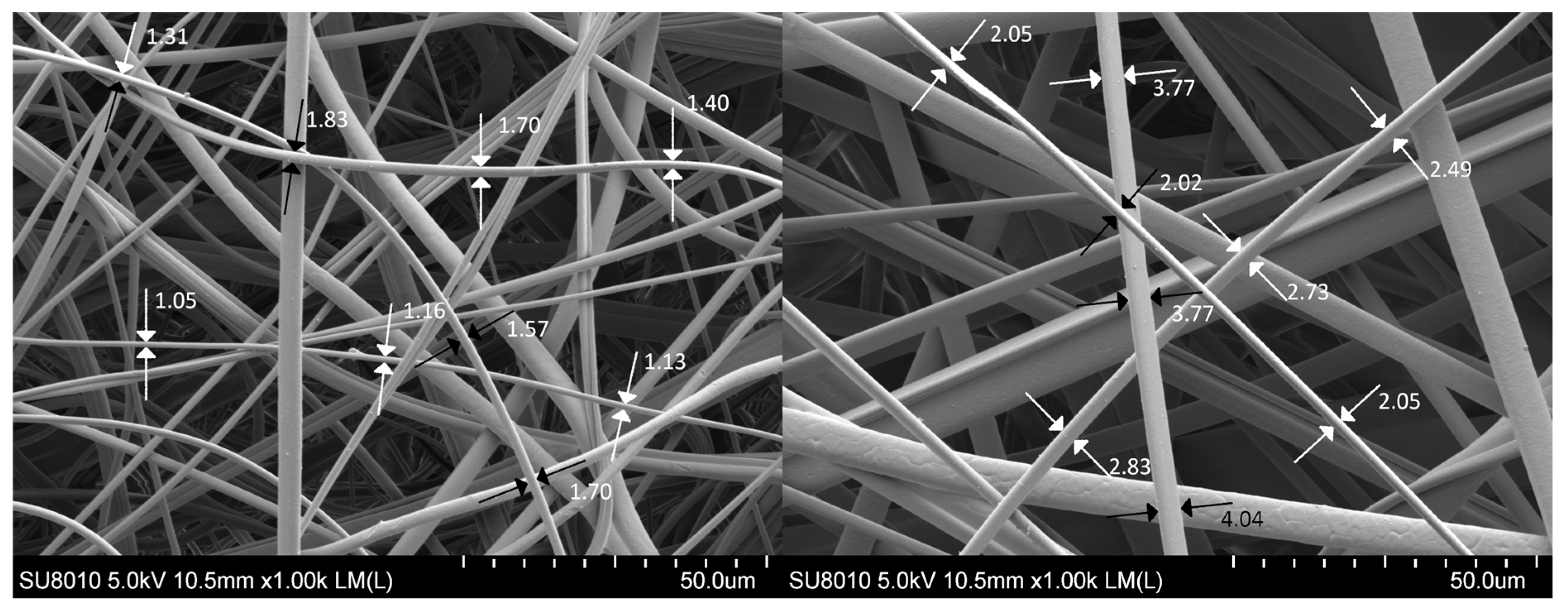

Figure 4. The SEM analysis revealed that the filters possess a homogenous and uniform microstructure, with randomly arranged fibres. Additionally, the filters exhibited fibres of varying sizes. The determination of fibre size distribution was carried out using the measurement method depicted in
Figure 5.
Table 2 shows the properties of filtration layers utilised in experiments. The designations of the F6 and F1 filters correspond to the average diameter of the fibres which the particular layer comprises. The layers marked as 2F6 and 2F1 consist of the same fibres as layers F6 and F1, but their thickness and mass are higher. The layer thickness of the F6 filter is clearly lower in comparison with any other tested filter. The 2F1 and F1 layers are characterised by a lower value of average fibre diameter and a higher value of pressure drop in comparison with 2F6 and F6 layers. The 2F6 and F1 filters have similar thickness. The average fibre diameter and its deviation are weighted arithmetic means (by share).

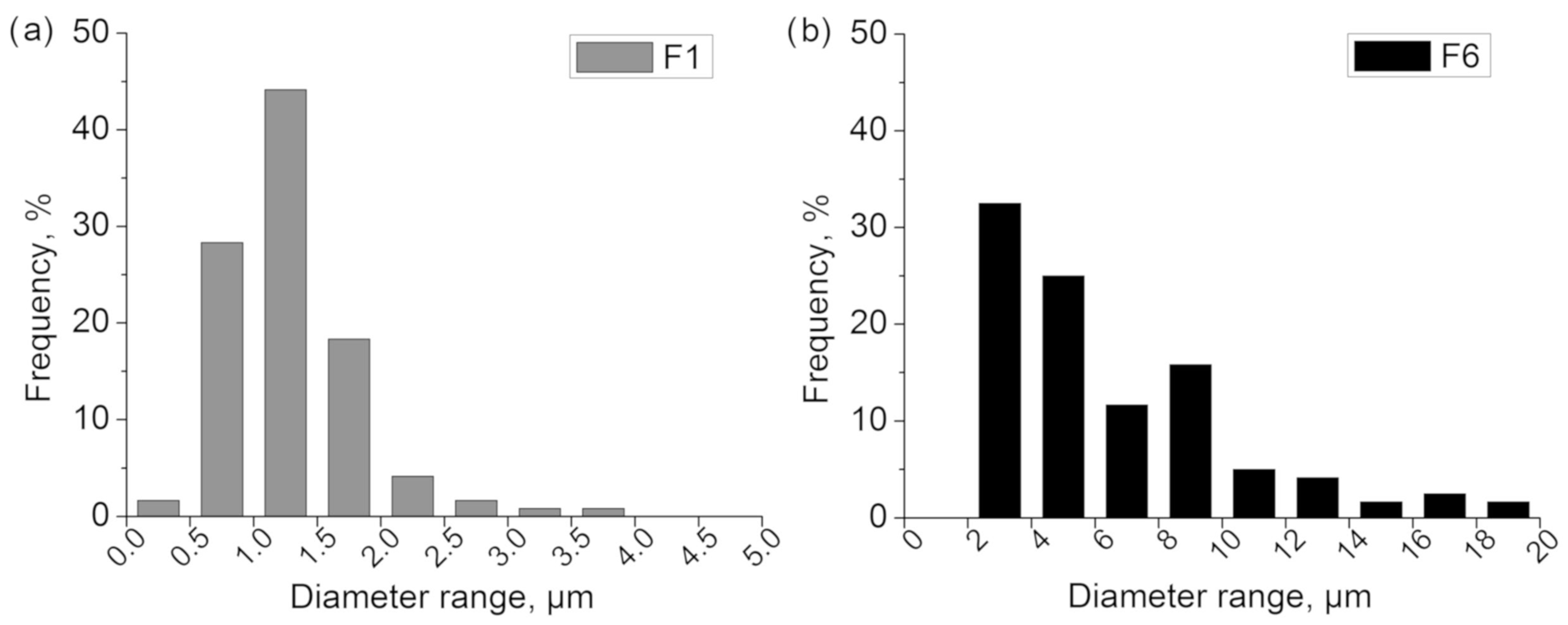

Figure 6 shows the obtained fibre size distributions. The fibre size distribution for the F1 filter is more narrow than the one for the F6 filter.
3.2. Calculated Oil Droplets Distribution
As previously mentioned, droplets larger than ~750 nm could not be measured due to equipment limitations. However, they cannot be ignored in the calculation of the filter loading. In order to include their presence in the stream in the calculations, modelling was carried out to complete the distribution. The exponential function based on the sizes between 400 and 710 nm was utilised for that purpose. The authors decided not to utilise the distribution fitting method due to the asymmetry of the distribution and its overall shape resulting partially from particle interactions (Smoluchowski’s coagulation equation would be a more fitting and precise solution, yet is far more complicated to implement). Only the right side of the distribution was modelled. The smallest droplets were omitted due to their insignificant contribution to the change in filter characteristics.

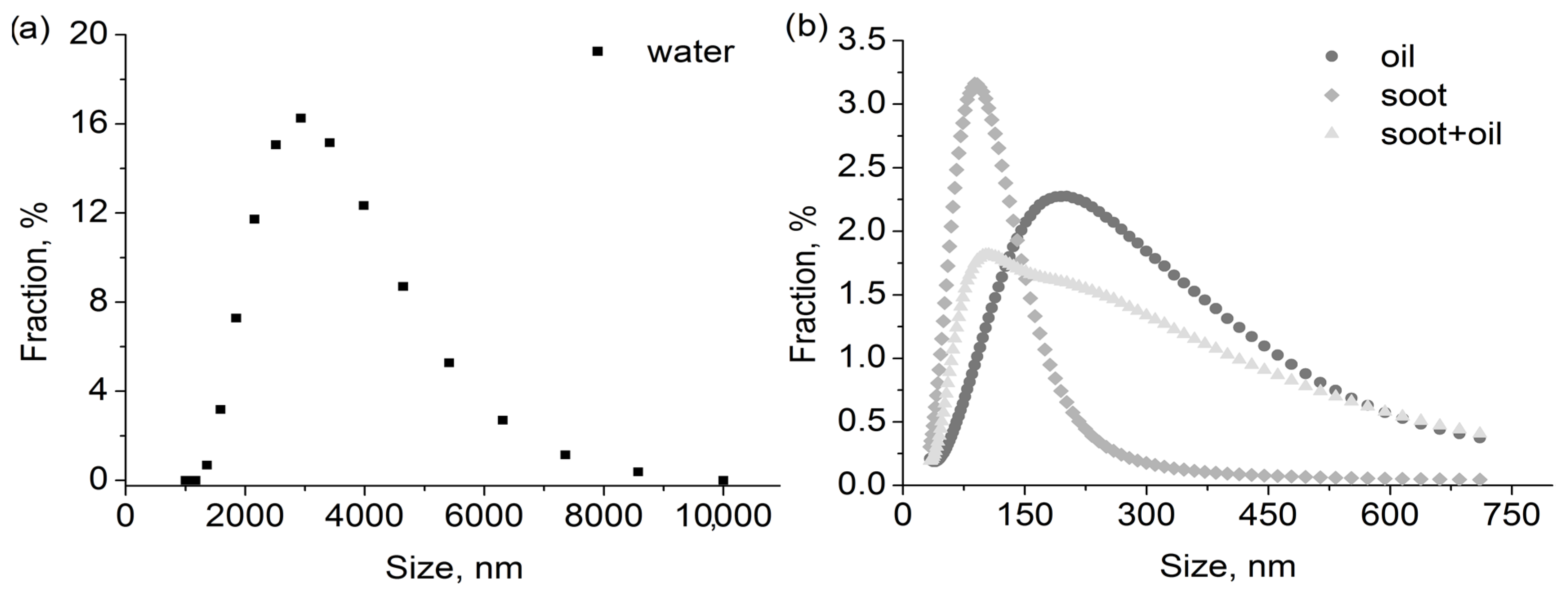

Figure 3 shows the results of the calculations.

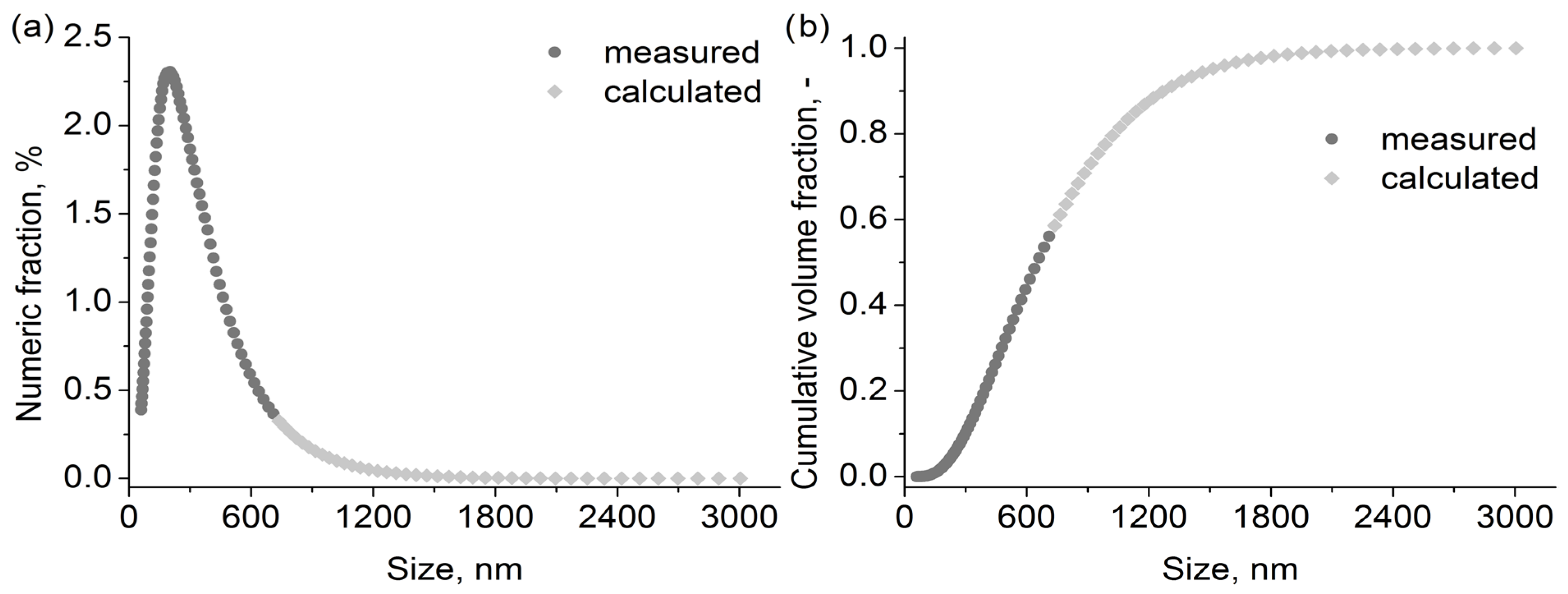

Despite the small numeric fraction (
Figure 7a), the additional droplets have a significant impact on the volume and mass of deposits retained on the filter due to their large size. The calculation results indicate that the droplets in the modelled range account for more than 40% (
Figure 7b) of the total volume present in the aerosol stream during the oil aerosol filtration.
3.3. Calculated Efficiency and Mass Changes

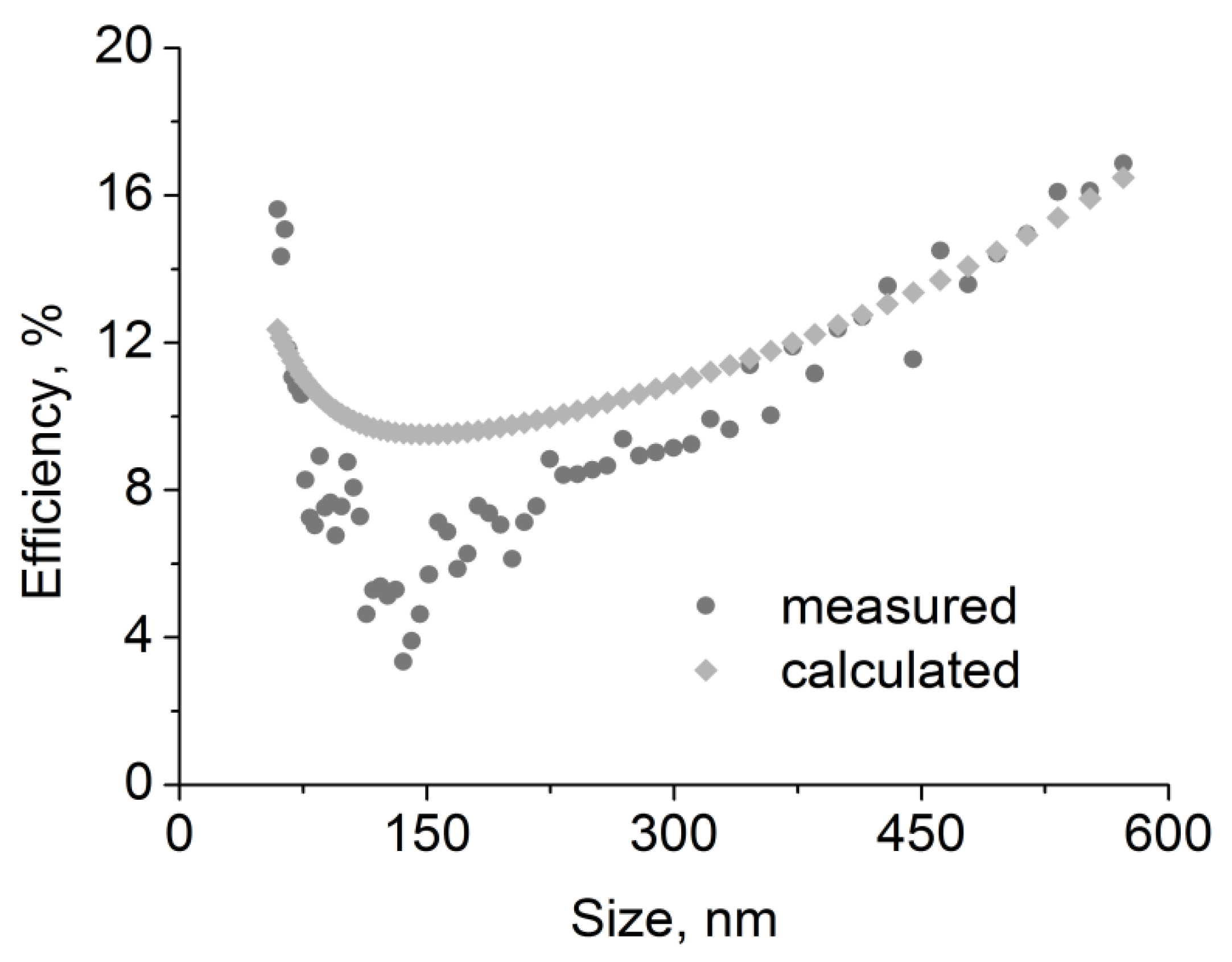

Figure 8 shows the reasonably accurate results of the coefficients fitting for the 2F6 filter. The main consideration was to make the suitable fitting for the larger droplets, and thus the most relevant to the changes taking place inside the filter. Sizes below MPPS (most penetrating particle size) are less relevant due to their limited contribution to the changes occurring inside the filter.
In the case of other filters, the differences between calculations and measurements are slightly greater than for the 2F6 filter (even though it is still of a similar order of magnitude, and there is a clear minimum of around 100–200 nm). However, this is not of great importance for further calculations because, as shown below, the dynamic of filter loading is significantly influenced by particles and droplets with diameters significantly exceeding the range presented in
Figure 8.
Table 3 shows the obtained values of the mechanism efficiency coefficients for the tested filters for the oil aerosol. The coefficients were utilised to calculate the change in filter mass during the 3840 s long filtration process. The results for all filters are shown in
Table 4.
The predicted mass change for the 2F6 filter is consistent with the measured value, and is considerably more accurate than the previous model, which did not take into account the presence of larger droplets. Similarly, in the case of the 2F1 and F1 filters, the consideration of additional droplets in the model and the new values of the coefficients clearly improved the agreement of the measured and calculated results with respect to the previously applied model.
While the higher mass change compared to the previous model is not surprising (we take into account the wider range of droplets), the discrepancy between the measured and calculated values in the case of the F6 filter is significant. This can be explained by the lower layer thickness of this particular filter. Interactions between fibres and large droplets which are destructive for the latter are not included in the current model. This can lead to a lower chance of further interactions and a lower actual efficiency for this filter. A similar effect could occur in the case of interactions between droplet and wet fibre. The high overall efficiency of 2F1 and F1 filter results from capturing occurring in the upstream side part of the filter. This results in a non-uniform change of properties within the filter, and the differences will be more significant the higher the filter efficiency. The current model does not take this effect into account.
3.4. Measured and Calculated Pressure Drop Changes for Oil Aerosol
Table 5 shows the obtained values of the pressure drop coefficients for the tested filters for the oil aerosol. The coefficients were utilised to calculate the change in pressure drop during the 3840s long filtration process. The results for all filters are shown in

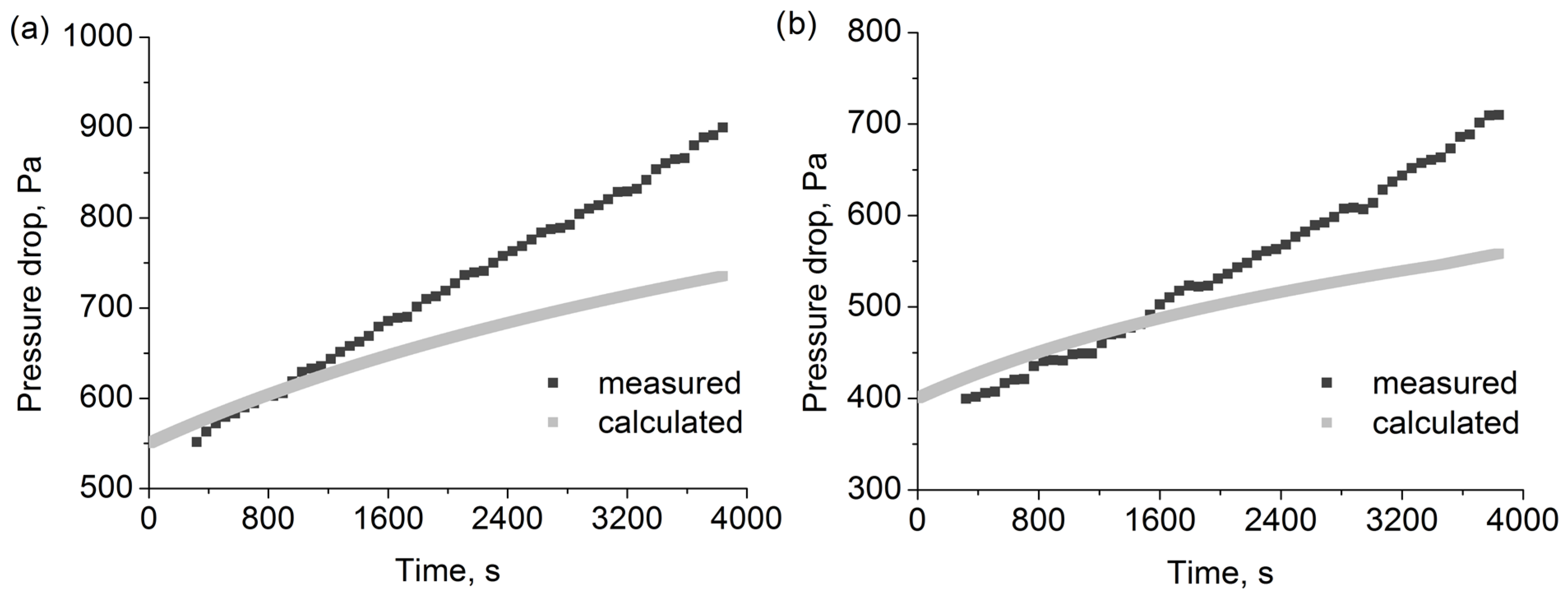

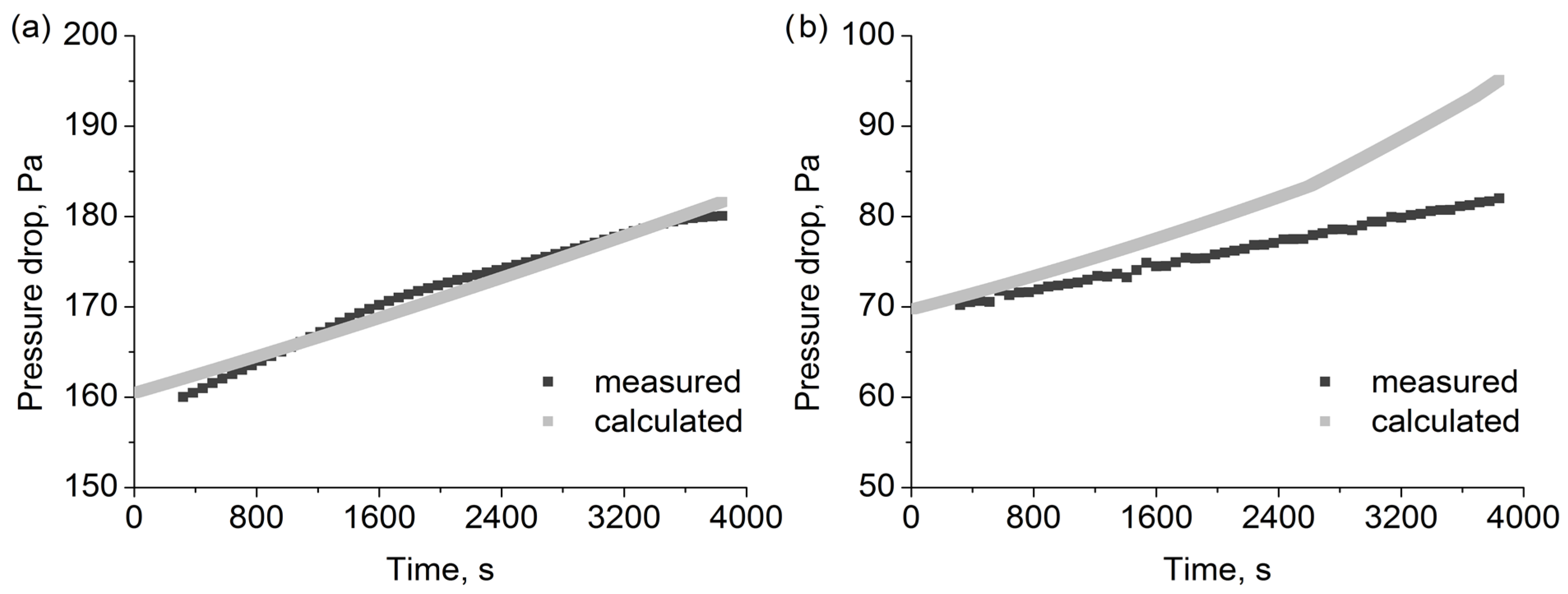

Figure 9 and
Figure 10. Utilising the determined values of the coefficients, we calculated the change in pressure drop over time. The first 320s were omitted to ensure stable readings after changes in flows resulting from the start-up of the aerosol generators. At the same time, the calculations start from the zero time point.
As the pressure drop calculation model is dependent on the filter efficiency model via changes in packing density, average flow velocity, and fibre diameter resulting from the capture of the particle droplets, the pressure drop change over time ought to be as accurate as mass change over time. The most accurate results were obtained for the 2F6 filter, for which the mass change prediction was also the most accurate. For the F6 filter, the calculated pressure drop change was higher than the measured one. Additionally, after the calculation time of the 2700 s, the change in fibre diameter reached the maximum allowed value (for the most efficient fibres), and the higher rate of change in pressure drop after that time point can be observed in the calculation results. For both the 2F1 and F1 filters, the calculated change in pressure drop was lower than the measured one. However, as the pressure drop change is related to mass change, the same effects, as described in the previous section, which are relevant to mass change, could explain this discrepancy.
3.5. Measured and Calculated Pressure Drop Changes for Mixture Aerosols

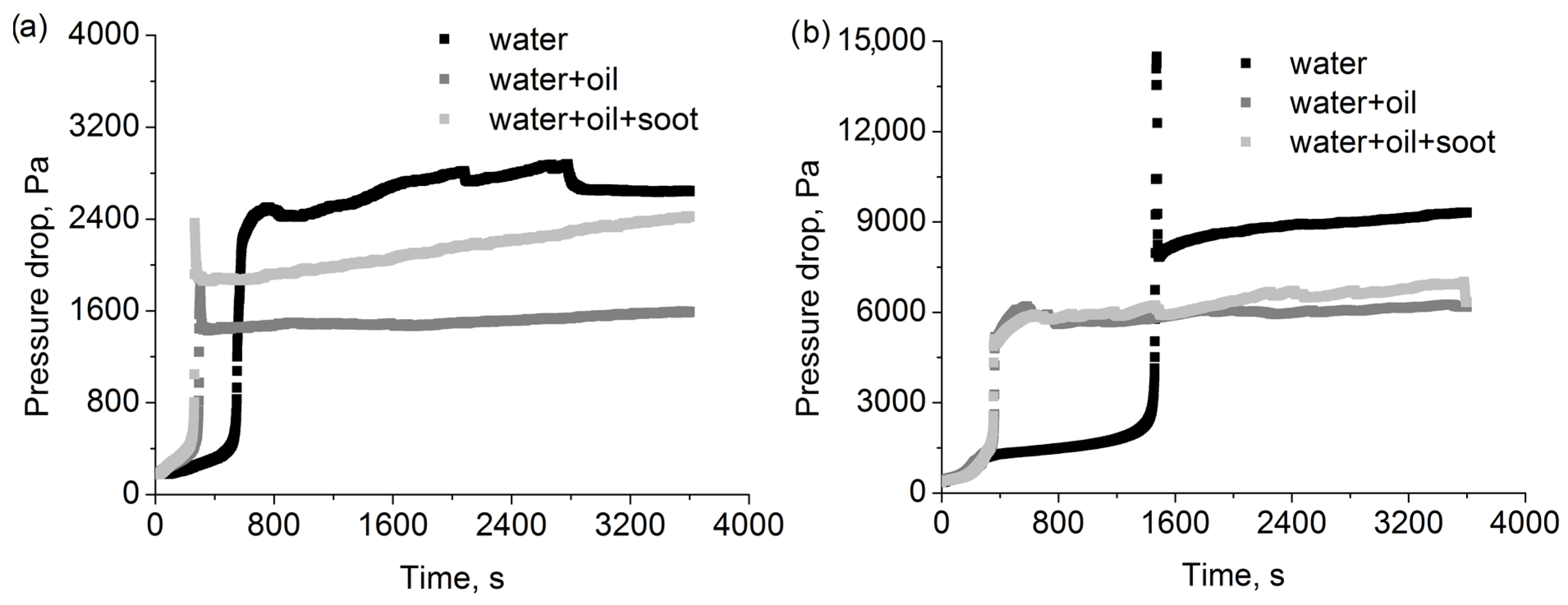

Figure 11 shows the change of pressure drop for 2F6 and 2F1 filters as a result of the deposition of solid and liquid aerosol particles on the fibres and in the depth of the filter. The pressure drop for filter 2F6 is clearly lower than that for filter F1 (note the different scales on the two graphs). This is due to fewer deposits being retained on this filter due to the lower efficiency of this filter. At the same time, filter 2F6 has a higher packing density, which results in a lower total volume available for deposits. The efficiency of the filter is responsible for the rate at which this volume is being exhausted, and the packing density is responsible for the total capacity of the filter towards the deposits.
In both cases, the addition of an aerosol of oil droplets causes a significant acceleration in the filling of the layer with deposits. This results in an earlier occurrence of a rapid increase in pressure drop. According to
Table 1, the mass flow of the oil-containing aerosol is two orders of magnitude lower than that of water, so the explanation for this phenomenon cannot be an increase in the mass of deposits retained on the layer in a given time unit. The reason should be considered as differences in fibre wettability by water droplets and oil droplets. The filters are made of polypropylene, which is a hydrophobic polymer. Even a small mass addition of oil to the aerosol stream improves the wettability of the fibre and makes it easier for water droplets to penetrate the filter, as well as for the deposited liquid to move through the depth of the filter. This leads to an equal distribution of the liquid inside the filter and a lower pressure drop compared to an aerosol containing only water droplets.
Despite the low mass of potential solid deposits, the addition of solid particles in the aerosol directed at the filter has a clear effect on the pressure drop, especially for the 2F6 filter. The pressure drop for an aerosol containing additional soot solid particles is significantly higher in the case of the 2F6 filter, and slightly higher (especially towards the end of the measurement) for the F1 filter. Additionally, the increase has a higher rate compared to a system containing only a mixture of liquid particles. The presence of solid particles in the aerosol and their deposition on the filter fibres lead to an increase in the efficiency of the effective capture of other aerosol particles. This effect is much less pronounced in the case of a filter which was characterised by high initial and overall filtration efficiency.
A high peak in pressure drop followed by a decrease and stabilisation of the pressure drop value is, in fact, present in all cases for the F1 filter (for aerosol containing only water) and for the 2F6 filter (for an aerosol containing water and oil and an aerosol containing water, oil, and graphite). Its absence from the graph for the other cases is due to insufficient time resolution of the measuring system (peak duration is a few seconds at most, depending on the case). The occurrence of this peak is a result of the top layer of the filter being filled with particles, which leads to a decrease in the surface available for the aerosol flow. In an extreme case, almost the entire cross-sectional area is filled, which would lead to an increase in the pressure drop to an infinite value. However, the rapidly increasing difference, in pressure drop, between the upstream and the downstream of the filter leads to the penetration and movement of the deposits collected on the surface layer of the filter deep inside the filter. As a result, the pressure drop stabilises at a new level, resulting from the distribution of deposits throughout the filter volume. The following increase in pressure drop for the aerosol, which contains solid particles, results from their capture on the surface part of the layer, which leads to an increase in filter capacity towards the liquid particles. In the case of mixture liquid aerosol, the presence of oil particles allows for the easier movement of the captured liquid through the filter, and the resulting pressure drop change is lower than that for the pure water aerosol.
Additionally, upon utilising the relations for the pressure drop determined for the oil aerosol, we carried out calculations for two selected filters by including in the model the presence of water droplets. The obtained results show an interesting tendency despite deviating considerably from the measured values. For both filters, in order to correct the calculated time of the occurrence of the pressure peak and match it with the corresponding measured time, it must be taken into account that only 64% of the change in packing density is effective (

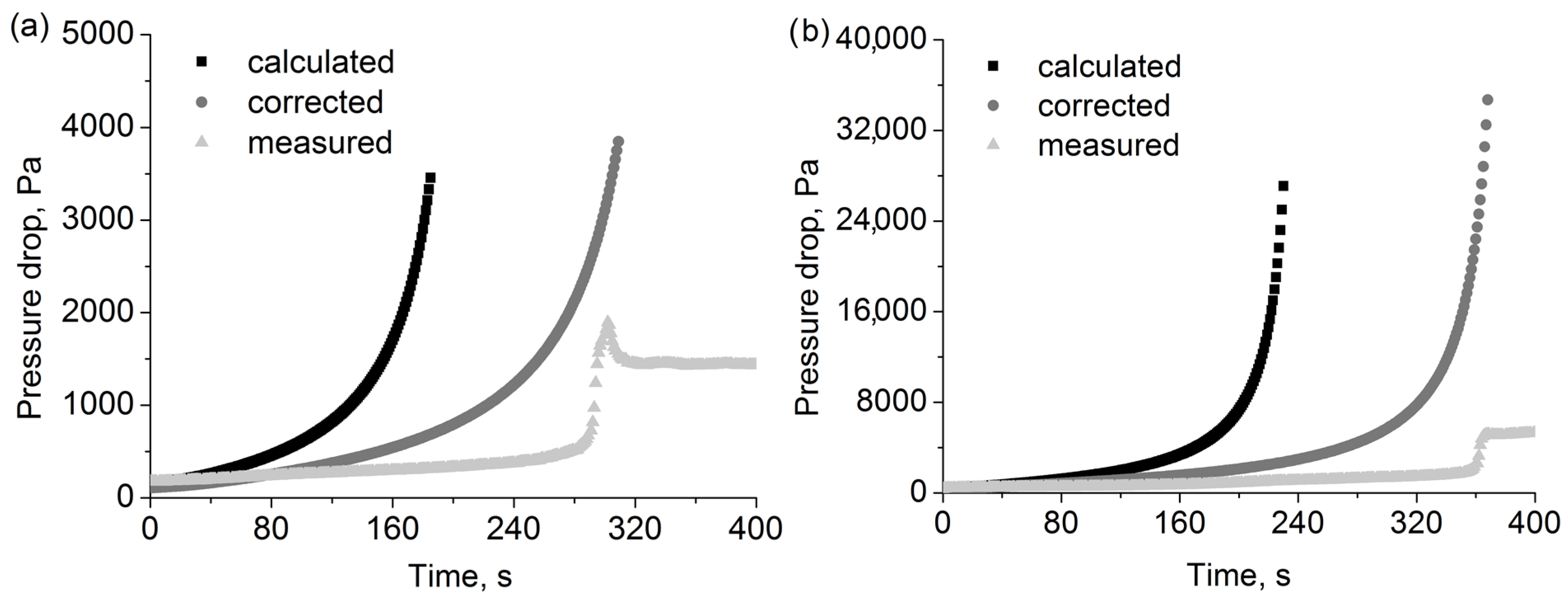

Figure 12). Thus, part (36%) of the predicted deposits permanently retained in the filter actually leaves the filter, either by particle resuspension or by a different kind of liquid movement inside the filter. The same value for the two tested filters, which differ significantly in their structure and characteristics, suggests that the explanation should be attributed to the nature of the tested aerosol rather than the filters. The aerosols utilised in the experiment contains particles of different phobic properties. The difference in the pressure drop values may occur due to the aforementioned mass deposit distribution inside the layer of the filter and the local distribution of flow velocity inside a partially filled filter, including the presence of the dead zones in the flow field. All of these effects were not included in the current pressure drop model.
4. Discussion
Taking into consideration the complete range of oil droplets, an updated filtration efficiency model with improved coefficient fitting and sizes predicts the mass change for three of the four filters with increased accuracy. Further improvements would require a consideration of the mass distribution of deposits within the filter structure, their effect on the local filter properties, and their non-uniform change over time.
The results show a major influence of aerosol composition on the pressure drop across the filter when the filter is loaded with various aerosol particles. The addition of the aerosol containing oil droplets to the aerosol containing water droplets results in an accelerated occurrence of the peak in the pressure drop and a significant decrease in the value to which the pressure drop falls after the peak. This effect can be explained by the differences in the wettability of both liquids in relation to the polypropylene from which the tested nonwoven filters have been made. In addition, in the case of a lower efficiency filter (2F6), the addition of soot particles results in a smaller decrease in peak pressure drop and a more rapid increase in pressure drop due to the deposition of particles on the filter fibres. The same increase over time can also be observed for the F1 filter. This can be explained by the increased efficiency resulting from the function of the solid particles as additional anchor points for droplets and as collection points for deposited liquid particles. The presence of these points will have a more pronounced effect in the case of the filter of lower efficiency.
The presented calculation results comprise the first stage of building a comprehensive model of the dynamics of pressure drop on the filters during the filtration of various types of aerosols. As shown in this work, this description works best in the case of a small load of aerosol particles and/or droplets on the fibres, i.e., during the initial stage of filtration. For further stages, the difference between the results of calculations and experiments becomes much more prominent. The solution to this problem would be a further modification of the model, e.g., by dividing the considered filter into separate thin layers. This approach requires a much more detailed understanding of the distribution of deposits within the filter and the changes over time of this mass distribution. An entirely valid model should include two stages, pre-surge and post-surge of pressure drop. The first stage is an increase in resistance as a result of filling the filter space with deposits and the related mass distribution in the internal structure of the filter, which changes dynamically during filtration. The second stage is the dynamic equilibrium and is dominated by the process of the drainage and dripping of liquid deposits with minor changes, resulting from the slow filling of areas that previously remained empty, or in the case of solid particles, additional slow increase in the potential capacity of the filter due to the presence of new attachment points. In order to construct such a model, more detailed experimental observations of the mass distribution inside the filter and changes in this distribution over time should be carried out. We have no doubt that such research will be undertaken in the future. However, these studies go beyond the scope of this article, the aim of which was to present and qualitatively explain changes in flow resistance during filtration and the influence of the type of aerosol (binary solid–liquid, triple solid–liquid–liquid) on these changes.
