Carbonized Aminal-Linked Porous Organic Polymers Containing Pyrene and Triazine Units for Gas Uptake and Energy Storage

by
Aya Osama Mousa
1,2,
Mohamed Gamal Mohamed
1,3,*,
Cheng-Hsin Chuang
2 and
Shiao-Wei Kuo
1,4,*
1
Department of Materials and Optoelectronic Science, Center of Crystal Research, National Sun Yat-sen University, Kaohsiung 804, Taiwan
2
Institute of Medical Science and Technology, College of Medicine, National Sun Yat-sen University, Kaohsiung 804201, Taiwan
3
Chemistry Department, Faculty of Science, Assiut University, Assiut 71515, Egypt
4
Department of Medicinal and Applied Chemistry, Kaohsiung Medical University, Kaohsiung 807, Taiwan
*
Authors to whom correspondence should be addressed.
Polymers 2023, 15(8), 1891; https://doi.org/10.3390/polym15081891
Submission received: 1 March 2023 / Revised: 13 April 2023 / Accepted: 13 April 2023 / Published: 14 April 2023
(This article belongs to the Collection Progress in Polymer Applications)
Browse Figures
Versions Notes

Abstract

:
Porous organic polymers (POPs) have plenteous exciting features due to their attractive combination of microporosity with π-conjugation. Nevertheless, electrodes based on their pristine forms suffer from severe poverty of electrical conductivity, precluding their employment within electrochemical appliances. The electrical conductivity of POPs may be significantly improved and their porosity properties could be further customized by direct carbonization. In this study, we successfully prepared a microporous carbon material (Py-PDT POP-600) by the carbonization of Py-PDT POP, which was designed using a condensation reaction between 6,6′-(1,4-phenylene)bis(1,3,5-triazine-2,4-diamine) (PDA-4NH2) and 4,4′,4′′,4′′′-(pyrene-1,3,6,8-tetrayl)tetrabenzaldehyde (Py-Ph-4CHO) in the presence of dimethyl sulfoxide (DMSO) as a solvent. The obtained Py-PDT POP-600 with a high nitrogen content had a high surface area (up to 314 m2 g−1), high pore volume, and good thermal stability based on N2 adsorption/desorption data and a thermogravimetric analysis (TGA). Owing to the good surface area, the as-prepared Py-PDT POP-600 showed excellent performance in CO2 uptake (2.7 mmol g−1 at 298 K) and a high specific capacitance of 550 F g−1 at 0.5 A g−1 compared with the pristine Py-PDT POP (0.24 mmol g−1 and 28 F g−1).

Graphical Abstract

1. Introduction

Recently, the development of energy storage technologies to suit the modern needs of higher energy densities and specific powers is considered to be a hot global concern within academia and industrial fields [1,2,3,4,5,6,7,8,9,10]. Indeed, replacing fossil fuels via the use of batteries and supercapacitors can diminish severe global warming, in addition to being eco-friendly [11,12,13,14,15]. Ultra-capacitors or even electric double-layer capacitors are nominated supercapacitors; both discriminate over classical batteries by their long cycle life as well as their lightweight, low internal resistance, high power density, low servicing, reasonable energy density, flexibility, and wide thermal stabilities [16,17,18,19,20]. Due to its benefits, the supercapacitor has received much interest as a future energy storage technology. According to the differences in energy storage mechanisms, supercapacitors can be classified as redox electrochemical capacitors (pseudocapacitors), hybrid capacitors, and electrochemical double-layer capacitors (EDLCs) [21,22,23,24,25,26,27].
Conjugated microporous polymers (CMPs), covalent organic frameworks (COFs), polymers of intrinsic microporosity (PIMs), and hyper-cross-linked polymers (HCPs) have been considered as different types of porous organic polymers (POPs) [28,29,30,31,32,33,34,35]. POPs are an absorbent material that can be synthesized using many reactions such as the Schiff base reaction, Suzuki cross-coupling reaction, Sonogashira–Hagihara coupling reaction, Yamamoto coupling reaction, and Friedel–Crafts reaction [36,37,38,39,40,41,42,43,44,45,46]. POPs are particularly intriguing because of the unique characteristics of prolonged conjugation with persistent microporosity [40,41,42,43,44,45,46]. The electrical conductivity and pore structure of POPs might significantly improve with direct carbonization.
Currently, environmental problems have gained massive interest from researchers, specifically after the modern industrial revolution, and global warming is considered to be one of these hot problems [47,48,49,50]. The term “global warming” refers to the warming of the earth’s atmosphere and seas as a result of growing greenhouse gas concentrations brought on by human activities such as burning fossil fuels (coal, oil, and gas) and extensive deforestation [51,52,53]. From the beginning of the Industrial Revolution in 1750, carbon dioxide (CO2), one of the principal greenhouse gases linked to global climate change, has increased by more than 40%. There were significant environmental issues in May 2021 when atmospheric carbon dioxide levels hit a record high of 419 ppm [54,55]. Thus, reducing and controlling carbon emissions are pressing global concerns [56,57,58].
Porous organic polymers, metal–organic frameworks (MOFs), and activated carbons are frequently used for CO2 capture. POPs have become more popular and are considered to be possible porous material candidates that could effectively handle the carbon capture issue due to their simple synthesis and post-functionalization as well as excellent physiochemical stability and selectivity. POPs offer several benefits as a type of effective carbon capture material, including: (1) POPs are made of rigid monomers, which give rise to permanent porosity in the polymers; (2) there are numerous bond formation methods and cross-linking reactions, which give rise to polymers with different topological structures and tunable pore structures; (3) the cross-linking of lighter elements is used to create POPs, which results in polymers with high CO2 mass capacities; and (4) POPs are made of covalent bonds, giving rise to polymers with good physiochemical stability [35,36,37,38,39,40]. Thus, POPs with a specific performance and pore structure could be created to fit the demand for CO2 capture, energy storage, catalysis, and photocatalysis [34,38]. POPs have been used as a precursor for porous carbon materials (PCMs) [45]. PCMs derived from POPs have good properties such as large surface areas, high pore volumes, excellent electrical conductivity, and good thermal, mechanical, and chemical stabilities, so their preparation has attracted significant attention. Subsequently, porous carbonaceous materials have been widely applied in numerous real-life applications such as gas capture, dyes and iodine capture, fuel cells, electromagnetic interface shielding, catalysis, water treatment and purification, electrochemical energy storage in batteries and supercapacitors, and gas separation [40,41,42,43,44,45,46].
In this work, we prepared Py-PDT POP through a condensation reaction between 6,6′-(1,4-phenylene)bis(1,3,5-triazine-2,4-diamine) (PDA-4NH2) and 4,4′,4′′,4′′′-(pyrene-1,3,6,8-tetrayl)tetrabenzaldehyde (Py-Ph-4CHO). We then prepared a N-rich porous carbon material (Py-PDT POP-600), derived from the carbonization of Py-PDT POP at 600 °C. The properties, including the thermal degradation temperature, char yield, molecular structures, texture, porosity, and crystallinity of Py-PDT POP and Py-PDT POP-600, were investigated utilizing spectroscopic and microscopic techniques such as thermal gravimetric analysis (TGA), nuclear magnetic resonance (NMR), solid-state Fourier transform infrared (FTIR), Brunauer–Emmett–Teller (BET), transmission electron microscopy (TEM), and scanning electron microscopy (SEM). Furthermore, the electrochemical analysis was performed using cyclic voltammetry (CV) and galvanostatic charge−discharge (GCD) to investigate the impact of carbonization on the capacitive behavior of Py-PDT POP. Furthermore, CO2 uptake was measured to explore the potential application in gas capture. It was found that the carbonization process was an effective technique to enhance the porosity of Py-PDT POP, which is extremely helpful for the enhancement of the CO2 adsorption capacity and capacitive behavior.

2. Experimental Section

2.1. Materials

4-Formylphenylboronic acid (FP-BO), tetrakis(triphenylphosphine)palladium [Pd(PPh3)4], 2-cyanoguanidine, potassium carbonate (K2CO3), hydrochloric acid (HCl), dimethyl sulfoxide (DMSO), 1,4-dioxane (DO), 1,4-dicyanobenzene (BZ-2CN), dimethylformamide (DMF), anhydrous magnesium sulfate (MgSO4), and potassium hydroxide (KOH) were purchased from Alfa Aesar Sigma-Aldrich (Saint Louis, MO, USA). The 1,3,6,8-tetrabromopyrene (Py-Br4) monomer employed in this study was acquired using our reported methods (Scheme S1) [59].

2.2. Synthesis of 1,3,6,8-Tetrakis(4-formylphenyl)pyrene (Py-Ph-4CHO)

Py-Br4 (2.00 g, 3.86 mmol), FP-BO (23.2 mmol), K2CO3 (4.2 g, 30 mmol), and Pd(PPh3)4 (0.24 g, 0.2 mmol) in dry DO (60 mL)/H2O (20 mL) were added to a reaction flask. The flask was stirred under nitrogen and kept at 110 °C for three days. The obtained yellow suspension was discharged into a beaker containing H2O. After that, the precipitate was separated and exposed to washing processes via 2 M HCl (40 mL). The powder was extracted using CHCl3 (3 × 100 mL) and dried over MgSO4. Furthermore, the solvent was evaporated using a rotary evaporator and then recrystallized through hot CHCl3 to afford a pure solid powder with a bright yellow color (Scheme 1a; 1.7 g, 85%). The FTIR (KBr, cm−1; Figure 1a) were 3061, 1700, and 1598. The 1H NMR data of Py-Ph-4CHO is not provided in this study due to its poor solubility in all organic solvents. The ssNMR (ppm; Figure 1b): 183 (CHO) and 144–121 (aromatic rings).

2.3. Synthesis of 6,6′-(1,4-Phenylene)bis(1,3,5-triazine-2,4-diamine) (PDT-4NH2)

A mixture of KOH (1.124 g, 20 mmol) and 2-cyanoguanidine (4.048 g, 48 mmol) in DMF (160 mL) was added to a flask containing BZ-2CN (1.544 g, 9.2 mmol) in DMF (40 mL). The flask was magnetically stirred under nitrogen at 130 °C for 20 h (refluxing system). The obtained suspension was washed with MeOH and EtOH many times and dried to afford PDT-4NH2 as a white powder (Scheme 1b; 75%). The FTIR (KBr, cm−1; Figure 1a): 3300, 3123, and 1547. The 13C NMR (125 MHz, δ, ppm; Figure 1b): 170.65 (d), 168.46 (c), 139.96 (b), and 127.91 (a).

2.4. Synthesis of Py-PDT POP

PDT-4NH2 (0.26 g, 0.87 mmol), Py-Ph-4CHO (0.17 g, 0.27 mmol), and DMSO (20 mL) were added into a Schlenk flask. The flask was exposed to a thaw cycle three times. The flask was then heated to 180 °C and stirred for three days under nitrogen. After cooling the flask to room temperature, the product was separated by filtration and washed with DMF, MeOH, and acetone. The brown powder of Py-PDT POP was dried under a vacuum at 100 °C for 24 h. Finally, Py-PDT POP was obtained as a dark brown powder (70%; Scheme 2a).

2.5. Synthesis of Py-PDT POP-600

The as-prepared Py-PDT POP was placed in a ceramic boat into a tubular furnace and carbonized at 600 °C for 8 h (heating rate of 5 °C min−1) under a N2 atmosphere. After allowing the tube furnace’s temperature to reach the ambient temperature, the carbonized product was collected as a black powder and named Py-PDT POP-600 (Scheme 2b).

3. Results and Discussion

3.1. Synthesis and Characterization of Py-Ph-4CHO, PDT-4NH2, and Py-PDT

Scheme 1 shows the synthesis of the Py-Ph-4CHO and PDT-4NH2 monomers. A pyrene molecule was reacted with a neat bromine solution in the presence of C6H5NO2 at an elevated temperature (120 °C) to afford Py-Br4 as a light green solid with a high yield (Scheme S1). The obtained Py-Br4 was insoluble in all organic solvents and used in the next step without purification. The bands in the FTIR pattern of Py-Br4 centered at 3053 and 682 cm−1 for aromatic C-H and C-Br units (Figure S1). The Py-Ph-4CHO monomer was synthesized through the Suzuki coupling reaction of Py-Br4 with FP-BO in the presence of K2CO3/DO/H2O at 110 °C for three days to afford a yellow solid (Scheme 1a). The 1H NMR results of the Py-Br4 and Py-Ph-4CHO monomers are not provided because of their poor solubility. A reaction of 2-cyanoguanidine with 1,4-dicyanobenzene (BZ-2CN) was then created in the presence of KOH and DMF to obtain PDT-4NH2 as a white powder (Scheme 1b). The proton’s signals appeared at 6.8 and 8.3 ppm due to the presence of an amino group and a phenyl ring in the PDT-4NH2 (Figure S2). Scheme 2a illustrates the synthetic route for preparing the porous organic polymer named Py-PDT POP from PDT-4NH2 and Py-Ph-4CHO as building monomers. The Py-PDT POP was constructed through a Schiff base polycondensation reaction between 6,6′-(1,4-phenylene)bis(1,3,5-triazine-2,4-diamine) (PDA-4NH2) and 4,4′,4′′,4′′′-(pyrene-1,3,6,8-tetrayl)tetrabenzaldehyde (Py-Ph-4CHO) in the presence of DMSO at 180 °C for 72 h under N2 without using any catalyst (Scheme 2a). The as-synthesized Py-PDT POP was washed with DMF, DMSO, THF, MeOH, and acetone to remove the unreacted Py-Ph-4CHO and PDT-4NH2. The Py-PDT POP was then placed into a tube furnace for calcination at 600 °C under N2 for 8 h to afford Py-PDT POP-600 as a black precipitate (Scheme 2b). Several instrumental techniques (FTIR, ssNMR, TGA, TEM, SEM, BET, and XPS) were used to characterize our porous Py-PDT POP and Py-PDT POP-600 materials.
The chemical molecular structure of building monomers (Py-Ph-4CHO and PDT-4NH2) and the obtained Py-PDT POP were confirmed using solid-state 13C NMR and FTIR, as presented in Figure 1. Figure 1a displays the FTIR profile (recorded at 25 °C) of Py-Ph-4CHO, PDT-4NH2, and Py-PDT POP. The FTIR spectrum of Py-Ph-4CHO displayed an absorption band at 3061 cm−1 for the C-H aromatic, 2810 and 2717 cm−1 for the aldehydic C-H, 1700 cm−1 for C=O, and 1598 cm−1 for the C=C bond. The FTIR spectrum of PDT-4NH2 showed absorption bands at 3300, 3123, and 1624 for the NH2 group, aromatic C-H, and C=C bonds. The peaks at ca. 1547 and 1364 cm−1 in the FTIR spectra (Figure 1a) of PDT-4NH2 and Py-PDT POP indicated the triazine moiety’s existence in the chemical structure [60,61]. Comparing the FTIR spectrum of the Py-Ph-4CHO monomer and the as-prepared Py-PDT POP revealed that the characteristic absorption peak intensity of the aldehydic units became weak in the FTIR profile of Py-PDT POP, indicating a complete condensation reaction between Py-Ph-4CHO and PDT-4NH2 to afford Py-PDT POP with a high cross-linking density and aminal linkage. The chemical structures of PDT-4NH2, Py-Ph-4CHO, and Py-PDT POP were further examined by solid-state 13C NMR measurements (recorded at 25 °C; Figure 1b). The carbon’s signals in the ssNMR of Py-Ph-4CHO centered at 183 ppm and in the range of 144–121 ppm corresponded with the C=O of the aldehydic group and aromatic rings (Figure 1b). The carbon peaks of PDT-4NH2 were observed at 168.46 ppm due to the C=N unit in the triazine ring and signals at 139.96 and 127.91 ppm were attributed to aromatic carbons (Figure 1b). The ssNMR profile displayed peaks at 164 and 129 ppm in Py-PDT POP due to the presence of carbon atoms for the C=N units in the triazine ring and aromatic carbons, respectively (Figure 1b). To evaluate the thermal stability of our materials (PDT-4NH2, Py-Ph-4CHO, and Py-PDT POP), we performed TGA under a N2 stream between temperatures of 40 and 800 °C (Figure 1c). The TGA results revealed that the 10% weight loss values of PDT-4NH2, Py-Ph-4CHO, and Py-PDT POP were 355, 338, and 320 °C, respectively. The char yield estimations at 800 °C for PDT-4NH2, Py-Ph-4CHO, and Py-PDT POP were 35, 34, and 39 wt%, respectively. Furthermore, the presence of nitrogen, oxygen, and carbon atoms on the surface of Py-PDT POP was confirmed using an XPS analysis, as displayed in Figure 1d. The XPS profile of Py-PDT POP showed signals at 284.5 eV, 400.17 eV, and 531.39 eV, which were attributed to the C atoms of the aromatic rings, N atoms in the triazine units, and O atoms for the terminal CHO group, respectively. According to the FTIR and TGA results, the information mentioned above supported the formation of the aminal linkage to construct the Py-PDT POP framework with good thermal stability. El-Kadri et al. prepared fluorescent NRAPOP-1 and NRAPOP-2 through aminal linkage for I2 capture and Fe3+ detection [62]. The same group constructed TALPOP based on anthracene and triazine units for I2 uptake [63].
The BET surface area, pore size diameter, and total pore volume of Py-PDT POP before the carbonization process were investigated by N2 adsorption/desorption measurements at 77 K (Figure 2). The N2 adsorption isotherm of Py-PDT POP exhibited minimal N2 uptake at low pressures. It rapidly increased at high pressures, indicating that Py-PDT POP could be classified as type IV, according to the IUPAC classification. This suggested the presence of mesopores in the Py-PDT POP framework, as shown in Figure 2a. Moreover, the value of the BET surface area of Py-PDT POP was calculated from the N2 adsorption/desorption isotherm, which was 76 m2 g−1, with a total pore volume of 0.2 cm3 g−1. The nonlocal density functional theory (NLDFT) was used to determine the pore diameters from their sorption isotherms. The pore size profile of Py-PDT POP peaked at 2.5, 5.4, and 8.8 nm, indicating that Py-PDT POP contained mesopore structures, based on the pore size (Figure 2b).
Moreover, we examined the morphology of Py-PDT POP using high-resolution transmission electron microscopy (HR-TEM) and field emission scanning electron microscopy (FE-SEM). Py-PDT POP contained aggregated particles with pores, based on the FE-SEM imaging (Figure 3a–c). SEM-EDS (energy-dispersive X-ray scattering) was used to confirm the compositions and different elements in the chemical structures of Py-PDT POP. Figure 3d–g show evidence of carbon, nitrogen, and oxygen atoms distributed in the Py-PDT POP skeleton. The HR-TEM images (Figure 3h,i) showed the existence of bright and alternating dark patches, which likely suggested that Py-PDT POP included porous networks.

3.2. Porosity, Thermal Stability, and Morphology of Py-PDT POP-600

As shown in Figure 4a, Py-PDT POP-600 exhibited a fast N2 capture ability at low pressures, indicating micropores in the material. Furthermore, it continued to increase for N2 adsorption at high pressures with a hysteresis loop, suggesting the presence of mesopores in this material. Based on the IUPAC nomenclature, the adsorption/desorption isotherm of Py-PDT POP-600 possessed both types I and type IV. The BET surface area of Py-PDT POP-600 was calculated to be 314 m2 g−1. The pore size distribution (PSD) of Py-PDT POP-600 was determined by applying the nonlocal density functional theory (NLDFT). The pore size distribution (PSD) curve (Figure 4b) showed that Py-PDT POP-600 possessed both micropores and mesopores (average diameters of 1.9 and 2.7 nm, respectively). Compared with the precursor Py-PDT POP, the porosity of Py-PDT POP-600 was considerably enhanced. Furthermore, we used TGA to examine the thermal stability of Py-PDT POP-600 (Figure 4c). The degradation temperature of Py-PDT POP-600 after losing 10% of its original weight was 769 °C. Moreover, the char yield for Py-PDT POP-600 was 90 wt%. The TGA results implied the outstanding thermal stability of Py-PDT POP-600; this was also attributed to the carbonization process of the as-prepared Py-PDT POP, which granted our materials sheet-like structures and, consequently, a higher stacking effect between the layers.
SEM and TEM analyses were used to examine the morphology of our porous Py-PDT POP-600. The SEM images of Py-PDT POP-600 revealed an aggregation and sheet structure (Figure 5a,b). SEM-EDS was used to confirm the compositions and different elements in the chemical forms of Py-PDT POP-600. The data showed the presence of C, N, and O atoms distributed in the Py-PDT POP-600 skeleton (Figure 5c–f). Furthermore, the TEM images of Py-PDT POP-600 elucidated the rod-like and microporous structures (Figure 5g–i). As expected, the amorphous forms of both Py-PDT POP and Py-PDT POP-600 were revealed through the XRD analysis.

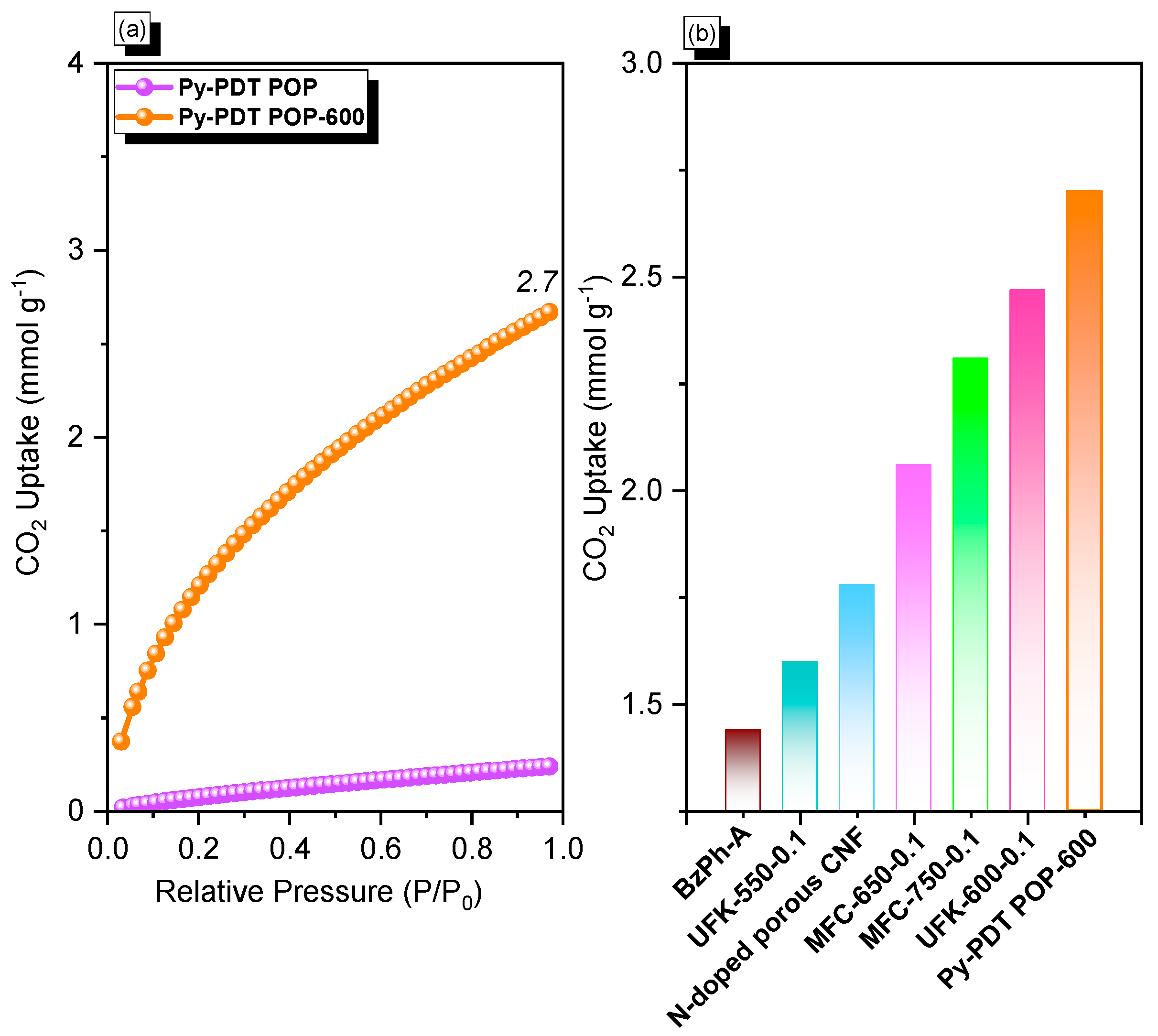

3.3. CO2 Uptake Performance for Py-PDT POP and Py-PDT POP-600 at 298 K

Global warming is one of the severe consequences of industrial revolutions, so researchers continue to strive to find suitable solutions to minimize these environmental issues. As previously reported, the carbonization process at a higher temperature under N2 gas could enhance the CO2 uptake performance of the POP materials. As a result, we performed the calcination process for Py-PDT POP at 600 °C for 8 h to produce a black solid (Py-PDT POP-600), as indicated in Scheme 2b. According to the BET results, the resulting Py-PDT POP-600 material showed a larger pore volume, a higher surface area, and microporous characters compared with the pristine Py-PDT POP precursor. The CO2 isotherm measurements determined the CO2 uptake performance of Py-PDT POP and Py-PDT POP-600 at 298 K (Figure 6a). Py-PDT POP showed a low CO2 uptake of 0.24 mmol g−1. On the other hand, Py-PDT POP-600 showed an improvement in CO2 uptake. As expected, Py-PDT POP-600, with the highest BET surface area, offered the most increased CO2 uptake of 2.7 mmol g−1. As presented in Figure 6b, the CO2 capacity of Py-PDT POP-600 (2.7 mmol g−1) was higher than that of BZPh-A (1.44 mmol g−1) [64], UFK-550-0.1 (1.6 mmol g−1) [65], N-doped porous CNF (1.78 mmol g−1) [66], MFC-650-0.1(2.06 mmol g−1) [67], MFC-750-0.1 (2.31 mmol g−1) [67], and UFK-550-0.1 (2.47 mmol g−1) [65].

3.4. Electrochemical Performance of Py-PDT POP and Py-PDT POP-600

As mentioned above, supercapacitor-based electrodes are challengeable nowadays; these devices also consider a green energy storage methodology. Encouraged by our synthesized material’s physical and chemical features and carbonized form, we investigated their electro- and capacitance behaviors. The electrochemical performances of our synthesized Py-PDT POP and Py-PDT POP-600 were estimated using cyclic voltammetry (CV) and galvanostatic charge−discharge (GCD) measurements, based on a three-electrode system incorporating glassy carbon, a platinum electrode, and Hg/HgO as the working, counter, and reference electrodes, respectively (Figure 7). The CV plateaus of Py-PDT POP represented numerous scans between 5 and 200 mV s−1 within a potential window of −1.0 to 0.0 V relative to Hg/HgO as a reference electrode. As shown in Figure 7a, Py-PDT POP could derive quasi-rectangular CV shapes in addition to palpable humbling and harmony, demonstrating its steady terms of the current sweep and revealing its capacitive feature to EDLC [41,42,61,68]. The CV plot of Py-PDT POP at a higher scan rate implied a symmetrical quasi-rectangular shape, elucidating its EDLC nature. Conversely, Py-PDT POP-600 (Figure 7b) showed a superior integrated rate, corresponding with a higher former capacitance than pristine POP. This result was attributed to the poor electrical conductivity of the pristine Py-PDT POP. The GCD measurements of Py-PDT POP and Py-PDT POP-600 at different current densities were investigated to evaluate their electrical capacitance performance. As emphasized by Figure 7c,d, the GCD plots of Py-PDT POP and Py-PDT POP-600 at various current densities implied a semi-triangular shape, consequently revealing the EDLC mechanism within their energy storage.

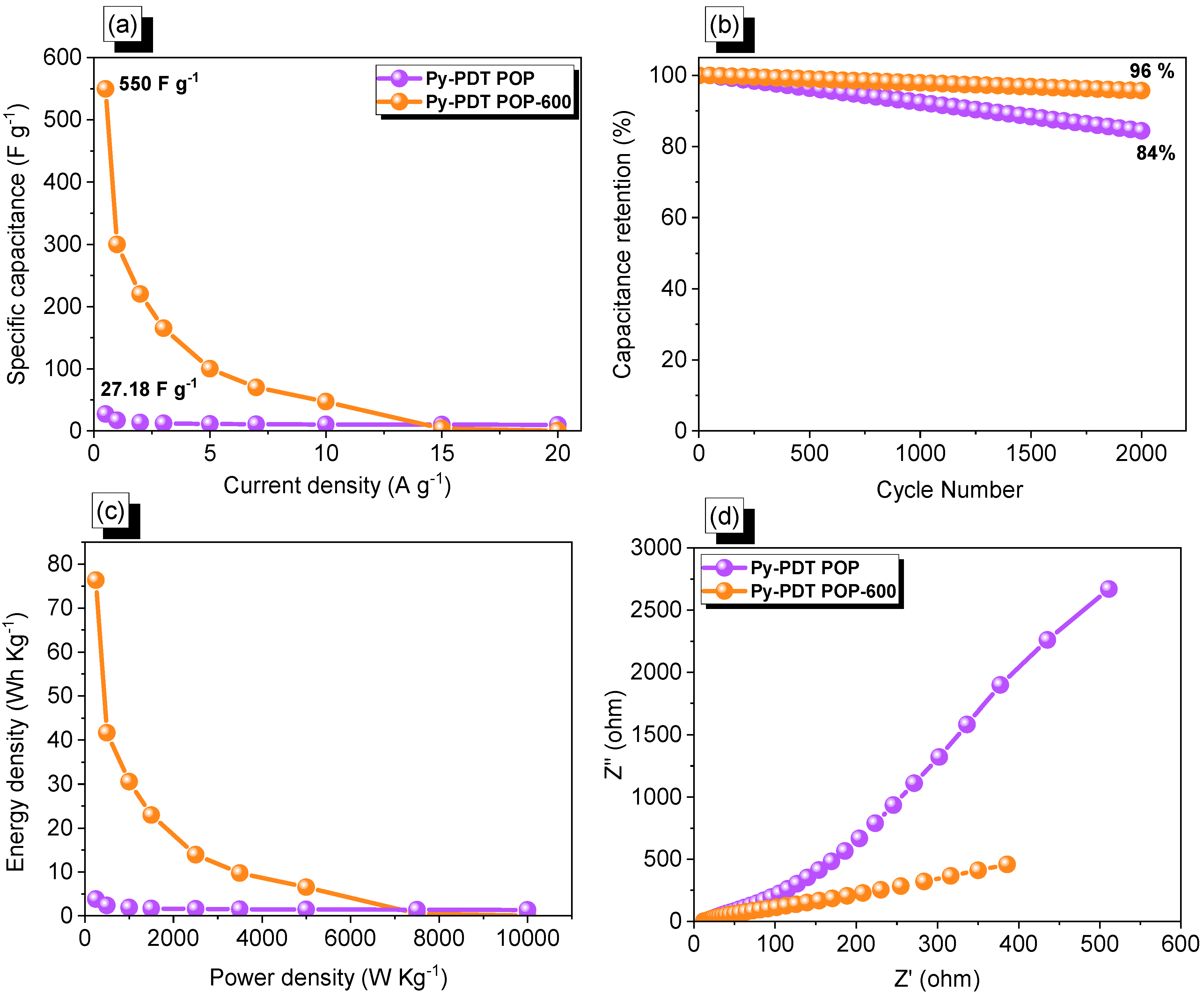

As we expected, the specific capacitance of Py-PDT POP-600 at a current density of 0.5 A g−1 was 550 F g−1, which was considered to be much higher than Py-PDT POP (28 F g−1 at 0.5 A g−1) (Figure 8a). We compared our Py-PDT POP-600 with other carbon porous materials and their derivatives, such as carbons derived from peach gum, hollow carbon–MoS2 carbon nanoplates, lignin-based and cellulose hydrogels, carbon composite and replicas obtained from a hybrid layered double hydroxide active container, tannic acid (TA), and carbon nanotubes (CNTs), and others [61,69,70,71,72,73,74,75,76,77,78,79,80]. The electrochemical performance of our Py-PDT POP-600 displayed an excellent electrochemical character (Table S1) [61,69,70,71,72,73,74,75,76,77,78,79,80]. The superb performance of Py-PDT POP-600 in energy storage applications was due to its high N content, surface area, pore volume, pore size, and prolonged conjugated structure [61,68]. The long-term stability of Py-PDT POP and Py-PDT POP-600 was investigated through cycling processes for 2000 cycles at a current density of 10 A g−1. As shown in Figure 8b, both Py-PDT POP and Py-PDT POP-600 showed capacitance retention of 84 and 96%, respectively. Accordingly, the Ragone plots of our materials (Figure 8c) emphasized that Py-PDT POP-600 possessed a maximum energy density of 76.38 Wh Kg−1, which was higher than pristine Py-PDT POP, which was 3.77 Wh Kg−1. Electrochemical impedance spectroscopy (EIS) investigations of the Py-PDT POP- and Py-PDT POP-600-based electrodes helped us to emphasize their kinetic behaviors. Nyquist graphs of the Py-PDT POP and Py-PDT POP-600 precursors implied small semi-circles at higher frequencies and a semi-straight line at lower frequencies (Figure 8d). The latter represented a lower resistance than the former, which revealed the lower resistance of Py-PDT POP-600. The lower resistance of Py-PDT POP-600 may have been due to the higher offering surface area of the electrode, consequently improving the surface wettability; hence, this enhanced the access of electrolyte ions to the current electrode.

4. Conclusions

In summary, Py-PDT POP was constructed and designed by reacting Py-Ph-4CHO with PDT-4NH2 in DMSO at 180 °C (free metal Schiff base condensation reaction). The molecular structure and thermal stability of the building units (Py-Ph-4CHO with PDT-4NH2) and the Py-PDT POP framework were carefully investigated through ssNMR, FTIR, and XPS measurements. The porosity property of Py-PDT POP was successfully enhanced through a carbonization approach at 600 °C for 8 h to access Py-PDT POP-600 as a black solid with a high surface area (314 m2 g−1), high Td10 (769 °C), and high carbon residue (90 wt%), based on BET and TGA results. For the CO2 uptake and supercapacitor applications, the as-prepared Py-PDT POP-600 showed excellent performance in CO2 uptake (2.7 mmol g−1 at 298 K), a high specific capacitance (550 F g−1 at 0.5 A g−1), and retention stability (96%) compared with the Py-PDT POP framework. Therefore, the carbonization process improved the pore structure and significantly increased the POP electrochemical performance and CO2 capture. The obtained materials and findings presented here indicated that the multifunctional Py-PDT POP-600 precursor is an excellent candidate for gas adsorption and energy storage. Creating porous Py-PDT POP-600 by linking heteroatom-rich building units may open the door to creating innovative materials for various applications, including dyes and iodine absorption.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym15081891/s1, Scheme S1: Synthesis of Py-Br4; Figure S1: FTIR spectrum of Py-Br4; Figure S2: 1H NMR profile of PDT-4NH2; Table S1: Comparison between the capacity values of Py-PDT POP-600 with different reported data of three-electrode supercapacitor materials [61,69,70,71,72,73,74,75,76,77,78,79,80].

Author Contributions

Conceptualization, A.O.M., M.G.M., C.-H.C. and S.-W.K.; methodology, A.O.M., M.G.M., C.-H.C. and S.-W.K.; validation, A.O.M., M.G.M., C.-H.C. and S.-W.K.; formal analysis, A.O.M., M.G.M., C.-H.C. and S.-W.K.; investigation, A.O.M., M.G.M. and S.-W.K.; resources, S.-W.K.; data curation, A.O.M. and M.G.M.; writing—original draft preparation, M.G.M. and S.-W.K.; writing—review and editing, M.G.M. and S.-W.K.; visualization, M.G.M. and S.-W.K.; supervision, M.G.M. and S.-W.K.; project administration, S.-W.K.; funding acquisition, S.-W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by the Ministry of Science and Technology, Taiwan, under contracts NSTC 110-2124-M-002-013 and 111-2223-E-110-004.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors thank National Sun Yat-sen University staff for their assistance with the TEM experiments (ID: EM022600).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xiong, S.; Liu, J.; Wang, Y.; Wang, X.; Chu, J.; Zhang, R.; Gong, M.; Wu, B. Solvothermal synthesis of triphenylamine-based covalent organic framework nanofibers with excellent cycle stability for supercapacitor electrodes. J. Appl. Polym. Sci. 2022, 139, 51510. [Google Scholar] [CrossRef]
  2. Ejaz, M.; Mohamed, M.G.; Sharma, S.U.; Lee, J.-T.; Huang, C.-F.; Chen, T.; Kuo, S.-W. An ultrastable porous polyhedral oligomeric silsesquioxane/tetraphenylthiophene hybrid as a high-performance electrode for supercapacitors. Molecules 2022, 27, 6238. [Google Scholar] [CrossRef] [PubMed]
  3. Mondloch, J.E.; Bury, W.; Jimenez, D.F.; Kwon, S.; DeMarco, E.J.; Weston, M.H.; Amy, A.; Sarjeant, A.A.; Nguyen, S.T.; Stair, P.C.; et al. Vapor-Phase Metalation by Atomic Layer Deposition in a Metal–Organic Framework. J. Am. Chem. Soc. 2013, 135, 10294–10297. [Google Scholar] [CrossRef] [PubMed]
  4. Rafik, F.; Gualous, H.; Gallay, R.; Crausaz, A.; Berthon, A. Frequency, thermal and voltage supercapacitor characterization and modeling. J. Power Sources 2007, 165, 928–934. [Google Scholar] [CrossRef]
  5. del Valle, M.A.; Gacitúa, M.A.; Hernández, F.; Luengo, M.; Hernández, L.A. Nanostructured Conducting Polymers and Their Applications in Energy Storage Devices. Polymers 2023, 15, 1450. [Google Scholar] [CrossRef]
  6. Chen, D.; Jiang, K.; Huang, T.; Shen, G. Recent advances in fiber supercapacitors: Materials, device configurations, and applications. Adv. Mater. 2020, 32, 1901806. [Google Scholar] [CrossRef]
  7. Samy, M.M.; Mohamed, M.G.; Sharma, S.U.; Chaganti, S.V.; Lee, J.-T.; Kuo, S.-W. An Ultrastable Tetrabenzonaphthalene-Linked conjugated microporous polymer functioning as a high-performance electrode for supercapacitors. J. Taiwan Inst. Chem. Eng. 2023, 104750. [Google Scholar] [CrossRef]
  8. Loganathan, N.N.; Perumal, V.; Pandian, B.R.; Atchudan, R.; Edison, T.N.J.I.; Ovinis, M. Recent studies on polymeric materials for supercapacitor development. J. Energy Storage 2022, 49, 104149. [Google Scholar] [CrossRef]
  9. Dehghani-Sanij, A.R.; Tharumalingam, E.; Dusseault, M.B.; Fraser, R. Study of Energy Storage Systems and Environmental Challenges of Batteries. Renew. Sustain. Energy Rev. 2019, 104, 192–208. [Google Scholar]
  10. Mohamed, M.G.; Sharma, S.U.; Liu, N.-Y.; Mansoure, T.H.; Samy, M.M.; Chaganti, S.V.; Chang, Y.-L.; Lee, J.-T.; Kuo, S.-W. Ultrastable covalent triazine organic framework based on anthracene moiety as platform for high-performance carbon dioxide adsorption and supercapacitors. Int. J. Mol. Sci. 2022, 23, 3174. [Google Scholar] [CrossRef]
  11. Zheng, S.; Li, Q.; Xue, H.; Pang, H.; Xu, Q. A highly alkaline-stable metal oxide@ metal–organic framework composite for high-performance electrochemical energy storage. Natl. Sci. 2020, 7, 305–314. [Google Scholar] [CrossRef] [PubMed]
  12. Mohamed, M.G.; Mansoure, T.H.; Samy, M.M.; Takashi, Y.; Mohammed, A.A.; Ahamad, T.; Alshehri, S.M.; Kim, J.; Matsagar, B.M.; Wu, K.C.-W. Ultrastable Conjugated Microporous Polymers Containing Benzobisthiadiazole and Pyrene Building Blocks for Energy Storage Applications. Molecules 2022, 27, 2025. [Google Scholar] [CrossRef] [PubMed]
  13. Shaikh, N.S.; Ubale, S.B.; Mane, V.J.; Shaikh, J.S.; Lokhande, V.C.; Praserthdam, S.; Lokhande, C.D.; Kanjanaboos, P. Novel electrodes for supercapacitor: Conducting polymers, metal oxides, chalcogenides, carbides, nitrides, MXenes, and their composites with graphene. J. Alloys Compd. 2022, 893, 161998. [Google Scholar] [CrossRef]
  14. Zheng, S.; Sun, Y.; Xue, H.; Braunstein, P.; Huang, W.; Pang, H. Dual-ligand and hard-soft-acid-base strategies to optimize metal-organic framework nanocrystals for stable electrochemical cycling performance. Natl. Sci. 2022, 9, nwab197. [Google Scholar] [CrossRef]
  15. Tomboc, G.M.; Kim, J.; Wang, Y.; Son, Y.; Li, J.; Kim, J.Y.; Lee, K. Hybrid layered double hydroxides as multifunctional nanomaterials for overall water splitting and supercapacitor applications. J. Mater. Chem. A 2021, 9, 4528–4557. [Google Scholar] [CrossRef]
  16. Shan, X.; Guo, Z.; Qu, Z.; Zou, Y.; Zhao, L.; Chen, P. Boosting the performance of nickel–cobalt LDH cathode with phosphorus and selenium co-doping for hybrid supercapacitor. Mater. Res. Lett. 2022, 10, 593–601. [Google Scholar] [CrossRef]
  17. Zaw, N.Y.W.; Jo, S.; Park, J.; Kitchamsetti, N.; Jayababu, N.; Kim, D. Clay-assisted hierarchical growth of metal-telluride nanostructures as an anode material for hybrid supercapacitors. Appl. Clay Sci. 2022, 225, 106539. [Google Scholar] [CrossRef]
  18. Kitchamsetti, N.; Samtham, M.; Didwal, P.N.; Kumar, D.; Singh, D.; Bimli, S.; Chikate, P.R.; Basha, D.A.; Kumar, S.; Park, C.-J. Theory abide experimental investigations on morphology driven enhancement of electrochemical energy storage performance for manganese titanate perovskites electrodes. J. Power Sources 2022, 538, 231525. [Google Scholar] [CrossRef]
  19. Kitchamsetti, N.; Ma, Y.-R.; Shirage, P.M.; Devan, R.S. Mesoporous perovskite of interlocked nickel titanate nanoparticles for efficient electrochemical supercapacitor electrode. J. Alloys Compd. 2020, 833, 155134. [Google Scholar] [CrossRef]
  20. Zhang, Y.; Gao, X.; Zhang, Y.; Gui, J.; Sun, C.; Zheng, H.; Guo, S. High-efficiency self-charging power systems based on performance-enhanced hybrid nanogenerators and asymmetric supercapacitors for outdoor search and rescue. Nano Energy 2022, 92, 106788. [Google Scholar] [CrossRef]
  21. Du, W.; Wang, X.; Zhan, J.; Sun, X.; Kang, L.; Jiang, F.; Zhang, X.; Shao, Q.; Dong, M.; Liu, H. Biological cell template synthesis of nitrogen-doped porous hollow carbon spheres/MnO2 composites for high-performance asymmetric supercapacitors. Electrochim. Acta 2019, 296, 907–915. [Google Scholar] [CrossRef]
  22. Zhao, D.; Wang, H.; Bai, Y.; Yang, H.; Song, H.; Li, B. Preparation of Advanced Multi-Porous Carbon Nanofibers for High-Performance Capacitive Electrodes in Supercapacitors. Polymers 2022, 15, 213. [Google Scholar] [CrossRef] [PubMed]
  23. Sahoo, S.; Kumar, R.; Joanni, E.; Singh, R.K.; Shim, J.-J. Advances in pseudocapacitive and battery-like electrode materials for high performance supercapacitors. J. Mater. Chem. A 2022, 10, 13190–13240. [Google Scholar] [CrossRef]
  24. Han, C.; Tong, J.; Tang, X.; Zhou, D.; Duan, H.; Li, B.; Wang, G. Boost anion storage capacity using conductive polymer as a pseudocapacitive cathode for high-energy and flexible lithium ion capacitors. ACS Appl. Mater. Interfaces 2020, 12, 10479–10489. [Google Scholar] [CrossRef] [PubMed]
  25. Ahmad, Z.; Kim, W.-B.; Kumar, S.; Yoon, T.-H.; Shim, J.-J.; Lee, J.-S. Redox-active supercapacitor electrode from two-monomer-connected precursor (Pyrrole: Anthraquinonedisulfonic acid: Pyrrole) and sulfonated multi-walled carbon nanotube. Electrochim. Acta 2022, 415, 140243. [Google Scholar] [CrossRef]
  26. Liu, S.; Kang, L.; Zhang, J.; Jun, S.C.; Yamauchi, Y. Carbonaceous anode materials for non-aqueous sodium-and potassium-ion hybrid capacitors. ACS Energy Lett. 2021, 6, 4127–4154. [Google Scholar] [CrossRef]
  27. Liu, S.; Kang, L.; Hu, J.; Jung, E.; Zhang, J.; Jun, S.C.; Yamauchi, Y. Unlocking the potential of oxygen-deficient copper-doped Co3O4 nanocrystals confined in carbon as an advanced electrode for flexible solid-state supercapacitors. ACS Energy Lett. 2021, 6, 3011–3019. [Google Scholar] [CrossRef]
  28. Mohamed, M.G.; Elsayed, M.H.; Ye, Y.; Samy, M.M.; Hassan, A.E.; Mansoure, T.H.; Wen, Z.; Chou, H.-H.; Chen, K.-H.; Kuo, S.-W. Construction of Porous Organic/Inorganic Hybrid Polymers Based on Polyhedral Oligomeric Silsesquioxane for Energy Storage and Hydrogen Production from Water. Polymers 2023, 15, 182. [Google Scholar] [CrossRef]
  29. Liu, T.; Liu, G. Porous Organic Materials Offer Vast Future Opportunities. Nat. Commun. 2020, 11, 4984. [Google Scholar] [CrossRef]
  30. Yuan, R.; Zhang, M.; Sun, H. Design and Construction of an Azo-Functionalized POP for Reversibly Stimuli-Responsive CO2 Adsorption. Polymers 2023, 15, 1709. [Google Scholar] [CrossRef]
  31. Panić, B.; Frey, T.; Borovina, M.; Konopka, K.; Sambolec, M.; Kodrin, I.; Biljan, I. Synthesis and characterization of benzene- and triazine-based azo-bridged porous organic polymers. Polymers 2023, 15, 229. [Google Scholar] [CrossRef] [PubMed]
  32. Zhao, X.; Qi, Y.; Li, J.; Ma, Q. Porous organic polymers derived from ferrocene and tetrahedral silicon-centered monomers for carbon dioxide sorption. Polymers 2022, 14, 370. [Google Scholar] [CrossRef] [PubMed]
  33. Cousins, K.; Zhang, R. Highly porous organic polymers for hydrogen fuel storage. Polymers 2019, 11, 690. [Google Scholar] [CrossRef] [PubMed]
  34. Daliran, S.; Oveisi, A.R.; Peng, Y.; López-Magano, A.; Khajeh, M.; Mas-Ballesté, R.; Alemán, J.; Luque, R.; Garcia, H. Metal–organic framework (MOF)-, covalent-organic framework (COF)-, and porous-organic polymers (POP)-catalyzed selective C–H bond activation and functionalization reactions. Chem. Soc. Rev. 2022, 51, 7810–7882. [Google Scholar] [CrossRef]
  35. Singh, N.; Son, S.; An, J.; Kim, I.; Choi, M.; Kong, N.; Tao, W.; Kim, J.S. Nanoscale porous organic polymers for drug delivery and advanced cancer theranostics. Chem. Soc. Rev. 2021, 50, 12883–12896. [Google Scholar] [CrossRef]
  36. Amin, K.; Ashraf, N.; Mao, L.; Faul, C.F.; Wei, Z. Conjugated microporous polymers for energy storage: Recent progress and challenges. Nano Energy 2021, 85, 105958. [Google Scholar] [CrossRef]
  37. Lu, Q.; Wang, X.; Cao, J.; Chen, C.; Chen, K.; Zhao, Z.; Niu, Z.; Chen, J. Freestanding carbon fiber cloth/sulfur composites for flexible room-temperature sodium-sulfur batteries. Energy Storage Mater. 2017, 8, 77–84. [Google Scholar] [CrossRef]
  38. Magano, A.L.; Daliran, S.; Oveisi, A.R.; Mas-Ballesté, R.; Dhakshinamoorthy, A.; Alemán, J.; Garcia, H.; Luque, R. Recent advances in the use of covalent organic frameworks as heterogeneous photocatalysts in organic synthesis. Adv. Mater. 2022, e2209475. [Google Scholar]
  39. Young, C.; Park, T.; Yi, J.W.; Kim, J.; Hossain, M.S.A.; Kaneti, Y.V.; Yamauchi, Y. Advanced functional carbons and their hybrid nanoarchitectures towards supercapacitor applications. ChemSusChem 2018, 11, 3546–3558. [Google Scholar] [CrossRef]
  40. Samy, M.M.; Mekhemer, I.M.; Mohamed, M.G.; Elsayed, M.H.; Lin, K.-H.; Chen, Y.-K.; Wu, T.-L.; Chou, H.-H.; Kuo, S.-W. Conjugated microporous polymers incorporating Thiazolo [5, 4-d] thiazole moieties for Sunlight-Driven hydrogen production from water. Chem. Eng. J. 2022, 446, 137158. [Google Scholar] [CrossRef]
  41. Zeng, W.; Zhang, Y.; Zhao, X.; Qin, M.; Li, X.; Jin, W.; Zhang, D. One-pot synthesis of conjugated microporous polymers based on extended molecular graphenes for hydrogen storage. Polymers 2019, 174, 96–100. [Google Scholar] [CrossRef]
  42. Mohamed, M.G.; Mansoure, T.H.; Takashi, Y.; Samy, M.M.; Chen, T.; Kuo, S.-W. Ultrastable porous organic/inorganic polymers based on polyhedral oligomeric silsesquioxane (POSS) hybrids exhibiting high performance for thermal property and energy storage. Microporous Mesoporous Mater. 2021, 328, 111505. [Google Scholar] [CrossRef]
  43. Liao, Y.; Wang, H.; Zhu, M.; Thomas, A. Efficient supercapacitor energy storage using conjugated microporous polymer networks synthesized from Buchwald–Hartwig coupling. Adv. Mater. 2018, 30, 1705710. [Google Scholar] [CrossRef] [PubMed]
  44. Machado, T.F.; Serra, M.E.S.; Murtinho, D.; Valente, A.J.M.; Naushad, M. Covalent Organic Frameworks: Synthesis, Properties and Applications—An Overview. Polymers 2021, 13, 970. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, S.; Yang, Q.; Wang, C.; Luo, X.; Kim, J.; Wang, Z.; Yamauchi, Y. Porous Organic Frameworks: Advanced Materials in Analytical Chemistry. Adv. Sci. 2018, 5, 1801116. [Google Scholar] [CrossRef]
  46. Mohamed, M.G.; Samy, M.M.; Mansoure, T.H.; Sharma, S.U.; Tsai, M.-S.; Chen, J.-H.; Lee, J.-T.; Kuo, S.-W. Dispersions of 1, 3, 4-oxadiazole-linked conjugated microporous polymers with carbon nanotubes as a high-performance electrode for supercapacitors. ACS Appl. Energy Mater. 2022, 5, 3677–3688. [Google Scholar] [CrossRef]
  47. Fischer, S.; Schimanowitz, A.; Dawson, R.; Senkovska, I.; Kaskel, S.; Thomas, A. Cationic microporous polymer networks by polymerisation of weakly coordinating cations with CO2-storage ability. J. Mater. Chem. A 2014, 2, 11825–11829. [Google Scholar] [CrossRef]
  48. Wang, J.; Wang, L.; Wang, Y.; Zhang, D.; Xiao, Q.; Huang, J.; Liu, Y.-N. Recent progress in porous organic polymers and their application for CO2 capture. Chin. J. Chem. Eng. 2022, 42, 91–103. [Google Scholar] [CrossRef]
  49. Mohamed, M.G.; Tsai, M.-Y.; Wang, C.-F.; Huang, C.-F.; Danko, M.; Dai, L.; Chen, T.; Kuo, S.-W. Multifunctional polyhedral oligomeric silsesquioxane (POSS) based hybrid porous materials for CO2 uptake and iodine adsorption. Polymers 2021, 13, 221. [Google Scholar] [CrossRef]
  50. Chen, J.; Jiang, L.; Wang, W.; Shen, Z.; Liu, S.; Li, X.; Wang, Y. Constructing highly porous carbon materials from porous organic polymers for superior CO2 adsorption and separation. J. Colloid Interface Sci. 2022, 609, 775–784. [Google Scholar] [CrossRef]
  51. Ibrahim, M.; Tashkandi, N.; Hadjichristidis, N.; Alkayal, N.S. Synthesis of Naphthalene-Based Polyaminal-Linked Porous Polymers for Highly Effective Uptake of CO2 and Heavy Metals. Polymers 2022, 14, 1136. [Google Scholar] [CrossRef]
  52. Shao, B.; Zhang, Y.; Sun, Z.; Li, J.; Gao, Z.; Xie, Z.; Hu, J.; Liu, H. CO2 capture and in-situ conversion: Recent progresses and perspectives. Green Chem. Eng. 2022, 3, 189–198. [Google Scholar] [CrossRef]
  53. Hanifa, M.; Agarwal, R.; Sharma, U.; Thapliyal, P.; Singh, L. A review on CO2 capture and sequestration in the construction industry: Emerging approaches and commercialised technologies. J. CO2 Util. 2023, 67, 102292. [Google Scholar] [CrossRef]
  54. Chen, X.; Lin, J.; Wang, H.; Yang, Y.; Wang, C.; Sun, Q.; Shen, X.; Li, Y. Epoxy-functionalized polyethyleneimine modified epichlorohydrin-cross-linked cellulose aerogel as adsorbents for carbon dioxide capture. Carbohydr. Polym. 2023, 302, 120389. [Google Scholar] [CrossRef] [PubMed]
  55. Ding, M.; Liu, X.; Ma, P.; Yao, J. Porous materials for capture and catalytic conversion of CO2 at low concentration. Coord. Chem. Rev. 2022, 465, 214576. [Google Scholar] [CrossRef]
  56. Liu, J.; Wei, D.; Wu, L.; Yang, H.; Song, X. Synergy and heterogeneity of driving factors of carbon emissions in China’s energy-intensive industries. Ecol. Indic. 2022, 142, 109161. [Google Scholar] [CrossRef]
  57. Mohamed, M.G.; Chang, W.-C.; Kuo, S.-W. Crown Ether-and Benzoxazine-Linked Porous Organic Polymers Displaying Enhanced Metal Ion and CO2 Capture through Solid-State Chemical Transformation. Macromolecules 2022, 55, 7879–7892. [Google Scholar] [CrossRef]
  58. Mohamed, M.G.; Chen, T.-C.; Kuo, S.-W. Solid-state chemical transformations to enhance gas capture in benzoxazine-linked conjugated microporous polymers. Macromolecules 2021, 54, 5866–5877. [Google Scholar] [CrossRef]
  59. Ejaz, M.; Samy, M.M.; Ye, Y.; Kuo, S.-W.; Mohamed, M.G. Design Hybrid Porous Organic/Inorganic Polymers Containing Polyhedral Oligomeric Silsesquioxane/Pyrene/Anthracene Moieties as a High-Performance Electrode for Supercapacitor. Int. J. Mol. Sci. 2023, 24, 2501. [Google Scholar] [CrossRef]
  60. Das, N.; Paul, R.; Dao, D.Q.; Chatterjee, R.; Borah, K.; Chandra Shit, S.; Bhaumik, A.; Mondal, J. Nanospace Engineering of Triazine–Thiophene-Intertwined Porous-Organic-Polymers via Molecular Expansion in Tweaking CO2 Capture. ACS Appl. Nano Mater. 2022, 5, 5302–5315. [Google Scholar] [CrossRef]
  61. Mohamed, M.G.; Ahmed, M.M.; Du, W.-T.; Kuo, S.-W. Meso/microporous carbons from conjugated hyper-crosslinked polymers based on tetraphenylethene for high-performance CO2 capture and supercapacitor. Molecules 2021, 26, 738. [Google Scholar] [CrossRef] [PubMed]
  62. Sen, S.; Al-Sayah, M.H.; Mohammed, M.S.; Abu-Abdoun, I.I.; El-Kadri, O.M. Multifunctional nitrogen-rich aminal-linked luminescent porous organic polymers for iodine enrichment and selective detection of Fe3+ ions. J. Mater. Sci. 2020, 55, 10896–10909. [Google Scholar] [CrossRef]
  63. Sabri, M.A.; Al-Sayah, M.H.; Sen, S.; Ibrahim, T.H.; El-Kadri, O.M. Fluorescent aminal linked porous organic polymer for reversible iodine capture and sensing. Sci. Rep. 2020, 10, 15943. [Google Scholar] [CrossRef] [PubMed]
  64. Wu, J.-Y.; Mohamed, M.G.; Kuo, S.-W. Directly synthesized nitrogen-doped microporous carbons from polybenzoxazine resins for carbon dioxide capture. Polym. Chem. 2017, 8, 5481–5489. [Google Scholar] [CrossRef]
  65. Yu, Q.; Bai, J.; Huang, J.; Demir, M.; Altay, B.N.; Hu, X.; Wang, L. One-Pot Synthesis of N-Rich Porous Carbon for Efficient CO2 Adsorption Performance. Molecules 2022, 27, 6816. [Google Scholar] [CrossRef]
  66. Mehra, P.; Paul, A. Decoding Carbon-Based Materials’ Properties for High CO2 Capture and Selectivity. ACS Omega 2022, 7, 34538–34546. [Google Scholar] [CrossRef]
  67. Yu, Q.; Bai, J.; Huang, J.; Demir, M.; Farghaly, A.A.; Aghamohammadi, P.; Hu, X.; Wang, L. One-Pot Synthesis of Melamine Formaldehyde Resin-Derived N-Doped Porous Carbon for CO2 Capture Application. Molecules 2023, 28, 1772. [Google Scholar] [CrossRef] [PubMed]
  68. Weng, T.-H.; Mohamed, M.G.; Sharma, S.U.; Chaganti, S.V.; Samy, M.M.; Lee, J.-T.; Kuo, S.-W. Ultrastable three-dimensional triptycene-and tetraphenylethene-conjugated microporous polymers for energy storage. ACS Appl. Energy Mater. 2022, 5, 14239–14249. [Google Scholar] [CrossRef]
  69. Ahmed, M.M.; Imae, T.; Hill, J.P.; Yamauchi, Y.; Ariga, K.; Shrestha, L.K. Defect-free exfoliation of graphene at ultra-high temperature. Colloids Surf. A Physicochem. Eng. Asp. 2018, 538, 127–132. [Google Scholar] [CrossRef]
  70. Lin, Y.; Chen, Z.; Yu, C.; Zhong, W. Heteroatom-doped sheet-like and hierarchical porous carbon based on natural biomass small molecule peach gum for high-performance supercapacitors. ACS Sustain. Chem. Eng. 2019, 7, 3389–3403. [Google Scholar] [CrossRef]
  71. Quan, T.; Goubard-Bretesché, N.; Härk, E.; Kochovski, Z.; Mei, S.; Pinna, N.; Ballauff, M.; Lu, Y. Highly dispersible hexagonal carbon–MoS2–carbon nanoplates with hollow sandwich structures for supercapacitors. Chem. Eur. J. 2019, 25, 4757–4766. [Google Scholar] [CrossRef]
  72. Peng, Z.; Zou, Y.; Xu, S.; Zhong, W.; Yang, W. High-performance biomass-based flexible solid-state supercapacitor constructed of pressure-sensitive lignin-based and cellulose hydrogels. ACS Appl. Mater. Interfaces 2018, 10, 22190–22200. [Google Scholar] [CrossRef] [PubMed]
  73. Bairi, P.; Shrestha, R.G.; Hill, J.P.; Nishimura, T.; Ariga, K.; Shrestha, L.K. Mesoporous graphitic carbon microtubes derived from fullerene C 70 tubes as a high performance electrode material for advanced supercapacitors. J. Mater. Chem. A. 2016, 4, 13899–13906. [Google Scholar] [CrossRef]
  74. Saha, D.; Li, Y.; Bi, Z.; Chen, J.; Keum, J.K.; Hensley, D.K.; Grappe, H.A.; Meyer III, H.M.; Dai, S.; Paranthaman, M.P. Studies on supercapacitor electrode material from activated lignin-derived mesoporous carbon. Langmuir 2014, 30, 900–910. [Google Scholar] [CrossRef] [PubMed]
  75. Goldfarb, J.L.; Dou, G.; Salari, M.; Grinstaff, M.W. Biomass-based fuels and activated carbon electrode materials: An integrated approach to green energy systems. ACS Sustain. Chem. Eng. 2017, 5, 3046–3054. [Google Scholar] [CrossRef]
  76. Liu, X.; Zhou, L.; Zhao, Y.; Bian, L.; Feng, X.; Pu, Q. Hollow, spherical nitrogen-rich porous carbon shells obtained from a porous organic framework for the supercapacitor. ACS Appl. Mater. Interfaces 2013, 5, 10280–10287. [Google Scholar] [CrossRef]
  77. Stimpfling, T.; Leroux, F. Supercapacitor-type behavior of carbon composite and replica obtained from hybrid layered double hydroxide active container. Chem. Mater. 2010, 22, 974–987. [Google Scholar] [CrossRef]
  78. Oh, J.Y.; Jung, Y.; Cho, Y.S.; Choi, J.; Youk, J.H.; Fechler, N.; Yang, S.J.; Park, C.R. Metal–Phenolic Carbon Nanocomposites for Robust and Flexible Energy-Storage Devices. ChemSusChem 2017, 10, 1675–1682. [Google Scholar] [CrossRef]
  79. Cao, J.; Jafta, C.J.; Gong, J.; Ran, Q.; Lin, X.; Félix, R.; Wilks, R.G.; Bär, M.; Yuan, J.; Ballauff, M. Synthesis of dispersible mesoporous nitrogen-doped hollow carbon nanoplates with uniform hexagonal morphologies for supercapacitors. ACS Appl. Mater. Interfaces 2016, 8, 29628–29636. [Google Scholar] [CrossRef]
  80. Kim, M.; Lim, H.; Xu, X.; Hossain, M.S.A.; Na, J.; Awaludin, N.N.; Shah, J.; Shrestha, L.K.; Ariga, K.; Nanjundan, A.K. Sorghum biomass-derived porous carbon electrodes for capacitive deionization and energy storage. Microporous Mesoporous Mater. 2021, 312, 110757. [Google Scholar] [CrossRef]
Polymers 15 01891 sch001 550
Scheme 1. Synthesis of Py-Ph-4CHO (a) and PDT-4NH2 (b) from Py-Br4 and BZ-2CN.
Scheme 1. Synthesis of Py-Ph-4CHO (a) and PDT-4NH2 (b) from Py-Br4 and BZ-2CN.
Polymers 15 01891 sch001
Polymers 15 01891 g001 550

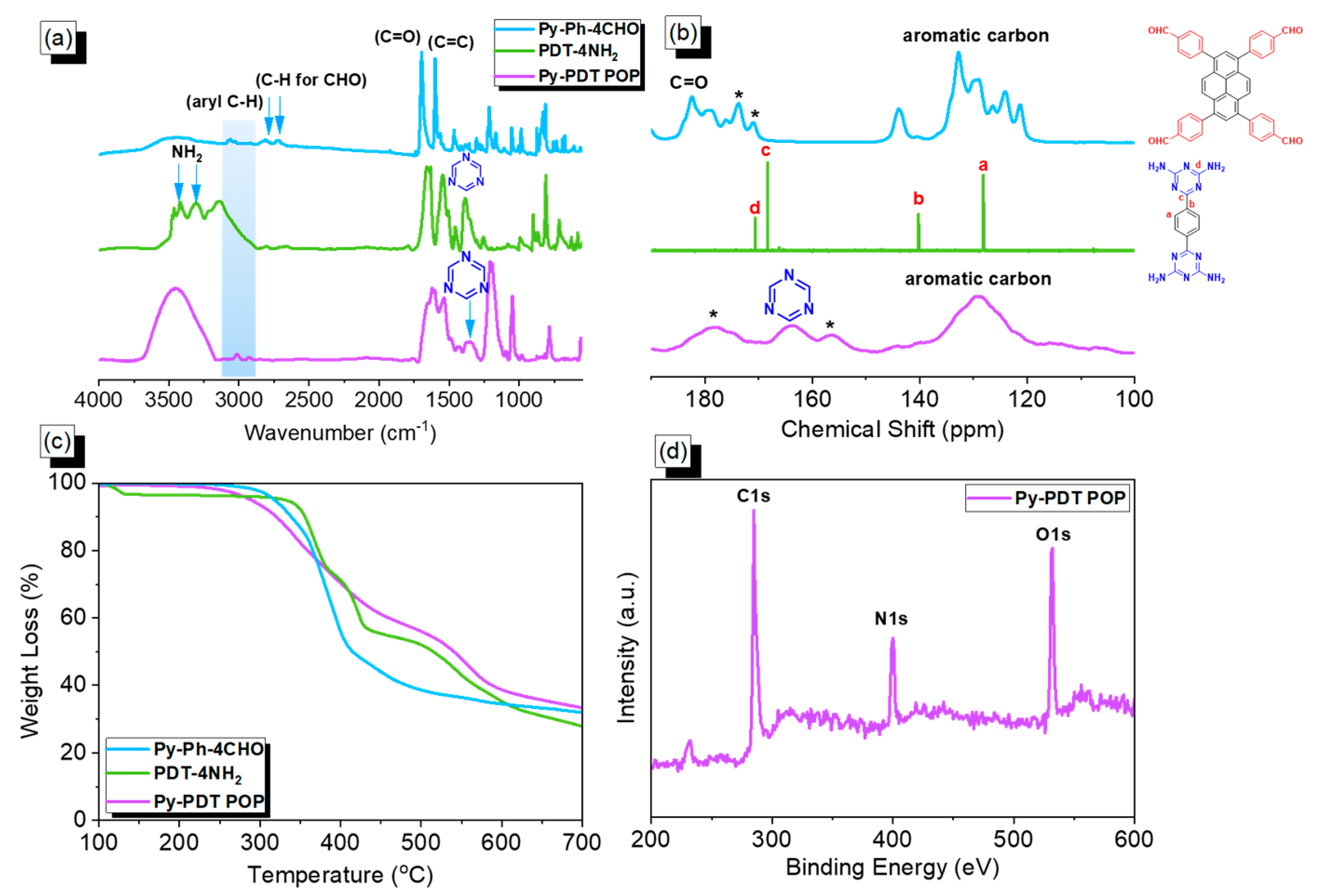

Figure 1. FTIR (a), ssNMR (b), and TGA (c) plots of Py-Ph-4CHO, PDT-4NH2, and Py-PDT POP, recorded at 25 °C; (d) XPS pattern of Py-PDT POP. * is the side band of solid-state nuclear magnetic resonance spectroscopy (NMR).
Figure 1. FTIR (a), ssNMR (b), and TGA (c) plots of Py-Ph-4CHO, PDT-4NH2, and Py-PDT POP, recorded at 25 °C; (d) XPS pattern of Py-PDT POP. * is the side band of solid-state nuclear magnetic resonance spectroscopy (NMR).
Polymers 15 01891 g001
Polymers 15 01891 sch002 550
Scheme 2. Synthesis of Py-PDT POP (a) and Py-PDT POP-600 (b) from Py-Ph-4CHO and PDT-4NH2.
Scheme 2. Synthesis of Py-PDT POP (a) and Py-PDT POP-600 (b) from Py-Ph-4CHO and PDT-4NH2.
Polymers 15 01891 sch002
Polymers 15 01891 g002 550
Figure 2. N2 adsorption/desorption (a) and pore size (PSD) curves (b) of Py-PDT POP.
Figure 2. N2 adsorption/desorption (a) and pore size (PSD) curves (b) of Py-PDT POP.
Polymers 15 01891 g002
Polymers 15 01891 g003 550
Figure 3. SEM (a–c), EDS-SEM (d–g), and TEM (h,i) images of Py-PDT POP.
Figure 3. SEM (a–c), EDS-SEM (d–g), and TEM (h,i) images of Py-PDT POP.
Polymers 15 01891 g003
Polymers 15 01891 g004 550
Figure 4. N2 adsorption/desorption (a), pore size (PSD) (b), and TGA (c) curves of Py-PDT POP-600.
Figure 4. N2 adsorption/desorption (a), pore size (PSD) (b), and TGA (c) curves of Py-PDT POP-600.
Polymers 15 01891 g004
Polymers 15 01891 g005 550
Figure 5. SEM (a,b), EDS-SEM (c–f), and TEM (g–i) images of Py-PDT POP-600.
Figure 5. SEM (a,b), EDS-SEM (c–f), and TEM (g–i) images of Py-PDT POP-600.
Polymers 15 01891 g005
Polymers 15 01891 g006 550
Figure 6. CO2 capacity (a) of Py-PDT POP and Py-PDT POP-600 and their performance compared with other materials (b).
Figure 6. CO2 capacity (a) of Py-PDT POP and Py-PDT POP-600 and their performance compared with other materials (b).
Polymers 15 01891 g006
Polymers 15 01891 g007 550
Figure 7. CV (a,b) and GCD (c,d) profiles of Py-PDT POP (a,c) and Py-PDT POP-600 (b,d).
Figure 7. CV (a,b) and GCD (c,d) profiles of Py-PDT POP (a,c) and Py-PDT POP-600 (b,d).
Polymers 15 01891 g007
Polymers 15 01891 g008 550
Figure 8. Capacitance (a) and cycling stability (b), Ragone (c) and EIS (d) profiles of Py-PDT POP and Py-PDT POP-600.
Figure 8. Capacitance (a) and cycling stability (b), Ragone (c) and EIS (d) profiles of Py-PDT POP and Py-PDT POP-600.
Polymers 15 01891 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mousa, A.O.; Mohamed, M.G.; Chuang, C.-H.; Kuo, S.-W. Carbonized Aminal-Linked Porous Organic Polymers Containing Pyrene and Triazine Units for Gas Uptake and Energy Storage. Polymers 2023, 15, 1891. https://doi.org/10.3390/polym15081891

AMA Style

Mousa AO, Mohamed MG, Chuang C-H, Kuo S-W. Carbonized Aminal-Linked Porous Organic Polymers Containing Pyrene and Triazine Units for Gas Uptake and Energy Storage. Polymers. 2023; 15(8):1891. https://doi.org/10.3390/polym15081891

Chicago/Turabian Style

Mousa, Aya Osama, Mohamed Gamal Mohamed, Cheng-Hsin Chuang, and Shiao-Wei Kuo. 2023. "Carbonized Aminal-Linked Porous Organic Polymers Containing Pyrene and Triazine Units for Gas Uptake and Energy Storage" Polymers 15, no. 8: 1891. https://doi.org/10.3390/polym15081891

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
